Seats, restraints

the buckle. Make sure the seat belt

lies across the shoulder and fits tightly

to the body while driving.

Loose or bulky clothing prevents the

seat belt from fitting snugly. Do not

place objects such as handbags or

mobile phones between the seat belt

and your body.

Warning

The seat belt must not rest against

hard or fragile objects in the

pockets of your clothing.

Seat belt reminder

76.

Height adjustment

1. Pull seat belt out slightly.
2. Press the button to disengage the

height adjuster and push it

upwards or downwards.

Adjust the height so that the seat belt

lies across the shoulder. It must not

lie across the throat or upper arm.
Do not adjust while driving.

Seats, restraints

Unfasten

To release seat belt, press red button

on seat belt buckle and guide the seat

belt back.

Using seat belts while pregnant

Warning

The lap belt must be positioned as

low as possible across the pelvis

to prevent pressure on the

abdomen.

Airbag system

The airbag system consists of a

number of individual systems

depending on the scope of

equipment.
When triggered the airbags inflate

within milliseconds. They also deflate

so quickly that it is often unnoticeable

during the collision.

Warning

The airbag system deploys in an

explosive manner, repairs must be

performed by skilled personnel

only.

Warning

Adding accessories that change

the vehicle's frame, bumper

system, height, front end or side

sheet metal, may keep the airbag

system from working properly. The

operation of the airbag system can

also be affected by changing any

parts of the front seats, seat belts,

Seats, restraints

airbag sensing and diagnostic

module, steering wheel,

instrument panel, inner door seals

including the speakers, any of the

airbag modules, ceiling or pillar

trim, front sensors, side impact

sensors or airbag wiring.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

The airbag systems and belt

pretensioner control electronics are

located in the centre console. Do not

put any magnetic objects in this

area.
Do not affix any objects onto the

airbag covers and do not cover them

with other materials. Have damaged

covers replaced by a workshop.
Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it may be

necessary to have the steering

wheel, the instrument panel, parts of

the panelling, the door seals,

handles and the seats replaced.
Do not make any modifications to

the airbag system as this will

invalidate the vehicle operating

permit.

Control indicator

for airbag systems

76.

Child restraint systems on front

passenger seat with airbag

systems

EN: NEVER use a rearward-facing

child restraint on a seat protected by

an ACTIVE AIRBAG in front of it;

DEATH or SERIOUS INJURY to the

CHILD can occur.
DE: Nach hinten gerichtete

Kindersitze NIEMALS auf einem Sitz

verwenden, der durch einen davor

befindlichen AKTIVEN AIRBAG

geschützt ist, da dies den TOD oder

SCHWERE VERLETZUNGEN DES

KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège

d'enfant orienté vers l'arrière sur un

siège protégé par un COUSSIN

GONFLABLE ACTIF placé devant lui,

sous peine d'infliger des

BLESSURES GRAVES, voire

MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de

retención infantil orientado hacia

atrás en un asiento protegido por un

AIRBAG FRONTAL ACTIVO. Peligro

de MUERTE o LESIONES GRAVES

para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ

устанавливать детское

удерживающее устройство лицом

Seats, restraints

назад на сиденье автомобиля,

оборудованном фронтальной

подушкой безопасности, если

ПОДУШКА НЕ ОТКЛЮЧЕНА! Это

может привести к СМЕРТИ или

СЕРЬЕЗНЫМ ТРАВМАМ

РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts

gericht kinderzitje op een stoel met

een ACTIEVE AIRBAG ervoor, om

DODELIJK of ERNSTIG LETSEL van

het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt

autostol på et forsæde med AKTIV

AIRBAG, BARNET kan komme i

LIVSFARE eller komme ALVORLIGT

TIL SKADE.
SV: Använd ALDRIG en bakåtvänd

barnstol på ett säte som skyddas med

en framförvarande AKTIV AIRBAG.

DÖDSFALL eller ALLVARLIGA

SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin

suunnattua lasten turvaistuinta

istuimelle, jonka edessä on

AKTIIVINEN TURVATYYNY, LAPSI

VOI KUOLLA tai VAMMAUTUA

VAKAVASTI.

NO: Bakovervendt

barnesikringsutstyr må ALDRI brukes

på et sete med AKTIV

KOLLISJONSPUTE foran, da det kan

føre til at BARNET utsettes for

LIVSFARE og fare for ALVORLIGE

SKADER.
PT: NUNCA use um sistema de

retenção para crianças voltado para

trás num banco protegido com um

AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE

VIDA ou FERIMENTOS GRAVES na

CRIANÇA.
IT: Non usare mai un sistema di

sicurezza per bambini rivolto

all'indietro su un sedile protetto da

AIRBAG ATTIVO di fronte ad esso:

pericolo di MORTE o LESIONI

GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό

κάθισμα ασφαλείας με φορά προς τα

πίσω σε κάθισμα που προστατεύεται

από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,

διότι το παιδί μπορεί να υποστεί

ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ

ΤΡΑΥΜΑΤΙΣΜΟ.

PL: NIE WOLNO montować fotelika

dziecięcego zwróconego tyłem do

kierunku jazdy na fotelu, przed

którym znajduje się WŁĄCZONA

PODUSZKA POWIETRZNA.

Niezastosowanie się do tego

zalecenia może być przyczyną

ŚMIERCI lub POWAŻNYCH

OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet

sistemini KESİNLİKLE önünde bir

AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta

kullanmayınız. ÇOCUK ÖLEBİLİR

veya AĞIR ŞEKİLDE

YARALANABİLİR.
UK: НІКОЛИ не використовуйте

систему безпеки для дітей, що

встановлюється обличчям назад,

на сидінні з УВІМКНЕНОЮ

ПОДУШКОЮ БЕЗПЕКИ, інакше це

може призвести до СМЕРТІ чи

СЕРЙОЗНОГО ТРАВМУВАННЯ

ДИТИНИ.
HU: SOHA ne használjon hátrafelé

néző biztonsági gyerekülést előlről

AKTÍV LÉGZSÁKKAL védett ülésen,

mert a GYERMEK HALÁLÁT vagy

KOMOLY SÉRÜLÉSÉT okozhatja.

Seats, restraints

HR: NIKADA nemojte koristiti sustav

zadržavanja za djecu okrenut prema

natrag na sjedalu s AKTIVNIM

ZRAČNIM JASTUKOM ispred njega,

to bi moglo dovesti do SMRTI ili

OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega

varnostnega sedeža, obrnjenega v

nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO

BLAZINO, saj pri tem obstaja

nevarnost RESNIH ali SMRTNIH

POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni

sistem za decu u kome su deca

okrenuta unazad na sedištu sa

AKTIVNIM VAZDUŠNIM

JASTUKOM ispred sedišta zato što

DETE može da NASTRADA ili da se

TEŠKO POVREDI.
MK: НИКОГАШ не користете детско

седиште свртено наназад на

седиште заштитено со АКТИВНО

ВОЗДУШНО ПЕРНИЧЕ пред него,

затоа што детето може ДА ЗАГИНЕ

или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте

детска седалка, гледаща назад,

върху седалка, която е защитена

чрез АКТИВНА ВЪЗДУШНА

ВЪЗГЛАВНИЦА пред нея - може да

се стигне до СМЪРТ или

СЕРИОЗНО НАРАНЯВАНЕ на

ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun

pentru copil îndreptat spre partea din

spate a maşinii pe un scaun protejat

de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL

sau VĂTĂMAREA GRAVĂ a

COPILULUI.
CS: NIKDY nepoužívejte dětský

zádržný systém instalovaný proti

směru jízdy na sedadle, které je

chráněno před sedadlem AKTIVNÍM

AIRBAGEM. Mohlo by dojít k

VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ

DÍTĚTE.
SK: NIKDY nepoužívajte detskú

sedačku otočenú vzad na sedadle

chránenom AKTÍVNYM AIRBAGOM,

pretože môže dôjsť k SMRTI alebo

VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal

atgręžtos vaiko tvirtinimo sistemos

sėdynėje, prieš kurią įrengta AKTYVI

ORO PAGALVĖ, nes VAIKAS GALI

ŽŪTI arba RIMTAI SUSIŽALOTI.

LV: NEKĀDĀ GADĪJUMĀ

neizmantojiet uz aizmuguri vērstu

bērnu sēdeklīti sēdvietā, kas tiek

aizsargāta ar tās priekšā uzstādītu

AKTĪVU DROŠĪBAS SPILVENU, jo

pretējā gadījumā BĒRNS var gūt

SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole

suunatud lapseturvaistet istmel, mille

ees on AKTIIVSE TURVAPADJAGA

kaitstud iste, sest see võib

põhjustada LAPSE SURMA või

TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li

jħares lejn in-naħa ta’ wara fuq sit

protett b’AIRBAG ATTIV quddiemu;

dan jista’ jikkawża l-MEWT jew

ĠRIEĦI SERJI lit-TFAL.
GA: Ná húsáid srian sábháilteachta

linbh cúil RIAMH ar shuíochán a

bhfuil mála aeir ag feidhmiú os a

chomhair. Tá baol BÁIS nó GORTÚ

DONA don PHÁISTE ag baint leis.
Additionally, for safety reasons a

forward-facing child restraint system

must only be used subject to the

instructions and restrictions in the

table

49.

Seats, restraints

The airbag label is located on both

sides of the front passenger sun visor.
Airbag deactivation

44.

Front airbag system

The front airbag system consists of

one airbag in the steering wheel and

one in the instrument panel on the

front passenger side. These can be

identified by the word AIRBAG.
The front airbag system is triggered in

the event of a front-end impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and head of

the front seat occupants

considerably.

Warning

Optimum protection is only

provided when the seat is in the

proper position.
Seat position

30.

Keep the area in which the airbag

inflates clear of obstructions.
Fit the seat belt correctly and

engage securely. Only then is the

airbag able to protect.

Side airbag system

The side airbag system consists of an

airbag in each front seat backrest.

This can be identified by the word

AIRBAG.
The side airbag system is triggered in

the event of a side impact of a certain

severity. The ignition must be

switched on.

Seats, restraints

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and pelvis in

the event of a side-on collision

considerably.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.
The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.

Warning

Keep the area in which the airbag

inflates clear of obstructions.
The hooks on the handles in the

roof frame are only suitable for

hanging up light articles of

clothing, without coat hangers. Do

not keep any items in these

clothes.

Airbag deactivation

The front passenger airbag system

must be deactivated for child restraint

system on the passenger seat

according to the instructions in the

table

49. The side airbag and

curtain airbag systems, the belt

pretensioners and all driver airbag

systems will remain active.

Seats, restraints

The front passenger airbag system

can be deactivated via a key-

operated switch in the glovebox.
Use the ignition key to choose the

position:
OFF

: front passenger airbag is

deactivated and will not

inflate in the event of a

collision, control indicator

OFF

illuminates

continuously in the centre

console

: front passenger airbag is

active

Danger

Deactivate passenger airbag only

in combination with the use of a

child restraint system, subject to

the instructions and restrictions in

the table

49.

Otherwise, there is a risk of fatal

injury for a person occupying a

seat with a deactivated front

passenger airbag.

If the control indicator

illuminates

for approx. 60 seconds after the

ignition is switched on, the front

passenger airbag system will inflate

in the event of a collision.
If the control indicator

illuminates

after the ignition is switched on, the

front passenger airbag system is

deactivated. It stays on while the

airbag is deactivated.
If both control indicators are

illuminated at the same time, there is

a system failure. The status of the

system is not discernible, therefore

no person is allowed to occupy the

front passenger seat. Contact a

workshop immediately.
Consult a workshop immediately if

neither of the two control indicators

are illuminated.
Change status only when the vehicle

is stopped with the ignition off.
Status remains until the next change.
Control indicator for airbag

deactivation

77.

Seats, restraints

Child restraints

Child restraint systems

Danger

Make sure that children below

sufficient size and weight are

protected using a suitable child

restraint system. Never place a

child on the lap.

Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables

49.

Airbag deactivation

44.

Airbag label

39.

We recommend a child restraint

system which is tailored specifically to

the vehicle.

In case of any interference of the child

restraint system with vehicle seat

head restraint, adjust or remove the

corresponding head restraint

29.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system. The given

restrictions in the table refer to a test

body, which is the maximum

envelope of all existing child restraint

systems. Make sure that the front

seats do not interfere with the used

child restraint system.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Only drive with the driver seat

correctly adjusted

30.

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. After fastening the child restraint

system the seat belt has to be

tightened

49.

ISOFIX brackets

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the ISOFIX table

49.

Seats, restraints

ISOFIX brackets are indicated by a

label on the backrest. To get access

to the ISOFIX brackets, first pull the

zipper.
An i-Size child restraint system is an

universal ISOFIX child restraint

system according UN Regulation No.

129.
All i-Size child restraint systems can

be used on any vehicle seat suitable

for i-Size, i-Size table

49.

Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.

i-Size child seats and vehicle seats

with i-Size approval are marked with

i-Size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with

the symbol

for a child seat.

In addition to the ISOFIX brackets,

fasten the Top-tether strap to the

Top-tether anchors.
ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF

49.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.
Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident. Do not use forward

facing child restraint system at all

seats when child's weight is below 13

kg.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.
The following child restraints are

recommended for the following

weight classes:

● Group 0, Group 0+:

Maxi Cosi Cabriofix with or

without ISOFIX base for children

up to 13 kg

● Group I: Duo Plus with ISOFIX

and Top-tether for children from

9 kg to 18 kg

● Group II, Group III: Kidfix XP with

or without ISOFIX for children

from 15 kg to 36 kg

● Group III: Graco Booster for

children from 22 kg to 36 kg

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.

Seats, restraints

Child seat at the front: Adjust the front

passenger seat to the highest and

fully back longitudinal position with

the backrest straightened.
Child seat at the rear: Move the

vehicle's front seat forward and

straighten the backrest so that the

legs of the child in the forward facing

or the rearward facing child seat do

not touch the vehicle's front seat.
Follow the child restraint system

manufacturer's instructions to install

the corresponding child restraint

system in the vehicle.
For semi-universal or vehicle specific

child restraint system (ISOFIX or

belted child restraint system), see the

vehicle list provided in the user

manual of the child restraint system.
Ensure that the mounting location of

the child restraint system within the

vehicle is correct, see following table.
Allow children to enter and exit the

vehicle only on the side facing away

from the traffic.
When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Notice

Do not affix anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

Seats, restraints

Child restraint installation locations

Installation of universal, ISOFIX and i-Size child seats

As required by European regulations, this table gives the options for installing child seats secured using the seat belt and

universally approved as well as the larger ISOFIX and i-Size child seats on seat positions equipped with ISOFIX mountings

in the vehicle.
Yes : Suitable for fitment of the designated category of the child restraint system.

No : Not suitable for fitment of the designated category of the child restraint system.

Front passenger seat

Rear outer seats

Rear centre seat

Position compatible with a universal child seat

Yes

Position compatible with an i-Size child seat

Yes

Position equipped with a top-tether fixing

Yes

Carrycot type of child seat

Rearward facing ISOFIX child seat

Forward facing ISOFIX child seat

Booster child seat

10)

11)

12)

11)

12)

13)

Universal child seat: chiId seat that can be installed in all vehicles using the seat belt.

To install a rearward facing child seat at this seat position, the front passenger's airbag must be deactivated OFF.

Only a forward facing child seat is authorised at this seat position with the front passenger's airbag activated ON.

Adjust the vehicle seat to its rearmost position.

Adjust the vehicle seat to its highest position.

Seats, restraints

A child seat with a support leg must never be installed on the centre rear passenger seat.

Move the respective front seat ahead of the child restraint system forwards as far as necessary.

Adjust the respective headrest as necessary or remove if required.

Adjust the vehicle seat to its lowest position.

10)

Adjust the respective headrest to the lowest position.

11)

Adjust the respective front seat ahead of the child restraint system to its lowest position with the seatback in an upright position.

12)

Adjust the respective headrest to its highest position.

13)

Seats not fitted with ISOFIX compliant mountings.

Rules:

● A position that is i-Size compatible is also compatible for R1, R2 and F2X, F2, B2.
● A position that is R3 compatible is also compatible for R1, R2 and R2X.
● A position that is R2 compatible is also compatible for R1.
● A position that is F3 compatible is also compatible for F2X and F2.
● A position that is B3 compatible is also compatible for B2.

Size of child restraint fixture (1, 2, 3):

● R1 means rearward facing child restraint fixture for mass group 0 up to 10 kg and mass group 0+ up to 13 kg, age

around 0-1 year.

● R2 means reduced size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1

from 9 to 18 kg, age around 2-4 years.

● R3 means full size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1 from 9

to 18 kg, age around 2-4 years.

● F2, F2X mean reduced height of forward facing child restraint fixture for mass group 1 from 9 to 18 kg, age around

6-7 years.

● F3 means full height of forward facing child restraint fixture for mass group 1 from 9 to 18 kg, age around 7-10 years.

Storage

Storage compartments ................ 51

Glovebox ................................... 51

Cupholders ................................ 51

Centre console storage ............. 52

Load compartment ....................... 52

Load compartment cover ........... 54

Rear floor storage cover ............ 54

Lashing eyes ............................. 55

Safety net .................................. 55

Warning triangle ........................ 57

First aid kit ................................. 57

Roof rack system ......................... 58

Roof rack ................................... 58

Loading information ..................... 58

Storage compartments

Warning

Do not store heavy or sharp

objects in the storage

compartments.

Glovebox

The glovebox should be closed whilst

driving.

Cupholders

Cupholders are located in the centre

console.

Storage

Additional cupholders are located in

the rear armrest. Fold down armrest.

Centre console storage

The storage container can be used to

store small items.
Depending on the version, the

storage compartment is located

under a cover.

Load compartment

The rear seat backrest is divided into

2/3 to 1/3 parts. Both parts can be

folded down individually to increase

the size of the load compartment.
Before folding rear seat backrests,

execute the following if necessary:

● Move front seats forward if

necessary.

● Remove the load compartment

cover.

● Press and hold the catch to push

the head restraints down.

Load compartment cover

54.

Head restraints

Folding down/up rear backrests

● Check that the seat belts are not

engaged in the seat belt buckles,

so that the backrests can be

moved.

● Pull the release lever on one or

both outer sides and fold down

the backrests onto the seat

cushion.

Storage

● Alternatively fold seat backrests

from the load compartment: pull

switch on left or right sidewall of

the load compartment to fold the

corresponding part of the rear

seat backrest.

Warning

Take care when operating the rear

backrests from the load

compartment. The backrest is

folded with considerable power.

Risk of injury, particularly to

children.
Ensure that nothing is attached to

the rear seats or located on the

seat cushion.

● To fold up, raise the backrests

and guide them into an upright

position until they engage

audibly. Make sure that the belts

are positioned correctly and stay

clear of the folding area.

Warning

When folding up, ensure that

backrests are securely locked in

position before driving. Failure to

do so may result in personal injury

or damage to the load or vehicle in

the event of hard braking or a

collision.

Opening the pass through in the

centre backrest

Fold down the rear armrest.

Pull grip and open the cover.

Storage

Suitable for loading long, narrow

objects.

Load compartment cover

Do not place any objects on the cover.

Removing cover

Unhook the retaining straps from the

tailgate.

Lift cover at the rear and push it

upwards at the front.
Remove the cover.

Fitting cover

Engage the cover in the side guides

and fold downwards. Attach the

retaining straps to the tailgate.

Rear floor storage cover

The rear floor cover can be lifted and

removed. Raise cover at the loop and

remove.

Storage

To hold the load compartment cover

in an upright positon, lift it up past the

retractable stops.

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

Safety net

The safety net can be installed behind

the rear seats or, if the rear seat

backrests are folded, behind the front

seats.

Passengers must not be transported

behind the safety net.

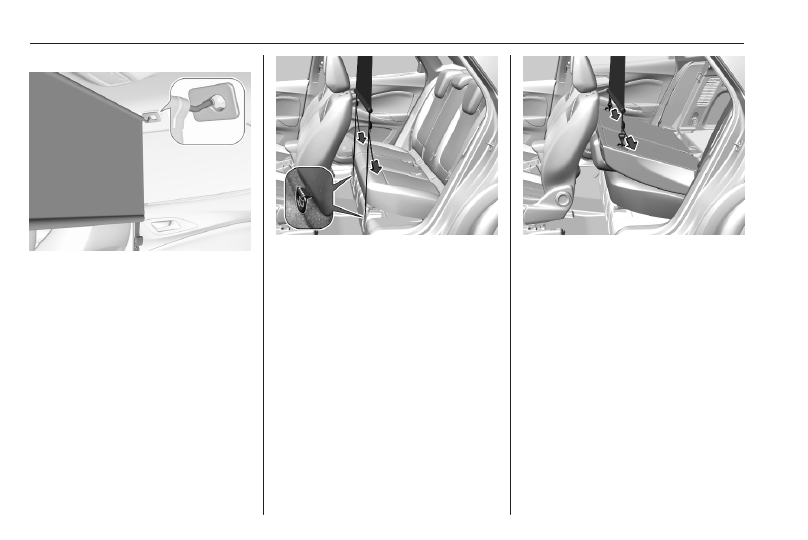

Installation

Behind the rear seats

● There are installation openings

on both sides in the roof frame

above the rear seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

● Attach the hooks of safety net

straps in the lashing eyes behind

the rear seats.

● Tension both straps by pulling at

the loose end.

● Rear seat backrests must be

raised up.

Storage

Behind the front seats

● There are installation openings

on both sides in the roof frame

above the front seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

● Attach hooks of safety net straps

to the lashing eyes at the lower

area of the rear seats.

● Tension both straps by pulling at

the loose end.

● Push down head restraints and

fold down rear seat backrests

52.

Depending on version, the hooks of

the safety net straps are attached to

the lashing eyes on the backside of

the rear seats.

● Push down head restraints and

fold down rear seat backrests.

● Attach the hooks of safety net

straps to the lashing eyes on the

backside of the rear sets.

● Tension both straps by pulling at

the loose end.

Storage

Removal

Pull the flap at the tightener on both

sides to release the straps. Detach

hooks from the lashing eyes.
Unhook the safety net rods from the

installation openings in the roof

frame.
Roll up the net and secure with a

strap.

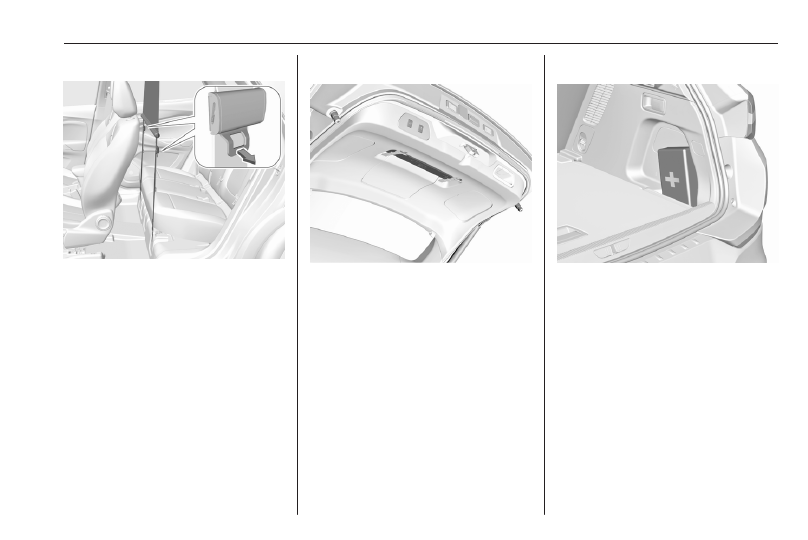

Warning triangle

Stow the warning triangle in the space

on the inside of the tailgate and

secure it with the Velcro

fastener.

Depending on version, the warning

triangle may be stowed below the rear

floor cover of the load compartment.

First aid kit

Stow the first aid kit in the storage

compartment on the right side of the

load compartment.
Depending on version, the first aid kit

may be stowed below the rear floor

cover of the load compartment.

Storage

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle-

approved roof rack system is

recommended.
Follow the installation instructions

and remove the roof rack when not in

use.

Vehicles with roof railing

Fasten the roof rack in the roof railing

above the mounting points located in

each door frame of the vehicle body.

Vehicles without roof railing

Open all doors.
Mounting points are located in each

door frame of the vehicle body.
Detach the cover from each mounting

point and fasten the roof rack with the

attached screws.

Loading information

Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● Heavy objects in the load

compartment should be placed

against the seat backrests. Make

sure that the backrests are

Storage

securely engaged. If objects can

be stacked, heavier objects

should be placed at the bottom.

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

55.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate

303) and the EC kerb

weight.

To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than 75 mph.
The permissible roof load is

85 kg. The roof load is the

combined weight of the roof rack

and the load.

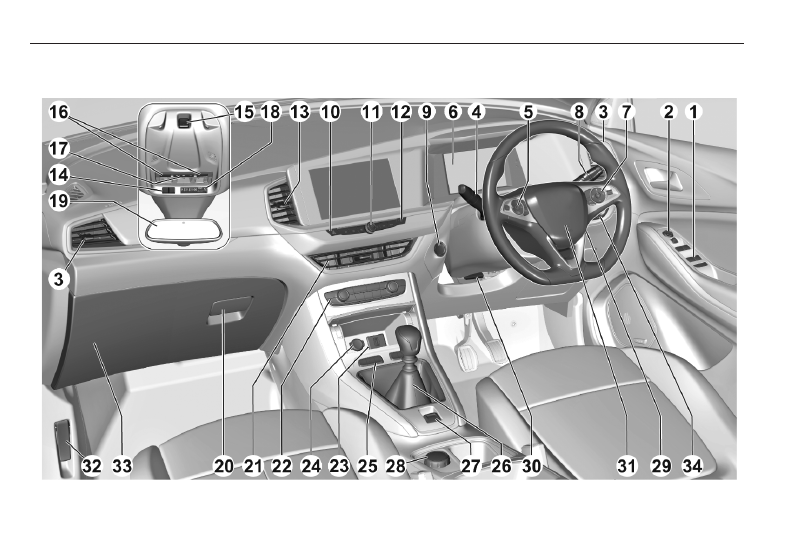

Instruments and controls

Power windows ..................... 26

Exterior mirrors ..................... 23

Side air vents ...................... 166

Turn lights, headlight

flash, low / high beam,

high beam assist ................... 99
Exit lighting ......................... 102
Parking lights ...................... 100
Buttons for Driver

Information Centre ................ 84

Cruise control ..................... 203
Adaptive cruise control ....... 207
Speed limiter ....................... 205
Heated steering wheel .......... 64

Instruments ........................... 71
Driver Information Centre ...... 84

Infotainment controls

Windscreen wiper and

washer, rear wiper and

washer ................................. 65

Power button ....................... 171

10 Central locking system .......... 10

11 Controls for Info Display

operation .............................. 85

12 Hazard warning flashers  ...... 98
13 Air vents  ............................. 166
14 Vauxhall Connect  ................. 91
15 Inclination sensor  ................. 21
16 Reading lights  .................... 101
17 Interior lights  ...................... 101
18 Seat belt reminder  ................ 36

Airbag deactivation .............. 44

19 Interior mirror  ....................... 24
20 Glovebox  .............................. 51
21 Centre air vents  .................. 166
22 Climate control system ........ 159
23 USB charging port  ................ 68
24 Power outlet .......................... 68
25 Parking assist, advanced

parking assist ..................... 219
Lane departure warning ..... 236
Eco button for stop-start

system ................................. 174

Electronic Stability Control

and Traction Control ........... 199
Sport mode ......................... 202

26 Manual transmission .......... 192

Automatic transmission ...... 182

27 Electric parking brake ......... 196
28 Selective ride control .......... 200
29 Ignition switch ..................... 170
30 Steering wheel adjustment  . . 64
31 Horn  ..................................... 65
32 Bonnet release lever  .......... 265
33 Instrument panel fuse box  . 277
34 Light switch  .......................... 93

Headlight range

adjustment  ........................... 95
Front / rear fog lights  ............ 99
Instrument illumination  ....... 100

Instruments and controls

Controls

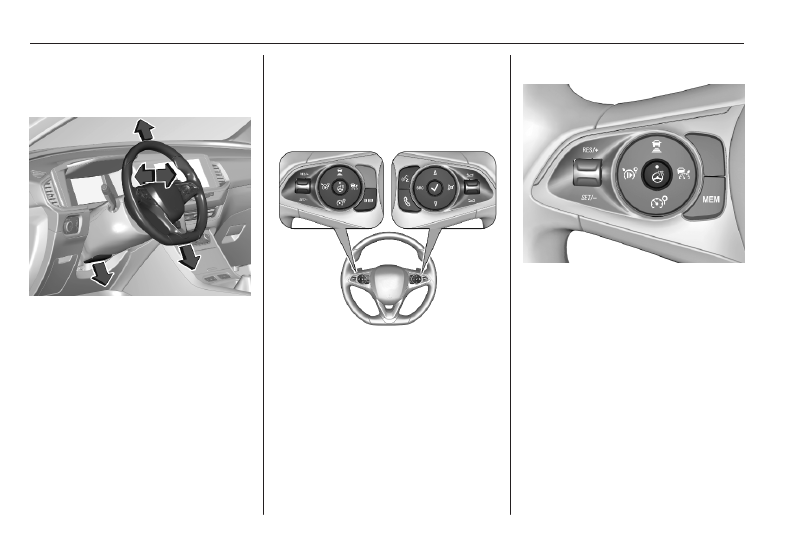

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and, depending

on version, the steering wheel lock

has been released.

Steering wheel controls

Some driver assistance systems,

Infotainment system and a connected

mobile phone can be operated via the

controls on the steering wheel.

Further information is available in the

Infotainment system section.
Cruise control

203.

Speed limiter

205.

Adaptive cruise control

207.

Heated steering wheel

Activate heating by pressing

Activation is indicated by the LED in

the button.
The heating works only when the

outside temperature is below 20 °C.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system

174.

Instruments and controls

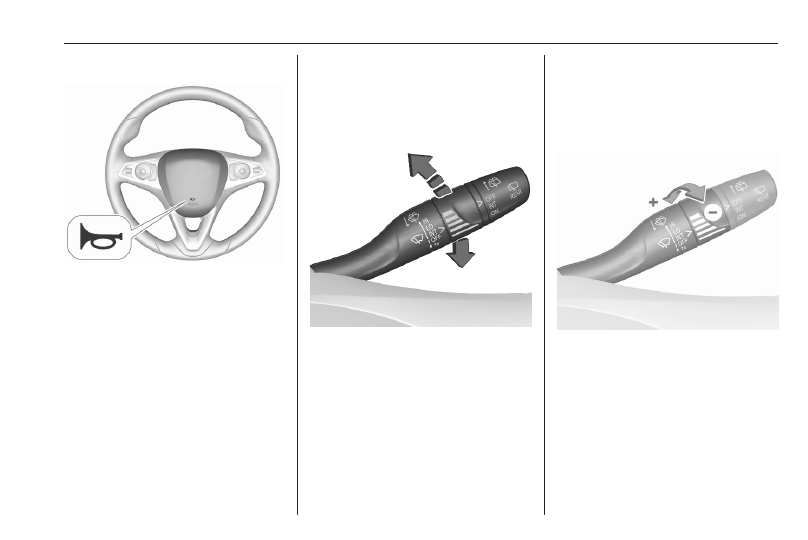

Horn

Press

Pedestrian safety alert

The sound of the pedestrian safety

alert is generated to indicate the

vehicle presence to pedestrians when

combustion engine is off. It is active

up to 12 mph.

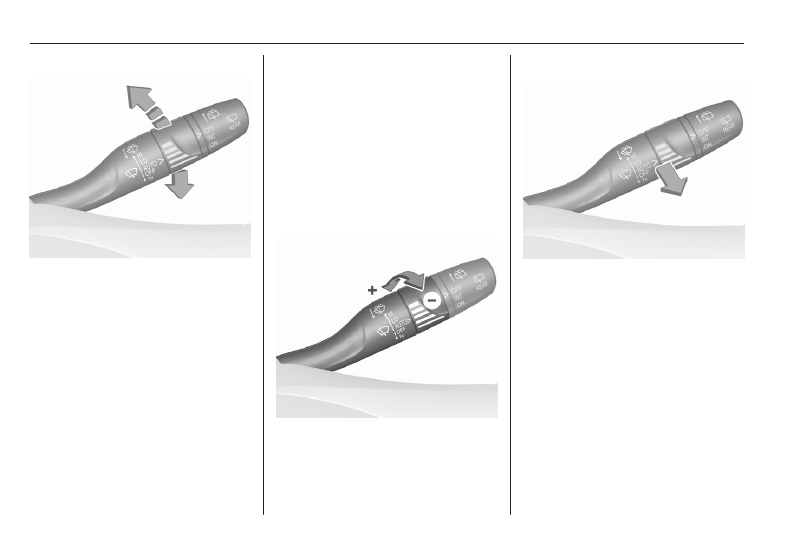

Windscreen wiper and

washer

Windscreen wiper with adjustable

wiper frequency

: fast

LO : slow

INT : interval wiping

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

To activate interval wiping mode the

next time ignition is switched on,

press the lever downwards to position

OFF and back to INT.

Adjustable wiper frequency

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe frequency.

Instruments and controls

Windscreen wiper with rain sensor

: fast

: slow

AUTO : automatic wiping with rain

sensor

OFF : off
In AUTO position, the rain sensor

detects the amount of water on the

windscreen and automatically

regulates the frequency of the

windscreen wiper. If ignition is

switched off, automatic wiping mode

is deactivated. To activate automatic

wiping mode the next time ignition is

switched on, press the lever

downwards to position OFF and back

to AUTO.
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity of the rain sensor.
Make sure the sensor is not blocked

25.

Control indicator

65.

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid

268.

Instruments and controls

Rear window wiper and

washer

Rear window wiper

OFF : off

INT : intermittent operation

ON : continuous operation
Do not use if the rear window is

frozen.
Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.

Activation or deactivation of this

function can be changed in the Info

Display

85.

Rear window washer

Push lever.
Washer fluid is sprayed onto the rear

window and the wiper wipes a few

times.
The rear window washer system is

deactivated when the fluid level is

low.
Washer fluid

268.

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Illustration shows an example.
If outside temperature drops to 3 °C,

a warning message is displayed in the

Driver Information Centre.

Warning

The road surface may already be

icy even though the display

indicates a few degrees above 0

°C.

Instruments and controls

Clock

Date and time are shown in the Info

Display.
The adjustment of date and time is

described in the Infotainment system

section.
Info Display

85.

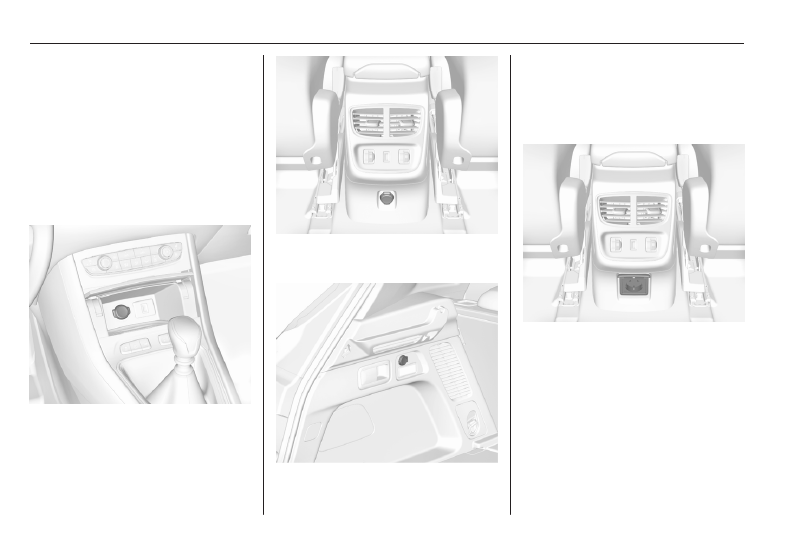

Power outlets

A 12 V power outlet is located behind

the storage cover. Press cover to

open.

A 12 V power outlet is also located in

the rear console.

At the left sidewall in the load

compartment, another 12 V power

outlet is located.
Do not exceed the maximum power

consumption of 120 W.

A 230 V power outlet may also be

located in the rear console.
Do not exceed the maximum power

consumption of 150 W.
With ignition off, the power outlets are

deactivated. Additionally the power

outlets are deactivated in the event of

low vehicle battery voltage.

Instruments and controls

Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.
Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.
Do not damage the outlet by using

unsuitable plugs.
Stop-start system

174.

USB ports

A USB port is located behind the

storage cover. Press cover to open.

A further USB port may be located in

the rear console.
The USB ports are prepared for

charging external devices and

provide a data connection to the

Infotainment system. For further

information, see Infotainment system

section.

Notice

The sockets must always be kept

clean and dry.

Inductive charging

Warning

Inductive charging can affect the

operation of implanted

pacemakers or other medical

devices. If applicable, seek

medical advice before using the

inductive charging device.

Warning

Remove any metal objects from

the charging device before

charging a mobile device, as these

objects could become very hot.

Vauxhall Grandland X (2023 year). Manual in english - page 2
