Vauxhall Combo E (2023 year). Manual in english

Storage

3. Move the partition and lock the

four locking devices on the top

and the bottom.

Warning

Take care when operating the

bottom locking devices. Risk of

pinching.

Opening the flap

1. Depending on the positioning of

the partition and the length of the

load fold down the outer rear seat

backrest and / or passenger seat

backrest

34, 37

2. Release the locking device of the

flap and open the flap.

3. Secure the flap with the rod.

Closing the flap

1. Fix the rod in the bracket.

2. Close the flap and lock the locking

device.

3. Restore the seats to the upright

position

34, 37

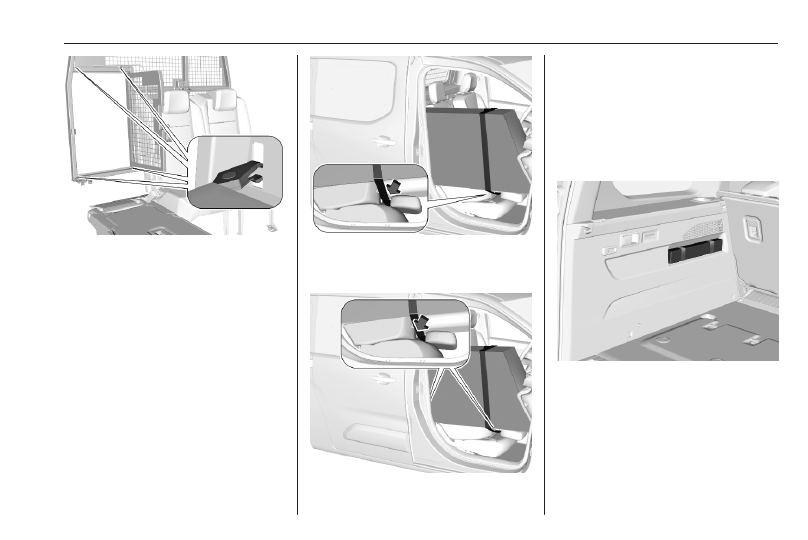

Fitting the protective cover

The protective cover must be

installed whenever the side seat

backrest is folded down and the

partition flap is open.

Storage

1. Attach the four snap hooks of the

cover on the corresponding

lashing eye.

2. Pull the head restraint from the

folded backrest, leaving two

notches visible on the head

restraint rod

31.

3. Load the objects.

4. Pass the strap of the cover around

the head restraint. Tension the

strap by pulling at the loose end.

If the loading is stored on the front

and rear seat at the passenger

side pass one strap on each head

restraint.

With fitted protective cover the

maximum load on each of the folded

backrests is 100 kg.

Warning triangle

Depending on version, the warning

triangle can be stowed in the load

compartment. Secure it with the

elastic straps.

Storage

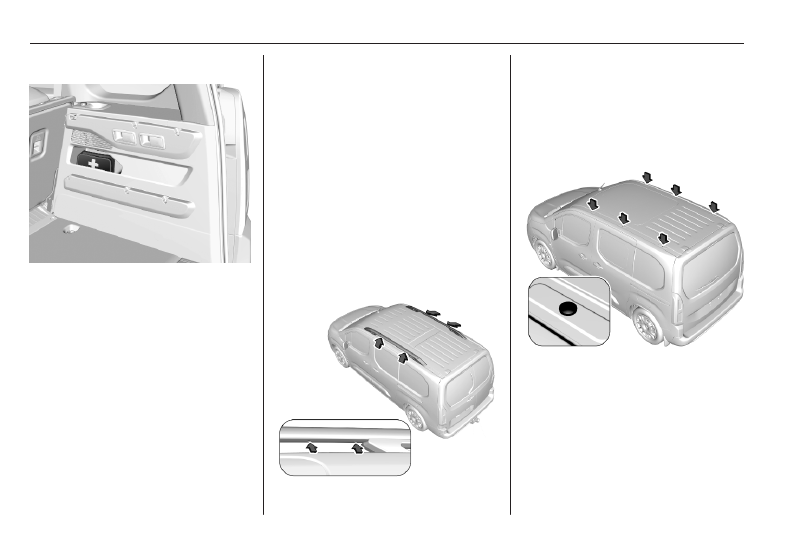

First aid kit

Depending on version, the first aid kit

can be stowed in the load

compartment.

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information contact your workshop.
Follow the installation instructions

and remove the roof rack when not in

use.

Mounting roof rack

Vehicles with roof railing

Mounting points are located at the

bottom of the roof railing.
Fasten the roof rack according to the

installation instructions delivered with

the roof rack.

Vehicles without roof railing

To fasten a roof rack, unscrew the

caps in the roof strips. Insert the

mounting provisions, as instructed, in

the retainer.

Storage

Loading information

Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● Heavy objects in the load

compartment should be placed

against the seat backrests. Make

sure that the backrests are

securely engaged. If objects can

be stacked, heavier objects

should be placed at the bottom.

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

65.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

rear luggage cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate

347) and the EC kerb

weight.

To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than 75 mph.
The permissible roof load is:

Storage

● 80 kg for vehicles with roof

railing

● 100 kg for vehicles without

roof railing and with two roof

racks

● 150 kg for vehicles without

roof railing and with three

roof racks, except vehicles

with seven seats

● 100 kg for vehicles without

roof railing and with three

roof racks and seven seats

The roof load is the combined weight

of the roof rack and the load.

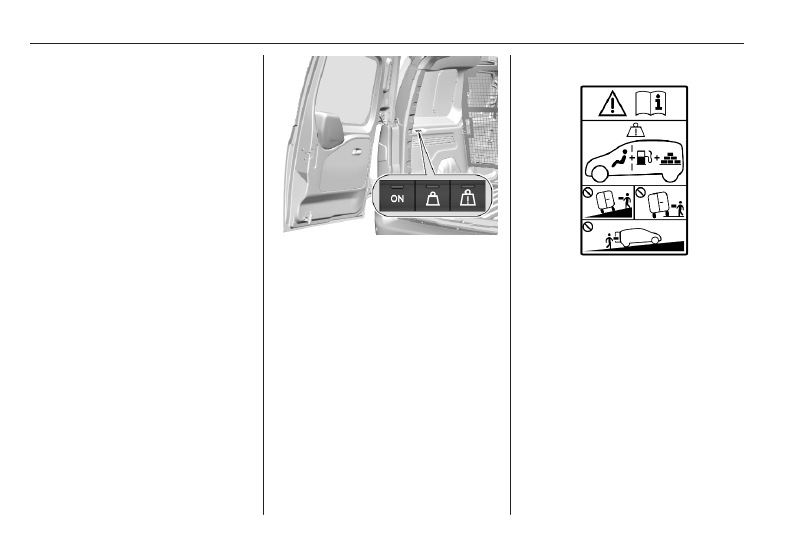

Overload indicator

The overload indicator checks

whether the vehicle is overloaded.

The function is designed to help

avoiding overload and the

consequent risks such as unstable

road behaviour, tyre blowout,

premature wear etc.

If an overcharge is imminent, ON and

are illuminated.

If the vehicle is overloaded, ON,

and

are illuminated. In addition,

is illuminated in the instrument

cluster.

Activation

Notice

For optimal operation, park the

vehicle on a horizontal surface.
Do not park the vehicle on a slope.
Do not park the vehicle with the

wheels on the pavement.

The system is activated automatically

each time the engine is started. In

addition, the system can be activated

manually by pressing ON in the

loading area. After activation, the

system operates for five minutes.

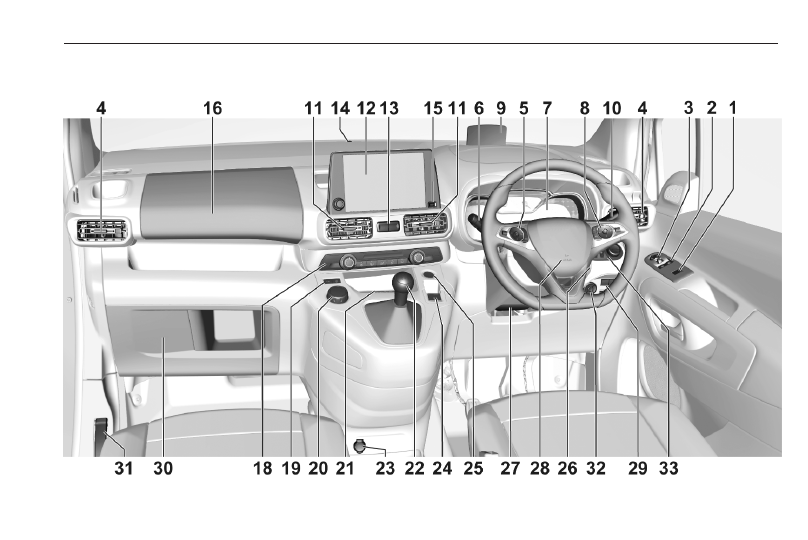

Instruments and controls

Electric child locks ................. 14
Unlocking tailgate ................. 18
Child safety system for

rear windows ......................... 27

Power windows ..................... 27

Exterior mirrors ..................... 23

Side air vents ...................... 214

Cruise control ..................... 246
Speed limiter ....................... 248
Adaptive cruise control ....... 246

Turn lights ........................... 114

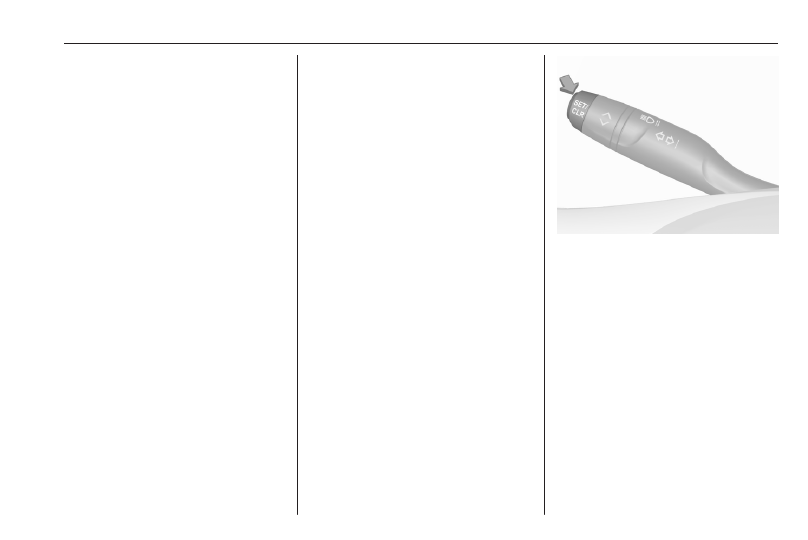

Headlight flash .................... 112
High beam ........................... 111
High beam assist ............... 111
Exit lighting ......................... 117
Parking lights ...................... 115
Buttons for Driver

Information Centre ................ 99

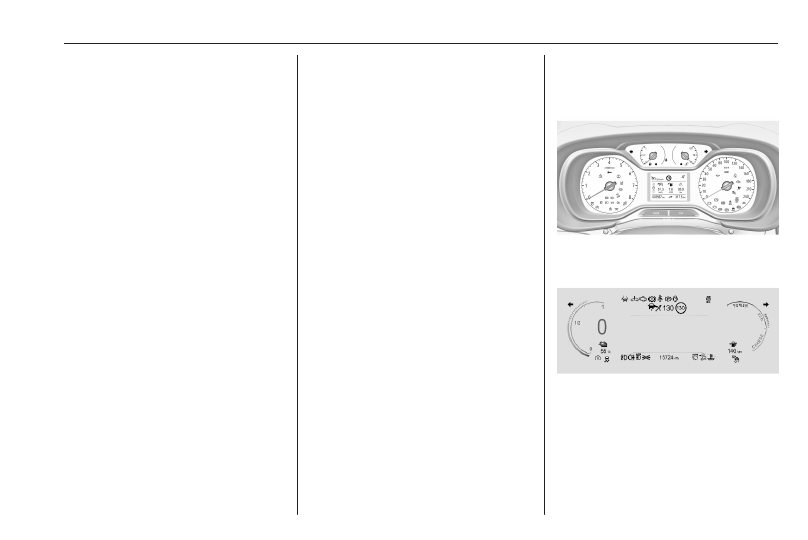

Instruments .......................... 86
Driver Information Centre ...... 99

Infotainment controls

Head-up display .................. 103

10 Windscreen wiper and

washer, rear wiper and

washer ................................. 80

11 Air vents  ............................. 214
12 Info Display  ........................ 102
13 Hazard warning flashers  .... 113

Central locking system .......... 10

14 Sun sensor .......................... 207
15 USB charging port ................ 83
16 Storage ................................. 57
18 Climate control system ........ 204
19 Electronic Stability Control

and Traction Control ........... 242
Eco mode
Descent control system ....... 243

20 Selective ride control .......... 244
21 Inductive charging ................. 84
22 Manual transmission .......... 236

Automatic transmission ...... 233

23 Power outlet .......................... 83
24 Electric parking brake ......... 238
25 Power button ....................... 219

26 Ignition switch ..................... 218
27 Steering wheel adjustment . . 79
28 Horn ..................................... 80
29 Parking assist / Advanced

parking assist ..................... 263
Electric child locks ................. 14
Eco button for stop-start

system ................................. 222
Lane keep assist ................. 280
Tyre deflation detection

system ................................. 323
Parking heater .................... 211

30 Fuse box ............................. 320
31 Bonnet release lever .......... 305
32 Head-up display .................. 103
33 Light switch ........................ 110

Front / rear fog lights .......... 114
Instrument illumination ....... 115

Instruments and controls

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

Cruise control and speed limiter are

operated via the controls on the left

side of the steering wheel.
Additionally, adaptive cruise control

can be set by using the controls on the

left side of the steering wheel.
Infotainment system can be operated

via the controls on the right side of the

steering wheel.
Further information is available in the

Infotainment system section.
Driver assistance systems

246.

Heated steering wheel

Activate heating by pressing

Activation is indicated by the LED in

the button.
The heating works only when the

outside temperature is below 20 °C.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system

222.

Instruments and controls

Horn

Press

Pedestrian safety alert

The sound of the pedestrian safety

alert is generated to indicate the

vehicle presence to pedestrians. It is

active up to 19 mph.

Windscreen wiper and

washer

Windscreen wiper with adjustable

wiper frequency

: fast

LO : slow

INT : interval wiping

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

To activate interval wiping mode the

next time ignition is switched on,

press the lever downwards to position

OFF and back to INT.

Adjustable wiper frequency

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe frequency.

Instruments and controls

Windscreen wiper with rain sensor

: fast

: slow

AUTO : automatic wiping with rain

sensor

OFF : off
In AUTO position, the rain sensor

detects the amount of water on the

windscreen and automatically

regulates the frequency of the

windscreen wiper. If ignition is

switched off, automatic wiping mode

is deactivated. To activate automatic

wiping mode the next time ignition is

switched on, press the lever

downwards to position OFF and back

to AUTO.
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity.
Make sure the sensor is not blocked

26,

77.

Control indicator

80.

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid

308.

Instruments and controls

Rear window wiper and

washer

Rear window wiper

OFF : off

INT : intermittent operation
Do not use if the rear window is

frozen.
Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.

Activation or deactivation of this

function can be changed in the

Vehicle personalisation menu

107.

Rear window washer

Push lever.
Washer fluid is sprayed onto the rear

window and the wiper wipes a few

times.
The rear window washer system is

deactivated when the fluid level is

low.
Washer fluid

308.

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Illustration shows an example.
If outside temperature drops to 3 °C,

a warning message is displayed in the

Driver Information Centre.

Warning

The road surface may already be

icy even though the display

indicates a few degrees above 0

°C.

Instruments and controls

Clock

Date and time are shown in the Info

Display.
The adjustment of date and time is

described in the Infotainment system

section.
Info Display

102.

Power outlets

A 12 V power outlet is located behind

the storage cover. Push cover

upwards to open.
Depending on the version, the 12 V

power outlet may be freely

accessible.

At the right side of the load

compartment, another 12 V power

outlet may be located.
Do not exceed the maximum power

consumption of 120 W.

A 230 V power outlet may be located

on the lower side of the centre

console in the front passenger

compartment.
Do not exceed the maximum power

consumption of 150 W.
With ignition off, the power outlets are

deactivated. Additionally the power

outlets are deactivated in the event of

low vehicle battery voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.

Instruments and controls

Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.
Do not damage the outlet by using

unsuitable plugs.
Stop-start system

222.

USB ports

A USB port is located in the

instrument panel next to the Info

Display.

A further USB port may be located in

the rear console.
The USB ports are prepared for

charging external devices and

provide a data connection to the

Infotainment system. For further

information, see Infotainment system

section.

Notice

The sockets must always be kept

clean and dry.

Inductive charging

Warning

Inductive charging can affect the

operation of implanted

pacemakers or other medical

devices. If applicable, seek

medical advice before using the

inductive charging device.

Warning

Remove any metal objects from

the charging device before

charging a mobile device, as these

objects could become very hot.

Instruments and controls

The portable device to be charged

must be compatible with the Qi

standard, either by design or by using

a compatible holder or shell. The

charging zone is identified by the Qi

symbol.
To charge a device, the ignition must

be switched on.
To charge a mobile device:

1. Remove all objects from the

charging device.

2. Place the mobile device with the

display facing upwards on the

charging device in the storage.

Charging status is indicated in the

LED: illuminates green, when mobile

device is charging.
Protective cover for the mobile device

could have impact on the inductive

charging.
In the event that the mobile device is

not charging properly, rotate it 180°

and place it on the charging device

again.

Cigarette lighter

The cigarette lighter is freely

accessible.

Depending on version, the cigarette

lighter may be located behind the

storage cover. Press cover to open.
Press in cigarette lighter. It switches

off automatically once the element is

glowing. Pull out cigarette lighter.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

A portable ashtray can be placed in

the cupholders.

Instruments and controls

Warning lights, gauges

and indicators

Speedometer

Indicates vehicle speed.
Depending on version there are

different variants.

Odometer

The total recorded distance is

displayed in miles.

Driver Information Centre

Trip odometer

The recorded distance since the last

reset is displayed in the Driver

Information Centre.

Monochrome display

Trip odometer counts up to

9,999.9 miles without automatic

reset.
Press

for 2 seconds to reset trip

odometer.

Colour display

Trip odometer counts up to

1,999.9 miles and resets then

automatically.
Press

for 2 seconds to reset trip

odometer.

Instruments and controls

The trip / fuel information menu

provides additionally two trip counter

99.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.
A red marker indicates the beginning

of the warning zone of excessive

revolutions. For Diesel engines, the

warning zone starts at 5000

revolutions per minute. For petrol

engines, the warning zone starts at

7000 revolutions per minute.

Caution

If the needle is beyond the red

marker, the maximum permitted

engine speed is exceeded. Engine

at risk.

Fuel gauge

Displays the fuel level.
Control indicator

illuminates if the

fuel level is low.
Never run the fuel tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified fuel tank capacity.

High voltage battery gauge

Displays the high voltage battery

state of charge.

Instruments and controls

Power indicator gauge

The power indicator gauge informs

about the current energy situation of

the vehicle.
Charge : Battery is being charged

with energy resulting from

braking or deceleration of

the vehicle

Eco

: An optimum in energy is

accessible in all driving

modes

Power : Vehicle is driven in a

dynamic driving style with

focus on performance

Engine coolant temperature

gauge

Displays the coolant temperature.
50 : engine operating temperature

not yet reached

90 : normal operating temperature

130 : temperature too high
Control indicator

illuminates if

coolant temperature is too high.

Switch off engine immediately.

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Engine oil level monitor

The state of the engine oil level is

displayed in the Driver Information

Centre for a few seconds following

the service information after switching

on the ignition.
A proper state of engine oil level is

indicated by the message Oil level

correct.
If engine oil level is low,

flashes

and Oil level incorrect is indicated,

accompanied by

. Confirm engine

oil level by using the oil dipstick and

top up engine oil respectively.
Engine oil

306.

A fault of measurement is indicated

by the message Oil level

measurement invalid. Check engine

oil level manually by using the

dipstick.

Instruments and controls

Service display

The service system informs when to

change the engine oil and filter or a

vehicle service is required. Based on

driving conditions, the interval at

which an engine oil and filter change

is required can vary considerably.
Service information

342.

A required service due is displayed in

the Driver Information Centre for

seven seconds after switching on the

ignition.
If no service is required for the next

1800 miles or more no service

information appears in the display.
If service is required within the next

1800 miles, the remaining distance or

time duration is indicated for several

seconds. Simultaneously

illuminates permanently as reminder.
If service is required in less than

600 miles,

flashes and then

illuminates permanently. Remaining

distance or time duration is indicated

for several seconds.

Overdued service is indicated by a

message in the Driver Information

Centre which indicates the overdued

distance.

flashes and then

illuminates permanently until service

is executed.

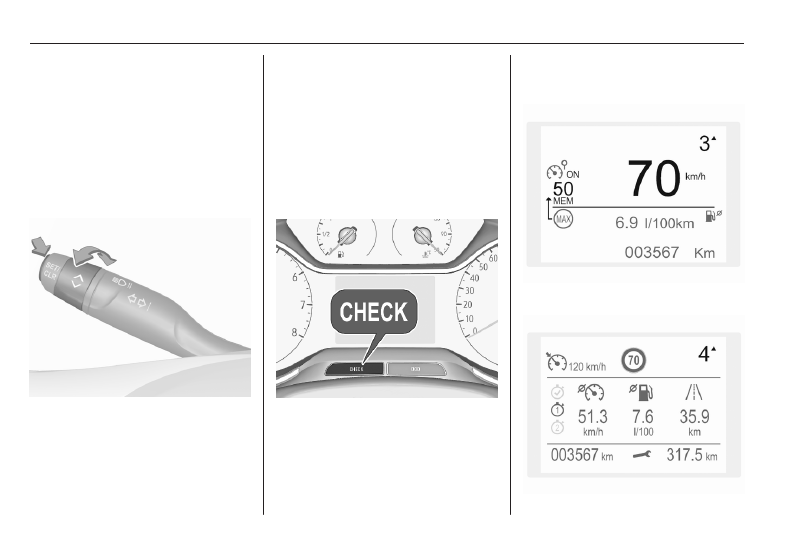

Reset of service interval

After each service, the service

indicator must be reset to ensure

proper functionality. It is

recommended to seek the assistance

of a workshop.
If service is executed by yourself,

operate as following:

● switch off ignition
● press and hold button CHECK
● switch on ignition, the distance

indication begins a countdown

● when the display indicates =0,

release the button

disappears

Depending on version, operate as

following:

● switch off ignition

● press and hold SET / CLR
● switch on ignition, the distance

indication begins a countdown

● when the display indicates =0,

release SET / CLR

The symbol

disappears.

Instruments and controls

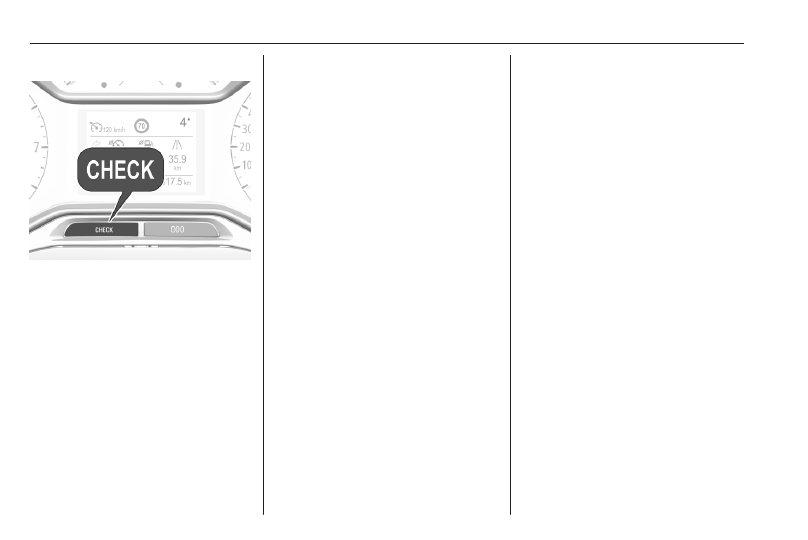

Retrieving service information

To retrieve the status of the service

information at any time press button

CHECK. Depending on version,

press Check in the vehicle settings

menu. The service information is

displayed for a few seconds.
Service information

342.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation

grey

: system paused, at least one

system limitation has been

detected

Control indicators are located in the

Driver Information Centre.
Driver Information Centre

99.

Overview

The numbers in the overview table

indicate what to do, when a control

indicator illuminates or flashes.
1 : only for information

2 : information and warning

3 : seek the assistance of a

workshop

4 : stop engine and seek the

assistance of a workshop

5 : have the cause of the fault

remedied immediately by a

workshop

6 : stop vehicle, do not continue the

journey and seek the assistance

of a workshop

1 Turn signal

2 Seat belt reminder

5 Airbag and belt

tensioners

1 Airbag deactivation

4 Charging system

5 Malfunction indicator

light

5 Service vehicle soon

STOP

4 Stop engine

4 System check

Instruments and controls

6 Brake and clutch

system

1 /

Parking brake

Electric parking brake

2 Antilock brake system

(ABS)

1 Gear shifting

2 Lane keep assist

2 /

Electronic Stability

Control and Traction

Control system

1 Preheating

2 /

Exhaust filter

1 AdBlue

2 /

Deflation detection

system

4 Engine oil pressure

2 Low fuel

4 Engine coolant

temperature high

1 Autostop

1 Exterior light

1 Low beam

1 High beam

1 High beam assist

2 Descent control

system

1 Front fog lights

1 Rear fog light

1 Rain sensor

2 Side blind spot alert

2 Cruise control

2 Speed limiter

2 /

Active emergency

braking

258

2 Door open

1 Overload indicator

2 Charging cable

connected

READY 1 Vehicle ready

2 Reduced engine

power

3 Pedestrian safety alert

fault

Turn lights

illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

Turn lights or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn light or

associated fuse, failure of turn light on

trailer.
Bulb replacement

313.

Instruments and controls

Turn lights

114.

Seat belt reminder

illuminates or flashes in the

instrument cluster. Additionally, there

is an indication in the roof console.

The big symbols refer to the seat belts

of the front seats, the small symbols

refer to the second row rear seats.

● When the ignition is switched on,

in the instrument cluster and

the symbols in the roof console

come on for a short time. For the

front seats,

in the instrument

cluster and the symbols in the

roof console illuminate until seat

belt is fastened.

● When driving faster than

12 mph and a seat belt is

unfastened, the symbol in the

roof console for the respective

seat flashes and a chime is

audible. For the second row rear

seats, this only applies if at least

one rear seat belt was previously

fastened.
Aditionally,

illuminates in the

instrument cluster.
After two minutes the chime goes

off and

in the roof console

illuminates constantly until the

seat belt of the respective seat is

fastened.

Airbag and belt tensioners

illuminates red.

When the ignition is switched on, the

control indicator illuminates for

approx. four seconds. If it does not

illuminate, does not extinguish after

four seconds or illuminates whilst

driving, there is a fault in the airbag

system. Seek the assistance of a

workshop. The airbags and belt

pretensioners may fail to trigger in the

event of an accident.
Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners

41.

Airbag system

44.

Instruments and controls

Airbag deactivation

ON illuminates yellow.

The front passenger airbag is

activated.

OFF illuminates yellow.

The front passenger airbag is

deactivated.
Airbag deactivation

49.

Charging system

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

illuminates or flashes yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

illuminates yellow.

Illuminates briefly when the ignition is

switched on.
May illuminate together with other

control indicators and a

corresponding message in the Driver

Information Centre.
Seek the assistance of a workshop

immediately.

Illuminates permanently when the

ignition is switched on.
A fault of the electric engine or the

high voltage battery has been

detected.

Instruments and controls

Seek the assistance of a workshop

immediately.

Stop engine

STOP illuminates red.
Illuminates briefly when the ignition is

switched on.
Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.
Stop engine immediately and seek

the assistance of a workshop.

System check

illuminates yellow or red.

Illuminates yellow

A minor engine fault has been

detected.

Illuminates red

A major engine fault has been

detected.
Stop engine as soon as possible and

seek the assistance of a workshop.

Brake and clutch system

illuminates red.

The brake and clutch fluid level is too

low.

Warning

Stop. Do not continue your

journey. Consult a workshop.

Parking brake

illuminates red.

Illuminates when the manual parking

brake is applied and ignition is

switched on

238.

Electric parking brake

illuminates or flashes red.

Illuminates

Electric parking brake is applied

238.

Flashes

Electric parking brake is not applied

automatically. The application or the

release is faulty.

Warning

Have the cause of the fault

remedied immediately by a

workshop.

illuminates yellow.

Illuminates

Automatic operation is deactivated or

faulty. Activate automatic operation

again or have the cause remedied by

a workshop in the event of a fault.
Automatic operation

238.

Electric parking brake fault

illuminates yellow.

Illuminates

Electric parking brake has a fault

238.

Instruments and controls

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Antilock brake system

(ABS)

illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system

238.

Gear shifting

with a number beside it is

indicated when gearshifting is

recommended for fuel saving

reasons.

Overload indicator

illuminates.

Illuminates when the overload

indicator detects an exceeding of the

maximum authorised weight

74.

Descent control system

illuminates or flashes green.

Iluminates green

The system is switched on and ready

to operate.

Flashes green

The system is in operation.

Lane keep assist

illuminates green or yellow, or

flashes yellow.

Illuminates green

The system is switched on and ready

to operate.

Illuminates yellow

The system approaches a detected

lane marking without using the turn

light in that direction.

Flashes yellow

The system recognizes that the lane

is departed significantly.
Lane keep assist

280.

Electronic Stability Control

and Traction Control system

illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.

Instruments and controls

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control and

Traction Control system

242.

Selective ride control

244.

Engine coolant temperature

illuminates red.

Illuminates when the engine is

running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately

307.

If there is sufficient coolant, consult a

workshop.

Preheating

illuminates yellow.

Preheating of diesel engine is

activated. Only activates when

outside temperature is low. Start the

engine when control indicator

extinguishes.

Exhaust filter

illuminates yellow,

accompanied by a message in the

Driver Information Centre.
The exhaust filter requires cleaning.
Continue driving until the control

indicator extinguishes.

Illuminates temporarily

Start of saturation of the exhaust filter.

Start cleaning process as soon as

possible by driving at a vehicle speed

of at least 40 mph.

Illuminates constantly

Indication of a low additive level. Seek

the assistance of a workshop.
Exhaust filter

226.

AdBlue

flashes or illuminates yellow.

Illuminates yellow

The remaining driving range is

between 500 miles and 1500 miles.

Flashes yellow

The remaining driving range is

between 0 miles and 500 miles.
AdBlue level is low. Refill AdBlue

soon to avoid prevention of the

engine start.
AdBlue

227.

Deflation detection system

illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more

wheels. Stop immediately and check

tyre pressure.

Flashes

Fault in system. Consult a workshop.
Deflation detection system

323.

Instruments and controls

Engine oil pressure

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and / or

locking of the drive wheels.

1. Select neutral gear.
2. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

3. Switch off ignition.

Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.
Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Keep engine turned off and let the

vehicle be towed to a workshop.

Low fuel

illuminates yellow.

Level in fuel tank is too low.
Refuelling

294.

Bleeding the diesel fuel system

312.

Charging cable connected

illuminates red.

The vehicle plug of the charging cable

is still connected to the charge port.

The vehicle cannot be started.
Disconnect the vehicle plug from the

charge port and close the charge port

flap.
Charging

285.

Vehicle ready

READY illuminates green. The

vehicle is ready to be driven.

Reduced engine power

illuminates yellow.

The charging level of the high voltage

battery is low. Only reduced engine

power is available.

Autostop

illuminates or flashes green.

Illuminates green

Engine is in an Autostop.

Instruments and controls

Flashes green

Autostop is temporarily unavailable,

or Autostop mode is invoked

automatically.
Stop-start system

222.

Exterior light

illuminates green.

The exterior lights are on

110.

High beam

illuminates blue.

Illuminates when high beam is on,

during headlight flash

111.

Low beam

illuminates green.

Illuminated when low beam is on.

High beam assist

illuminates green.

The high beam assist is activated

111.

LED headlights

illuminates and a warning

message is displayed in the Driver

Information Centre.
Seek the assistance of a workshop.

Front fog lights

illuminates green.

The front fog lights are on

114.

Rear fog light

illuminates yellow.

The rear fog light is on

114.

Rain sensor

illuminates green.

Illuminated when rain sensor position

on wiper lever is selected.

Cruise control

illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active. Set speed is

indicated in the Driver Information

Centre.
Cruise control

246.

Adaptive cruise control

illuminates white or green.

illuminates in the Driver

Information Centre.

illuminates white

The system is on.

illuminates green

Adaptive cruise control is active.
When Adaptive cruise control is on or

active,

with the set speed is

indicated in the Driver Information

Centre.
Adaptive cruise control

251.

Pedestrian safety alert fault

illuminates yellow.

Instruments and controls

The pedestrian safety alert is not

working.

Side blind spot alert

illuminates continously green in the

instrument cluster.
The system is active

270.

Active emergency braking

illuminates or flashes yellow.

Illuminates

The system has been deactivated or

a fault has been detected.
Additionally, a warning message is

displayed in the Driver Information

Centre.
Check the reason of the deactivation

258 and in case of a system fault,

seek the assistance of a workshop.

Flashes

The system is actively engaged.
Depending on the situation, the

vehicle may automatically brake

moderately or hard.

Forward collision alert

257.

Front pedestrian protection

262.

Active emergency braking

258.

Speed limiter

illuminates in the Driver

Information Centre when speed

limiter is active. Set speed is indicated

alongside

symbol.

Speed limiter

248.

Door open

illuminates red.

A door or the tailgate is open.

Displays

Driver Information Centre

Depending on the version, the Driver

Information Centre may vary.

In addition to warning lights, gauges

and indicators, the following

information is available:

● overall and trip odometer
● digital speed indication
● trip / autonomy information menu
● gear shift indication

100

Instruments and controls

● service information
● vehicle and warning messages
● driver assistance systems
● pop-up messages

Selecting menus and functions

The menus and functions can be

selected via the buttons on the

indicator lever.

Turn the adjuster wheel to select a

page.
Press SET / CLR to select, confirm or

reset a function.

Vehicle and service messages are

popped up in the Driver Information

Centre, if required. Scroll messages

by turning the adjuster wheel.

Confirm messages by pressing

SET / CLR.
Depending on version, some menus

such as service information or AdBlue

level range can be selected via the

CHECK button.

Press CHECK to switch between the

respective menus.
Vehicle messages

106.

Trip / autonomy information menu

Midlevel

Uplevel

Instruments and controls

101

Digital

Differerent pages with combined

information can be selected.
Turn the adjuster wheel to select a

page.

Information page:

Fuel range
Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.
When the fuel level is low, a message

appears on the display and the

control indicator

in the fuel

gauge illuminates

97.

Instantaneous Fuel Consumption
Display of the instantaneous

consumption.
Electric autonomy
The electric autonomy is calculated

from current charging status of the

high voltage battery and and current

consumption. The display shows

average values.

After recharging, the range is updated

automatically after a brief delay.
High voltage battery gauge

97.

Autostop time counter

A time counter calculates the time

spent in Autostop during a journey. It

resets to zero every time the ignition

is switched on.

Trip 1 / Trip 2 page:

Average speed
Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Average consumption of electric

energy
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for the

respective trip since the reset.

The values of the respective trip page

can be reset by pressing SET / CLR

for a few seconds.
Compass page
Displays the geographic direction of

driving.

Personalised view

Personalised views can be selected

by turning the adjuster wheel.
The personalised views can be

adjusted in the settings menu in the

Info Display.

Choose the content, e.g. the

navigation map or current trip

information, and confirm the settings.

Vauxhall Combo E (2023 year). Manual in english - page 3
