Takeuchi Compact Excavator TB014 (11410001~), TB016 (11610001~). Operators Manual - page 4

MAINTENANCE

Every 250 Hours

1. Open the engine hood.

Inspecting and Adjusting the Fan

Belt

Refer to page 114 “Inspecting and Adjusting

the Fan Belt”.

Replacing the Engine Oil and Oil

Filter

Refer to page 113 “Replacing the Engine Oil

and Oil Filter”.

2. Loosen the clamp (4) and remove the dust

cup (5).

3. Clean the inside of the dust cup (5).

4. Remove the element (6).

Cleaning the Air Cleaner

5. Cover the intake hole at the back of the

body (7) with cloth or tape to prevent dirt

WARNING

from getting in.

6. Clean the inside of the body (7).

¡ Stop the engine and allow the machine

to cool down before performing

maintenance.

• The engine, muffler, radiator and

many other parts of the machine are

hot directly after the engine is

stopped. Touching these parts will

cause burns.

¡ Wear required appropriate equipment

such as safety glasses and filter mask

E4G033

when using compressed air, as metal

7. Clean the element

(6) with dried

fragments or other objects can fly and

compressed air {294 to 490 kPa (43 to 71

cause serious personal injury.

psi)}.

First blow the air from the inside of the

IMPORTANT: Be careful not to scratch

element along the flutes, then blow the air

the element. Do not use an element if it is

from the outside, and finally from the inside

damaged.

again.

IMPORTANT: When operating the

machine in very dusty places, inspection

and maintenance should be performed

every day.

Supplement: Do not remove and clean the

inner element (option). Replace the inner

element every 1000 hrs. or after every 3

cleaning of the outer element.

(whichever comes first)

121

MAINTENANCE

Every 250 Hours

Cleaning the Radiator Fins and

Oil Cooler Fins

WARNING

Wear required appropriate equipment

such as safety glasses and filter mask

E4G034

when using compressed air, as metal

fragments or other objects can fly and

8. Light up the inside of the element with a

cause serious personal injury.

bulb, inspect it, and replace it if there are

small holes or thin spots.

IMPORTANT: Be careful not to damage

9. Remove the cloth or tape applied in step 5.

the radiator fins and oil cooler fins when

cleaning them.

¡When using compressed air or

pressurized water, make sure the

pressure is no higher than 200 kPa (28

psi) and hold the nozzle sufficiently

away from the fins.

IMPORTANT: When using water, cover

the electrical system to prevent water

from getting in.

IMPORTANT: When operating the

10. Install the element (6).

machine in very dusty places, inspection

11. Install the dust cup (5) with the “TOP”

and maintenance should be performed

mark at the top, then fasten it with the

every day.

clamp (4).

3

1

2

C4G025

C4G006

1. Blow compressed air on the radiator fins

12. Press the button (3) on the dust indicator

and oil cooler fins to remove mud and dirt

(1) to push the red piston (2) back in.

stuck on them.

122

MAINTENANCE

Every 500 Hours

Replacing the Hydraulic Oil

Replacing the Fuel Filter

Return Filter

WARNING

Refer to page 112 “Replacing the Hydraulic

Oil Return Filter”.

¡ Do not smoke or permit open flames

while handling fuel or working on the

fuel system.

¡Stop the engine in a well-ventilated

place and allow it to cool down before

performing maintenance.

¡ Clean up spilled fuel immediately.

< TB014 >

< TB016 >

C4G023E

1. Open the engine hood.

2. Close the cock (2).

3. Loosen the ring (3), then remove the case

(4), element (5) and the indicator ring (6)

< TB014 >.

4. Clean the case (4).

5. Assemble the new element and the

indicator ring (6) < TB014 > in the case

(4), then tighten the ring (3).

6. Open the cock (2) and bleed the air.

Refer to page 141 “Bleeding the air from

the fuel system”.

123

MAINTENANCE

Every 1000 Hours

1. Open the engine hood.

Cleaning the Engine Cooling

< TB014 >

System

WARNING

2

¡ Stop the engine and allow the machine

H

3

to cool down before performing

1

maintenance.

• The engine, muffler, radiator and

L

many other parts of the machine are

hot directly after the engine is

< TB016 >

stopped. Touching these parts will

cause burns.

• The engine coolant is also hot and

2

under high pressure. Be careful when

1

loosening caps and plugs. Working

3

H

on the machine under these

L

conditions could result in burns or

injuries due to the hot coolant

spurting out.

¡ If maintenance must be performed with

2. Gradually loosen the radiator cap (3) to

the engine running, always work as a

release the internal pressure, then

two-person team with one person

remove.

sitting in the operator’s seat while the

< TB014 >

other works on the machine.

• When performing maintenance, be

sure to keep your body and clothing

away from moving parts.

¡ Standing at the back of the machine

while the engine is running is extremely

4

dangerous, as the machine could move

suddenly. Never stand at the back of

the machine while the engine is

running.

< TB016 >

¡ Do not remove the radiator cap or drain

plugs when the coolant is hot. Stop the

engine, let the engine and radiator cool

and loosen the radiator cap or drain

plugs slowly.

4

124

MAINTENANCE

Every 1000 Hours

3. Place a pan for catching the spent coolant

Replacing the Air Cleaner

under the drain plug (4), then loosen the

Element

drain plug (4) and drain the coolant.

4. Tighten the drain plug (4), then add a little

WARNING

cleaning agent and tap water to the

radiator until it is full. Take your time doing

Stop the engine and allow the machine

this.

to cool down before performing

Follow the manufacturer’s instructions

maintenance.

when using the cleaning agent.

¡ The engine, muffler, radiator and many

5. Run the engine at a low idle for about 30

other parts of the machine are hot

minutes. For the first 5 minutes after

directly after the engine is stopped.

starting it, pay attention to the level of the

Touching these parts will cause burns.

cleaning fluid, and add tap water if the level

drops.

IMPORTANT: Do not use an element if its

6. Stop the engine and drain the cleaning

flutes, gaskets or seals are damaged.

fluid.

7. Tighten the drain plug (4), add tap water,

Supplement: Do not remove and clean the

run the engine at a low idle for about 10

inner element (option). Replace the inner

minutes, then stop the engine and drain

element every 1000 hrs. or after every 3

the water.

cleaning of the outer element.

Clean repeatedly until the drained water

(whichever comes first)

is clear.

8. After cleaning is completed, tighten the

1. Open the engine hood.

drain plug (4) and add new coolant up to

the specified level.

9. Run the engine at a low idle, bleed the air,

then stop the engine once the coolant level

stabilizes at the specified level.

10. Check the coolant level, then tighten the

radiator cap (3).

11. Clean the inside of the reserve tank (1),

then add coolant up to the upper limit (H).

2. Loosen the clamp (4) and remove the dust

cup (5).

3. Clean the inside of the dust cup (5).

4. Remove the element (6).

5. Cover the intake hole at the back of the

body (7) with cloth or tape to prevent dirt

from getting in.

6. Clean the inside of the body (7).

7. Remove the cloth or tape applied in step 5.

8. Install the new element.

125

MAINTENANCE

Every 1000 Hours

9. Install the dust cup (6) with the “TOP” mark

Inspecting and Adjusting the

at the top, then fasten it with the clamp

Engine Valve Clearance

(5).

This operation requires experience. Have it

performed by a Takeuchi sales or service

outlet.

3

1

Retightening the Engine Cylinder

Head Bolts

2

This operation requires experience. Have it

C4G006

performed by a Takeuchi sales or service

10. Press the button (3) on the dust indicator

outlet.

(1) to push the red piston (2) back in.

Inspecting the Engine Fuel

Replacing the Travel Motor Gear

Injection Pressure and Spray

Oil

Condition

Refer to page 120 “Replacing the Travel

This operation requires experience. Have it

Motor Gear Oil”.

performed by a Takeuchi sales or service

outlet.

126

MAINTENANCE

Every 2000 Hours

Replacing the Hydraulic Oil and

8

Cleaning the Suction Strainer

1

WARNING

¡ Stop the engine and allow the machine

to cool down before performing

4

maintenance.

C4G011

• The engine, hydraulic lines and many

3. Loosen the bolt and remove the cover (8).

other parts of the machine are hot

(For cab models)

directly after the engine is stopped.

4. Slowly turn the vent plug (1) to relieve tank

Touching these parts will cause

pressure, then remove.

burns.

• The hydraulic fluid is also hot and

under high pressure.

Be careful when loosening caps and

1

9

plugs. Working on the machine under

these conditions could result in

burns or injuries due to the hot oil

spurting out.

¡ Oil may spurt out if caps or filters are

2

removed or pipes disconnected before

C4G014

releasing the pressure in the hydraulic

5. Open the maintenance cover.

system.

6. Remove the four bolts from the cover (2).

• Gradually loosen the vent plug to

7. Remove the adapter (9), then remove the

relieve tank pressure.

cover (2).

• When removing plugs or screws or

disconnecting hoses, stand to the

side and loosen slowly to gradually

1

9

2

8

2

release the internal pressure before

removing.

4

3

1. Slew 45° counterclockwise and set the

7

machine to the hydraulic oil level

3

inspection posture.

5

6

Refer to page 110 “Inspecting the

6

10

C4G036

Hydraulic Oil Level and Replenishing”.

8. Remove the return filter (3).

2. Set the left safety lock lever to the locked

9. Place a pan for catching the spent oil

position.

under the drain plug (5).

10. Loosen the drain plug (5) and drain the

hydraulic oil.

11. Loosen the hose clip (10).

12. Remove the bolt, then remove the flange

(6).

127

MAINTENANCE

Every 2000 Hours

13. Remove the suction strainer (7) and

2. Once hydraulic oil overflows from the hole

clean it.

in the air bleeding plug (1), tighten the plug.

14. Clean the inside of the hydraulic tank.

3. Start the engine and run it at low idle for

15. Install the new return filter and suction

10 minutes.

strainer (7).

4. Set the engine to a low idle, then extend

16. Install the cover (2) and connect the

and contract all the cylinders 4 or 5 times,

adapter (9).

without going to the stroke end.

17. Install the flange (6) and connect the

5.Run the engine at high speed, then extend

hose.

and contract all the cylinders 4 or 5 times,

18. Tighten the drain plug (5).

without going to the stroke end.

19. Insert hydraulic oil through the hole in the

6. Set the engine back to a low idle, then

vent plug (1), adding hydraulic oil to

extend and contract all the cylinders 4 or

between the upper limit (H) and lower

5 times to the stroke ends.

limit (L) of the sight gauge (4).

20. Follow the procedure under “Bleeding the

air” to bleed the air from the hydraulic oil

circuit.

Inspecting the Engine Fuel

21. Set the machine to the hydraulic oil level

Injection Timing

inspection posture and inspect the level

once the temperature of the oil has

This operation requires experience. Have it

dropped.

performed by a Takeuchi sales or service

Refer to page 110 “Inspecting the

outlet.

Hydraulic Oil Level and Replenishing”.

22. Pressurize the hydraulic tank.

Refer to page 110 “Pressurizing the

hydraulic tank”.

Inspecting the Engine Fuel

Injection Valve

Bleeding the air

This operation requires experience. Have it

performed by a Takeuchi sales or service

IMPORTANT: After replacing the hydraulic

outlet.

oil, bleed the air from the hydraulic oil circuit

and hydraulic devices. Failure to do so may

damage the hydraulic devices.

1

1. Loosen the hydraulic pump’s air bleeding

plug (1).

128

MAINTENANCE

When Required

1. Set the bucket with its bottom flat on a

Replacing the Bucket Teeth

block and the teeth sticking off the block.

2. Check that the bucket does not move, then

WARNING

set the safety lock lever to the locked

position and stop the engine.

¡Before performing maintenance or

repairs under the machine, set all

working equipment against the ground

or in the lowermost position.

¡ To prevent unexpected movement,

securely block the hoe attachment

when repairing or replacing the cutting

edges or bucket teeth.

3

¡ Wear required appropriate equipment

2

1

4

such as safety glasses when using

C4G028

hammers, as metal fragments or other

3. Remove the bolt (1).

objects can fly and cause serious

4. Remove the tooth (2) and shim (3).

personal injury.

¡ Do not allow unauthorized personnel

in the work area.

Installation

1. Insert the tooth (2) into the bucket (4).

2. If the tooth is loose, insert the shim (3)

and adjust it.

3. Insert the bolt (1) from the outer (lower)

side of the bucket and tighten it with a nut.

Tightening torque: 102 N·m (75.2 ft-lb.)

C4G029

IMPORTANT: The bucket will be

damaged if the teeth are not replaced at

the proper interval. Replace the teeth if

they wear down to 140 mm (5.5 in.).

Removal

C4G030

4. Use a punch to caulk or spot-weld the

bolt’s thread on the nut side at three

places.

E4G042

129

MAINTENANCE

When Required

2. Set the safety lock lever to the locked

Replacing the Bucket

position and stop the engine.

3. Remove the ring of the lock pin (1) and

WARNING

remove the lock pin.

¡Before performing maintenance or

repairs under the machine, set all

2

working equipment against the ground

or in the lowermost position.

¡ If maintenance must be performed with

the engine running, always work as a

2

two-person team with one person

sitting in the operator’s seat while the

43

1

other works on the machine.

C4G031

• When performing maintenance, be

4. Hammer pin (2) out of the bucket.

sure to keep your body and clothing

5. Remove the bucket.

away from moving parts.

Inspect the pin seal (3) and replace it if it

¡ Wear required appropriate equipment

is deformed or damaged. (See next page.)

such as safety glasses and filter mask

when using hammers, as metal

fragments or other objects can fly and

Installation

cause serious personal injury.

¡ When lining up the pin holes, always

4

do so by sight. Your finger may be cut

off if you stick it into the hole.

Removal

E4G053

1. Set the bucket’s O-ring (4) as shown on

the diagram.

E4G048

5

1. Ground the bucket as shown on the

diagram above in a stable position.

6

Supplement: When removing pins, set the

A

B

bucket so that it is just gently against the

ground. If it is strongly against the ground,

the resistance will be great and it will be

E4G054

difficult to remove the pin.

2. Line up pin hole (A) in the bucket with the

pin hole in the arm (5), and install the pin (2).

130

MAINTENANCE

When Required

3. Operate the cylinder, line up pin hole (B)

Lubricating the Levers

in the bucket with the pin hole in the link

arm (6), and install the pin (2).

WARNING

Set the machine to the parking posture,

1

stop the engine, remove the starter key

and store it. Failure to do so may result

in the machine moving abruptly, leading

to serious injury or death.

If the levers or pedals no longer move

C4G032

smoothly, supply grease.

4. Line up the turn prevention holes, install

Operating levers

lock pin (1), and set the ring on the inner

side.

A

4

1

B

E4G058

1. Remove the lower mount section of the

E4G056

boot (1) and turn it upwards.

2. Wipe off the old grease.

5. Slide the O-ring (4).

3. Supply grease to points (A) and (B).

4. Set the boot (1) back as it was.

Replacing the pin seal

3

E4G057

1. Set the pin seal (3) in the direction shown

on the diagram above.

2. Use a mallet to slowly press the pin seal

in. Be careful not to damage the seal.

131

MAINTENANCE

When Required

Travel levers, blade lever and pedals

Inspecting and Replenishing the

Windshield Washer Fluid

1

Use a windshield washer fluid designed

specifically for motor vehicles. Follow the

2

instructions including with the washer fluid.

3

C4G033

2

1. Remove the floor mat (1).

2. Loosen the bolts and remove cover (2).

1

3. Remove the lower mount section of the

boot (3) and roll it up.

C4G035

Inspection

1. Inspect the washer tank (1) and add

washer fluid if the level is low.

Replenishment

1. Mix the washer fluid to the prescribed

concentration.

2. Remove the cap (2) and add washer fluid.

4. Use the grease gun to supply grease to

3. Reinstall the cap (2).

the grease nipples (4).

5. Wipe off the expelled grease.

6. Reinstall the cover and floor mat, following

the removal procedure in reverse order.

132

MAINTENANCE

When Required

(3) Metal core

Inspecting the Rubber Crawlers

Repair or replace the rubber crawlers if their

conditions are as described below. Consult

a Takeuchi sales or service outlet about

repairs or replacement.

Rubber crawler

Replace the crawler if the entire crawler is

3

E4G064

stretched and cannot be adjusted.

Replace if even one metal core is off.

(1) Lug

(4) Rubber

60 mm or greater

4

3

A

1

2

E4G062

E4G065

Replace if the height of (A) is 5 mm (0.2 in.)

Repair if there are cracks of 60 mm (2.4 in.)

or below.

or greater in length.

If the steel cord is visible, repair as soon as

(2) Steel cord

possible, regardless of the length of the

crack.

2

E4G063

Replace if the steel cord is exposed over 2

or more links.

Replace if half or more of the steel cords on

one side are cut.

133

MAINTENANCE

When Required

Replacing the Rubber Crawlers

Direction of rotation

WARNING

¡ If you must work beneath the raised

machine or equipment, always use

wood blocks, jack-stands or other rigid

1

E4G067

and stable supports. Never get under

the machine or working equipment if

3. Set an iron pipe (1) in the rubber crawler

they are not sufficiently supported.

and turn the sprocket slowly in the reverse

This procedure is especially important

direction.

when working on hydraulic cylinders.

4. Turn until the iron pipe (1) is directly next

¡ If maintenance must be performed with

to the idler and the rubber crawler lifts

the engine running, always work as a

away from the idler, then stop turning the

two-person team with one person

sprocket.

sitting in the operator’s seat while the

5. Slide the rubber crawler sideways and

other works on the machine.

remove it from the crawler frame.

• When performing maintenance, be

Remove the other rubber crawler using

sure to keep your body and clothing

the same procedure.

away from moving parts.

Removal

Installation

1. Fully release the tension of the rubber

1. Use the working equipment to lift the body.

crawler.

Refer to page 115 “Inspecting and

Adjusting the Crawler Tension”.

Direction of rotation

1

E4G068

2. Set the rubber crawler on the sprocket.

E4G070

3. Set an iron pipe (1) in the rubber crawler

and turn the sprocket slowly in the reverse

2. Use the working equipment to lift the body.

direction.

4. Turn until the iron pipe (1) is directly next

to the idler and the rubber crawler lifts

away from the idler, then stop turning the

sprocket.

5. Slide the rubber crawler inward, engage

it on the idler, then pull out the iron pipe.

134

TROUBLESHOOTING

Symptoms that are not Malfunctions

The following symptoms are not

¡Performance decreases when an

malfunctions:

attachment weighing more than a

standard arm or bucket is mounted.

E4J001

¡ When the arm reaches the vertical position

while contracting it while the engine is

running at low speed, the contracting

speed slows down momentarily.

E4J002

¡When the bucket teeth reach the

horizontal position while the engine is

running at low speed, the speed of bucket

movement slows down momentarily.

¡ The slew motor produces noise at the

beginning and end of the slewing

operation.

¡ The travel motor produces noise when

stopped suddenly during high speed

travel.

¡The control valve produces noise if

excessive force is applied to the working

equipment and when the stroke end is

reached.

138

TROUBLESHOOTING

If the Engine Overheats

3. If there is steam, stop the engine

WARNING

immediately and contact a Takeuchi sales

or service outlet for repairs.

¡ Do not open the engine hood when

If there is no steam, run the engine at low

there is steam coming from the engine

idle and let the water temperature

room. The steam or hot water may

decrease.

spurt out, resulting in burns.

4. TB016: Once the water temperature

¡ Do not remove the radiator cap or drain

gauge drops to the green zone, stop the

plugs when the coolant is hot. Stop the

engine.

engine, let the engine and radiator cool

TB014: Once the coolant temperature

and loosen the radiator cap or drain

Warning lamp turns off, stop the engine.

plugs slowly.

5. Once the engine is cool, perform the

¡ Stop the engine and allow the machine

following inspections and procedures:

to cool down before performing

• Fan belt slack

Adjust.

inspection and maintenance.

Refer to page 114.

• Coolant level

Add.

The following symptoms indicate

Refer to page 107.

overheating:

• Water leakage

Repair.

• Radiator fins

Clean.

Refer to page 122.

• Sediment in cooling system

Clean.

Refer to page 124.

If the problem persists after the above

procedures are taken, contact a Takeuchi

sales or service outlet for repairs.

¡TB016: An alarm is sounded and the

coolant temperature warning lamp, engine

emergency lamp flashes.

¡ TB014: The coolant temperature warning

lamp lights.

¡ TB016: The water temperature gauge is

in the red zone.

¡The engine slows down and the force

decreases.

¡ Steam comes from the engine room.

Procedure

1. Park the machine in a safe place.

2. With the engine hood closed, inspect

whether steam is coming from the engine

room.

139

TROUBLESHOOTING

If the Battery Goes Dead

The following symptoms indicate that the

Connecting the jumper cables

battery is dead:

¡ The starter motor does not turn or turns

IMPORTANT: Set the starter keys of both

weakly, and the engine does not start.

the rescue vehicle and problem vehicle

¡ The horn is weak.

to the OFF position.

Rescue vehicle battery

Problem vehicle battery

Procedure

2

1

Use jumper cables and start the engine using

R

the rescue vehicle’s battery.

WARNING

3

To engine block

B

4

¡Use jumper cables only in the

E4J005

recommended manner. Improper use

1. Connect the clip of jumper cable (R) to

of jumper cables can result in battery

the problem vehicle’s “+” terminal.

explosion or unexpected machine

2. Connect the other clip of jumper cable (R)

motion.

to the rescue vehicle’s “+” terminal.

• Do not let the problem vehicle and

3. Connect the clip of jumper cable (B) to

rescue vehicle touch each other.

the rescue vehicle’s “-” terminal.

• Do not let the “+” and “-” clips of the

4. Connect the other clip of jumper cable (B)

jumper cables touch each other.

to the problem vehicle’s engine block.

• Connect the jumper cables to the “+”

Connect the clip as far from the battery as

terminals first, and disconnect them

possible.

from the “-” terminals (ground) first.

• Connect the final clip of the jumper

Starting the engine

cable to a point as far away from the

1. Check that the clips are securely

battery as possible.

connected to the terminals.

¡ Use safety glasses when using jumper

2. Start the rescue vehicle’s engine and run

cables to start the machine.

it at high speed.

3. Start the problem vehicle’s engine.

IMPORTANT: Use jumper cables and

clips of a size suited to the battery’s

capacity. Do not used damaged or

corroded jumper cables and clips.

IMPORTANT: The rescue vehicle’s

battery must have the same capacity as

the problem vehicle’s battery.

IMPORTANT: Connect the clips securely.

140

TROUBLESHOOTING

If the Battery Goes Dead

After the Fuel Runs Out

Disconnecting the jumper cables

Bleeding the Air from the Fuel

Once the engine starts, disconnect the

System

jumper cables following the connection

procedure in reverse order.

1. Add fuel.

2. Open the water separator and fuel filter

cocks.

Rescue vehicle battery

Problem vehicle battery

3

4

R

PREHEAT

^OFF ON

START

2

From engine block

B

1

E4J006

1. Disconnect the clip of jumper cable (B)

E4D002

from the problem vehicle’s engine block.

2. Disconnect the other clip of jumper cable

3. Turn the starter key to the ON position and

(B) from the rescue vehicle’s “-” terminal.

hold it there for about 20 seconds.

3. Disconnect the clip of jumper cable (R)

The automatic air bleeder bleeds the air

from the rescue vehicle’s “+” terminal.

from the fuel system.

4. Disconnect the other clip of jumper cable

4. Start the engine and inspect for fuel

(R) from the problem vehicle’s “+” terminal.

leakage.

Recharging

Supplement: Air in the fuel system can

Have a Takeuchi sales or service outlet

make it difficult to start the engine and cause

recharge batteries that have gone dead.

engine problems. Also bleed the air when

the fuel tank is emptied or air in the fuel

system.

141

TROUBLESHOOTING

If a Fuse Blows

If a light does not turn on or the electric

Fuse Layout and Circuits Protected

system does not operate, a fuse may be

Capacity

Protected circuit

blown. Inspect the fuses.

30A

Stop solenoid

10A

Lever lock

10A

Second travel speed

Inspecting and Replenishing the

Fuse

20A

Lights, Tail lamp

15A

Heater, Radio

WARNING

10A

Feed pump, Instrument panel

If the fuse blows as soon as it is replaced,

25A

External power socket,

there is a problem with the electric

Cigarette lighter,

system. Continued use may lead to fire.

Wiper (cab),

Consult a Takeuchi sales or service

Travel alarm (option)

outlet.

10A

Horn, Clock(radio), Interior light

1. Turn the starter key to the OFF position

and stop the engine.

Inspecting the Fusible Link

1

1

C4B029

2. Open the maintenance cover.

3. Open the fuse box (1) and inspect for any

blown fuses.

C4J004

If the electric power is not switched on after

turning the starter switch to the ON position,

Blown

Normal

the cartridge type fusible link (1) might be

blown open. Open the maintenance cover

and inspect. If the fusible link is blown, please

contact a Takeuchi sales or service.

Supplement: A fusible link is a large piece

of fuse wiring which is mounted in a circuit

E4J007

which carries a large electrical current. Link

a regular fuse, the fusible link protects the

4. If a fuse is blown, replace it with a fuse of

electrical parts and wiring from damage due

the same capacity.

to abnormally large currents.

142

TROUBLESHOOTING

If a Warning Lamp Lights

If an alarm is sounded or a warning lamp starts flashing during operation, park the machine

in a safe place and perform the procedures described below.

Warning lamp

Lamp name

Procedure

Engine

A problem has occurred in the engine lubrication system

emergency

or the coolant water temperature has risen irregularly.

lamp (TB016)

¡ When there is a problem in the engine lubrication

system, the engine oil pressure warning lamp flashes

simultaneously.

¡When the coolant water temperature has risen

irregularly, the coolant temperature warning lamp

SK2-121

flashes simultaneously.

For the procedures, refer to the respective warning lamps

below.

Battery charge

There is a problem with the fan belt or charger. Inspect

warning lamp

the fan belt for slack or breakage and adjust as necessary.

If the lamp continues flashing or lights after maintenance,

there is a problem with the charger. Consult a Takeuchi

sales or service outlet.

OSOB080

Refer to page 114 “Inspecting and Adjusting the Fan Belt”.

Engine oil

Inspect the engine oil level. If the lamp is flashing or lit

pressure

even though the level is normal or if it continues flashing

warning lamp

or lights after oil is added, consult a Takeuchi sales or

service outlet.

Refer to page 108 “Inspecting and Replenishing the

OSOB070

Engine Oil”.

Coolant

The coolant temperature has risen irregularly and the

temperature

engine is overheating.

warning lamp

Refer to page 139 “If the Engine Overheats”.

C4B012

143

TROUBLESHOOTING

Other Symptoms

For symptoms not included on the table below or if the problem persists after the proper

procedures have been taken, consult a Takeuchi sales or service outlet.

Symptom

Main cause

Procedure

Left and right operating

¡ Insufficient grease on left

¡ Add grease.

levers do not move

and right operating levers

Refer to page 131.

smoothly

Travel levers, blade

¡ Insufficient grease on travel

¡ Add grease.

lever or pedals do not

levers, blade lever or pedals

Refer to page 132.

move smoothly

¡ Stretched wire

¡ Adjust or replace. (Request

at a sales or service outlet.)

Hoe attachment,

¡ Safety lock lever is raised

¡ Lower the safety lock lever.

slewing or traveling

Refer to page 49.

operation not possible

¡ Fuse is blown

¡ Replace the fuse.

Refer to page 142.

¡ Faulty travel lock adjustment

¡ Adjustment. (Request at a

sales or service outlet.)

Digging force is

¡ Insufficient hydraulic oil level

¡ Replenish to the prescribed

insufficient

level.

Refer to page 109.

¡ Hydraulic oil is not heated

¡ Perform the warm-up

procedure.

Refer to page 68.

¡ Air cleaner is clogged

¡ Clean the air cleaner.

Refer to page 121.

¡ Hydraulic oil is not of

¡ Replace the hydraulic oil.

suitable type

Refer to page 127.

Traveling is not possible

¡ Stones or foreign objects are

¡ Remove the foreign object.

or not smooth

stuck

Machine does not travel

¡ Stones or foreign objects are

¡ Remove the foreign object.

straight forward

stuck

¡ Faulty crawler tension

¡ Adjust the crawler to the

adjustment

prescribed tension.

Refer to page 115.

Travel speed cannot be

¡ Fuse is blown

¡ Replace the fuse.

changed

Refer to page 142.

Slewing is not possible

¡ Insufficient grease on slew

¡ Add grease.

or not smooth

bearing

Refer to page 116.

144

TROUBLESHOOTING

Other Symptoms

Symptom

Main cause

Procedure

Hydraulic oil

¡ Insufficient hydraulic oil

¡ Replenish to the prescribed

temperature is too high

level.

Refer to page 109.

Starter motor turns but

¡ Insufficient fuel

¡ Add fuel.

engine does not start

Refer to page 109.

¡ Air in fuel system

¡ Bleed the air.

Refer to page 141.

¡ Water in fuel system

¡ Drain the water.

Refer to page 118.

Crawlers slip off

¡ Crawlers are too loose

¡ Adjust the tension.

Refer to page 115.

Engine exhaust is white

¡ Excessive engine oil

¡ Adjust to the prescribed

or bluish

level.

Refer to page 108.

¡ Insufficient fuel

¡ Replace the fuel.

Engine exhaust is

¡ Air cleaner is clogged

¡ Clean the air cleaner.

occasionally black

Refer to page 121.

Irregular noise is

¡ Low quality fuel is being

¡ Replace the fuel.

produced from the

used

engine (combustion or

¡ Engine is overheating

¡ If the Engine Overheats

mechanical noise)

Refer to page 139.

¡ Damage in muffler

¡ Replace the muffler.

(Request at a sales or

service outlet.)

145

TROUBLESHOOTING

To Lower the Boom

If the hoe attachment must be lowered to

3. Turn the set screw (2) slowly 1/4 turns to

the ground while the engine is stopped, use

lower the boom.

the following procedure to do so.

4. Check for safety and machine stability.

This operation is dangerous and requires

5. Turn the set screw (2) back to its original

experience. Have it performed by a Takeuchi

position.

sales or service outlet.

6. Gripping the set screw

(2) with a

hexagonal wrench so that it does not turn

Procedure

together with the lock nut (3), tighten the

lock nut (3).

WARNING

Tightening torque: 19.6 N·m (14.5 ft-lb.)

7. Close the left side cover (1).

¡Do not approach in the area of the

ground where the hoe attachment is to

be lowered. You may be hit by dirt

falling out of the bucket or the hoe

attachment as it drops.

¡ Turn the shut-off valve’s set screw

slowly so that the boom lowers slowly.

Do not turn the screw more than the

specified amount.

1

1. Loosen the bolts and remove the left side

cover (1).

2

3

2. Gripping the set screw

(2) with a

hexagonal wrench so that it does not turn

together with the lock nut (3), loosen the

lock nut (3).

146

TROUBLESHOOTING

Towing

WARNING

When towing, selecting the wrong wire

rope, inspecting improperly, or towing in

the wrong way could lead to accidents

resulting in serious injury or death.

¡The wire rope breaking or coming

detached could be extremely

dangerous. Use a wire rope suited for

the required towing force.

¡ Do not use a wire rope that is kinked,

twisted or otherwise damaged.

¡ Do not apply strong loads abruptly to

the wire rope.

¡ Use safety gloves when handling the

wire rope.

¡ Make sure there is an operator on the

machine being towed as well as on the

machine that is towing.

¡ Never tow on slopes.

¡ Do not let anyone near the wire rope

while towing.

Towing the Machine

Use the procedure described below to tow

heavy objects or the machine itself if it should

get stuck in the mud and not be able to get

out on its own.

N0A006

1. Fasten the wire rope to the frame.

2. Place splints or other objects between the

wire rope and frame to prevent the

machine and wire rope from getting

damaged.

3. Move the machine to tauten the wire rope.

4. Move the machine slowly and tow.

147

SPECIFICATIONS

Main Specifications

TB014

Equipped with 830 mm (33 in.) Arm

TYPE

CANOPY

CAB

MASS

Machine mass kg (lb.)

With rubber crawlers

1410 (3110)

1525 (3360)

(not including operator)

With steel crawlers

1460 (3220)

1575 (3470)

PERFORMANCE

Bucket capacity m³ (cu.ft.)

Heaped

0.038

(1.33)

(standard bucket)

Struck

0.028

(0.97)

Slew speed min^-1 (rpm)

9.0

(9.0)

1st

2.0

(1.24)

Rubber

crawlers

2nd

3.9

(2.42)

Travel speed km/h (mph)

1st

1.9

(1.18)

Steel

crawlers

2nd

3.7

(2.3)

Gradeability (degrees)

25

Ground pressure

With rubber crawlers

27.8

(4.02)

29.9

(4.34)

kPa (psi)

With steel crawlers

28.9

(4.19)

31.1

(4.51)

Sound-power level

LWA 93

LWA 93

Noise level

dB(A)

Sound-pressure level

LpA 77

LpA 78

ENGINE

Manufacturer and model

Kubota D782-E2B-BHTU-1 deasel engine

Rated output

kW / min^-1 (hp / rpm)

9 / 2200 (12 / 2200)

Displacement

mI (cu.in.)

778 (47.5)

Starter

V - kW

12 - 1.2

Alternator

V - kW

12 - 0.48

Battery

V - Ah

12 - 38

150

SPECIFICATIONS

Main Specifications

TB016

Equipped with 930 mm (37 in.) Arm

TYPE

CANOPY

CAB

MASS

Machine mass kg (lb.)

With rubber crawlers

1500 (3310)

1615 (3560)

(not including operator)

With steel crawlers

1550 (3420)

1665 (3670)

PERFORMANCE

Bucket capacity m³ (cu.ft.)

Heaped

0.038

(1.33)

(standard bucket)

Struck

0.028

(0.97)

Slew speed min^-1 (rpm)

9.0

(9.0)

1st

2.3

(1.43)

Rubber

crawlers

2nd

4.2

(2.61)

Travel speed km/h (mph)

1st

2.1

(1.30)

Steel

crawlers

2nd

3.9

(2.42)

Gradeability (degrees)

25

Ground pressure

With rubber crawlers

26.2

(3.80)

28.0

(4.07)

kPa (psi)

With steel crawlers

27.4

(3.97)

29.3

(4.25)

Sound-power level

LWA 93

LWA 93

Noise level

dB(A)

Sound-pressure level

LpA 77

LpA 78

ENGINE

Manufacturer and model

Yanmar 3TNV70-STB deasel engine

Rated output

kW / min^-1 (hp / rpm)

10.1 / 2200 (13.5 / 2200)

Displacement

mI (cu.in.)

854 (47.8)

Starter

V - kW

12 - 1.0

Alternator

V - kW

12 - 0.48

Battery

V - Ah

12 - 38

151

SPECIFICATIONS

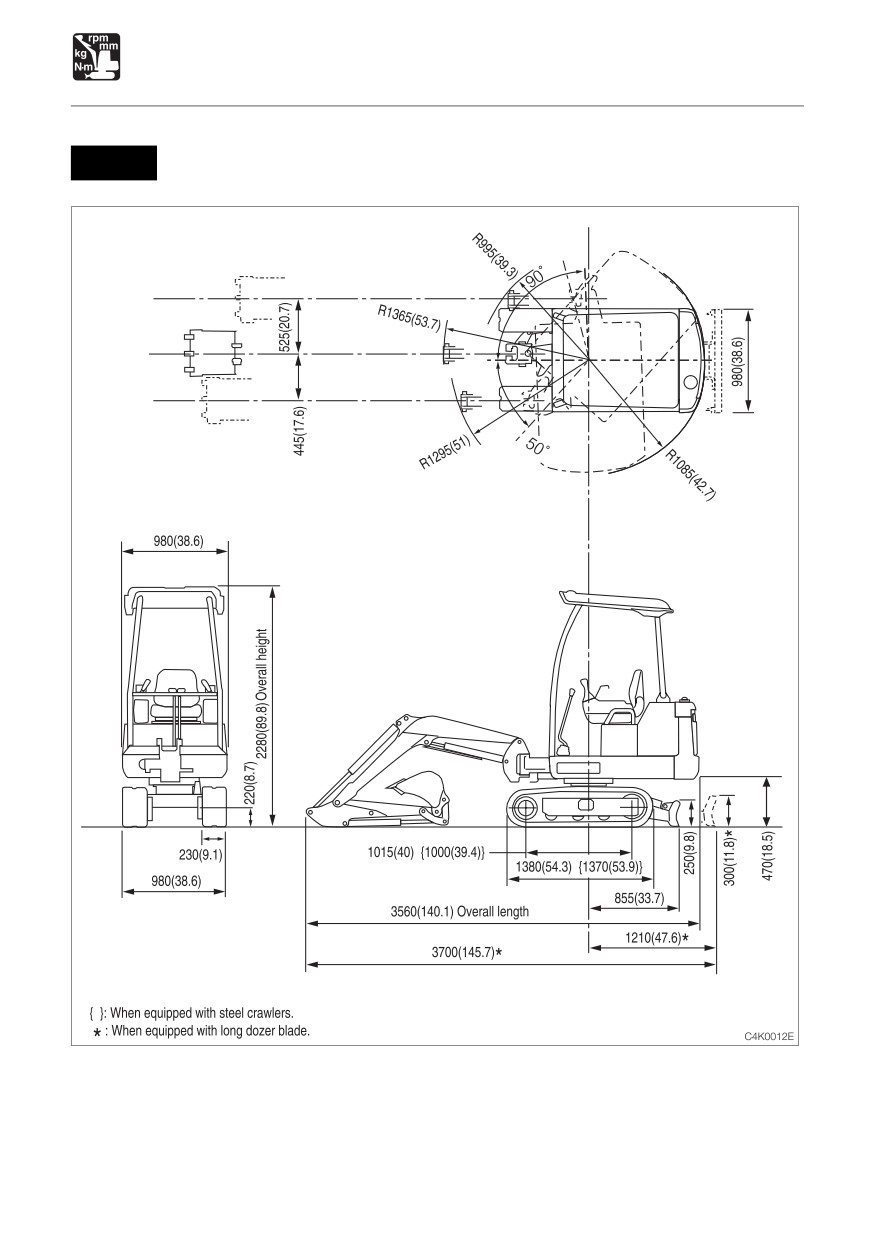

Machine Dimensions

TB014

Equipped with Canopy and 830 mm (33 in.) Arm

Units: mm (inches)

152

SPECIFICATIONS

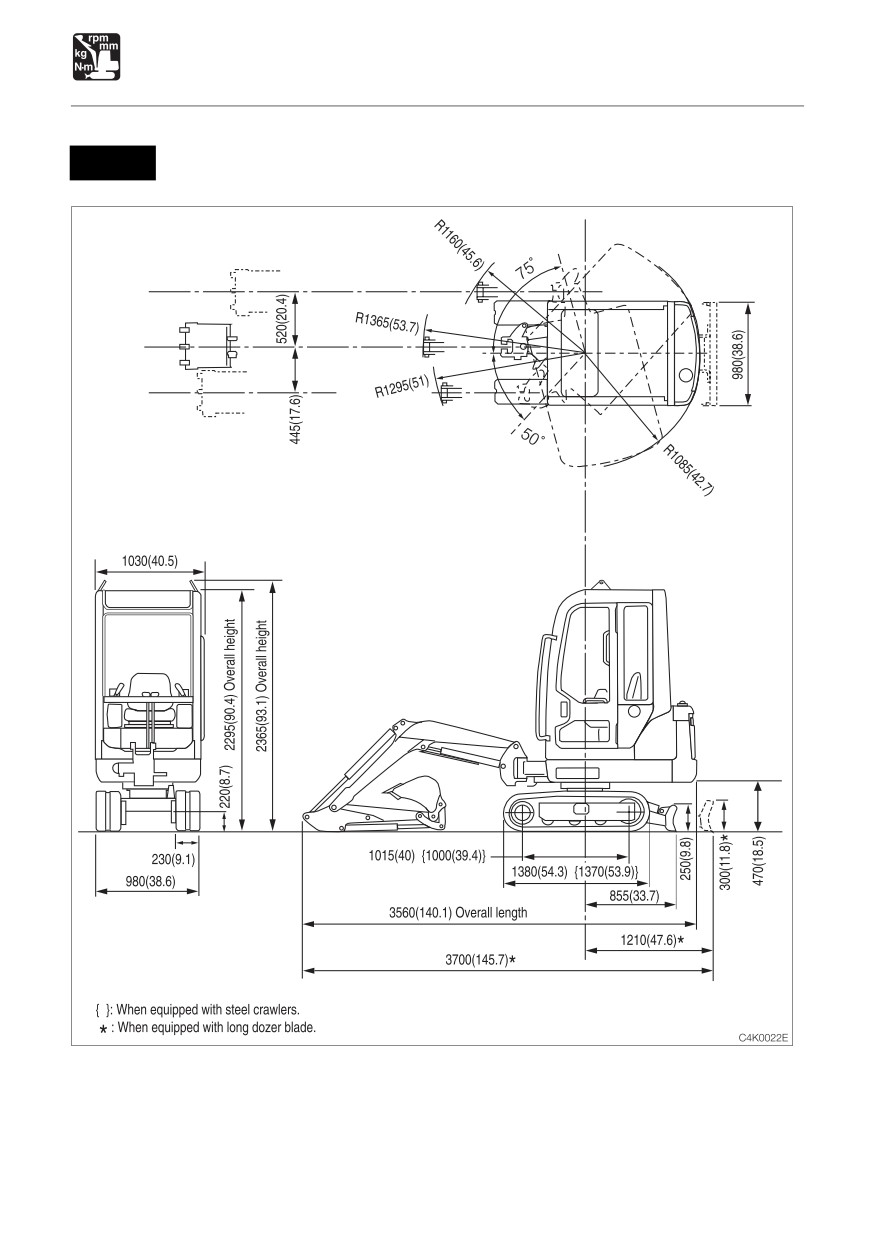

Machine Dimensions

TB014

Equipped with Cab and 830 mm (33 in.) Arm

Units: mm (inches)

153

SPECIFICATIONS

Machine Dimensions

TB016

Equipped with Canopy and 930 mm (37 in.) Arm

Units: mm (inches)

154

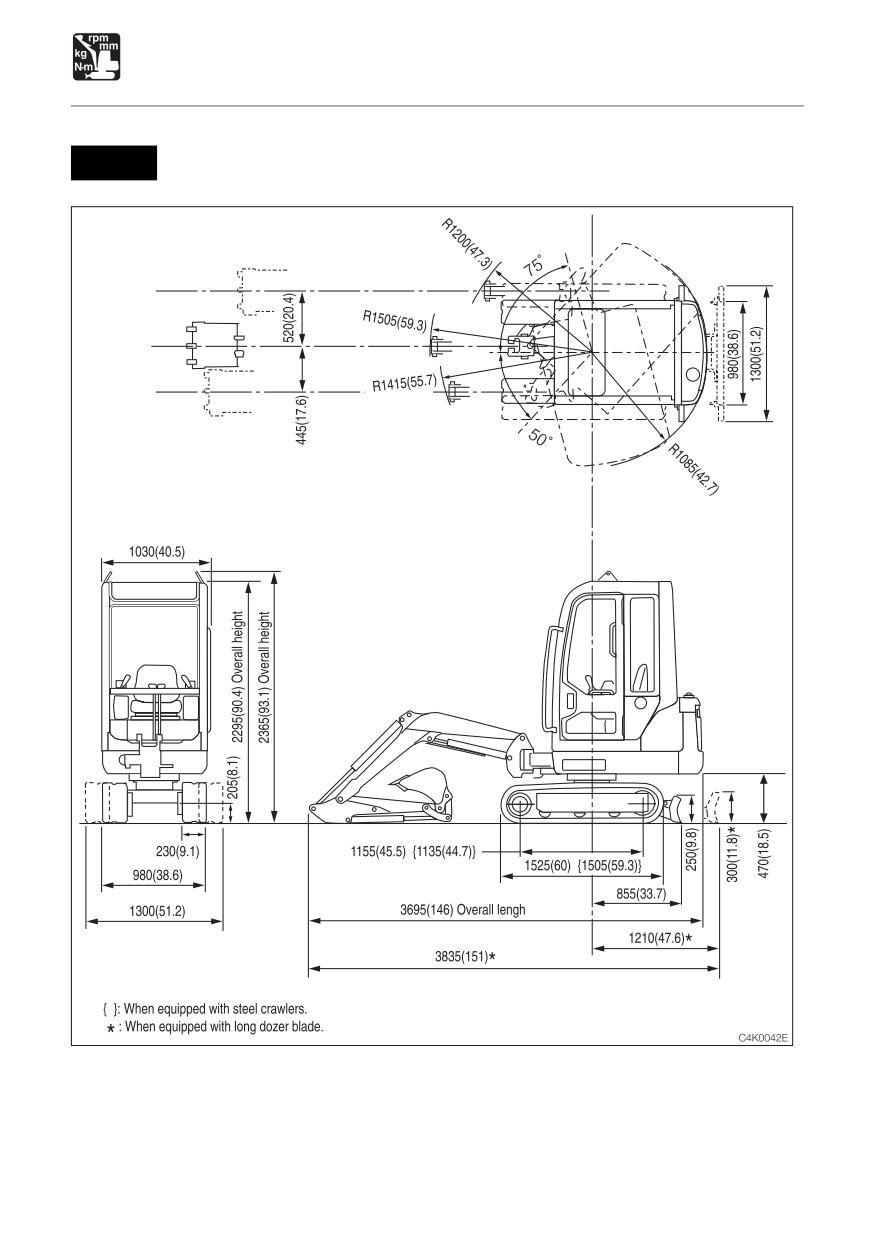

SPECIFICATIONS

Machine Dimensions

TB016

Equipped with Cab and 930 mm (37 in.) Arm

Units: mm (inches)

155

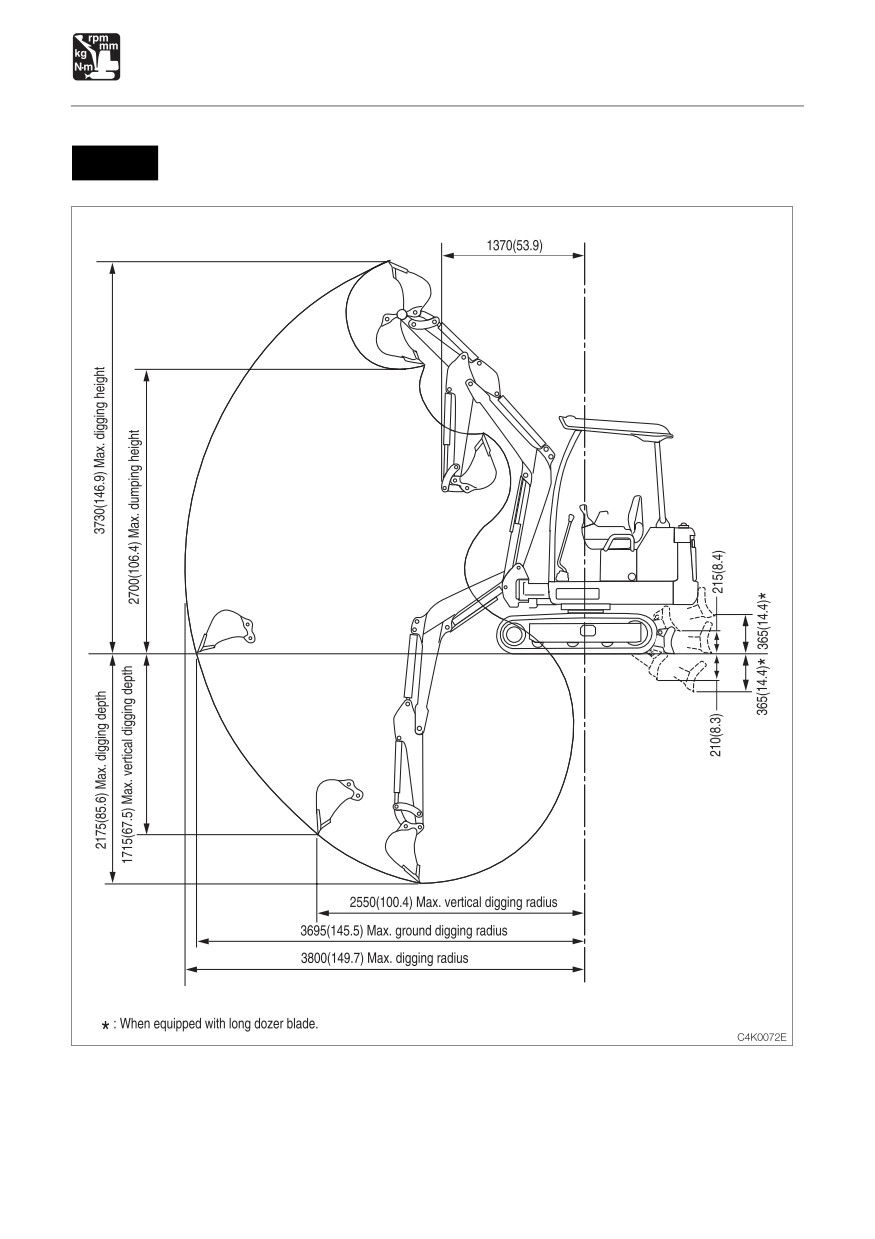

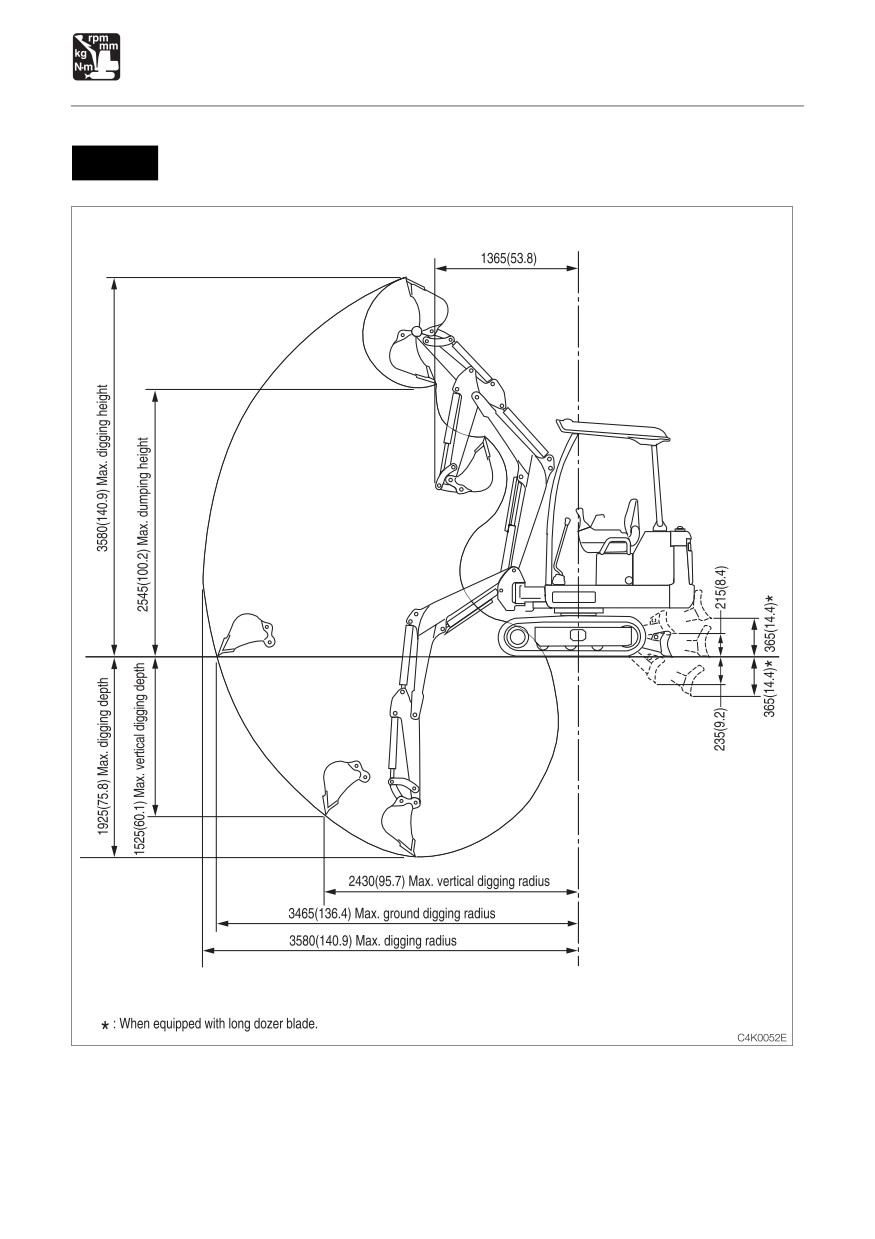

SPECIFICATIONS

Operating Range

TB014

Equipped with Canopy and 830 mm (33 in.) Arm

Units: mm (inches)

156

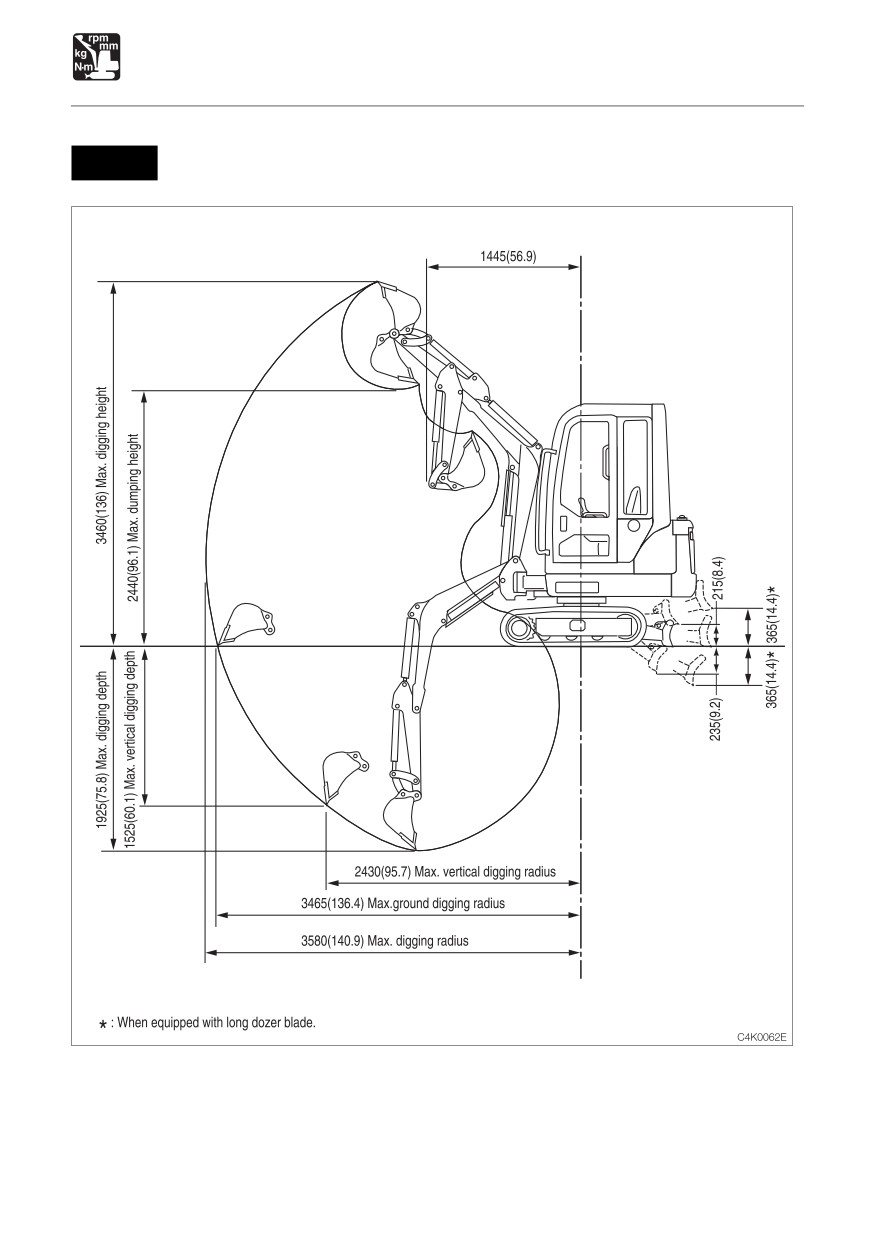

SPECIFICATIONS

Operating Range

TB014

Equipped with Cab and 830 mm (33 in.) Arm

Units: mm (inches)

157

SPECIFICATIONS

Operating Range

TB016

Equipped with Canopy and 930 mm (37 in.) Arm

Units: mm (inches)

158

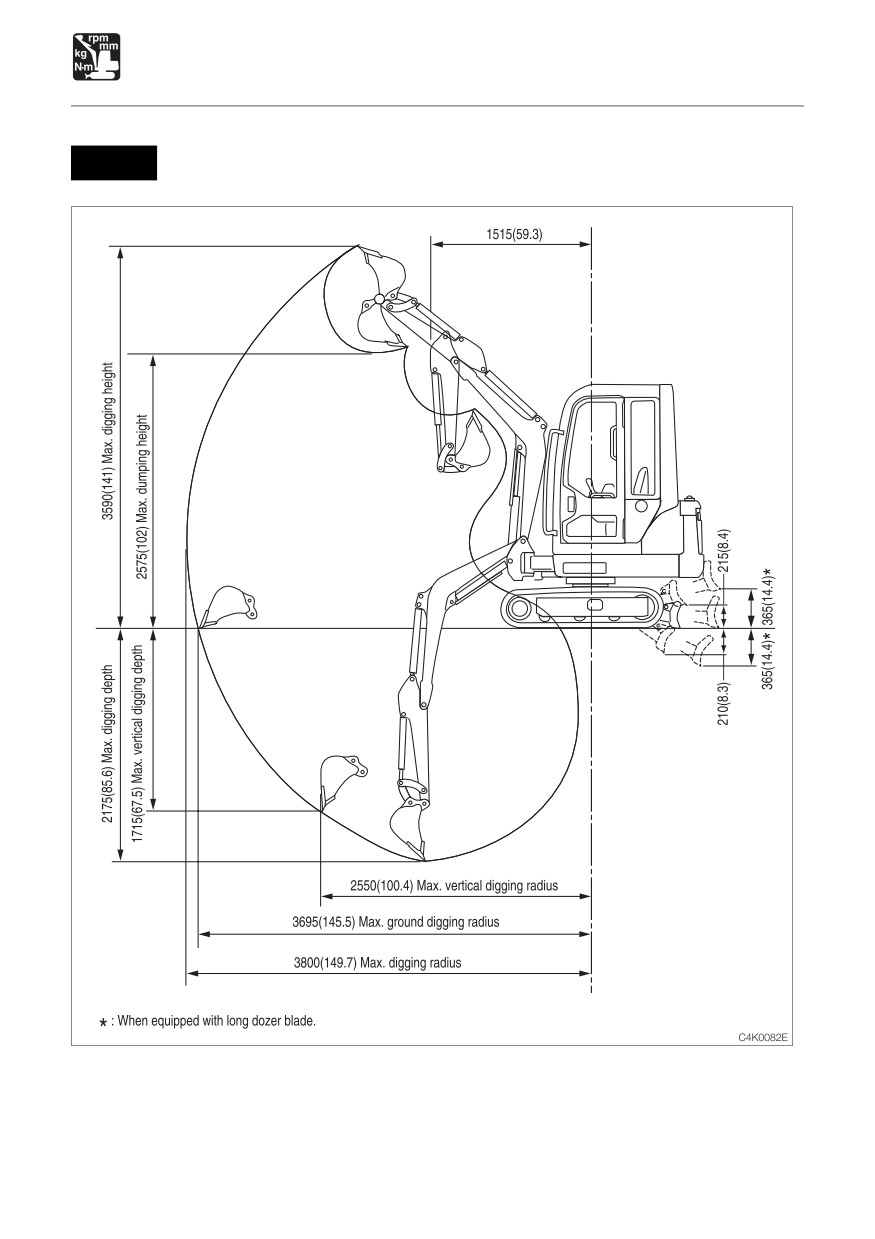

SPECIFICATIONS

Operating Range

TB016

Equipped with Cab and 930 mm (37 in.) Arm

Units: mm (inches)

159

SPECIFICATIONS

Operating Range

TB014

Equipped with Canopy and 1040 mm (41 in.) Arm

Units: mm (inches)

Values are indicated in units of mm, inches in( ).

90

Bucket offset

50

825(32.5)

575

(22.6)

Front slewing radius

1435(56.5)

2545(100.2) in Transport position

2520(99.2)

3660(144.1) Max. ground digging radius

3765(148.2) Max. digging radius

160

Content      ..     2      3      4      5     ..
