Takeuchi Hydraulic Excavator TB175W (No. 175400095~). Operator's Manual

SAFETY ALERT SYMBOL

This symbol means Attention! Be Alert! Your Safety Is Involved.

The message that follows the symbol contains important information

about safety.

Read and understand the message to avoid personal injury or death.

It is the owner or employer’s responsibility to fully instruct each operator in the

proper and safe operation of all equipment. All persons using this machine should

thoroughly familiarize themselves with the following sections.

All operators must be instructed on the proper functions of the excavator before

running the machine.

Learn and practice correct use of the machine controls in a safe, clear area before

operating this machine on a job site.

CAUTION

Improper operation, inspection and maintenance of this

machine can cause injury or death.

Read and understand this manual before performing any

operation, inspection or maintenance on this machine.

Always store this manual near at hand preferably on the machine itself. If it should be lost

or damaged, immediately order a new one from your Takeuchi dealer.

When transferring ownership of this machine, be sure to provide this manual to the next

owner.

Takeuchi supplies machines complying to the local regulations and standards of the

country of export. If your machine has been purchased in another country or from a

person or company of another country, it may not have the safety devices or safety

standards required for use in your country. Should you have any question about whether

your machine complies with the regulations and standards of your country, contact a

Takeuchi dealer.

Please note that the contents and diagrams included in this manual may not match your

machine exactly.

It is your responsibility to observe all pertinent laws and regulations and to follow the

manufacturer’s instructions on machine operation, inspection and maintenance.

Virtually all accidents occur as the result of a failure to observe basic safety rules and precautions.

An accident can often be avoided by recognizing potentially hazardous situations beforehand.

Read and understand all of the safety messages which explain how to prevent these accidents

from occurring. Do not operate the machine until you are sure that you have gained a proper

understanding of its operation, inspection and maintenance.

SlGNAL WORDS

Safety messages appearing in this manual and on machine decals are identified by the words

“DANGER”, “WARNING” and “CAUTION”. These signal words mean the following:

DANGER

WARNING

CAUTION

The word “DANGER”

The word “WARNING”

The word “CAUTlON”

indicates an imminently

indicates a potentially

hazardous situation

which, if not avoided,

can result in serious

could result in serious

may result in minor or

injury or death.

moderate injury.

IMPORTANT: The word “IMPORTANT” is used to alert against operators and maintenance

personnel about situations which can result in possible damage to the machine and its

components.

It is impossible to foresee every possible circumstance that might involve a potential hazard.

The warnings in this manual or on the machine can not cover all possible contingencies. You

must exercise all due care and follow normal safety procedures when operating the machine

so as to ensure that no damage occurs to the machine, its operators or other persons.

EXPLANATION OF GRAPHICAL SYMBOLS

Following is an explanation of symbols used in this manual.

, X

prohibition

............lock

............unlock

INTRODUCTION

Foreword

This manual describes operation, inspection

and maintenance of the machine, as well as

safety instructions to be heeded during these

operations.

If you have any questions about the machine,

please contact a Takeuchi sales or service

outlet.

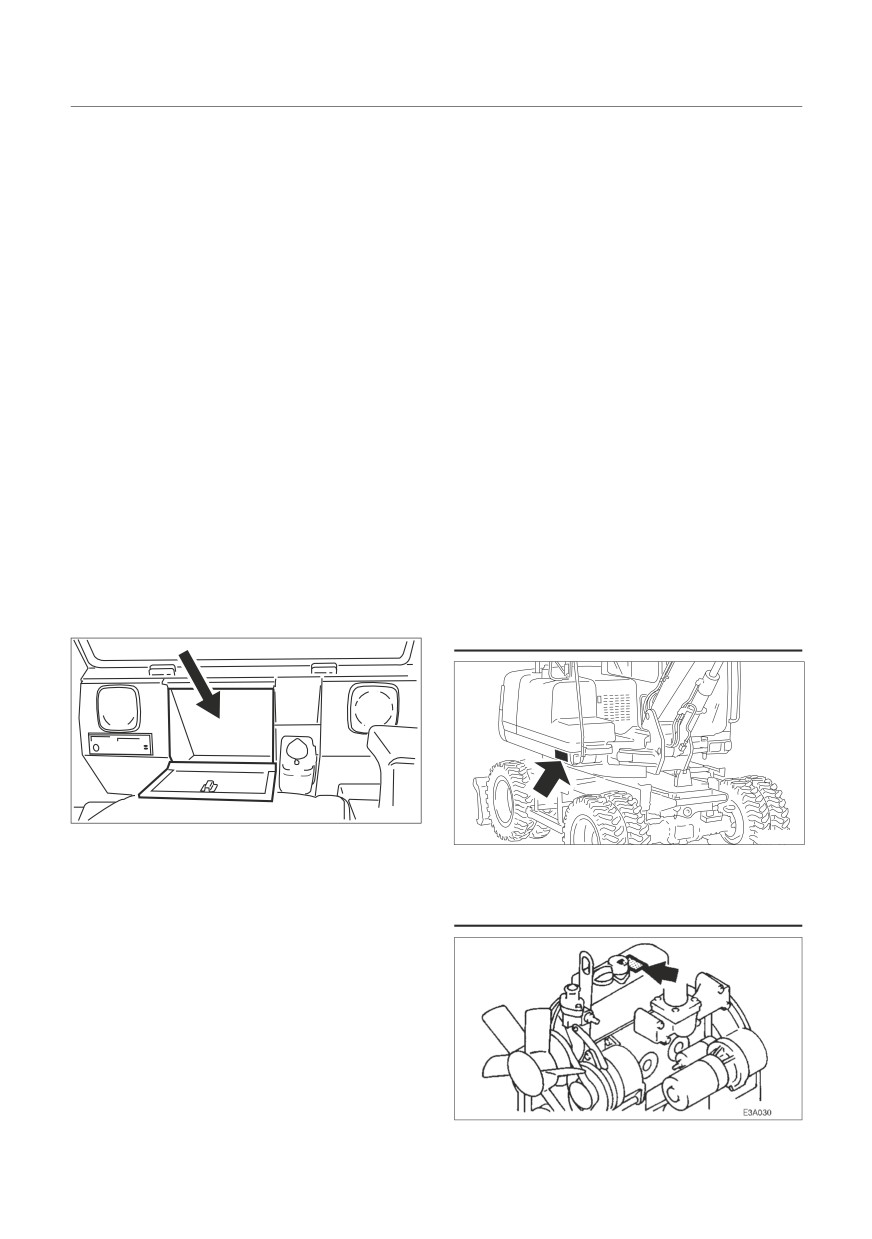

Manual storage

Serial numbers

A manual box is provided at the position

Check the serial numbers of the machine

shown on the diagram below.

and the engine and write them in the spaces

After using the manual, place it in the plastic

provided below.

pouch and store it back in the manual box.

Machine number :

L3A001

W2A001

Engine number :

MACHINE DESCRIPTlON

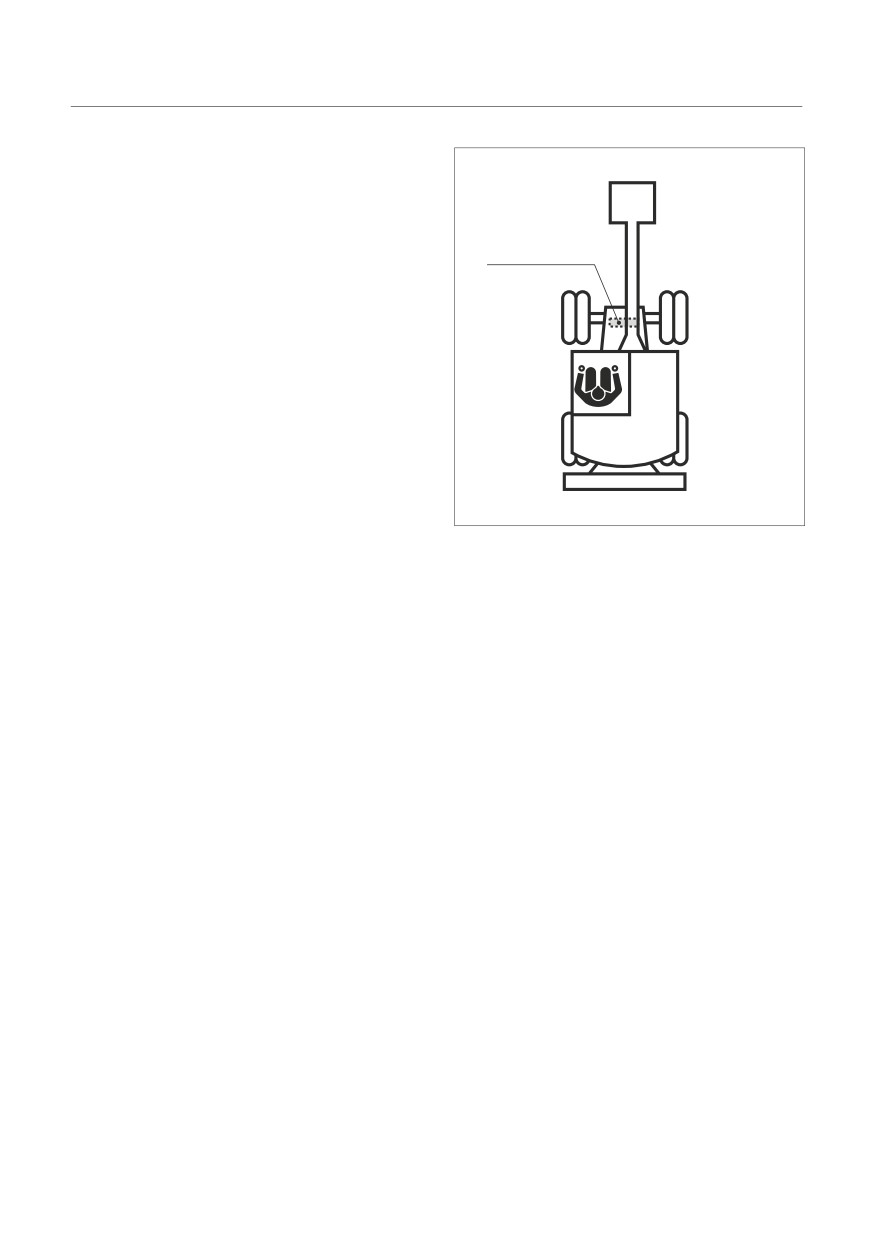

Front, rear, Ieft and right

FRONT

This manual refers the front, rear, left and right

of the machine as seen when sitting in the

operator’s seat with the steering axle visible

to the front.

Steering Axle

Designated operations

Use this machine primarily for the following

LEFT

RIGHT

operations:

Excavating

Digging ditches

Digging side ditches

Leveling

REAR

W2A002E

Features

Isolation mounted cab minimizes vibration.

Low engine noise and exhaust emissions.

Electro over hydraulic control of auxiliary hydraulic circuit.

One touch engine deceleration button.

Two-speed slew allows the operator to slow the excavators slew speed.

Engine emergency stop / idle system.

Break-in period

When the machine is new, heed the instructions below when operating the machine for the first

100 hours (as indicated on the hour meter).

Using a new machine roughly without breaking it in will lead to quicker deterioration of machine

performance and may shorten the machine’s service life.

Warm up the engine and hydraulic oil sufficiently.

Avoid heavy loads and rapid operations. Operate with a load of about 80% the maximum

load.

Do not start up, accelerate, change directions, or stop abruptly unless necessary.

SAFETY

General Precautions

· If operated at an ambient temperature

Observe all safety rules

of lower than -15°C (+5°F), the parts

Operation, inspection and maintenance of

made of rubber such as gaskets may

this machine must be performed only by a

get hardened to cause an early wear or

trained and qualified person.

damage to the machine.

All rules, regulations, precautions and

· If the machine is to be used outside the

safety procedures must be understood

ambient temperature range described

and followed when performing operation,

above, consult your sales or a service

inspection and maintenance of this

dealer.

machine.

Do not perform any operation, inspection

and maintenance of this machine when

under the adverse influence of alcohol,

Wear appropriate clothing and

drugs, medication, fatigue, or insufficient

personal protective equipment

sleep.

When a problem is found on the

machine

If any problem (noise, vibration, smell,

disorder of instrument, smoke, oil leak, wrong

indication of alarm or unusual indication in the

instrument cluster, etc.) is detected during the

Do not wear loose clothing or any accessory

operation or inspection and maintenance of

that can catch on controls or in moving

the machine, immediately inform your sales

parts.

or service dealer and take proper actions.

Do not wear oily or fuel stained clothing

Do not operate the machine until the trouble

that can catch fire.

is cleared.

Wear a hard hat, safety shoes, safety

glasses, filter mask, heavy gloves, ear

protection and other protective equipment

as required by job conditions. Wear

required appropriate equipment such as

Operating temperature range

safety glasses and filter mask when using

To maintain the performance of machine and

grinders, hammers or compressed air, as

to prevent it from early wear, observe the

metal fragments or other objects can fly

following operating conditions.

and cause serious injury.

Do not operate the machine if the ambient

Use hearing protection when operating the

temperature is higher than +45°C (+113°F)

machine. Loud prolonged noise can cause

or lower than -15°C (+5°F).

hearing impairments, even the total loss of

· If operated at an ambient temperature of

hearing.

higher than +45°C (+113°F), the engine

may overheat and cause the engine oil

to degrade.

SAFETY

General Precautions

Provide a fire extinguisher and

Use a signal person and flagman

first aid kit

Know and use the hand signals required for

Know where a fire extinguisher and first aid

particular jobs and make sure who has the

kit are located and understand how to use

responsibility for signaling.

them.

All personnel must fully understand all the

Know how to contact emergency assistance

signals.

and first aid help.

The operator shall respond to signals only

from the appointed signal person, but

shall obey a stop signal at any time from

anyone.

The signal person must stand in a clearly

Never remove safety equipment

visible location when giving signals.

Make sure all protective guards, canopies,

doors, etc., are in place and secure. Repair

or replace damaged components before

operating the machine.

Know how to use the safety lock lever, seat

belt and other safety equipment and use

them properly.

Never remove any safety equipment except

for service. Keep all safety equipment in

good operating condition.

SAFETY

General Precautions

Be sure to lock the safety lock

Avoid fire and explosion hazards

lever before leaving the operator’s

seat

Keep flames away from fuel, hydraulic fluid,

oil, grease and antifreeze. Fuel is particularly

flammable and dangerous.

Before leaving the operator’s seat, set

When handling these combustible

the safety lock lever securely to the

materials, keep lit cigarettes, matches,

lock position and stop the engine. If any

lighters and other flames or sources of

controls should be touched accidentally

flames away.

when the safety lock lever has not be

Do not smoke or permit open flames while

locked, the machine will move suddenly,

fueling or near fueling operations.

and cause serious injury or death.

Never remove the fuel cap or refuel with the

Note that the dozer blade control is not

engine running or hot. Never allow fuel to

locked, even when the safety lock lever is

spill on hot machine components.

set to the lock position. Do not touch this

Clean up spilled fuel, oil or other flammable

control accidentally.

fluids immediately.

Immediately after stopping the engine,

Check for fuel, oil or hydraulic fluid leaks.

move all the control levers and pedals

Stop all leaks and clean the machine before

several times in all directions to release

operating.

the pressure from the working equipment

Do not cut or weld on pipes or tubes that

circuitry.

contain flammable fluids. Clean thoroughly

Refer to the section titled “Releasing the

with nonflammable solvent before cutting

residual pressure” for further instructions.

or welding.

Before leaving the operator’s seat, lower

Remove all trash or debris from the

the working equipment, lock the safety

machine. Make sure that oily rags or other

lock lever, blade lever and boom swing

flammable material are not stored on the

pedal and stop the engine. Also, be sure

machine.

to remove the key and take it with you.

Handle all solvents and dry chemicals

according to procedures identified on

manufacturers’ containers. Work in a well-

ventilated area.

Never use fuel for cleaning purposes.

Always use a nonflammable solvent.

Store all flammable fluids and materials in

a safe and well-ventilated place.

SAFETY

General Precautions

Exhaust fumes from the engine

Be careful not to get crushed or

can kill

cut

Do not operate the engine in an enclosed

Never put your hands, feet or other parts

area without adequate ventilation.

of your body between the upperstructure

If natural ventilation is poor, install

and the undercarriage or tires, between the

ventilators, fans, exhaust extension pipes

machine body and working equipment, or

or other artificial venting devices.

between a cylinder and moving part. The

size of these gaps change when the machine

moves and if caught a person can suffer

serious injury or death.

Handling asbestos dust

Using optional products

Inhaling asbestos dust has been linked to

Consult with a Takeuchi before installing

lung cancer. When handling materials which

optional attachments.

may contain asbestos, take the following

Do not use attachments that have not

precautions:

been approved by Takeuchi. Doing so may

Never use compressed air for cleaning.

compromise safety or adversely affect the

Avoid brushing or grinding of the

machine’s operation or service life.

materials.

Takeuchi will not be held responsible for

For clean up, use wet methods or a

any injuries, accidents or damage to its

vacuum equipped with a high efficiency

products caused by the use of a non-

particulate air (HEPA) filter.

approved attachment.

Wear an approved respirator if there is

no other way to control the dust. When

working indoors, install a ventilation system

Never modify the machine

with a macro molecular filter.

Unauthorized modifications to this machine

can cause injury or death. Never make

unauthorized modifications to any part of

this machine.

SAFETY

Preparing Precautions

Know the working area

Check the strength of the bridge

Before starting operation, know the working

area to ensure safety.

Check the topography and ground

condition of the working area, or the

structure of the building when working

indoors, and take the necessary safety

measures in dangerous spots.

Note and avoid all hazards and obstructions

such as ditches, underground lines, trees,

W2A003

cliffs, overhead electrical wires or areas

When travelling over a bridge or other

where there is danger of a slide.

structure, check the permissible load. If the

strength is insufficient, reinforce it.

Alway keep the machine clean

Check with the local utilities for the

locations of buried gas and water pipes

and buried power cables. Determine jointly

what specific precautions must be taken

to insure safety.

When working on roads, be sure to take

into account the safety of pedestrians and

Clean windows, mirrors and lights to

vehicles.

ensure good visibility.

• Use a flagman and/or signals.

Wipe off any oil, grease, mud, snow or ice,

• Fence off the working area and prohibit

to prevent accidents due to slipping.

entry to unauthorized persons.

Remove all loose objects stored in the

When working in water or crossing shallow

machine and all objects which do not

streams or creeks, check the depth of the

belong in or on the machine and its

water, the solidity of the ground, and the

equipment.

speed of the current beforehand. Make

Remove any dirt, oil or grease from the

sure the water is not deeper than the

engine area, to prevent fires.

allowable depth.

Clean the area around the operator’s seat,

Refer to the section titled “Cautions on

removing any potential obstacles.

Operating” for further instructions.

SAFETY

Preparing Precautions

After smoking, be sure to tightly close the

Perform inspection and

lid of the ashtray to put out the match or

maintenance daily

cigarette.

Do not leave the cigarette lighter in

the operator’s compartment. When the

room temperature rises, the lighter may

explore.

Emergency Exit

Front window (excluding machines with a

Failure to notice or repair machine irregularities

front guard)

or damage can lead to accidents.

Before operating, perform the prescribed

inspections and make repairs immediately

should any irregularities be found.

If a failure that causes loss of control such

as steering, service brakes or engine

occurs, stop the machine motion as

quickly as possible, follow the shutdown

procedure, and keep machine securely

parked until the malfunction is corrected.

If you should become trapped inside the cab,

open the front window to get out.

Cautions in the operator’s

compartment

Emergency hammer (optional)

Remove mud and grease from shoe

soles before entering the operator’s

compartment.

Pedaling the machine with the shoes

with mud and grease will cause a slip

accident.

Do not leave the parts or tools around the

operator’s seat.

Do not leave any plastic bottles in the

operator’s compartment or attach any

suction cups on the window glass. The

An emergency hammer is installed to be used

plastic bottle or suction cup act as a lens

to escape from the cab in an emergency.

and can cause fire.

When escaping, break the windows with the

Do not use the mobile phone during

hammer.

traveling or working.

Do not bring combustibles or explosives

Applicable machine models

into the operator’s compartment.

175400373 or later

SAFETY

Starting Precautions

Maintain three point contact when

Clear the area of other persons

mounting and dismounting

before starting the machine

Do not jump on or off the machine. Never

Do not start the engine until you are sure it

attempt to mount or dismount a moving

is safe. Before starting, check or perform the

machine.

following.

When mounting and dismounting the

Walk around the machine and warn all

cab, first open the door fully to the locked

personnel who may be servicing the

position and check that it does not move.

machine or are in the machine path. Do

(For machines with cabs)

not start until all personnel are clearly away

from the machine.

Check for any “DO NOT OPERATE” tags

or similar warning notices on the cab door,

controls or starter switch.

Sound horn to alert everyone around the

machine.

Start the engine from the

Always face the access system and

operator’s seat

maintain a three point contact with the

Adjust, secure and latch the operator’s

recommended handrails and steps while

seat.

getting on and off the machine. Keep steps

and platform clean.

Never use the safety lock lever or control

levers as hand holds.

Fasten the seat belt.

Check that the parking device is applied

and place all controls in the neutral

position.

Check that the safety lock lever is in the

lock position.

Clear the area of all persons.

Start and operate the engine from the

operator’s seat only.

Never attempt to start the engine by

shorting across the starter terminals.

SAFETY

Starting Precautions

Starting with jumper cables

In cold weather

Use jumper cables only in the recommended

Be careful of slippery conditions on freezing

manner. Improper use of jumper cables can

ground, steps and handrails.

result in battery explosion or unexpected

In severe cold weather, do not touch any

machine motion.

metal parts of the machine with exposed

Refer to the section titled “If the Battery

flesh, as flesh can freeze to the metal and

Goes Dead” for proper instructions.

Cause injury.

Do not use ether or starting fluids on this

engine. These starting aids can cause

explosion and serious injury or death.

Warm up the engine and hydraulic fluid

before operating.

After starting the engine

After starting the engine, perform the following

operations and checks in a safe place with

no persons or obstacles in the area. If any

malfunctions are found, follow the shutdown

procedure and report the malfunction.

Warm up the engine and hydraulic fluid.

Observe all gauges or warning instruments

for proper operation.

Listen for unusual noises.

Test engine speed control.

Operate each control to insure proper

operation.

SAFETY

Operating Precautions

Ensure good visibility

Check for safety in the

surrounding area before starting

When working in dark places, turn on the

machine’s working lights and headlights

and/or provide extra stationary lighting if

necessary.

When visibility is poor due to severe

weather (fog, snow or rain), stop operating

the machine and wait until conditions

improves.

Understand the machine limitations.

Use a signal person where clearances are

close or your vision is obstructed.

Do not permit riders on the

Never allow anyone to enter the slewing

machine

(swing) radius and machine path.

Signal your intention to move by sounding

the horn.

There is a blind spot in the rear of the

machine.

Before traveling in reverse, check that the

area is safe and clear.

Do not allow anyone to ride on any part of

the machine at any time while traveling.

Do not allow anyone to be on any part of

the machine while operating.

SAFETY

Operating Precautions

Check the position of the

Do not raise the safety lock lever while

undercarriage before traveling

traveling. This is dangerous, since raising

the safety lock lever will cause the parking

brake to operate and apply the brake

abruptly.

W2A005

Check the position of the upperstructure in

relation to the undercarriage.

W2A007

If the steering axle is not located beneath the

cab, changes in direction and steering wheel

Avoid crossing over obstacles whenever

turns will not coincide. Turning the wheel to

possible. If you must do so, keep the hoe

the right translates as steering to the left, and

attachment close to the ground and travel

vice versa.

slowly. Never cross obstacles if they will

seriously tilt the machine (to an angle of

10° or greater).

On uneven ground, travel at low speed and

avoid accelerating, stopping or changing

Travel safety

directions abruptly.

Do not turn off the starter switch while

traveling. Doing so will activate the parking

brake, causing the machine to stop

suddenly.

When traveling, do not step on the travel

pedal for the opposite direction. Doing so

is dangerous as it causes the machine to

stop suddenly.

When roading a machine, know and use

Travel with the dozer blade and outriggers

the signaling devices required on the

(option) up, the hoe attachment folded as

machine. Provide an escort for road travel

shown on the diagram, and the bucket

when required.

raised 30 to 40 cm (12 to 16 in.) from the

ground.

Do not slew (swing) while traveling. If

you must operate the hoe attachment

while traveling, operate at speeds slow

enough so you have complete control at

all times.

SAFETY

Operating Precautions

Cautions on traveling on slopes

When traveling on slopes or grades, be

careful that the machine does not tip (roll)

over or slide.

Never exceed the machine’s stability

capabilities (maximum gradeability - 35°,

lateral tipping angle - 15°). Also note that

W2A011

when actual working area conditions are

poor the machine’s stability capabilities

Do not change directions or cross slopes

may be lower.

sideways. First return to a flat surface then

redirect the machine.

90°~110°

Operate on snow or ice with extra

care

Descending

When traveling on snow or frozen surfaces,

keep the machine travel speed down and

20~30cm (8 to 12 in)

W2A009

avoid accelerating, stopping or changing

directions abruptly.

Climbing

Remember that the road shoulder, fences,

etc., may be buried in the snow and not

90°~110°

20~30cm

visible.

(8 to 12 in)

Lower the dozer blade when parked on

unsure ground conditions.

W2A010

When traveling on slopes or grades, lower

Do not carry the bucket over the

the bucket to a height of 20 to 30 cm (8 to 12

heads of people

in.) off the ground. In emergencies, lower the

bucket to the ground and stop the machine.

When traveling on slopes or grades, move

slowly at low speed.

Do not travel down slopes in reverse.

On grass, dead leaves, wet metal or frozen

surfaces, the machine may slide sideways

even on very gentle slopes. Make sure

the machine never faces sideways with

W2A014

respect to the slope.

Carrying the bucket over the heads of people

Do not travel at speeds of over 20 km/h

entails the danger of the load spilling or the

(12.4 mph) on long down slopes. Release

sudden dropping of the bucket.

the travel pedal from time to time to protect

the travel motor and ensure travel stability.

SAFETY

Operating Precautions

Consider all lines to be power lines and

Insure driver safety before loading

treat all power lines as energized even

trucks

though it is known or believed that the

power is shut off and the line is visibly

grounded.

Use a signal person to observe the

approach of any part of the machine or

load to the power line.

Caution all ground personnel to stand clear

of the machine and the load at all times.

If the machine should come in contact

W2A026

with a live electrical source, do not leave

Do not load a truck unless the driver is in a

the operator’s seat. Do not allow anyone

safe place.

to approach or touch the machine.

Never swing or position the bucket over

personnel or truck cabs.

Load the truck from the rear.

Keep a safe distance from

electrical power lines

W2A028

Be especially careful of buried high voltage

power lines.

W2A027

Never approach power lines with any part of

the machine and its load unless all local and

national required safety precautions have

been taken. Electrocution and death can

result from arcing, touching or even being

close to a machine that is in contact with or

near an electrical source.

Maintain the maximum possible distance

from power lines and never violate the

minimum clearance.

Always contact the nearest electric utility and

determine jointly what specific precautions

must be taken to insure safety.

SAFETY

Operating Precautions

Watch out for hazardous working

conditions

W2A020

Do not approach unstable surfaces (cliffs,

road shoulders, deep trenches, etc.). The

W2A017

ground may give way under the machine’s

weight or vibrations, causing the machine

Never undercut a high bank. Be particularly

to tip over.

alert for the possibility of a cave-in.

• The ground is weak after rain or

Do not operate in places where there is a

explosions.

danger of falling rocks.

• The ground is also unstable on banks

and near dugout trenches.

Danger of flying objects

This machine is not equipped with protective

guards to protect the operator from flying

objects. Do not use the machine in places

W2A018

where there are risks of the operator being hit

Keep machine well back from the edge

by flying objects.

of an excavation. Avoid undercutting the

machine.

W2A019

Do not enter soft ground. Entry onto soft

ground can result in the machine tilting on

its own weight, tipping over, or falling in.

SAFETY

Operating Precautions

Operating on slopes is

Never slew (swing) sideways with

dangerous

excessive weights

When operating on slopes or grades, slewing

(swinging) or operating working equipment

may cause the machine to lose stability and

tip over. Avoid operating on slopes whenever

possible.

W2A029

The machine can tip over more easily in

Fill

the lateral direction than in the longitudinal

direction.

Do not slew (swing) sideways with

excessive weight at the front.

W2A021

In particular do not slew sideways on

Level off the work area.

slopes.

The front is heavier for machines equipped

with breakers, crushers or telescopic

arms than for machines equipped with

the standard bucket. Do not operate such

machines sideways especially with the

digging arm (boom) downhill.

W2A022

Watch boom clearance

Avoid swinging the loaded bucket in a

downhill direction. This will reduce the

stability of the machine.

W2A030

When operating under bridges, in tunnels,

near power lines or indoors, be careful not

to hit the boom or arm against overhead

objects.

SAFETY

Operating Precautions

Excavators are not designed for

Cautions on Towing

lifting loads

W2A033

When towing, selecting the wrong wire rope,

The machine is specifically designed for

inspecting improperly, or towing in the wrong

excavation work and has no safety devices

way could lead to accidents resulting in

for crane operation. Extreme caution should

serious injury or death.

be used if the excavator is used for lifting.

The wire rope breaking or coming detached

Never lift loads in excess of capacity.

could be extremely dangerous. Use a wire

Overload will cause the machine to roll and

rope suited for the required towing force.

can result in serious injury or death.

Do not use a wire rope that is kinked,

All rated lift capacities are based on

twisted or otherwise damaged.

the machine being level and on a firm

Do not apply strong loads abruptly to the

supporting surface. For safe working

wire rope.

loads, the user is expected to make due

Use safety gloves when handling the wire

allowance for the particular job conditions

rope.

such as soft or uneven ground, non-level

Make sure there is an operator on the

condition, side loads, dynamic or jerked

machine being towed as well as on the

loads, hazardous conditions, experience

machine that is towing.

of personnel, etc. The operator and

Never tow on slopes.

other personnel should fully acquaint

Do not let anyone near the wire rope while

themselves with the operator’s manual

towing.

before operating this machine, and rules

for safe operation of equipment shall be

adhered to at all times.

Failure of the bucket linkage or slings could

result if chains or slings are incorrectly

attached, resulting in serious injury or

death.

Do not attempt to pull stumps out of the

ground while using the machine as a crane.

The loads imposed on the machine under

this use are completely unknown.

Never allow any personnel to stand on

or under lifted loads or even within the

maneuvering area.

SAFETY

Stopping Precautions

Park safely

Block

Dig in

W2A023

Park the machine on firm, level ground and

apply the parking device. If you must park

on a slope or incline, block the machine

securely to prevent movement.

When parking on streets, use barriers,

caution signs, lights, etc., so that the

machine can easily be seen even at night

to avoid collision with other vehicles.

Before leaving the machine, do the

following:

1. Lower the bucket and dozer blade to

the ground.

2. Place the safety lock lever in the lock

position.

3. Lock the blade lever and boom swing

pedal.

4. Stop the engine and remove the key.

5. Lock the cab and covers.

SAFETY

Transporting Precautions

Load and unload the machine

Hoist the machine safely

safely

Know and use correct crane signals.

Check the hoisting equipment for damaged

Trailer

or missing parts on a daily basis and

Ramp

replace as necessary.

When hoisting, use a wire rope capable of

lifting the machine mass.

Hoist the machine in such a manner

described in the procedure below. Do not

15° or less

do it in any other manner, as it may result

Stopper

W2F001E

in the machine losing its balance.

The machine may roll or tip over or fall while

Refer to “Hoisting the machine” for further

loading or unloading it. Take the following

instructions.

precautions:

Do not hoist the machine with an operator

Select a firm, level surface and keep

on it.

sufficient distance from road shoulders.

When hoisting, hoist slowly so that the

Use loading ramps of adequate strength

machine does not tip.

and size. Maintain the slope of loading

Keep everyone out of the area when

ramps within 15 degrees.ɹIf the rumps

hoisting. Do not move the machine over

are bowed down too low, support them

the heads of the persons.

with poles or blocks.

Secure the ramps to the trailer deck.

Keep the trailer deck and loading ramps

clean of oil, clay, ice, snow, and other

materials which can become slippery.

Transport the machine safely

Clean the machine tires.

Block the trailer so it can not move.

Know and follow the safety rules, vehicle

Use a signal person when loading and

code and traffic laws when transporting

unloading the machine, and travel slowly

the machine.

in site travel gear.

Consider the length, width, height and

Never change course on the ramp.

weight of the trailer with the machine

Do not slew (swing) on ramps. The machine

loaded on it when determining the best

may tip over.

route.

When slewing (swinging) on the trailer

deck, do so slowly as the footing can be

unstable.

Engage the slew (swing) lock after

Block the machine tires and secure the

machine to the trailer deck with load

binders.

SAFETY

Maintenance Precautions

Attach a “DO NOT OPERATE” tag

Anti-explosive lighting

Severe injury could result if an unauthorized

person should start the engine or touch

controls during inspection or maintenance.

Stop the engine and remove the key before

performing maintenance.

Attach a “DO NOT OPERATE” tag to the

starter switch or control lever.

Use anti-explosive electrical fixtures and

lights when inspecting fuel, oil, coolant,

Use the correct tools

battery fluid, etc. If lighting that is not anti-

explosive should break, the substance could

ignite, resulting in serious injury or death.

Do not allow unauthorized

personnel in the work area

Do not use damaged or weakened tools or

tools designed for other purposes. Use tools

suited for the operation at hand.

Replace important safety parts

periodically

Do not allow unauthorized personnel in the

Replace fuel hoses periodically. Fuel hoses

work area. Chips or other debris can fly off

become weaker over time, even if they

machine parts when grinding, welding or

appear to be in good shape.

using a hammer.

Replace important safety parts whenever

an irregularity is found, even if it is before

the normal time for replacement.

Refer to the section titled “Important Parts”

for further details.

SAFETY

Maintenance Precautions

Prepare the work area

Stop the engine before performing

maintenance

Select a firm, level work area. Make sure

there is adequate light and, if indoors,

Avoid lubrication or mechanical adjustments

ventilation.

with the machine in motion or with the

Clear obstacles and dangerous objects.

engine running while stationary.

Eliminate slippery areas.

If maintenance must be performed with

the engine running, always work as a two

person team with one person sitting in the

operator’s seat while the other works on

the machine.

• When performing maintenance, be sure

to keep your body and clothing away

from moving parts.

Always clean the machine

Stay clear of moving parts

Clean the machine before performing

Stay clear of all rotating and moving parts.

maintenance.

Wrapping or entanglement may result in

Stop the engine before washing the

serious injury or death.

machine. Cover the electrical parts so that

Keep hands, clothing and tools away from

water cannot enter. Water on electrical parts

the rotating fan and running fan belts.

could cause short-circuits or malfunctions.

Do not use water or steam to wash the

battery, electronic control components,

sensors, connectors or the operator’s

compartment.

SAFETY

Maintenance Precautions

Securely block the machine or any

Cautions on working on the

component that may fall

machine

Before performing maintenance or

When performing maintenance on the

repairs under the machine, set all working

machine, clean up the foot area and strictly

equipment against the ground or in the

observe the following so as not to fall:

lowermost position.

• Do not spill oil or grease.

Securely block the tires.

• Do not leave tools laying around.

If you must work beneath the raised

• When walking, watch your step.

machine or equipment, always use wood

Never jump off the machine. Use the steps

blocks, jack-stands or other rigid and

and handrails when climbing on and off the

stable supports. Never get under the

machine, and always support your body at

machine or working equipment if they are

three points with your hands and feet.

not sufficiently supported. This procedure

Use protective equipment as required by

is especially important when working on

job conditions.

hydraulic cylinders.

Securely block the working

Place heavy objects in a stable

equipment

position

To prevent unexpected movement, securely

block the working equipment when repairing

or replacing the cutting edges or bucket

teeth.

Secure the engine hood or cover

when opened

When removing or installing the hoe

Be sure to secure the engine hood or cover

attachment, place it in a stable position so

when opening it. Do not open the engine hood

that it does not tip over.

or cover on slopes or in strong wind.

SAFETY

Maintenance Precautions

Use caution when fueling

Be careful with hot and

pressurized components

Do not smoke or permit open flames while

fueling or near fueling operations.

Stop the engine and allow the machine to

Never remove the fuel cap or refuel with the

cool down before performing inspection and

engine running or hot. Never allow fuel to

maintenance.

spill on hot machine components.

The engine, muffler, radiator, hydraulic

Maintain control of the fuel filler nozzle

lines, sliding parts and many other parts

when filling the tank.

of the machine are hot directly after the

Do not fill the fuel tank to capacity. Allow

engine is stopped. Touching these parts

room for expansion.

will cause burns.

Clean up spilled fuel immediately.

The engine coolant, oil and hydraulic fluid

Tighten the fuel tank cap securely. Should

are also hot and under high pressure.

the fuel cap be lost, replace it only with

Be careful when loosening caps and plugs.

the original manufacturer’s approved cap.

Working on the machine under these

Use of a non-approved cap without proper

conditions could result in burns or injuries

venting may result in pressurization of the

due to the hot oil spurting out.

tank.

Never use fuel for cleaning purposes.

Use the correct fuel grade for the operating

season.

Be careful with hot cooling

systems

Handling of hoses

Fuel, oil or hydraulic fluid leaks can cause

a fire.

Do not twist, bend or hit the hoses.

Never use twisted, bent or cracked hoses,

tubes and pipes. They may burst.

Retighten loose connections.

Do not remove the radiator cap or drain plugs

when the coolant is hot. Stop the engine, let

the engine and radiator cool and loosen the

radiator cap or drain plugs slowly.

SAFETY

Maintenance Precautions

Be careful with fluids under

Release all pressure before

pressure

working on the hydraulic system

Pressure can be maintained in the hydraulic

Oil may spurt out if caps or filters are removed

circuit long after the engine has been shut

or pipes disconnected before releasing the

down.

pressure in the hydraulic system.

Release all pressure before working on the

Gradually press the air breather button to

hydraulic system.

relieve tank pressure.

Immediately after stopping the engine,

move all the control levers and pedals

several times in all directions to release

the pressure from the working equipment

circuitry.

When removing plugs or screws or

disconnecting hoses, stand to the side

and loosen slowly to gradually release the

internal pressure before removing.

Hydraulic fluid under pressure can

penetrate the skin or eyes and cause

Handling of the Accumulator

injury, blindness or death. Fluid escaping

from a small hole can be almost invisible.

Wear a safety goggles and heavy gloves

and use a piece of cardboard or wood to

search for suspected leaks.

If fluid is injected into the skin, it must be

removed within a few hours by a doctor

familiar with this type of injury.

N0A0051

High pressure nitrogen gas is enclosed in the

accumulator and incorrect handling could

possibly bring about serious personal injury

due to explosion. The following matters

should be strictly observed:

Do not disassemble.

Do not bring close to fire or throw into a

fire.

Do not make hole, weld, or fuse.

Do not subject to shock such as hitting or

rolling.

At time of disposal, it will be necessary to

release the enclosed gas. Please contact

a Takeuchi sales or service outlet.

SAFETY

Maintenance Precautions

Do not inflate tires with flammable gases or

Tire Maintenance

from systems utilizing an alcohol injector.

Never cut or weld on a wheel with an

inflated tire mounted on it. This could cause

explosive decompression.

Tires are to be repaired only by an

authorized person using the proper

procedures and safety equipment. New

or replacement tires and wheels should

always be checked for proper size before

W2A024

mounting.

Explosive separation of a tire and/or rim

Always use a safety cage or cable restraints

parts can cause serious injury or death.

when reinflating a repaired tire.

Always follow the service outlet or see your

tire supplier.

Special tools and procedures are required

to change tires. To do it safely, it must be

done correctly.

Changing tires is a job better done by your

tire service company.

Always maintain the correct tire pressure.

Do not inflate the tires above the

recommended pressure.

Inspect tires and wheels daily. Do not

operate with low pressure, cuts, bubbles,

damaged rims.

A rise in tire pressure during operation is

normal, and should NOT be reduced.

W2A031

When adding air to a tire, do so from

a distance. Use a long hose with self-

attaching chuck. Always stand behind

tread when adjusting tire pressure.

SAFETY

Maintenance Precautions

Always unfasten the negative (-) battery

Disconnect the battery

cable first when disconnecting the battery

cable. Always connect the negative

(-) battery cable last when fastening the

battery cable.

Loose battery terminals may result in

sparks. Be sure to fasten terminals

tightly.

Make sure the vent caps are tightened

securely.

Do not charge a battery or jump-start the

Disconnect the battery before working on

engine if the battery is frozen. Warm to

the electrical system or doing any welding.

15°C (60°F) or the battery may explode.

Remove the negative (-) battery cable first.

Do not use the battery when the fluid

When reconnecting the battery, connect the

level is below the lower level. Doing so

negative (-) battery cable last.

will hasten the deterioration of the internal

portions of the battery and shorten the

battery life, and can also cause rupturing

(or an explosion).

Do not fill the battery above the upper level.

Doing so could cause the fluid to leak,

Avoid battery hazards

contact and damage the skin, or cause

Batteries contain sulfuric acid which will

parts to corrode.

damage eyes or skin on contact.

• If acid contacts eyes, flush immediately

with clean water and get prompt medical

attention.

• If acid is accidentally swallowed, drink

large quantities of water or milk and call

a physician immediately.

• If acid contacts skin or clothing, wash off

immediately with clean water.

Wear safety glasses and gloves when

working with batteries.

Batteries generate flammable and explosive

gases. Keep arcs, sparks, flames and

lighted tobacco away.

Use a flashlight to check battery electrolyte

level.

Stop the engine and shut off electrical

equipment while inspecting or handling

the battery.

Do not short circuit the battery posts with

metal items.

SAFETY

Maintenance Precautions

Have a Takeuchi service agent

Checks after maintenance

repair welding

Gradually raise the engine speed from a

If welding must be performed, make sure

low idle to maximum speed and check

that it is done by a qualified person in a

that no oil or water is leaking from serviced

properly equipped workplace. To prevent any

parts.

part from breaking down or being damaged

Move the controls and check that the

due to overcurrent or sparks, observe the

machine is operating properly.

following.

Disconnect the wiring from the battery

before doing electric welding.

Do not continuously apply 200 V or

Disposing of wastes

more.

The earth ground must be connected

within one meter from the welding section.

Do not connect the earth ground near to an

electronically controlled device/instrument

or connectors.

Make sure that there are no seals or

bearings between the welding section and

the earth ground.

Do not connect the earth ground around

Funnel spent fluids from the machine into

the pins for the working equipment or

containers. Disposing of fluids improperly

hydraulic cylinders.

destroys the environment.

When welding is to be done on the

Follow the prescribed regulations when

machine body, disconnect the connectors

disposing of oil, fuel, engine coolant,

for the electronically controlled devices

refrigerant, solvents, filters, batteries or

before working.

other harmful substances.

Vibrations to which the operator is

Handling of poisonous chemicals

subjected

Poisonous chemicals will cause serious injury

According to the results of the tests carried

if directly contacted.

out to determine the vibrations transmitted to

Poisonous chemistry used in this machine

the operator by the machine, the upper limbs

includes grease, battery solution, coolant,

are subjected to vibrations lower than 2.5 m

paint and adhesive agent.

(8.2 ft) / sq. sec. while the seated part of the

Handle the poisonous chemicals properly

body is subjected to vibrations lower than 0.5

with care.

m (1.64 ft) / sq. sec.

SAFETY

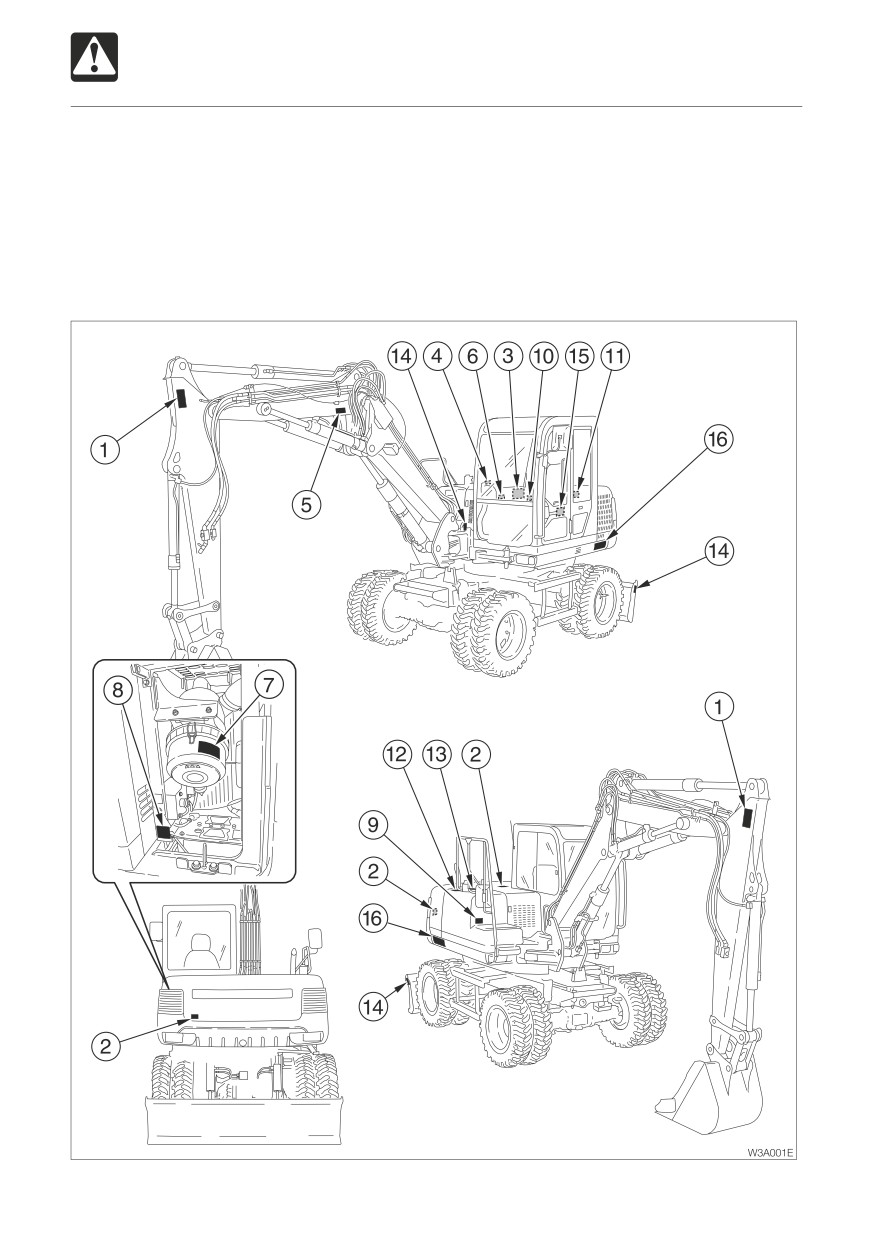

Safety Signs (Decals)

The following safety signs (decals) have been placed on your machine in the areas indicated.

They are intended for the personal safety of you, and those working with you. Please take

this manual, walk around your machine and note the content and location of these safety

signs. Review these signs and the operating instructions in this manual with your machine

operators.

Keep the signs legible. If they are not, obtain replacements from your Service outlet.

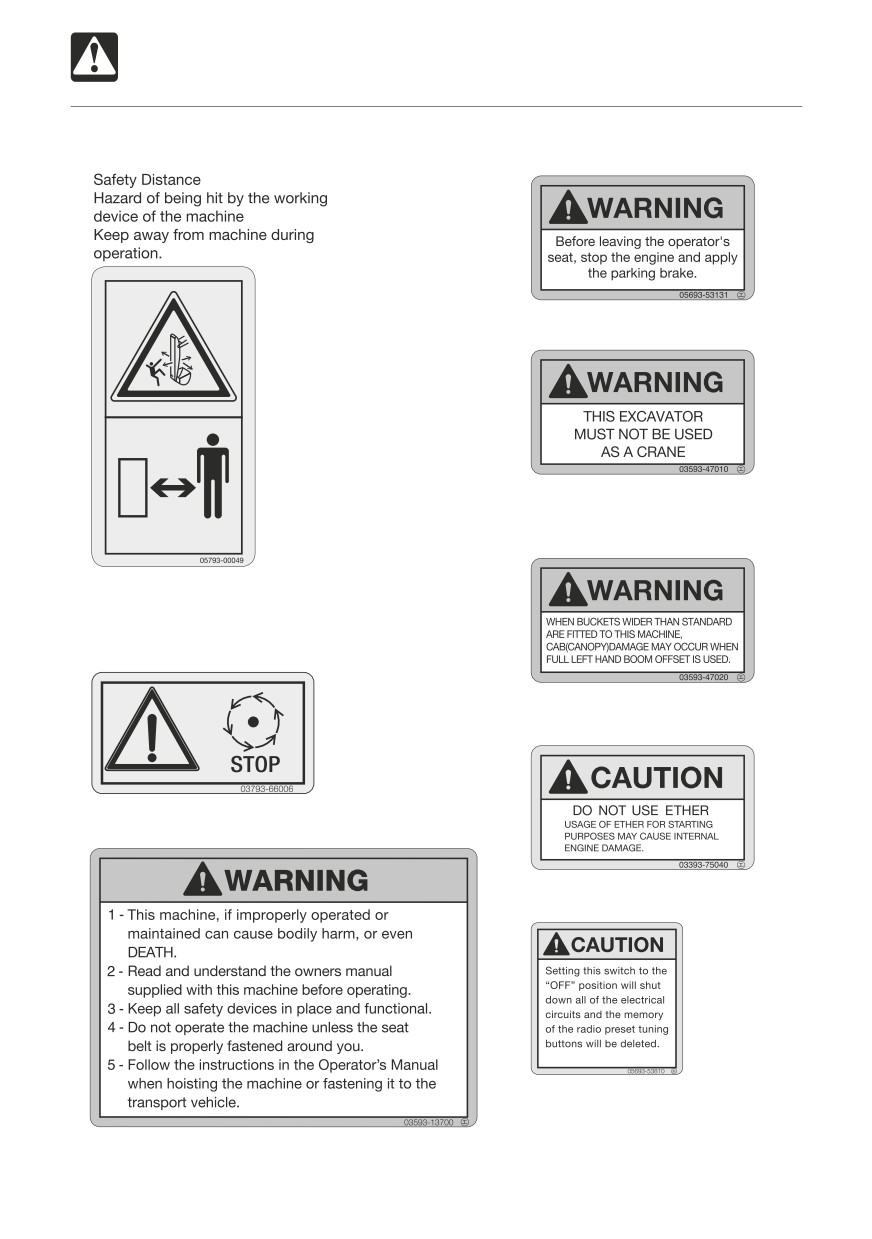

SAFETY

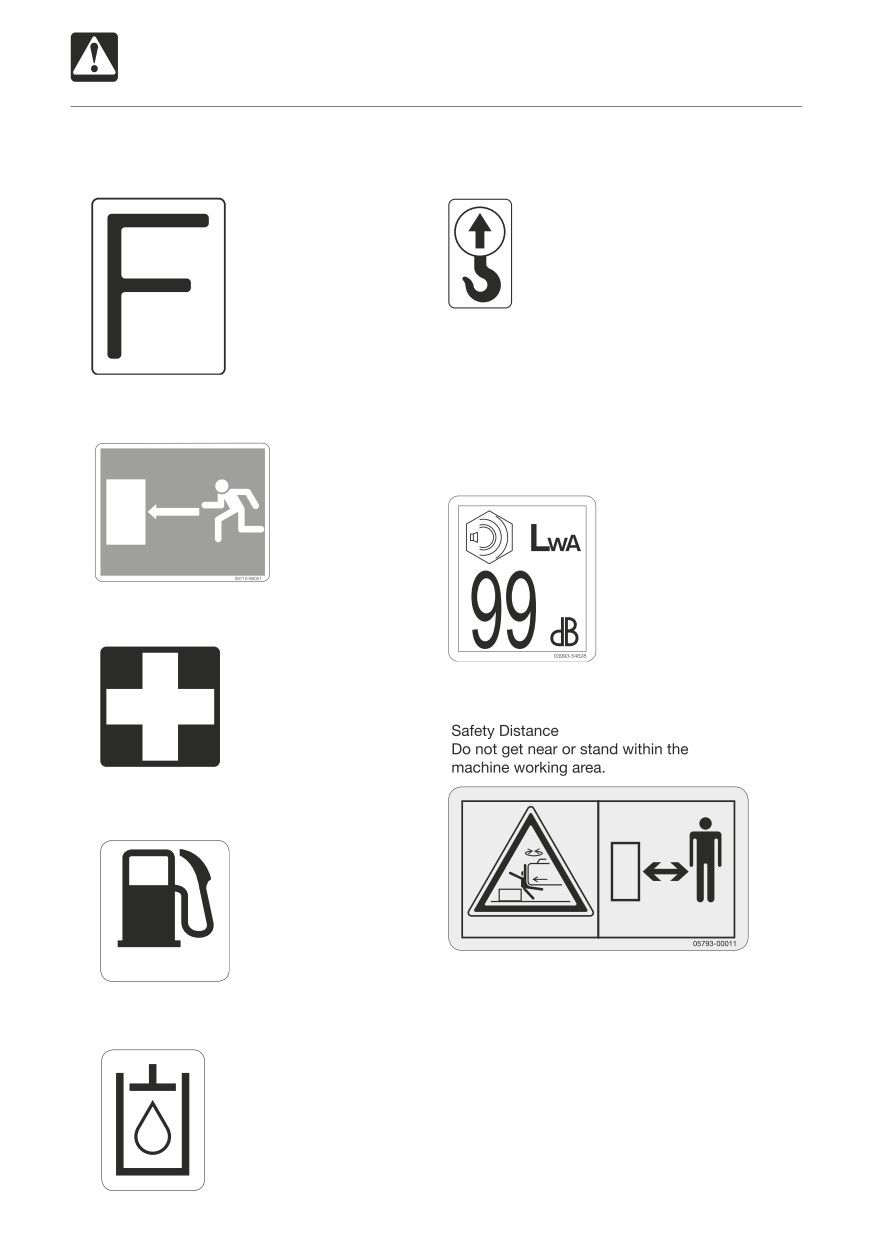

Safety Signs (Decals)

9. No.0399300400

14. No.0399300500

Position of Fire extinguisher

Position of Hoisting

15. No.0399354628

for EU

Noise Outside the Cab

10. No.0871086051

This value indicates the noise level

Position of Emergency Exit

outside the machine and refers to the

noise perceived by the persons who

are in the vicinity of the work area.

11. No.0569334080

Position of First Aid Kit

16. No.0579300011

12. No.0359306600

Diesel Fuel

Diesel Fuel Only

03593-06600

13. No.0359306700

Hydraulic oil

CONTROLS

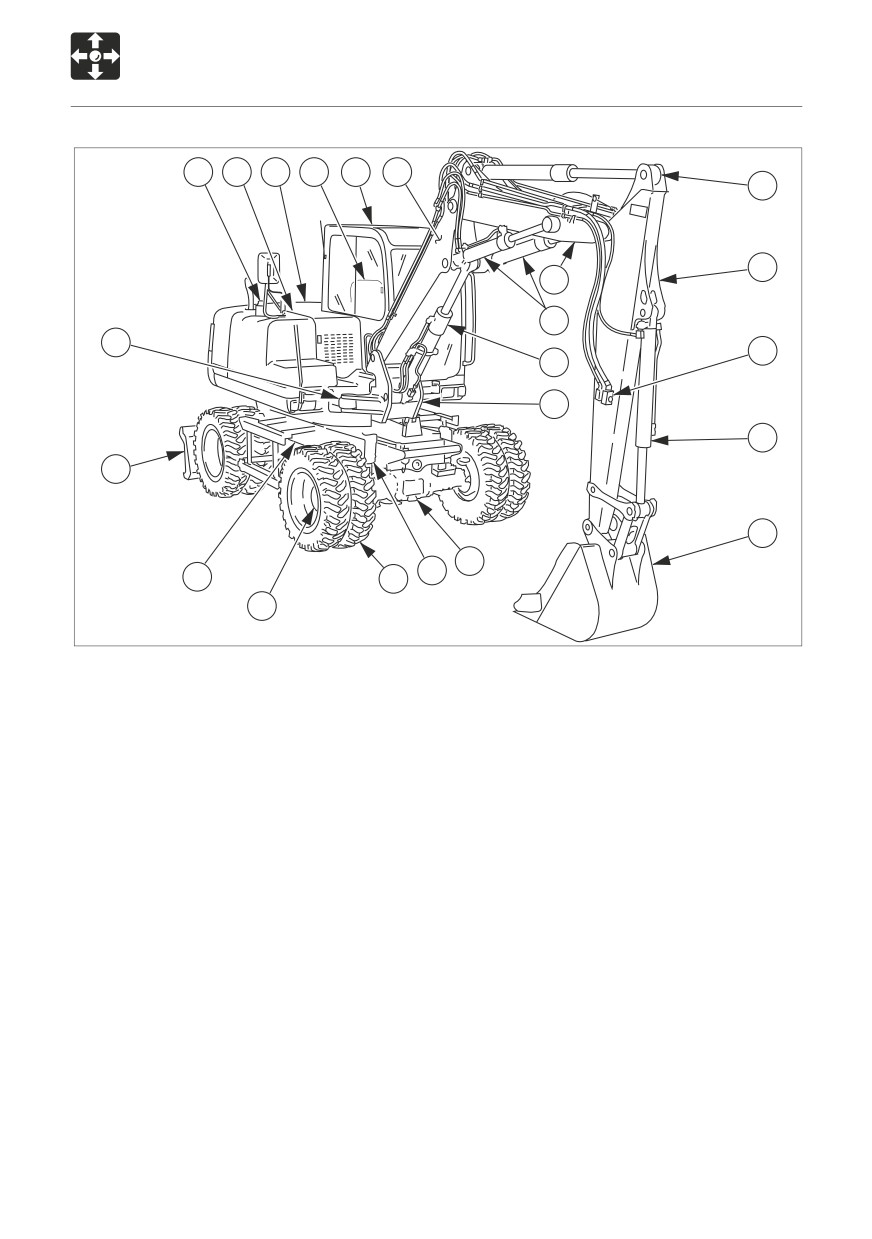

Names of Components

W2B001

Upperstructure

Undercarriage

Working equipment

1. Cab

6. Tire

11. Dozer blade

2. Seat

7. Axle lock cylinder

12. Bucket

3. Engine hood

8. Steering axle

13. Bucket cylinder

4. Fuel tank

9. Hub

14. Arm

5. Hydraulic tank

10. Chassis

15. Arm cylinder

16. Boom

17. Boom cylinder

18. Intermediate boom

19. Boom adjustment cylinder

20. Boom bracket

21. Swing cylinder

22. Auxiliary hydraulic lines

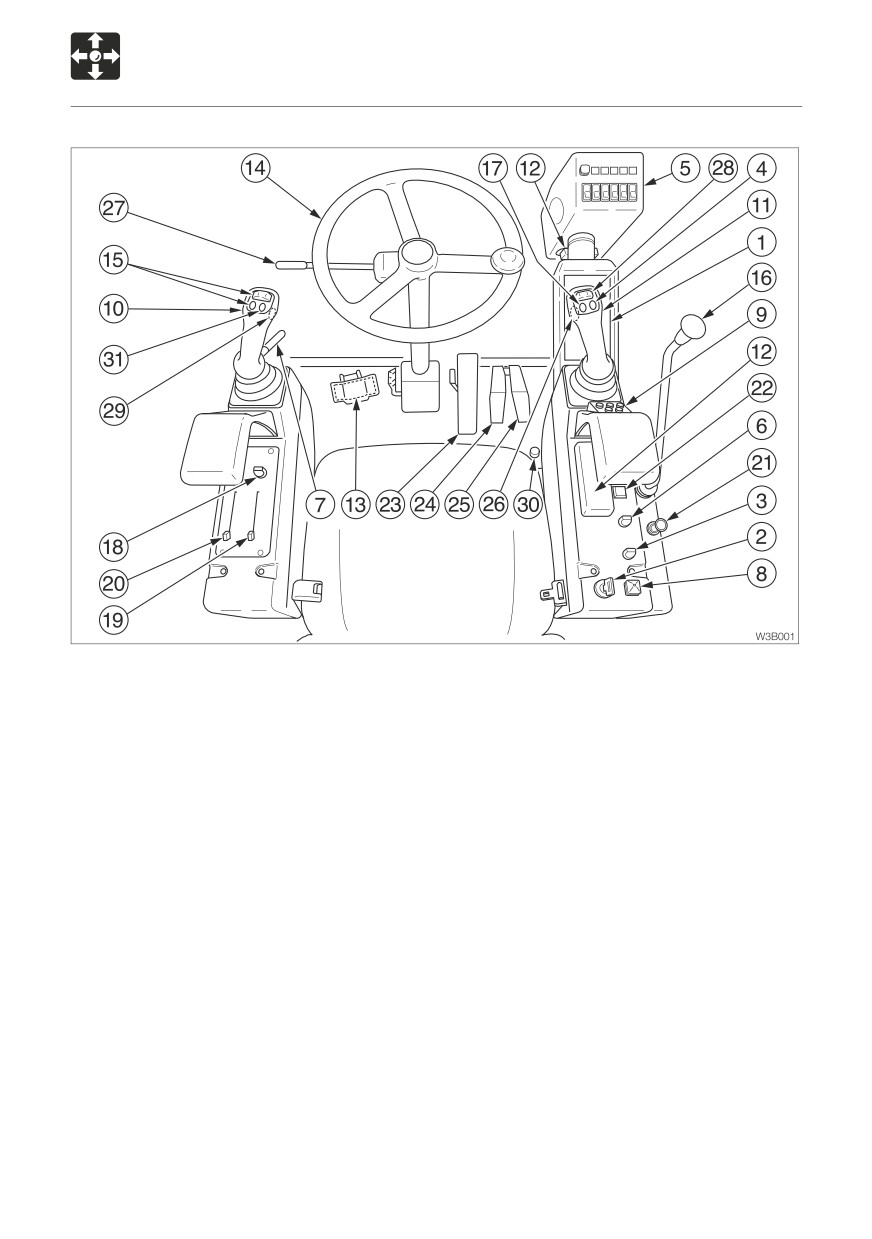

CONTROLS

Names of Components

1. Instrument cluster

17. Horn button

2. Starter switch

18. Fan switch (Heater)

3. Working light switch

19. Heater / Defroster switch

4. Decel. button

20. Ventilation / Circulation switch

5. Control console

21. Cigarette lighter

6. Wiper switch

22. Engine Fault Warning Lamp

7. Safety lock lever

23. Brake pedal

8. Slew speed button

24. Forward travel pedal

9. Power mode buttons / Throttle buttons

25. Reverse travel pedal

10. Left operating lever

26. Selector button (2 or 4 Aux.)

11. Right operating lever

27. Turn signal switch

12. Fuse box

28. Second / Fourth auxiliary hydraulic switch

13. Boom swing pedal

(option)

14. Steering wheel

29. Third auxiliary hydraulic button (option)

15. First auxiliary hydraulic switches

30. Third auxiliary hydraulic switch (option)

16. Blade lever

31. Selector button (2-Piece boom)

Takeuchi Hydraulic Excavator TB175W (No. 175400095~). Operator's Manual - page 1
