Takeuchi Hydraulic Excavator TB175 (No. 17512105~). Operator's Manual (2007)

OPERATION

E4A040

Operating Procedures

Pay Attention to the Dozer Blade when
Digging

When digging deeply with the dozer blade
positioned at the front, be careful that the
boom cylinder and bucket do not hit the dozer
blade.
Operate with the dozer blade at the rear
whenever possible.

Caution on Digging Down with the Dozer
Blade

This dozer blade is designed for simple earth
pushing. Do not dig down deeply with the
dozer blade. Doing so could damage the
dozer blade and lower body.

Cautions on Operating

Cautions on Traveling

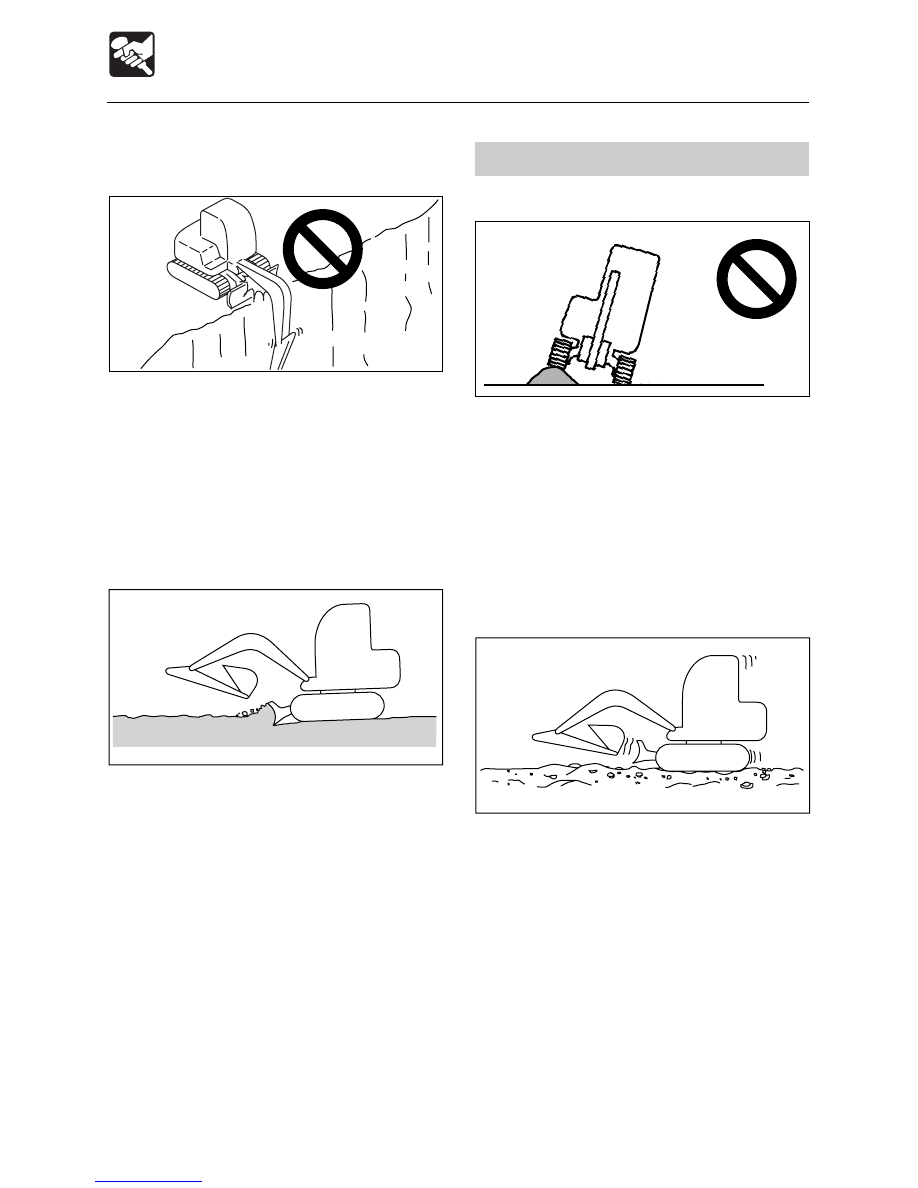

Traveling over obstacles (rocks, stumps, etc.)
may subject the body to strong shocks and
result in damage. Avoid traveling over
obstacles whenever possible. If you must do
so, keep the hoe attachment near the ground,
travel at low speed, and go over the obstacle
at the center of the crawler.

Cautions on Traveling in 2nd (High)
Speed

On uneven ground, travel at low speed
and avoid accelerating, stopping or
changing directions abruptly.

When a load greater than a set value is
applied during 2nd speed (high speed)
travel, the speed will automatically slow
down by switching to 1st speed (low
speed). Thereafter, when the load
becomes lighter, the speed will increase
by returning to 2nd speed (high speed).
Exercise due caution since the travel
speed changes automatically.

When traveling in 2nd speed, do so with
the dozer blade at the front.

E4D0431

E4D044

E4D037

OPERATION

Operating Procedures

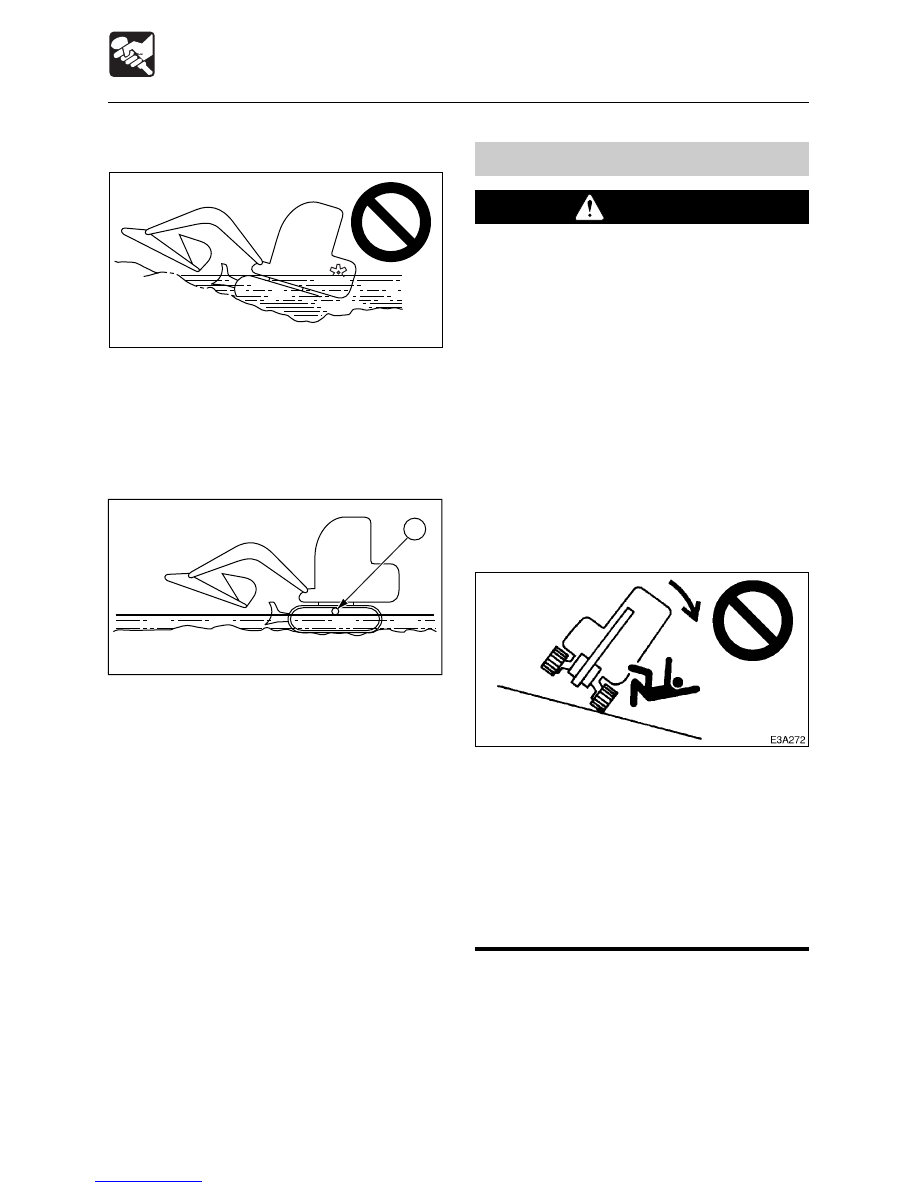

Cautions on Use in Water

If you leave water at a sharp angle, the rear
of the machine may be submerged, exposing
the radiator fan to water and damaging them.
Do not let the rear of the machine get
submerged.

Allowable water depth.
In water, only use the machine up to a
depth at which the water comes up to the
middle of the carrier roller (1).

When greasing places used under water
for long periods of time, apply enough
grease so that the old grease is expelled.

Never submerge the slew bearing or main
body in water or sand. If the slew bearing
or main body should get submerged,
contact a Takeuchi sales or service outlet
for inspection.

Cautions on Traveling on Slopes

WARNING

Never exceed the machine’s stability
capabilities (maximum gradeability -
35

, lateral tipping angle - 15

). Also

note that when actual working area
conditions are poor the machine’s
stability capabilities may be lower.

When traveling on slopes or grades,
lower the bucket to a height of 20 to 30
cm (8 to 12 in.) off the ground. In
emergencies, lower the bucket to the
ground and stop the machine.

When traveling on slopes or grades,
move slowly in first gear (low speed).

Do not travel down slopes in reverse.

Do not change directions or cross
slopes sideways. First return to a flat
surface then redirect the machine.

On grass, dead leaves, wet metal or
frozen surfaces, the machine may slide
sideways even on very gentle slopes.
Make sure the machine never faces
sideways with respect to the slope.

E4D038

E4D039

OPERATION

Operating Procedures

Braking when traveling down slopes

When traveling down slopes, the brakes are
applied automatically when the travel levers
are returned to the neutral position.

If the crawlers slip

If the crawlers slip while traveling up a slope,
use the pulling force of the arm to climb the
slope.

If the engine stops

If the engine stops when traveling down a
slope, set the travel levers to the neutral
position, stop the machine, then start the
engine.

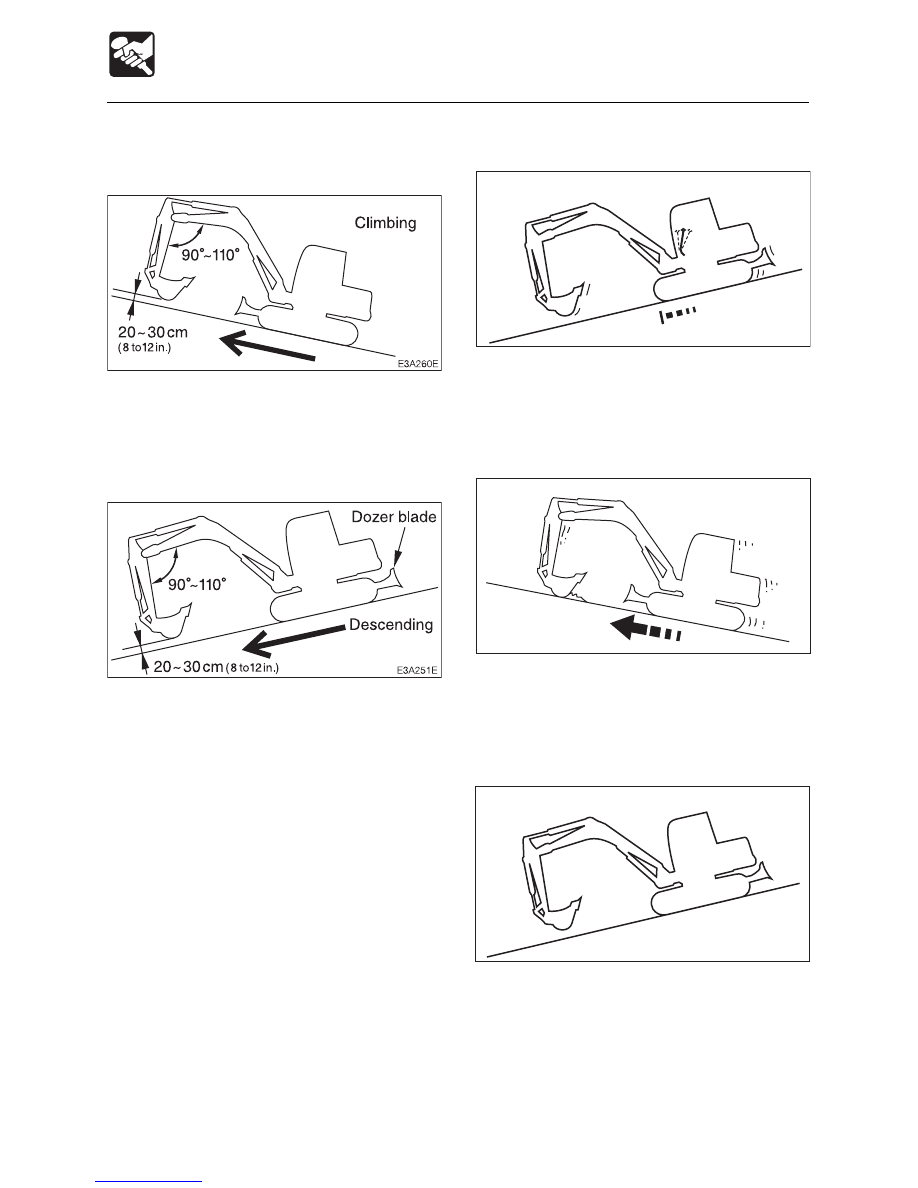

Traveling Posture
Traveling up slopes

When traveling up slopes at an angle of 15

or greater, travel in the posture shown in the
diagram above.

Traveling down slopes

When traveling down slopes at an angle of
15

or greater, lower the engine speed and

travel in the posture shown in the diagram
above.

Climbing

E4D045E

Braking

E4D046

Descending

E4D047E

OPERATION

Operating Procedures

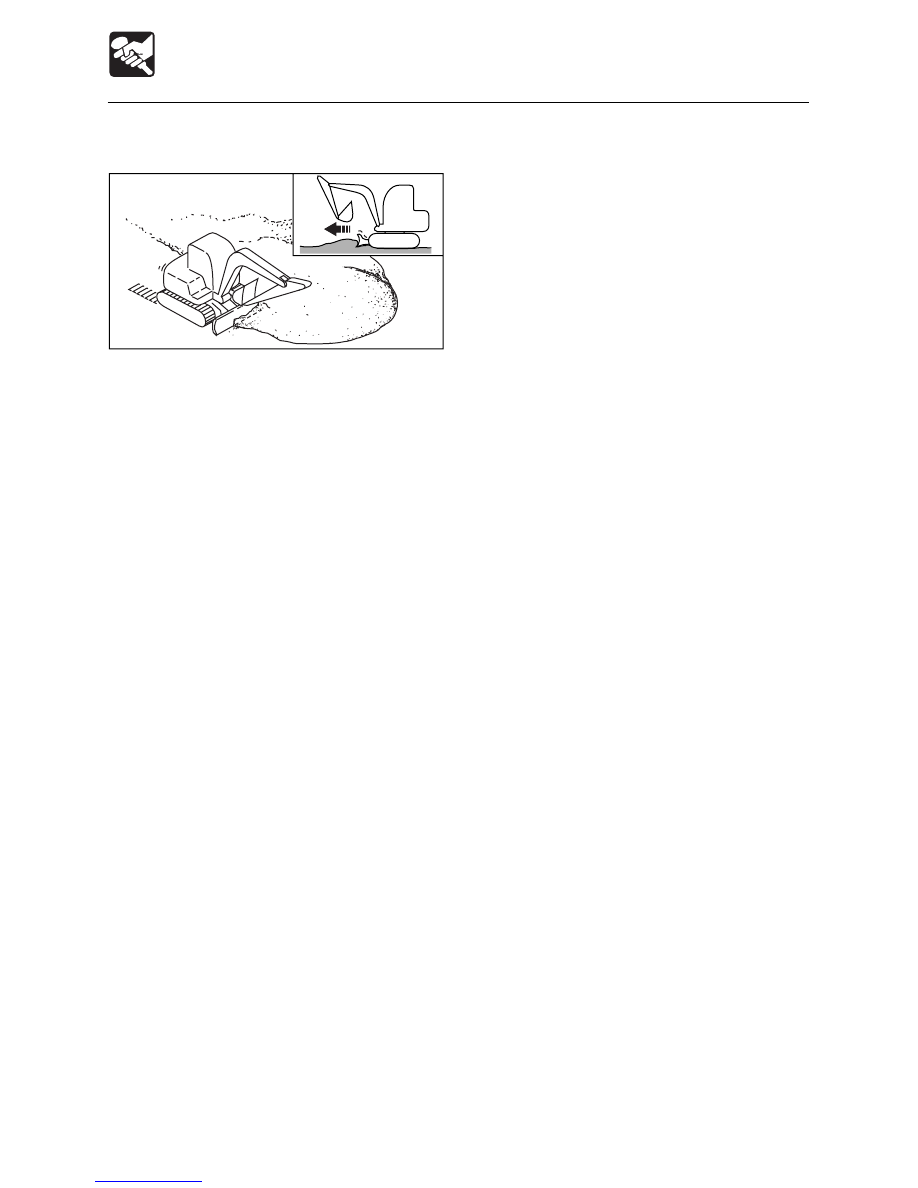

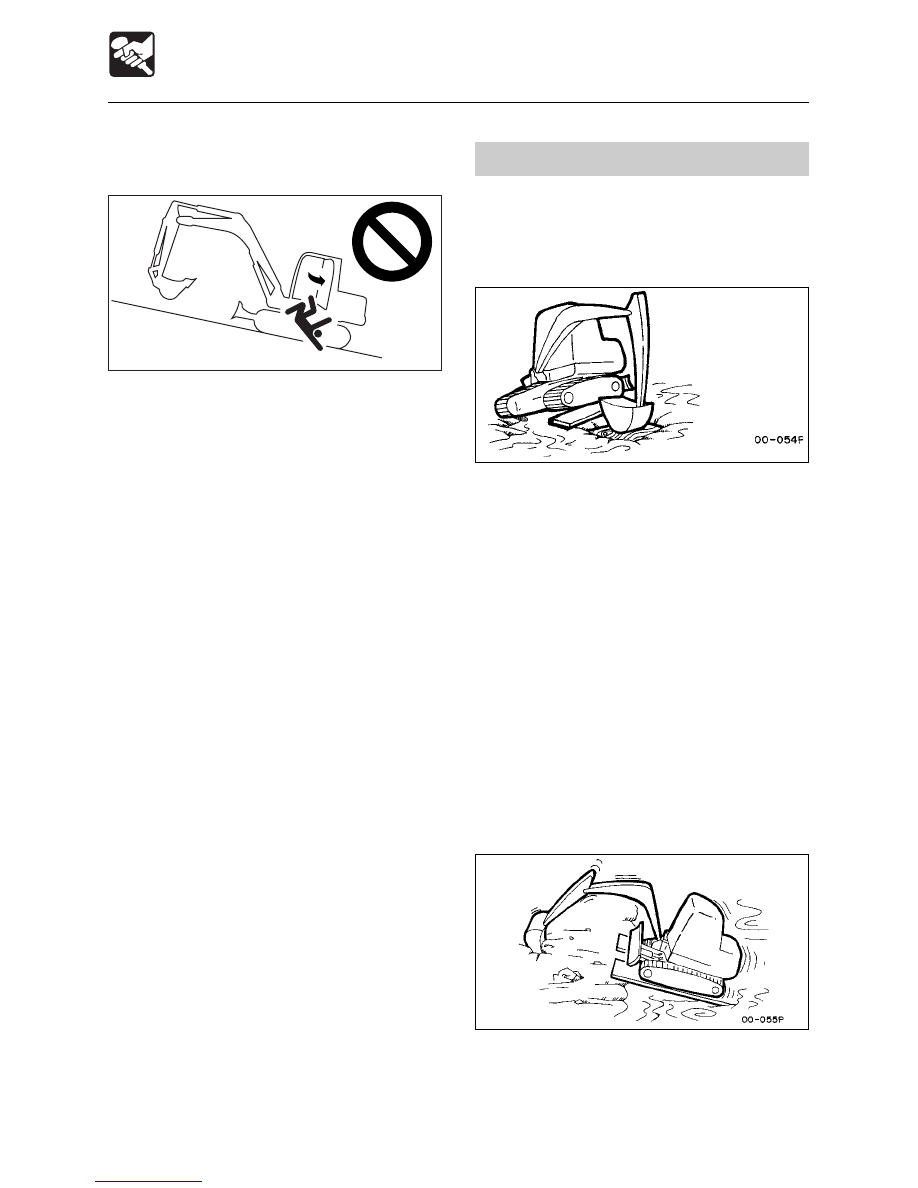

Getting Out of Mud

If the machine gets stuck in mud, use the
procedure below to get it out.

If one crawler is stuck

1. Slew the bucket to the side which is stuck.
2. Set the arm and boom to an angle of 90

to 110

3. Press the bottom of the bucket (not the

teeth) against the ground.

4. Place a plank, etc., under the lifted crawler.
5. Lift the bucket and slowly move out of the

mud.

If both crawlers are stuck
1. Perform steps 1 to 4 above for both

crawlers.

2. Dig the bucket into the ground in front of

the machine.

3. Pull with the arm and travel forward

simultaneously to slowly move out of the
mud.

Do not open the door while traveling on
slopes

Opening the door while traveling on slopes
is dangerous, as the force required to open
and close the door changes abruptly. Always
keep the door closed when traveling on
slopes.

E4D048

OPERATION

Operating Procedures

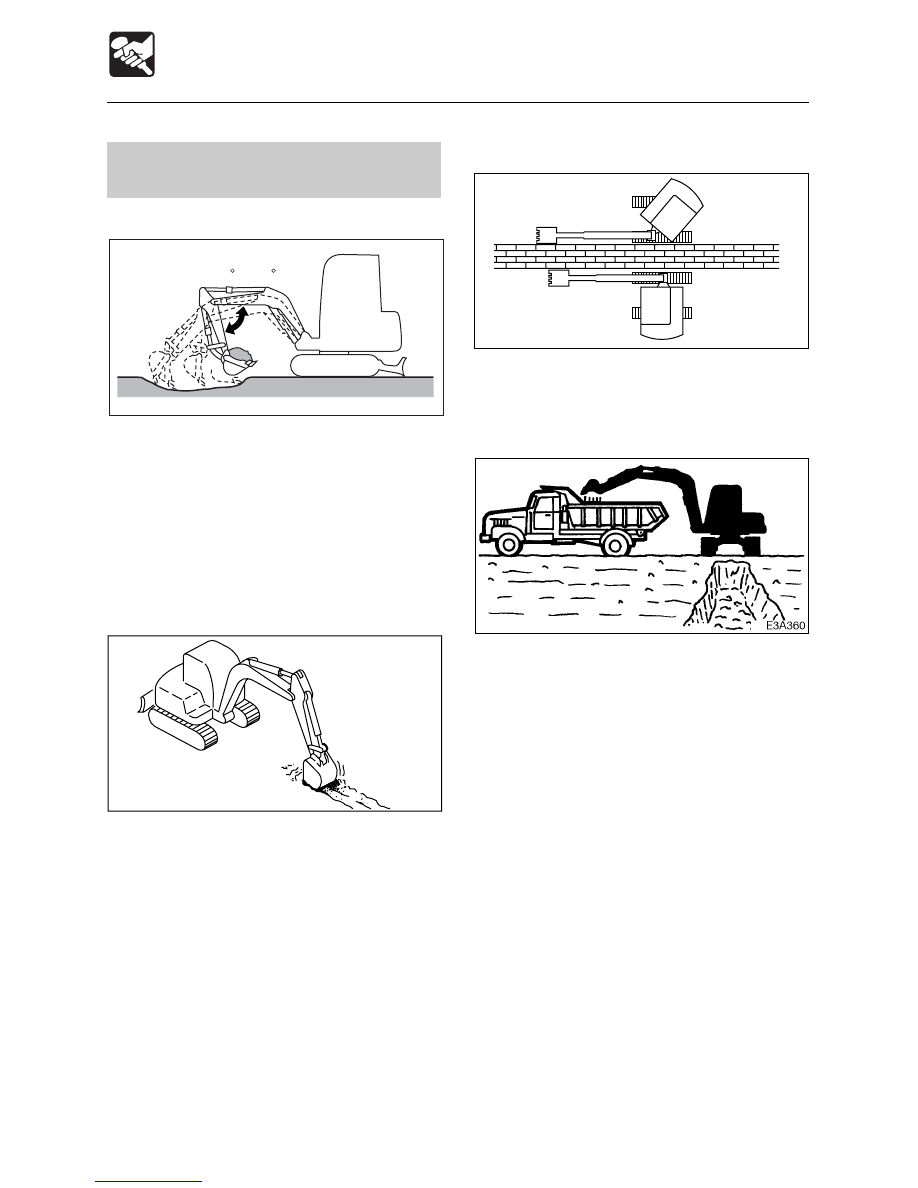

Operations Possible with this
Machine

Excavating

1. Set the dozer blade on the side opposite

the side you want to dig on.

2. Use the arm and bucket and dig with

shallow, long strokes. The digging force
is strongest when the boom and arm angle
is 80 to 120

. Use this angle for effective

digging.

Digging Ditches

Mount a bucket suited for digging ditches and
set the crawlers parallel to the ditch to be
dug for greater efficiency.
When digging wide ditches, dig the sides first,
the center later.

Digging Side Ditches

Use the boom swing function to dig side
ditches as shown in the diagram.

Loading

When loading dirt in a truck, starting from
the back of the truck’s bed makes for easier
loading and increases the amount of dirt that
can be loaded.
Also, use a small slewing angle for greater
efficiency.

E4D0501

80 ~120

E4D051

C4D015

OPERATION

Parking the Machine

Inspection and Checks After
Stopping the Engine

1. Check for oil and water leakage and

inspect the working equipment, covers
and lower body. If any irregularities are
found, repair.

2. Fill the fuel tank.

Refer to page 109 “Inspecting the Fuel
Level”.

3. Remove any paper scraps or dirt from the

engine room.

4. Remove any mud from the lower body.

Locking
Be sure to lock the following places:

Cab door

Fuel filler cap

Covers

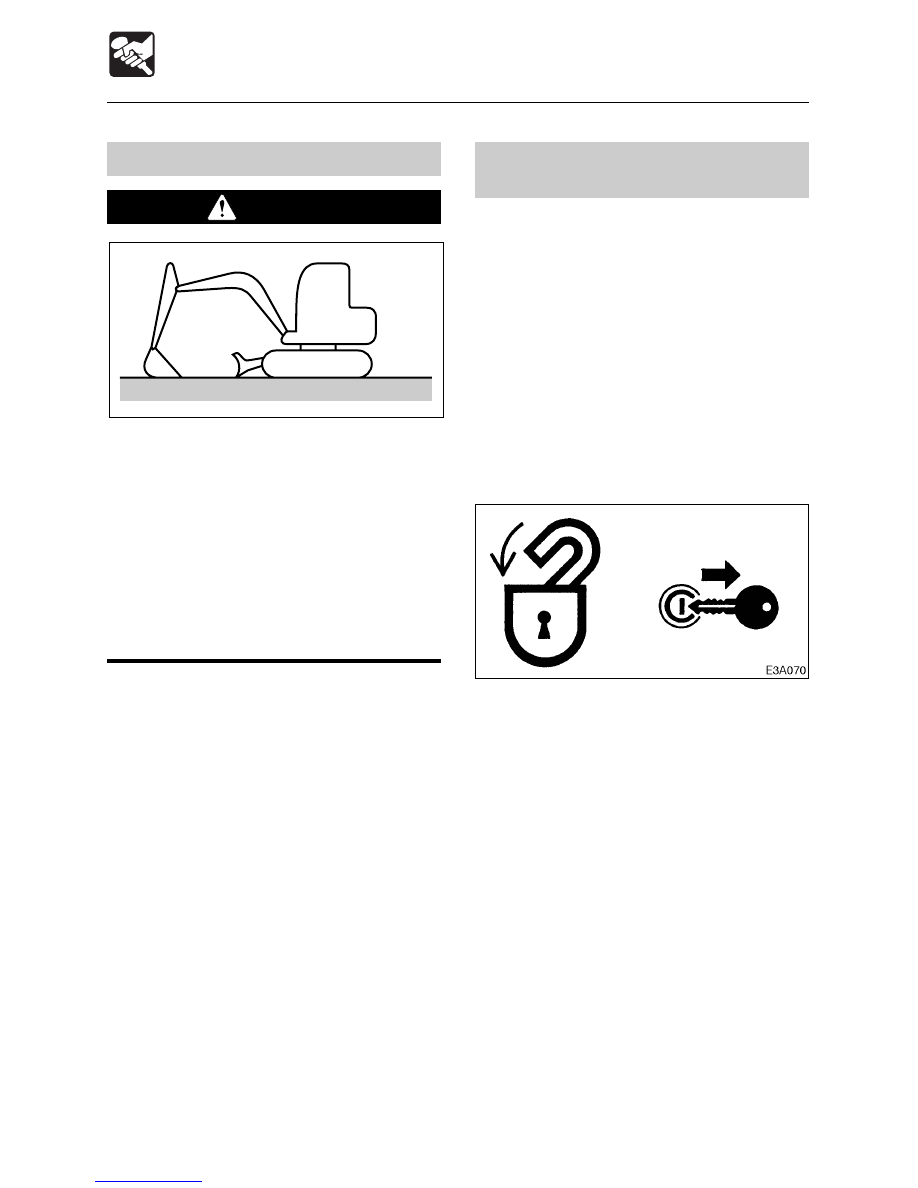

Parking

WARNING

Park the machine on firm, level ground
and apply the parking device.

Before leaving the operator’s seat,
raise the safety lock lever to engage
the lock and stop the engine. If any
controls should be touched
accidentally when the safety lock lever
is lowered, the machine will move
suddenly, and cause serious injury or
death.

1. Set the left and right travel levers to the

neutral position.

2. Press the decel. button and idle the engine

at low speed.

3. Lower the bucket and dozer blade to the

ground.

4. Raise the safety lock lever to engage the

lock.

5. Stop the engine and remove the key.

Refer to page 67 “Stopping the Engine”.

When equipped with accumulator (option):
Refer to page 199 “Accumulator”.

E3A4901

OPERATION

Handling in Cold Weather

Cautions after Completing
Operations

Heed the following in order to prevent dirt,
water, or other objects stuck on the machine
as well as the lower body from freezing:

Remove any dirt or water from the body.
In particular, water droplets on the
hydraulic cylinder rod surfaces could
freeze, and if dirt enters into the seals
along with this, the seals could break.

Park the machine on a dry, hard surface.
If no appropriate place can be found, put
boards down and park the machine on
them.

Drain any water from the fuel tank to
prevent freezing.
Refer to page 118 “Draining the Fuel
Tank”.

prevent decreased battery

performance, place a cover over the
battery or remove it from the machine and
store it in a warm place.
Also add battery fluid before starting the
next morning. If battery fluid is added after
completing operations, the distilled water
may not mix, resulting in freezing.

After Cold Weather is Over

Perform the following after cold weather is
over:

Change the fuel and the oils for the
different devices with those specified on
the Fuel and Lubricant Chart.
Refer to page 98 “Fuel and Lubricant
Chart”.

When using one-season type antifreeze
coolant, completely drain the antifreeze
coolant, carefully clean the inside of the
coolant system, then add tap water.
Refer to page 124 “Cleaning the Engine
Cooling System”.

Preparing for Cold Weather

In cold weather, it may be difficult to start the
engine and the coolant may freeze. Make
the preparations described below.

Changing the Fuel and Lubricant
Change the fuel, hydraulic oil and engine oil
to types suited for cold conditions.
Refer to page 98 “Fuel and Lubricant Chart”.

Engine Coolant

WARNING

The coolant is combustible. Keep flames
away.

Use long-life coolant (antifreeze) and tap
water for the engine coolant.
Supplement: New machines are delivered
with JIS Type 2 long-life coolant (antifreeze)
at a concentration of 50%.
Refer to page 98 “Fuel and Lubricant Chart”.

Battery
As the temperature drops, the battery
performance decreases.
Inspect the battery. If the charge is low,
contact a Takeuchi sales or service outlet to
have the battery charged.
Refer to page 117 “Inspecting the Battery
Fluid Level and Replenishing”.

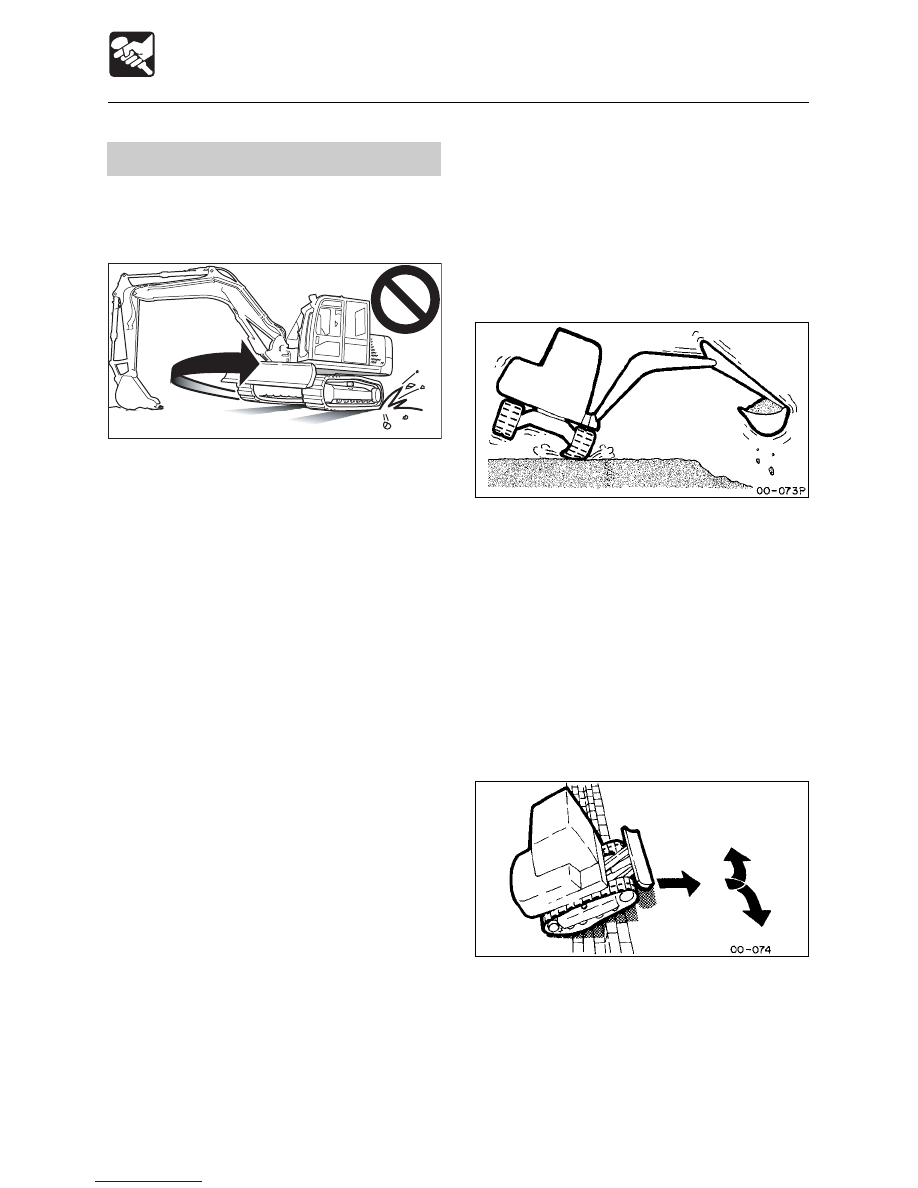

OPERATION

Handling Rubber Crawlers

Do not let fuel, oil, salt or chemical solvents
get on the crawlers. These substances
may corrode the couplings of the crawlers’
metal cores, resulting in rust or peeling. If
these substances should get on the
crawlers, wipe them off immediately using
water.

Traveling on roads directly after asphalting
or on hot surfaces such as over fires or
on iron sheets under strong sunlight may
result in irregular wear or damage of the
lugs.

Do not move earth in places where the
rubber crawlers may slip. Doing so may
speed up lug wear.

Rubber crawlers have an inherent weakness
due to their use of rubber. Be sure to heed
the prohibitions and cautions below so as to
prevent damage to the crawlers and crawler
slippage.

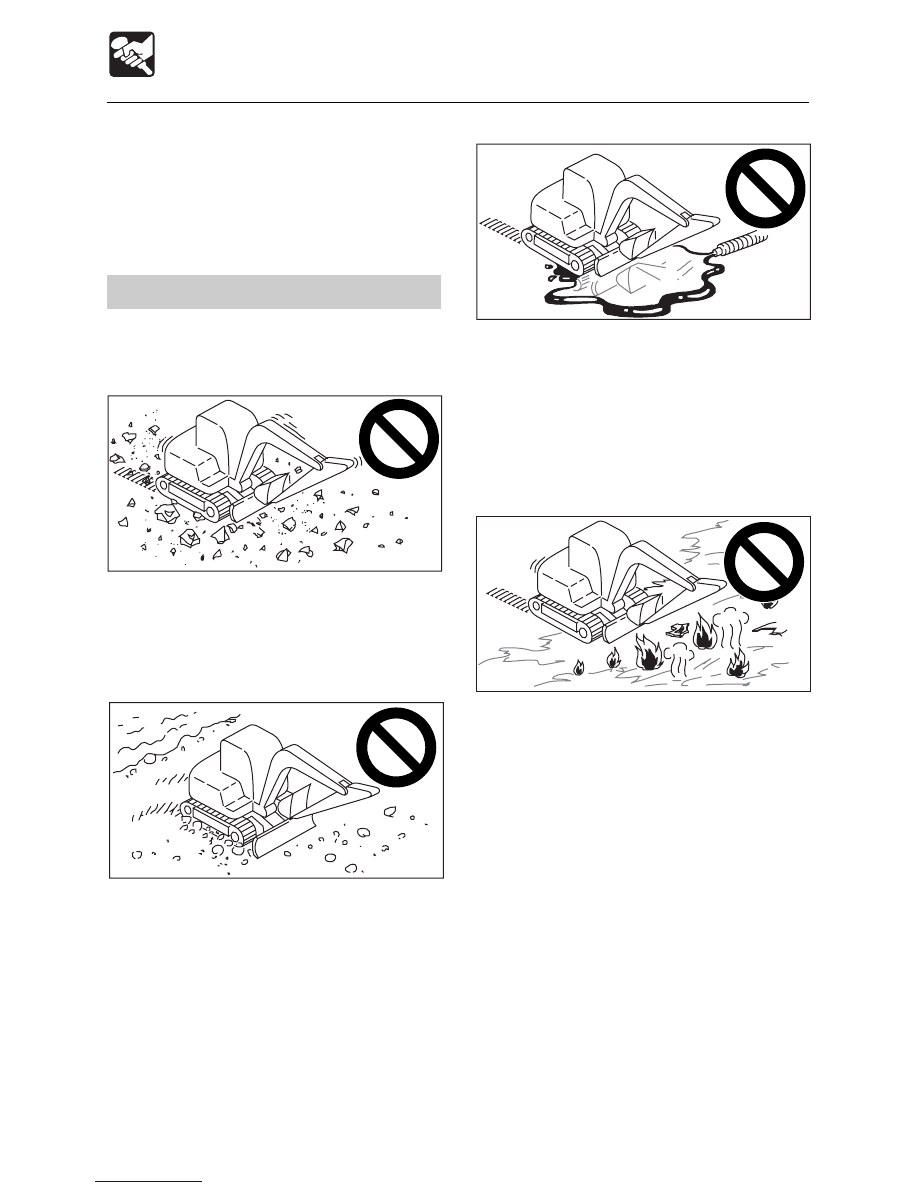

Prohibited Actions

Do not travel or operate the machine in the
following places:

Traveling or slewing on broken stone,
jagged base rock, iron rods, iron scraps
or the edges of iron sheets may damage
or cut the crawlers.

Traveling on riverbeds or places with many
soft rocks may cause the crawlers to slip
off or be damaged due to rocks getting
stuck in them.

Do not use on the seashore. The salt may
corrode the metal cores.

E4D056

E4D055

E4D057

E4D058

OPERATION

Handling Rubber Crawlers

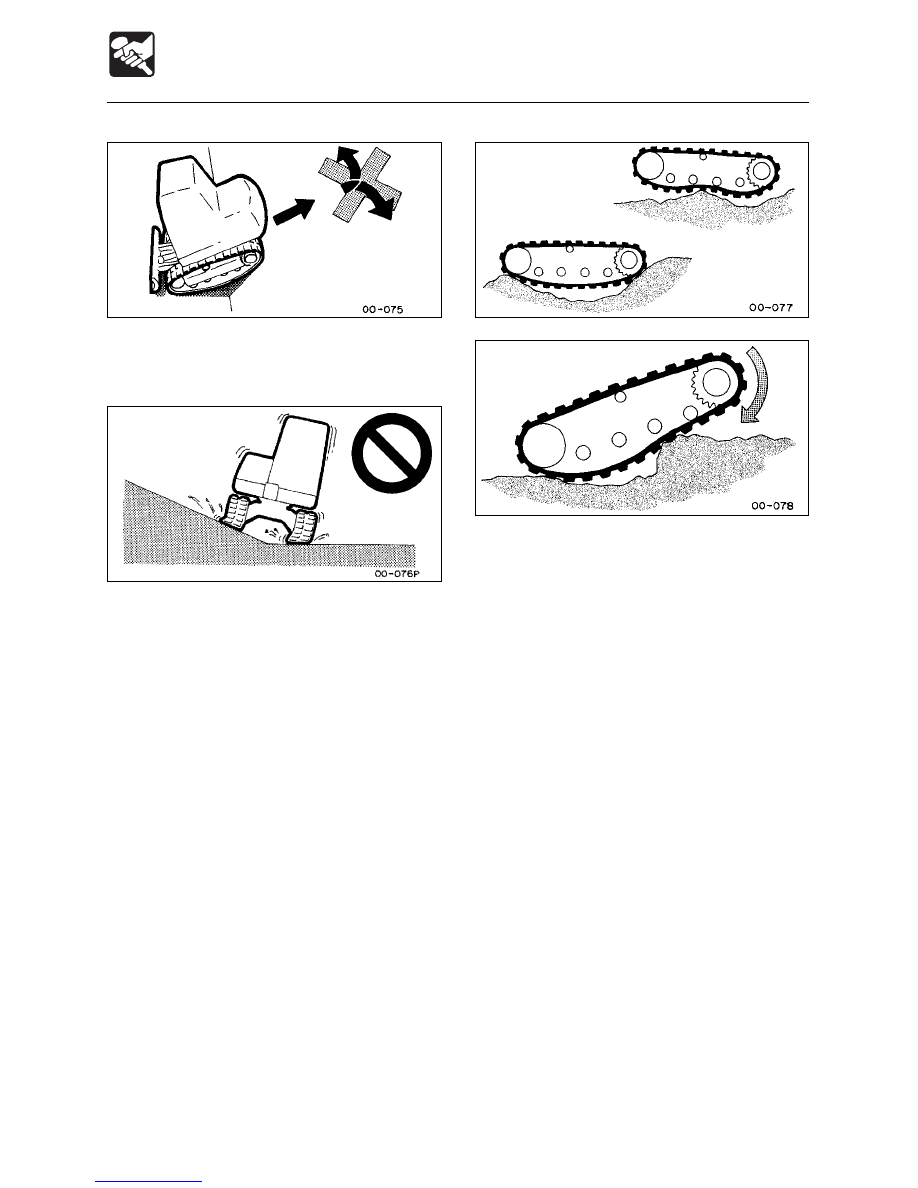

Cautions

Heed the following cautions when operating
the machine:

Do not turn the undercarriage with the front
of the machine body lifted using the hoe
attachment and the upperstructure left in
this posture. Doing so will twist the crawler
with the load concentrated on a single
point on the crawler belt, rapidly leading
to damage.

Avoid changing course abruptly and
spinning on concrete surfaces whenever
possible.
Doing so may wear or damage the rubber
crawlers.

Avoid drops that may expose the rubber
crawlers to strong shocks.

Salt, potassium chloride, ammonium
sulfate, potassium sulfate, and triple
superphosphate of lime can damage the
crawler belts. If any of these substances
should get on the crawler belts, wash them
off thoroughly with water.

Do not let the sides of the rubber crawlers
rub against concrete or walls.

Do not damage the rubber crawlers by
hitting the bucket against them.

Be especially careful in the winter on
snowy or frozen surfaces as the crawler
belts tend to slip.

L4D013

Use rubber crawler belts at temperatures
between –25

C to +55

C (–14

F to

131

F).

When storing the rubber crawlers for long
periods of time (3 months or more), do so
indoors in a place not exposed to direct
sunlight or rain.

Rubber crawler belts are not as stable as
steel crawler belts since the entire lug is
rubber. Be very careful when slewing and
swinging sideways.

Preventing the Rubber Crawlers from
Slipping Off
Heed the following in order to prevent the
rubber crawlers from slipping off:

Always keep the crawlers at the proper
tension.

When traveling up large cobblestone or
rock steps (20 cm (8 in.) or greater), climb
up the step at a direct angle and do not
change course on top of the step.

TRANSPORT

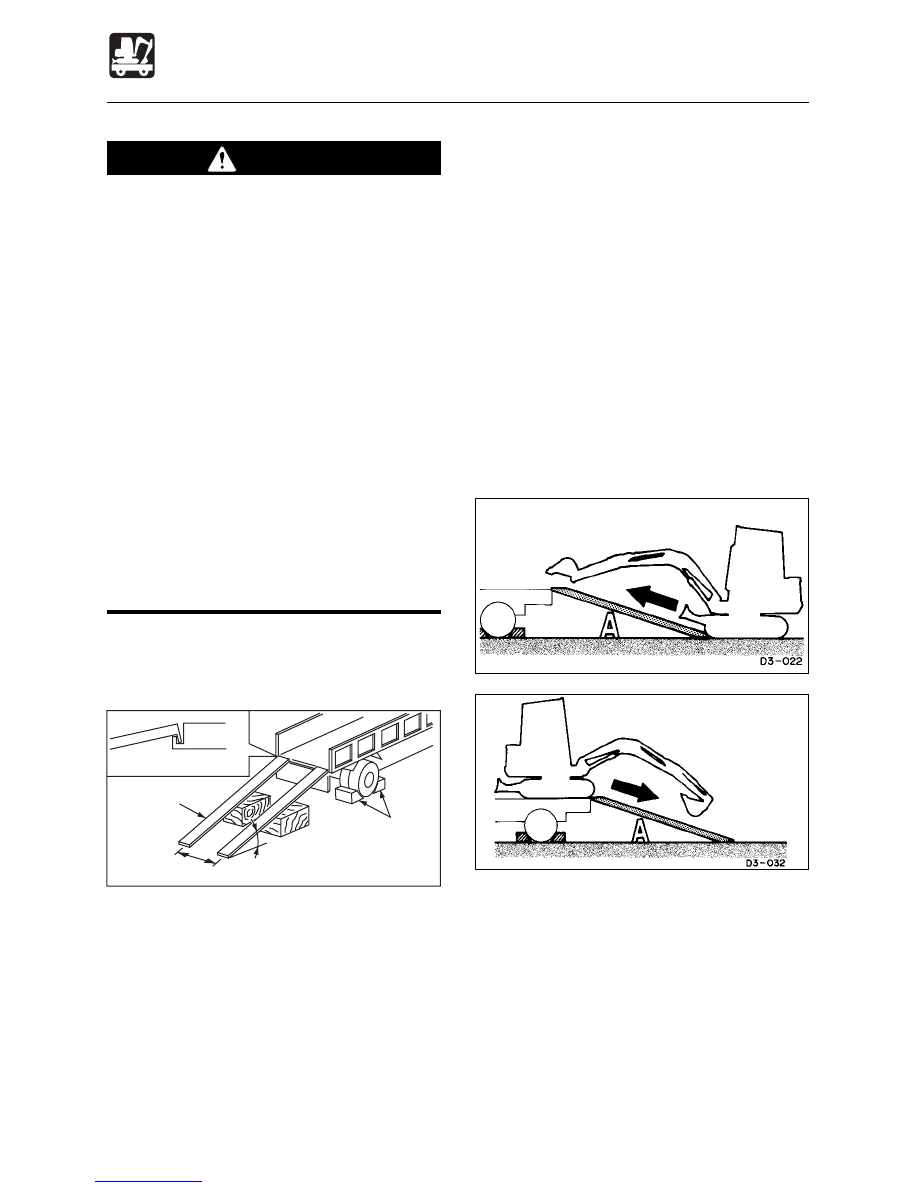

Loading and Unloading

1. Apply the truck’s parking brake and place

stoppers against its tires.

2. Fasten the ramps securely to the truck bed

so that they will not come off. Set the
ramps to an angle of 15

or less.

3. Line up the center of the truck bed with

the center of the machine and the center
of the ramps with the center of the
crawlers.

4. Make sure the dozer blade does not hit

the ramps.

5. Lower the hoe attachment as much as

possible, making sure it will not hit the
truck.

6. Lower the engine speed.

7. Determine the direction on the ramps, then

slowly travel up or down the ramps in 1st
speed (low speed), following the signals
of a flagman.

8. Load the machine properly at the

prescribed position on the bed.
Refer to page 94 “Transporting Posture”.

WARNING

The machine may roll or tip over or fall
while loading or unloading it. Take the
following precautions:

Select a firm, level surface and keep
sufficient distance from road
shoulders.

Use loading ramps of adequate
strength and size. Maintain the slope
of loading ramps within 15 degrees.

Keep the truck bed and loading ramps
clean of oil, clay, ice, snow, and other
materials which can become slippery.
Clean the tracks.

Never change course on the ramp.

Do not slew (swing) on ramps. The
machine may tip over.

When slewing (swinging) on the truck
bed, do so slowly as the footing can
be unstable.

When loading or unloading the machine, be
sure to use ramps and following the
procedure below.

Ramp

Fasten to the suspension fitting

Distance between ramps

or less

Stopper

E4F001

TRANSPORT

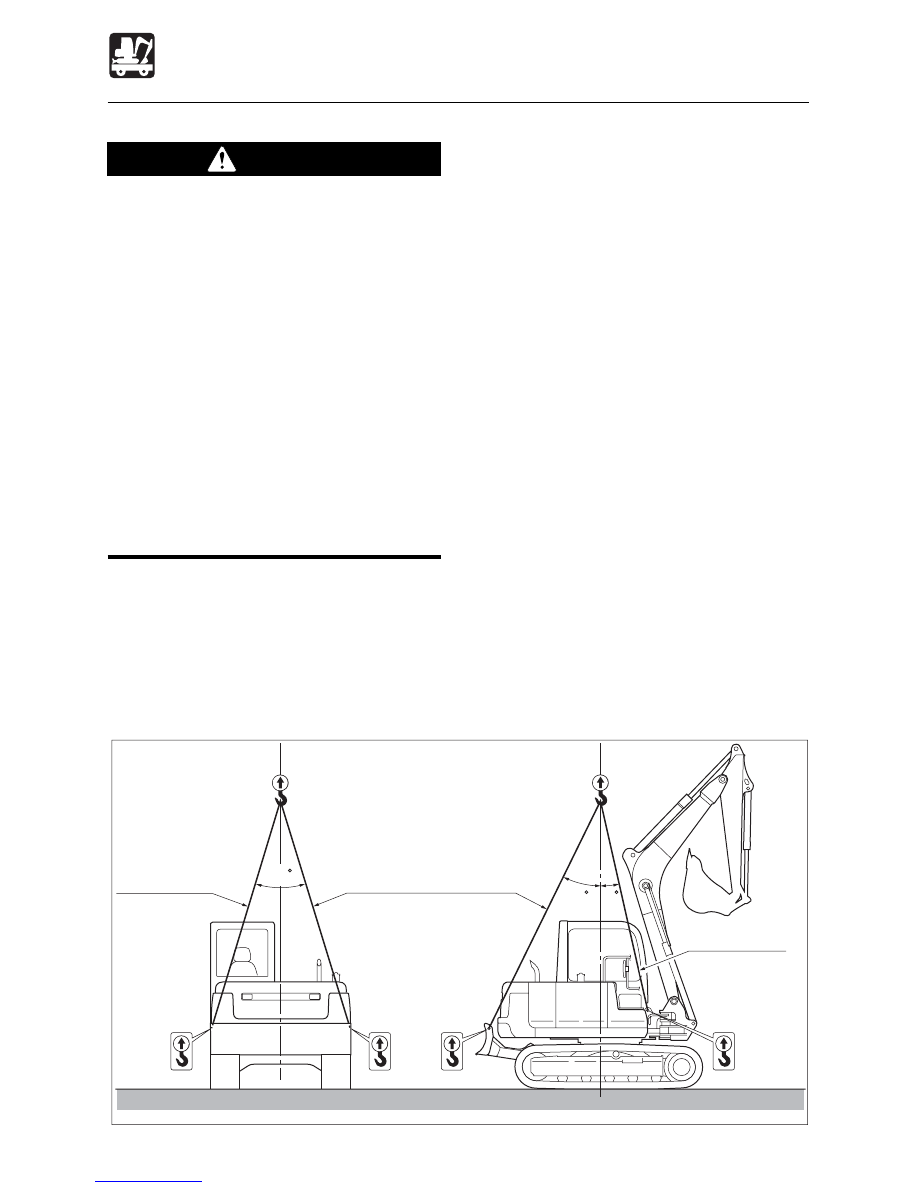

Hoisting the Machine

WARNING

Know and use correct crane signals.

Inspect the hoisting equipment daily
for damaged or missing parts.

When hoisting, use a wire rope with
sufficient strength with respect to the
machine’s weight.

Do not hoist with the machine in a
posture other than the one described
in the procedure below. Doing so is
dangerous as it may result in the
machine losing its balance.

Do not hoist the machine with an
operator (s) on it.

When hoisting, hoist slowly so that the
machine does not tip.

Keep all other persons out of the area
when hoisting. Do not move the
machine over the heads of the persons.

IMPORTANT: This hoisting method applles
to machines with standard specifications.
The center of gravity differs according to
the attachments and options that are
mounted.
Consult a Takeuchi sales or service outlet.

Hoisting posture

Hoisting
1. Slew the upper structure so that the dozer

blade is positioned to the rear of the body
(so that the crawler frame and upper
structure are parallel).

2. Raise the dozer blade fully.
3. Fully extend the bucket and arm cylinders

and fully raise the boom.

4. If the boom is swung to either the left or

right side, set it so that it is straight ahead.

5. Raise the safety lock lever to engage the

lock.

6. Stop the engine and remove the starter

key and get off the machine.

7. Install the sling as shown on the diagram

below.
Suspend in such a way that the sling and
Lifting tool do not touch the body.

8. Hoist slowly until the machine just leaves

the ground.

9. Stop hoisting until the machine is stable

and hoist slowly.

L3F001

4000mm(157.5 in.)

3300mm(130 in.)

TRANSPORT

Cautions on Transporting

WARNING

Know and follow the safety rules,
vehicle code and traffic laws when
transporting the machine.

Consider the length, width, height and
weight of the truck with the machine
loaded on it when determining the best
route.

TRANSPORT

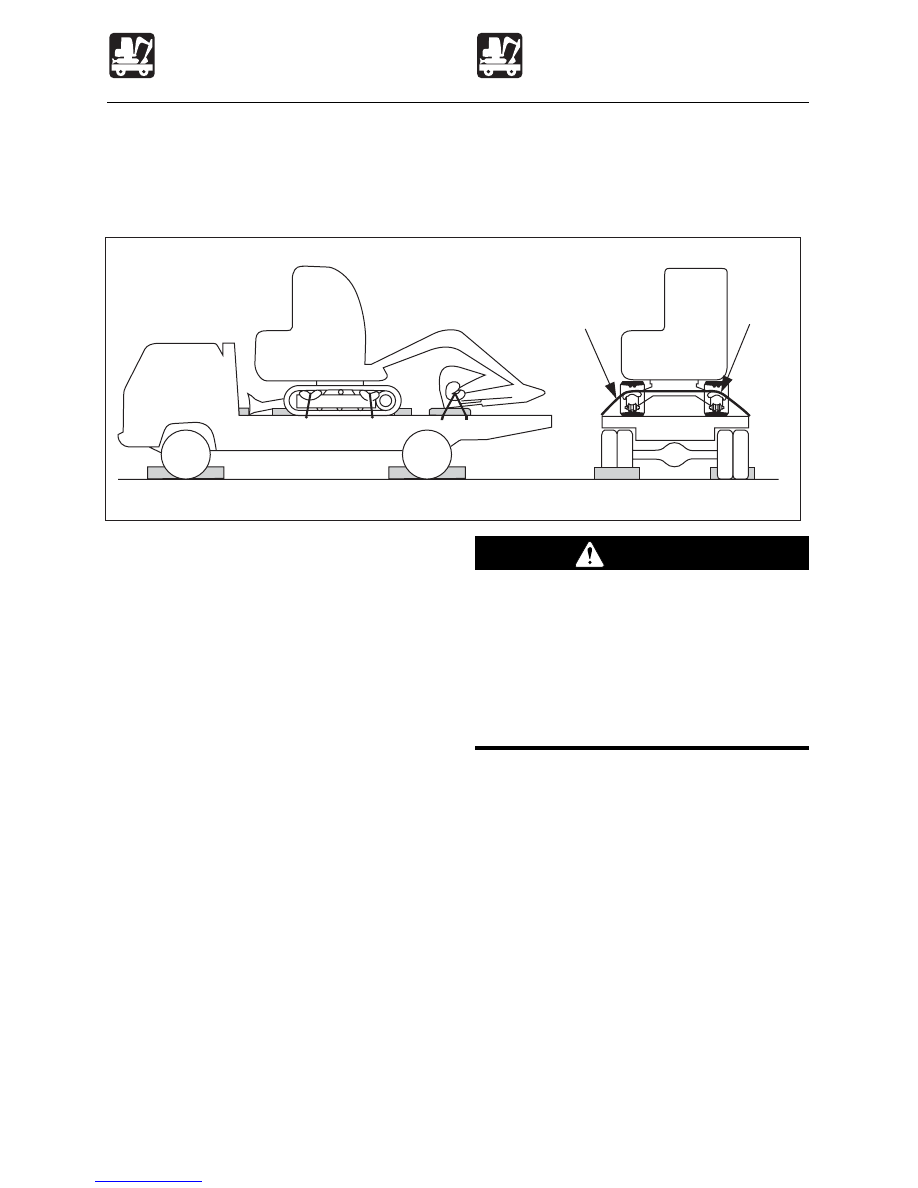

Securing the Machine

After loading the machine in the designated
position, secure it as described below.

Transporting Posture

1. Lower the dozer blade.
2. Fully extend the bucket and arm cylinders,

then lower the boom.

3. Stop the engine and remove the starter

key.

4. Raise the safety lock lever to engage the

lock.

5. Set stoppers in front and behind the

crawlers.

6. Put a chain or wire rope over the lower

frame and fasten it securely to prevent
sideways slippage.

7. Secure the bucket with a chain or wire

rope.

IMPORTANT: Place a wooden block
under the bucket so that it is not damaged
by hitting the floor.

Wire rope

Padding

E4F002

MAINTENANCE

General ....................................................... 96

Service Data ............................................... 98

Important Parts ........................................ 102

Maintenance Chart ................................... 103

Walk-Around Inspection .......................... 105

Daily Inspection (Every 10 Hours) ........... 107

After First 50 Hours

(New Machines Only) ...................... 112

Every 50 Hours ......................................... 115

After First 250 Hours

(New Machines Only) ...................... 119

Every 250 Hours ....................................... 120

Every 500 Hours ....................................... 122

Every 1000 Hours ..................................... 124

Every 2000 Hours ..................................... 127

When Required ........................................ 130

Long-term Storage ................................... 140

Takeuchi Hydraulic Excavator TB175 (No. 17512105~). Operator's Manual (2007) - page 6
