SAFETY

PRECAUTIONS ON MAINTENANCE

Periodically replace the safety-critical

Jump starting with booster cables

parts

• When starting the engine using the booster

• To use the machine safely for a longer

cables, be sure to connect the cables in

period, periodically add oil and perform

the proper order described below. Wrongly

inspection and maintenance. To improving

connected cables can result in sparking

the safely, replace the safety-critical parts

and battery explosion.

like hoses and seat belts periodically. Refer

· Do not allow the “machine in trouble” and

to “Safety-critical parts to be replaced

“rescue machine” to touch each other.

periodically” for further details.

· Do not allow the positive (+) and negative

• The “Safety-critical parts to be replaced

(-) clips of the booster cables to touch

periodically” are the parts which

each other or to come in contact with the

deteriorate, wear and fatigue after repeated

machine.

use and whose properties change over

· When connecting, attach the positive

time. While these characters of these parts

booster cable to the positive (+) terminals

could cause serious physical or personal

first. When disconnecting, remove the

damage, judging the remaining life of these

negative cable from the negative (-)

part are difficult from external inspection or

terminal (ground) first.

the feeling when operating.

· Be sure to connect the clips securely.

• Replace the “Safety-critical parts to be

· Connect the last clip of the booster cable

replaced periodically” if any defect is found

to a point as far away from the battery as

from external inspection, even when they

possible.

have not reached the time specified

• Always wear the protective goggle and

interval.

gloves when starting the engine by using

the booster cables.

• Use the booster cables and clips of a size

suited to the capacity of battery. Do not

use damaged or corroded booster cables

and clips.

• Be sure that the battery of the “rescue

machine” has the same capacity as the

battery of the “machine in trouble”.

1-33

SAFETY

PRECAUTIONS ON MAINTENANCE

Have a Takeuchi service agent repair

Disposing of wastes

welding

If welding must be performed, make sure

that it is done by a qualified person in a

properly equipped workplace. To prevent any

part from breaking down or being damaged

due to overcurrent or sparks, observe the

following.

• Disconnect the wiring from the battery

before doing electric welding.

• Do not continuously apply 200 V or more.

• The earth ground must be connected

within one meter from the welding section.

• Always collect oil that is drained from the

Do not connect the earth ground near to

machine in containers. Improperly

an electronically controlled device/

disposed waste oil can cause

instrument or connectors.

environmental harm.

• Make sure that there are no seals or

• Follow appropriate laws and regulations

bearings between the welding section and

when disposing of harmful objects such as

the earth ground.

oil, fuel, coolant, solvent, filters and

• Do not connect the earth ground around

batteries.

the pins for the working equipment or

hydraulic cylinders.

• When welding is to be done on the

Handling of poisonous chemicals

machine body, disconnect the connectors

for the electronically controlled devices

Poisonous chemicals will cause serious injury

before working.

if directly contacted.

Poisonous chemistry used in this machine

includes grease, battery solution, coolant,

Vibrations operators are subject to

paint and adhesive agent.

Handle the poisonous chemicals properly

According to the results of the tests

with care.

conducted to determine the vibrations

transmitted to the operator by the machine,

the upper limbs are subjected to vibrations

lower than 2.5 m/s² (8.2 ft/s²) while the

seated part of the body is subjected to

vibrations lower than 0.5 m/s² (1.64 ft/s²).

Checks after maintenance

• Gradually increase the engine speed from a

low idle to maximum speed and check that

there is no oil or water leaking from the

serviced parts.

• Operate each control lever and check that

the machine is operating properly.

1-34

SAFETY

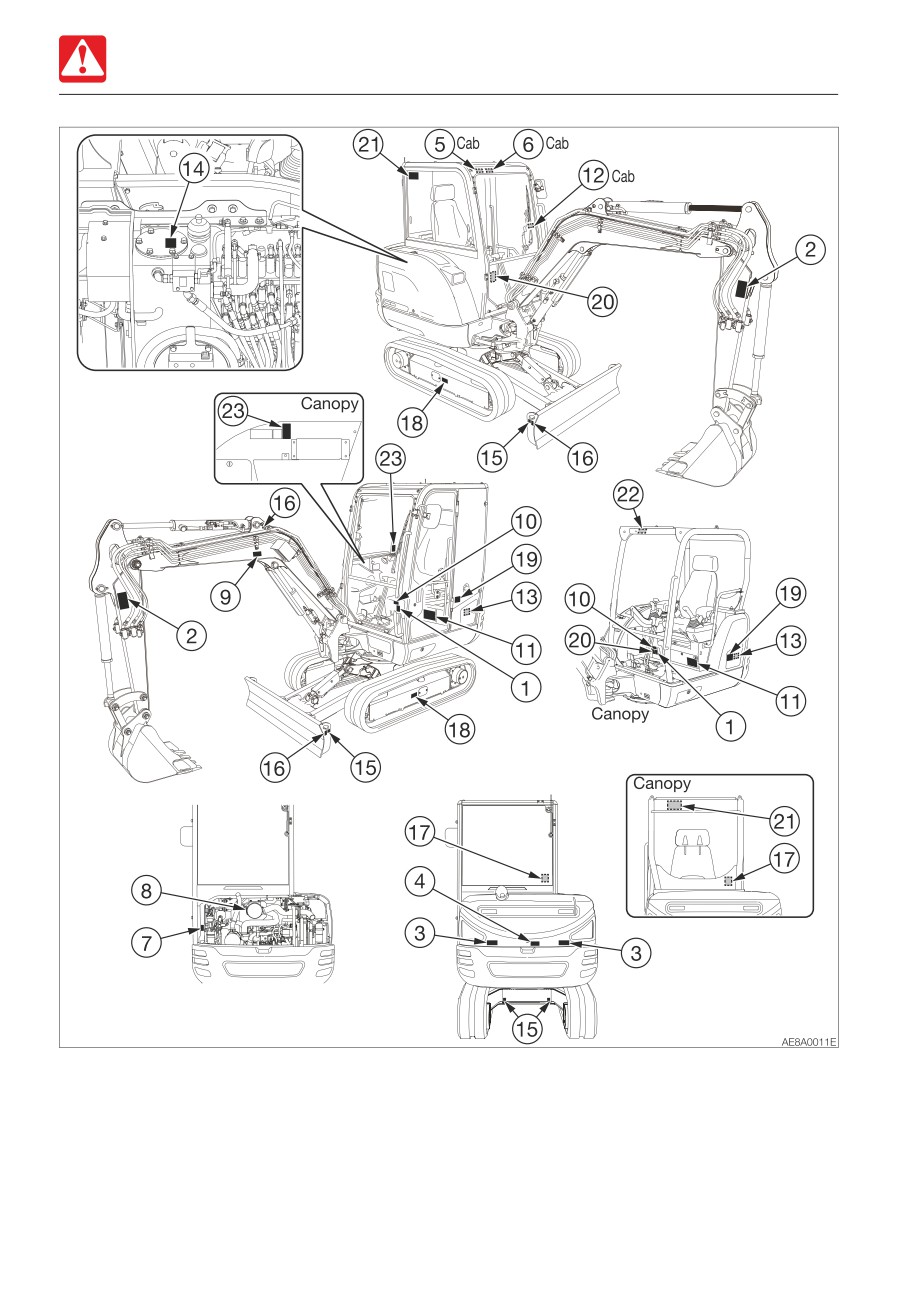

SAFETY SIGNS (DECALS)

For the safety of the operator and the personnel working around the site, safety signs (decals)

are placed at certain locations on the machine as shown below. Walk around the machine with

this manual, and check the content and location of these safety signs. Review these signs and

the operating instructions in this manual with your machine operators.

• Keep the signs clean and legible. If any of the safety labels is peeling or damaged and

becomes difficult to read, replenish it with a new one. Please include your product serial

number when ordering a new sign from the Takeuchi service agent.

• When a part/unit to which a safety sign is attached is replenished, a new sign must be

attached to the new part/unit.

1-35

CONTROLS

NAMES OF COMPONENTS

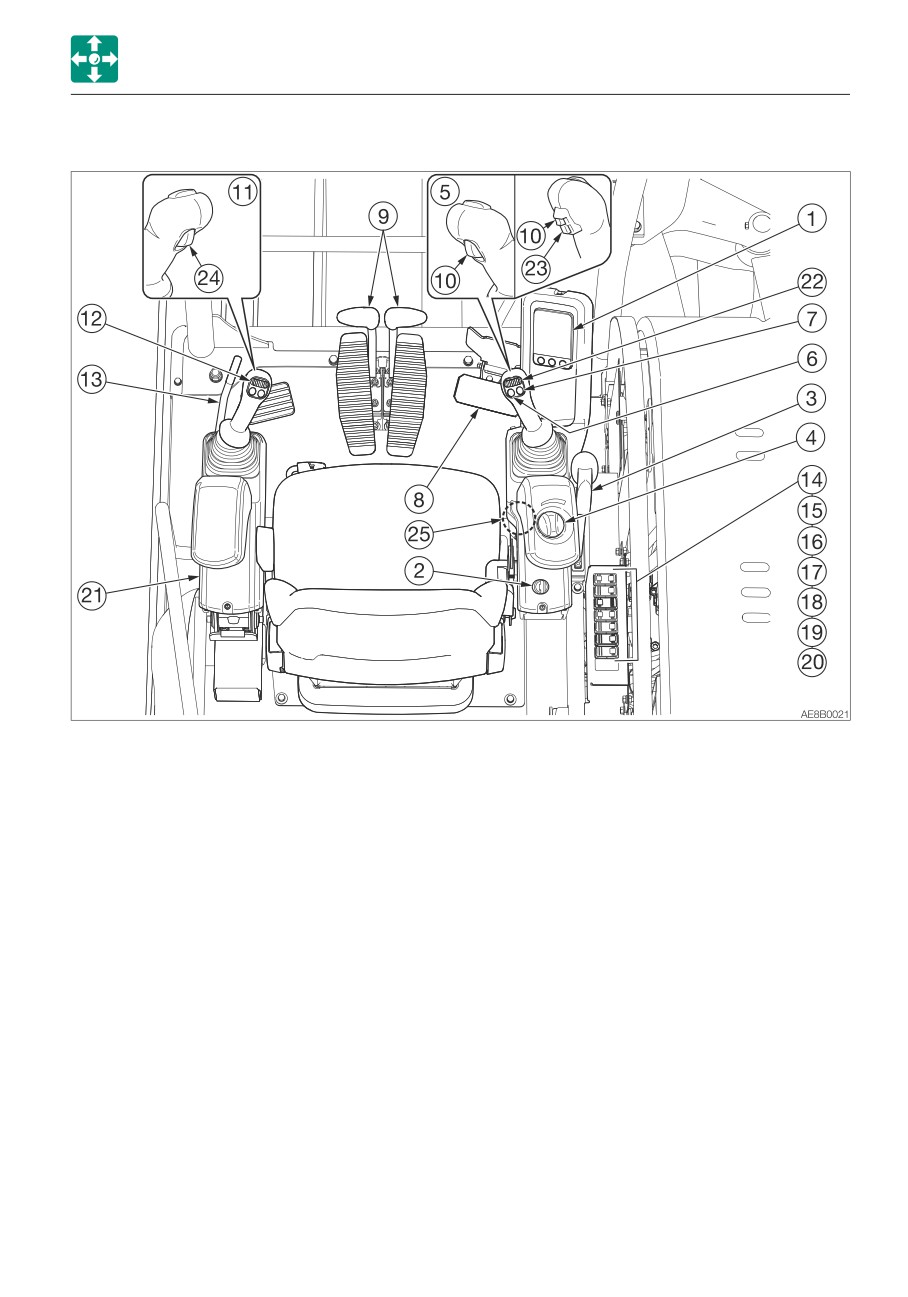

1. Instrument cluster

14. Light switch

2. Starter switch

15. Automatic deceleration switch

3. Blade lever

16. Power/Highland mode switch

4. Throttle controller

17. Detent mode switch

5. Right operating lever*

18. Auxiliary 1st auto tank switch*

6. Horn button

19. Lift overload warning switch*

7. Deceleration button

20. Beacon lamp switch*

8. Boom swing pedal

21. Engine shutdown switch*

9. Travel levers/pedals

22. Auxiliary 2nd/4th switch*

10. Travel speed button

23. Auxiliary 2/4 select button*

11. Left operating lever

24. Third auxiliary hydraulic button*

12. Auxiliary 1st switches

25. Third auxiliary hydraulic switch*

13. Safety lock lever

*: Subject to the specifications or optional products selected

2-3

CONTROLS

NAMES OF COMPONENTS

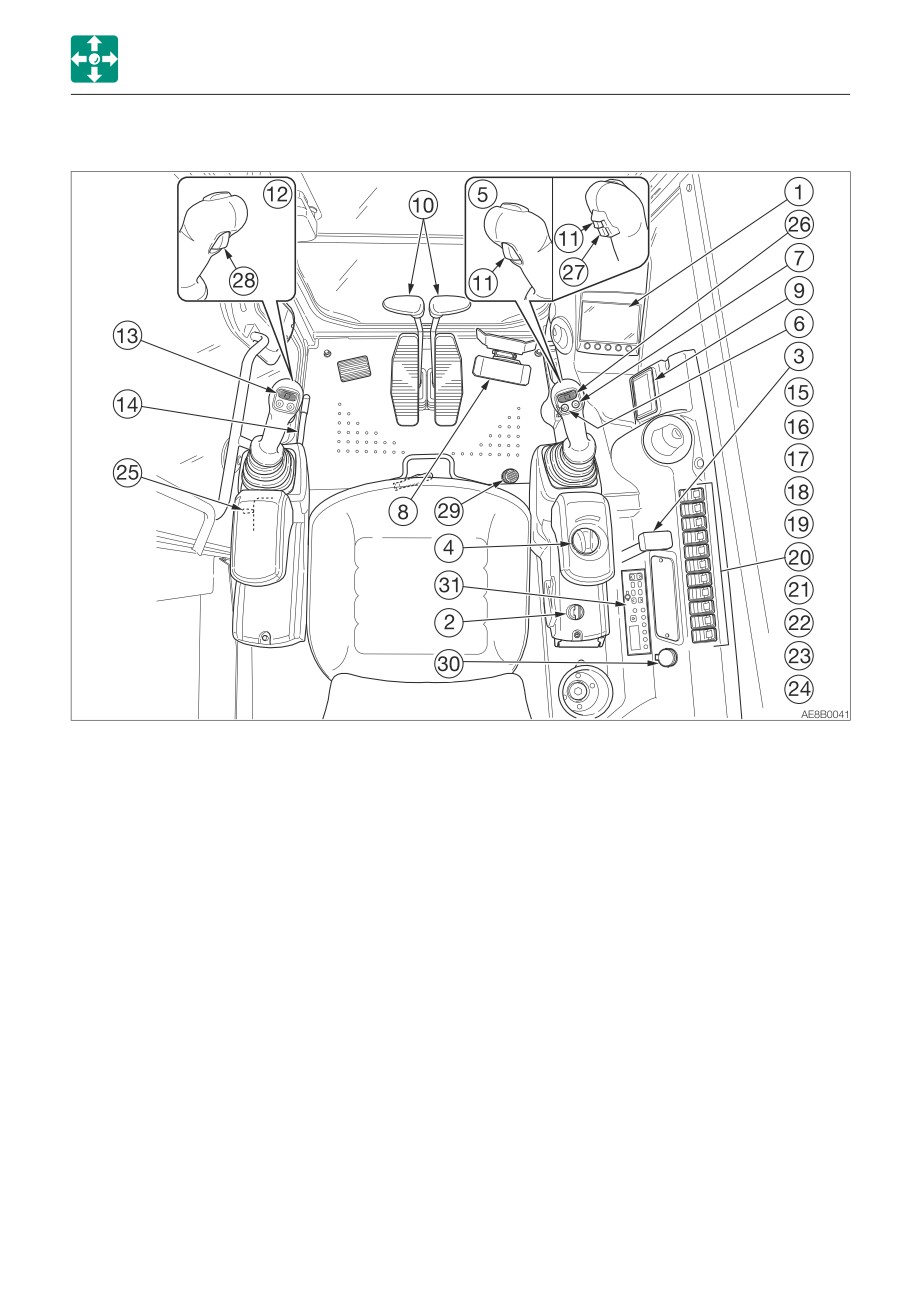

1. Multi-information display

17. Washer switch

2. Starter switch

18. Heater switch

3. Blade lever

19. Automatic deceleration switch

4. Throttle controller

20. Power/Highland mode switch

5. Right operating lever*

21. Detent mode switch

6. Horn button

22. Auxiliary 1st auto tank switch*

7. Deceleration button

23. Lift overload warning switch*

8. Boom swing pedal

24. Beacon lamp switch*

9. Ashtray

25. Engine shutdown switch*

10. Travel levers/pedals

26. Auxiliary 2nd/4th switch*

11. Travel speed button

27. Auxiliary 2/4 select button*

12. Left operating lever

28. Third auxiliary hydraulic button*

13. Auxiliary 1st switches

29. Third auxiliary hydraulic switch*

14. Safety lock lever

30. Power supply socket*

15. Light switch

31. Radio*

16. Wiper switch

*: Subject to the specifications or optional products selected

2-5

CONTROLS

COVERS

Opening

COVERS

STARTER KEY

1. Insert the starter key and turn it

counterclockwise to unlock the right side

The starter key is used to start and stop the

cover (1).

engine, as well as to lock and unlock the

2. Push in the key hole with your thumb and

following components:

open the right side cover (1) all the way.

• Cab door

• Engine hood

Closing

• Covers

1. Close the right side cover (1) and press it

down until a click is heard.

2. Insert the starter key and turn it clockwise

RIGHT SIDE COVER

to lock the right side cover (1).

• Stop the engine and allow the machine

to cool down before performing

maintenance.

• Do not keep the right side cover open

on a windy day or if the machine is

parked on a slope.

• When opening and closing the right side

cover, be careful not to get your hands

or other parts of your body caught by

the cover.

For inspection and maintenance of the

hydraulic oil system, electrical system or

window washer, open this cover. The

selector valve switching in the auxiliary 1st

and the lever pattern (optional) switching are

also performed.

The grease gun and the tools are stored

under the cover.

2-6

CONTROLS

COVERS

ENGINE HOOD

LEFT SIDE COVER

• Before opening the engine hood, be

Be sure to close the cab door before

sure to stop the engine. If a hand or tool

opening the left side cover and work

becomes trapped in the rotating or

inside. If not, the wind-blown door could

moving part, serious injury could result.

cause injury by striking you in the head or

• When opening or closing the engine

body.

hood, be careful not to get your hands

or other parts of your body caught by it.

Opening

1. Insert the starter key and turn it

counterclockwise to unlock the left side

1. Insert the starter key and turn it

cover (1).

counterclockwise to unlock the engine

2. Open the left side cover (1).

hood (1).

2. Push in the key hole with your thumb and

Closing

open the engine hood (1).

1. Close the left side cover (1) and turn the

key clockwise to lock it.

Closing

1. Close the engine hood (1) and press down

the edge of it until a click is heard.

2. Insert the starter key and turn it clockwise

to lock the engine hood (1).

2-7

CONTROLS

COVERS

FUEL LID

FUEL FILLER PORT

Be sure to close the cab door before

• Do not smoke and keep away from heat

opening the fuel lid for fueling. If not, the

or flame while filling the fuel tank.

wind-blown door could cause injury by

• Fill the fuel tank in a well ventilated

striking you in the head or body.

place, with the engine turned off.

• Clean up spilled fuel immediately.

For adding fuel or checking its level, open

• Do not fill the fuel tank to capacity.

this cover.

Allow room for oil expansion.

• Securely tighten the fuel filler cap.

Opening

1. Insert the starter key and turn it

counterclockwise to unlock the fuel lid (1).

2. Open the fuel lid (1).

1. Open the fuel lid.

2. Turn the fuel cap (1) counterclockwise and

Closing

remove it.

1. Close the fuel lid (1).

2. Insert the starter key and turn it clockwise

Closing

to lock the fuel lid (1).

1. Turn the fuel cap (1) it clockwise and close

it.

2. Close the fuel lid and lock it.

2-8

CONTROLS

CAB

2. Open the door fully and press it against

CAB

the cab to secure it in place.

CAB DOOR

Closing

When getting on or off the cab, first open

the door all the way until it is secured in

the catch and check that it does not

move.

Open the door fully and press it against the

catch at the back of the door to secure it in

place.

The door must be locked when getting on or

off the machine and while in operation.

1. Push the release lever (3) to the lower.

Locking and unlocking

2. Close the released door.

EMERGENCY EXIT

Front window (excluding machines with a

front guard)

Insert the starter key and turn it.

Opening

1. Pull the knob (1) towards you and open

the door.

If you should become trapped inside the

cab, open the front window to get out.

To open the door from inside the cab,

push the lever (2) to the lower.

2-10

CONTROLS

CAB

FRONT WINDOW

5. Release your thumb from the knobs (2)

and then lift the front window (3) fully and

lock the front window with lock pin (4).

• Grasp the handles firmly with both

Closing

hands when opening and closing the

front window. Your head or hands may

get caught if it slips from your hands.

When closing the front window slowly so

• When the front window is opened or

as not to hit your head. Lowering the

closed, it will come close to the head.

window abruptly may result injury or

Be careful that the window does not

damage the front window.

strike the head.

• When you open the front window, be

sure to lock it in place with the lock pins

on the left and right sides. The window

may fall if it is not locked in place.

Opening

1. Grasp the left and right handles (1) and

press the knobs (2) with your thumb to

release the lock.

2. Pull down the front window (3) and while

doing so, slide it to the front and slowly

lower it.

1. Park on a level surface and stop the engine.

2. Set the safety lock lever to the locked

position.

3. Grasp the left and right handles (1) and

press the knobs (2) with your thumb to

release the lock.

4. Pull the front window (3) toward you and

lift while doing so.

3. Release your thumb from the knobs (2)

and then press the front window toward

front and lock the front window with lock

pin (4).

2-11

CONTROLS

CAB

LOWER FRONT WINDOW

SIDE WINDOW

Removing

1. Grasp the catch (7), unlock it and open

the side window.

1. Open the front window and stow it in the

2. To close the side window, close it until a

ceiling.

click is heard.

2. Slowly lift the lower front window (4).

3. Hold the window in a vertical position (the

bottom of the window should be in front of

you), place it through the guide (5) on the

left side of the cab, and then secure it with

the support (6).

2-12

CONTROLS

CAB

SUN SHADE

EMERGENCY HAMMER (OPTIONAL)

1. Pull out the sun shade forward.

An emergency hammer is installed to be

2. Hook the sun shade to the two catches (1)

used to escape from the cab in an

emergency. When escaping, break the

windows with the hammer.

• When breaking the window pane with a

hammer, take great care not to injure

yourself with the broken glass pieces.

• Remove the glass pieces from the window

sill so as not to cut yourself when

evacuating. Broken glass will fall from the

window, so be careful of your footing and

do not slip on the glass.

2-13

CONTROLS

SEAT AND SEAT BELT

(B) Fore-and-aft adjustment

SEAT AND SEAT BELT

1. Pull up the lever (2) and slide the seat

SEAT

backward or forward to the desired

position for operation of machine.

2. Release the lever (2) at the desired

position to secure the seat.

• Adjust and secure the seat.

Adjustment range: 15 positions, in 150

• Do not make any adjustments while

mm (5.9 in.)

operating the machine.

• Do not set the backrest to its maximum

reclining position and slide the seat

backwards at the same time. Doing so

may damage the rear window or cause

injury.

• Remember that the backrest returns to

the forward position abruptly due to the

spring force.

weight

1. Turn the handle (3) until the scale (4)

indicates the weight of operator.

Adjustment range: 50 to 130 kg (110 to

287 lbs)

AG7B021

(D) Adjusting the height of the seat

Upward

(A) Adjusting the backrest angle

1. Lift the seat to first or second position

1. Sit up and sit back in the chair.

click-stop.

2. Pull up the lever (1), recline the backrest

Adjustment ranges: 2positions, in 60mm

by using the spring force. Release the

(2.36 in.)

lever (1) at the desired angle to secure the

Downward

backrest.

1. First lift the seat to highest position, then

the seat can be lowered to lowest

position.

2-14

CONTROLS

SEAT AND SEAT BELT

(E) Adjusting the headrest (Option)

SEAT BELT

The headrest (E) can be moved upward or

downward.

1. Grab the headrest (E) with both hands,

and move upward or downward to the

Be sure to fasten the seat belt securely

desired position.

before starting the engine.

Fastening the seat belt

1. Adjust the seat to the desired position for

operation, sit up and sit back in the chair.

2. Pull the seat belt to the desired length.

3. Make sure that the belt is not twisted and

then insert the tongue plate (A) into the

buckle (B) of the seat belt until you hear a

clicking sound as it locks in place.

4. Check if the belt is securely locked by

pulling it, and arrange the belt around your

waist.

Releasing the seat belt

1. Grasp the tongue plate (A) and press the

button (C) on the buckle (B).

The seat belt retracts back into its original

position.

2-15

CONTROLS

MULTI-INFORMATION DISPLAY

MAIN MENU SCREEN

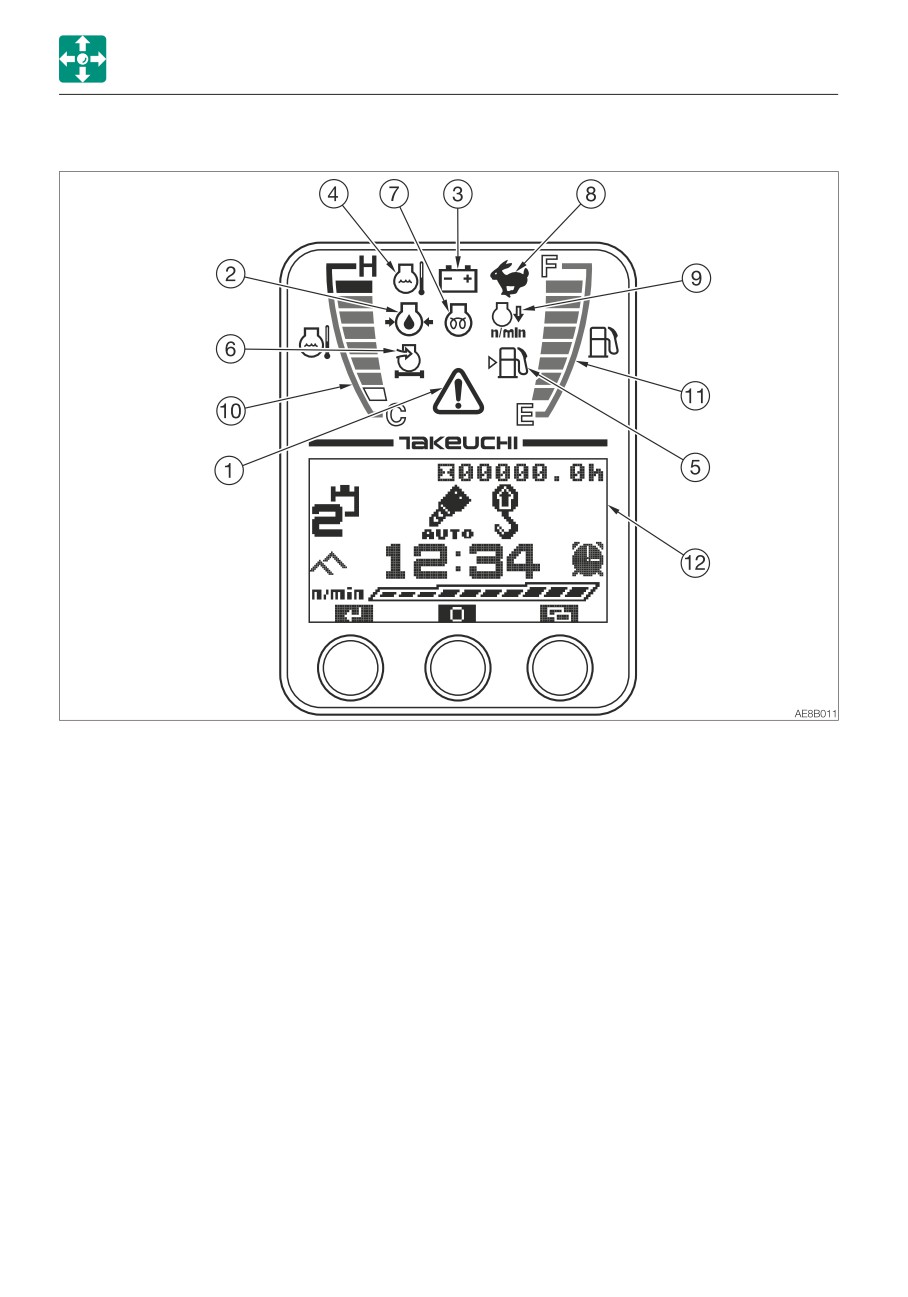

For explanation purposes, all lamps on this page are in the lit condition. This screen image is

quite different from that of the real operation. In the actual operation, if a warning is given or

any function is selected, the corresponding symbol appears enlarged at the center of the

display for approx. one second.

When the starter switch is set to ON, the battery charge warning lamp and the engine oil

pressure warning lamp first appear enlarged, and then turn on with an alarm at their original

locations. The machine system is normal if the lamps turn off after the engine is started.

2-16

CONTROLS

MULTI-INFORMATION DISPLAY

WARNING LAMPS

4. Coolant temperature warning lamp

This lamp flashes and an alarm is sounded

IMPORTANT: If a warning lamp flashes

if the engine coolant temperature

and an alarm is sounded, immediately

becomes abnormally high while the engine

stop all operations and check the

is running.

corresponding component.

Refer to “If a warning lamp flashes” on

5. Air cleaner warning lamp

pages 6-10 and 6-11.

This lamp flashes and an alarm is sounded

if the air cleaner filter is clogged while the

1. ECM error warning lamp

engine is running.

This warning lamp flashes if the Electronic

Control Module (ECM) detects an engine

6. Fuel filter warning lamp

problem while the starter switch is in the

This lamp flashes and an alarm is sounded

ON position. The problem detected is

if the fuel filter is clogged while the engine

recorded as an ECM error.

is running.

Refer to “Engine error code list” on pages

6-14 to 6-15.

7. Fuel level warning lamp

This lamp flashes when the fuel level is low

1-1. Vehicle and engine emergency lamp

while the starter switch is in the ON

This lamp is displayed enlarged for one

position.

second, and then flashes and an alarm

sounds if there is a problem with the

8. Third auxiliary hydraulic warning lamp

machine. Go to the (7) Error code

This lamp starts flashing and an alarm

display from the Menu screen, get the

sounds if the fixed side (left “e”) pressure

vehicle or engine error code number,

of the auxiliary 3rd drops abnormally while

and consult your sales or service dealer

the engine is running, or while the quick-

referring to the “Vehicle error code list”

hitch is being removed or installed.

or “Engine error code list” in this

manual.

Refer to “Menu screen” on page 2-22.

Refer to “(7) Error code display” on

page 2-25.

Refer to “Vehicle error code list” on

pages 6-12 and 6-13.

Refer to “Engine error code list” on

pages 6-14 to 6-15.

2. Battery charge warning lamp

This lamp flashes and an alarm is sounded

if a problem rises in the charging system

while the engine is running.

3. Engine oil pressure warning lamp

This lamp flashes and an alarm is sounded

if the lubricant oil pressure abnormally low

while the engine is running.

2-17

CONTROLS

MULTI-INFORMATION DISPLAY

INDICATORS

12. Travel speed indicator lamp

9. Deceleration indicator lamp

High-speed travel

Automatic deceleration

indicator

Low-speed travel

Deceleration indicator

This lamp turns on when the travel speed

button is set to the 2nd (high) speed.

Automatic deceleration indicator

It flashes when the automatic

13. Power mode indicator lamp

deceleration switch is pressed and

This lamp lights up when the power

remains lit while in the deceleration

mode side of the Power/Highland mode

mode.

select switch is pressed. The maximum

Refer to “Deceleration button” on page

engine output is maintained for as long

2-49.

as this lamp is lit.

Refer to “Automatic deceleration switch”

on page 2-53.

14. Lift overload warning indicator lamp

This lamp turns on when the lift overload

Deceleration indicator lamp

warning switch is turned on.

This lamp turns on when the deceleration

button is pressed. The lamp lights up to

15. Auxiliary 2nd/4th select indicator lamp

indicate that the engine is in the

deceleration mode at low idling speed

(1100 rpm).

Auxiliary 2nd is selected.

10. Glow indicator lamp

This indicator lamp turns off when the

engine preheating is completed.

Auxiliary 4th is selected.

11. Highland mode indicator lamp

Highland mode is selected.

Refer to “Power/Highland mode switch”

16. Auxiliary 1st one-way (one-way

on page 2-53.

circuit) indicator lamp

Auxiliary 1st auto tank is

selected.

Auxiliary 1st one-way is

selected.

No display: Two-way (two-way circuit) is

selected.

2-18

CONTROLS

MULTI-INFORMATION DISPLAY

17. Dozer blade float indicator lamp

20. Throttle opening position indicator

(If equipped)

This lamp lights up when

the float switch on the

blade lever is pressed.

18. Water temperature gauge

Indicates the temperature of the engine

coolant water. The indicator level must

be within the green range during

machine operation. The red range

indicates overheating.

19. Fuel gauge

IMPORTANT: If the fuel gauge

changes the color from green

to orange while traveling on a

flat ground, do not go to a

sloping land. Engine stalling

may occur on the sloping

land. Before operating on the

sloping land, be sure to add

The red range increases as the engine

enough fuel.

load increases, indicating higher fuel

consumption. When the button (C) (Bar

Indicates the amount of fuel in the tank.

meter key) is pressed in a normal screen,

Be sure to fill up the tank before running

the display is changed from the throttle

out of fuel.

opening position to the lift load factor

and the PM accumulation amount, in this

order.

• The lift load factor is displayed if there

is no change in the throttle opening

position for five seconds after the lift

alarm switch is turned on.

• The throttle opening position is

displayed if the highland mode switch

is turned on or there is a change in the

throttle opening position.

2-19

CONTROLS

MULTI-INFORMATION DISPLAY

21. Auxiliary 1st flow rate indicator lamp

24. Hour meter/Trip meter

This lamp lights up to indicate which flow

• Hour meter

rate setting is selected in the auxiliary 1st.

Displays the total

engine running time in

a Flow rate setting 1

hours.

The rightmost digit

indicates tenths of

b Flow rate setting 2

hours (6 minutes).

Set the inspection and maintenance

c Flow rate setting 3

intervals according to the time displayed on

the hour meter.

d Flow rate setting 4

• Trip meter

Three patterns of desired operating hours

can be displayed.

e Flow rate setting 5

Refer to “Trip meter setting” on page 2-23.

Flow rate setting 6

Flow rate setting 7

Flow rate setting 8

Flow rate setting 9

Refer to “Auxiliary 1st flow rate setting”

on page 2-23.

22. Working light indicator

Lights up when the working light is

turned on.

23. Date and time indicator

Displays the date and

time set.

Refer to “Date and

time setting” on page

2-25.

2-20

CONTROLS

MULTI-INFORMATION DISPLAY

SCREEN CONTROL KEY

Up (

) key

Use this key to move the cursor upward

and to increase the value in each setting.

Press and hold this key for one second to

rapidly increase the value.

D.Auxiliary 1st key

The auxiliary 1st symbol is displayed in the

initial screen. Pressing this key changes

the symbol display in the following order.

Auxiliary 1st setting 1, Auxiliary 1st setting

2, Auxiliary 1st setting 3.

Note: Do not press the symbol keys on the

Enter key

display. The LCD could be damaged if the

Use this key to confirm or execute the

symbol keys are pressed hard. For actual

setting made by each key.

operation, press the push button keys

To clear the trip meter being displayed,

located at the bottom of the screen.

press and hold this key for three seconds.

A. Menu key

E. —

Use this key to switch between the Home

screen and the Menu screen. This key is

also used to cancel changes made in

each setting. The screen returns to the

Home screen if this key is pressed in the

information screen.

B. Hour meter key

This hour meter symbol is displayed in the

initial screen. Pressing this key changes

the meter display in the following order.

Trip meter 1, Trip meter 2, Trip meter 3,

Hour meter.

Down (

) key

Use this key to move the cursor

downward and to decrease the value in

each setting. Press and hold this key for

one second to rapidly decrease the value.

C.Bar meter key

This hour meter symbol is displayed in the

initial screen. Pressing this key changes

the meter display in the following order.

Throttle opening position, Lift load factor,

PM accumulation amount

2-21

CONTROLS

MULTI-INFORMATION DISPLAY

SCREEN NAVIGATION

• Menu screen

Press the Menu key to go the Menu screen while in the Home screen.

(1) Trip meter setting

(2) Auxiliary line flow rate display

(3) Auxiliary 1st flow rate setting

(4) Auxiliary 2nd/4th flow rate setting

(5) Date and time setting

(6) Data display

(7) Error code display

(8) LCD setting

Move the cursor with the Up (

) or Down (

) key to go to the desired item to be set, and

then press the Enter key to confirm. To return to the Menu screen, press the Menu key.

The wrench symbol indicates the “setting is possible state” and the ( i ) mark indicates

information only.

2-22

CONTROLS

MULTI-INFORMATION DISPLAY

(1) TRIP METER SETTING

(3) AUXILIARY 1ST FLOW RATE SETTING

Six patterns of desired operating hours can

Three flow rate patterns can be set in the

be set.

auxiliary 1st.

To start setting, press the Enter key. The

Refer to the trip meter setting for the key

value flashes while being set.

operation. To move the cursor in the

Up (

) key: Increases the value or moves the

direction of the arrow, use the Down (

) key.

cursor upward. Rapidly increases the

To move the cursor in the opposite

value when pressed and held for one

direction of the arrow, use the Up (

) key.

second.

Down (

) key: Decreases the value or moves

Initial

A/B common,

Variable

the cursor downward. Rapidly decreases

condition

standard flow

range

the value when pressed and held for one

100%

second.

Auxiliary 1st-1

= 54 L/min

10 to 100%

Enter key: Confirms setting

( 14.3 US gpm)

Menu key: Cancels setting or returns to the

Menu screen.

75%

Pressing and holding the Enter key for three

Auxiliary 1st-2

= 40.5 L/min

10 to 100%

seconds clears the trip meter pointed by the

( 10.7 US gpm)

cursor.

50%

Auxiliary 1st-3

= 27 L/min

10 to 100%

( 7.1 US gpm)

(2) AUXILIARY LINE FLOW RATE DISPLAY

The table shows the 1-way flow rate when

there is no load.

Displays the flow rate of the Auxiliary 1st,

2nd and 4th.

The flow rate cannot be changed.

2-23

CONTROLS

MULTI-INFORMATION DISPLAY

(4) AUXILIARY 2ND/4TH FLOW RATE

SETTING

Pressing the Enter key while the cursor is

at “Select ATT” goes to the attachment

select screen.

Pressing the Down (

) key will move the

One pattern of the auxiliary 2nd/4th flow rate

blue flashing light in the direction of the

can be set.

arrow.

Pressing the UP (

) key will move the blue

Initial

Variable

flashing light in the opposite direction of the

Standard flow

condition

range

arrow.

C/D 100%

Move the blue flashing light to the desired

Auxiliary 2nd

=21.6 L/min

10 to 100%

symbol or the number, and then press the

( 5.7 US gpm)

Enter key to confirm.

The selected symbol will appear at the lower

G/H 100%

left of the Home screen.

Auxiliary 4th

=21.6 L/min

10 to 100%

( 5.7 US gpm)

The table shows the 1-way flow rate when

there is no load.

Refer to the trip meter setting for the key

operation. To move the cursor in the

direction of the arrow, use the Down (

) key.

To move the cursor in the opposite

direction of the arrow, use the Up (

) key.

2-24

CONTROLS

MULTI-INFORMATION DISPLAY

(5) DATE AND TIME SETTING

Display items

• Engine RPM

• Coolant temperature

•—

• Battery voltage

• PM accumulation amount

(7) ERROR CODE DISPLAY

The year, month, date, hour and minute can

be set. (Effective year range: 2010 to 2099)

• Move the cursor to the clock symbol,

and then press the Enter key. The cursor

will be shifted to the place for setting the

year.

Press the Enter key again, and then enter

the year. (The year display keeps flashing

during editing.)

........Vehicle error code

Press the Enter key to confirm. The month,

Displays four error codes, with the latest

date, hour and minute can be set using the

code in the upper left.

same procedure for the year.

Refer to “Vehicle error code list” on pages

• Move the cursor to the calendar symbol,

6-12 and 6-13.

and then press the Enter key to change the

format of “Year-Month-Date” to “Date-

........ECM error code

Month-Year” or “Month-Date-Year”.

Engine ECM (Engine Control Module) error

Refer to the trip meter setting for the key

code

operation.

Displays three error codes, with the latest

code at the top.

Refer to “Engine error code list” on pages

(6) DATA DISPLAY

6-14 to 6-15.

IMPORTANT: If an error code appears,

immediately stop the operation and

contact a Takeuchi sales or service outlet

for help.

Displays various data. The setting cannot be

changed.

2-25

CONTROLS

MULTI-INFORMATION DISPLAY

(8) LCD SETTING

• Unit setting

Switch between SI unit and US units.

• Background color setting

Move the blue flashing light to the desired

unit position, and then press the Enter key

to confirm.

Menu key: returns to the Menu screen.

Pressing the Menu key again returns to the

Home screen.

Move the cursor to the background

color symbol, and then press the Enter

key. The blue flashing light moves from

blue gray to gray, blue and black, in this

order. Move the blue flashing light to the

desired color position, and then press the

Enter key to confirm.

The background color can be changed in

this screen, regardless of mode (day or

night).

• The brightness of the LCD is set to

between 0 and 100%. The brightness

changes each time the adjustment is

made.

Day mode: initial setting value is 50%

Night mode: initial setting value is 50%

While in the day (night) mode, adjustment

is possible only for the brightness set to the

night (day) mode.

Refer to the trip meter setting for the key

operation.

2-26

CONTROLS

INSTRUMENT CLUSTER

For explanation purposes, all lamps on this

WARNING LAMPS

page are in the lit condition. This screen

image is quite different from that of the real

IMPORTANT: If a warning lamp flashes

operation.

and an alarm is sounded, immediately

Once the starter switch is turned to ON, all

stop all operations and check the

lamps on the instrument cluster light up and

corresponding component.

the alarm sounds.

Refer to “If a warning lamp flashes” on

Then, the battery charge warning lamp (3)

pages 6-10 and 6-11.

and the engine oil pressure warning lamp (2)

start flashing and an alarm sounds. The

machine system is normal if the lamps turn

off after the engine is started.

If any lamp is not lit when the starter switch

is turned to ON, there is something wrong in

the machine. Consult your sales or service

dealer.

2-28

CONTROLS

INSTRUMENT CLUSTER

1. Vehicle and engine emergency lamp

INDICATORS

This lamp flashes and an alarm sounds if

there is a problem with the machine. Go to

7. Glow lamp

the “Failure Record (FAILURE RECORD)”

This lamp goes out when the engine

from the side menu screen, get the vehicle

preheating is completed.

or engine error code number, and then

consult your sales or service dealer

8. Travel speed lamp

referring to the “Vehicle error code list” or

This lamp turns on when the travel speed

“Engine error code list” in this manual.

button is set to the 2nd (high) speed.

Refer to “Side menu screen” on page

2-39.

9. Deceleration lamp

Refer to “Failure Record (FAILURE

This lamp turns on when the deceleration

RECORD)” on page 2-46.

button is pressed. The lamp lights up to

Refer to “Vehicle error code list” on pages

indicate that the engine is in the

6-12 and 6-13.

deceleration mode at low idling speed

Refer to “Engine error code list” on pages

(1200 rpm).

6-14 to 6-15.

It flashes When the automatic deceleration

switch is pressed to indicate that the

2. Engine oil pressure warning lamp

machine is in the automatic deceleration

This lamp flashes and an alarm is sounded

mode.

if the lubricant oil pressure abnormally low

Refer to “Deceleration button” on page

while the engine is running.

2-49.

Refer to “Automatic deceleration switch”

3. Battery charge warning lamp

on page 2-53.

This lamp flashes and an alarm is sounded

if a problem rises in the charging system

while the engine is running.

METERS

4. Coolant temperature warning lamp

10. Water temperature gauge

This lamp flashes and an alarm is sounded

Indicates the temperature of the engine

if the engine coolant temperature

coolant water.

becomes abnormally high while the engine

The LED should be within the green

is running.

range during machine operation.

The red range indicates overheating.

5. Fuel level warning lamp

This lamp turns on if the fuel level

11. Fuel gauge

becomes low while the starter switch is in

Indicates the amount of fuel in the tank.

the ON position.

Be sure to top off the tank before running

out of fuel.

6. Air cleaner warning lamp

This lamp flashes and an alarm is sounded

if the air cleaner filter is clogged while the

engine is running.

2-29

CONTROLS

INSTRUMENT CLUSTER

MULTI-DATA DISPLAY

3. Time display

Displays the time set.

12. LCD (Liquid Crystal Display)

Refer to “Time setting” on page 2-37.

It displays various functions and data on

hour meter, trip meter, clock, tachometer

4. Tachometer

and the machine.

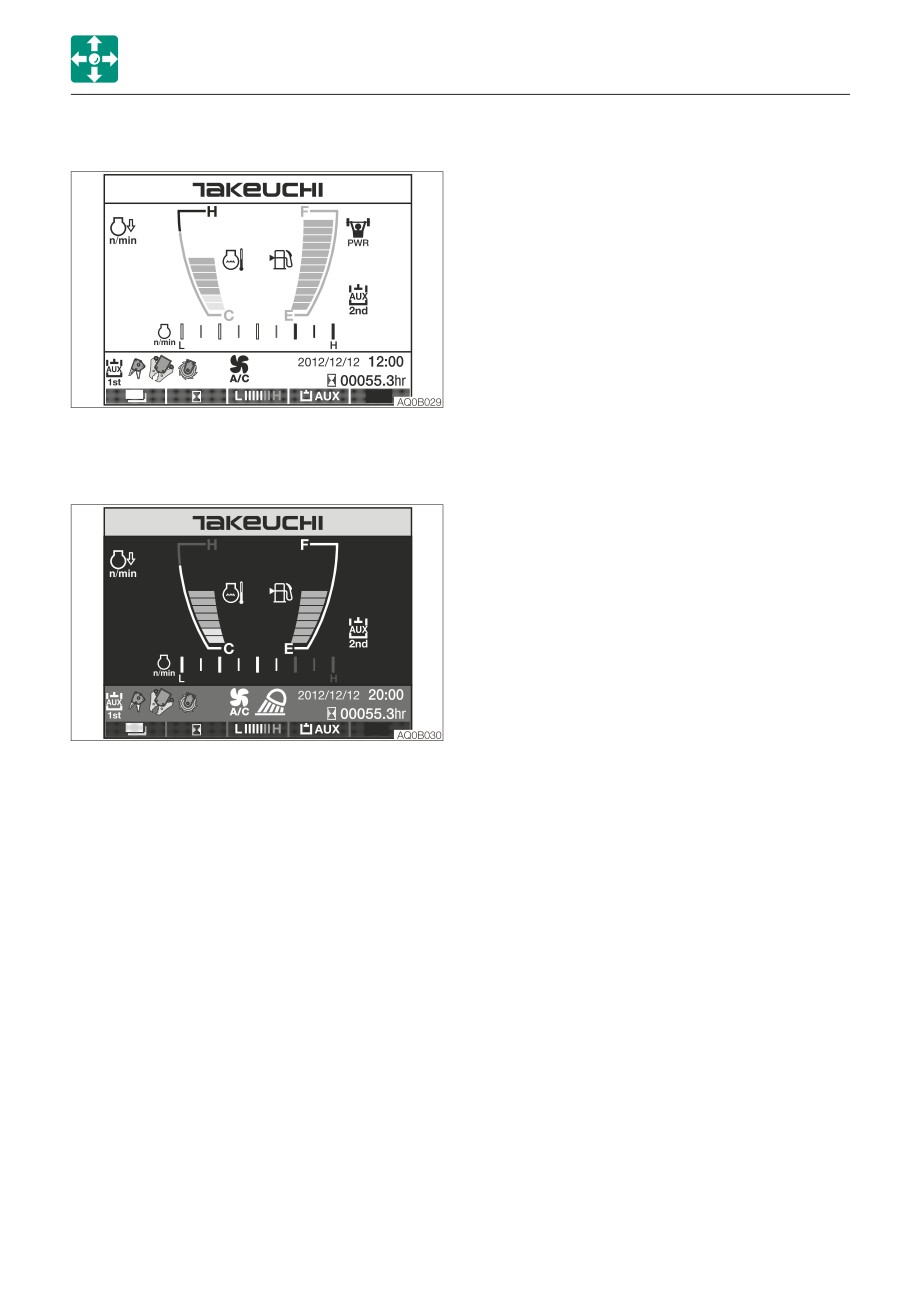

Home screen

Displays the engine RPM in 10 levels.

Pressing the (B) key while the tachometer is

displayed changes to the display of the PM

accumulation rate and lift load factor, in this

1. Key function display

order.

The key function display changes

• The throttle opening position is displayed if

depending on the screens (Home, Menu

the lift alarm switch is turned on and there

and each setting)

is no change in the throttle opening

For actual operation, use the buttons, “A”,

position.

“B” and “C”, located beneath each

• The tachometer is displayed if the highland

symbol.

mode switch is turned on or there is a

Refer to “Function of each key” on pages

change in the throttle opening position.

2-34 to 2-47.

• For TB230, the PM accumulation rate does

not change.

2. Hour meter/Trip meter

• Hour meter

5. Functions (Page 1)

Displays the total engine running time in

hours.

The rightmost digit indicates tenths of

hours (6 minutes).

Set the inspection and maintenance

intervals according to the time displayed

on the hour meter.

• Trip meter

Three patterns of desired operating hours

can be displayed.

Refer to “Trip meter display” on page

2-34.

2-30

CONTROLS

INSTRUMENT CLUSTER

A. Auxiliary 2nd/4th selection

D.Highland Mode (If equipped)

This mode is used to reduce

the engine load due to the

Auxiliary 2nd is selected.

hydraulic pump. When the

machine is operated at a high-

altitude site, the engine output

Auxiliary 4th is selected.

is decreased due to thin air. In such cases,

the hydraulic horse power is automatically

adjusted to prevent the engine from

stalling.

B. Auxiliary 1st One-way (one-way circuit)

Refer to “Power/Highland mode switch”

on page 2-53.

Auxiliary 1st auto tank is

selected.

Auxiliary 1st one-way is

selected.

No display:

Two-way (two-way circuit)

is selected.

C.Lift overload warning/power mode

Displays when the power

mode select switch is

pressed. It indicates the

maximum engine output is

selected.

Display the symbol when

the lift overload warning

switch is turned on.

2-31

CONTROLS

INSTRUMENT CLUSTER

E. Alarm

I. Dozer blade float indicator

Displays the symbol of the dozer blade

Displays the clock symbol when

float when the float button is pressed.

the alarm function is turned on.

Refer to “Alarm setting” on

7. Warning indicators (Page 3)

page 2-37.

When the (A) key is pressed, the display

changes as the following. If there is no warning,

the screen returns to the “Functions” on Page 1.

6. Function indicators (Page 2)

When the (A) key is pressed, the display

changes as the following.

Warning display is first flashed and enlarged

for three seconds and then stays displayed,

if there is a problem with the machine. If

multiple warnings are to be displayed, the

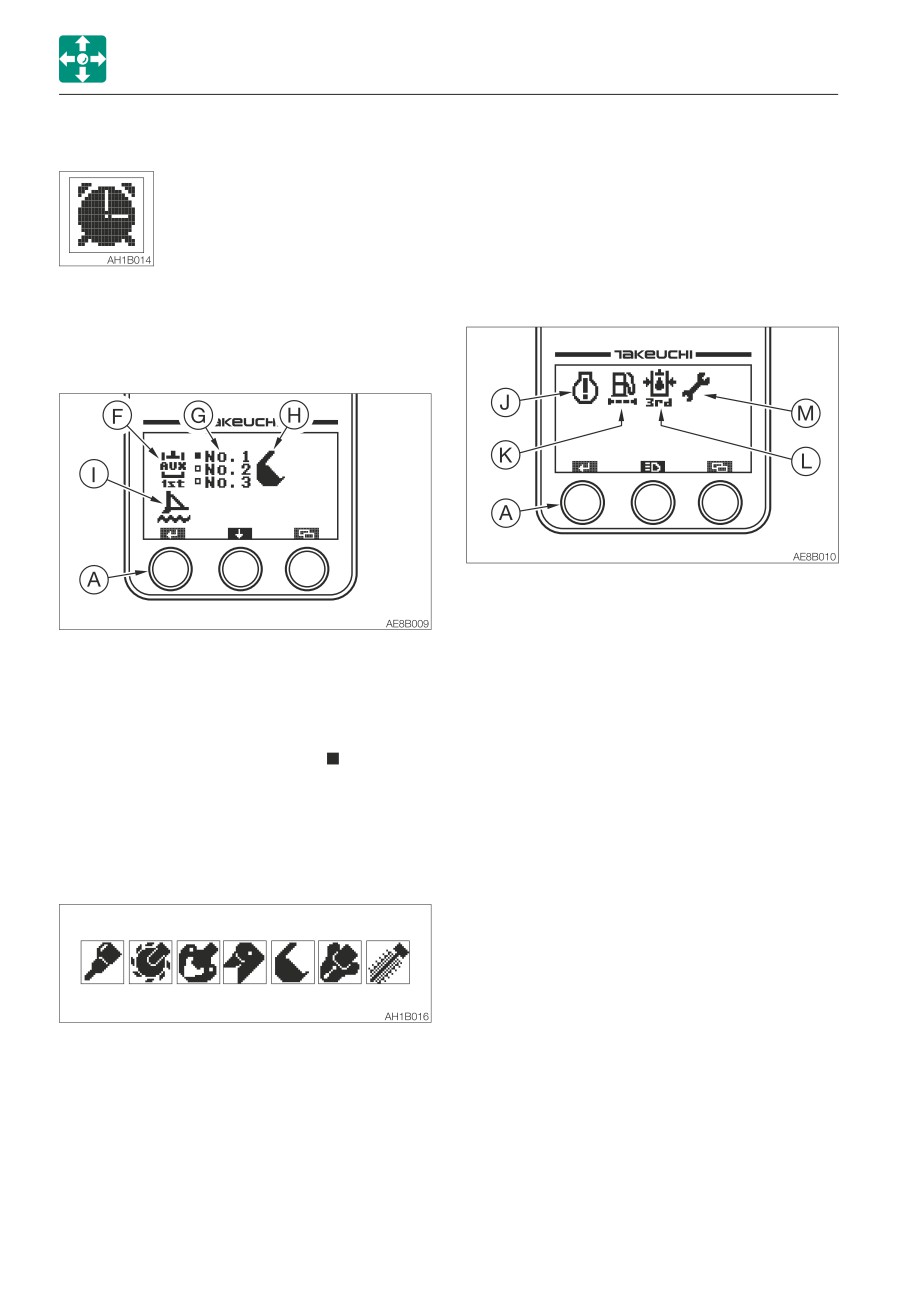

F. Auxiliary 1st indicator

highest priority warning is displayed. Priority

from the highest to the lowest: ECM error

G.Auxiliary 1st flow rate selection

warning, Auxiliary 3rd hydraulic pressure

indicator

warning, water separator warning and fuel

Press the (B) key to move the and select

filter warning.

the desired flow rate.

No enlarged display for the maintenance

Refer to “Auxiliary 1st Flow Rate Setting”

warning.

on page 2-40.

Go to the “MAINTENANCE/FAILURE

RECORD/Error cord display” from the Side

H.Attachment symbol indicator

menu screen, get the vehicle or engine error

code number, and consult your sales or

service dealer referring to the “Vehicle error

code list” or “Engine error code list” in this

manual.

Displays the symbol of the attachment

selected in the “Auxiliary 1st Flow Rate

Setting” section.

2-32

CONTROLS

INSTRUMENT CLUSTER

J. ECM error warning indicator

M.Maintenance warning indicator

This warning lamp flashes if the Electronic

When the time for maintenance set by the

Control Module (ECM) detects an engine

trip meter is reached, this warning lamp

problem while the starter switch is in the

flashes and an alarm sounds.

ON position. The problem detected is

recorded as an ECM error.

Refer to “Engine error code list” on pages

6-14 to 6-15.

K.Fuel filter warning indicator

This lamp flashes and an alarm is sounded

if the fuel filter is clogged while the engine

is running.

L. Auxiliary 3rd hydraulic pressure

warning indicator (If equipped)

This warning lamp starts flashing and an

When the time for maintenance set by the

alarm sounds if the pressure in the fixed

trip meter is reached, the screen is

side (left “e”) of the Auxiliary 3rd drops

changed from the Main to the Trip Meter

abnormally while the engine is running, or

for Maintenance on the DATA screen.

while the quick-hitch is being used for

Each value remains flashing until its

changing the bucket.

corresponding key is pressed. At this

stage, the trip meter values cannot be

reset. Pressing any key returns to the

Warning (Page 3) of Main screen in which

the maintenance warning lamp is flashing

and the alarm is sounding. Promptly

inspect and service the relevant item.

Refer to “Menu/Trip meter reset” on page

2-35.

Refer to “Maintenance” on page 5-1.

2-33

Takeuchi Mini excavator TB230 (No.130000003~). Operator's Manual (2014) - page 2
