SAFETY

PRECAUTIONS ON MAINTENANCE

Cautions when refueling

Handling of hoses

Oil leak or fuel leak can cause a fire.

• Do not twist, bend or hit the hoses.

• Never use twisted, bent or cracked pipes,

tubes or hoses; otherwise, they may burst.

• Retighten loose connection.

Be careful with hot and pressurized

components

• Do not smoke or permit open flames while

fueling or near fueling operations.

• Never remove the fuel cap or add fuel

when the engine is running or still hot. Do

not spill fuel on the hot surface of the

machine.

• Fill the fuel tank in a well ventilated place.

• Do not fill the fuel tank to capacity. Allow

room for oil expansion.

• Clean up spilled fuel immediately.

• Securely tighten the fuel filler cap. If the fuel

Stop the engine and allow the machine to

cap is lost, replace it only with the genuine

cool down before performing maintenance.

cap. Use of a non-approved cap without

• The engine, muffler, radiator, hydraulic

proper venting may result in pressurization

lines, sliding parts and many other parts of

of the tank.

the machine are hot immediately after the

• Never use fuel for cleaning.

engine is stopped. Touching these parts

• Use the correct grade of fuel for the

will cause burns.

operating season.

• The engine coolant, hydraulic oil and other

oils are also hot and under high pressure.

Be careful not to touch the hydraulic oil

when loosening the cap or plug. Working

on the machine under these conditions

could result in burns or injuries due to the

hot oil spurting out.

1-32

SAFETY

PRECAUTIONS ON MAINTENANCE

Be careful with hot cooling systems

Be careful with oil internal pressure

Pressure is maintained in the hydraulic circuit

long after the engine has been shut down.

• Completely relieve the internal pressure

before performing maintenance work.

Do not remove the radiator cap or the drain

plug when the cooling water is hot. Stop the

engine and wait until the engine and the

cooling water cool. Then, slowly loosen the

radiator cap to release the internal pressure

and remove it.

• The hydraulic oil is high enough pressure to

penetrate the skin or eyes and cause

serious injury, blindness or death.

Remember that the hydraulic oil escaping

from a small hole is almost invisible. When

checking for leaks, wear protective goggle

and thick gloves, and use a paperboard or

plywood to keep your skin from oil

spurting.

If oil penetrates the skin, it must be

surgically removed within a few hours by a

doctor familiar with this type of injury.

1-33

SAFETY

PRECAUTIONS ON MAINTENANCE

Release pressure before working on the

Be careful with debris when the hammer

hydraulic system

is being used

Oil may spurt out if caps or filters are

When using a hammer, pins may fly out or

removed or pipes are disconnected before

metal particles may be scattered. This may

releasing the pressure in the hydraulic

lead to serious injury.

system.

• If hard metal parts such as pins, bucket

• Gradually loosen the vent plug to relieve

teeth, side cutter or bearings are hit with a

tank pressure.

hammer, wear protective gear such as

• When removing plugs or screws, or when

safety goggles and gloves.

disconnecting hoses, stand to the side and

• When hitting pins or bucket teeth, always

loosen them slowly to gradually release the

check that there is no one in the

internal pressure before removing.

surrounding area.

• Oil or plug may spurt out according to the

pressure in the travel motor case. Loosen

the plug slowly and release the internal

pressure.

1-34

SAFETY

PRECAUTIONS ON MAINTENANCE

Be careful with the high-pressure grease

Handling of the accumulator

AG7A086

In the track adjuster, the grease has been

Be sure to handle the high-pressure nitrogen

injected under high pressure. If the tension is

gas enclosed in the accumulator with care. If

adjusted without following the prescribed

handled incorrectly, it could explode and

procedure, the grease discharge valve may

cause serious injury. Strictly observe the

fly off, resulting in injury.

following precautions:

• Never loosen the grease fitting.

• Do not disassemble.

• Loosen the grease discharge valve slowly.

• Do not allow flame near or throw it into a

Do not turn it more than one turn.

fire.

• Do not put your face, arms, legs or body in

• Do not drill, weld or fuse.

front of the grease discharge valve.

• Do not subject it to physical shock such as

• If grease does not come out when the

hitting, rolling or dropping.

grease discharge valve is loosened, the

• Before disposing of the unit, the sealed gas

valve is faulty. Ask a Takeuchi service agent

must be drained. Contact a Takeuchi

for repair.

service agent for help.

Never disassemble the track adjuster

There is a very strong spring contained in the

track adjuster. If the track adjuster is

accidentally disassembled, the spring can

pop out, resulting in serious injury Never

disassemble the track adjuster.

1-35

SAFETY

PRECAUTIONS ON MAINTENANCE

Disconnect the battery wiring

• Do not charge a battery or jump-start the

engine if the battery is frozen; otherwise it

may explode. Warm the frozen battery to

15°C (60°F) before use.

• Do not use the battery when the fluid level

is below the lower level limit. Doing so will

hasten the deterioration of the internal

portions of the battery and shorten the

battery life. It also can cause rupturing

(explosion).

• Do not add the distilled water above the

upper level limit. Doing so could cause the

fluid to leak. This fluid can cause skin

Disconnect the battery wiring before working

damage if contacted, or can cause the

on the electrical system or doing electric

machine components to corrode.

welding. Disconnect the negative (-) battery

• Use a dampened cloth to clean around the

cable first. When reconnecting, connect the

fluid level line and check the fluid level. Do

negative (-) battery cable last.

not clean with a dry cloth; otherwise it

could cause static electricity to build up,

resulting in ignition or explosion.

Use caution when handling batteries

• Batteries contain sulfuric acid which will

damage the eyes or skin in case of

contact.

· If eye contact occurs, flush immediately

with clean water and get prompt medical

attention.

· If accidentally swallowed, drink large

quantities of water or milk and call a

physician immediately.

· If acid contacts skin or clothing, wash off

immediately with a lot of water.

• Wear protective goggle and gloves when

working with batteries.

• Batteries generate flammable hydrogen

gas which may explode. Keep away from

flame, sparks, fire or lighted cigarettes.

• When checking the level of the battery

fluid, use a flashlight.

• Be sure to stop the engine by turning off

the starter switch before inspecting or

handling the battery.

• Be careful not to let metal tools or any

metal objects come into contact with the

battery terminals and cause a short circuit.

• Loose battery terminals may result in

sparks. Be sure to fasten terminals tightly.

• Make sure the battery caps are tightened

securely.

1-36

SAFETY

PRECAUTIONS ON MAINTENANCE

Periodically replace the safety-critical

Jump starting with booster cables

parts

• When starting the engine using the booster

• To use the machine safely for a longer

cables, be sure to connect the cables in

period, periodically add oil and perform

the proper order described below. Wrongly

inspection and maintenance. To improving

connected cables can result in sparking

the safely, replace the safety-critical parts

and battery explosion.

like hoses and seat belts periodically. Refer

· Do not allow the “machine in trouble” and

to “Safety-critical parts to be replaced

“rescue machine” to touch each other.

periodically” for further details.

· Do not allow the positive (+) and negative

• The “Safety-critical parts to be replaced

(-) clips of the booster cables to touch

periodically” are the parts which

each other or to come in contact with the

deteriorate, wear and fatigue after repeated

machine.

use and whose properties change over

· When connecting, attach the positive

time. While these characters of these parts

booster cable to the positive (+) terminals

could cause serious physical or personal

first. When disconnecting, remove the

damage, judging the remaining life of these

negative cable from the negative (-)

part are difficult from external inspection or

terminal (ground) first.

the feeling when operating.

· Be sure to connect the clips securely.

• Replace the “Safety-critical parts to be

· Connect the last clip of the booster cable

replaced periodically” if any defect is found

to a point as far away from the battery as

from external inspection, even when they

possible.

have not reached the time specified

• Always wear the protective goggle and

interval.

gloves when starting the engine by using

the booster cables.

• Use the booster cables and clips of a size

suited to the capacity of battery. Do not

use damaged or corroded booster cables

and clips.

• Be sure that the battery of the “rescue

machine” has the same capacity as the

battery of the “machine in trouble”.

1-37

SAFETY

PRECAUTIONS ON MAINTENANCE

Have a Takeuchi service agent repair

Checks after maintenance

welding

• Gradually increase the engine speed from a

If welding must be performed, make sure

low idle to maximum speed and check that

that it is done by a qualified person in a

there is no oil or water leaking from the

properly equipped workplace. To prevent any

serviced parts.

part from breaking down or being damaged

• Operate each control lever and check that

due to overcurrent or sparks, observe the

the machine is operating properly.

following.

• Disconnect the wiring from the battery

before doing electric welding.

Disposing of wastes

• Do not continuously apply 200 V or more.

• The earth ground must be connected

within one meter from the welding section.

Do not connect the earth ground near to

an electronically controlled device/

instrument or connectors.

• Make sure that there are no seals or

bearings between the welding section and

the earth ground.

• Do not connect the earth ground around

the pins for the working equipment or

hydraulic cylinders.

• When welding is to be done on the

• Always collect oil that is drained from the

machine body, disconnect the connectors

machine in containers. Improperly

for the electronically controlled devices

disposed waste oil can cause

before working.

environmental harm.

• Follow appropriate laws and regulations

when disposing of harmful objects such as

Vibrations operators are subject to

oil, fuel, coolant, solvent, filters and

batteries.

According to the results of the tests

conducted to determine the vibrations

transmitted to the operator by the machine,

Handling of poisonous chemicals

the upper limbs are subjected to vibrations

lower than 2.5 m/s² (8.2 ft/s²) while the

Poisonous chemicals will cause serious injury

seated part of the body is subjected to

if directly contacted.

vibrations lower than 0.5 m/s² (1.64 ft/s²).

Poisonous chemistry used in this machine

includes grease, battery solution, coolant,

paint and adhesive agent.

Handle the poisonous chemicals properly

with care.

1-38

SAFETY

SAFETY SIGNS (DECALS)

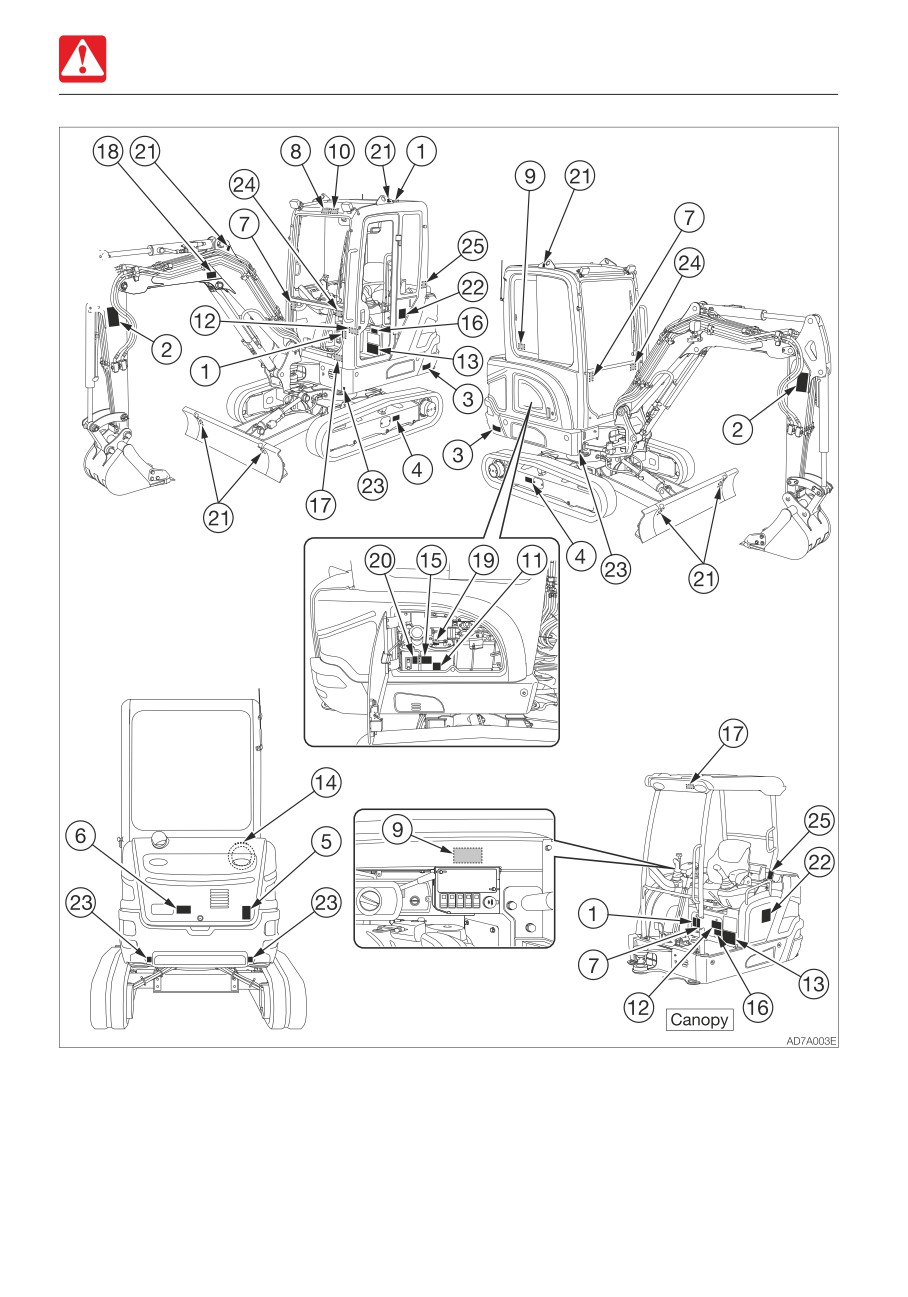

For the safety of the operator and the personnel working around the site, safety signs (decals)

are placed at certain locations on the machine as shown below. Walk around the machine with

this manual, and check the content and location of these safety signs. Review these signs and

the operating instructions in this manual with your machine operators.

• Keep the signs clean and legible. If any of the safety labels is peeling or damaged and

becomes difficult to read, replace it with a new one. Please include your product serial

number when ordering a new sign from the Takeuchi service agent.

• When a part/unit to which a safety sign is attached is replenished, a new sign must be

attached to the new part/unit.

1-39

CONTROLS

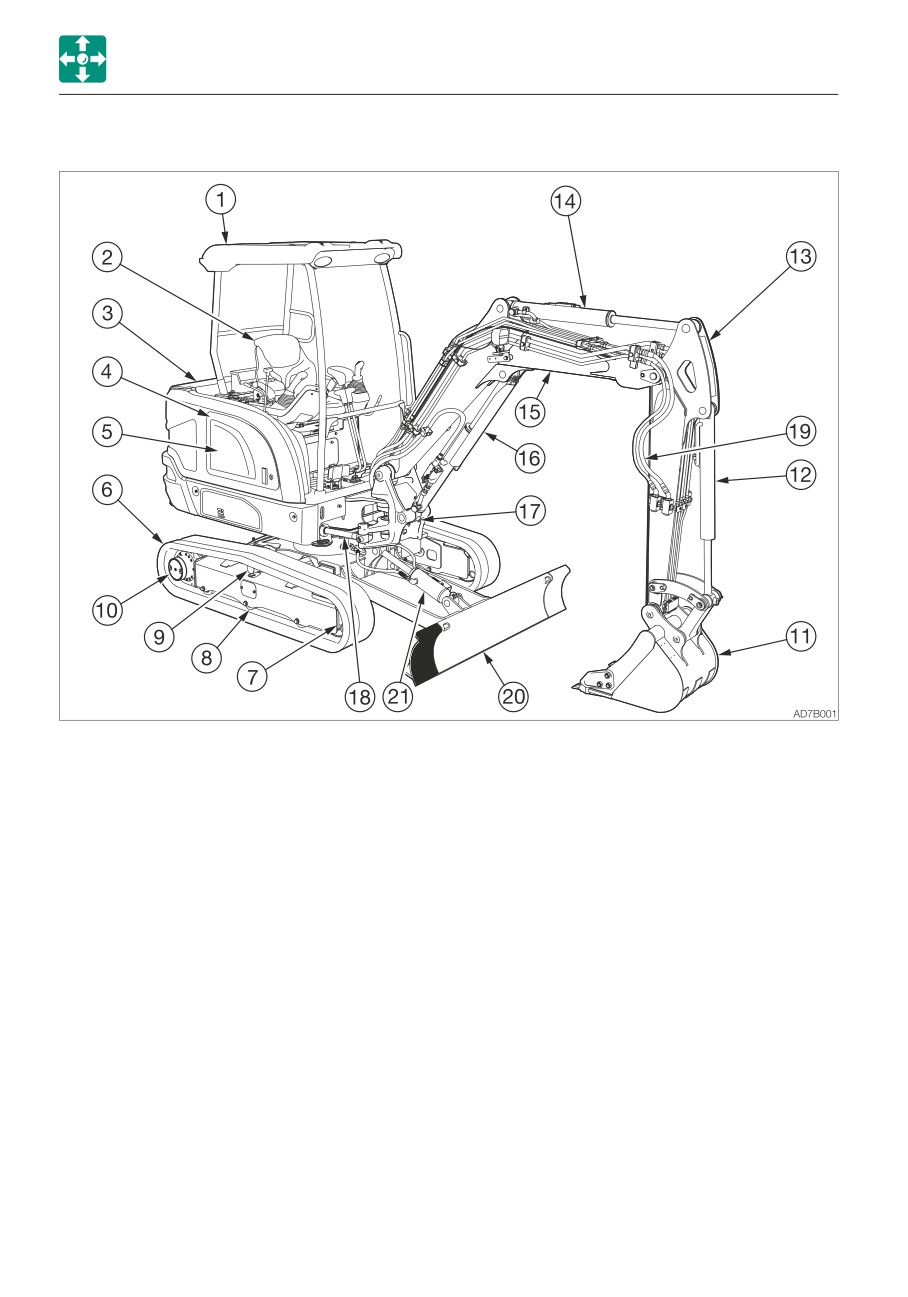

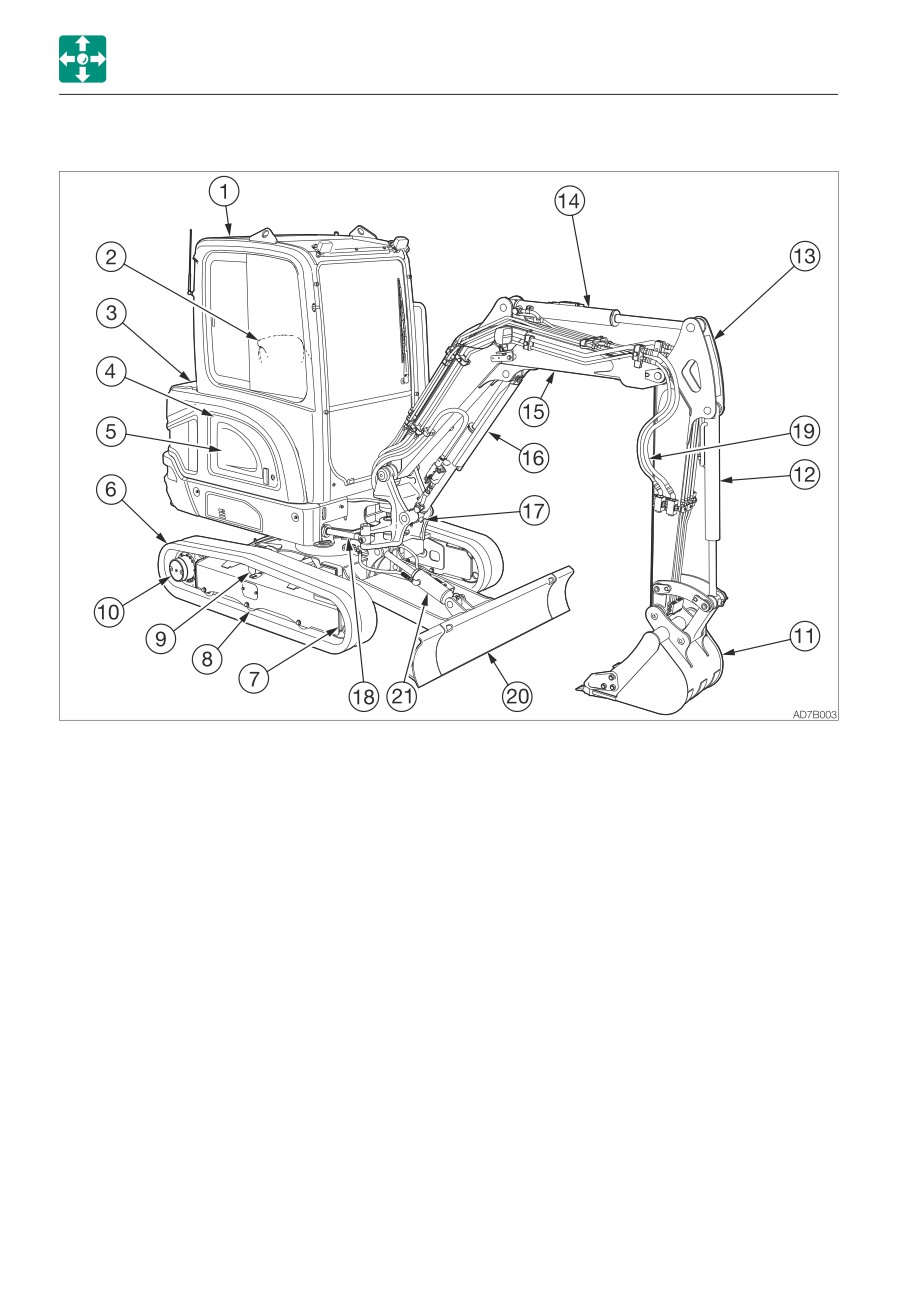

NAMES OF COMPONENTS (CANOPY)

Upperstructure

Undercarriage

Working equipment

1. Canopy

6. Crawler belt

11. Bucket

2. Seat

7. Idler

12. Bucket cylinder

3. Engine hood

8. Track roller

13. Arm

4. Fuel tank

9. Carrier roller

14. Arm cylinder

5. Hydraulic oil tank

10. Travel motor

15. Boom

16. Boom cylinder

17. Boom bracket

18. Swing cylinder

19. Auxiliary hydraulic lines

20. Dozer blade

21. Blade cylinder

2-2

CONTROLS

NAMES OF COMPONENTS (CANOPY)

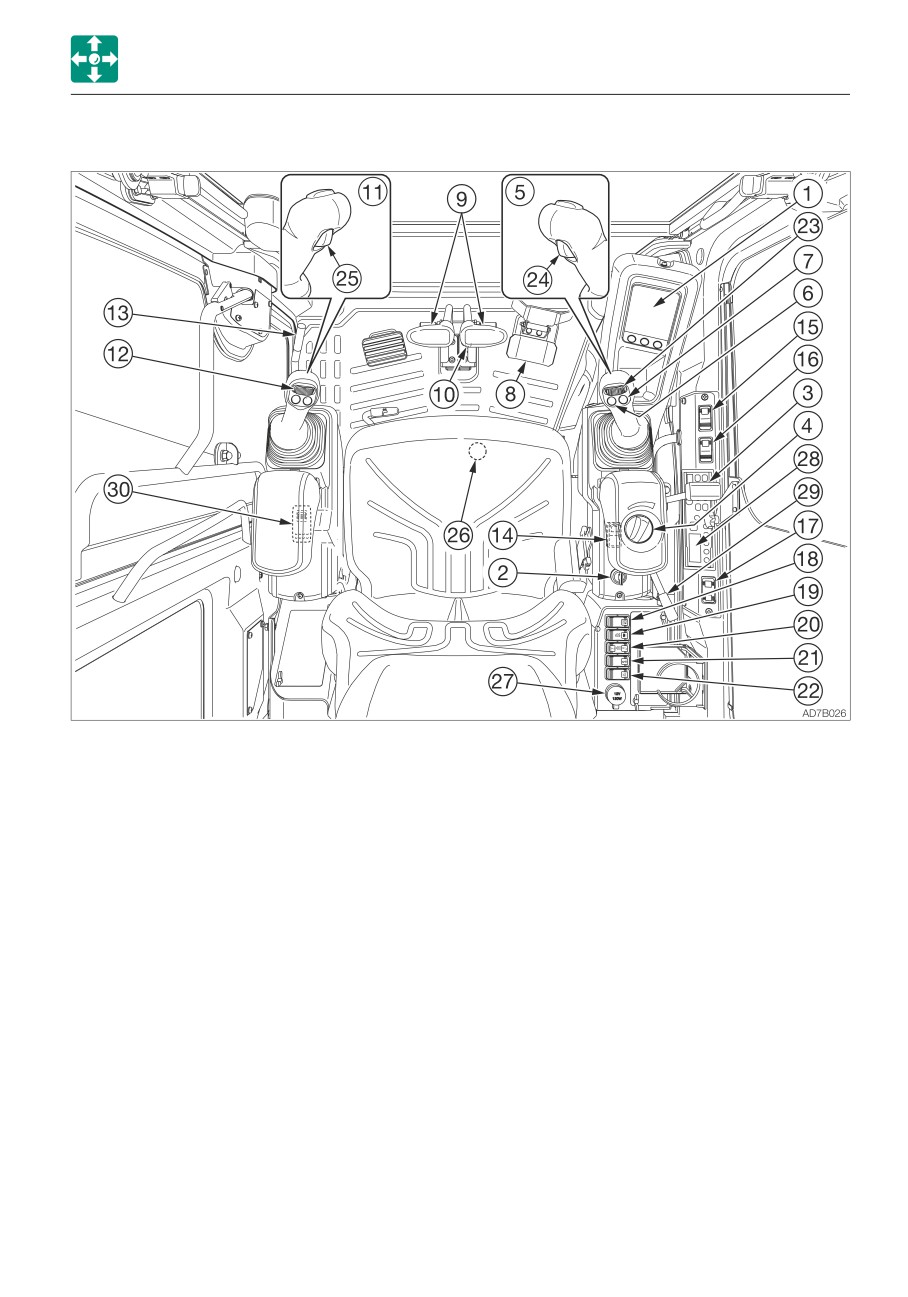

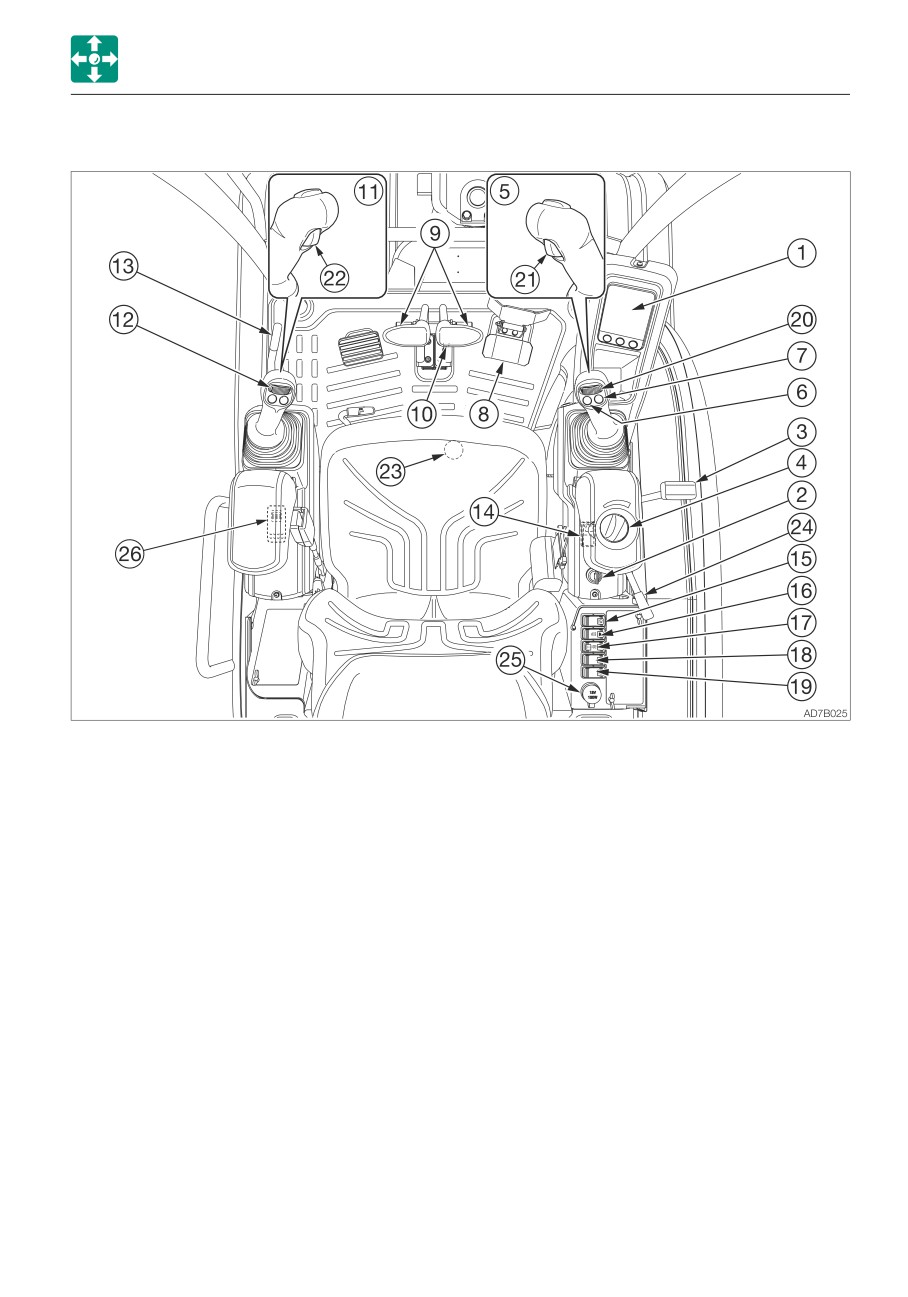

1. Instrument cluster

14. Light switch

2. Starter switch

15. Automatic deceleration switch

3. Blade lever

16. Detent mode switch

4. Throttle controller

17. Auxiliary 1st auto tank switch*

5. Right operating lever

18. Lift overload warning switch*

6. Horn button

19. Beacon lamp switch

7. Deceleration button

20. Auxiliary 2nd/4th switch*

8. Boom swing pedal

21. Auxiliary 2/4 select button*

9. Travel levers/pedals

22. Third auxiliary hydraulic button*

10. Travel speed button

23. Third auxiliary hydraulic switch*

11. Left operating lever

24. Crawler width switch lever

12. Auxiliary 1st switches

25. Power supply socket

13. Safety lock lever

26. Third auxiliary hard-lock switch*

*: Subject to the specifications or optional products selected

2-3

CONTROLS

NAMES OF COMPONENTS (CAB)

Upperstructure

Undercarriage

Working equipment

1. Cab

6. Crawler belt

11. Bucket

2. Seat

7. Idler

12. Bucket cylinder

3. Engine hood

8. Track roller

13. Arm

4. Fuel tank

9. Carrier roller

14. Arm cylinder

5. Hydraulic oil tank

10. Travel motor

15. Boom

16. Boom cylinder

17. Boom bracket

18. Swing cylinder

19. Auxiliary hydraulic lines

20. Dozer blade

21. Blade cylinder

2-4

CONTROLS

NAMES OF COMPONENTS (CAB)

1. Instrument cluster

16. Washer switch

2. Starter switch

17. Heater switch

3. Blade lever

18. Automatic deceleration switch

4. Throttle controller

19. Detent mode switch

5. Right operating lever

20. Auxiliary 1st auto tank switch*

6. Horn button

21. Lift overload warning switch*

7. Deceleration button

22. Beacon lamp switch

8. Boom swing pedal

23. Auxiliary 2nd/4th switch*

9. Travel levers/pedals

24. Auxiliary 2/4 select button*

10. Travel speed button

25. Third auxiliary hydraulic button*

11. Left operating lever

26. Third auxiliary hydraulic switch*

12. Auxiliary 1st switches

27. Power supply socket

13. Safety lock lever

28. Radio*

14. Light switch

29. Crawler width switch lever

15. Wiper switch

30. Third auxiliary hard-lock switch*

*: Subject to the specifications or optional products selected

2-5

CONTROLS

COVERS

SIDE COVER

COVERS

STARTER KEY

• Before opening the side cover, be sure

to set the safety lock lever to the locked

position and stop the engine.

• When opening the side cover, open it all

the way to the position where it is

securely stopped.

• When opening and closing the side

cover, be careful not to get your hands

or other parts of your body caught by

the cover.

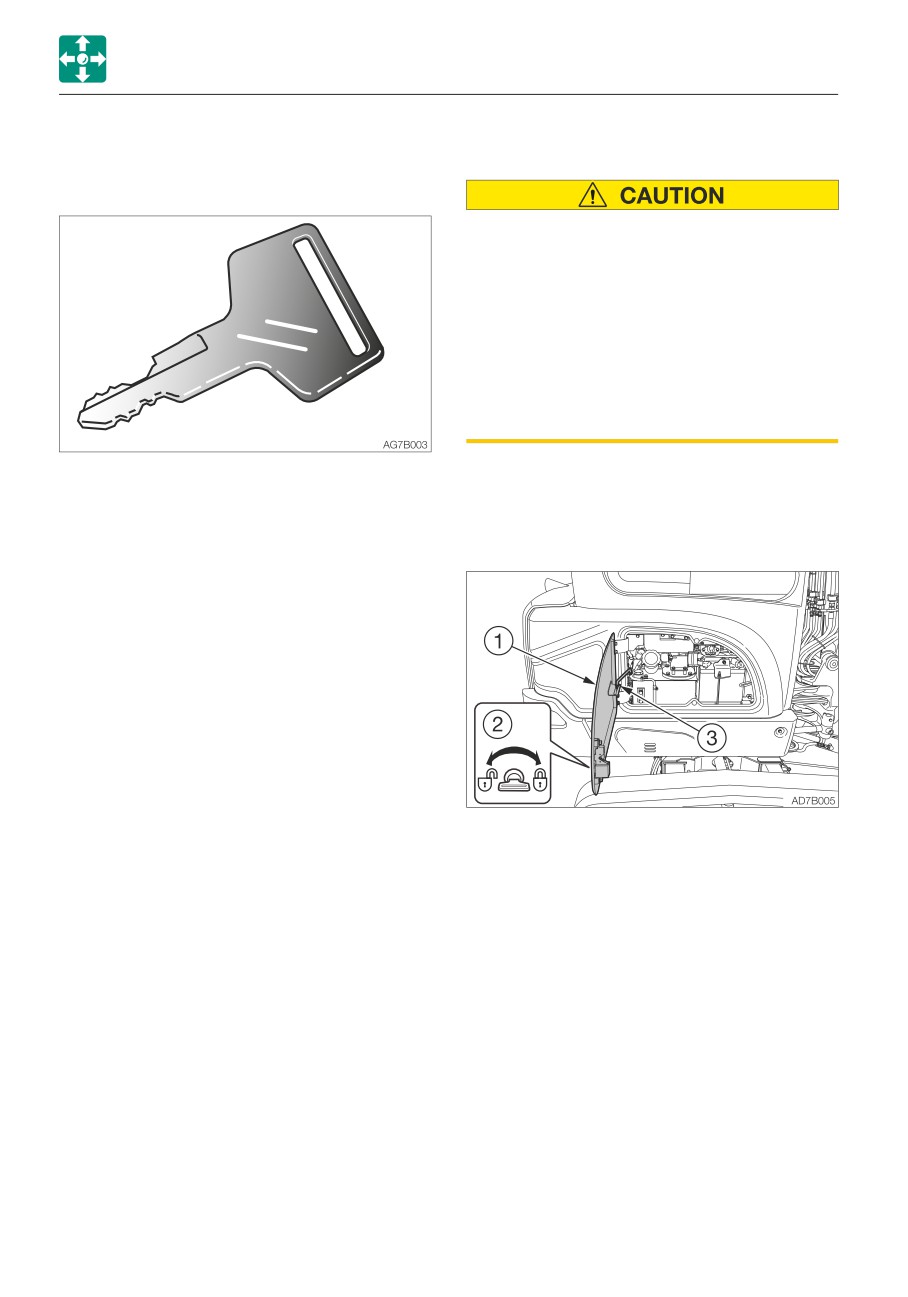

The starter key is used to start and stop the

Open this cover when performing inspection

engine, as well as to lock and unlock the

and maintenance of the hydraulic oil system

following components:

or batteries, or when adding fuel. The grease

• Cab door

gun holder is stored under this cover.

• Manual storage compartment

• Engine hood

• Covers

Opening

1. Insert the starter key and turn it

counterclockwise to unlock the side cover

(1).

2. Push in the key (2) hole with your thumb

and open the side cover (1).

Closing

1. Support the side cover (1) by hand and

release the stay (3).

2. Close the side cover (1).

3. Insert the starter key and turn it clockwise

to lock the side cover (1).

2-6

CONTROLS

COVERS

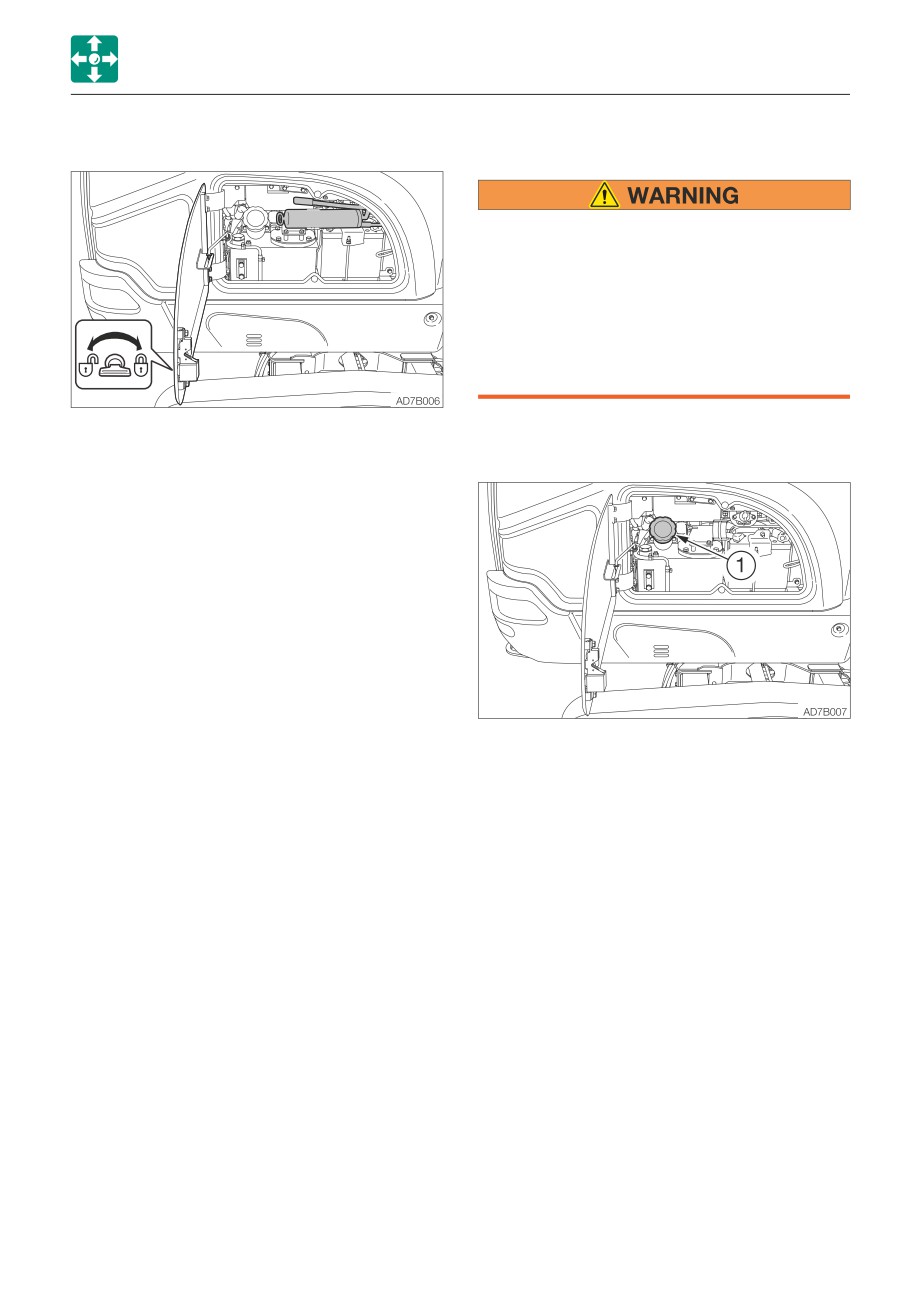

GREASE GUN HOLDER

FUEL FILLER PORT

• Do not smoke and keep away from heat

or flame while filling the fuel tank.

• Fill the fuel tank in a well ventilated

place, with the engine turned off.

• Clean up spilled fuel immediately.

• Do not fill the fuel tank to capacity.

Allow room for oil expansion.

• Securely tighten the fuel filler cap.

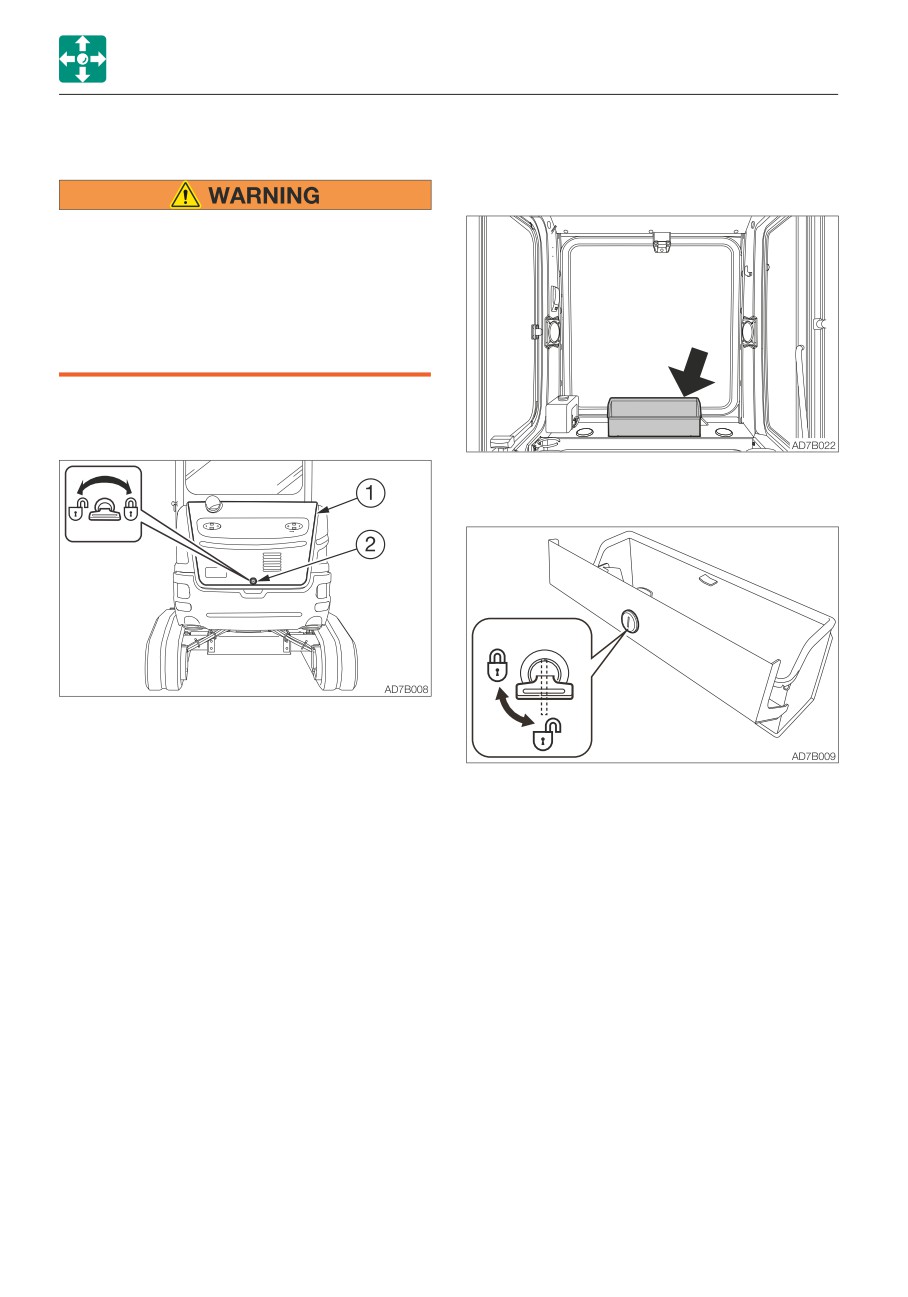

Open the side cover and store the grease

gun.

Opening

1. Open the side cover.

2. Turn the fuel cap (1) counterclockwise and

remove it.

Closing

1. Turn the fuel cap (1) it clockwise and close

it.

2. Close the side cover and lock it.

2-7

CONTROLS

COVERS

ENGINE HOOD

TOOL CASE

Cab

• Before opening the engine hood, be

sure to stop the engine. If a hand or tool

becomes trapped in the rotating or

moving part, serious injury could result.

• When opening or closing the engine

hood, be careful not to get your hands

or other parts of your body caught by it.

Opening

Canopy

1. Insert the starter key and turn it

counterclockwise to unlock the engine

hood (1).

2. Push in the key hole (2) with your thumb

To unlock this case, insert the starter key and

and open the engine hood (1).

turn it counterclockwise.

Closing

1. Close the engine hood (1) and press down

the edge of it until a click is heard.

2-8

CONTROLS

CAB

2. Open the door fully and press it against

CAB

the cab to secure it in place.

CAB DOOR

Closing

When getting on or off the cab, first open

the door all the way until it is secured in

the catch and check that it does not

move.

Open the door fully and press it against the

catch at the back of the door to secure it in

place.

The door must be locked when getting on or

off the machine and while in operation.

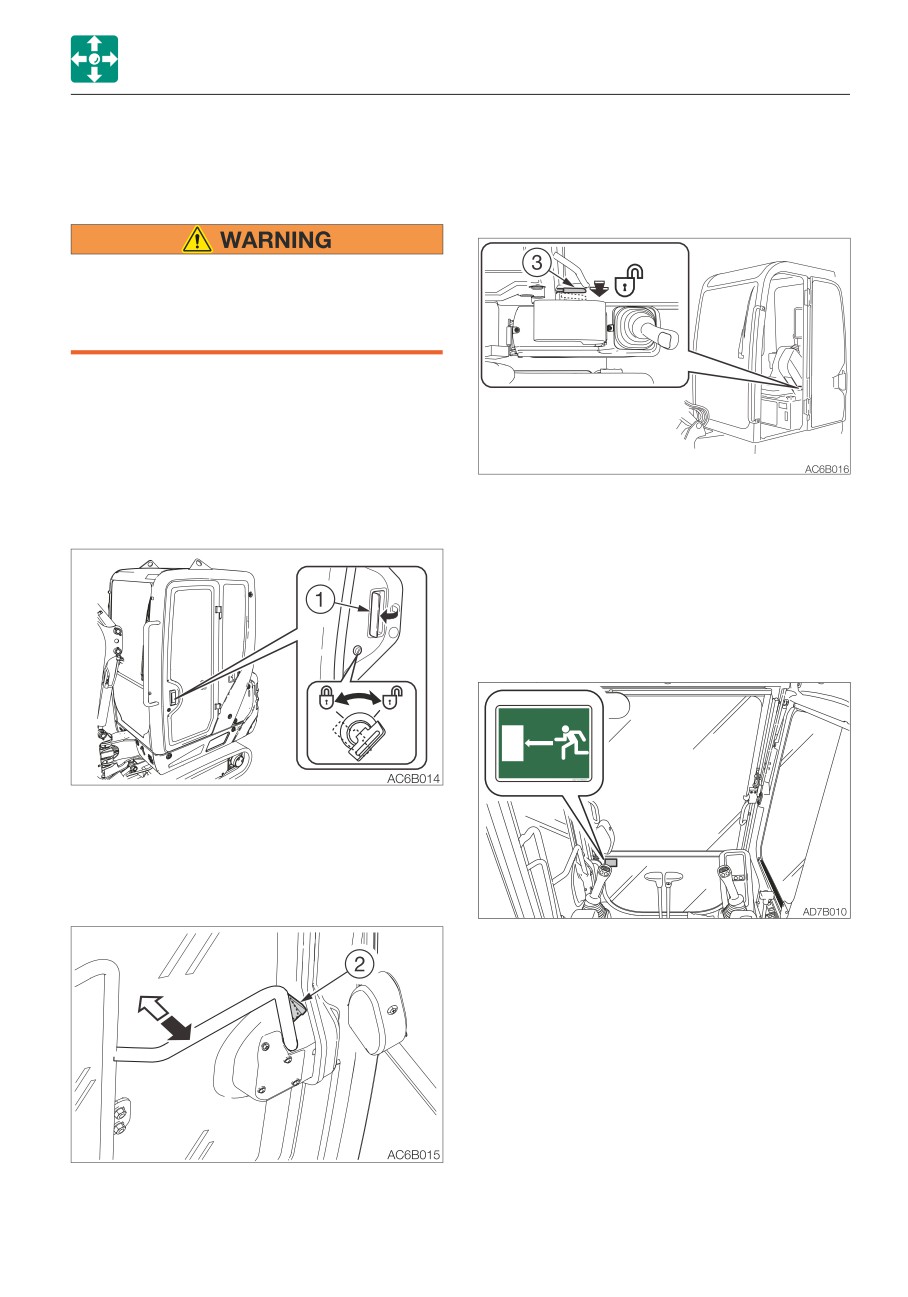

1. Push the release lever (3) to the lower.

Locking and unlocking

2. Close the released door.

EMERGENCY EXIT

Front window (excluding machines with a

front guard)

Insert the starter key and turn it.

Opening

1. Pull the knob (1) towards you and open

the door.

If you should become trapped inside the

cab, open the front window to get out.

To open the door from inside the cab, hold

the door opener (2).

2-9

CONTROLS

CAB

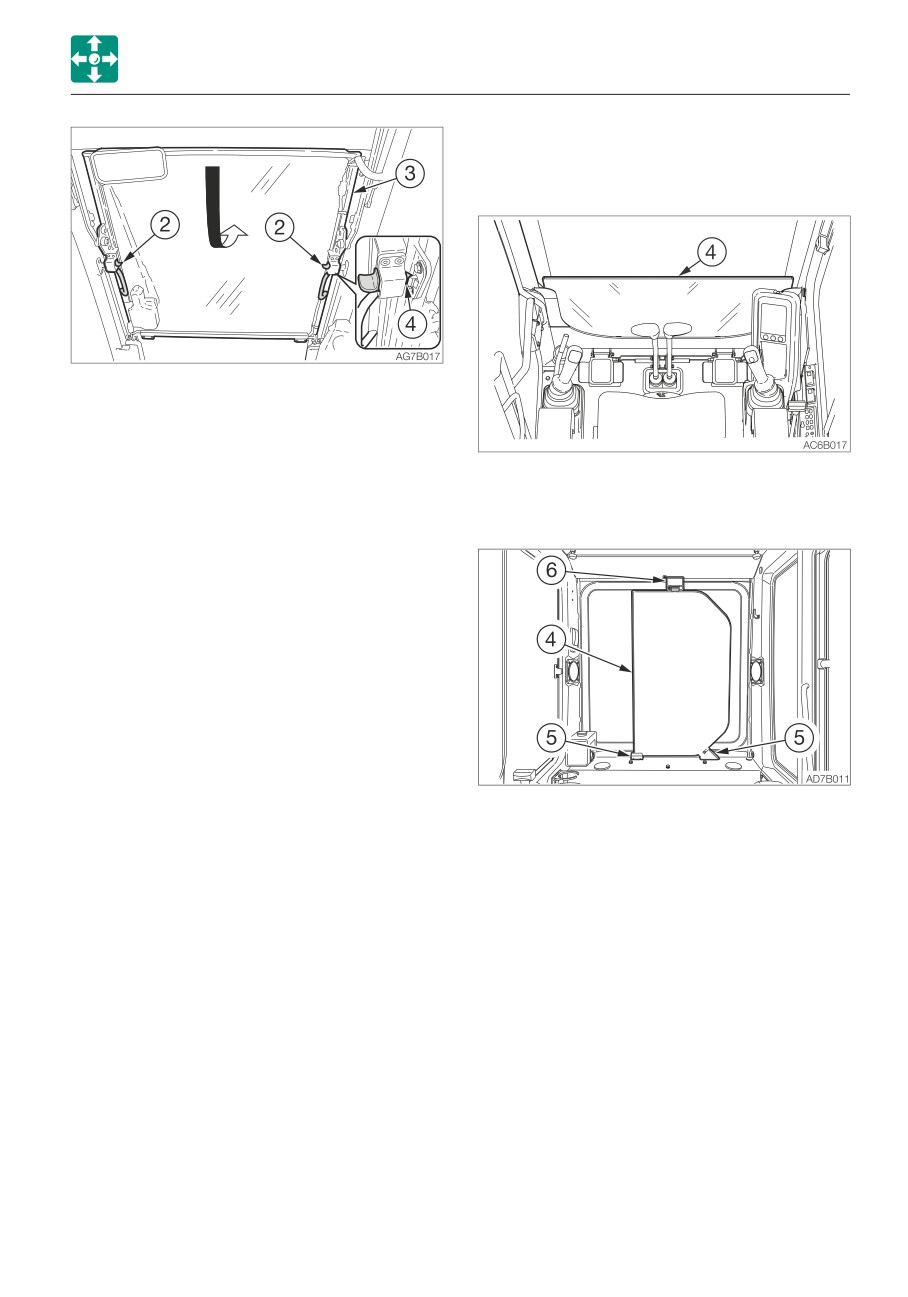

FRONT WINDOW

• Grasp the handles firmly with both

hands when opening and closing the

front window. Your head or hands may

get caught if it slips from your hands.

• When the front window is opened or

closed, it will come close to the head.

Be careful that the window does not

strike the head.

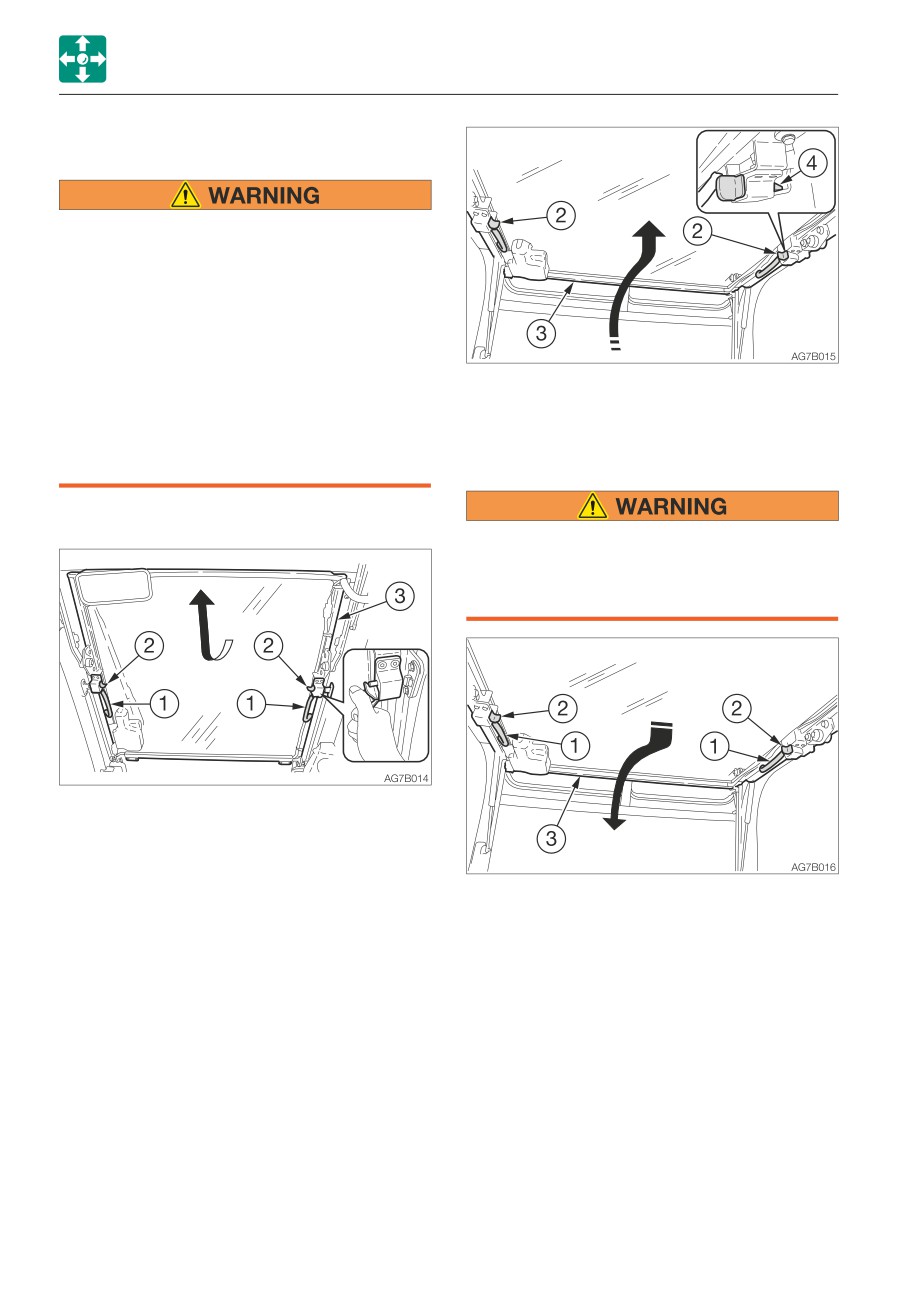

5. Release your thumb from the knobs (2)

• When you open the front window, be

and then lift the front window (3) fully and

sure to lock it in place with the lock pins

lock the front window with lock pin (4).

on the left and right sides. The window

may fall if it is not locked in place.

Closing

Opening

When closing the front window slowly so

as not to hit your head. Lowering the

window abruptly may result injury or

damage the front window.

1. Park on a level surface and stop the

engine.

2. Set the safety lock lever to the locked

position.

3. Grasp the left and right handles (1) and

1. Grasp the left and right handles (1) and

press the knobs (2) with your thumb to

release the lock.

4. Pull the front window (3) toward you and

2. Pull down the front window (3) and while

lift while doing so.

doing so, slide it to the front and slowly

lower it.

2-10

CONTROLS

CAB

SIDE WINDOW

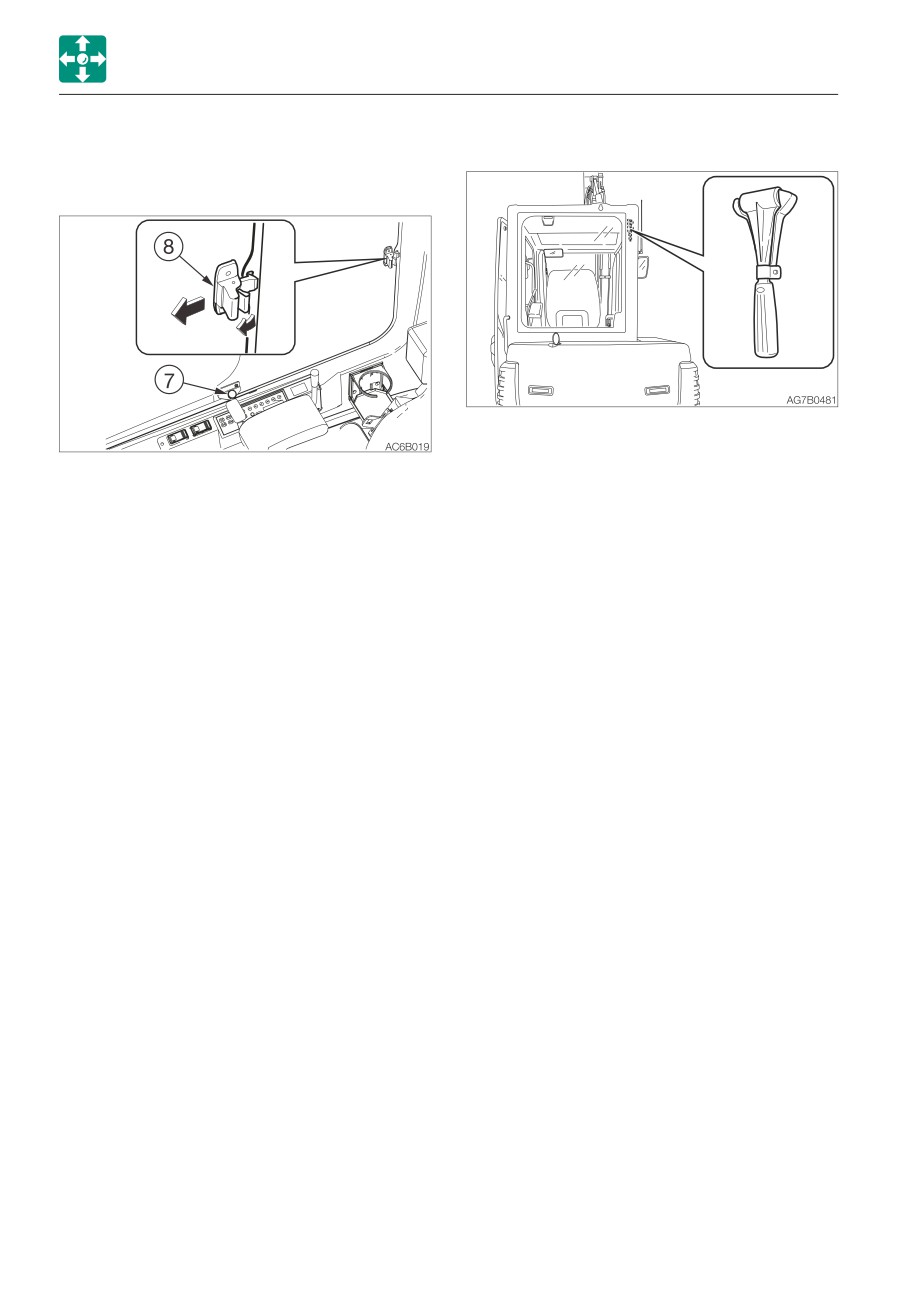

EMERGENCY HAMMER (OPTIONAL)

Opening

An emergency hammer is installed to be

used to escape from the cab in an

1. Release the lock by turning the locking

emergency. When escaping, break the

screw (7) counterclockwise

windows with the hammer.

2. Hold the catch (8) to disengage it and

• When breaking the windowpane with a

open the side window.

hammer, take great care not to injure

3. Secure the side window by turning the

yourself with the broken glass pieces.

locking screw (7) clockwise.

• Remove the glass pieces from the window

sill so as not to cut yourself when

Closing

evacuating. Broken glass will fall from the

1. Release the lock by turning the locking

window, so be careful of your footing and

screw (7) counterclockwise

do not slip on the glass.

2. Close the window until a click is heard,

and then secure the window by turning

the lock screw (7) clockwise.

2-12

CONTROLS

SEAT AND SEAT BELT

SEAT

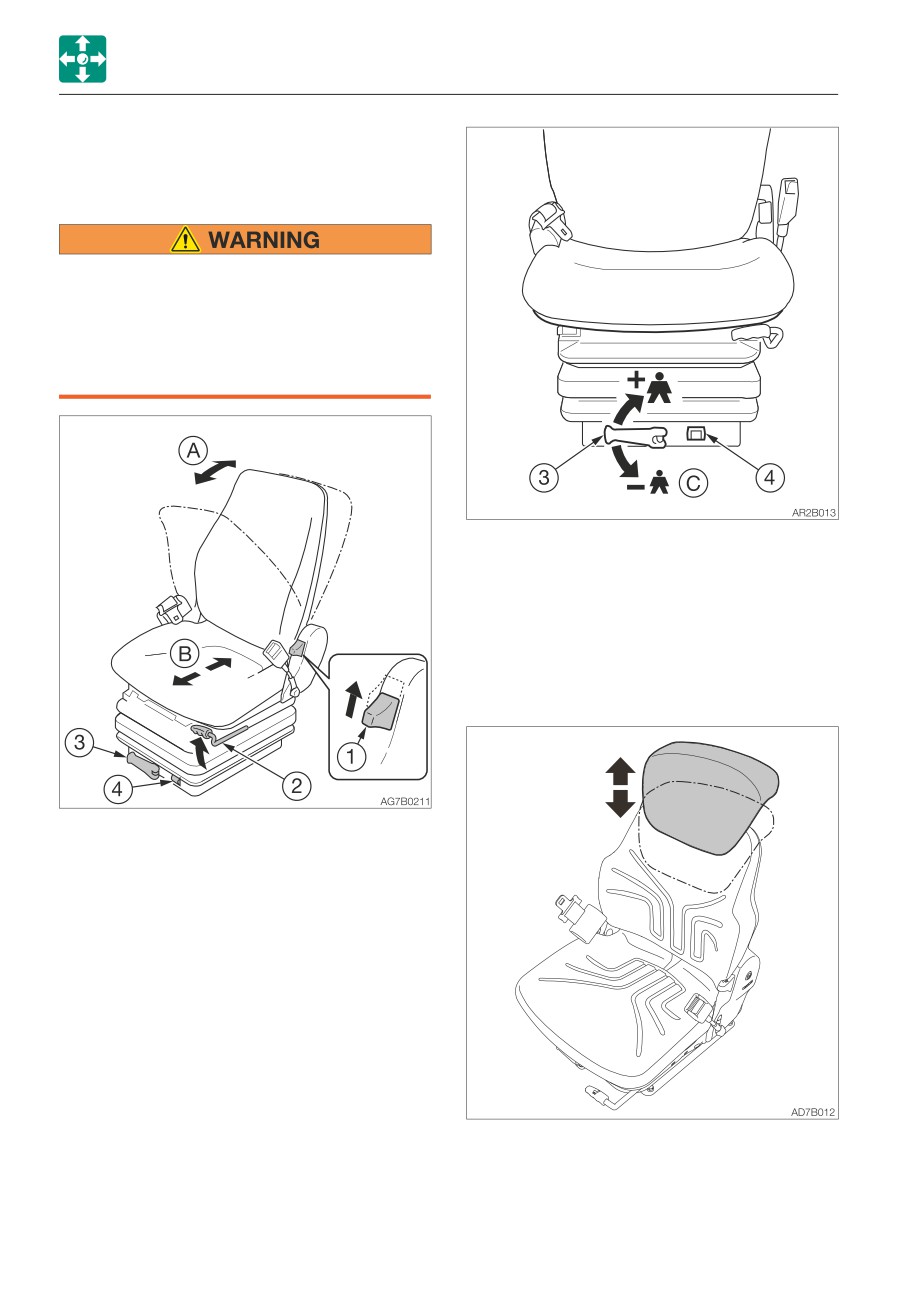

• Adjust and secure the seat.

• Do not make any adjustments while

operating the machine.

• Remember that the backrest returns to

the forward position abruptly due to the

spring force.

weight

1. Turn the handle (3) until the scale (4)

indicates the weight of operator.

Adjustment range: 50 to 130 kg (110 to

287 lbs)

Adjustable backrest

(A) Adjusting the backrest

1. Sit up and sit back in the seat.

2. Pull up the lever (1), recline the backrest

by using the spring force. Release the

lever (1) at the desired angle to secure the

backrest.

(B) Fore-and-aft adjustment

1. Pull up the lever (2) and slide the seat

backward or forward to the desired

position for operation of machine.

2. Release the lever (2) at the desired

position to secure the seat.

Adjustment range: 15 positions, in 150

mm (5.9 in.)

The height of the backrest can be adjusted.

2-14

CONTROLS

SEAT AND SEAT BELT

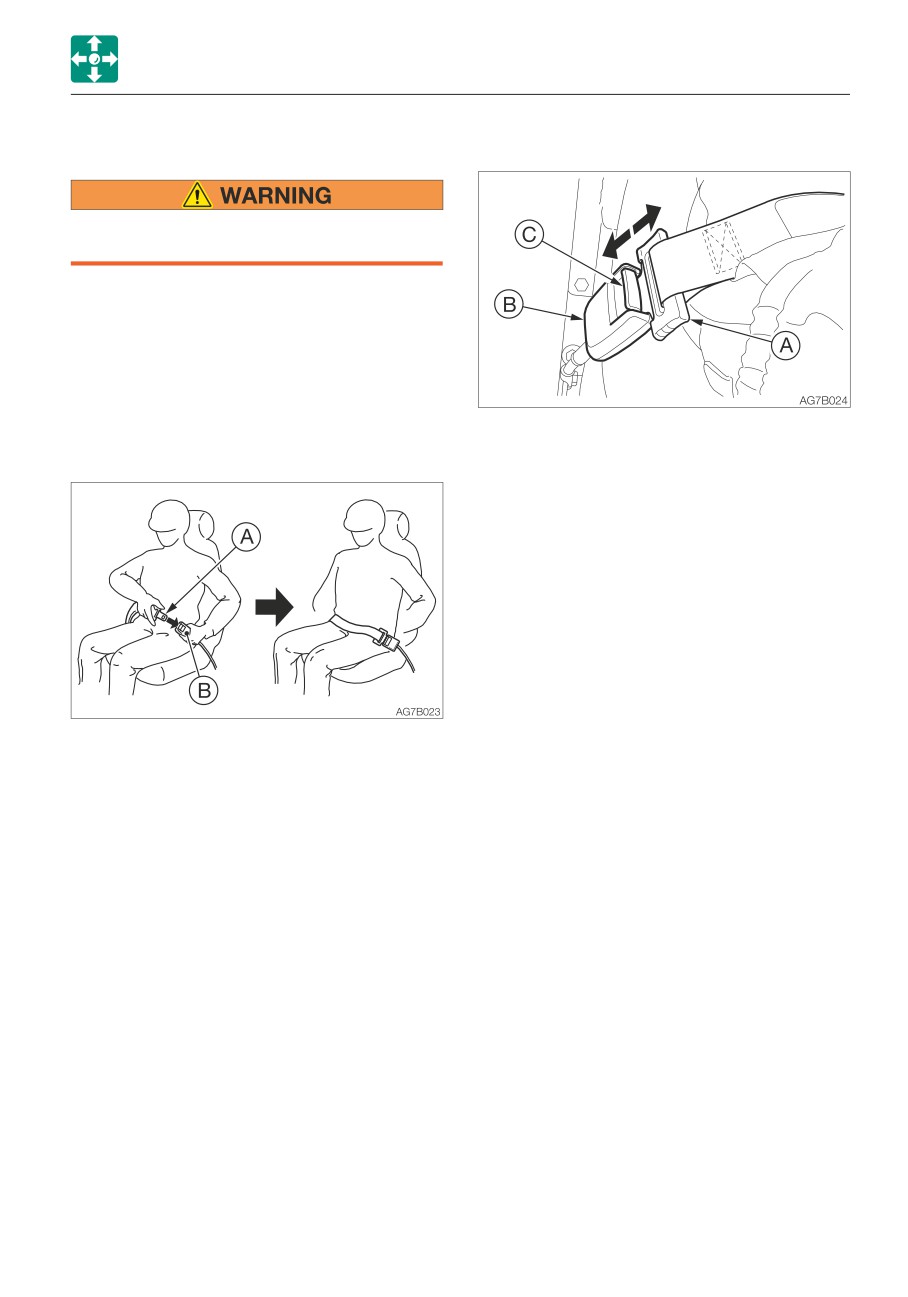

SEAT BELT

Releasing the seat belt

Be sure to fasten the seat belt securely

before starting the engine.

Fastening the seat belt

1. Adjust the seat to the desired position for

operation, sit up and sit back in the seat.

2. Slowly pull out the seat belt to the desired

length.

If pulled out too rapidly, the belt is

automatically locked. If this occurs, release

1. Grasp the tongue plate (A) and press the

the belt and slowly pull the belt again.

button (C) on the buckle (B).

The seat belt retracts back into its original

position.

3. Make sure that the belt is not twisted and

then insert the tongue plate (A) into the

buckle (B) of the seat belt until you hear a

clicking sound as it locks in place.

4. Check if the belt is securely locked by

pulling it, and arrange the belt around your

waist.

2-15

CONTROLS

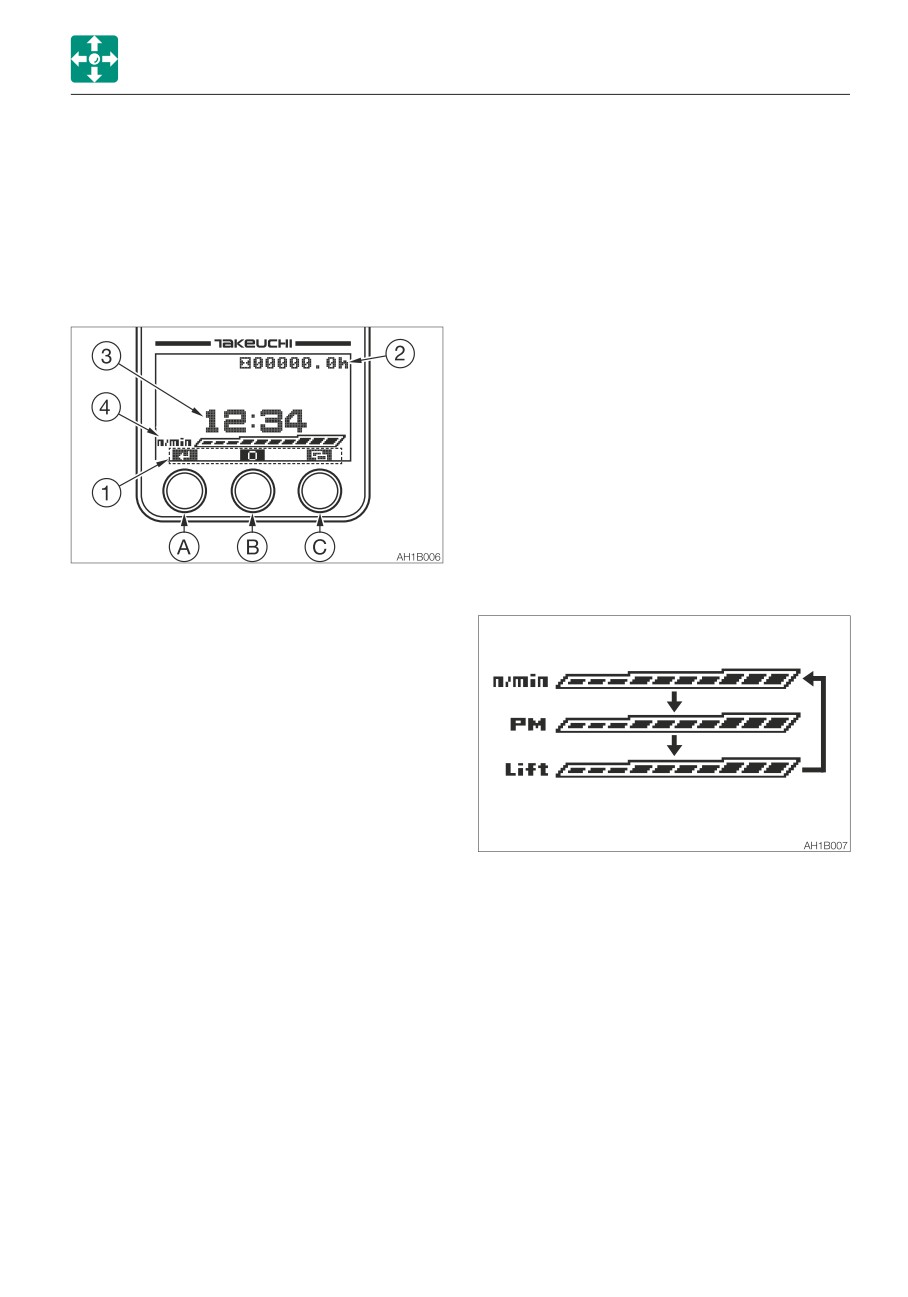

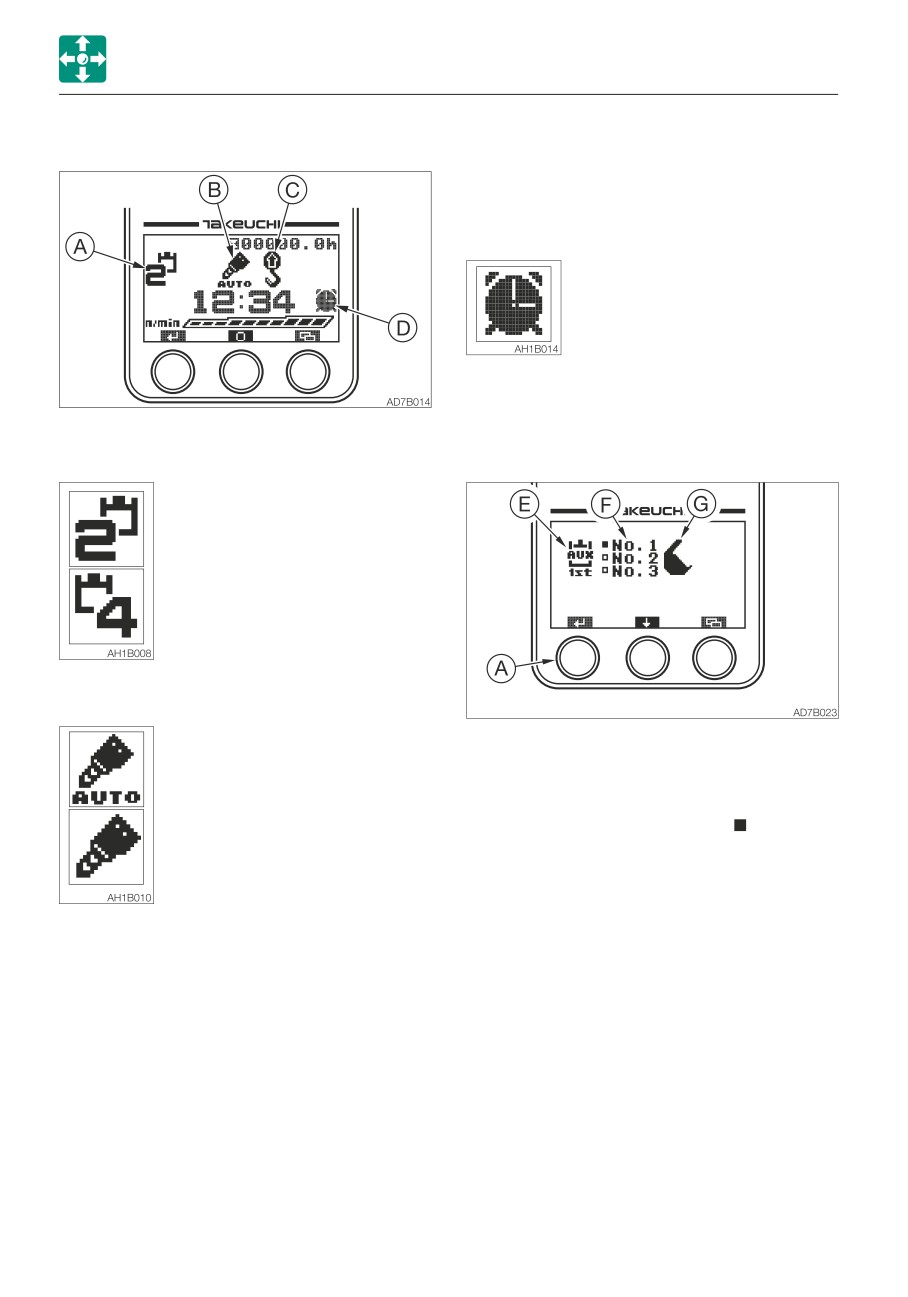

INSTRUMENT CLUSTER

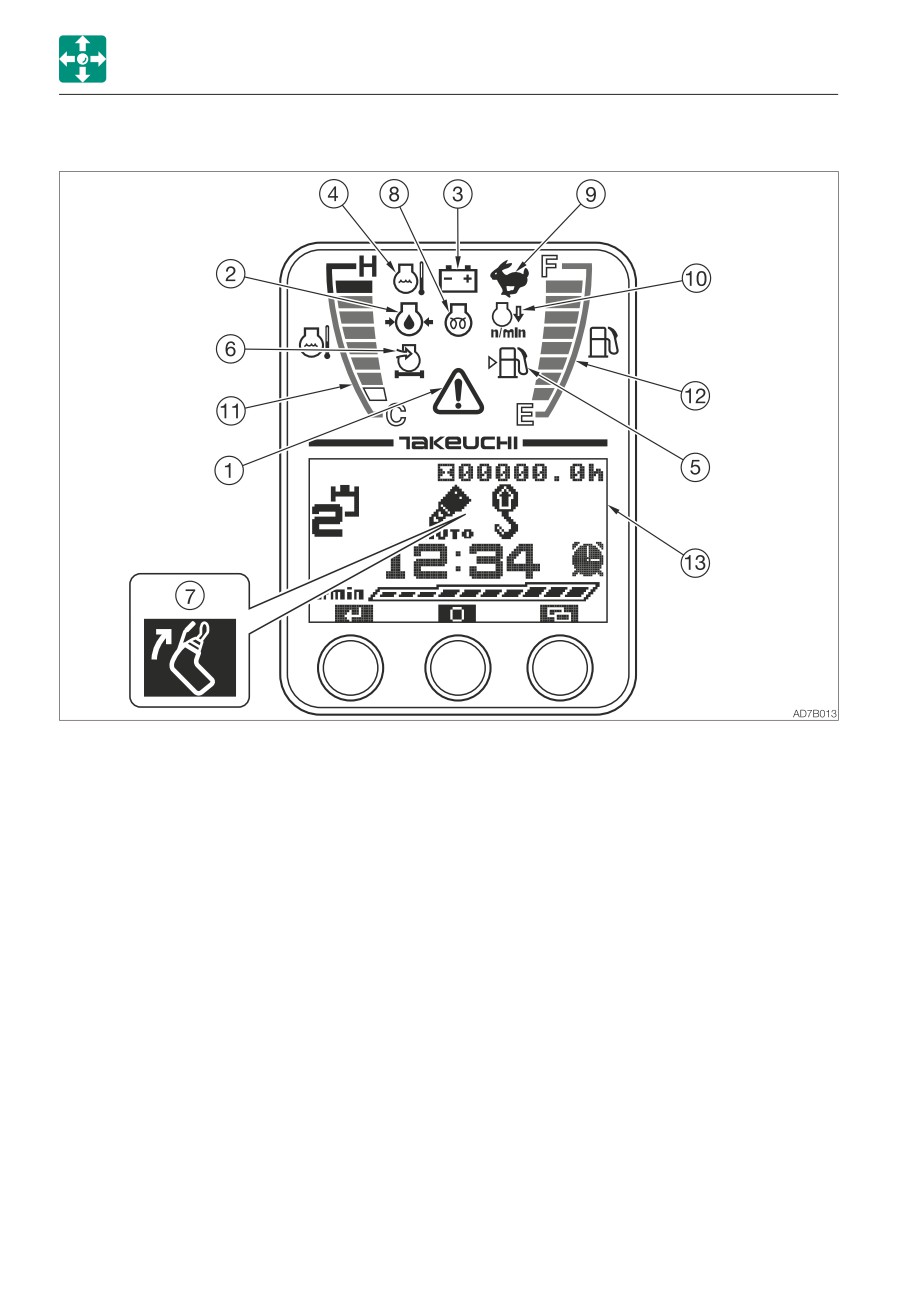

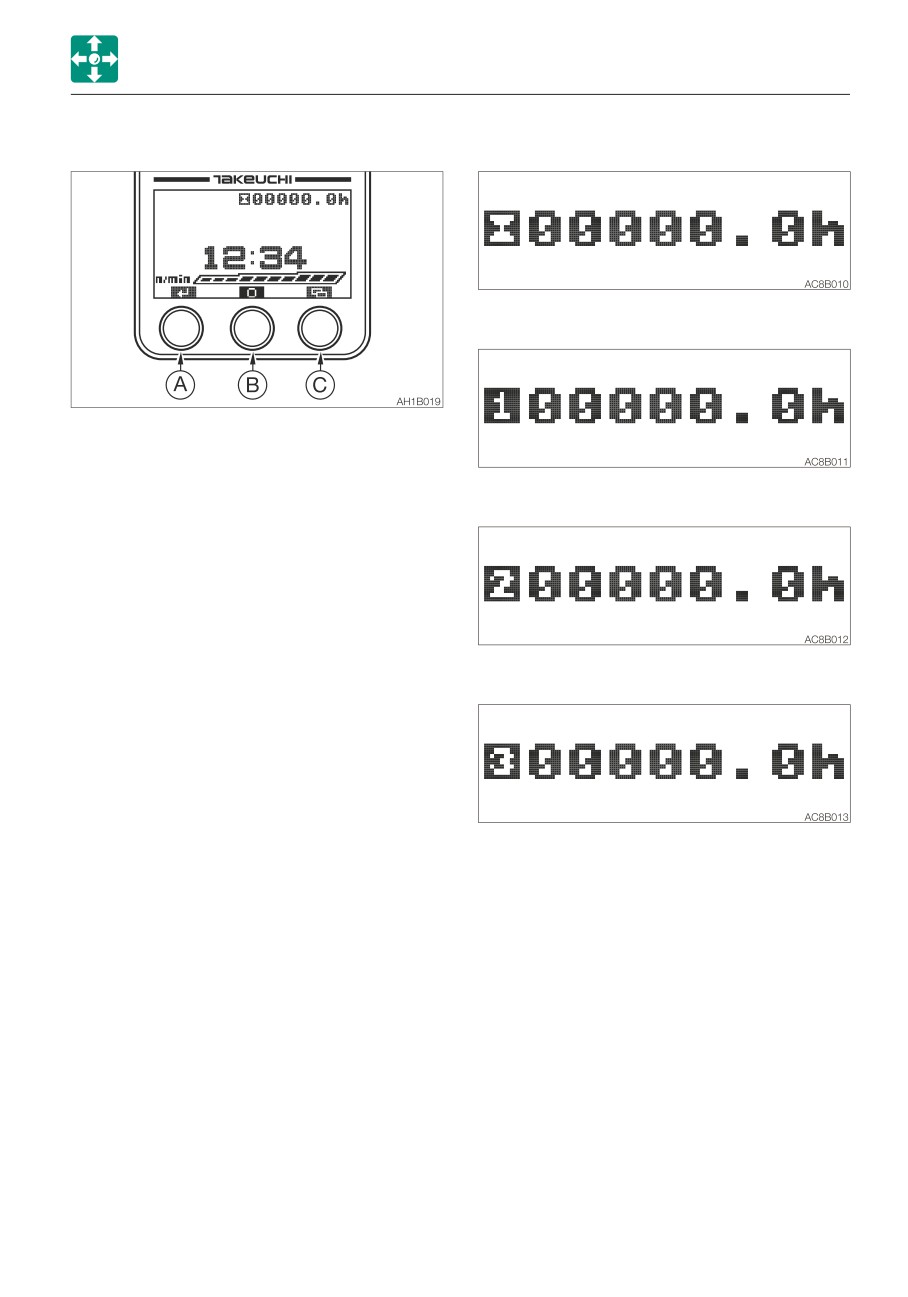

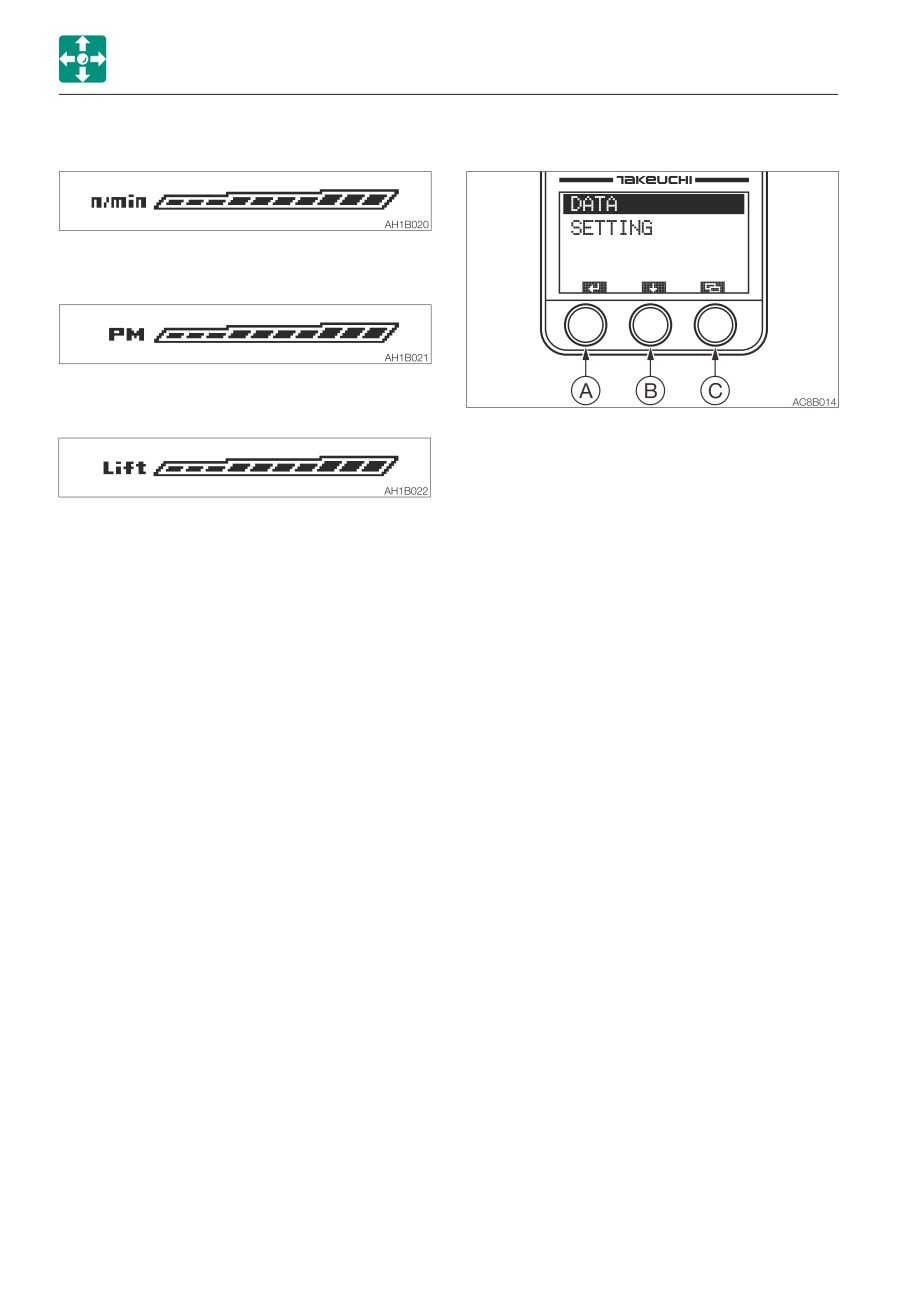

For explanation purposes, all lamps on this

WARNING LAMPS

page are in the lit condition. This screen

image is quite different from that of the real

IMPORTANT: If a warning lamp flashes

operation.

and an alarm is sounded, immediately

Once the starter switch is turned to ON, all

stop all operations and check the

lamps on the instrument cluster light up and

corresponding component.

the alarm sounds.

Refer to “If a warning lamp flashes” on

Then, the battery charge warning lamp (3)

pages 6-10 and 6-11.

and the engine oil pressure warning lamp (2)

start flashing and an alarm sounds. The

machine system is normal if the lamps turn

off after the engine is started.

If any lamp is not lit when the starter switch

is turned to ON, there is something wrong in

the machine. Consult your sales or service

dealer.

2-16

CONTROLS

INSTRUMENT CLUSTER

1. Vehicle and engine emergency lamp

7. Safety start warning lamp

This lamp flashes and an alarm sounds if

there is a problem with the machine. Go to

the “Failure record (FAILURE RECORD)”

from the side menu screen, get the vehicle

error code number, and then consult your

sales or service dealer referring to the

“Vehicle error code list” in this manual.

Refer to “Side menu screen” on page

2-28.

Refer to “Failure Record (FAILURE

RECORD)” on page 2-35.

Refer to “Vehicle error code list” on pages

6-12 and 6-13.

2. Engine oil pressure warning lamp

This lamp flashes and an alarm is sounded

if the lubricant oil pressure abnormally low

while the engine is running.

3. Battery charge warning lamp

This lamp appears enlarged on the display

This lamp flashes and an alarm is sounded

and the buzzer sounds if the engine is

if a problem rises in the charging system

started when the safety lock lever is in the

while the engine is running.

unlock position. The engine cannot be

started. First, set the safety lock lever to

4. Coolant temperature warning lamp

the lock position, and then start the

This lamp flashes and an alarm is sounded

engine.

if the engine coolant temperature

becomes abnormally high while the engine

is running.

5. Fuel level warning lamp

This lamp turns on if the fuel level

becomes low while the starter switch is in

the ON position.

6. Air cleaner warning lamp

This lamp flashes and an alarm is sounded

if the air cleaner filter is clogged while the

engine is running.

2-17

CONTROLS

INSTRUMENT CLUSTER

INDICATORS

METERS

8. Glow lamp

11. Water temperature gauge

This lamp goes out when the engine

Indicates the temperature of the engine

preheating is completed.

coolant water.

The LED should be within the green

9. Travel speed lamp

range during machine operation.

This lamp turns on when the travel speed

The red range indicates overheating.

button is set to the 2nd (high) speed.

12. Fuel gauge

10. Deceleration lamp

Indicates the amount of fuel in the tank.

This lamp turns on when the deceleration

Be sure to top off the tank before running

button is pressed. The lamp lights up to

out of fuel.

indicate that the engine is in the

deceleration mode at low idling speed.

It flashes When the automatic deceleration

switch is pressed to indicate that the

machine is in the automatic deceleration

mode.

Refer to “Deceleration button” on page

2-39.

Refer to “Automatic deceleration switch”

on page 2-43.

2-18

CONTROLS

INSTRUMENT CLUSTER

MULTI-DATA DISPLAY

2. Hour meter/Trip meter

• Hour meter

13. LCD (Liquid Crystal Display)

Displays the total engine running time in

It displays various functions and data on

hours.

hour meter, trip meter, clock, engine

The rightmost digit indicates tenths of

RPM and the machine.

hours (6 minutes).

Set the inspection and maintenance

Home screen

intervals according to the time displayed

on the hour meter.

• Trip meter

Three patterns of desired operating hours

can be displayed.

Refer to “B. Meter switching” on page

2-23.

3. Time display

Displays the time set.

Refer to “Time setting” on page 2-26.

1. Key function display

4. Engine RPM

The key function display changes

depending on the screens (Home, Menu

and each setting)

For actual operation, use the buttons, “A”,

“B” and “C”, located beneath each

symbol.

Refer to “Function of each key” on pages

2-23 to 2-36.

Displays the engine RPM in 10 levels.

Pressing the (B) key while the engine RPM is

displayed changes to the display of the PM

accumulation rate and lift load factor, in this

order.

• The throttle opening position is displayed if

the lift alarm switch is turned on and there

is no change in the throttle opening

position.

• For TB225, the PM accumulation rate does

not change.

2-19

CONTROLS

INSTRUMENT CLUSTER

5. Functions (Page 1)

C.Lift overload warning

Displays the symbol when the lift overload

warning switch is turned on.

D.Alarm

Displays the clock symbol when

the alarm function is turned on.

Refer to “Alarm setting” on

page 2-27.

6. Function indicators (Page 2)

When the (A) key is pressed, the display

A. Auxiliary 2nd/4th selection

changes as the following.

Auxiliary 2nd is selected.

Auxiliary 4th is selected.

B. Auxiliary 1st One-way (one-way circuit)

E. Auxiliary 1st indicator

Auxiliary 1st auto tank is

selected.

F. Auxiliary 1st flow rate selection

indicator

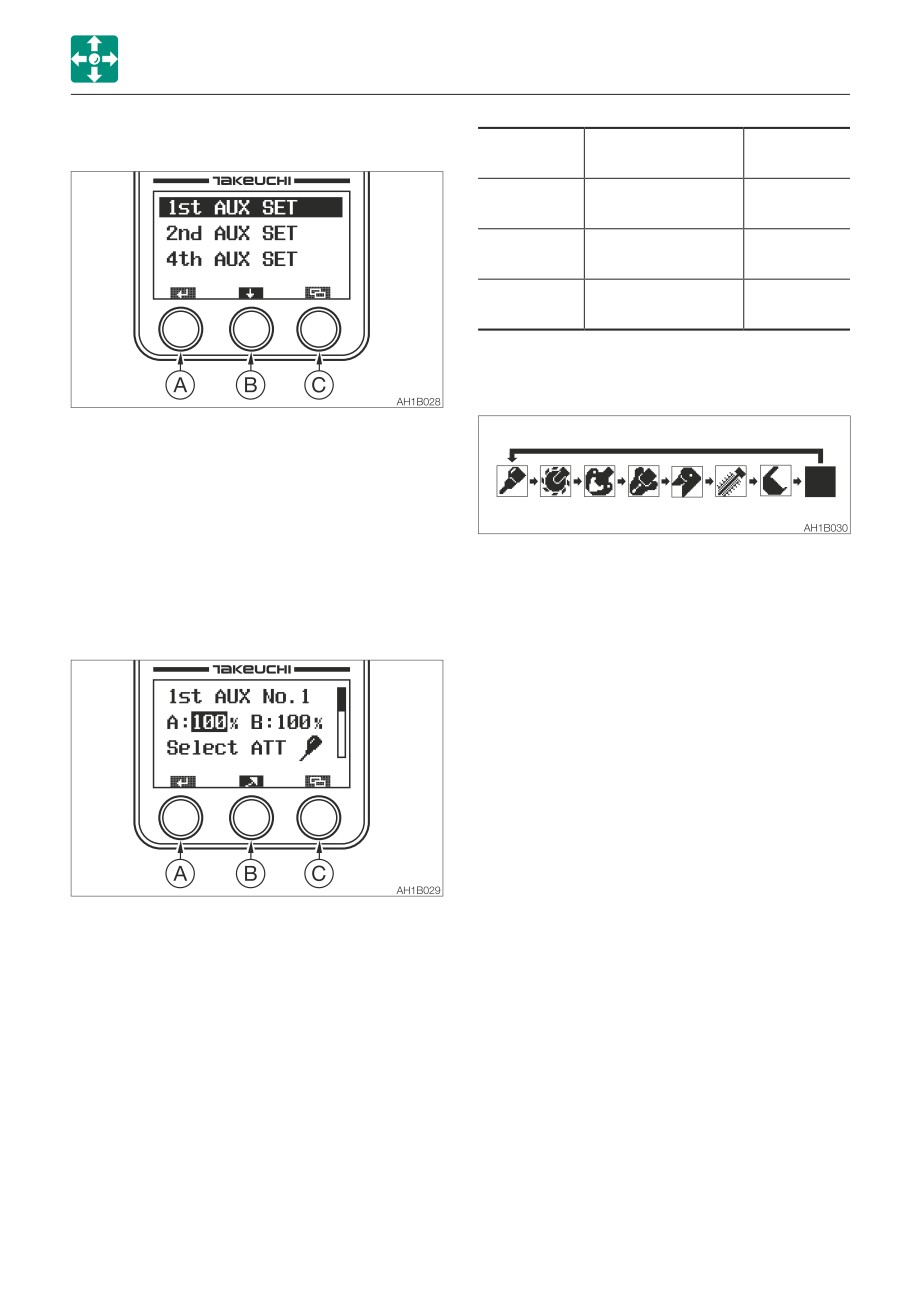

Press the (B) key to move the and select

Auxiliary 1st one-way is

the desired flow rate.

selected.

Refer to “Auxiliary 1st Flow Rate Setting”

on page 2-29.

No display:

Two-way (two-way circuit)

is selected.

2-20

CONTROLS

INSTRUMENT CLUSTER

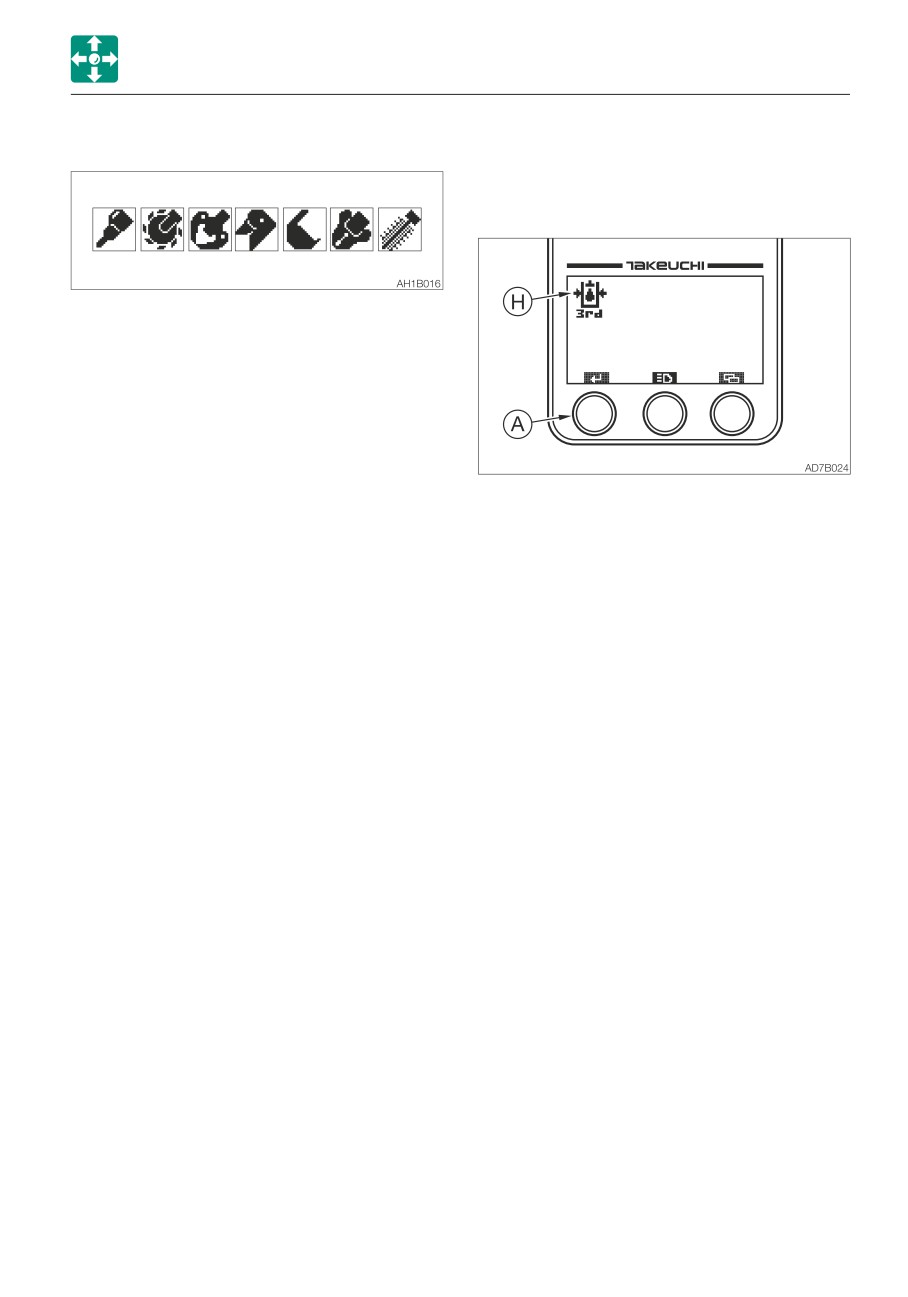

G.Attachment symbol indicators

7. Warning indicators (Page 3)

When the (A) key is pressed, the display

changes as the following. If there is no warning,

the screen returns to the “Functions” on Page 1.

Displays the symbol of the attachment

selected in the “Auxiliary 1st Flow Rate

Setting” section.

Warning display is first flashed and enlarged

for three seconds and then stays displayed,

if there is a problem with the machine. If

multiple warnings are to be displayed, the

highest priority warning is displayed. Priority

from the highest to the lowest: ECM error

warning, Auxiliary 3rd hydraulic pressure

warning, water separator warning and fuel

filter warning.

No enlarged display for the maintenance

warning.

Go to the “MAINTENANCE/FAILURE

RECODE/Error code display” from the side

menu screen, get the vehicle error code

number, and then consult your sales or

service dealer referring to the “Vehicle error

code list” in this manual.

2-21

CONTROLS

INSTRUMENT CLUSTER

FUNCTION OF EACH KEY

1. Hour meter

2. Trip meter 1

The functions are as below in the Home

screen. The different functions appear in the

other screens.

3. Trip meter 2

A. Stopping the alarm or switching the

display between Functions and

Warnings

· Pressing the (A) key while the alarm is

sounding stops the alarm.

· Pressing the (A) key to switch the

display; Functions (Page 1), Functions

(Page 2), and Warnings (Page 3).

4. Trip meter 3

B. Meter switching

Pressing and holding the (B) key for two

seconds or more each time the display

changes as follows:

5. Returns to the hour meter

· When the (B) key is pressed, the display

changes in the following order.

2-23

CONTROLS

INSTRUMENT CLUSTER

1. Engine RPM

MENU SCREEN

2. PM accumulation rate

3. Lift load factor

Press the (A) key to proceed to the screen

selected by the bar.

Press the (B) key to move the selection bar.

Press the (C) key to return to the Home

screen.

4. Return to the engine RPM.

• DATA

C.Menu/trip meter reset

The trip meter for maintenance, battery

· Pressing the (C) key switches to the

and auxiliary circuits can be checked.

Menu screen.

Unlike the trip meter displayed on the Main

· Pressing and holding the (C) key for

screen, data items on the engine oil filter,

three seconds or more while the trip

hydraulic oil filter and fuel filter are included

meter is displayed returns the trip meter

so that you can use them as a guideline for

to “0”.

replacement.

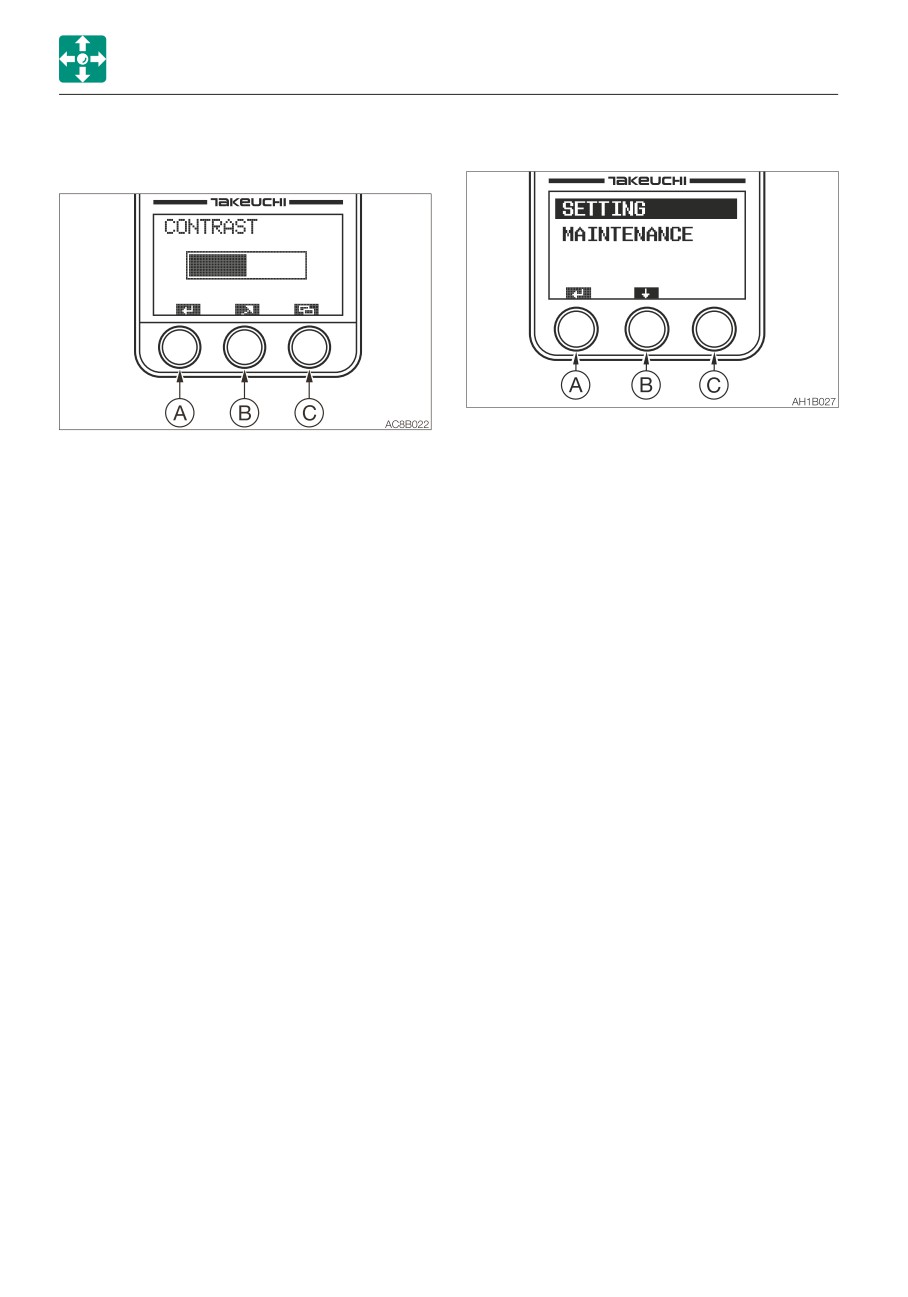

• SETTING

Time, alarm and contrast can be set.

2-24

CONTROLS

INSTRUMENT CLUSTER

DATA SCREEN (DATA)

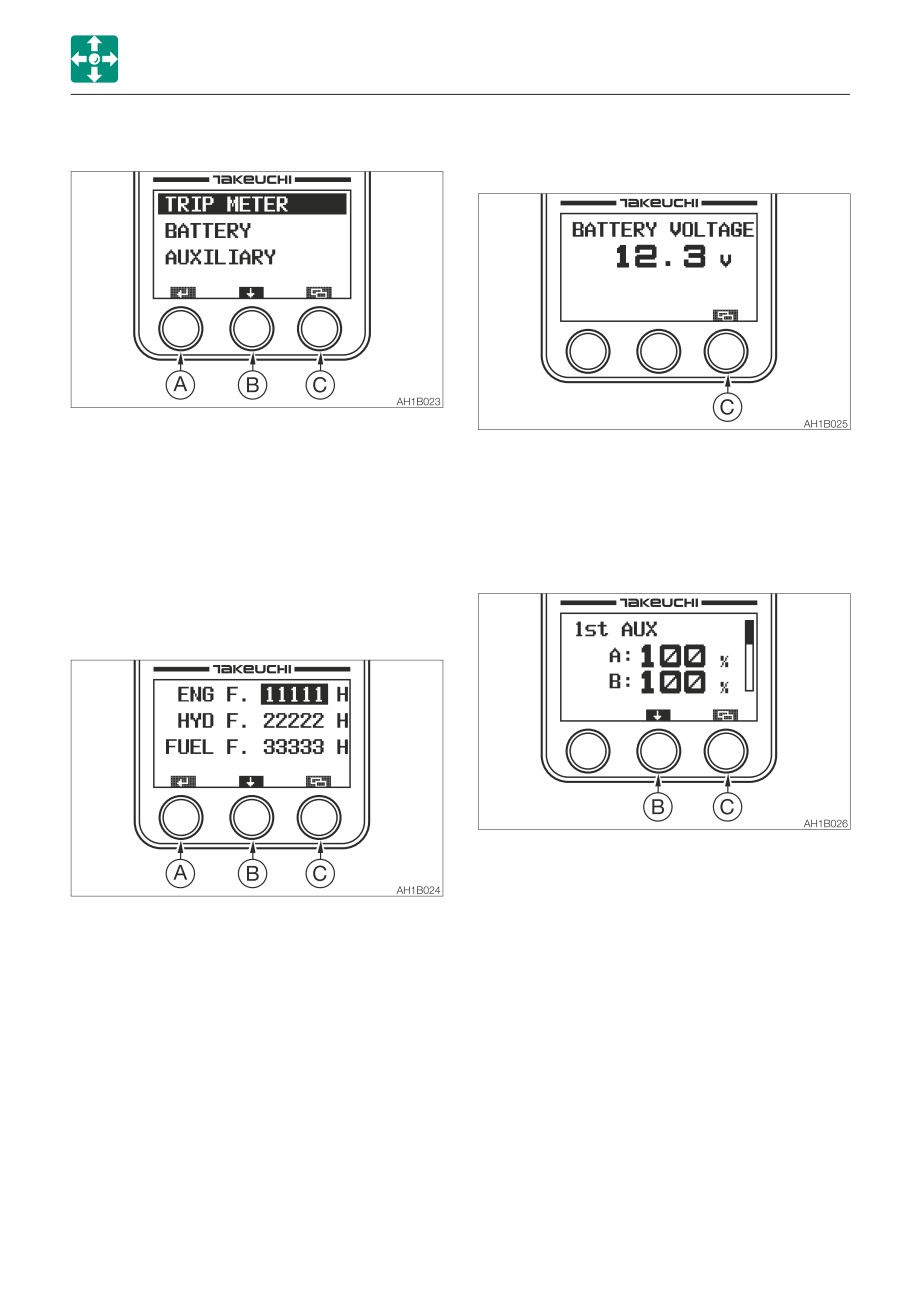

• Battery (BATTERY)

Displays the battery voltage.

Press the (A) key to proceed to the screen

selected by the bar.

Press the (C) key to return to the DATA

Press the (B) key to move the selection bar.

screen.

Press the (C) key to return to the Menu

screen.

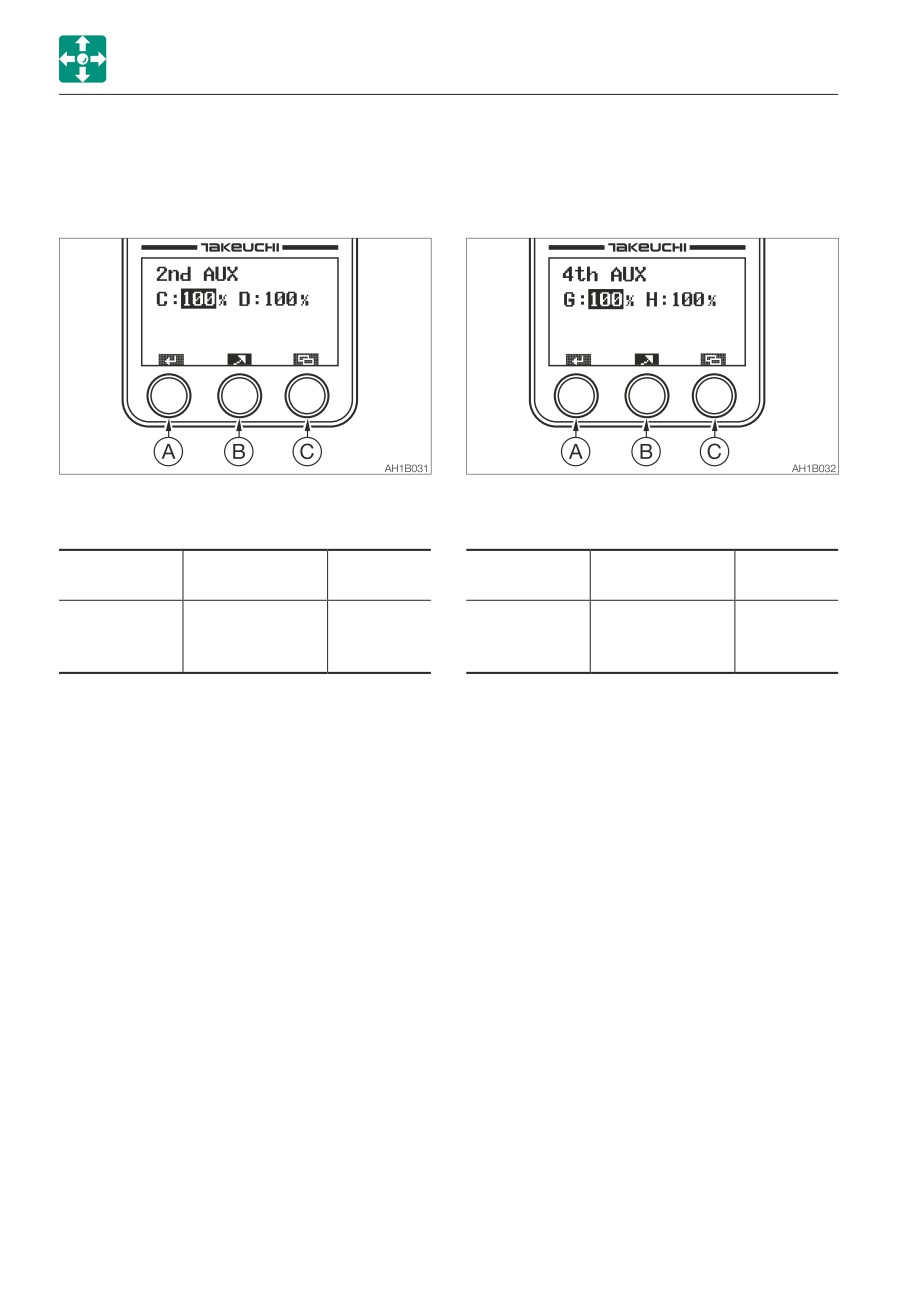

• Auxiliary circuit (AUXILIARY)

Displays the flow rate in the auxiliary

• Trip meter (TRIP METER) for

circuits of the 1st, 2nd or 3rd.

maintenance

The trip meters for the engine oil filter,

hydraulic oil filter or fuel filter are displayed.

Each time the (B) key is pressed, the

auxiliary circuit is displayed in this order:

Auxiliary 1st, Auxiliary 2nd and Auxiliary

Press and hold the (A) key for at least five

4th.

seconds resets the selected trip meter to

Press the (C) key to return to the Data

“0”.

screen.

Press the (B) key to move the selection bar.

Press the (C) key to return to the DATA

screen.

2-25

CONTROLS

INSTRUMENT CLUSTER

SETTING SELECTION SCREEN (SETTING)

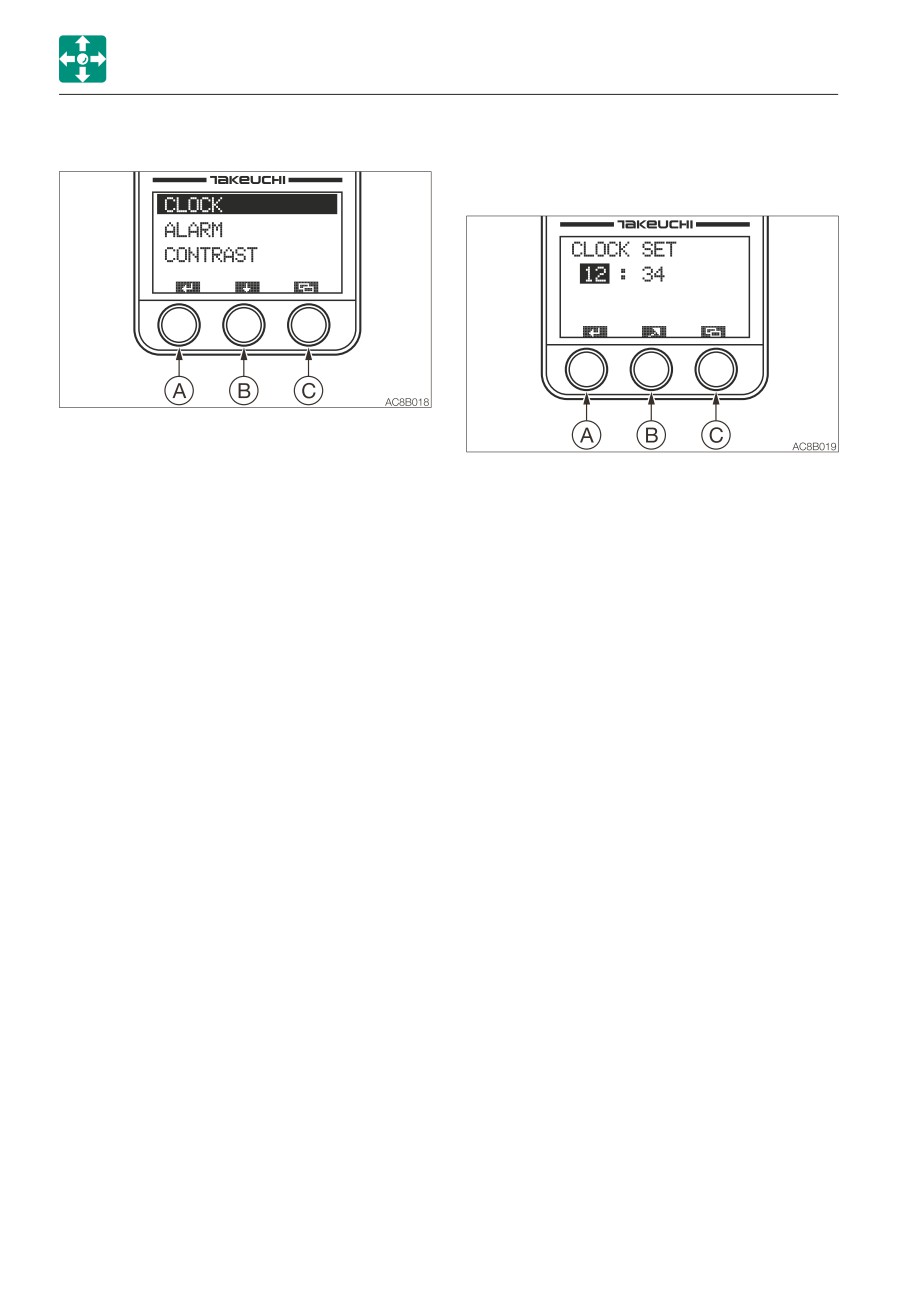

• Time setting (CLOCK)

The time to be displayed on the Home

screen can be set here.

Press the (A) key to proceed to the screen

selected by the bar.

Press the (B) key to move the selection bar.

a. When the selection bar is at CLOCK,

Press the (C) key to return to the Menu

press the (A) key to proceed to the time

screen.

setting screen (CLOCK SET).

b. Pressing the (A) key in this screen moves

the selection bar and flashes the figures

on the bar.

Setting range: hours, 1 to 24; minutes,

00 to 59

c. Press the (B) key to increase the number

value selected.

Press and hold the (B) key to rapidly

increase the number value selected.

d. Press and hold the (A) key for at least

two seconds to complete the setting

and to return to the Setting Selection

screen.

e. Press the (C) key cancels editing and to

return to the Setting Selection screen.

2-26

CONTROLS

INSTRUMENT CLUSTER

• Alarm setting (ALARM)

• Alarm time setting mode

Five patterns of alarm setting are

Sets the time for alarm.

available.

Alarm function can be set to on or off

within the five patterns.

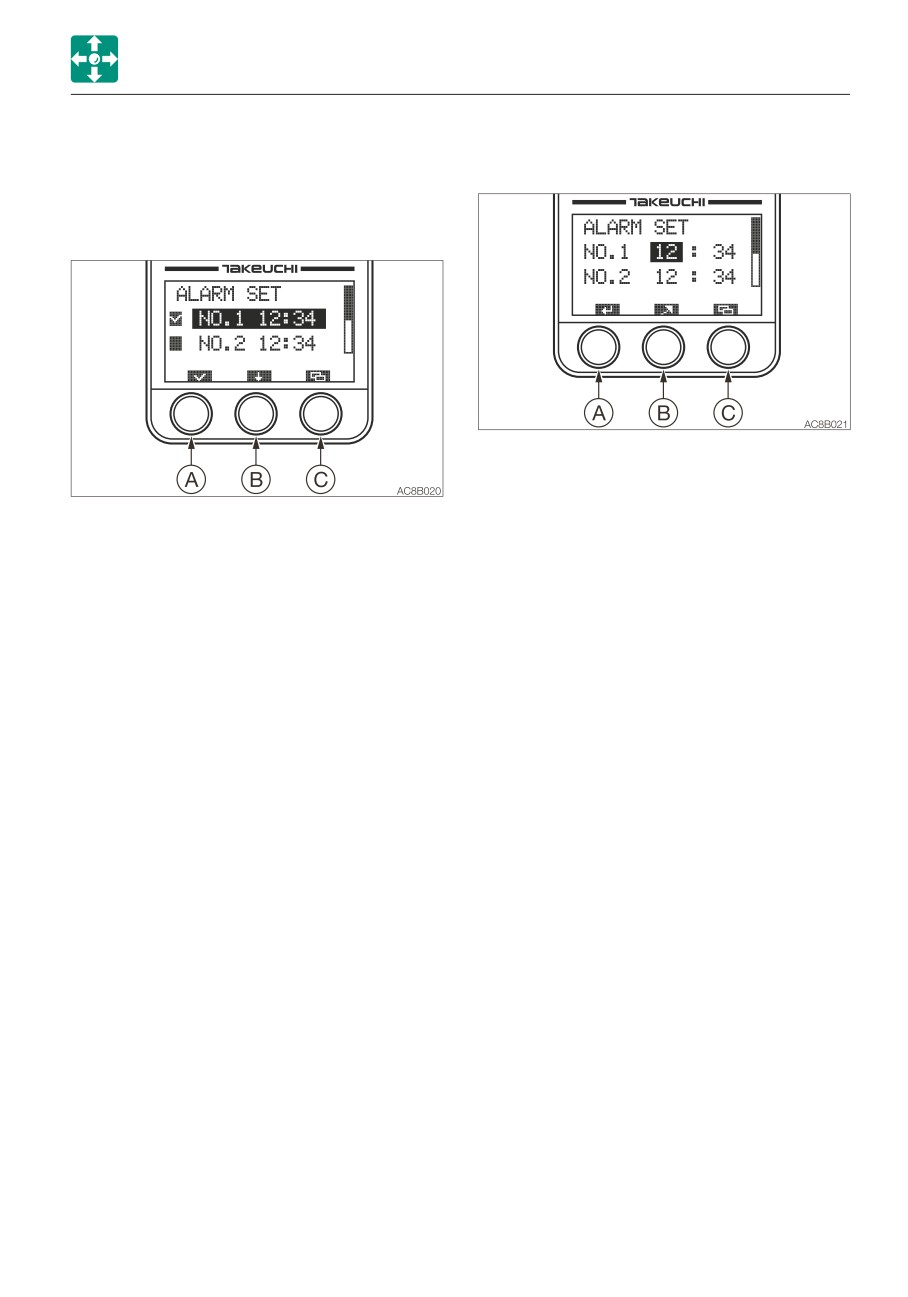

a. Select the item to be set in the alarm

setting screen (ALARM SET).

b. Press and hold the (B) key for at least

a. When the selection bar is at ALARM,

three seconds to enter the alarm time

press the (A) key to proceed to the alarm

setting mode.

setting screen (ALARM SET).

c. Press the (A) key in this screen to move

b. Press the (A) key in this screen to place

the selection bar and to flash the figures

a checkmark in the box at the left of the

on the bar.

setting bar. Press the (A) key again to

Setting range: hours, 1 to 24; minutes,

remove the checkmark.

00 to 59

The alarm setting cannot be changed

d. Press the (B) key to increase the number

only by placing or removing a

value selected.

checkmark.

Press and hold the (B) key to rapidly

c. Press and hold the (A) key for at least

increase the number value selected.

two seconds to complete the setting

e. Press and hold the (A) key for at least

and to return to the Setting Selection

two seconds to complete the setting

screen.

and to return to the Setting Selection

Be sure to perform the above operation

screen.

when you wish to set the alarm.

f. Press the (C) key to cancel editing and

A clock symbol is displayed on the

to return to the Setting Selection screen.

Home screen.

d. Press the (B) key to move the selection

bar.

e. Press and hold the (B) key for at least

three seconds to enter the alarm time

setting mode.

f. Press the (C) key to cancel editing and

to return to the Setting Selection screen.

Checked

Unchecked

Off

2-27

CONTROLS

INSTRUMENT CLUSTER

• Contrast setting (CONTRAST)

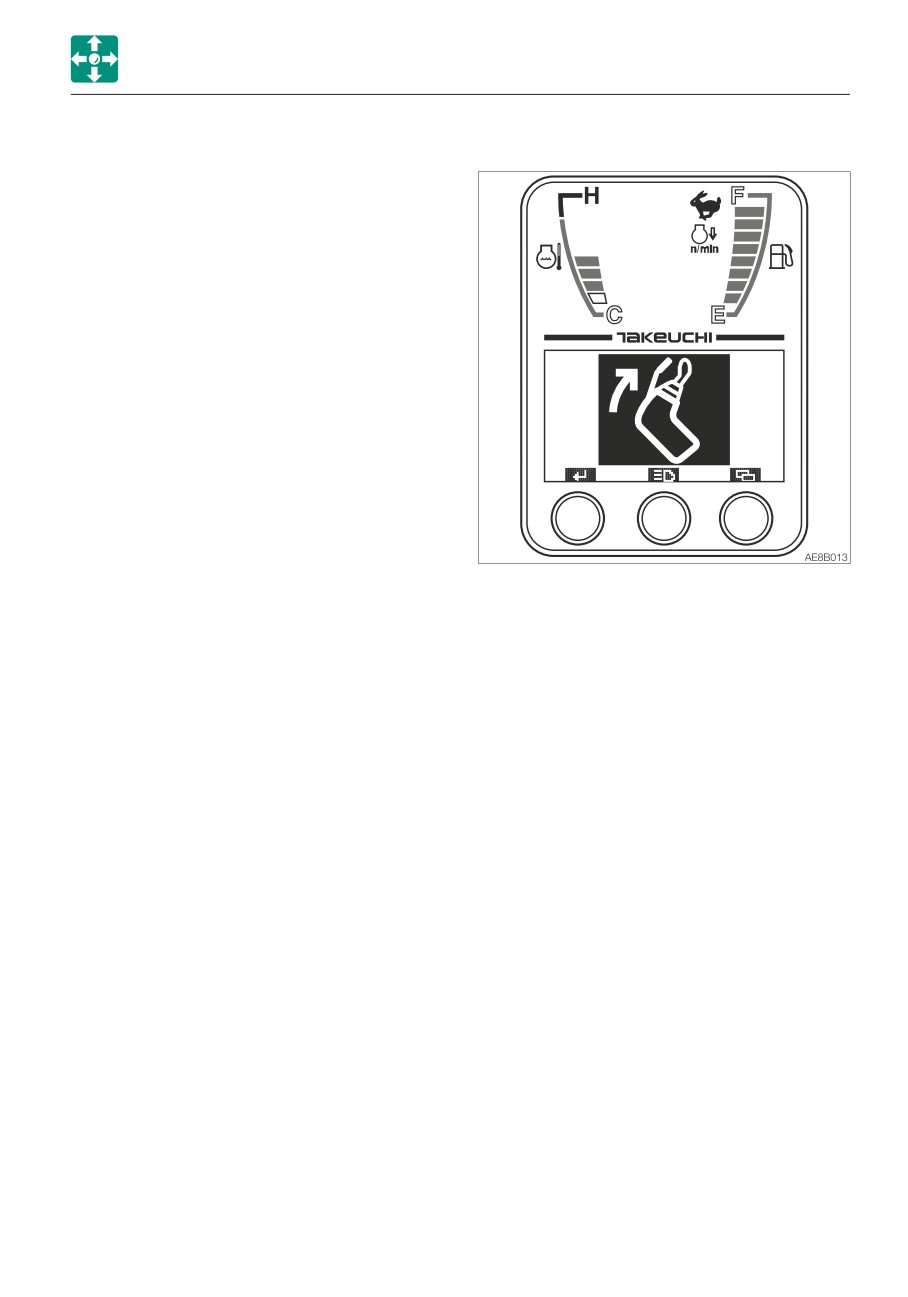

SIDE MENU SCREEN

Adjust the LCD contrast.

To display the side menu, turn the starter

a. When the selection bar is at CONTRAST,

switch from the OFF to the ON position while

press the (A) key to proceed to the

pressing the (C) key.

contrast setting screen (CONTRAST).

Press the (A) key to proceed to the screen

b. To increase contrast, press the (B) key.

selected by the bar.

The bar advances to the right.

Press the (B) key to move the selection bar.

Press and hold the (B) key to rapidly

advance the bar.

• SETTING

Once the bar reaches the right end

The flow rate ratio of the auxiliary circuits

(highest contrast), it returns to the left

(Auxiliary 1st, Auxiliary 2nd and Auxiliary

end (lowest contrast).

4th) can be set.

c. Press and hold the (A) key for at least

three seconds to complete the setting

• MAINTENANCE

and to return to the Setting Selection

Diagnosis and failure record can be

screen.

checked.

d. Press the (C) key to cancel editing and

to return to the Setting Selection screen.

The changes made to the setting are

reflected, but they will be removed when

the starter switch is turned off.

2-28

CONTROLS

INSTRUMENT CLUSTER

SETTING SELECTION SCREEN (SETTING)

Initial

A/B common,

Variable

condition

standard flow

range

Auxiliary 1st

100% = 38 L/min

10 to 100%

No. 1

(10 US gpm)

Auxiliary 1st

75% = 28 L/min

10 to 100%

No. 2

(7.4 US gpm)

Auxiliary 1st

50% = 19 L/min

10 to 100%

No. 3

(5 US gpm)

The table shows the 1-way flow rate when

there is no load.

Press the (A) key to proceed to the screen

selected by the bar.

Press the (B) key to move the selection bar.

Press the (C) key to return to the side menu

screen.

• Auxiliary 1st flow rate setting

c. When the selection bar is at a symbol of

(1st AUX SET)

attachment, press the (B) key to change it

Set the flow rate ratio for the No. 1, No. 2

to the desired symbol.

and No. 3rd in the Auxiliary 1 circuit.

Select the symbol representing the

attachment to be used.

d. The setting for Auxiliary 1 No. 2 and

Auxiliary 1 No. 3 can be done using the

same procedure as above.

e. Press and hold the (A) key for three

seconds or more to complete the setting

and return to the setting selection screen.

f. Press the (C) key to cancel editing and to

return to the setting selection screen.

a. Pressing the (A) key in this screen moves

the selection bar and flashes the figures

on the bar.

b. Press the (B) key to increase the number

value selected.

Press and hold the (B) key for at least one

second to rapidly increase the number

value selected.

2-29

CONTROLS

INSTRUMENT CLUSTER

• Auxiliary 2nd flow rate setting

• Auxiliary 4th flow rate setting

(2nd AUX SET)

(4th AUX SET)

Set the flow rate ratio for the Auxiliary 2nd

Set the flow rate ratio for the Auxiliary 4th

circuit.

a. For the key operation, refer to the Auxiliary

1st flow rate setting section.

Initial

Variable

Initial

Variable

Standard flow

condition

range

condition

range

C/D 100%

G/H 100%

Auxiliary 2nd

= 13 L/min

10 to 100%

Auxiliary 4th

= 13 L/min

10 to 100%

(3.4 US gpm)

2-30

Takeuchi Mini excavator TB225 (No.122500005~). Operator's Manual (2019) - page 2
