INTRODUCTION

FOREWORD

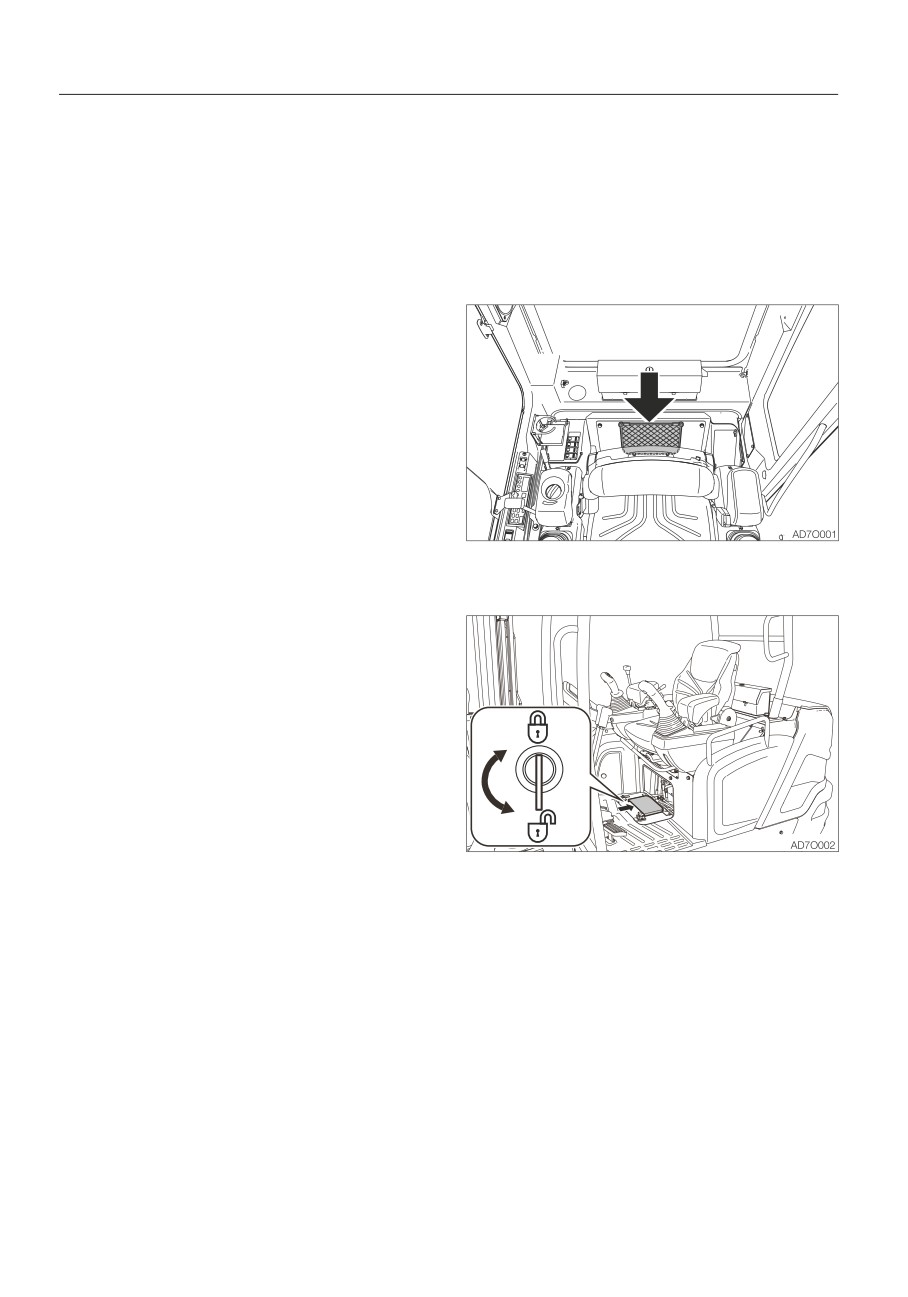

MANUAL STORAGE COMPARTMENT

This manual describes operation, inspection

A compartment for storing this manual is

and maintenance of the machine, as well as

provided at the position shown on the

safety instructions to be heeded during these

diagram below.

operations.

If you have any questions about the

Cab

machine, please contact a Takeuchi sales or

service outlet.

• Some details in this manual may differ from

those provided in the machine you are

using.

• Please note that the information and

specifications in this manual are subject to

change without prior notice.

Canopy

1. Insert the starter key and turn it

counterclockwise to open the cover under

the seat.

2. After using the manual, place it in the

plastic pouch and store it back in the

manual storage compartment.

0-2

SERIAL NUMBERS

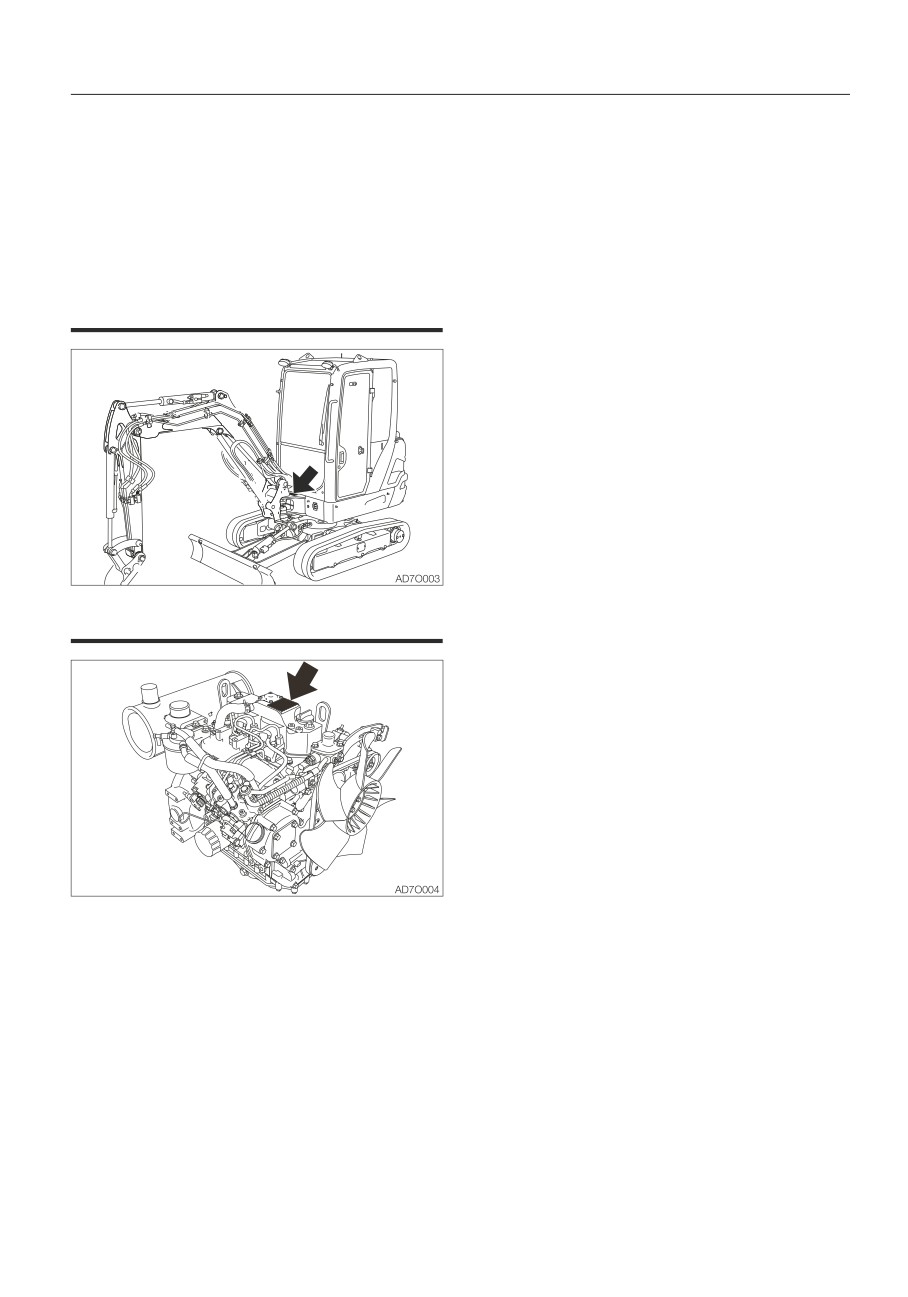

IMPORTANT: Do not remove the machine

name plate with the serial number.

Check the serial numbers of the machine

and engine and write them down in the

spaces below.

Machine number:

Engine number:

0-3

MACHINE DESCRIPTION

FRONT, REAR, LEFT AND RIGHT

DESIGNATED OPERATIONS

Use this machine primarily for the following

operations:

• Excavation

• Digging ditches

• Digging side ditches

• Leveling

• Loading

BREAK-IN PERIOD

When the machine is new, operate the

machine for the first 100 hours (as indicated

on the hour meter) by following the

instructions below.

Using a new machine without a break-in

period will lead to quicker deterioration of

machine performance and may shorten the

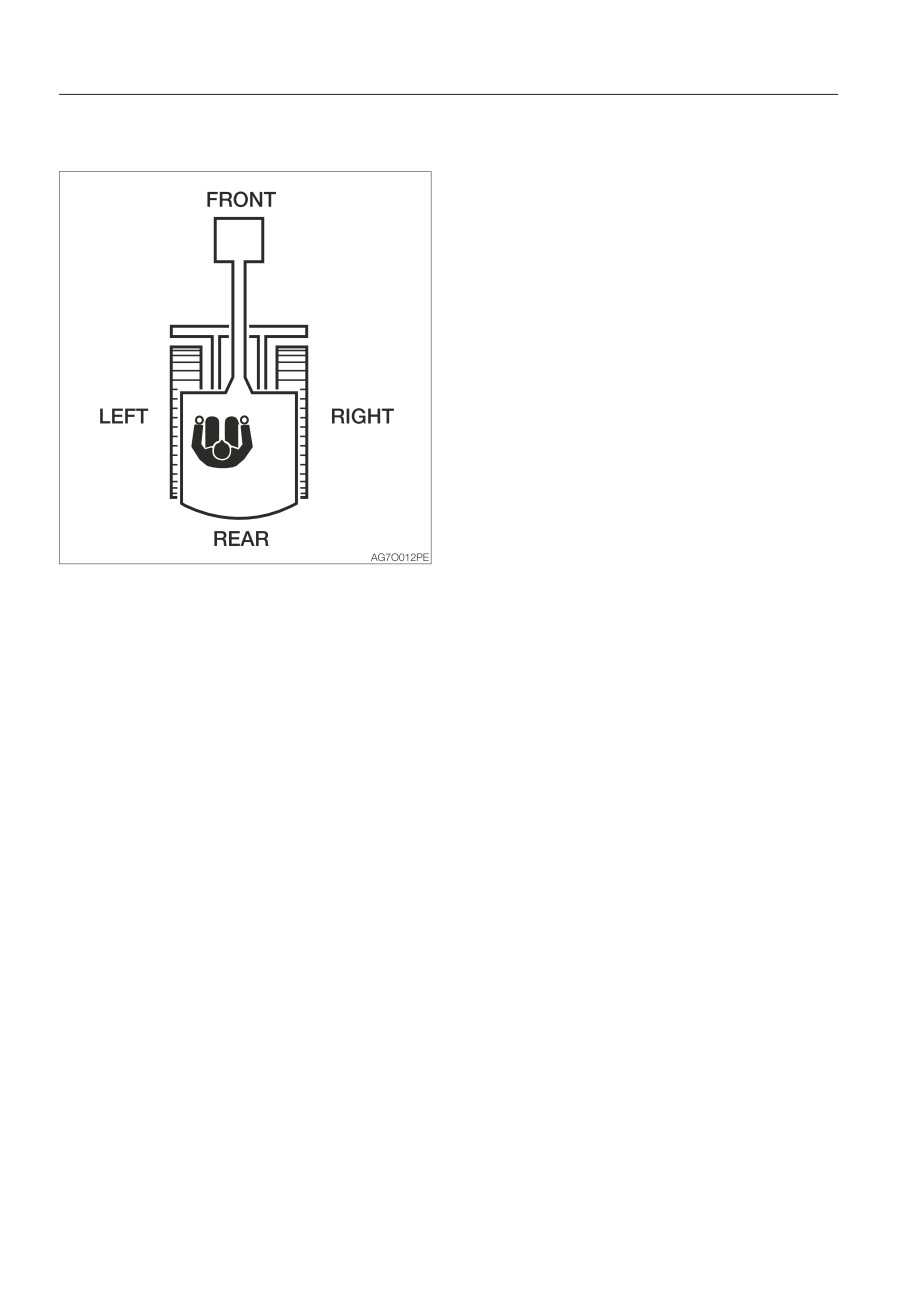

This manual refers the front, rear, left and

machine’s service life.

right of the machine as seen when sitting in

• Sufficiently warm up the engine and

the operator’s seat with the dozer blade

hydraulic oil.

visible to the front.

• Avoid heavy loads and rapid operations.

Operate with a load of about 80% the

maximum load.

• Do not abruptly start up, accelerate,

change directions, or stop unless

necessary.

0-4

SAFETY

GENERAL PRECAUTIONS

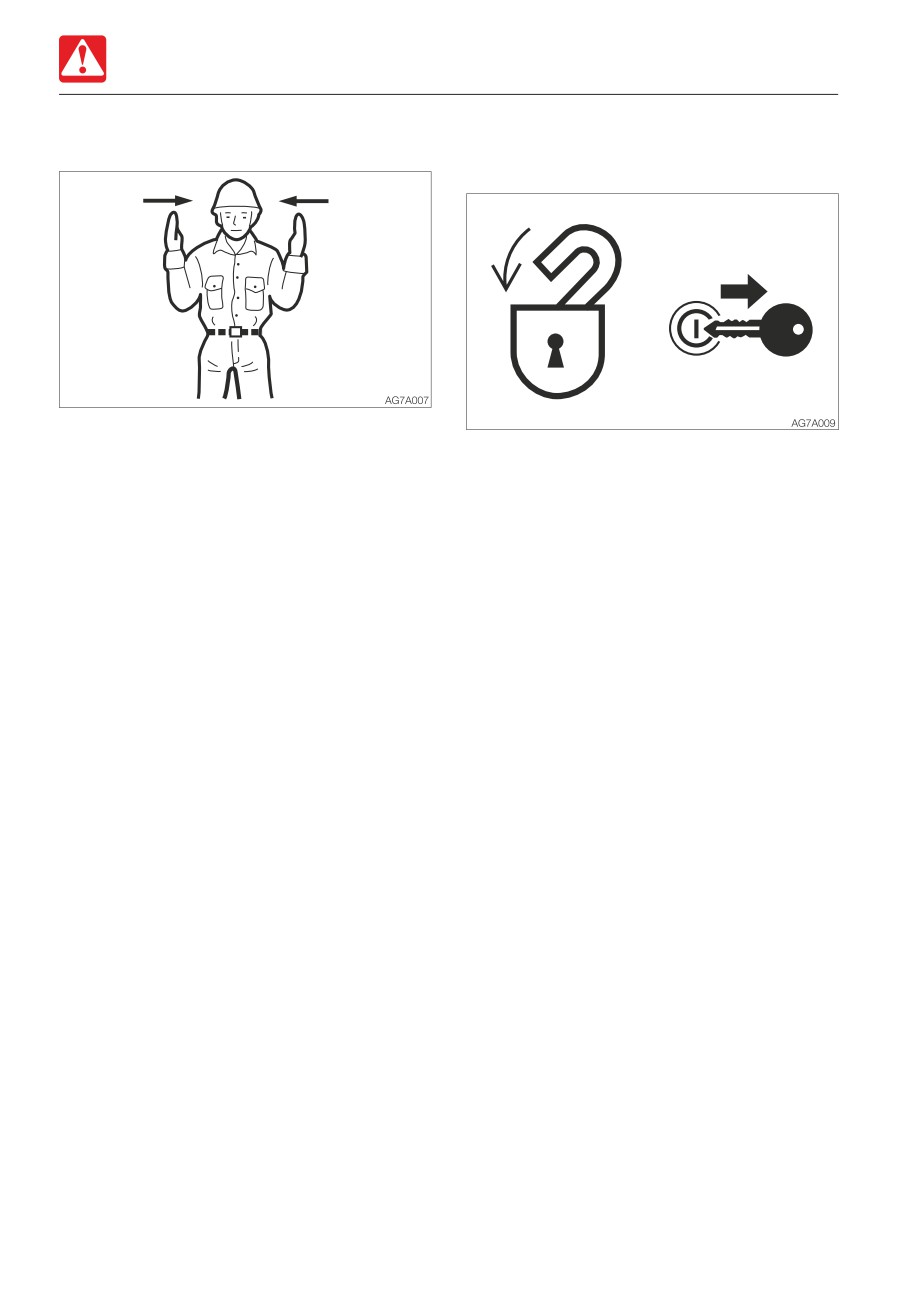

Use a signal person and a flag person

Cautions when standing up from or

leaving the operator’s seat

Learn how to use the hand signals required

for particular jobs and make sure who has

• Before standing up from the operator’s

the responsibility for signaling.

seat to open/close the window or remove/

• All personnel must fully understand all the

install the lower window, lower the working

signals.

equipment to the ground, raise the safety

• The operator must respond to signals only

lock lever to engage the lock and stop the

from the appointed signal person, but must

engine. If any controls should be

obey a stop signal at any time from

accidentally touched when the safety lock

anyone.

lever is lowered (unlocked), the machine

• The signal person must stand in a clearly

will suddenly move and cause serious

visible location when giving signals.

injury or death.

• Note that the dozer blade, boom swing

and auxiliary hydraulic controls cannot be

locked, even when the safety lock lever is

set to the locked position.

Do not carelessly touch these controls.

• Be careful not to touch the operating levers

when raising or lowering the safety lock

lever.

• Before leaving the operator’s seat, lower

the working equipment to the ground, raise

the safety lock lever to engage the lock

and stop the engine. Also, be sure to

remove the key, lock the door and covers,

take it with you and store it in a specified

place.

1-4

SAFETY

PRECAUTIONS WHEN PREPARING

Check the strength of the bridge

Always keep the machine clean

When traveling over a bridge or a structure,

check the permissible load. If the strength is

insufficient, reinforce the bridge or the

structure.

• Wipe off any oil, grease, mud, snow or ice,

to prevent accidents due to slipping.

• Remove all loose objects and unnecessary

devices from the machine.

• Remove any dirt, oil or grease from the

engine area to prevent fires.

• Clean around the operator’s seat and

remove any unnecessary object from the

machine.

1-9

SAFETY

PRECAUTIONS WHEN PREPARING

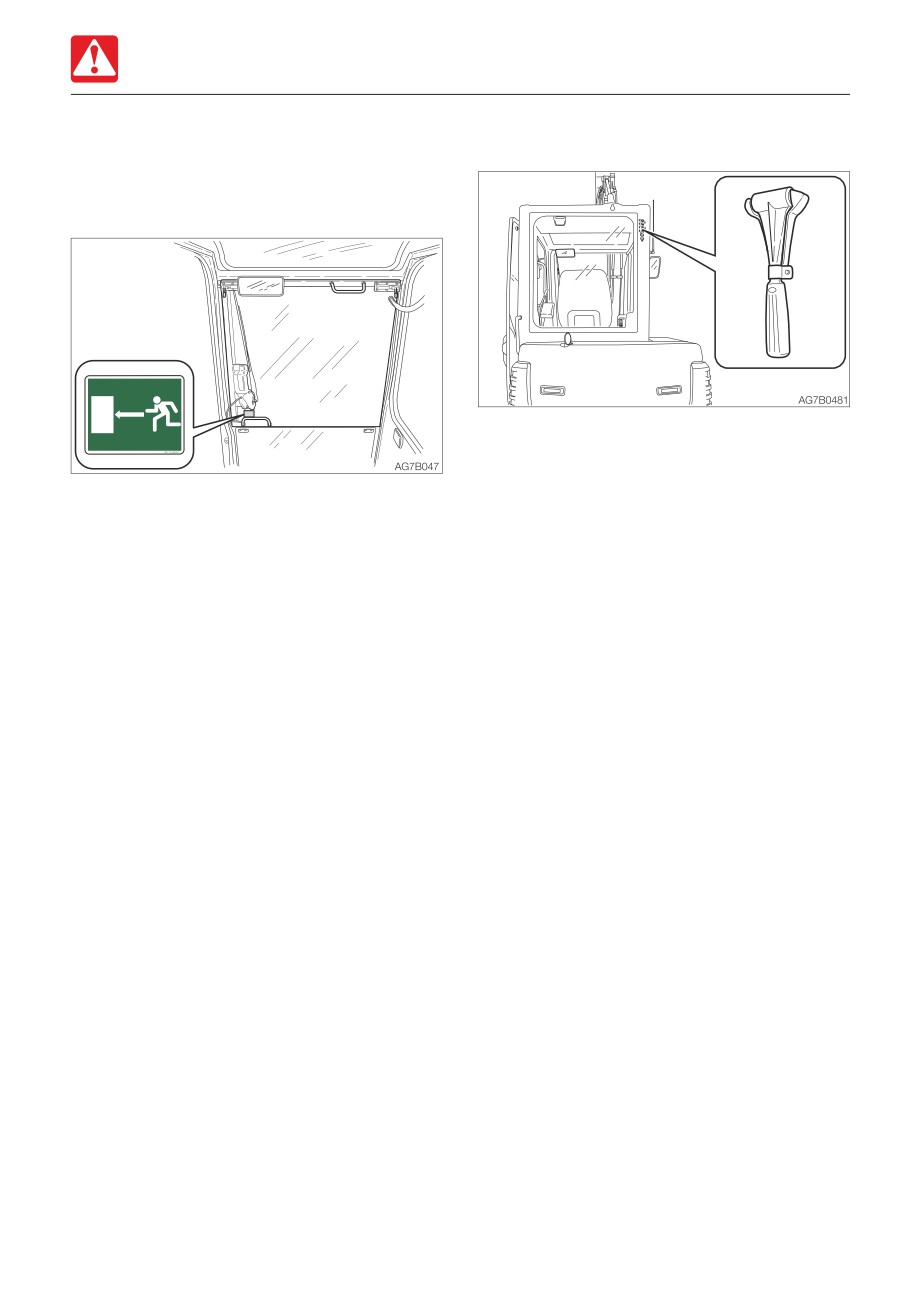

Emergency exit

Emergency hammer (optional)

Front window (excluding machines with a

front guard)

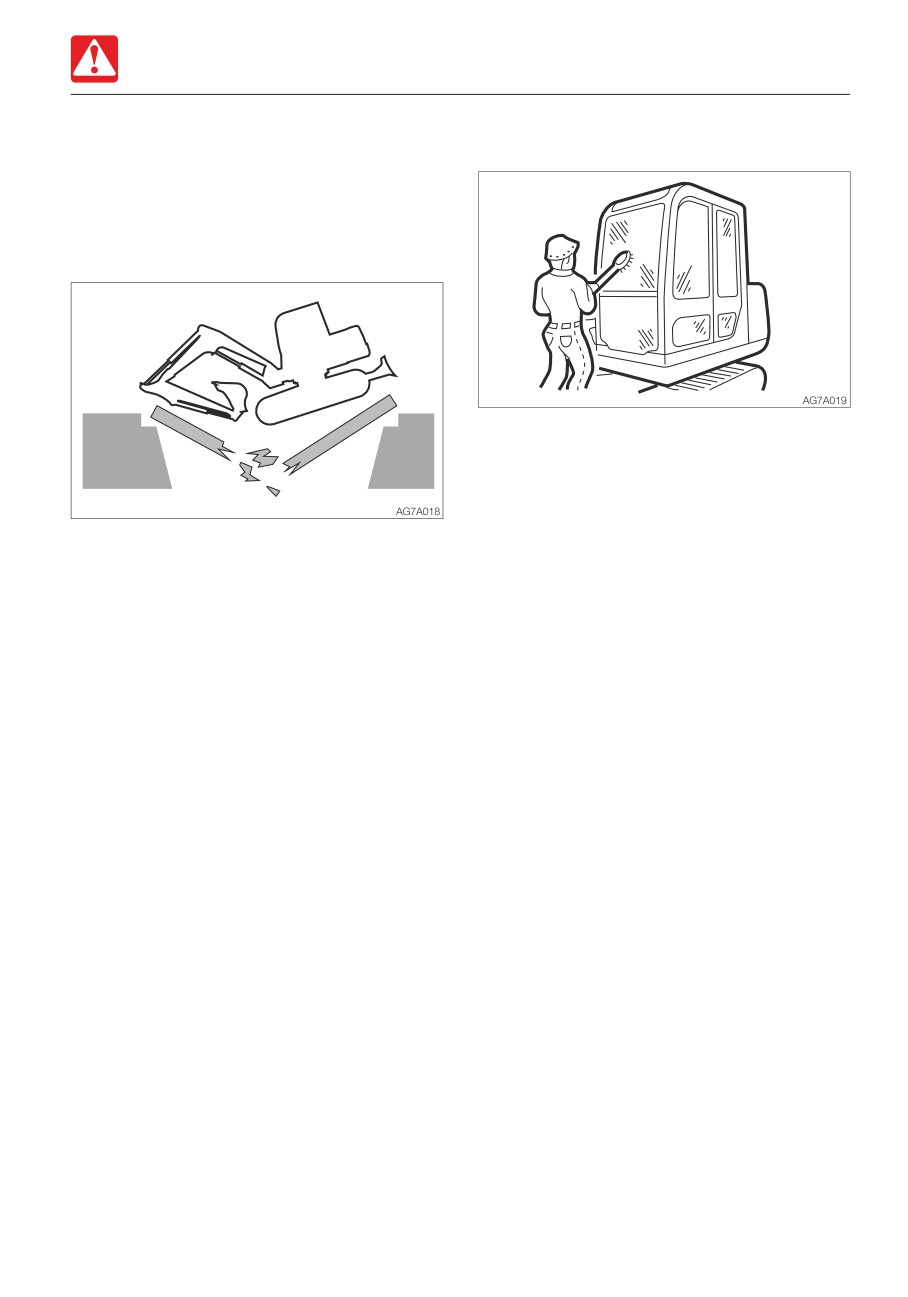

An emergency hammer is installed to be

used to escape from the cab in an

emergency. When escaping, break the

If you should become trapped inside the

windows with the hammer.

cab, open the front window to get out.

• When breaking the windowpane with a

hammer, take great care not to injure

yourself with the broken glass pieces.

• Remove the glass pieces from the window

sill so as not to cut yourself when

evacuating. Broken glass will fall from the

window, so be careful of your footing and

do not slip on the glass.

1-11

SAFETY

PRECAUTIONS WHEN OPERATING

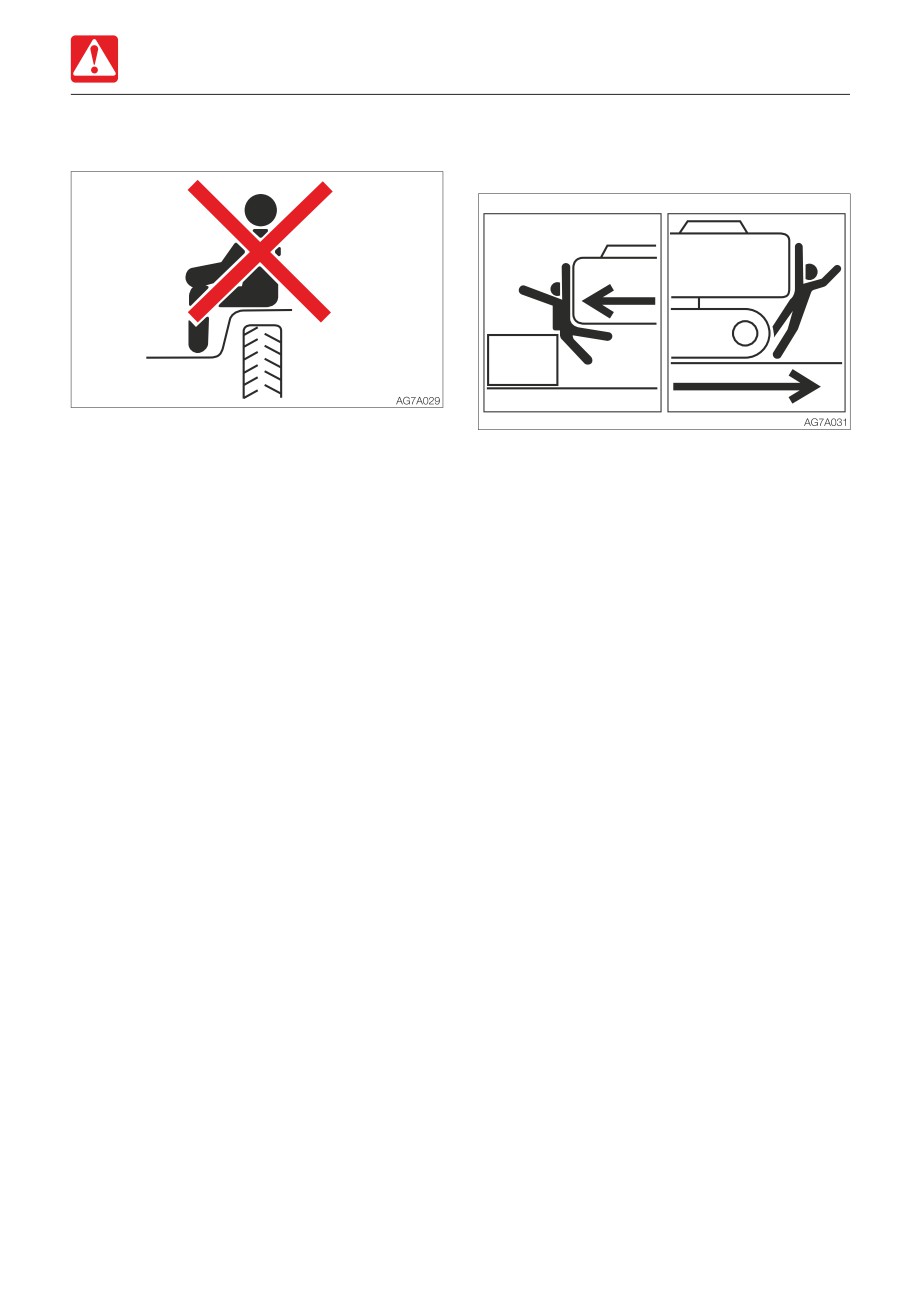

Do not permit riders on the machine

Check if the work area is safe and secure

before operation

Do not allow anyone to ride on any part of

the machine at any time while traveling or

• Confirm the performance limits of the

operating.

machine.

• Use a signal person at road shoulders,

narrow places or where your vision is

obstructed.

• Never allow anyone to enter the machine’s

slewing radius and path.

• Signal your intention to move by sounding

the horn.

• There is a blind spot in the rear of the

machine. Before traveling in reverse, check

that the area is safe and clear.

1-15

SAFETY

PRECAUTIONS WHEN OPERATING

Check the position of the undercarriage

noted that the travel speed changes

(tracks) before traveling

depending on the load condition (for

machines with the automatic travel shift-

down system).

Before operating the travel levers/pedals,

make sure that the dozer blade is to the front

of the operator’s seat. Remember that when

• Avoid crossing over obstacles whenever

the dozer blade is to the rear of the

possible. If you must do so, keep the hoe

operator’s seat, the travel levers/pedals must

attachment close to the ground level and

be operated in the reverse direction from

travel slowly. Never cross obstacles which

when it is to the front.

will tilt the machine to an angle of 10° or

greater.

• On uneven ground, maintain the low speed

Travel safely

and avoid starting, stopping or changing

directions abruptly. Otherwise, the working

equipment may come in contact with the

ground, causing the machine to lose its

balance and get damaged or to damage

the structures in the surrounding area.

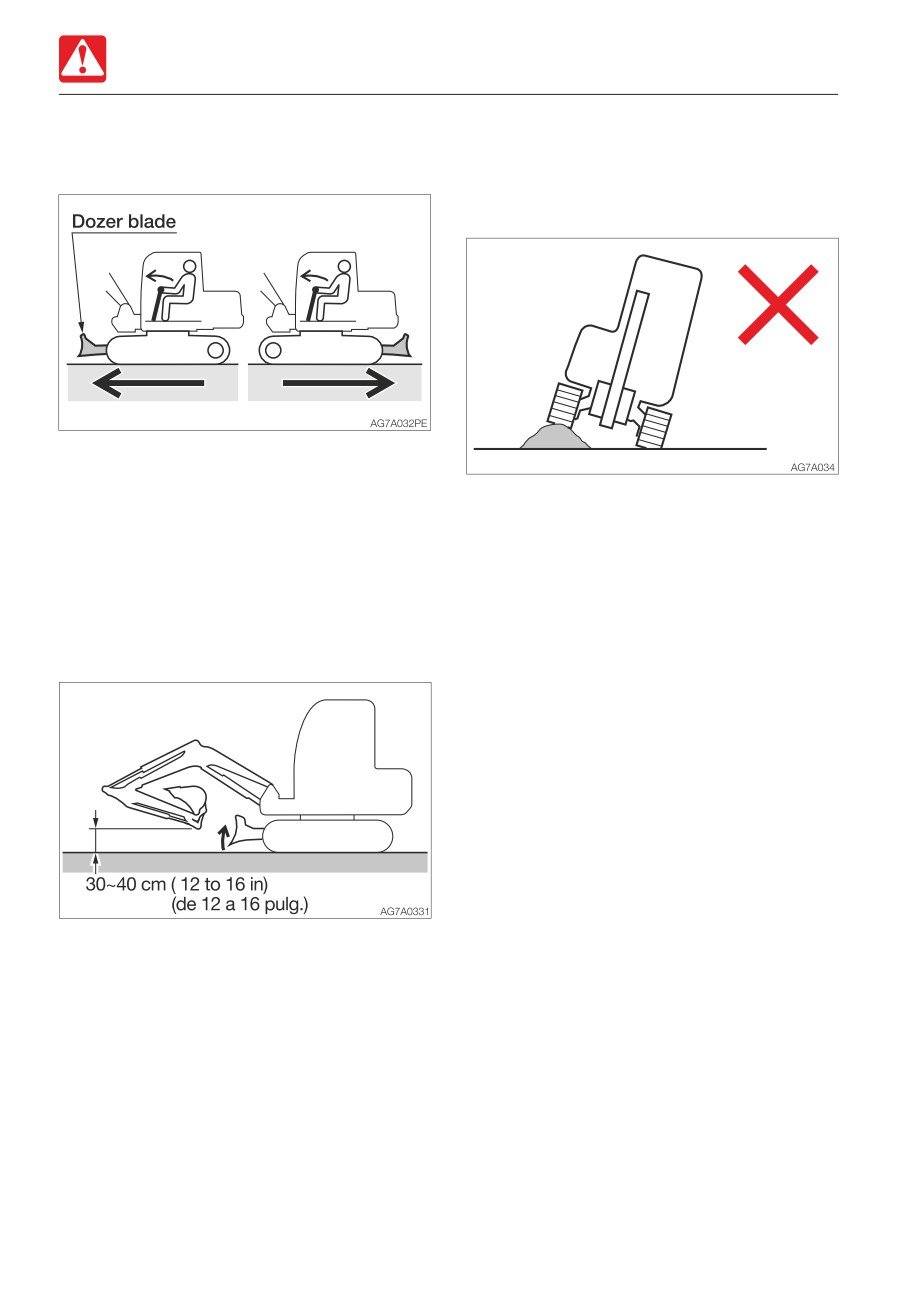

• Travel with the dozer blade raised, the hoe

attachment folded as shown on the figure

above, and the bucket raised 30 to 40 cm

(12 to 16 in.) above the ground.

• Do not slew while traveling. If you must

operate the hoe attachment while traveling,

operate at speeds slow enough so you

have complete control at all times.

• When a load greater than a set value is

applied during traveling in 2nd (high)

speed, the speed will automatically slow

down to 1st (low) speed. When the load

becomes lighter, the speed will increase

and return to 2nd (high) speed. It should be

1-16

SAFETY

PRECAUTIONS WHEN OPERATING

Cautions on traveling on slopes

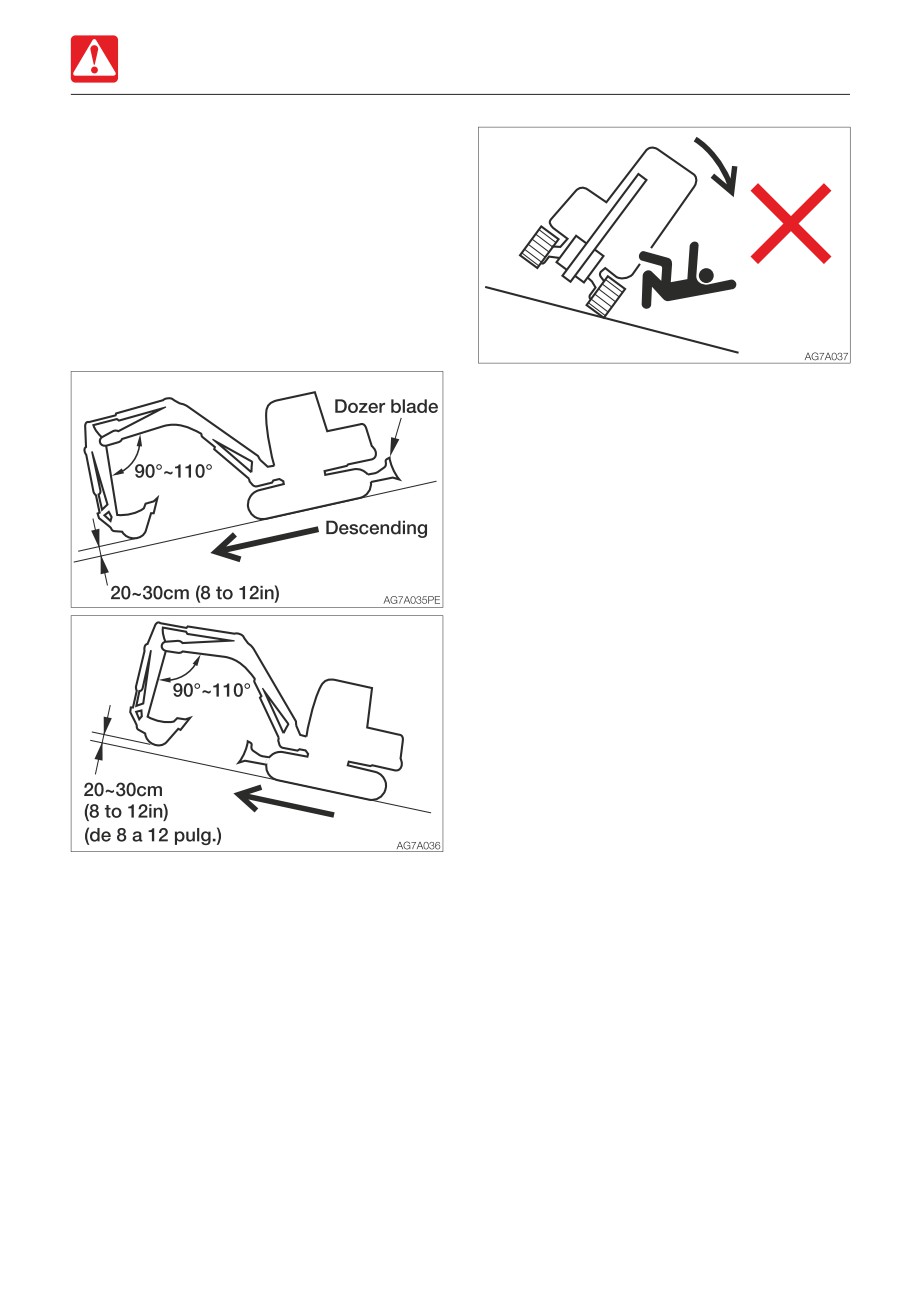

When traveling on slopes or grades, be

careful that the machine does not tip (roll)

over or slide.

• Never travel on slopes that are too steep

for the machine to maintain its stability.

Note that in reality, the machine’s

performance decreases on slopes due to

its poor working condition.

• Do not change directions on slopes or

traverse slopes. First return to a flat

surface, and then take an alternative path.

• The machine may slip sideways even on a

slight slope if the ground is covered with

grass or dead leaves, or when traveling on

a wet metal plate or frozen surfaces. Make

sure the machine is never positioned

sideways on slopes.

• If the machine is stalled on the slope,

return each operating lever to the neutral

position before restarting the engine.

• When climbing a hill, keep the operator’s

seat facing the hillside. When descending a

hill, keep the operator’s seat facing the

downhill direction. In either case, travel

must be done while paying attention to the

ground in front of the machine.

• When traveling on slopes, lower the bucket

to a height of 20 to 30 cm (8 to 12 in.)

above the ground. When climbing a steep

slope, extend the hoe attachment to the

front. In emergencies, lower the bucket to

the ground and stop the machine.

• When traveling on slopes or grades, drive

slowly in 1st (low) speed. When

descending a slope, slow down the engine

speed.

• Do not descend slopes in reverse.

1-17

SAFETY

PRECAUTIONS WHEN OPERATING

Be careful with flying objects

Cautions when towing

This machine is not equipped with protective

equipment to protect the operator from flying

objects. Do not use this machine in places

where there are risks of the operator being

hit by flying objects.

When towing, serious injury or death could

result, if performed incorrectly or the wire

rope being used is inappropriate or not

properly inspected.

• It becomes dangerous if the wire rope

breaks or becomes disengaged. Use a

wire rope appropriate for the required

tractive force.

• Do not use a wire rope that is kinked,

twisted or otherwise damaged.

• Do not apply heavy loads abruptly to the

wire rope.

• Wear safety gloves when handling the wire

rope.

• Make sure there is an operator on the

machine being towed as well as on the

machine that is towing.

• Never tow on slopes.

• Do not let anyone come near to the wire

rope while towing.

Refer to “Towing” for further instructions.

1-24

SAFETY

PRECAUTIONS WHEN STOPPING

PRECAUTIONS WHEN

STOPPING

Park safely

• Before leaving the machine, do the

followings:

1. Lower the bucket and the dozer blade to

the ground.

2. Raise the safety lock lever to the locked

position.

• Park the machine on a flat, rigid and safe

3. Stop the engine and remove the starter

ground. Set the parking brake.

key.

4. Lock the cab and covers and take the

key with you.

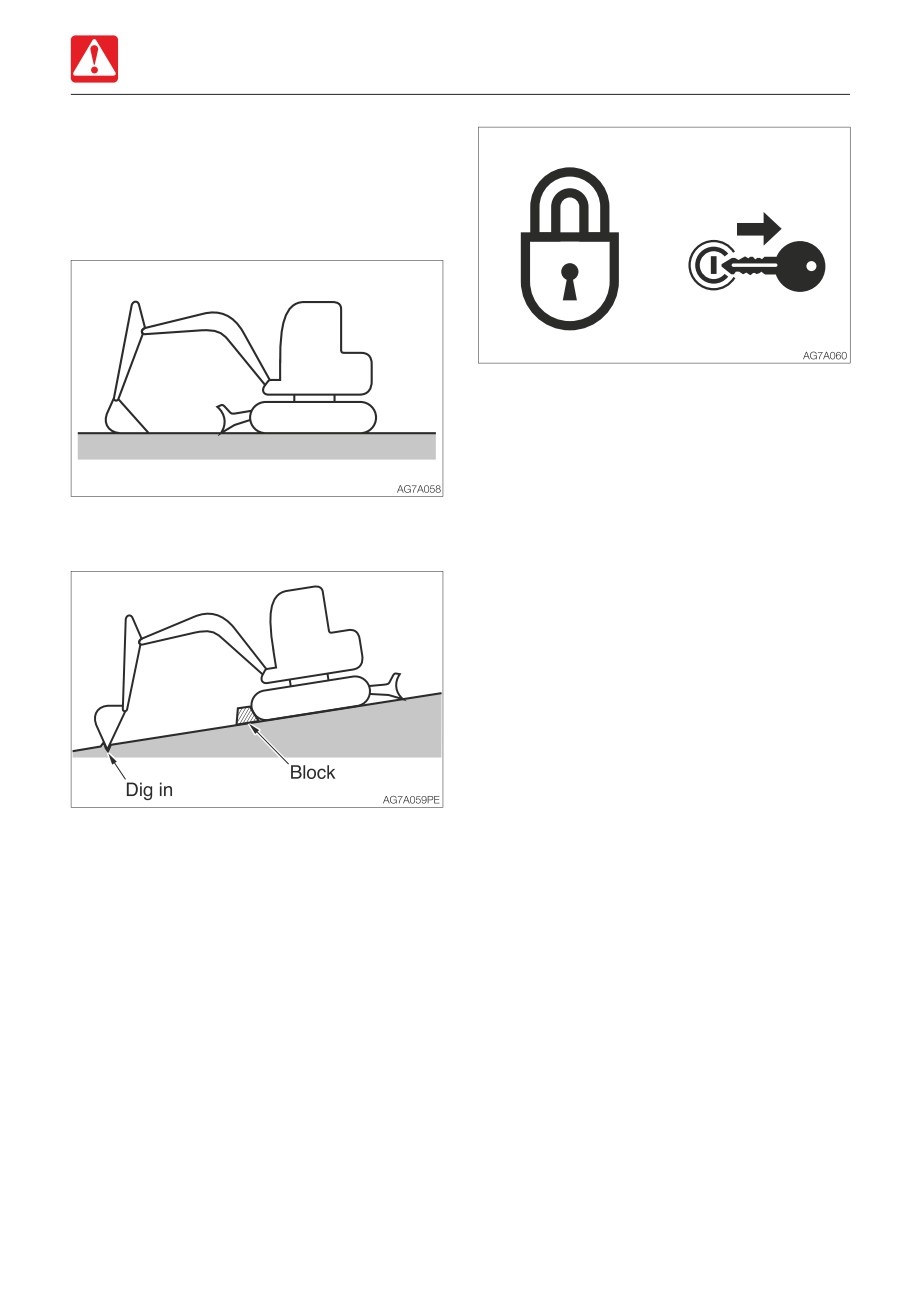

If you must park on a slope or incline, park

the machine securely and block the

movement of the machine.

• When parking on a street, use barriers,

caution signs, lights, etc., so that the

machine can easily be seen even at night

to avoid collision with other vehicles.

1-25

SAFETY

PRECAUTIONS WHEN TRANSPORTING

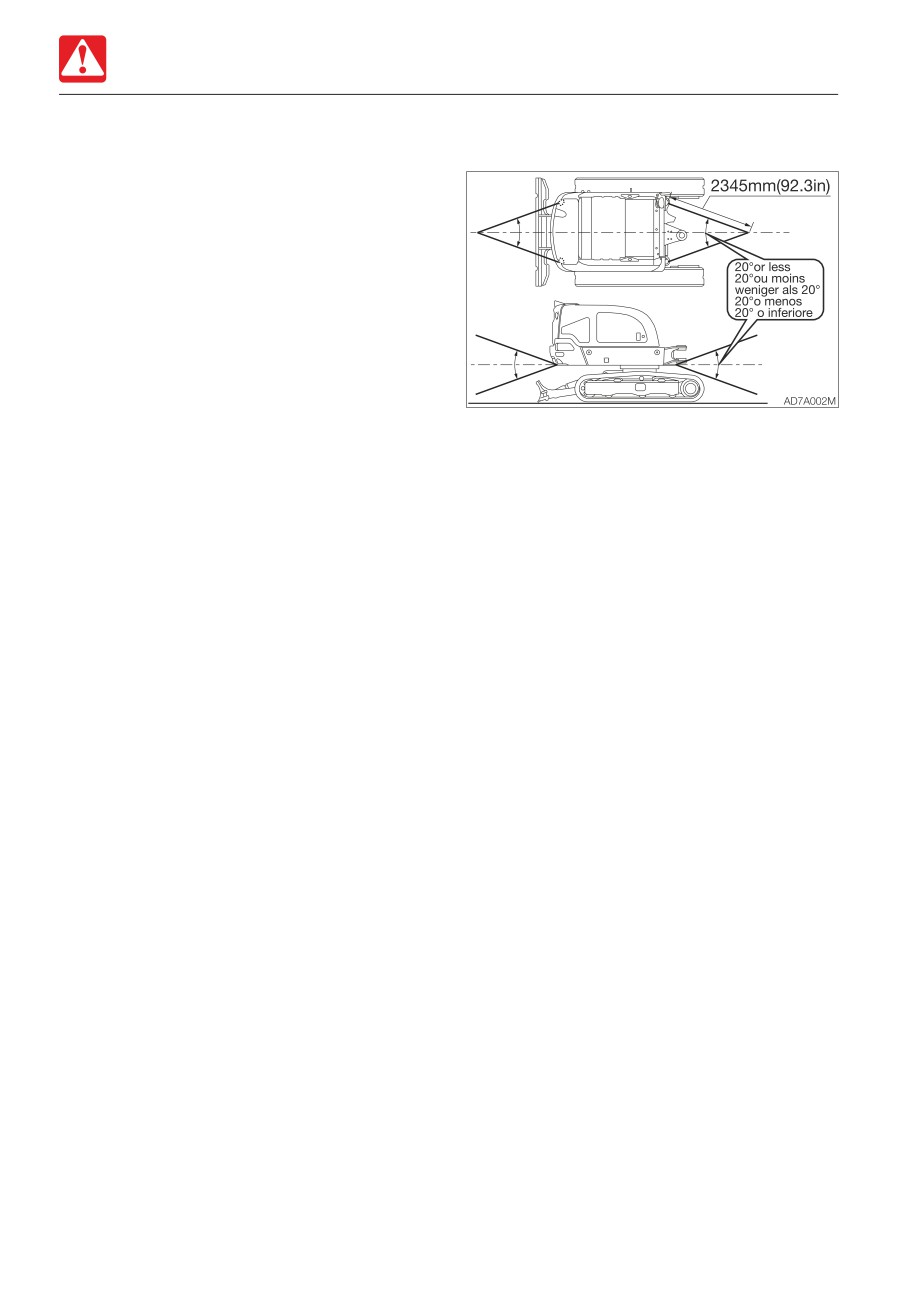

• Chock the tracks and secure the machine

PRECAUTIONS WHEN

to the truck bed with wire rope or chain.

TRANSPORTING

Load/unload the machine safely

The machine may roll or tip over or fall while

being loaded or unloaded. Take the following

precautions:

• Select a firm, level surface and keep

sufficient distance from road shoulders.

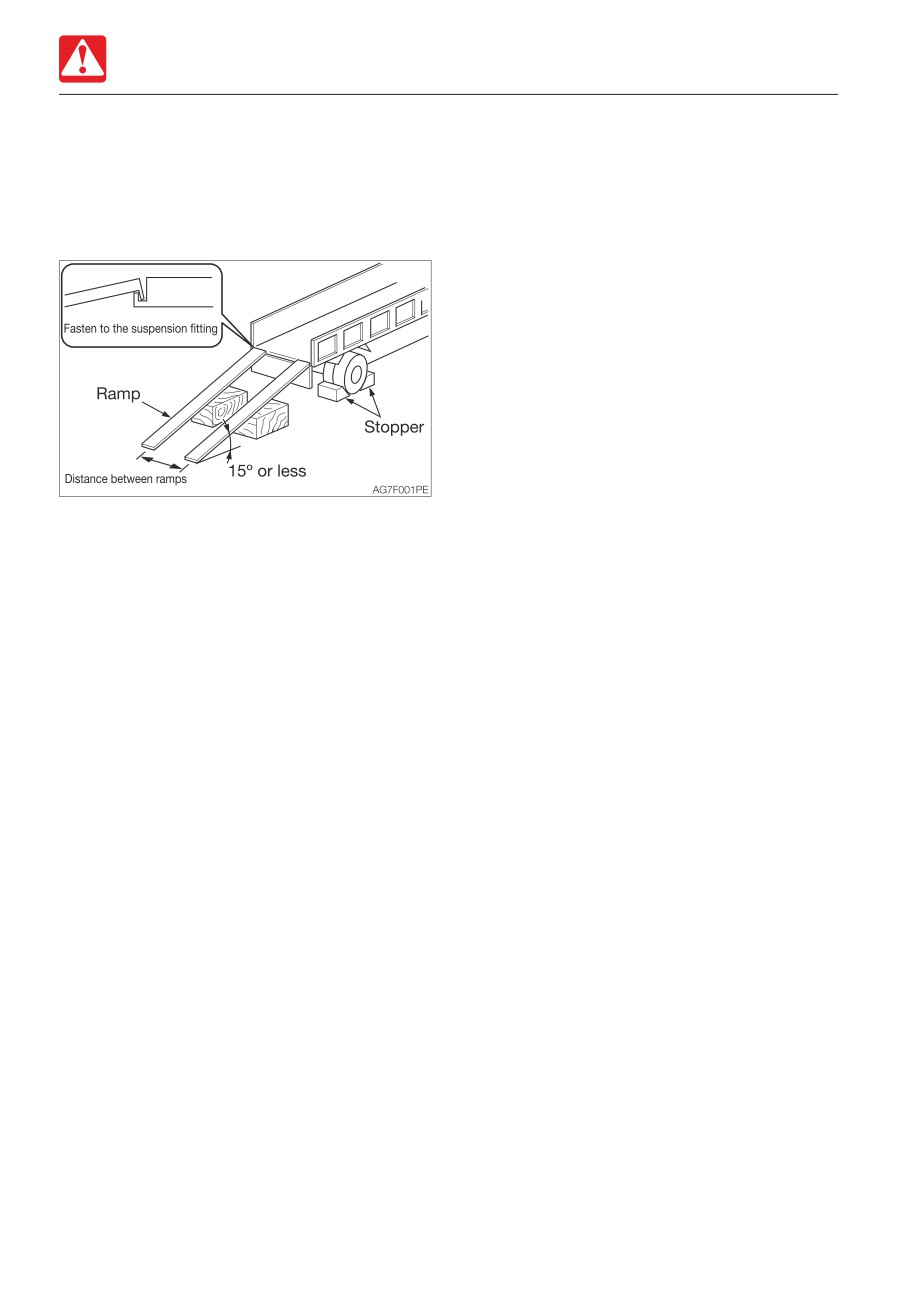

• Secure the ramps of adequate strength

and size to the truck bed. The slope of the

ramps must not exceed 15°. If the rumps

are bowed down too low, support them

with poles or blocks.

• Never use the working equipment to load

or unload the machine. Doing so may

result in tipping over or falling down of the

machine.

• Keep the truck bed and loading ramps

clean of oil, soil, ice, snow, and other

materials to prevent the machine from

sliding sideways. Clean the crawlers.

• Chock the transporter wheels to prevent

movement.

• When being loaded or unloaded, travel

slowly in 1st (low) gear by following the

signal from the signal person.

• Never change courses on the ramps.

• Do not slew/swing on the ramps. The

machine may tip over.

• When slewing/swinging on the truck bed,

do it slowly as the footing should be

unstable.

• Lock the cab door after being loaded, if

applicable. Otherwise, the door may open

during transport.

1-26

SAFETY

PRECAUTIONS ON MAINTENANCE

Replace safety-critical parts periodically

PRECAUTIONS ON

• Replace fuel hoses periodically. Fuel hoses

MAINTENANCE

wear out over time, even if they do not

Display a “DO NOT OPERATE” alert sign

show any symptom of wear.

• Regardless of the replacement schedule,

Severe injury could result if an unauthorized

replace immediately if a symptom of wear

person should start the engine or touch

is found.

controls during inspection or maintenance.

Refer to “List of safety-critical parts” for

• Before performing maintenance, stop the

further details.

engine, remove the key and take it with

you.

Explosionproof lighting

• Display a “DO NOT OPERATE” alert sign

on easy-to-see locations such as on the

To prevent an ignition or explosion, use

starter switch or on control levers.

explosion-proof lights when inspecting fuel,

oil, coolant or battery fluid. Otherwise,

explosion could result causing serious injury

Use the correct tools

or death.

Do not use damaged or weakened tools or

tools designed for other purposes. Use tools

appropriate for the work involved.

1-28

Content      ..      1       2         ..

//////////////////////////////////////////
