Takeuchi Mini Excavator TB260 (S/N 126000002~, S/N 126100003~). Operator's Manual

SAFETY

PRECAUTIONS ON MAINTENANCE

Be careful with the high-pressure grease

Cautions when servicing the air

conditioner

If the refrigerant comes in contact with eyes,

it damages your eyesight. If the refrigerant

comes in contact with skin, it may cause

frostbite. Never touch the refrigerant.

Handling of the accumulator

AG7A086

In the track adjuster, the grease has been

injected under high pressure. If the tension is

adjusted without following the prescribed

procedure, the grease discharge valve may

fly off, resulting in injury.

• Never loosen the grease fitting.

• Loosen the grease discharge valve slowly.

Do not turn it more than one turn.

• Do not put your face, arms, legs or body in

front of the grease discharge valve.

Be sure to handle the high-pressure nitrogen

• If grease does not come out when the

gas enclosed in the accumulator with care. If

grease discharge valve is loosened, the

handled incorrectly, it could explode and

valve is faulty. Ask a Takeuchi service agent

cause serious injury. Strictly observe the

for repair.

following precautions:

• Do not disassemble.

• Do not allow flame near or throw it into a

Never disassemble the track adjuster

fire.

• Do not drill, weld or fuse.

• Do not subject it to physical shock such as

hitting, rolling or dropping.

• Before disposing of the unit, the sealed gas

must be drained. Contact a Takeuchi

service agent for help.

There is a very strong spring contained in the

track adjuster. If the track adjuster is

accidentally disassembled, the spring can

pop out, resulting in serious injury Never

disassemble the track adjuster.

1-31

SAFETY

PRECAUTIONS ON MAINTENANCE

Disconnect the battery wiring

• Do not charge a battery or jump-start the

engine if the battery is frozen; otherwise it

may explode. Warm the frozen battery to

15°C (60°F) before use.

• Do not use the battery when the fluid level

is below the lower level limit. Doing so will

hasten the deterioration of the internal

portions of the battery and shorten the

battery life. It also can cause rupturing

(explosion).

• Do not add the distilled water above the

upper level limit. Doing so could cause the

fluid to leak. This fluid can cause skin

Disconnect the battery wiring before working

damage if contacted, or can cause the

on the electrical system or doing electric

machine components to corrode.

welding. Disconnect the negative (-) battery

• Use a dampened cloth to clean around the

cable first. When reconnecting, connect the

fluid level line and check the fluid level. Do

negative (-) battery cable last.

not clean with a dry cloth; otherwise it

could cause static electricity to build up,

resulting in ignition or explosion.

Use caution when handling batteries

• Batteries contain sulfuric acid which will

damage the eyes or skin in case of

contact.

· If eye contact occurs, flush immediately

with clean water and get prompt medical

attention.

· If accidentally swallowed, drink large

quantities of water or milk and call a

physician immediately.

· If acid contacts skin or clothing, wash off

immediately with a lot of water.

• Wear protective goggle and gloves when

working with batteries.

• Batteries generate flammable hydrogen

gas which may explode. Keep away from

flame, sparks, fire or lighted cigarettes.

• When checking the level of the battery

fluid, use a flashlight.

• Be sure to stop the engine by turning off

the starter switch before inspecting or

handling the battery.

• Be careful not to let metal tools or any

metal objects come into contact with the

battery terminals and cause a short circuit.

• Loose battery terminals may result in

sparks. Be sure to fasten terminals tightly.

• Make sure the battery caps are tightened

securely.

1-32

SAFETY

PRECAUTIONS ON MAINTENANCE

Periodically replace the safety-critical

Jump starting with booster cables

parts

• When starting the engine using the booster

• To use the machine safely for a longer

cables, be sure to connect the cables in

period, periodically add oil and perform

the proper order described below. Wrongly

inspection and maintenance. To improving

connected cables can result in sparking

the safely, replace the safety-critical parts

and battery explosion.

like hoses and seat belts periodically. Refer

· Do not allow the “machine in trouble” and

to “Safety-critical parts to be replaced

“rescue machine” to touch each other.

periodically” for further details.

· Do not allow the positive (+) and negative

• The “Safety-critical parts to be replaced

(-) clips of the booster cables to touch

periodically” are the parts which

each other or to come in contact with the

deteriorate, wear and fatigue after repeated

machine.

use and whose properties change over

· When connecting, attach the positive

time. While these characters of these parts

booster cable to the positive (+) terminals

could cause serious physical or personal

first. When disconnecting, remove the

damage, judging the remaining life of these

negative cable from the negative (-)

part are difficult from external inspection or

terminal (ground) first.

the feeling when operating.

· Be sure to connect the clips securely.

• Replace the “Safety-critical parts to be

· Connect the last clip of the booster cable

replaced periodically” if any defect is found

to a point as far away from the battery as

from external inspection, even when they

possible.

have not reached the time specified

• Always wear the protective goggle and

interval.

gloves when starting the engine by using

the booster cables.

• Use the booster cables and clips of a size

suited to the capacity of battery. Do not

use damaged or corroded booster cables

and clips.

• Be sure that the battery of the “rescue

machine” has the same capacity as the

battery of the “machine in trouble”.

1-33

SAFETY

PRECAUTIONS ON MAINTENANCE

Have a Takeuchi service agent repair

Disposing of wastes

welding

If welding must be performed, make sure

that it is done by a qualified person in a

properly equipped workplace. To prevent any

part from breaking down or being damaged

due to overcurrent or sparks, observe the

following.

• Disconnect the wiring from the battery

before doing electric welding.

• Do not continuously apply 200 V or more.

• The earth ground must be connected

within one meter from the welding section.

• Always collect oil that is drained from the

Do not connect the earth ground near to

machine in containers. Improperly

an electronically controlled device/

disposed waste oil can cause

instrument or connectors.

environmental harm.

• Make sure that there are no seals or

• Follow appropriate laws and regulations

bearings between the welding section and

when disposing of harmful objects such as

the earth ground.

oil, fuel, coolant, solvent, filters and

• Do not connect the earth ground around

batteries.

the pins for the working equipment or

hydraulic cylinders.

• When welding is to be done on the

Handling of poisonous chemicals

machine body, disconnect the connectors

for the electronically controlled devices

Poisonous chemicals will cause serious injury

before working.

if directly contacted.

Poisonous chemistry used in this machine

includes grease, battery solution, coolant,

Vibrations operators are subject to

paint and adhesive agent.

Handle the poisonous chemicals properly

According to the results of the tests

with care.

conducted to determine the vibrations

transmitted to the operator by the machine,

the upper limbs are subjected to vibrations

lower than 2.5 m/s² (8.2 ft/s²) while the

seated part of the body is subjected to

vibrations lower than 0.5 m/s² (1.64 ft/s²).

Checks after maintenance

• Gradually increase the engine speed from a

low idle to maximum speed and check that

there is no oil or water leaking from the

serviced parts.

• Operate each control lever and check that

the machine is operating properly.

1-34

SAFETY

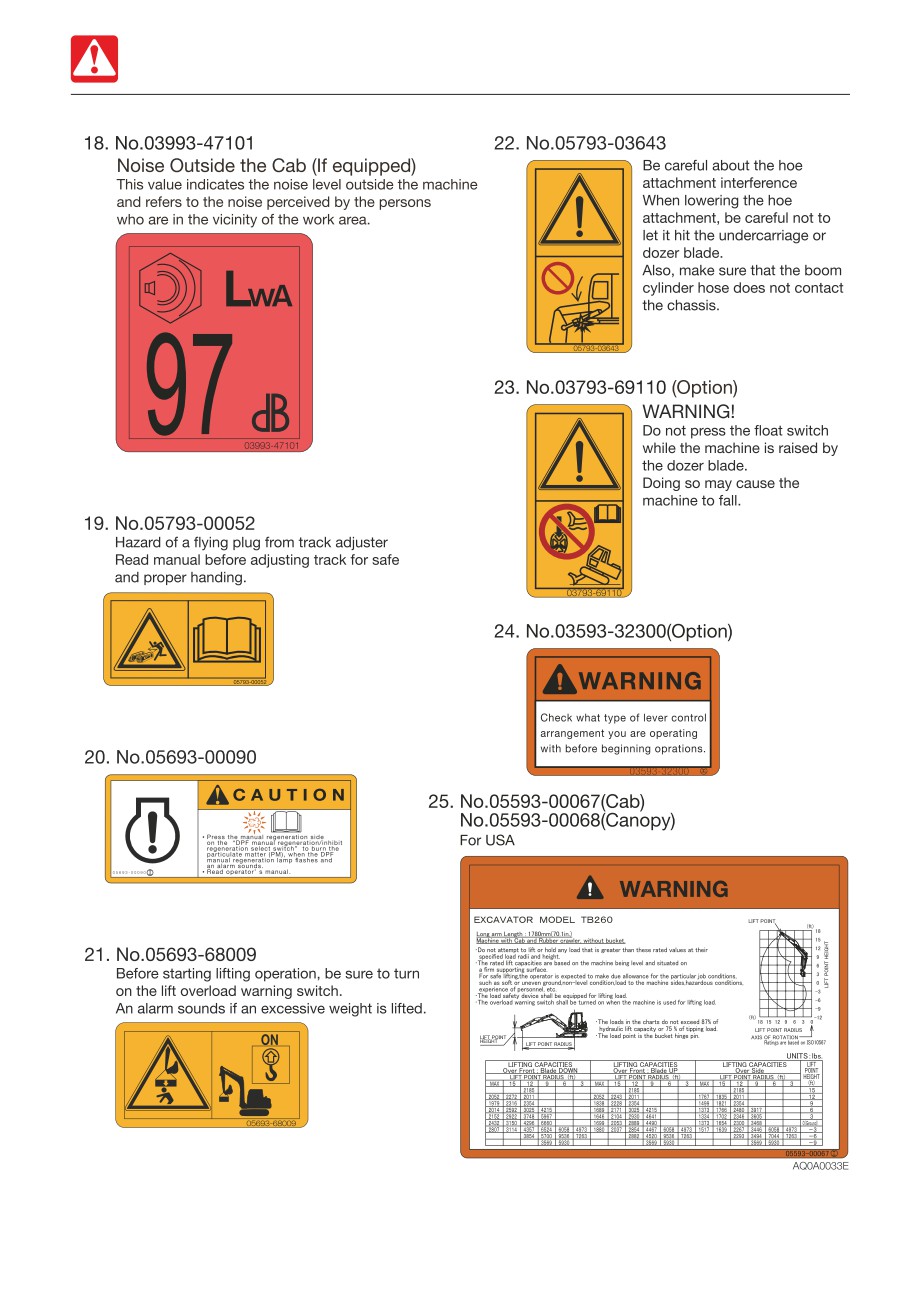

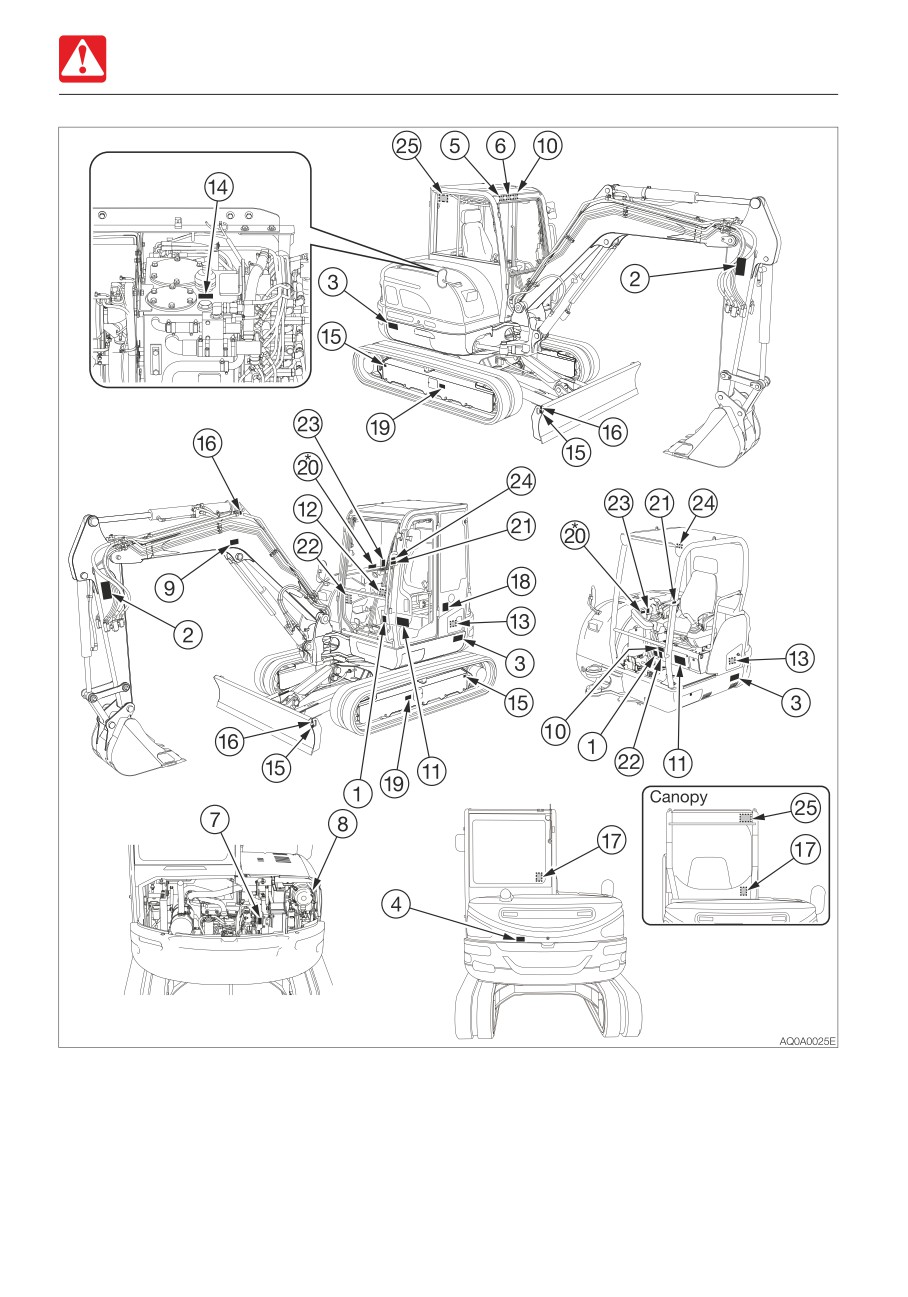

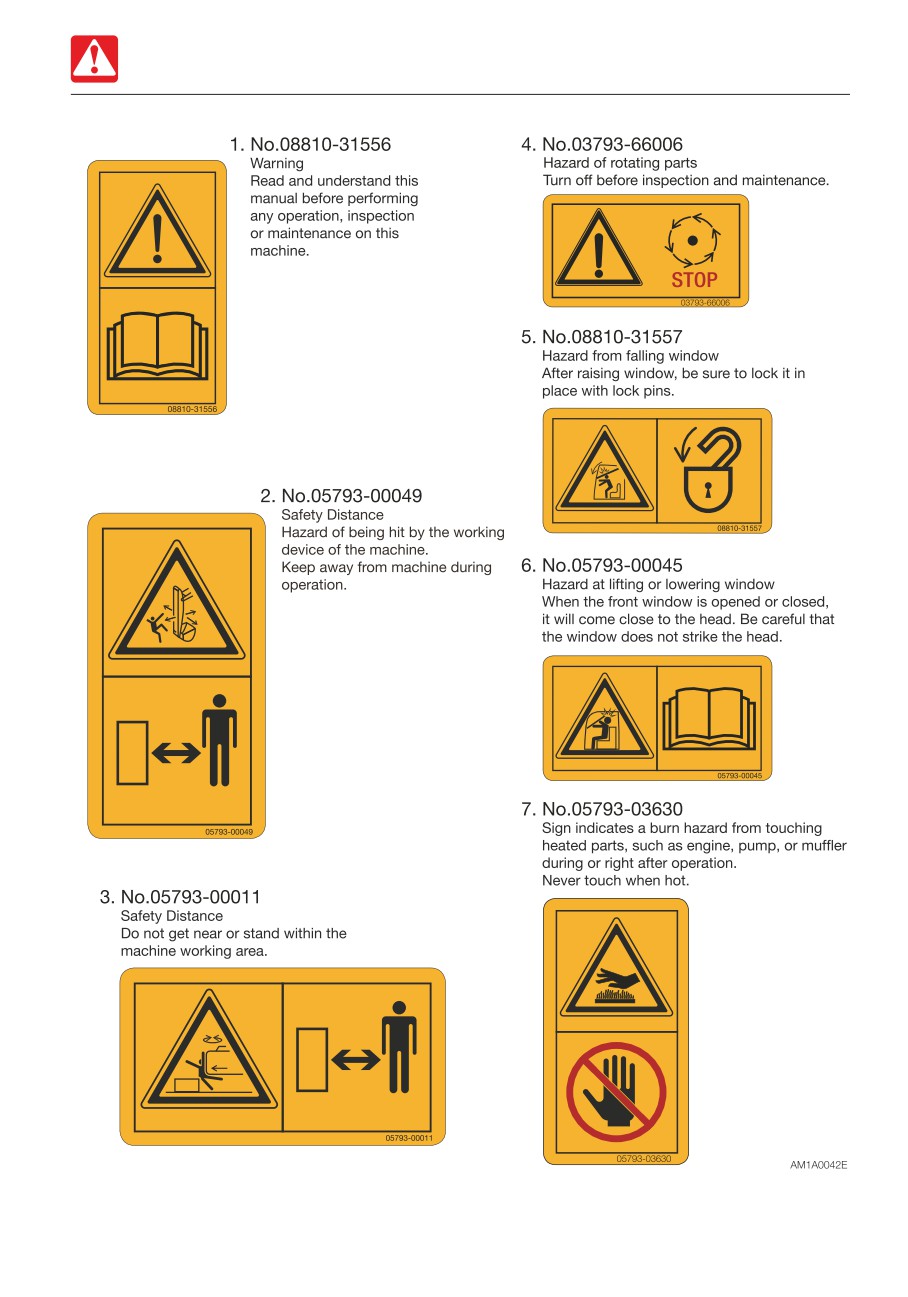

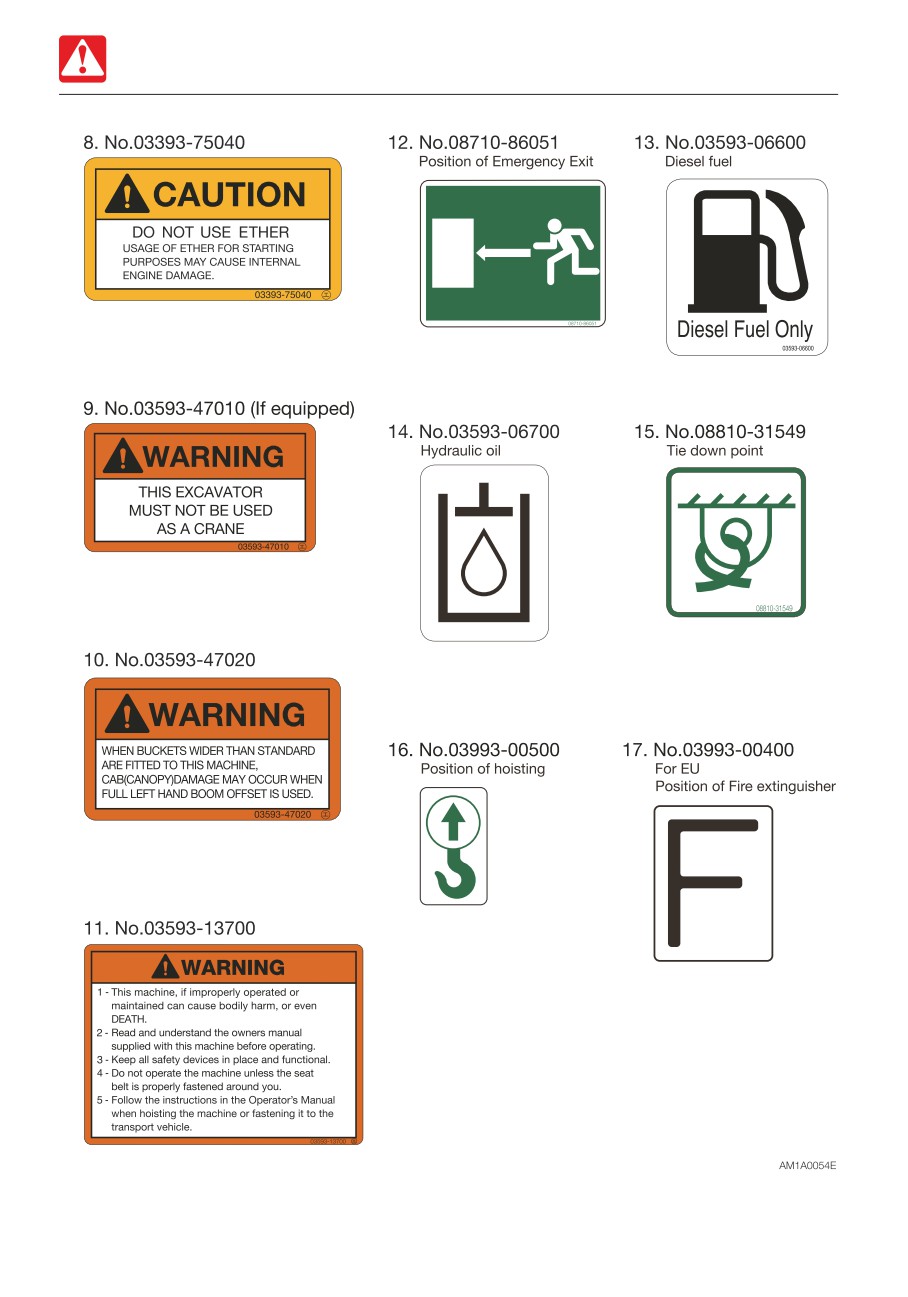

SAFETY SIGNS (DECALS)

For the safety of the operator and the personnel working around the site, safety signs (decals)

are placed at certain locations on the machine as shown below. Walk around the machine with

this manual, and check the content and location of these safety signs. Review these signs and

the operating instructions in this manual with your machine operators.

• Keep the signs clean and legible. If any of the safety labels is peeling or damaged and

becomes difficult to read, replenish it with a new one. Please include your product serial

number when ordering a new sign from the Takeuchi service agent.

• When a part/unit to which a safety sign is attached is replenished, a new sign must be

attached to the new part/unit.

1-35

CONTROLS

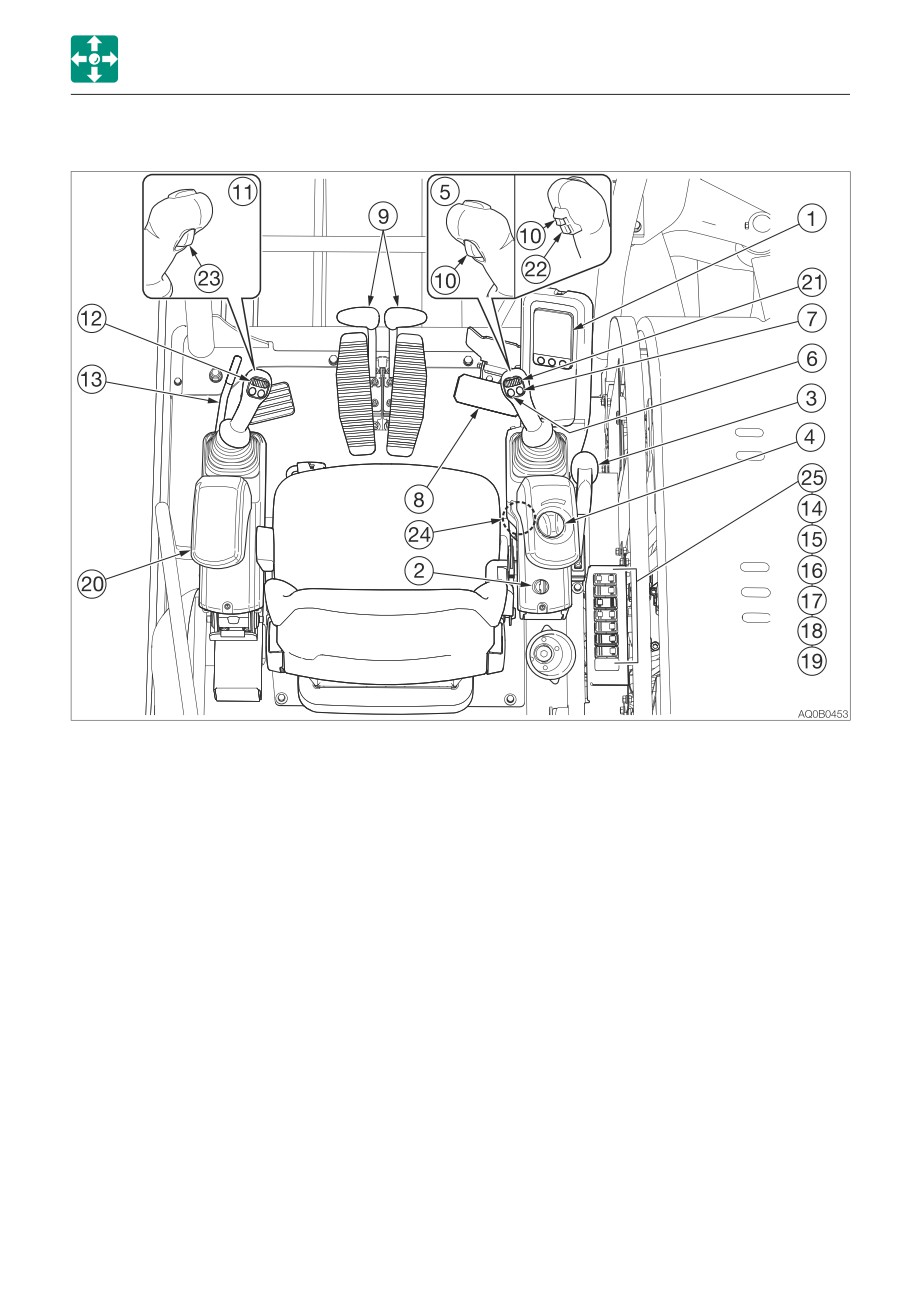

NAMES OF COMPONENTS

1. Instrument cluster

14. Light switch

2. Starter switch

15. Automatic deceleration switch

3. Blade lever

16. Power/Highland mode switch

4. Throttle controller

17. Detent mode switch

5. Right operating lever*

18. Lift overload warning switch*

6. Horn button

19. Beacon lamp switch*

7. Deceleration button

20. Engine shutdown switch*

8. Boom swing pedal

21. Auxiliary 2nd/4th switch*

9. Travel levers/pedals

22. Auxiliary 2/4 select button*

10. Travel speed button

23. Third auxiliary hydraulic button*

11. Left operating lever

24. Third auxiliary hydraulic switch*

12. Auxiliary 1st switches

25. DPF manual regeneration/inhibit select

13. Safety lock lever

switch <Applicable machine models

126100003 or later>

*: Subject to the specifications or optional products selected

2-3

CONTROLS

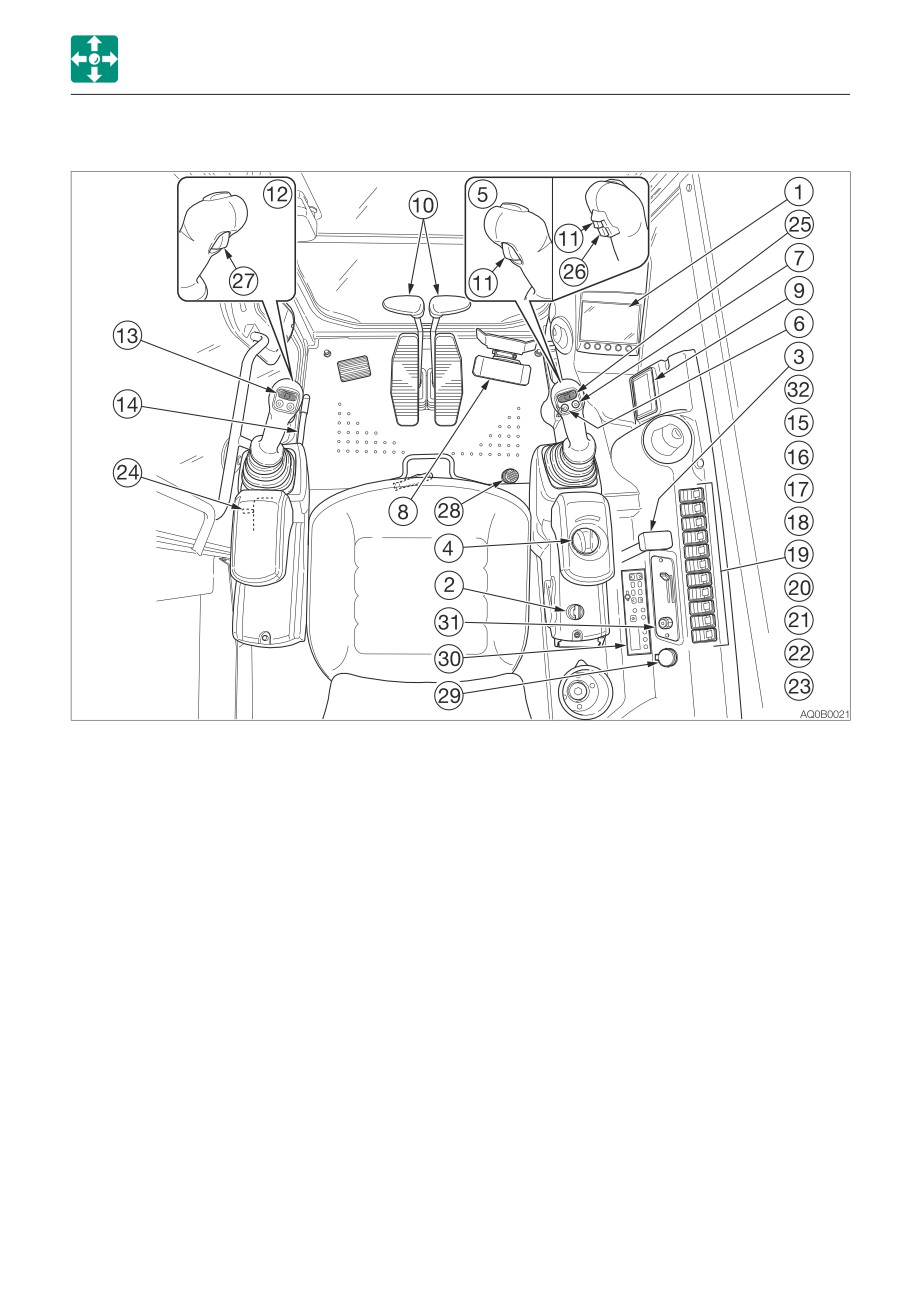

NAMES OF COMPONENTS

1. Multi-information display

18. Automatic deceleration switch

2. Starter switch

19. Power/Highland mode switch

3. Blade lever

20. Detent mode switch

4. Throttle controller

21. Auxiliary 1st auto tank switch*

5. Right operating lever*

22. Lift overload warning switch*

6. Horn button

23. Beacon lamp switch*

7. Deceleration button

24. Engine shutdown switch*

8. Boom swing pedal

25. Auxiliary 2nd/4th switch*

9. Ashtray

26. Auxiliary 2/4 select button*

10. Travel levers/pedals

27. Third auxiliary hydraulic button*

11. Travel speed button

28. Third auxiliary hydraulic switch*

12. Left operating lever

29. Power supply socket*

13. Auxiliary 1st switches

30. Radio*

14. Safety lock lever

31. AC Control panel*

15. Light switch

32. DPF manual regeneration/inhibit select

16. Wiper switch

switch <Applicable machine models

17. Washer switch

126100003 or later>

*: Subject to the specifications or optional products selected

2-5

CONTROLS

COVERS

Opening

COVERS

STARTER KEY

1. Insert the starter key and turn it

counterclockwise to unlock the right side

The starter key is used to start and stop the

cover (1).

engine, as well as to lock and unlock the

2. Push in the key hole with your thumb and

following components:

open the right side cover (1) all the way.

• Cab door

• Engine hood

Closing

• Covers

1. Close the right side cover (1) and press it

down until a click is heard.

2. Insert the starter key and turn it clockwise

RIGHT SIDE COVER

to lock the right side cover (1).

• Stop the engine and allow the machine

to cool down before performing

maintenance.

• Do not keep the right side cover open

on a windy day or if the machine is

parked on a slope.

• When opening and closing the right side

cover, be careful not to get your hands

or other parts of your body caught by

the cover.

For inspection and maintenance of the

hydraulic oil system, electrical system or

window washer, open this cover. The

selector valve switching in the auxiliary 1st

and the lever pattern (optional) switching are

also performed.

The grease gun and the tools are stored

under the cover.

2-6

CONTROLS

COVERS

ENGINE HOOD

LEFT SIDE COVER

• Before opening the engine hood, be

Be sure to close the cab door before

sure to stop the engine. If a hand or tool

opening the left side cover and work

becomes trapped in the rotating or

inside. If not, the wind-blown door could

moving part, serious injury could result.

cause injury by striking you in the head or

• When opening or closing the engine

body.

hood, be careful not to get your hands

or other parts of your body caught by it.

The fuel supply pump (if equipped) is placed

under the cover. After use, store it inside.

Opening

1. Insert the starter key and turn it

counterclockwise to unlock the engine

counterclockwise to unlock the left side

hood (1).

cover (1).

2. Push in the key hole with your thumb and

2. Open the left side cover (1).

open the engine hood (1).

Closing

1. Close the left side cover (1) and turn the

1. Close the engine hood (1) and press down

key clockwise to lock it.

the edge of it until a click is heard.

Refer to “Fuel supply pump (If equipped)”

2. Insert the starter key and turn it clockwise

on page 2-84.

to lock the engine hood (1).

2-7

CONTROLS

COVERS

FUEL LID

FUEL FILLER PORT

Be sure to close the cab door before

• Do not smoke and keep away from heat

opening the fuel lid for fueling. If not, the

or flame while filling the fuel tank.

wind-blown door could cause injury by

• Fill the fuel tank in a well ventilated

striking you in the head or body.

place, with the engine turned off.

• Clean up spilled fuel immediately.

For adding fuel or checking its level, open

• Do not fill the fuel tank to capacity.

this cover.

Allow room for oil expansion.

• Securely tighten the fuel filler cap.

Opening

1. Insert the starter key and turn it

counterclockwise to unlock the fuel lid (1).

2. Open the fuel lid (1).

1. Open the fuel lid.

2. Turn the fuel cap (1) counterclockwise and

Closing

remove it.

1. Close the fuel lid (1).

2. Insert the starter key and turn it clockwise

Closing

to lock the fuel lid (1).

1. Turn the fuel cap (1) it clockwise and close

it.

2. Close the fuel lid and lock it.

2-8

CONTROLS

CAB

2. Open the door fully and press it against

CAB

the cab to secure it in place.

CAB DOOR

Closing

When getting on or off the cab, first open

the door all the way until it is secured in

the catch and check that it does not

move.

Open the door fully and press it against the

catch at the back of the door to secure it in

place.

The door must be locked when getting on or

off the machine and while in operation.

1. Push the release lever (3) to the lower.

Locking and unlocking

2. Close the released door.

EMERGENCY EXIT

Front window (excluding machines with a

front guard)

Insert the starter key and turn it.

Opening

1. Pull the knob (1) towards you and open

the door.

If you should become trapped inside the

cab, open the front window to get out.

To open the door from inside the cab,

push the lever (2) to the lower.

2-10

CONTROLS

CAB

FRONT WINDOW

5. Release your thumb from the knobs (2)

and then lift the front window (3) fully and

lock the front window with lock pin (4).

• Grasp the handles firmly with both

Closing

hands when opening and closing the

front window. Your head or hands may

get caught if it slips from your hands.

When closing the front window slowly so

• When the front window is opened or

as not to hit your head. Lowering the

closed, it will come close to the head.

window abruptly may result injury or

Be careful that the window does not

damage the front window.

strike the head.

• When you open the front window, be

sure to lock it in place with the lock pins

on the left and right sides. The window

may fall if it is not locked in place.

Opening

1. Grasp the left and right handles (1) and

press the knobs (2) with your thumb to

release the lock.

2. Pull down the front window (3) and while

doing so, slide it to the front and slowly

lower it.

1. Park on a level surface and stop the engine.

2. Set the safety lock lever to the locked

position.

3. Grasp the left and right handles (1) and

press the knobs (2) with your thumb to

release the lock.

4. Pull the front window (3) toward you and

lift while doing so.

3. Release your thumb from the knobs (2)

and then press the front window toward

front and lock the front window with lock

pin (4).

2-11

CONTROLS

CAB

EMERGENCY HAMMER (OPTIONAL)

SUN SHADE

An emergency hammer is installed to be

1. Pull out the sun shade forward.

used to escape from the cab in an

2. Hook the sun shade to the two catches

emergency. When escaping, break the

(1).

windows with the hammer.

• When breaking the window pane with a

hammer, take great care not to injure

yourself with the broken glass pieces.

• Remove the glass pieces from the window

sill so as not to cut yourself when

evacuating. Broken glass will fall from the

window, so be careful of your footing and

do not slip on the glass.

2-13

CONTROLS

SEAT AND SEAT BELT

(B) Fore-and-aft adjustment

SEAT AND SEAT BELT

1. Pull up the lever (2) and slide the seat

SEAT

backward or forward to the desired

position for operation of machine.

2. Release the lever (2) at the desired

position to secure the seat.

• Adjust and secure the seat.

Adjustment range: 15 positions, in 150

• Do not make any adjustments while

mm (5.9 in.)

operating the machine.

• Do not set the backrest to its maximum

reclining position and slide the seat

backwards at the same time. Doing so

may damage the rear window or cause

injury.

• Remember that the backrest returns to

the forward position abruptly due to the

spring force.

weight

1. Turn the handle (3) until the scale (4)

indicates the weight of operator.

Adjustment range: 50 to 130 kg (110 to

287 lbs)

AG7B021

(D) Adjusting the height of the seat

Upward

(A) Adjusting the backrest angle

1. Lift the seat to first or second position

1. Sit up and sit back in the chair.

click-stop.

2. Pull up the lever (1), recline the backrest

Adjustment ranges: 2positions, in 60mm

by using the spring force. Release the

(2.36 in.)

lever (1) at the desired angle to secure the

Downward

backrest.

1. First lift the seat to highest position, then

the seat can be lowered to lowest

position.

2-14

CONTROLS

SEAT AND SEAT BELT

(E) Adjusting the headrest (Option)

SEAT BELT

The headrest (E) can be moved upward or

downward.

1. Grab the headrest (E) with both hands,

and move upward or downward to the

Be sure to fasten the seat belt securely

desired position.

before starting the engine.

Fastening the seat belt

1. Adjust the seat to the desired position for

operation, sit up and sit back in the chair.

2. Pull the seat belt to the desired length.

3. Make sure that the belt is not twisted and

then insert the tongue plate (A) into the

buckle (B) of the seat belt until you hear a

clicking sound as it locks in place.

4. Check if the belt is securely locked by

pulling it, and arrange the belt around your

waist.

Releasing the seat belt

1. Grasp the tongue plate (A) and press the

button (C) on the buckle (B).

The seat belt retracts back into its original

position.

2-15

CONTROLS

MULTI-INFORMATION DISPLAY

MAIN MENU SCREEN

For explanation purposes, all lamps on this page are in the lit condition. This screen image is

quite different from that of the real operation. In the actual operation, if a warning is given or

any function is selected, the corresponding symbol appears enlarged at the center of the

display for approx. one second.

When the starter switch is set to ON, the battery charge warning lamp and the engine oil

pressure warning lamp first appear enlarged, and then turn on with an alarm at their original

locations. The machine system is normal if the lamps turn off after the engine is started.

2-16

CONTROLS

MULTI-INFORMATION DISPLAY

WARNING LAMPS

4. Water separator warning lamp

This lamp flashes if the water is detected

IMPORTANT: If a warning lamp flashes

within the water separator while the starter

and an alarm is sounded, immediately

switch is in the ON position.

stop all operations and check the

corresponding component.

5. Coolant temperature warning lamp

Refer to “If a warning lamp flashes” on

This lamp flashes and an alarm is sounded

pages 6-10 and 6-11.

if the engine coolant temperature

becomes abnormally high while the engine

1. ECM error warning lamp <Applicable

is running.

machine models 126100003 or later>

This warning lamp flashes if the Electronic

6. Air cleaner warning lamp

Control Module (ECM) detects an engine

This lamp flashes and an alarm is sounded

problem while the starter switch is in the

if the air cleaner filter is clogged while the

ON position. The problem detected is

engine is running.

recorded as an ECM error.

Refer to “Engine error code list” on pages

7. Fuel filter warning lamp

6-14 to 6-21.

This lamp flashes and an alarm is sounded

if the fuel filter is clogged while the engine

1-1. Vehicle and engine emergency lamp

is running.

This lamp is displayed enlarged for one

second, and then flashes and an alarm

8. Fuel level warning lamp

sounds if there is a problem with the

This lamp flashes when the fuel level is low

machine. Go to the (7) error code

while the starter switch is in the ON

display from the Menu screen, get the

position.

vehicle or engine error code number,

and consult your sales or service dealer

9. Third auxiliary hydraulic warning lamp

referring to the “Vehicle error code list”

This lamp starts flashing and an alarm

or “Engine error code list” in this

sounds if the fixed side (left “e”) pressure

manual.

of the auxiliary 3rd drops abnormally while

Refer to “Menu screen” on page 2-22.

the engine is running, or while the quick-

Refer to “(7) Error code display” on

hitch is being removed or installed.

page 2-25.

Refer to “Vehicle error code list” on

pages 6-12 to 6-13.

Refer to “Engine error code list” on

pages 6-14 to 6-21.

2. Battery charge warning lamp

This lamp flashes and an alarm is sounded

if a problem rises in the charging system

while the engine is running.

3. Engine oil pressure warning lamp

This lamp flashes and an alarm is sounded

if the lubricant oil pressure abnormally low

while the engine is running.

2-17

CONTROLS

MULTI-INFORMATION DISPLAY

INDICATORS

13. DPF auto regeneration/inhibit

indicator lamp

10. Deceleration indicator lamp

<Applicable machine models 126100003

or later>

Automatic deceleration

indicator

DPF auto regeneration

under way

Deceleration indicator

DPF auto regeneration

inhibit

Automatic deceleration indicator

It flashes when the automatic

DPF auto regeneration under way

deceleration switch is pressed and

The DPF regeneration is automatically

remains lit while in the deceleration

performed by the engine, when certain

mode.

criteria are met. The operator only has to

Refer to “Deceleration button” on page

check the display.

2-49.

Refer to “Automatic deceleration switch”

DPF auto regeneration inhibit

on page 2-55.

The DPF manual regeneration inhibit

symbol appears on the display when the

Deceleration indicator lamp

DPF manual regeneration under way or

This lamp turns on when the deceleration

the DPF auto regeneration under way is

button is pressed. The lamp lights up to

cancelled.

indicate that the engine is in the

Refer to “DPF manual regeneration/

deceleration mode at low idling speed

inhibit select switch” on page 2-52.

(1150 rpm).

14. DPF manual regeneration under way/

11. Exhaust temperature warning

regeneration promoting indicator

indicator

<Applicable machine models 126100003

or later>

The indicator starts flashing and an alarm

This indicator lights up to warn if the

starts sounding, if the accumulated PM

exhaust temperature is abnormally

exceeds the limited amount on the DPF.

increased. Check for any flammable

Immediately perform the manual DPF

items around the exhaust piping.

regeneration.

Refer to “DPF manual regeneration/

12. Glow indicator lamp

inhibit select switch” on page 2-52.

This indicator lamp turns off when the

engine preheating is completed.

15. Highland mode indicator lamp

Highland mode is selected.

Refer to “Power/Highland mode switch”

on page 2-55.

2-18

CONTROLS

MULTI-INFORMATION DISPLAY

16. Travel speed indicator lamp

21. High-flow indicator lamp

This lamp flashes and then stays lit when

the auxiliary 1st flow rate is set to high-flow.

It also flashes when the high-flow setting

High-speed travel

is changed.

22. Dozer blade float indicator lamp

Low-speed travel

(If equipped)

This lamp lights up when

the float switch on the

This lamp turns on when the travel speed

blade lever is pressed.

button is set to the 2nd (high) speed.

17. Power mode indicator lamp

23. Water temperature gauge

This lamp lights up when the power

Indicates the temperature of the engine

mode side of the Power/Highland mode

coolant water. The indicator level must

select switch is pressed. The maximum

be within the green range during

engine output is maintained for as long

machine operation. The red range

as this lamp is lit.

indicates overheating.

18. Lift overload warning indicator lamp

24. Fuel gauge

This lamp turns on when the lift overload

Indicates the amount of fuel in the tank.

warning switch is turned on.

Be sure to fill up the tank before running

out of fuel.

19. Auxiliary 2nd/4th select indicator lamp

25. Throttle opening position indicator

Auxiliary 2nd is selected.

Auxiliary 4th is selected.

20. Auxiliary 1st one-way (one-way

circuit) indicator lamp

Auxiliary 1st auto tank is

selected.

Auxiliary 1st one-way is

selected.

No display: Two-way (two-way circuit) is

selected.

2-19

CONTROLS

MULTI-INFORMATION DISPLAY

The red range increases as the engine

27. Air conditioner indicator lamp

load increases, indicating higher fuel

Lights up while the air conditioner is

consumption. When the button (C) (Bar

operating.

meter key) is pressed in a normal screen,

the display is changed from the throttle

28. Working light indicator

opening position to the lift load factor

Lights up when the working light is

and the PM accumulation amount (only

turned on.

for machine models of 126100003 or

later), in this order.

29. Date and time indicator

• The lift load factor is displayed if there

is no change in the throttle opening

Displays the date and

position for five seconds after the lift

time set.

alarm switch is turned on.

Refer to “Date and

• The throttle opening position is

time setting” on page

displayed if the highland mode switch

2-25.

is turned on or there is a change in the

throttle opening position.

30. Hour meter/Trip meter

• Hour meter

26. Auxiliary 1st flow rate indicator lamp

This lamp lights up to indicate which flow

Displays the total

rate setting is selected in the auxiliary 1st.

engine running time in

hours.

The rightmost digit

a Flow rate setting 1

indicates tenths of

hours (6 minutes).

b Flow rate setting 2

Set the inspection and maintenance

intervals according to the time displayed on

the hour meter.

c Flow rate setting 3

• Trip meter

Three patterns of desired operating hours

d Flow rate setting 4

can be displayed.

Refer to “Trip meter setting” on page 2-23.

e Flow rate setting 5

Flow rate setting 6

Flow rate setting 7

Flow rate setting 8

Flow rate setting 9

Refer to “Auxiliary 1st flow rate setting”

on page 2-23.

2-20

CONTROLS

MULTI-INFORMATION DISPLAY

SCREEN CONTROL KEY

Press and hold this key for one second to

rapidly increase the value.

D.Auxiliary 1st key

The auxiliary 1st symbol is displayed in the

initial screen. Pressing this key changes

the symbol display in the following order.

Auxiliary 1st setting 1, Auxiliary 1st setting

2, Auxiliary 1st setting 3.

Enter key

Use this key to confirm or execute the

setting made by each key.

Note: Do not press the symbol keys on the

To clear the trip meter being displayed,

display. The LCD could be damaged if the

press and hold this key for three seconds.

symbol keys are pressed hard. For actual

operation, press the push button keys

E. Camera image key (If equipped)

located at the bottom of the screen.

<Applicable machine models 126001208 or

later>

A. Menu key

Use this key to switch between the Home

screen and the Menu screen. This key is

Do not look at the images produced by

also used to cancel changes made in

the camera when traveling in reverse.

each setting. The screen returns to the

Move in reverse while visually looking at

Home screen if this key is pressed in the

the direction of travel.

information screen.

B. Hour meter key

This hour meter symbol is displayed in the

initial screen. Pressing this key changes

the meter display in the following order.

Trip meter 1, Trip meter 2, Trip meter 3,

Hour meter.

Down (

) key

Use this key to move the cursor

downward and to decrease the value in

each setting. Press and hold this key for

1. Press the Camera key in the Main screen

one second to rapidly decrease the value.

to display the images taken by the rear

camera.

C.Bar meter key

2. Press the Camera key again or other key

This hour meter symbol is displayed in the

to return to the Main screen.

initial screen. Pressing this key changes

the meter display in the following order.

Throttle opening position, Lift load factor,

PM accumulation amount

Up (

) key

Use this key to move the cursor upward

and to increase the value in each setting.

2-21

CONTROLS

MULTI-INFORMATION DISPLAY

SCREEN NAVIGATION

• Menu screen

Press the Menu key to go the Menu screen while in the Home screen.

(1) Trip meter setting

(2) Auxiliary line flow rate display

(3) Auxiliary 1st flow rate setting

(4) Auxiliary 2nd/4th flow rate setting

(5) Date and time setting

(6) Data display

(7) Error code display

(8) LCD setting

Move the cursor with the Up (

) or Down (

) key to go to the desired item to be set, and

then press the Enter key to confirm. To return to the Menu screen, press the Menu key.

The wrench symbol indicates the “setting is possible state” and the ( i ) mark indicates

information only.

2-22

CONTROLS

MULTI-INFORMATION DISPLAY

(1) TRIP METER SETTING

(3) AUXILIARY 1ST FLOW RATE SETTING

Six patterns of desired operating hours can

Three flow rate patterns can be set in the

be set.

auxiliary 1st.

To start setting, press the Enter key. The

Refer to the trip meter setting for the key

value flashes while being set.

operation. To move the cursor in the

Up (

) key: Increases the value or moves the

direction of the arrow, use the Down (

) key.

cursor upward. Rapidly increases the

To move the cursor in the opposite

value when pressed and held for one

direction of the arrow, use the Up (

) key.

second.

Down (

) key: Decreases the value or moves

Initial

A/B common,

Variable

the cursor downward. Rapidly decreases

condition

standard flow

range

the value when pressed and held for one

second.

100%=57L/min

Auxiliary 1st-1

10 to 100%

Enter key: Confirms setting

(15.1 US gpm)

Menu key: Cancels setting or returns to the

Menu screen.

75%=43L/min

Pressing and holding the Enter key for three

Auxiliary 1st-2

10 to 100%

(11.4 US gpm)

seconds clears the trip meter pointed by the

cursor.

50%=28L/min

Auxiliary 1st-3

10 to 100%

(7.4 US gpm)

(2) AUXILIARY LINE FLOW RATE DISPLAY

Maximum

A/B common,

Variable

flow rate

high-flow

range

Auxiliary

180%=102L/min

101 to

1st-1, 2, 3

(26.9 US gpm)

180%

The table shows the 1-way flow rate when

there is no load.

Displays the flow rate of the Auxiliary 1st,

2nd and 4th.

The flow rate cannot be changed.

2-23

CONTROLS

MULTI-INFORMATION DISPLAY

(4) AUXILIARY 2ND/4TH FLOW RATE

SETTING

Pressing the Enter key while the cursor is

at “Select ATT” goes to the attachment

select screen.

Pressing the Down (

) key will move the

One pattern of the auxiliary 2nd/4th flow rate

blue flashing light in the direction of the

can be set.

arrow.

Pressing the UP (

) key will move the blue

Initial

Variable

flashing light in the opposite direction of the

Standard flow

condition

range

arrow.

C/D

Move the blue flashing light to the desired

Auxiliary 2nd

100%=44L/min

10 to 100%

symbol or the number, and then press the

(11.6 US gpm)

Enter key to confirm.

The selected symbol will appear at the lower

G/H

left of the Home screen.

Auxiliary 4th

100%=44L/min

10 to 100%

(11.6 US gpm)

The table shows the 1-way flow rate when

there is no load.

Refer to the trip meter setting for the key

operation. To move the cursor in the

direction of the arrow, use the Down (

) key.

To move the cursor in the opposite

direction of the arrow, use the Up (

) key.

2-24

CONTROLS

MULTI-INFORMATION DISPLAY

(5) DATE AND TIME SETTING

Display items

• Engine RPM

• Coolant temperature

•—

• Battery voltage

• PM accumulation amount <Applicable

machine models 126100003 or later>

(7) ERROR CODE DISPLAY

The year, month, date, hour and minute can

be set. (Effective year range: 2010 to 2099)

• Move the cursor to the clock symbol,

and then press the Enter key. The cursor

will be shifted to the place for setting the

year.

Press the Enter key again, and then enter

the year. (The year display keeps flashing

during editing.)

Press the Enter key to confirm. The month,

........Vehicle error code

date, hour and minute can be set using the

Displays four error codes, with the latest

same procedure for the year.

code in the upper left.

• Move the cursor to the calendar symbol,

Refer to “Vehicle error code list” on pages

and then press the Enter key to change the

6-12 to 6-13.

format of “Year-Month-Date” to “Date-

Month-Year” or “Month-Date-Year”.

........ECM error code

Refer to the trip meter setting for the key

<Applicable machine models 126100003

operation.

or later>

Engine ECM (Engine Control Module) error

code

(6) DATA DISPLAY

Displays three error codes, with the latest

code at the top.

Refer to “Engine error code list” on pages

6-14 to 6-21.

IMPORTANT: If an error code appears,

immediately stop the operation and

contact a Takeuchi sales or service outlet

for help.

Displays various data. The setting cannot be

changed.

2-25

CONTROLS

MULTI-INFORMATION DISPLAY

(8) LCD SETTING

• Unit setting

Switch between SI unit and US units.

• Background color setting

Move the blue flashing light to the desired

unit position, and then press the Enter key

to confirm.

Menu key: returns to the Menu screen.

Pressing the Menu key again returns to the

Home screen.

Move the cursor to the background

color symbol, and then press the Enter

key. The blue flashing light moves from

blue gray to gray, blue and black, in this

order. Move the blue flashing light to the

desired color position, and then press the

Enter key to confirm.

The background color can be changed in

this screen, regardless of mode (day or

night).

• The brightness of the LCD is set to

between 0 and 100%.

The brightness changes each time the

adjustment is made.

Day mode: initial setting value is 50%

Night mode: initial setting value is 50%

While in the day (night) mode, adjustment

is possible only for the brightness set to the

night (day) mode.

Refer to the trip meter setting for the key

operation.

2-26

CONTROLS

INSTRUMENT CLUSTER

For explanation purposes, all lamps on this

WARNING LAMPS

page are in the lit condition. This screen

image is quite different from that of the real

IMPORTANT: If a warning lamp flashes

operation.

and an alarm is sounded, immediately

Once the starter switch is turned to ON, all

stop all operations and check the

lamps on the instrument cluster light up and

corresponding component.

the alarm sounds.

Refer to “If a warning lamp flashes” on

Then, the battery charge warning lamp (3)

pages 6-10 to 6-11.

and the engine oil pressure warning lamp (2)

start flashing and an alarm sounds. The

machine system is normal if the lamps turn

off after the engine is started.

If any lamp is not lit when the starter switch

is turned to ON, there is something wrong in

the machine. Consult your sales or service

dealer.

2-28

CONTROLS

INSTRUMENT CLUSTER

1. Vehicle and engine emergency lamp

INDICATORS

This lamp flashes and an alarm sounds if

there is a problem with the machine. Go to

7. Glow lamp

the “Failure Record (FAILURE RECORD)”

This lamp goes out when the engine

from the side menu screen, get the vehicle

preheating is completed.

or engine error code number, and then

consult your sales or service dealer

8. Travel speed lamp

referring to the “Vehicle error code list” or

This lamp turns on when the travel speed

“Engine error code list” in this manual.

button is set to the 2nd (high) speed.

Refer to “Side menu screen” on page

2-39.

9. Deceleration lamp

Refer to “Failure Record (FAILURE

This lamp turns on when the deceleration

RECORD)” on page 2-46.

button is pressed. The lamp lights up to

Refer to “Vehicle error code list” on pages

indicate that the engine is in the

6-12 and 6-13.

deceleration mode at low idling speed

Refer to “Engine error code list” on pages

(1150 rpm).

6-14 to 6-21.

It flashes When the automatic deceleration

switch is pressed to indicate that the

2. Engine oil pressure warning lamp

machine is in the automatic deceleration

This lamp flashes and an alarm is sounded

mode.

if the lubricant oil pressure abnormally low

Refer to “Deceleration button” on page

while the engine is running.

2-49.

Refer to “Automatic deceleration switch”

3. Battery charge warning lamp

on page 2-55.

This lamp flashes and an alarm is sounded

if a problem rises in the charging system

while the engine is running.

METERS

4. Coolant temperature warning lamp

10. Water temperature gauge

This lamp flashes and an alarm is sounded

Indicates the temperature of the engine

if the engine coolant temperature

coolant water.

becomes abnormally high while the engine

The LED should be within the green

is running.

range during machine operation.

The red range indicates overheating.

5. Fuel level warning lamp

This lamp turns on if the fuel level

11. Fuel gauge

becomes low while the starter switch is in

Indicates the amount of fuel in the tank.

the ON position.

Be sure to top off the tank before running

out of fuel.

6. Air cleaner warning lamp

This lamp flashes and an alarm is sounded

if the air cleaner filter is clogged while the

engine is running.

2-29

CONTROLS

INSTRUMENT CLUSTER

MULTI-DATA DISPLAY

3. Time display

Displays the time set.

12. LCD (Liquid Crystal Display)

Refer to “Time setting” on page 2-37.

It displays various functions and data on

hour meter, trip meter, clock, tachometer

4. Tachometer

and the machine.

Home screen

Displays the engine RPM in 10 levels.

Pressing the (B) key while the tachometer is

displayed changes to the display of the PM

accumulation rate and lift load factor, in this

1. Key function display

order.

The key function display changes

• The throttle opening position is displayed if

depending on the screens (Home, Menu

the lift alarm switch is turned on and there

and each setting)

is no change in the throttle opening

For actual operation, use the buttons, “A”,

position.

“B” and “C”, located beneath each

• The tachometer is displayed if the highland

symbol.

mode switch is turned on or there is a

Refer to “Function of each key” on pages

change in the throttle opening position.

2-34 to 2-47.

5. Functions (Page 1)

2. Hour meter/Trip meter

• Hour meter

Displays the total engine running time in

hours.

The rightmost digit indicates tenths of

hours (6 minutes).

Set the inspection and maintenance

intervals according to the time displayed

on the hour meter.

• Trip meter

Three patterns of desired operating hours

can be displayed.

Refer to “Trip meter display” on page

2-34.

2-30

Takeuchi Mini Excavator TB260 (S/N 126000002~, S/N 126100003~). Operator's Manual - page 2
