New Holland TX62, TX63, TX64 Plus, TX65 Plus, TX66, TX67, TX68, TX68 Plus. Operator's Manual

SECTION 8

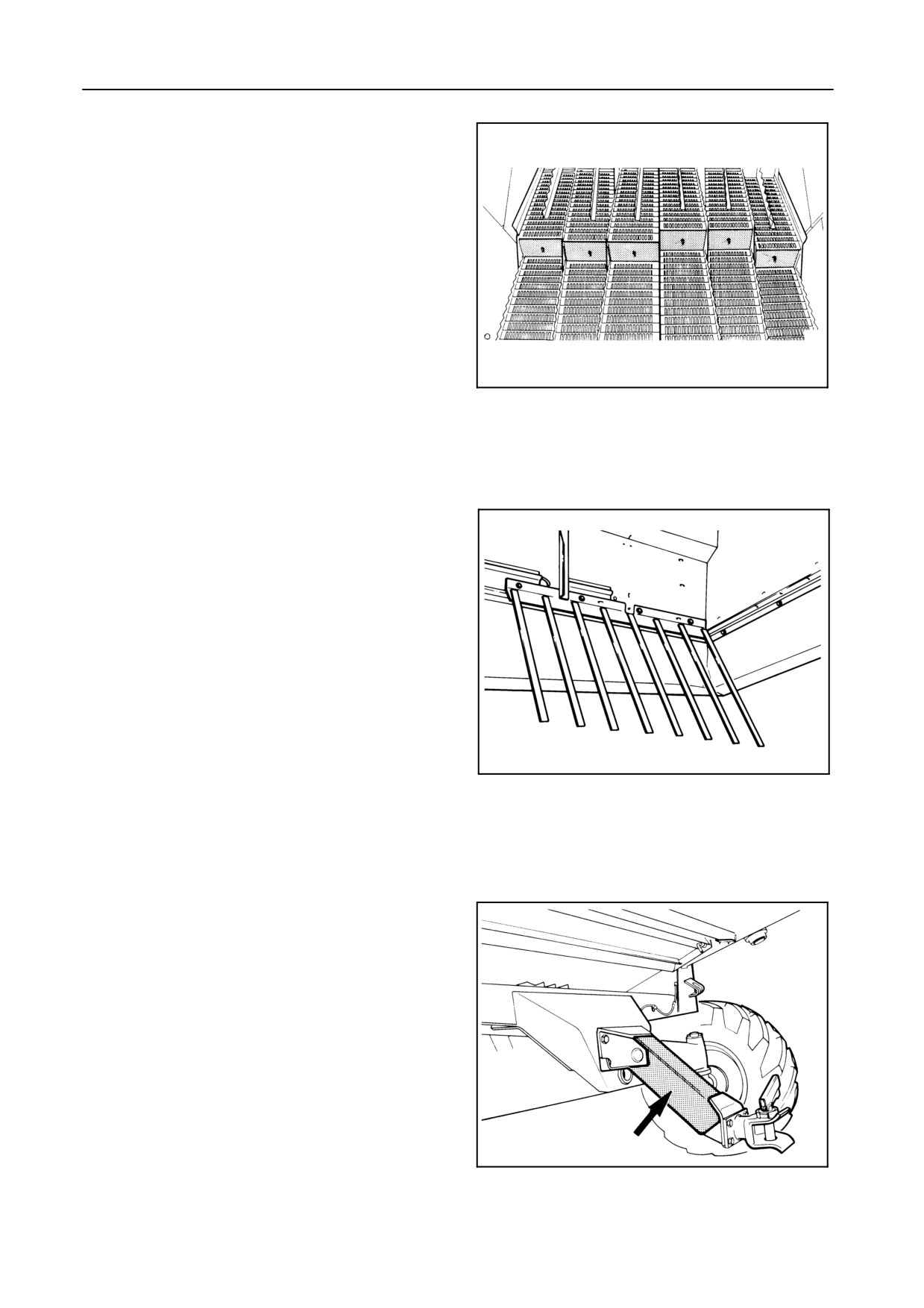

VERTICAL STRAW WALKER COVER PLATES --

Figure 24

This equipment can be fitted to cover all the vertical

apertures of the straw walkers in order to reduce the

amount of material on the sieves when harvesting

short brittle straw crops.

51516

STRAW DEFLECTOR -- Figure 25

This deflector can be installed in the straw hood to re-

duce the swath width.

42322

HEADER TRAILER HITCH -- Figure 26

A hitch is available for towing the header trailer.

Maximum static load on this hitch is 50 kg.

Maximum allowed header trailer weight is 1850 kg

(Germany) or 2000 kg (all other countries)

42925

8-11

ACCESSORIES

ADJUSTABLE SPOT LIGHT -- Figure 27

An adjustable spot light can be installed on the railing

on the left-hand side of the engine, to facilitate the un-

loading operation at night.

54742

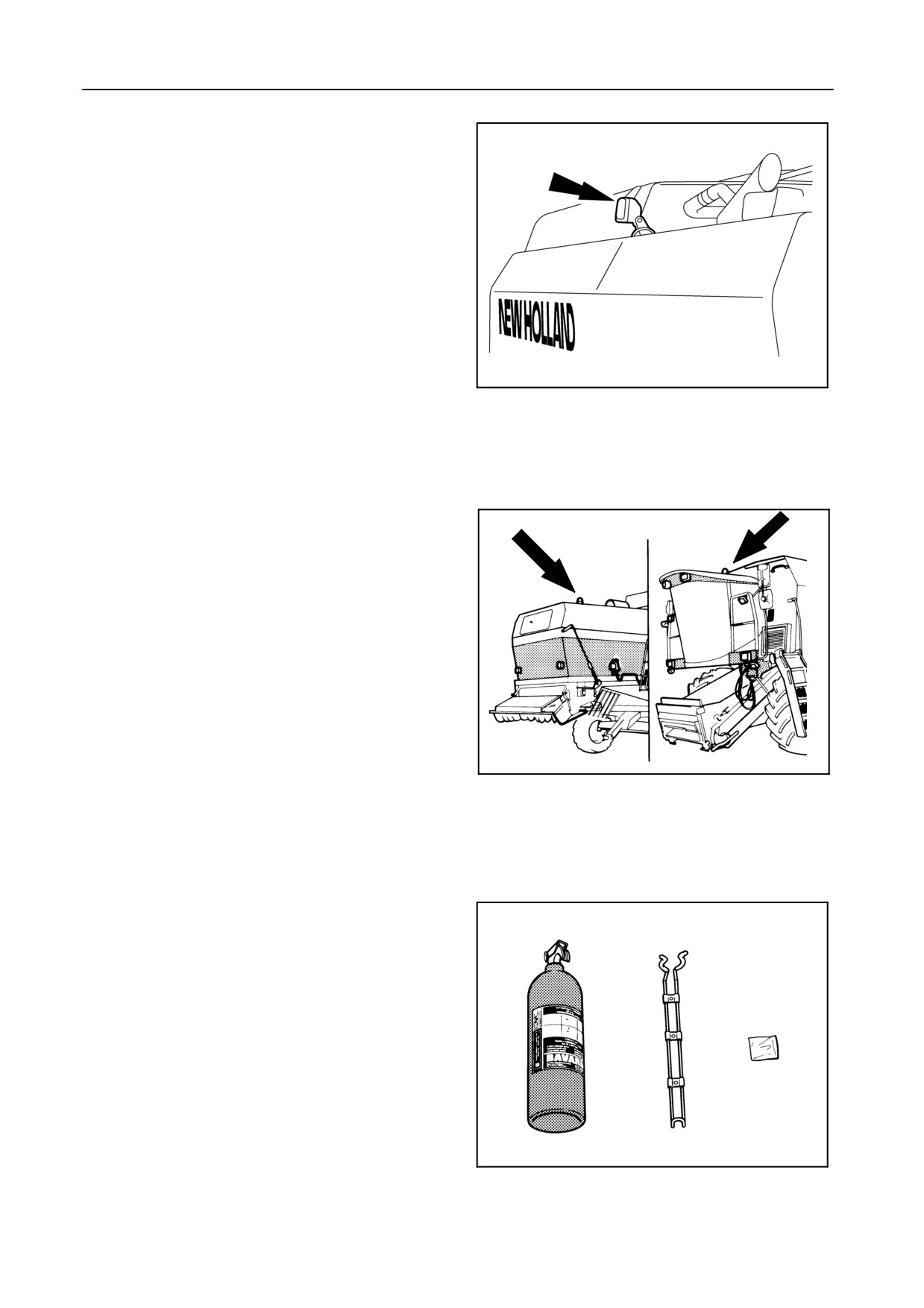

TRAFFIC WARNING BEACONS -- Figure 28

Two traffic warning beacons can be fitted on the ma-

chine to provide advance warning to other road users,

when travelling on public highways, that the vehicle is

wide and slow-moving.

NOTE:

It depends on local legislation whether this

equipment is mandatory or forbidden for road

transport.

42926

FIRE EXTINGUISHER -- Figure 29

A6kgfireextinguishercanbeinstalledinarm’sreach

of the operator.

NOTE:

In some countries the fire extinguisher is man-

datory.

42323

8-12

SECTION 8

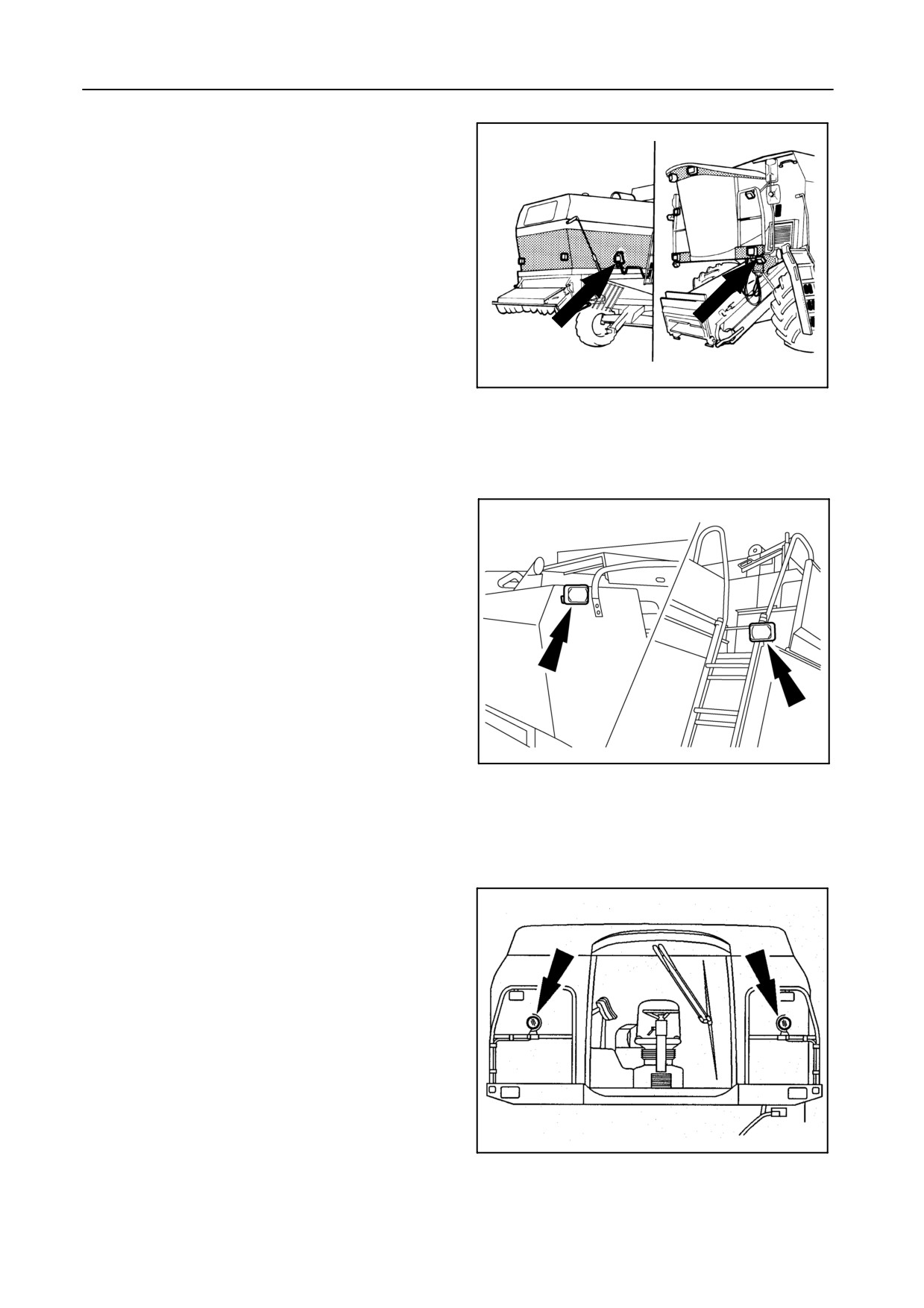

STUBBLE AND OPERATING LIGHTS KIT -- Figures

30 and 31

This kit consists of two lights to illuminate the stubble

behind the header, one light on the right-hand side of

the straw hood and two lights on the rear of the com-

bine to illuminate the rear of the machine.

These lights must be extinguished for road travel.

42926

54743

ADDITIONAL LIGHT KIT -- Figure 32

To ensure safe road transport, additional headlights

can be installed on the railing when a flip-up maize

header is attached to the combine.

54622

8-13

ACCESSORIES

AUTOMATIC LATERAL FLOAT SENSORS --

Figure 33

An additional set of autofloat sensors can be obtained

to be fitted onto a maize header when the combine is

equipped with the automatic lateral float system. This

will avoid removal of the sensors on the grain header.

42907

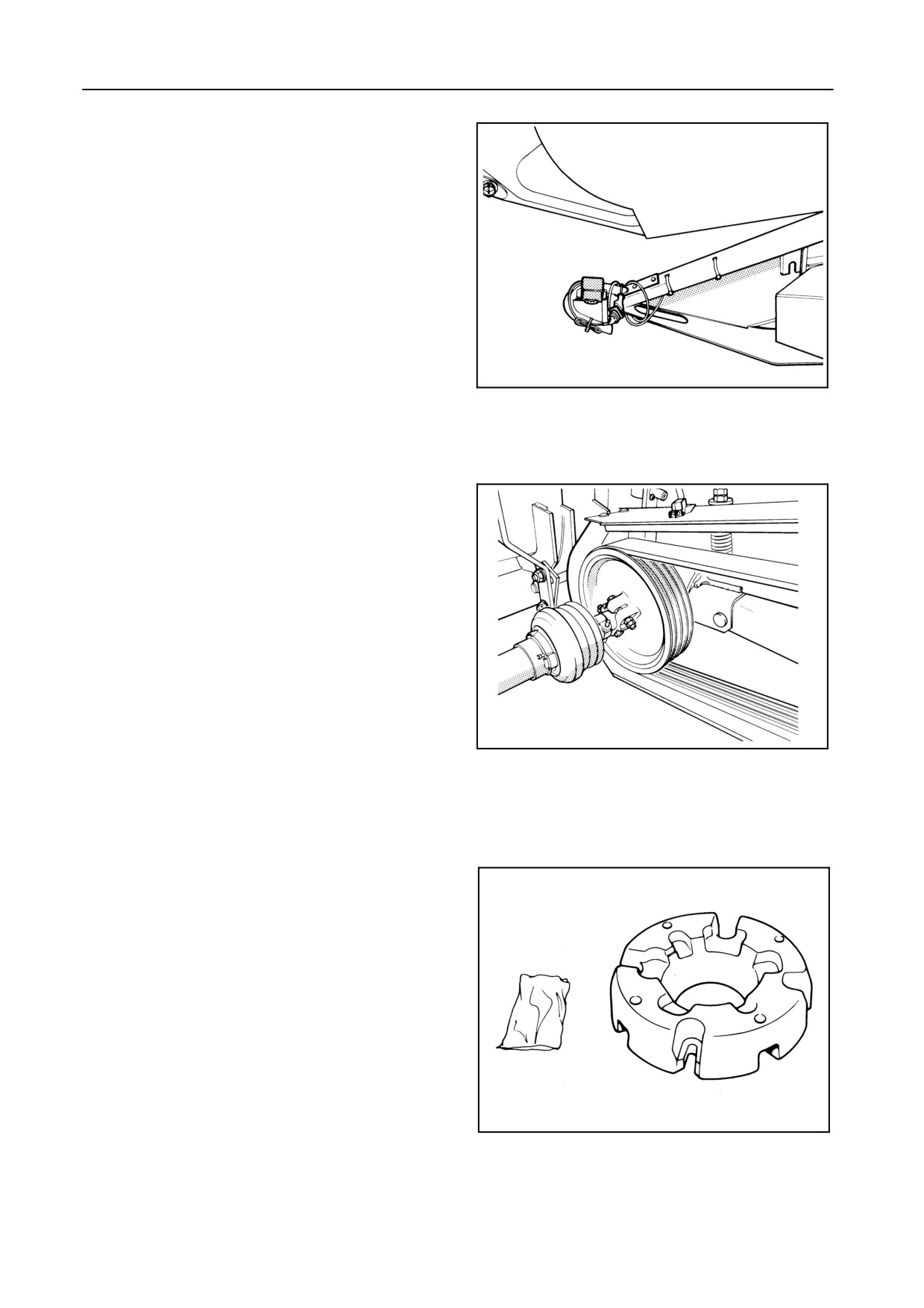

STRAW ELEVATOR/HEADER DRIVE BY 3HB/4HB

BELTS -- Figure 34

This belt can be installed if the combine is equipped

with a 2HB/1HC straw elevator/header drive and a

maize header or stripper header should be driven.

42908

COUNTERWEIGHTS -- Figures 35 and 36

Counterweights can be installed when attaching a

heavy header, e.g. a maize header.

42324

8-14

SECTION 8

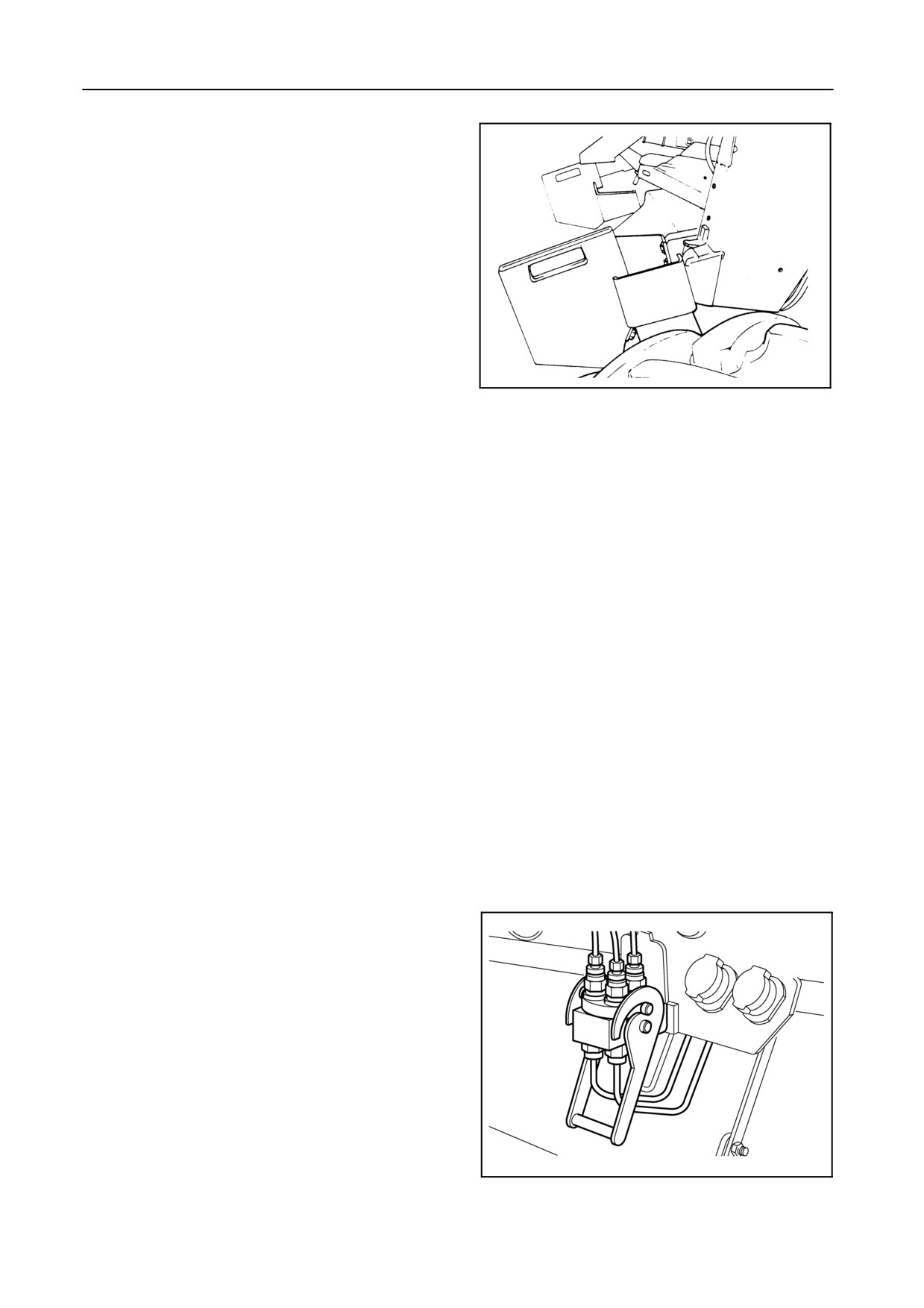

Frame counterweights can be fitted at the rear of the

frame on special supports.

43097

AIR BLOWING SYSTEM

Models TX66-67-68-68PLUS only

An air blowing system can be installed to keep the en-

gine compartment clean.

ELECTRIC OVERRIDE CABLE

This override cable can be installed to control the

stack valve and the header height control valve in

case of an electrical breakdown.

QUICK-RELEASE COUPLER -- Figure 37

To attach and detach the header on a frequent basis,

the quick-release coupler allows all hydraulic lines to

be connected simultaneously.

54744

8-15

SECTION 9

SPECIFICATION

NOTE:

Only original NEW HOLLAND wheel rims

The specifications given below are only ap-

should be used in combination with the

proximate and may vary slightly from machine

tyre sizes indicated. Only these tyre/

and/or harvesting conditions.

wheel rim combinations have been

homologated in relation to the machine

weight, width and road speed limits.

The rims should be fitted in such a way

WHEELS AND TYRES

that the maximum overall machine width

permitted locally on public roads is ad-

hered to.

WARNING:

The tyres specified by the manufacturer

are the only tyres approved. If non-

CAUTION:

genuine or replacement tyres are used,

Road travel in 4th gear with grain in the

these must be identical in size and

grain tank is not allowed.

strength [PR rating for diagonal tyres or

Load Capacity for radial tyres (e.g. 166

A8)] to the specified tyres. The recom-

mended tyre pressure has to be main-

tained at all times.

9-1

SPECIFICATION

WHEEL NUTS TORQUE

Check the wheel nuts torque daily during the first

week of operation and thereafter on a weekly basis.

Torque (Nm)

min

max

Traction wheel nuts torque

610

730

Steering wheel nuts torque with fixed

steering axle or adjustable steering axle

410

492

Steering wheel nuts torque with rear-

wheel drive

406

435

Steering wheel nuts torque with heavy-

duty adjustable steering axle

410

492

RECOMMENDED TYRES AND TYRE INFLATION

PRESSURES

The recommend pressures are at the same time the

minimum pressures allowed by the manufacturer.

The tables below list the recommended tyre inflation

pressures to obtain maximum field performance, with

a special header attached.

One column gives the maximum permitted inflation

pressure. This maximum pressure is recommended

when the machine is to be driven frequently on public

roads to avoid excessive tyre wear.

9-2

Recommended traction tyres pressures

Tyre selection chart TX62-63

HEADERS

GRAIN

FLEX

MAIZE

12ft

13ft

15ft

17ft

20ft

15ft

19ft

TRACTION TYRES

Width

Rim

Offset

Track

Overall

Max. pressure

width

2.1

2.2

2.3

2.5

2.3

2.4

2.6

620/75R30-163A8-DT820

613

DW20A

2560

3173

3.0

--50

2734

3347

1.7

1.8

1.9

2.0

1.9

2.0

650/75R32-167A8-DT820

633

DWW21A

2586

3219

3.0

--37

2708

3341

24(*)

3086

3719

--37(*)

3208

3841

1.0

1.1

1.2

1.3

800/65R32-167A8-STR

788

DWW27A

--113

2860

3648

2.0

100(*)

2934

3722

--113(*)

3360

4148

1.0

1.1

1.2

1.3

800/65R32-167A8-STR

768

DWW25A

--40

2714

3482

2.0

1.0

1.1

1.2

1050/50R32-174A8-XM609

1112

DH36

0(*)

3134

4246

2.0

(x) not allowed

(*) mounted with axle extensions (2 x 250)

STEERING TYRES

Width

Rim

Offset

Track

Overall

Pressure

width

16.0/70x20-10PR-I1-SRi

418

W14

--127

2557

3045

2.5

16.0/70x20-10PR-I3-SGI

416

W14

--127

2555

3036

2.5

400/70R20-145A8-FS24

415

W14

2722

3208

3.2

550/60-22.5-12PR-I3-TI

548

16.00

--10

2905

3532

1.5

17.5LR24-150A8-STR

450

W15L

2918

3451

2.4

540/65R24-146A8-DT820

533

W15L

2917

3536

2.0

16.5/85x28-10PR-SGI

406

W13/W14L

2811

3311

2.0

Only with tracks

540/65R24-146A8-DT820

533

W15L

100

2906

3525

2.0

17.5LR24-150A8-STR

450

W15L

100

2807

3440

2.4

STEERING AXLES

Fixed

Adjustable (+305)

Heavy-duty adjustable (+150)

Powered rear axle (+200)

Recommended traction tyres pressures

Tyre selection chart TX64^PLUS

HEADERS

GRAIN

FLEX

MAIZE

13ft

15ft

17ft

20ft

15ft

19ft

TRACTION TYRES

Width

Rim

Offset

Track

Overall

Max. Pressure

width

2.1

2.2

2.3

2.5

2.3

2.4

2.6

620/75R30-163A8-DT820

613

DW20A

2560

3173

3.0

--50

2734

3347

1.7

1.8

1.9

2.0

1.9

2.0

650/75R32-167A8-DT820

633

DWW21A

2586

3219

3.0

--37

2708

3341

24(*)

3086

3719

--37(*)

3208

3841

1.0

1.1

1.2

1.3

800/65R32-167A8-STR

788

DWW27A

--113

2860

3648

2.0

100(*)

2934

3722

--113(*)

3360

4148

1.0

1.1

1.2

1.3

800/65R32-167A8-STR

768

DWW25A

--40

2714

3482

2.0

1.0

1.1

1.2

1050/50R32-174A8-XM609

1112

DH36

0(*)

3134

4246

2.0

(x) not allowed

(*) mounted with axle extensions (2 x 250)

STEERING TYRES

Width

Rim

Offset

Track

Overall

Pressure

width

16.0/70x20-10PR-I1-SRi

418

W14

--127

2557

3045

2.5

16.0/70x20-10PR-I3-SGI

416

W14

--127

2555

3036

2.5

400/70R20-145A8-FS24

415

W14

2722

3208

3.2

550/60-22.5-12PR-I3-TI

548

16.00

--10

2905

3532

1.5

17.5LR24-150A8-STR

450

W15L

2918

3451

2.4

540/65R24-146A8-DT820

533

W15L

2917

3536

2.0

16.5/85x28-10PR-SGI

406

W13/W14L

2811

3311

2.0

Only with tracks

540/65R24-146A8-DT820

533

W15L

100

2906

3525

2.0

17.5LR24-150A8-STR

450

W15L

100

2807

3340

2.4

STEERING AXLES

Fixed

Adjustable (+305)

Heavy-duty adjustable (+150)

Powered rear axle (+200)

Recommended traction tyres pressures

Tyre selection chart TX65^PLUS

HEADERS

GRAIN

FLEX

MAIZE

13ft

15ft

17ft

20ft

15ft

19ft

TRACTION TYRES

Width

Rim

Offset

Track

Overall

Max. pressure

width

1.7

1.8

1.9

2.0

1.9

2.0

650/75R32-167A8-DT820

633

DWW21A

100

2578

3211

3.0

--115

3008

3641

100(*)

2904

3537

--115(*)

3334

3967

1.3

1.4

1.5

1.6

1.5

1.6

1.7

800/65R32-167A8-STR

788

DWW27A

2694

3482

2.0

--57

2892

3680

1.3

1.4

1.5

1.6

1.5

1.6

1.7

1.9

800/65R32-172A8-STR

788

DWW27A

2694

3482

2.0

--57

2892

3680

42(*)

3020

3808

--57(*)

3218

4006

1.1

1.2

1.3

1.4

1.3

1.4

1.3

1.4

1.6

1050/50R32-174A8-XM609

1112

DH36

0(*)

3104

4216

2.0

(x) not allowed

(*) mounted with axle extensions (2 x 163)

STEERING TYRES

Width

Rim

Offset

Track

Overall

Pressure

width

16.0/70x20-10PR-I3-SGI

416

W14

--127

2555

3036

2.5

400/70R20-145A8-FS24

415

W14

2722

3208

3.2

550/60-22.5-12PR-I3-TI

548

16.00

--10

2905

3532

1.5

17.5LR24-150A8-STR

450

W15L

2918

3451

2.4

540/65R24-146A8-DT820

533

W15L

2917

3536

2.0

16.5/85x28-10PR-SGI

406

W13/W14L

2797

3297

2.0

Only with tracks

17.5LR24-150A8-STR

450

W15L

100

2807

3340

2.4

540/65R24-146A8-DT820

533

W15L

100

2906

3525

2.0

STEERING AXLES

Fixed

Adjustable (+305)

Heavy-duty adjustable (+150)

Powered rear axle (+200)

Recommended traction tyres pressures

Tyre selection chart TX66

HEADERS

GRAIN

FLEX

MAIZE

17ft

20ft

24ft

30ft

19ft

TRACTION TYRES

Width

Rim

Offset

Track

Overall

Max. pressure

width

2.3

2.4

2.5

2.8

2.4

2.6

650/75R32-167A8-DT820

633

DWW21A

100

2848

3481

3.0

--115

3278

3911

100(*)

3174

3807

--115(*)

3604

4237

1.5

1.6

1.9

1.6

1.7

800/65R32-167A8-STR

788

DWW27A

2964

3752

2.0

--55

3158

3946

42(*)

3290

4078

--55(*)

3484

4272

1.5

1.6

1.9

1.6

1.7

1.9

800/65R32-172A8-STR

788

DWW27A

2964

3752

2.0

--55

3158

3946

42(*)

3290

4078

--55(*)

3484

4272

1.3

1.4

1.6

1.4

1.3

1.4

1.6

1050/50R32-174A8-XM609

1112

DH36

0(*)

3374

4486

2.0

(x) not allowed

(*) mounted with axle extensions (2 x 163)

STEERING TYRES

Width

Rim

Offset

Track

Overall

Pressure

width

16.0/70x20-10PR-I1-SRi

418

W14

--127

2862

3350

2.5

16.0/70x20-10PR-I3-SGI

416

W14

--127

2853

3341

2.5

400/70R20-145A8-FS24

415

W14

2872

3358

3.2

550/60-22.5-12PR-I3-TI

548

16.00

-- 10

3205

3832

1.5

17.5LR24-150A8-STR

450

W15L

3218

3751

2.4

540/65R24-146A8-DT820

533

W15L

3367

3986

2.0

16.5/85x28-10PR-SGI

406

W13

3097

3596

2.0

Only with tracks

17.5LR24-150A8-STR

450

W15L

100

3107

3640

2.4

540/65R24-146A8-DT820

533

W15L

100

3106

3725

2.0

STEERING AXLES

Adjustable (+305)

Heavy-duty adjustable (+150)

Powered rear axle (+200)

Recommended traction tyres pressures

Tyre selection chart TX67

HEADERS

GRAIN

MAIZE

17ft

20ft

24ft

30ft

TRACTION TYRES

Width

Rim

Offset

Track

Overall

Max. pressure

width

2.3

2.4

2.5

2.8

2.4

2.6

650/75R32-167A8-DT820

633

DH21

100

2862

3495

3.0

--115

3292

3925

1.5

1.6

1.9

1.6

1.7

800/65R32-167A8-STR

788

DWW27A

2978

3766

2.0

-- 57

3176

3964

1.5

1.6

1.9

1.6

1.7

800/65R32-167A8-STR

788

DWW27A

100

2862

3650

2.0

--115

3292

4080

1.5

1.6

1.9

1.6

1.7

1.9

800/65R32-172A8-STR

788

DWW27A

2978

3766

2.0

--57

3176

3964

1.5

1.6

1.9

1.6

1.7

1.9

800/65R32-172A8-STR

788

DWW27A

100

2862

3650

2.0

--115

3292

4080

620/75R34-170A8-DT820

608

DWW21A

196

2670

3278

4.0

1.3

1.4

1.6

1.3

1.4

1.6

1050/50R32-174A8-XM609

1112

DH36

0(*)

3238

4350

2.0

(x) not allowed

(*) mounted with axle extensions (2 x 163)

STEERING TYRES

Width

Rim

Offset

Track

Overall

Pressure

width

16.0/70x20-10PR-I3-SGI

409

W14

--127

2695

3175

2.5

400/70R20-145A8-FS24

415

W14

2872

3358

3.2

550/60-22.5-12PR-I3-TI

548

16.00

--10

3205

3832

1.5

17.5LR24-150A8-STR

450

W15L

3218

3751

2.4

540/65R24-146A8-DT820

533

W15L

3367

3986

2.0

17.5LR24-150A8-STR

450

W15L

100

3107

3640

2.4

540/65R24-146A8-DT820

533

W15L

100

3106

3725

2.0

STEERING AXLES

Fixed

Heavy-duty adjustable (+150)

Powered rear axle (+200)

Recommended traction tyres pressures

Tyre selection chart TX68-68^PLUS

HEADERS

GRAIN

FLEX

MAIZE

17ft

20ft

24ft

30ft

19ft

TRACTION TYRES

Width

Rim

Offset

Track

Overall

Max. pressure

width

2.6

2.7

2.8

3.0

2.7

2.8

650/75R32-167A8-DT820

633

DWW21A

100

2848

3481

3.0

--115

3278

3911

100(*)

3174

3807

--115(*)

3604

4237

1.7

1.8

1.9

2.0

1.8

1.9

800/65R32-167A8-STR

788

DWW27A

2964

3752

2.0

--55

3162

3950

42(*)

3290

4078

--55(*)

3488

4276

1.7

1.8

1.9

2.0

1.8

1.9

2.0

800/65R32-172A8-STR

788

DWW27A

2964

3752

2.0

--55

3162

3950

42(*)

3290

4078

--55(*)

3488

4276

1.5

1.6

1.8

1.6

1.8

1050/50R32-174A8-XM609

1112

DH36

0(*)

3374

4486

2.0

(x) not allowed

(*) mounted with axle extensions (2 x 163)

STEERING TYRES

Width

Rim

Offset

Track

Overall

Pressure

width

16.0/70x20-10PR-I3-SGI

416

W14

--127

2899

3380

2.5

400/70R20-145A8-FS24

415

W14

2872

3358

3.2

550/60-22.5-12PR-I3-TI

548

16.00

--10

3205

3832

1.5

17.5LR24-150A8-STR

450

W15L

3218

3751

2.4

540/65R24-146A8-DT820

533

W15L

3367

3986

2.0

16.5/85x28-10PR-SGI

406

W13

3097

3596

2.0

Tracks only

17.5LR24-150A8-STR

450

W15L

100

3107

3640

2.4

540/65R24-146A8-DT820

533

W15L

100

3106

3725

2.0

STEERING AXLES

Fixed

Heavy-duty adjustable (+150)

Powered rear axle (+200)

SPECIFICATION

UNLOADING TUBE POSITION

51593

DIMENSION I [m]

a) Grain headers

Header

TX62

TX64PLUS

TX66

TX67

TX68

size

TX63

TX65PLUS

TX68PLUS

3.85 m

4.65 m

3.85 m

4.65 m

5.20 m

4.65 m

5.20 m

3.85 m

4.65 m

5.20 m

12ft

2.88

13 ft

2.73

3.42

15 ft

2.42

3.11

17 ft

2.12

2.81

2.36

3.05

3.52

2.94

3.41

2.36

3.05

3.52

20 ft

1.66

2.35

1.90

2.59

3.06

2.48

2.95

1.90

2.59

3.06

24 ft

1.29

1.98

2.45

1.87

2.34

1.29

1.98

2.45

30 ft

1.54

0.96

1.43

0.38

1.07

1.54

9-10

SPECIFICATION

COUNTERWEIGHTS

For some attachments counterweights are a legal re-

First weigh the combine with attachment

(total

quirement to ensure a safe road transport.

weight), then weigh the combine only with the steering

wheels standing on a weighbridge (rear weight).

CAUTION:

Do not use liquid weight

(ballast) in

wheels as this is not recommended and

forbidden practice in some countries.

Available [as accessory]:

• Frame counterweights (to be attached to the rear

A general rule is to have 20% of the total weight of the

frame): 34 kg/element

combine (with empty grain tank) on the rear axle to en-

sure a safe road transport of the combine. This can

• Steering wheel counterweights (to be installed on

easily be checked on a weighbridge:

the steering wheel rim): 50 kg/element

TX62/64/65

TX66

TX68

STRAW CHOPPER

YES

ATTACHMENTS

Grain header

17 ft

24 ft

Foldable (*)

(1)

(2)

Maize header

6-row (up to 2250 kg)

(1)

6/8-row (*) (2000 to maximum 2750 kg)

(2)

(4)

(2)

(*)

= Not offered

= No counterweights required

= Not applicable

(1) =

14 frame counterweights + 6 steering wheel counterweights required

(2) = Not allowed!

(3) =

6 frame counterweights + 6 steering wheel counterweights required

(4) =

8 frame counterweights or 6 steering wheel weights

9-12

TECHNICAL DATA

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

HEADER

Grain header

Cutting width

12-13-15-

13-15-17-20 ft

17-20-24-30 ft

17-20 ft

Cutting height

0 to 1460 mm

Maize header

Number of rows

5R - 6R -

6F-8F

Flex header

15-19 ft

19 ft

STRAW ELEVATOR

Number of chains

Number of slats

Protection

Spring-loaded

slip clutch

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Speed

158 m/min

Straw elevator drive

2HB (optional

3HB for maize)

Header drive

1HC (optional

4HB for maize)

Number of lift cylinders

(3 with maize

header with in-

tegrated stalk

chopper)

STONE TRAP

Type

Pivotable

Intermediate shaft

800⁺²⁰ rpm

--10

speed

THRESHING DRUM

Standard threshing

drum

Diameter

606 mm

Width

1300 mm

1560 mm

Number of rub bars

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Universal threshing

drum

(with rasp bars)

Diameter

606 mm

Width

1300 mm

1560 mm

Number of bars

Universal drum

(with peg teeth)

Diameter

603 mm

Width

1294 mm

1560 mm

Number of bars

Tooth spacing

56 or 84 mm

Number of teeth:

- 56 mm spacing

4x22or4x23

8x27

- 84 mm spacing

8x15

8x18

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Threshing drum speed

Speed range:

- Standard

385 to 1140

rpm

- With speed

190 to 560

reducer

rpm

Speed read-out

On InfoView

monitor

Drive

Variator belt

from the

intermediate

shaft

DRUM CONCAVE

Width

1317 mm

1577 mm

Setting

Mechanical:

Electrical:

12 positions

Read-out on In-

foView monitor

Fine adjustments

At suspension

points

De-awning plates

(fitted to con-

cave) -- adjust-

ment from the

outside

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Standard concave

(cold climate)

Wrap angle

101_

Concave area

0.72 m²

0.86 m²

Number of bars

Distance between

14 mm

wires

(centre to centre)

Wire diameter

3.5 mm

Maize concave

Wrap angle

101_

Concave area

0.72 m²

0.86 m²

Number of bars

Distance between

26 mm

wires

(centre to centre)

Wire diameter

6 mm

Rice concave

Wrap angle

101_

Number of bars

Number of teeth:

- 56 mm spacing

- 84 mm spacing

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

BEATER

Drive

1 HC belt from

drum shaft

Speed

2/3 of drum

speed

Width

1300 mm

1560 mm

Diameter

608 mm

Beater concave

Width

1317 mm

1577 mm

Concave area

0.5 m²

0.6 m²

Number of bars

Distance between

Cereals/maize:

wires

32 mm

(centre to centre)

Rice: 65 mm

Wire diameter

6 mm

Beater drum-to-concave

clearance

2nd bar: Closed

24 mm

Open

38 mm

8th bar: Closed

24 mm

Open

78 mm

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

ROTARY SEPARATOR

Number of teeth

10 x 7

5x8and5x9

Width

1300 mm

1560 mm

Diameter

605 mm

Speed

760 or 400 rpm

Drive

1 HC belt over

intermediate

shaft

Rotary separator

concave

Wrap angle

88_ + 151 mm

Width

1317 mm

1577 mm

Concave area

0.66 m²

0.79 m²

Number of bars

Distance between

32 mm

wires

(centre to centre)

Wire diameter

6 mm

Rotary separator drum-

to-concave clearance

2nd bar: Closed

22 mm

Open

60 mm

10th bar:Closed

32 mm

Open

60 mm

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

‘‘STRAW FLOW’’

BEATER [accessory]

Width

1300 mm

1560 mm

Diameter

315 mm

Speed

760 or 400 rpm

Drive

1 HB belt over

rotary separator

shaft

STRAW WALKERS

Number

Number of steps

Length

3226 mm

Separation area

4.36 m²

5.23 m²

Speed

220 rpm

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

CLEANING SHOE

Type

Self-levelling or

fixed

Cleaning shoe drive

600 rpm

speed

Eccentric shaft speed

320 rpm

Drive:

-- Self levelling

Intermediate

shaft --

1 HC belt --

gearboxes --

U-joint --

gearbox --

eccentric shaft

-- Fixed

Intermediate

shaft -

1 HC belt (2x) -

eccentric shaft

Upper shaker shoe

Horizontal stroke

45 mm

Throwing angle:

-- Front

27_

-- Rear

27_

Grain pan width

1320 mm

1580 mm

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Grain pan length

1598 mm

1601 mm

Grain pan rake surface

0.211 m²

0.253 m²

Presieve width

1320 mm

1580 mm

Presieve length

901 mm

Presieve area

1.190 m²

1.424 m²

Presieve openings

3-6-9-12

Upper sieve width

1320 mm

1580 mm

Upper sieve length

1445 mm

Upper sieve area

1.908 m²

2.284 m²

Upper sieve positions

Upper sieve grate

0.198 m²

0.237 m²

surface

Upper sieve Graepel

0.211 m²

0.253 m²

surface

Lower shaker shoe

Horizontal stroke

40 mm

Throwing angle

15_

Lower sieve length

1445 mm

Lower sieve width

1320 mm

1580 mm

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Lower sieve area

1.908 m²

2.284 m²

Lower sieve positions

Total sieve area under

5.4 m²

6.5 m²

wind control

CLEANING FAN

Speed range

-- Standard

From 480 to

950 rpm

-- Slowdown kit

From 260 to

540 rpm

Drive

Variator belt

over eccentric

shaft

Number of blades

RETURNS SYSTEM

Type

Cross auger

and roto-thresh-

ers

Cross auger and

Single left

Double 800 rpm

roto-thresher speed

800 rpm

Returns auger speed

600

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

Number of teeth on

2x12

roto-thresher

Number of teeth on

2 x 11

cover

GRAIN TRANSPORT

Type

Grain elevator

and

central filling

auger

Drive

1 HB belt over

intermediate

shaft

Grain elevator top

shaft speed:

-- Standard

376 rpm

-- Accessory

451 rpm

GRAIN TANK

Capacity

7200 litres

8000 litres

8500 litres

9500 litres

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

UNLOADING SYSTEM

Drive

2 HB belt and

chain with

shearbolt

protection

Unloading tube length

3.85 m

4.65 m

3.85 m

4.65 m

5.20 m

4.65 m

5.20 m

Unloading capacity

72 litres/s

HYDRAULIC SYSTEM

Reservoir capacity

20.5 litres

Pump capacity (dual)

19 + 8 cc/rev

(at 2564 rpm)

Maximum pressure

160 bar

Steering valve

-- Type

OSPC 160

-- Maximum pres -

100 bar

140 bar

sure

-- Shock valve set -

150 bar

200 bar

ting

HYDROSTATIC SYSTEM

Pump capacity

130 cc/rev

Motor capacity

100 cc

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

ENGINE

Type

NH 675TA/VR

NH 675TA/VJ

NH 675TA/VK

NH 675TA/VP

NH 675TA/VN/1

NH 675TA/VY

IVECO AIFO

8460

SRI20.00.A.001

High idle engine rpm

2200

Gross power

154kW/206hp

168kW/225hp

183kW/246hp

195kW/261hp

202kW/271hp

213kW/286hp

243kW/326hp

(ISO TR14396)

Cylinder capacity

7500 cc

9500 cc

Bore

112 mm

120 mm

Stroke

127 mm

140 mm

Crankcase capacity

21 litres

without filter(s)

Oil filter capacity

1 x 2 litres

2 x 1.5 litres

Battery

2 x 12V - 92 Ah

Starter motor

12 V - 4.5 kW

24V - 5.4 kW

(Delco Rémy)

(Bosch)

Alternator

130 Ah

Fuel tank

450 litres

600 litres

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

TRACTION

Gears

Ground speed (km/h)

-- 1st gear (forw./

3.4/1.7

3.2/1.6

3.4/1.7

2.7/1.4

rev.)

-- 2nd gear (forw./

7.4/3.7

6.9/3.4

7.4/3.7

6.3/3.2

rev.)

-- 3rd gear (forw./

13.4/6.7

12.6/6.3

13.4/6.7

11.4/5.7

rev.)

-- 4th gear (forw./

25/12.5

rev.)

All countries,

exc. Germany:

max. 20 km/h

Oil capacity

15 litres

Differential ratio

10/52

11/50

Final drive:

-- Ratio

10/75

12/110

11/111

-- Oil capacity/

5 litres

6 litres

gearbox

TX62

TX63

TX64PLUS

TX65PLUS

TX66

TX67

TX68

TX68PLUS

STEERING AXLE

Type

Fixed

Adjustable

Fixed

Adjustable

H.D.A.S.A.⁽¹⁾

P.R.A.⁽²⁾

WEIGHT

(Standard configuration,

empty grain tank)

Self-levelling cleaning

9750 kg

9800 kg

11160 kg

11980 kg

shoe

Fixed cleaning shoe

9400 kg

9450 kg

11130 kg

11950 kg

⁽¹⁾ Heavy-duty adjustable steering axle

⁽²⁾ Powered rear axle

FUSES

The two following decals explain the use and amperage of each fuse.

Please cut out both decals and adhere them to the inner side of the access door

to the electric box on each side of the print containing the fuses.

This will facilitate troubleshooting.

Fuse

Amp.

Function

Fuse

Amp.

Function

15A

Brush in rotary screen [if installed]

F13

10A

Air conditioning compressor clutch

25A

Light switch

F14

25A

Air conditioning fan

Sockets, left and right-hand side

15A

Flashing warning lights

F15

25A

Socket-vertical knife, right-hand side

10A

Socket on straw hood, right-hand side

F16

25A

Socket-vertical knife, left-hand side

15A

Parking lights, right-hand side

F17

15A

Dipped headlights

15A

Parking light, left-hand side

F18

15A

Headlights

F19

10A

Header height control

15A

Operating lights on railing (outer side of light)/

F20

25A

Stubble light + side light

operating lights on cab

25A

Wiper, mirrors

F21

15A

Operating lights on railing (inner side of lights) +

light in grain tank

F10

10A

Direction indicator lights

F22

10A

Light on unloading tube

F11

15A

Stop lights -- Horn

F23

15A

Plugs, Radio, CB, Clock, Light in cab

F12

10A

Relay:

-- Operating lights on railing

F24

10A

Threshing mechanism

(inner side of light)

Central process unit

-- Light in grain tank

Header height adjustment

-- Stubble lights + side lights/

operating light on unloading tube

Fuse

Amp.

Function

Fuse

Amp.

Function

F25

10A

Levelling system

F34

10A

Engagement of threshing, unloading and header

mechanism (models TX64 to TX68PLUS)

25A

Reversing mechanism actuator (Model TX62)

F26

25A

Drum variator

F35

25A

Straw chopper clutch

Fan variator

Reversing mechanism actuator (not for model

Spread plates on straw chopper

TX62)

Manual lateral float

Header height control module

Reel horizontal control

F27

10A

Central process unit

F36

10A

Relay to unloading and header mechanism

Reel vertical movement switch

Reel variator

Engine kill stop

F28

25A

Powered rear axle

F37

10A

Ignition switch

Throttle mechanism

Parking brake

Reel synchronization

F29

10A

Valves for: -- Opening unloading auger

F38

-- Reel lift

-- Pilot valve

F30

10A

InfoView monitor display

F39

Lighting of dashboard switches

F31

15A

Engine protection

F40

Hydrostatic control

Led indicators on dashboard

Remote gearshift printed circuit, remote parking

brake and quick stop

F32

25A

Reel variator motor

F41

40A

Automatic fuse for levelling system

F33

15A

Traffic warning lights

(Ref. to Print N° 604.63.021.00

3rd Edition

English

09/98)

LUBRICATION SCHEDULE

Your dealer sells a selection of new brand AMBRA lubricants for

NEW HOLLAND product lines based on their own engineering

specificaitons.

For this combine we recommend:

Item

Amount/

NEW HOLLAND

Lubricant

International

unit

brand name

specification

grade

specification

(litres)

Grease

AMBRA GR9

NH710A

NLGI 2

nipples

AMBRA

NH720A

NLGI 2

GR75MD

Traction

AMBRA

NH520A

SAE

API GL5,

gearbox

HYPOIDE 90

80W90

MIL-L 2105D

Final

TX62-63-

AMBRA

NH520A

SAE

API GL5,

drive

64PLUS-66:

HYPOIDE 90

80W90

MIL-L 2105D

gearboxes

5 litres

TX65PLUS-67

-68-68PLUS:

6 litres

Engine

TX62 to 67:

AMBRA

NH330B

SAE

API CD/SF

(sump without

21-23 litres

PREMIUM

15W40

MIL-L 2104D

filter)

MULTIGRADE

TX68-68PLUS:

15-20 litres

AMBRA

NH330G

SAE

API CF-4/SG,

SUPER GOLD

15W40

CCMC D4,

MULTIGRADE

MIL-L 2104E

Chains

AMBRA

NH520A

SAE

API GL5,

Threaded rods

HYPOIDE 90

80W90

MIL-L 2105D

Pivot points

Brake system

0.5

AMBRA

NH800A

NHTSA

(reservoir)

SYNTFLUID 4

116-DOT 4,

(system)

ISO 4925

Hydraulic

AMBRA HYDRO-

NH646

HV 46

DIN 51524

system

SYSTEM 46

NH646BS

Part 2,

(oil + filters)

NH646BV

ISO VG 46

Hydrostatic

AMBRA HYDRO-

NH646

HV 46

DIN 51524

system

SYSTEM 46

NH646BS

Part 2,

(oil + filters)

ISO VG 46

NH646BV

Tracks

0.35/roller

AMBRA

NH024C

SAE

API CE,

(track rollers

0.35/wheel

UNIVERSAL

10W-30

MIL-L 2104E,

and guide

MIL-L 2105,

wheels)

CCMC D4,

API GL4

Drum

0.15

AMBRA GR9

NH710A

NLGI 2

speed

reducer

AMBRA

NH720A

NLGI 2

GR75MD

0.8

AMBRA

NH520A

SAE

API GL5,

HYPOIDE 90

80W90

MIL-L 2105D

Antifreeze

47.5 %

AGRIFLU

NH900A

New Holland TX62, TX63, TX64 Plus, TX65 Plus, TX66, TX67, TX68, TX68 Plus. Operator's Manual - page 9
