EVERDIGM Core Drill Rig ECR12 & ECR18. Operation and Maintenance Manual (2016.02.27) - page 1
ISO 9001 : ISO 14001 Certified
Operation and Maintenance Manual
EVERDIGM Core Drill Rig
ECR12 & ECR18
Operation manual No. : MURAUS.0018
Revision Date :
2016.02.27
FOREWORD
IMPORTANT!
It is very important for you to read and understand this manual before operating and to keep
the instructions provided herewith. Never fail to follow the instruction related to safety.
This manual contains instructions and information on safe and correct use of EVERDIGM core drill.
Please read and understand this manual before operation, inspections and maintenance of the core drill.
Keep this manual with your equipment all the time for your quick and easy reference, and read it regularly.
Do not operate the equipment until you have been trained in the use of all operating controls and
understand the equipment operation.
Get a replacement manual from EVERDIGM dealer if you lost it.
If you transfer the equipment to the other, do transfer this manual as well.
The figures in this manual are for better understanding and may not correspond exactly to the equipment.
For exact shape, refer to the parts list or ask EVERDIGM.
For the purpose of constant product improvement, some parts of this manual may be changed. If you
found the parts unclear or not corresponding to the equipment, call and consult EVERDIGM dealer or
authorized service center
Important information on safety is described in the safety information chapter of this book. Be familiarized
with the instructions on the safe operation and observe the instructions before and during operation
Injury, death or damage caused by unauthorized product modifications and operation under unallowed
application will not be responsible by EVERDIGM. Consult EVERDIGM for such modifications and
applications.
Use EVERDIGM genuine parts. EVERDIGM takes no responsibility for damages caused by use of non-
EVERDIGM spare parts.
For warranty, we refer you to the warranty conditions provided separately.
We always exert all our efforts for your satisfaction, and promise you quick and constant service.
We thank you for using EVERDIGM products and wish you a good luck in every your job,
Feb.
2016
EVERDIGM Corp.
This manual is copyrighted by Everdigm Corp. with all rights reserved in accordance with prevailing law. It is positively
prohibited to use or reproduce its contents in whole or in part without prior written permission.
2
TABLE OF CONTENTS
FOREWORD
2
TABLE OF CONTENTS
3
1. Safety Information
6
1.1 Safety Precautions
6
1.2 To the Operator of a Everdigm Core Drill Rig
7
1.3 Learn the Signal Words Used with the Safety Alert Symbol
8
1.4 Lifting Capacity Rating Configuration
8
1.5 Location of Safety Labels
9
1.6 Unauthorized Modification
11
1.7 General Hazard Information
11
1.8 Operator's control area or operator cabin (option)
12
1.9 Basic Safety Information
13
1.10 Before Starting Engine Safety
20
1.11 Machine Operation Safety
23
1.12 Maintenance Safety
28
1.13 Battery
36
1.14 Towing
38
1.15 Shipping and Transportation
39
1.16 Location of emergency switches
40
1.17 Special pay attention while components are moving
41
2. Product information
42
2.1 Names of components
42
2.2 External Dimensions
43
2.3 ECR12 Technical specifications
45
2.4 ECR18 Technical specifications
48
2.5. Information for ordering parts and service
51
3. Towing, lifting and transporting method
52
3.1 Towing
52
3.2. Lifting
54
3.3. Transportation
55
4. Operation
56
4.1. Before operation
56
4.1.1 Check points before operation
57
4.1.2 Lubrication points
58
4.1.3 Water drain on fuel
63
4.1.4 Fuel level check
64
4.1.5 Hydraulic oil level check
65
4.1.6 Rotary head lubrication oil
66
4.1.7 Electric device check
67
4.2. Engine start
73
3
4.2.1 Starting engine
73
4.2.2 Emergency switches
76
4.3. Engine stop and parking
77
4.3.1 Parking
77
4.3.2 Engine stop
78
4.3.3 Locking the machine
79
4.4. Traveling
80
4.4.1 Travel control
80
4.4.2 Correct posture for moving equipment
83
4.5. Controller and switches
86
4.5.1 Before operation
86
4.5.2 Main controllers
95
4.5.3 Mast positioning and outrigger operation levers
109
4.6. Drilling
115
4.6.1 Caution for rotary operation
115
4.6.2 Preparation of water swivel
115
4.6.3 Preparation of core barrel
116
4.6.4 Spin cage locking condition check
116
4.6.5 Before drilling
117
4.6.6 Start rotary head operation
117
4.6.7 Starting fine feed
118
4.6.8 Hold back pressure operation
118
4.6.9 Understanding on the OFF Pressure and Down ward force on Bit
119
4.6.10 Stop drilling operation
121
4.6.11 Wireline operation and collecting sample
121
4.6.12 Adding and connecting the pipe
121
4.6.13 Removing and disconnecting the pipe
121
5. Maintenance
122
5.1. Maintenance schedule
123
5.1.1 Engine and related parts
123
5.1.2 Track
124
5.1.3 Hydraulic oil
124
5.1.4 Rotary head
125
5.1.5 Mast and foot clamp
125
5.1.6 Wire winch
126
5.2. Oils, lubricants and coolant
126
5.2.1 Specification of oils and lubricants
126
5.2.2 Coolant
127
5.3. Storage
128
5.4. Maintenance guideline
129
5.4.1 Engine oil, oil filter and fuel filter replacement
129
5.4.2 Hydraulic oil and return filter replacement
131
4
5.4.3 Cooler and radiator cleaning
132
5.4.4 Engine belt tension check
133
5.4.5 Rotary head maintenance
134
5.4.6 Track tension check
135
5.4.7 Air filter cleaning
136
5.4.8 Travel motor oil replacement
138
5.4.9 Main winch motor oil replacement
139
5.4.10 Flexible coupling maintenance
140
6. Options
141
6.1 Remote controller
141
6.1.1 Components
141
6.1.2 Receiver
142
6.1.3 Remote controller
143
6.2 Engine coolant preheating system
147
6.2.1 System configuration
147
6.2.2 Timer setting
148
6.2.3 Trouble shooting for coolant preheater
150
6.3 Operator cabin
151
6.2.1 External figure and dimensions
151
6.2.2 Features and benefit
152
7. Torque table
155
8. Trouble shooting
156
8.1. Engine
156
8.2. Traveling
157
8.3. Rotary head
158
8.4. Oil cooler
159
8.5. Hydraulic cylinders
159
Notes
160
* Specifications and features presented in this document are subject to change without notice.
* The external figures of components and machine on this manual may different according to drill rig models.
5
1. Safety Information
1.1 Safety Precautions
WARNING!
Follow all safety recommendations and safe shop practices outlined in the front of this
manual or those contained within this section.
Always use tools and equipment that are in good working order.
Use lifting and hoisting equipment capable of safely handling load.
Remember, that ultimately safety is your own personal responsibility.
This manual describes the correct use of the product and basic safety instructions. Important instructions in
this manual are marked with this symbol
When you see this symbol in this manual or stickers on the
product, you must be alert to the possibility of personal injury or death. Be sure to observe the instruction in
the safety message.
The safety messages in this manual do not describe all the possibilities that could cause personal injury,
death or damage to the product. These safety messages are intended to provide basic instructions for safe
operation and service.
Although this manual does not cover all the possible situations, it is the operator’s responsibility to observe
the safety instructions and regulations.
Remember! Safety is up to you.
Applicable models
Model
Serial Number Range
ECR12
#
~
ECR18
#
~
6
1.2 To the Operator of a Everdigm Core Drill Rig
WARNING!
Unsafe use of the drill rig could lead to serious injury or death. Operating procedures,
maintenance and equipment practices or traveling or shipping methods that do not follow the
safety guidelines on the following pages could cause serious, potentially fatal injuries or
extensive damage to the machine or nearby property
Please respect the importance of taking responsibility for your own safety, and that of other people who may
be affected by your actions.
WARNING!
Improper operation and maintenance of this machine can be hazardous and could result in
serious injury or death.
Operator and maintenance personnel should read this manual thoroughly before beginning
operation or maintenance.
Keep this manual in the storage compartment to the rear of the operator's seat, and have all
personnel involved in working on the machine read the manual periodically.
Some actions involved in operation and maintenance of the machine can cause a serious
accident, if they are not done in a manner described in this manual.
The procedures and precautions given in this manual apply only to intended uses of the
machine.
If you use your machine for any unintended uses that are not specifically prohibited, you must
be sure that it is safe for any others. In no event should you or others engage in prohibited
uses or actions as described in this manual.
EVERDIGM delivers machines that comply with all applicable regulations and standards of
the country to which it has been shipped. If this machine has been purchased in another
country or purchased from someone in another country, it may lack certain safety devices and
specifications that are necessary for use in your country. If there is any question about
whether your product complies with the applicable standards and regulations of your country,
consult EVERDIGM or your EVERDIGM distributor before operating the machine.
SAFETY ALERT SYMBOL!
Be Prepared - Get to Know All Operating and Safety Instructions.
This is the Safety Alert Symbol. Wherever it appears in this manual or on safety signs on the
machine you should be alert to the potential for personal injury or accidents.
Always observe safety precautions and follow recommended procedures.
WARNING!
If you need more information or have any questions or concerns about safe operating
procedures or working the drill rig correctly in a particular application or in the
specific conditions of your individual operating environment, please consult your local
EVERDIGM representative.
7
1.3 Learn the Signal Words Used with the Safety Alert Symbol
The words “DANGER”, “WARNING”, “CAUTION” and “IMPORTANT” appeared with the above Safety Alert
Symbol indicate degree of risk of hazards or unsafe practices. All four degrees of risk indicate that safety is
involved. Observe precautions indicated whenever you see the Safety Alert Symbol, no matter which signal
word appears next to the “Exclamation Point” symbol.
DANGER!
Indicates imminent hazard of a situation that, if not avoided, is very likely to cause
death or extremely serious injury. It may also be used to alert against product that
may exploded or detonate if handled or treated carelessly.
WARNING!
Indicates potential of a hazardous situation that, if not avoided, could result in serious
injury or death. It may also be used to alert against a highly unsafe practice.
CAUTION!
Indicates potential of a hazardous situation that, if not avoided, could result in minor
or moderate injury. It may also be used to alert against a general unsafe practice.
IMPORTANT! Indicates potential of damages that, if not avoided, could be caused to the product or
shorten the product life.
EVERDIGM cannot predict every circumstance that might involve a potential hazard in operation and
maintenance. Therefore the safety messages in this manual and on the machine may not include all possible
safety precautions. If any procedures or actions not specifically recommended or allowed in this manual are
used, you must be sure that you and others can do such procedures and actions safely and without
damaging the machine. If you are unsure about the safety of some procedures, contact a EVERDIGM
distributor.
1.4 Lifting Capacity Rating Configuration
Lifting capacity ratings that are printed at the end of this safety section are based on the machine being level,
on a firm supporting surface, with hooks and slings attached in approved configuration. Loads must be
balanced and supported evenly.
Use tag lines to keep the load steady if wind conditions and large surface area are a problem. Work crew
hand signals, individual tasks and safe procedures should all be universally understood before the lift is
made.
IMPORTANT!
Before using the drill ring to make lifts check municipal and regional regulations or statutes
that could apply.
Governing ordinances may require that all heavy lifting be done with single purpose
equipment specifically designed for making lifts, or other local restrictions may apply.
Making heavy lifts with a general purpose drill rig that can be used for digging, loading,
grading or other work may be expressly forbidden by a regional injunction or other legal
prohibition. Always follow all of the other instructions, guidelines and restrictions for Safe
Lifting in the Operation and Maintenance Manuals.
8

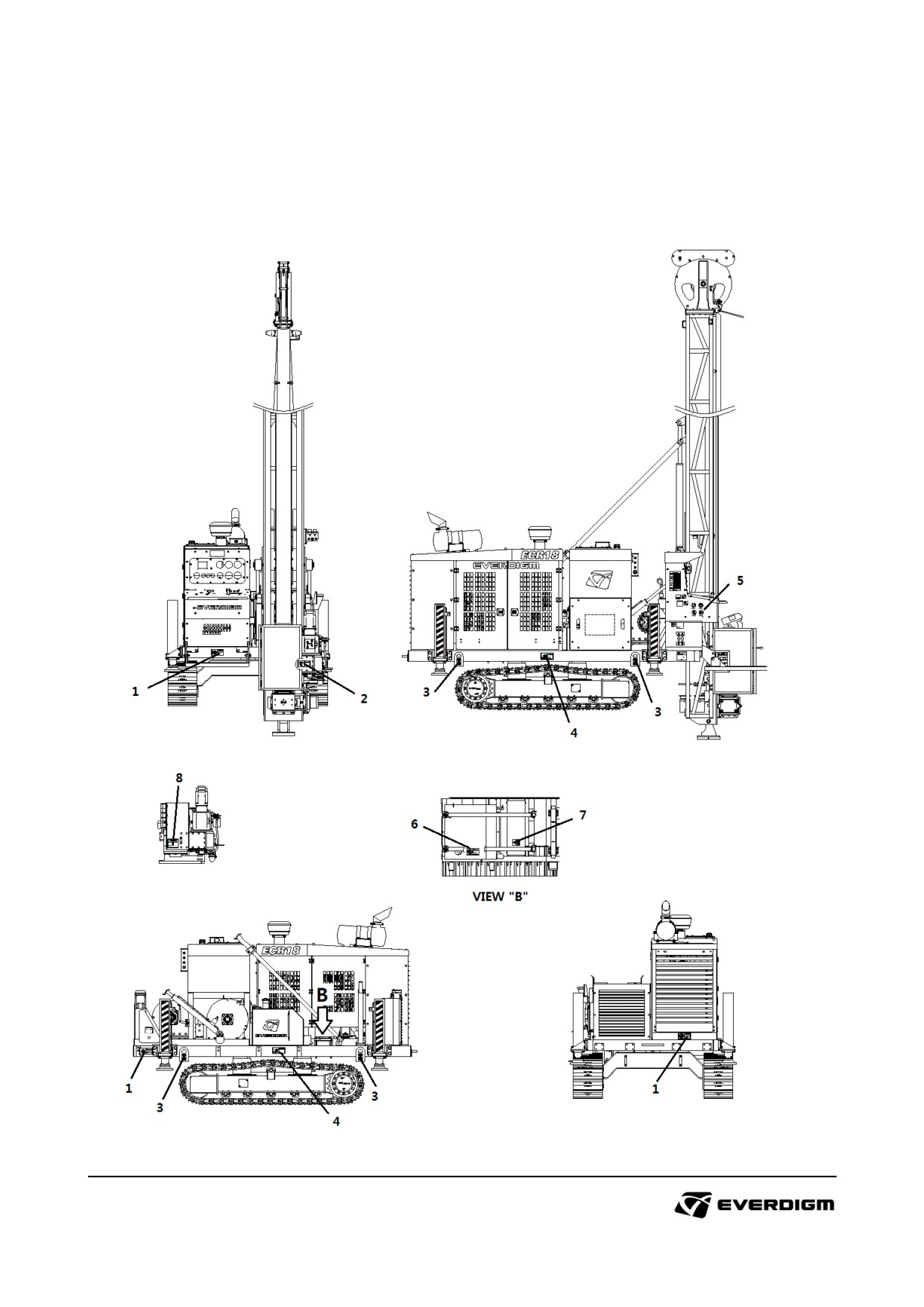

1.5 Location of Safety Labels
Location of safety labels (decals) can vary from unit to unit. Refer to appropriate Operation and Maintenance
Manual, and parts manual for your unit.
Always replace damaged or faded decals.
9

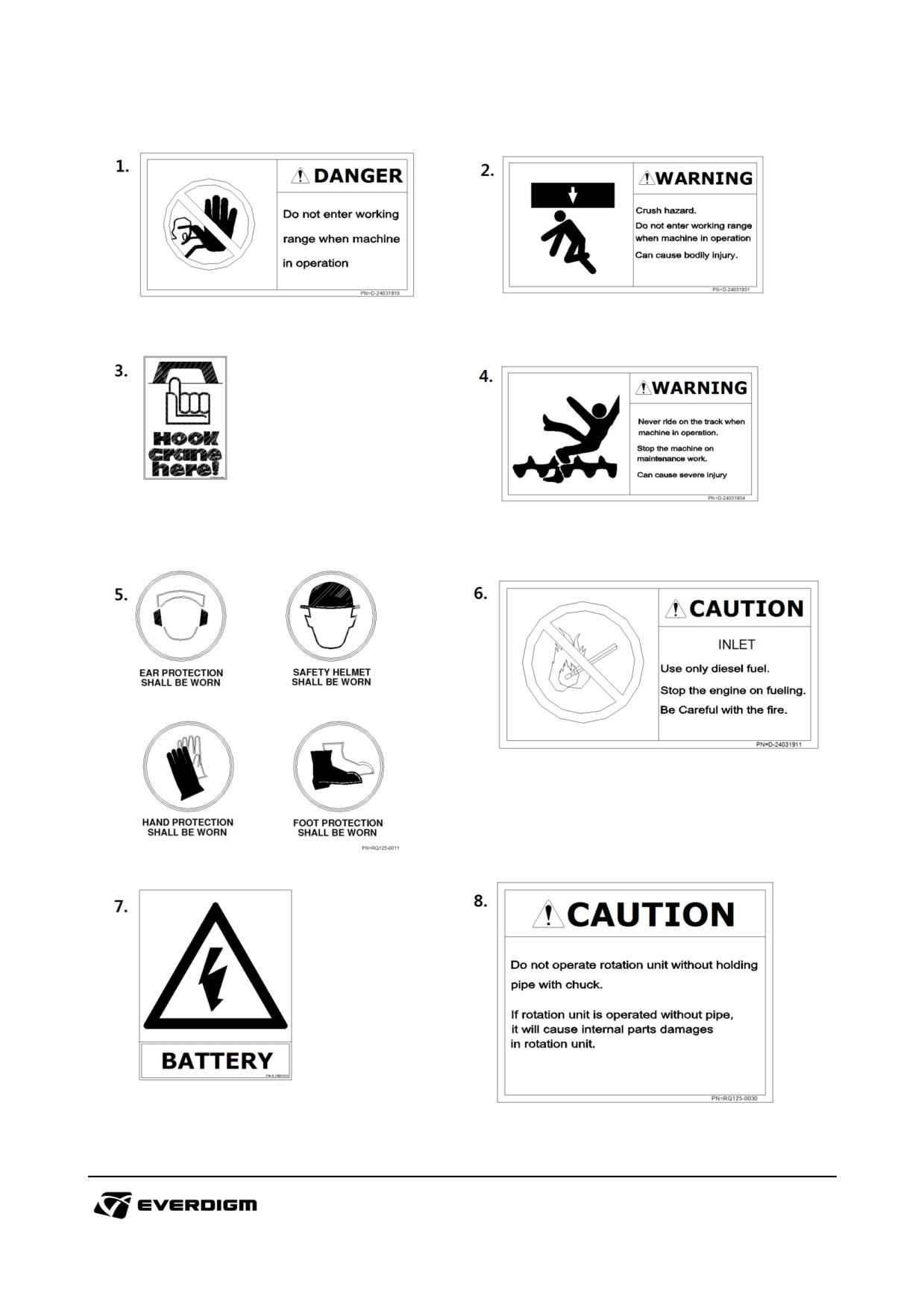

10
1.6 Unauthorized Modification
Any modification made without authorization or written approval from EVERDIGM can create a safety hazard,
for which the machine owner must be held responsible.
For safety's sake, replace all OEM parts with the correct authorized or genuine EVERDIGM part. For
example, not taking the time to replace fasteners, bolts or nuts with the correct replacement parts could lead
to a condition in which the safety of critical assemblies is dangerously compromised.
1.7 General Hazard Information
Safety Rules
Only trained and authorized personnel can operate and maintain the machine.
Follow all safety rules, precautions and instructions when operating or performing maintenance on the
machine.
Do not operate the machine if you are not feeling well, if you are taking medication that makes you feel
sleepy, if you have been drinking, or if you are suffering from emotional problems. These problems will
interfere with your sense of judgment in emergencies and may cause accidents.
When working with another operator or with a person on work site traffic duty, be sure that all personnel
know the nature of the work and understand all hand signals that are to be used.
Always observe strictly any other rules related to safety.
Safety Features
Be sure that all guards and covers are installed in their proper position. Have guards and covers repaired
immediately if damaged.
Be sure that you understand the method of use of safety features such as safety lock lever and the seat belt,
and use them properly.
Never remove any safety features. Always keep them in good operating condition.
Failure to use safety features according to the instructions in the Operation and Maintenance Manual could
result in serious bodily injury.
11
1.8 Operator's control area or operator cabin (option)
When entering the operator's control area, always remove all mud and oil from the soles of your shoes. If
you operate levers with mud or oil stuck to your hands or gloves, your hand may slip and this may cause a
serious accident.
Smoking while operating may cause fire around machine and working area. Make sure that the cigarette
should be extinguished completely after smoking.
Do not stick suction pads to the window glass. Suction pads act as a lens and may cause fire.
Do not leave lighters laying around the operator's compartment. If the temperature inside the operator's
compartment becomes high, there is danger that the lighter may explode.
Do not use cellular telephones when driving or operating the machine. There is danger that this may lead to
an unexpected accident.
Never bring any dangerous objects such as flammable or explosive items into the operator's control area.
To ensure safety, do not use the radio or music headphones when operating the machine. There is danger
that this may lead to a serious accident.
When operating the machine, do not put your hands around rotation unit.
When standing up from the operator's seat, always pay special attention not to touch operation levers and
switches. If you accidentally touch the work equipment levers, the machine may suddenly move and cause
serious injury or damage.
When leaving the machine, lower and firmly fix the work equipment completely to the ground, and shut down
engine. Use the key to lock all the equipment. Always remove the key and take it with you.
12
1.9 Basic Safety Information
WARNING!
The following instructions are those that should ALWAYS be observed in operation of drill rig.
Preparation for Operation and Maintenance
The operators and servicemen should read the manual and instruction
and obey the rules. Neglecting safety instruction can cause death or
serious injury. The carrier, hydraulic and electric requirements should
be matched with manufacturer’s recommendation as described in the
manual.
Improper modification can cause damage on the equipments.

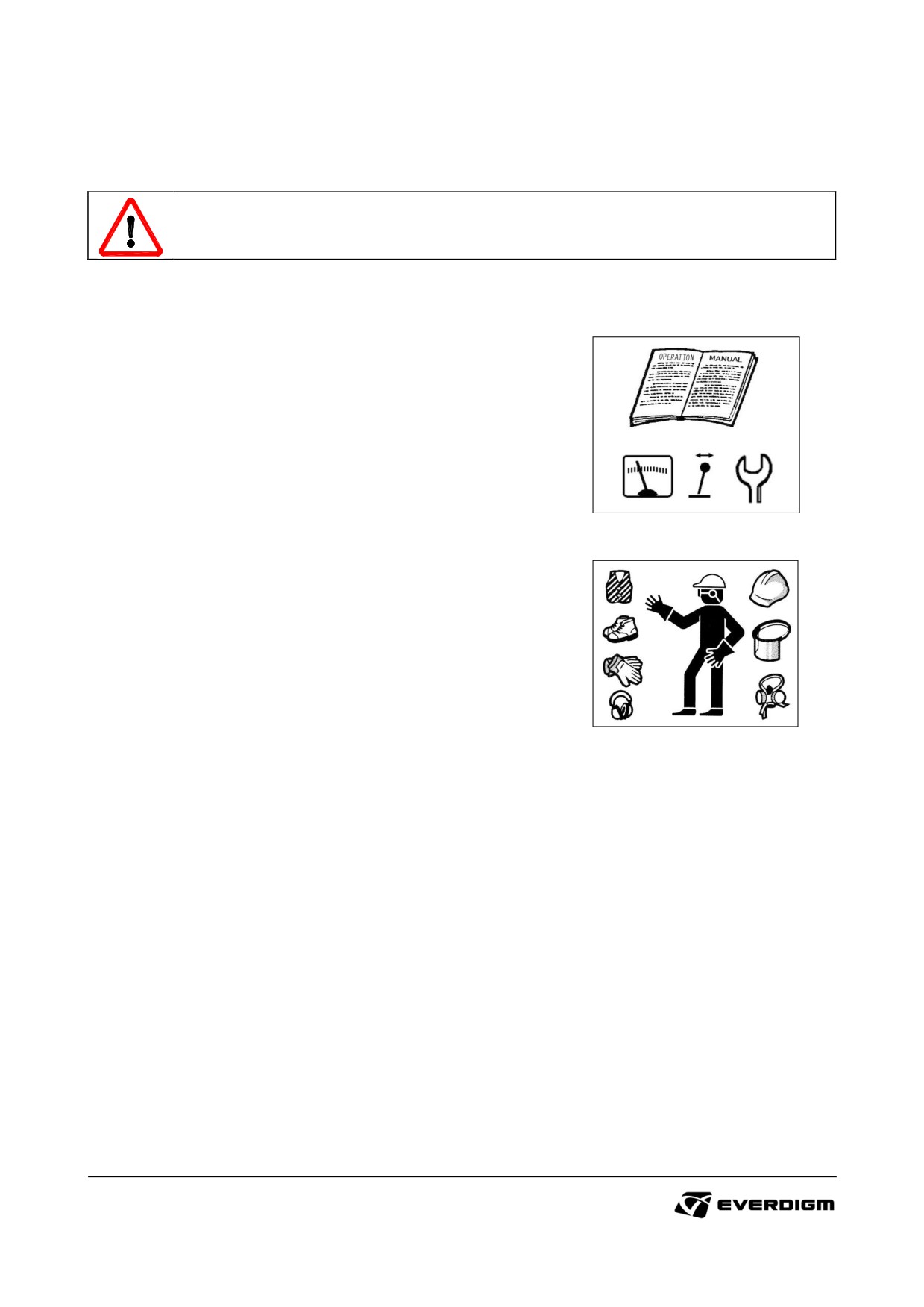

Figure 1
Contain long hair, and avoid loose clothing and jewelry. They can catch
on controls or in protruding parts and cause serious injury or death.
Do not wear oily clothes. They are highly flammable.
Full eye protection, a hard hat, safety shoes and gloves may be required
at the work site.
While working on the machine, never use inadequate tools. They could
break or slip, causing injury, or they may not adequately perform
intended functions.
Figure 2
Breathing Masks, Ear Protection May Be Required
Do not forget that some risks to your health may not be immediately
apparent. Exhaust gases and noise pollution may not be visible, but
these hazards can cause disabling or permanent injuries.
NOTE: The equivalent continuous A-weighted sound pressure level
at the workstation for this machine is given in the operation
manual.
Measurement is obtained on a dynamic machine following
the procedures and cabin conditions as described in ISO
6396.
NOTE: The guaranteed sound power level emitted by the machinery
for this machine is given in the operation manual.
Measurement is obtained on a dynamic machine with the
procedures as described in 2000/14/EC.
13
Vibration Level Information
Hands/Arms: The weighted root mean square acceleration to which
the hands/arms are subjected, is less than 2.5 m/s2.
Whole body: The weighted root mean square acceleration to which
the whole body is subjected, is less than 0.5 m/s2.
Measurements are obtained on a representative machine, using
measuring procedures as described in the following standard: ISO
2631/1. ISO 5349, and SAE J1166.
Recommendations for Limiting Vibrations
1. Select the right machine for a particular application.
2. Replace any damaged seat by a genuine EVERDIGM part. Keep
the seat maintained and adjusted.
• Adjust the seat and suspension for the weight and size of the
operator.
• Inspect and maintain the suspension and adjustment
mechanisms of the seat regularly.
3. Check that the machine is properly maintained.
• Track tension, actuators conditions and etc.
4. Supply grease on moving parts.
5. Adjust the machine speed and travel path to reduce the vibration
level.
• Slow down if it is necessary when passing rough terrain.
• Drive around obstacles and excessive rough terrain conditions.
6. Keep the terrain on work sites where the machine is working and
traveling in good condition.
• Remove any large rocks or obstacles.
• Fill any ditches and holes.
• Provide machines for and schedule time to maintain the terrain
conditions.
7. Travel over longer distance (e.g. on public roads) at adjusted
(medium) speed.
• Always adjust the speed for preventing bouncing.
14
Mounting and Dismounting
Before getting on or off the machine, if there is any oil, grease, or mud on
the handrails, steps, or track shoes, wipe it off immediately. Always keep
these parts clean. Repair any damage and tighten any loose bolts.
Never jump on or off the machine. In particular, never get on or off a
moving machine. These actions may lead to serious injury.
When getting on or off the machine, always face the machine, and
maintain three-point contact (both feet and one hand or one foot and
both hands) with the handrails, steps, and track shoes to ensure that you
support yourself securely.
Never hold any control levers when getting on or off the machine.

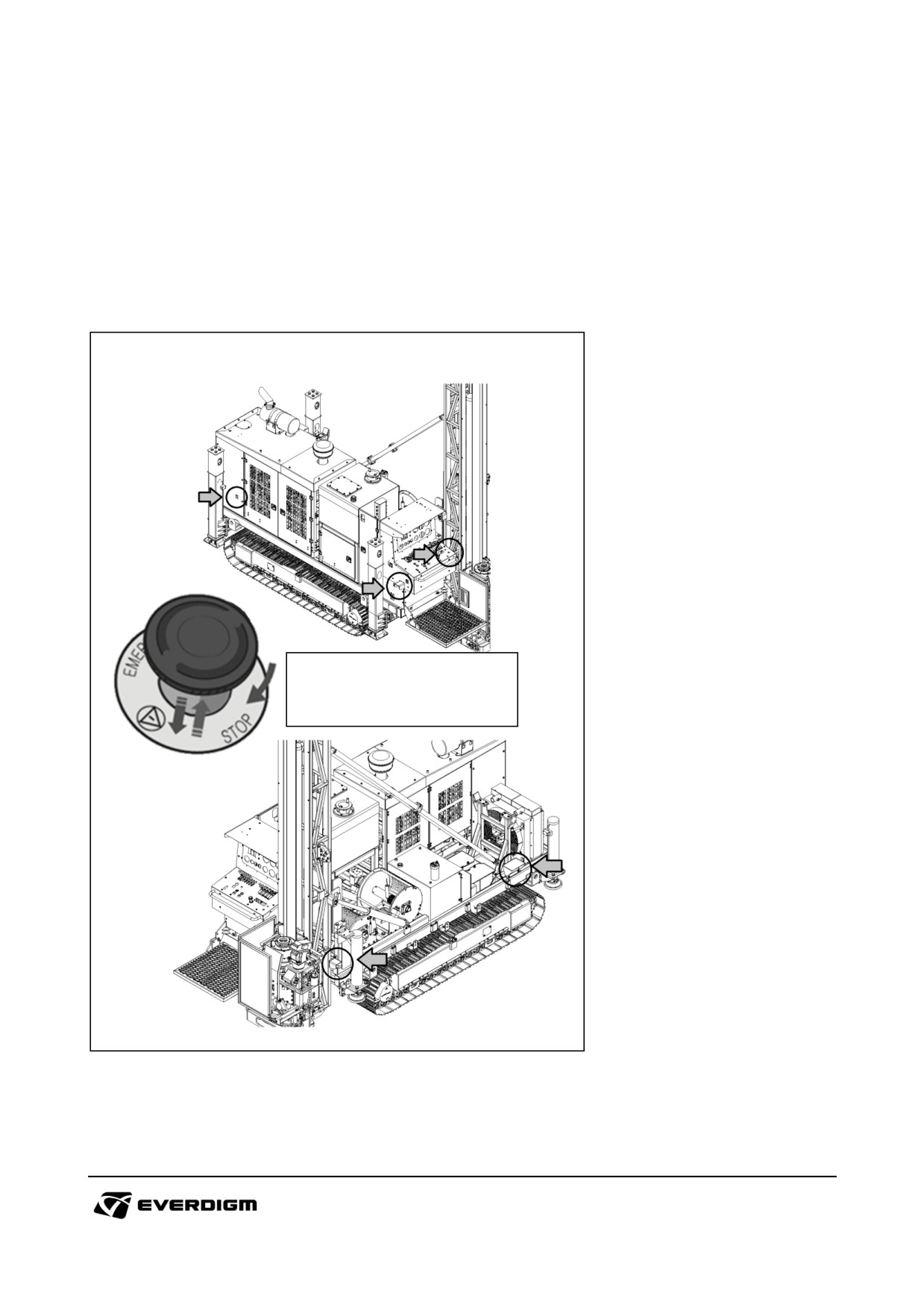

Use the points marked by arrows in the diagram when getting on or
off the machine.

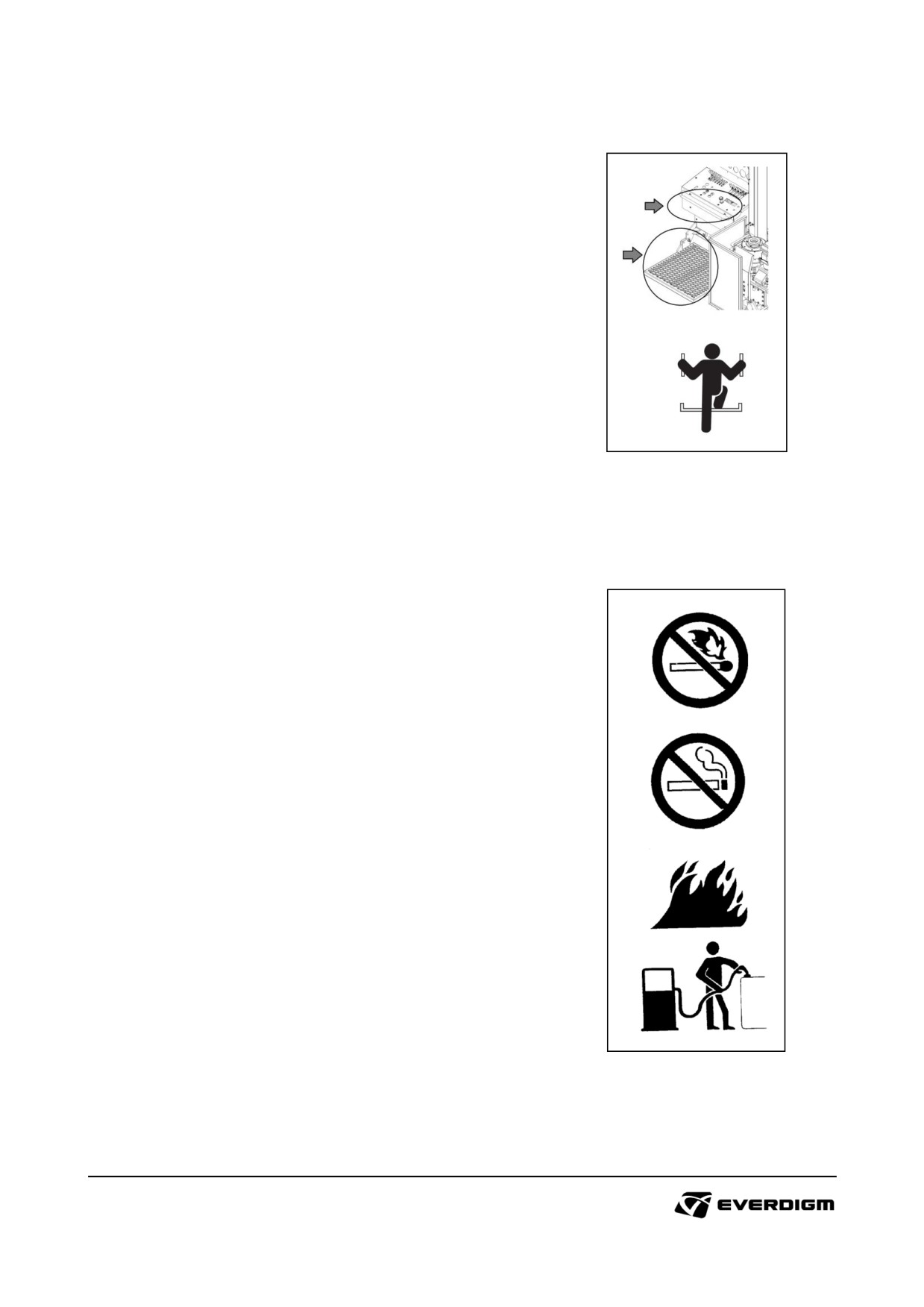

Figure 3
Fuel, Oil and Hydraulic Fluid Fire Hazards
Fuel, oil and antifreeze will catch fire if it is brought close to a flame. Fuel
is particularly flammable and can be hazardous.
Always strictly observe the following.
Add fuel, oil, antifreeze and hydraulic fluid to the machine only in a well
ventilated area. The machine must be parked with controls, lights and
switches turned "OFF." The engine must be "OFF" and any flames,
glowing embers, auxiliary heating units or spark causing equipment must
be doused, turned "OFF" and/or kept well clear of the machine.
Static electricity can produce dangerous sparks at the fuel filling nozzle.
In very cold, dry weather or other conditions that could produce a static
discharge, keep the tip of the fuel nozzle in constant contact with the
neck of the fuel filling nozzle, to provide a ground.
Keep fuel and other fluid reservoir caps tight and do not start the
engine until caps have been secured.
Figure 4
15
Precautions When Handling Fluids at High Temperature
Immediately after operations are stopped, the coolant, engine oil,
and hydraulic oil are at high temperature and the radiator and
hydraulic tank are still under pressure. Attempting to remove the
cap, drain the oil or coolant, or replace the filters may lead to serious
burns. Always wait for the temperature to go down, and follow the
specified procedures when carrying out these operations.
Figure 5
To prevent hot coolant from spurting out, shut down engine, wait for the
coolant to cool, then loosen the cap slowly to relieve the pressure.
To prevent hot oil from spurting out, shut down engine, wait for the
oil to cool, then loosen the cap slowly to relieve the pressure.
Figure 6
Asbestos Dust Hazard Prevention
Asbestos dust can be HAZARDOUS to your health if it is inhaled.
Materials containing asbestos fiber can be present on work site.
Breathing air that contains asbestos fiber can ultimately cause serious or
fatal lung damage. To prevent lung damage from asbestos fiber, observe
following precautions:
• Use a respirator that is approved for use in an asbestos-laden
atmosphere.
• Never use compressed air for cleaning.
Figure 7
• Use water for cleaning to keep down the dust.
• Work on the machine or component with the wind at your back
whenever possible.
• Always observe any rules and regulations related to the work site
and working environment.
16
Injury from Work Equipment
Do not enter or put your hand, arm or any other part of your body
between movable parts, such as between the work equipment and
cylinders, or between the machine and work equipment.
If the control levers are operated, the clearance between the machine
and the work equipment will change and this may lead to serious
damage or personal injury.
If going between movable parts is necessary, always position and secure
the work equipment so that it cannot move.
Figure 8
Fire Extinguisher and First Aid Kit
As a precaution if any injury or fire should occur, always do the following.
• Be sure that fire extinguishers have been provided and read the
labels to ensure that you know now to use them. It is
recommended that an appropriately sized multipurpose "A/B/C"
fire extinguisher be mounted in the cabin. Check and service the
fire extinguisher at regular intervals and make sure that all work
site crew members are adequately trained in its use.
• Provide a first aid kit in the storage compartment and keep
another at the work site. Check the kit periodically and make any
additions if necessary.
Figure 9
• Know what to do in case of injury from fire.
• Keep emergency numbers for doctor, ambulance service, hospital
and fire department near your telephone.
If the machine catches fire, it may lead to serious personal injury or
death. If a fire occurs during operation, escape from the machine as
follows:
• Turn the starter switch to the "O" (OFF) position and shut down
engine.
• If there is time, use the fire extinguisher to extinguish as much of
the fire as possible.
• Use the handrails and steps to escape from the machine.
The above is the basic method for escaping from the machine, but
changing the method may be necessary according to the conditions,
so carry out practice skills at the work site.
17
Protection from Falling or Flying Objects
On work sites where there is danger that falling objects or flying
objects may hit the operator selected a guard to match the
operating conditions to protect the operator.
Working in mines, tunnels, deep pits or on loose or wet surfaces
could produce danger of falling rock or hazardous flying objects.
Additional protection for the operator safety could be required.
Never attempt to alter or modify any type of protective structure
reinforcement system, by drilling holes, welding, remounting or
relocating fasteners. Any serious impact or damage to the system
Figure 10
requires a complete integrity reevaluation. Reinstallation,
recertification and/or replacement of the system may be necessary.
Contact your EVERDIGM distributor for available safety guards
and/or recommendations if there is any danger of getting hit by
objects that could strike the operator's cabin. Make sure that all
other work site crew members are kept well away from the drill rig
and safe from possible hazards.
When working in mines or quarries where there is danger of falling
rock, install FOPS (Falling Objects Protective Structure) and apply
a laminated coating sheet to the front glass.
If any glass on the machine is broken, replace it with new
glass immediately.
Figure 11
Accumulator
The pilot control system is equipped with an accumulator. For a brief
period of time after the engine has been shut down, the accumulator
will store a pressure charge that may enable hydraulic controls to be
activated. Activation of any controls may enable the selected function
to operate under force of gravity.
When performing maintenance on the pilot control system, the
hydraulic pressure in the system must be released as describe in
"Handling of Accumulator" in the Operation and Maintenance Manual.
The accumulator is charged with high-pressure nitrogen gas, so it is
extremely dangerous if it is handled in the wrong way. Always observe
the following precautions:
• Do not drill or make any holes in the accumulator or expose it
any flame, fire or heat source.
• Do not weld on the accumulator, or try attaching anything to it.
• When carrying out disassembly or maintenance of the
accumulator, or when disposing of the accumulator, the charged
gas must be properly released. Contact your EVERDIGM
distributor.
• Wear safety goggles and protective gloves when working on an
accumulator. Hydraulic oil under pressure can penetrate the skin
and cause serious injuries
18
Ventilation on closed area
Engine exhaust gases can cause fatal accidents, and unconsciousness,
loss of alertness, judgment and motor control and serious injury.
Make sure there is adequate ventilation before starting the engine in any
enclosed area.
You should also be aware of open windows, doors or ductwork into
which exhaust may be carried, or blown by the wind, exposing others to
danger.
Figure 12
WARNING!
Protect your eyes when breaking the glass.
19
1.10 Before Starting Engine Safety
Work Site Precautions
Before starting operations, thoroughly check the area for any unusual
conditions that could be dangerous.
Check the terrain and condition of the ground at the work site, and
determine the best and safest method of operation.
Make the ground surface as hard and horizontal as possible before
carrying out operations. If there is a lot of dust and sand on the work
site, spray water before starting operations.

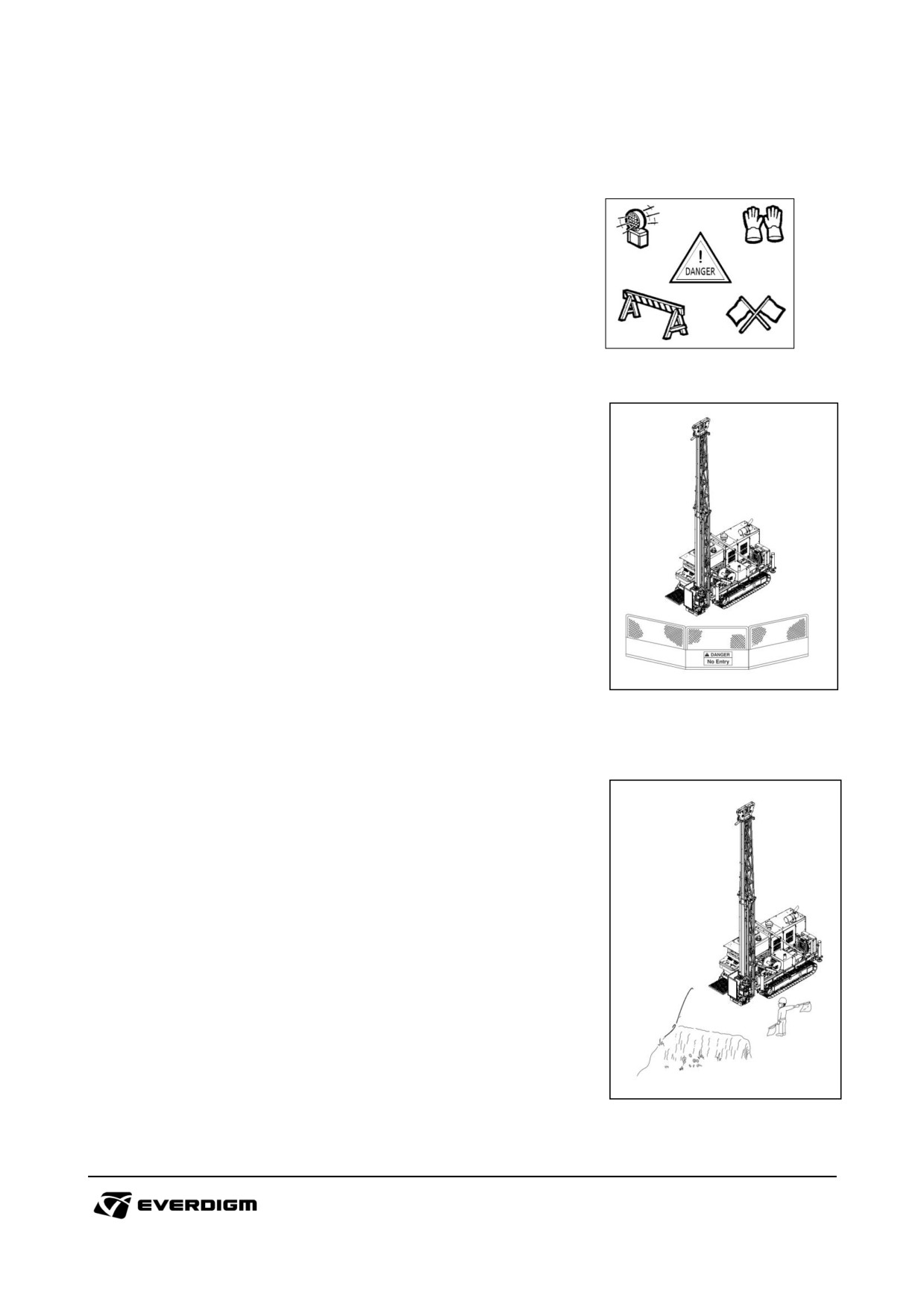

If you need to operate on a street, protect pedestrians and cars by
Figure 13
designating a person for work site traffic duty or by erecting fences
and posting "No Entry" signs around the work site.
Erect fences, post "No Entry" signs, and take other steps to prevent
people from coming close to or entering the work site. If people come
close to a moving machine, they may be hit or caught by the machine,
and this may lead to serious personal injury or death.

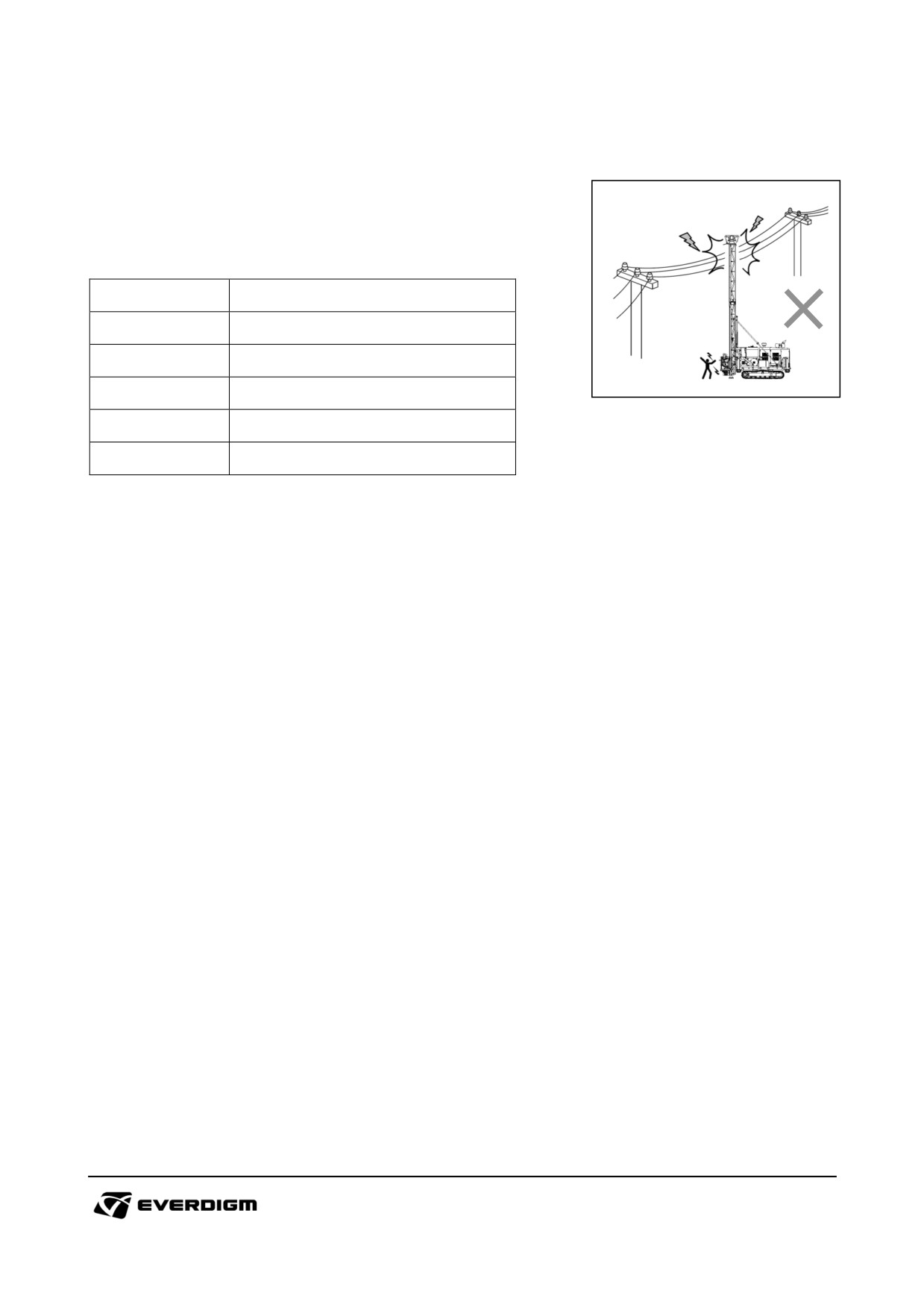

Water lines, gas lines, phone lines and high voltage electrical lines
may be buried under the work site. Contact each utility and identify
their locations. Be careful not to damage or cut any of these lines.
Any type of object in the vicinity of the boom could represent a
potential hazard, or cause the operator to react suddenly and cause
an accident. Use a spotter or signal person working near bridges,
phone lines, work site scaffolds, or other obstructions.
Minimum levels of insurance coverage, work permits or certification,
physical barriers around the work site or restricted hours of operation
may be mandated by governing authorities. There may also be
Figure 14
regulations, guidelines, standards or restrictions on equipment that
may have to be followed for local requirements. There may also be
regulations related to performing certain kinds of work. If there is any
question about whether your machine and work site complies with the
applicable standards and regulations contact your local authorities
and agencies.
Avoid entering soft ground. It will be difficult for the machine to
escape.
Avoid operating your machine to close to the edge of cliffs, overhangs,
and deep ditches. The ground may be weak in such areas. If the
ground should collapse, the machine could fall or tip over and this
could result in serious injury or death.
Remember that the soil after heavy rain, blasting or after earthquakes,
is weakened in these areas.
Earth laid on the ground and the soil near ditches is loose. It can
collapse under the weight of vibration of your machine and cause your
machine to tip over.

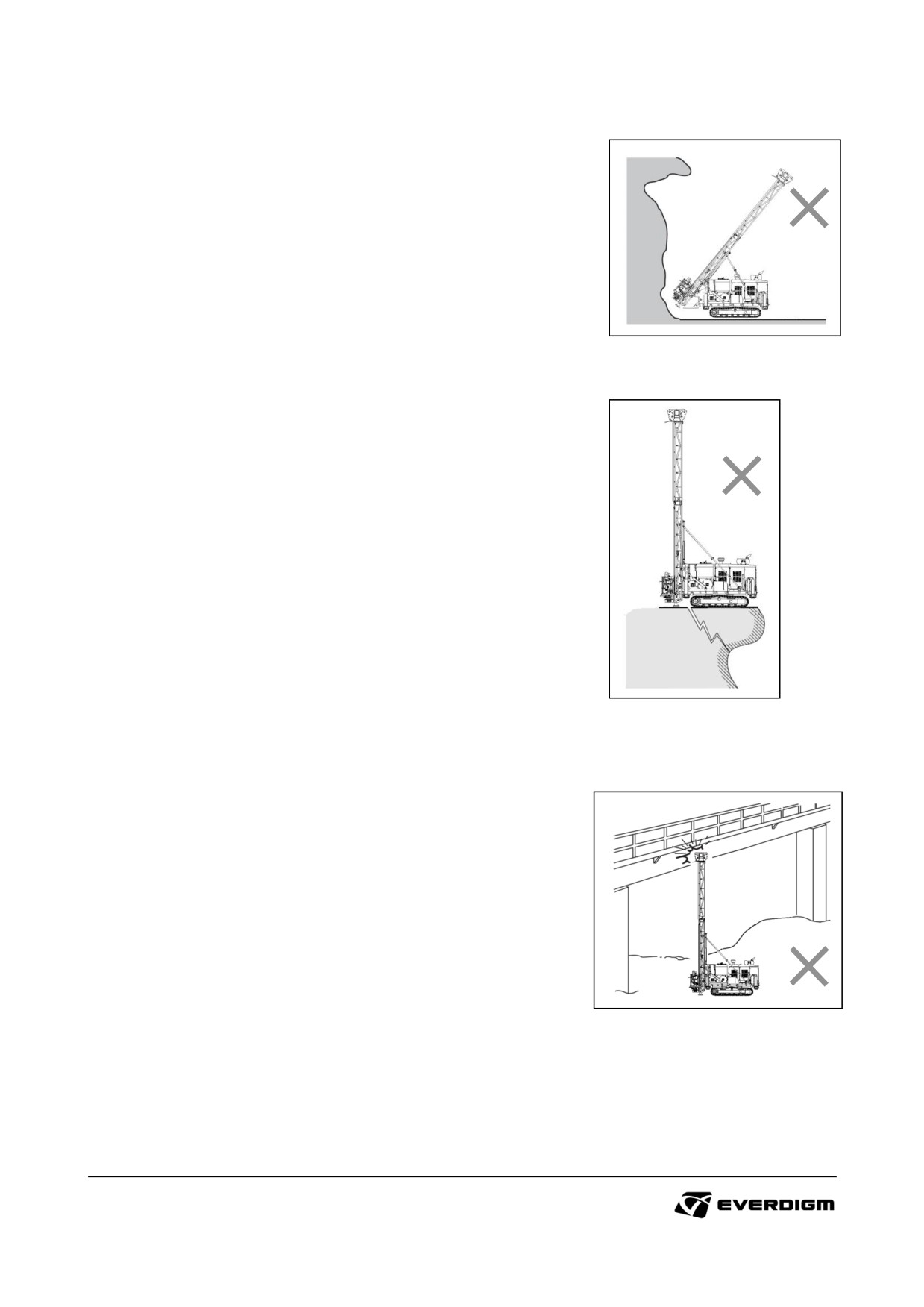

Install the special guards if working in areas where there is danger of
falling rocks.
Figure 15
20
Checks Before Starting Engine
Every day before starting the engine for the first time, carry out the
following checks. If these checks are not carried out properly, there is
danger of serious injury.
Completely remove all wood chips, leaves, grass, paper and other
flammable materials accumulated in the engine compartment and
around the battery. They could cause a fire. Remove any dirt from the
window glass, mirrors, handrails, and steps.
Do not leave tools or spare parts laying around in the operator's
compartment. The vibration of the machine when traveling or during
operations may cause them to fall and damage or break the control
levers or switches. They may also get caught in the gap of the control
levers and cause the work equipment to malfunction or move
dangerously. This may lead to unexpected accidents.
Check the coolant level, fuel level, lubrication oil level and hydraulic
tank oil level, and check for clogged air cleaner and damage to the
electrical wiring.
Check the step condition where operator will stand and it is easy to
operate the machine.
Check the operation of the gauges, operation levers and switches.
If any abnormalities are found in the above checks, carry out repairs
immediately
Engine Starting
Walk around your machine before getting in the operating area. Look
for evidence of leaking fluid, loose fasteners, misaligned assemblies
or any other indications of possible equipment hazard.
All equipment covers and machinery safety guards must be in place,
to protect against injury while the machine is being operated.
Look around the work site area for potential hazards, people or
properly that could be at risk while operation is in progress.
NEVER start the engine if there is any indication that maintenance or
service work is in progress, or if a warning tag is attached to controls
in the cabin.
A machine that has not been used recently, or is being operated in
extremely cold temperatures, could require a warm-up or maintenance
service before start-up.
Check gauges and monitor displays for normal operation before
starting the engine. Listen for unusual noises and remain alert for
other potentially hazardous conditions at the start of the work cycle.
Do not short circuit the starting motor to start the engine. This is not
only dangerous, but may also damage the machine.
When starting the engine, sound the horn as an alert.
Start and operate the machine only while all danger factors are
cleared.
21
Before Operating Machine
If checks are not carried out properly after starting the engine, it may
result in a delay in discovering abnormalities in the machine, and this
may lead to personal injury or damage to the machine.
Carry out the checks in an open area where there are no obstructions.
Do not let anyone near the machine when carrying out the checks.
• Check the operating condition of the equipment, and the
actuation of mast control, travel, and rotation head working
conditions.
• Check the machine for any abnormal noise, vibration, heat,
smell, or abnormality with the gauges. Check also for leakage of
air, oil, and fuel.
• If any abnormality is found, repair the problem immediately. If the
machine is used without repairing the problems, it may lead to
unexpected injury or failure.
• Clear all personnel from directly around machine and from the
area.
• Clear all obstacles from the machine's path. Beware of hazards.
• Make sure that the horn, the travel alarm (if equipped), and all
other warning devices are working properly.
• Warm up the engine and hydraulic oil before operating machine.
• Before moving the machine, check the position of
undercarriage. The normal travel position is with idler wheels to
the front under the cabin and the drive sprockets to the rear.
When the undercarriage is in the reversed position, the travel
controls must be operated in opposite directions.
22
1.11 Machine Operation Safety
When Changing Direction of Travel
Before operating the machine or the work equipment, always observe
the following precautions to prevent serious injury or death.
• Start and operate the machine only while seated.
• When changing the direction of travel from forward to reverse or
from reverse to forward, reduce speed early and stop the
machine before changing the direction of travel.
• Sound the horn to warn people in the area.
• Check that there is no one in the area around the machine. There
are blind spots behind the machine, so if necessary, check all
blind spots that there is no one behind the machine before
traveling in reverse.
• When operating in areas that may be hazardous or have poor
visibility, designate a person to direct work site traffic.
• Ensure that no unauthorized person can come within the turning
radius or direction of travel.
Be sure to observe the above precautions even if a travel alarm or
Figure 16
mirrors are installed.
Travel Precautions
Never turn the starting switch to the "O" (OFF) position when
traveling. It is dangerous if the engine stops when the machine is
traveling. It will be impossible to operate the steering.
Place mast on the bonnet firmly not to move mast freely by vibration
during traveling.

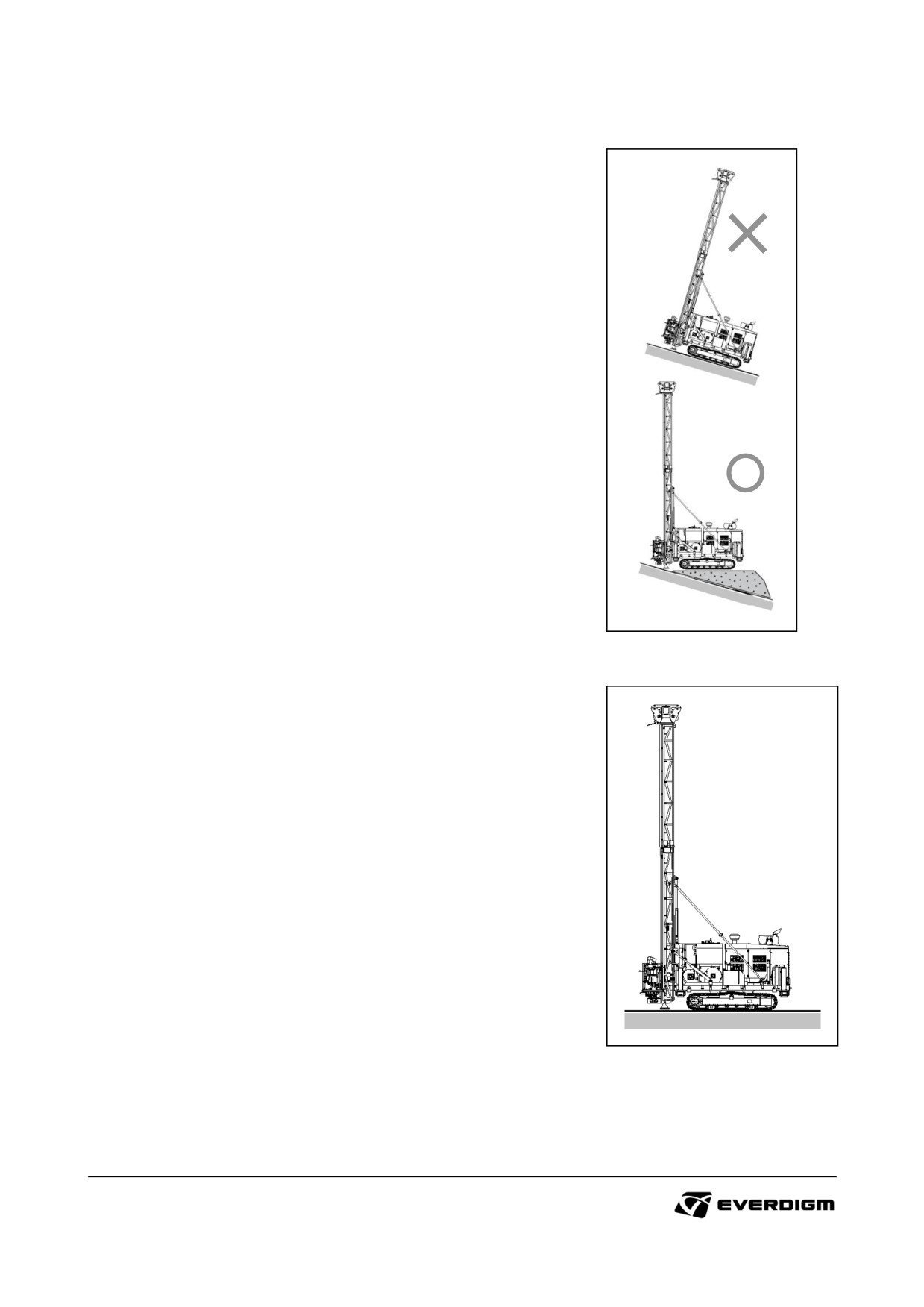

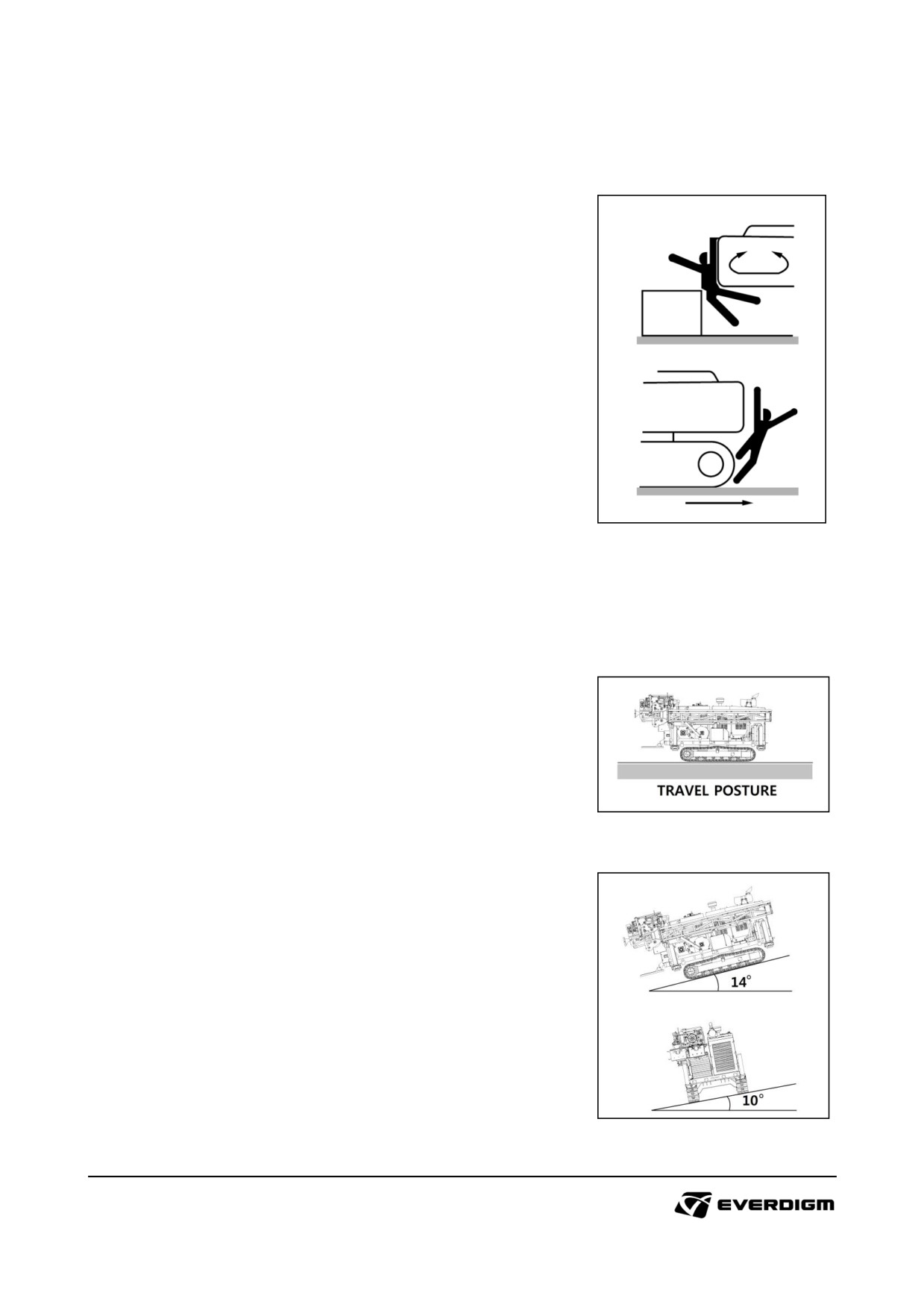

Never travel over obstacles or slopes that will cause the machine to tilt
severely. Travel around any slope or obstacle that causes the
machine to tilt 10 degrees or more to the right or left, or 14 degrees or
Figure 17
more from front to rear.
Do not turn machine suddenly. The work equipment may hit the
ground and cause the machine to lose its balance, and this may
damage the machine or structures in the area.
When traveling on rough ground, travel at low speed, and avoid
sudden changes in direction.
Always keep to the permissible water depth. Permissible water depth
is to the center line of the upper track rollers.
When traveling over bridges or structures on private land, check first that
the bridge or structure can withstand the weight of the machine. When
traveling on public roads, check with the local authorities and follow their
instructions.
Figure 18
23
When Changing Direction of Travel
Never jump onto a machine that is running away to stop it. There is
danger of serious injury.
Traveling on slopes could result in the machine tipping over or
slipping.
On hills, banks or slopes, try to balance machine with mast weight
and operation.
Do not travel on grass, fallen leaves, or wet steel plates. Even slight
slopes may cause the machine to slip to the side, so travel at low
speed and make sure that the machine is always traveling directly up
or down the slope.
Avoid changing the direction of travel on a slope. This could result in
tipping or side slipping of the machine.
When possible, operate the machine up slopes and down slopes. Avoid
operating the machine across the slope, when possible.
24
Dangers during Operation
Do not drill the work face under an overhang. This may cause the
overhang to collapse and fall on top of the machine.
Do not place machine on the edge of rock. The ground under the
machine may collapse and cause the machine to fall.
Figure 19
Never relay on lift jacks or other inadequate supports when work is
being done. Block tracks fore and aft to prevent any movement.
When working at the edge of an cliff or on a road shoulder, the machine
could tip over, possibly resulting in serious injury or death. Investigate
the configuration and ground conditions of the work site beforehand to
prevent the machine from falling and to prevent the ground, stockpiles,
or banks from collapsing.
Precautions for Operation
Be careful not to go close to the edge of a cliff by mistake.
Figure 20
Use the machine only for its main purpose. Using it for other purposes
will cause failures.
To ensure an ample view, do as follows:
• When working in dark areas, attach working lights and front lights
to the machine. If necessary, set up lighting at the work site.
• Stop operations when the visibility is poor, such as in fog, mist,
snow, and rain. Wait for the visibility to improve to a level which
causes no problems for the operation.
To avoid hitting the work equipment, always do the following:
• When working in tunnels, on bridges, under electric wires, or
when parking the machine or carrying out other operations in
places with limited height, be extremely careful not to hit the mast
or other parts.
• To prevent collisions, operate the machine at a safe speed when
working in confined spaces, indoors, or in crowded areas.
Figure 21
• Do not pass the mast over the heads of workers or over the
operator's compartment of other machines
25
Avoid High Voltage Cables
Serious injury or death can result from contact or proximity to high
voltage electric lines. The mast does not have to make physical
contact with power lines for current to be transmitted.
Use a spotter and hand signals to stay away from power lines not
clearly visible to the operator.
Voltage
Minimum Safe Distance
6.6 kV
3 m (9' 10")
33.0 kV
4 m (13' 1")
66.0 kV
5 m (16' 5")
Figure 22
154.0 kV
8 m (26' 3")
275.0 kV
10 m (32' 10")
Use these minimum distances as a guideline only. Depending upon
the voltage in the line and atmospheric conditions, strong current
shocks can occur with the boom or mast as far away as 4 - 6 m (13 -
20 ft.) from the power line. Very high voltage and rainy weather could
further decrease that safety margin.
NOTE : Before starting any type of operation near power lines (either
above ground or buried cable type), you should always contact
the power utility directly and work out a safety plan with them.
Parking Machine
In a work site where falling objects or flying objects are expected, be
sure to move machine on the safe place.
In a work site where falling rocks can cause damage and possibly
crush personnel, or in a mining operation, be sure to avoid to danger
situation.
Be sure to put any other additional protective structures required for
work site conditions.
26
Operation on Slopes
When working on slopes. there is danger that the machine may lose
its balance and turn over, when swinging, or when work equipment is
operated. Always carry out these operations carefully.
Do not turn equipment from the uphill side to the downhill side
suddenly. This operation is dangerous.
If the machine has to be used on a slope, pile the soil to make a platform
that will keep the machine as horizontal as possible.
Parking Machine
Figure 23
Avoid making sudden stops, or parking the machine wherever it
happens to be at the end of the work day. Plan ahead so that the drill
rig will be on firm, level ground away from traffic and away from high
walls, cliff edges and any area of potential water accumulation or
runoff.
There should be no possibility of unintended or accidental movement.
When parking on public roads, provide fences, signs, flags, or lights,
and put up any other necessary signs to ensure that passing traffic
can see the machine clearly, and park the machine so that the
machine, flags, and fences do not obstruct traffic.
After retracting the extended boon, putting mast on the firm ground to
an overnight storage position and all switches and operating controls
are in the "OFF" position, the starter key should be removed from the
machine.
Always close the door of the operator's compartment.
Figure 24
27
1.12 Maintenance Safety
Warning Tag
Alert others that service or maintenance is being performed and tag
operator's cabin controls - and other machine areas if required - with a
warning notice.
Figure 25
Clean Before Inspection or Maintenance
Clean the machine before carrying out inspection and maintenance.
This prevents dirt from getting into the machine and also ensures
safety during maintenance.
If inspection and maintenance are carried out when the machine is
dirty, it will become more difficult to locate the problems, and also
there is danger that you may get dirt or mud in your eyes or that you
may slip and injure yourself.
When washing the machine, do the following:
• Wear shoes with nonslip soles to prevent yourself from slipping
and falling on wet places.
• Wear safety glasses and protective clothing when washing the
machine with high-pressure steam.
• Take action to prevent touching high-pressure water and cutting
Figure 26
your skin or having mud fly into your eyes.
• Do not spray water directly on electrical components (sensors,
connector). If water gets into the electrical system, there is
danger that it will cause defective operation and malfunction.
Pick up any tools or hammers that are laying in the work place, wipe up
any grease or oil or any other slippery substances, and clean the area to
make it possible to carry out the operation in safety. If the work place is
left untidy, you may trip or slip and suffer injury.
28
Proper Tools
Use only tools suited to the task. Using damaged, low qualify, faulty, or
makeshift tools could cause personal injury. There is danger that pieces
from, chisels with crushed heads, or hammers, may get into your eyes
and cause blindness.
Figure 27
Use of Lighting
When checking fuel, oil, battery electrolyte, or window washing fluid,
always use lighting with antiexplosion specifications. If such lighting
equipment is not used, there is danger of an explosion.
If work is carried out in dark places without using lighting, it may lead
to injury, so always use proper lighting.
Even if the place is dark, never use a lighter or flame instead of lighting.
There is danger of fire. There is also danger that the battery gas may
catch fire and cause and explosion.
Figure 28
Fire Prevention and Explosion Prevention
All fuels, most lubricants and some coolant mixtures are flammable.
Leaking fuel or fuel that is spilled onto hot surfaces or onto electrical
components can cause a fire.
Store all fuels and all lubricants in properly marked containers and
away from all unauthorized persons.
Store oily rags and other flammable material in a protective container.
Do not smoke while you refuel the machine or while you are in a
refueling area.
Do not smoke in battery charging areas or in areas the contain
flammable material.
Clean all electrical connections and tighten all electrical connections.
Check the electrical wires daily for wires that are loose of frayed.
Figure 29
Tighten all lose electrical wires before you operate the machine.
Repair all frayed electrical wires before you operate the machine.
Remove all flammable materials before they accumulate on the
machine.
Do not weld on pipes or on tubes that contain flammable fluids.
Do not flame cut on pipes or on tubes that contain flammable fluids.
Before you weld on pipes or on tubes or before you flame cut on pipes or
on tubes, clean the pipes or tubes thoroughly with a nonflammable
solvent.
29
Burn Prevention
When checking the radiator coolant level, shut down engine, let the
engine and radiator cool down, then check the coolant recovery tank.
If the coolant level in the coolant recovery tank is near the upper limit,
there is enough coolant in the radiator.
Loosen the radiator cap gradually to release the internal pressure
before removing the radiator cap.
If the coolant level in the coolant recovery tank is below the lower limit,
add coolant.
Cooling system conditioner contains alkali. Alkali can cause personal
injury. Do not allow alkali to contact the skin, the eyes, or the mouth.
Allow cooling system components to cool before you drain the cooling
system.
Hot oil and hot components can cause personal injury. Do not allow
hot oil or hot components to contact the skin.
Remove the hydraulic tank filter plug only after the engine has been
stopped. Make sure that the hydraulic tank filter plug is cool before
you remove it with your bare hand. Remove the hydraulic tank filter
plug slowly to relieve pressure.
Relieve all pressure in the hydraulic oil system, in the fuel system, or
in the cooling system before you disconnect any lines, fittings, or
related items.
Batteries give off flammable fumes that can explode.
Figure 30
Do not smoke while you are checking the battery electrolyte levels.
Electrolyte is an acid. Electrolyte can cause personal injury. Do not
allow electrolyte to contact the skin or the eyes.
Always wear protective glasses when you work on batteries.
Welding Repairs
WARNING!
When you connect or disconnect connectors between
ECU and Engine or connector between ECU and the
machine, always disconnect the source power to protect
damage of the ECU.
If you don't observe this procedure, the ECU would be
damaged or the engine would operate abnormally.
When carrying out welding repairs, carry out the welding in a properly
equipped place. The welding should be performed by a qualified worker.
During welding operations, there is the danger of, generation of gas, fire,
or electric shock, so never let an unqualified worker do welding.
30
The qualified welder must do the following:
Figure 11
• To prevent explosion of the battery, disconnect the battery
terminals and remove batteries.
• To prevent generation of gas, remove the paint from the
location of the weld.
• If hydraulic equipment, piping or places close to them are
heated, a flammable gas or mist will be generated and there is
danger of it catching fire. To avoid this, never subject these
places to heat.
• Do not weld on pipes or on tubes that contain flammable
fluids. Do not flame cut on pipes or on tubes that contain
flammable fluids. Before you weld on pipes or on tubes or
before you flame cut on pipes or on tubes, clean the pipes or
tubes thoroughly with a nonflammable solvent.
• If heat is applied directly to rubber hoses or piping under
pressure, they may suddenly break so cover them with a
fireproof covering.
• Wear protective clothing.
• Make sure there is good ventilation.
• Remove all flammable objects and provide a fire extinguisher.
Treatment for Electrical Welding to the Body Structure
To prevent damage to electrical components by electrical welding,
please observe the following procedures:
1. Turn off the master switch
2. Open the door of the battery cover.
3. Detach the cover after loosening the bolts on the battery.
4. Detach the positive and negative terminal cables from the
battery.
5. Proceed with welding.
6. After welding, carefully reassemble the connector.
7. Connect the battery terminal cables.
8. Reassemble the cover over the battery.
10. Turn on the master switch.
Figure 31
31
Precautions for Removal, Installation of Heavy
Components
Before starting removal and installation of heavy components, decide
the team leader.
Do not allow anyone except the authorized workers close to the
machine.
Place components that have been removed from the machine in a safe
place so that they do not fall. Put up a fence around the components and
take other measures to prevent unauthorized persons from entering.
Figure 32
Precautions When Working on Machine
When carrying out maintenance operations on the machine, keep the
area around your feet clean and tidy to prevent you from falling.
Always do the following:
• Do not spill oil or grease.
• Do not leave tools laying about.
• Watch your step when walking.
Never jump down from the machine. When getting on or off the
machine, use the steps and handrails, and maintain a three point
contact (both feet and one hand or both hands and one foot) to
support yourself securely.
If the job requires it, wear protective clothing.
Figure 33
To prevent injury from slipping or falling, when working on the hood or
covers, never use any part except the inspection passage fitted with
nonslip pads.
Lock Inspection Covers
When carrying out maintenance with the inspection cover open, lock
the cover securely in position with the lock bar.
If maintenance work is carried out with the inspection cover open but
not locked, there is danger that it may suddenly close and cause injury
if there is a gust of wind.
32
Crushing Prevention and Cutting Prevention
You should always have at least two people working together if the
engine must be run during service. One person needs to remain in the
operator's seat, ready to work the controls or stop the machine and
shut off the engine.
Unless you are instructed otherwise, never attempt adjustments while
the machine is moving or while the engine is running.
Stay clear of all rotating parts and moving parts.
Keep objects away from moving fan blades. The fan blades will throw
objects and the fan blades can cut objects.
Do not use a wire rope cable that is kinked or flayed. Wear gloves
when you handle a wire rope cable.
When you strike a retainer pin, the retainer pin might fly out. The loose
Figure 34
retainer pin can injure personnel. Make sure that the area is clear of
people when you strike a retainer pin. To avoid injury to your eyes,
wear protective glasses when you strike a retainer pin.
Track Tension Adjustments Require Caution
Never turn out the track tension grease fitting nut. To release pressure
from the core frame track tension assembly, you should NEVER
attempt to disassemble the track adjuster or attempt to remove the
grease fitting or valve assembly.
Keep your face and body away from the valve. Refer to the track
adjustment procedure in the Operator and Maintenance Manual or Shop
Manual.
Supports and Blocking for Work Equipment
Do not allow weight or equipment loads to remain suspended.
Lower everything to the ground before leaving the operator's seat.
Do not use hollow, cracked or unsteady wobbling supports.
Do not work under any equipment supported only by a lifting jack.
Figure 35
33
Action When Abnormality Is Found During Inspection
If any abnormality is found during inspection, always carry out repairs.
In particular, if the machine is used when there are still problems with
the brake or work equipment systems, it may lead to serious injury.
If necessary depending on the type of failure, please contact your
EVERDIGM distributor for repairs.
Precautions with High-pressure Lines, Tubes and Hoses
When inspecting or replacing high-pressure piping or hoses, check
that the pressure has been released from the circuit. Failure to release
the pressure may lead to serious injury.
Always do the following:
• Wear protective glasses and leather gloves.
• Fluid leaks from hydraulic hoses or pressurized components can
be difficult to see but pressurized oil has enough force to pierce
the skin and cause
serious injury. Always use a piece of wood or cardboard to check
for suspected hydraulic leaks. Never use your hands or expose
your fingers.
• Do not bend high-pressure lines. Do not strike high pressure
lines. Do not install lines, tubes or hoses that are bent or
damaged.
• Make sure that all clamps, guards and heat shields are installed
correctly to prevent vibration, rubbing against other parts, and
excessive heat during operation.
- If any of the following conditions are found, replace the part.
- Damage or leakage from hose end.
- Wear, damage, cutting of covering, or exposure of
strengthening wire layer.
- Cover portion is swollen in places.
Figure 36
- There is twisting or crushing at movable parts of hose.
- Foreign material is embedded in the covering.
- Hose end is deformed.
NOTE: Refer to "Hose In-service Lifetime Limit (European Standard ISO
8331 and EN982 CEN)" in the Operation and Maintenance
Manual, for additional European regulations.
34
Waste Materials
Physical contact with used motor oil may pose a health risk.
Wipe oil from your hands promptly and wash off any remaining
residue.
Used motor oil is an environmental contaminant and may only be
disposed of at approved collection facilities. To prevent pollution of the
environment, always do the following:
• Never dump waste oil in a sewer system, rivers, etc.
• Always put oil drained from your machine in containers. Never
drain oil directly onto the ground.
• Obey appropriate laws and regulations when disposing of
harmful materials such as oil, fuel, solvent, filters, and batteries.
Figure 37
35
1.13 Battery
Battery Hazard Prevention
Battery electrolyte contains diluted sulfuric acid and batteries generate
hydrogen gas. Hydrogen gas is highly explosive, and mistakes in
handling them can cause serious injury or fire. To prevent problems,
always do the following:
• Do not smoke or bring any flame near the battery.
• When working with batteries, ALWAYS wear safety glasses and
rubber gloves.
• If you spill battery electrolyte on yourself or your clothes,
immediately flush the area with water.
• If battery electrolyte gets into your eyes, flush them immediately
with large quantities of water and see a doctor at once.
• If you accidentally drink battery electrolyte, drink a large quantity
of water or milk, raw egg or vegetable oil. Call a doctor or poison
prevention center immediately.
• When cleaning the top surface of the battery, wipe it with a clean,
damp cloth. Never use gasoline, thinner, or any other organic
solvent or detergent.
• Tighten the battery caps securely.
• If the battery electrolyte is frozen, do not charge the battery or
start the engine with power from another source. There is danger
that the battery may catch fire.
• When charging the battery or starting with power from another
source, let the battery electrolyte melt and check that there is no
leakage of battery electrolyte before starting the operation.
• Always remove the battery from the machine before charging.
Figure 38
36
Boost Starting or Charging Engine Batteries
If any mistake is made in the method of connecting the booster
cables, it may cause an explosion or fire. Always do the following:
• Turn off all electrical equipment before connecting leads to the
battery. This includes electrical switches on the battery charger
or boost starting equipment.
• When boost starting from another machine or vehicle do not
allow the two machines to touch. Wear safety glasses or
goggles while required battery connections are made.
•
24 volt battery units consisting of two series connected twelve
volt batteries have a cable connecting one positive terminal on
one of the 12 volt batteries to a negative terminal on the other
battery. Booster or charger cable connections must be made
between the nonseries connected positive terminals and
between the negative terminal of the booster battery and the
metal frame of the machine being boosted or charged. Refer to
the procedure and illustration in "Starting Engine With a Booster
Cable" in the Operation and Maintenance Manual.
• Connect positive cable first when installing cables and
disconnect the negative cable first when removing them. The
Figure 39
final cable connection, at the metal frame of the machine being
charged or boost started, should be as far away from the
batteries as possible.
37
1.14 Towing
Precautions When Towing
If any mistake is made in the method of selecting or inspecting the
towing wire or in the method of towing, it may lead to serious personal
injury. Always do the following:
• Always use the method of towing given in this Operation and
Maintenance Manual. Do not use any other method.
• Use leather gloves when handling the wire rope.
• When carrying out the preparation work for towing with two or
more workers, determine the signals to use and follow these
signals correctly.

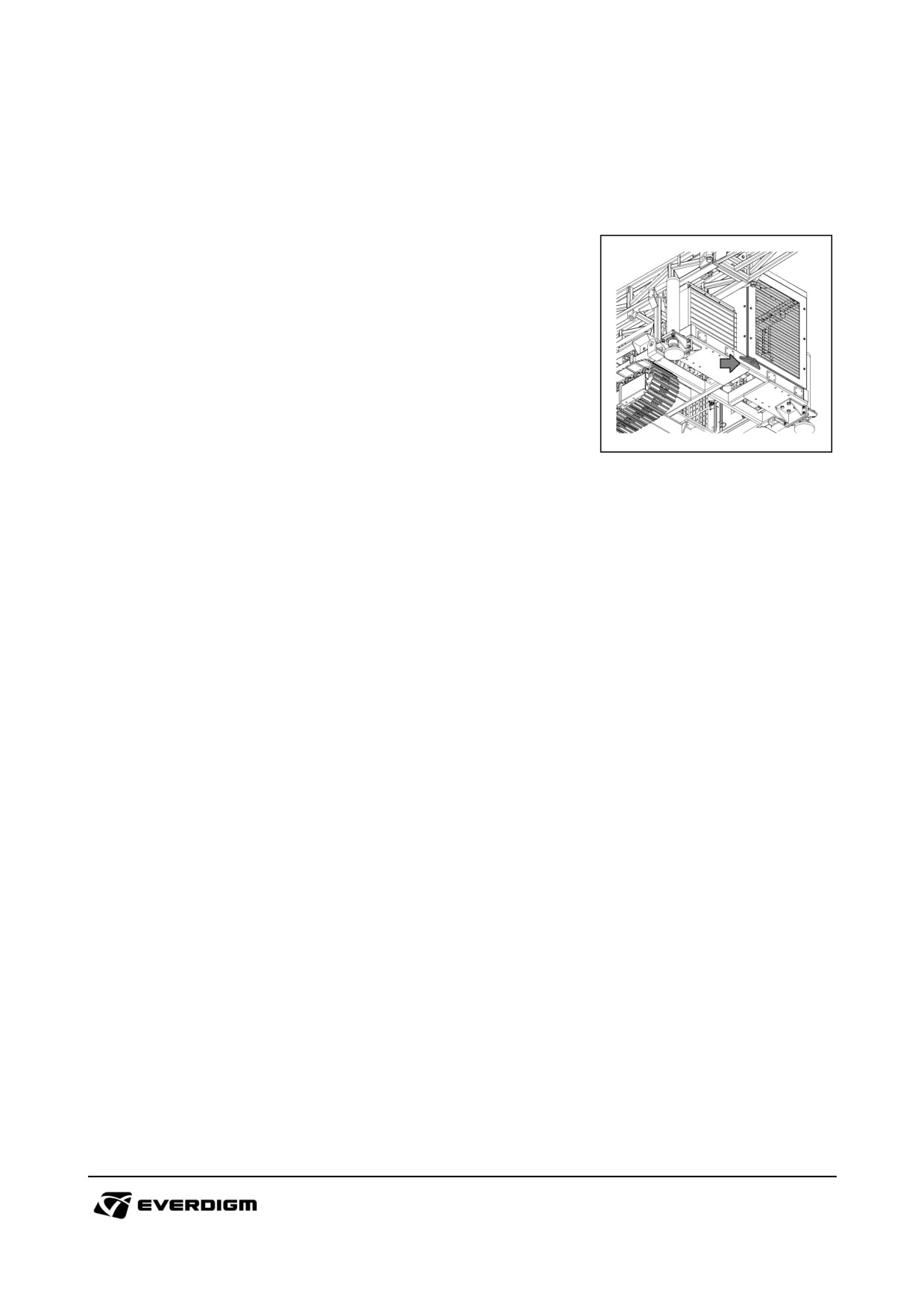

• Always fit the towing rope to the left and right hooks and secure
in position.
Figure 40
• If the engine on the problem machine will not start or there is a
failure in the brake system. always contact your EVERDIGM
distributor.
• Never go between the towing machine and the towed machine
during the towing operation.
• It is dangerous to carry out towing on slopes, so select a place
where the slope is gradual. If there is no place where the slope
is gradual, carry out operations to reduce the angle of the slope
before starting the towing operation.
• When towing a problem machine, always use a wire rope with a
sufficient towing capacity.
• Do not use a frayed, kinked rope or a rope with any loss of
diameter.
• Do not use the lightweight towing hook for towing another
machine.
38
1.15 Shipping and Transportation
Obey State and Local Over-the-Road Regulations
Check state and local restrictions regarding weight, width and length
of a load before making any other preparation for transport.
The hauling vehicle, trailer and load must all be in compliance with
local regulations governing the intended shipping route.
Partial disassembly or teardown of the drill ring may be necessary to
meet travel restrictions or particular conditions at the work site. See
the Shop Manual for information on partial disassembly.
Refer to the Transportation and Shipping section of this Operation and
Maintenance Manual for information on loading, unloading and towing.

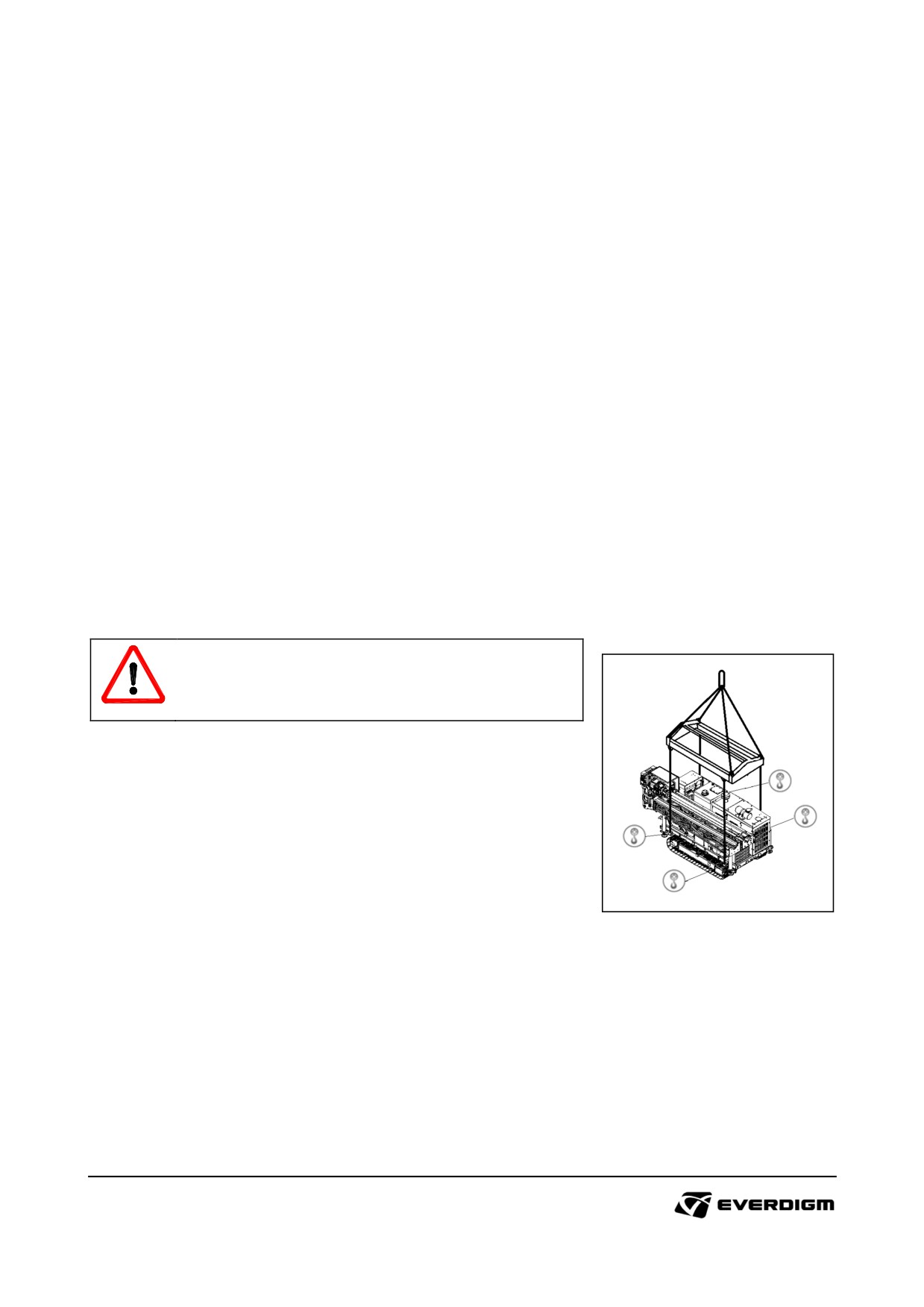

Lifting with Sling
WARNING!
Improper lifting can allow load to shift and cause injury
or damage.
1. Refer to Specification section of Operation and Maintenance
Manual for information on weight and dimensions.
2. Use properly rated cables and slings for lifting.
3. Position machine for a level lift.
4. Lifting cables should have a long enough length to prevent contact
with the machine. Spreader bars may be required.
If spreader bars are used, be sure that cables are properly secured to
them and that the angle of the cables is factored into the lift strength.
Figure 41
39
1.16 Location of emergency switches
Remember the locations of emergency switch
Always check the status of emergency switches and remember the
locations. When danger situation is encountered or predicted, do not
hesitate to operate emergency switch to stop the machine operation.
Failed switch should be replaced with new one.
Operator panel : 1 place
Left side of machine : 2 place
Right side of machine : 2 place
40
1.17 Special pay attention while components are moving
Check interruption of components
For traveling safety, the mast can be folded.
Before folding mast, check the movement of mast if components are
contacting each other, or hoses are bent severely.
WARNING!
Before placing mast to horizontal position, rotate and
fold level winder to prevent damage.

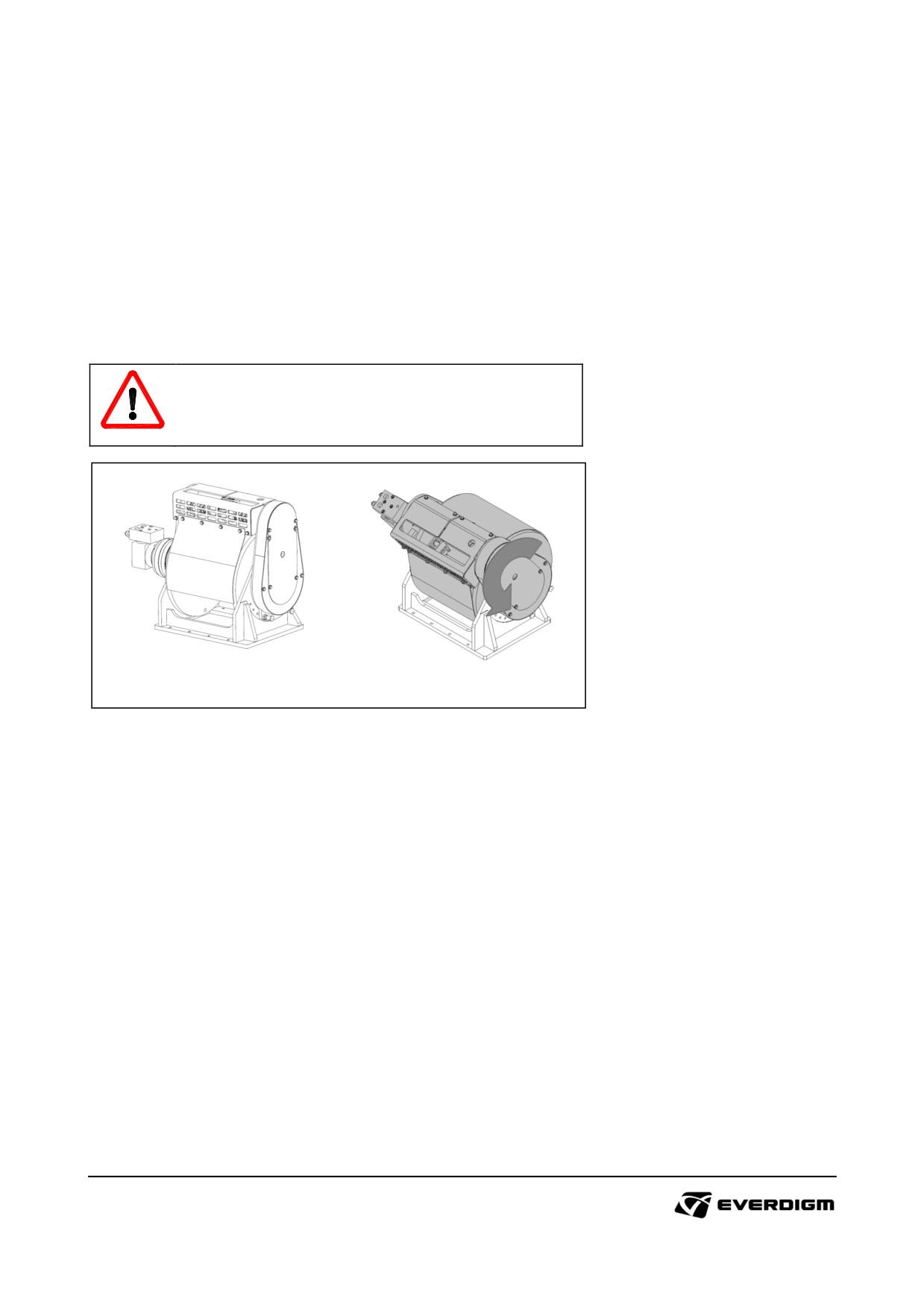

< Normal working position>
<When mast is placed to horizontal position>
41
2. Product information

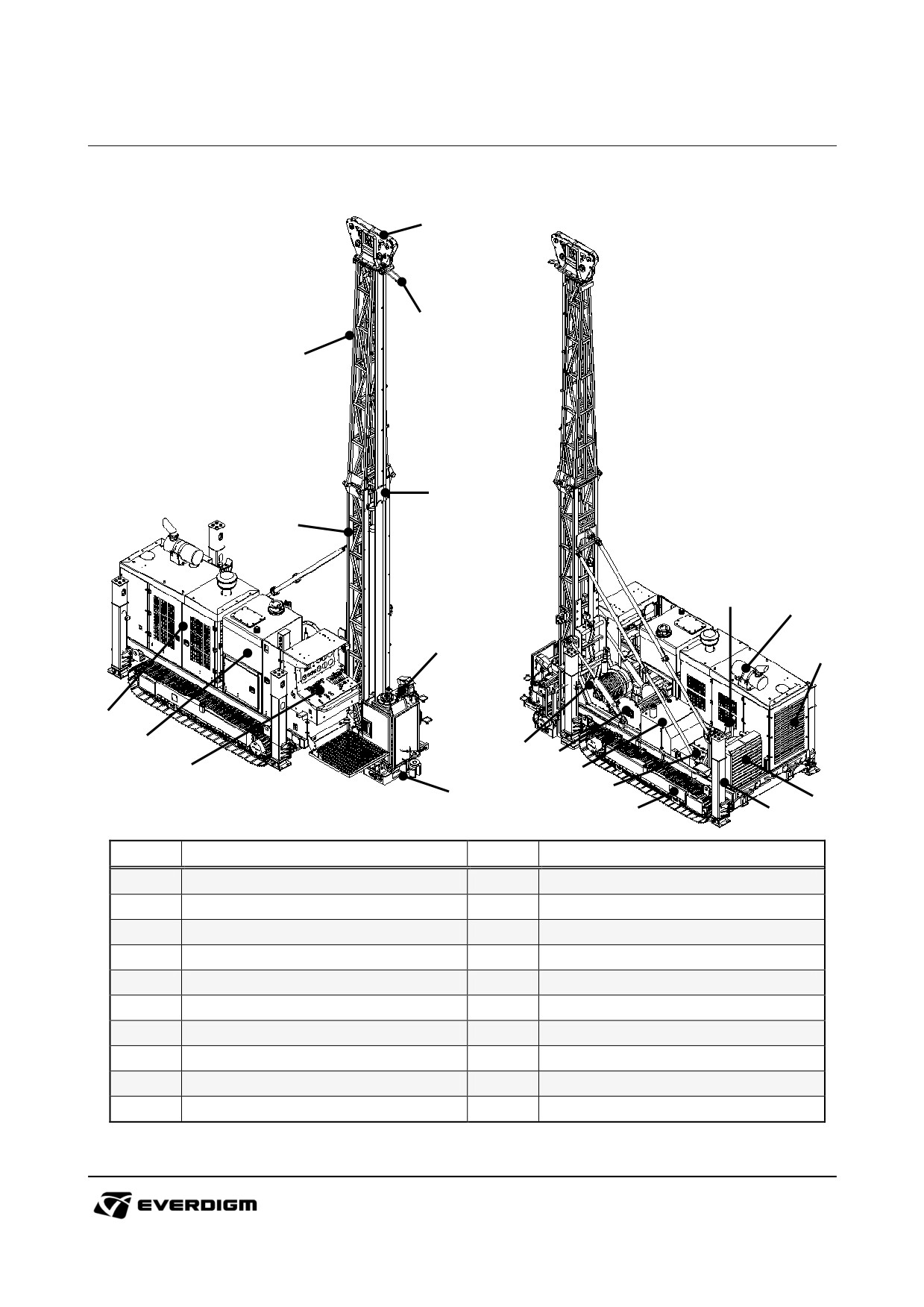

2.1 Names of components
1
10
2
9
3
15
18
8
17
6
5
11
12
4
13
7
14
16
20
19
No.
Description
No
Description
1
Crown block
11
Main winch
2
Upper mast
12
Wireline winch
3
Lower mast
13
Fuel tank
4
Control panel
14
Battery box
5
Hydraulic oil tank
15
Mast support
6
Power unit
16
Oil cooler
7
Foot clamp
17
Radiator
8
Rotary head
18
Muffler
9
Rod kicker
19
Outrigger
10
Upper hoist limit
20
Track
* For more details, please refer to parts manual.
42

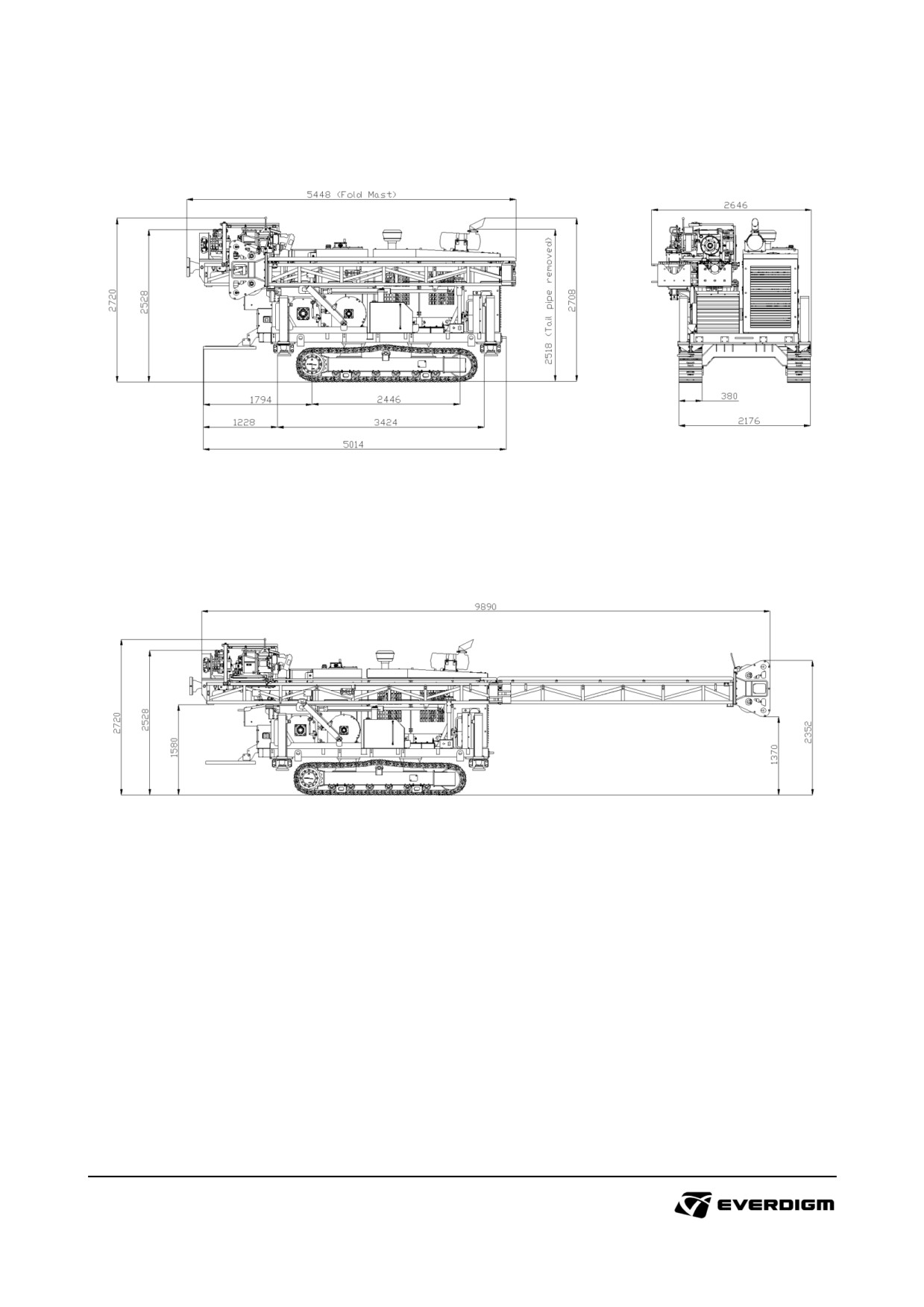

2.2 External Dimensions
TRANSPORT DIMENSION (top mast folded)
OVERALL DIMENSION (mast extended- horizontal)
43

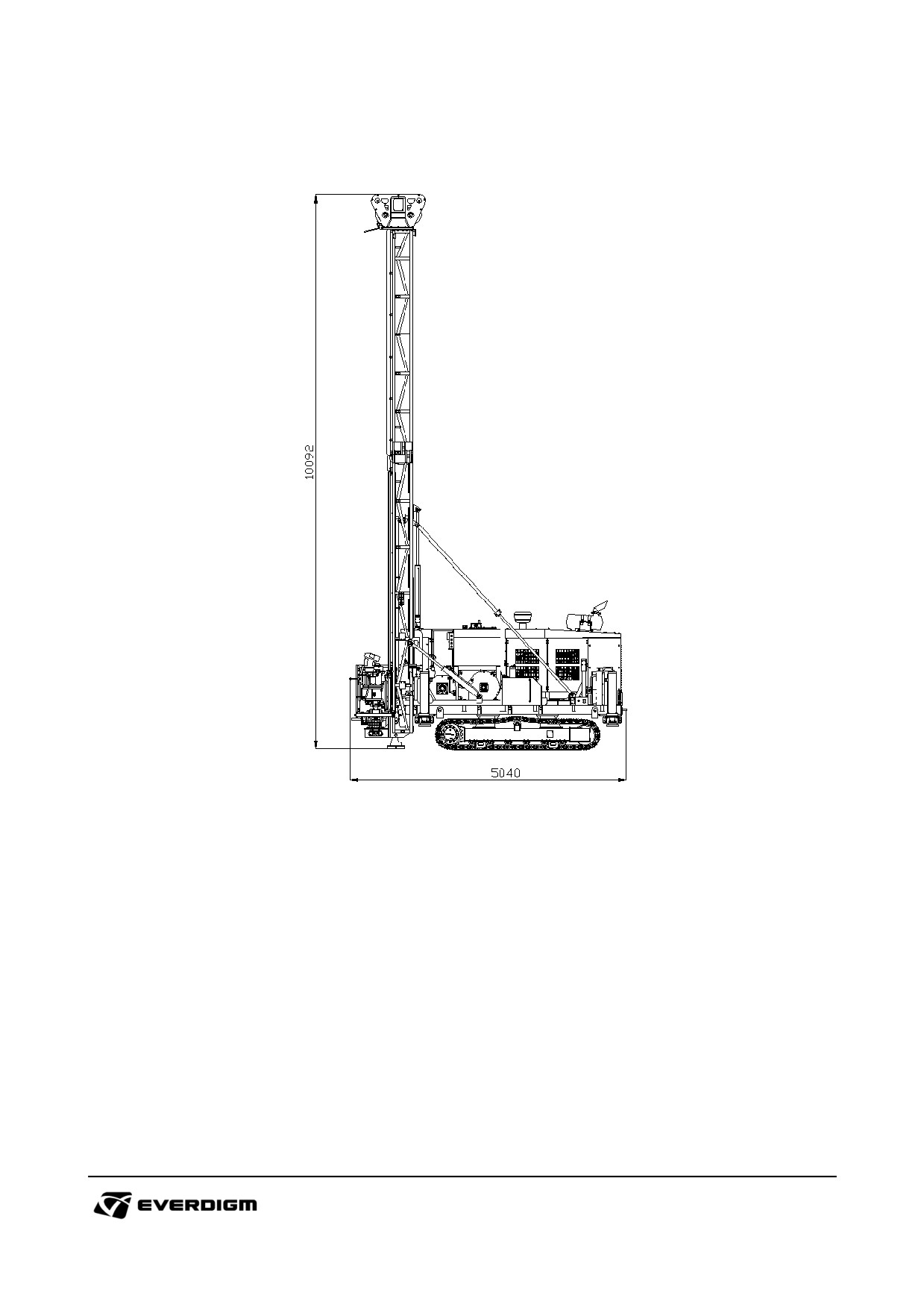

OVERALL DIMENSION
(mast extended-vertical)
44
2.3 ECR12 Technical specifications
DRILLING CAPACITY
B wireline:
1,500 m
(4,921 ft)
N wireline:
1,190 m
(3,904 ft)
H wireline:
790 m
(2,592 ft)
P wireline:
480 m
(1,575 ft)
The figures have been calculated. Actual drilling depth will depend on in-hole tools, conditions, and drilling techniques.
POWER UNIT
Manufacture:
Cummins
Model:
6CTAA8.3C, Tier2
Displacement:
8.3 L, 6 cylinders
Power:
152 kW
(205 hp)
RPM:
2,200
Engine type:
Turbocharged, after cooled diesel engine
Cooling:
Water
Electrical system:
24 V (Alternator 24V/70A)
HYDRAULIC SYSTEM
Primary pump:
Axial piston, variable displacement
28 MPa, 180 Lpm
(4,061 psi, 47 gpm)
Secondary pump:
Axial piston, variable displacement
20 MPa, 70 Lpm
(2,900 psi, 18 gpm)
1st auxiliary pump:
Gear, fixed displacement
15 MPa, 35 Lpm
(2,176 psi, 9 gpm)
2nd auxiliary pump:
Gear, fixed displacement
11 MPa, 35 Lpm
(1,595 psi, 9 gpm)
3rd auxiliary pump:
Gear, fixed displacement
20 MPa, 9.3 Lpm
(2,900 psi, 2.5 gpm)
Hydraulic oil cooling:
Air
ROTARY HEAD
Drill head type:
Side shift head
Rotation motor::
Variable/reversible hydraulic motor
Transmission:
Mechanical, 4 speed
Final drive:
Gear driven in oil bath
RPM and torque rating:
Gear ratio
Final drive ratio
Speed, RPM
Torque, Nm (lb·ft)
1st gear:
7.16 :1
134 - 189
4,155 - 2,947 (3,064 - 2,173)
2nd gear:
3.17 :1
303 - 426
1,847 - 1,310 (1,362 - 966)
2.5 : 1
3rd gear:
1.76 :1
538 - 758
1,039 - 737 (766 - 564)
4th gear:
1.00 :1
968 - 1,364
577 - 409 (425 - 313)
Chuck assembly:
Type:
Hydraulic opened, fail safe spring closed
Maximum inside diameter:
117 mm
(4 5/8 inch)
Holding capacity:
18,144 kg
(40,000 lb)
45
FOOT CLAMP
Type:
Hydraulically opened/closed, mechanical fail-safe
Maximum rod size:
PW - 139.7 mm (5 1/2 inch)
MAST AND FEED SYSTEM
Feed travel:
3.25 m
(10.7 ft)
Feed speed:
Fast and slow with variable control
Thrust capacity:
45.3 kN
(10,176 lb)
Pull capacity:
114.6 kN
(25,761 lb)
Drilling angle:
45 to 90 degrees
Rod pull length:
6 m
(19.7 ft)
MAIN HOIST
Line pull capacity:
79.4 kN
(17,857 lb) at bare drum
Line speed:
41 m/min
(134 ft/min) at bare drum
Cable size (diameter):
16 mm
(0.63 inch)
Cable length:
30 m
(98 ft)
WIRELINE HOIST
Line pull capacity and line speed:
Line pull capacity
Line speed
At bare drum:
10.5 kN
(2,361 lb)
115 m/min
(377 ft/min)
At full drum:
3.1 kN
(700 lb)
390 m/min
(1,280 ft/min)
Cable size (diameter):
5 mm (4.763, 3/16") or
6 mm (5.556, 7/32")
Cable length:
1,500 m
(4,291 ft)
OUTRIGGER
Support:
4 hydraulic leveling jacks
Pad diameter:
220 mm
(8.66 inch)
Travel length:
600 mm
(23.6 inch)
CRAWLER
Crawler track type:
Steel, 3 rib grouser plate
Crawler width:
380 mm
(15 inch)
Travel max speed:
3.3 km/h
(2.1 mile/h)
Max. grade:
20 degrees
Travel control:
Manual or optional remote controlled
WEIGHT AND DIMENSIONS
Weight:
8,000 kg (17,636 lb)
Transport dimensions (L-W-H)
Top mast folded position:
5,240 - 2,695 - 2,690 mm
(17.19 - 8.83 - 8.3 ft)
Weight and dimensions are approximations based on the rig with standard equipment and should be checked before
crating and lifting.
46
STANDARD EQUIPMENT
Manual controlled crawler
4 hydraulic leveling jacks
Rod kicker
Drill speed gage
Mud pump pressure gauge
Front, rear headlight and work light
Hydraulic connection for mud pump and mud mixer
Mechanically fail safe hydraulic foot clamp
Side shift rotary head
Rotation guard
Rod make-up / break-out
Wire line hoist
Centralized grease lines for crown pulley
Chuck and foot clamp are equipped with HQ-sized jaws as a standard. Upon request, chuck can be equipped with
BQ/NQ/PQ-sized jaws, foot clamp can be equipped with BQ/NQ/PQ/PW-sized jaws.
OPTIONS
Hydraulic driven water pump
Manufacture:
American manufacturing
Model:
AW1122BCD
Max flow:
130 Lpm (34.3 gpm)
Max pressure:
5 MPa (725.2 psi)
Hydraulic driven mud mixer
Max flow:
56.7 Lpm (15 gpm)
Max pressure:
10.4 MPa (1500 psi)
Remote controlled crawler (cable and wireless control available simultaneously)
Wireline hoist with level winder
Extendable outrigger
Upper hoist limit
Spin cage with safety device
Side safety guard
Dimension kit
BQ chuck jaw/bushing kit & foot clamp jaw kit
NQ chuck jaw/bushing kit & foot clamp jaw kit
HQ chuck jaw/bushing kit & foot clamp jaw kit
PQ chuck jaw/bushing kit & foot clamp jaw kit
PW foot clamp jaw kit
47
2.4 ECR18 Technical specifications
DRILLING CAPACITY
B wireline:
2,250 m
(7,382 ft)
N wireline:
1,780 m
(5,840 ft)
H wireline:
1,180 m
(3,871 ft)
P wireline:
800 m
(2,625 ft)
The figures have been calculated. Actual drilling depth will depend on in-hole tools, conditions, and drilling techniques.
POWER UNIT
Manufacture:
Cummins
Model:
6CTAA8.3C, Tier2
Displacement:
8.3 L, 6 cylinders
Power:
193 kW
(260 hp)
RPM:
2,200
Engine type:
Turbocharged, after cooled diesel engine
Cooling:
Water
Electrical system:
24 V (Alternator 24V/70A)
HYDRAULIC SYSTEM
Primary pump:
Axial piston, variable displacement
28 MPa, 250 Lpm
(4,061 psi, 66 gpm)
Secondary pump:
Axial piston, variable displacement
20 MPa, 70 Lpm
(2,900 psi, 18 gpm)
1st auxiliary pump:
Gear, fixed displacement
17 MPa, 35 Lpm
(1,450 psi, 9 gpm)
2nd auxiliary pump:
Gear, fixed displacement
11 MPa, 35 Lpm
(1,450 psi, 9 gpm)
3rd auxiliary pump:
Gear, fixed displacement
20 MPa, 9.3 Lpm
(2,900 psi, 2.5 gpm)
Hydraulic oil cooling:
Air
ROTARY HEAD
Drill head type:
Side shift head
Rotation motor::
Variable/reversible hydraulic motor
Transmission:
Mechanical, 4 speed
Final drive:
Gear driven in oil bath
RPM and torque rating:
Gear ratio
Final drive ratio
Speed, RPM
Torque, Nm (lb·ft)
1st gear:
7.16 :1
128 - 178
5,541 - 3,990 (4,086 - 2,942)
2nd gear:
3.17 :1
288 - 400
2,462 - 1,774 (1,815 - 1,308)
2.5 : 1
3rd gear:
1.76 :1
511 - 711
1,385 - 998 (1,021 - 736)
4th gear:
1.00 :1
920 - 1,200
700 - 554 (567 - 408)
Chuck assembly:
Type:
Hydraulic opened, fail safe spring closed
Maximum inside diameter:
117 mm
(4 5/8 inch)
Holding capacity:
18,144 kg
(40,000 lb)
48
FOOT CLAMP
Type:
Hydraulically opened/closed, mechanical fail-safe
Maximum inside diameter:
170 mm
(6.7 inch)
MAST AND FEED SYSTEM
Feed travel:
3.5 m
(11.5 ft)
Feed speed:
Fast and slow with variable control
Thrust capacity:
69.0 kN
(15,505 lb)
Pull capacity:
171.2 kN
(38,481 lb)
Drilling angle:
45 to 90 degrees
Rod pull length:
6 m
(19.7 ft)
MAIN HOIST
Line pull capacity:
117.7 kN
(26,455 lb) at bare drum
Line speed:
40 m/min
(131 ft/min) at bare drum
Cable size (diameter):
20 mm
(0.79 inch)
Cable length:
30 m
(98 ft)
WIRELINE HOIST
Line pull capacity and line speed:
Line pull capacity
Line speed
At bare drum:
10.5 kN
(2,361 lb)
115 m/min
(377 ft/min)
At full drum:
2.54 kN
(571 lb)
478 m/min
(1,568 ft/min)
Cable size (diameter):
5 mm (4.763, 3/16")
Cable length:
2,300 m
(7,546 ft)
OUTRIGGER
Support:
4 hydraulic leveling jacks
Pad diameter:
220 mm
(8.66 inch)
Travel length:
600 mm
(23.6 inch)
CRAWLER
Crawler track type:
Steel, 3 rib grouser plate
Crawler width:
380 mm
(15 inch)
Travel max speed:
3.3 km/h
(2.1 mile/h)
Max. grade:
20 degrees
Travel control:
Manual or optional remote controlled
WEIGHT AND DIMENSIONS
Weight:
9,000 kg (19,841 lb)
Transport dimensions (L-W-H)
Top mast folded position:
5,240 - 2,695 - 2,690 mm
(17.19 - 8.83 - 8.3 ft)
Weight and dimensions are approximations based on the rig with standard equipment and should be checked before
crating and lifting.
49
//////////////////////////////////////////
