Ironhorsem General Purpose AC Motors Manual Number: IH-MT-AC_UMW Motor Series: MTR (11th Ed. – 06/29/2022) - page 5
Chapter 5: Reference Information

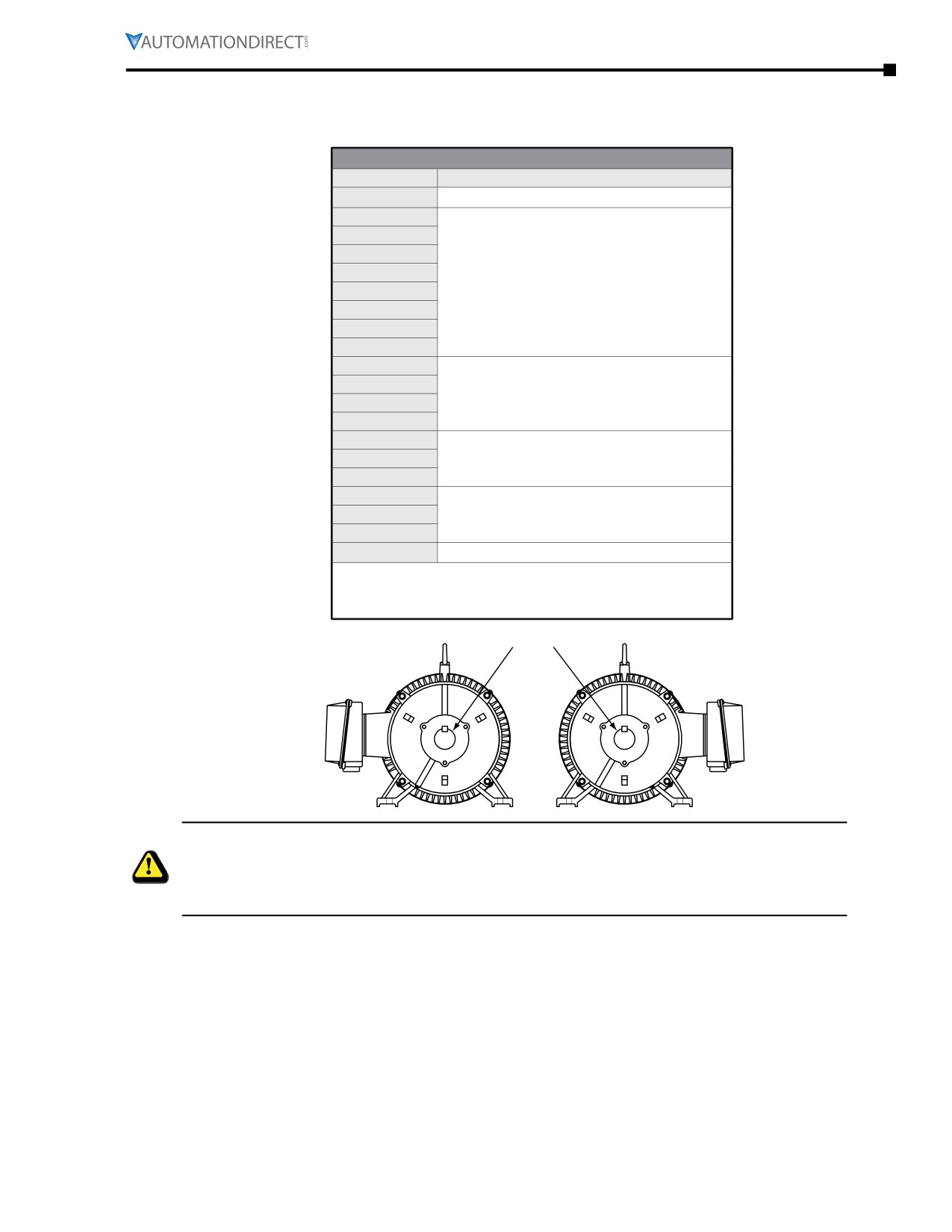

F1 and F2 Mounting
F1 and F2 mounting refers to the location of the junction box on an AC motor. Several models of
IronHorse® motors can be converted from F1 to F2 mounting.
F1 to F2 Mounting Convertibility
Frame Size *
Ability to be Converted
56
No (F1 only)
143T
145T
182T
MTC Motors: Yes (F1, convertible to F2)
MTCP(2) Motors: Yes (F1, convertible to F2)
184T**
MTF Motors: No (F1 only)
213T
MTF2 Motors: No (F1 only)
215T
MTDP Motors: No (F1 only)
254T
256T
284T
MTC Motors: No (F1 only)
286T
MTCP(2) Motors: Yes (F1, convertible to F2)
324T
MTDP Motors: No (F1 only)
326T
364T
MTC Motors: No (F1 only)
365T
MTCP(2) Motors: No (F1 only)
405T
444T
MTC Motors: Yes (F1, convertible to F2)
445T
MTCP(2) Motors: Yes (F1, convertible to F2)
445/7T
449T
No (F1 only)
* TC-frame motors have the same convertibility as the
comparable T-frame motors.
** The MTCP2 184T frame motor is F1 only.
Drive End
F1 Mounting
F2 Mounting
To minimize the potential of damage to any internal component, use caution when pulling the rotor from the
frame when converting an IronHorse® motor from F1 to F2 mounting. Authorized EASA service centers are
equipped with the necessary equipment to quickly and inexpensively convert motor mounting. Visit the EASA
website at www.easa.com to find the nearest authorized service center. Conversion from F1 to F2 mounting must
be performed by an EASA motor shop in order to maintain the motor warranty.
IronHorse® General PurposeAC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-5
Chapter 5: Reference Information

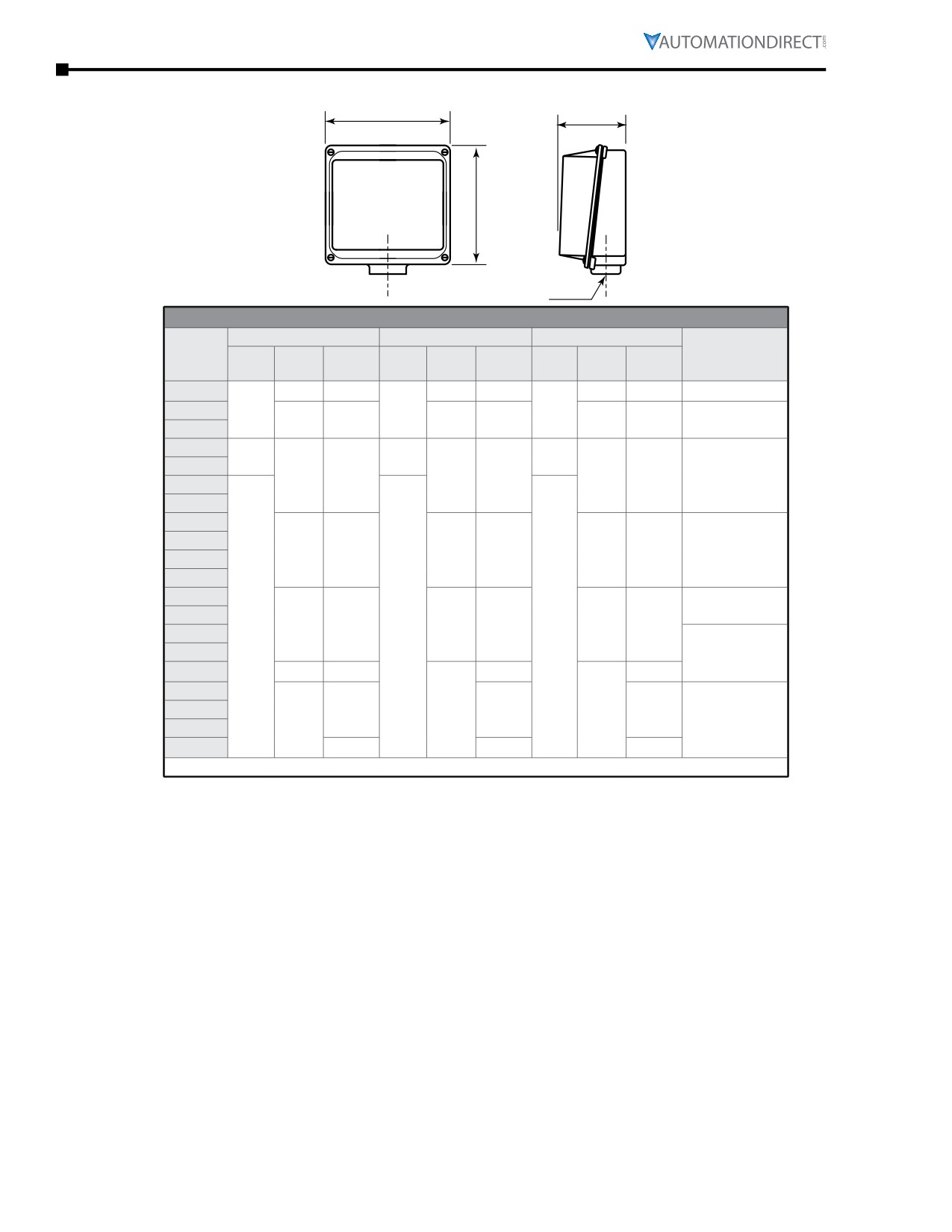

Junction Box Dimensions
XD
HH
XC
AA
Junction Box Dimensions (in)
XD (Width)
XC (Height)
HH (Depth)
AA
Frame
MTR2
MTR2
MTR2
(Conduit Hole)
Size *
MTF2
MTCP2
MTF2
MTCP2
MTF2
MTCP2
MTRP
MTRP
MTRP
(NPT)
56
3.2
n/a
3.7
n/a
1.6
n/a
1/2
143T
n/a
n/a
n/a
4.1
4.1
4.5
4.5
2.3
2.4
3/4
145T
182T
7.8
7.8
2.7
184T
4.6
4.6
5.0
5.0
2.6
2.8
1
213T
215T
254T
256T
6.3
6.3
7.2
7.3
3.3
3.7
1-1/2
284T
286T
324T
2
326T
n/a
n/a
n/a
9
9.0
10.6
10.6
5.3
5.7
364T
365T
3
405T
9.8
9.8
11.8
7.2
444T
445T
11.3
11.7
11.8
7.1
7.2
11.3
3 (2 openings)
445/7T
449T
11.3
12.4
7.3
* TC-frame motors have the same junction boxes as the comparable T-frame motors.
Page 5-6
Chapter 5: Reference Information
Minimum Sheave Diameters
The table below illustrates the minimum practical V-belt sheave diameter that can be used with each
IronHorse® motor frame size.
Minimum Sheave Diameters
V-Belt Sheave (2)
Conventional
Narrow
Frame Size (1)
A, B, C, D and E (3)
3V, 5V and 8V (4)
Minimum Pitch Diameter (in)
Minimum Outside Diameter (in)
143T
2.2
2.2
145T
2.4
2.4
182T
2.4
2.4
184T
3.0
3.0
213T
3.0
3.0
215T
3.8
3.8
254T
4.4
4.4
256T
4.6
4.4
284T
5.0
4.4
286T
5.4
5.2
324T
6.0
6.0
326T
6.8
6.8
364T
7.4
7.4
365T
9.0
8.6
405T
10.0
8.6
444T
11.0
9.5
445T
-
10.5
449T
-
13.2
1) TC-frame motors have the same minimum sheave diameters as the
comparable T-frame motors.
2) Sheave dimensions are based on the following:
a) Motor nameplate horsepower and speed.
b) Belt service factor of 1.6 with belts tightened to the belt manufacturers
recommendations.
c) Speed reduction of 5:1.
d) Mounting of sheave on motor according to sheave manufacturers
instructions.
e) Center-to-center distance between sheaves approximately equal to the
diameter of the larger sheave.
f) Calculations covered by the standards listed in notes 3 & 4 below.
3) As covered by IP-20; Specifications for Drives Using Classical V-Belts and
4) As covered by IP-22; Specifications for Drives Using Narrow V-Belts and
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-7
Chapter 5: Reference Information
Decibel Levels
The decibel (sound) level of an IronHorse® motor should be measured after initial startup, after 30 days,
and after six months of use. Decibel levels should remain fairly consistent and can be an indication
of misalignment and premature bearing wear. If the measured decibel level for your IronHorse model
exceeds the value listed below by more than 10%, contact AutomationDirect or a local motor service
technician found at www.easa.com.
Average T-Frame Decibel Levels
Noise Level: Lw dB(A) @ 1m
Frame Size *
HP
MTCP2
MTDP
MTF2
MTF
1200 RPM
1800 RPM
3600 RPM
1800
3600
1800
1
-
60
-
50
143T
–
1-1/2
62
-
-
1
58
-
-
-
1-1/2
62
50
145T
-
2
–
62
62
51
3
-
-
-
56
1-1/2
-
62
-
-
-
-
2
-
54
182T
76.0
3
-
63
64
52
-
5
-
-
-
-
67
2
62
-
-
-
-
-
3
-
56
184T
5
76.0
–
63
64
53
58
7.5
-
-
-
67
-
3
64
-
-
-
-
56
213T
7-1/2
-
63
65
55
-
-
5
64
-
-
-
-
215T
7-1/2
62
-
10
64
67
56
65
7-1/2
66
-
-
254T
15
-
67
70
60
10
68
-
-
256T
20
-
68
72
63
15
70
-
-
284T
25
-
70
66
20
–
70
-
-
286T
30
70
67
–
324T
40
71
69
-
326T
50
72
70
364T
60
73
365T
75
74
-
405T
100
–
74
444T
125
76
-
445T
150
77
445/7T
200
78
250
93
449T
300
93
* TC-frame motors have the same sound ratings as the comparable T-frame motors.
(continued on next page)
Page 5-8
Chapter 5: Reference Information
Average 56C Frame Decibel Levels
MTR2
MTRP
Noise Level: Lw dB(A) @ 1m
Noise Level: Lw dB(A) @ 1m
Frame
1800 RPM
3600 RPM
Frame
1800 RPM
3600 RPM
HP
HP
Size
1Ø
3Ø
1Ø
3Ø
Size
3Ø
3Ø
1/3
1/3
1/2
1/2
-
-
80.0
80.0
3/4
70.0
3/4
70.0
56C
1
56CH
1
80.0
1-1/2
85.0
85.0
1-1/2
70.0
85.0
2
74.0
85.0
85.0
2
85.0
3
-
-
-
88.0
3
-
88.0
* TC-frame motors have the same sound ratings as the comparable T-frame motors.
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-9
Chapter 5: Reference Information
Shipping Crate Dimensions
Nominal Shipping Crate Dimensions
Frame
Width x Depth x Height (in)
HP
Size *
MTF
MTR2
MTRP
MTCP2
MTDP
MTF2
1/3
1/2
13.5 x 11 x 11
3/4
56C
-
-
-
-
1
14 x 11 x 11
1-1/2
2
14.5 x 11 x 11
1
-
14 x 11 x 11.5
15 x 11 x 11.5
(1800 RPM)
1-1/2
14.5 x 11 x 11
14 x 11 x 15
-
(3600 RPM)
56HC
-
-
-
15.5 x 11 x 11.5
(1800 RPM)
2
16 x 11 x 11
14 x 11 x 15.5
(3600 RPM)
3
15 x 11 x 11.5
143T
1
143T
1-1/2
18.9 x 12.99 x 10.63
14.4 x 11.4 x 11
-
145T
1-1/2
145T
2
182T
1-1/2
21.46 x 15.55 x 12.99
182T
2
18 x 14 x 14
-
182T
3
20.685 x 14.972 x
-
21.46 x 15.55 x 12.99
18.1 x 13 x 11
184T
2
15.169
184T
3
19 x 14 x 14
-
184T
5
21.5 x 14 x 14
21.46 x 15.55 x 12.99
213T
3
-
213T
7-1/2
26.38 x 17.91 x 14.96
19.3 x 14.6 x 14.6
215T
5
23.443 x 17.73 x
215T
10
16.942
254T
1-1/2
254T
15
-
-
32.68 x 22.05 x 19.09
26.1 x 20.1 x 17.7
256T
10
256T
20
284T
15
34.65 x 23.23 x 21.46
284T
25
27.4 x 21.9 x 20.3
286T
20
-
34.65 x 23.23 x 21.46
286T
30
324T
40
37.80 x 26.77 x 22.83
30.7 x 22.8 x 22.2
-
326T
50
364T
60
41.73 x 28.74 x 25.98
365T
75
405T
100
43.70 x 34.25 x 29.13
444T
125
49.61 x 35.83 x 32.68
-
445T
150
445/7T
200
53.54 x 35.83 x 32.68
250
449T
62.99 x 36.22 x 33.86
300
* TC-frame motors ship in the same crates as the comparable T-frame motors.
Shipping weights are listed in the Motor Specifications tables in “Chapter 1: Getting Started.”
Page 5-10
Chapter 5: Reference Information

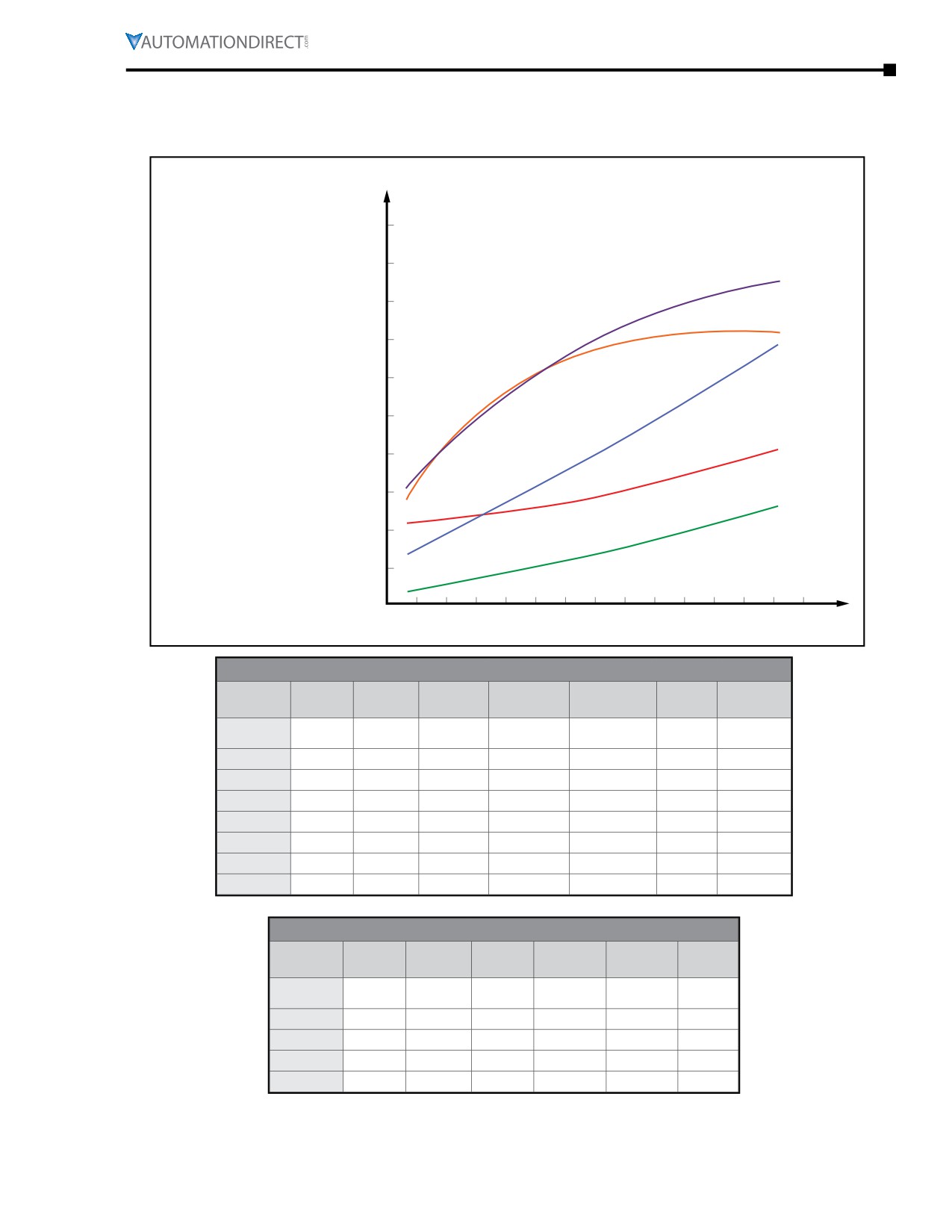

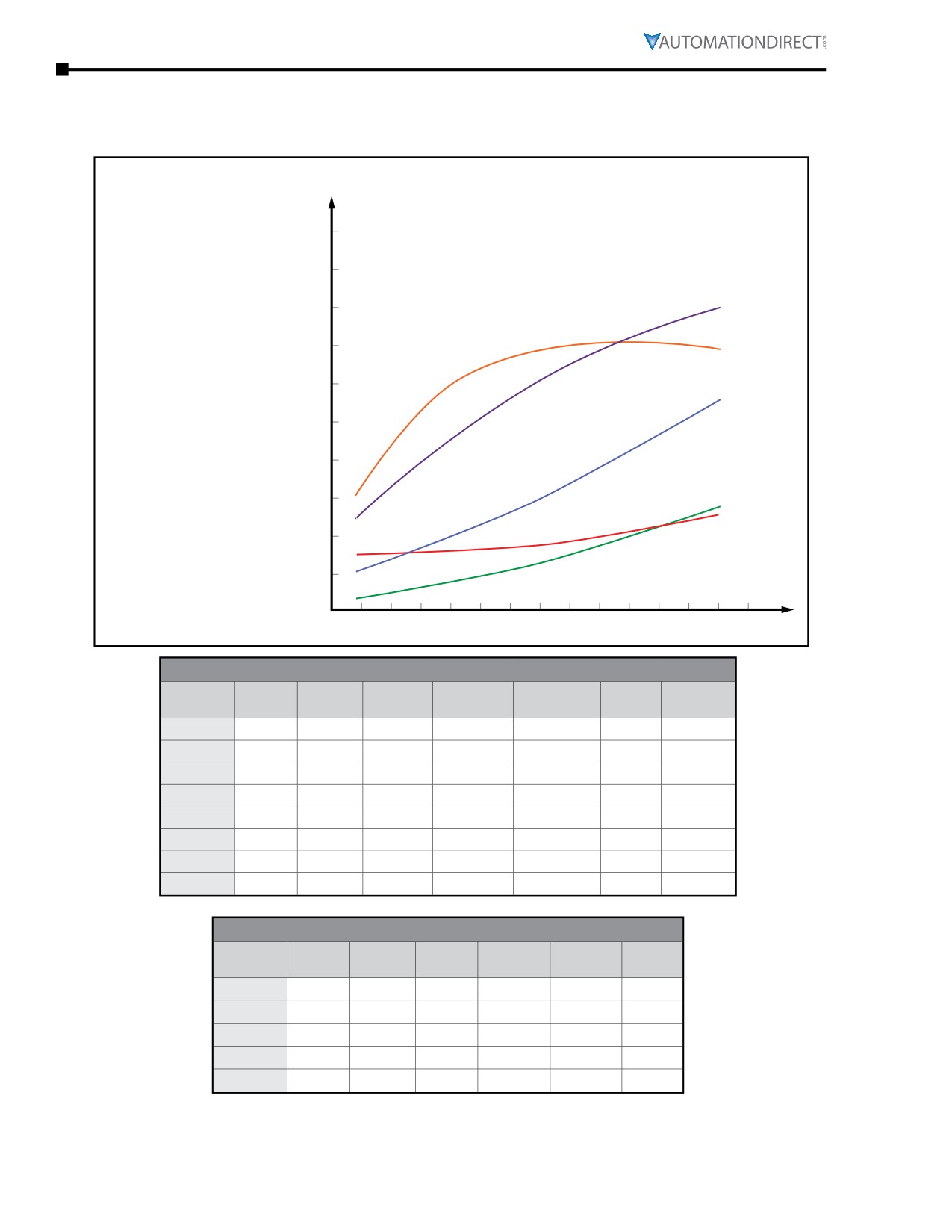

Performance Curves for MTF2 Motors
MTF2-002-1B18-182
Tc (N.m.)
s (%)
sj (%)
P2 (W)
P1j (W)
I 1j (A)
η (%)
η j (%)
cos Φ
cosj Φ
9.749
2.278
2.250
1796
2201
10.04
81.40
81.58
0.9522
0.9532
9.037
1.956
1.999
1670
1979
9.018
84.99
84.40
0.9534
0.9540
8.064
1.700
1.732
1494
1773
8.07
83.66
84.27
0.9546
0.9552
7.184
1.567
1.524
1333
1618
7.362
82.18
82.35
0.9556
0.9559
6.473
1.422
1.383
1203
1487
6.763
81.49
80.91
0.9558
0.9556
5.652
1.189
1.226
1053
1317
6.002
80.05
79.95
0.9540
0.9538
4.802
1.022
1.046
895.9
1133
5.192
78.59
79.05
0.9491
0.9490
3.913
0.8333
0.8162
731.4
981.3
4.543
74.70
74.54
0.9405
0.9392
I 1 = 8.097 A
P1n = 1779 W
Sn = 1.731%
n = 1768.8 r/min
η = 84.33%
cos Φ = 0.9552
Rated Power
P1 (W)
I 1 (A)
S (%)
n (speed)
P2 (W)
T (N.m.)
η (%)
cos Φ
150%
4478
20.42
3.725
1732.9
2250
12.4
50.25
0.9534
125%
2398
10.94
2.437
1756.1
1875
10.2
78.17
0.9529
100%
1779
8.097
1.731
1768.8
1500
8.099
84.33
0.9552
75%
1401
6.377
1.302
1776.8
1125
6.048
80.32
0.9550
50%
994.1
4.595
0.8450
1784.8
750
4.013
75.44
0.9406
25%
1238
5.875
0.0541
1799.0
375
1.991
30.29
0.9163
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-11
Chapter 5: Reference Information

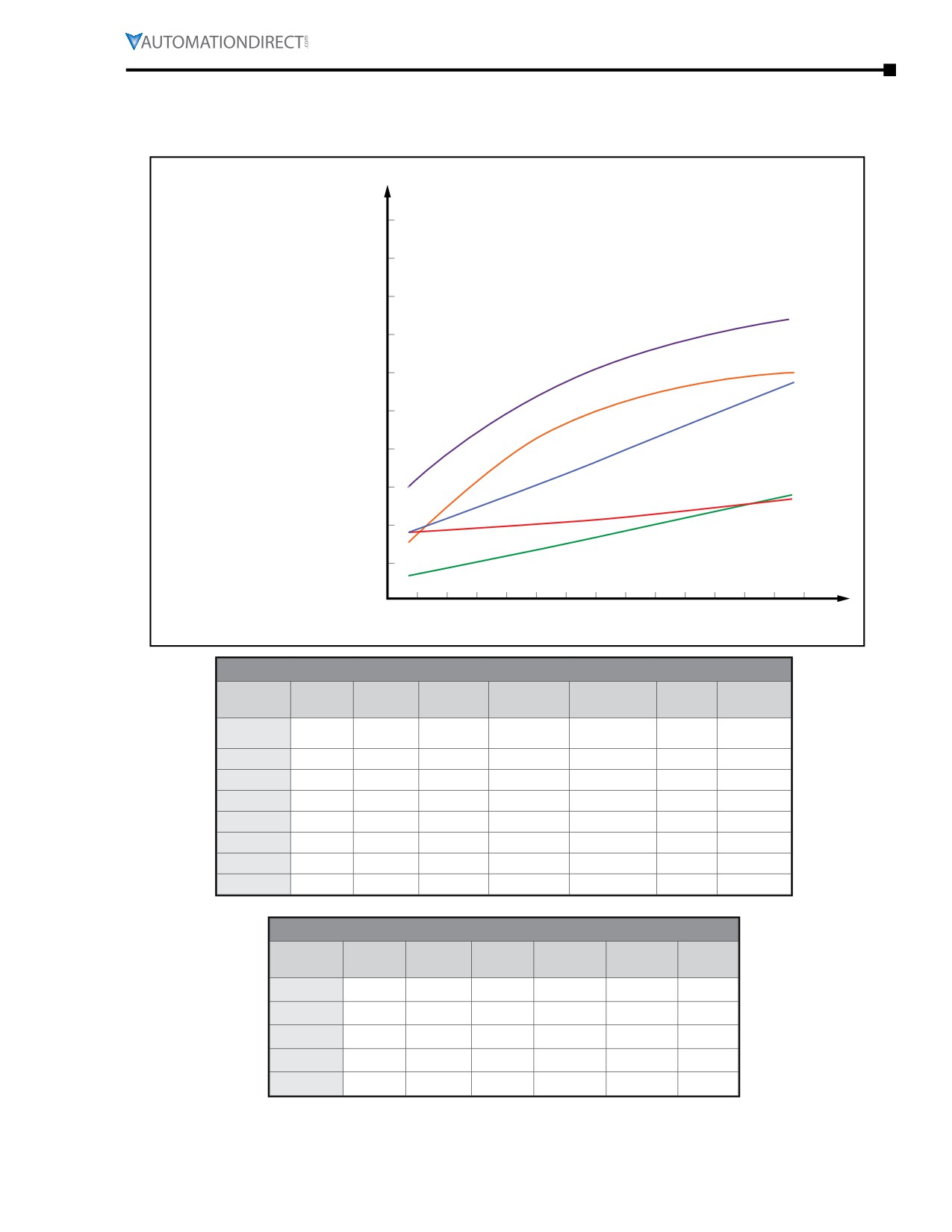

MTF2-003-1B18
Tc (N.m.)
s (%)
sj (%)
P2 (W)
P1j (W)
I 1j (A)
η (%)
η j (%)
cos Φ
cosj Φ
14.41
2.367
2.340
2652
3167
14.67
83.74
83.75
0.9398
0.9386
13.16
1.956
2.031
2432
2849
13.16
85.46
85.37
0.9418
0.9412
11.95
1.833
1.782
2211
2583
11.92
85.31
85.62
0.9427
0.9423
10.75
1.600
1.579
1994
2342
10.81
85.61
85.13
0.9428
0.9420
9.606
1.400
1.408
1785
2114
9.778
84.13
84.43
0.9399
0.9402
8.251
1.178
1.213
1537
1838
8.541
83.62
83.63
0.9343
0.9354
7.148
1.067
1.043
1333
1609
7.537
82.94
82.84
0.9269
0.9282
5.922
0.8222
0.8246
1107
1369
6.513
80.81
80.84
0.9137
0.9142
I 1 = 11.86 A
P1n = 2570 W
Sn = 1.771%
n = 1768.1 r/min
η = 85.61%
cos Φ = 0.9423
Rated Power
P1 (W)
I 1 (A)
S (%)
n (speed)
P2 (W)
T (N.m.)
η (%)
cos Φ
150%
4854
22.85
3.781
1731.9
3300
18.20
67.98
0.9235
125%
3336
15.48
2.503
1755.0
2750
14.96
82.45
0.9369
100%
2570
11.86
1.771
1768.1
2200
11.88
85.61
0.9423
75%
1965
9.106
1.303
1776.6
1650
8.870
83.99
0.9380
50%
1362
6.484
0.8171
1785.3
1100
5.884
80.74
0.9136
25%
1042
5.388
0.0320
1799.4
550
2.919
52.80
0.8404
Page 5-12
Chapter 5: Reference Information
MTF2-005-1B18
Tc (N.m.)
s (%)
sj (%)
P2 (W)
P1j (W)
I 1j (A)
η (%)
η j (%)
cos Φ
cosj Φ
22.06
1.939
1.938
4078
4723
22.21
86.34
86.34
0.9246
0.9246
19.89
1.711
1.714
3685
4265
20.11
86.41
86.40
0.9214
0.9223
18.08
1.539
1.537
3356
3890
18.43
86.25
86.27
0.9174
0.9177
15.9
1.333
1.333
2957
3448
16.49
85.80
85.76
0.9098
0.9094
13.77
1.144
1.143
2566
3028
14.66
84.75
84.76
0.8984
0.8980
11.81
0.9722
0.9735
2205
2649
13.05
83.20
83.23
0.8825
0.8826
9.688
0.7944
0.7956
1811
2245
11.40
80.73
80.69
0.8558
0.8562
7.833
0.6444
0.6436
1467
1895
10.07
77.41
77.42
0.8175
0.8180
I 1 = 20.18 A
P1n = 4282 W
Sn = 1.723%
n = 1769.0 r/min
η = 86.40%
cos Φ = 0.9224
Rated Power
P1 (W)
I 1 (A)
S (%)
n (speed)
P2 (W)
T (N.m.)
η (%)
cos Φ
150%
6483
31.90
2.917
1747.5
5550
30.33
85.60
0.8837
125%
5376
25.40
2.273
1759.1
4625
25.11
86.04
0.9203
100%
4282
20.18
1.723
1769.0
3700
19.97
86.40
0.9224
75%
3251
15.62
1.243
1777.6
2775
14.91
85.37
0.9046
50%
2284
11.56
0.8128
1785.4
1850
9.896
80.99
0.8595
25%
1341
8.285
0.4092
1792.6
925
4.928
68.97
0.7038
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-13
Chapter 5: Reference Information
MTF2-7P5-1B18-215
Tc (N.m.)
s (%)
sj (%)
P2 (W)
P1j (W)
I 1j (A)
η (%)
η j (%)
cos Φ
cosj Φ
35.93
2.661
2.662
6593
7552
33.94
87.28
87.29
0.9676
0.9675
32.85
2.367
2.363
6046
6878
30.89
87.91
87.90
0.9685
0.9680
29.74
2.078
2.080
5490
6224
27.97
88.24
88.20
0.9677
0.9674
26.72
1.822
1.823
4945
5612
25.29
87.98
88.12
0.9648
0.9648
23.71
1.583
1.582
4399
5023
22.77
87.71
87.57
0.9580
0.9590
20.70
1.356
1.356
3849
4453
20.41
86.40
86.44
0.9477
0.8486
17.70
1.144
1.143
3299
3901
18.20
84.54
84.57
0.9313
0.9317
14.66
0.9389
0.9394
2738
3353
16.10
81.68
81.66
0.9036
0.9054
I 1 = 28.02 A
P1n = 6236 W
Sn = 2.085%
n = 1762.5 r/min
η = 88.20%
cos Φ = 0.9674
Rated Power
P1 (W)
I 1 (A)
S (%)
n (speed)
P2 (W)
T (N.m.)
η (%)
cos Φ
150%
9813
44.19
3.719
1733.1
8250
45.46
84.07
0.9655
125%
7914
35.58
2.826
1749.1
6875
37.54
86.87
0.9670
100%
6236
28.02
2.085
1762.5
5500
29.80
88.20
0.9674
75%
4737
21.58
1.468
1773.6
4125
22.21
87.09
0.9545
50%
3364
16.14
0.9437
1783.0
2750
14.73
81.74
0.9061
25%
2056
11.48
0.4838
1791.3
1375
7.331
66.89
0.7784
Page 5-14
Chapter 5: Reference Information
MTF2-010-1B18
Tc (N.m.)
s (%)
sj (%)
P2 (W)
P1j (W)
I 1j (A)
η (%)
η j (%)
cos Φ
cosj Φ
51.50
3.494
3.488
9368
11034
49.78
84.93
84.91
0.9638
0.9637
47.14
3.067
3.078
8613
10042
45.25
85.71
85.77
0.9643
0.9650
40.78
2.539
2.536
7492
8663
39.08
86.55
86.48
0.9636
0.9637
30.30
1.778
1.772
5610
6551
30.07
85.59
85.64
0.9468
0.9471
20.07
1.139
1.144
3741
4639
22.59
80.67
80.64
0.8925
0.8928
9.975
0.5889
0.5873
1869
2848
16.57
65.63
65.63
0.7479
0.7473
I 1 = 39.13 A
P1n = 8672 W
Sn = 2.539%
n = 1754.3 r/min
η = 86.48%
cos Φ = 0.9637
Rated Power
P1 (W)
I 1 (A)
S (%)
n (speed)
P2 (W)
T (N.m.)
η (%)
cos Φ
150%
13771
62.67
4.695
1715.5
11250
62.63
81.70
0.9553
125%
11042
49.82
3.492
1737.1
9375
51.54
84.90
0.9637
100%
8672
39.13
2.539
1754.3
7500
40.83
86.48
0.9637
75%
6567
30.14
1.777
1768.0
5625
30.38
85.66
0.9473
50%
4648
22.62
1.147
1779.3
3750
20.13
80.68
0.8932
25%
2853
16.58
0.5891
1789.4
1875
10.01
65.71
0.7480
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-15
Chapter 5: Reference Information
Performance Curves for MTR2 Motors
MTR2-P33-1AB18
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
15.0
1.0
20
0.9
90
13.5
0.9
18
0.8
80
12.0
0.8
16
P.F.
0.7
70
10.5
0.7
14
Efficiency
0.6
60
9.0
0.6
12
P1
0.5
50
7.5
0.5
10
0.4
40
6.0
0.4
8
Slip
0.3
30
4.5
0.3
6
I1
0.2
20
3.0
0.2
4
0.1
10
1.5
0.1
2
P2 (kW)
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
Performance Data - MTR2-P33-1AB18
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.0672
116.0
4.10
0.1574
0.36
1783
42.72
0.33
0.1170
115.8
4.23
0.2123
0.63
1773
55.12
0.43
0.1371
115.7
4.32
0.2362
0.74
1769
58.06
0.47
0.1716
115.6
4.49
0.2761
0.93
1761
62.16
0.53
0.2057
115.5
4.69
0.3169
1.12
1753
64.92
0.59
0.2429
115.3
5.01
0.3696
1.33
1743
65.73
0.64
0.2865
115.1
5.42
0.4322
1.58
1730
66.28
0.69
0.3172
114.9
5.78
0.4808
1.76
1719
65.97
0.72
Load Performance Data - MTR2-P33-1AB18
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
4.10
0.1540
0.89
40.60
0.327
0.06
50
4.26
0.2204
1.53
56.73
0.450
0.13
75
4.58
0.2956
2.32
63.43
0.561
0.19
100
5.07
0.3796
3.23
65.85
0.651
0.25
125
5.72
0.4725
4.28
66.13
0.718
0.31
Page 5-16
Chapter 5: Reference Information
MTR2-P33-1AB36
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
10
1.0
25.0
0.9
90
9
0.9
22.5
0.8
80
8
0.8
20.0
P.F.
0.7
70
7
0.7
17.5
0.6
60
6
0.6
15.0
Efficiency
P1
0.5
50
5
0.5
12.5
0.4
40
4
0.4
10.0
0.3
30
3
0.3
7.5
Slip
I1
0.2
20
2
0.2
5.0
0.1
10
1
0.1
2.5
P2 (kW)
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
Performance Data - MTR2-P33-1AB36
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.0858
115.2
4.67
0.2505
0.23
3564.3
34.27
0.47
0.0970
115.2
4.73
0.2665
0.26
3561.3
36.38
0.49
0.1302
115.1
4.90
0.3056
0.35
3554.1
42.63
0.54
0.1744
115.0
5.16
0.3576
0.47
3543.7
48.76
0.60
0.2073
115.0
5.39
0.3967
0.56
3535.6
52.26
0.64
0.2437
114.9
5.66
0.4387
0.66
3526.8
55.55
0.67
0.2763
114.8
5.93
0.4798
0.75
3519.2
57.59
0.70
0.3195
115.7
6.37
0.5389
0.87
3508.2
59.29
0.73
Load Performance Data - MTR2-P33-1AB36
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
4.58
0.2264
0.86
27.60
0.430
0.06
50
4.87
0.2979
1.26
41.96
0.532
0.13
75
5.25
0.3720
1.67
50.40
0.616
0.19
100
5.72
0.4487
2.09
55.71
0.682
0.25
125
6.29
0.5280
2.53
59.19
0.730
0.31
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-17
Chapter 5: Reference Information
MTR2-P33-3BD18
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
20
1.0
2.50
0.9
90
18
0.9
2.25
0.8
80
16
0.8
2.00
P.F.
0.7
70
14
0.7
1.75
Efficiency
0.6
60
12
0.6
1.50
0.5
50
10
0.5
1.25
P1
0.4
40
8
0.4
1.00
I1
0.3
30
6
0.3
0.75
Slip
0.2
20
4
0.2
0.50
0.1
10
2
0.1
0.25
P2 (kW)
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
Performance Data - MTR2-P33-3BD18
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.0582
460.9
0.56
0.1350
0.30
1780
43.15
0.31
0.1112
460.8
0.58
0.1940
0.61
1764
57.30
0.42
0.1320
460.8
0.59
0.5180
0.74
1758
60.56
0.47
0.1591
460.8
0.61
0.2500
0.90
1749
63.63
0.52
0.2072
460.7
0.65
0.3090
1.17
1734
67.05
0.60
0.2384
460.7
0.68
0.3490
1.35
1723
68.32
0.65
0.2682
460.7
0.71
0.3890
1.54
1712
68.95
0.69
0.3075
460.6
0.76
0.4440
1.78
1696
69.25
0.73
Load Performance Data - MTR2-P33-3BD18
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
0.56
0.1400
1.28
44.66
0.315
0.06
50
0.58
0.2095
2.19
59.67
0.450
0.13
75
0.63
0.2845
3.24
65.91
0.569
0.19
100
0.69
0.3648
4.42
68.62
0.664
0.25
125
0.77
0.4506
5.74
69.35
0.735
0.31
Page 5-18
Chapter 5: Reference Information
MTR2-P33-3BD36
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
15.0
1.0
2.50
0.9
90
13.5
0.9
2.25
P.F.
0.8
80
12.0
0.8
2.00
0.7
70
10.5
0.7
1.75
Efficiency
0.6
60
9.0
0.6
1.50
P1
0.5
50
7.5
0.5
1.25
0.4
40
6.0
0.4
1.00
I1
0.3
30
4.5
0.3
0.75
Slip
0.2
20
3.0
0.2
0.50
0.1
10
1.5
0.1
0.25
P2 (kW)
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
Performance Data - MTR2-P33-3BD36
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.1375
460.6
0.49
0.2530
0.34
3536
54.36
0.65
0.1452
460.6
0.50
0.2620
0.35
3534
55.43
0.66
0.1551
460.6
0.51
0.2740
0.38
3530
56.61
0.68
0.1790
460.5
0.53
0.3030
0.46
3520
59.08
0.72
0.2017
460.5
0.56
0.3310
0.52
3512
60.93
0.75
0.2499
460.5
0.62
0.3930
0.66
3491
63.60
0.80
0.2871
460.4
0.67
0.4430
0.78
3474
64.81
0.83
0.3180
460.4
0.72
0.4860
0.87
3459
65.44
0.85
Load Performance Data - MTR2-P33-3BD36
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
0.43
0.1687
1.07
37.05
0.495
0.06
50
0.48
0.2385
1.61
52.42
0.627
0.13
75
0.54
0.3133
2.24
59.85
0.726
0.19
100
0.62
0.3932
2.94
63.58
0.797
0.25
125
0.71
0.4782
3.74
65.35
0.844
0.31
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-19
Chapter 5: Reference Information
MTR2-P50-1AB18
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
15.0
1.0
25.0
0.9
90
13.5
0.9
22.5
0.8
80
12.0
0.8
20.0
P.F.
P1
0.7
70
10.5
0.7
17.5
Efficiency
0.6
60
9.0
0.6
15.0
0.5
50
7.5
0.5
12.5
0.4
40
6.0
0.4
10.0
I1
0.3
30
4.5
0.3
7.5
Slip
0.2
20
3.0
0.2
5.0
0.1
10
1.5
0.1
2.5
P2 (kW)
0
0.07
0.15
0.22
0.30
0.37
0.44
0.52
Performance Data - MTR2-P50-1AB18
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.0916
115.9
5.39
0.2005
0.49
1784
45.66
0.32
0.1562
115.7
5.58
0.2725
0.84
1775
57.32
0.42
0.2037
115.6
5.79
0.3264
1.10
1768
62.41
0.49
0.2364
115.4
5.96
0.3644
1.28
1763
64.87
0.53
0.3100
115.2
6.47
0.4573
1.69
1751
67.78
0.61
0.3614
116.0
6.91
0.5252
1.98
1743
68.82
0.66
0.4258
115.6
7.53
0.6160
2.35
1730
69.13
0.71
0.4532
115.5
7.85
0.6589
2.51
1724
68.78
0.73
Load Performance Data - MTR2-P50-1AB18
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
5.39
0.2026
0.89
45.66
0.327
0.09
50
5.70
0.3038
1.58
60.89
0.464
0.19
75
6.23
0.4156
2.38
66.76
0.580
0.28
100
6.98
0.5381
3.28
68.76
0.670
0.37
125
7.95
0.6712
4.29
68.91
0.734
0.46
Page 5-20
Chapter 5: Reference Information
MTR2-P50-1AB36
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
10
1.0
25.0
0.9
90
9
0.9
22.5
0.8
80
8
0.8
20.0
P.F.
Efficiency
0.7
70
7
0.7
17.5
P1
0.6
60
6
0.6
15.0
0.5
50
5
0.5
12.5
0.4
40
4
0.4
10.0
I1
0.3
30
3
0.3
7.5
Slip
0.2
20
2
0.2
5.0
0.1
10
1
0.1
2.5
P2 (kW)
0
0.07
0.15
0.22
0.30
0.37
0.44
0.52
Performance Data - MTR2-P50-1AB36
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.1420
115.2
4.72
0.2625
0.38
3567
54.09
0.48
0.1494
115.2
4.75
0.2695
0.40
3566
55.44
0.49
0.1974
115.1
5.04
0.3294
0.53
3557
59.94
0.57
0.2489
115.0
5.37
0.3873
0.67
3547
64.27
0.63
0.3148
115.8
5.86
0.4632
0.85
3536
67.97
0.68
0.3510
115.7
6.20
0.5131
0.95
3527
68.41
0.72
0.4266
115.5
6.91
0.6069
1.16
3511
70.30
0.76
0.4694
115.4
7.32
0.6587
1.28
3501
71.27
0.78
Load Performance Data - MTR2-P50-1AB36
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
4.46
0.2059
0.68
44.92
0.401
0.09
50
4.95
0.3122
1.10
59.27
0.548
0.19
75
5.58
0.4217
1.58
65.80
0.657
0.28
100
6.35
0.5346
2.10
69.21
0.732
0.37
125
7.26
0.6508
2.67
71.07
0.779
0.46
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-21
Chapter 5: Reference Information
MTR2-P50-3BD18
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
25.0
1.0
2.50
0.9
90
22.5
0.9
2.25
0.8
80
20.0
0.8
2.00
P.F.
0.7
70
17.5
0.7
1.75
Efficiency
P1
0.6
60
15.0
0.6
1.50
0.5
50
12.5
0.5
1.25
I1
0.4
40
10.0
0.4
1.00
0.3
30
7.5
0.4
0.75
Slip
0.2
20
5.0
0.2
0.50
0.1
10
2.5
0.1
0.25
P2 (kW)
0
0.07
0.15
0.22
0.30
0.37
0.44
0.52
Performance Data - MTR2-P50-3BD18
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.0784
460.5
0.68
0.1670
0.41
1780
46.97
0.31
0.1388
460.4
0.70
0.2340
0.76
1767
59.33
0.42
0.1898
460.2
0.74
0.2930
1.06
1755
64.78
0.50
0.2368
460.3
0.77
0.3490
1.32
1744
67.84
0.57
0.2947
460.2
0.82
0.4220
1.70
1728
60.84
0.64
0.3471
460.1
0.88
0.4910
2.01
1713
70.70
0.70
0.3957
460.1
0.95
0.5580
2.29
1698
70.91
0.74
0.4363
459.9
1.01
0.6180
2.55
1685
70.59
0.77
Load Performance Data - MTR2-P50-3BD18
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
0.69
0.1826
1.25
50.65
0.335
0.09
50
0.73
0.2866
2.37
64.56
0.492
0.19
75
0.81
0.4000
3.64
69.37
0.623
0.28
100
0.91
0.5230
5.07
70.74
0.719
0.37
125
1.05
0.6555
6.66
70.55
0.784
0.46
Page 5-22
Chapter 5: Reference Information
MTR2-P50-3BD36
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
15.0
1.0
2.50
0.9
90
13.5
0.9
2.25
P.F.
0.8
80
12.0
0.8
2.00
Efficiency
0.7
70
10.5
0.7
1.75
P1
0.6
60
9.0
0.6
1.50
0.5
50
7.5
0.5
1.25
I1
0.4
40
6.0
0.4
1.00
0.3
30
4.5
0.3
0.75
Slip
0.2
20
3.0
0.2
0.50
0.1
10
1.5
0.1
0.25
P2 (kW)
0
0.07
0.15
0.22
0.30
0.37
0.44
0.52
Performance Data - MTR2-P50-3BD36
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.1263
460.2
0.58
0.2360
0.34
3560
53.50
0.51
0.1486
460.2
0.60
0.2610
0.41
3554
56.93
0.55
0.1752
460.1
0.62
0.2910
0.49
3548
60.21
0.59
0.2471
460.1
0.69
0.3740
0.69
3530
66.08
0.68
0.2957
460.0
0.74
0.4320
0.83
3517
68.45
0.73
0.3455
459.9
0.80
0.4930
0.96
3503
70.09
0.77
0.4075
459.9
0.89
0.5720
1.15
3484
71.24
0.81
0.4540
459.8
0.95
0.6330
1.28
3469
71.72
0.83
Load Performance Data - MTR2-P50-3BD36
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
0.56
0.1997
0.89
46.33
0.446
0.09
50
0.63
0.3019
1.45
61.29
0.601
0.19
75
0.72
0.4100
2.09
67.68
0.714
0.28
100
0.83
0.5241
2.80
70.60
0.790
0.37
125
0.97
0.6441
3.59
71.80
0.836
0.46
IronHorse® General Purpose
AC Motors User Manual - 11th Ed. - 06/29/2022
Page 5-23
Chapter 5: Reference Information
MTR2-P75-1AB18
P.F.
Eff.
Slip
P1
I1
(cos)
(%)
(%)
(kW)
(A)
1.0
100
20
2.0
50
0.9
90
18
1.8
45
0.8
80
16
1.6
40
P.F.
0.7
70
14
1.4
35
Efficiency
0.6
60
12
1.2
30
P1
0.5
50
10
1.0
25
0.4
40
8
0.8
20
0.3
30
6
0.6
15
Slip
I1
0.2
20
4
0.4
10
0.1
10
2
0.2
5
P2 (kW)
0
0.11
0.22
0.33
0.44
0.55
0.66
0.77
Performance Data - MTR2-P75-1AB18
P2
U
I1
P1
Torque
Speed
EFF
P.F.
(kW)
(V)
(A)
(kW)
(N•m)
(RPM)
(%)
(cos)
0.1456
115.2
7.15
0.2919
0.78
1782
49.87
0.35
0.2120
115.9
7.42
0.3668
1.14
1775
57.81
0.43
0.2943
115.6
7.79
0.4595
1.59
1766
64.04
0.51
0.3666
115.4
8.20
0.5433
1.99
1758
67.48
0.57
0.4576
115.0
8.89
0.6628
2.50
1746
69.04
0.65
0.5352
115.7
9.60
0.7693
2.94
1737
69.57
0.07
0.6332
115.3
10.69
0.9174
3.51
1720
69.02
0.74
0.6855
115.0
11.37
1.0017
3.82
1711
68.43
0.77
Load Performance Data - MTR2-P75-1AB18
Load
Current
Input
Slip
EFF
P.F.
Output
(%)
(A)
(kW)
(%)
(%)
(cos)
(kW)
25
7.16
0.2866
0.96
47.97
0.348
0.14
50
7.66
0.4344
1.68
63.30
0.493
0.28
75
8.52
0.6032
2.56
68.39
0.615
0.41
100
9.77
0.7928
3.60
69.37
0.706
0.55
125
11.37
1.0035
4.80
68.51
0.767
0.69
Page 5-24
