Package Contents

Contents of Package:

D-Link DPR-1061 USB 2.0 MFP Server

Manual on CD

Printed Quick Installation Guide

If any of the above items are missing, please contact your reseller.

System Requirements:

A computer with an installed Ethernet adapter

Windows Vista/XP/2000/NT4/ME/98SE/95

Apple Mac OS 9.x to MAC OS X 10.4.x

Linux, Solaris, SCO Unix, AIX

Internet Explorer 6.0 or above; Netscape Navigator version 6.0 or above, with

JavaScript enabled

Printer must support required operating system

Introduction

The D-Link DPR-1061 Print Server is an Ethernet/USB print server that connects to

your Ethernet, Fast Ethernet or USB network anywhere you wish to locate printer

services. The DPR-1061 manages the flow of print files from workstations or file

servers to connected printers, delivering print jobs to printers much faster than a file

server or a PC acting as a print server can. With one IEEE1284 parallel port and two

USB 2.0 ports, DPR-1061 can connect to almost any make and model printer on the

market today.

The DPR-1061 includes easy-to-use software to install on most Windows-based

networks. Protocol support for TCP/IP, NetBEUI, and AppleTalk are provided to

ensure seamless connection to major networking Operating Systems.

The DPR-1061 has a built in Web-Based management feature that allows users to

easily configure and manage multiple print queues through TCP/IP.

The DPR-1061 improves network printing services in the following ways:

The DPR-1061 picks up the workload of managing print file traffic to its connected

printers. This provides workload relief to your file servers, and allows the file servers

full capacity to be used for file access or other direct services to network users. On

peer-to-peer networks, workstations can print directly to the Print Server without

increasing the load of another workstation or server.

The DPR-1061’s parallel printer port is IEEE1284-compliant high-speed

bi-directional port, which can transmit to high-speed laser printer much faster than a

PC’s parallel printer port. High-speed laser printer connected to the Print Server’s

parallel port can be operated at their full capacity.

Because the DPR-1061’s very portable and inexpensive compared to a PC-based

print server, and Print Server connects to your file servers through the network,

printers can be deployed to locations of maximum convenience to users.

Use USB redirection software (PS-Link) to support MFP printer’s

print/scan/fax/copy functions and GDI printer’s printing.

Use the easy-to-add printer software (PS-Wizard) to add a network printer on

Windows for traditional printer’s TCP/IP printing.

The DPR-1061 offers extraordinary flexibility, operating with all major network

operating systems and protocols:

TCP/IP

UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) Windows NT/2000,

Windows 95/98SE/ME, Windows XP/Vista, NetWare 5.x NDPS LPR Remote

Printing

NetBEUI

Windows NT/2000/XP, Windows 95/98SE/ME, Windows for Workgroups, Microsoft

LAN Manager, IBM LAN Server

AppleTalk

MacOS EtherTalk

Furthermore, the MFP server features various useful software utilities: PS Software-

a user-friendly program used to complete further settings for the MFP Server,

contains PS-Link and PS-Wizard:

¾ PS-Link Ё A useful tool for you supporting multi-functions (Print/ Scan/ Copy/

Fax) of a MFP printer, printing of GDI printer, and even other multimedia software

of any MFP/GDI printer. For the detail information, see the “Using The PS

Software” chapter in this manual.

¾ PS-Wizard Ё A simple tool for you easily adding a printer on your computer.

See also the “Using The PS Software” chapter in this manual for the details.

External Features

Port Connectors

The DPR-1061’s three printer ports are located on its rear panel. Two USB and one

parallel ports are labeled USB1, USB2, and LPT. These printer ports are

independently configurable using the Web Configuration Interface. The Print

Server’s Web configuration permits users to configure settings through the web

browser.

Default IP Address of DPR-1061 is set as automatically getting from DHCP server or

Router which build-in DHCP server.

NOTE: The PC’s IP Address must be in the same subnet as the Print Server’s IP

Address for the two devices to communicate. (For example, if MFP server’s IP

Address is 192.168.0.10, with a subnet mask of 255.255.255.0, then your

computer’s IP Address should be 192.168.0.x, where x is a value between 1-254,

excluding 10.)

Rear Panel Connectors

Network Cable Connector

The Print Server’s rear panel feature an RJ-45 connector for connection to 10Base-T

Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5

twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to

automatically detect or negotiate the transmission speed of the network.

Reset Button

Press and release this button to reset the MFP Server; or press and hold this button

for three seconds until the USB1, USB2, and LPT LEDs on the front panel light up

and then release the button, the MFP Server will resume the factory default settings.

DC Power Connector

The DC power input connector is located on the Print Server’s rear panel and is

labeled DC 5V.

LED Indicators

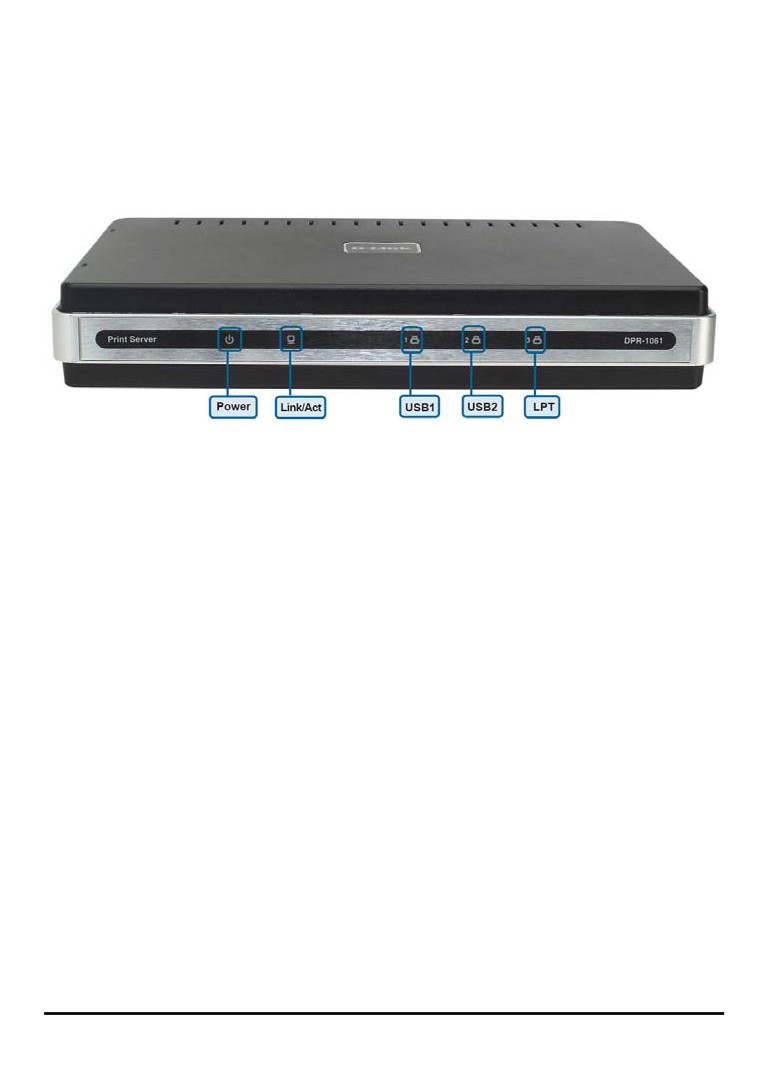

The front panel of the Print Server features five LED indicators:

Power

Steady green confirms that the Print Server is powered ON.

Link/Act

Steady green confirms that the Print Server has a good connection to the Ethernet or

Fast Ethernet network. The indicator blinks off briefly to indicate that the Print Server

is receiving or transmitting from the network.

USB1, USB2, LPT

When these LEDs light in steady green, it indicates the printer is on line now.

While if these LEDs light in blinking green, it indicates that data is transferred

between print server and printer.

These three indicators are also used by the Print Server’s Power-ON Self

Test (POST) to indicate any hardware failures.

Setting up the DPR-1061

Installing the Print Server

WARNING: Configuration problems may result if the Print Server is powered up

without first establishing its network connection.

Follow this procedure to avoid complications at the configuration stage.

1. Confirm proper operation of each of the printers to be connected to the

DPR-1061.

2. When you have confirmed proper operation of each printer, switch its power OFF.

3. Confirm that your network is operating normally.

4. Connect the DPR-1061 RJ-45 Connector to the network, using an Ethernet CAT5

cable.

5. While each printer is powered OFF, install the corresponding parallel or USB

printer cable to connect the printer’s parallel port or USB port to the printer port of the

Print Server.

6. Switch on each connected printer.

7. Plug the AC power adapter’s DC output plug into the DC 5V power socket on the

rear panel of the Print Server.

8. Plug the power adapter into a power outlet. This will supply power to the Print

Server, as it has no external power switch. The green Power LED on the Print

Server’s front panel should illuminate steadily, and the Print Server’s Self-Test will

proceed.

Power ON Self-Test

Every DPR-1061 has been factory-tested to operate properly.

When the DPR-1061 is powered ON, it also automatically performs a Self-Test on

each of its major components. The final result of the Self-Test is signaled by the state

of the USB1, USB2 and LPT LED indicators following the Self-Test. Preliminary to

the actual component tests, the three LED indicators are tested to confirm their

steady and flashing operation.

Immediately after power-up, all five of the green LEDs should illuminate steadily for

several seconds. Then the USB1, USB2 and LPT LEDs should light OFF

simultaneously. Irregularity of any of the three LEDs during these LED tests may

mean there is a problem with the LEDs themselves.

The actual component tests immediately follow the LED tests. A normal (no fault)

result is signaled by a simultaneous flashing of these three LEDs three times,

followed by a quiescent state with all three LEDs dark.

If the Self-Test routine traps any component error, then following the LED tests the

Self-Test will halt and the LEDs will continuously signal the error according to the

following table. In the event of any such error signal, contact your dealer for

correction of the faulty unit.

LED

Faulty Component

USB1

USB2

LPT

DRAM error

1 long 3 short

Flash Protected

1 long 5 short

Flash Erase/Program error

1 long 6 short

LAN Controller error

Getting Started

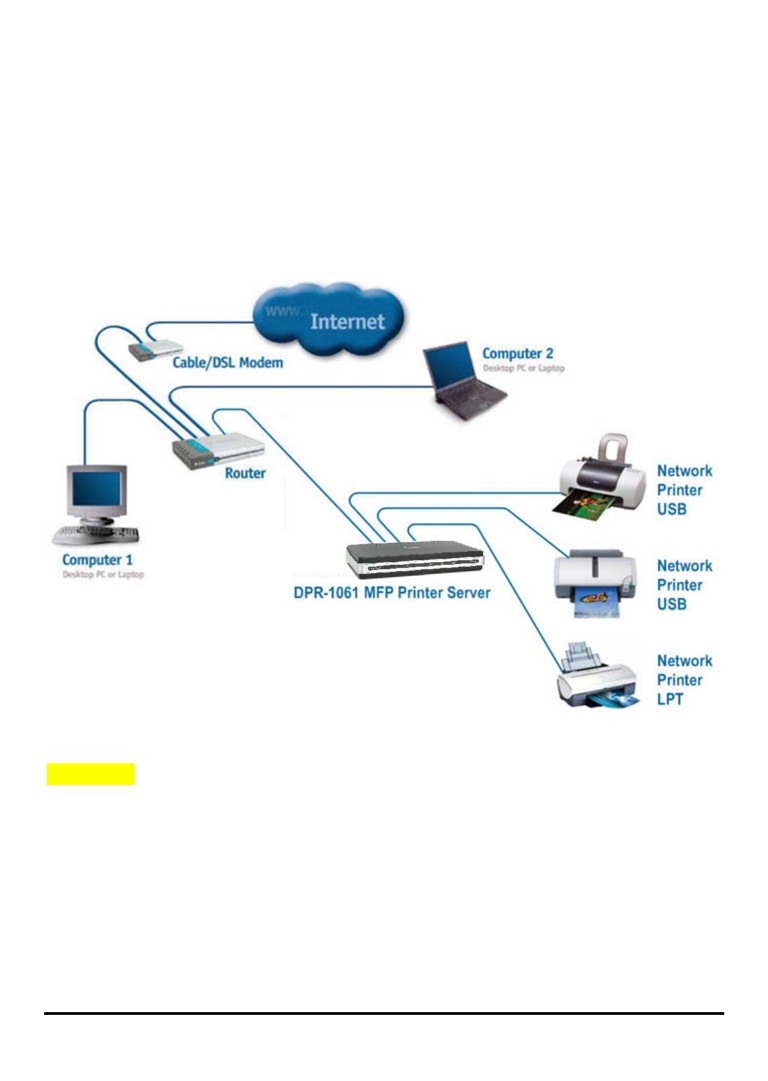

Below is a sample network using the DPR-1061. The DPR-1061 has a built- in

Web-based management feature that allows users to easily configure and manage

multiple print queues through TCP/IP.

WARNING: Only a USB printer may be connected to the USB port of the DPR-1061.

Do not connect any other USB devices to the USB port of the DPR-1061; to do so,

may damage the unit and will void the warranty for this product.

For a list of printers that are compatible with the DPR-1061, please see the Appendix

in this manual. The compatibility list is not comprehensive. Even if it is not included

in the list, your printer may be compatible with the DPR-1061.

Using PS Software

This chapter will introduce you the installation and operation of various useful

software program - PS Software (contains PS-Link and PS-Wizard) with which the

MFP Server is featured.

Auto-Run Installation

Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the

Auto-Run program. The content of the Installation CD-ROM includes:

• Install PS Software - click to install PS Software, which contains PS-Link and

PS-Wizard, to complete further settings for the MFP Server, such as:

- Changing IP address

- Supporting multi-function (Print/ Scan/ Copy/ Fax) of a MFP printer, printing

of GDI printer, and even other multimedia software of any MFP/GDI printer.

- Adding a printer on your computer in the easiest way.

• View Quick Installation Guide - click to preview the Quick Installation Guide in

PDF format for step-by-step instructions of the MFP Server Installation.

• View Manual - click to preview the User's Guide in PDF format for detailed

information of the MFP Server.

• Install Acrobat Reader - click to launch Acrobat Reader for the viewing and

printing of PDF files in the Installation CD-ROM.

• Exit - click to close the Auto-Run program.

PS Software

To avoid the conflict in your network, you can use PS Software to change the

related settings of your MFP Server (such as the IP address) after finishing the

installation of PS Software on your PC.

The PS Software contains two utilities: PS-Link and PS-Wizard.

Installing PS Software

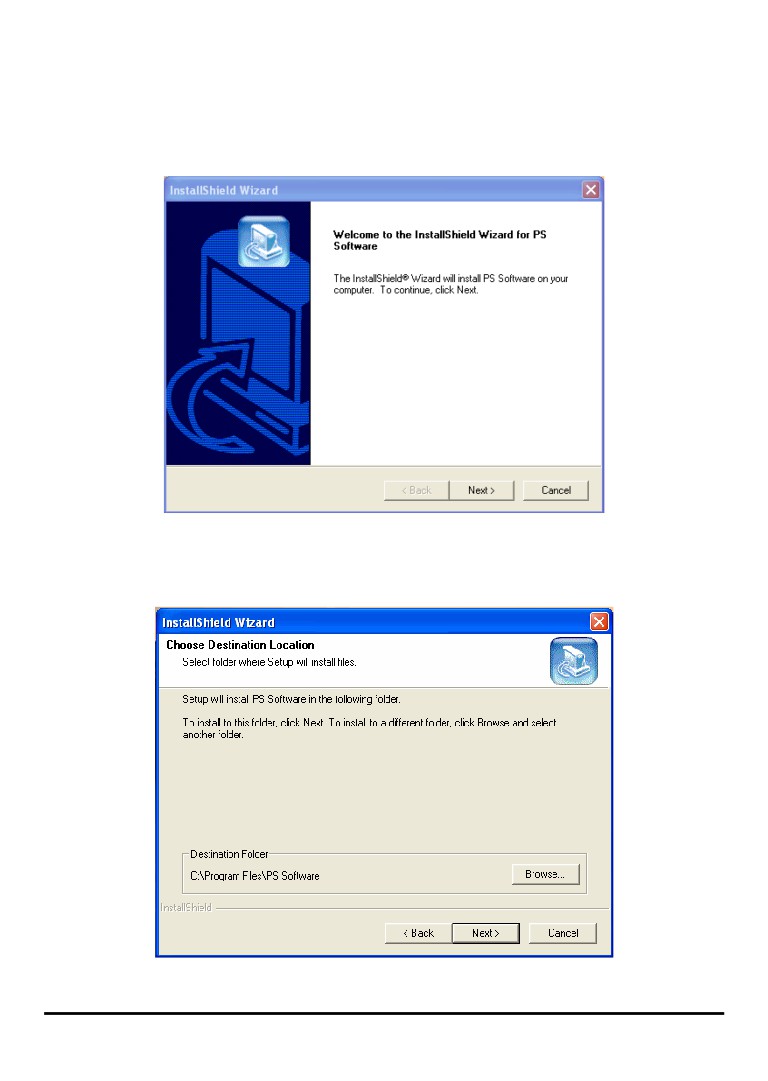

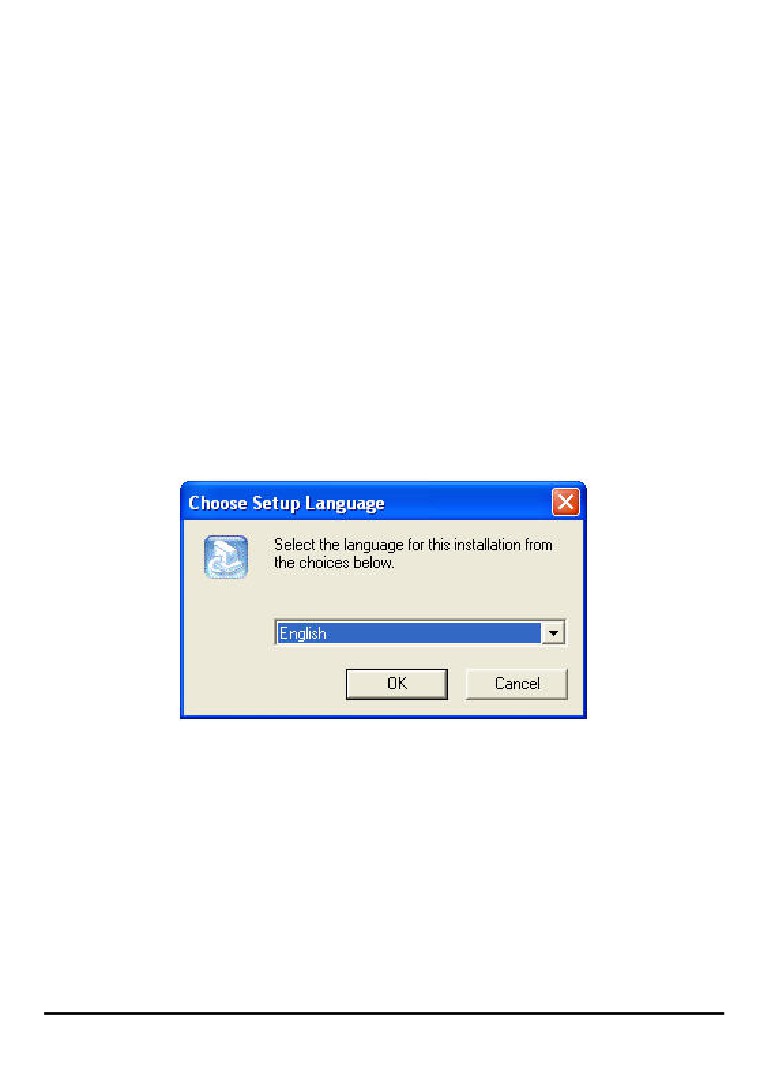

1. Click the PSSoftwareSetup icon of the Installation CD-ROM, and then the

system will prompt a window for you to select a desired setup language from its

pull-down menu. After done the selection of language, click OK button to

continue.

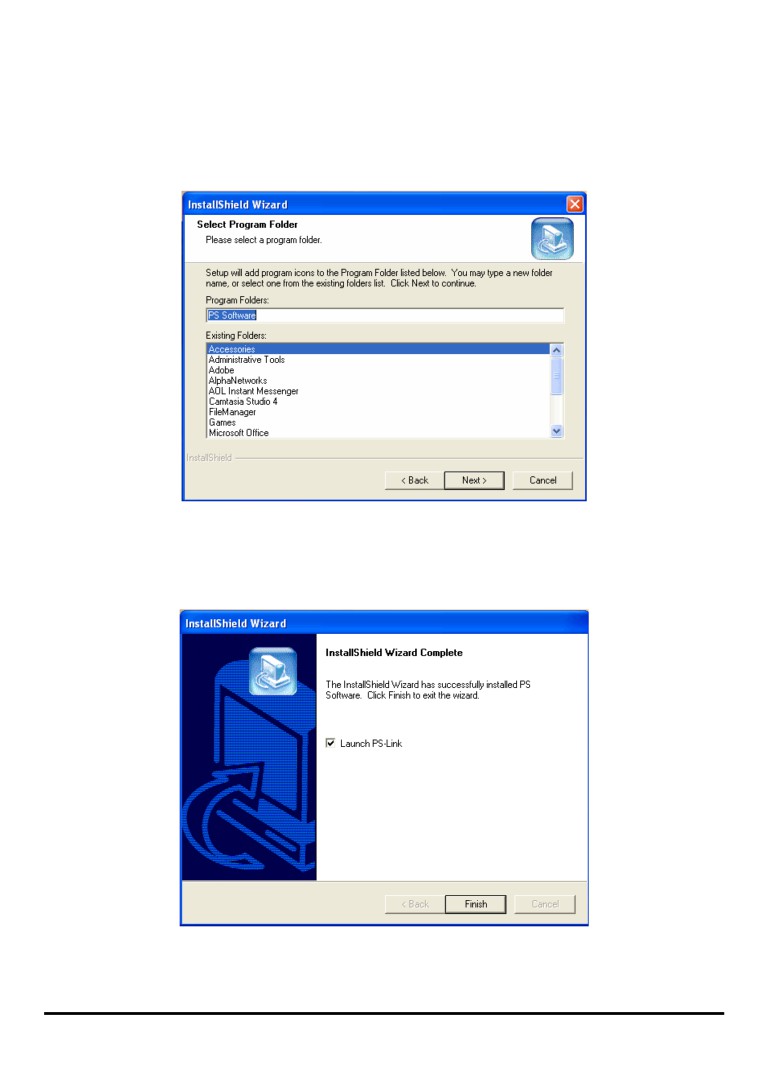

4. You may enter a new folder name in the Program Folder field if you want to

change the default name. Otherwise, you may leave the default setting and click

Next> button to go on the installation.

5. The InstallShield Wizard starts to install the software, and the Progress bar

indicates the installation is proceeding until the following window shows up. Click

Finish button to complete the installation.

Using PS-Link

PS-Link, supports for Windows 2000/XP/2003/Vista, is a useful tool for you setting

up multi-function (Print/ Scan/ Copy/ Fax) of a MFP printer, printing of GDI printer,

and even other multimedia software of any MFP/GDI printer. That is, the main goal

and advantage of the PS-Link is to enable the MFP Server to support MFP/GDI

printers.

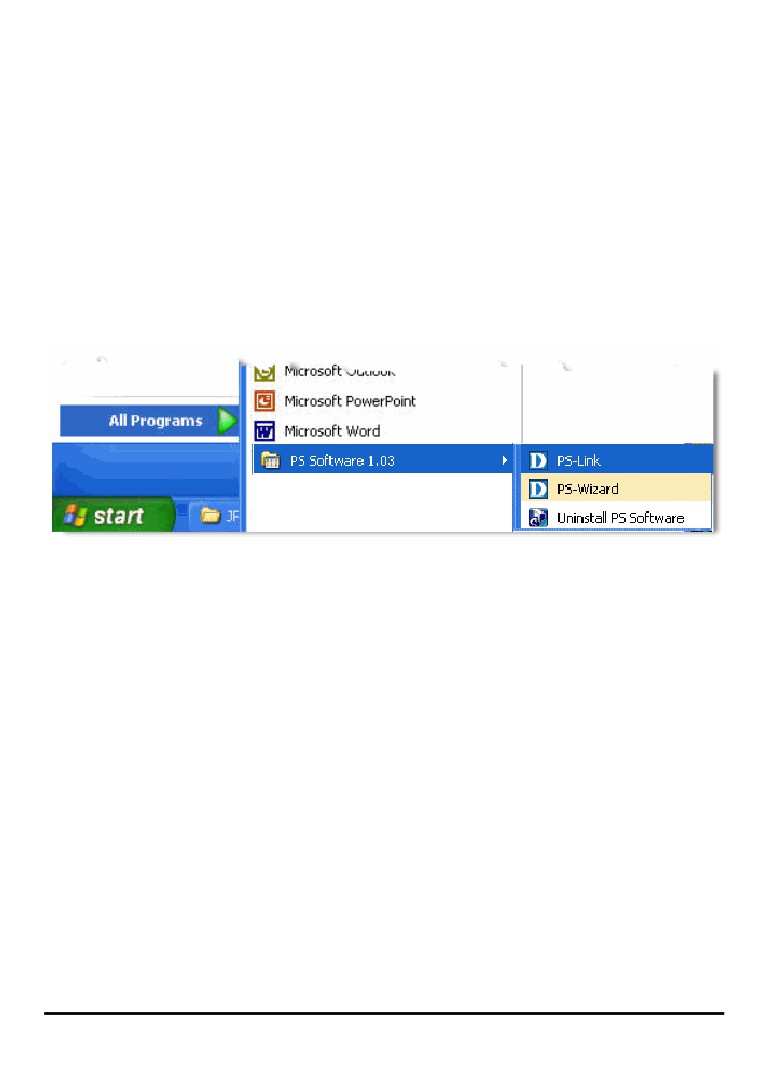

Go to StartÎ ProgramsÎ PS Software, and select PS-Link.

The PS-Link will automatically search the MFP servers in the same network

segment. If the installation is successful, you will see the name of your MFP server is

discovered and listed in the Server Name column of the following window. If your

MFP server identity data is not shown up, please check its network connectivity and

click the Discover button to research it again.

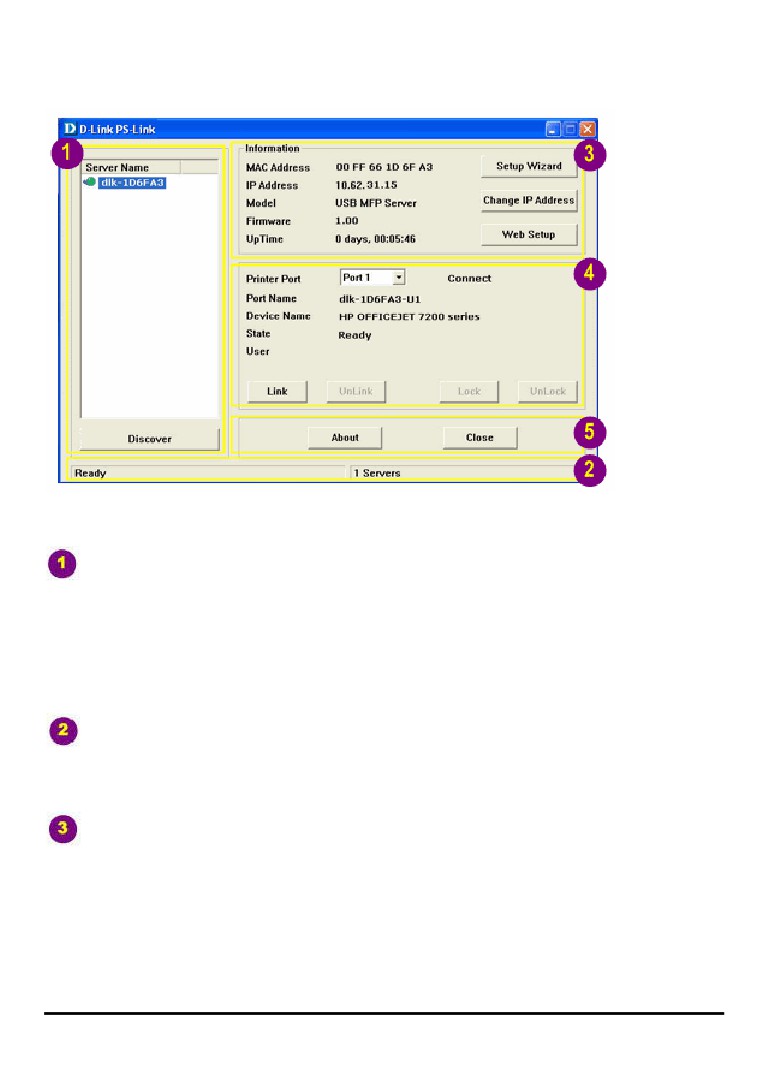

Server Name: A list displays the name of the connected MFP Server within the

network.

Discover: You may click this button to manually research the current connected

MFP Server.

Status Bar: Display the current status about the system and the numbers of the

connecting MFP Servers.

Information: This field displays the basic information of the selected MFP

Server in the Device List, including MAC and IP addresses, device model name,

system status, firmware version and UpTime information.

Also, three buttons are provided in this field: Setup Wizard, Change IP

Address, and Web Setup for you to do further configuration.

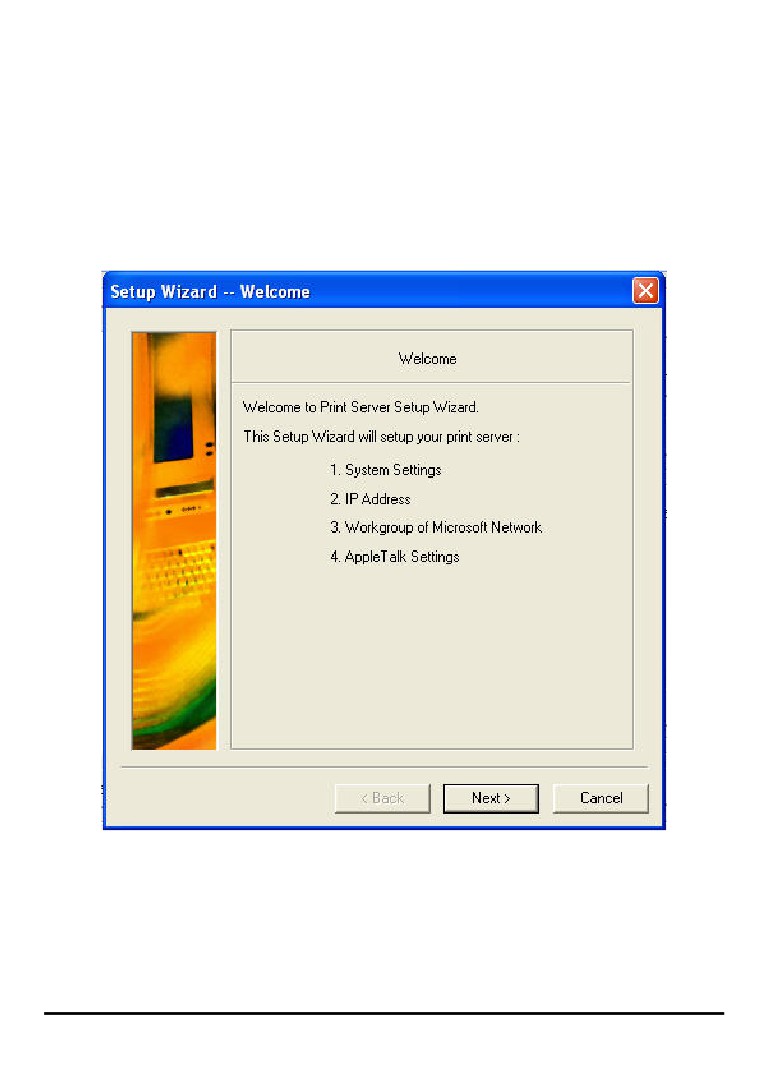

[Setup Wizard] - Setup Wizard is a step-by-step setup interface, which correspond

with the Configuration of the Web-based Configuration Utility, allowing user to

do basic setup easily. When this button is clicked, a welcome window will show up

as the following.

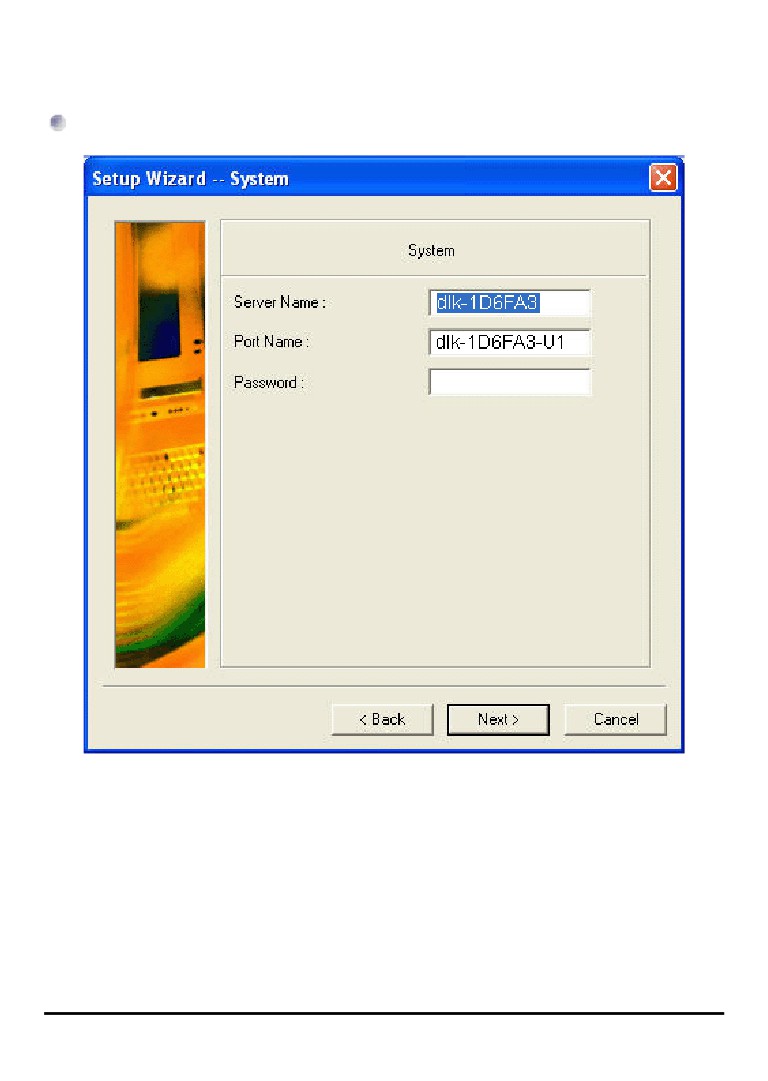

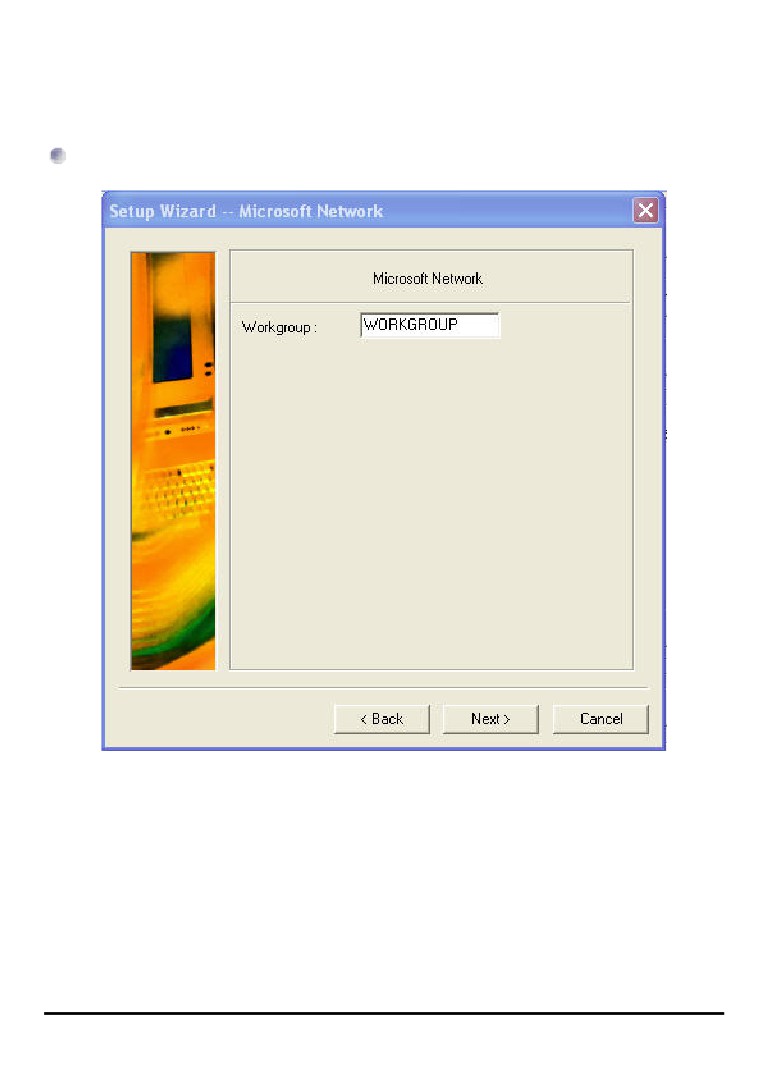

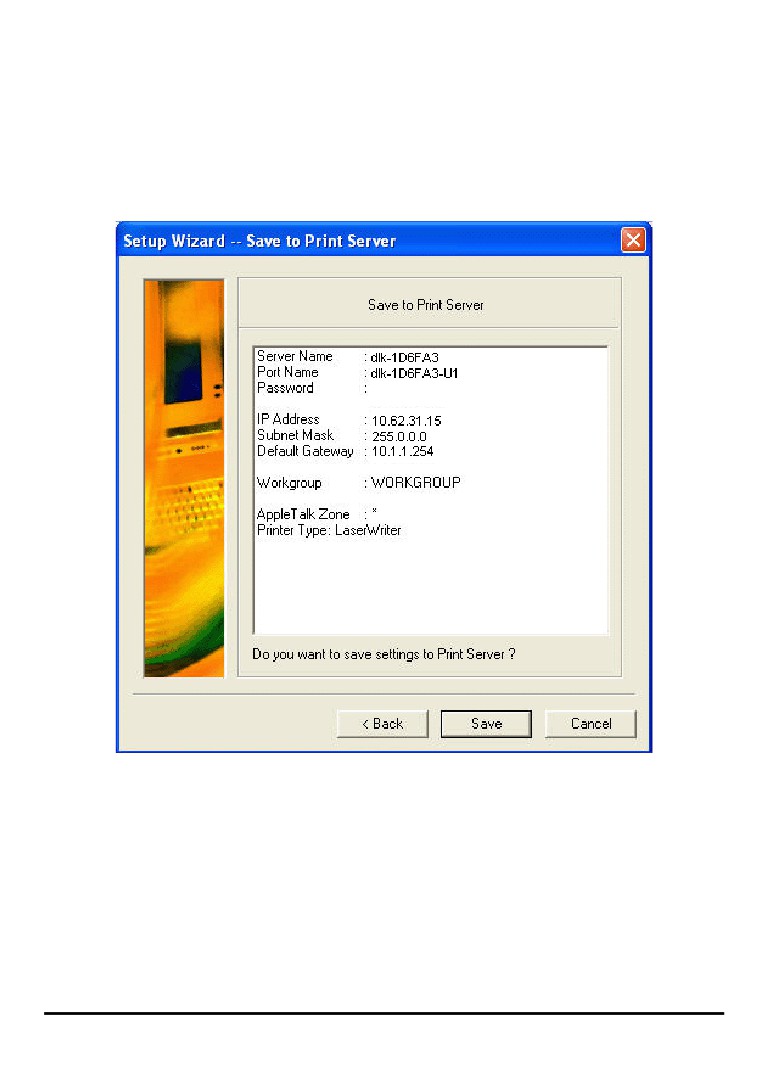

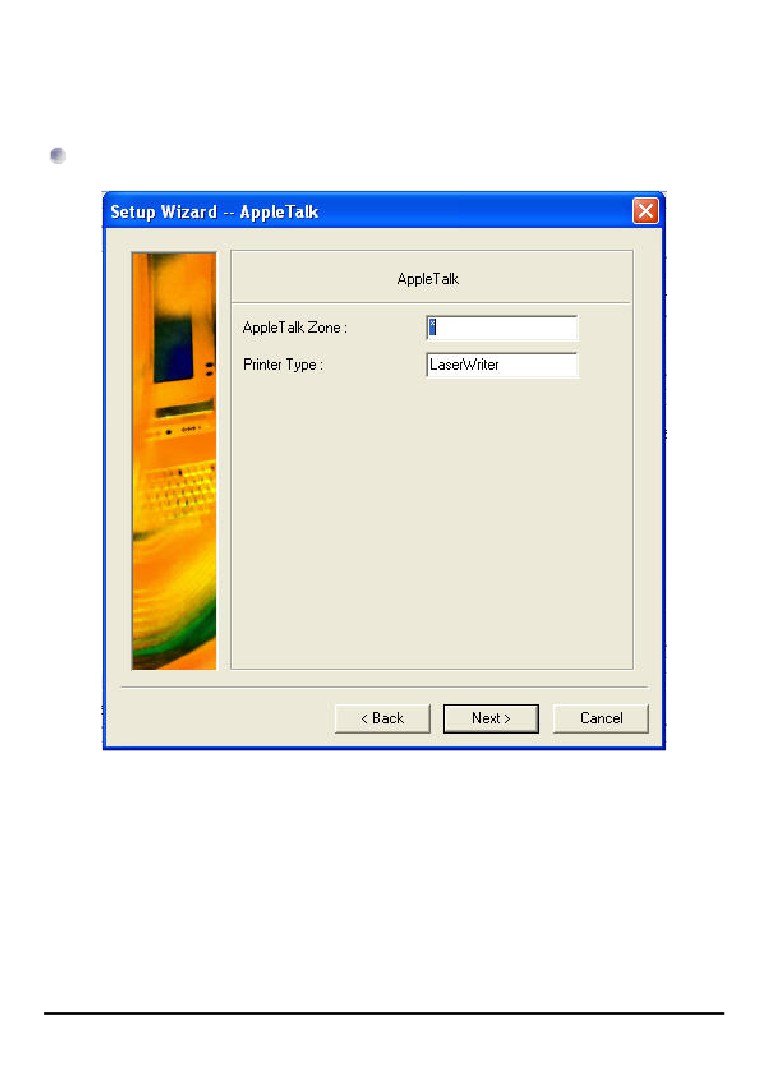

The Setup Wizard allows you to do a series of configuration of the MFP Server,

including:

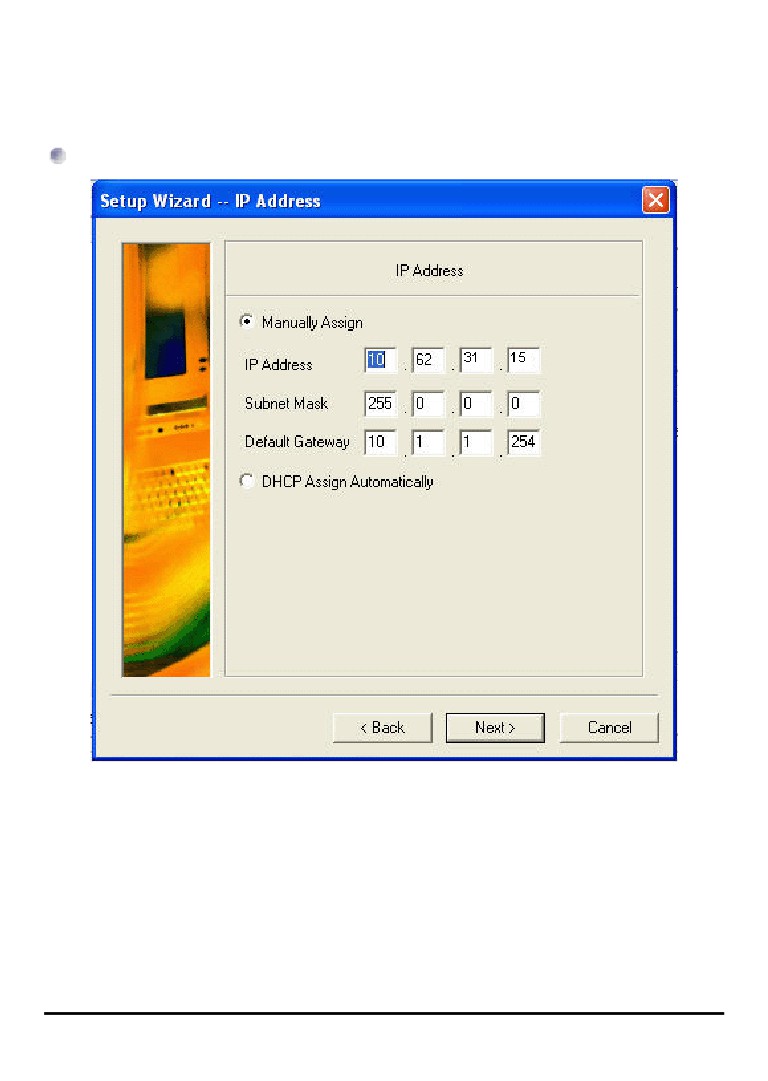

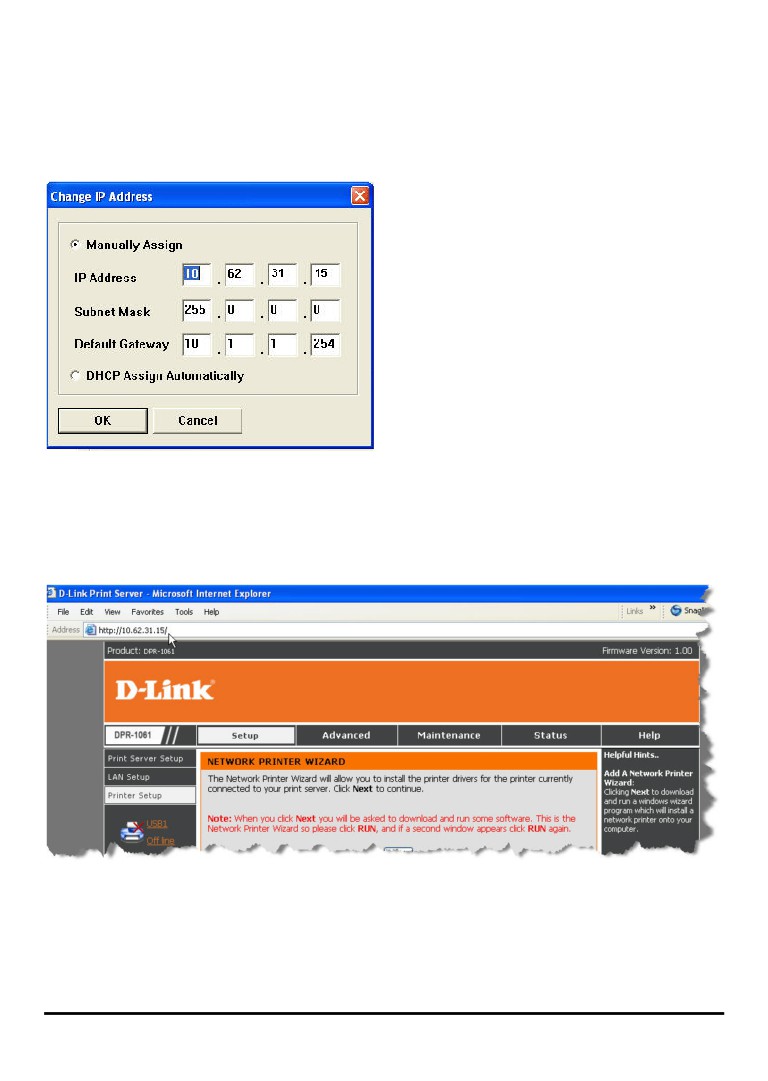

[Change IP Address] - Click this button to bring up the following pop-up window,

which allows you to change the IP

Address of the MFP Server in two methods:

Manually Assign or DHCP Assign

Automatically.

When done the

setting, click OK button or Cancel button

to abort.

[Web Setup] - When this button is clicked, your Web browser and the MFP Server’s

Web Configuration Utility will be auto-launched. Alternately, you may double click

the MFP Server in the Server Name to launch the Web Configuration Utility.

Printer Port: This field not only displays the basic information and current status

of the connected printer, but also allows you to do further configuration in the use of

the four control buttons (Link, UnLink, Lock, UnLock).

[Link] - The function of this button is to simulate the physical connection between a

USB cable of the printer and your computer, That is, you can easily set up a link

between a printer and your computer only by clicking this button without physically

attaching the printer’s USB cable to your computer.

[UnLink] - Contrary to the Link button, the UnLink button is used to off link

between the printer and your computer without physically disconnecting the two

devices.

[Lock] - Since the operation mode of the MFP can be set as Single User Mode (i.e.

only single specific computer can do printing) or Shared Mode (the default setting).

Clicking the Lock button, you may enable the Single User Mode.

[UnLock] - Clicking this button to enable the MFP as Shared Mode (i.e. End up the

Single User Mode of the MFP).

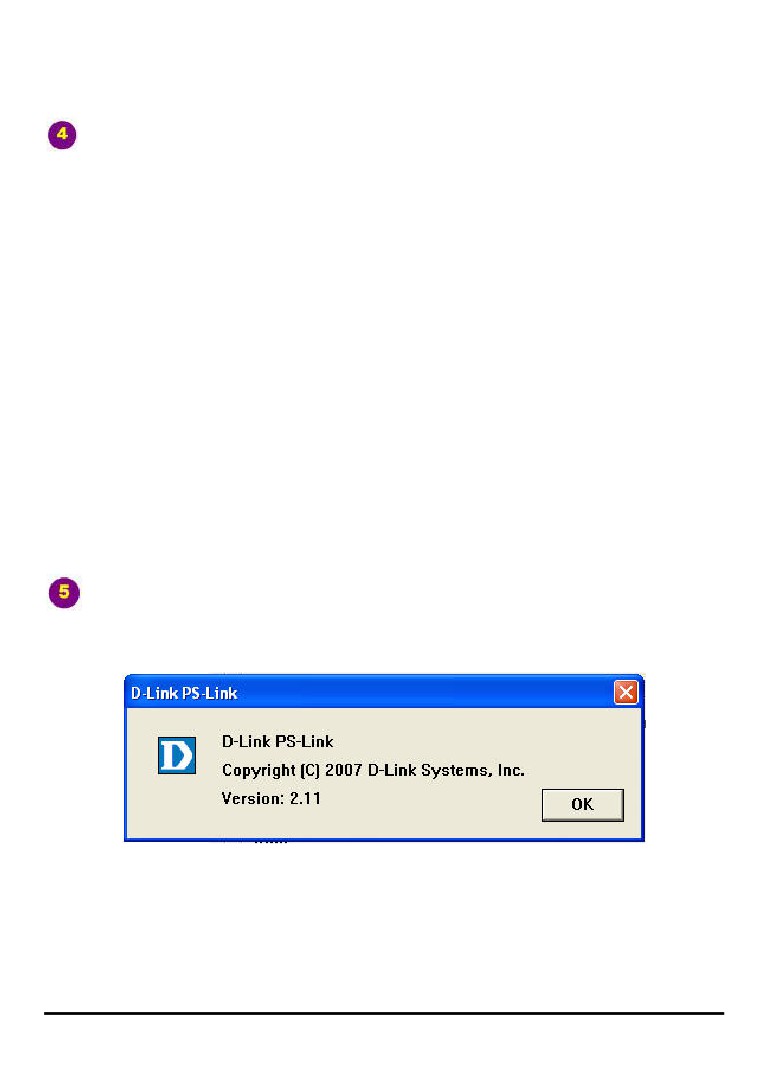

About: You may click this button to bring up a pop-up window as below to verify

the basic information about the PS-Link. Click OK button to close this window.

Close: To exit PS-Link, click this button.

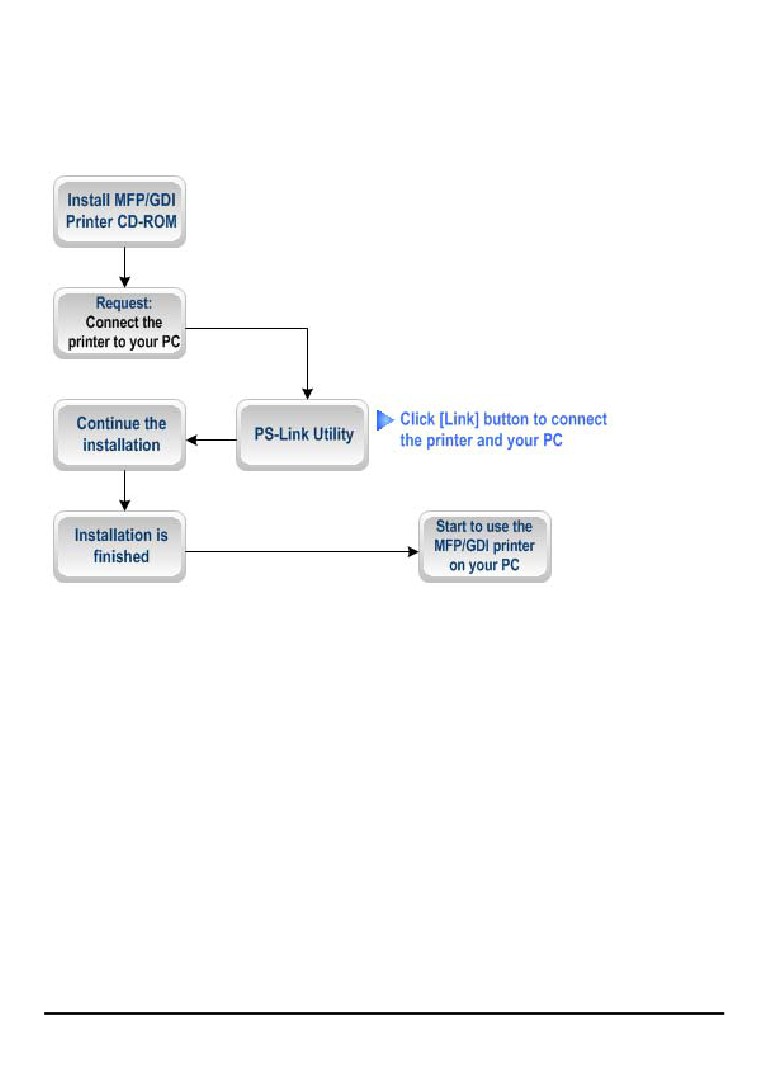

Installing and Using MFP/GDI Printer

This section will introduce you how to start the initial installation of various MFP/GDI

printer in the use of the printer manufacturer’s CD-ROM. Likewise, how to use

MFP/GDI printer through the PS-Link utility of the MFP Server after the printer

manufacturer’s driver is installed on your computer.

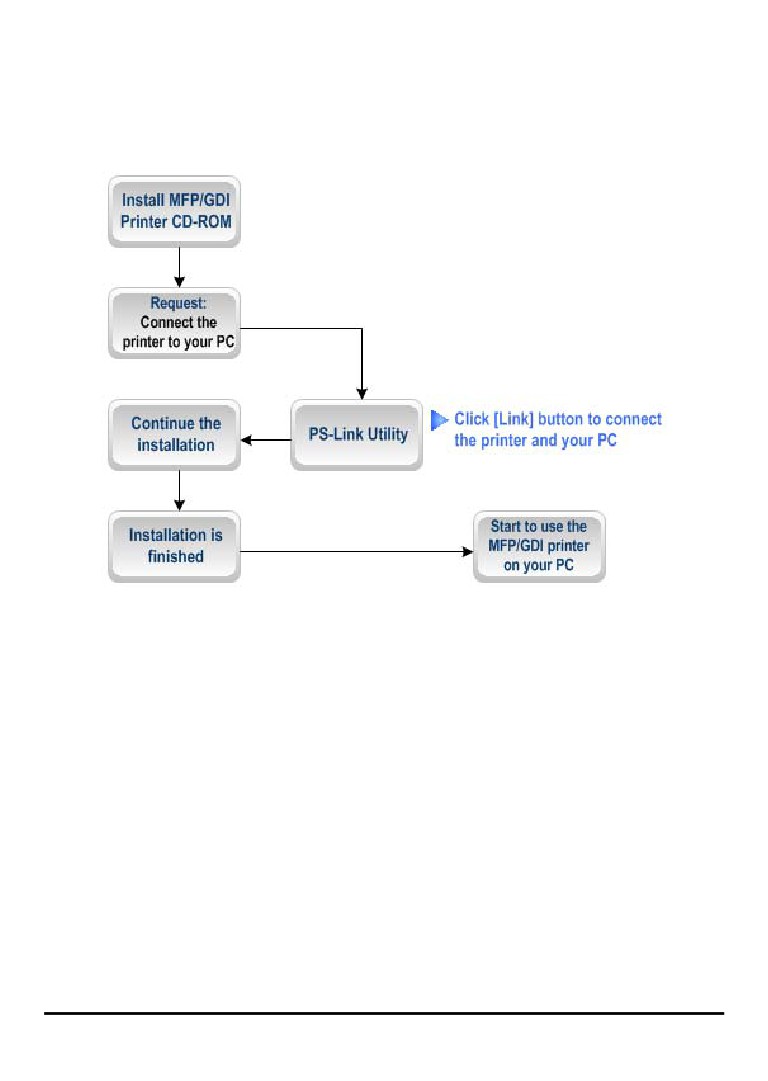

For PC with the MFP/GDI printer driver installed:

If your computer was already installed with the MFP/ GDI printer driver, you can just

click [Link] button of PS-Link to complete the connection between the printer and

your computer.

For PC without the MFP/GDI printer driver installed:

If your computer never had initial installation of the MFP/GDI printer driver, you may

follow the following procedure to achieve it.

1. Insert the manufacturer’s CD-ROM into your computer’s CD-ROM driver to initiate

Auto-Run program.

2. Following the instructions of the manufacturer’s CD-ROM to install MFP driver and

other media software until you are requested to attach the printer’s USB cable to

your computer.

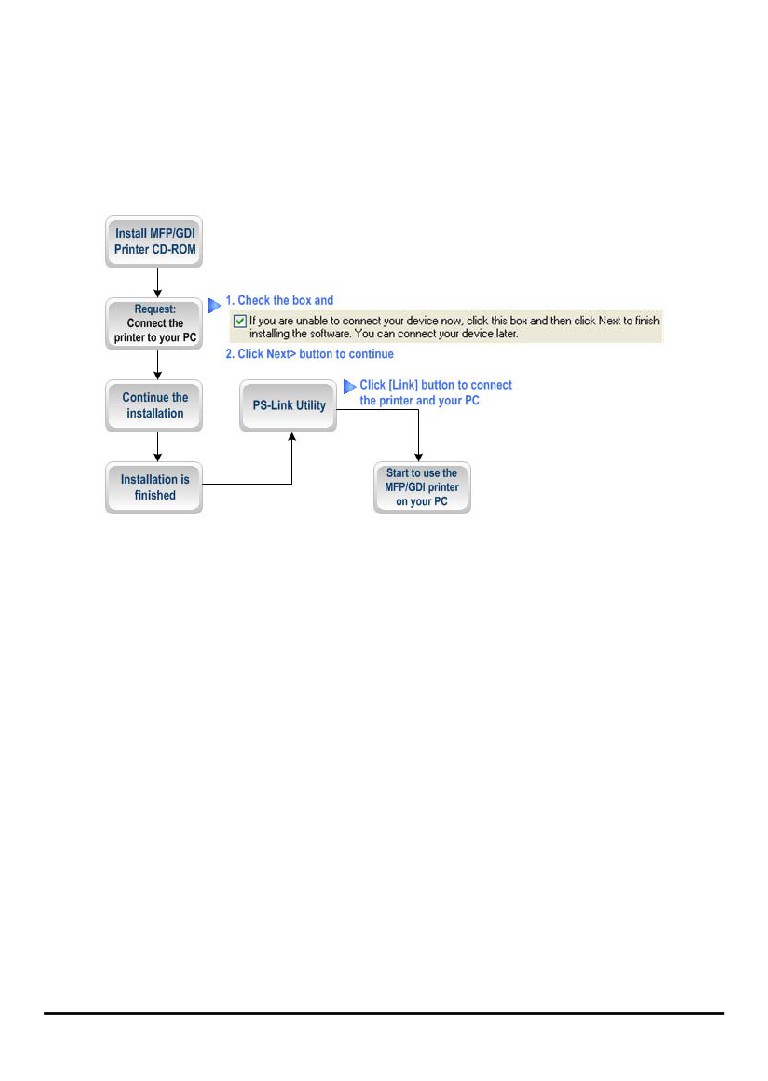

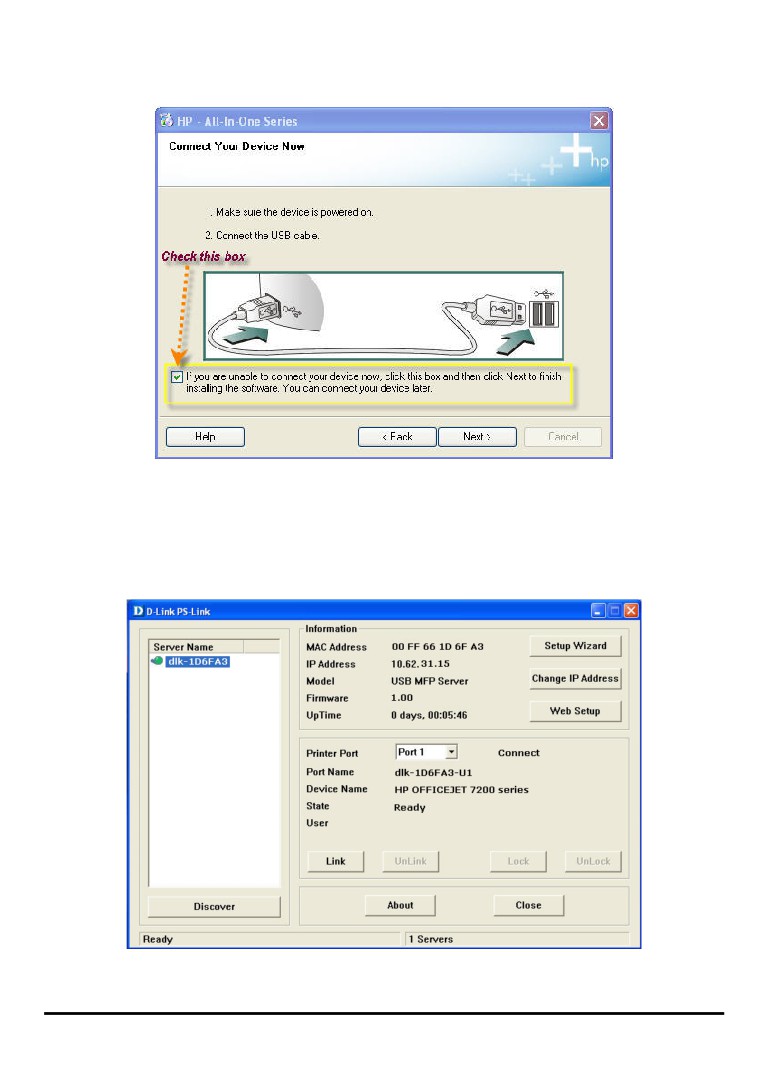

3. When you are requested to do physical connection between the printer and your

computer, the following installation steps will be different depending on the

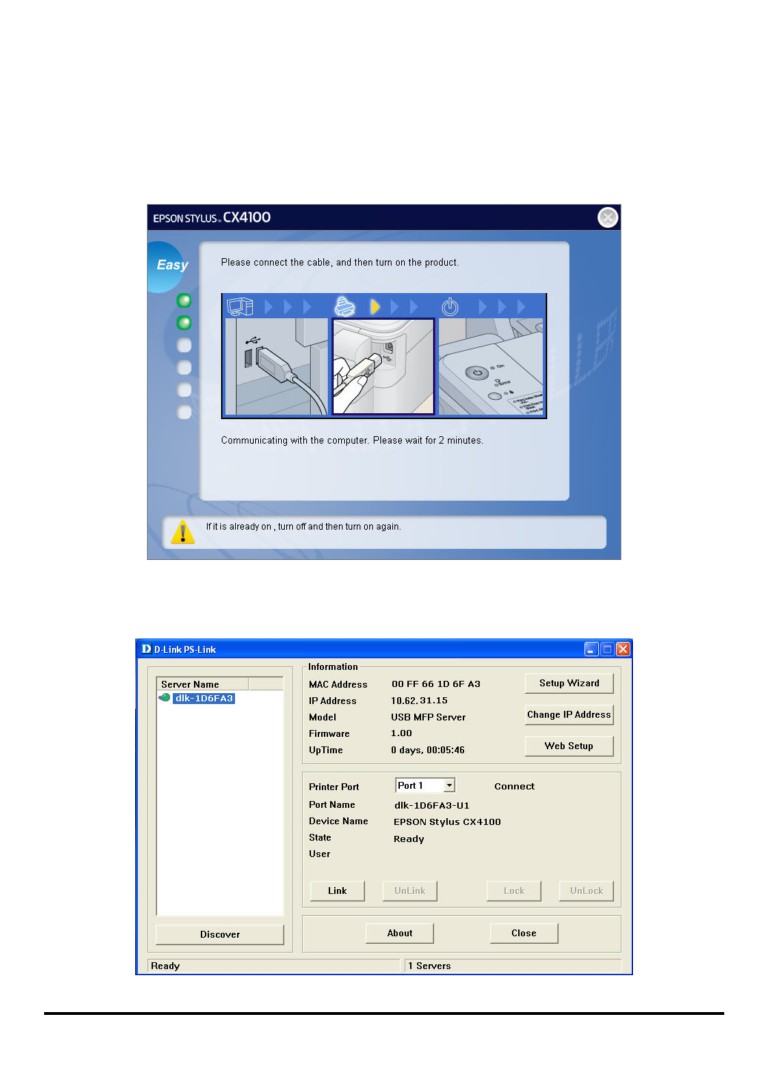

manufacturer brand. Here lists illustrations for several printers of major

manufacturers:

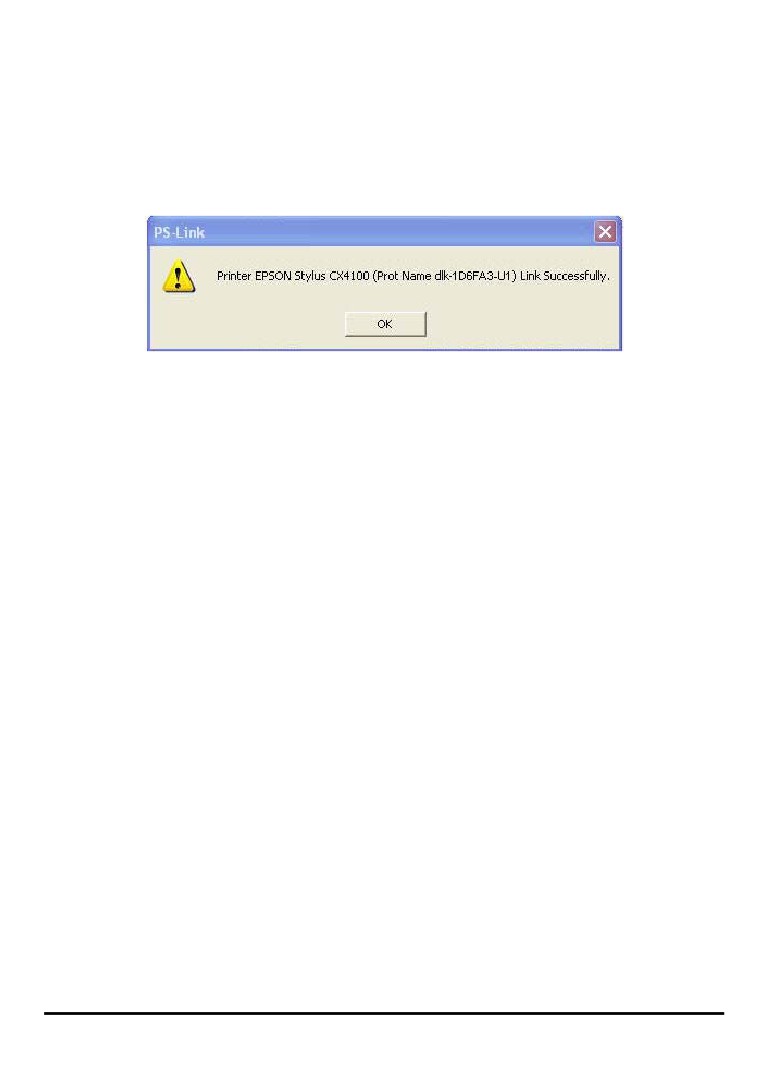

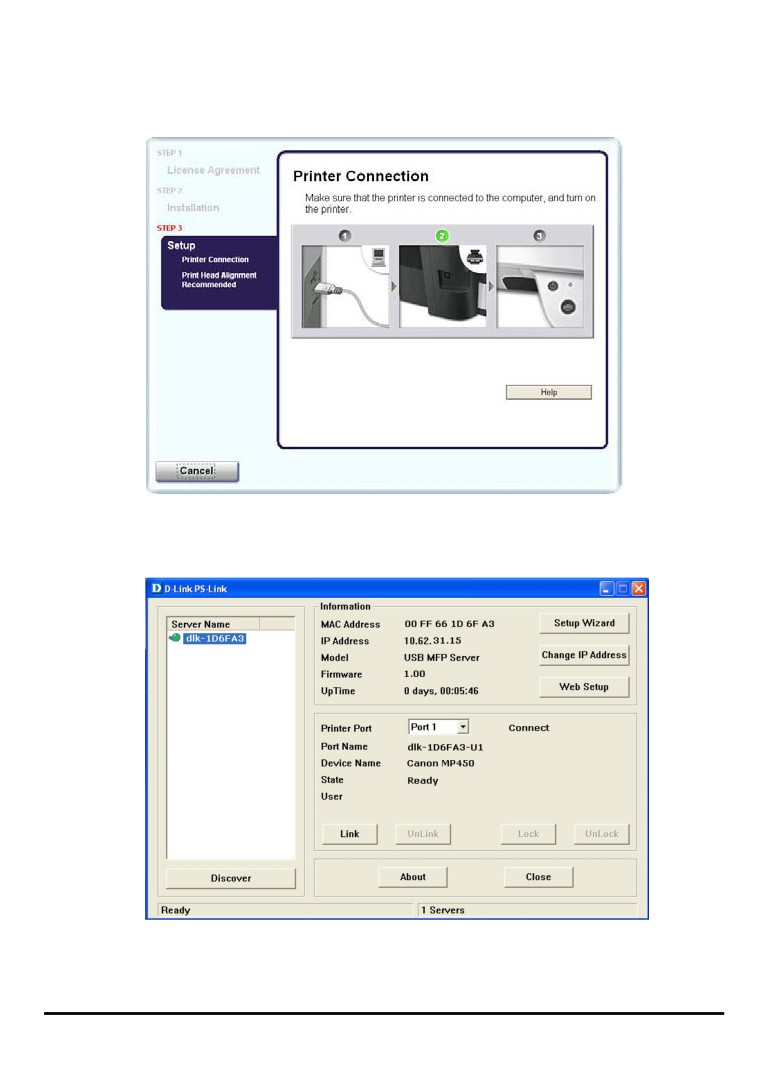

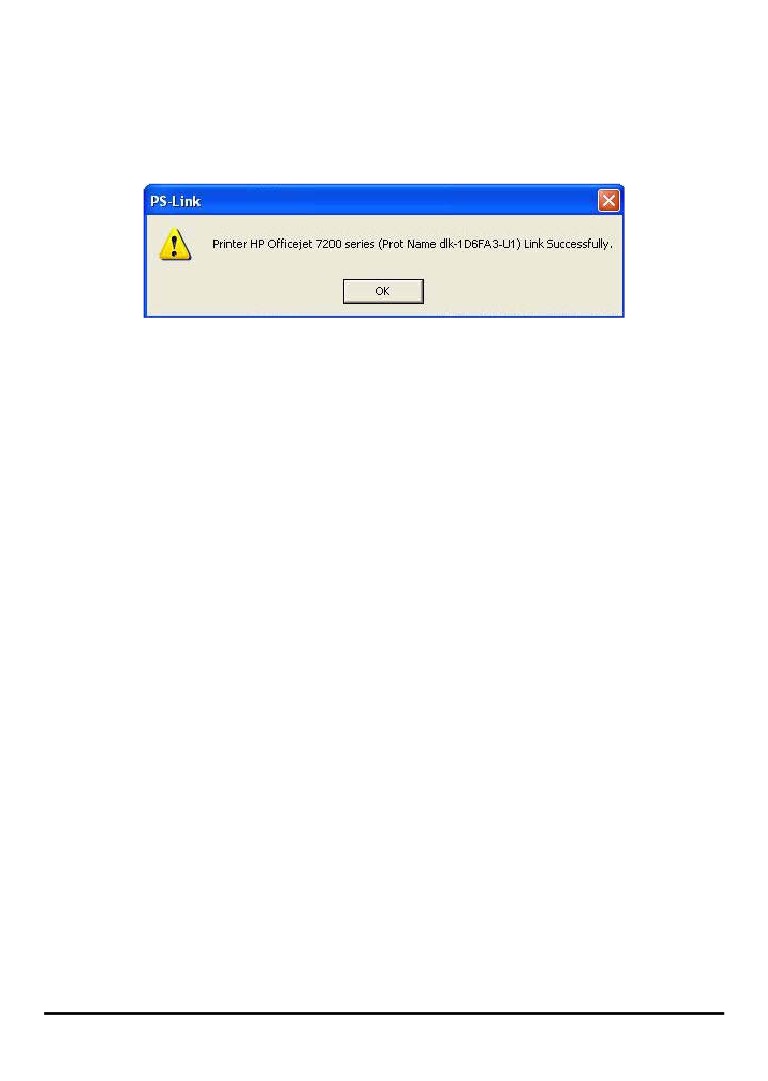

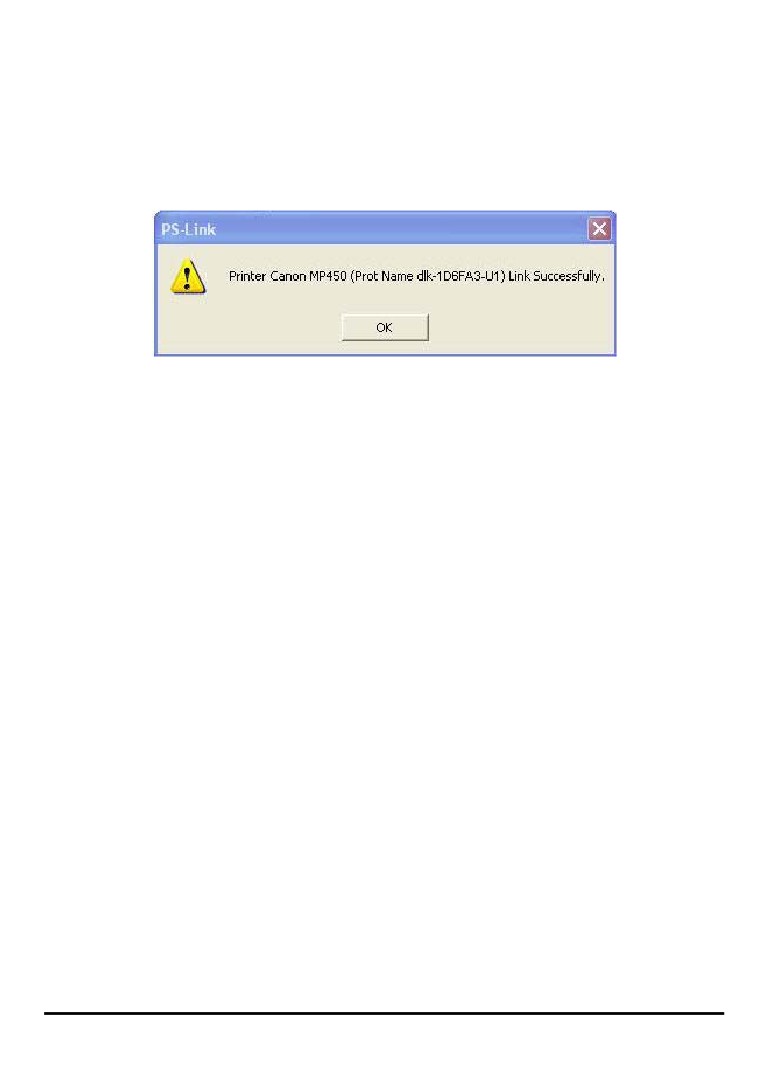

When the connection is completed successfully, a prompt as below will show up to

inform you. Press OK to exit.

3. Then you have to go back to continue the installation of the MFP/GDI printer

CD-ROM on your computer in order to complete the rest of installation steps.

4. When the whole installation of the MFP/GDI printer CD-ROM on your computer is

completed. You may start to use multi-functions (Print/Scan/Copy/Fax) of the

MFP/GDI printer through your computer.

When the connection is completed successfully, a prompt as below will show up to

inform you. Press OK to exit.

3. Then you have to go back to do the installation of MFP/GDI printer CD-ROM on

your computer in order to complete the rest of installation steps.

4. When the whole installation of the MFP/GDI printer CD-ROM on your computer is

completed. You may start to use multi-functions (Print/Scan/Copy/Fax) of the

MFP/GDI printer through your computer.

D-Link DPR-1061 USB 2.0 MFP Server Manual (2007) - page 1
