BEFORE YOU GO

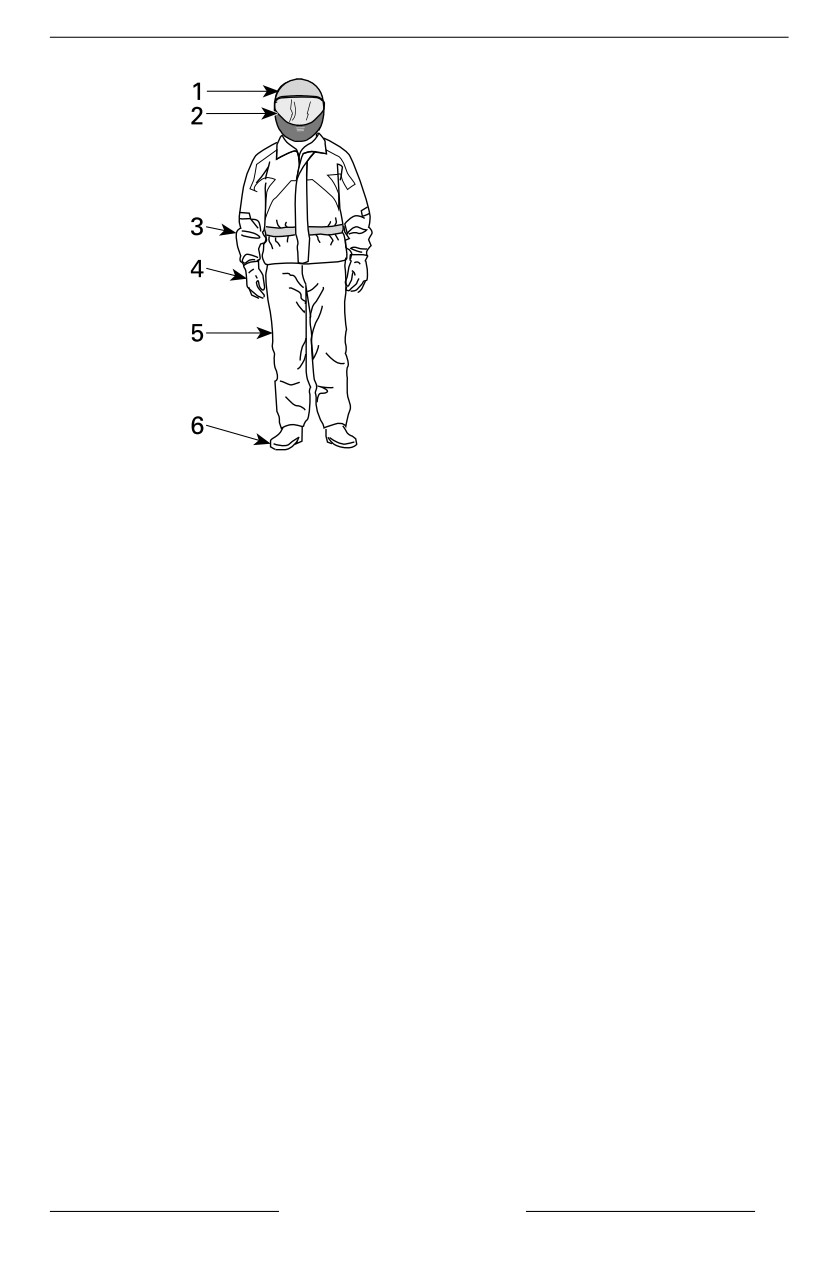

RIDING GEAR

1. Approved helmet

2. Eye and face protection

3. Long sleeves shirt or jacket

4. Gloves

5. Long pants

6. Boots (over-the-ankle footwear)

Weather conditions should help you decide how to dress. To maximize comfort

and avoid frostbites in winter, dress for the coldest weather expected. Thermal

underwear next to the skin also provides good insulation.

Never wear any loose clothing that may get entangled in the vehicle or on tree

branches and shrubs.

Hellmets and Eye Protectiion

Helmets protect the head and brain from injury. Even with the vehicle's cage and

doors, objects can enter the cockpit and strike the head, or the head can strike

the cage itself or objects outside the vehicle. Even the best helmet is no guaran-

tee against injury, but statistics indicate that helmet use significantly reduces the

risk of brain injury. So, be safe and always wear a helmet while riding.

Choosiing a Helmet

Helmets should be manufactured to meet the appropriate standard in your state,

province or country and should fit properly.

A helmet with face protection is a better choice as it protects also against frontal

impacts. It can also protect against debris, stones, insects, the elements, etc.

An open-face helmet does not offer the same protection for the face and chin. If

you wear an open-face helmet, you should use a snap-on face shield and/or a

pair of goggles. Ordinary glasses or sunglasses are not sufficient eye protection

for riders. They can shatter or fly off, and they allow wind and airborne objects to

reach the eyes.

SAFETY INFORMATION

15

GET FAMILIAR WITH THE VEHICLE

1

2

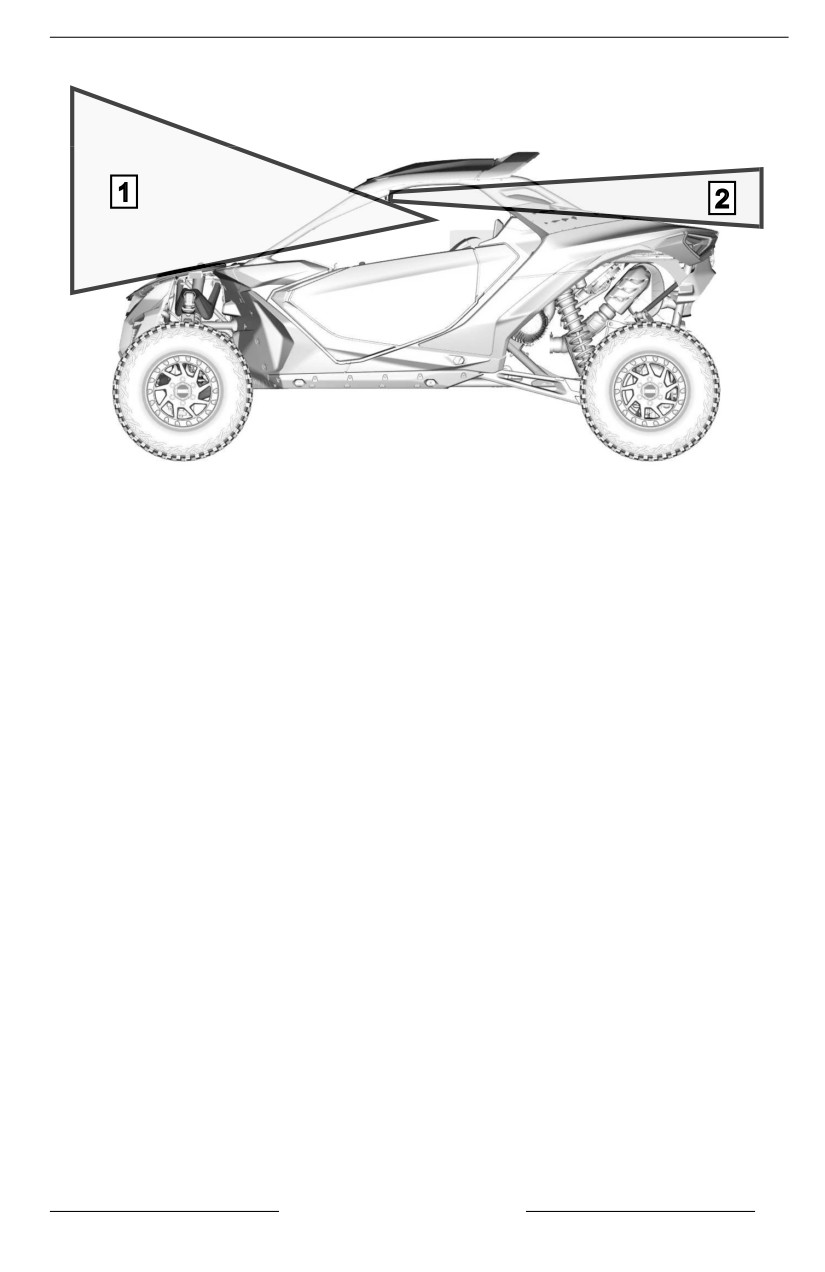

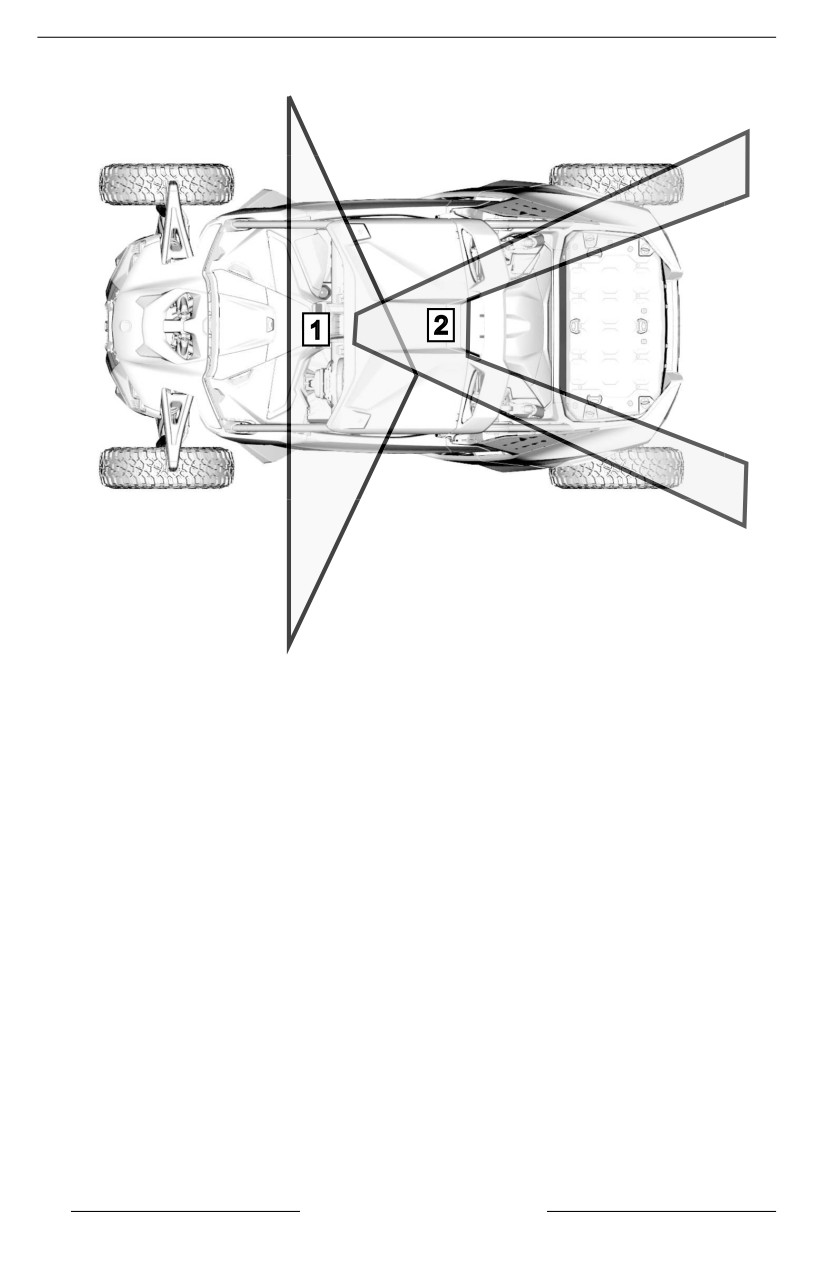

1. Approximate driver's field of vision

2. Approximate rear-view mirror field of vision

20

SAFETY INFORMATION

GET FAMILIAR WITH THE VEHICLE

1

2

1. Approximate driver's field of vision

2. Approximate rear-view mirror field of vision

Rear View Camera

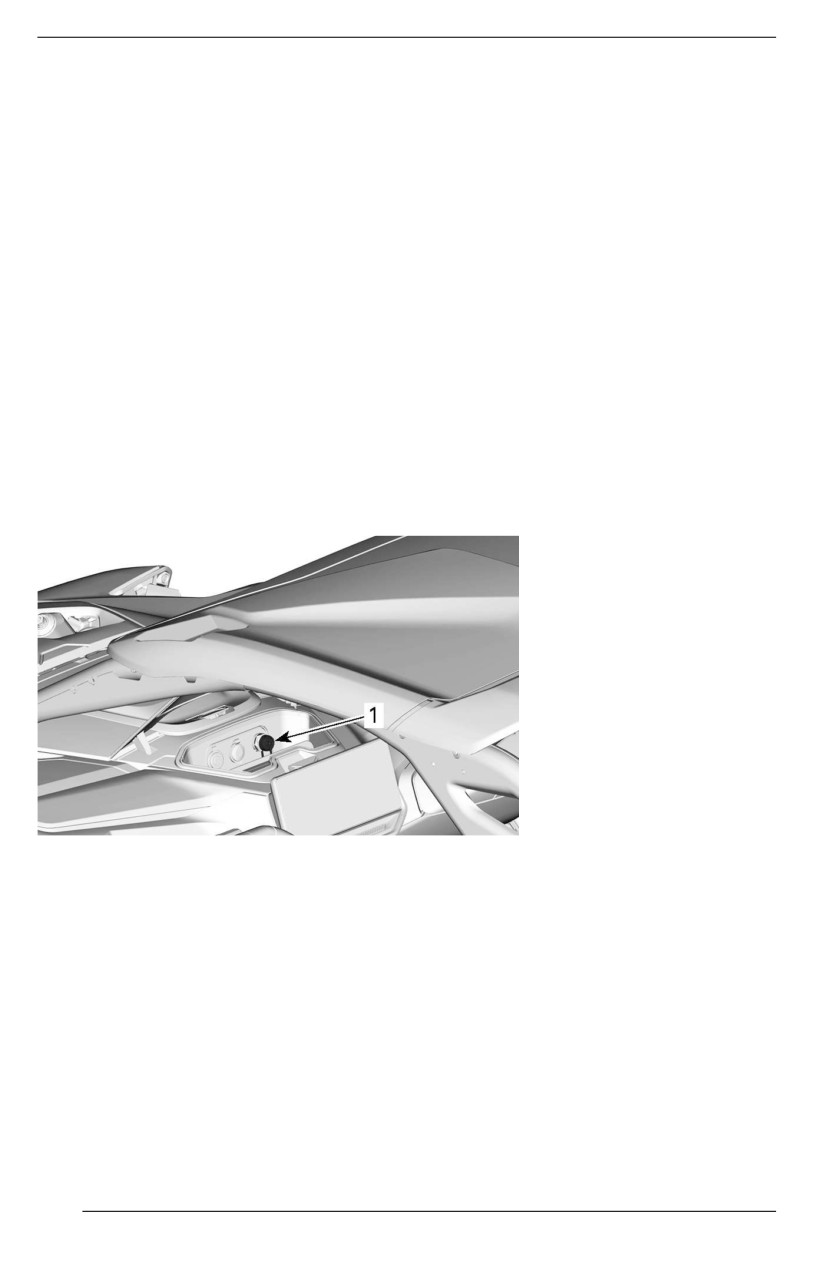

This vehicle is equipped with a rear view camera positioned under of the rear car-

go rack.

This camera is in operation when the engine is running and the select lever is set

to REVERSE.

IMPORTANT: After moving the shifter in the D position, the rear camera will

remain activated until the vehicle is going forward up to approximately 20 km/h

(12 MPH).

The camera can also be accessed by the touchscreen display when the vehicle

is not in Reverse or engine not running. See 10.25” COLOR TOUCHSCREEN

DISPLAY for instruction on how to access.

The rear view behind the vehicle is then displayed in the large display.

The rear view camera uses a wide-angle lens, the distances and objects shown

in the display are different from the real size.

Rear view camera visibility is limited, always make sure that the immediate sur-

rounding of the vehicle is clear before backing up slowly. Reducing the volume of

the radio or music is also recommended before backing up.

Moving in reverse by checking only the rear view camera image from the display

could cause an accident.

In case of doubt, ask someone to help you during the maneuver.

Rear View Camera Visibility Areas

SAFETY INFORMATION

21

GET FAMILIAR WITH THE VEHICLE

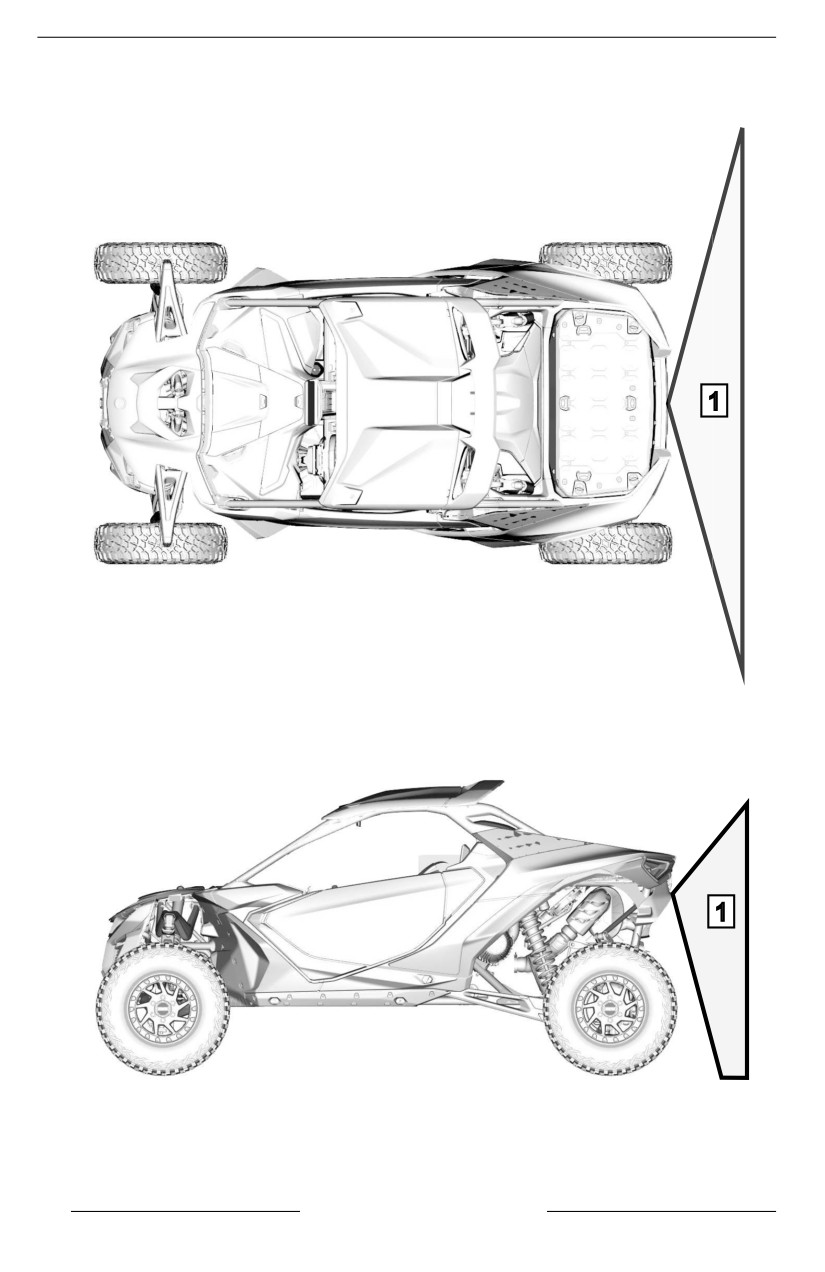

The following images illustrate the approximate rear view camera visibility areas.

1

2

1

1. Approximate rear camera cone of vision

1

1. Approximate rear camera cone of vision

22

SAFETY INFORMATION

GET FAMILIAR WITH THE VEHICLE

Front View Camera

The X rs models are equipped with a front view camera positioned in the top of

the front fascia.

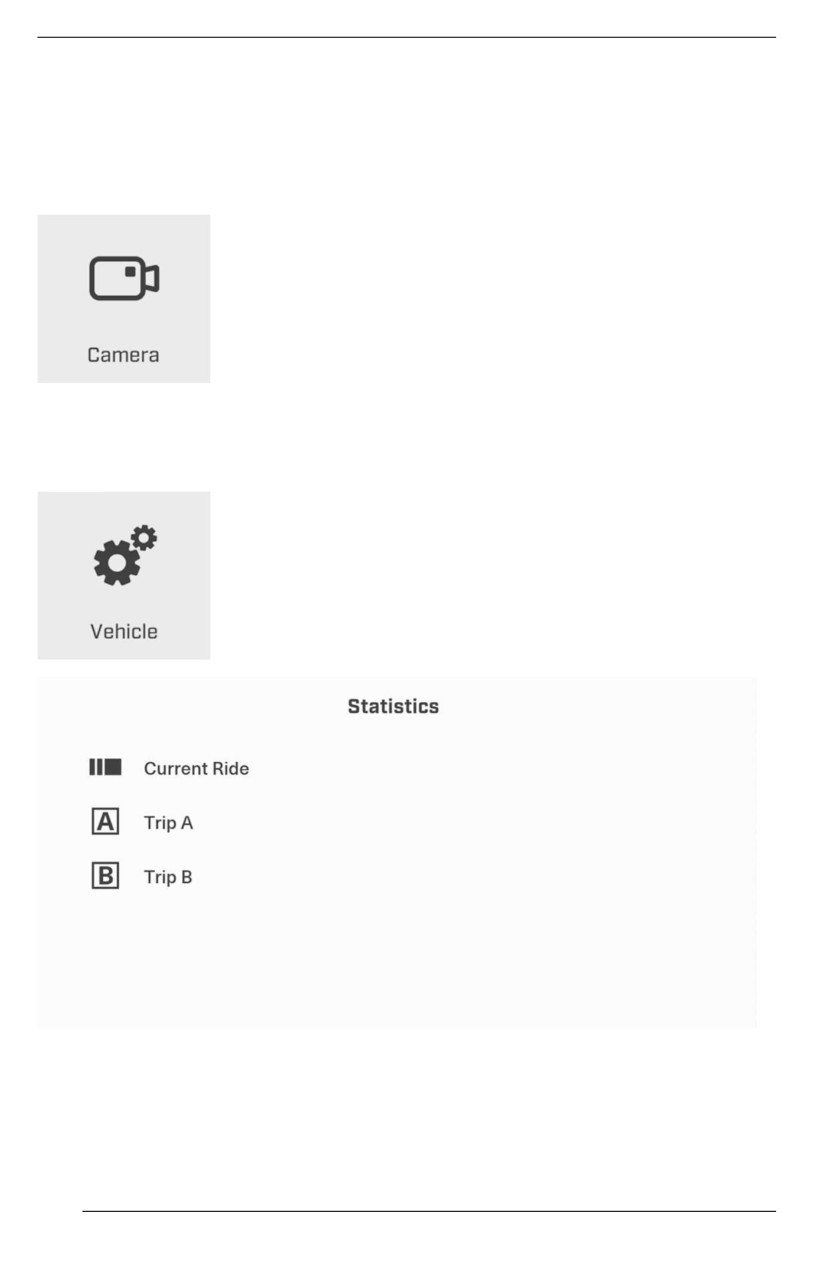

This camera is activated by selecting the APP menu icon in the bottom-right cor-

ner of the display then the applet CAMERA.

The front view in front of the vehicle is then displayed in the large display.

The front view camera uses a wide-angle lens, the distances and objects shown

in the display are different from the real size.

Front view camera visibility is limited, always make sure that the immediate sur-

rounding of the vehicle is clear before driving forwards slowly.

Driving forwards by checking only the front view camera image from the display

could cause an accident.

In case of doubt, ask someone to help you during the maneuver.

Carrying Loads

WARNING

Faiilure to folllow these recommendations when carrying loads could llead

to a loss of control and possibly iin a tiip over.

WARNING

Never carry gasolline container(s) or any dangerous lliquids on the cargo

rack.

Any load carried on the vehicle will affect the handling, stability and braking dis-

tance of the vehicle. Appropriate loading and weight distribution are therefore

important.

Do not exceed the load limits of the vehicle, including the weight of operator, pas-

senger, cargo and accessories.

Always be aware that the cargo may slide or fall off and cause an accident.

When carrying loads it is very important to follow the recommendations:

- Never exceed the maximum cargo capacity. Refer to Important On-Product

Labels or Technical Specifications for the applicable cargo load capacity of

the vehicle.

- When carrying heavy loads on the cargo rack operate the vehicle in low

range.

- When carrying a passenger or heavy loads readjust suspension accordingly

- Always reduce your speed, turn gradually and allow longer braking distance

when carrying loads.

Load cargo as low as possible - a higher load can raise the vehicle’s center of

gravity, which can reduce stability. Position cargo on the rack as evenly distrib-

uted as possible.

SAFETY INFORMATION

23

GET FAMILIAR WITH THE VEHICLE

Secure the load on the cargo rack. Do not secure cargo to the cage or other part

of the vehicle. If it is not properly secured, a load may slide or fall off, possibly

striking occupants or bystanders; or it may shift during riding, affecting the han-

dling of the vehicle.

Objects that are high may affect visibility for the driver and may act as projectiles

in case of an accident. Loads that protrude sideways can get snagged or caught

in bush, branches or other obstacles.

Avoid covering and obstructing the brake lights with the cargo.

Ensure cargo stays far away from the exhaust outlet.

Ensure no cargo protrudes outside the cargo rack and that cargo will not interfere

with your visibility or control of the vehicle.

Hauling a Load

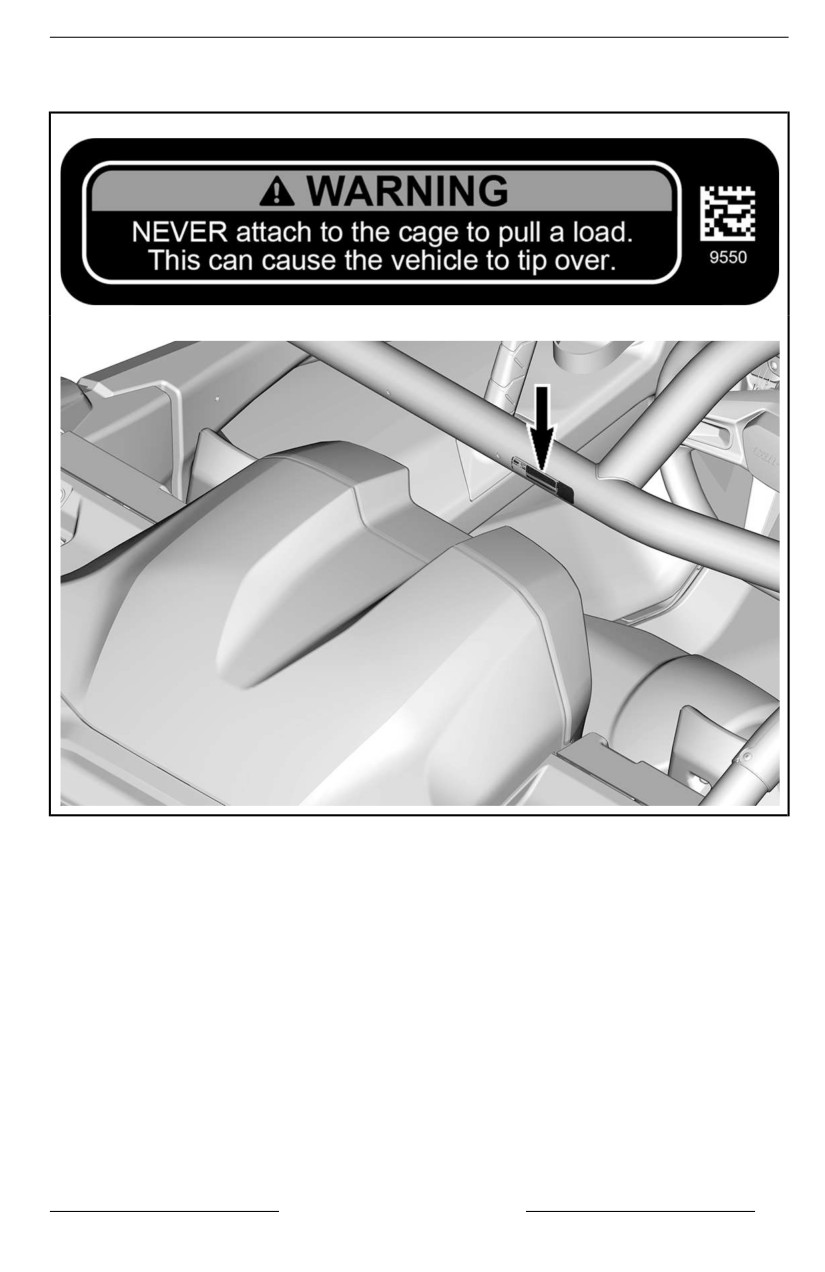

Never pull a load by attaching it to the cage or any other accessories; this can

cause the vehicle to tip over.

Use only the winch (if installed) to pull the vehicle or a load.

In an emergency situation, use the recovery hook to recover a stuck vehicle.

NOTICE

Never use the front recovery hook or the rear recovery point to pulll a lload.

These poiints must be used to pulll a stuck vehiicle.

When pulling loads with a chain or cable, ensure that there is no slack before

starting and maintain tension while pulling. Brake progressively, the inertia of the

load could lead to an impact.

WARNING

A slack iin the chaiin or cable can cause iit to break and snap back.

When pulling another vehicle, be sure that someone is controlling the pulled ve-

hicle. They must brake and steer to prevent the vehicle from going out of control.

Before pulling loads with a winch, refer to the winch manufacturer’s instructions.

Reduce your speed when hauling a load and turn gradually. Avoid hills and rough

terrain. Never attempt steep hills. Allow more distance for braking, especially on

inclined surfaces and when a passenger is on board. Be careful not to skid or

slide.

Accessories and Modifications

Any modifications or addition of accessories approved by BRP may affect the

handling of your vehicle. It is important to take the time to get familiar with the ve-

hicle once modifications are made to understand how to adapt your driving be-

havior accordingly.

24

SAFETY INFORMATION

GET FAMILIAR WITH THE VEHICLE

Avoid installing equipment not specifically approved by BRP for the vehicle and

avoid unauthorized modifications. These modifications and equipment have not

been tested by BRP and may create hazards. For example, they could:

- Create a loss of control and increase risk of crash

- Cause overheating or short circuits increasing the risk of fire or burn injuries

- Affect the protection features provided by the vehicle

- Affect the behavior of the trailer when the vehicle is transported

- Cause a risk of losing objects on the road when transported.

Your vehicle may also become illegal to ride.

Ask your authorized BRP dealer for suitable available accessories for your

vehicle.

SAFETY INFORMATION

25

RIDE SAFELY

This vehicle handles differently from other vehicles. A collision or rollover can oc-

cur quickly, during abrupt maneuvers such as doing sharp turns, acceleration or

deceleration and driving on hills or over obstacles, if you fail to take proper

precautions.

Never operate at excessive speeds. Always go at a speed that is proper for the

terrain, visibility, and operating conditions, and your experience.

Never attempt jumps, side slides, donuts or any other stunts.

Never attempt rapid acceleration or deceleration when performing a sharp turn.

This may result in a roll over.

Never attempt skidding or sliding. If vehicle starts to skid or slide, counter steer in

the direction of skidding or sliding. On extremely slippery surfaces, such as ice,

go slowly and be very cautious in order to reduce the chance of skidding out of

control.

Always be sure there are no obstacles or people behind the vehicle when you op-

erate in reverse. Pay attention to blind spots. When it is safe to proceed in re-

verse, go slowly.

Never exceed the stated load limits for this vehicle.

Always remember that this vehicle is heavy! Its pure weight alone may entrap

you should it tip or rollover.

General Driving Tips

Care, caution, experience and driving skill are the best precautions against the

hazards of vehicle operation.

Whenever there is the slightest doubt that the vehicle can safely negotiate an ob-

stacle or a particular piece of terrain, always choose an alternate route.

In off-road operation, power and traction, not speed, are important. Never drive

faster than visibility and your own ability to select a safe route permit. Always go

slowly and be extra careful when operating on unfamiliar terrain. Always be alert

to changing terrain conditions when operating this vehicle. Be especially cautious

on excessively rough, slippery, icy or loose terrain.

Constantly watch the terrain ahead for sudden changes in slopes or obstacles,

such as rocks or stumps, that may cause loss of stability, resulting in tip over or

rollover.

Never operate the vehicle if the controls do not function normally. See an author-

ized Can-Am Off-road dealer.

To maintain proper control it is strongly advised that you keep your hands on the

steering wheel and within easy reach of all controls. The same holds true for your

feet. To minimize the possibility of any leg or foot injury, keep your left foot on the

footrest and right foot on the floor at all times. Staying completely within the cock-

pit will also help keep you from striking objects outside the vehicle.

Watch for and avoid branches and other objects that could enter the passenger

compartment and strike you or your passengers.

26

SAFETY INFORMATION

RIDE SAFELY

Riding in a Group

Before starting out, designate a “trail boss” to lead the group and another person

to follow-up at the end of the group. Ensure that all members of the group are

aware of the proposed route and destination.

When riding with others, limit your abilities to the experience of others.

Never overtake the trail boss or, for that matter, any other vehicles.

It’s important to keep a safe distance between each vehicle but each one behind

the leader should know the position of the machine ahead.

Operating in Reverse

WARNING

Steering inputs iin reverse operatiion increase the risk of rolllover.

WARNING

When driviing downhiilll in reverse, gravity can iincrease the vehiclle speed

above safe reverse speed.

Always make sure that the rear immediate surrounding of the vehicle is clear to

ensure no one is behind before backing up slowly. Reducing the volume of the

radio or music is also recommended before backing up. Pay attention to blind

spots.

When it is safe to proceed in reverse, go slowly and avoid sharp turns.

In reverse operation, the engine RPM is limited thus limiting the vehicle reverse

speed.

When using the override button in reverse, in case it is needed to get unstuck,

the speed and the torque limitation are increased.

Crossing Roads

If you have to cross a road, ensure to have complete visibility on both sides for in-

coming traffic and decide on exit point on other side of road. Drive in a straight

line toward that point. Do not make sharp direction changes or abrupt accelera-

tions as it may result in a rollover situation. Do not travel on sidewalks or bicycle

trails as they are designated specifically for those uses.

Riding on Paved Surfaces

Avoid paved surfaces. This vehicle is more likely to roll over on pavement be-

cause of the increase tire grip.

If you must drive on pavement, turn gradually, go slowly, and avoid abrupt accel-

eration and braking.

SAFETY INFORMATION

27

RIDE SAFELY

Shallow Water Crossing

Water can be a unique hazard. If it is too deep the vehicle may “float” and topple.

Check the water depth and current before you attempt to cross any water. Water

depth should not exceed the center of the wheel for vehicle to safely cross the

obstacle. Beware of slippery surfaces such as rocks, grass, logs, etc., both in the

water and on its banks. A loss of traction may occur. Do not attempt to enter the

water at high speed.

Water will affect the braking ability of your vehicle. Make sure you dry the brakes

by applying them several times after the vehicle leaves the water.

Mud or marsh lands may be encountered near water. Be prepared for sudden

“holes” or changes in depth. Similarly so, be watchful of hazards such as rocks,

logs, etc., partially covered by vegetation.

Riding on Snow or Ice

When performing pre-ride inspection, pay special attention to locations on the ve-

hicle where snow and/or ice accumulations may obstruct visibility of the tail lamp,

clog ventilation openings, block the radiator, fan, engine air intake, and interfere

with the movement of controls.

Before starting with your vehicle, check the steering, accelerator and brake pedal

for interference free operation.

Whenever this vehicle is ridden on a snow covered drive path, the tire grip is gen-

erally reduced causing the vehicle to react differently to control inputs from the

operator. On low grip surfaces, the steering responses is not as crisp and pre-

cise, stopping distances are lengthened and acceleration is also affected. Slow

down and be gentle with accelerator input. Too much accelerator input will only

result in spinning of the tires and possibly in an over steering slide of the vehicle.

Avoid hard braking. This will possibly result in a straight line slide of the vehicle

caused by locked wheels. Again, the best advice is to safely reduce speed in an-

ticipation of maneuvers to give yourself time and distance in order to keep control

of the vehicle.

As you drive your vehicle over a loose snow covered surface, snow dust will be

picked up in the wake turbulence of the moving vehicle and transported to con-

tact and accumulate or melt on some exposed components including rotating

parts like brake discs. Water, snow or ice may affect the response time of the

brake system of your vehicle. Even when not required to reduce vehicle speed

apply brakes frequently to prevent ice or snow accumulation and to dry brake

pads and discs. While doing so in low risk driving situations you will test for grip

level and keep yourself alerted to how the vehicle reacts to your control inputs.

Always keep brake and accelerator pedals and floor boards free of snow and ice.

Frequently wipe snow off seat, steering wheel, headlights and tail lamps.

The depth of the snow cover may hide rocks, tree stumps or other objects and if

it is wet may totally impede the drivability as the vehicle becomes bogged down

or completely looses traction in slushy snow. Look far ahead and always be

watchful of any visible clues that might indicate the presence of such obstacles.

In doubt steer clear. Avoid driving on any frozen waterways before checking that

the ice will safely support the vehicle, its riders and its load of cargo.

28

SAFETY INFORMATION

RIDE SAFELY

At the end of each ride it is a good practice to clean the vehicle and all moving

components (brakes, steering components, drivelines, controls, radiator fan etc.)

from any snow or ice accumulations. Wet snow will turn to ice during the shut

down period and become more difficult to remove at the next pre-ride inspection.

Riding on Sand

Sand and riding on sand dunes is another unique experience but there are some

basic precautions that should be observed. Wet, deep or fine sand may create a

loss of traction and cause the vehicle to slide, drop off or become “bogged” down.

If this occurs look for a firmer base. Again, the best advice is to slow down and

be watchful of the conditions.

When riding in sand dunes it is advisable to equip the vehicle with an antenna

type safety flag. This will help make your location more visible to others over the

next sand dune. Proceed carefully should you see another safety flag ahead.

Riding on Gravel, Loose Stones or Other Slippery Surfaces

Riding on loose stones or gravel is very similar to riding on ice. They will affect

the steering of vehicle, possibly causing it to slide and tip over especially at high

speeds.

In addition, braking distance may be affected.

Remember that rapid accelerations or sliding may cause loose stones to be

ejected rearwards into the path of another rider's way. Never do it deliberately.

During a slide or a skid, counter steer may help to regain the control. Never jam

the brakes and lock the wheels.

Crossing Obstacles

It is a good practice to use the low range (L) when crossing obstacles.

Obstacles on the “trail” should be traversed with caution. This includes rocks, fall-

en trees, and depressions. You should avoid them whenever possible. Remem-

ber that some obstacles are too large or dangerous to cross and should be

avoided. As a guideline, never attempt to cross an obstacle higher than the

ground clearance of the vehicle. Small rocks or small fallen trees may be safely

crossed - approach obstacle at low speed and as much as possible at a right an-

gle. Adjust speed without losing momentum and do not accelerate abruptly. Pas-

senger must grasp both handholds firmly and brace feet on the floor. Hold

steering firmly without closing your fists around it and proceed. Be aware that the

obstacle may be slippery or may move while crossing.

Hill Driving Conditions

When driving on hills or slopes, two things are highly important: be prepared for

slippery surfaces or terrain variations and obstacles and brace yourself properly

inside vehicle.

If you climb or descend a hill that is too slippery or has too loose a surface, you

can lose control.

SAFETY INFORMATION

29

RIDE SAFELY

If you go over the top of a hill at high speed, you may not have time to prepare for

the terrain on the other side.

Avoid parking on a slope.

Always put the vehicle in PARK when stopped or parked, especially on an in-

cline, to avoid rolling. If you must park on a steep incline, block the wheels using

rocks or bricks.

Uphiilll Driving

It is a good practice to use the low range (L) for uphill driving.

Due to its configuration, this vehicle has very good traction even while climbing,

so much so that tip over is possible before traction is lost. For example, it is com-

mon to encounter terrain situations where the top of the hill has eroded to a point

that the hill peak rises very sharply. This vehicle is not designed to negotiate such

a condition. Take an alternate route.

It is also wise to know the terrain condition on the other side of the hill or bank. All

too often there exists a sharp drop-off that is impossible to negotiate or descend.

If you feel that the slope is getting too steep to climb, apply brakes to immobilize

vehicle. Put the transmission in reverse (R), and back down the hill, barely re-

leasing brakes to remain at low speed. Do not attempt to turn around. Never

coast down hill while vehicle is in neutral. Do not perform hard braking as it in-

creases the risk of tipover.

Downhilll Driiviing

This vehicle can climb steeper slopes than it can descend safely. Therefore, it is

essential to assure that a safe route exists to descend a slope before you climb

it.

Decelerating while negotiating a slippery downhill slope could lock the wheels

causing the vehicle to slide. Maintain steady speed and/or accelerate slightly to

regain control. Never slam brakes and lock the wheels.

Side Hiillling

Whenever possible, side hilling (driving across a slope rather than up or down it)

should be avoided. If necessary, do so with extreme caution. Side hilling on steep

inclines could result in rollover. In addition, slippery or unfirm surfaces could re-

sult in uncontrollable side sliding. Avoid all objects or depressions that will inten-

sify the raising of one side of the vehicle higher than the other, thus causing

rollover. If you feel the vehicle start to rollover or slide sideways, steer downhill if

possible.

WARNING

Be carefull when lloadiing and transporting lliquid reservoirs. They can af-

fect vehicle stabiiliity when side hillliing by pullling downhilll and increasing

the risk of a rolllover.

30

SAFETY INFORMATION

RIDE SAFELY

Drop-Offs

This vehicle is not designed to negotiate excessive drop-offs.

It will “bottom-out” and usually stop if either the front or rear wheels are driven

over a drop-off.

If the drop is sharp or deep, the vehicle will nose dive and tip over.

Avoid negotiating excessive drop-offs.

Reverse and select an alternate route.

Recreatiionall, Group and Distance Riiding

Respect the rights and limitations of others. Stay away from areas designated for

other types of off road use. This includes snowmobile trails, equestrian trails,

cross country ski trails, mountain bike trails, etc. Never assume there are no oth-

er users on the trail. Always stay to the right of the trail and do not zig zag to one

side of the trail then the other. Be prepared to stop or pull off to the side if another

trail user appears in front of you.

Join a local side-by-side vehicle club. It will provide you with a map and advice or

inform you where you can ride. If a club does not exist in your area, help to start

one. Group riding and club activities provide a pleasurable, social experience.

Never use with drugs or alcohol, or tired or ill.

Always keep a safe distance from other riders. Your judgment of speed, terrain

conditions, weather, mechanical condition of your vehicle and the “trust in judg-

ment” you have in others around you will help you make a better choice of appro-

priate safe distance. This vehicle, like any other motorized vehicle, cannot stop

“on a dime”.

Before you ride, tell someone where you are planning to travel and your expected

time of return.

Depending on the length of your ride, carry additional tools or emergency equip-

ment. Find out where you can get additional gasoline. Be prepared for the possi-

ble conditions you may encounter. An emergency first aid kit should always be a

consideration.

Environment

One of the benefits of this vehicle is that it can take you off the beaten path away

from most communities. However, you should always respect nature and the

rights of others to enjoy it. Do not ride in environmentally sensitive areas. Do not

drive over forest crops or shrubs, nor cut down trees or take down fencing, nor

spin your wheels and destroy the terrain. “Tread Lightly”.

This vehicle can cause OHV wildfires if debris builds up near the exhaust or other

engine hot spots and ignites then falls off into dry grass. Avoid riding in wet

areas, through muskeg or tall grass, where debris can build up. Should you ride

in those areas, inspect and remove all debris from your engine and hot spots. Re-

fer to Vehicle Care for details.

SAFETY INFORMATION

31

RIDE SAFELY

Chasing wildlife is in many areas illegal. Wildlife can die of exhaustion after being

chased by a motorized vehicle. If you encounter animals on the trail, stop and ob-

serve quietly and with caution. It will be one of the better memories of your life.

Observe the rule “what you take in, carry out”. Do not litter. Do not start campfires

unless you have permission to do so, and then only away from dry areas. The

hazards you may create on the trail may cause injury to others or yourself, even

at a later date.

Respect farm lands. Always obtain the permission of the landowner before riding

on private land. Respect crops, farm animals and property lines.

Finally, do not pollute streams, lakes or rivers and do not modify the engine or ex-

haust system, or remove any of its components as it will alter the vehicle

emissions.

Avoid Collisions

This vehicle can reach high speeds. At higher speeds, there is an increased risk

of losing control, particularly in challenging off-road conditions, and the risk of in-

jury in a collision is greater. Never operate at excessive speeds. Always go at a

speed that is proper for the terrain, visibility, and operating conditions, and your

experience. Consider reserving use of the performance key for situations in

which full speed and acceleration capability are appropriate.

Driving on public street, road or highway, even dirt or gravel ones poses risks

such as collisions and may be illegal in your jurisdiction. Only proceed with cau-

tion on roads and road segments where the usage of your vehicle is permitted.

This vehicle is not designed for operation on roads. For example, it does not

meet motor vehicle safety standards that apply to automobiles. In many jurisdic-

tions it is not legal to operate this vehicle on public roads.

This vehicle does not have the same kind of protection for collisions as a car; for

example, there are no air bags, the cockpit is not fully enclosed, and it is not de-

signed for collisions with other vehicles. Therefore, it is particularly important to

fasten seat belts and close doors and wear an approved helmet.

Avoid Rollovers and Tipovers

Side-by-side vehicles handle differently from other vehicles. Side-by-side ve-

hicles are designed to handle off-road terrain (for example, their wheel base and

track width, ground clearance, suspension, drivetrain, tires, etc.), and, as a result,

can overturn in situations where vehicles designed for use primarily on paved or

smooth terrain may not.

A rollover or other accident can occur quickly during abrupt maneuvers such as

sharp turns or hard acceleration or deceleration when turning, or when driving on

hills or over obstacles. Abrupt maneuvers or aggressive driving can cause roll-

overs or loss of control even in flat open areas. If the vehicle rolls over, any part

of your body (such as arms, legs, or head) outside of the cockpit can be crushed

and trapped by the cage or other parts of the vehicle. You can also be injured by

impact with the ground, cockpit or other objects.

To reduce the risk of rollovers:

- Use care when turning.

32

SAFETY INFORMATION

RIDE SAFELY

- Do not turn the steering wheel too far or too fast for your speed and envi-

ronment. Adjust steering inputs according to your speed and environment.

- Slow down before entering a turn. Avoid hard braking during a turn.

- Avoid sudden or hard acceleration when turning, even from a stop or low

speed.

- Never attempt donuts, skids, slides, fishtails, jumps, or other stunts. If vehicle

starts to skid or slide, counter steer may help to regain the control. Never jam

the brakes and lock the wheels.

- Avoid paved surfaces. This vehicle is not designed to operate on paved surfa-

ces and is more likely to roll over. If you must drive on pavement, turn gradu-

ally, go slowly, and avoid abrupt acceleration and braking.

This vehicle can roll over sideways or tip over forward or backwards on slopes or

uneven terrain.

- Avoid side hilling (driving along the slope rather than up or down a hill). When

possible, drive straight up and down inclines rather than across them. If you

must side hill, use extreme caution and avoid slippery surfaces, objects, or

depressions. If you feel the vehicle start to rollover or slide sideways, steer

downhill if possible.

- Avoid steep hills and follow procedures in this guide for climbing and de-

scending hills.

- Sudden changes in terrain such as holes, depressions, banks, softer or hard-

er ground or other irregularities may cause the vehicle to tip or become unsta-

ble. Observe the terrain ahead and slow down in areas of uneven terrain.

This vehicle will handle differently when carrying or pulling a load.

- Reduce speed and follow instructions in this manual for carrying cargo.

- Avoid hills and rough terrain.

- Allow more distance to stop.

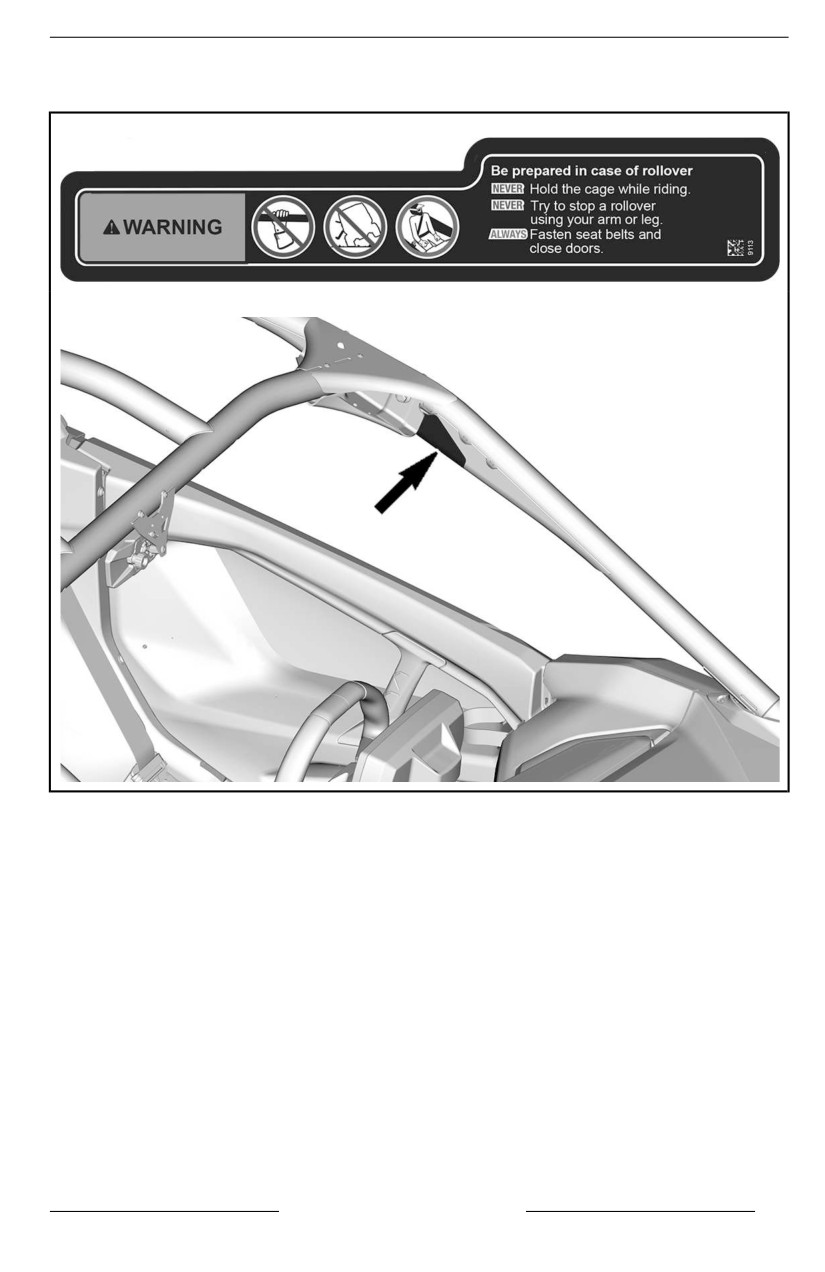

Be Prepared iin Case of Rolllover

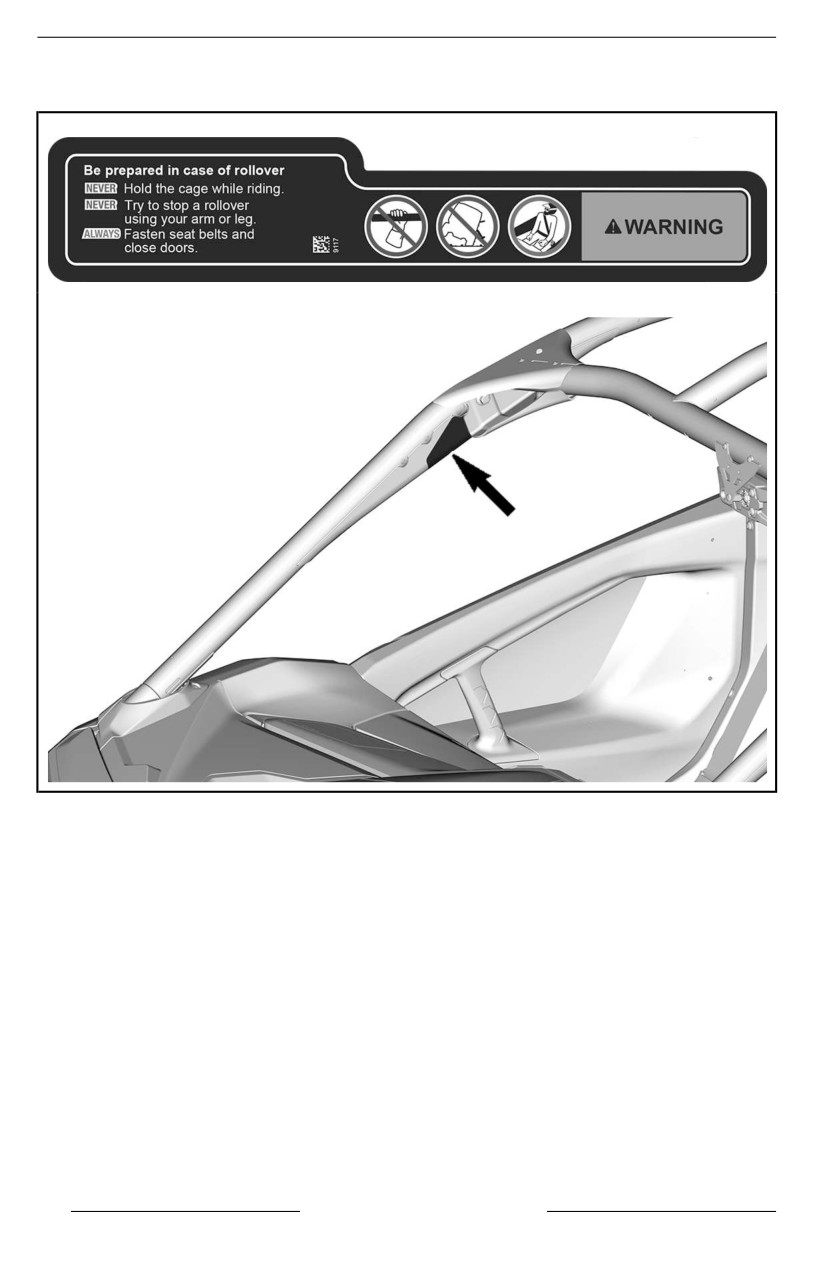

- Close both doors and fasten seat belt to help you avoid sticking out arms or

legs.

- Never grab the cage while riding. Hands can be crushed between the cage

and the ground in a rollover. Keep hands on the steering wheel or handholds.

- Never try to stop a rollover using your arms or legs. If you think that the ve-

hicle may tip or roll, the driver should keep both hands on the steering wheel

and the left foot firmly planted on the footrest. The passenger should keep

both hands on the handholds and both feet firmly planted on the floor.

Terrain Condition

- Driving on public roads poses risks such as collisions and may be illegal in

your jurisdiction. Only proceed with caution on roads and road segments

where the usage of your vehicle is permitted.

- Avoid paved surfaces. This vehicle is more likely to roll over on pavement be-

cause of the increase tire grip. If you must shortly use the vehicle on such sur-

faces, avoid abrupt inputs to steering wheel, accelerator and brake pedal.

- Always go slowly and be extra careful when operating on unfamiliar terrain.

Always be alert to changing terrain conditions when operating this vehicle.

Take the time to learn how the vehicle performs in different environments.

SAFETY INFORMATION

33

RIDE SAFELY

-

Never operate on excessively rough, slippery or loose terrain until you have

learned and practiced the skills necessary to control this vehicle on such ter-

rain. Always be especially cautious on these kinds of terrain.

-

Never operate this vehicle on hills too steep for the vehicle or your abilities.

Practice on small inclines.

-

Always follow proper procedures for climbing or going down hills as described

in Riding Your Vehicle. Check the terrain carefully before you start up or down

any hill. Never climb or descend hills with excessively slippery or loose surfa-

ces. Never go over the top of any hill at high speed.

-

Always check for obstacles before operating in a new area. Always follow

proper procedures when operating over obstacles as described in Riding

Your Vehicle.

-

Never operate this vehicle in fast flowing water or in water deeper than speci-

fied in Riding Your Vehicle. Remember that wet brakes may have reduced

stopping ability. Test your brakes after leaving water. If necessary, apply them

several times to let friction dry out the brakes.

-

Always ensure to properly park the vehicle on the flattest terrain section avail-

able. Put vehicle in PARK, stop engine and remove key before leaving the

vehicle.

-

Never assume that the vehicle will go everywhere safely. Sudden changes in

terrain caused by holes, depressions, banks, softer or harder “ground” or oth-

er irregularities may cause the vehicle to topple or become unstable. To avoid

this, slow down and always observe the terrain ahead. If the vehicle does be-

gin to topple or rollover, the best advice is to immediately steer in the direction

of the rollover! Never attempt to prevent a rollover with your arms or legs. You

should keep your limbs inside the cage.

Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon

monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and

eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas that may be present

even if you do not see or smell any engine exhaust. Deadly levels of carbon mon-

oxide can collect rapidly, and you can quickly be overcome and unable to save

yourself. Also, deadly levels of carbon monoxide can linger for hours or days in

enclosed or poorly ventilated areas. If you experience any symptoms of carbon

monoxide poisoning, leave the area immediately, get fresh air and seek medical

treatment.

To prevent serious injury or death from carbon monoxide:

- Never run the vehicle in poorly ventilated or partially enclosed areas such as

garages, carports or barns. Even if you try to ventilate engine exhaust with

fans or open windows and doors, carbon monoxide can rapidly reach danger-

ous levels.

- Never run the vehicle outdoors where engine exhaust can be drawn into a

building through openings such as windows and doors.

34

SAFETY INFORMATION

RIDE SAFELY

Avoid Gasoline Fires and Other Hazards

Gasoline is extremely flammable and highly explosive. Fuel vapors can spread

and be ignited by a spark or flame many feet away from the engine. To reduce

the risk of fire or explosion, follow these instructions:

- Use only an approved gasoline container to store fuel.

- Never fill the gasoline container on the vehicle - an electrical static discharge

may ignite the fuel.

- Never carry gasoline container(s) or any dangerous liquids on the cargo rack.

- Strictly adhere to instructions in Vehicle Fueling Procedure.

- Never start or operate the engine if the fuel cap is not properly installed.

Gasoline is poisonous and can cause injury or death.

- Never siphon gasoline by mouth.

- If you swallow gasoline, get any in your eye(s), or inhale gasoline vapor, see

a doctor immediately.

If gasoline spills on you, wash with soap and water and change your clothes.

Avoid Burns from Hot Parts

Certain components like brake rotors and exhaust components become hot dur-

ing operation. Avoid contact with those parts during and shortly after operation to

avoid burn wounds.

SAFETY INFORMATION

35

PRACTICE EXERCISES

Before you go out for a ride, it is very important to familiarize yourself with the

handling of your vehicle by practicing in a controlled environment. If possible, it is

also a very good idea to take a more formal training course to sharpen your skills

and increase your knowledge of the vehicle.

Find a suitable area to practice and perform the following exercises. It should be

at least 45 m (150 ft) by 45 m (150 ft) free of obstacles like trees and rocks. Once

you’ve selected a suitable permitted location, proceed with the following

exercises.

Turning Exercises

Turning is one of the most frequent causes of accidents. It is easier for the ve-

hicle to lose traction or rollover if you turn too sharply, or go too fast. Slow down

when you approach a turn.

- First learn how to perform slight right turns at very low speeds. Release the

throttle before turning and slowly reapply the throttle when turning.

- Repeat turning exercise but this time maintain the throttle at the level while

turning.

- Finally, repeat turning exercise while accelerating slowly.

- Practice exercises turning on the other side.

Note how your vehicle reacts in these different exercises. We recommend releas-

ing the throttle before entering a turn to help initiate directional change. You will

feel the lateral force increasing with the speed and with your steering input. The

lateral force should be maintained as low as possible to make sure it does not

cause the vehicle to roll over.

U Turn Exercises

Practice doing U turns.

- Accelerate slowly and while remaining at low speed, then gradually turn the

steering wheel to the right until you have completed the U turn.

- Repeat U turn exercise with different steering inputs and always at a very low

speed.

- Repeat U turn exercise on the other side.

As mentioned before in this guide, avoid paved surfaces. This vehicle is more

likely to roll over on pavement because of the increase tire grip. If you must

shortly use the vehicle on such surfaces, avoid abrupt inputs to steering wheel,

accelerator and brake pedal.

Braking Exercises

Practice braking to get familiar with the brake response.

- Do it at low speed first, then increase the speed.

- Practice braking in straight line at different speeds and different braking force.

- Practice emergency braking; optimal braking is obtained in straight line, with

high force applied, without locking the wheels.

Remember, braking distance depends on vehicle speed, load and the type of

surface. Also, the tires and brakes conditions play a major role.

36

SAFETY INFORMATION

PRACTICE EXERCISES

Reverse Exercises

The next step involves using the reverse.

- Install 1 cone marker on both sides of the vehicle beside each rear wheel.

Move the vehicle forward until you can see the cone markers, then stop the

vehicle. Acknowledge the distance required to see obstacles behind you.

- Learn how the vehicle handles itself in reverse and reacts with steering

inputs.

- Always perform this reverse exercise at slow speeds.

- Become familiar with the usage of the override function. Do not steer while

using the override as it increases the risks of rollover.

Emergency Engine Stopping Exercise

Learn how to stop your engine quickly in an emergency situation.

- While running at low speed, simply remove the RF D.E.S.S. key from the D.E.

S.S. post.

- The vehicle transmission will automatically put in NEUTRAL.

- Stop the vehicle and put the transmission on PARK

This is to familiarize you with the vehicle’s reaction when the engine is turned off

while driving and to develop this reflex.

SAFETY INFORMATION

37

IMPORTANT ON-PRODUCT LABELS (CANADA/

UNITED STATES)

Hang Tag

Any person who rides this vehicle

should read and understand this infor-

This vehicle comes with a hang tag

mation before riding.

and labels containing important safety

information.

THIS VEHICLE IS INTENDED FOR RECREATIONAL USE

AND SECONDARY GENERAL UTILITY APPLICATIONS

Tilt Table

NO OPERATOR UNDER AGE 16

TRAINING COURSES TO TEACH ROV DRIVING

Test Result

ARE AVAILABLE. FOR INFORMATION CONTACT

YOUR DEALER.

Read the Operator's Guide and Safety Labels

and Watch the Safety Video.

Follow All Instructions and Warnings.

BOMBARDIER RECREATIONAL PRODUCTS INC.

VEHICLE MODEL

CHECK WITH YOUR DEALER TO FIND OUT ABOUT

TILT TABLE RESULT

STATE OR LOCAL LAWS REGARDING ROV OPERATION.

Improper Use of O -Highway Vehicles Can

Cause Severe Injury or Death

Be Prepared

Measurement of lateral stability, in degrees, of a

• Fasten seat belts and make sure nets or doors

sample, standard condition vehicle (with an

are securely latched in place.

operator and a passenger load - 430 pounds) as

•€Wear an approved helmet and protective gear.

measured by the manufacturer in accordance with

•€Each rider must be able to sit with back against seat, foot at on the

the tilt table lateral stability test in the ANSI/ROHVA

oor or on footrest, and hands on steering wheel or handholds. Stay

standard for Recreational Off-Highway Vehicles.

completely inside the vehicle.

Vehicle modification, accessories, and loading can

Drive Responsibly

affect lateral stability.

Avoid loss of control and rollovers:

•€Avoid abrupt maneuvers, sideways sliding, skidding or ‚shtailing, and

Training courses to teach ROV driving are available.

never do donuts.

For information contact your dealer and/or

•€Avoid hard acceleration when turning, even from a stop.

rohva.org.

•€Slow down before entering a turn.

•€Plan for hills, rough terrain, ruts, and other changes in traction and

terrain. Avoid paved surfaces.

Check with your dealer to find out about state or

•€Avoid side hilling (riding across slopes).

local laws regarding ROV operation.

Rollovers have caused severe injuries and death,

even on at, open areas.

THIS HANG TAG IS NOT TO BE REMOVED BEFORE SALE.

Be Sure Riders Pay Attention and Plan Ahead

If you think or feel the vehicle may tip or roll,

reduce your risk of injury :

•€Keep a ‚rm grip on the steering wheel or handholds

VEHICLE MODEL NAME:

and brace yourself.

•€Do not put any part of your body outside of the

ENGINE DESCRIPTION:

vehicle for any reason.

Require Proper Use of Your Vehicle

EPA CERTIFIED

- Do your part to prevent injuries:

•€Do not allow careless or reckless driving.

NER (NORMALIZED EMISSION RATE) =

ON 0 TO 10 SCALE, 0 BEING THE CLEANEST.

•€Make sure operators are 16 or older with a valid driver's license.

BOMBARDIER RECREATIONAL PRODUCTS INC

•€Do not let people drive or ride after using alcohol or drugs.

*NO TO BE REMOVED PRIOR SALE.

•€Do not allow operation on public roads (unless designated for

o -highway vehicle access) - collisions with cars and trucks can occur.

•€Do not exceed seating capacity: see information on back side of this

card

Vehicle seating capacity:

Occupants

THIS HANG TAG CAN’T BE REMOVED BEFORE SALE.

38

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

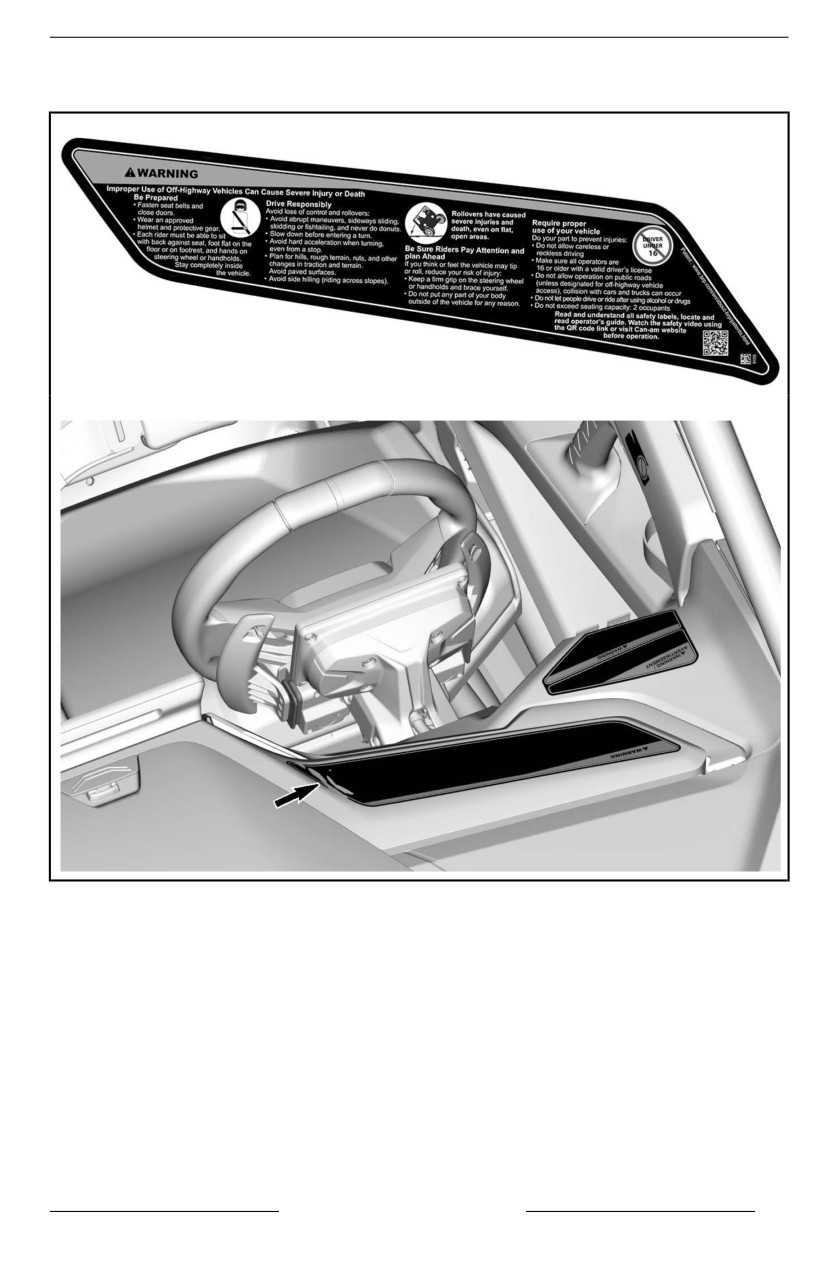

High Performance Hang Tag

SAFETY INFORMATION

39

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Safety Labels

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passenger

or bystanders.

The safety labels on your vehicle should be considered permanent parts of the

vehicle.

If missing or damaged, they can be replaced free of charge. See an authorized

Can-Am Off-Road dealer.

IMPORTANT: In the event of any discrepancy between this guide and the

vehicle, the safety labels on the vehicle have precedence over the labels in this

guide.

40

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Operator – Warning Label

SAFETY INFORMATION

41

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

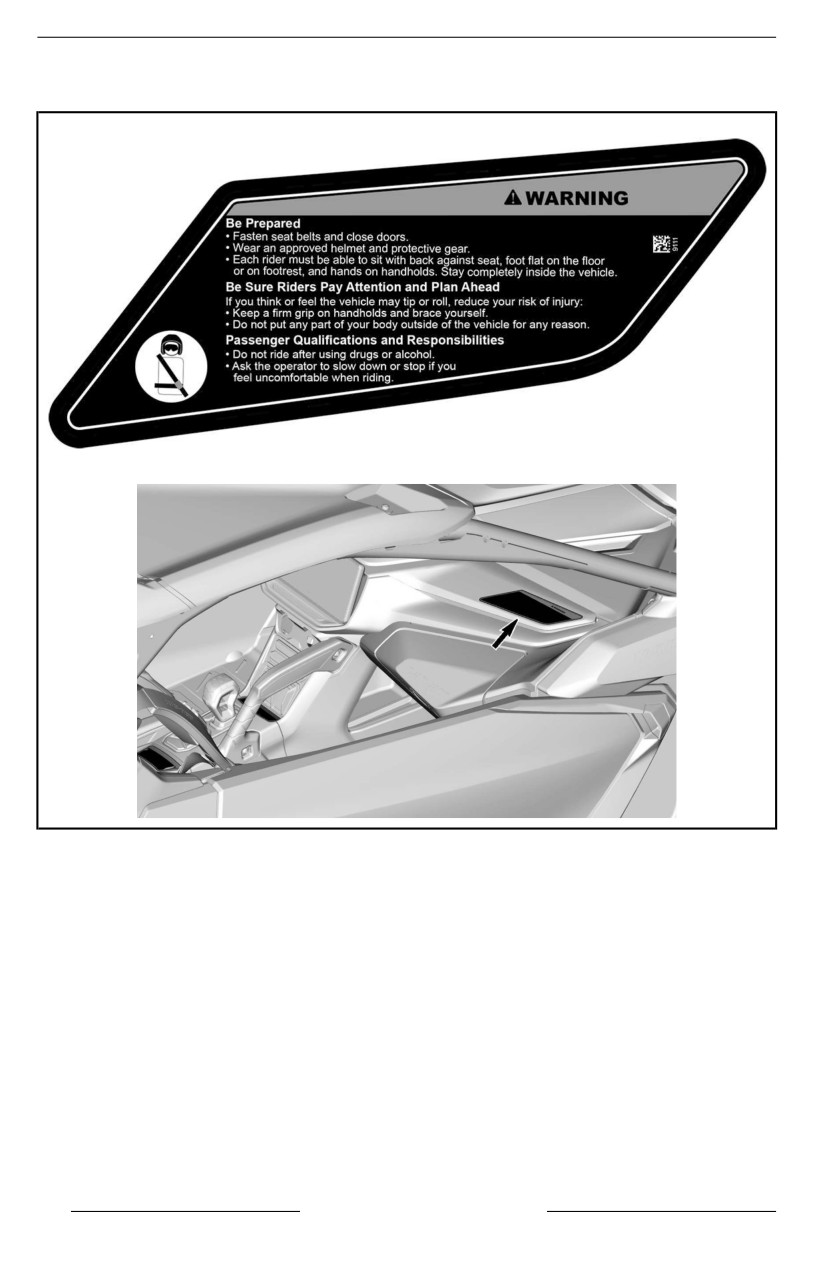

Passenger – Warning Label

42

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Rollover – Left Warning Label

SAFETY INFORMATION

43

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Rollover – Right Warning Label

44

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

High-Performance Vehicle – Warning Label

SAFETY INFORMATION

45

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

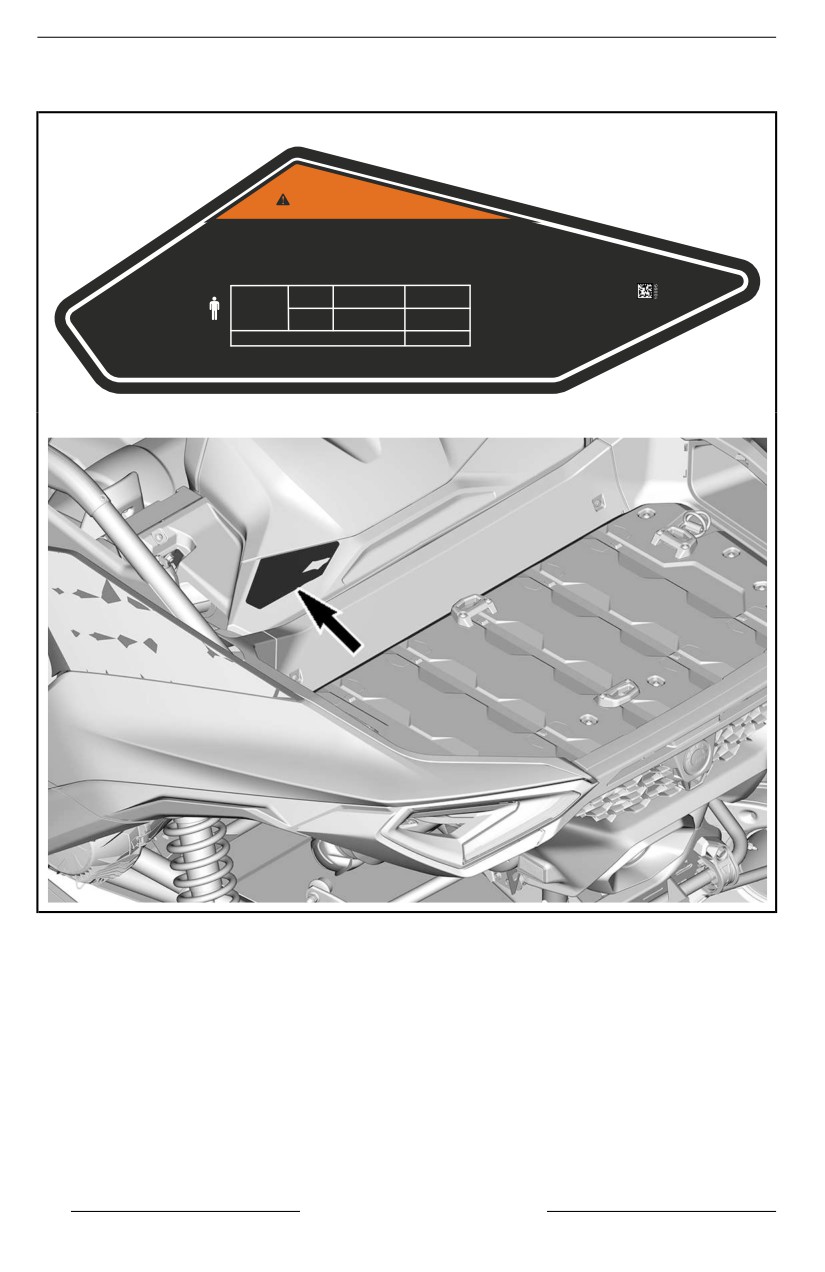

Tire Pressure and Maximum Load - Warning Label

WARNING

Improper tire pressure or overloading can cause loss of control.

Loss of control can result in severe injury or death.

• An under-inflated tire can come off the rim.

Front:

124 (18)

COLD TIRE

Minimum

Rear:

kPa (psi)

124 (18)

2x

PRESSURE

Front:

124 (18)

Maximum

Rear:

kPa (psi)

124 (18)

MAXIMUM WEIGHT CAPACITY : kg (lb)

286 (630)

46

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Park Selection - Warning Label

SAFETY INFORMATION

47

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

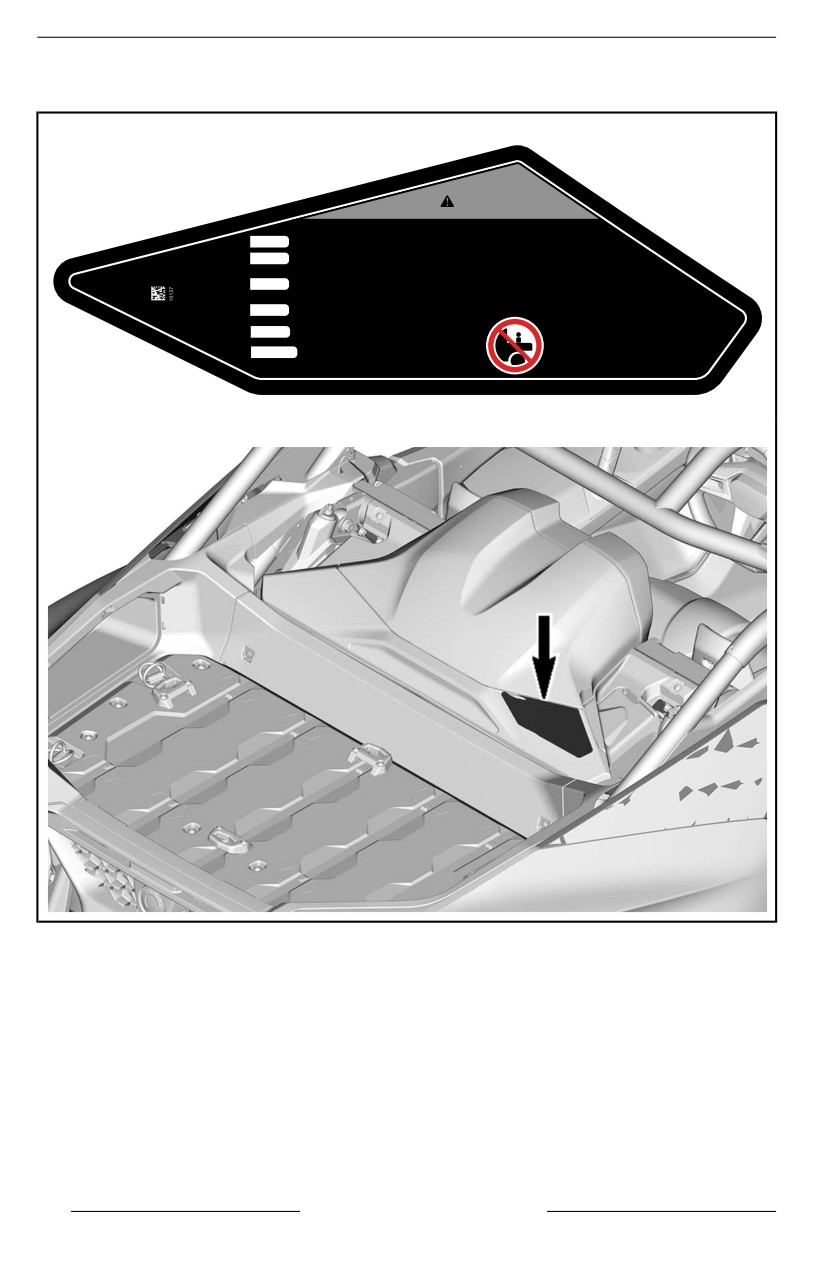

Cargo Load Capacity - Warning Label

WARNING

NEVER exceed CARGO LOAD CAPACITY of 91 kg (200 lb), evenly distributed.

NEVER exceed the MAXIMUM WEIGHT CAPACITY, including weight

of operator, passenger (s), accessories and cargo load.

NEVER place gasoline, flammable or dangerous liquid container

on carrier. This can lead to an explosion.

NEVER attach to cargo area to pull a load. This can cause the vehicle to tip over.

NEVER carry passenger on this carrier.

ALWAYS secure the load.

48

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

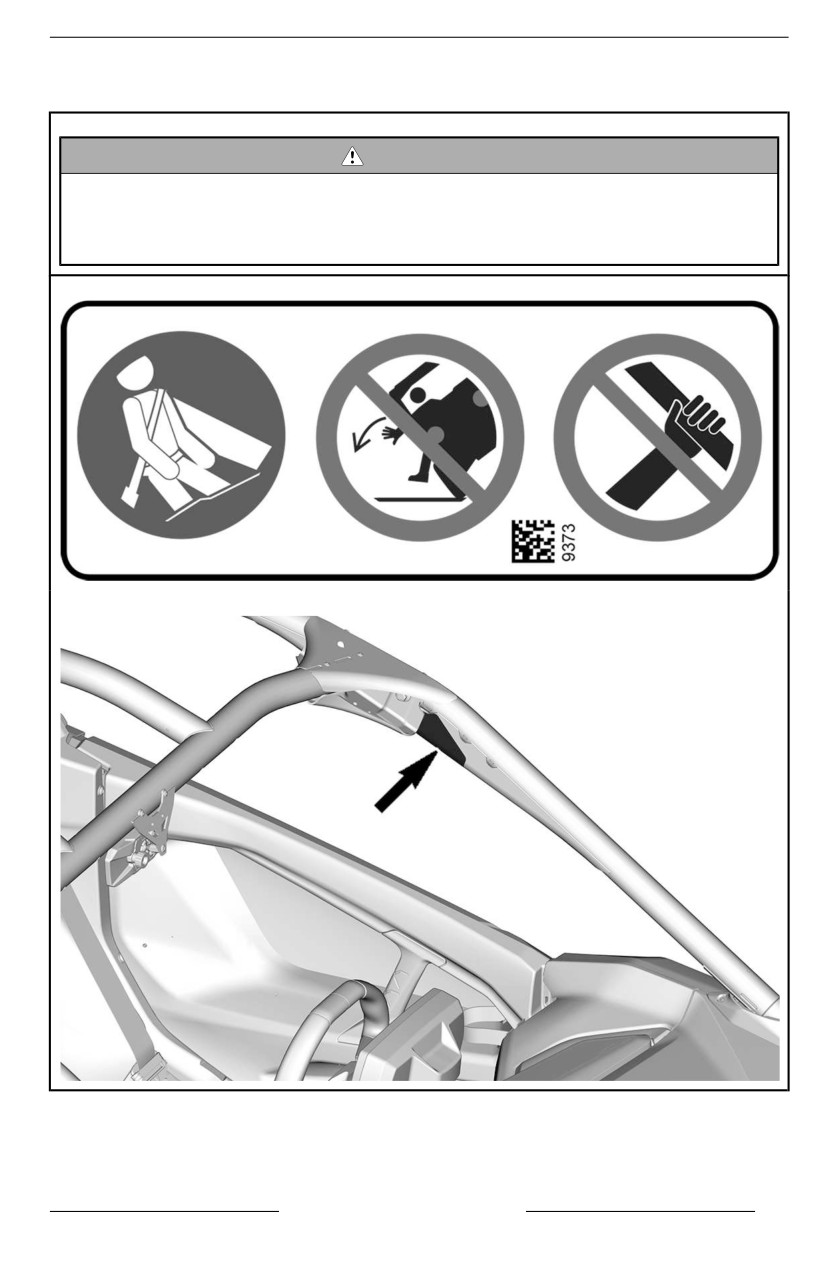

Cage Warning Label

SAFETY INFORMATION

49

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

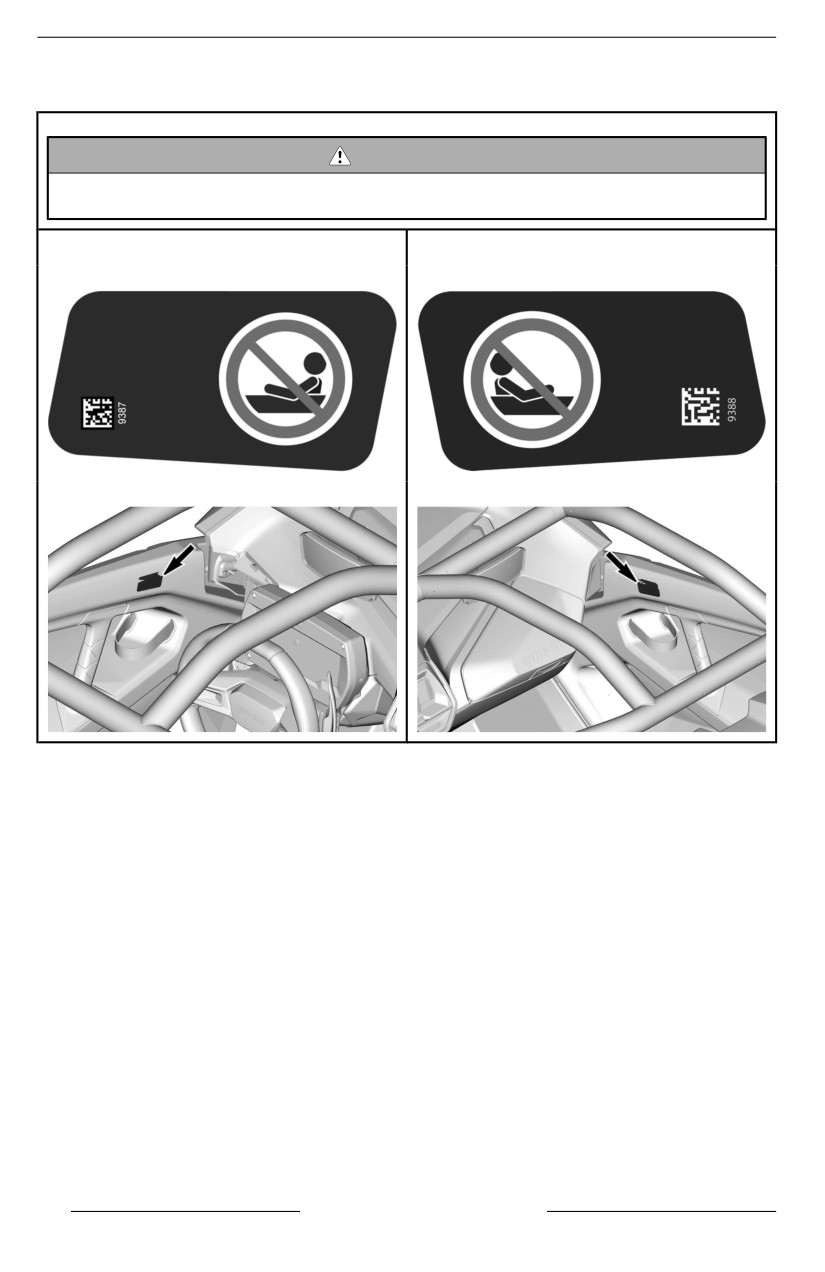

Door Warning Label

WARNING

Do NOT put your arm outside of the vehiclle. There is a riisk of SEVERE

INJURY.

LH Side

RH Side

50

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

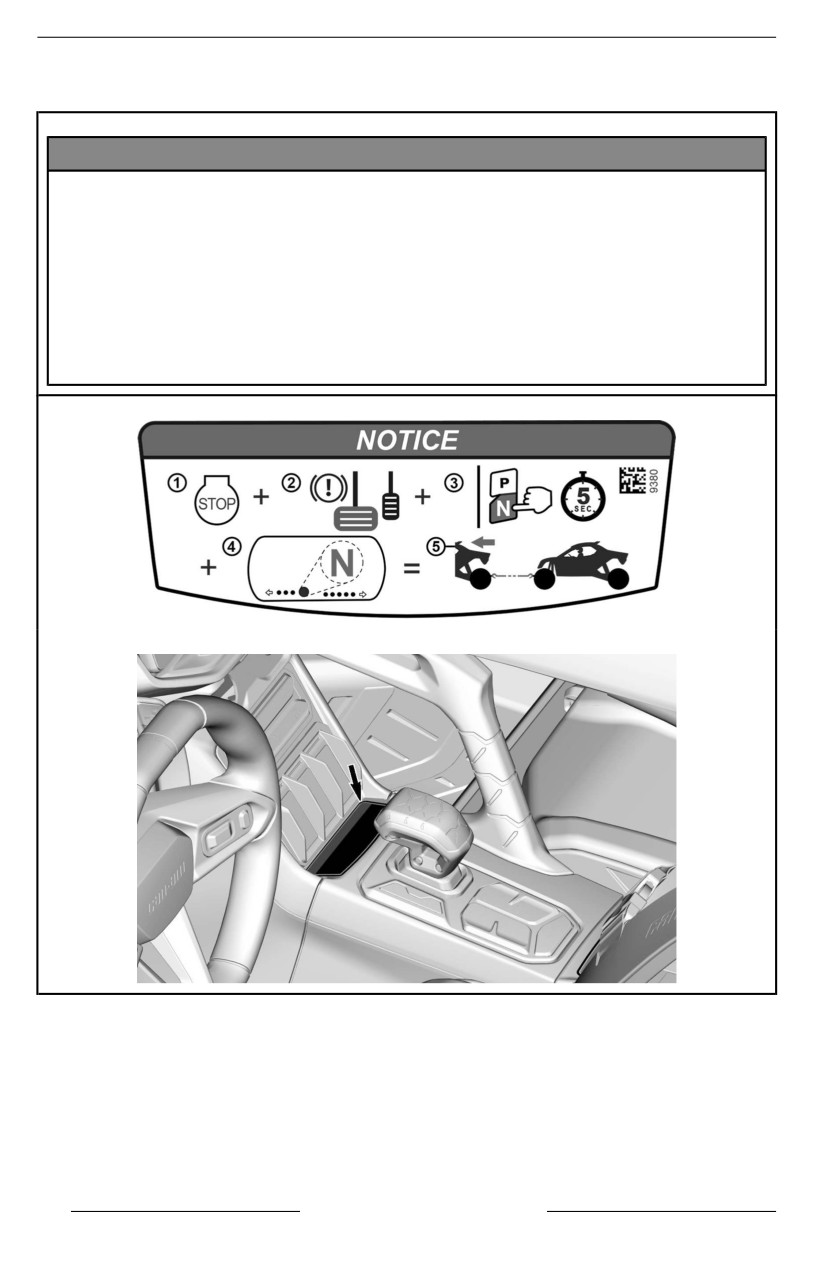

Towing With Permanent Neutral- Notice Label

SAFETY INFORMATION

51

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Recover Stuck Vehicle - Notice Label

52

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

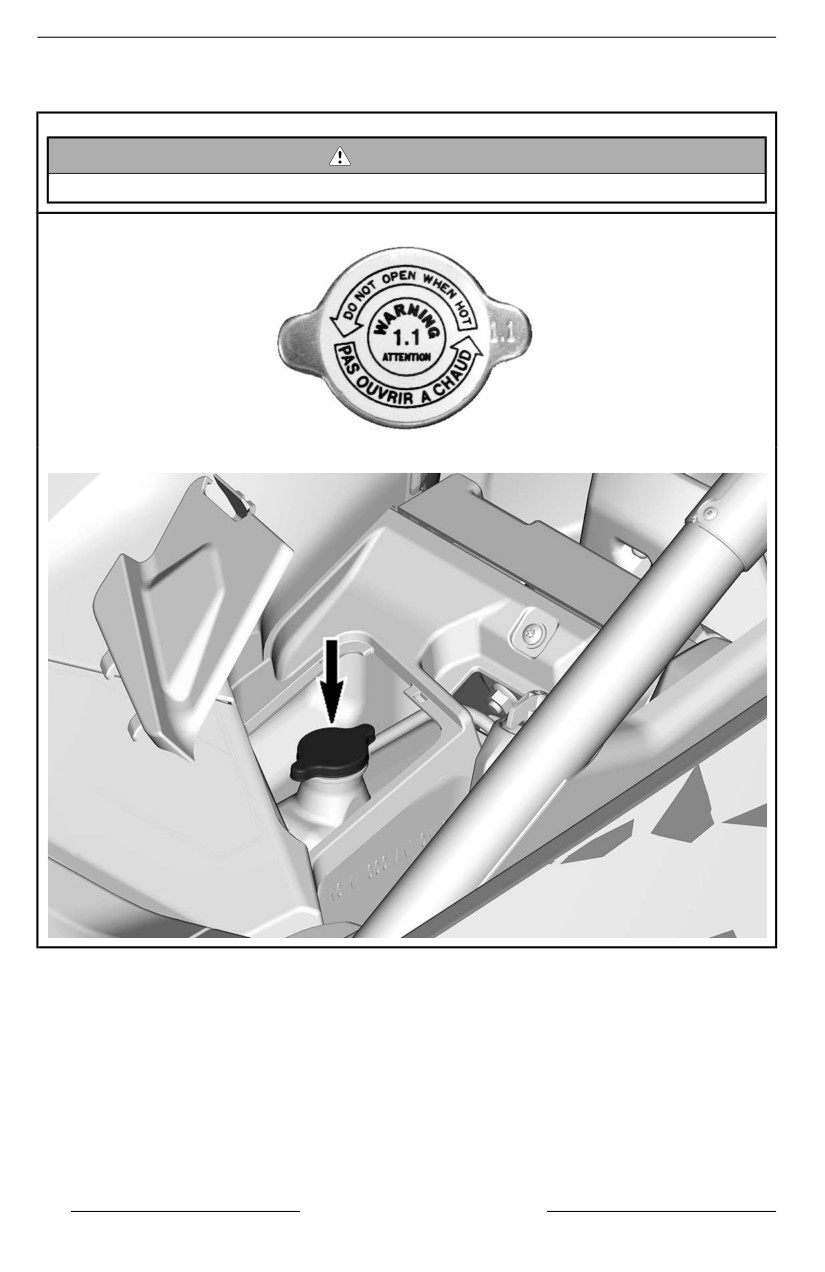

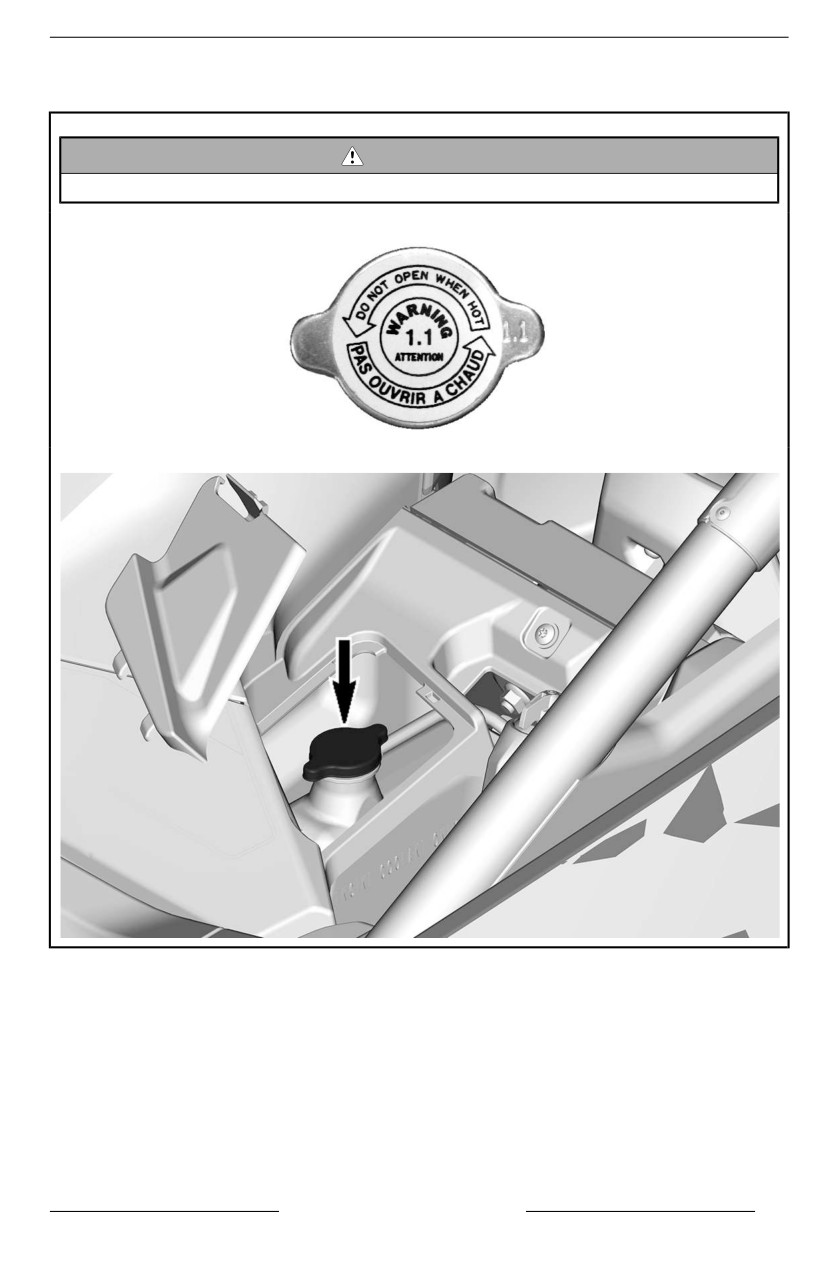

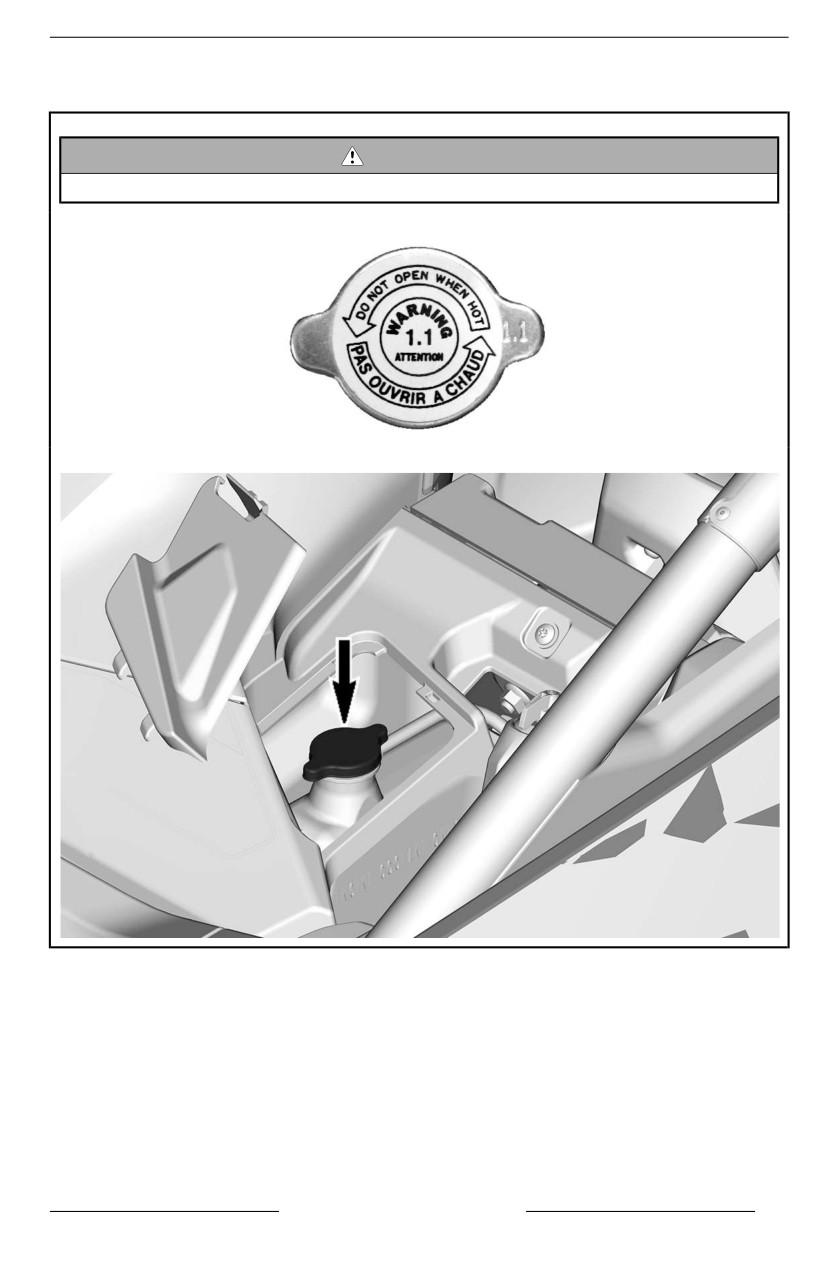

Coolant Hot - Warning Label

WARNING

Do not open when HOT.

SAFETY INFORMATION

53

IMPORTANT ON-PRODUCT LABELS (CANADA/UNITED STATES)

Safety Compliance Hang Tag

This vehicle comes with hang tags

containing

important

safety

information.

Any person who rides this vehicle

should read and understand this infor-

mation before riding.

California Proposition

65

Warning Hang Tag

. Operating, servicing and

WARNING

maintaining an off-road vehicle can expose

you to chemicals including engine exhaust,

carbon monoxide, phthalates, and lead,

which are known to the State of California

to cause cancer and birth defects or other

reproductive harm.

To minimize exposure, avoid breathing

exhaust, do not idle the engine except as

necessary, service your vehicle in a

well-ventilated area and wear gloves or wash

your hands frequently when servicing your

vehicle.

For more information go to

www.P65Warnings.ca.gov/products/

passenger-vehicle

704906872

54

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL

COUNTRIES EXCEPT CANADA/UNITED STATES)

Safety Pictogram

Read and understand all of the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passenger,

and bystanders.

The safety labels on your vehicle should be considered permanent parts of the

vehicle.

If missing or damaged, they can be replaced free of charge. See an authorized

Can-Am Off-road dealer.

IMPORTANT: In the event of any discrepancy between this guide and the

vehicle, the safety labels on the vehicle have precedence over the labels in this

guide.

SAFETY INFORMATION

55

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

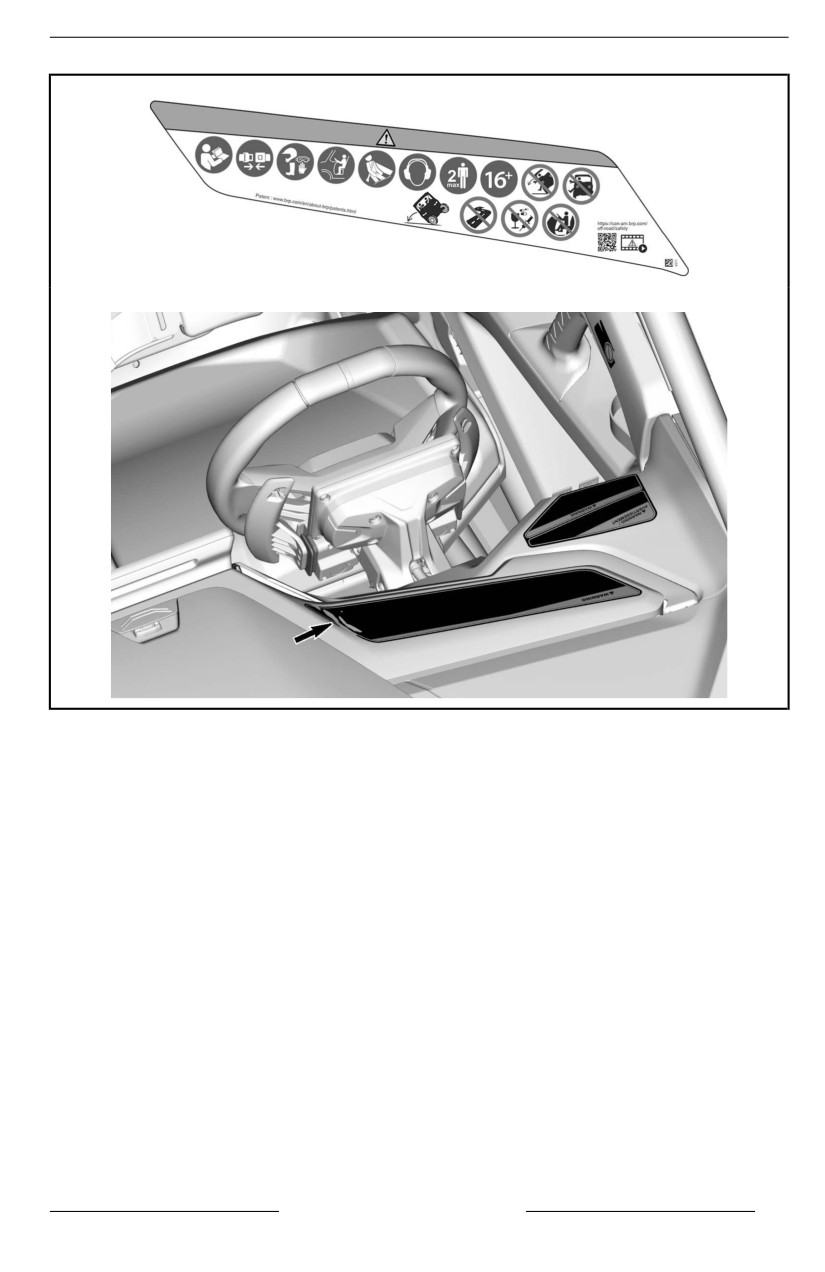

Operator – Warning Label

WARNING

–

Locate and read operator''s guide. Improper vehiclle use can resullt in

SEVERE INJURY or DEATH. Folllow alll instructions and warniings.

–

Fasten seat belts.

–

Allways wear an approved helmet and protective gear.

–

Each rider must be ablle to siit with back agaiinst seat, feet flat on the

floor or on footrests, and hands on steeriing wheell or handholds.

–

Allways fasten seat belts and close doors.

–

Allways wear ear protectiion.

–

Do not exceed seatiing capaciity: 2 occupants.

–

Make sure alll operators are 16 or ollder with a vallid driver’s llicence.

–

In case of tip or rolll, keep a fiirm grip on steering wheell or handhollds

and brace yoursellf.

–

Do not put any part of your body outside of the vehiicle for any reason.

Stay completely inside the vehicle.

–

Rolllovers have caused severe injjuries and death, even on fllat, open

areas.

–

Do not alllow operation on publlic roads (unless designated for off-high-

way vehiicle access), collliision wiith cars and trucks can occur.

–

Never use with drugs or alcoholl.

–

Do not alllow anyone to riide if not able to sit with back against seat, feet

flat on the flloor or on footrests, and hands on the steeriing wheell.

–

Watch the safety viideo before riidiing.

56

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

SAFETY INFORMATION

57

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

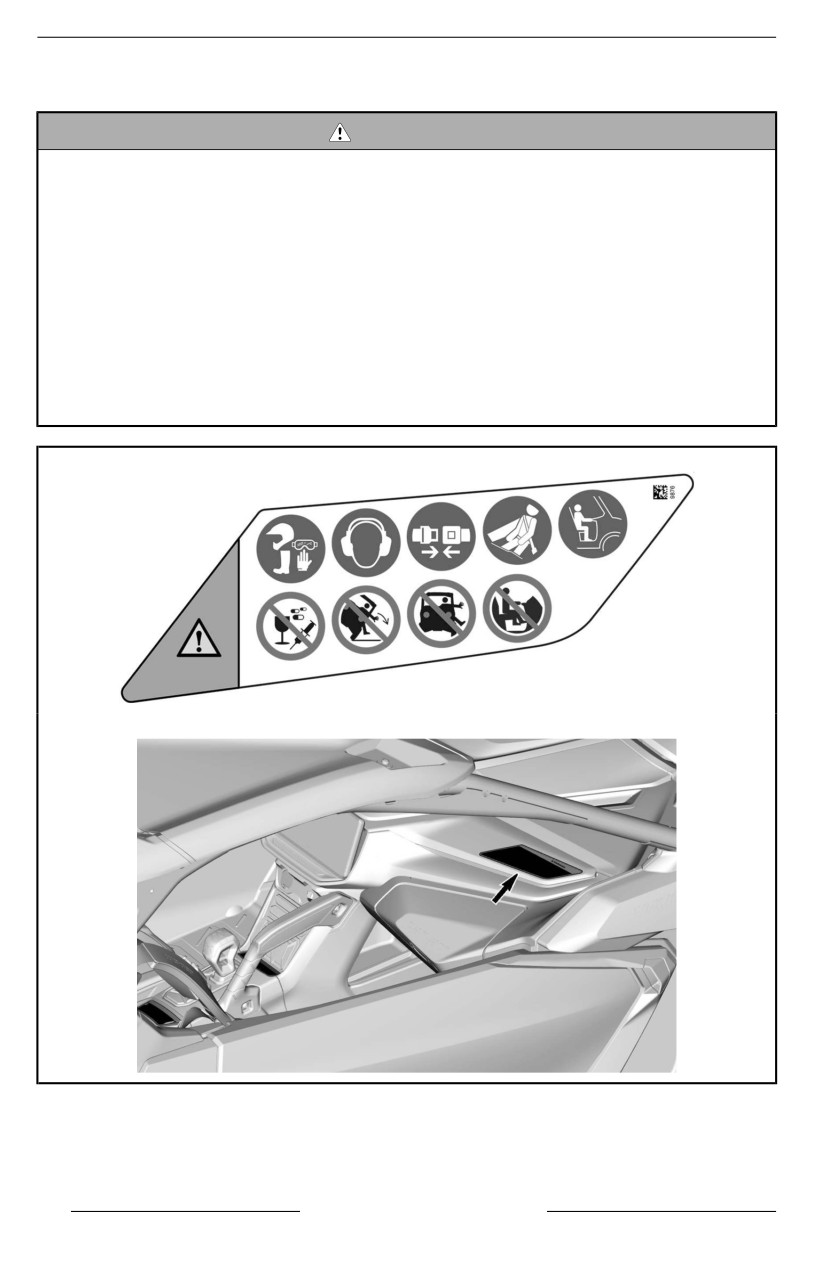

Passenger – Warning Label

WARNING

– Allways wear an approved helmet and protective gear.

– Allways wear ear protectiion.

– Fasten seat belts and close doors.

– Rolllovers have caused severe injjuries and death, even on fllat, open

areas.

– Each rider must be ablle to siit with back agaiinst seat, feet flat on the

floor or on footrests, and hands on steeriing wheell or handholds.

– Never use with drugs or alcoholl.

– In case of tip or rolll, keep a fiirm grip on handholds and brace yoursellf.

– Do not put any part of your body outside of the vehiicle for any reason.

Stay completely inside the vehicle.

– Do not alllow anyone to riide if not able to sit with back against seat, feet

flat on the flloor or on footrests, and hands on handholds.

58

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

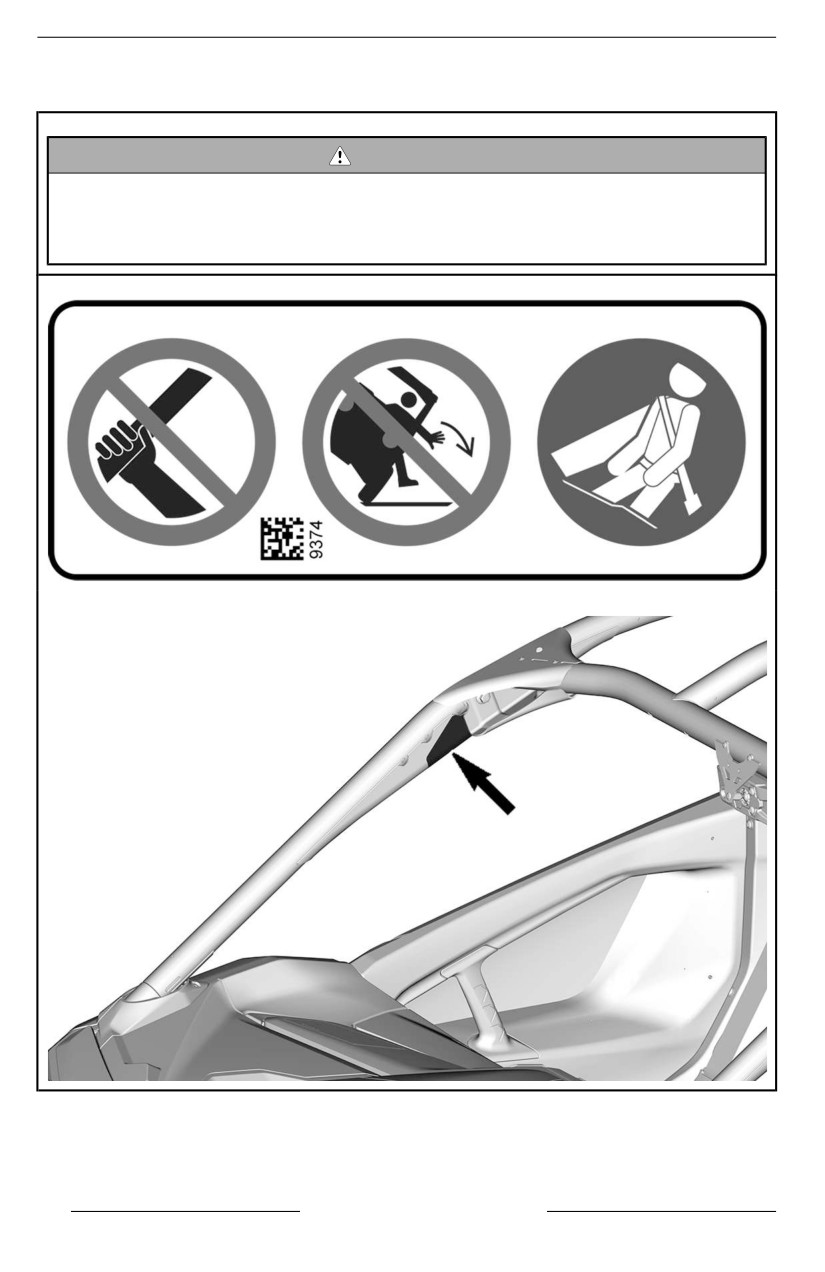

Rollover – Left Warning Label

WARNING

– Always fasten seat bellts and close doors.

– Do not put any part of your body outside of the vehiiclle for any rea-

son. Stay completelly inside the vehiicle.

– Never holld the cage while riiding.

SAFETY INFORMATION

59

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

Rollover – Right Warning Label

WARNING

– Never hold the cage whille ridiing.

– Do not put any part of your body outsiide of the vehiicle for any rea-

son. Stay complletely iinsiide the vehiclle.

– Allways fasten seat belts and close doors.

60

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

Tire Pressure and Maximum Load - Warning Label

WARNING

– Locate and read operator''s guiide.

– ALWAYS maiintaiin proper tire pressure as shown. Improper tiire

pressure or overlloadiing can cause loss of control, resulltiing in SE-

VERE INJURY or DEATH.

– NEVER exceed the cargo lload capacity of 91 kg (200 lb)

– NEVER exceed the load capacity of 286 kg (630 lb) includiing weight

of operator, cargo and , accessoriies.

XX

< kg (lb)

kPa (psi)

kg (lb)

32

XRS

124 (18)

91 (200)

286 (630)

2x

SAFETY INFORMATION

61

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

Park Selection - Warning Label

WARNING

– Locate and read operator''s guide.

– Turning in 4WD-Lock (Front Diff Lock) requiires more steeriing effort,

Alllow more effort to turn.

– Sellect PARK before exiisting vehiicle. the vehiiclle can rolll if not in

PARK. ŧo able PARK, apply brake and press the P button.

R

D

L

N

M

62

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

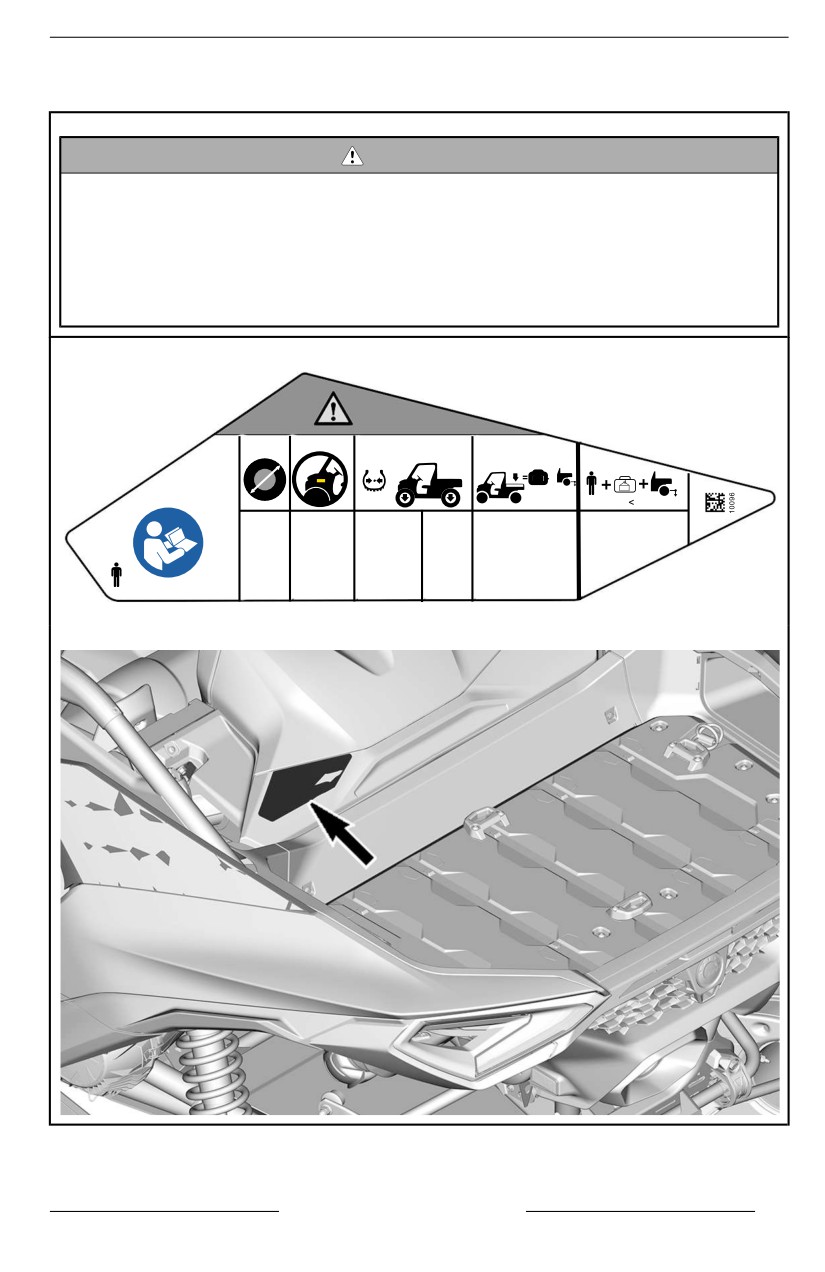

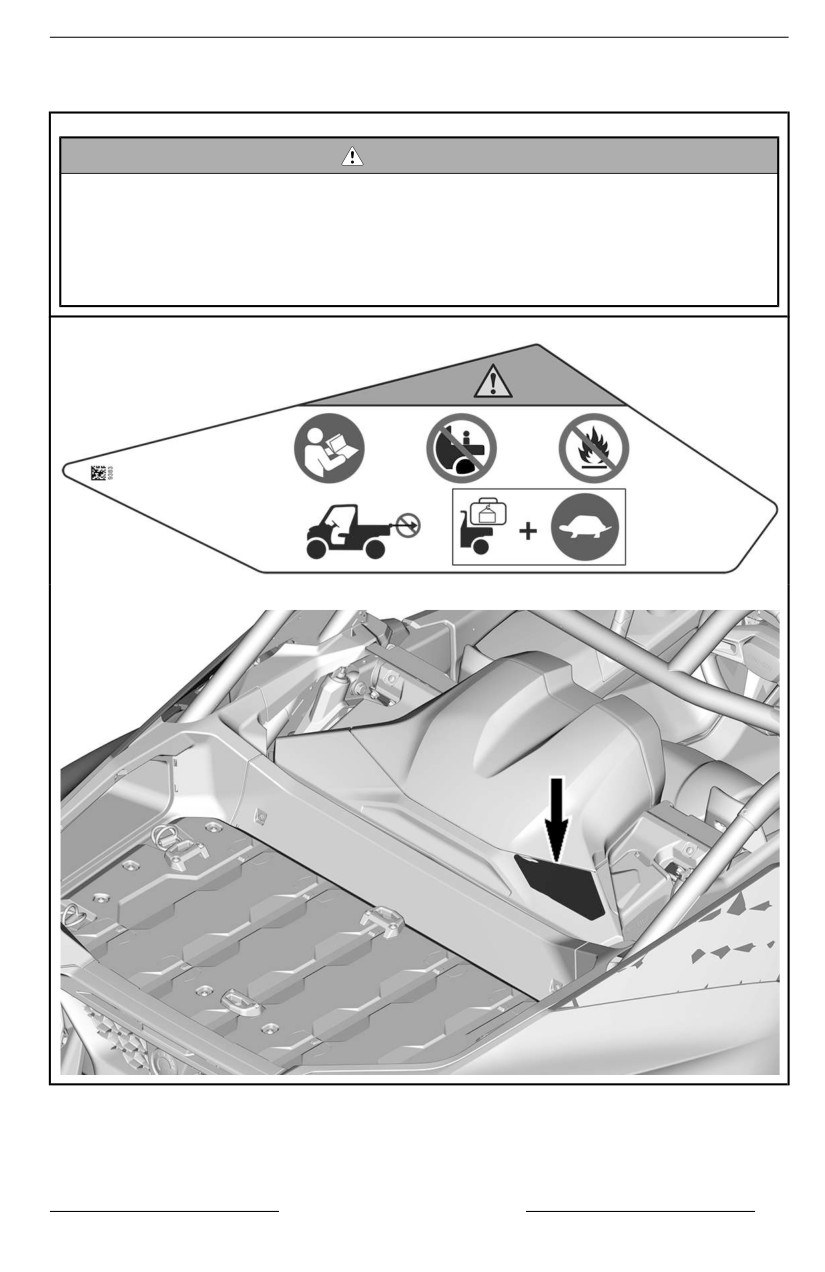

Cargo Load Capacity - Warning Label

WARNING

Locate and read operator''s guide.

NEVER carry passengers in cargo box.

NEVER pllace gasolline, fllammablle or dangerous lliquids contaiiners on

carrier. This can llead to an explosion.

NEVER attach to cargo area to pulll a lload.

Reduce speed when carrying a load.

SAFETY INFORMATION

63

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

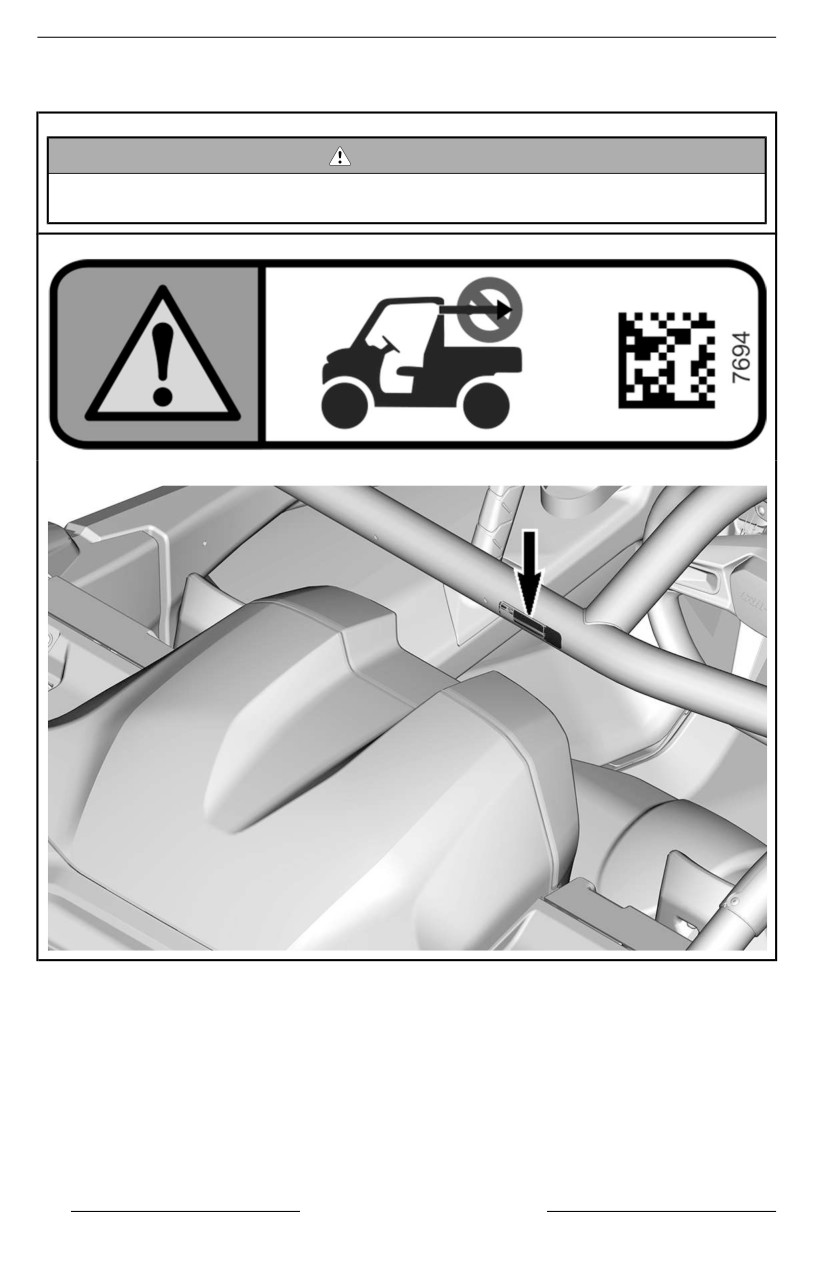

Cage Warning Label

WARNING

NEVER attach to the cage to pulll a load. Thiis can cause the vehiicle to

tiip over. Use only the recovery hook to recover a stuck vehiclle.

64

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

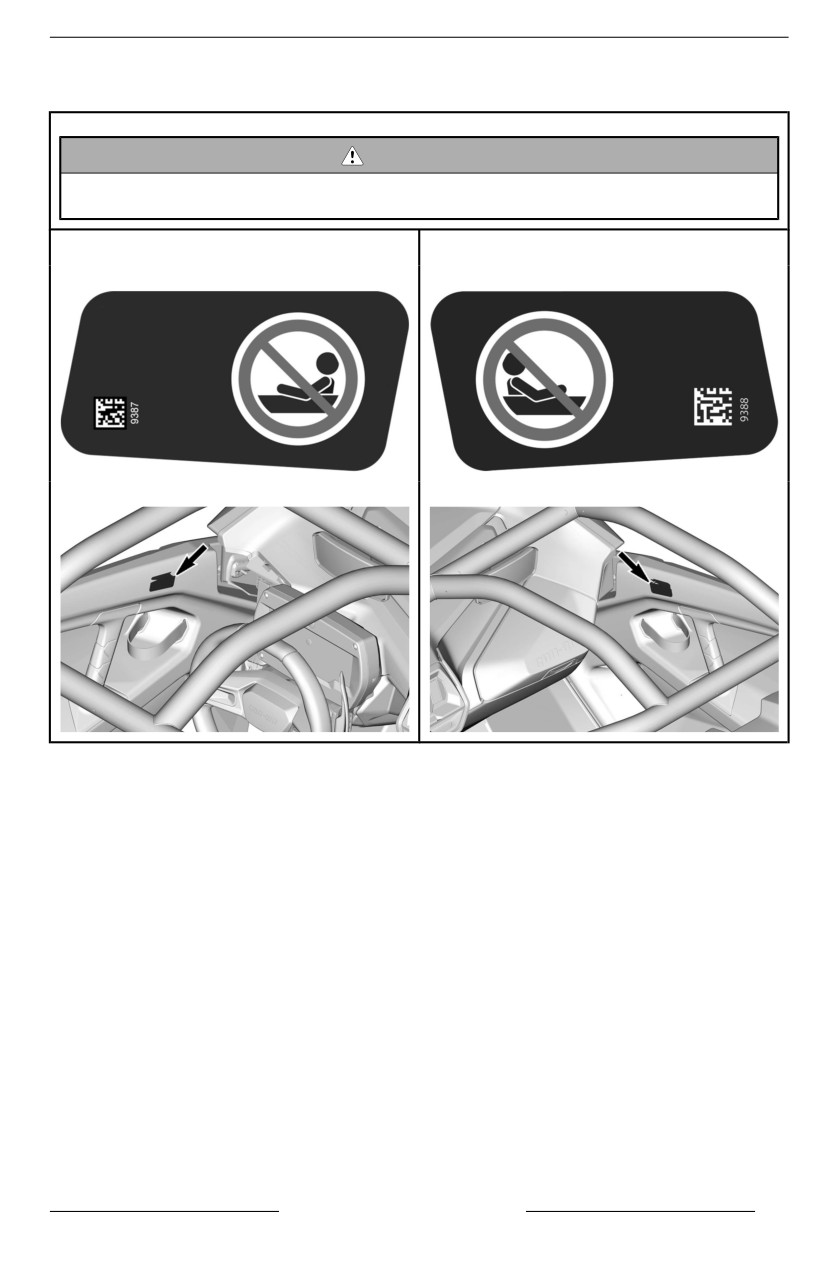

Door Warning Label

WARNING

Do NOT put your arm outsiide of the vehicle. There iis a risk of SEVERE

INJURY.

LH Side

RH Side

SAFETY INFORMATION

65

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

Towing With Permanent Neutral- Notice Label

NOTICE

1. Turn engiine OFF.

2. Wake up the electrical system.

3. Press and hold the brake pedal.

4. Press and hold the NEUTRAL button at lleast 5 seconds.

5. Veriify that the “Permanent Neutral” message is shown in the digital

display.

6. The vehiiclle can be towed.

7. The Permanent Neutral can be deactiivated by wakiing up the ellectri-

cal system, holldiing the brake and holldiing the NEUTRAL button at

l

least 5 seconds.

66

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

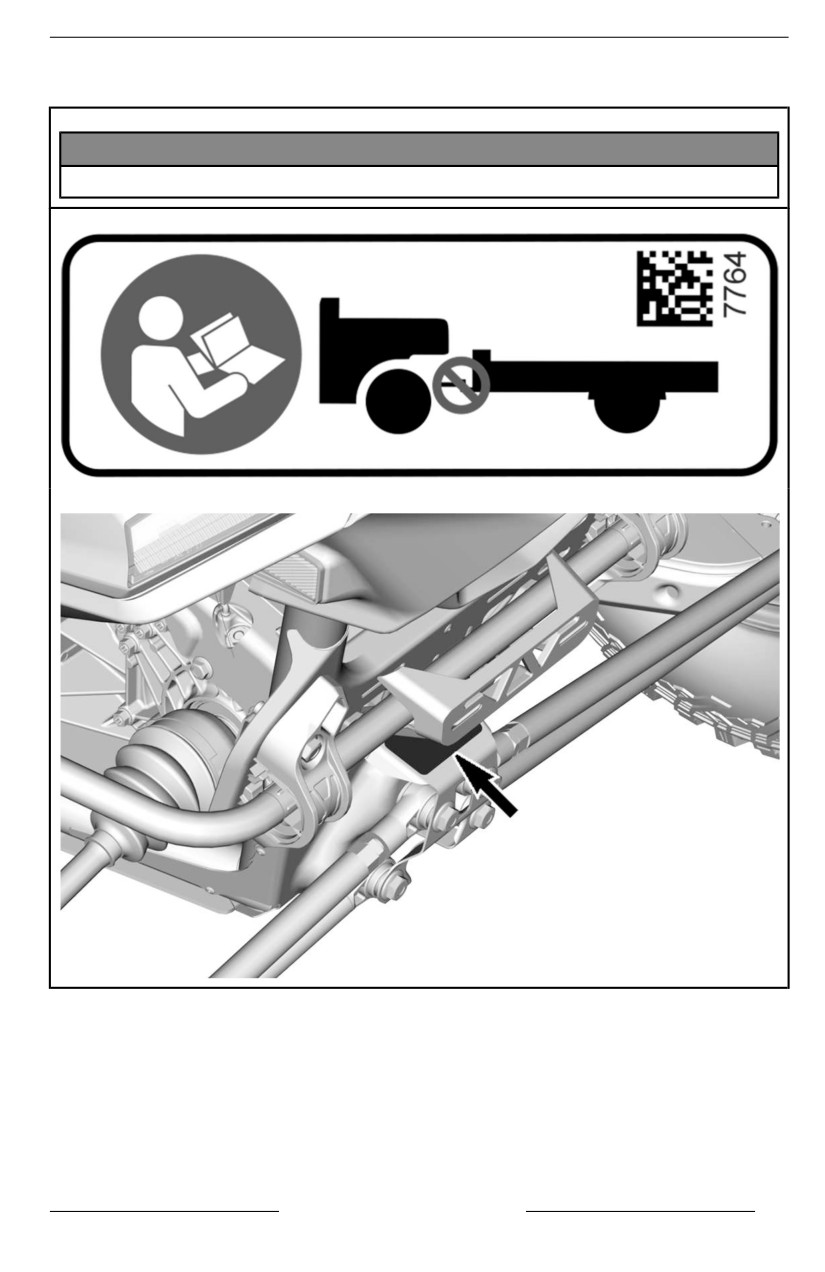

Recover Stuck Vehicle - Notice Label

NOTICE

Use only to recover a stuck vehiicle. Never use to pulll a load.

SAFETY INFORMATION

67

IMPORTANT ON-PRODUCT LABELS (ALL COUNTRIES EXCEPT CANADA/UNITED STATES)

Coolant Hot - Warning Label

WARNING

Do not open when HOT.

68

SAFETY INFORMATION

PRE-RIDE INSPECTION CHECK LIST

What to Do Before Starting the Engine (Key OFF)

ITEMS TO

INSPECTION TO PERFORM

ü

INSPECT

Coolant

Check coolant level.

Brake fluid

Check brake fluid level.

Engine air filter

Inspect engine air filter and replace if necessary.

Inspect engine air filter housing and clean if

Engine air filter

necessary (when riding in dusty conditions or

housing

sand).

Radiator(s)

Check front and rear radiators for cleanliness.

Front grille

Inspect front grille kit for cleanliness.

Clean area around exhaust system, especially if

Exhaust system

vehicle was used in a swamp, hay field, or in dry

leaves.

Drive shaft

Check drive shaft bellows condition.

bellows

Check tire pressure and condition.

Tires

Refer to Technical Specifications and adjust

according to load.

Check wheels for damage and abnormal play.

Ensure that lug nuts and beadlock screws (if

Wheels

equipped) are tight.

Refer to Wheels and Tires in Maintenance

Procedures for torque specifications.

Cargo Load: If you transport cargo, respect

maximum rear cargo rack capacity.

Refer to Technical Specifications.

Cargo and load

Ensure that total weight of operator, passenger,

cargo, and added accessories does not exceed

total vehicle load allowed.

Refer to Technical Specifications.

Check under vehicle for any debris on chassis or

Chassis and

suspension components (upper and lower arms,

suspension

wheels, shock absorbers, springs), and clean

them properly.

SAFETY INFORMATION

69

PRE-RIDE INSPECTION CHECK LIST

What to Do Before Starting the Engine (Key ON)

ITEMS TO

INSPECTION TO PERFORM

ü

INSPECT

Check operation of indicator lamps in digital

display (with D.E.S.S. key ON, briefly press

Digital display

ENGINE START/STOP button).

Check for messages on gauge.

Check operation and cleanliness of the following:

- Headlights (high and low)

Lights

- Taillights

- Brake lights

Check seat adjustment and ensure that locking

device is properly engaged before riding.

Check doors for damage. Have doors replaced if

damaged.

Close both doors and confirm that they latch up to

Seats, doors, and

second latch.

seat belts

Check seat belts for any damage (including

retractors, buckles, and semi-cinching tabs).

Fasten seat belts and ensure that they remain

securely fastened and tightened against

occupant’s body.

Press on accelerator pedal a few times. Pedal

Accelerator pedal

should operate freely and return to its rest position

when released.

Press down on brake pedal and make sure that

Brake pedal

you feel firm resistance. Pedal should return fully

to its rest position when released.

Fuel level

Check fuel level.

What to Do After the Engine is Started

ITEMS TO

INSPECTION TO PERFORM

ü

INSPECT

Check if steering operates freely by completely

Steering

turning wheel from side to side.

Adjust steering wheel to a comfortable position.

Check operation of D.E.S.S. post by pulling

RF D.E.S.S. post

D.E.S.S. key from post. Engine must stop.

70

SAFETY INFORMATION

PRE-RIDE INSPECTION CHECK LIST

ITEMS TO

INSPECTION TO PERFORM

ü

INSPECT

Shift lever/

Check operation of the shift lever (R/D) and

Console keypad

console keypad buttons (P, L, M, N, and

buttons

Override).

Slowly drive forward a few feet and then apply

brakes.

Brake pedal must feel firm when applied.

Brakes

Pedal must return to its rest position when

released.

Brakes must respond adequately to driver’s input.

Check operation of 2WD/4WD selector.

2WD/4WD

Move vehicle slowly and try to select/deselect

selector

2WD and 4WD modes.

Engine oil

Check engine oil level with a warm engine.

SAFETY INFORMATION

71

REPORTING SAFETY DEFECTS

In Canada, if you believe that your vehicle has a defect which could cause a

crash or could cause injury or death, you should immediately inform Transport

Canada in addition to notifying Bombardier Recreational Products Inc.

If Transport Canada receives similar complaints, it may open an investigation,

and if it finds that a safety defect exists in a group of vehicles, it may order a re-

call and remedy campaign. However, Transport Canada cannot become involved

in any individual problems between you, your dealer or Bombardier Recreational

Products Inc.

To contact Transport Canada:

819-994-3328 (Gatineau-Ottawa area or internationally)

Toll free : 1 800-333-0510 (in Canada)

Transport Canada - ASFAD

330 Sparks Street

Ottawa, ON

K1A 0N5

https://www.tc.gc.ca/recallls

72

SAFETY INFORMATION

VEHICLE INFORMATION

73

PRIMARY CONTROLS

It is important to know the location and

operation of all controls, and to devel-

op and practice smooth and coordi-

nated use of them.

Some vehicle safety labels are not

shown on illustrations. For information

on vehicle safety labels, refer to Im-

portant On-Product Labels.

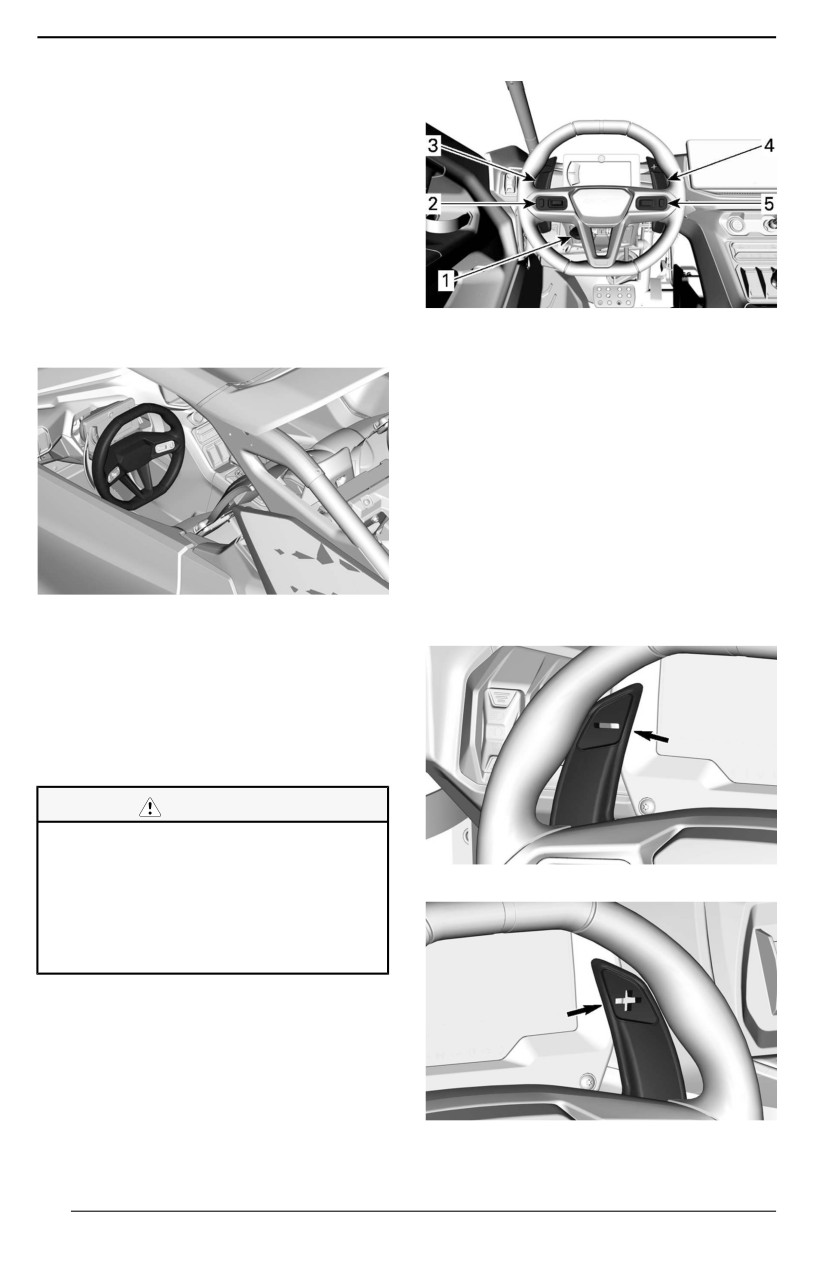

STEERING WHEEL

The steering wheel is located in front

1. Tilt/telescopic lever

of the driver’s seat.

2. Left steering control (Applet switch and Fo-

cus Control)

3. Left shift paddle

4. Right shift paddle

5. Right steering control

(Ride settings and

Push To Talk)

SHIFT PADDLES

Shift paddle are located behind the

steering wheel.

Pressing the left paddle

allows to

downshift gear instead the right pad-

STEERING WHEEL - TYPICAL

dle upshift gear.

It is used to steer the vehicle to the left

or right. Turn the steering wheel in the

direction you want to go.

Hold the steering wheel firmly with

both hands, without closing your fists

around it and proceed.

CAUTION

Under rough traiil conditions or

when crossiing an obstacle, the

steeriing wheel could suddenly

LEFT PADDLE — DOWNSHIFT

j

jerk to one siide, causiing hand or

wriist iinjjuries if your fiists are

wrapped around the steering

wheel.

When driving, the Dynamic Power

Steering (DPS) reduces the effort re-

quired to turn the steering wheel.

The steering wheel also includes

many controls.

RIGHT PADDLE — UPSHIFT

74

PRIMARY CONTROLS

The shift paddles must be used to

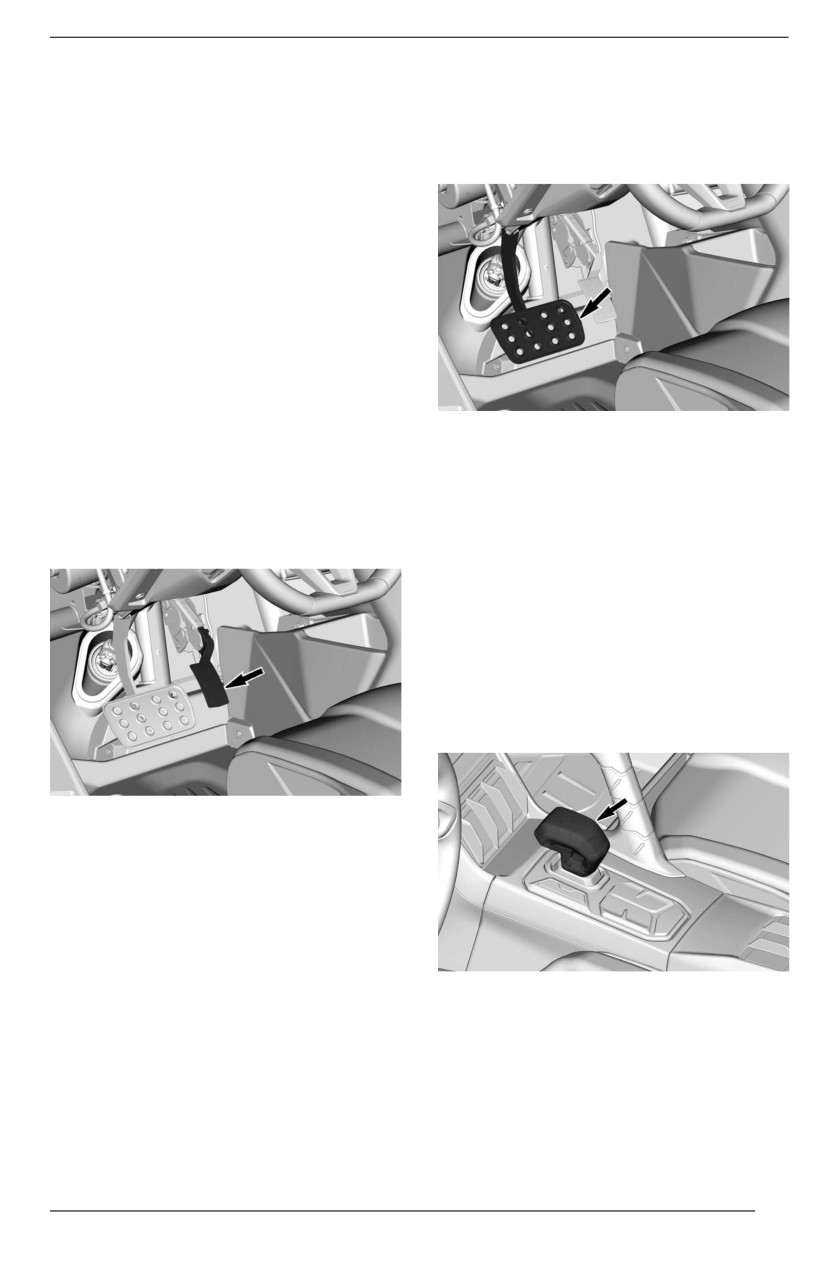

BRAKE PEDAL

change gears when the Manual mode

The brake pedal is located to the left

is selected.

and is wider than the accelerator

Tip In Mode

pedal.

When in automatic mode, pressing

one of the shift paddle will activate the

Tip In mode.

Pressing the right (upshift) or the left

(downshift) paddle will select the next

upper gear or the previous gear.

This gear will be held until either up-

shift or downshift RPM are reached.

To get out of the Tip In mode and go

back to full Automatic mode, just hold

The brake pedal function is to slow or

one of the paddle for a few seconds.

stop the vehicle.

ACCELERATOR PEDAL

To decrease vehicle speed or to stop

The accelerator pedal is the right--

the vehicle, press down on the brake

most pedal.

pedal with your right foot.

The brake pedal is spring loaded and

should return to its original position

(released) when not pressed.

ELECTRONIC SHIFT LEVER

The electronic shift lever is located on

the central console, to the right of the

driver’s seat.

The accelerator pedal controls the ve-

hicle speed and acceleration.

To increase or maintain vehicle

speed, press on the accelerator pedal

with your right foot.

To decrease vehicle speed, release

the accelerator pedal.

The lever is used to put the transmis-

The accelerator pedal is spring loaded

sion into REVERSE or DRIVE

and should return to its resting posi-

(Forward).

tion (idle) when not pressed.

To shift into REVERSE:

- Press the brake pedal and push

the lever forward until the digital

display shows R.

75

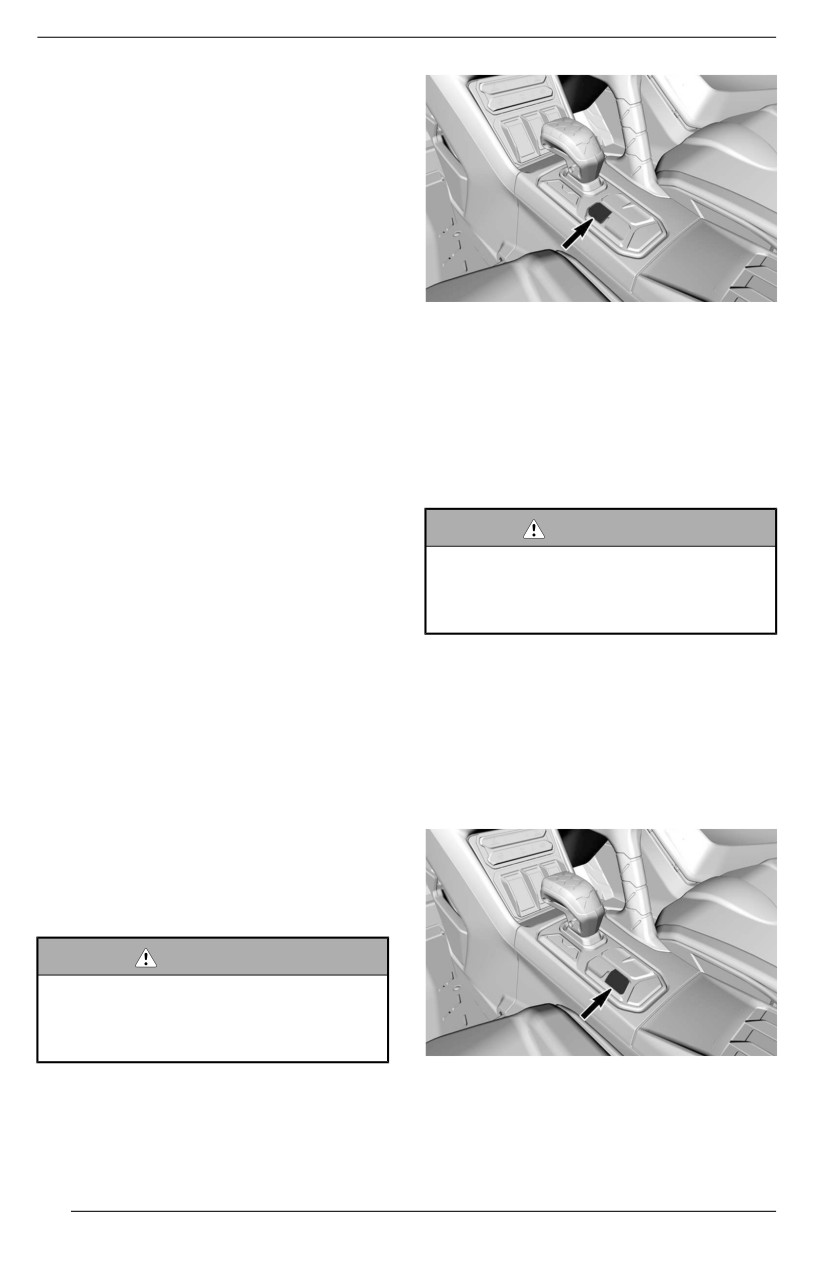

PRIMARY CONTROLS

- Release the lever. After you re-

lease the shift lever, it will return to

the center position.

NOTE:

Once in Reverse, if the lever is

pushed forward again and held for a

few seconds, the transmission will tog-

gle between Low and Hi range. This

can also be done using the L button

below the shift lever.

To shift into DRIVE:

This button puts the transmission in

PARK.

- Press the brake pedal and pull the

lever rearward until the digital dis-

The PARK must be engaged each

play shows D.

time the driver leaves the vehicle.

- Release the lever.

A buzzer will sound any time the driv-

NOTE:

er’s door is opened without the PARK

Once in Drive, if the lever is pulled

engaged.

rearwards again and held for a few

seconds, the transmission will toggle

WARNING

between Low and Hi range. This can

Allways select the Park (P) posi-

also be done using the L button below

tion when the vehiicle is not in mo-

the shift lever.

tion to avoid acciidental vehiicle

movements.

When the D position is selected after

restarting the vehicle, the last setting

used will be reused automatically (au-

The vehicle will automatically go to

tomatic, manual, LOW or HI range).

park when it is immobilized and

the

engine is shutdown.

When the transmission is in gear (R or

D), the vehicle can move slowly, or

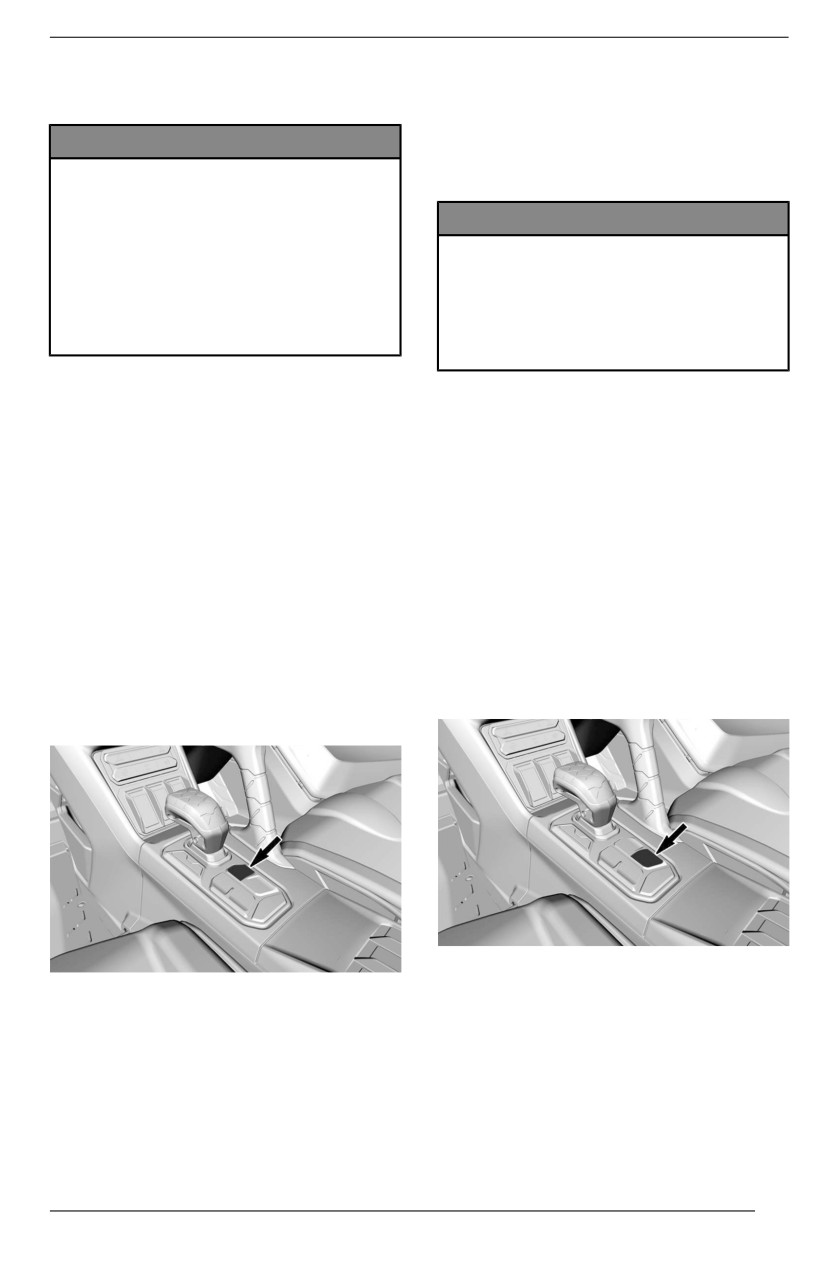

NEUTRAL BUTTON

creep, without any accelerator pedal

input. Many factors can influence the

The Neutral (N) button is located be-

creep behavior: Transmission temper-

hind the electronic shift lever.

ature, cargo weight, Range (Low or

High), type of terrain and slope, to

name a few. The user should beware

of a potential creeping at all times

when it is in gear.

WARNING

Always apply the brake when

stopped and select Park (P) be-

fore exiiting the vehiicle to avoid

unattended vehicle movement.

PARK BUTTON

The park button (P) is located behind

the electronic shift lever.

76

PRIMARY CONTROLS

This button puts the transmission in

straight flat section) at constant

neutral.

speed.

NOTICE

The Low range allows the vehicle to

move slowly with the maximum torque

Thiis position must NEVER be

at the wheels.

used to tow the vehicle. Severe

transmiissiion and gearbox dam-

NOTICE

age wiilll occur.

To avoid vehiicle damages, it is a

To tow the vehiclle, refer to Per-

good practice to select the Low

manent Neutral or Mechaniicall

range each time the vehicle goes

Neutral Actiivation in Speciall Pro-

cedures for the compllete

over obstaclles, drives uphilll or

procedure.

downhiilll, or when carrying heavy

cargo.

Neutral is selected by pressing the “N”

button. The N icon appears in the digi-

To select the Low range, press the “L”

button until the L icon appears in the

tal display when the transmission is in

digital display.

neutral.

This button allows also to switch be-

The vehicle will go back to park posi-

tween Low and Hi range by pressing it

tion when it shutdown.

during more than 2 seconds.

If a permanent neutral or a mechani-

It is also possible to toggle between

cal neutral is needed, refer to Perma-

Low and Hi range using the Electronic

nent Neutral and Mechanical Neutral

Shift Lever.

Activation in Special Procedures

section.

MANUAL MODE BUTTON

LOW RANGE BUTTON

The Manual (M) mode button is lo-

cated behind the electronic shift lever.

The Low (L) range button is located

behind the electronic shift lever.

This button engages or disengages

the Manual shifting mode.

This button allows the low-speed

range of the gearbox to be selected.

The Manual mode allows you to

change gears, using the paddles at

This vehicle can switch between low

the steering wheel, on demand in-

and high while moving. There will be a

stead of waiting for the vehicle to

power interruption during the H to L or

decide.

L to H shift, so make sure to perform

the shift in a safe location

(ex. a

77

PRIMARY CONTROLS

In Manual mode, pressing the paddle

shift, located behind the steering

wheel allows to upshift or downshift

gear.

- Left paddle = Downshift

- Right paddle = Upshift

It is also possible to switch from man-

ual to automatic mode, and vice ver-

sa,

by pulling

and holding

simultaneously both shift paddles (± 1

second).

78

SECONDARY CONTROLS

Some vehicle safety labels are not

WARNING

shown in the illustrations.

Rolllovers, tiipovers, colllisions and

For information on vehicle safety la-

l

loss of control resullting in serious

bels, refer to Important On-Product

i

injury or death are possiible with

Labels.

the performance or normal key.

Using the normal key is not a sub-

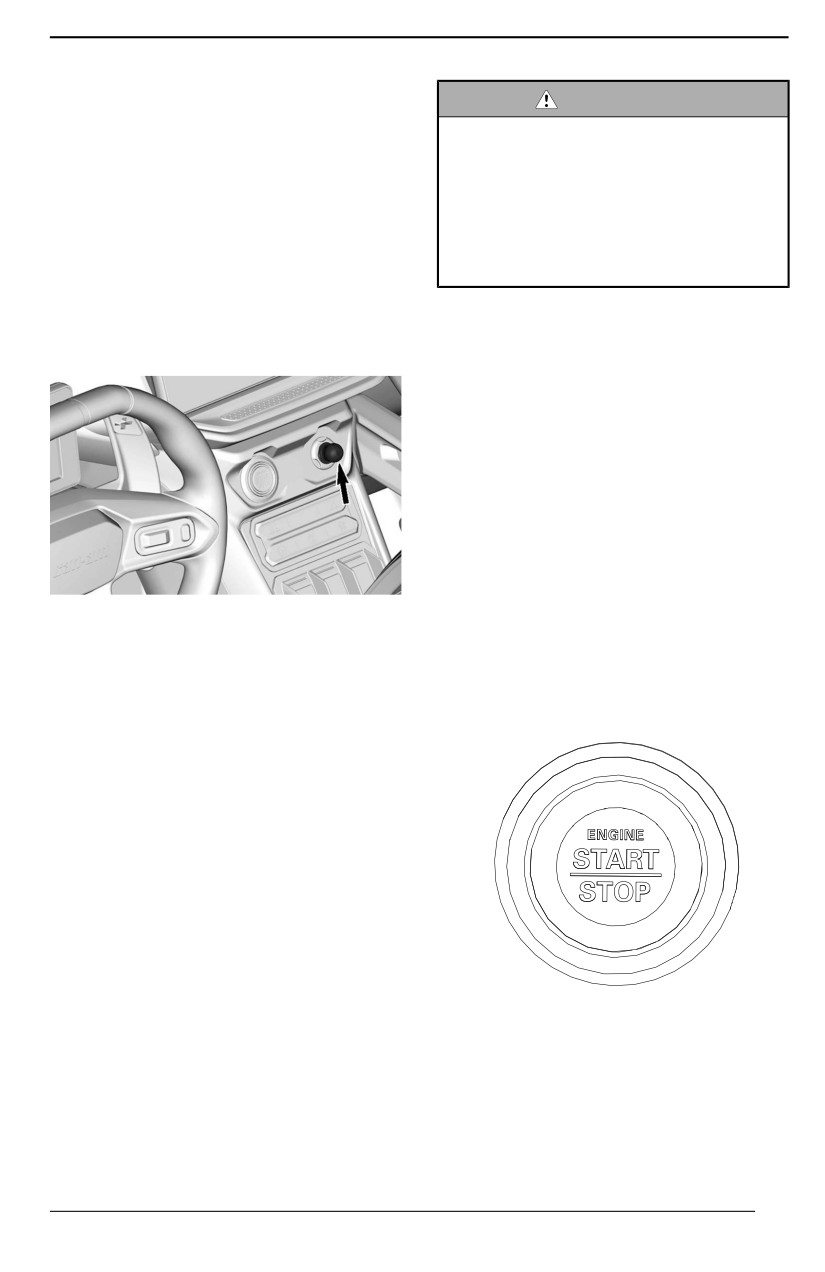

RF D.E.S.S Key and RF D.E.

stitute for the operator being pre-

S.S. Post

pared, qualiified, and operating

wiith care.

RF D.E.S.S. Post

D.E.S.S. Flexibiiliity

The D. E. S. S. post is located on the

upper console.

The D. E. S. S system of the vehicle

can be programmed to recognize up

to 8 different keys.

In this case, if you are the owner of

many vehicles using a D.E.S.S. key, it

is possible to use any of them with this

vehicle.

Refer to your authorized Can-Am Off--

road dealer to program the other D.E.

S.S. keys.

ENGINE START/STOP

RF D.E.S.S. Key

BUTTON

For all D.E.S.S. related option, see an

The ENGINE START/STOP button is

authorized Can-Am dealer for

located on the upper console, to the

information.

right of the steering wheel.

Diigitallly Encoded Security System

(D.E.S.S.)

This vehicle is delivered with 1 D.E.S.

S. key.

The ignition keys contain an electronic

circuit that gives it a unique electronic

serial number.

The D. E. S. S. system reads the key

code and allows engine starting for

keys it recognizes.

This vehicle can be operated using

different types of key programming:

Refer to your dealer for complete

information.

NOTE:

Additional keys are available from

your dealer as an accessory.

79

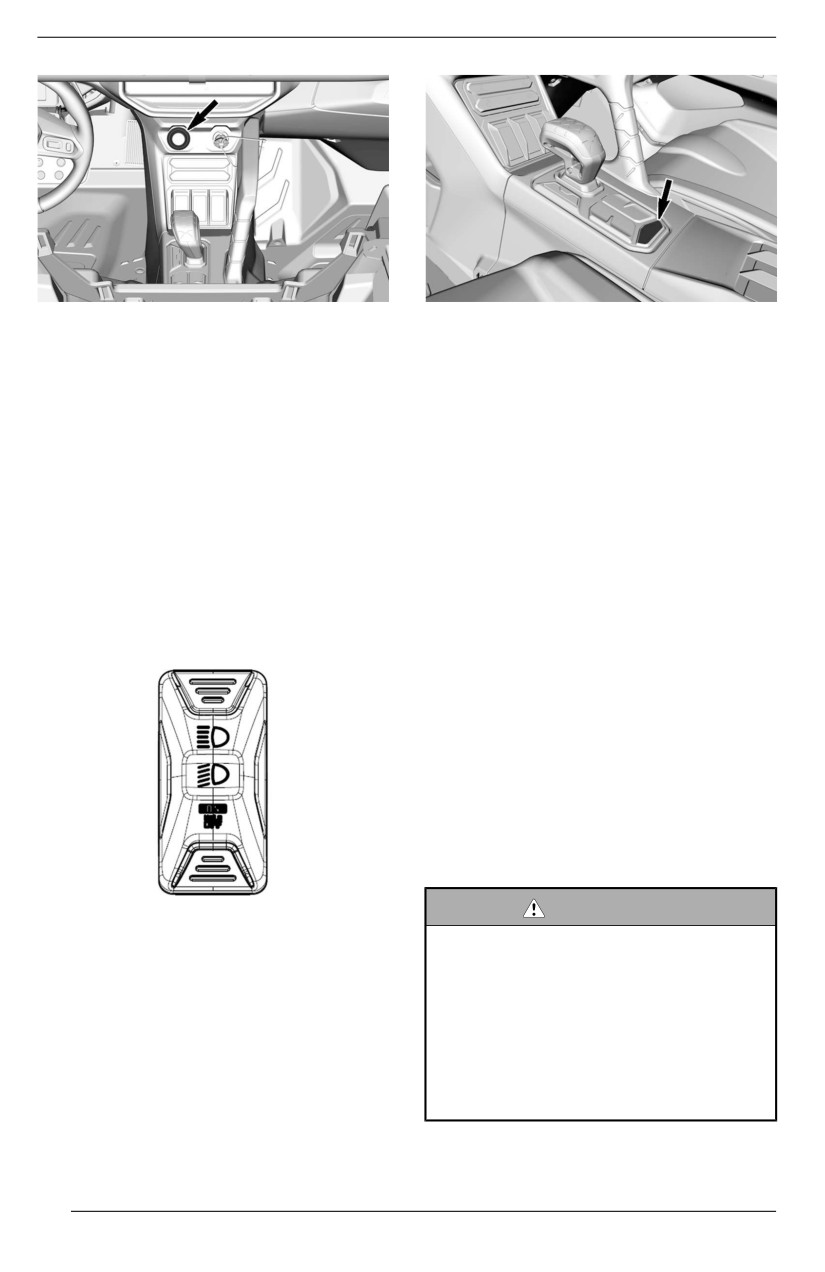

SECONDARY CONTROLS

With the D.E.S.S. key inserted, press

The override switch is used for the

and hold the ENGINE START/STOP

following:

button to start the engine.

- To bypass the engine speed limiter

in reverse by allowing maximum

Press the same button to stop the

engine torque. Refer to Entering

engine,

the Override Mode.

To power up the electrical system

- To allow the vehicle to be driven in

without starting the engine, refer to

the event of an accelerator pedal

Waking Up the Electrical System.

failure. Refer to Entering the Man-

ual Limp Home Mode.

- In the case of a transmission fault,

HEADLIGHT DIMMER

a message into the digital display

SWITCH

will appear ''Press override to con-

The headlight dimmer switch is lo-

firm the standstill''. This will allow

cated on the left-hand side of the

select the Park. Then the electrical

dashboard.

system can be completely shut off

and woke up again. In most cases,

this action will be enough to heal

the fault. If not, see an authorized

Can-Am Off-road dealer.

ENTERING THE OVERRIDE

MODE

While in reverse, press and hold the

Override switch to enter the override

(i.e., bypass) mode.

WARNING

This switch is used to select either the

Use the override mode onlly iif the

low or high beams for the headlights.

vehiiclle is caught in mud or other

Press and hold the lower button to

soft terraiin and the llow range is

turn the headlights off. Press the

not suffiiciient iin reverse. Make

same button again to turn the head-

sure that the area iis secure before

lights back on.

usiing the overriide mode. Do not

use the override mode when driv-

ing normallly iin reverse. Thiis

OVERRIDE SWITCH

woulld result in excessive speed.

The override switch is located behind

the electronic shifter.

80

SECONDARY CONTROLS

Release the Override switch to exit

Depending on the type of failure,

this mode.

pressing and holding the Override

switch will temporarily restore the re-

Enteriing the Manuall Limp Home

sponse of the pedal OR temporarily

Mode

increase the engine speed to allow

the vehicle to be driven.

If one or both of the pedal position

sensor(s) is (are) defective, the accel-

Releasing the Override switch will re-

erator pedal will not respond.

lease the throttle and allow the engine

return to idle speed.

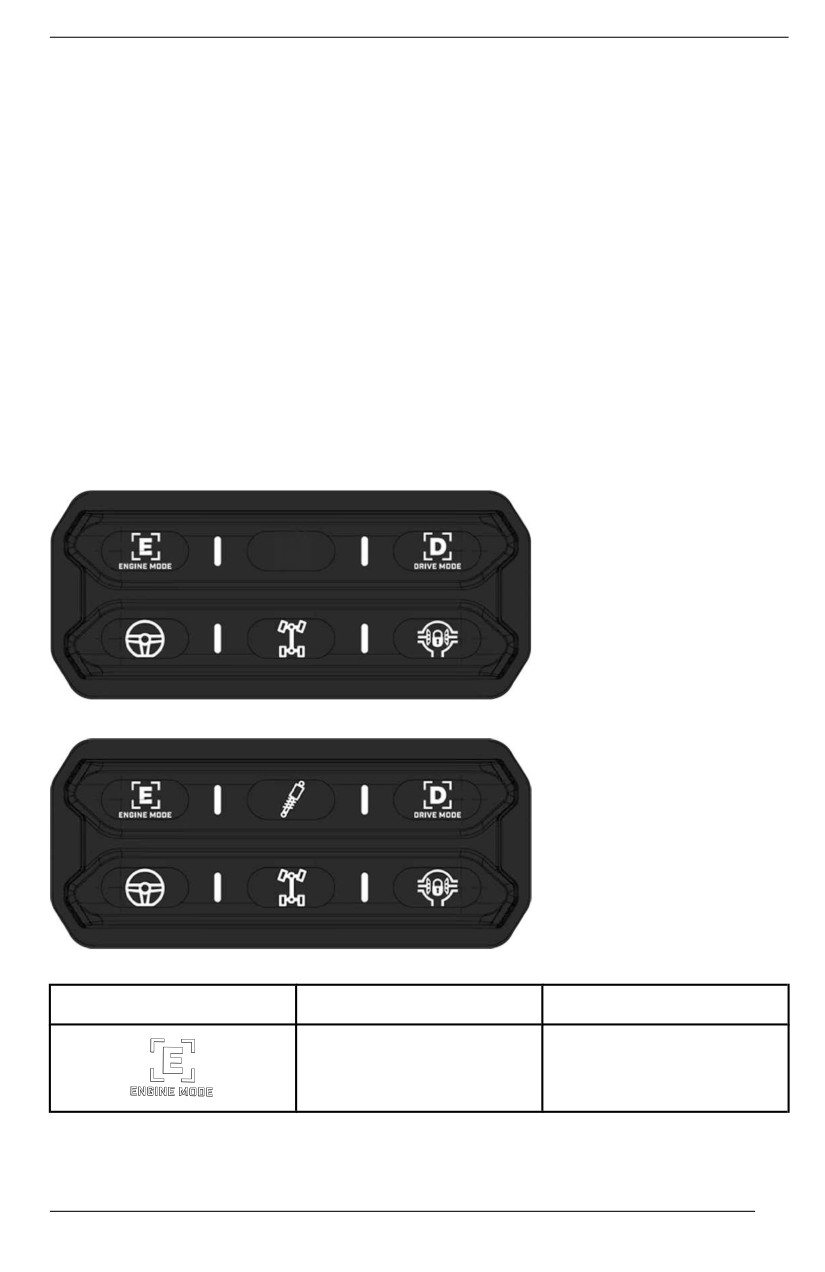

KEYPAD

The keypad is located on the upper console.

The first click will show the current setting.

To change a setting, click again until the desired mode is reached.

On the X and X rs models, the keypad is used to navigate through various menus

and options in the digital display and the touchscreen display.

X AND X RS MODELS WITHOUT SAS SUSPENSION

X RS MODEL WITH SAS SUSPENSION

Icon

Use

Application

- Normal

Switch between different

- Sport

engine modes*

- Sport+

81

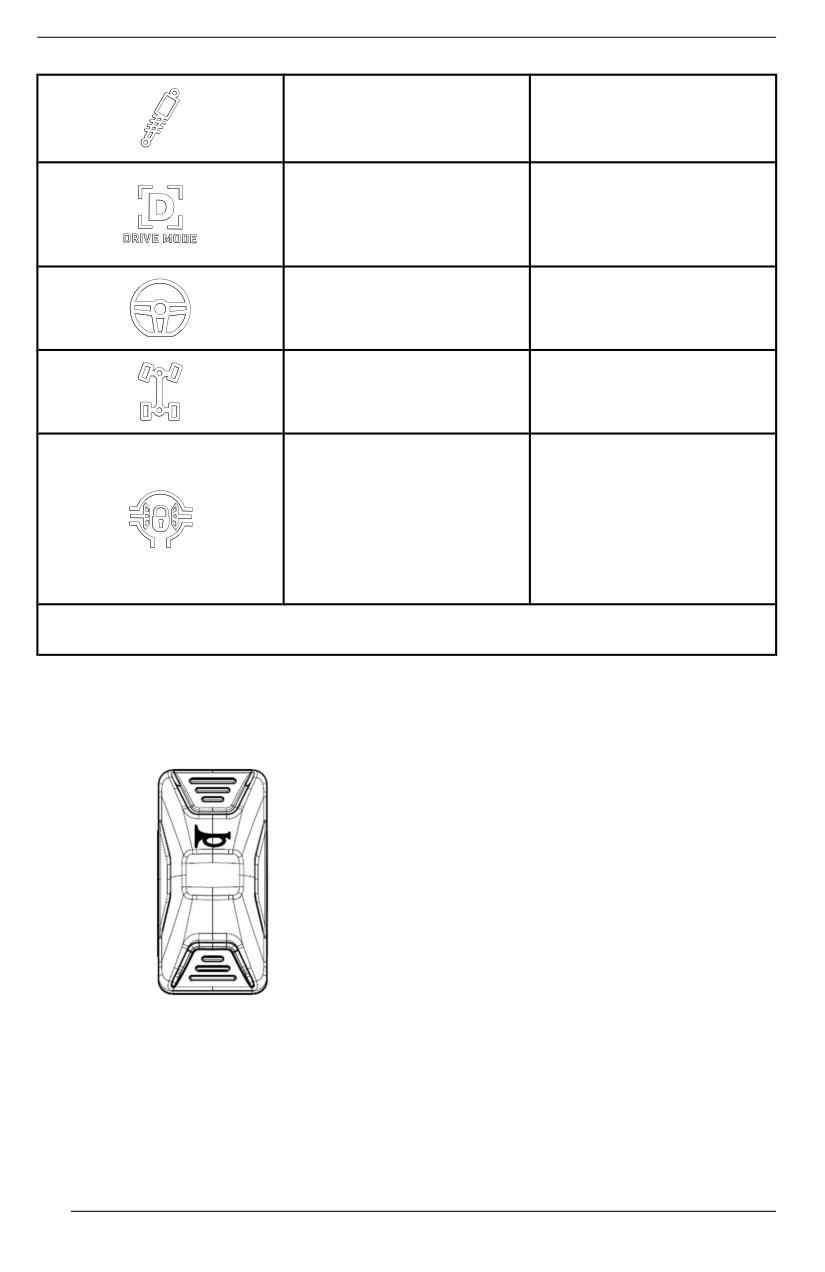

SECONDARY CONTROLS

-

Comfort

Switch between different

-

Sport

suspension modes*

–

Sport+

–

Normal

Switch between different

-

Sport

drive modes*

–

Sport+

–

Custom

Switch between different

-

Min

power steering

–

Med

resistances*

-

Max

-

2WD

Switch between different

-

4WD Trail

traction modes*

–

4WD Trail Active

-

If the vehicle is in

2WD, automatically

goes in 4WD + Diff

Activate or deactivate

Lock

the front differential lock

-

Once Diff Lock is

removed, the vehicle

will stay in 4WD

* Refer to Tune Your Ride for more information.

HORN SWITCH (on

applicable models)

To activate the horn, press the switch.

82

EQUIPMENT

Some vehicle safety labels are not

shown on illustrations. For information

on vehicle safety labels, refer to Im-

portant On-Product Labels.

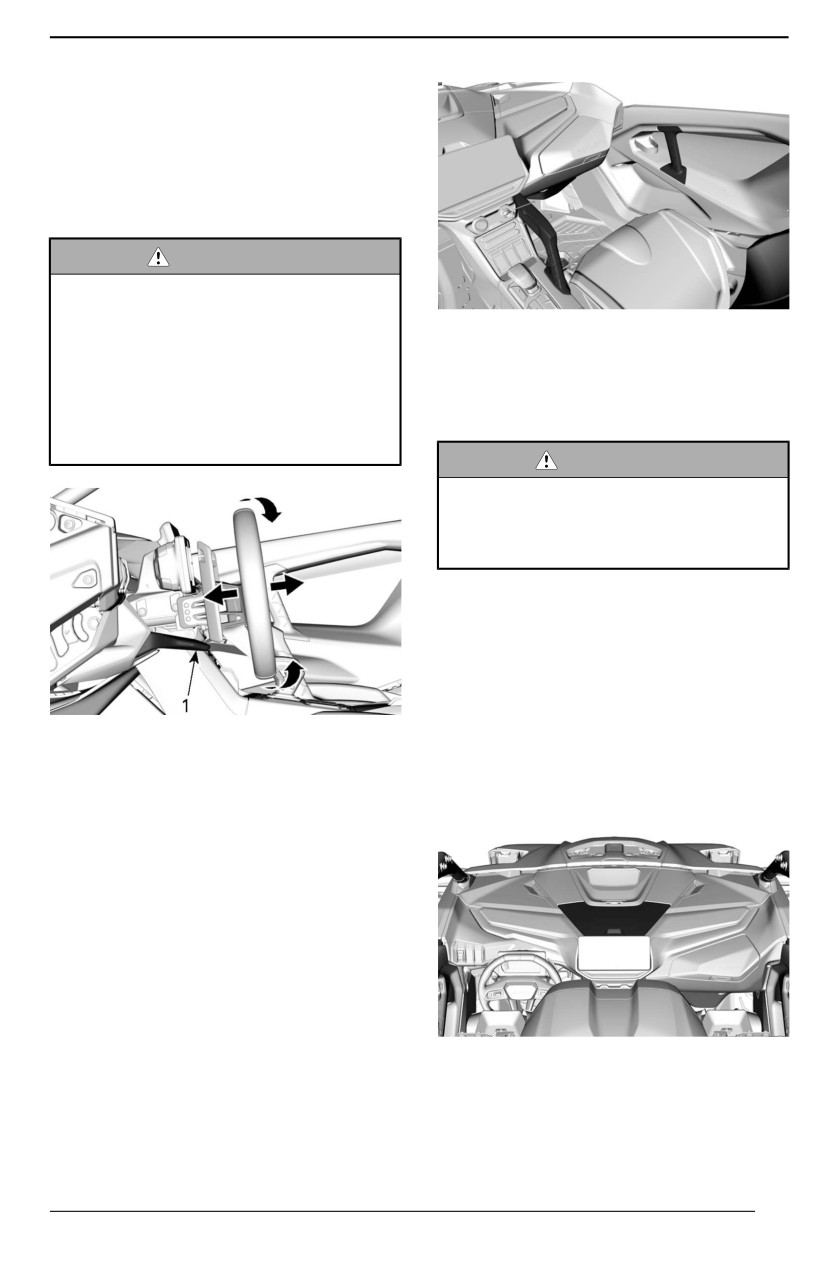

TILT/TELESCOPIC

STEERING WHEEL

WARNING

Do not adjust the steering wheel

posiition whiile driving. This may

cause loss of control.

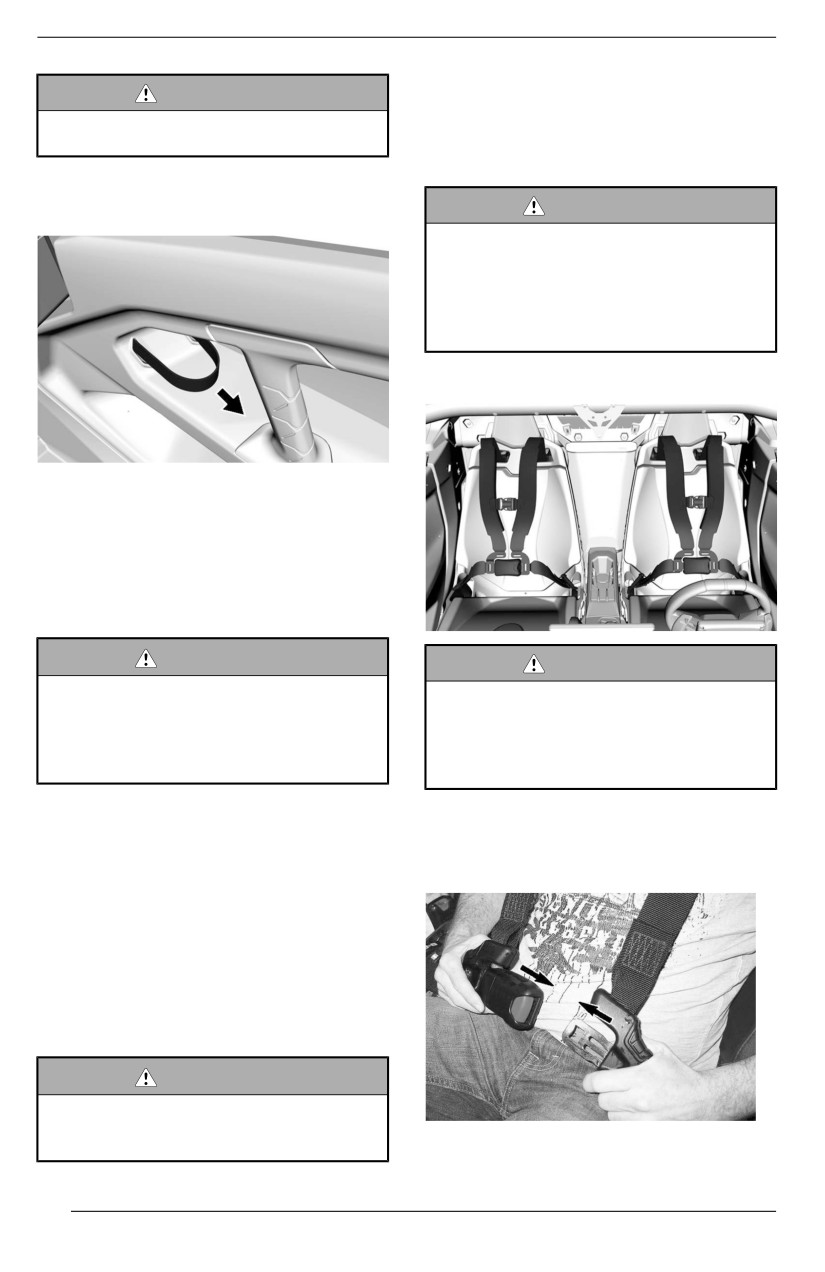

Holding the handholds helps the pas-

If the lever cannot be raised to the

senger brace against the movement

fixed positiion, adjust the steering

of the vehicle and helps keep hands

wheell agaiin. Driving without llock-

and body inside the cockpit in the

i

ing the steering wheel iis danger-

event of a rollover.

ous and may cause the loss of

control.

WARNING

Never use any part of vehiicle

cage as handholds. Hands can be

struck by objjects outside the

cockpiit or crushed in a rolllover.

Adjust the seat position in order to get

a solid and comfortable grip on the

handholds. Refer to Seat Forward and

Rearward Adjustment.

CENTRAL STORAGE

TILT AND TELESCOPIC MOVEMENTS

COMPARTMENT

1. Adjusting lever

This compartment is located in the

1. Adjust the seat position.

middle of the console.

2. Move the adjusting lever down.

3. Move the steering wheel to the de-

sired position.

4. Hold the steering wheel in this po-

sition and raise the adjusting lever

to lock the mechanism in place.

5. Confirm that the steering wheel is

securely locked by attempting to

move it up, down, forward and

backward.

PASSENGER HANDHOLDS

It is designed to hold small articles,

There is one passenger handhold on

like a cellphone.

the console and one in the right-hand

door.

This compartment includes the

following:

- A12-voltpoweroutlet

83

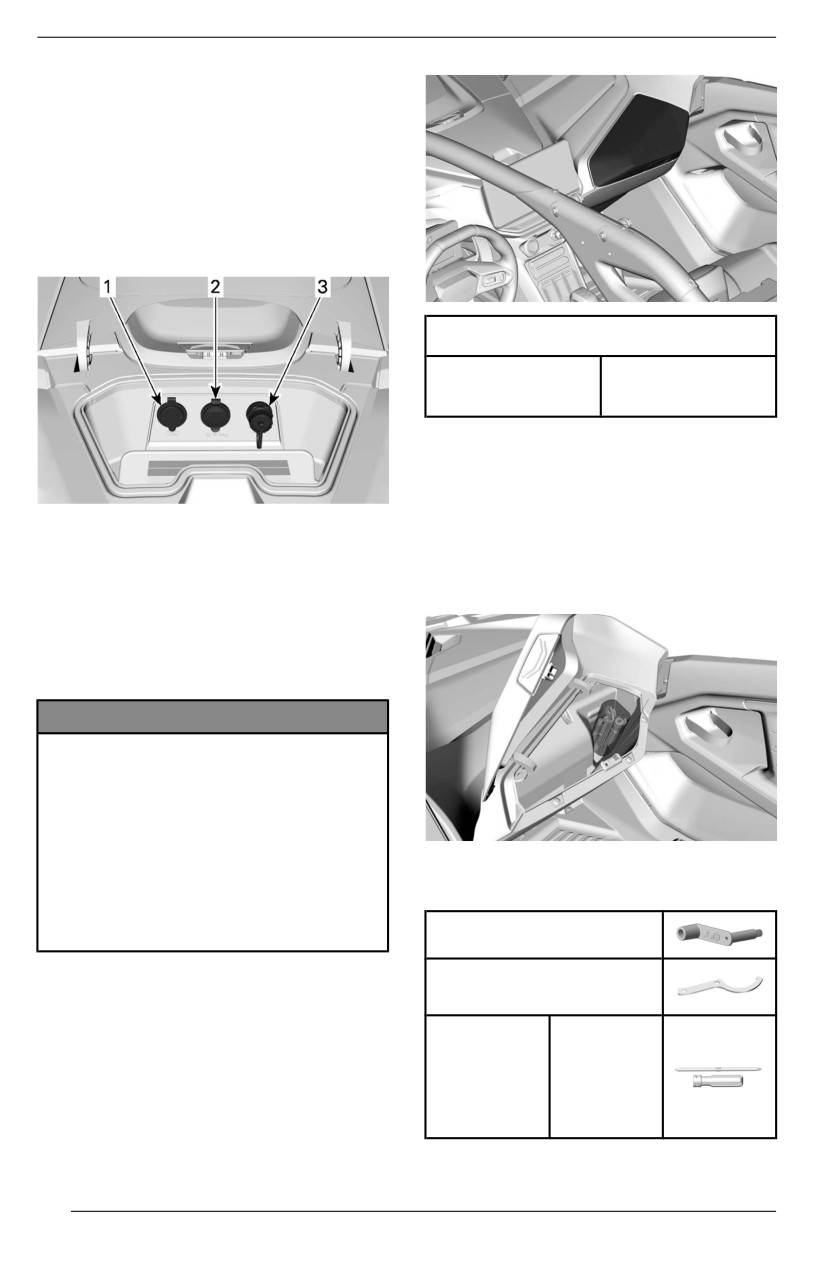

EQUIPMENT

- A dual USB port to charge your

devices

- An additional USB with a screw-on

cap is provided. This port must be

used to UPDATE or PROGRAM

the touchscreen display. Also, it

can be used to charge a cellphone

and connect the BRPGO app to

the touchscreen display.

Gllove Box Capacity

5 kg

Maximum load

(11 lb)

TROUBLESHOOTING

TOOLS

The vehicle comes with basic trouble-

1. Dual USB port

shooting tools to help you in some

2.

12- volt power outlet

situations.

3. Touchscreen USB port

The tools are located in the glove box.

GLOVE BOX

The vehicle is equipped with a closed

glove box, which is intended to carry

light objects.

NOTICE

Thiis storage compartment can be-

come hot during summer and allso

when usiing the vehiclle at slow

speed for a long periiod of time.

Storiing an electroniic device liike a

celll phone iis not recommended

under these conditions because

The following troubleshooting

tools

hot temperatures can cause per-

are included with the vehicle:

manent damage to the phone and

i

its battery.

Shift drum rotation tool

Suspension adjustment

tool

2-way

screwdriv

Tool kit:

er (flat

and

Phillips)

84

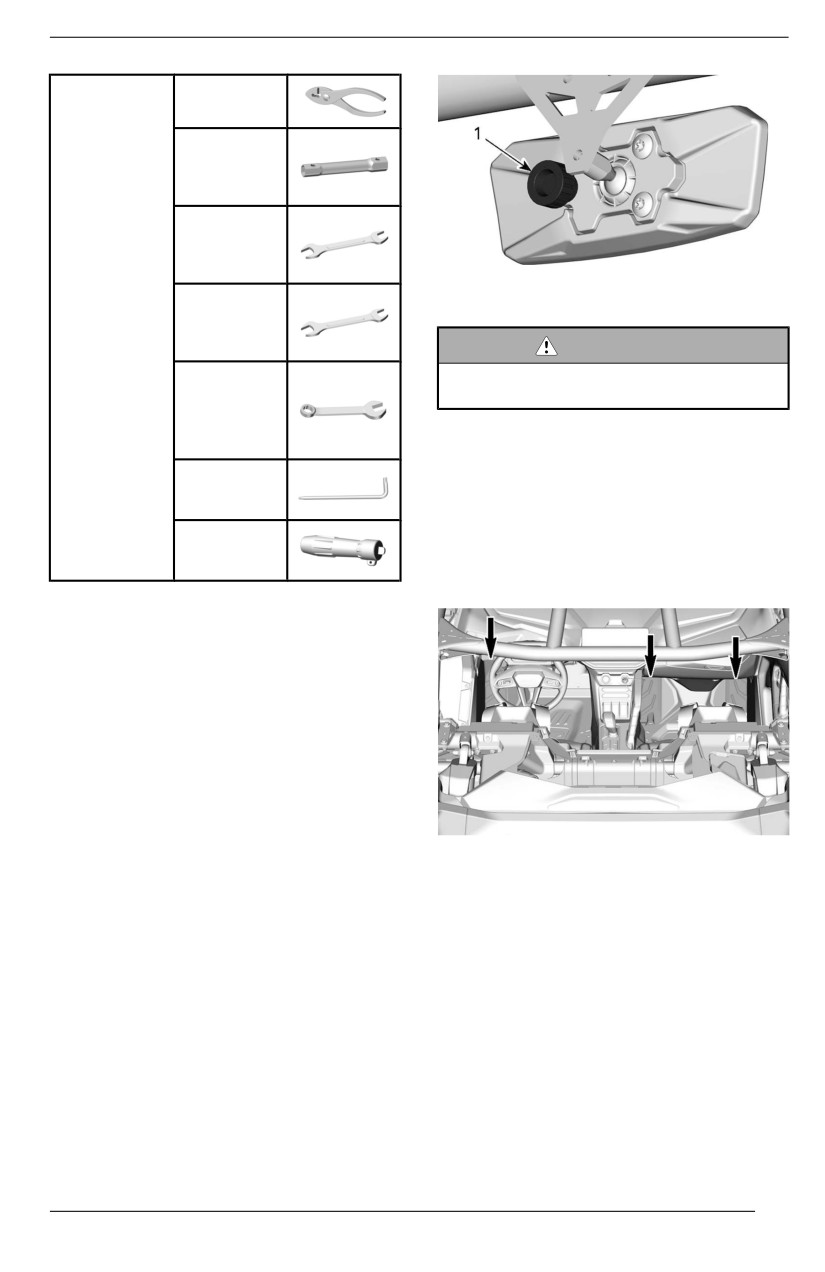

EQUIPMENT

Pliers

Socket

wrench,

14/16 mm

Open-end

wrench,

15/17 mm

BEHIND THE MIRROR

Open-end

1. Knob

wrench,

10/13 mm

WARNING

Do not adjust mirrors whiile riidiing.

Combina

tion

You could llose control.

wrench, 8

mm

FOOTRESTS

T30 Torx

The vehicle is equipped with driver

key

and passenger footrests. This allows

the occupants’ feet to be firmly plant-

Pressure

ing on the vehicle floor, which helps to

gauge

maintain proper body position while

riding.

CENTRAL REARVIEW

MIRROR

This vehicle comes equipped

with

a

central rearview mirror.

Be aware that objects in the mirror are

closer than they appear.

The mirror can be adjusted to suit driv-

er's preference.

To adjust the mirror, loosen the knob

located behind the mirror and tighten

The footrests help minimize the risk of

it to secure the mirror in position.

leg or foot injury.

Always wear appropriate riding gear.

DOORS

The vehicle is equipped with doors to

help occupants keep their body and

limbs inside the vehicle, reducing the

risk of injury.

The doors can also prevent the intru-

sion of branches and other foreign ob-

jects into the passenger compartment.

85

EQUIPMENT

To remind you to fasten the seat belts,

WARNING

the multifunction gauge will display

Never operate vehicle unless both

the following message: ENGINE LIMI-

doors are closed and secured.

TATION ENGAGED FASTEN SEAT

BELT.

To open a door, pull on the strap to re-

WARNING

lease the latch.

There is no iindicator llight or mes-

sage for the passenger seat belt.

The driver is responsiible for the

passenger’s safety and shoulld

ensure that the passenger fastens

theiir seat bellt.

4-POINT SEAT BELTS

SEAT BELTS

This vehicle is equipped with seat

belts to help to protect and keep the

driver and passengers inside the

cockpit in the event of a collision, roll-

over, or tip-over.

WARNING

WARNING

Wear seat belts properly at alll

Wear seat belt properlly. Make

tiimes. Seat bellts reduce the risk

sure iit remaiins securelly fastened

of iinjjury iin a crash and help keep

and tiightened against the body.

l

limbs iinsiide the cockpiit duriing a

Make sure it is not twisted or

rolllover or accident.

defectiive.

If the driver’s seat belt is not fastened:

To fasten the seat belt, insert the latch

- When the ignition is turned ON,

plate into the buckle, then pull the belt

the seat belt indicator lamp will

to ensure it is properly fastened.

flash.

- When the engine is started, the ve-

hicle is released from PARK, and

the shift lever is moved to the “D”

position, the vehicle speed will be

limited to a maximum of approxi-

mately 20 km/h (12 mph) on flat

ground.

WARNING

The vehicle may reach higher or

l

lower speed dependiing on

iincllines.

86

EQUIPMENT

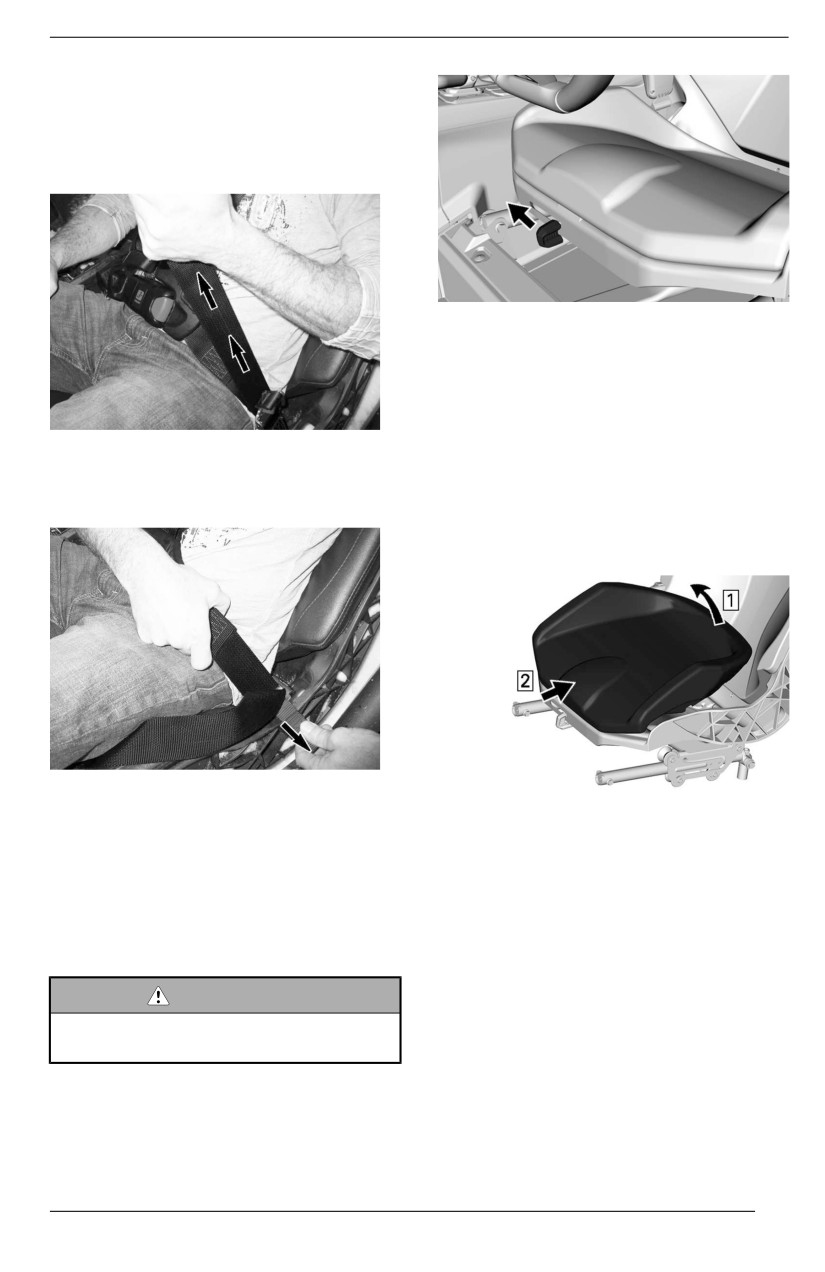

On both sides, adjust the seat belt

tightly against your body by pulling the

excess of the lap belt towards the in-

side. The buckle must be centered at

the waistline (as low as possible).

2. Move the seat to the desired posi-

tion, then release the lever.

3. Try to move the seat forward and

backward to make sure it is prop-

erly locked in place.

Removiing and Installing the Seat

To loosen the seat belt, hold the lap

Cushiion

belt with one hand and pull the red

1. Pull up the rear of the cushion,

strap outwards.

then free the cushion from the seat

frame by pulling it off towards the

rear.

To detach the seat belt, push on the

2. To install, reverse the removal

red button on the buckle.

procedure.

SEATS

REMOVING AND INSTALLING A

SEAT

ADJUSTING THE SEAT POSITION

1. Remove the seat cushion.

The seats can be adjusted forward or

2. Remove all four anchor points.

backward.

WARNING

Never adjust the seat posiitiion

whiile the vehiclle is moviing.

1. Slide the adjustment lever to the

right side.

87

EQUIPMENT

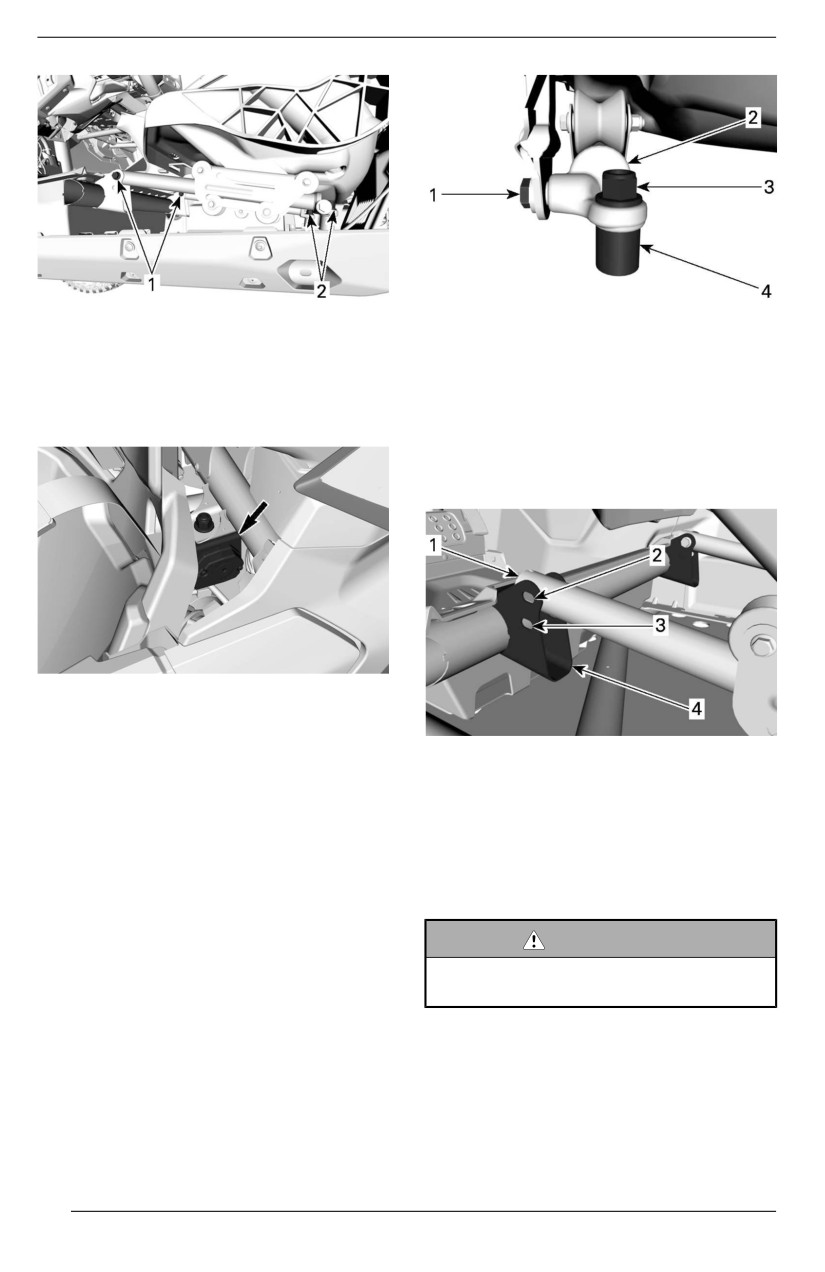

SEAT ANCHOR POINTS

REAR ANCHOR POINT - TYPICAL

1. Front anchor points

1. Seat belt bolt

2. Rear anchor points

2. Track

3. Elastic nut

3. Detach seat belt retractors and at-

4. Sleeve

tachment points from the frame.

The front height is determined by

the position of the seat rails in their

supports.

SEAT BELT RETRACTOR - TYPICAL

4. Discard all elastic stop nuts.

5. Remove the seat from the vehicle.

6. Before re-installing the seat, select

1. Seat rail

the desired height adjustment.

2. Upper position hole

3. Lower position hole

The rear height is determined by

4. Seat support

the presence or absence of the

sleeve.

7. Installation is the reverse of the re-

- Install the sleeve for the maxi-

moval. However, pay attention to

mum height.

the following.

- Remove the sleeve to put the

seat in its lowest height.

WARNING

Use new nuts when iinstallling seat

anchor poiints.

88

EQUIPMENT

CARGO RACK

Tiightening Torque

The cargo rack is convenient for carry-

Rear anchor

64.5 ± 6.5 Nm

ing equipment and various other

point

(48 ± 5 lbf-ft)

cargo.

Front anchor

24.5 ± 3.5 Nm

WARNING

point

(18 ± 3 lbf-ft)

– Never carry a passenger on a

Seat belt

cargo rack.

retractor and

64.5 ± 6.5 Nm

– Cargo must never interfere

attachment

(48 ± 5 lbf-ft)

wiith the driver’s liine of sight or

points

affect their abillity to properly

steer the vehicle.

– Do not overload the vehicle.

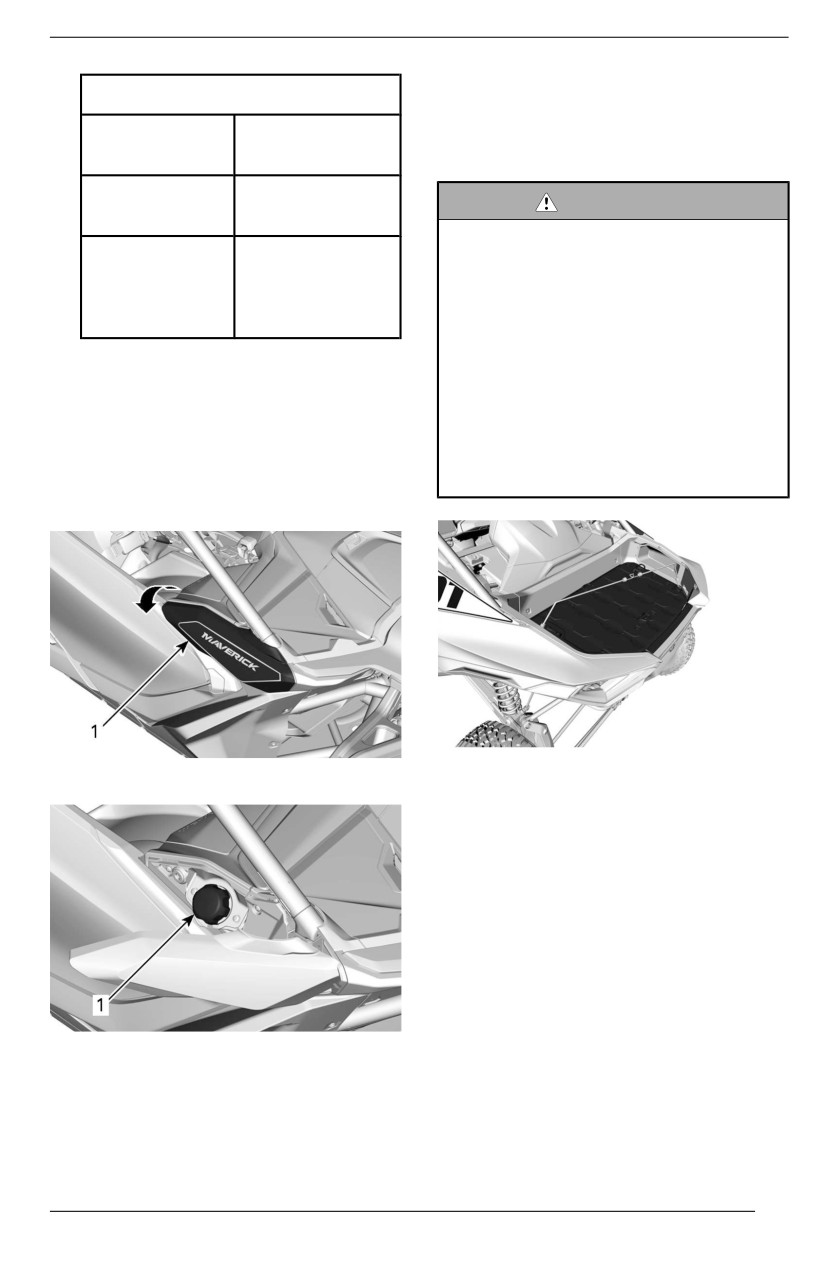

FUEL RESERVOIR CAP

– Allways ensure that alll cargo is

properlly secured and does not

The fuel reservoir cap is located at

extend beyond the rack.

front on the right hand side of the

– Never carry gasolline container

vehicle.

(s) or any dangerous lliquids on

To reach it, open the fuel reservoir

the cargo rack.

cap cover.

1. Fuel reservoir cap cover

Always refer to Vehicle Load Capacity

Label and Cargo Warning Label for

load capacity and cargo information.

ANCHORING HOOKS

To help to secure cargo inside the car-

go box, four anchoring hooks are in-

stalled on the floor of the cargo box.

Also, four LinQ™ attachments are in-

cluded to secure any BRP LinQ ac-

cessories. They can be installed in

many configuration depending on

1. Fuel reservoir cap

which accessory is used.

Refer to Fuel for information on fueling

procedure and fuel requirements.

89

EQUIPMENT

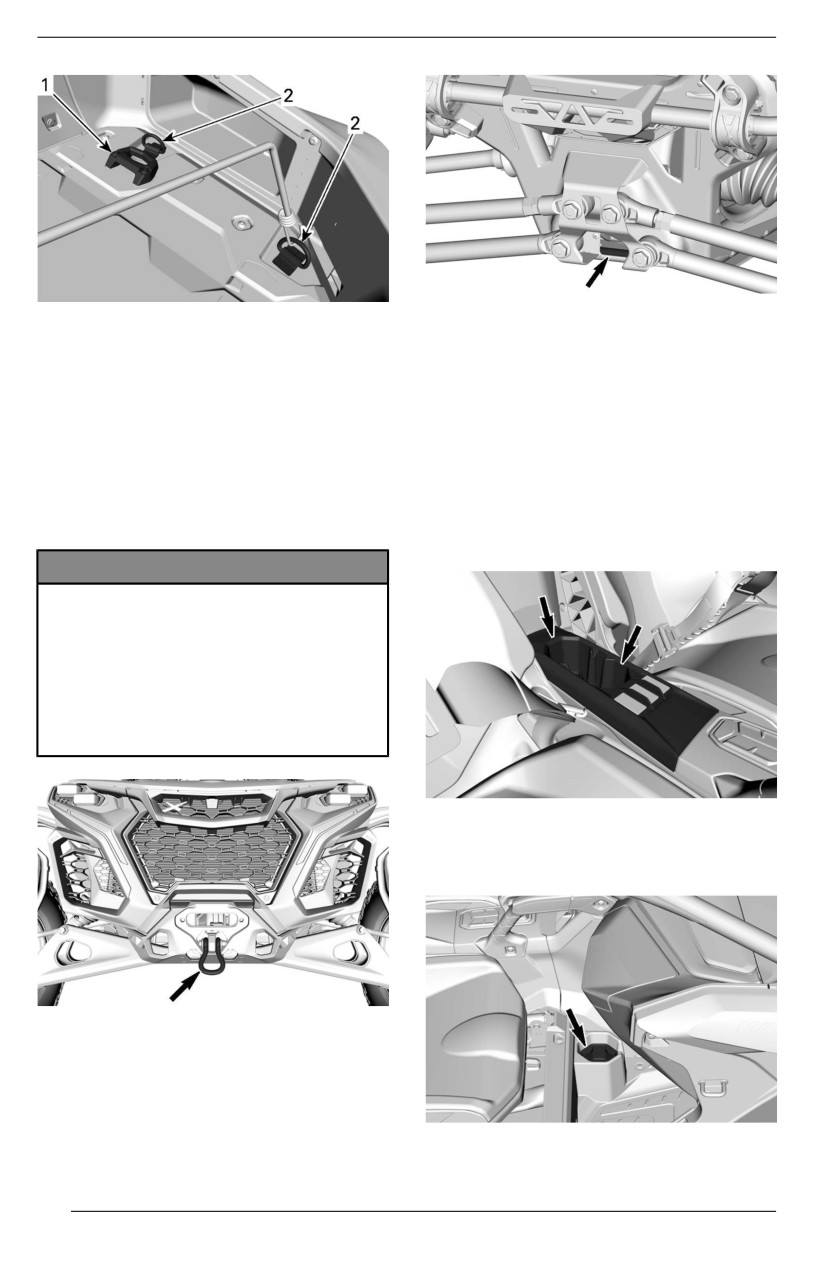

CARGO BOX - RIGHT SIDE (TYPICAL)

REAR RECOVERY POINT

1. LinQ attachment

2. Anchoring hook

CUP HOLDERS

Three cup holders are available for

RECOVERY POINTS

your convenience.

The vehicle is equipped with a front

NOTE:

recovery hook and a rear recovery

Do not use cup holders while riding in

point.

rough conditions.

These recovery points must be only

used to recover a stuck vehicle.

Two cup holders are located at the

rear of the lower console.

NOTICE

Recovery poiints are designed to

recover a stuck vehiiclle onlly.

They shoulld not be used to carry

a lload or to attach a pullley or oth-

er mechaniicall deviice that can

overload the attachment point.

Doing so can cause damage to

the vehiiclle frame.

CUP HOLDERS IN LOWER CONSOLE

Another one is located on the floor, in

front of the passenger’s seat.

FRONT RECOVERY HOOK

FRONT CUP HOLDER

90

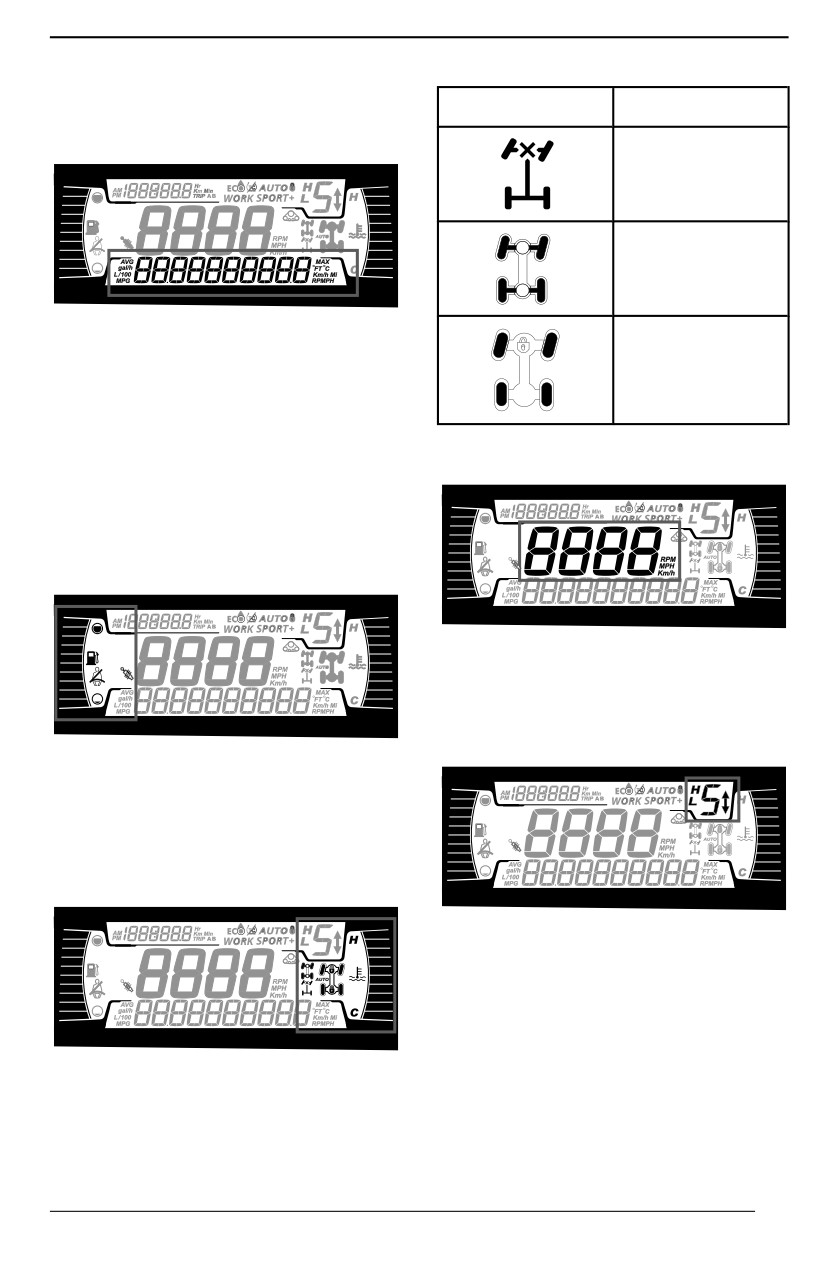

4.5” DIGITAL DISPLAY

Multifunction Display

Icon

Description

Lower Display

2x4 icon

4X4 icon

May display the following:

- RPM

Front differential

- Speed statistics

lock

- Engine Temperature

- Battery Voltage

- Settings

Central Display

- Messages

Use LOWER button to change the dis-

played information.

Left Lateral Display

Display the vehicle speed in km/h or

MPH or RPM.

Transmission

Position

Display

The left lateral display includes:

- Fuel level indicator

- Seat belt icon

- Smart-Shox suspension icon

Right Lateral Display

This display shows gear position of

gearbox:

- P (Park)

- R (Reverse)

- N (Neutral)

- H (High Range)

- L (Low Range)

The right lateral display includes:

- Gear 1 to 7

- Engine Temperature

-

- (Invalid Range)

–

2WD/4WD/Diff lock

Engine Mode Display

91

4.5” DIGITAL DISPLAY

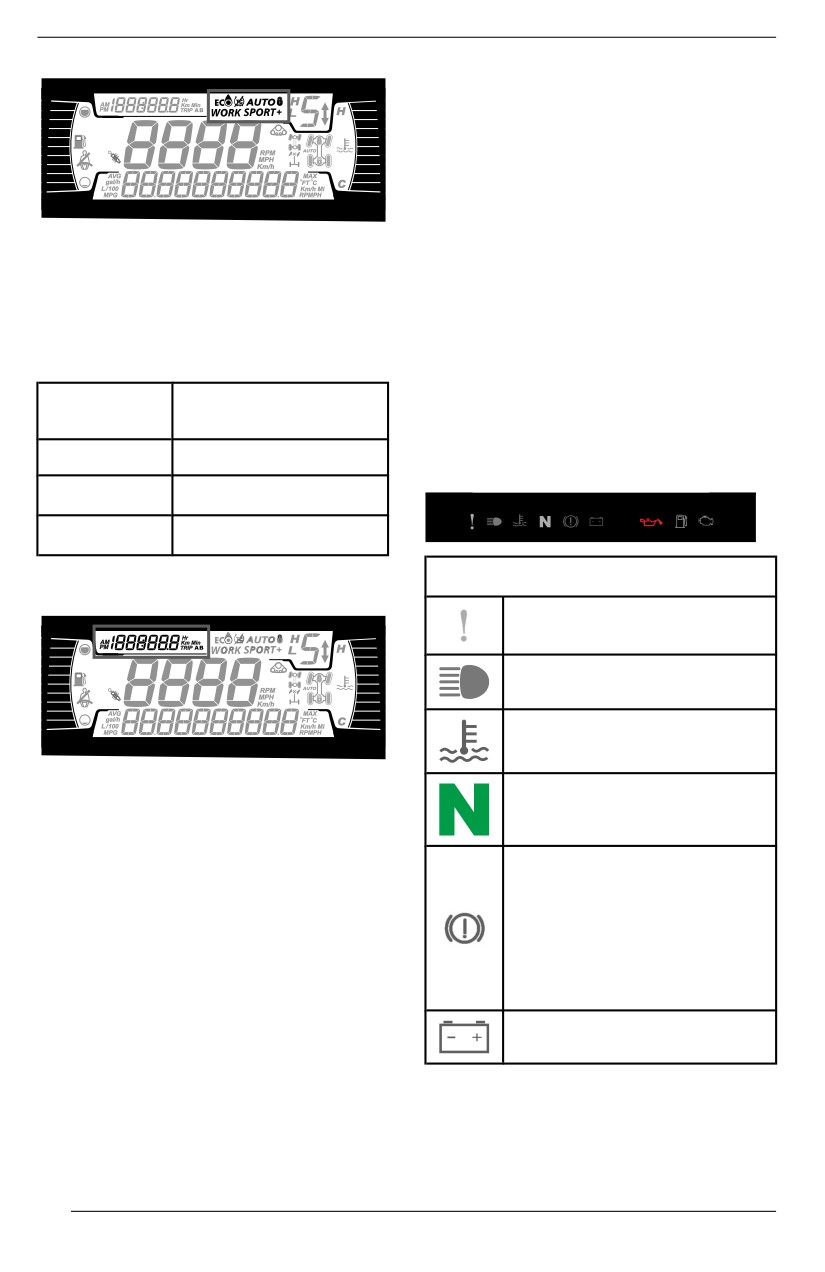

Warning Lamps and

Indicators

The following indicator lamps will alert

you to a vehicle condition that may be-

come serious. Some lamps will illumi-

nate when starting the vehicle to

make sure they work. If any lamps re-

main on after starting the vehicle, refer

The MODE display indicates the se-

to the respective system warning lamp

lected mode of operation:

for further information.

- AUTO mode

- NORMAL

NOTE:

- SPORT

Some warning indicators appear in

- SPORT+

the display of the multifunction gauge

and function the same as an indicator

Message at

Drive Mode

lamp but do not display when starting

Activation

the vehicle.

Normal

NORMAL MODE

Tellltalle Liights - Lower Bar

Sport

SPORT MODE

Sport+

SPORT+ MODE

Warniing and Tellltale Lights

Trip Display

ORANGE - Vehicle

Malfunction

BLUE - High Beam

RED - The engine

temperature is too high.

This display shows trip information:

GREEN - Neutral

- Cumulative distance odometer

- Trip A

- Trip B

RED - (Blinking)

- Vehicle hour meter

Accelerator pedal and the

- Clock

brake are activated

simultaneously for a certain

time

(a torque limitation is

Use UPPER button to change the dis-

active)

played information.

Hold UPPER button to reset Trip A/B

RED - Low battery.

meters.

92

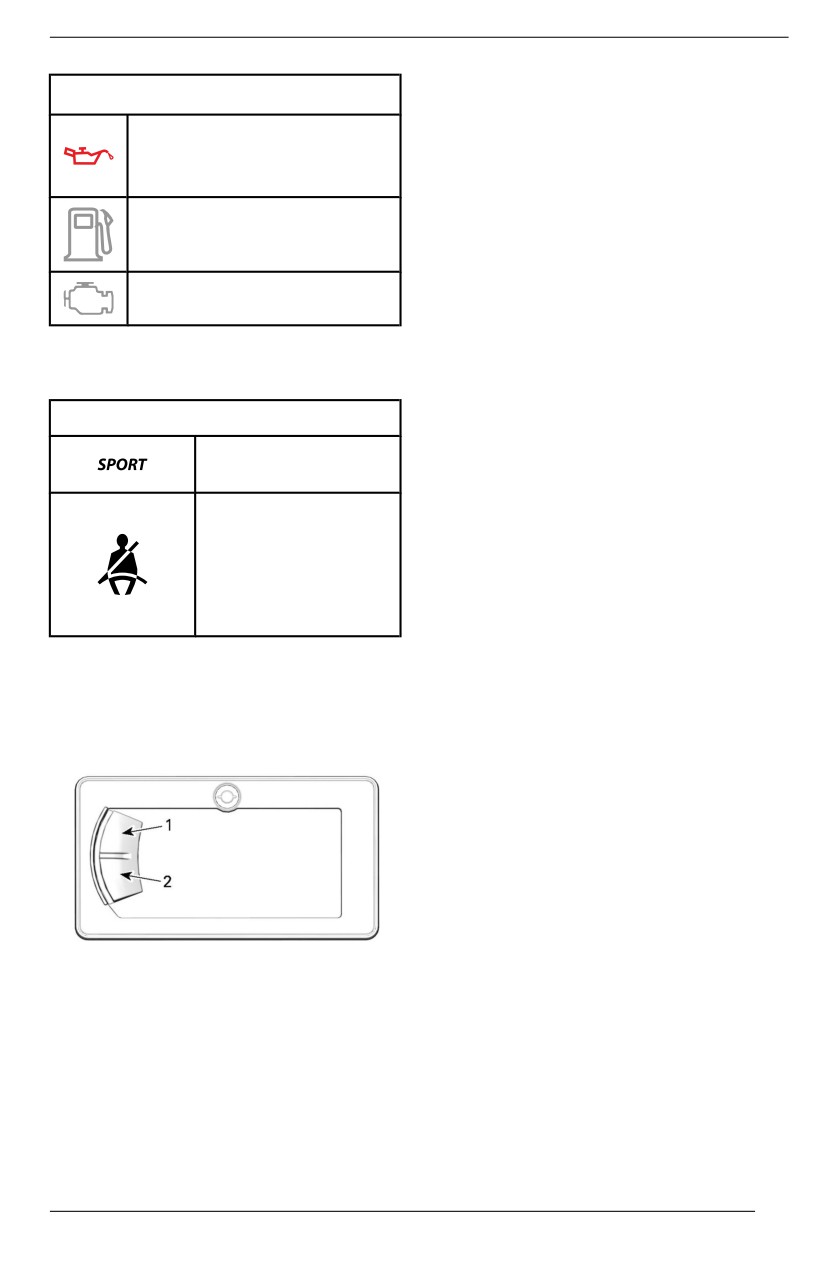

4.5” DIGITAL DISPLAY

Maiintenance Reset

Warning and Tellltale Lights

NOTE:

RED - Low oil pressure

Only when the maintenance icon is

(Normally ON at engine

displayed.

OFF)

Using LOWER button, select RES

MAINT and hold to reset

ORANGE - Low fuel level

maintenance.

Fault Codes

ORANGE - Check engine

Available only when at least one code

is activated.

Icons and Indiicators - Multifunction

Using LOWER button, select CODES

Diispllay

and hold to see actives fault codes.

Icons and Indicators

Fault codes will be scrolled on the

Denotes SPORT

Lower Display.

mode is selected.

Reset Stats

When lit, seat belt

Using LOWER button, select RESET

not buckled with

STAT and hold to reset.

vehicle

immobilized.

Unit Selection

Flashing when

vehicle is moving.

This multifunction gauge is factory

preset in Imperial units but it is possi-

ble to change it to Metric units.

Settings

Using LOWER button, select UNITS

The buttons to navigate through me-

and hold button to change units.

nus are located on the left side of the

LCD display.

Setting Cllock

All of the following action must be per-

formed using the LOWER button.

1. Select CLOCK and hold to adjust

clock.

2. Press the button to select clock

display.

1

3. Push and hold the button for

second.

1. Upper button

4. Press the button to select 12:00

2. Lower button

AM PM or 24:00 time base.

5. Push and hold the button to ac-

Setup

knowledge selection.

Using LOWER button, select SET-

6. Press the button to change hours

TINGS and hold to enter setting

(hours flash).

menu.

7. Push and hold the button to ac-

knowledge hour selection.

8. Press the button to switch to mi-

nutes (minutes flash).

93

4.5” DIGITAL DISPLAY

9. Push and hold the button to ac-

knowledge minutes selection.

Setting Language

The gauge display language can be

changed.

Refer to an authorized Can-Am Off--

road dealer for language availability

and to setup the gauge to your

preference.

Setting Briightness

The brightness of the LCD display can

be adjusted.

Using LOWER button, select

BRIGHTNESS and hold button to

change brightness.

Using LOWER button, adjust bright-

ness then push and hold the button to

acknowledge selection.

94

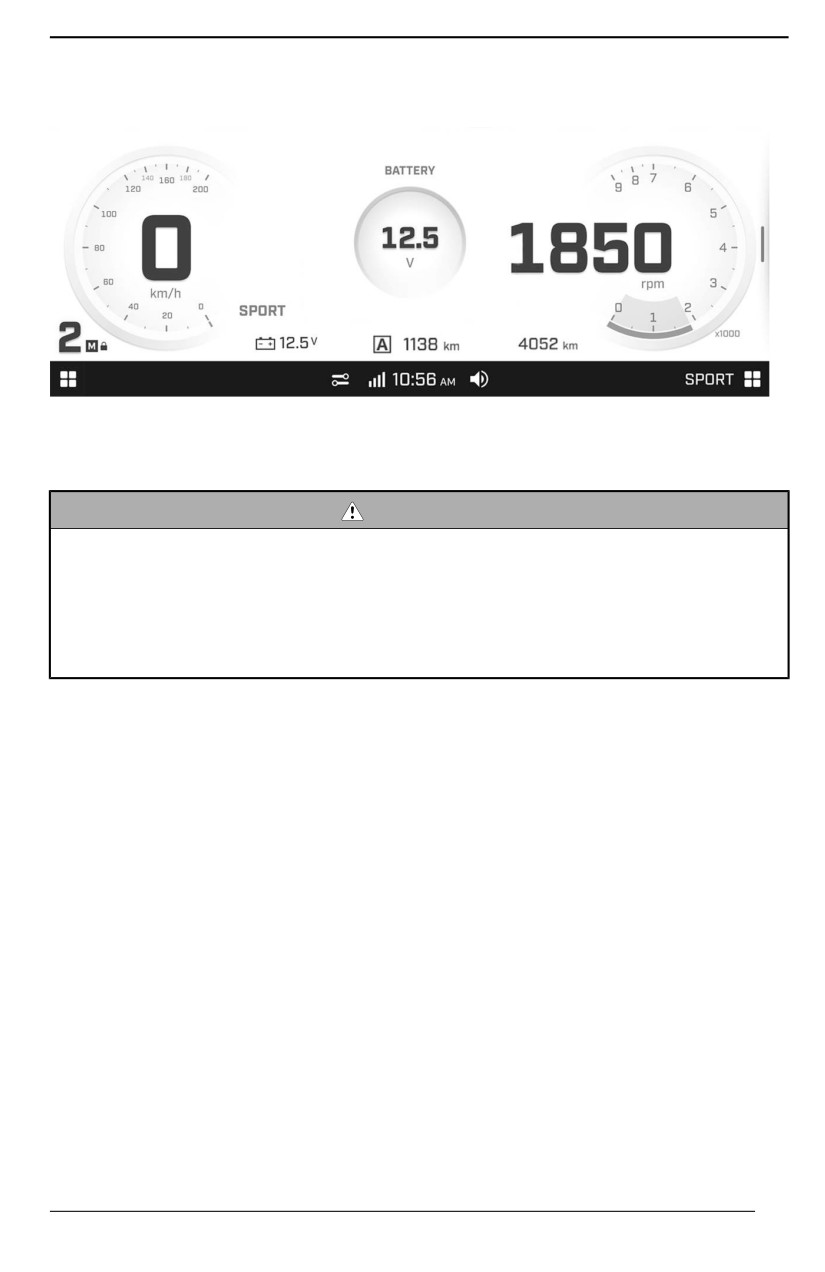

10.25” COLOR TOUCHSCREEN DISPLAY

Default Display

A dark mode is also available when riding in the evening or at night.

Navigating the Digital Display

WARNING

Readiing or tamperiing wiith the diigital diispllays can distract you from the

operation of the vehiicle, particularlly from constantlly scanniing the

enviironment.

Allways pay attention to road conditiions, ensure your enviironment is clear

and free from obstaclles.

Furthermore, when riidiing, only glance at the diigital displays briieflly to

maintain awareness of road condiitions.

We recommend that you practice selecting some functions on the infotainment

center before starting your ride. You will get used to them, and they will be easier

to use during the ride.

The display is touchscreen, you can navigate the different menus and functions

while the vehicle is at rest.

The touchscreen is disabled at 5 km/h (3 MPH).

The steering wheel multifunction buttons can also be used to navigate the menus

and functions of the display, even when the vehicle is moving.

Pressing the Applet Swiitcher button on the LH side of the steering will allow you

to cycle through the apps in the right lateral display, in the order that can be de-

fined in the preferences.

Center Display

In full-gauge view, long tap in the upper-center area of the screen to show one of

the following extra gauges. Use additional long taps to cycle through the extra

gauges:

- Battery Voltage

- Gear Indicator

- Boost % (turbo boost percentage)

95

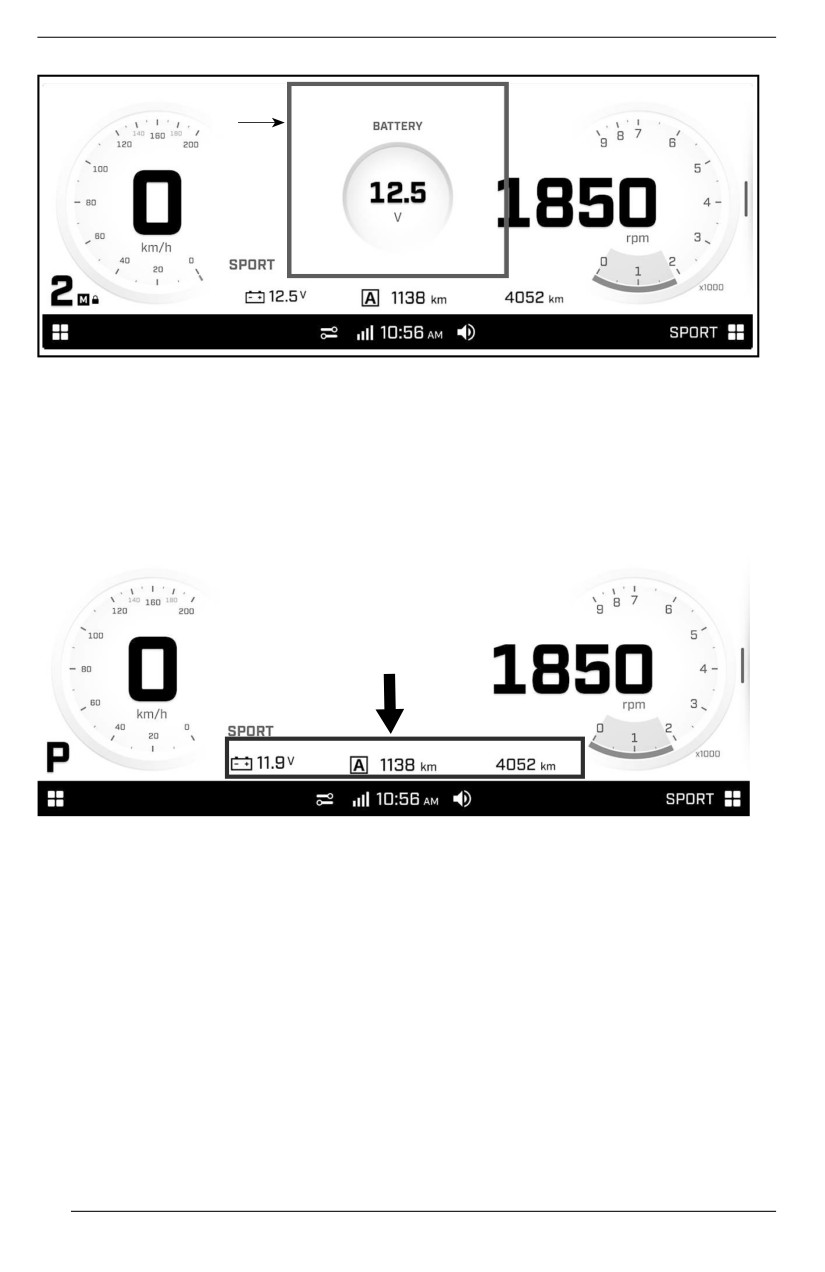

10.25” COLOR TOUCHSCREEN DISPLAY

1

1. Long tap in this area to view extra gauges

In full-gauge view, long tap in the lower-center area of the screen to show the fol-

lowing information. Use additional long taps to cycle through the items:

- Trip A distance

- Trip A hours

- Trip B distance

- Trip B hours

Views Display

To change from full-gauge view to narrow view, press the applet switcher or drag

the divider from the right side of the display.

To change back to full-gauge view, long press on the applet switcher or drag the

divider to its original position.

96

10.25” COLOR TOUCHSCREEN DISPLAY

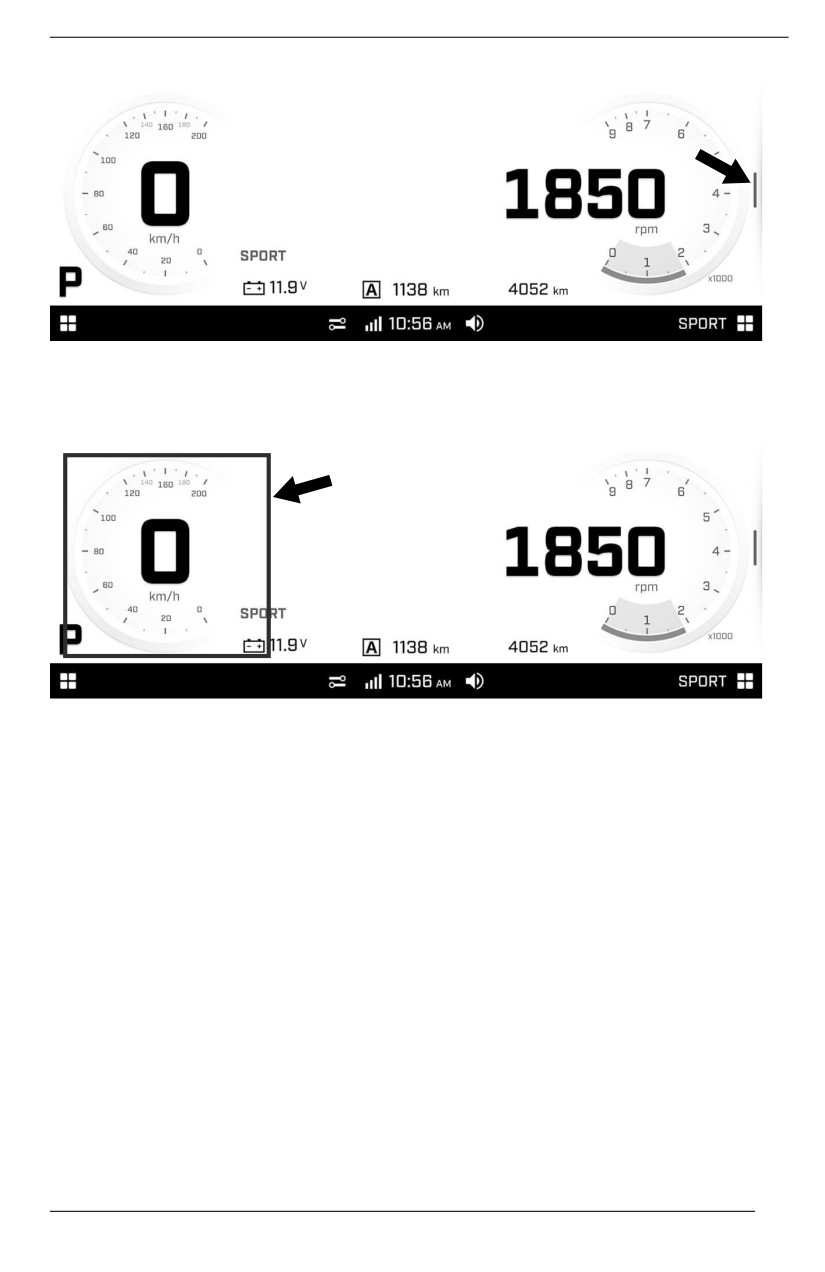

The sizes of the left and right lateral displays cannot be adjusted.

Left Lateral Display

In narrow view, the left lateral display includes:

- Gauge

• Battery voltage

• Vehicle hours or Odometer

• Speedometer

• Trip meter

- Tachometer

- Media

97

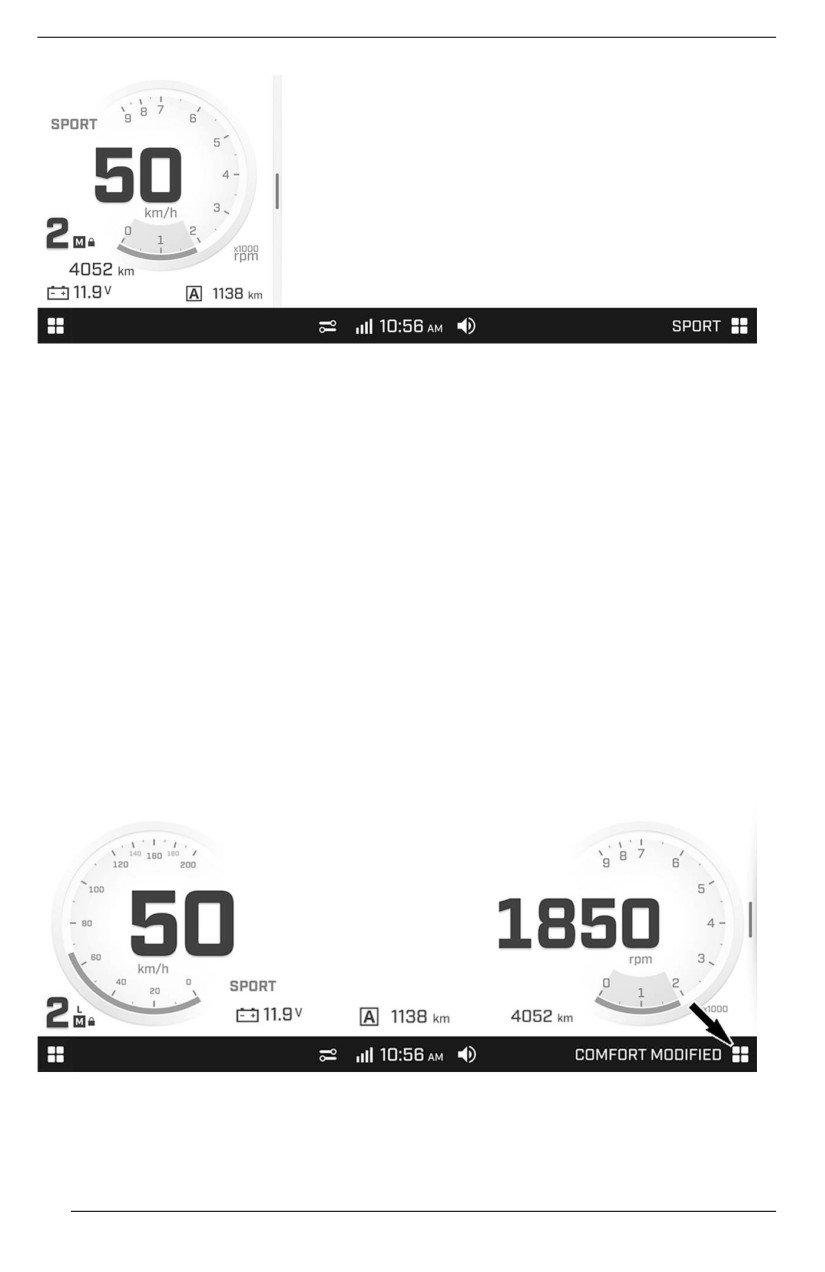

10.25” COLOR TOUCHSCREEN DISPLAY

NOTE:

To select between Gauge or Media, press the App Menu icon on the bottom left

of the screen.

In narrow view, long tap the trip meter to show one of the following. Use addition-

al long taps to cycle through the items.

- Trip A distance

- Trip A hours

- Trip B distance

- Trip B hours

Right Lateral Display

In narrow view, the right lateral display includes various apps. Refer to Right APP

Menu for more information.

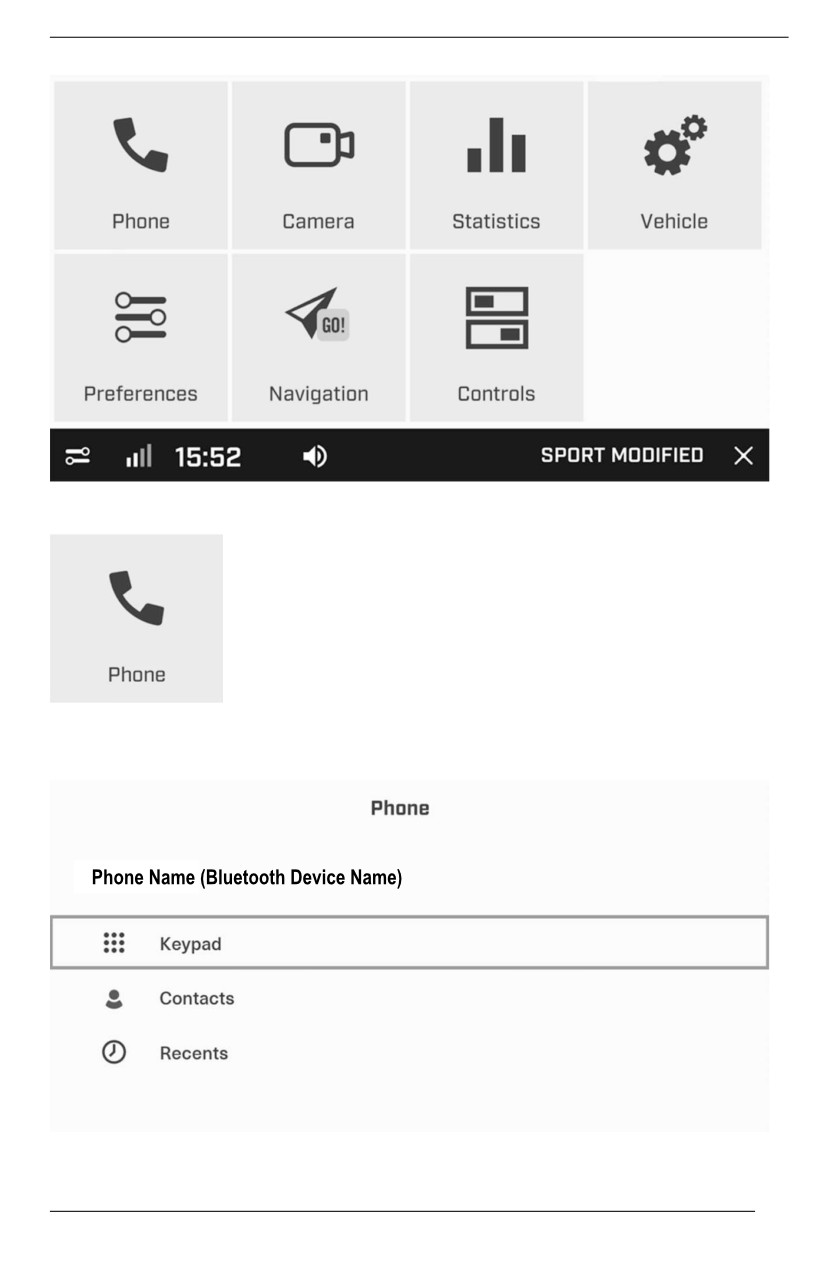

Right APP Menu

To access the right app menu, tap the App Menu icon in the bottom-right corner.

Select through the illustrated icons to open the corresponding app.

98

10.25” COLOR TOUCHSCREEN DISPLAY

Phone

To have access to the Phone menu, a phone and a headset must be paired. Re-

fer to Pair Your Smartphone Through Bluetooth.

99

10.25” COLOR TOUCHSCREEN DISPLAY

The Phone applet is used to access the following:

- The keypad

- The phone contact list

- The phone history

Camera

Allow to active the vehicle’s cameras (if equipped) to view the areas behind or in

front of the vehicle.

Statistics

The Statistics applet is used to access the following:

- Trip distance information

- Trip elapsed time information

- Average speed

100

10.25” COLOR TOUCHSCREEN DISPLAY

Three sets of statistics are stored in memory.

- Trip A can be reset independently.

- Trip B can be reset independently.

- Current ride statistics will be reset when the vehicle restart.

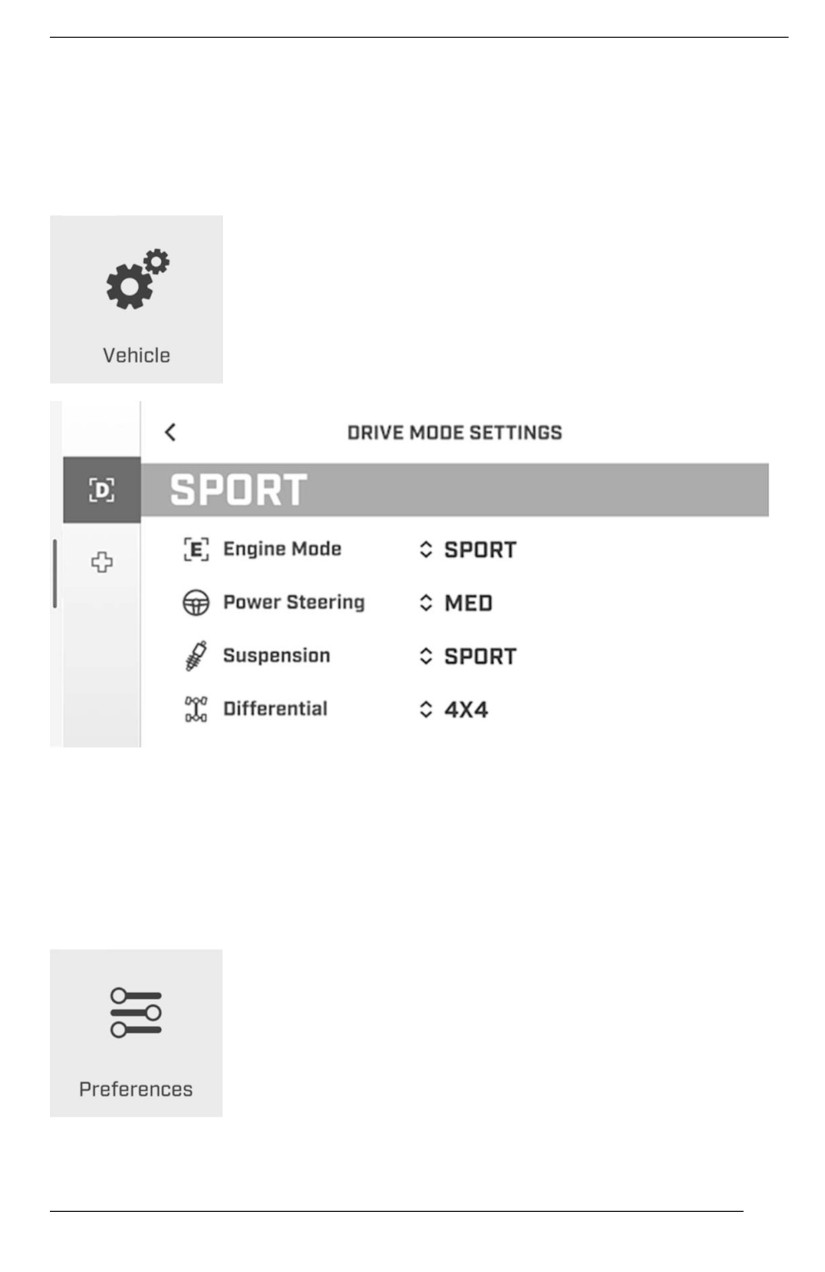

Vehicle Settings

The Vehicle Settings menu is used for the following:

- Adjusting the drive mode settings

- Viewing vehicle health:

• Vehicle information

• Maintenance

• Faults (codes and descriptions)

Preferences

The Preferences applet is used for the following:

101

10.25” COLOR TOUCHSCREEN DISPLAY

- Adjusting the display brightness and appearance (LIGHT/DARK/AUTO)

- Pairing Bluetooth devices:

• Phone

• Driver headset

• Passenger headset

- Connecting the vehicle to a Wi-Fi network

- Accessing to the Audio menu

• Configure the audio output (headset or speaker (if equipped)

• Access to Fade/Balance configuration

- Accessing General settings:

• Adjusting the units (Imperial/Metric)

• Setting the language

• Setting the date and time

• Updating the software via WiFi

• Getting information about the manufacturer information and device

regulatory compliance

• Resetting the display to factory settings

- Defining the apps to be used with the Applet Switcher button while riding

- Defining the settings to be used with the Ride Settings button while riding

It is recommended that you check regularly for software updates.

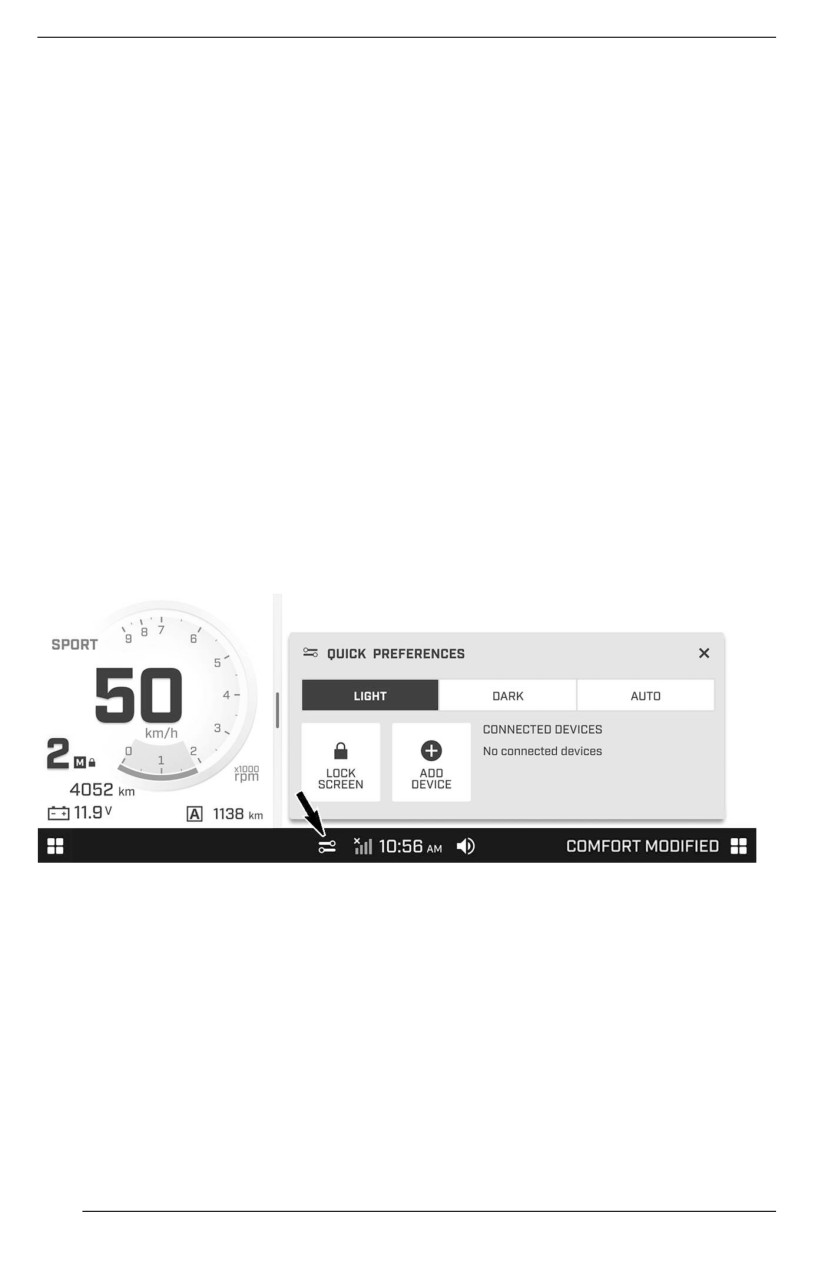

Quick Preferences

To access the Quick Preferences menu, tap the following icon.

The Quick Preferences menu is used for the following:

- Adjusting the display appearance (LIGHT/DARK/AUTO)

- Locking the screen (press and hold anywhere on the screen to unlock)

- Adding a Bluetooth device

- Viewing connected Bluetooth devices

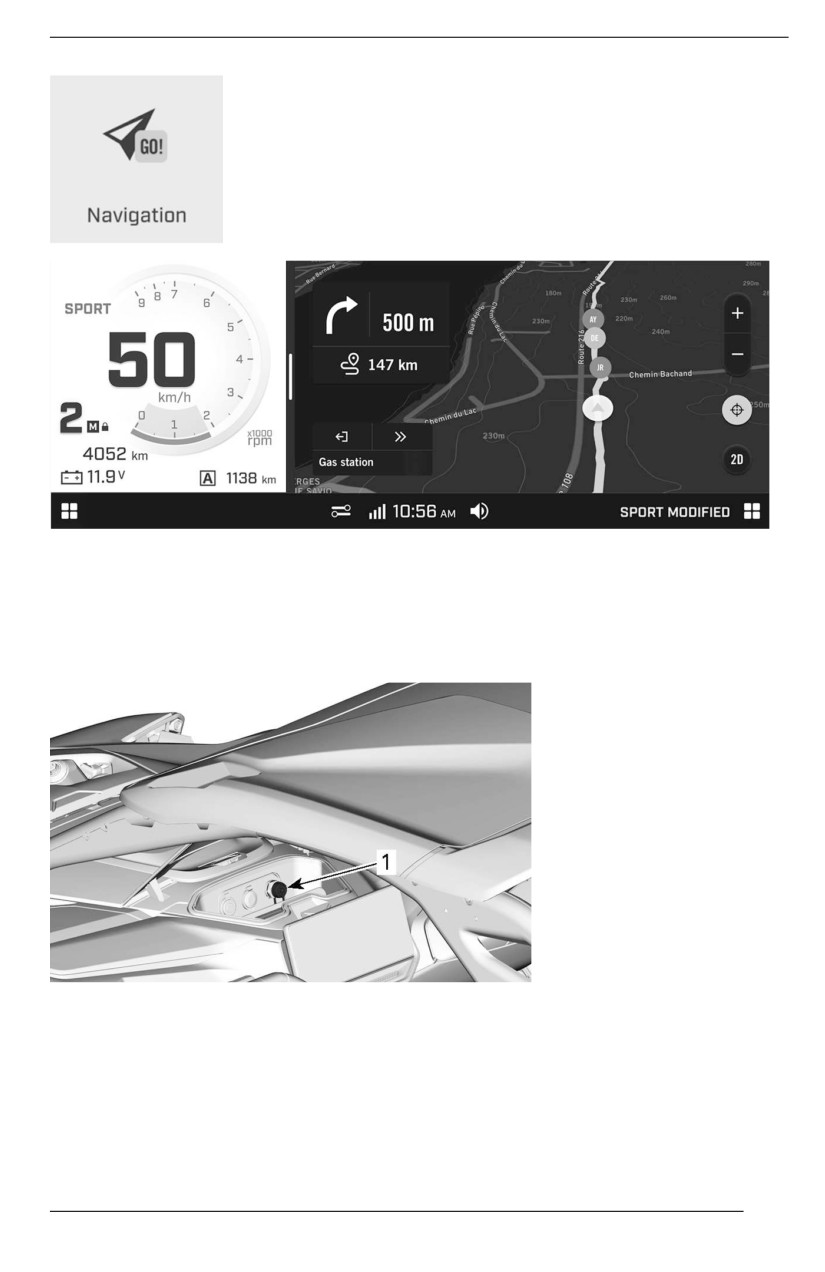

Navigation

102

10.25” COLOR TOUCHSCREEN DISPLAY

To use the Navigation applet on the display, you must connect via USB connec-

tion a mobile device with the BRP GO! app. The app can be downloaded from

the Apple App Store or Google Play Store via a simple search.

The mobile device must be connected with a USB cable to the touchscreen USB

port (with a screw-on cap) located in the central storage compartment.

1. Touchscreen USB port

For more information on the BRP GO! app (installed and opened), see the BRP

GO! section in this document or visit the Can-Am Off-Road website.

- www.brpconnecttutorial.com

103

10.25” COLOR TOUCHSCREEN DISPLAY

User agrees that personal data (contact list and call history) be transferred to the

cluster when device is connected.

User's personal data will be deleted from the cluster when the device is

disconnected.

Controls

The Controls menu is used for the following:

- Controlling your accessories

- Adding an accessory to the Controls menu

- Deleting an accessory from the Controls menu

- Edit SMART CONTROL CENTER buttons (optional)

After opening the Controls menu, press the 3 dots on the upper right side of the

screen.

Select the required action.

104

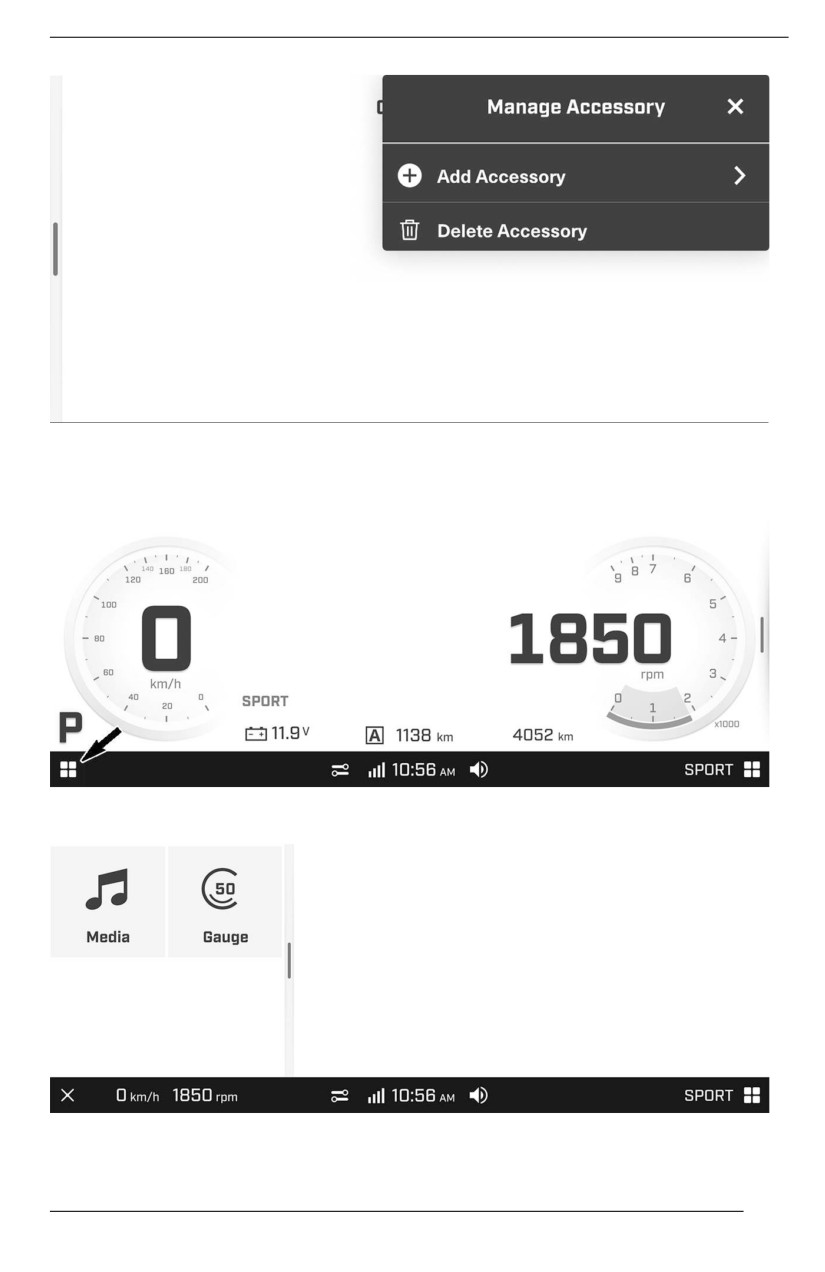

10.25” COLOR TOUCHSCREEN DISPLAY

Left APP Menu

To access the left app menu, tap the App Menu icon in the bottom-left corner.

Tap an icon to open the corresponding app.

Media

105

10.25” COLOR TOUCHSCREEN DISPLAY

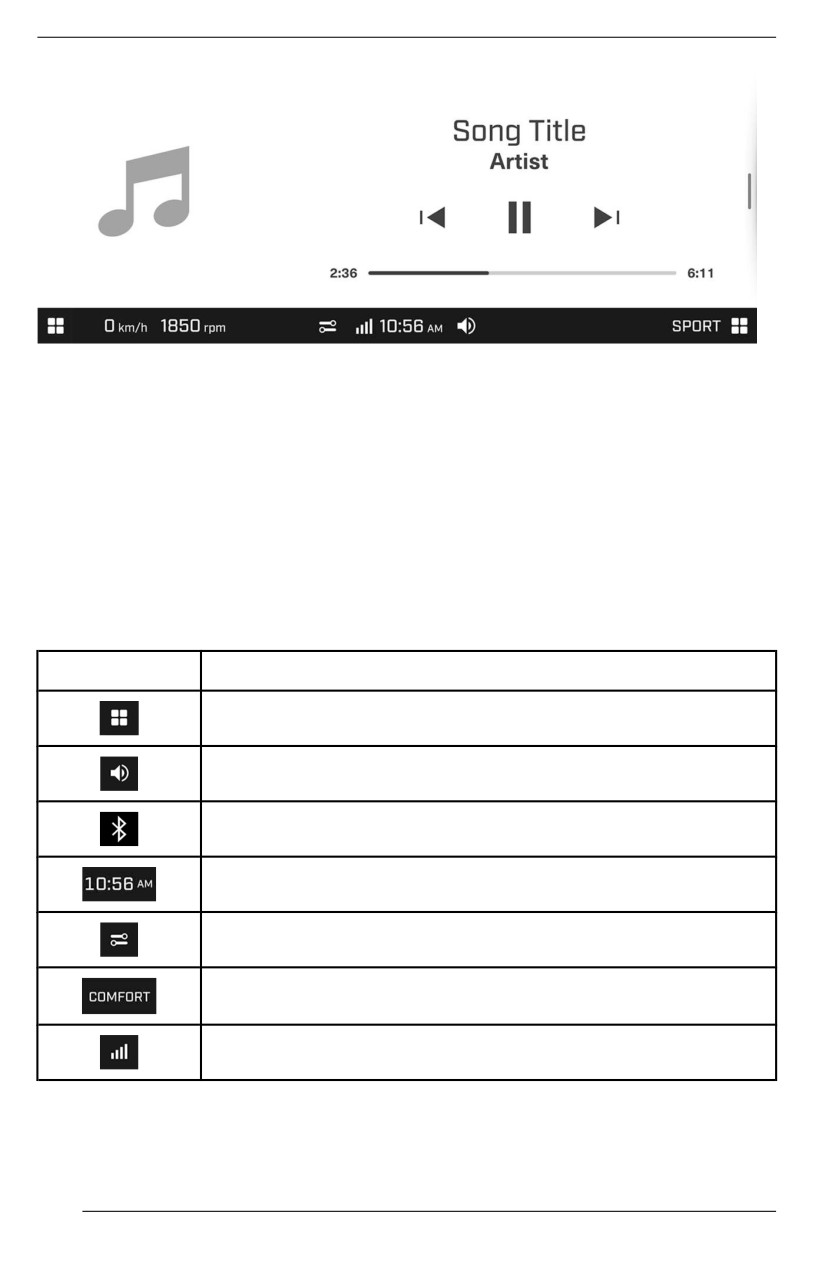

The Media applet is used to:

- Control song choice and volume in the helmet or vehicle audio system

- View song information (when available)

This vehicle is not equipped with speakers. An appropriate helmet audio system

is required to listen to music.

A speaker kit can also be added as accessories.

Gauge

The Gauge menu is used to return to the Default display.

Icons and Indicators - Multifunction Display

Icon

Description

App menu

Audio volume

Bluetooth

Clock

Quick preferences

Drive modes

Smartphone network connection

106

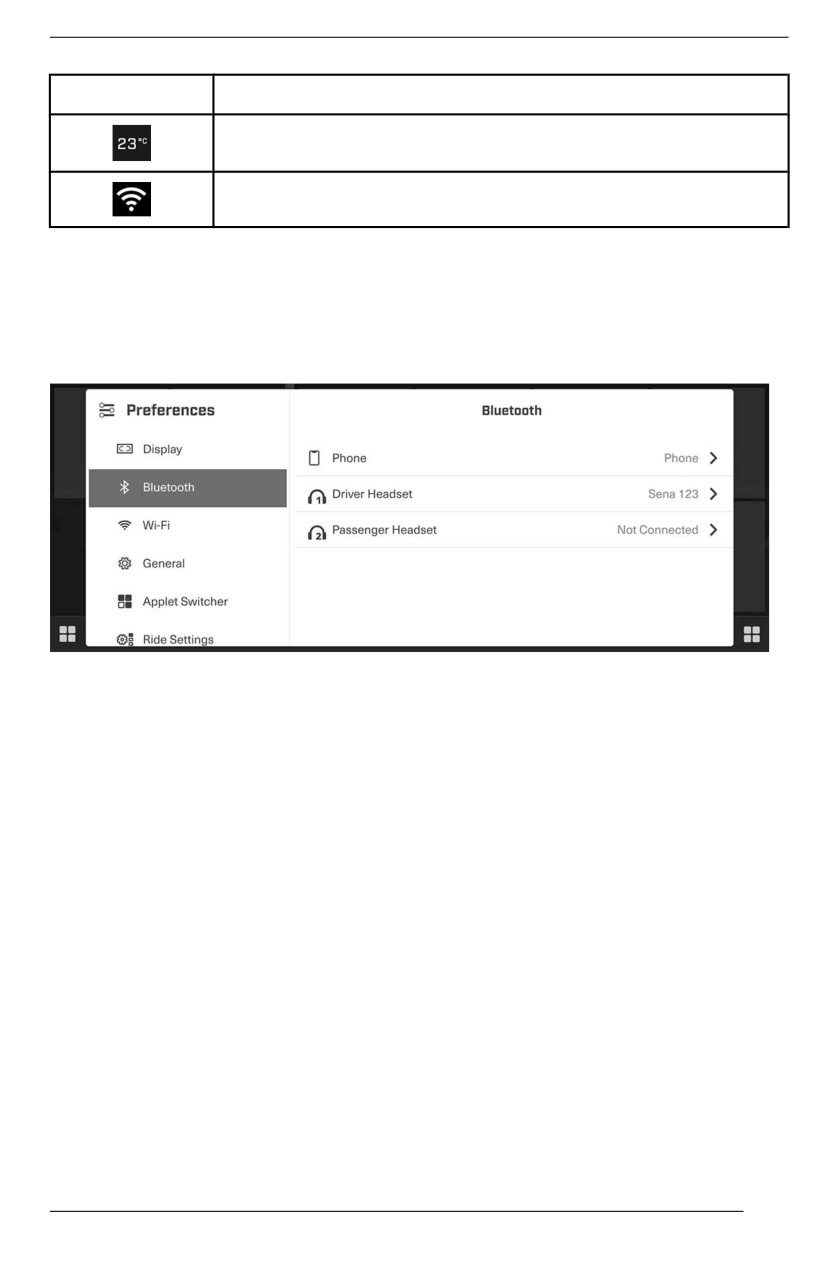

10.25” COLOR TOUCHSCREEN DISPLAY

Icon

Descriiptiion

Temperature

Wi-Fi

Pairing Your Smartphone Through Bluetooth

On the Vehicle

1. Open the App menu.

2. From the Preferences menu, choose Bluetooth.

3. Expand Phone.

4. Select Add Device.

NOTE:

Up to two smartphones can be paired with the vehicle. However, only one will

connect at any given time.

ON THE PHONE

1. Activate your phone’s Bluetooth™ function.

NOTE:

Refer to your phone manufacturer’s user guide for the detailed procedure.

Once the vehicle display finds your phone, its name (i.e, BRP_ [last 4 diigits

of the vehiicle’s VIN]) will appear on the phone.

2. On the vehicle display, select your phone’s name.

3. A confirmation number will appear on your phone and on the vehicle display.

Make sure that these numbers match.

4. On your phone, tap Pair.

5. Allow Contacts and Favorites Sync on your phone to use Recent and Con-

tacts in the phone app.

107

10.25” COLOR TOUCHSCREEN DISPLAY

A notification will confirm the pairing.

Paiiring a Hellmet

To pair a helmet, refer to Pairing your Smartphone Through Bluetooth. Then se-

lect Driiver Headset or Passenger Headset.

BRP Connect

Follow these steps to set up your smartphone with BRP Connect.

1) Download the BRP GO! Smartphone App

Download the BRP GO! app via the App Store for Apple™ or the Google™ Play

Store for Android.

2) Connect Your Smartphone Using a USB Cablle

It is recommended to use an original charging cable from the smartphone OEM

to optimize transfer between the phone and the vehicle.

The USB cable must be connected to the USB port with a screw-on cap located

in the central storage compartment.

1. USB port with a screw-on cap

1. Unlock your phone screen

2. Connect your phone charging cable

3. A checkmark will appear on your phone screen once the connection is done.

3) Access the Naviigatiion Appllet

The Navigation applet can be selected either by tapping the App Menu icon in

the bottom-right corner of the touchscreen display or using the left applet switch

on the steering wheel.

In the App Menu, select "Navigation".

108

10.25” COLOR TOUCHSCREEN DISPLAY

Quick Tour of the BRP GO! App

1

2

3

4

5

6

7

1. My Profile: Manage your profile and your account settings.

2. Playground: Select your playground to see content related to your vehicle.

3. Navigation: Access all the navigation features of the app such as route plan-

ning, turn-by-turn navigation, friends location, offline navigation, and more.

Maps may vary depending on the region where you are located.

4. BRP Connect: See the list of compatible apps that can be used on the vehi-

cle's display. You can also access from there the Vehicle Connection Guide

to help you connect your phone to your vehicle's display.

109

10.25” COLOR TOUCHSCREEN DISPLAY

5. FAQ: This link takes you to answers of common questions asked by riders

like you. An internet connection is required.

6. Rides: Easily access your planned and completed rides made with the Navi-

gation features of the BRP GO! app.

7. Accessories, Parts and Gear: This link takes you to the online store of your

vehicle. An internet connection is required.

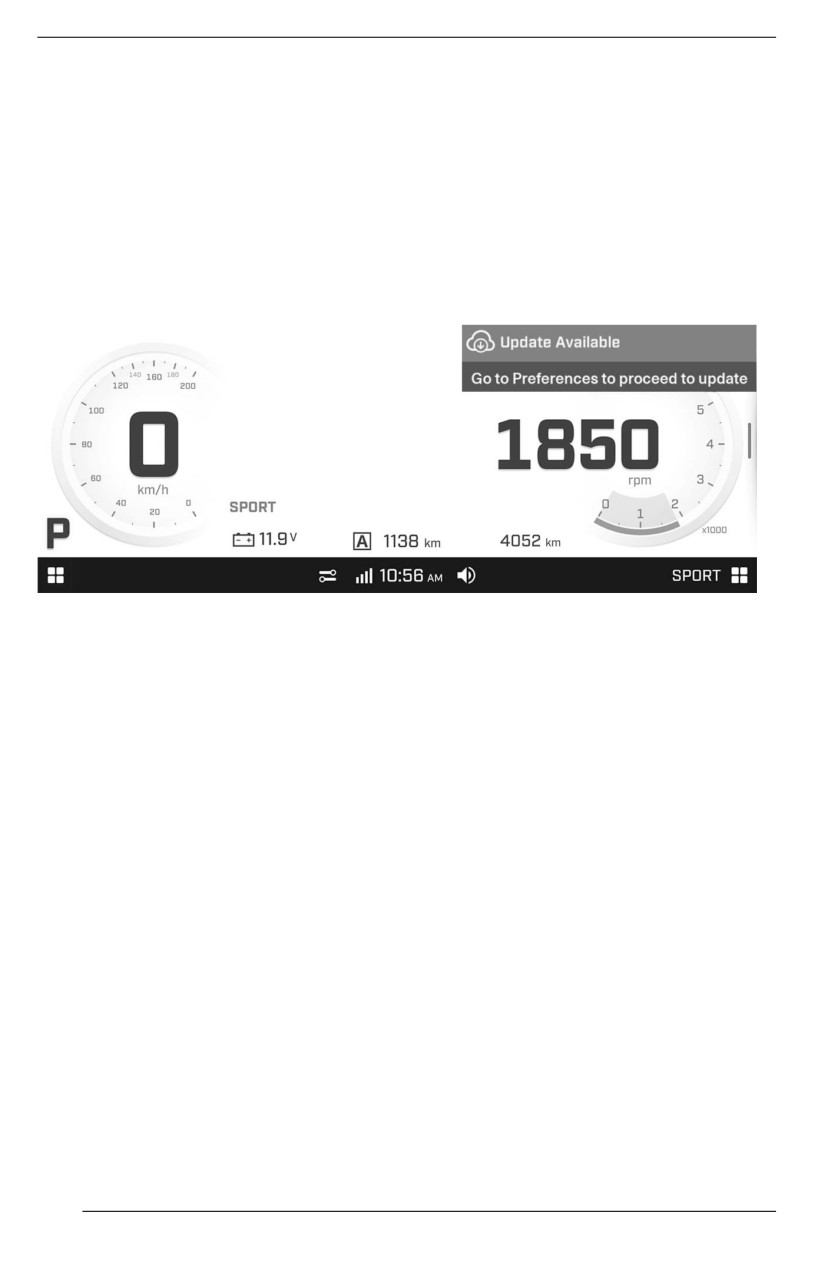

Messages in Touchscreen Display

Infotainment notifications include messages regarding connected devices

Notifications will always appear at the top right corner of the screen.

110

TUNE YOUR RIDE

Drive Mode

To change between engine modes,

press ENGINE MODE button on key-

Use this button

on the keypad to

pad to cycle through available modes.

select the Drive modes

MODE

Setting

The drive modes are a combination of

many predetermined settings.

Low shifting point

Nor

Idle speed around 1500

SUS

mal

RPM

MODE

PEN

DPS

4WD

Use for a smooth ride

SION

Higher shifting point than

Normal

Comfort

Max

TRAIL

Normal mode

TRAIL

Idle speed around 1800

Sport

Sport

Max

Sport

Active

RPM

Use for a more sportive

TRAIL

ride

Sport+

Sport+

Max

Active

Higher shifting point

without boost lag

You can also create a personalized

Sport+

Idle speed around 2500

Drive mode by choosing the settings

RPM

that best suit your driving style.

Use for the extreme ride

Engine Mode

4WD Mode

Use this button

on the keypad to

select the Engine modes

Use this button

on the keypad to

setup the differential modes.

The NORMAL setting reduces the fuel

consumption and the comfort by limit-

The first press will show the current

ing throttle response and selecting a

4WD state.

higher gear to maintain an optimal

A second press will change the 4WD

cruising setting. Use the NORMAL

mode to the next one.

mode can also be used on bumpy

trails to provide smoother ride

The 4WD will mechanically engages

conditions.

only when the engine is running and

can be activated on the fly.

The SPORT mode provides a crisper

throttle response.

To engage 4WD with the engine off,

The SPORT+ mode provides a crisper

apply full throttle and hear to confirm

throttle response without turbo lag and

for the 4WD solenoid engagement.

maintains higher turbo speed t low en-

4WD Trail

gine load for an optimal dynamic

response.

This mode must be used during all

normal riding.

NOTE:

The transmission behavior is also im-

The front differential will automatically

pacted by the engine mode. The

synchronize the front wheels as

SPORT and SPORT+ modes will shift

needed.

at higher rpm, downshift sooner and

4WD Trail Active

maintain a lower gear to optimize ac-

celeration and response.

111

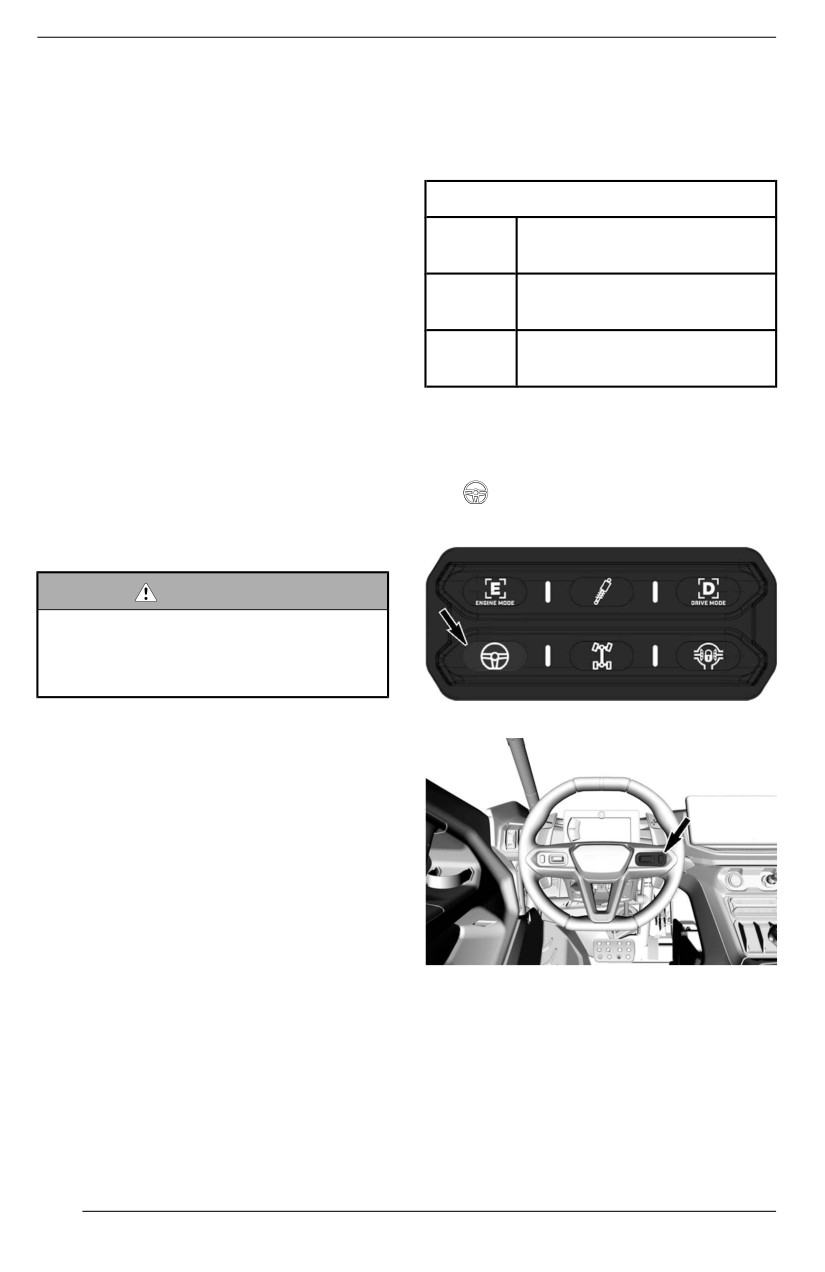

TUNE YOUR RIDE

This mode is used to increase traction

automatically, so it does not need to

on the front drive train.

be changed while riding.

This will optimize traction while going

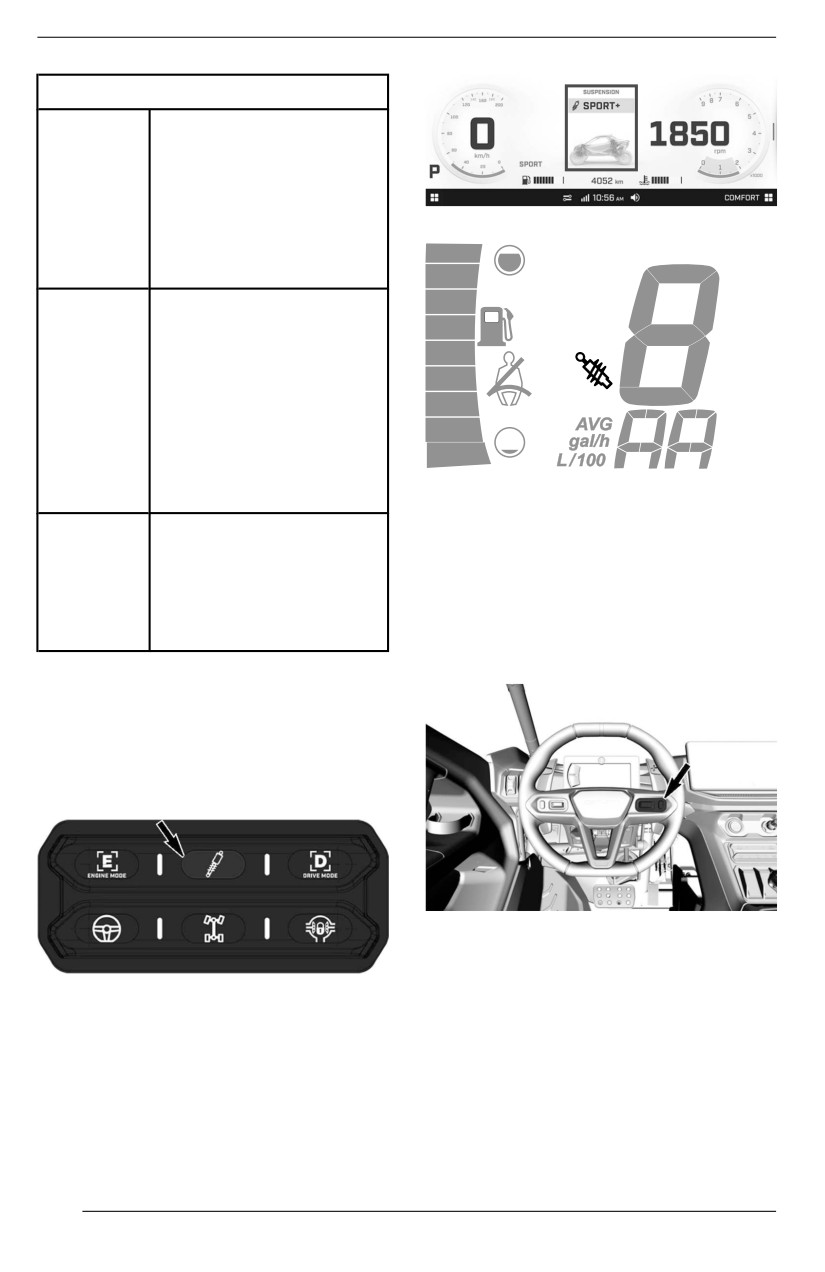

The following DPS modes are preset

out of a corner and/or while doing hard

in the vehicle.

acceleration by the detection of the

engine torque required by the driver.

DPS MODE

When using this mode, you need to

DPS

Maximum steering assist

adjust of your driving style as the front

MAX.

drivetrain is going to pull more than

DPS

usually.

Medium steering assist

MED.

4WD Front Diff Lock

DPS

Minimum steering assist

This mode locks the front differential.

MIN.

The front differential is kept locked un-

To view the active DPS mode, pro-

til the button is pushed again to

ceed as follows:

unlock.

1. Press and release the DPS button

When using this mode, you need to

on the keypad or the right

adjust of your driving style as the front

control on the steering wheel.

drivetrain is going to pull more than

usually.

WARNING

The fullly locked optiion of the front

diifferentiial reduces the maneu-

verabillity of the vehicle iin certain

conditions.

DPS BUTTON ON KEYPAD - TYPICAL

DPS Function

The tri-mode Dynamic Power Steering

(DPS) offers easy steering assistance

to the rider. The level of assistance

adapts automatically according to the

vehicle’s speed and the rider’s de-

mand, in order to provide maximum

steering power at lower speeds,

where the demand is normally higher.

As speed increases, the level of assis-

tance is progressively reduced to

keep maximum precision and steering

STEERING WHEEL - RIGHT CONTROL

feel for the rider.

2. Check the message into the digital

display to confirm the active DPS

It is possible to choose between three

mode.

modes of assistance: Minimum, Me-

dium, and Maximum. These modes

To change the DPS mode, pro-

are used to set the level of assistance

ceed as follows:

to match each rider’s preferences.

3. Press and release DPS button.

Each mode will continue to adapt

112

TUNE YOUR RIDE

4. Check the message into the digital

Change one adjustment and retest.

display to confirm the active DPS

Proceed methodically until you are

mode.

satisfied.

5. Press and hold the DPS button for

Following are guidelines to fine-tune

2 seconds to go to the next setting.

suspension.

6. Release the DPS button.

7. Repeat until desired setting is

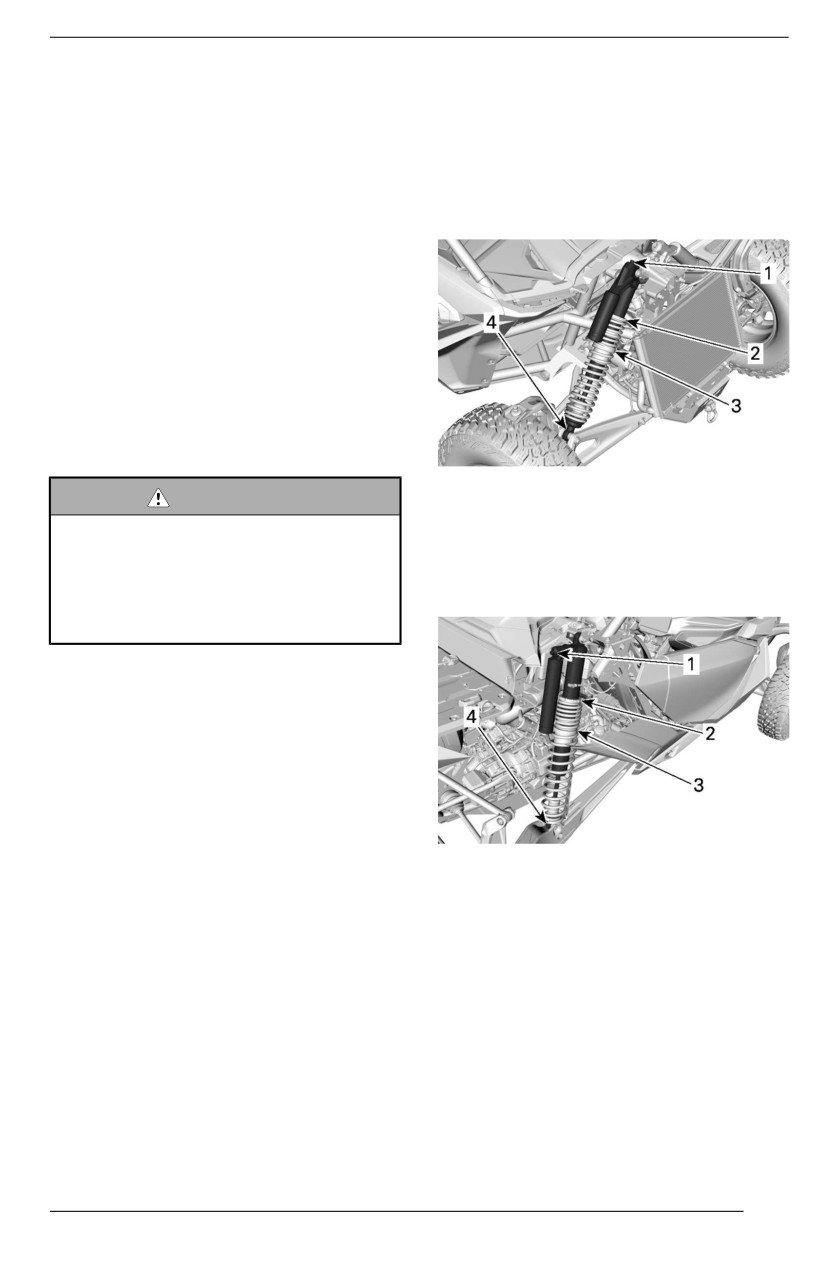

SHOCK ADJUSTMENT LOCATION

obtained.

NOTE:

The DPS adjustment will not be possi-

ble if the gearbox is set to REVERSE.

Suspension Adjustment

Guidelines

Handling and comfort of the vehicle

depend

upon

suspension

adjustments.

TYPICAL - FRONT SUSPENSION

WARNING

1. Compression damping (high speed and low

speed)

Suspension adjustment coulld af-

2. Preload

fect vehiiclle handling.

3. Spring crossover

Allways take tiime to famiiliiarize

4. Rebound damping

yourself with the vehiicle''s behav-

i

ior after any suspensiion adjust-

ment has been made.

Choice of suspension adjustments

vary with vehicle load, personal pref-

erence, riding speed and terrain

condition.

The best way to set up the suspen-

sion, is to start from factory settings,

then customize each adjustment one

at a time.

TYPICAL - REAR SUSPENSION

Front and rear adjustments are inter-

1. Compression damping (high speed and low

related. It may be necessary to read-

speed)

just the rear shock absorbers after

2. Preload

adjusting front shock absorbers for

3. Spring crossover

instance.

4. Rebound damping

Test run the vehicle under the same

conditions; trail, speed, load, etc.

Suspension Factory Settings

For adjustment procedures, refer to Suspension Adjustments.

Front Suspension Factory Settings

113

TUNE YOUR RIDE

Spring Preload

44.1 mm

Maverick R X

(1.74 in)

83 mm

Maverick R X rs

(3.27 in)

83.5 mm

Maverick R X rs with Smart-Shox

(3.29 in)

Crossover ring position

99.1 mm

Maverick R X

(3.9 in)

114.3 mm

Maverick R X rs

(4.5 in)

51.6 mm

Maverick R X rs with Smart-Shox

(2.03 in)

Compression Damping

Maverick R X

Position 2

Compression Damping

(LOW SPEED)

Maverick R X rs

2 turns

Compression Damping

(HIGH SPEED)

Maverick R X rs

2 turns

Rebound Damping

Maverick R X rs

Position 12

Rear Suspension Factory Settings

Spring Preload

283.9 mm

Maverick R X

(11.2 in)

114

TUNE YOUR RIDE

212.9 mm

Maverick R X rs

(8.4 in)

235.1 mm

Maverick R X rs with Smart-Shox

(9.26 in)

Crossover ring position

55.9 mm

Maverick R X

(2.2 in)

114.3 mm

Maverick R X rs

(4.5 in)

101.6 mm

Maverick R X rs with Smart-Shox

(4 in)

Compression Damping

Maverick R X

Position 2

Compression Damping

(LOW SPEED)

Maverick R X rs

2 turns

Compression Damping

(HIGH SPEED)

Maverick R X rs

2 turns

Rebound Damping

Maverick R X rs

Position 12

Suspension Adjustments

WARNING

Spring Prelload Adjjustment

The lleft and right shock adjust-

ment on front or rear suspension

Shorten the spring for a firmer ride

must always be set to the same

and rough riding conditions, or when

position.

carrying a load.

Never adjust one shock only.

Uneven adjustment can cause

Lengthen the spring for a softer ride

poor handlling and lloss of stability,

and smooth riding conditions.

which coulld lead to an accident.

Lift the vehicle. The spring length

should be measured without any load

on the wheels.

115

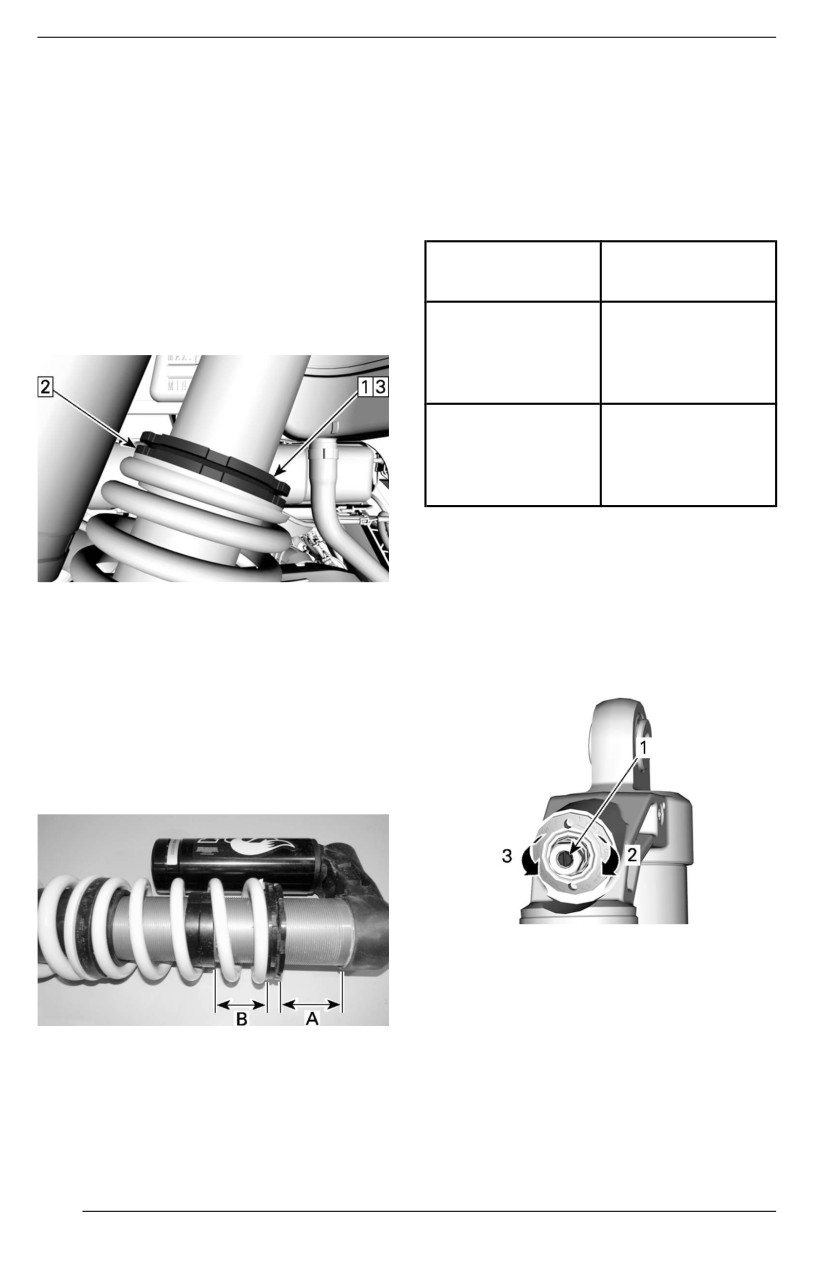

TUNE YOUR RIDE

The spring length should be the same

Low-Speed Compression Damping

on both sides.

(If Equipped)

Adjust by loosening the lock ring and

Low-speed compression damping

turning the adjuster ring as desired.

controls how the shock absorber re-

Use the tool from the vehicle tool kit.

acts to a low suspension velocity

(slow compression strokes, in most

cases when riding at lower speeds).

NOTE:

Factory settings are suitable for al-

most all conditions. Take into consid-

Result on Big

Action

eration that an increase in ground

Bumps

clearance can affect the handling of

the vehicle.

Increasing

Firmer

low-speed

compression

compression

damping (slow

damping force

compression)

Decreasing

Softer

low-speed

compression

compression

damping (slow

damping force

compression)

To adjust the low speed compression

damping:

TYPICAL

1. Turn the adjuster screw clockwise

1. Loosen top locking ring

until it stops.

2. Turn adjusting ring accordingly

2. Turn the adjuster screw counter-

3. Tighten top locking ring

clockwise the required number of

turns.

Adjjusting Spriing Crossover

Dual compression rate crossover

point can be modified by adjusting the

crossover rings position. See an au-

thorized Can-Am dealer.

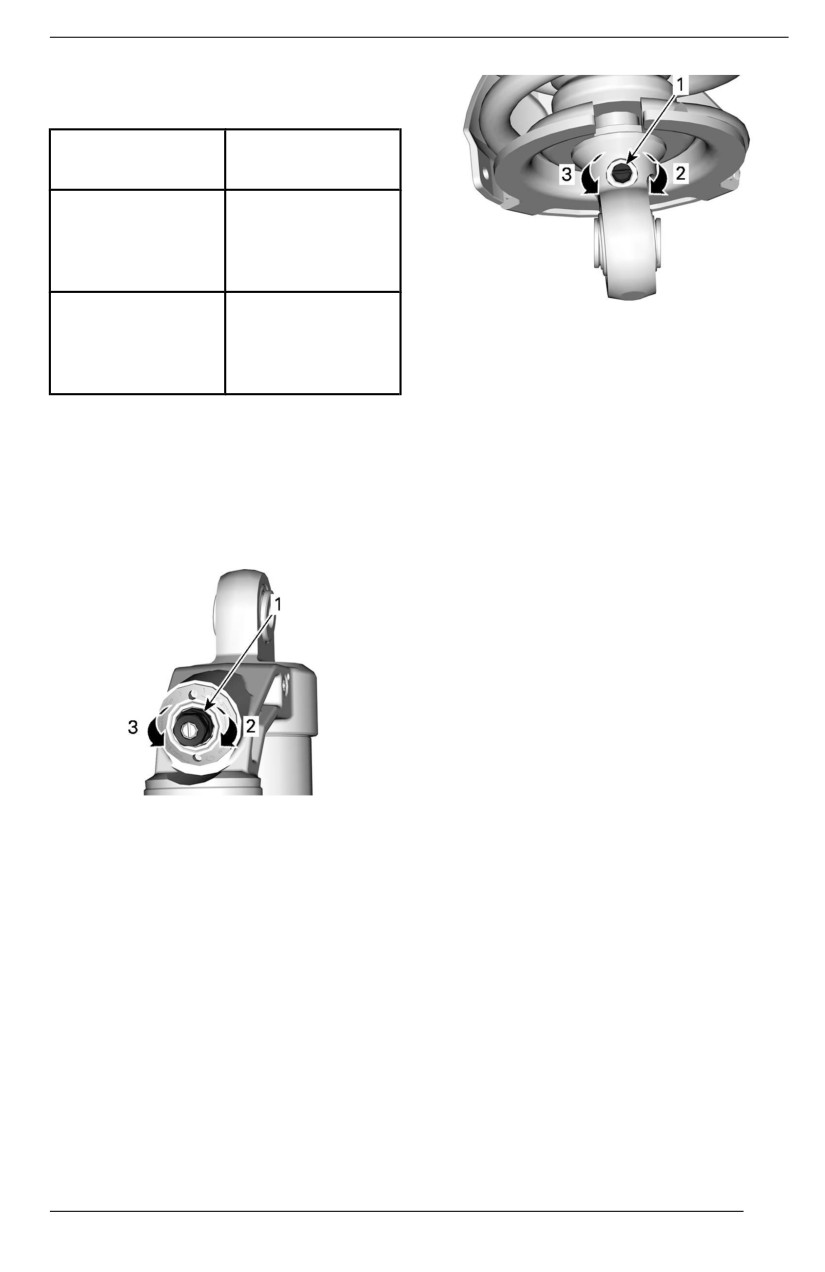

LOW-SPEED COMPRESSION DAMPING

(USE A SCREWDRIVER)

1. Adjustment screw

2. Increases compression damping (stiffer)

3. Decreases compression damping (softer)

TYPICAL - CROSSOVER ADJUSTMENT -

REAR SHOCK

Hiigh-Speed Compressiion Damping

A. Spring preload

(If Equipped)

B. Crossover ring position

High-speed compression damping

controls how the shock absorber re-

acts to a high suspension velocity

116

TUNE YOUR RIDE

(quick compression strokes, in most

cases when riding at higher speeds).

Result on

Action

Smalll Bumps

Increasing

Firmer

high-speed

compression

compression

damping (fast

damping force

compression)

Decreasing

Softer

1. Rebound adjuster

high-speed

compression

2. Increases rebound (stiffer)

compression

damping (fast

3. Decreases rebound (softer)

damping force

compression)

Smart-Shox Suspension Mode

To adjust the high-speed compression

The Smart-Shox suspension is an

damping:

electronically controlled compression

and rebound damping system that is

1. Turn the adjuster nut clockwise un-

integrated into each shock absorber.

til it stops.

2. Turn the adjuster nut counterclock-

It is possible to choose between three

wise the required number of turns.

modes of damping. These modes set

the level of damping to match the rid-

er's preferences.

The following Smart-Shox modes are

preset in the vehicle.

HIGH-SPEED COMPRESSION DAMPING

(USE A 17–MM WRENCH)

1. Adjustment screw

2. Increases compression damping (stiffer)

3. Decreases compression damping (softer)

Rebound Damping (If Equiipped)

Using a flat screwdriver, adjust the re-

bound damping as follows:

1. Turn the adjuster clockwise until it

stops.

2. Turn the adjuster counterclockwise

to the required position (clicks).

117
