BRP Sea-Doo FISHPRO SPORT AND TROPHY SERIES. OPERATOR’S GUIDE (2024) - page 1

IMPORTANT ON-PRODUCT LABELS

General Information – Warning Label

Require Proper Operation of the Boat

Improper operation can result in severe injury or death.

Operators Must Be Qualified

Make sure operator is 16 or older and has taken a boater safety course.

Your state (or province) may have additional requirements.

Operators Must Avoid Collisions

Scan constantly for people, objects and other watercraft.

Stay far enough away from others so you can always safely coast to a stop.

Do not release throttle when trying to steer away from objects-as with other

powerboats, you need throttle to steer.

Watch safety video.

Read Operator’s Guide

(https://www.sea-doo.com/owners/safety/safety-video.html)

Protect All Riders

Wear shorts with neoprene (wet suit material) and an approved PFD (personal flotation device)

- see Rider Safety section of this label.

Tell riders to read the Rider Safety section and make sure they are dressed appropriately.

Do not apply throttle when anyone is boarding or at rear of PWC.

Be sure riders are properly seated and holding on.

Avoid aggressive operation, sharp turns, and unexpected acceleration that can cause riders to be thrown off.

Do not jump waves or wakes - jumping can cause injuries such as back or spinal injuries (paralysis).

Do Not Permit Reckless Operation:

Do not go near others to spray or splash them with water, go too close to other boats, or go too fast

for traffic conditions.

Never ride after consuming alcohol or drugs.

RIDER SAFETY

Falls Can Result in Severe Injury or Death

You must wear shorts with neoprene (wet suit material) to keep water from being

forcefully injected into rectum or vagina during a fall backward.

Riders not wearing neoprene shorts have received severe rectal,

vaginal, and internal injuries resulting in permanent damage.

You must wear an approved PFD (personal flotation device).

Be sure you are properly seated and holding on.

Riders can be thrown off PWC during unexpected acceleration or

aggressive operation.

Never ride after consuming alcohol or drugs.

Do not ride if you are not dressed

appropriately.

5632

Patents :

www.brp.com/en/

Wear PFD

about-brp/patents

.html

Wear Neoprene

See Operator’s Guide

GENERAL INFORMATION – WARNING LABEL

TYPICAL – LABEL LOCATION

34

IMPORTANT ON-PRODUCT LABELS

Recommended Fuel - Notice Label

Use premium unleaded gasoline with an

AKI (RON+MON) /2 octane rating of 91,

NOTICE

or an RON octane rating of 95.

5707

RECOMMENDED FUEL - NOTICE LABEL

TYPICAL – LABEL LOCATION

35

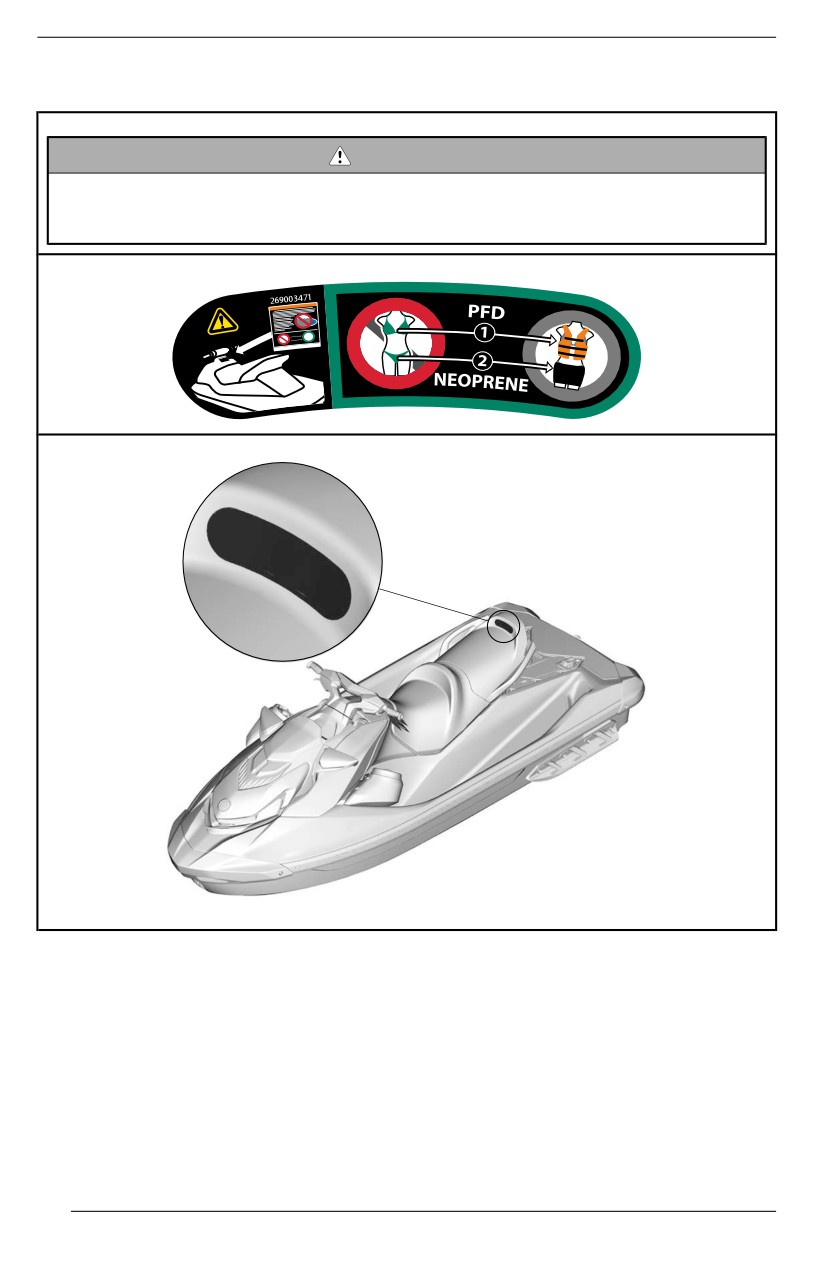

IMPORTANT ON-PRODUCT LABELS

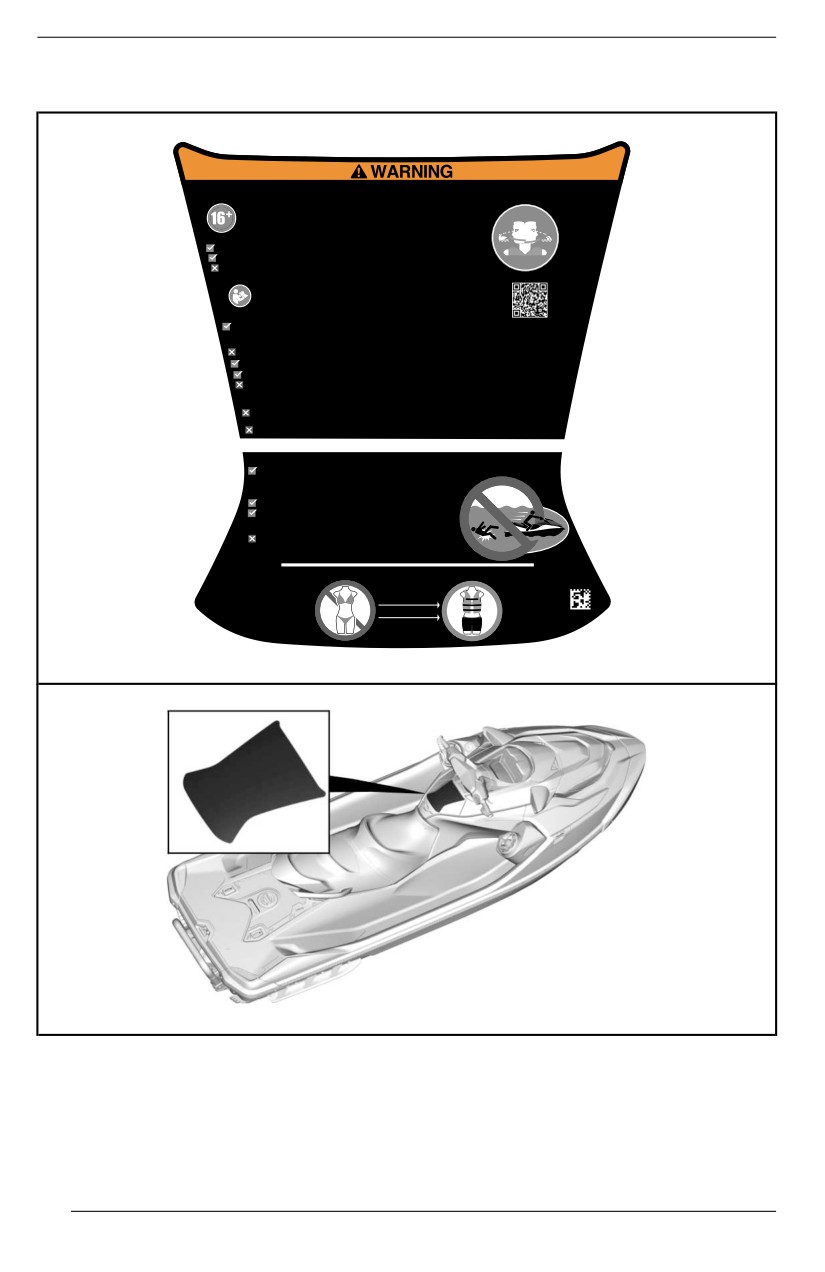

Passenger Appropriate Attire - Warning Pictogram

WARNING

– Refer to the generall safety label llocated on the gllove box.

– Riders must always wear an approved PFD.

– Riders must always wear shorts with neoprene (wet-suiit materiall).

TYPICAL – LABEL LOCATION

36

IMPORTANT ON-PRODUCT LABELS

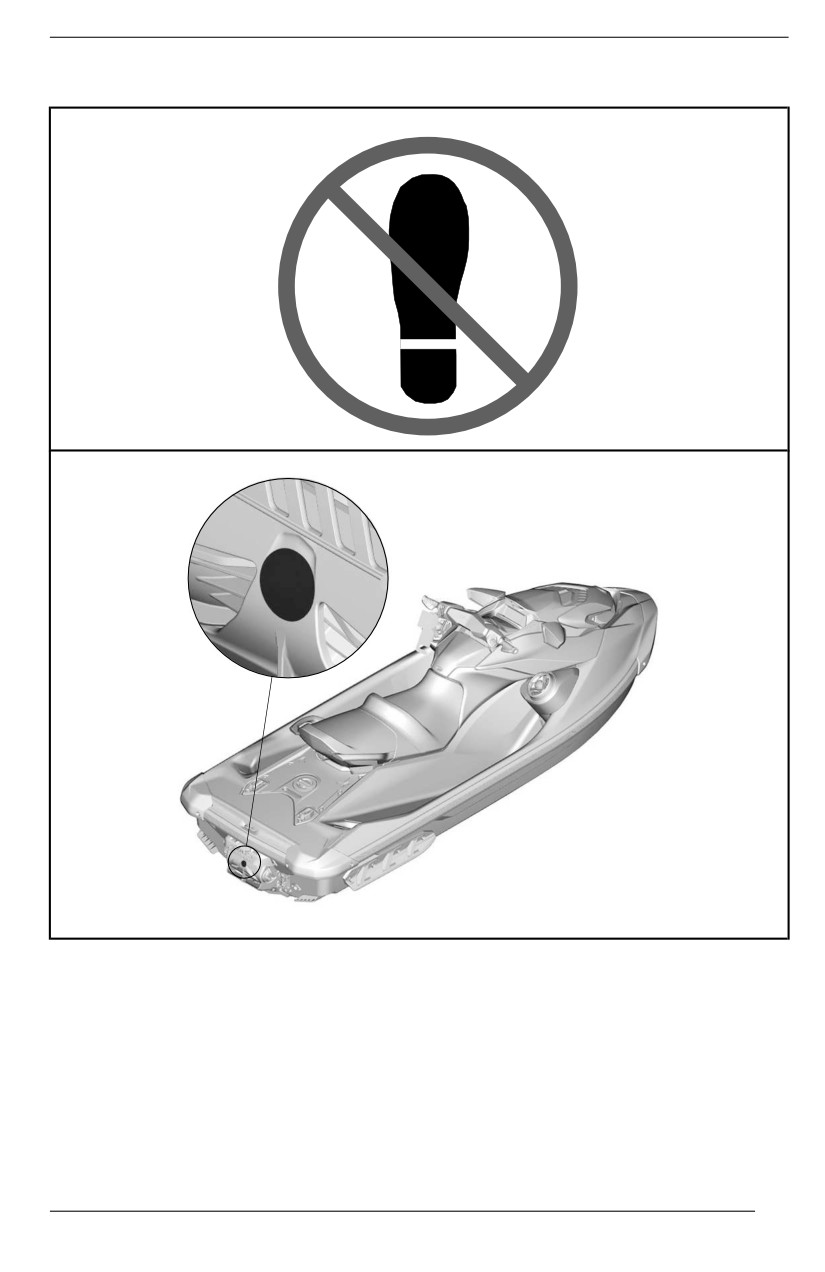

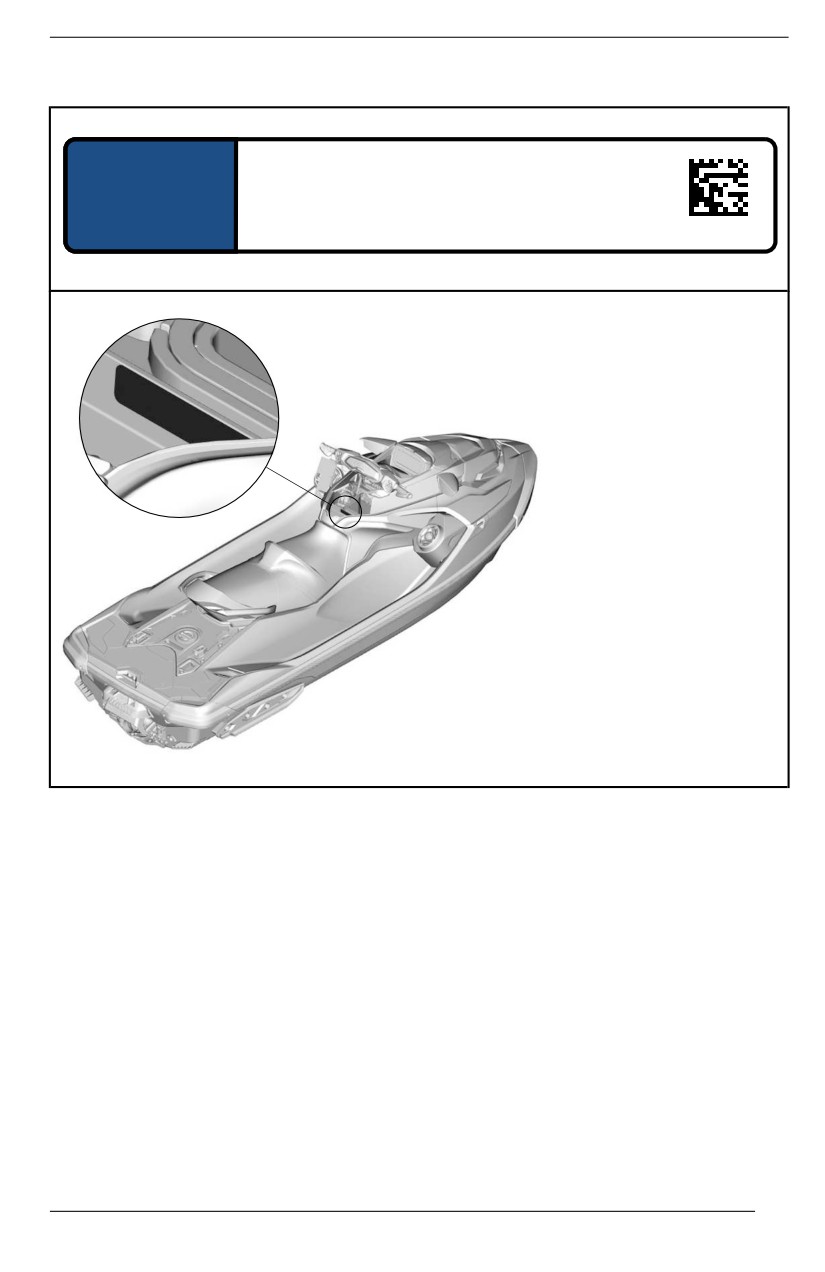

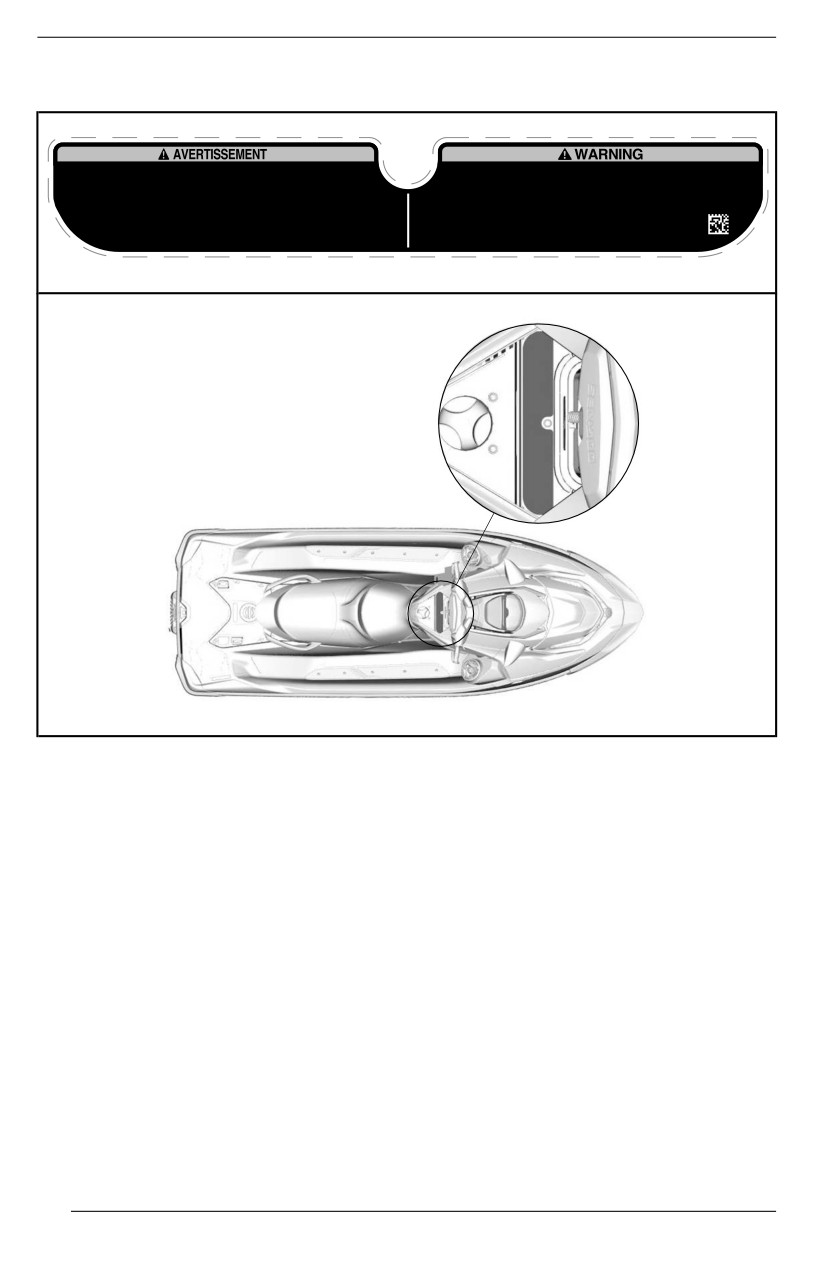

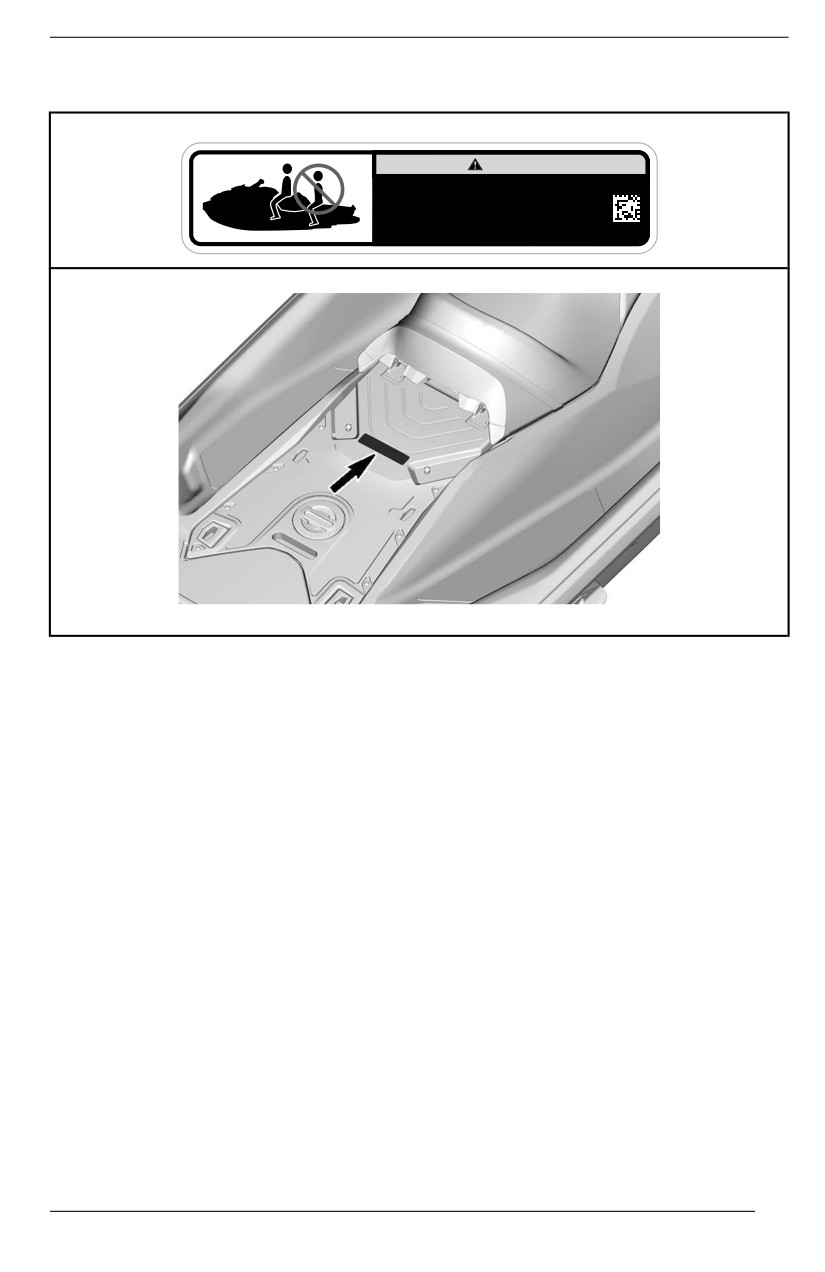

Do Not Sit Pictogram - Warning Label

WARNING

If a Ski-Pylon can be used on this PWC, always install

the rear seat to prevent injury when in use.

Before riding the PWC make sure to properly

install and lock the seat(s) into place.

5978

LABEL LOCATION

37

IMPORTANT ON-PRODUCT LABELS

Fueling Procedure - Warning Label

• Après avoir fait le plein toujours ouvrir le siège afin de s’assurer qu’il n’y ait pas d’émanation

• After refueling, always open the seat to ensure there is no gasoline vapor odor inside the

d’essence dans le compartiment moteur.

engine compartment.

• Les émanations d’essence peuvent provoquer des incendies ou des explosions.

• Gasoline vapor may cause fire or explosion.

• Éviter de trop remplir le réservoir d’essence. • Éviter de renverser de l'essence.

• Do not overfill gas tank. • Avoid spilling gasoline. • Wipe up spilled gasoline immediately.

• Essuyer immédiatement l'essence renversée • Garder la motomarine à l’écart des flammes et des

• Keep the watercraft away from open flames and sparks.

étincelles. • Ne pas démarrer la motomarine en présence d’essence liquide ou d’émanation

• Do not start watercraft if liquid gasoline or gasoline vapor odor is present.

d’essence. • Toujours remettre le siège en place avant de démarrer la motomarine.

• Always replace the seat before starting.

219905484

FUELING PROCEDURE - WARNING LABEL

TYPICAL – LABEL LOCATION

38

IMPORTANT ON-PRODUCT LABELS

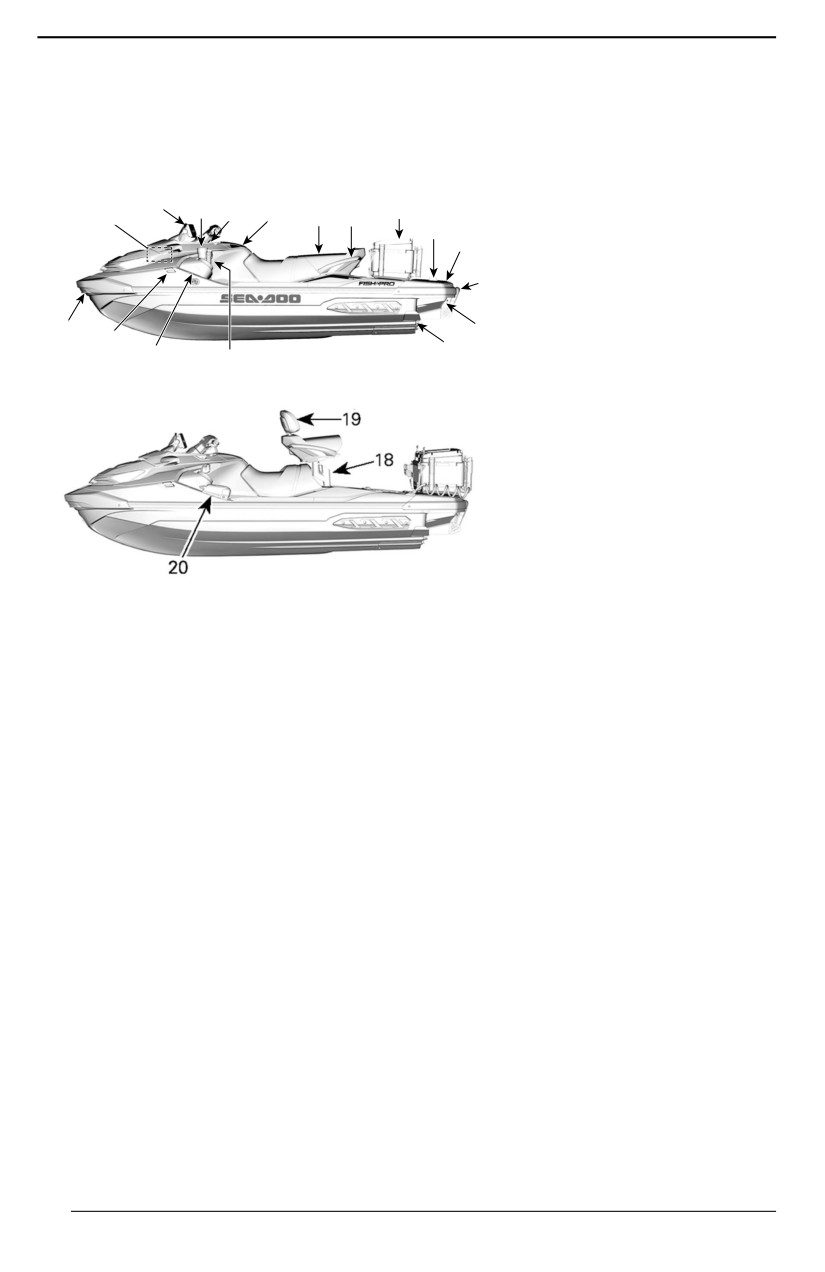

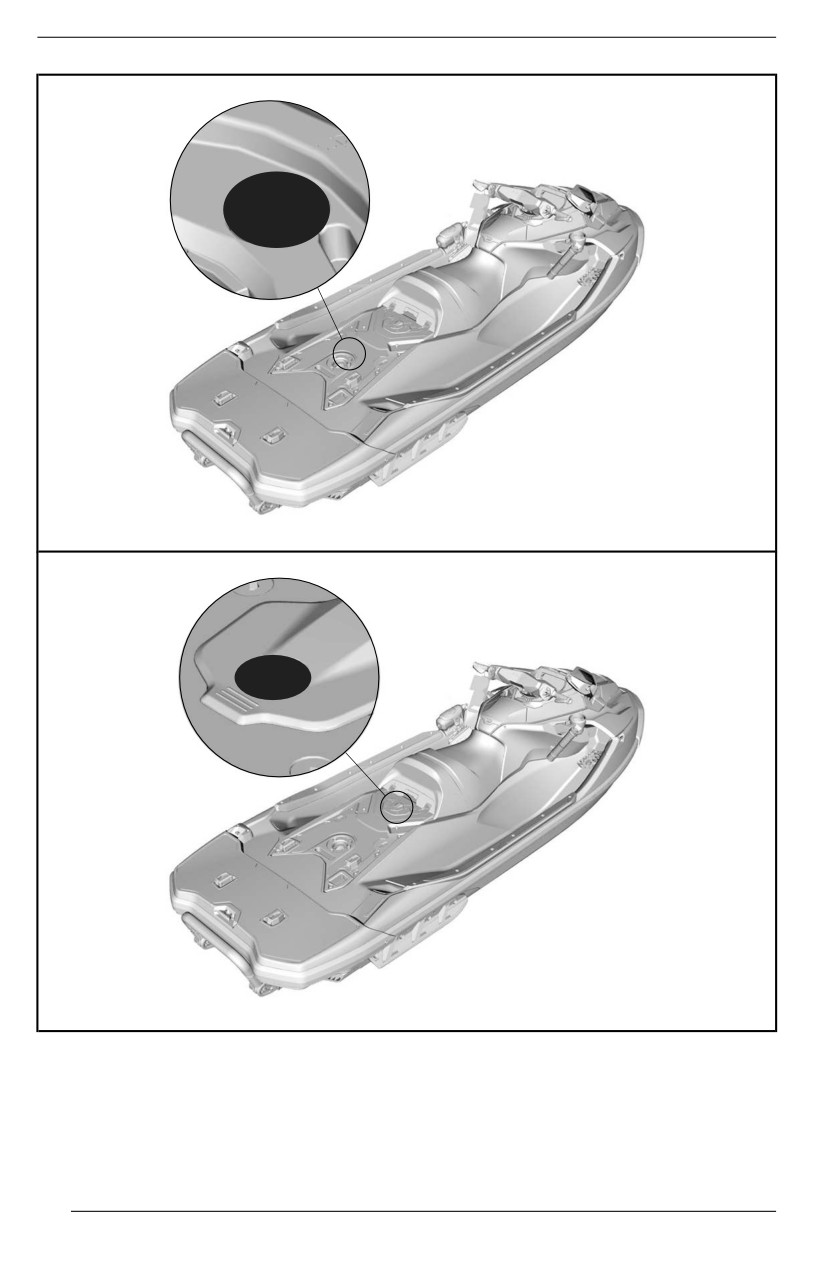

PICTOGRAM LOCATION

PICTOGRAM LOCATION – FISHPRO TROPHY

40

IMPORTANT ON-PRODUCT LABELS

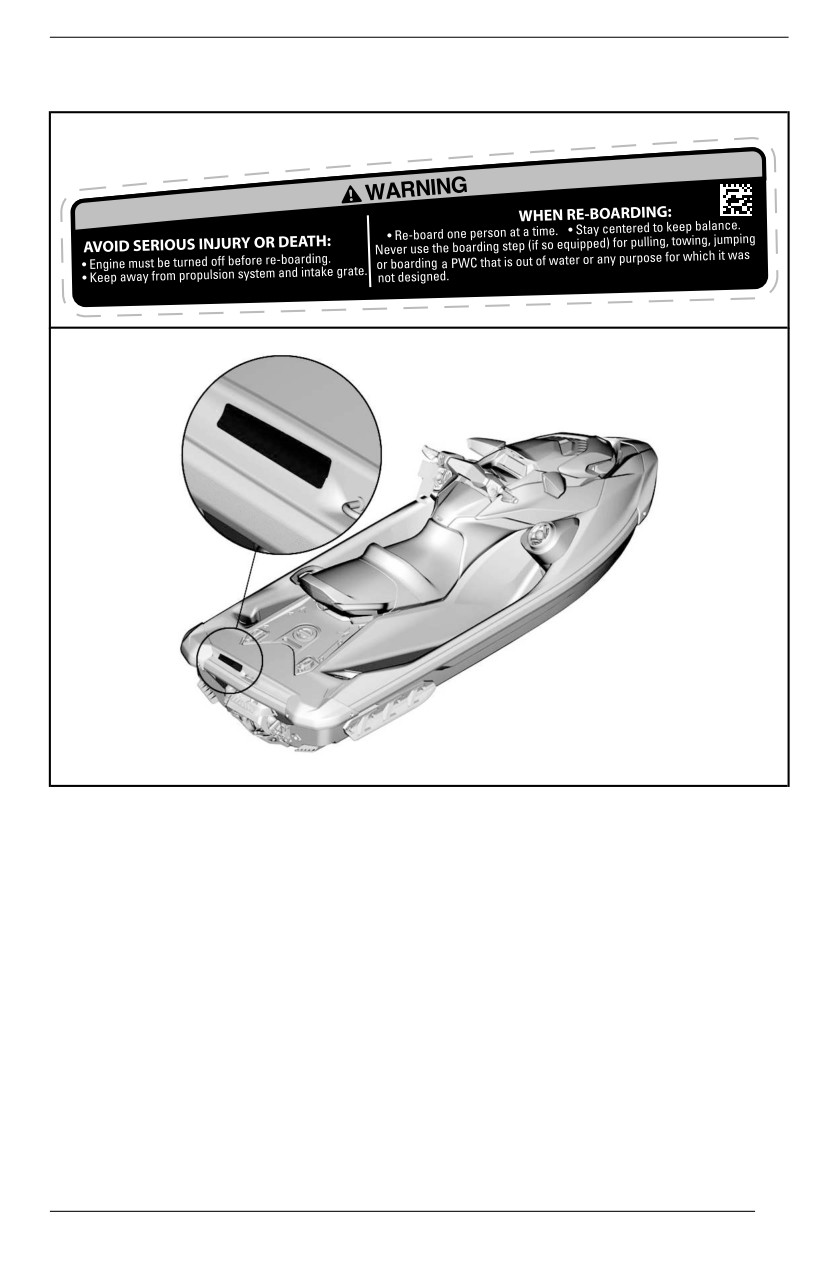

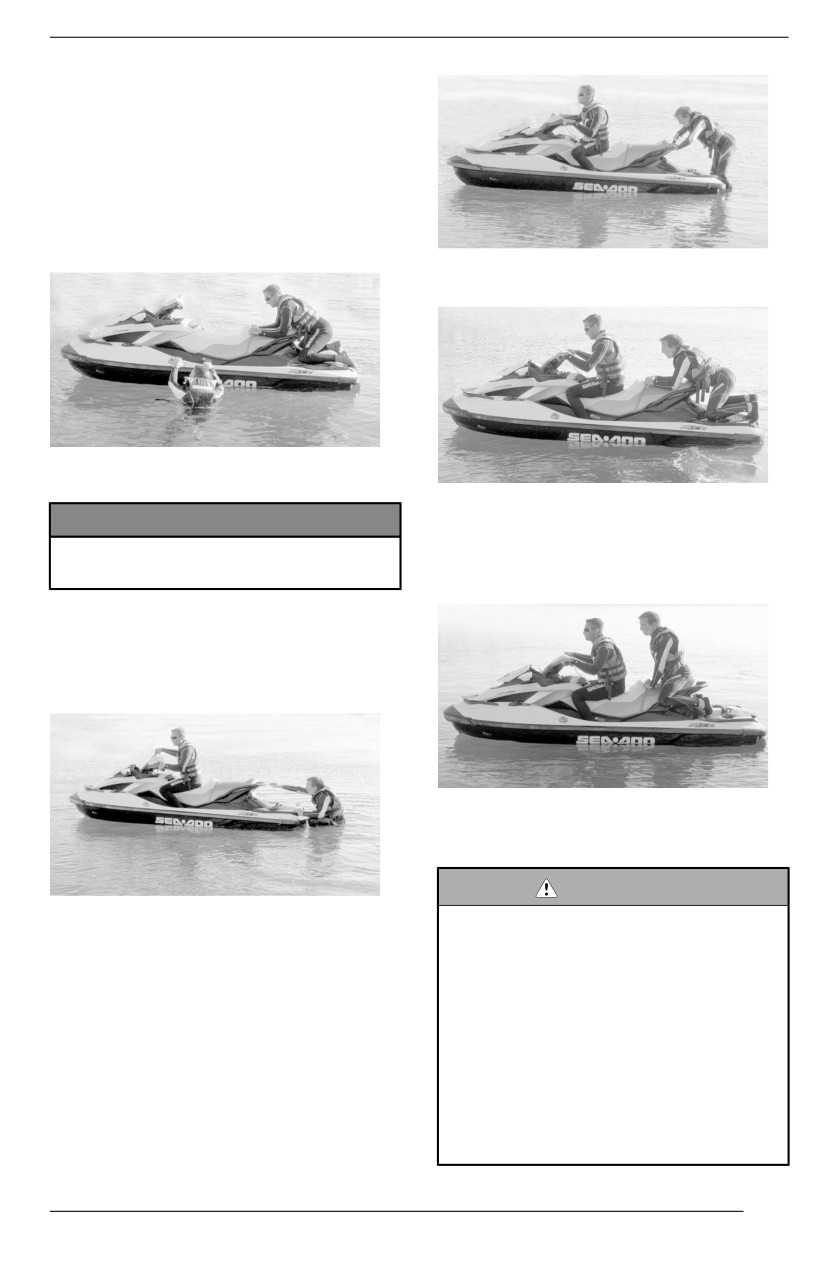

Re-Boarding - Warning Label

219905498

TYPICAL – LABEL LOCATION

41

IMPORTANT ON-PRODUCT LABELS

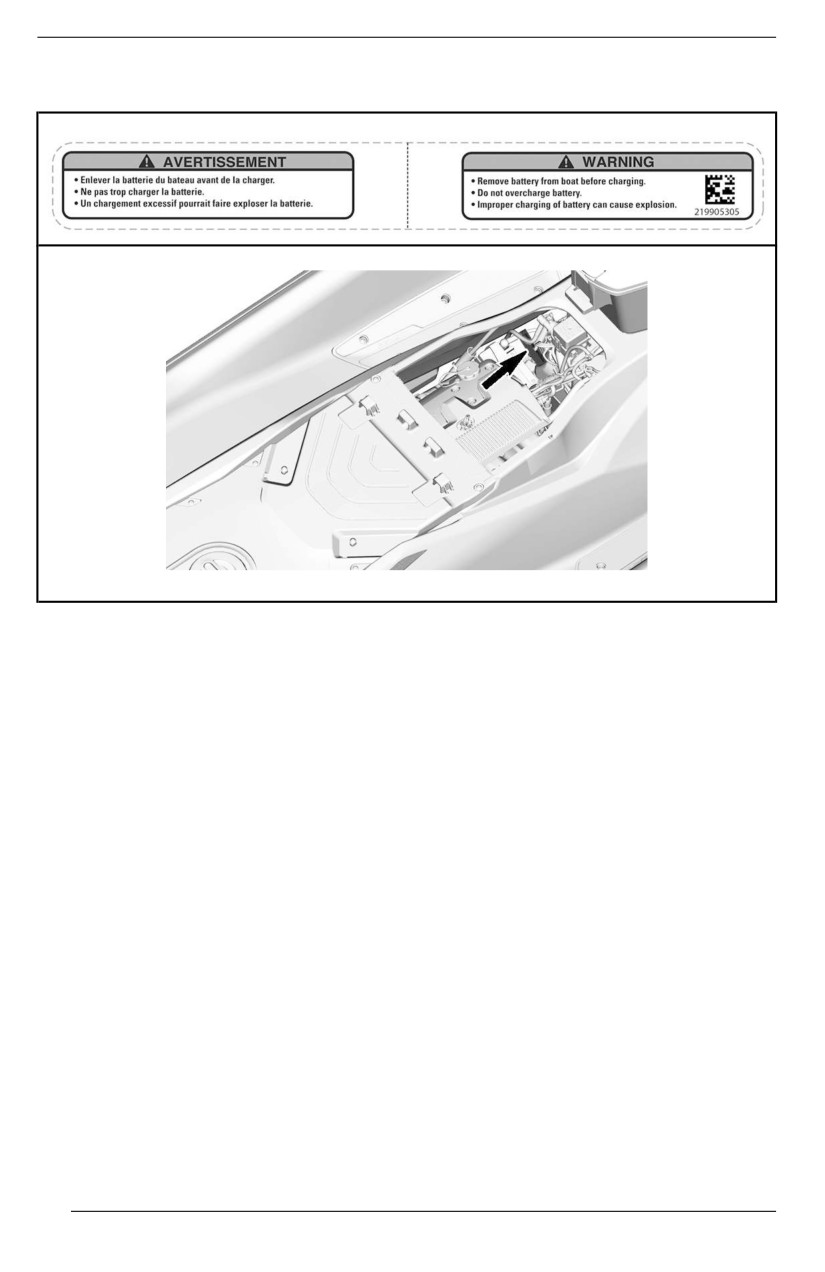

Charging the Battery - Warning Label

TYPICAL – LABEL LOCATION

42

IMPORTANT ON-PRODUCT LABELS

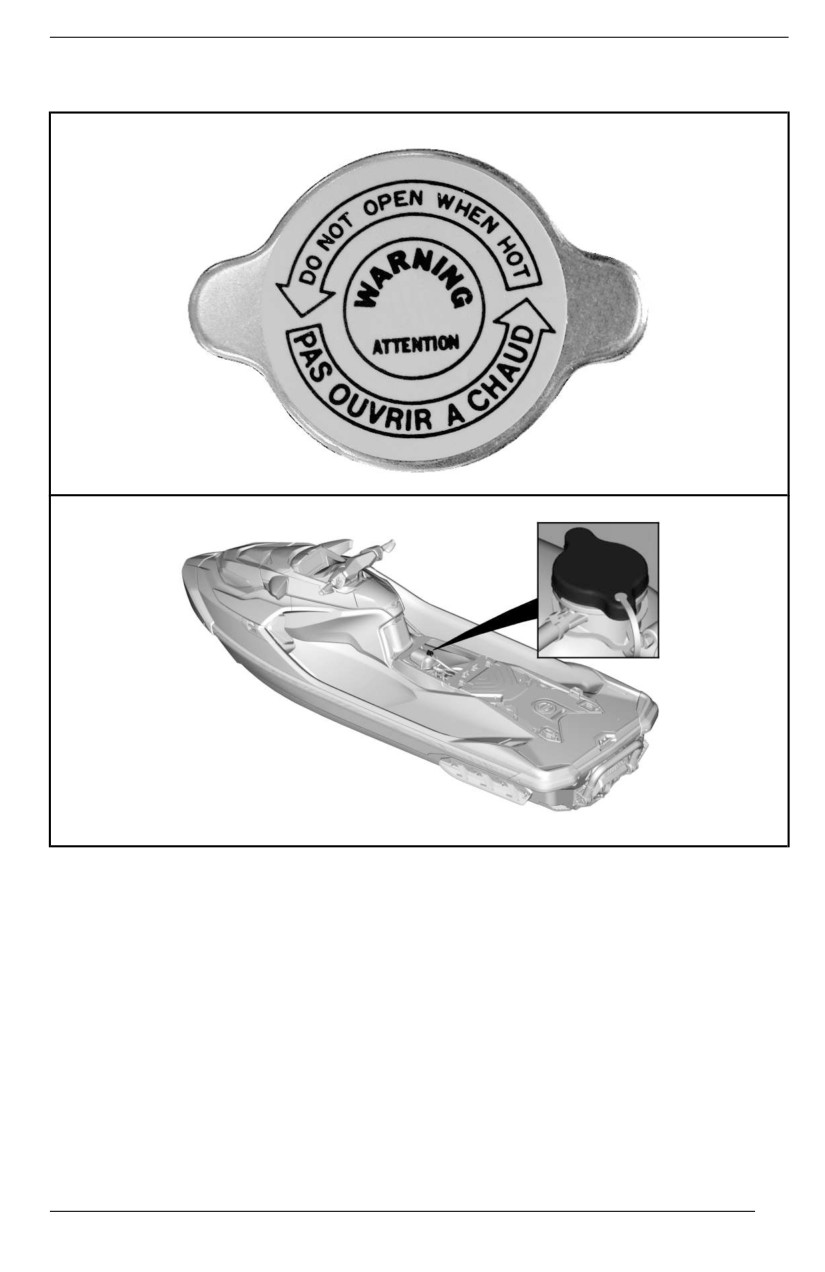

Do Not Open When Hot - Warning Label

TYPICAL – LABEL LOCATION

43

IMPORTANT ON-PRODUCT LABELS

Tip Over - Caution Label

219905494

TYPICAL – LABEL LOCATION

44

IMPORTANT ON-PRODUCT LABELS

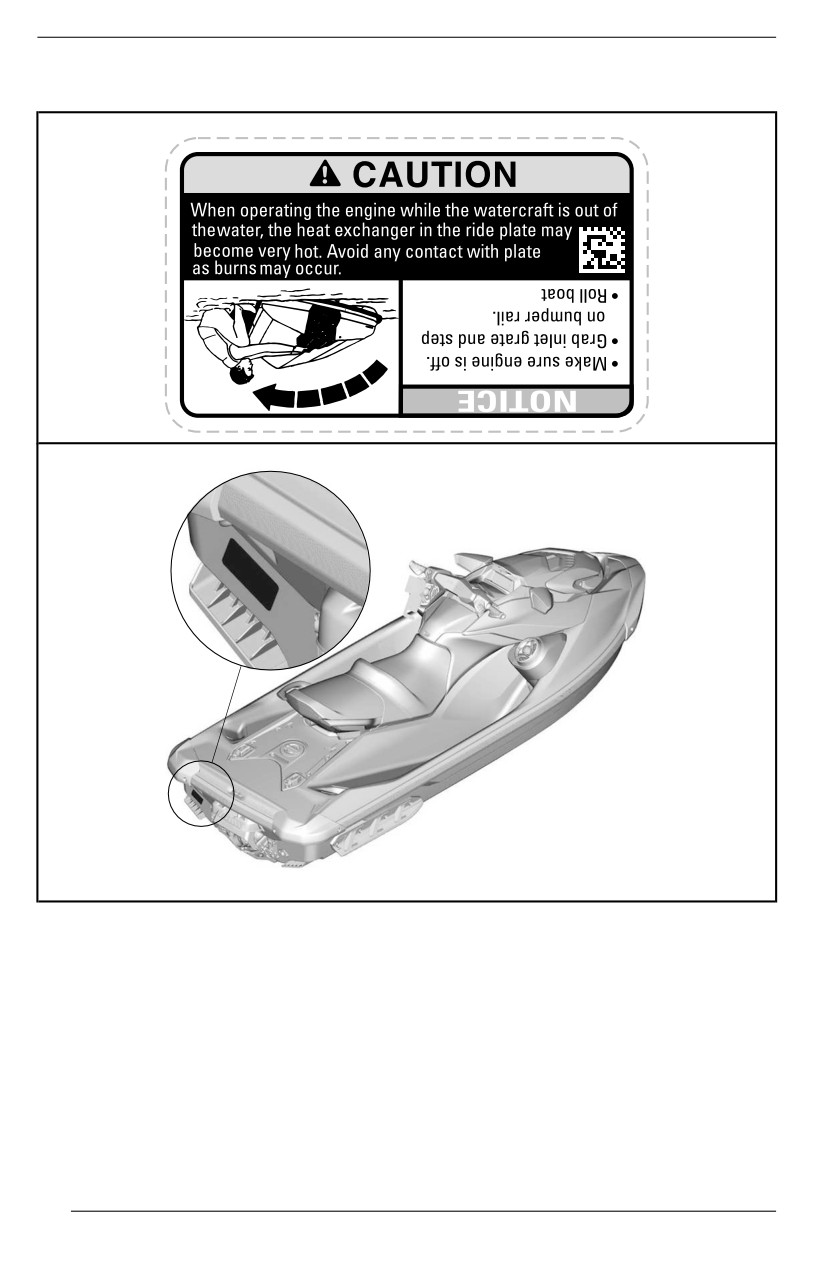

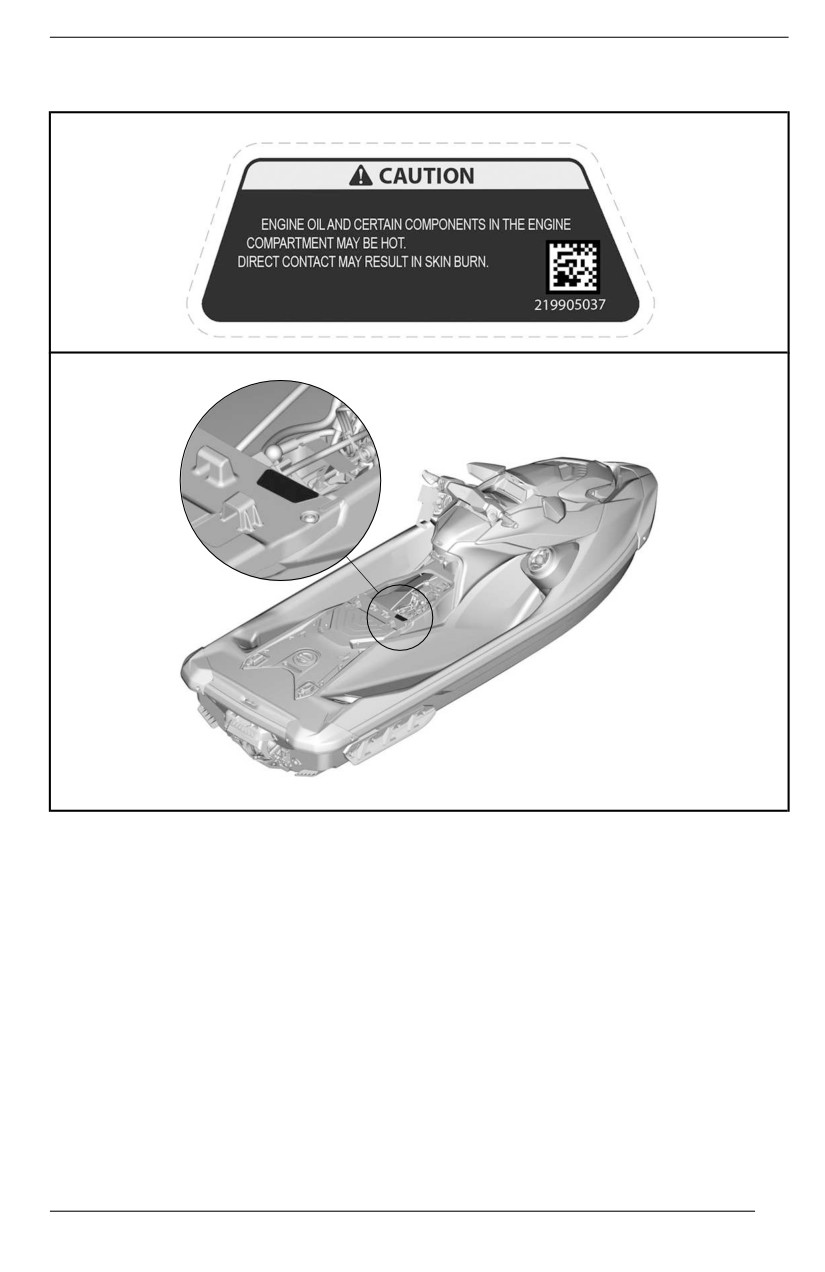

Hot Components - Caution Label

TYPICAL – LABEL LOCATION

45

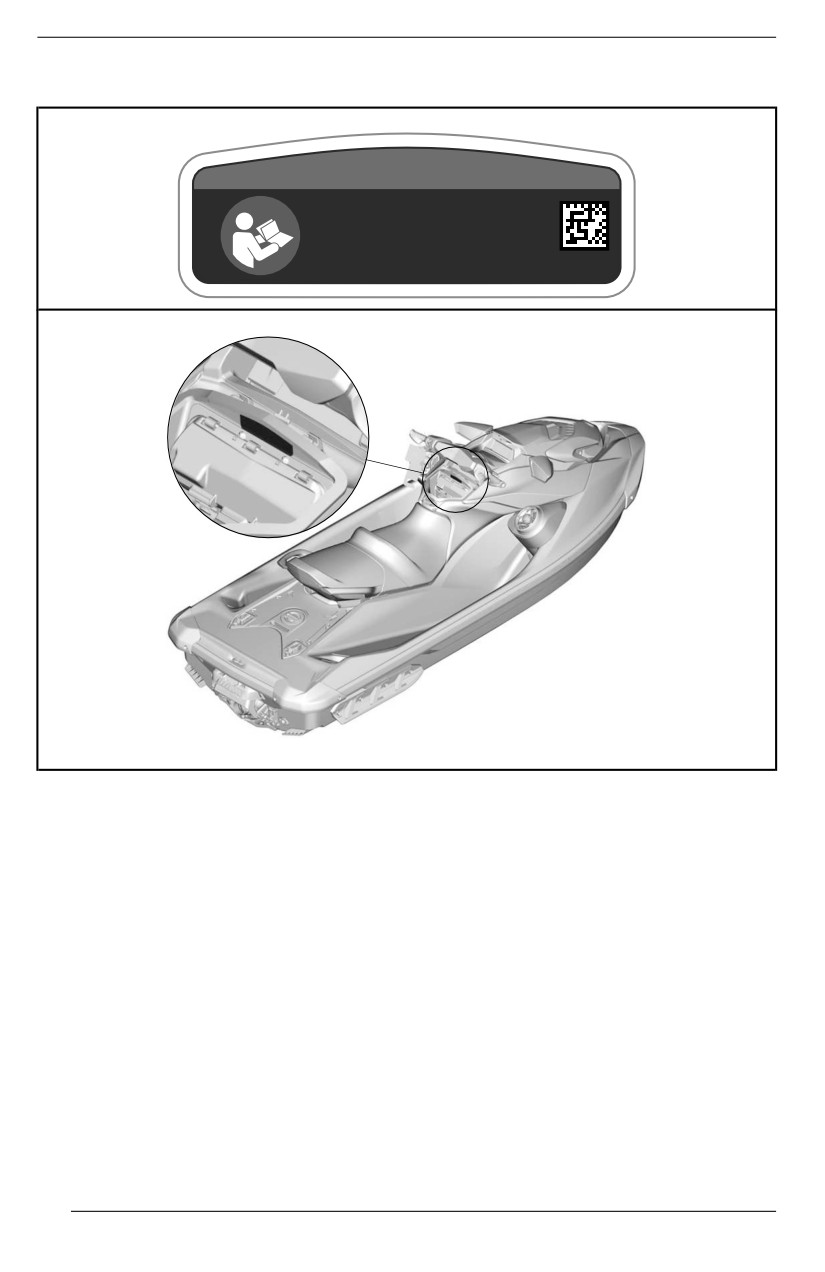

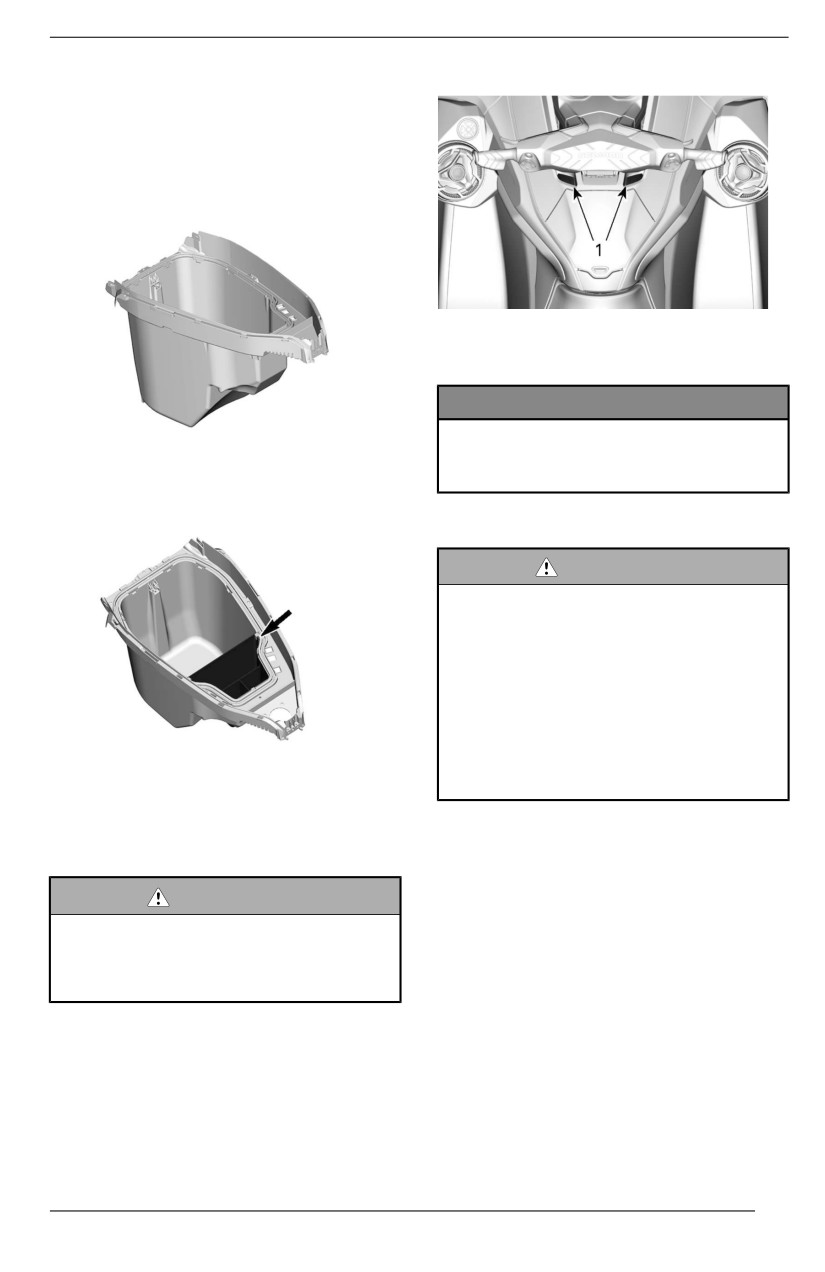

IMPORTANT ON-PRODUCT LABELS

Glove Box - Notice Label

NOTICE

Refer to the operator’s guide

for recommendations on

how to use the glove box .

5677

TYPICAL – LABEL LOCATION

46

IMPORTANT ON-PRODUCT LABELS

Do Not Use to Onboard

TYPICAL – LABEL LOCATION

47

IMPORTANT ON-PRODUCT LABELS

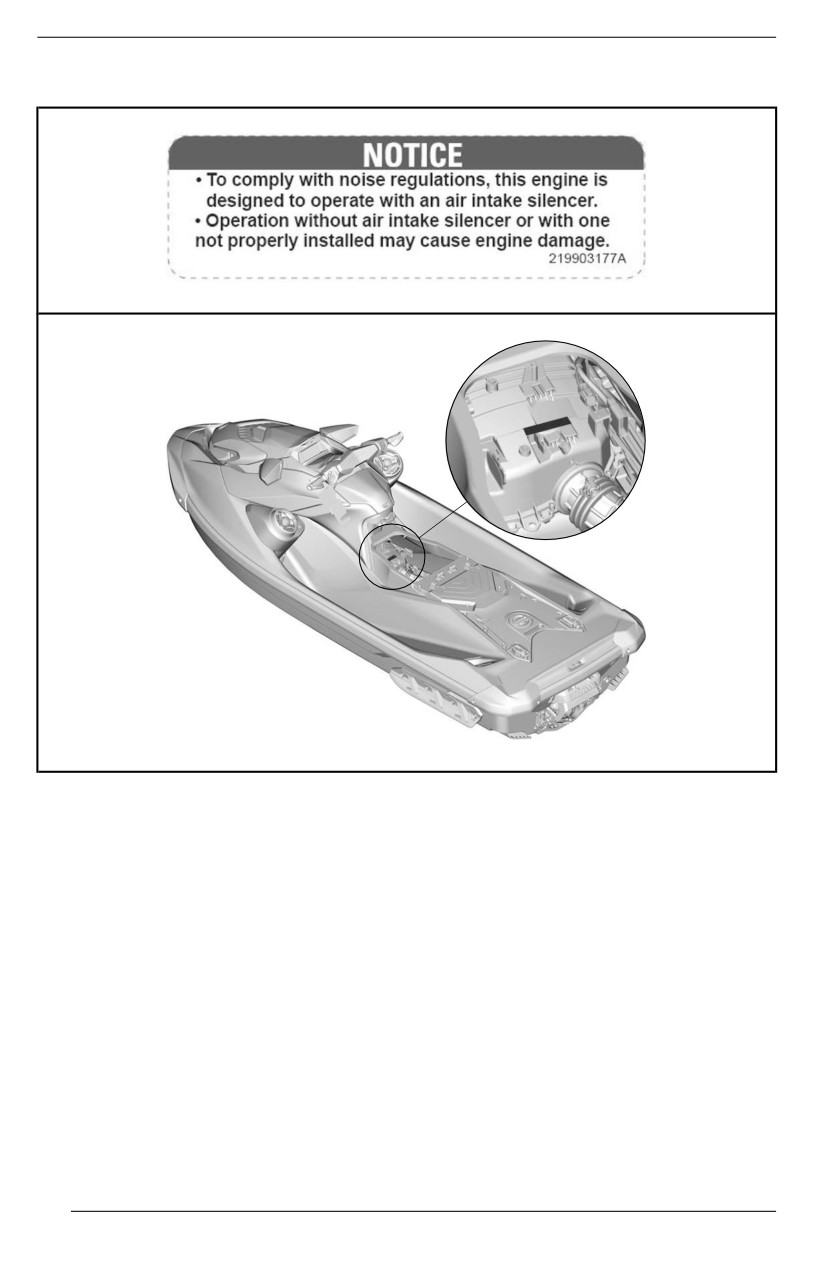

Air Intake Silencer

AIR INTAKE SILENCER - NOTICE LABEL

TYPICAL – LABEL LOCATION

48

IMPORTANT ON-PRODUCT LABELS

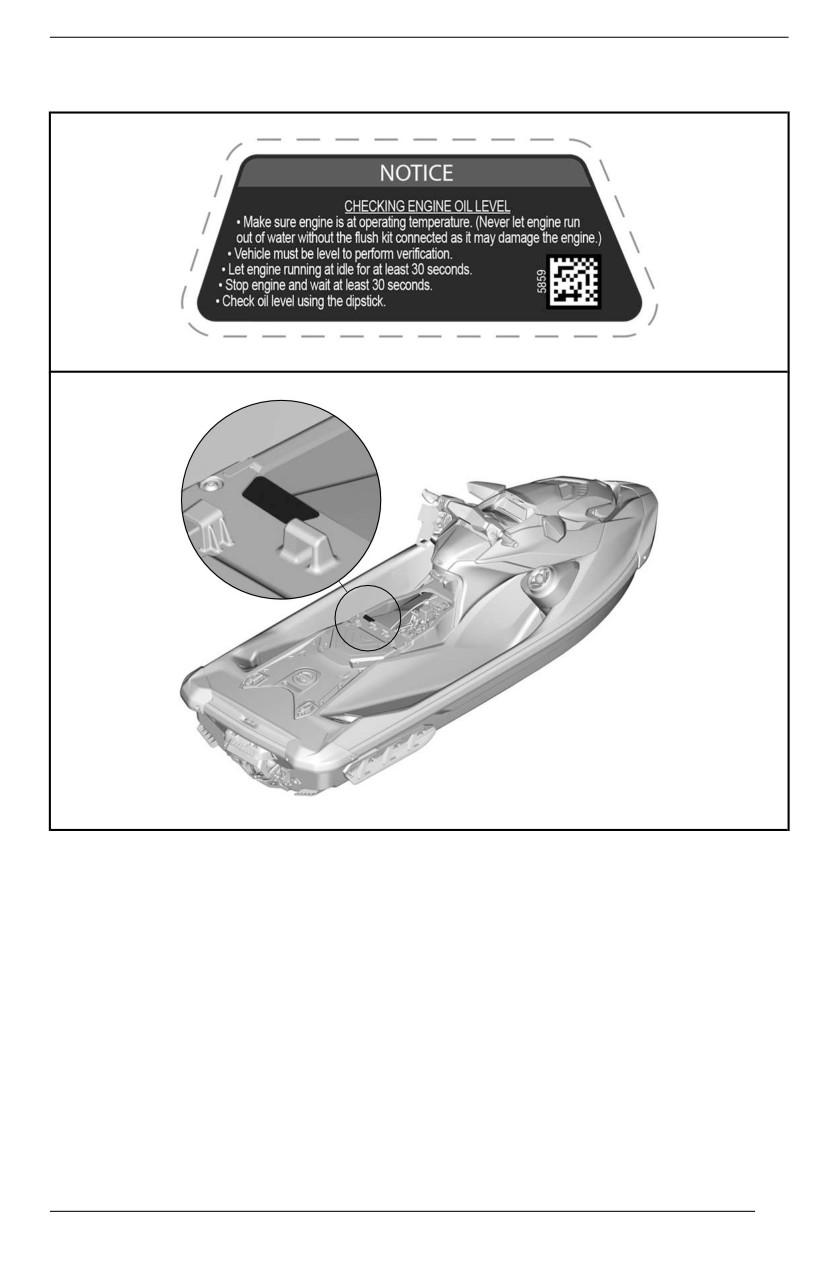

Engine Oil Level

ENGINE OIL LEVEL - NOTICE LABEL

TYPICAL – LABEL LOCATION

49

IMPORTANT ON-PRODUCT LABELS

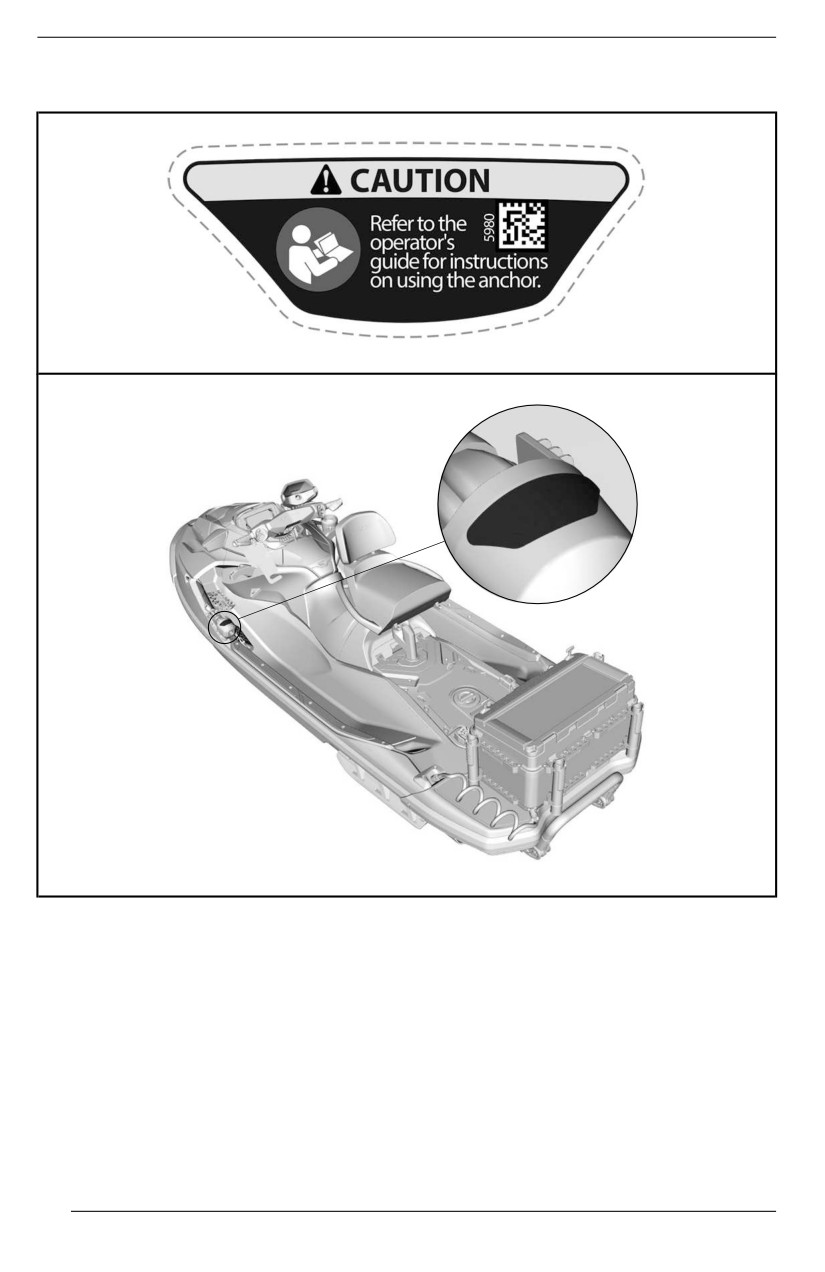

Anchor - Caution Label (if equipped)

ANCHOR - CAUTION LABEL

LABEL LOCATION

50

IMPORTANT ON-PRODUCT LABELS

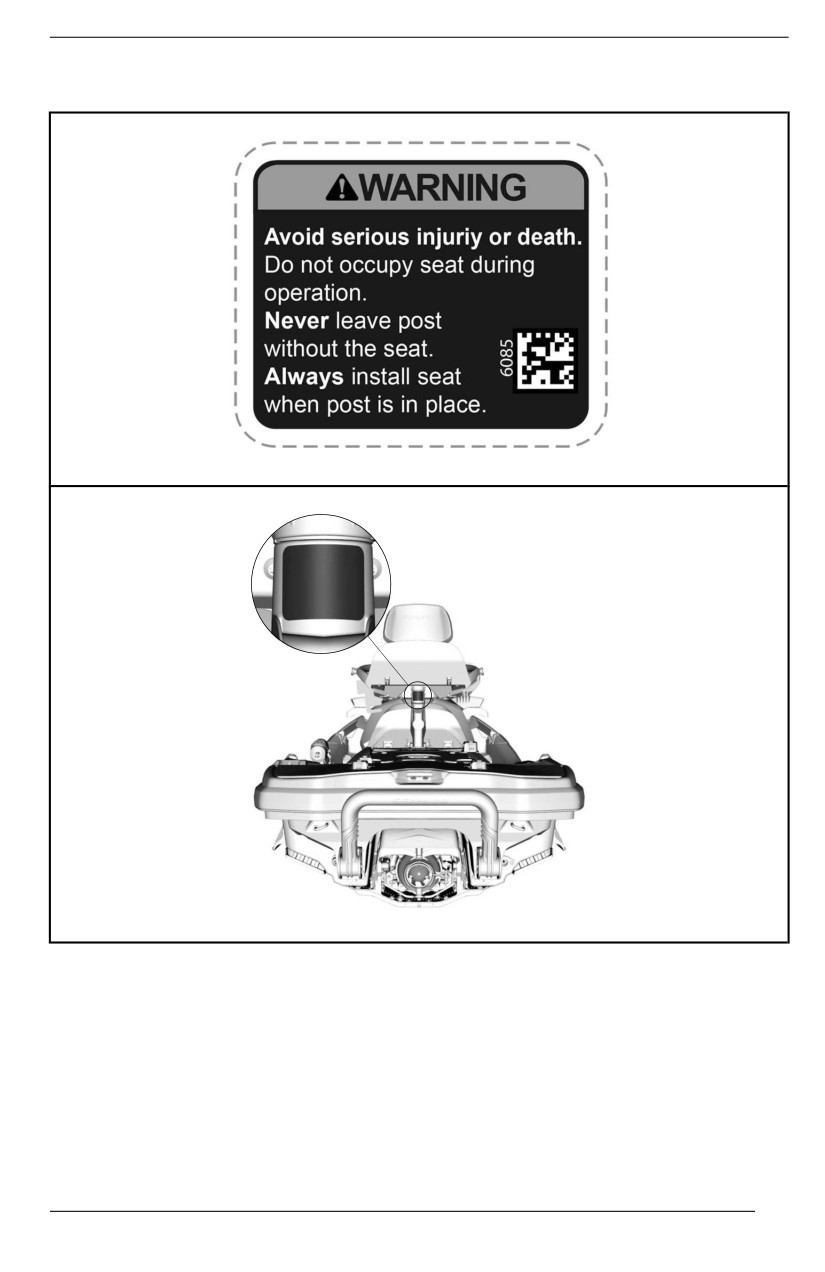

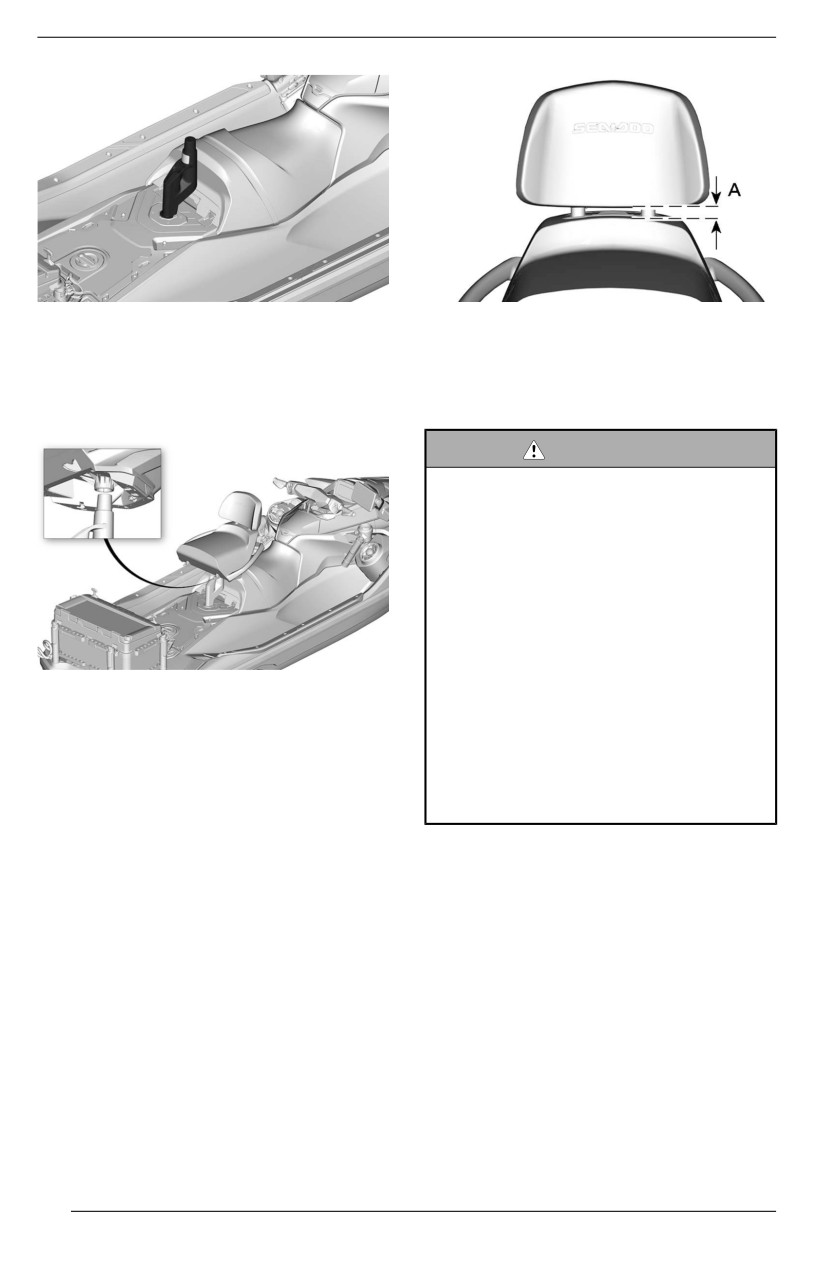

Rear Seat Post - Warning Label (if equipped)

REAR SEAT POST - WARNING LABEL

LABEL LOCATION

51

IMPORTANT ON-PRODUCT LABELS

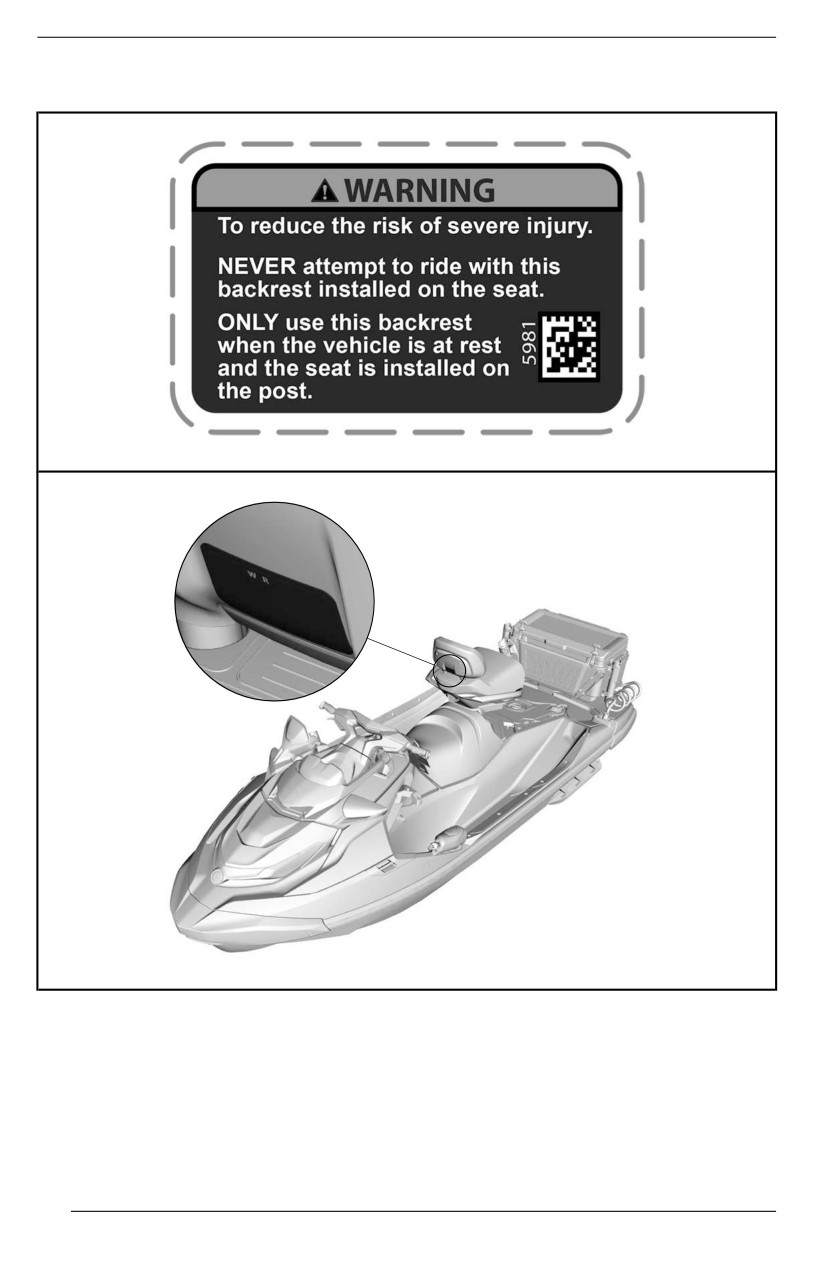

Rear Seat Backrest - Warning Label (if equipped)

REAR SEAT BACKREST - WARNING LABEL

LABEL LOCATION

52

IMPORTANT ON-PRODUCT LABELS

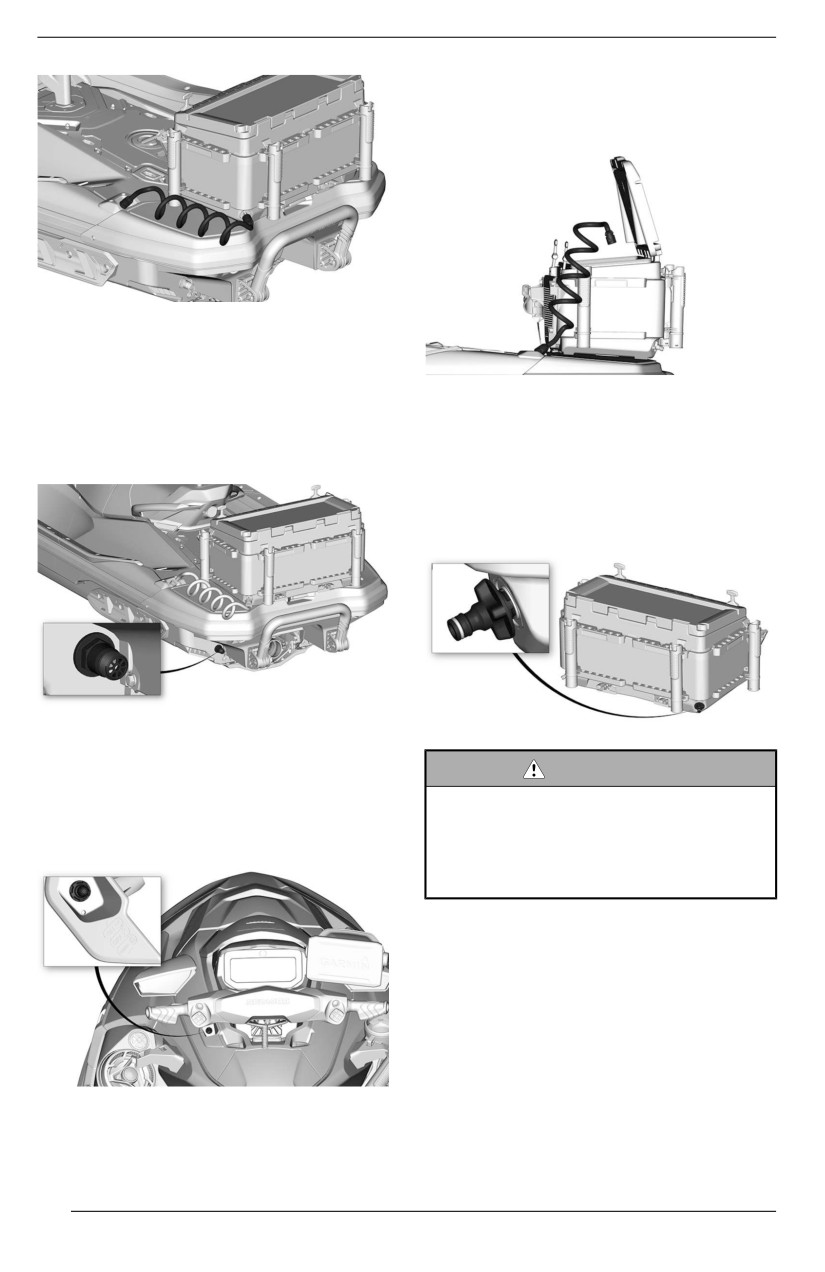

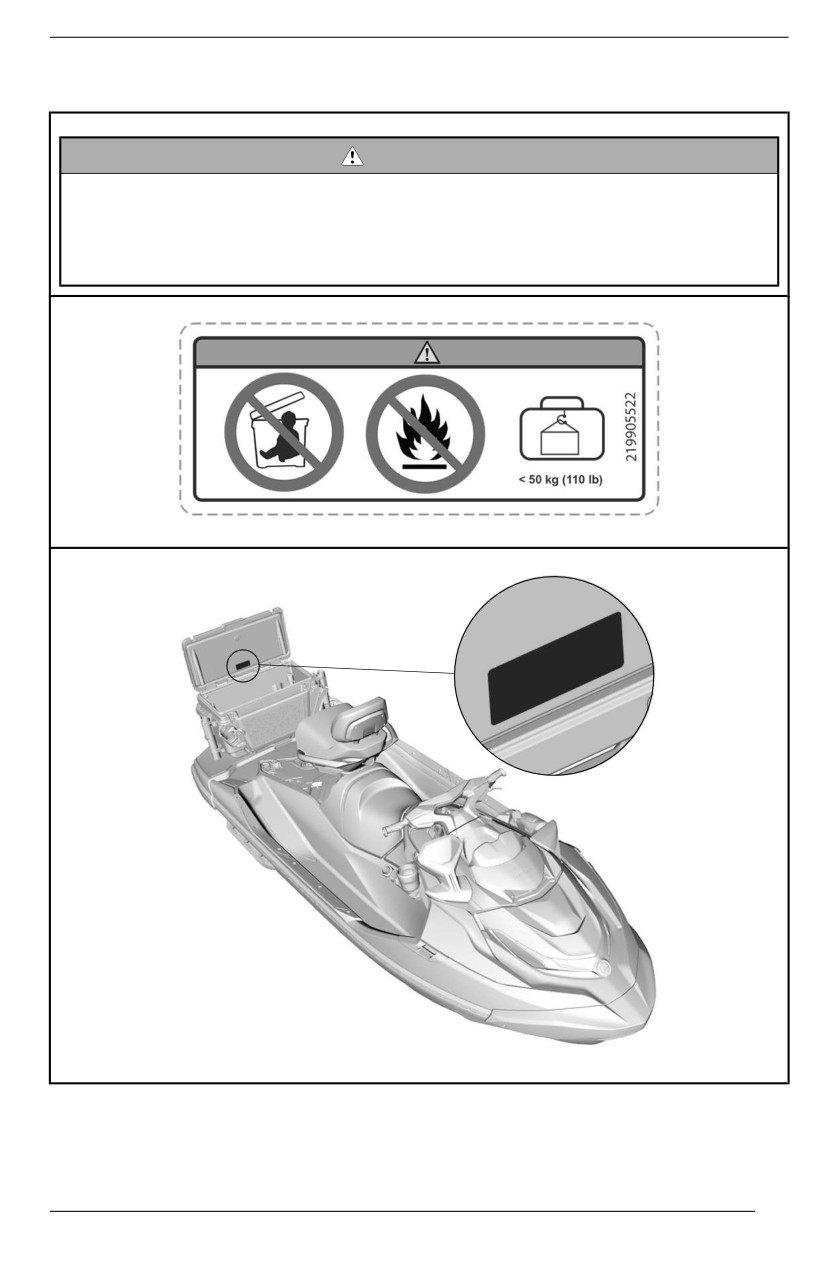

Cooler Utilization - Warning Label

WARNING

– NEVER alllow a child or pet in cooller. Cooler liid is airtiight whiich can

lead to suffocation.

– NEVER transport flammablle or dangerous materiial. Transporting

fllammable or dangerous material can lead to explosions.

– NEVER exceed max lload of 50 kg (110 lb) inside the cooler.

COOLER UTILIZATION - WARNING LABEL

TYPICAL – LABEL LOCATION

53

IMPORTANT ON-PRODUCT LABELS

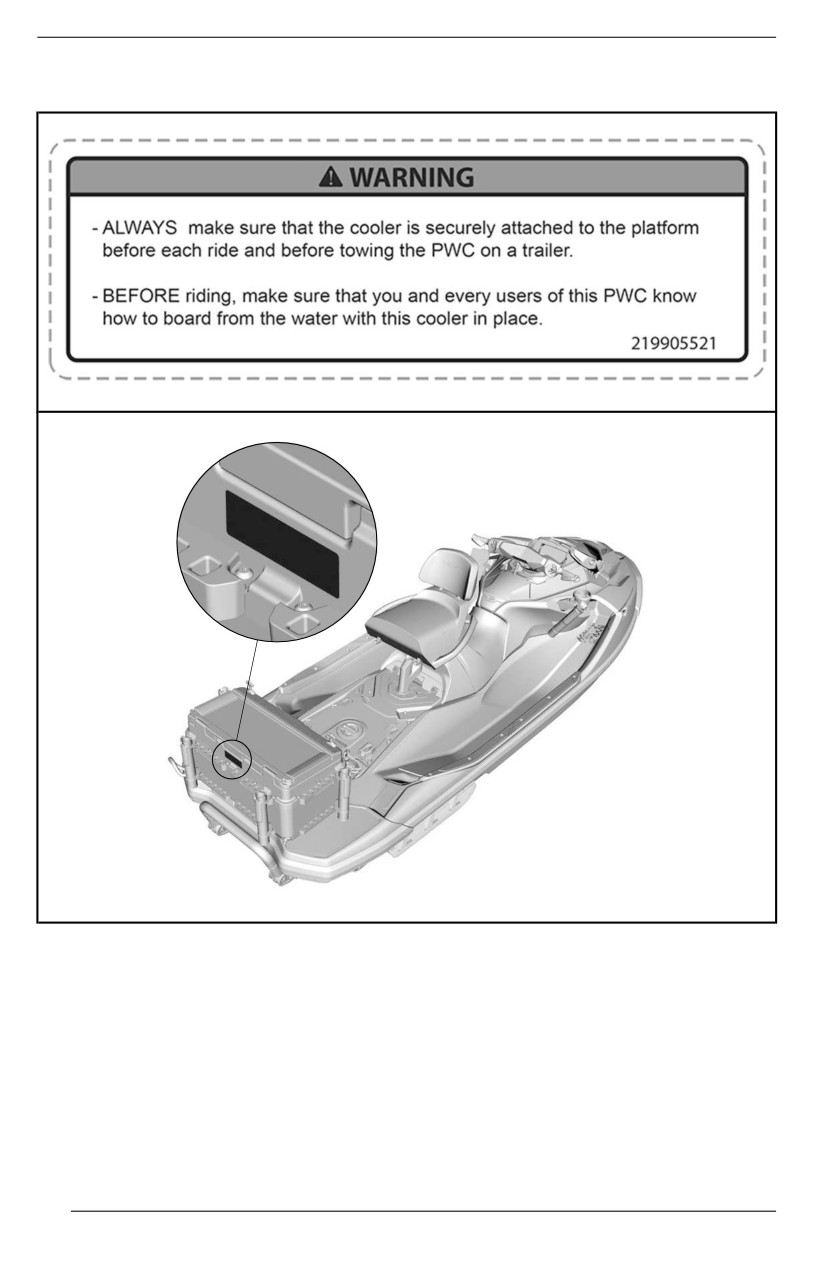

Cooler Installation - Warning Label

COOLER INSTALLATION - WARNING LABEL

TYPICAL – LABEL LOCATION

54

IMPORTANT ON-PRODUCT LABELS

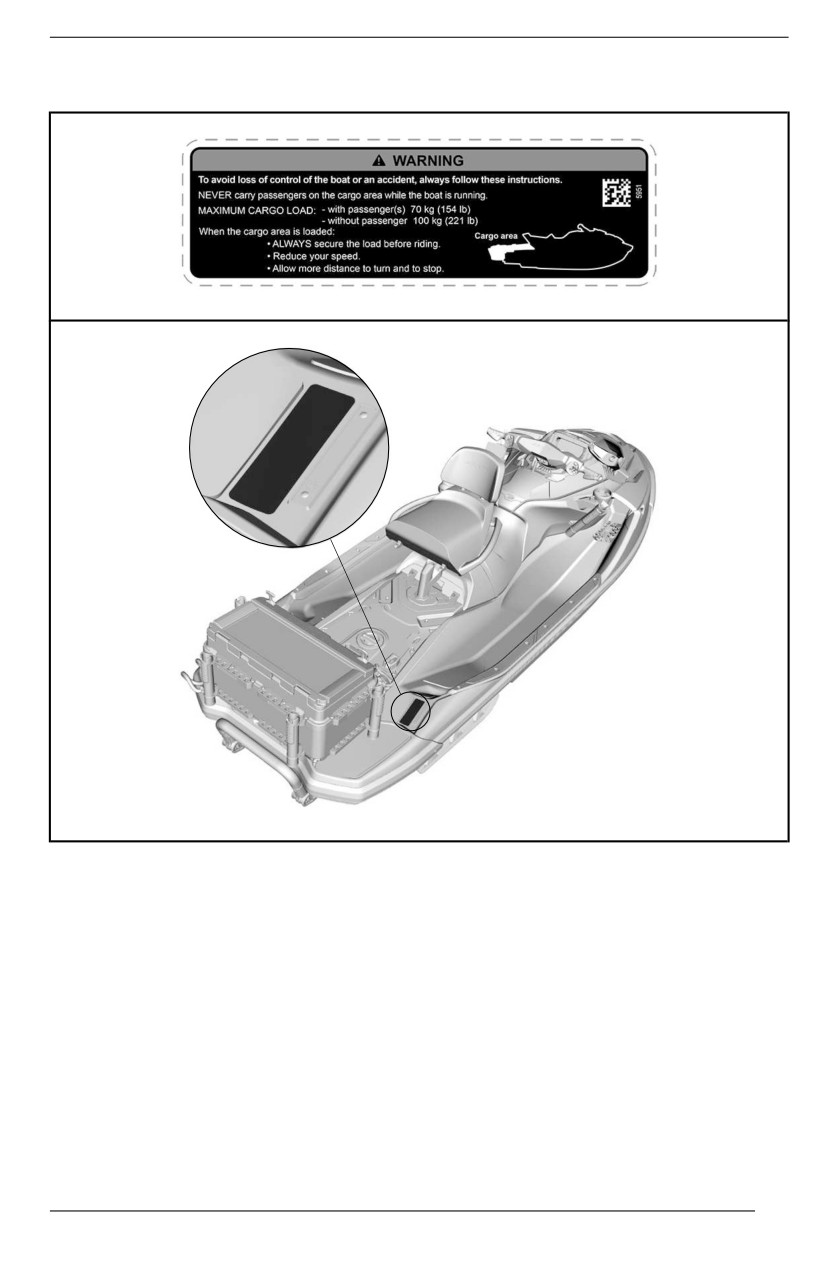

Maximum Cargo Load - Warning Label

MAXIMUM CARGO LOAD - WARNING LABEL

TYPICAL – LABEL LOCATION

55

IMPORTANT ON-PRODUCT LABELS

i

iBR Hang Tag

STOP

INSTRUCTIONS

How to brake

• Squeeze brake lever.

INTELLIGENT BRAKE AND REVERSE

How to reverse

• Maintain brake lever engaged.

THIRD GENERATION

How to go forward

• Tap throttle lever to engage forward

• Allows you to stop sooner for greater

movement from neutral position.

peace of mind .

• Squeeze throttle lever to accelerate.

• Recognized by the U.S. Coast Guard for

improving boating safety since 2009.

How to get to neutral

• Tap brake lever.

• The Third Generation provides more

precise and responsive control when

braking and docking.

Refer to the operator’s guide for more information.

58

PRE-RIDE INSPECTION

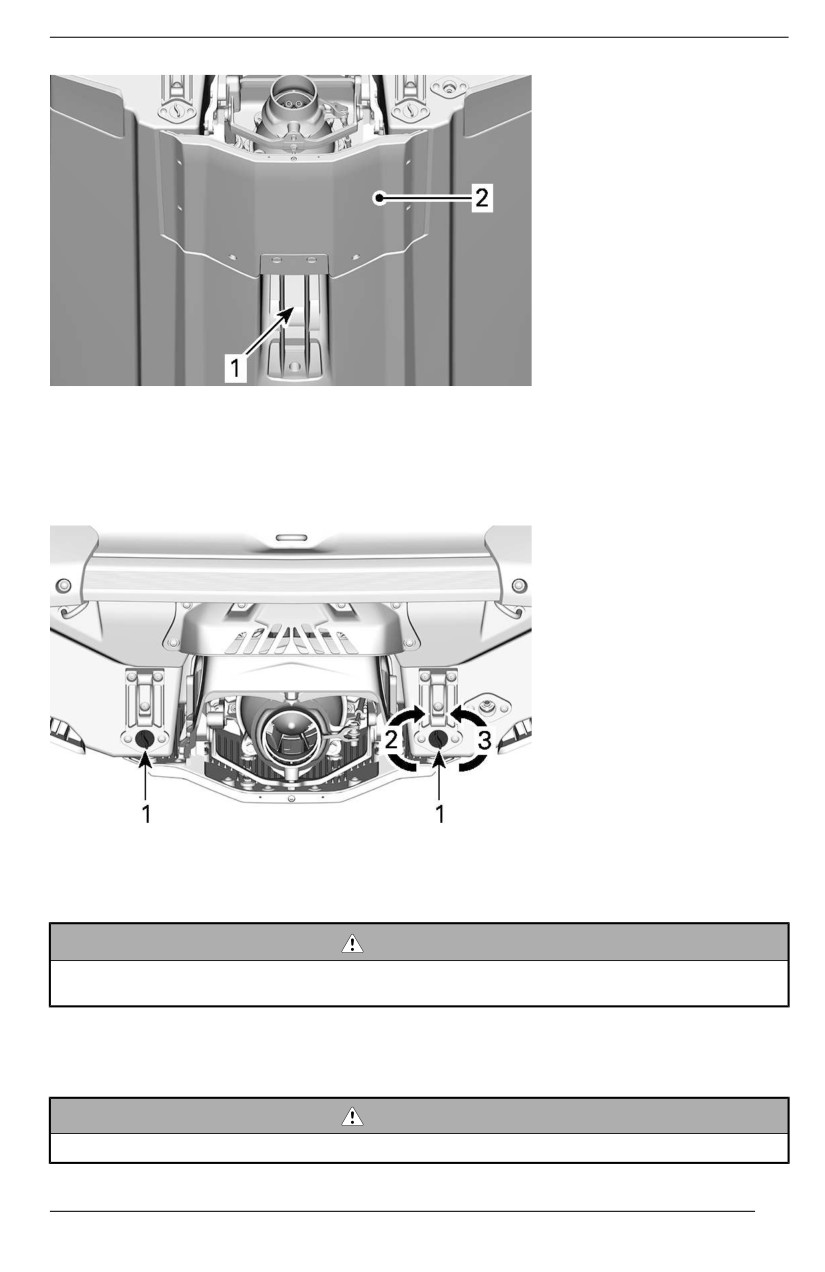

1. Water intake

2. Ride plate

Draiin Plugs

Secure bilge drain plugs.

1. Bilge drain plug

2. Tighten

3. Untighten

WARNING

Ensure biilge drain plugs are properly secured priior to llaunching the

watercraft in water.

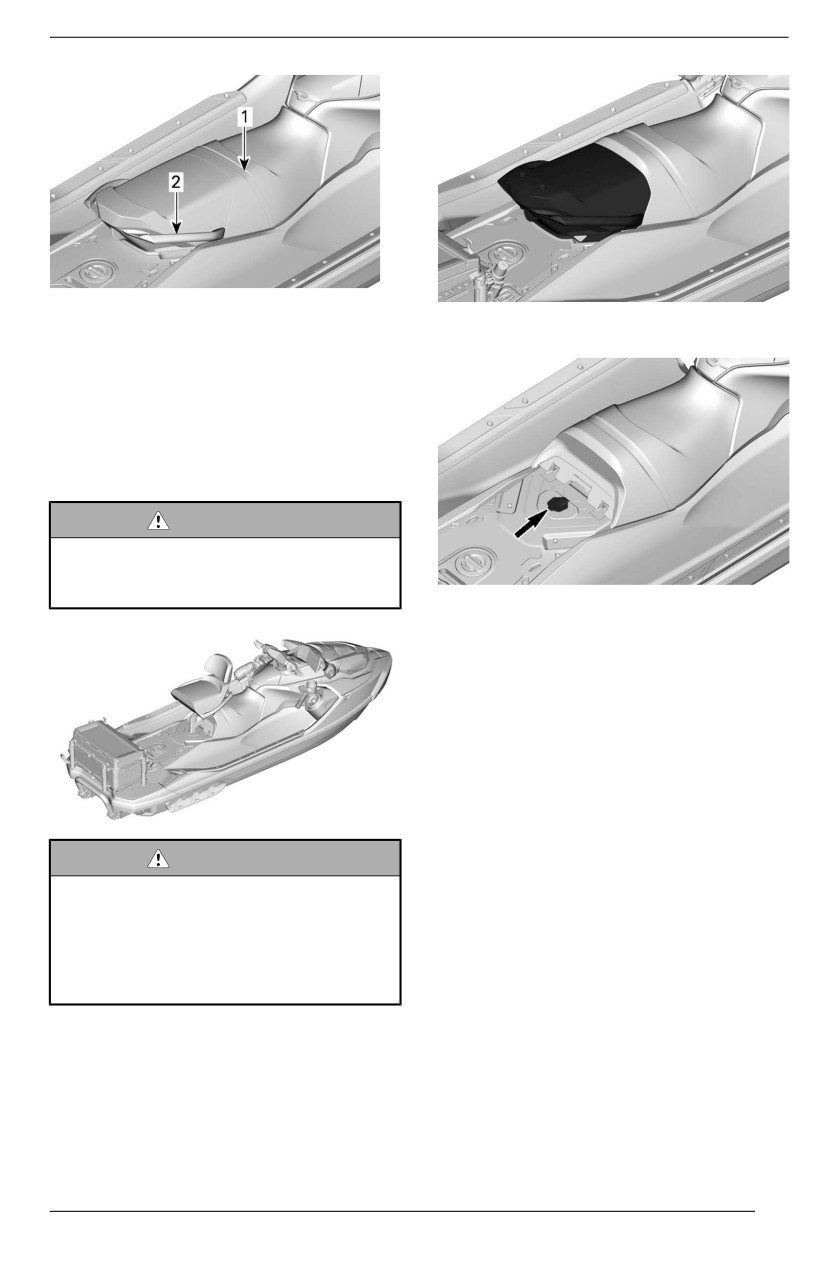

Fuel Tank

Fill the fuel tank.

WARNING

Striictly adhere to instructions detailled iin Fueling Procedure.

61

CONTROLS

Some vehicle safety labels are not

Some indications, functions and fea-

shown on illustrations. For information

tures described in this section may not

on vehicle safety labels, refer to Im-

apply to every PWC model, or may be

portant On-Product Labels.

available as an option.

7

2

8

3

1

5

4

6

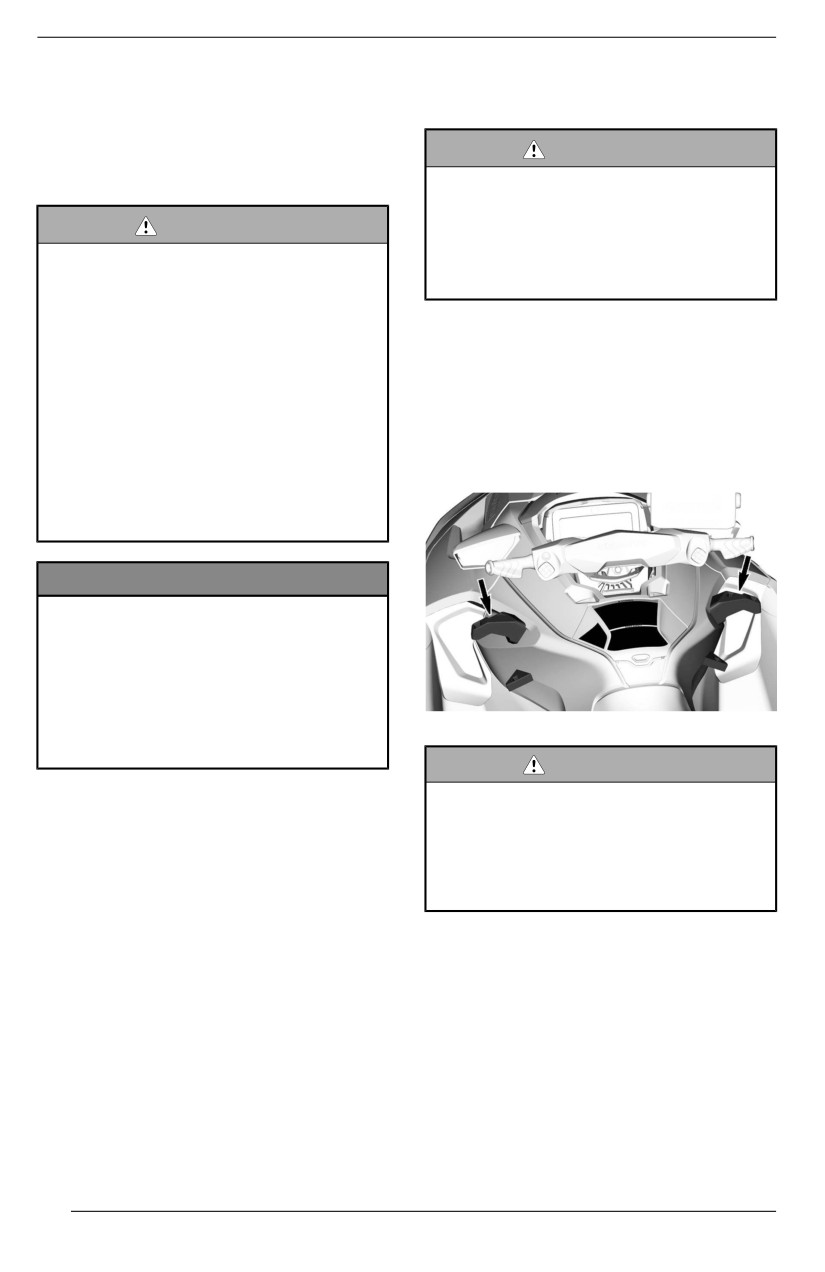

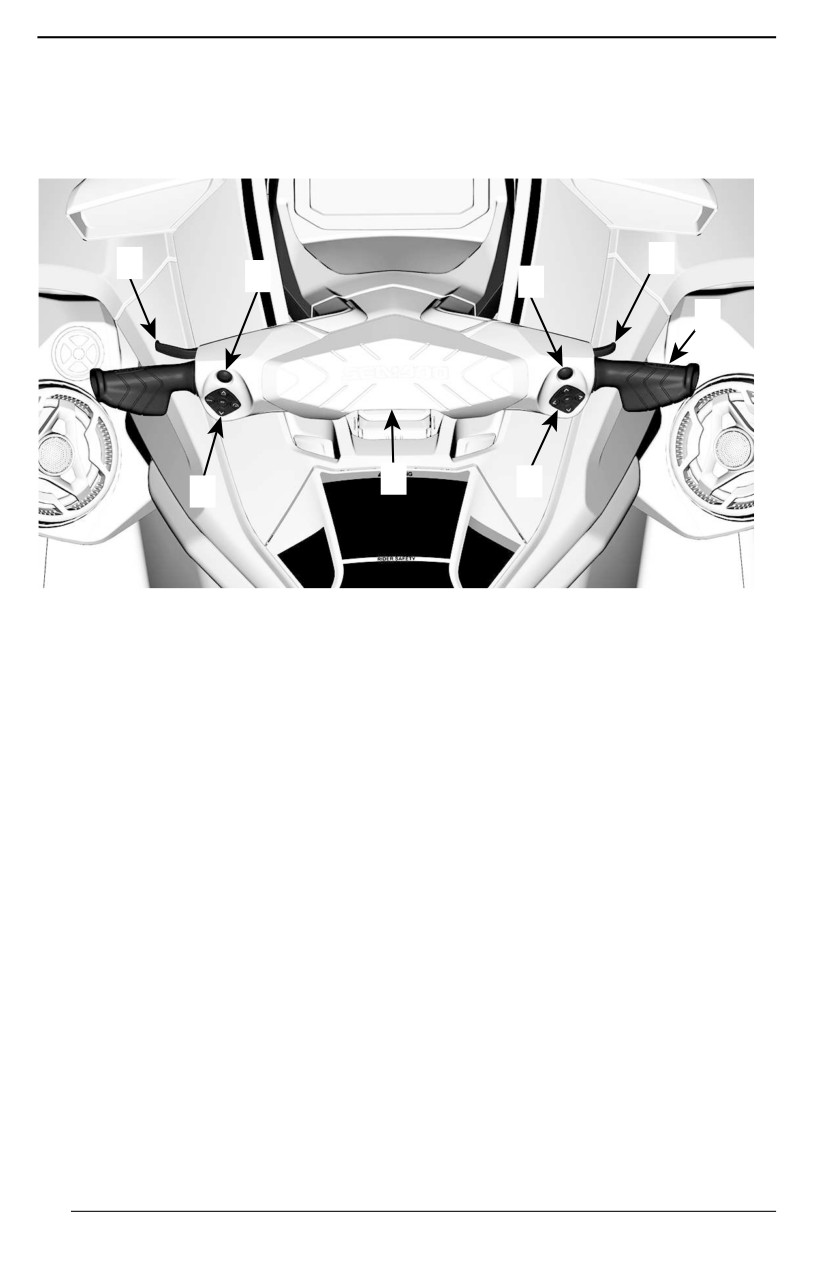

1. Handlebar

2. Throttle lever

3. BRP Connect Button (if equipped)

4. Right Controller

5. Engine Cut-Off Switch

6. Left Controller

7. iBR lever

8. Engine START/STOP Button

70

CONTROLS

Handlebar

The handlebar controls the direction

of the watercraft. During forward oper-

ation, turning the handlebar to the

right steers the watercraft to the right

and inversely.

TYPICAL

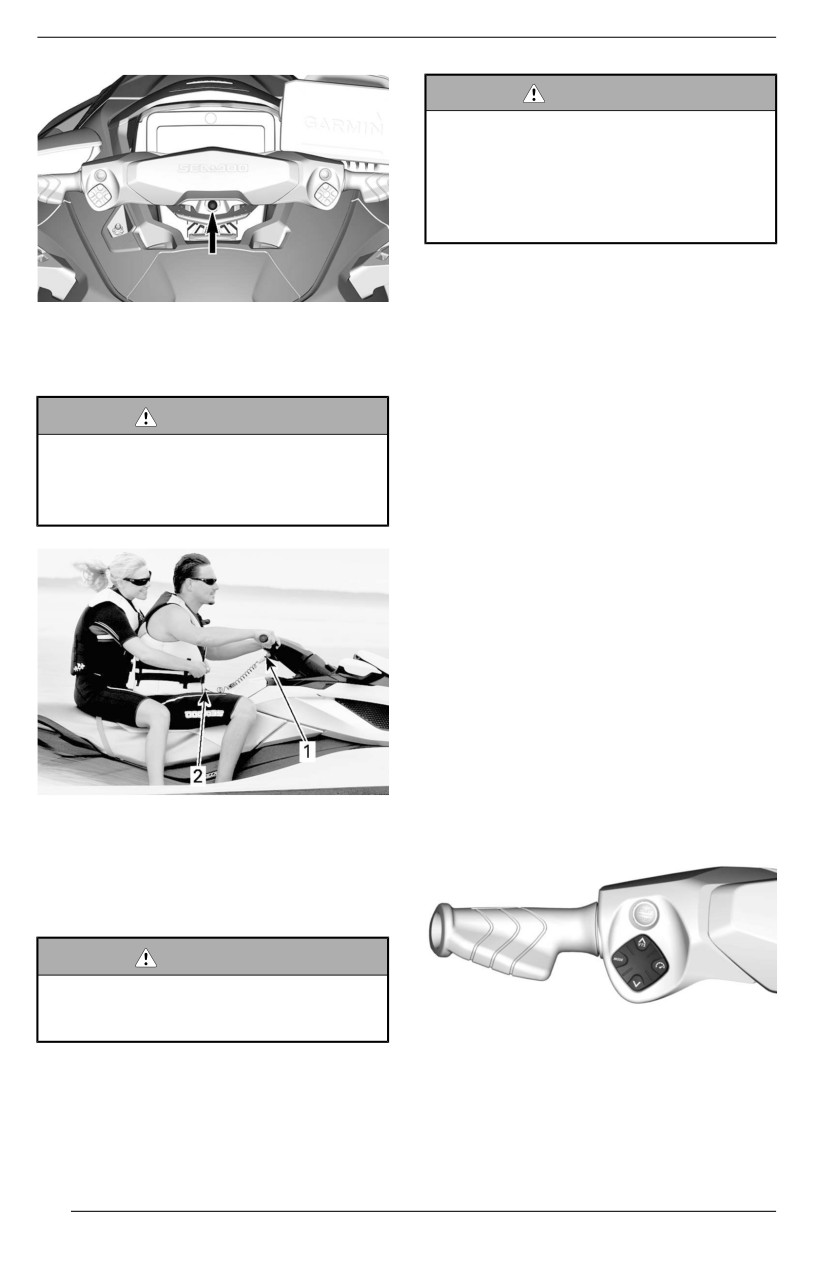

WARNING

Check handlebar and correspond-

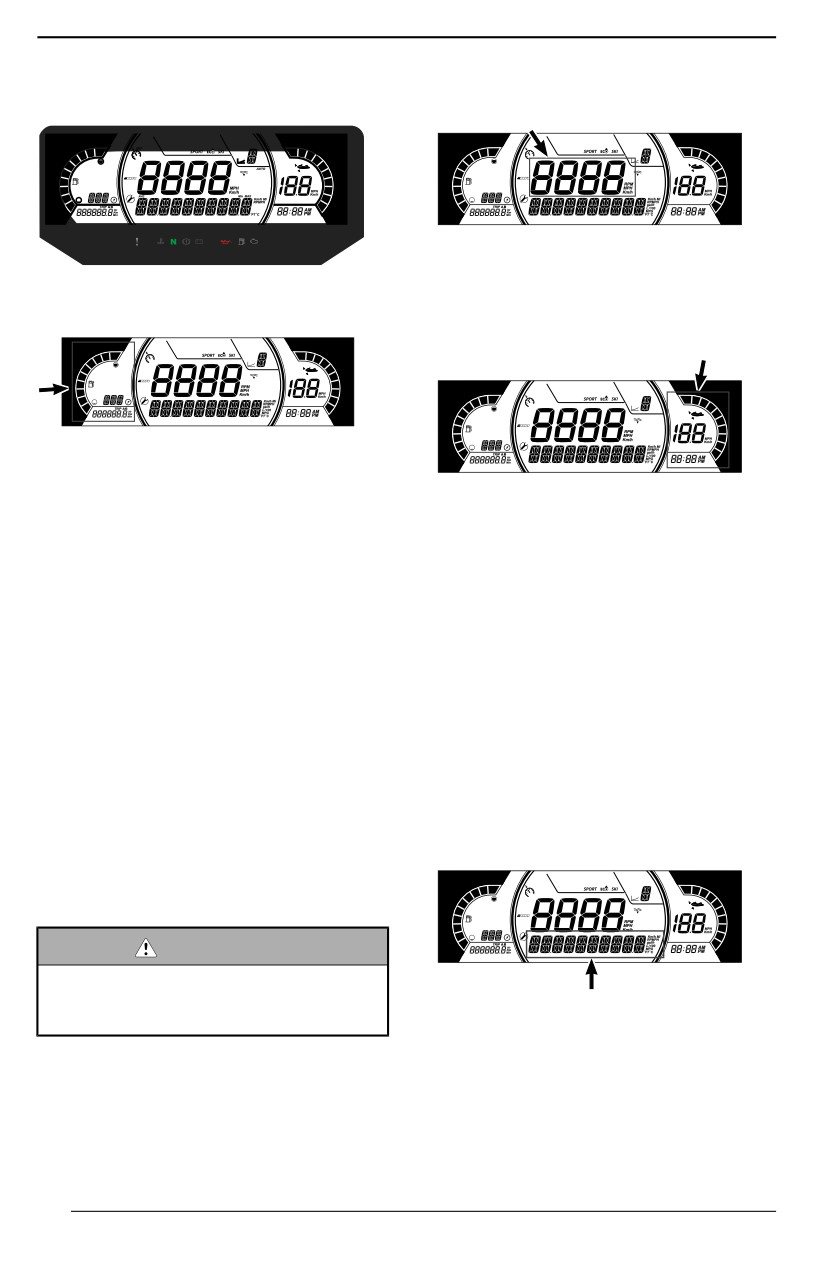

The right controller includes controls

i

ing steeriing nozzlle operation be-

to navigate in the multifunction gauge.

fore startiing. Never turn the

- Arrow UP

handllebar whille someone iis near

- Arrow RH

the rear of the watercraft. Keep

- Arrow Down

away from the propullsion system.

- Arrow LH

- OK button.

When operating in reverse, the steer-

ing direction is reversed. Turning the

BRP Connect Button (if

handlebar to the right while backing

equipped)

up steers the watercraft to the left.

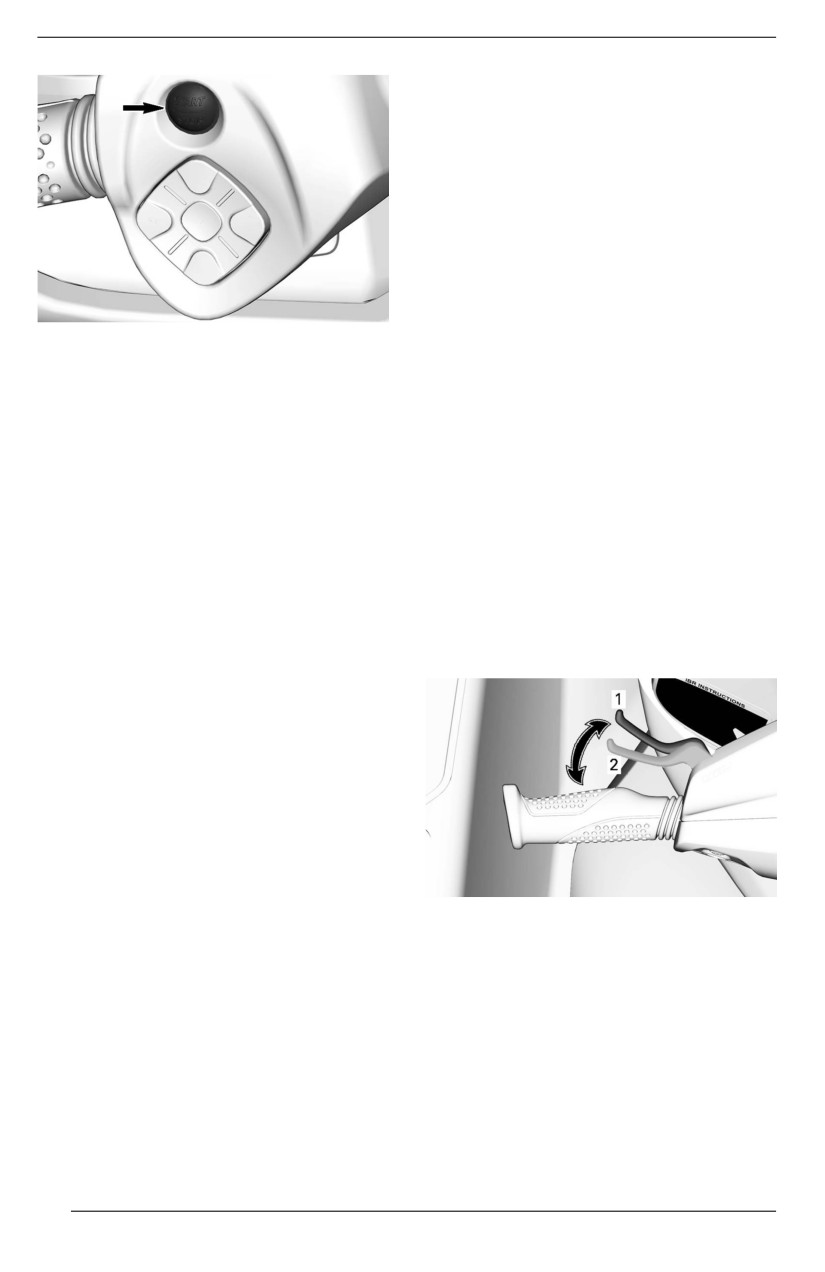

The BRP Connect button is located

above the right controller.

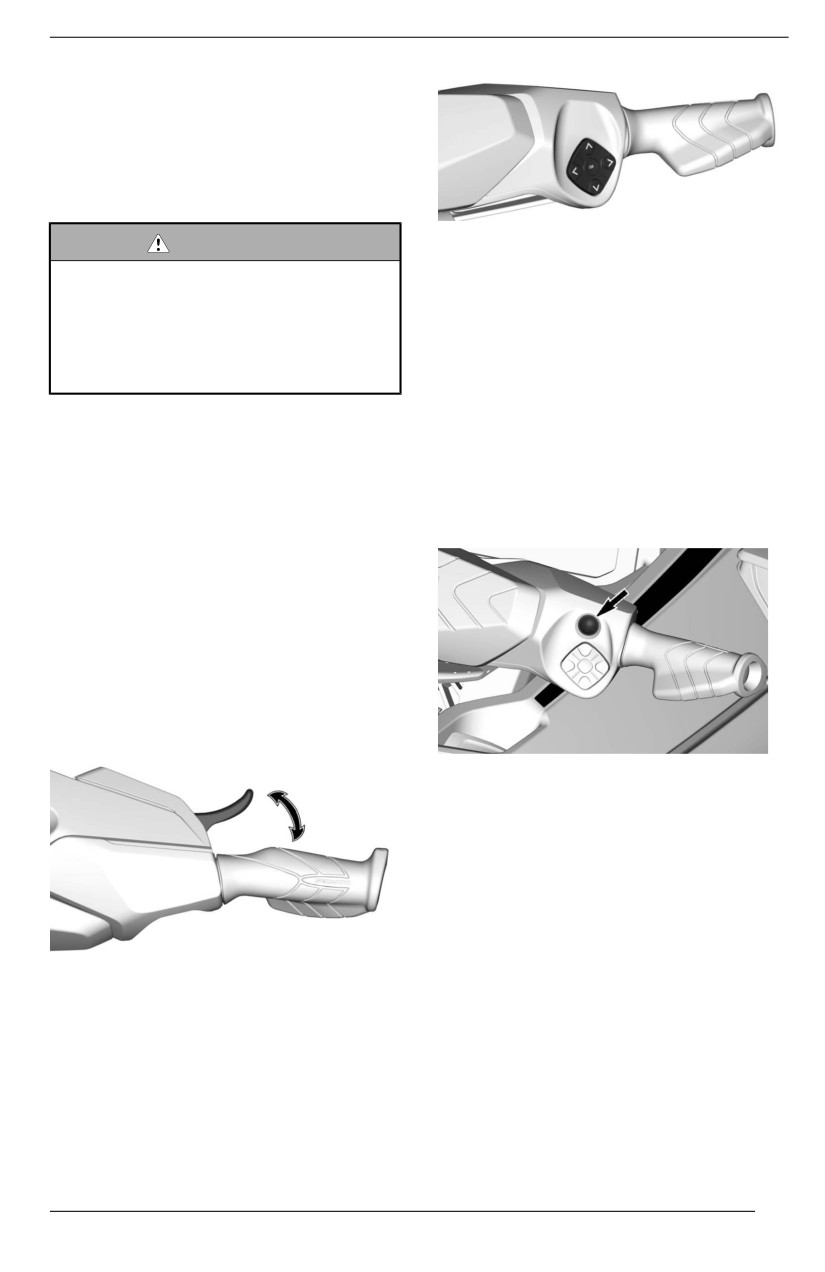

Throttle Lever

The throttle lever on the RH handlebar

controls electronically the engine

speed.

To increase or maintain watercraft

speed, pull the throttle lever with your

finger.

To decrease watercraft speed, re-

lease the throttle lever.

This button allows a quick access to

BRP Connect. Each click will swap

between apps view and functions view

of the multifunction gauge.

Engine Cut-Off Switch

The engine cut-off switch is located in

the middle of the handlebar.

The throttle lever is spring loaded and

should return to rest position

(idle)

when not pressed.

Right Controller

The right controller is located on the

RH side of the handlebar.

71

CONTROLS

WARNING

Allways diisconnect tether cord

when watercraft is not in opera-

tion in order to prevent accidentall

engiine startiing or to avoiid unau-

thoriized use by others, chilldren,

and to prevent theft.

Radio Frequency Diigitallly Encoded

Securiity System (RF D.E.S.S.)

To allow engine starting, the tether

The tether cord cap contains an elec-

cord cap must be securely snapped to

tronic circuit (D. E. S. S.™ key) that is

the engine cut-off switch.

programmed to give it a unique elec-

tronic serial number. This is the equiv-

alent of a conventional key.

WARNING

Always attach the tether cord clip

The D.E.S.S. system reads the key in-

to the operator''s personal flota-

stalled on the engine cut-off switch

tiion device (PFD) or wriist (wriist

and only allows engine starting for

strap required).

keys it recognizes.

The D.E.S.S. system brings great flex-

ibility. You can buy additional tether

cords and have the D.E.S.S. keys pro-

grammed for your watercraft.

A total of ten D. E. S. S. keys can be

programmed.

To have a key programmed to your

watercraft, see your authorized BRP

Sea-Doo dealer.

Left Controller

TYPICAL

The left controller is located on the LH

1. Tether cord cap on the engine cut-off switch

side of the handlebar.

2. Tether cord secured to operator's PFD

To stop engine, pull the tether cord

cap from the engine cut-off switch.

WARNING

Shoulld the engiine be stopped, the

brake functiion and alll watercraft

diirectional controll is llost.

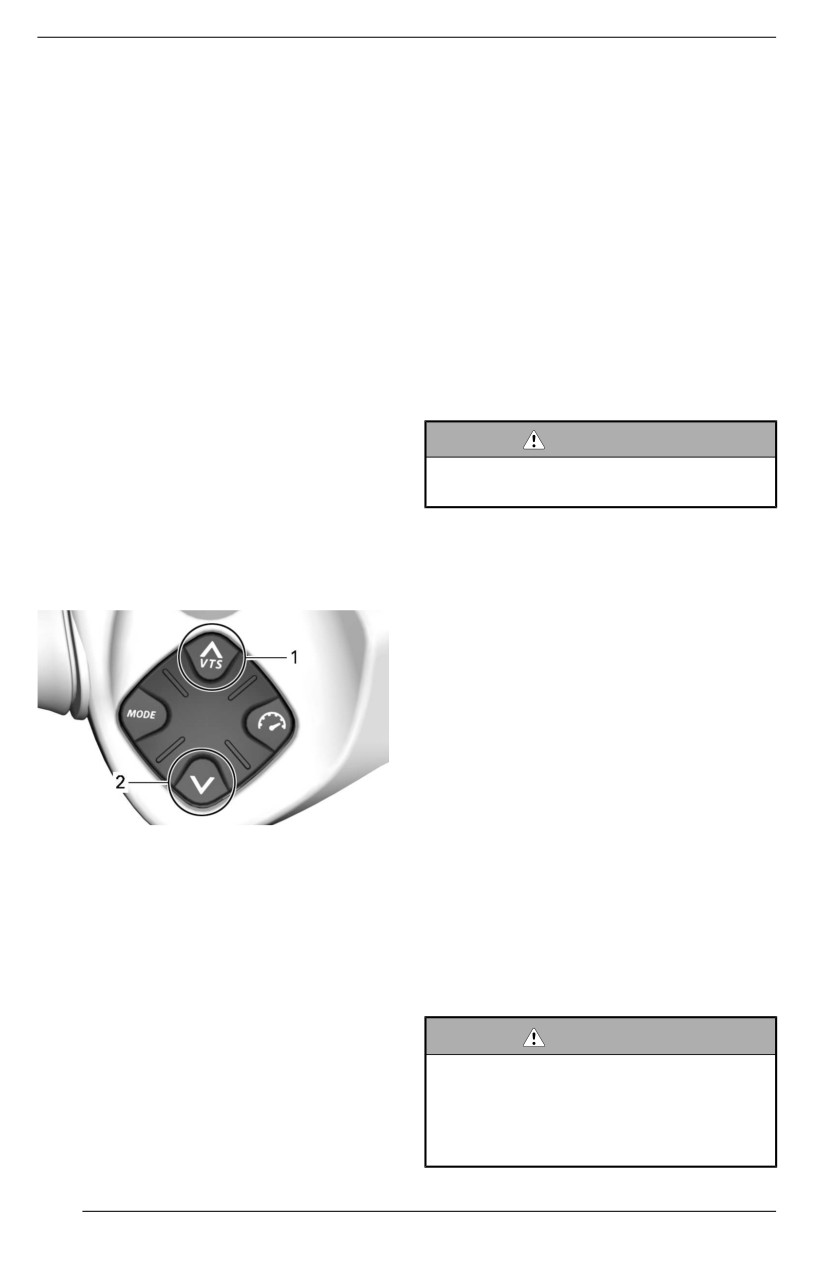

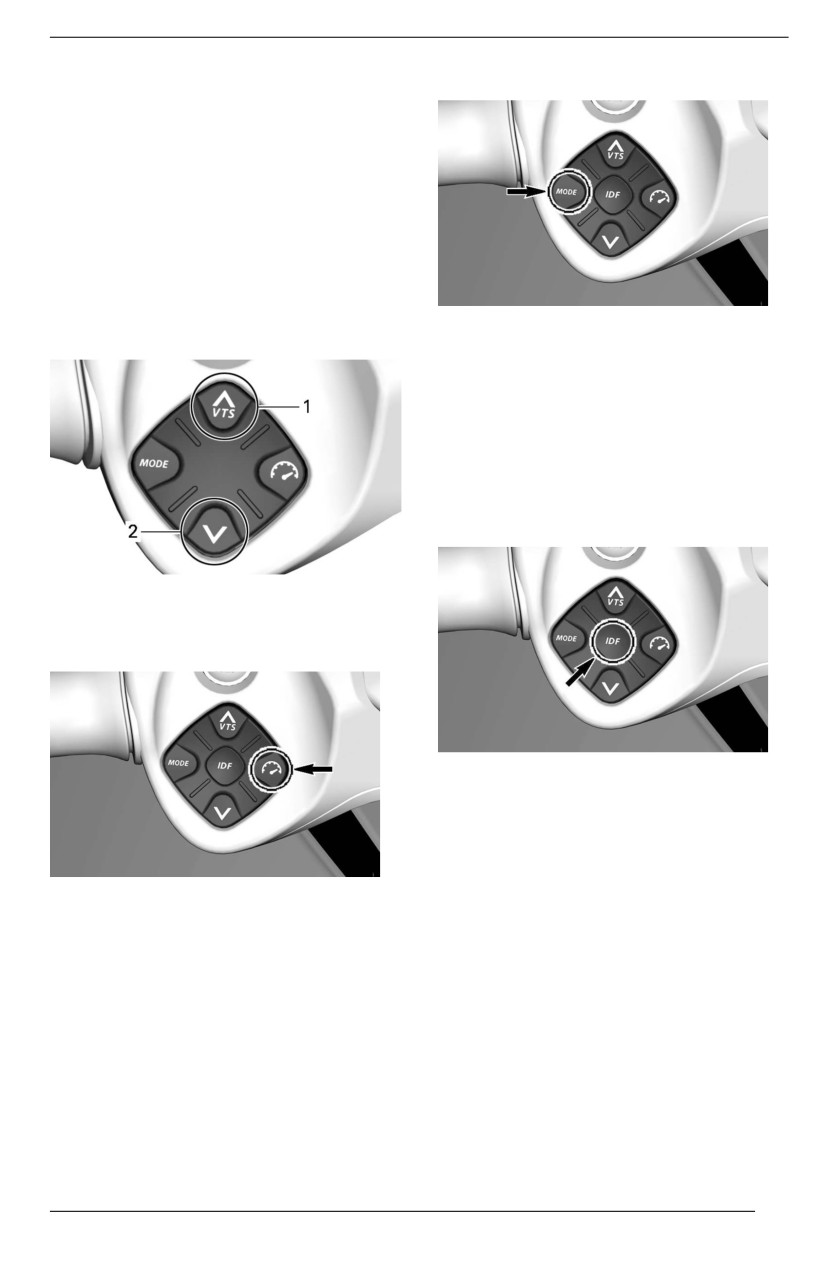

Variable Triim System (VTS) Button

The VTS button provides watercraft

pitch trim adjustments by adjusting the

vertical position of the jet nozzle.

72

CONTROLS

The VTS can be electrically trimmed

Mode Button

to desired attitude, or to one of tree

preset trim positions (full up, middle

and full down).

Refer to Operating Instructions for

details.

NOTE:

The VTS button is used for Neutral ad-

justment. This is to adjust the neutral

position of the watercraft. Refer to Op-

erating Modes for details

TYPICAL

It is used to choose between Normal,

Sport or Eco mode.

Refer to Operating Modes for details.

i

intellligent Debris Free Pump (iiDF)

Button (iif equiipped)

Located in the center of the left

controller.

1. Bow up

2. Bow down

Speed Controll Button

It allows to activate the iDF system.

Refer to Activating the intelligent De-

bris Free Pump System in Operating

Instructions section.

TYPICAL

Engine START/STOP Button

The engine START/STOP button is lo-

Allow to set and control the speed re-

cated on the LH handlebar.

lated functions.

- Speed limiter

– Slow speed mode.

73

CONTROLS

the battery voltage reaches 12.3V or

less, the system will automatically

shut down to ensure enough power

remains to start the engine.

When the electrical system is acti-

vated by pressing START/STOP

briefly while the engine is shut down

the wake-up time will be managed as

follows:

- Key off: System will shut down

after 75 seconds.

TYPICAL

–

ENGINE START/STOP

- Key on: System will shut down

BUTTON

after 60 minutes or if the voltage

threshold is reached.

Engiine Starting and Stopping

intelligent Brake and Reverse

Refer to Operating Instructions for

complete procedures on how to start

(iBR) Lever

and stop the engine.

The iBR lever on the LH handlebar

can electronically command:

Wakiing Up the Electriicall System

- Brake

Press the START/STOP button once

- Reverse

without installing the tether cord on

- Neutral.

the engine cut-off switch.

NOTE:

This will power up the electrical sys-

A minimum of 25% of iBR lever stroke

tem; the information center will cycle

is required to activate iBR functions.

through a self-test function.

The electrical system will stay pow-

ered up for approximately 75 seconds

after the START/STOP button was

depressed.

When the tether cord is installed on

the engine cut-off switch, the system

will be powered for 60 minutes.

Every time the START/STOP button is

pressed, the countdown restarts.

When the battery voltage drops below

TYPICAL

12.3V, the LOW BATTERY indicator

1. Lever rest position

lamp will light up and the electrical

2.

25% stroke required to activate iBR

system will shut down after

75

functions

seconds.

At speeds above 14

km/h (9 MPH),

Post-Driive Battery Management

pulling the iBR lever

will engage the

brake.

This feature keeps the electrical sys-

tem awake to allow using accessories

when the engine is turned off. It also

prevents draining the battery too

much when using accessories. When

74

EQUIPMENT

Illustrations may not be accurate for every model and are only provided as a visu-

al guide.

Some vehicle safety labels are not shown on illustrations. For information on ve-

hicle safety labels, refer to Watercraft Safety Labels.

14

17

15

2,3,4

12

5

6

1

8

10

7

9

9

10

13

16

11

FISHPRO TROPHY 170

1. Glove Box

2. Front Storage Compartment

3. Fire Extinguisher Holder

4. Safety Kit Holder

5. Seat

6. Passenger Handholds

7. Boarding Ladder

8. Boarding Platform

9. Front and Rear Eyelets

10. Mooring Cleats

11. Bilge Drain Plugs

12. Steering Tilt Handle

13. BRP Audio Premium System

14. Fish Finder Sonar and Mount

15. Cooler/ Livewell

16. Front Rod Holder for Trolling

17. Cup Holder

18. Pedestal Seat Post

19. Pedestal Seat Backrest

20. Anchor

76

EQUIPMENT

Front Storage Compartment

The front storage compartment that

can be used to carry larger personal

articles is located under the front

cover.

1. Release buttons

NOTICE

The maximum load alllowablle for

FRONT STORAGE COMPARTMENT

the front storage compartment iis

13 kg (30 llb) evenly distributed.

Front Storage Compartment

Organiizer Bag (If Equipped)

WARNING

Never lleave any heavy or break-

ablle objects lloose iin the front

storage compartment. Do not

overload.Never store or transport

fuel or any other fllammable prod-

ucts iin thiis storage compartment.

Never operate the watercraft wiith

the storage compartment cover

1. Front Storage Compartment Organizer Bag

open or wiith iimproperlly secured

cargo.

Opening the Front Storage

Compartment Cover

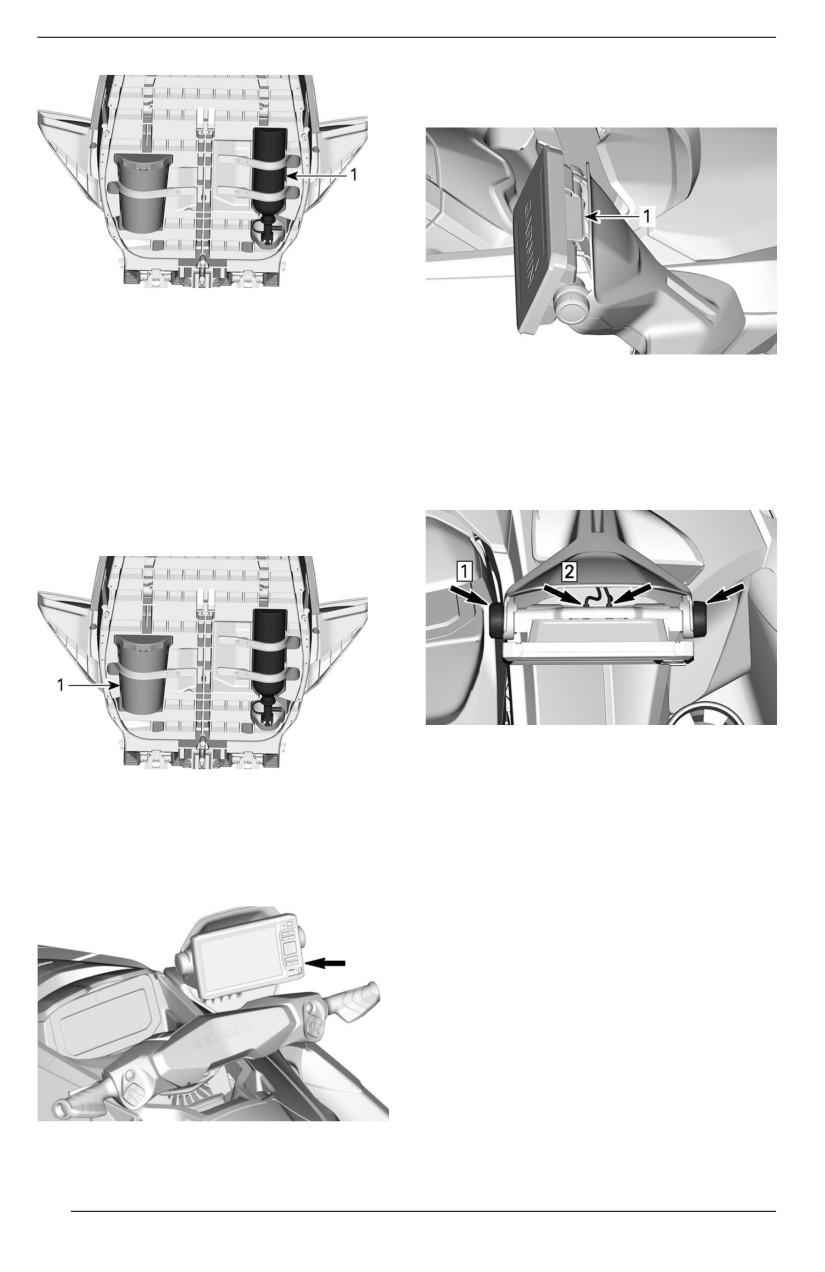

Fire Extinguisher Holder

Stop engine.

NOTE:

WARNING

Fire extinguisher is sold separately.

When the front storage compart-

ment cover is opened, the con-

The fire extinguisher support is lo-

trols are not accessiiblle to the

cated under the front storage bin

driver.

cover.

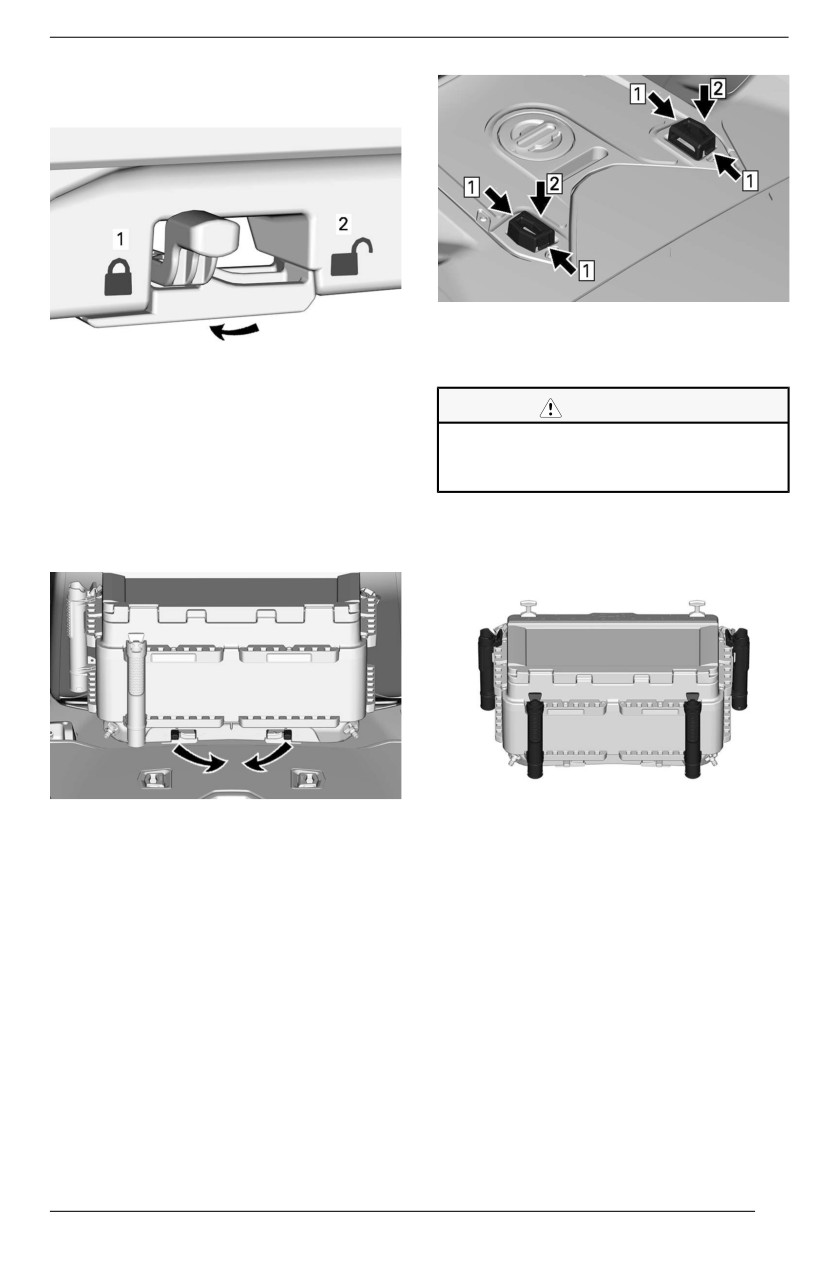

Use the rubber tie-downs to properly

Open the storage bin by pressing on

secure the fire extinguisher.

the two release buttons and lifting the

handlebar.

77

EQUIPMENT

To remove, lift the tab and disconnect

the electrical connectors.

1. Fire extinguisher

Safety Kit Holder

1. Lift tab to remove

NOTE:

Safety kit is sold separately.

Keyed 7” Sonar

To remove, loosen completely the

The safety kit support is located under

knobs on the sides and disconnect the

the front storage bin cover.

electrical connectors.

Use the rubber tie-downs to properly

secure the safety kit.

Step 1. Loosen knobs

Step 2. Disconnect electrical connectors

1. Safety Kit

Touchscreen Keyed-Assiist

7”

Sonar

Fish Finder Sonar and Mount

Depending on models, choose the ap-

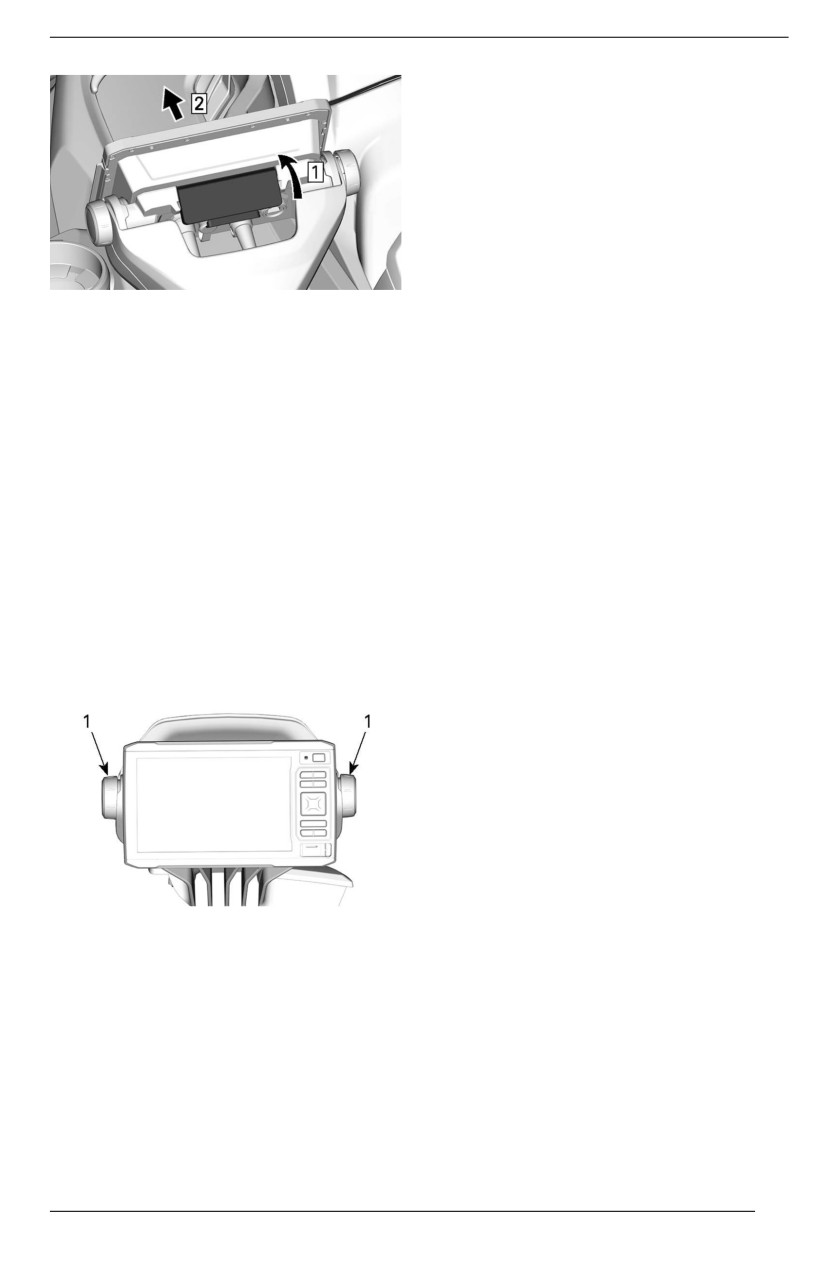

To remove, lift the tab and remove the

propriate procedure.

detachable screen from the support.

Keyed 6” Sonar

78

EQUIPMENT

Step 1. Lift tab

Step 2. Remove screen

For Alll Sonars

When removed from the watercraft, in-

stall the protective cover on the fish

finder screen.

Make sure there is always a thin coat

of dielectric grease on the connectors.

Refer to the included manufacturer

guide for complete instructions.

To adjust the angle of the sonar, sim-

ply loosen the knobs on the sides,

place sonar at appropriate angle and

retighten the knobs.

TYPICAL

1. Angle knobs

79

EQUIPMENT

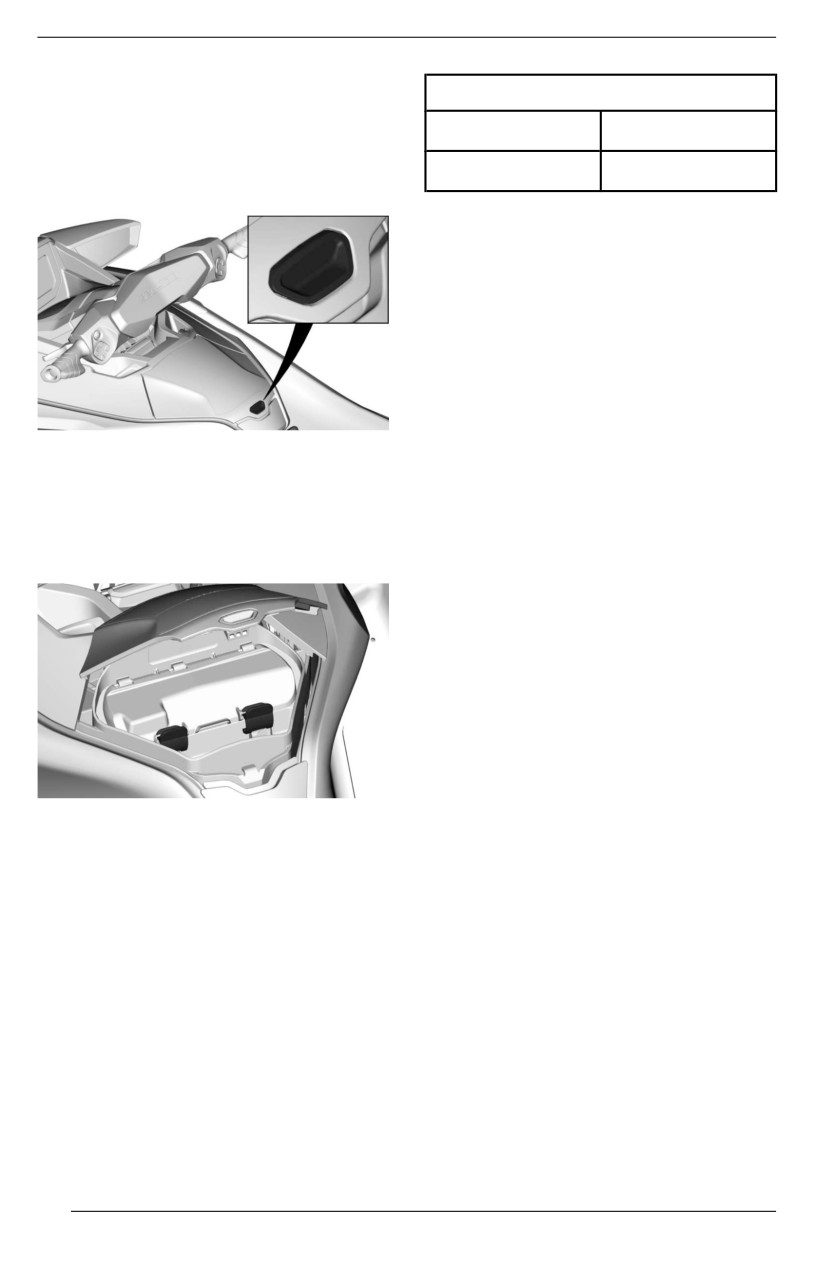

Glove Box

Maxiimum Phone Size

A small, storage compartment for per-

Length

160 mm (6.3 in)

sonal articles.

Push on cover latch to open glove

Width

85 mm (3.3 in)

box.

NOTE:

Due to variation in smartphone sizes

and cases styles, ensure there is no

pressure on connector and/or phone

when closing the lid.

Some models are equipped with a

USB port used for charging. When us-

ing the USB port to charge a smart-

phone, always make sure to route the

cable such that there is no pressure

on either ends of the cable to prevent

Watertight Compartment

damage to cable or smartphone

Inside the glove box is located a small

connectors.

watertight storage compartment for

personal articles. Pull backwards on

NOTE:

the two latches to open.

For optimum performance, always

use OEM USB cables. Low cost after-

market cables may not have data lines

and/or higher impedance which may

result in poor charging performance or

overheating.

Many models of smartphones have a

brittle female connector so extra care

should be taken when inserting in the

watertight compartment. BRP recom-

mends to use a short cable (no more

than 25 cm (10 in)) so there is less ex-

TYPICAL

tra cable length to stow.

There is a protective foam located in-

The models not equipped with USB

side the watertight compartment to

charging port are instead equipped

protect a phone from damages. Make

with a rubber seal to ensure water-

sure the smartphone is held in place

tightness. There is a ventilation mem-

by the foam and not the edges of the

brane that balance pressure inside

receptacle and that you can close the

and outside the compartment to en-

lid. Always make sure the foam is

sure it can be opened without suction-

completely dry before using.

ing water droplets inside. The

Refer to Maximum Phone Size chart.

membrane itself is watertight. Water-

tightness of the compartment is finally

ensured by pressing the compart-

ment’s door on the surrounding seal,

using the two latches.

80

EQUIPMENT

press. Pressing the button will turn the

WARNING

unit On if currently Off or holding the

Using a smartphone or trying to

button for 3 seconds will turn the unit

paiir a device whiile driviing can

Off if currently On. The unit will emit 4

diistract the driver from operatiing

small beeps to indicate when power is

the watercraft. Always use but-

turned Off. Note that all the buttons

tons wiith cautiion and always stay

will illuminate when the unit is pow-

allert on the water, keepiing eye

ered On.

contact wiith your enviironment at

alll tiimes.

Volume Up and Vollume Down

-

These buttons will turn up or turn

down the output of the volume. When

the unit has reached the minimum or

maximum output level, the unit will

beep to indicate that no further adjust-

ment is possible.

On all vehicles except the ones

equipped with the Large Panoramic

7.8” Wide LCD Display, the USB port

located inside the glove box watertight

compartment is only used to charge

TYPICAL

the smartphone, not to transfer the

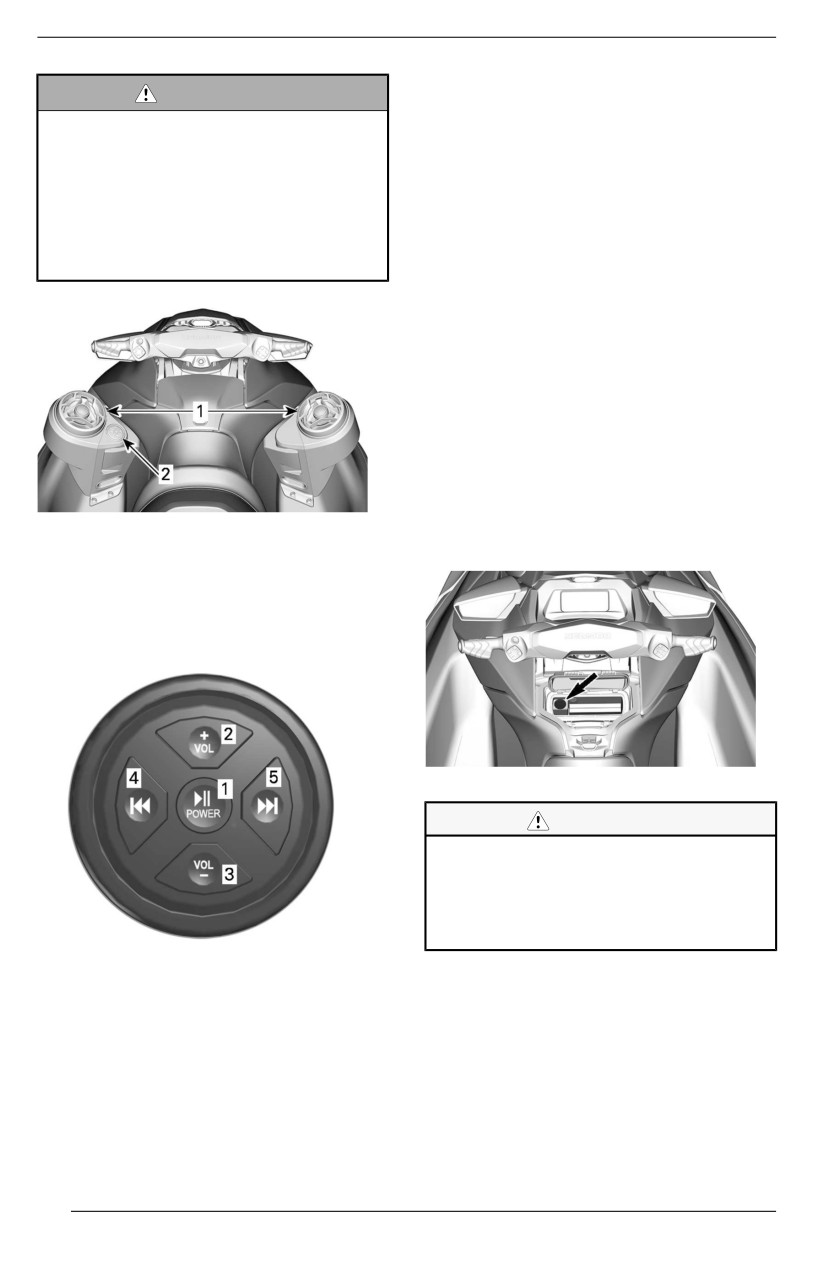

1. Speakers

music.

2. Keypad

The keypad is used to control the

sound system.

TYPICAL

CAUTION

Prolonged exposiition to lloud mu-

sic can damage your heariing.

Therefore, we suggest a 10 mii-

nutes break time every 45 mi-

nutes of llisteniing.

1. Play/Pause/Power

2. Volume UP

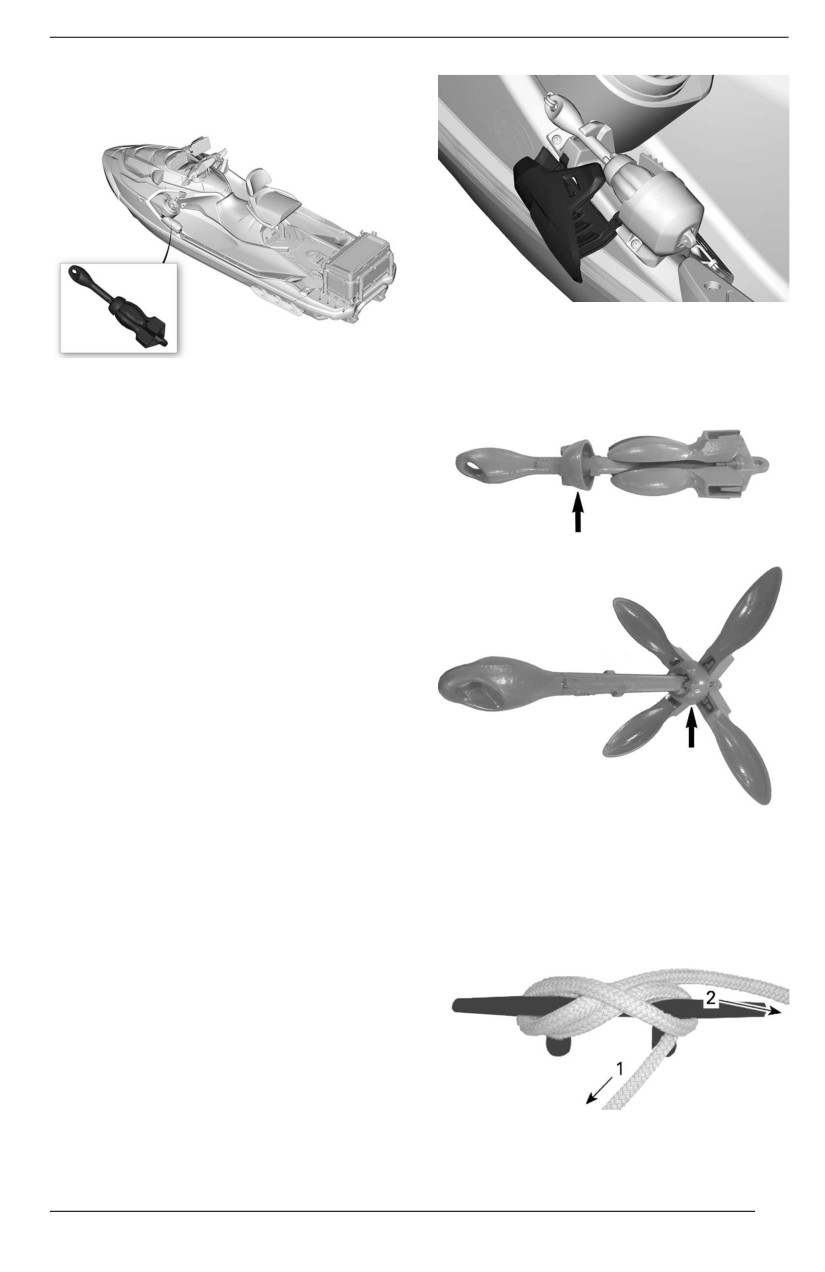

Anchor (if equipped)

3. Volume DOWN

This PWC is equipped with a 1.6 kg

4. Previous track

(3.5 lb) folding grapnel anchor with 30

5. Next track

m (100ft) of rope. This model of an-

chor was chosen for its ability to be

Play/Pause/Power

- This button

stored on small vessels such as a

gives you the ability to play or to

PWC. It is meant to be used when an-

pause the current track with a single

choring temporarily and works best

82

EQUIPMENT

when it can hook onto a rock or an ob-

ject on the bottom.

Open it as shown by turning and slid-

ing the locking collar.

When not in use, the anchor must al-

ways be contained in its dedicated

stow compartment.

The rope length ratio (Scope) is very

important for appropriate anchoring.

It is calculated as follows: Scope

=

Rope length / Water depth (including

height of freeboard).

The ratio should be at least 5 and

ideally targeted between 7 to 10. It will

depend on the type of bottom (mud,

sand, rocks), the wind, the tide, the

current and the severity of the

conditions.

In order the maximise chance of the

anchor to hook, the length of rope to

use should be 7- 10 times the water

depth. Your PWC is equiped with

100ft of rope. In over 6 m (20ft) of

water, the anchor may work but its

Let it drop in water until it reaches the

chances of hooking properly to the

bottom. Ensure PWC stays immobile.

bottom will decrease.

Progressively let rope out until 7 times

the depth, then secure the rope to the

Set Anchor

cleat with a cleat hitch.

To set anchor, bring vehicle to a stop

in a secure area and verify reading of

depth finder.

Pull out anchor from its receptacle by

opening the cover.

1. Toward anchor

2. Toward storage bag

83

EQUIPMENT

Ensure anchor is properly hooked.

Start engine and slowly depart from

mooring location.

While installed at mooring location for

fishing, remain attentive to any

WARNING

changes in position by keeping look-

ing at surroundings.

Do not let anchor rope get near

the rear of the PWC when engiine

is running. The rope can become

WARNING

tangled iin the turbiine and harm

– Anchor only iin an area where

the person holdiing iit and can

your PWC willl not diisrupt other

cause loss of engiine power.

boats or be too cllose to shore

as the PWC can rotate around

your anchor. Collliision may

Front Rod Holder for Trolling

occur.

Two rod holders supports have been

– The PWC can onlly be anch-

placed near the steering to install a

ored iin favorablle weather and

rod holder.

sea condiitions. It was de-

signed for fishing purpose

This holder may be used to place and

only.

watch a fishing rod during trolling.

– The clleat iinstallled on the

watercraft is to be solelly used

with the suppllied anchor.

NOTICE

Never lleave an anchored PWC

wiithout a knowlledgeable operator

on-board. If you must lleave the

watercraft, one must pay constant

attention and surveilllance as an-

chor can become unhooked unex-

TYPICAL

pectedlly, or anchor draggiing may

occur.

WARNING

Never ride with a fiishiing rod iin the

Weigh Anchor

hollder except during trollliing. Al-

Pull the rope and stow away as it

ways remove the fiishiing rod from

brings your PWC close to the anchor.

the holder to ride from a spot to

another. A treblle hook could

Once the rope is close to vertical, un-

cause harm.

hook anchor and pull the anchor up,

rinse and clean from debris or mud,

To remove the rod holder, press the

then fold and secure anchor in its

tab and lift.

receptacle.

The best method to handle the rope to

avoid knots is to drop the rope inside

the storage bag as it's being pulled in.

Tie the rope to the cleat and make

sure the rope is routed just forward of

the anchor storage compartment.

84

EQUIPMENT

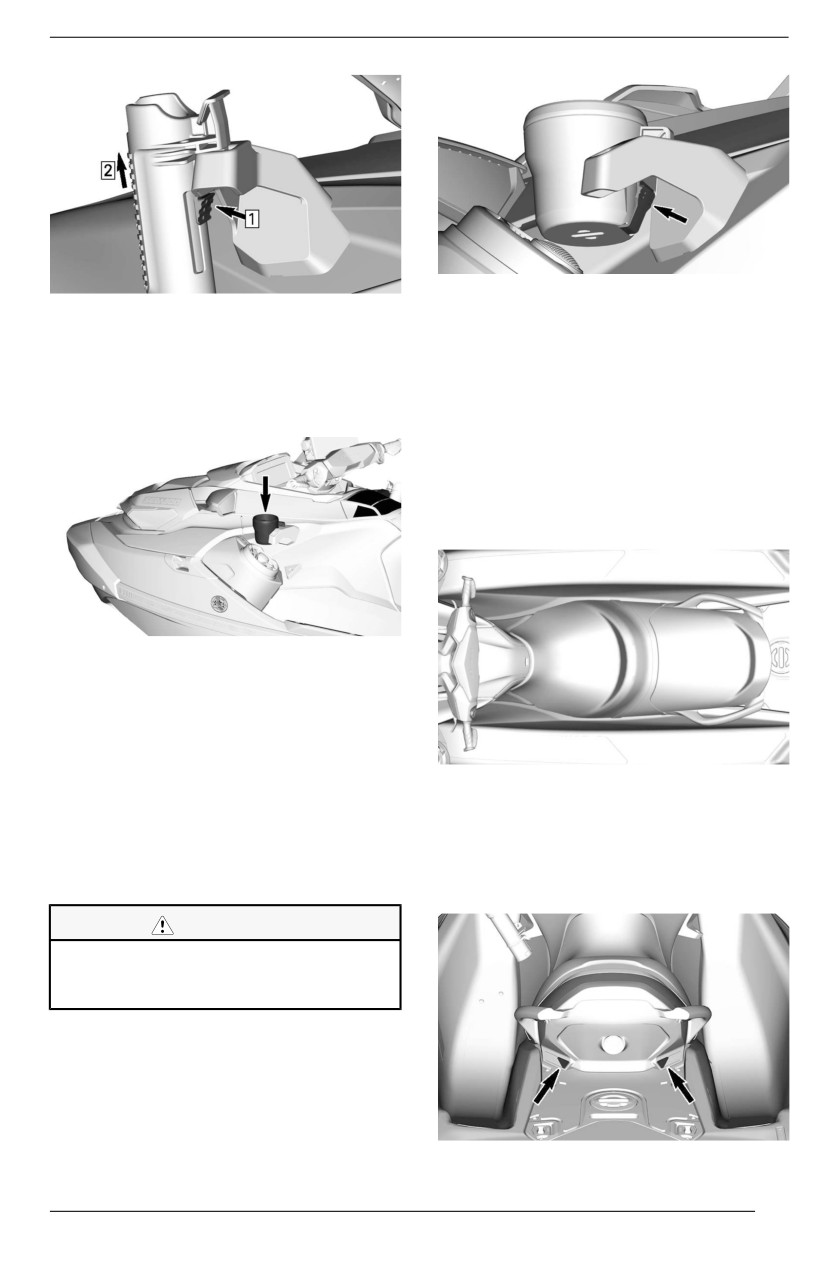

1. Press tab

Place the cup holder on left or right

2. Lift rod holder

fishing rod holder support.

Place the holder on left or right side.

Seat

This model comes equipped with an

Cup Holder

ergonomic seat narrowing towards the

front with knee grab design allowing

you to position your legs towards the

inside of the footwells, minimizing

upper body fatigue and granting you

more control when cornering.

For your convenience, a cup holder

can be added on the left or right fish-

ing rod holder support.

The size of the container (bottle, cup,

etc.) is important. A container with a

large diameter will be retained more

ERGONOMIC SEAT

effectivelythan a small one.

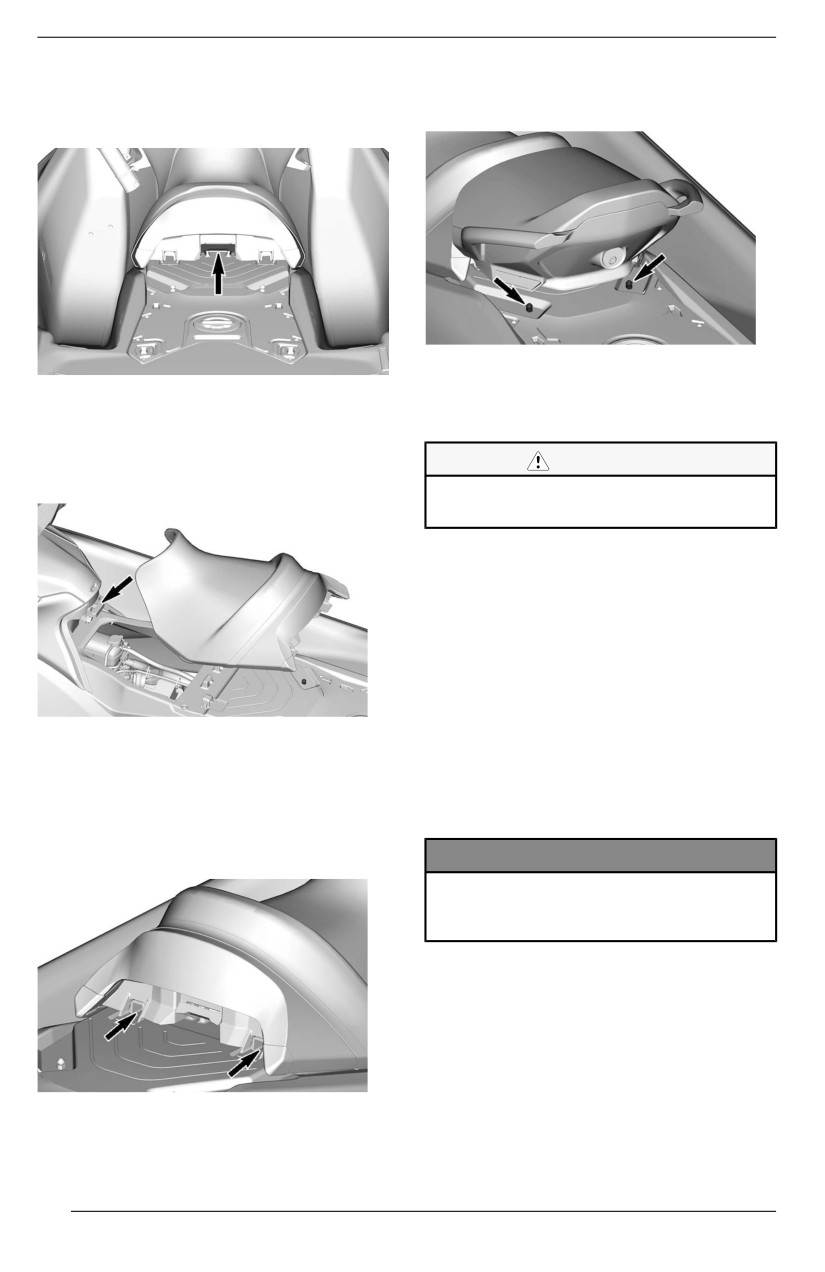

Removiing the Seat

It is therefore advisable to choose a

1. Push on the two release buttons

container with the larger diameter as

and lift the back end of the rear

possible.

seat.

CAUTION

To avoid iinjjury, remove any object

from the cup hollder when choppy

water condiitiions occurs.

To remove the cup holder, press the

tab and lift.

85

EQUIPMENT

2. Then pull the latch handle up and

on the rear portion of the seat to

remove the front seat from the

lock it in place.

watercraft.

LATCH PINS

6. Pull up on the rear portion of the

seat to ensure it is properly

Installling the Seat

latched.

1. To install the seat, insert the for-

ward end of the front seat in its

CAUTION

retainer.

Ensure the latch iis properly

locked onto the pin.

Passenger Handholds

The seat strap provides a handhold

for a passenger to hold on to when

riding.

The sides of the molded grab handle

at the rear of the seat also provide a

handhold for a passenger. The rear

SEAT RETAINER

portion of the molded grab handle pro-

2. Push the rear end of the front seat

vides a handhold for the skier/wake-

down to lock it.

boarder

(if applicable) spotter or

3. Pull upwards on the front seat to

boarding the watercraft from the

make sure it is locked in place.

water.

4. Insert the forward part of the rear

seat into the retainers.

NOTICE

Never use the molded grab han-

dle to tow anything or to llift the

watercraft.

SEAT RETAINERS

5. Align the seat latches with the

latch pins and firmly press down

86

EQUIPMENT

TYPICAL

1. Seat strap

Open the mounting hole.

2. Molded grab handle

Pedestal Seat (if equipped)

This model is offering a more comfort-

able fishing position by using the rear

seat on top of the post and by adding

a back rest.

WARNING

Never operate the watercraft

whiile someone iis seated on the

pedestall seat.

Insert the post into the mounting hole.

Secure using the strap. The post can

be installed toward the front or rear. A

beep will be heard to confirm the post

installation. A message will be seen in

the digital display if there is a system

malfunction. See your dealer or dis-

tributor in such occurrence.

NOTE: Watercraft speed will be lim-

ited to

30 km/h (19 mi/h) when the

post is installed.

WARNING

The pedestall seat post and the skii

pylon are iincompatible and should

never be installled on the PWC sii-

multaneously. Properly stow the

unused item before starting the iin-

stalllation of the other.

When you are ready to fish, proceed

as follows.

To use the post, remove the passen-

ger seat.

87

EQUIPMENT

A. Distance 10 mm (3/8 in)

NOTE: Having objects in the cooler

net may hamper the post installation.

NOTE: The back rest can only be in-

Install the seat and, if desired, the

stalled when the seat is on the post.

back rest.

WARNING

– Never lleave post on wiithout

the seat installled

– Always installl the seat when

the post is in pllace

– Never lleave the backrest on

the seat whiile ridiing.

– Never attempt to installl the

backrest at the rear of any seat

whille riding.

– Avoiid riiding when the seat and

the post are iinstallled.

To properly install the back rest, en-

– Never lleave the engine run-

sure it is completely inserted. A dis-

niing without the safety llanyard

tance of 10 mm (3/8 in) is normal.

attached to you, especiallly

when seated on the pedestall

seat. If you falll iin the water the

PWC coulld not be reachablle.

When not in use, the post must be se-

cured on the livewell.

88

EQUIPMENT

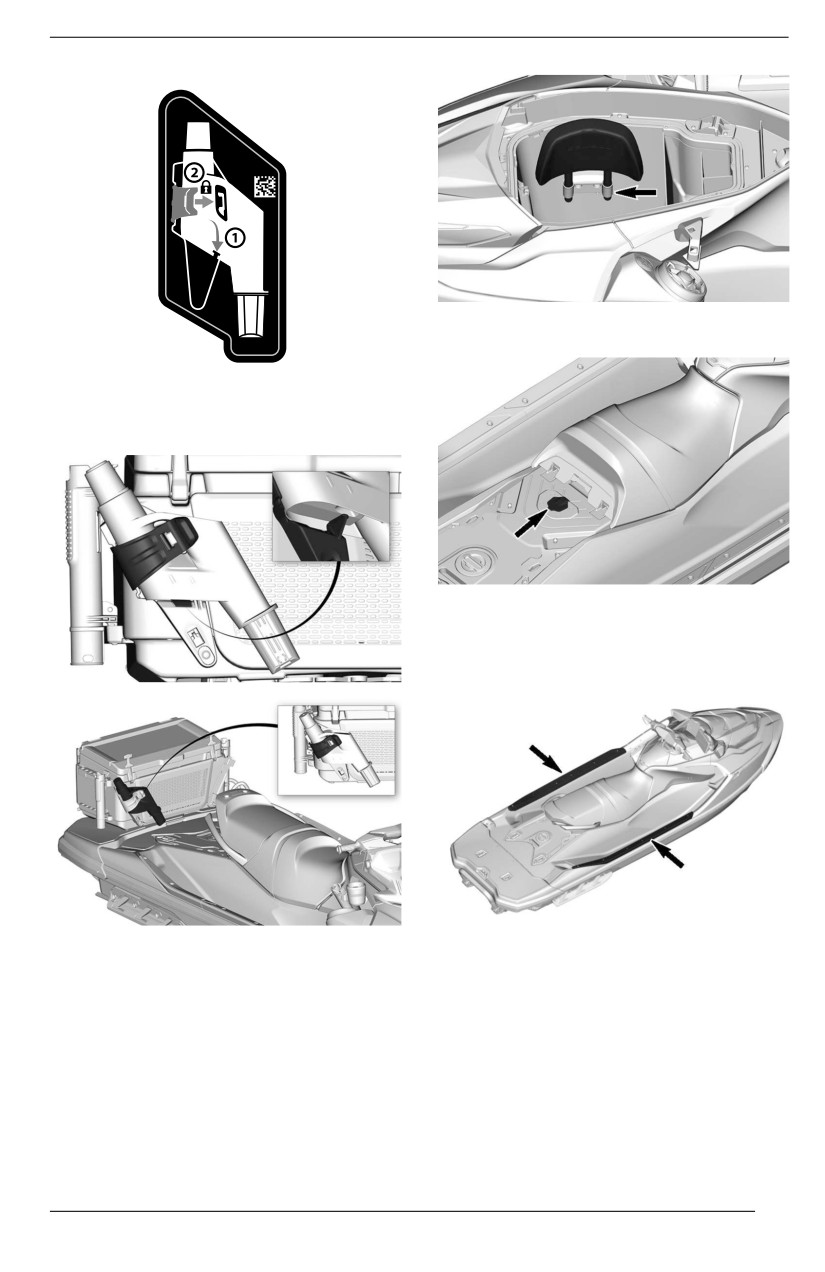

6087

The cap must cover the hole.

Step 1. Lower the post on the hook.

Step 2. Push the post inside the tab until it is

secured.

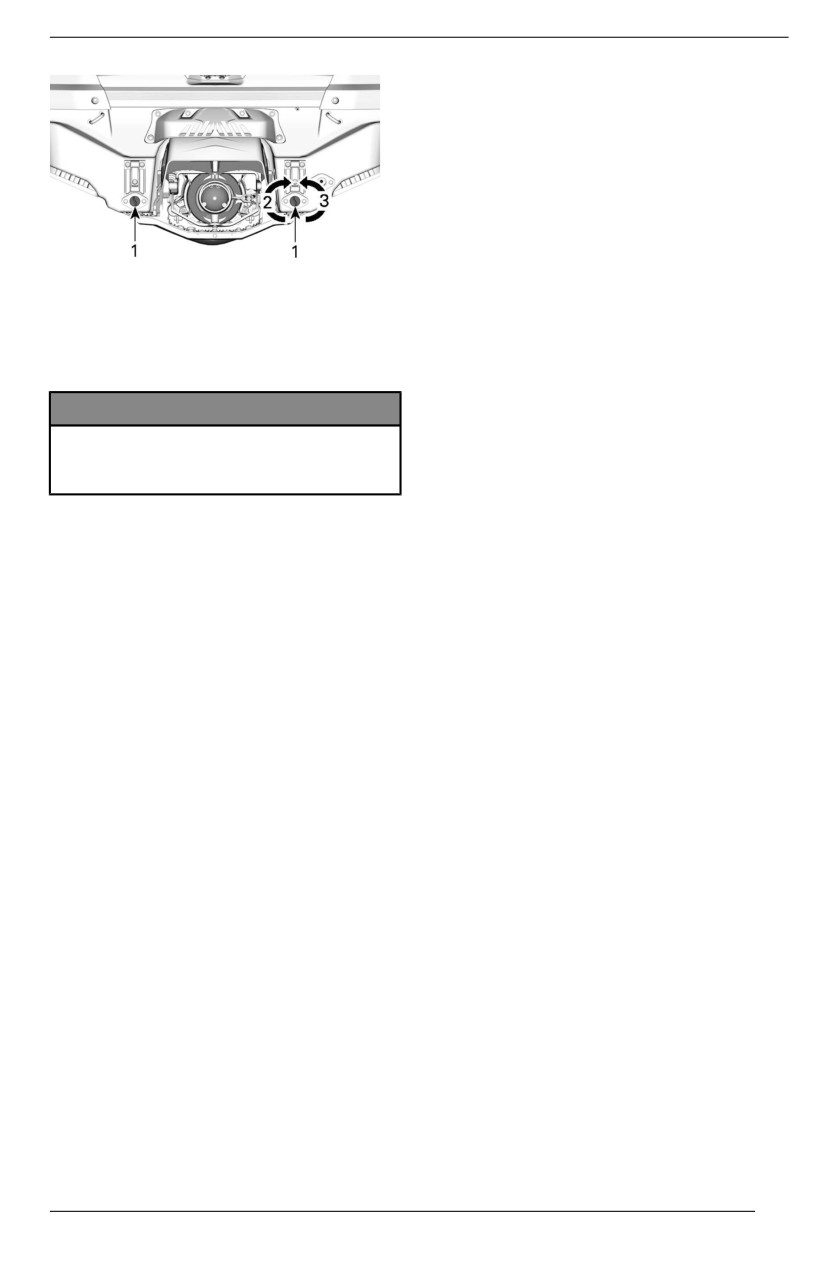

Lateral Footrest

Intended to give grip when boarding

or seating sideways.

TYPICAL

Store the back rest in the front storage

compartment.

89

EQUIPMENT

Boarding Platform

Cooler

A boarding platform covers the rear

This model comes equipped

with a

deck area.

cooler and fishing rod holders.

CAUTION

The LiinQ attachment points are

used to carry accessories and

should always be retracted when

not in use.

Two indentations in the platform are

used as foot rests for the rear facing

spotter when towing a skier, wake-

boarder or tuber.

A ski pylon can be installed by remov-

To install

the

cooler,

refer

to

the

ing the ski pylon hole cover in the mid-

following.

dle of the platform. The ski pylon hole

cover is not the fuel cap.

WARNING

The pedestal seat post and the ski

pylon are incompatiiblle and shoulld

never be iinstallled on the PWC si-

mulltaneouslly. Properly stow the

unused iitem before startiing the in-

stalllatiion of the other.

CAUTION

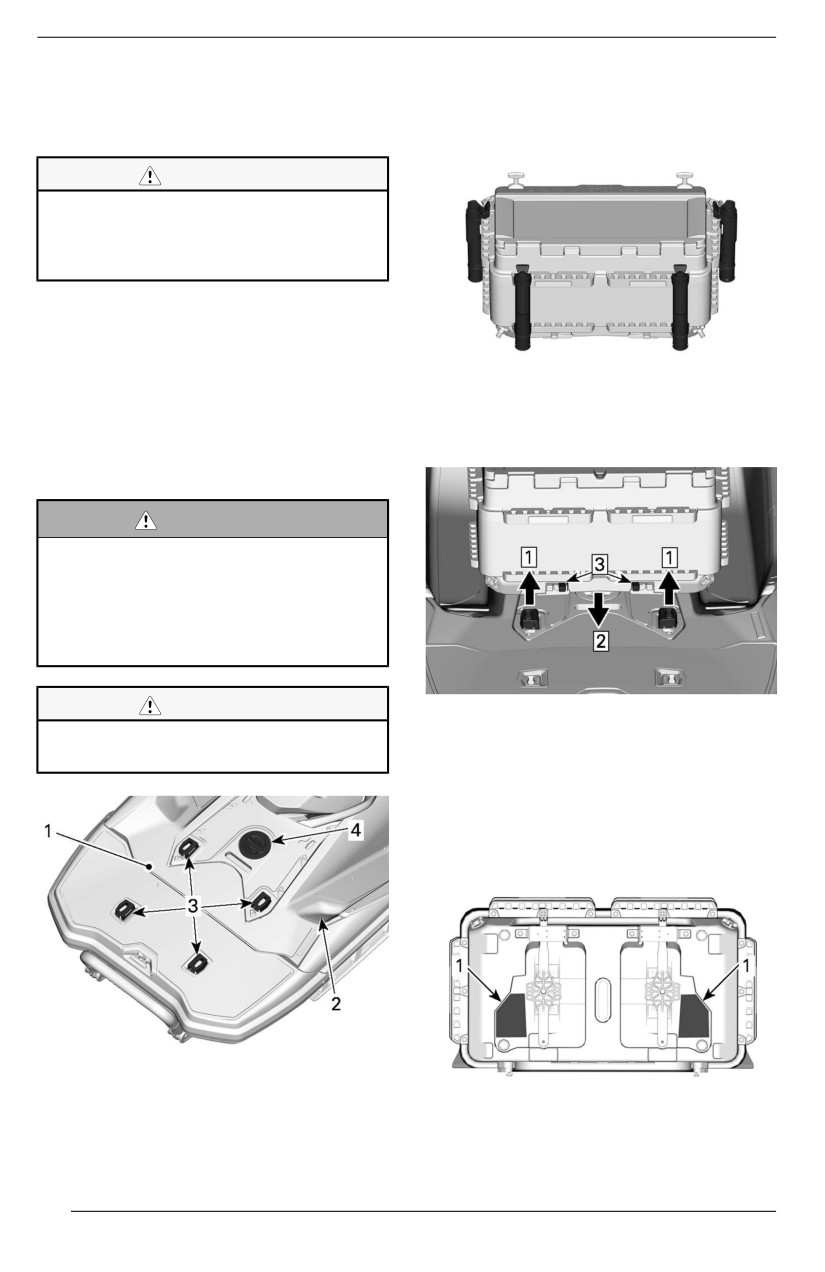

Step 1. Lift LinQ

Step 2. Lower cooler

Always iinstalll ski pyllon hole cover

Step 3. Lock cooler in place

when ski pylon iis not installled.

1. Lift LinQ attachments, making sure

they are fully extended.

2. Lower cooler, making sure to be in

the correct area.

1. Boarding platform

2. Spotter foot rests

3. LinQ attachments

1. Correct area

4. Ski pylon hole cover

90

EQUIPMENT

3. Slide attachments toward the out-

side to lock.

Step 1. Squeeze LinQ attachments tabs.

Step 2. Lower LinQ attachments, making sure

they are fully retracted.

1. Locked

2. Unlocked

CAUTION

4. "Rock" cooler side to side and front

To reduce the risk of iinjury, all-

to rear to ensure it is properly

ways llower the LiinQ attachments

secured.

when not in use.

To remove the cooler, slide holding

clamps toward the middle and simply

The included rod holders can be in-

lift the cooler.

stalled at various locations on the

cooler.

To lower the LinQ attachment when

not in use, squeeze tabs.

To remove the rod holders, press the

tab and lift.

91

EQUIPMENT

the front most position for optimal ve-

hicle behavior.

WARNING

Adjust your speed when the cool-

er is installled. A lloaded cooller wiilll

change the behavior of the PWC.

Never leave anythiing on cooller liid

whiile riidiing or traiilering.

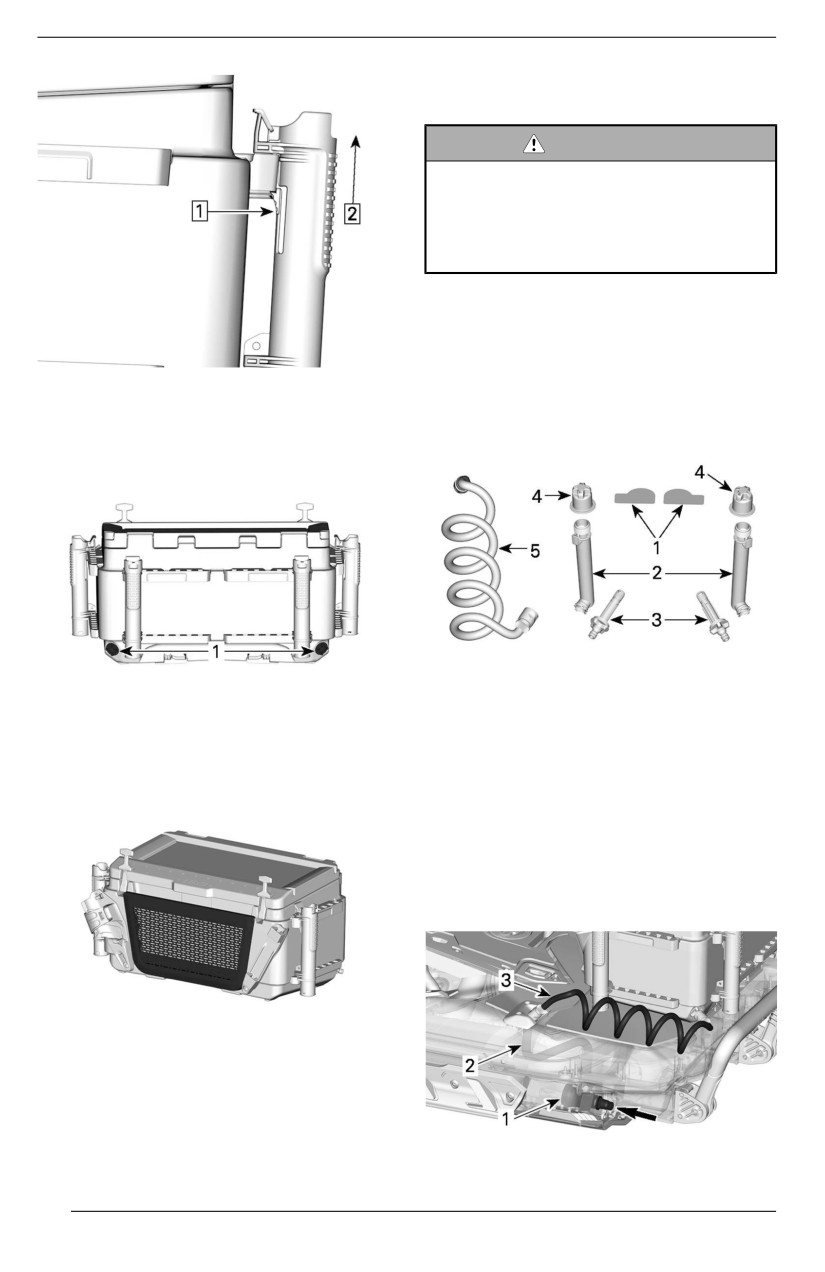

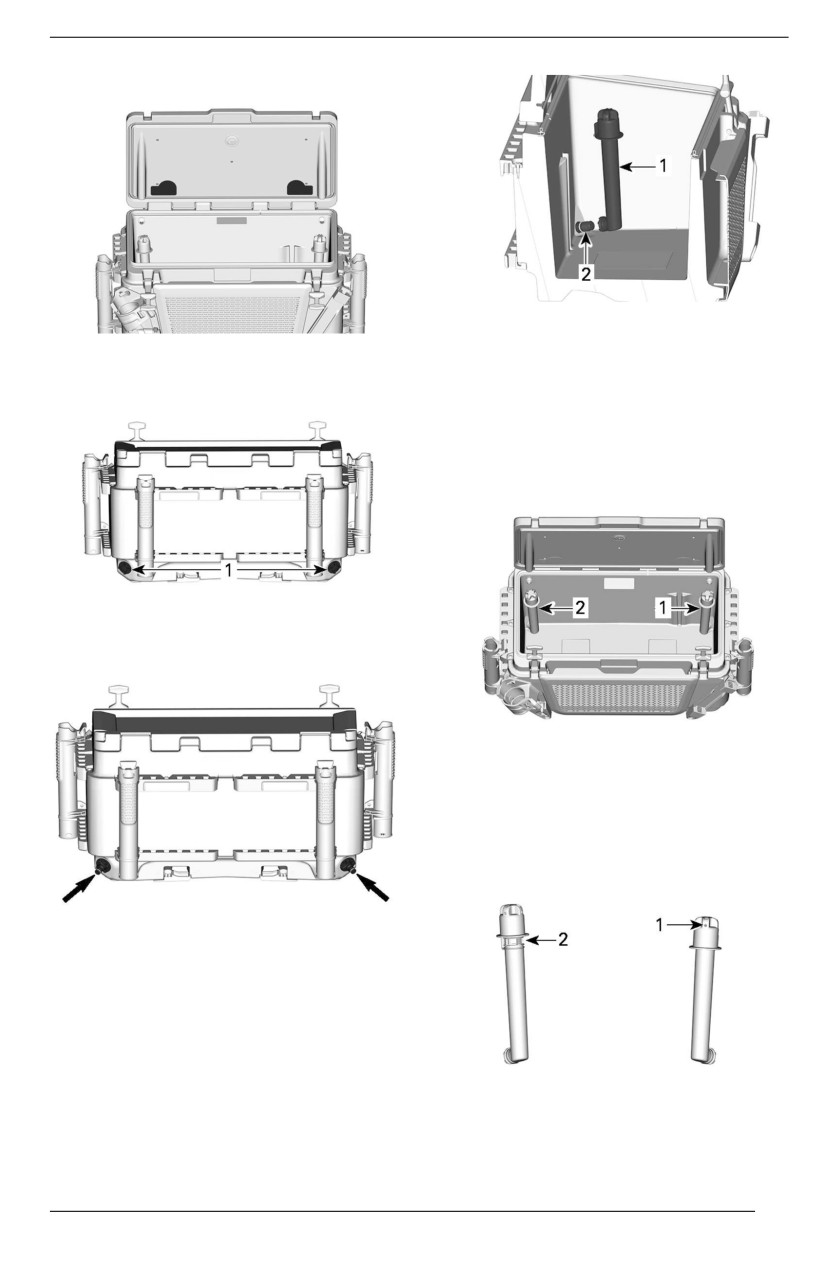

Cooler - Live Well (if

equipped)

The cooler can be converted to a live

Step 1. Press tab

well by installing the supplied labels,

Step 2. Lift rod holder

tubes, threaded fittings and water sup-

ply hose.

Two drain plugs are conveniently

placed to empty the cooler.

1. Label

2. Tube

1. Drain plugs

3. Threaded fittings

4. Cap

The cargo net can be used to store

5. Water supply hose

various small objects.

When using the live well, water will

flow from the water inlet, thru the

pump/aerator and will go into the cool-

er. From there, water will exit by the

threaded fittings.

When traveling for a longer distance

or at higher speeds, install cooler in

92

EQUIPMENT

Install labels inside cover as shown.

1. Tube

2. Threaded fittings

Remove the two drain plugs and in-

Adjust the water tubes inside the cool-

stall the live well threaded fittings.

er for appropriate water flow.

NOTE: At engine speed higher than

idle, there will be no water flow as the

water inlet will not be under water.

1. Drain plugs

1. Live well water inlet

2. Live well water outlet

For normal live well usage, we sug-

gest using the small holes to supply

fresh water and the large rectangular

holes to drain.

Install the tubes inside the cooler by

screwing them into the new threaded

fittings.

1. Small holes

2. Large rectangular holes

Connect the water supply hose.

93

EQUIPMENT

The water supply hose can also be

used to clean the cooler and/or

watercraft.

NOTE: The water supply hose may

be routed between the cooler and a

rod holder to prevent sagging.

To drain, unscrew the threaded fittings

Ensure the water inlet is free of debris

three (3) to five (5) turns.

and foreign objects for proper opera-

tion and water flow.

NOTE:

To avoid removing the drain plug com-

pletely, do not unscrew more than 5

turns.

Fresh water can be supplied 30 sec-

onds every three minutes or continu-

WARNING

ously, controlled by the switch. The

intermittent function is designed to

Adjust your speed when the cool-

minimize battery drainage when the

er is installled. A lloaded cooller wiilll

engine is turned off.

change the behavior of the PWC.

Never leave anythiing on cooller liid

whiile riidiing or traiilering.

The live well pump can be cleaned

when the water flow is reduced. The

pump cleaning may be performed by

an authorized Sea-Doo dealer, repair

shop, or person of your own choosing.

94

EQUIPMENT

Boarding Ladder (If

Equipped)

A convenient ladder used for boarding

the watercraft from the water.

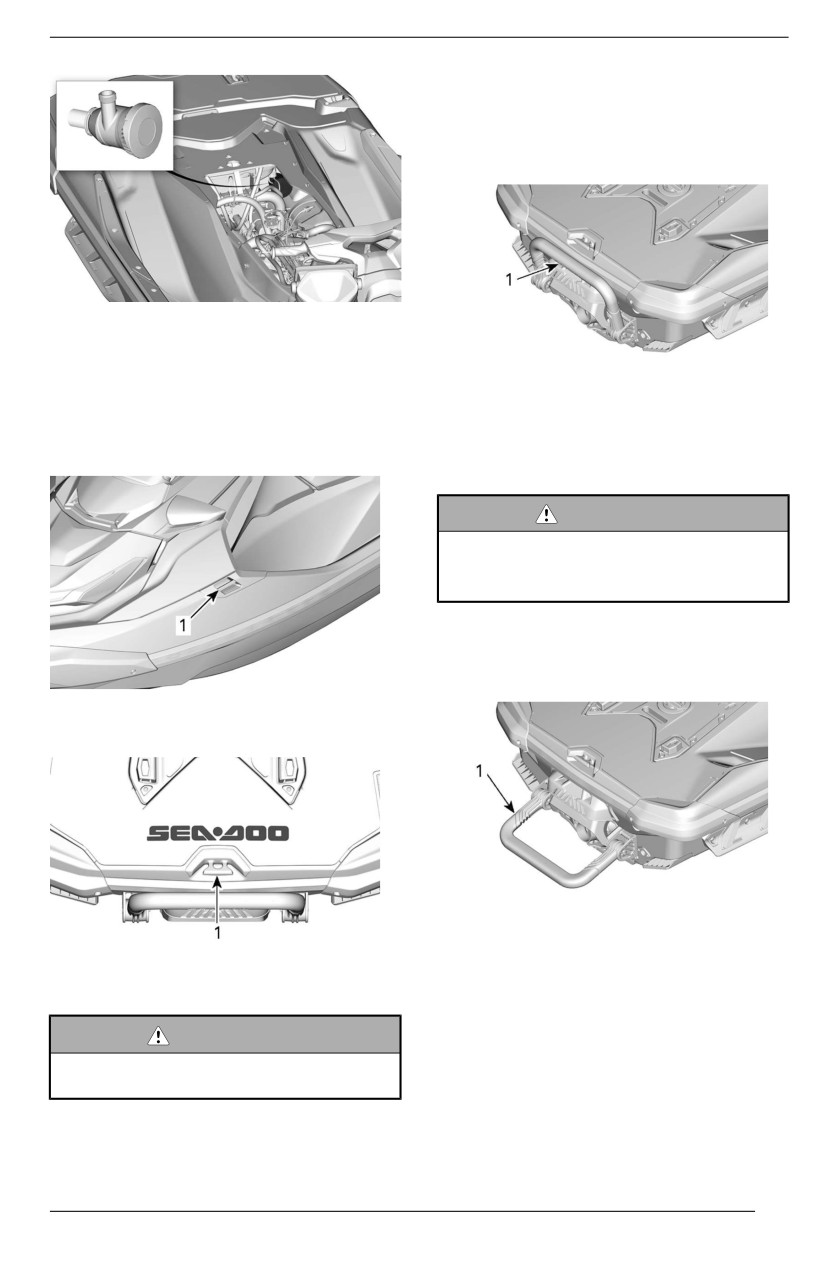

NOTE: Parts removed for clarity

Mooring Cleats

These cleats can be used for docking.

TYPICAL

The rear cleat can be used to tow an

1. Boarding ladder

inflatable tube.

WARNING

Do not apply throttle when anyone

i

is boarding or at rear of water-

craft. Shut down the engine

Pull down the ladder with your hand

and hold until a foot or a knee is put

on the ladder.

TYPICAL

1. Mooring cleats

TYPICAL

1. Boarding ladder in lowered position

1. Mooring cleat

WARNING

Never use mooriing cleats to pulll

or liift the watercraft.

95

EQUIPMENT

NOTICE

– Never use the ladder for

boardiing a watercraft that iis

out of water.

– Never use the ladder for pulll-

ing, towing, diving or jumpiing,

or any other purpose other

than as a boarding ladder.

– Stay on center of the ladder.

REAR EYELETS

– Only one person at a tiime on

the lladder.

WARNING

Do not use these eyellets to lift the

watercraft.

WARNING

Be aware of the iBR gate move-

ment when starting the engine,

shuttiing down the engiine or using

NOTE:

the iBR llever. Automatiic move-

ment of the gate may squeeze fin-

- Responsiibiiliity: It is the owner’s/

gers or toes of people takiing a

operator's responsibility to ensure

holld on the back or your water-

that mooring lines, towing lines,

craft.Never use iiBR gate as a sup-

anchor chain(s), anchor lines and

porting point to board the

anchor(s) are adequate for the

watercraft.

vessel’s intended use, i.e. the lines

or chains do not exceed 80 % of

the breaking strength of the re-

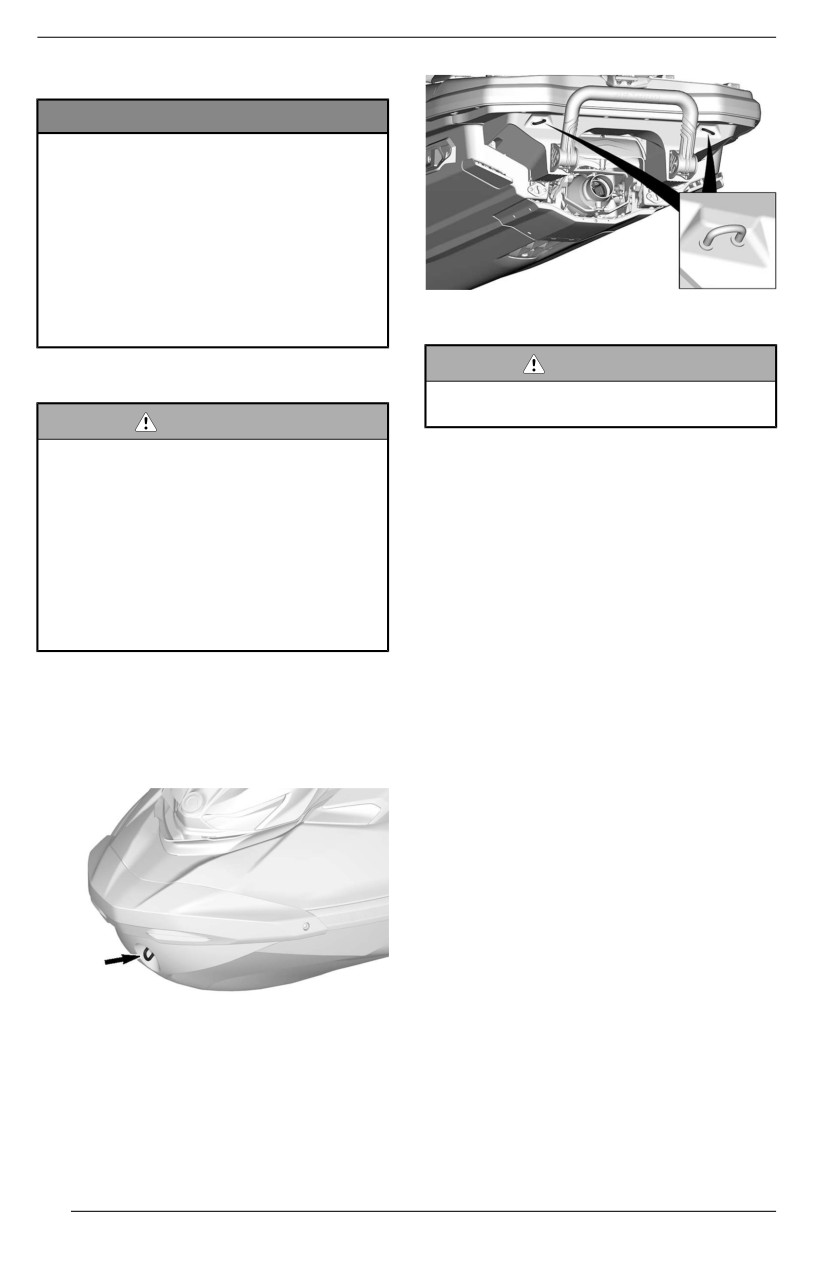

Front and Rear Eyelets

spective strong point. Owners

Eyelets can be used for mooring, tow-

should also consider what action

ing and as tie-down points when trai-

will be necessary when securing a

lering your watercraft.

tow line on board.

- Non-metalllic strong poiints:

Where non-metallic strong points

are installed, their limited life time

shall be taken into consideration.

They shall be replaced once they

show any signs of deterioration,

visible surface cracks or perma-

nent deformation.

Bilge Drain Plugs

Unscrew drain plugs whenever water-

TYPICAL – FRONT EYELET

craft is on the trailer. This will allow

water accumulated in the bilge to be

evacuated and helps to reduce

condensation.

96

EQUIPMENT

TYPICAL

1. Drain plugs

2. Tighten

3. Loosen

NOTICE

Ensure draiin pllugs are properlly

secured prior to llaunching the

watercraft in water.

97

7.6" DIGITAL DISPLAY

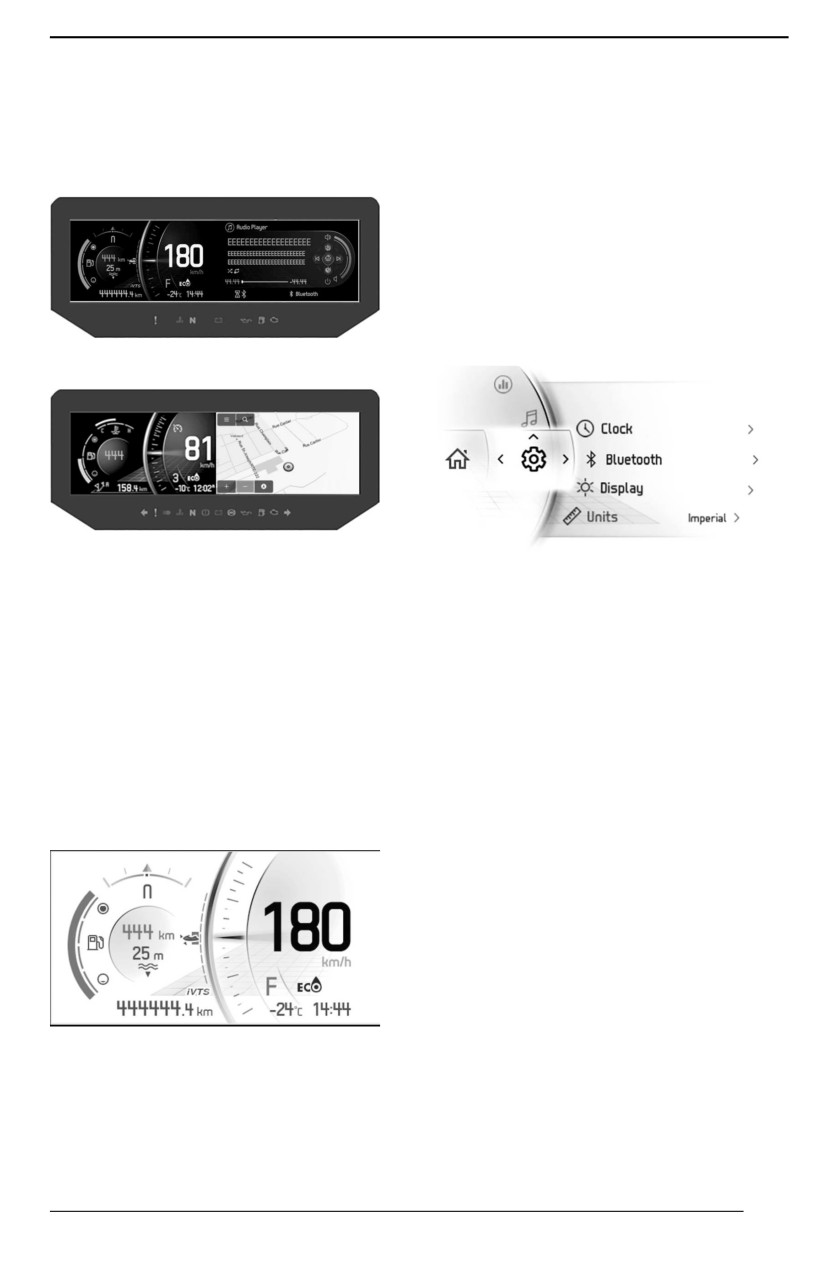

Multifunction Display

Centrall Display

iVTS

IVTS

The central display shows the Vehicle

Left Laterall Diispllay

speed.

Riight Lateral Diispllay

IVTS

IVTS

The left lateral display includes:

- Fuel level indicator

- Compass

The right lateral display include:

- Distance to empty

- VTS position

- Time to empty

- Target Speed indicator

- Tripmeter

- Time

User can decide to display one the fol-

The speed indicator in this display is

lowing on the tripmeter, located on the

only activated when a target speed is

lower left display:

set.

- Vehicle hours : Displays the total

vehicle hours

NOTE:

- Trip KM : Displays the distance

Clock is shown only if the integrated

since the last reset.

GPS receives a signal from the satel-

- Trip HR : Displays the time since

lites. This may take several seconds

the last reset.

after waking up the system.

NOTE:

Lower Diispllay

The compass will be visible only when

the PWC is moving and if the GPS re-

ceives a signal.

IVTS

WARNING

Use the compass as a guide onlly.

Not to be used for precisiion navi-

gation purposes.

User can decide to display one the

following:

- RPM : Displays the RPM of the

engine

- Water temp (if equipped) : Dis-

plays the temperature of the water

- Depth (if equipped) : Displays the

depth of the water

98

7.6" DIGITAL DISPLAY

- Settings

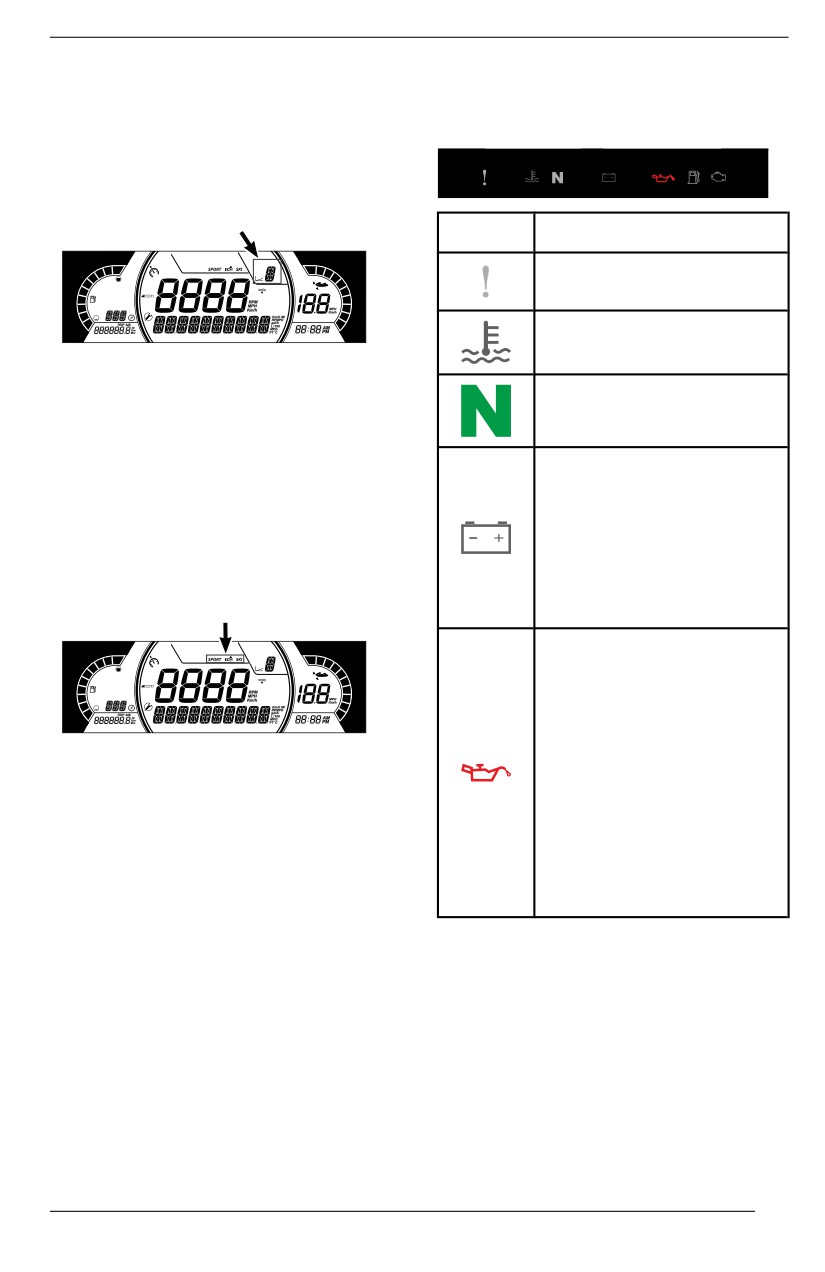

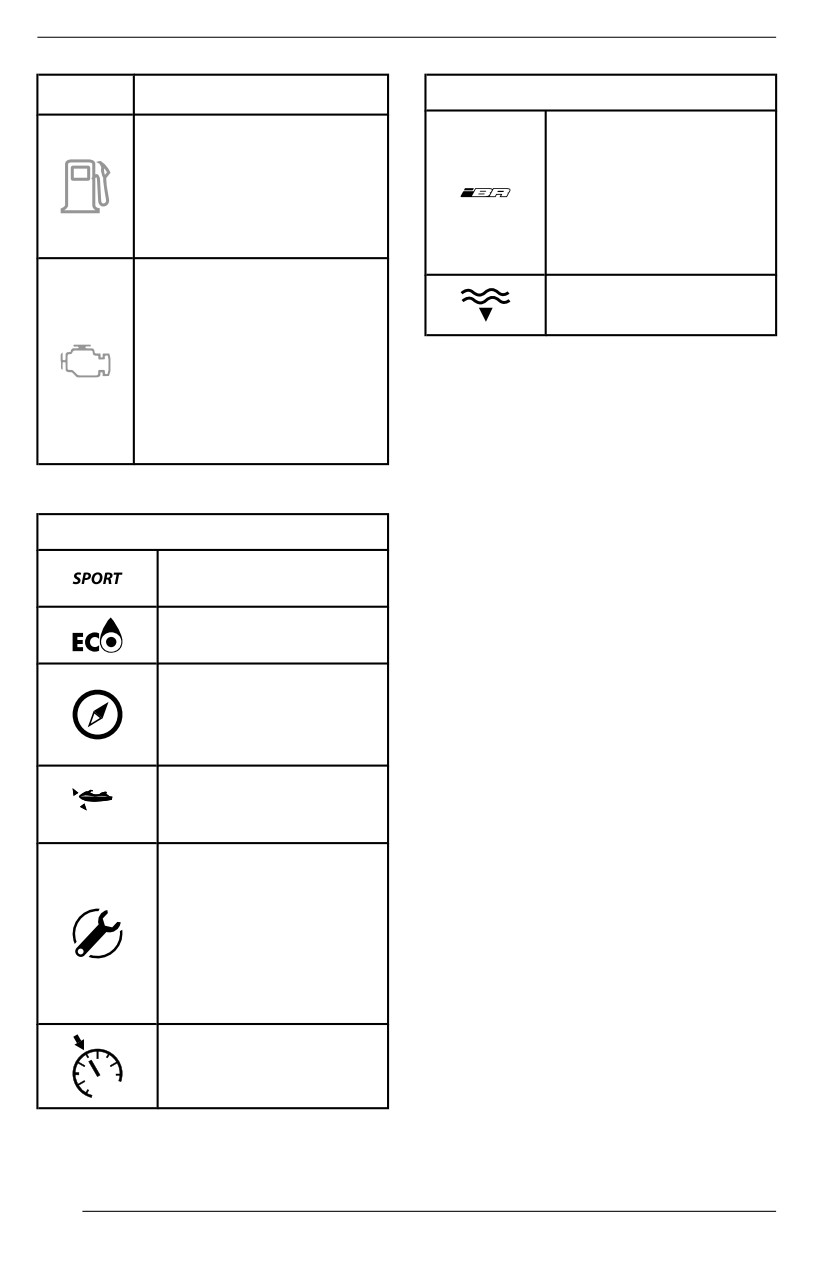

Indicator Lamps

- Messages

- Speed Stat (if equipped) : Displays

Warniing and Tellltale Lights

the average and maximum speeds

reached in the current riding cycle

iBR Posiitiion Diispllay

Liights

Descriiptiion

ORANGE - Vehicle

IVTS

malfunction

RED - The engine

temperature is too high.

This display shows gears position of

GREEN - The neutral

the iBR:

gear is selected

- N (neutral)

- F (forward)

RED - If illuminate while

- R (reverse)

driving, it indicates a

malfunction.

It can also display the selected speed

Turn off all unnecessary

level

(1 to 9) when the slow speed

electrical equipment and

mode is selected.

have the electrical and

charging systems

MODE Diispllay

checked.

RED - If illuminate while

the engine running or

IVTS

while driving, this

indicates a malfunction.

Stop the vehicle as soon

as it is safe to do so and

turn the engine off.

The MODE display indicate the se-

Check the engine oil

lected alternative mode of operation:

level.

- SPORT

Have the lubrication

- ECO

system checked a soon

- SKI (if equipped)

as possible, even if the

level being correct.

To cycle through the MODES;

- Press MODE button,

- Acknowledge the safety message

by pressing and holding MODE

button will get the SPORT mode,

- Pressing MODE button again will

activate the SKI mode (if

equipped),

- Pressing MODE button again will

activate the ECO mode.

99

7.6" DIGITAL DISPLAY

Liights

Descriiptiion

Icons and Indiicators

ORANGE - Illuminate

When lit, indicates a

when the fuel level is low

failure of the iBR

or when the fuel tank is

system. See your

near empty.

authorized Sea-Doo

Refuel as soon as

dealer or person of

possible.

your own choosing for

repairing.

ORANGE

Turned on: Malfunction

Denotes WATER

of the vehicle emissions

DEPTH is equipped

control system

Bllink: Engine limitation,

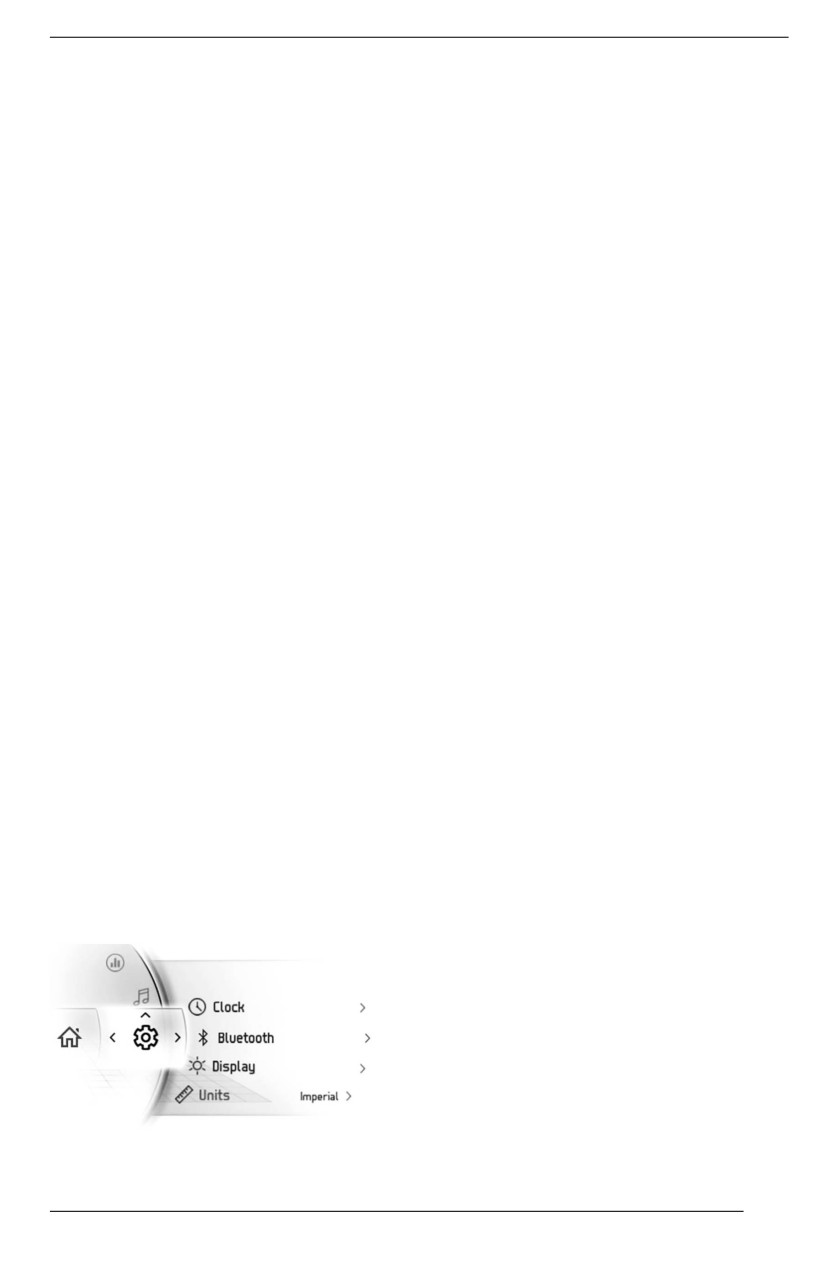

Settings

the limp home mode is

activated. Have the

Use the RIGHT arrow button or LEFT

vehicle serviced

arrow button to navigate through set-

immediately.

ting menus. Use OK button to enter

setting menu, to confirm selection or

reset some values. Use UP arrow or

Icons and Indicators

DOWN arrow to change selected

value.

Icons and Indicators

Denotes SPORT

Settiings Menu

mode is selected.

Using the RIGHT or LEFT arrow but-

ton, select SETTINGS and press OK

Denotes ECO mode is

button to enter setting menus.

selected.

Maintenance Reset

Indicates the direction

of the vehicle. Not to

Select RES MAINT and hold OK but-

be used for precision

ton to reset maintenance.

naviigation purposes.

NOTE:

Steady ON: indicates

The maintenance reset can only be

IVTS

that the VTS is

done within the first

15 seconds of

activated.

ECM wake-up when a maintenance is

required.

When lit, indicates that

a maintenance is

Diispllay Codes

required. See your

Refer to Displaying Fault Codes.

authorized

Sea-Doodealer or

Accessoriies Mode

person of your own

choosing for the

When this mode is activated (ON), the

accessory system stay powered dur-

maintenance

ing 1 hour even if the D.E.S.S. key is

Denotes Speed

removed.

Limiteror Slow Speed

Without this mode, the electrical sys-

mode

tem will shut down few minutes after

the D.E.S.S. key removal.

100

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Basic Functions

To adjust the VTS, press the VTS UP

or VTS DOWN button.

LCD Display

Right Lateral Display

Default Diispllay

The right lateral display includes:

- Tachometer

- Audio volume

- Menu

- Phone

- Statistics

- Audio

- Settings

Multifunctiion Display

Left Lateral Display

The left lateral display includes:

Naviigatiing iin the Digital Diispllay

- Fuel level indicator

The multifunction gauge includes ana-

- Speedometer

log gauges (speedometer and tach-

ometer), indicator lamps and an

- Tripmeter

infotainment center with a digital

- Speed limiter

screen.

- Clock

- Driving modes

We recommend you practice selecting

- Warning pop-up

some functions on the infotainment

- Distance or time to empty

center before leaving the dock. You

- Water temperature

will get used to them and they will be

- Compass

easier to use once you leave the dock.

- VTS position

Pressing the OK button will get the

Menu selection in the right screen, in

this order:

- Phone

- Statistics

- Audio

- Settings

When an icon is selected, its related

screen will appear.

To select the value to be displayed in

the tripmeter;

1. Access the Stats/Trip screen

2. Select the desired set of statistic to

be shown (Total, A or B)

103

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Lights

Description

RED - If illuminate while

the engine running or

while driving, this

indicates a malfunction.

Stop the vehicle as soon

as it is safe to do so and

turn the engine off.

Check the engine oil

When an item is selected, this sets the

level.

item to the current value.

Have the lubrication

system checked a soon

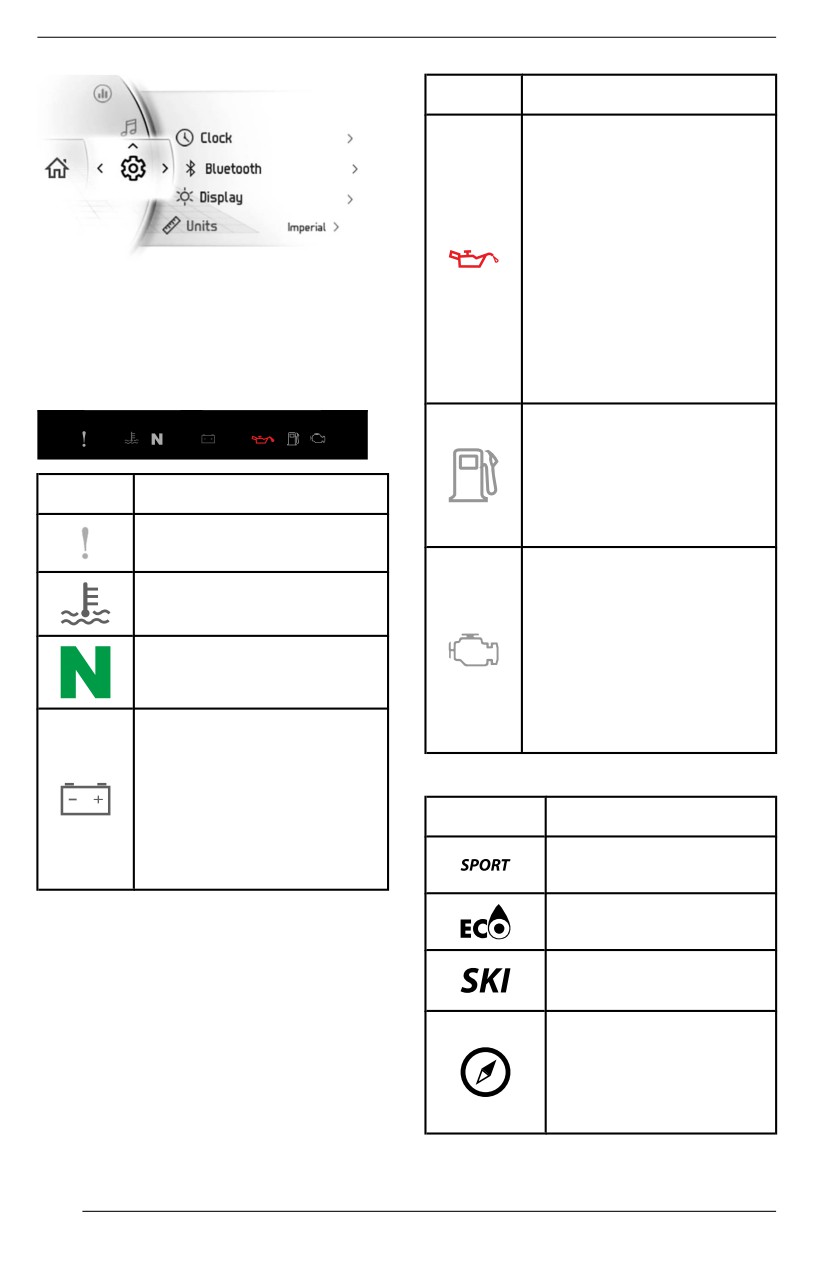

Indicator Lamps

as possible, even if the

level being correct.

Warning and Tellltale Lights

ORANGE - Illuminate

when the fuel level is low

or when the fuel tank is

near empty.

Liights

Descriiptiion

Refuel as soon as

possible.

ORANGE - Vehicle

malfunction

ORANGE

RED - The engine

Turned on: Malfunction

temperature is too high.

of the vehicle emissions

control system

Bliink: Engine limitation,

GREEN - The neutral

the limp home mode is

gear is selected

activated. Have the

vehicle serviced

RED - If illuminate while

immediately.

driving, it indicates a

malfunction.

Icons and Indiicators

Turn off all unnecessary

electrical equipment and

Icons

Descriiptiion

have the electrical and

charging systems

Denote SPORT mode

checked.

is selected.

Denote ECO mode is

selected.

Denote SKI mode is

selected (If equipped)

Indicate the direction

of the vehicle.

Not to be used for

preciisiion navigation

purposes.

104

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

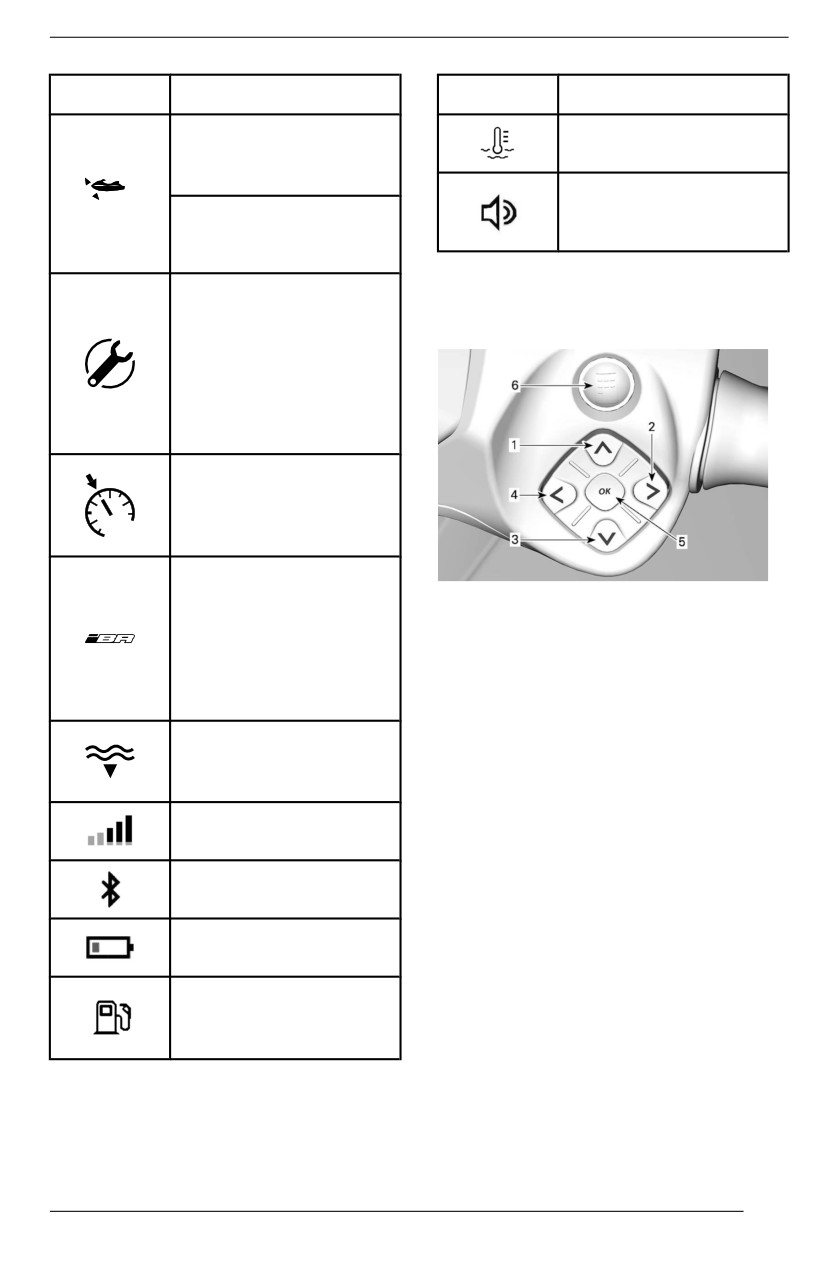

Icons

Descriiptiion

Icons

Description

Flashing: indicate that

Temperature indicator

the Launch Control is

ready.

IVTS

Steady ON: indicate

Speakers audio output

that the VTS is

activated.

When lit, indicates that

Settings

a maintenance is

required.

Menu Switches

See your authorized

Sea-Doo dealer or

person of your own

choosing for the

maintenance

Denote Speed Limiter,

Slow Speed or Ski

mode is selected. (If

equipped)

When lit, indicates a

failure of the iBR

RIGHT SIDE OF HANDLEBAR

system.

1. UP button

See your authorized

2. RIGHT button

Sea-Doo dealer or

3. DOWN button

person of your own

4. LEFT button

choosing for repairing.

5. OK button

6. BRP CONNECT button

Denote WATER

DEPTH mode is

Use the directional buttons to control

selected (If equipped)

numerous functions of the multifunc-

tion gauge.

Smartphone Network

connection

Use the BRP Connect button for quick

access to BRP connect. Each click will

swap between apps view and func-

Bluetooth device

tions view of the multifunction gauge.

Smartphone battery

level indicator

Fuel indicator

105

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

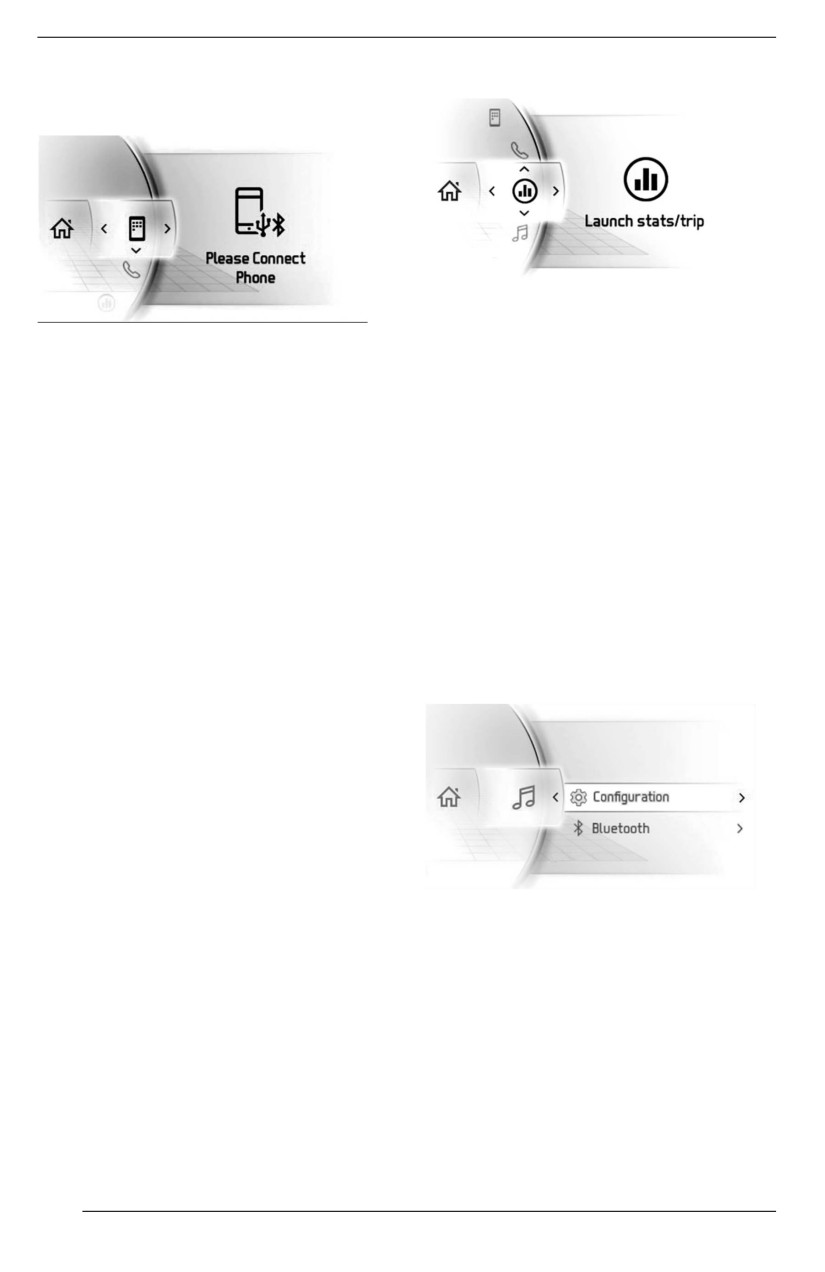

Menu

Statiistics

BRP Connect

The Statistics menu is used to get :

- Trip distance information

Before using BRP Connect, the app

- Trip elapsed time information

must be downloaded to the phone.

- Instant fuel consumption

The app can be downloaded from the

- Average fuel consumption

Apple App Store or Google Play Store

- Maximum speed

via a simple search. Not all phones

- Average speed

are compatible.

3 sets of statistics are kept in memory.

Visit our website for more details:

Each set of statistics can be reset

independently.

www.brpconnecttutorial.com

The LEFT button and RIGHT button

NOTE:

will navigate between the 3 sets of

The smartphone must be connected

statistics.

via Bluetooth and with a USB cable to

the USB port located in the glove box.

Holding the DOWN button when

showing a stored value will reset it.

User's personal data will be deleted

from the cluster when phone pairing is

Audio

deleted.

User agree that personal data (con-

tact list and call history) be transferred

to the cluster when smartphone is

connected.

Contact list and call history are stored

in cluster permanently. To delete

these information you must un-pair

your smartphone or overwrite using

The phone Audio menu is to:

another smartphone.

- Adjust the configuration of:

- Auto volume control

- Equalizer

- Fade/Balance

- Access Bluetooth Audio Player

106

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Audio Control

The Settings menu is to:

- Adjust clock

NOTE:

- Pair Bluetooth devices

The directional buttons controls the

- Adjust the display brightness

audio commands when in the Home

- Adjust the units (Imperial/Metric)

screen.

- Personalization distance or time to

empty

Use the directional buttons to control

- Set the language

the audio volume. UP buttons for

- Get the version

louder.

- Show vehicle fault codes

To mute the audio, push the DOWN

button and hold it for more than one

Pairing Your Smartphone Via

second. From the Mute setting, push-

Bluetooth

ing UP button will reset the audio vol-

1. On the vehicle

ume to its previous level.

Bluetooth is now visible.

A separate volume level is used for

announcement (i. e.: Voice command

1. Short press the directional but-

from the BRP Connect Navigation

tons to access menu.

App). During an announcement, the

2. Go down and select “Settings”

volume bar will display the announce-

and press RIGHT.

ment volume level. The volume bar

3. Select

“Bluetooth” and press

will be yellow and the audio source will

RIGHT.

show ANNOUNCEMENT. It is possi-

4. Select

“Phone” and press

ble to adjust the announcement vol-

RIGHT.

ume level during the announcement.

5. Select “Add Phone” and press

RIGHT.

When Bluetooth audio source is se-

2. On the phone

lected, the left and right functions will

be as follows:

1. Activate your phone's Blue-

- Left: Previous song

tooth function.

- Right: Next song

NOTE:

Audio Configuration

Refer to your manufacturer's user

guide for detailed procedure.

The Audio Configuration menu is as

follows:

2. Choose "BRP Connect".

- Automatic volume control

3. A confirmation number will ap-

- Equalizer

pear on your phone screen and

- Fade / Balance

the vehicle gauge screen.

Make sure these numbers

Settiings

match.

4. Press “Pair” on your phone and

select the green check mark on

the vehicle gauge.

5. Allow Contacts and Favorite

Sync on your phone.

BRP GO! App

Follow these steps to setup your

smartphone with BRP Connect.

107

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Downlload the BRP GO!

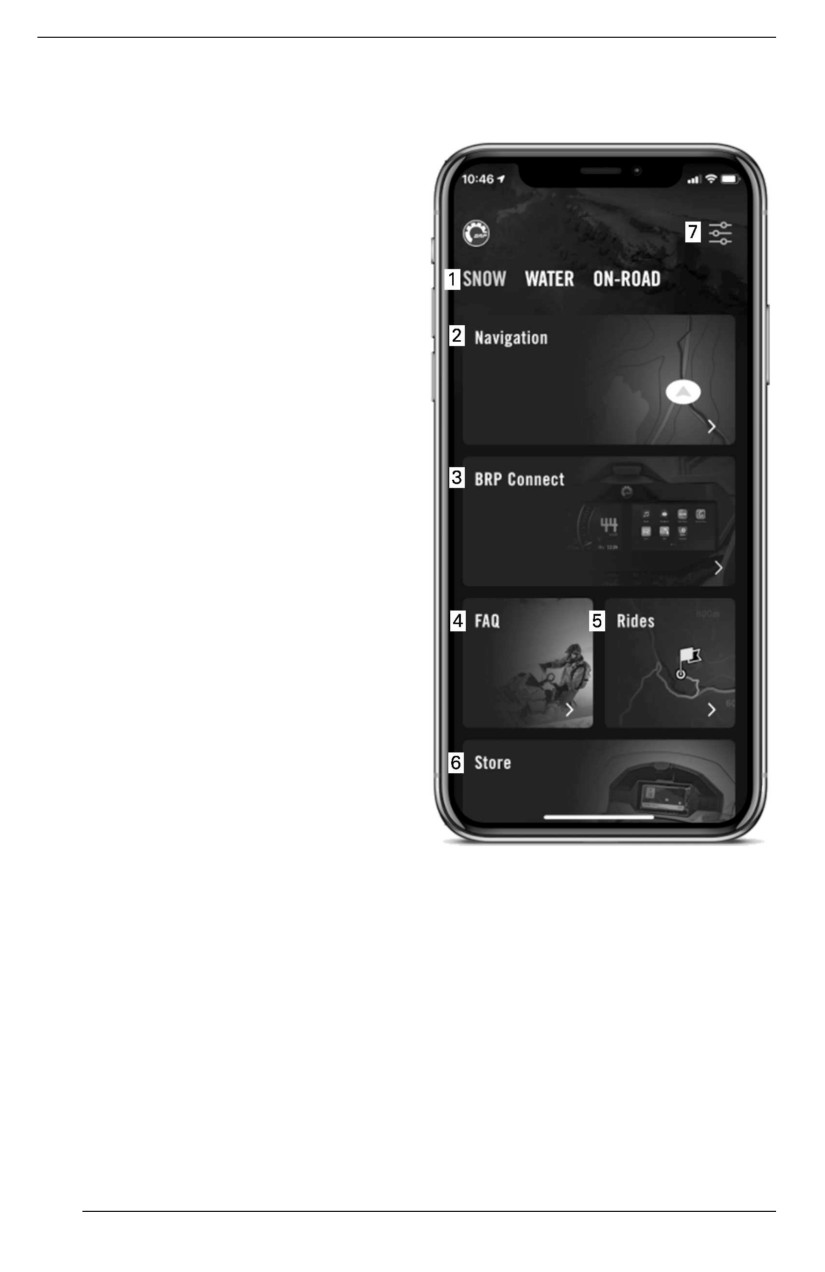

Quick Tour of the BRP GO!

Smartphone App

App

Download the BRP GO! app via the

App Store for Apple™ or the Google™

Play Store for Android.

Downlload Apps Compatible With

BRP Connect

Visit our website to know more about

the compatible apps:

These apps will improve your riding

experience. Some apps may require

additional purchase to be compatible

with the system or may require addi-

tional devices to be used.

www.brpconnecttutorial.com

Connect Your Smartphone Using

Your Chargiing / Data Transfer

Cablle

It is recommended to use an original

charging cable from the smartphone

OEM to optimize transfer between the

phone and the vehicle. Use the front

USB port.

1. Unlock your phone screen

2. Connect your phone charging

cable

3. A checkmark will appear on your

phone screen once the connection

is done.

Access Your Apps

Quick press the OK button to access

Menu.

1.

Playground:

Select

your

play-

Push UP to select “Launch BRP Con-

ground to see content related to

nect” and push RIGHT.

your vehicle. For Ski-Doo snow-

mobiles,

select

the

Snow

Select the app you would like to use

playground.

and press OK.

2.

Navigation: Access all the naviga-

- To leave the app, long press OK.

tion features of the app such as

- To return to the Main Menu, press

route planning, turn-by-turn navi-

the BRP Connect Button.

gation, friends location, offline nav-

igation, and more. You can access

thousands of snowmobile trails

across North America and Europe

on the map.

108

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Messages in Multifunction Gauge

Important information about vehicle condition is displayed on the multifunction

gauge. When starting the engine, always look at the gauge for any indicator

lamps or special messages.

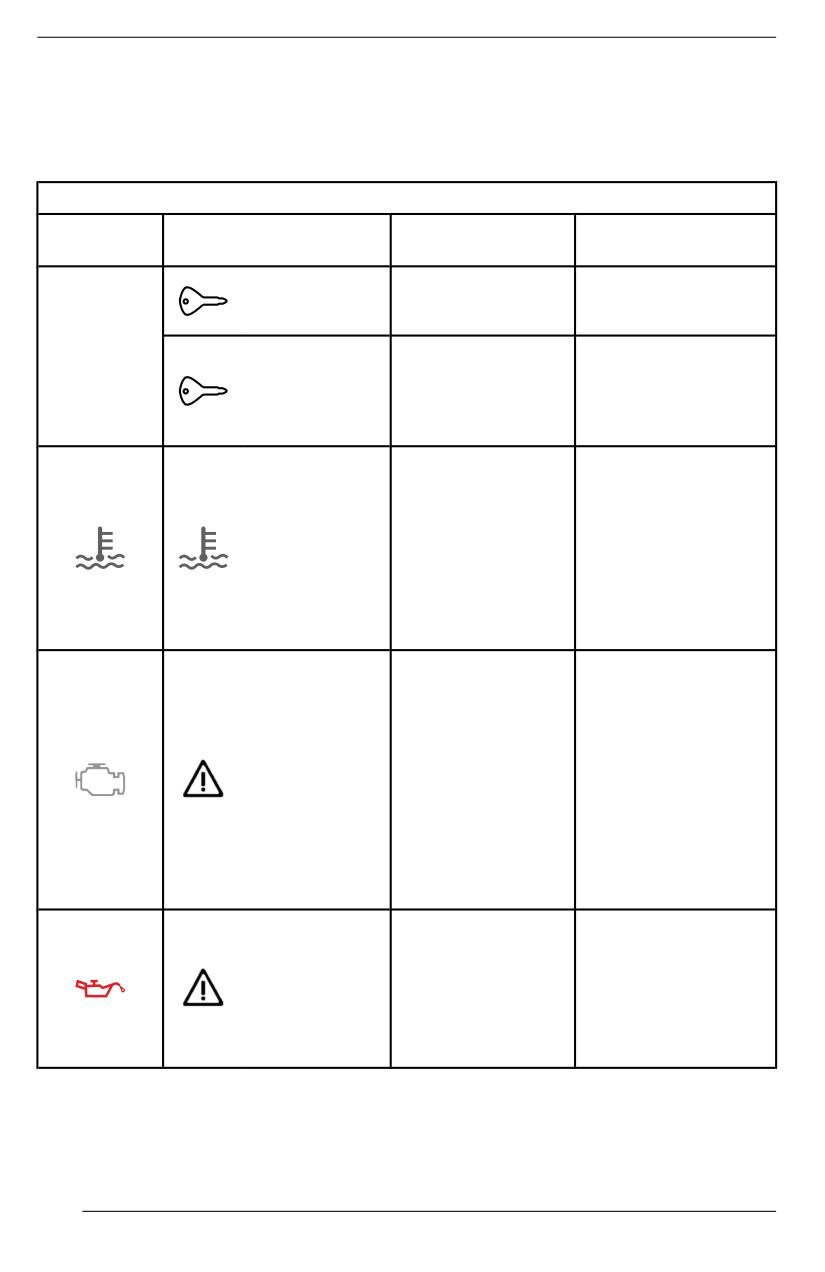

Indiicator Lamps (Mallfunctiions)

Indicator

Message /

Cause

What to Do

Lamp

Warning

Contact an

BAD KEY

Defective key

authorized Sea-Doo

dealer.

No indicator

Use the right key for

lamp

the vehicle or

WRONG KEY

Wrong key

contact an

authorized Sea-Doo

dealer.

- Stop and wait for

engine

to cool off.

HIGH ENGINE

- Check for leaks.

Engine is

TEMPERA

- Check coolant

overheating

TURE

level and

adjust (see

Maintenance

Procedures).

Have the vehicle

transported to the

nearest authorized

Sea-Doo dealer.

If you operate the

Important engine

LIMP HOME

vehicle in LIMP

management

MODE

HOME, avoid abrupt

component

maneuvers.

In LIMP HOME, the

engine RPM is

limited and therefore

the vehicle speed.

- Check for oil

leaks.

LOW OIL -

- Check oil level

STOP

Low oil pressure

and adjust

ENGINE

(see

Maintenance

Procedures.

Important information messages can also be displayed temporarily to assist indi-

cator lamps.

110

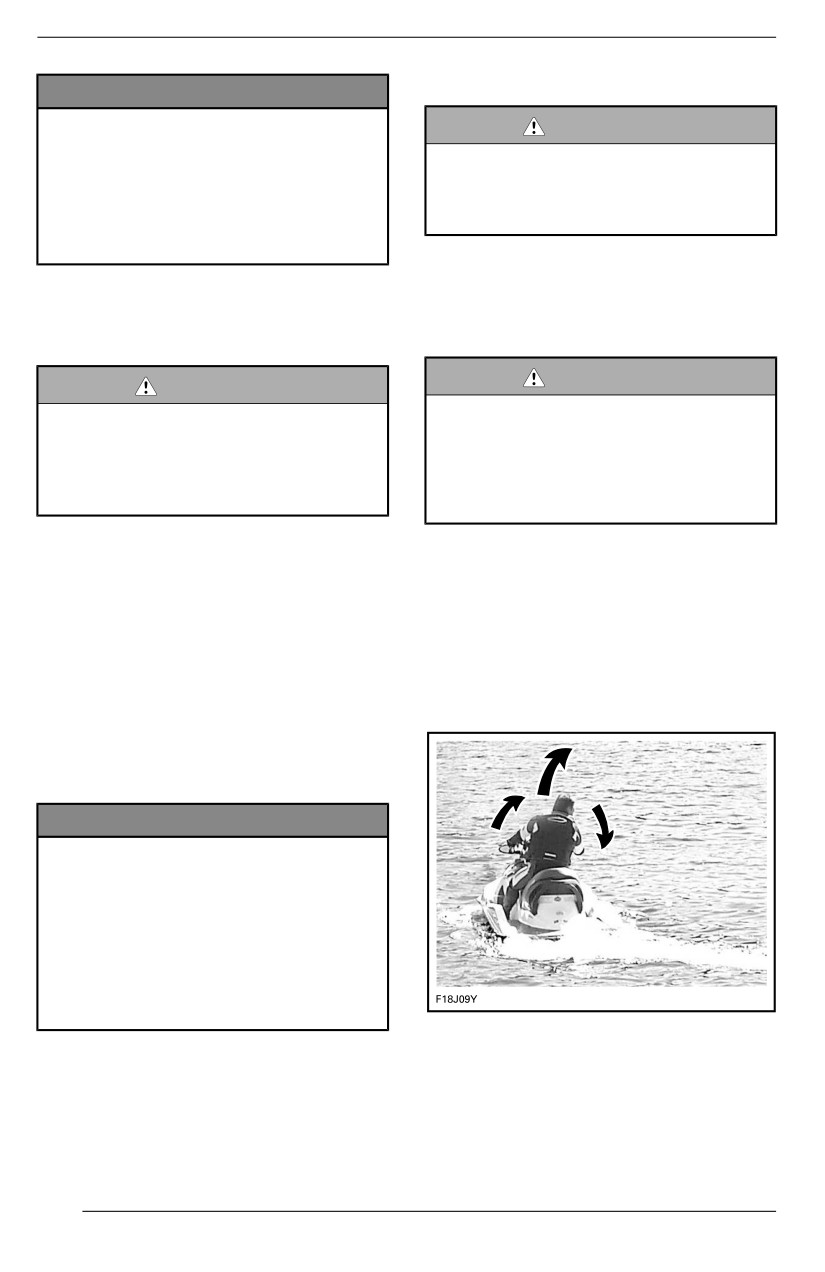

OPERATING INSTRUCTIONS

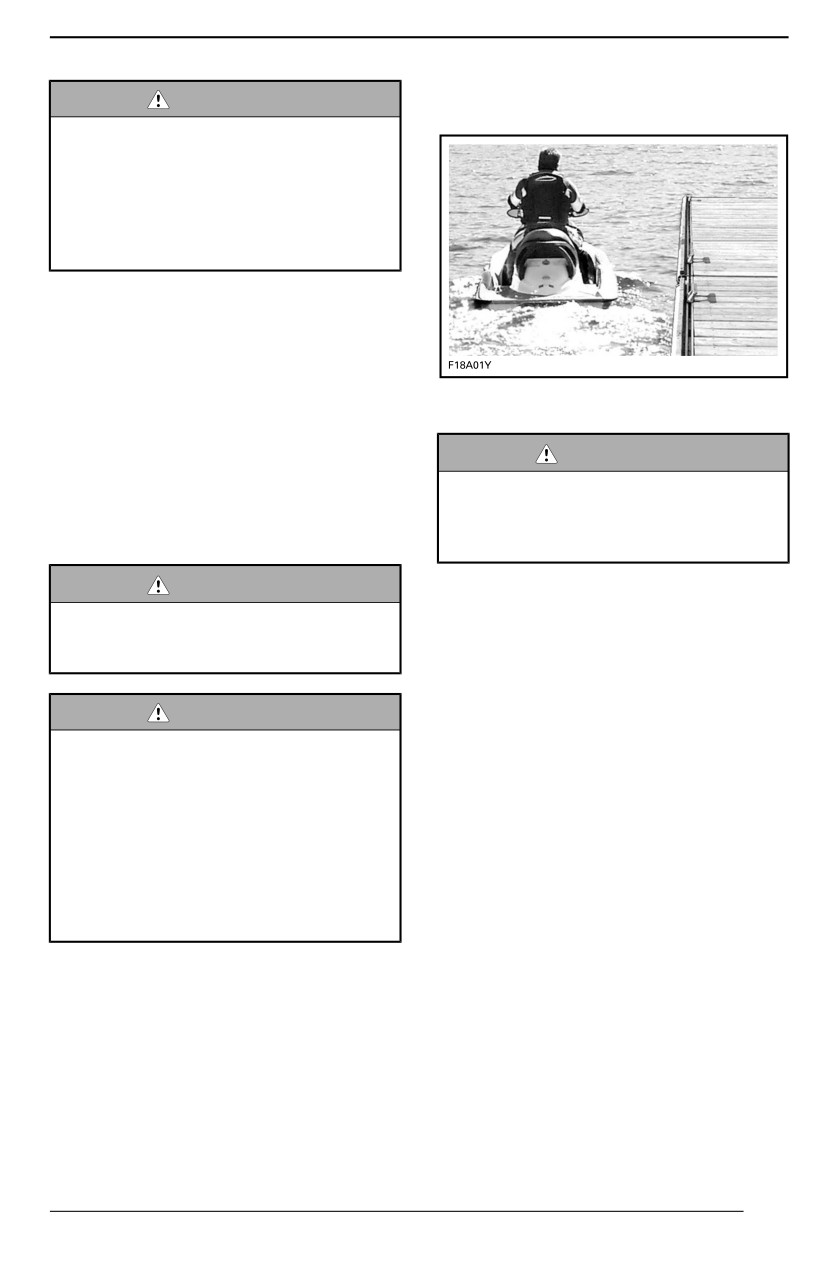

3. Push the watercraft away from the

WARNING

dock.

Allways perform the Pre-Riide In-

spection before operating thiis

watercraft. Be sure to read the

Safety Information and the Water-

craft Information sections and be

thoroughly famiiliiar wiith the iCon-

trol technology.

Should any control or instruction not

be fully understood, refer to an author-

ized Sea-Doo dealer.

Boarding the Watercraft

Boarding from Shalllow Water

As with any watercraft, boarding

should be done carefully and engine

WARNING

must not be running.

Keep llimbs away from propulsion

Make sure to practice each boarding

system or iintake grate.Never use

methods until fully able to safely board

propulsion systems a supporting

in any potential condition.

poiint to board the watercraft.

WARNING

1. Board the watercraft from either

Engine must be OFF when board-

the side or the rear.

i

ing the watercraft or when using

2. Ensure there is at least 90 cm (3 ft)

the boarding ladder.

of water underneath the lowest

rear portion of the hull.

WARNING

NOTE:

Be aware of the iiBR gate move-

Before starting the engine and when

ment when starting the engine,

the engine is already running, take in-

shutting down the engine or usiing

to account that the hull will be lower in

the iiBR lever. Automatic move-

the water when all passengers are

ment of the gate may squeeze fin-

aboard. Be certain to maintain the

gers or toes of peoplle taking a

specified depth so sand, pebbles and

hold on the back or your water-

rocks will not be drawn up in the jet

craft.Never use iBR gate as a sup-

pump.

portiing poiint to board the

watercraft.

Boarding from a Dock

1. Slowly place one foot on the water-

craft footboard nearest the dock

while holding the handlebar, and at

the same time, transfer the body

weight to the other side in order to

balance the watercraft.

2. Then bring the other foot over the

seat and place it on the other

footboard.

113

OPERATING INSTRUCTIONS

If cooler is too heavy, unscrew drain

plugs to remove some weight and try

moving cooler again.

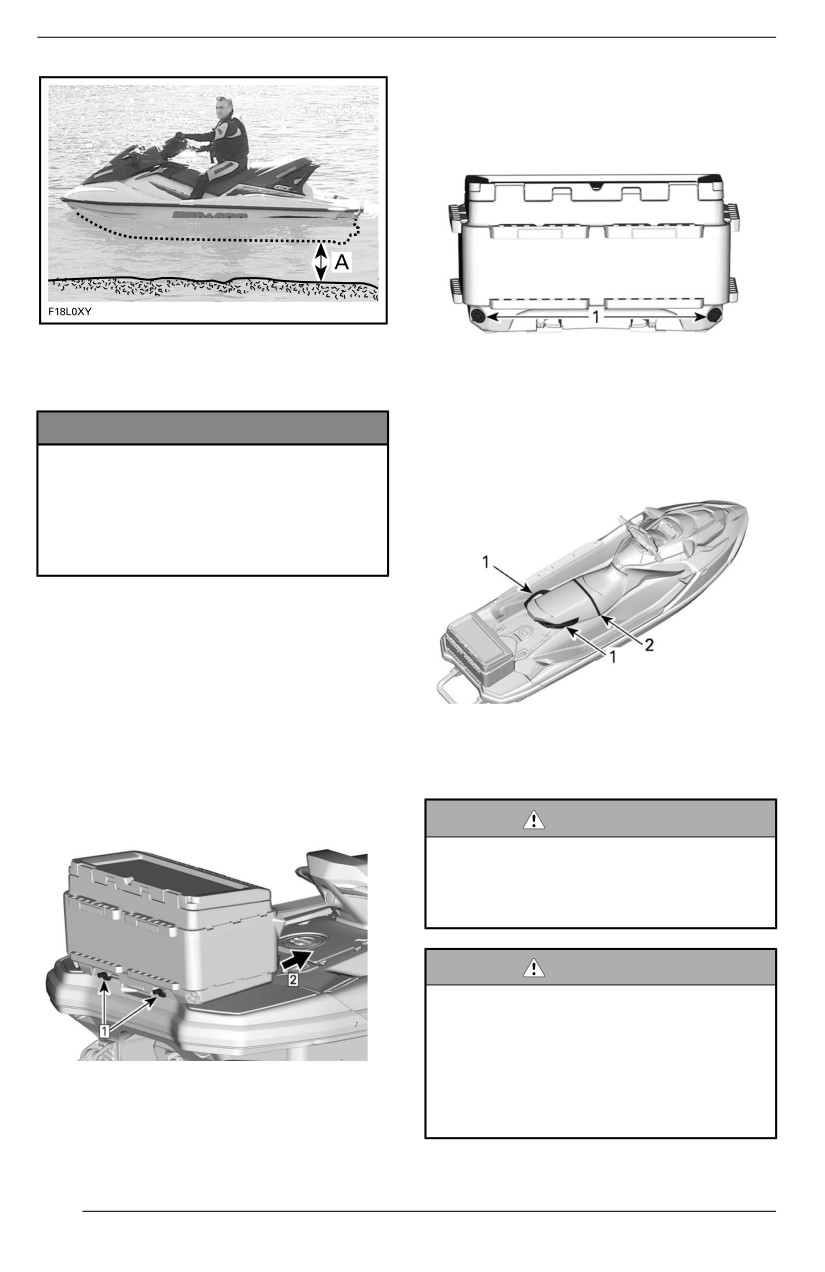

A. Maintain at least 90 cm (3 ft) underneath the

lowest rear portion of the hull when all pas-

sengers are aboard

1. Drain plugs

If cooler is still too heavy, swim toward

NOTICE

side, use passenger handhold and/or

Startiing the engine or riidiing the

seat strap to lift yourself aboard.

watercraft iin shalllower water may

damage the iimpelller or other jjet

pump components.Stay on center

of the step.Only one person at a

tiime on the ladder.

Boarding from Water with the

Cooller Installed

Board the watercraft using the board-

ing ladder and carefully get around

the cooler. Refer to BOARDING IN

DEEP WATER. If you have difficulties,

1. Passenger handhold

proceed as follow.

2. Seat strap

Unlock cooler and move it towards the

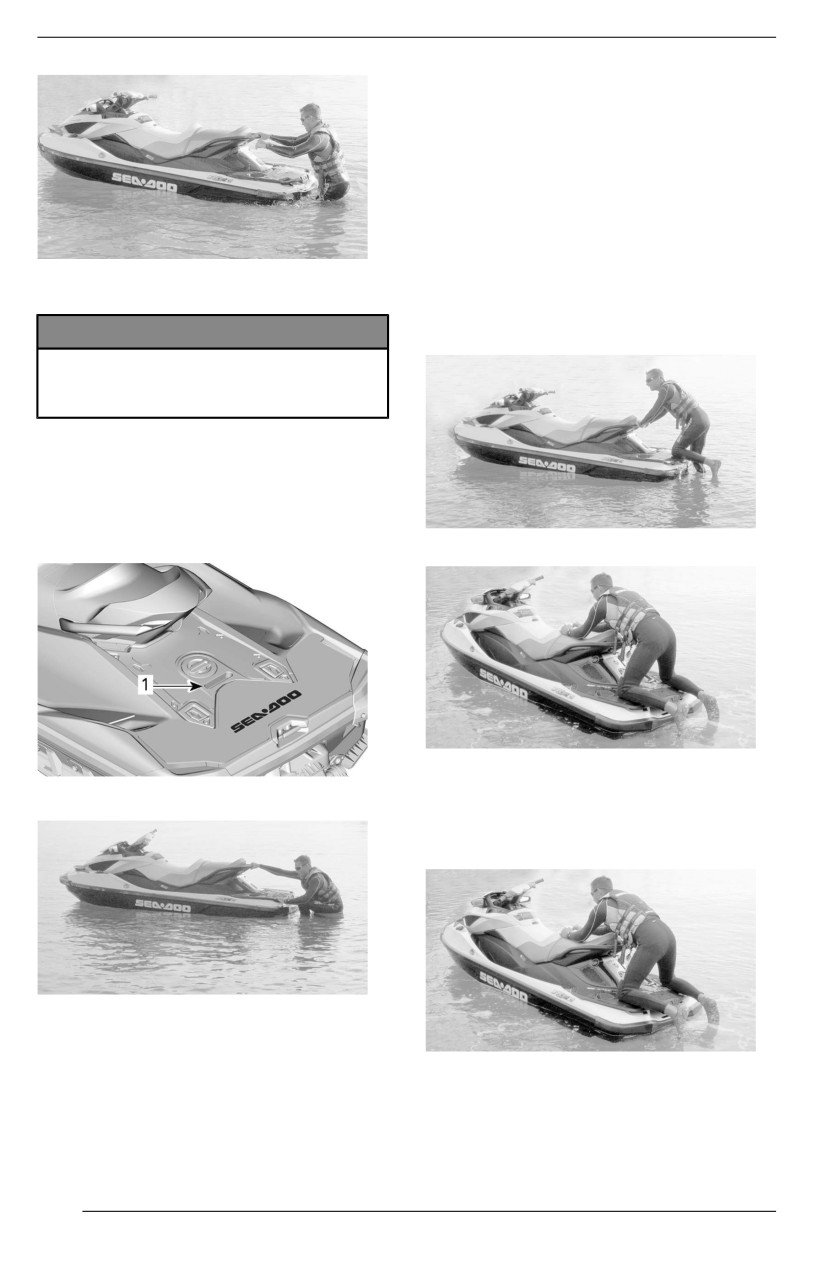

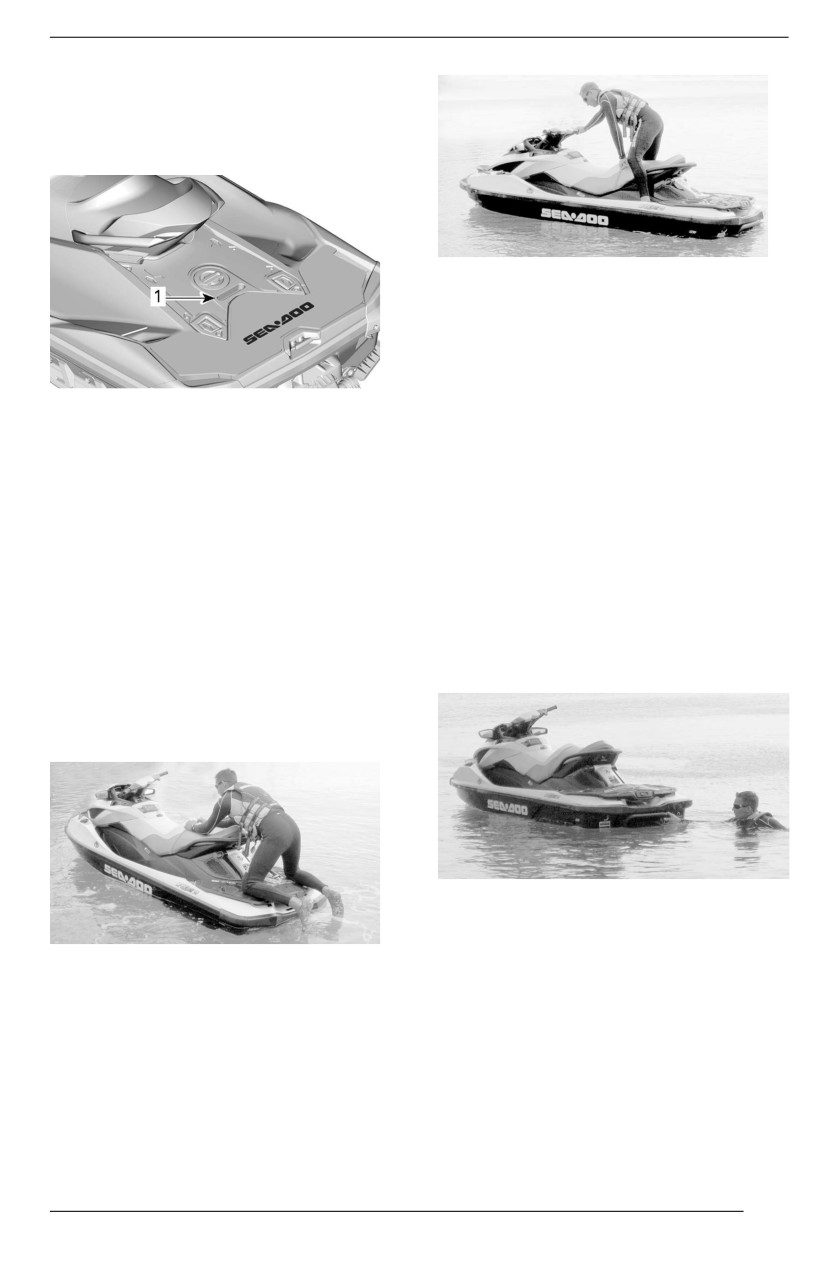

Boardiing iin Deep Water

front to provide better access to the

boarding platform.

WARNING

Keep liimbs away from propullsiion

system or iintake grate.Never use

propullsiion systems a supportiing

poiint to board the watercraft.

WARNING

Ask inexperienced riiders to prac-

tice how to board the watercraft

close to shore (alll methods ex-

plained here) before venturiing iin-

1. Unlock cooler

to deep water, especiiallly when

2. Lift and push toward front

cargo is iinstallled aboard on the

rear pllatform.

114
