Zoomlion ZT20J (ZT68J). Parts Manual (2019) - page 2

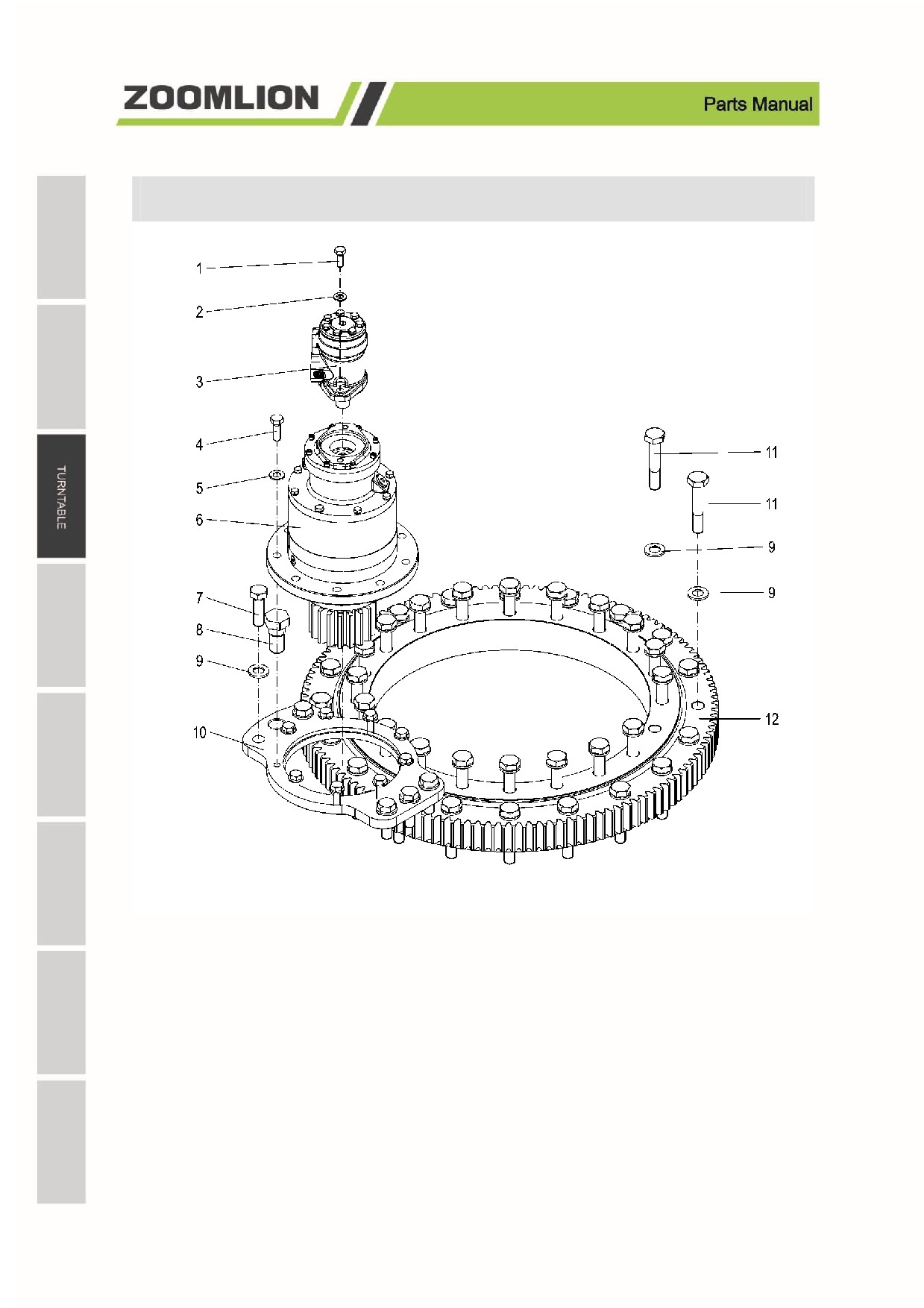

Slewing mechanism 00771100900000000
3-9
Slewing mechanism 00771100900000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004511
Bolt M12×30-8.8
2
GB/T5783-2000
2
1040302490
Washer12-200HV
2
GB/T97.1-2002
3
1010100843
Slewing motor
1
4
1040004513
Bolt M14×40-10.9
9
GB/T5783-2000
5
1040302491
Washer14-200HV
9
GB/T97.1-2002
6
1030202187
Slewing reducer
1
7
1040004614
Bolt M20×65-10.9
5
GB/T5782-2000
8
00771100900001020
Locating pin
1
9
1040302502
Washer20
45
GB/T1230-1991
10
00771100900001010
Reducer connecting plate
1
11
1040004529
Bolt M20×110-10.9
40
GB/T1228-1991
12
1031500345
Slewing bearing
1
3-10

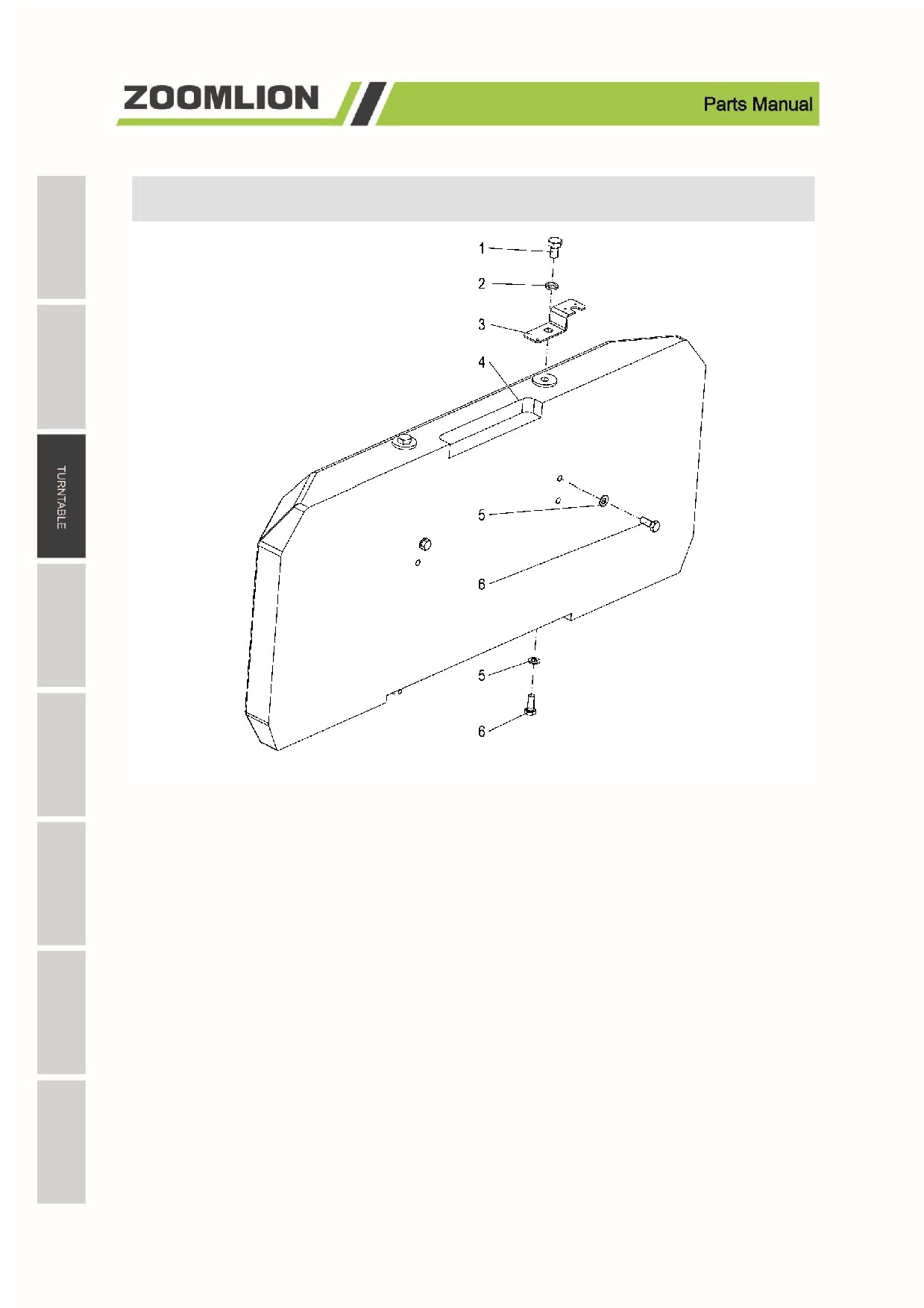

Counterweight 00771101000000000
3-11
Counterweight 00771101000000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004500
Bolt M30×50-8.8
2
GB/T5783-2000
2
1040301808
Washer30
1
GB/T93-2000
3
00771101000001020
Alarm light support
1
4
00771101000001010
Counterweight block
1
5
1040301511
Washer 24-200HV
4
GB/T97.1-2002
6
1040004613
Bolt M24×60-10.9
4
GB/T5782-2000
3-12

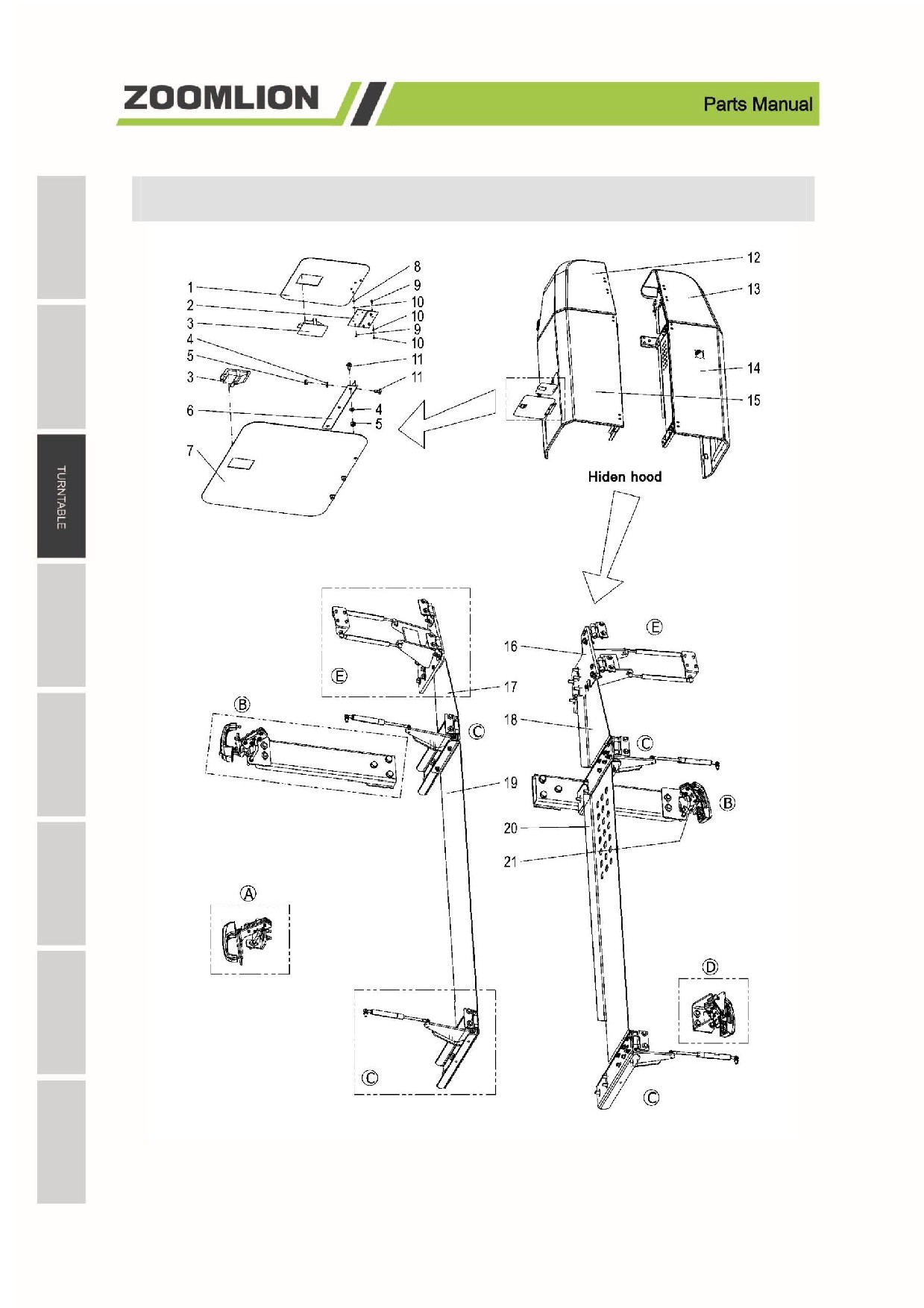

Hood 00771101100000000
3-13
Hood 00771101100000000
NO.
Material No.
Item and Spec
Unit
Remark
1
00771101103201010
Plate
1
2
199905631
Hinge
1
3
1109800044
Tongue type lock
2
4
1040301515
Washer 8-200HV
121
GB/T97.1-2002
5
1040201089
Nut M8-8
5
GB/T6170-2000
6
1101000152
Hinge
1
7
00771101103001010
Door plate
1
8
1040201772
Nut M4-A2-70
8
GB/T6170-2000
9
1040302410
Washer4-200HV
8
GB/T97.1-2002
10
1040103120
Screw M4×20-A2-70
8
GB/T70.1-2008
11
1040103122
Screw M8×16-4.8
5
GB/T818-2000
12
00771101100800000
Rear-right hood welds
1
13
00771101100600000
Rear-left hood welds
1
14
00771101100400000
Front-left hood welds
1
15
00771101100200000
Front-right hood welds
1
16
00771101101200000
Rear-left hood support
1
17
00771101100001010
Right side close plate I
1
18
00771101100001110
Left side close plate I
1
Right side close plate
19
00771101100001100
1
II
20
00771101100001030
Left side close plate II
1
Key cylinder mounting
21
00771101100001080
1
plate
3-14

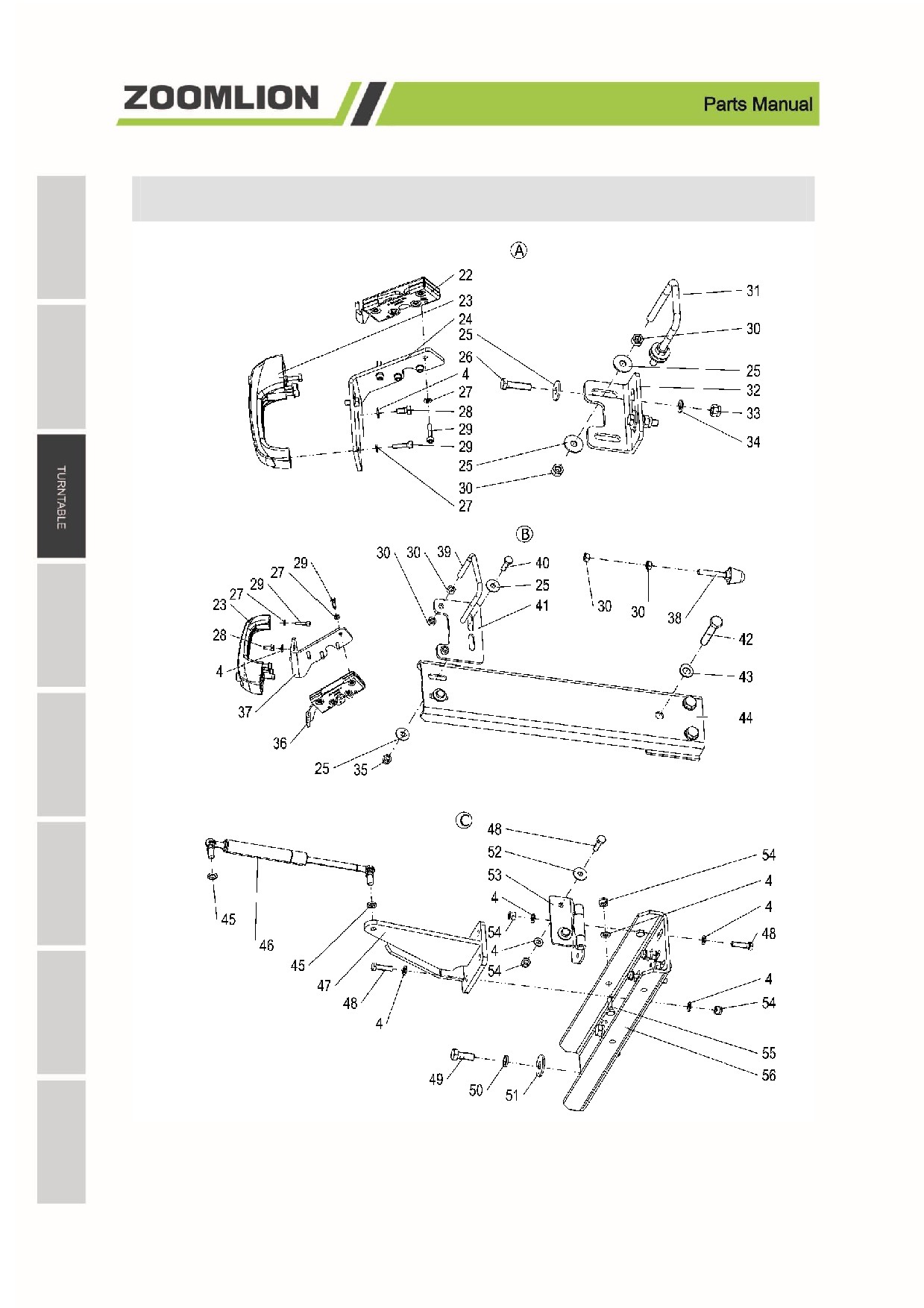

Hood 00771101100000000
3-15
Hood 00771101100000000
NO.
Material No.
Item and Spec
Unit
Remark
22
1109900765
Door lock
3
23
1100700163
Door knob
4
Key cylinder
24
00771101100001050
2
mounting plate
25
1040302512
Washer10-200HV
22
GB/T96.1-2002
26
1040002463
Bolt M10×40-8.8
2
GB/T5782-2000
27
1040300771
Washer6-200HV
28
GB/T97.1-2002
28
1040004517
Bolt M8×16-8.8
8
GB/T5783-2000
29
1040100105
Screw M6×25-8.8
28
GB/T70.1-2000
30
1040200113
Nut M10-8
22
GB/T6170-2000
31
00771101101801010
Round steel
1
32
00771101101801020
Plate
1
33
1040200504
Nut M10-8
2
GB/T889.1-2000
34
1040302489
Washer10-200HV
2
GB/T97.1-2002
35
1040201875
Nut M10-8
6
GB/T889.1-2000
36
1109900766
Door lock
3
Key cylinder
37
00771101100001020
1
mounting plate
Door knob bolt
38
1040004678
2
M10×70
39
00771101102001020
Round steel
2
40
1040002435
Bolt M10×35-8.8
6
GB/T5783-2000
Right rear lock seat
41
00771101102001010
2
plate
42
1040002450
Bolt M16×80-8.8
6
GB/T5783-2000
43
1040302492
Washer16-200HV
6
GB/T97.1-2002
44
00771101102800000
Rear lock seat support
2
45
1040301502
Washer10
8
GB/T93-1987
46
1110100317
Gas spring
4
Front gas spring
47
00771101102400000
4
support
48
1040004520
Bolt M8×30-8.8
46
GB/T5783-2000
49
1040004511
Bolt M12×30-8.8
12
GB/T5783-2000
50
1040301503
Washer12
24
GB/T93-1987
51
1040301031
Washer12-300HV
12
GB/T96.1-2002
52
1040302480
Washer8-200HV
28
GB/T96.1-2002
53
1101000089
Hinge
8
54
1040200503
Nut M8-8
70
GB/T889.1-2000
55
1040004519
Bolt M8×25-8.8
12
GB/T5783-2000
56
00771101100001040
Front hood support
4
3-16
Hood 00771101100000000

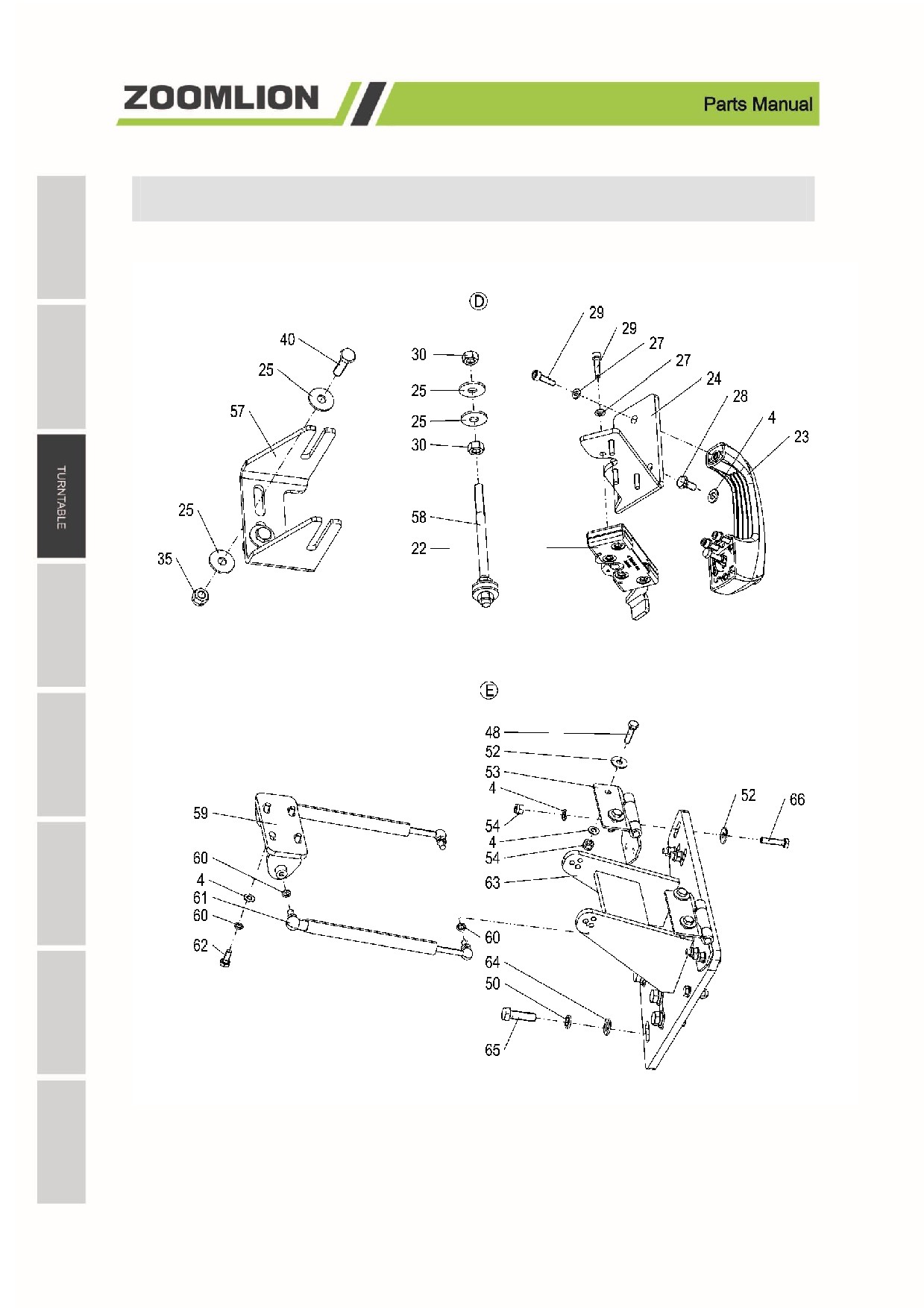

3-17
Hood 00771101100000000
NO.
Material No.
Item and Spec
Unit
Remark
57
00771101101601010
Lock seat plate
1
58
00771101101601020
Round steel
1
Rear gas spring
59
00771101102600000
2
support
60
1040301510
Washer8
16
GB/T93-1987
61
1110100301
Gas spring
4
62
1040004518
Bolt M8×20-8.8
8
GB/T5783-2000
Right rear hood
63
00771101101000000
1
Support
64
1040302490
Washer12-200HV
12
GB/T97.1-2002
65
1040002439
Bolt M12×40-8.8
12
GB/T5783-2000
66
1040004619
Bolt M8×35-8.8
12
GB/T5783-2000
3-18
Chassis assembly 00771102810000000

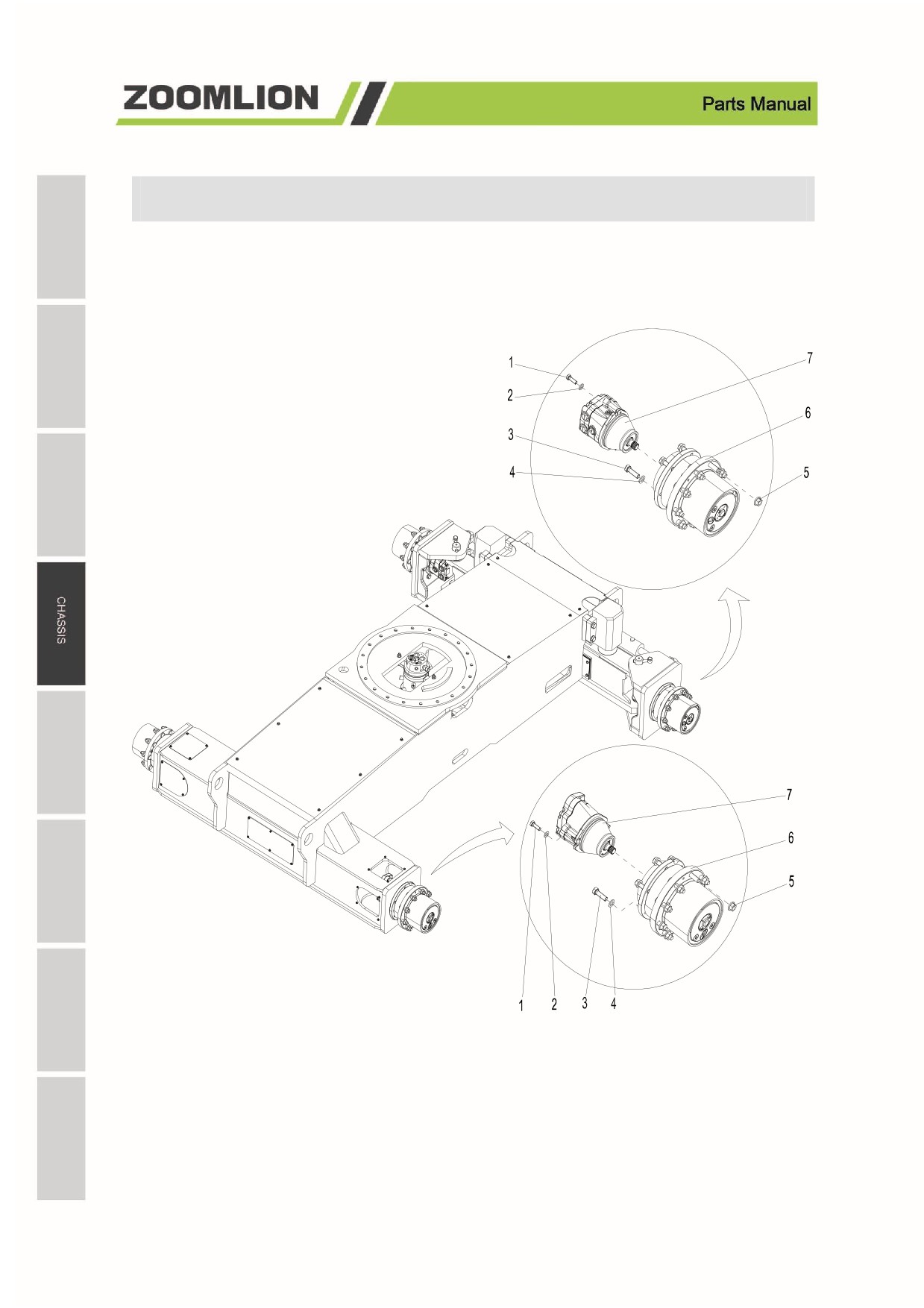

4-1
Chassis assembly 00771102810000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004029
Bolt M12×35-10.9
8
GB/T5783-2000
2
1040302490
Washer 12-200HV
8
GB/T97.1-2002
3
1040101980
Screw M16×50-10.9
24
GB/T70.1-2000
4
1040302492
Washer 16-200HV
24
GB/T97.1-2002
1040201879
Hexagon nut with flange
5
36
GB/T6177.2-2016
M16×1.5-10
6
1030202175
Reducer
4
7
1010100907
Travel motor
4
4-2
Chassis assembly 00771102810000000

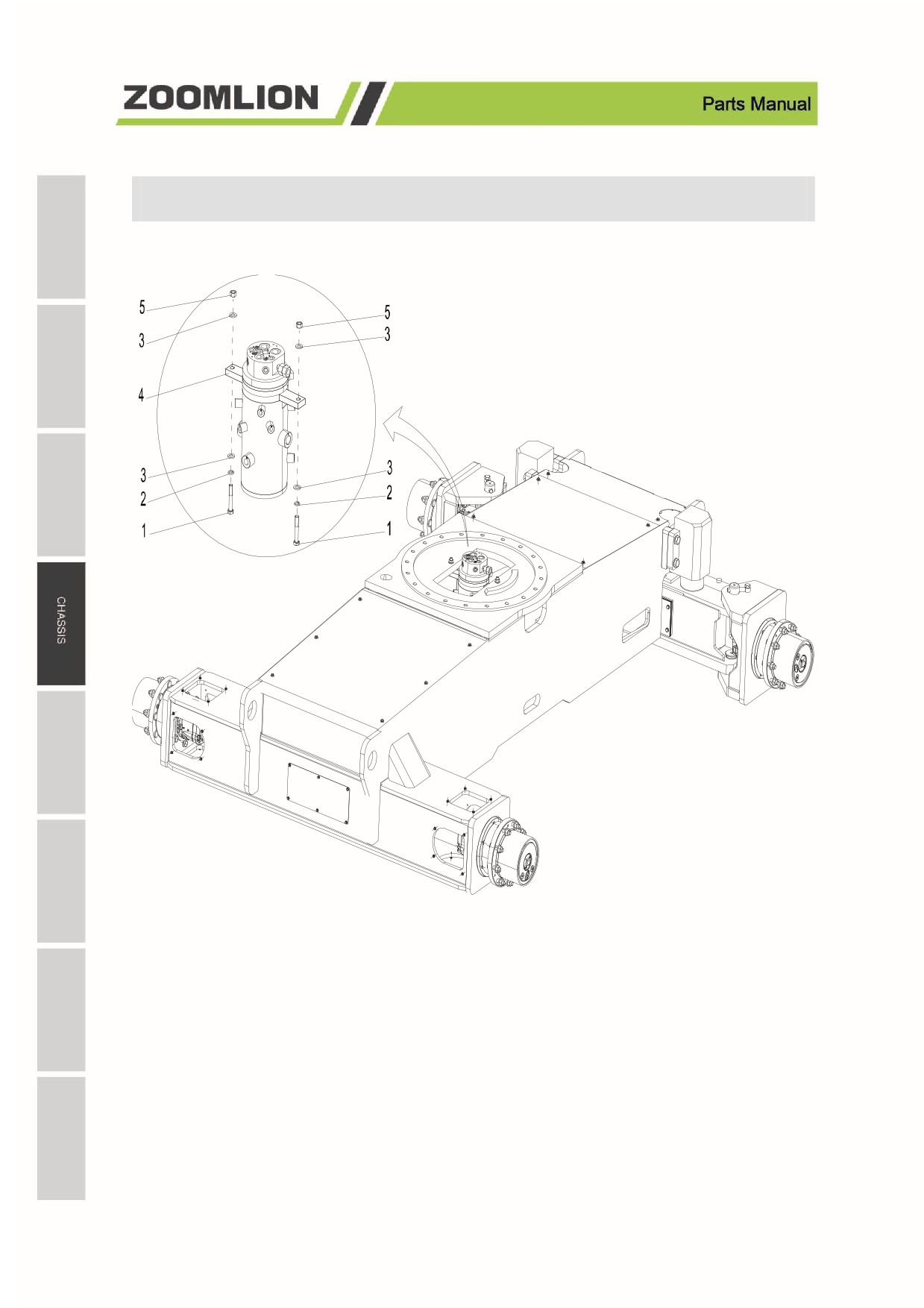

4-3
Chassis assembly 00771102810000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004605
Bolt M12×75-8.8
2
GB/T5782-2000
2
1040300054
Washer 12
2
GB/T93-1987
3
1040302490
Washer 12-200HV
4
GB/T97.1-2002
4
1011200104
Centre revolving joint
1
5
1040201381
Nut M12-8
2
GB/T6170-2000
4-4

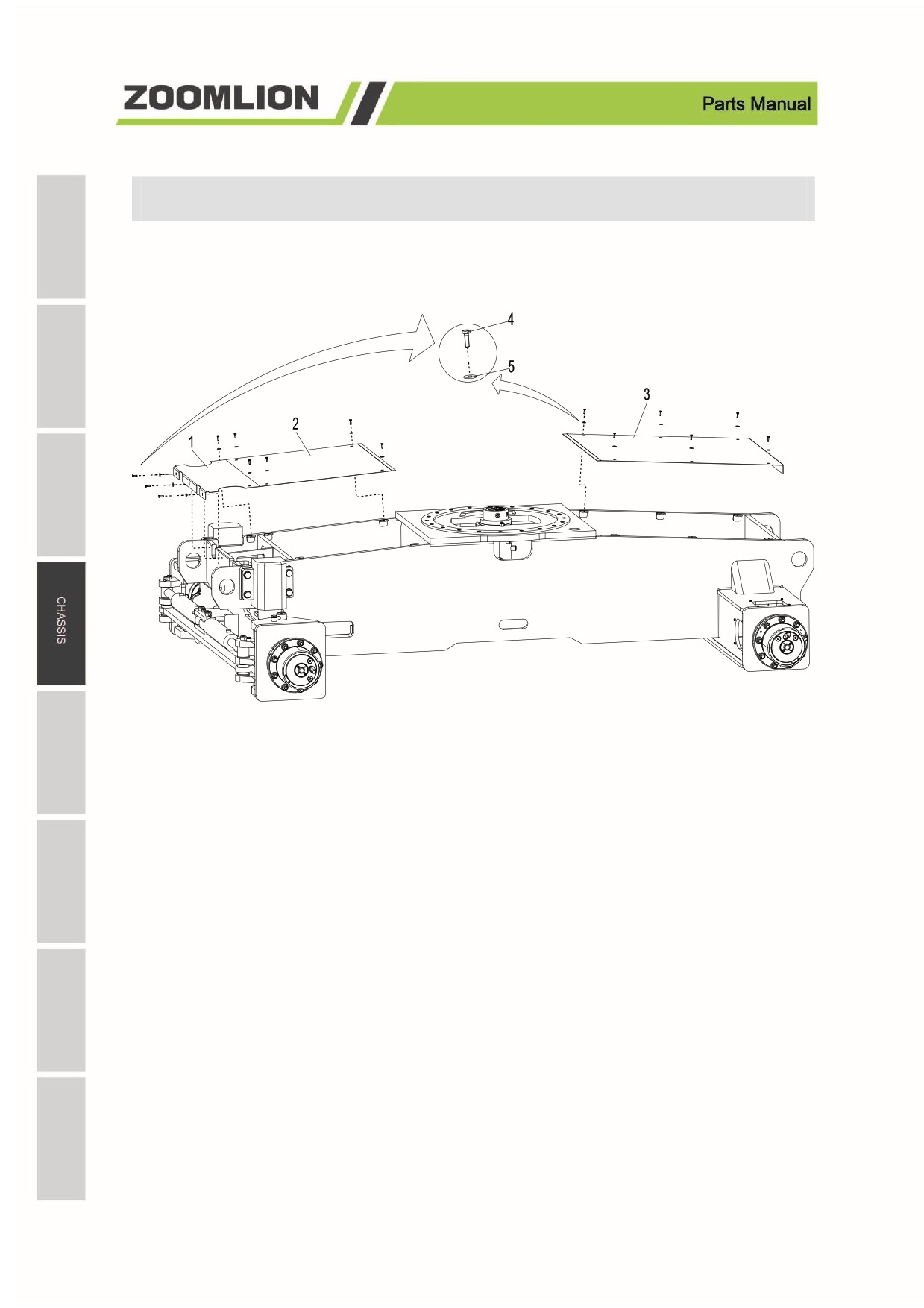

Chassis assembly 00771102810000000
4-5
Chassis assembly 00771102810000000
NO.
Code
Item
Qty
Remark
1
00771102810001140
Cover plate
1
2
00771102810001090
Cover plate
1
3
00771102810001080
Cover plate
1
4
1040004517
Bolt M8×16-8.8
15
GB/T5783-2000
5
1040301515
Washer 8-200HV
15
GB/T97.1-2002
4-6
Chassis assembly 00771102810000000

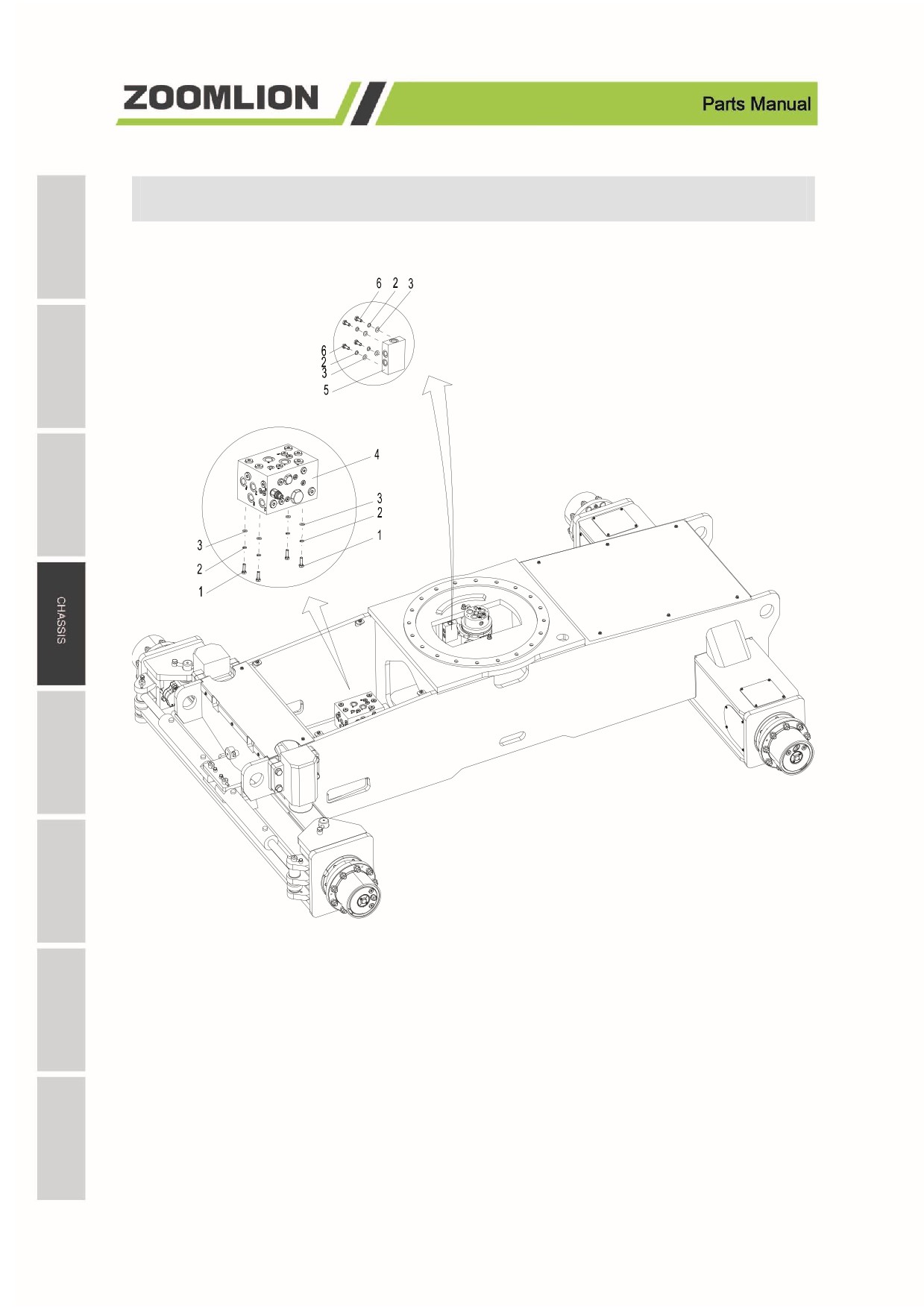

4-7
Chassis assembly 00771102810000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004519
Bolt M8×25-8.8
4
GB/T5783-2000
2
1040301510
Washer 8
8
GB/T93-1987
3
1040301515
Washer 8-200HV
8
GB/T97.1-2002
4
1019807528
Travel control valve
1
5
00771405200601010
Return oil block
1
6
1040004518
Bolt M8×20-8.8
4
GB/T5783-2000
4-8
Chassis assembly 00771102810000000

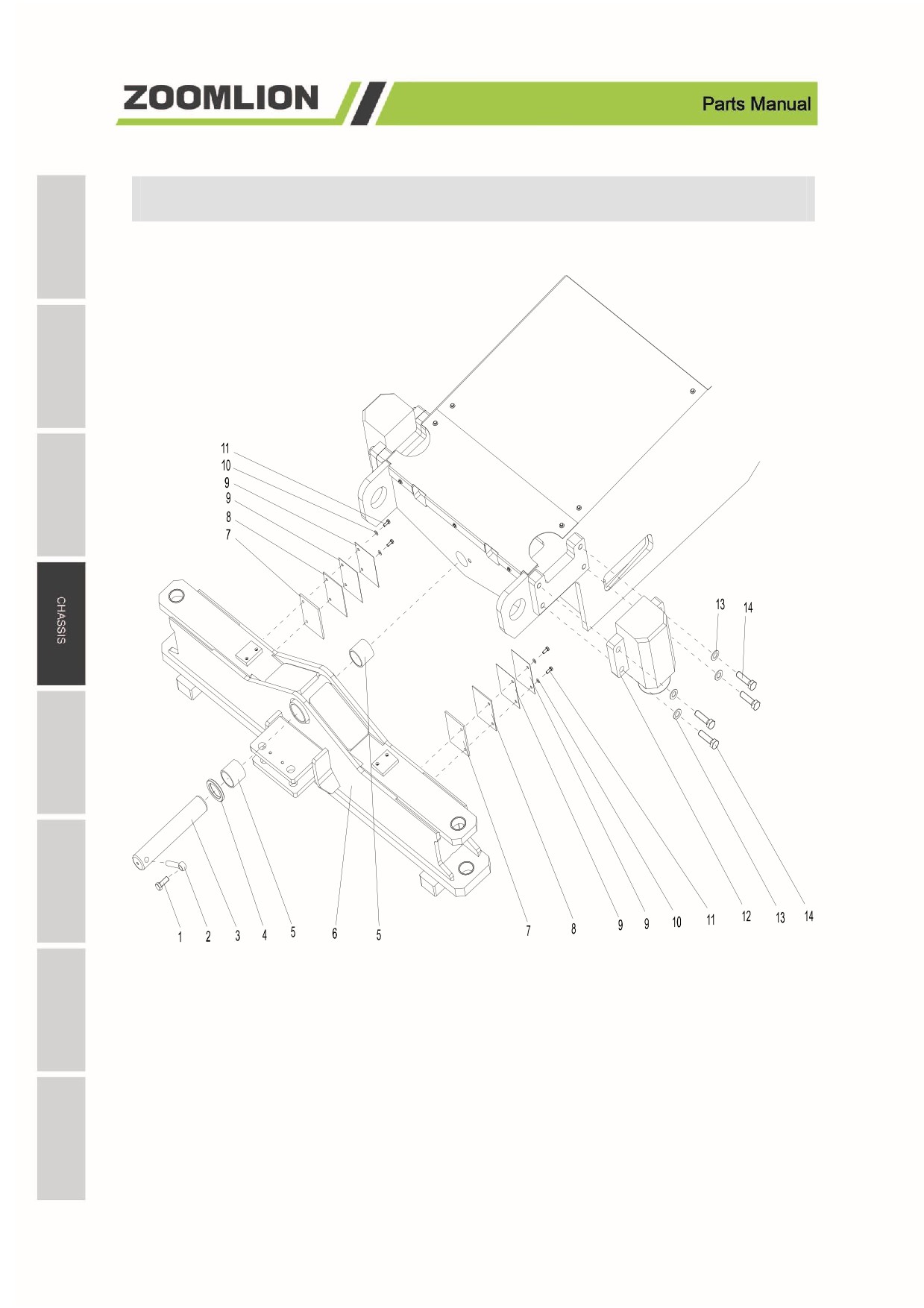

4-9
Chassis assembly 00771102810000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040002446
Bolt M16×40-8.8
1
GB/T5783-2000
2
00773400400001250
Stop pin
1
3
00771102800001040
Pin
1
4
00771102800001060
Wear-resistant plate
1
5
00771102800001220
Non-lubricating bearing
2
6
00771102810400000
Front axle welds
1
7
00771402800001100
Plate
2
8
00771402800001090
Plate
2
9
00771402800001080
Plate
4
10
1040301515
Washer 8-200HV
4
GB/T97.1-2002
11
1040004518
Bolt M8×20-8.8
4
GB/T5783-2000
12
00771102800600000
Float cylinder
2
13
1040302493
Washer 20-200HV
8
GB/T97.1-2002
14
1040004635
Bolt M20×70-8.8
8
GB/T5783-2000
4-10

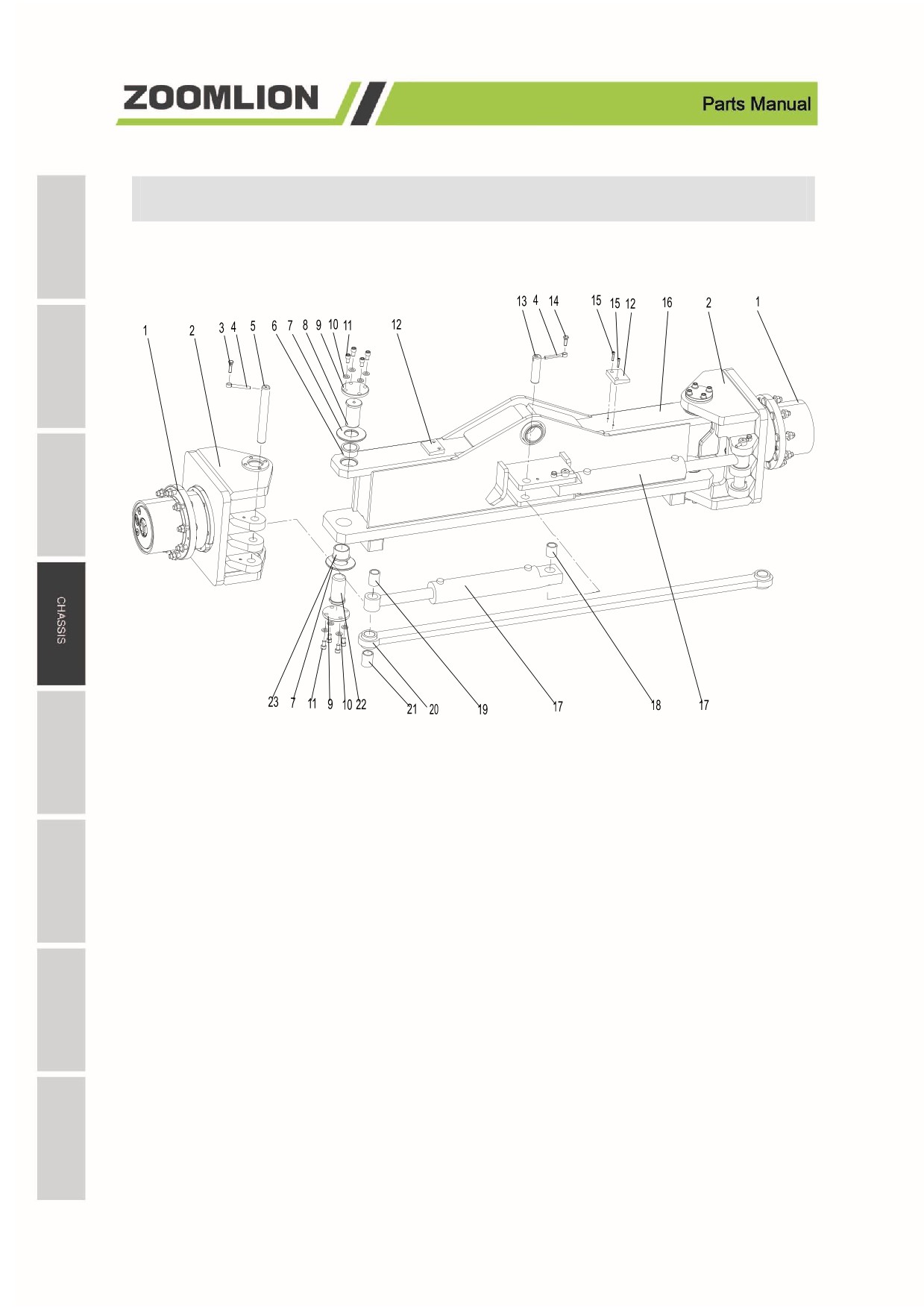

Chassis 00771102810000000
4-11
Chassis assembly 00771102810000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1030202175
Reducer
4
2
00771102810800000
Steering knuckle
2
3
1040004507
Bolt M10×40-8.8
2
GB/T5783-2000
4
00773400300001200
Stop pin
4
5
00771102800001010
Pin
2
6
00771102810001230
Non-lubricating bearing
2
7
00771102810001030
Wear-resistant plate
2
8
00771102810001020
Pin
4
9
00771102810001260
Main pin cover plate
4
10
1040302490
Washer 12-200HV
16
GB/T97.1-2002
11
1040102042
Screw M12×20-10.9
16
GB/T70.1-2000
12
00771102810001210
Front axle block
2
13
00771102800001070
Pin
2
14
1040004565
Bolt M10×30-8.8
2
GB/T5783-2016
15
1040101643
Screw M6×30-A2-70
4
GB/T70.1-2000
16
00771102810400000
Front axle welds
1
17
00771102811000000
Steering cylinder
2
18
00771102810001190
Non-lubricating bearing
2
19
00771102810001170
Non-lubricating bearing
2
20
00771102811200000
Steering linkage welds
1
21
00771102810001180
Non-lubricating bearing
2
22
00771102810001150
Pin
2
23
00771102810001240
Non-lubricating bearing
2
4-12

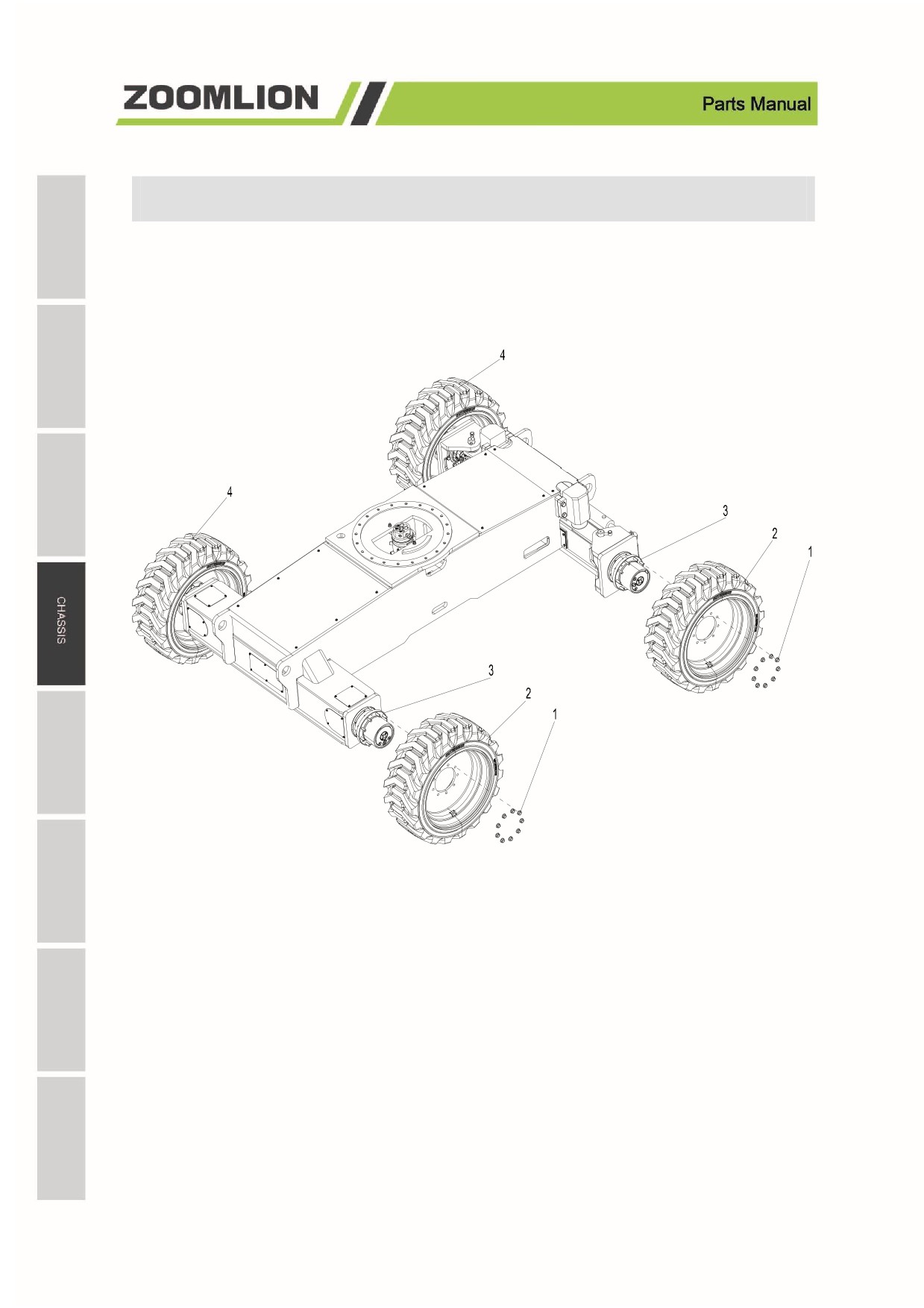

Chassis assembly 00771102810000000
4-13
Chassis assembly 00771102810000000
NO.
Material No.
Item and Spec
Unit
Remark
Hexagon nut with
1
1040201879
36
GB/T6177.2-2016
flangeM16×1.5-10
355/55D-625(R)-O
2
1030800663
Tire 355/55D-625
2
TR
3
1030202175
Reducer
4
355/55D-625(L)-
4
1030800662
Tire 355/55D-625
2
OTR
4-14

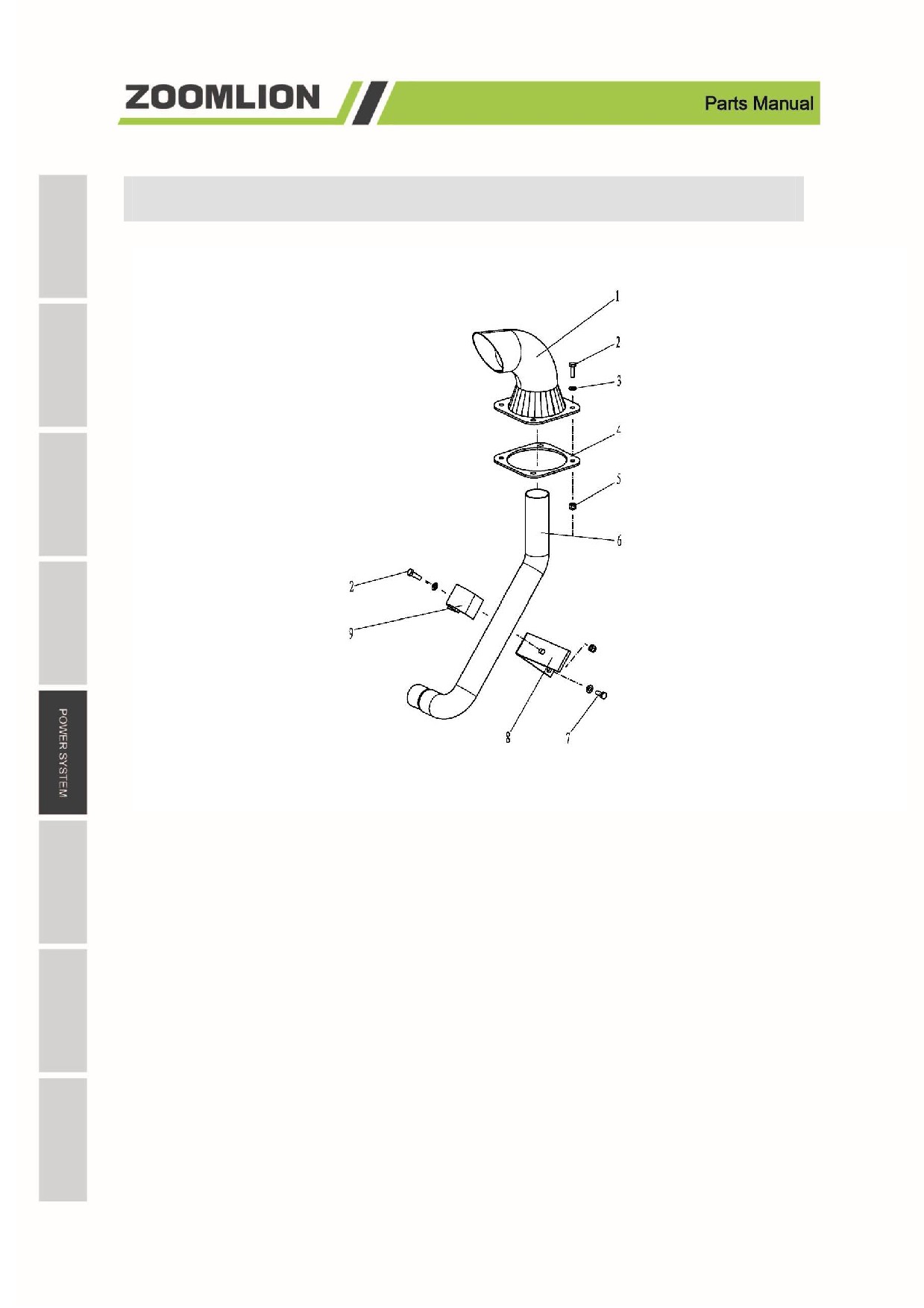

Exhaust system 00771107111000000 (Deutz)
5-1
Exhaust system 00771107111000000 (Deutz)
NO.
Material No.
Item and Spec
Unit
Remark
1
00771407101001020
Tail pipe
1
2
1040004519
Bolt M8×25-8.8
5
GB/T5783-2000
3
1040301515
Washer 8-200HV
7
GB/T97.1-2002
4
00771407101001030
Strength plate
1
5
1040200503
Nut M8-8
5
GB/T889.1-2000
6
00771107111001010
Exhaust pipe
1
7
1040004518
Bolt M8×20-8.8
2
GB/T5783-2000
8
00771107111001020
Bending plate I
1
9
00771107111001030
Bending plate II
1
5-2

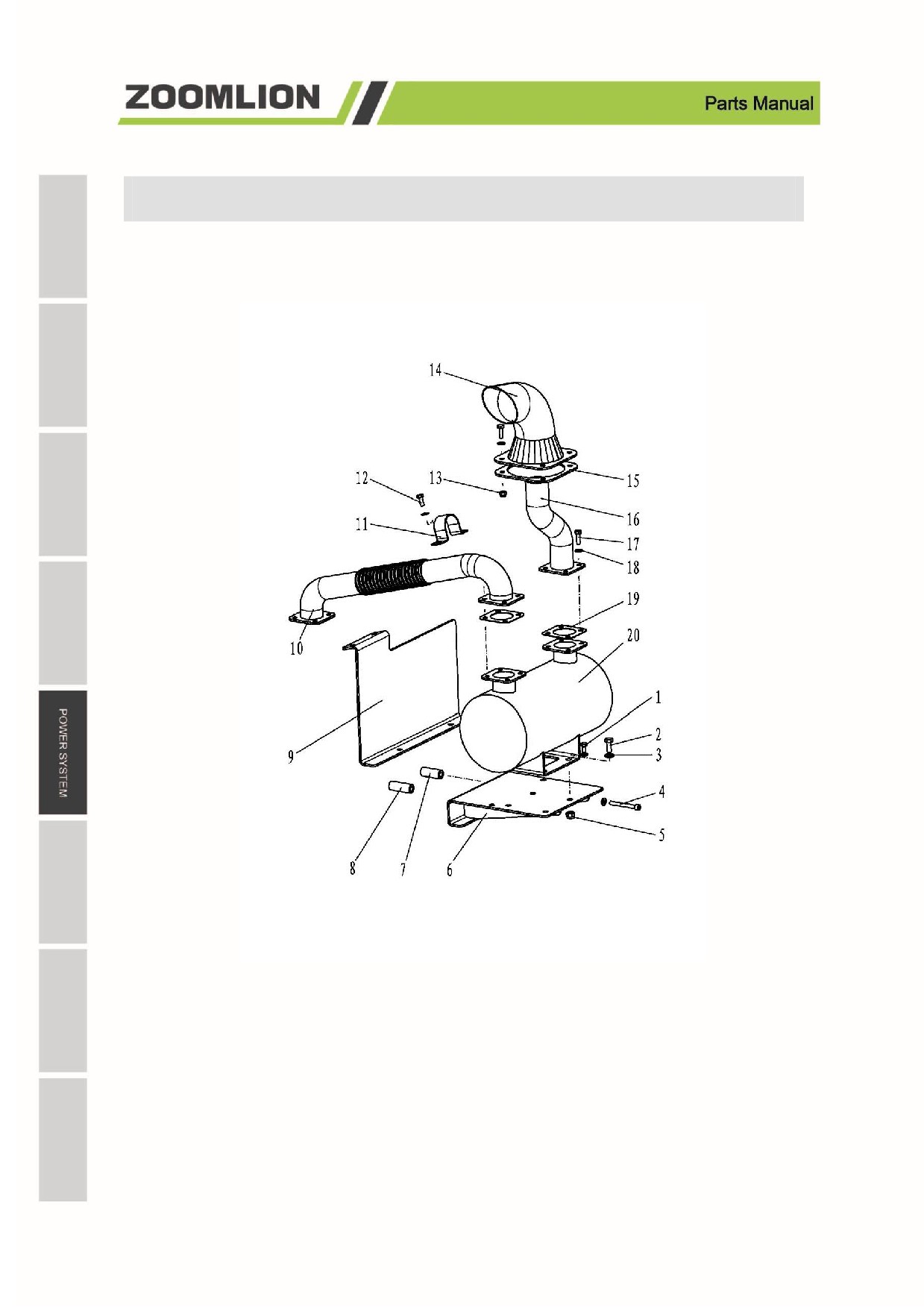

Exhaust system 00771107121000000 (Perkins)
5-3
Exhaust system 00771107121000000 (Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004517
Bolt M8×16-8.8
2
GB/T5783-2000
2
1040002434
Bolt M10×25-8.8
6
GB/T5783-2000
3
1040302489
Washer 10-200HV
6
GB/T97.1-2002
4
1040102037
Screw M8×70-10.9-DKL
2
GB/T70.1-2000
5
1040200504
Nut M10-8
6
GB/T889.1-2000
6
00771107121010000
Silencer bracket
1
7
00771107121001020
Cushion cover
1
8
00771107121001030
Long cushion cover
1
9
00771107121001050
Thermal baffle
1
10
00771107121001010
Exhaust coupling
1
11
00771107121001060
Bilateral pipe clamp
1
12
1040004518
Bolt M8×20-8.8
6
GB/T5783-2000
13
1040200503
Nut M8-8
14
GB/T889.1-2000
14
00771407101001020
Tail pipe
1
15
00771407101001030
Strength plate
1
16
00771107121001040
Exhaust pipe
1
17
1040004519
Bolt M8×25-8.8
12
GB/T5783-2000
18
1040301515
Washer 8-200HV
22
GB/T97.1-2002
19
00771407121001050
Sealer I
3
20
00771407121001010
Silencer
1
5-4

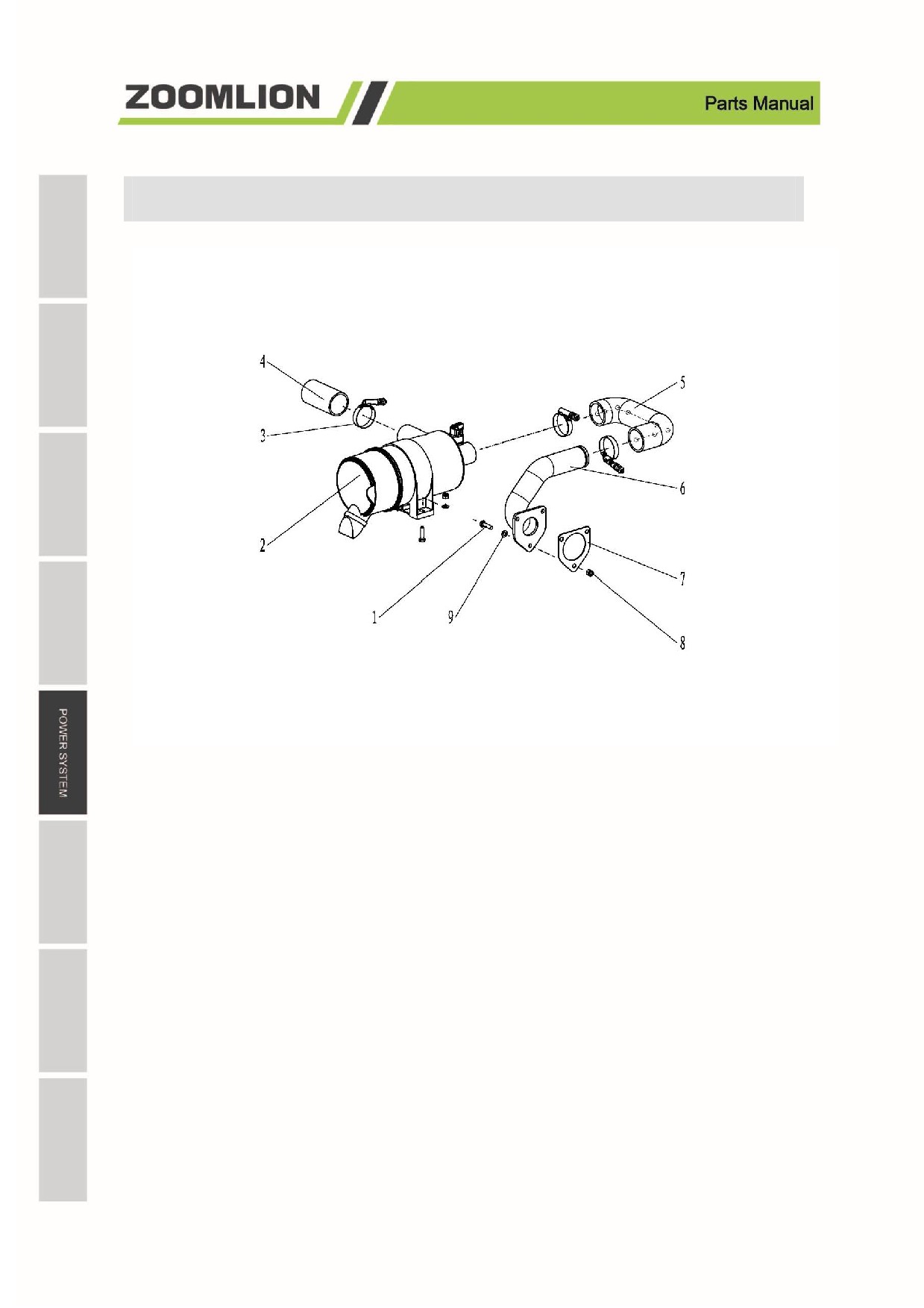

Intake system 00773407120800000 (Deutz)
5-5
Intake system 00773407120800000 (Deutz)
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004610
Bolt M8×30-8.8
5
GB/T5782-2000
2
1000100395
Air cleaner assembly
1
3
1990202288
Spiral turbine vortex rod clamp
3
4
00773407100801040
Intake tube II
1
5
00773407120801030
Intake tube I
1
6
00773407120801020
Connector
1
7
00773407120801010
Rubber mat
1
8
1040200503
Nut M8-8
5
GB/T889.1-2000
9
1040301515
Washer 8-200HV
5
GB/T97.1-2002
5-6

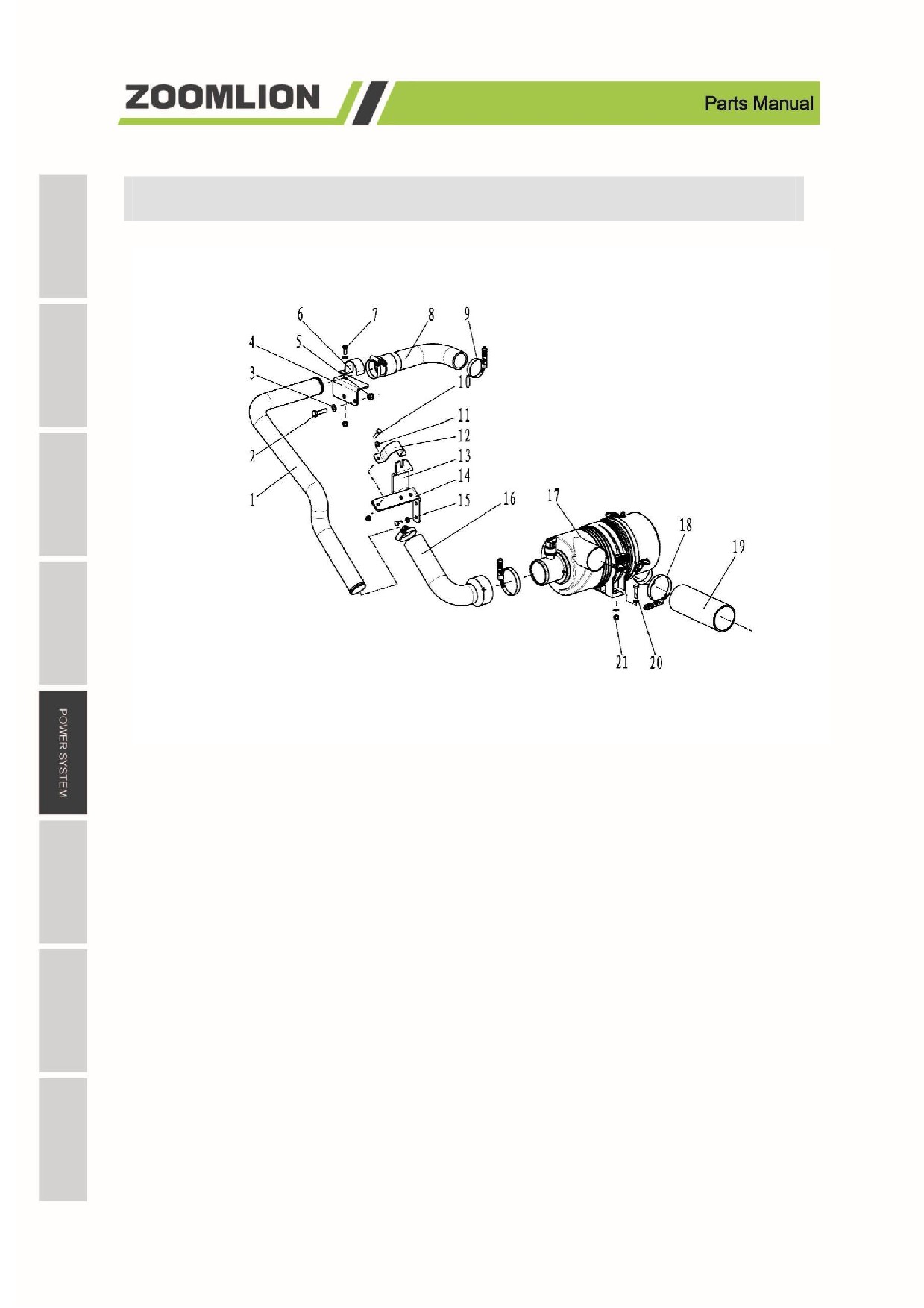

Intake system 00771107120800000 (Perkins)
5-7
Intake system 00771107120800000 (Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
1
00771107120801010
Intake steel tube
1
2
1040004507
Bolt M10×40-8.8
2
GB/T5783-2000
3
1040302489
Washer 10-200HV
2
GB/T97.1-2002
4
00771107120801040
Support plate Ⅰ
1
5
1040200504
Nut M10-8
2
GB/T889.1-2000
6
00771107120801060
Unilateral pipe clamp
1
7
1040004518
Bolt M8×20-8.8
1
GB/T5783-2000
8
00771107120801020
Intake hoseⅡ
1
9
1990202288
Spiral turbine vortex rod clamp
3
10
1040004520
Bolt M8×30-8.8
3
GB/T5783-2000
11
1040301515
Washer 8-200HV
10
GB/T97.1-2002
12
00771107121001060
Bilateral pipe clamp
1
13
00771107120801070
Stay plate
1
14
00771107120801050
Support plate Ⅱ
1
15
1040004517
Bolt M8×16-8.8
2
GB/T5783-2000
16
00771107120801030
Intake hoseⅠ
1
17
1000100391
Air cleaner assembly
1
18
1990202290
Spiral turbine vortex rod clamp
2
19
00771407100801010
Intake tube Ⅰ
1
20
1040004619
Bolt M8×35-8.8
2
GB/T5783-2000
21
1040200503
Nut M8-8
6
GB/T889.1-2000
5-8

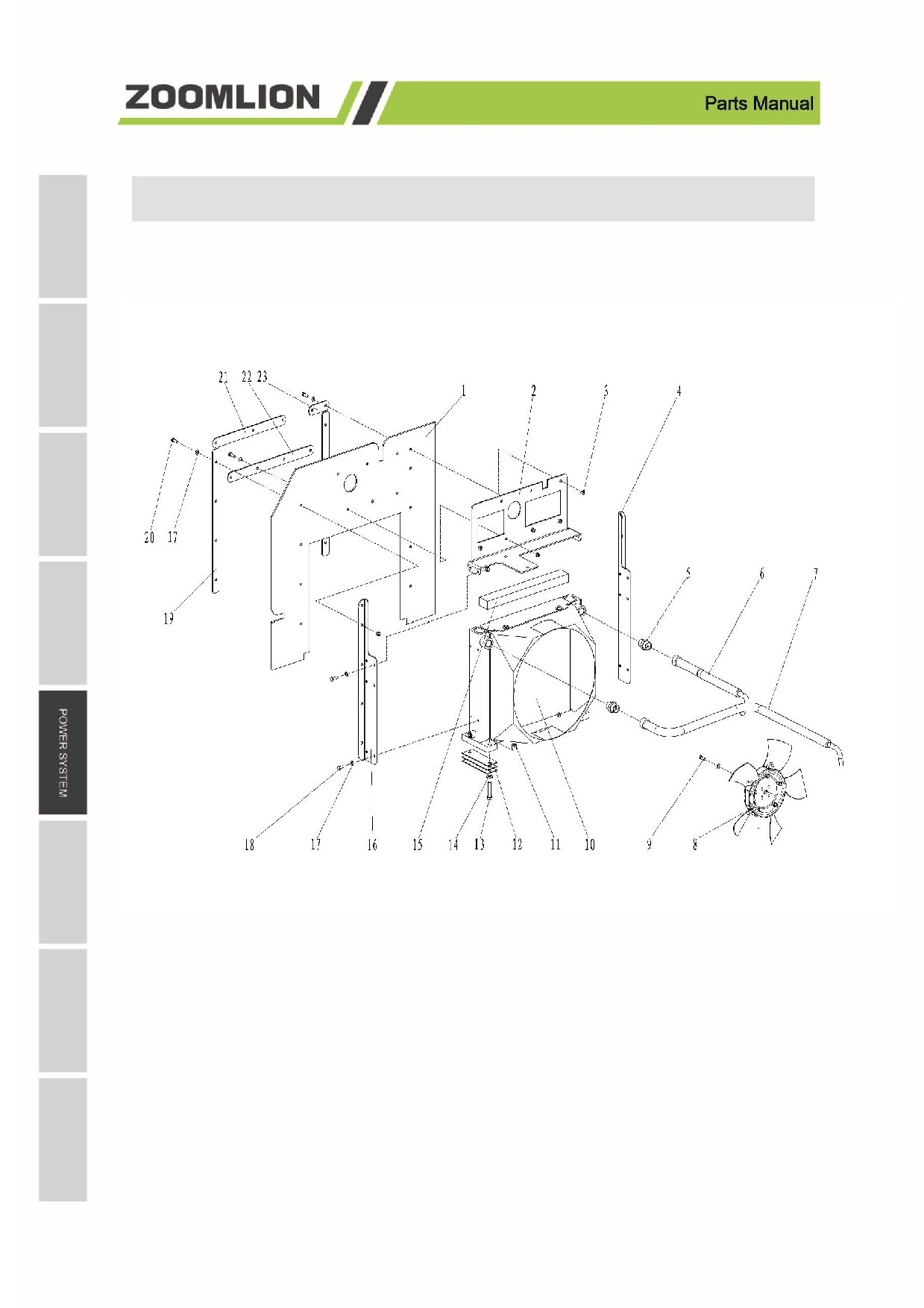

Cooling system 00771107110600000 (Deutz)
5-9
Cooling system 00771107110600000 (Deutz)
NO.
Material No.
Item and Spec
Unit
Remark
1
00771107110601010
Wind shield
1
2
00773407120601030
Bending plate III
1
3
1040200503
Nut M8-8
21
GB/T889.1-2000
4
00773407120601020
Bending plate II
1
5
1140114618
End straight coupling
2
6
1140251606
Hose Assembly
1
7
1140251605
Hose Assembly
1
8
1000300750
Fan assembly
1
9
1040002281
Bolt M8×20-10.9
4
GB/T5783-2000
10
1000300751
Radiator assembly
1
11
1040200507
Nut M12-8
4
GB/T889.1-2000
12
00773407100601140
Base plate
6
13
1040002262
Bolt M12×55-10.9
4
GB/T5783-2000
14
1040302490
Washer 12-200HV
4
GB/T97.1-2002
15
00773407100601130
Sponge bar
2
16
00773407120601010
Bending plate I
1
17
1040301515
Washer 8-200HV
33
GB/T97.1-2002
18
1040004517
Bolt M8×16-8.8
8
GB/T5783-2000
19
00773407120601070
Plate Ⅳ
2
20
1040004519
Bolt M8×25-8.8
21
GB/T5783-2000
21
00771107110601030
Plate III
1
22
00773407120601040
Plate I
1
23
00771107110601020
Plate II
1
5-10
5-11

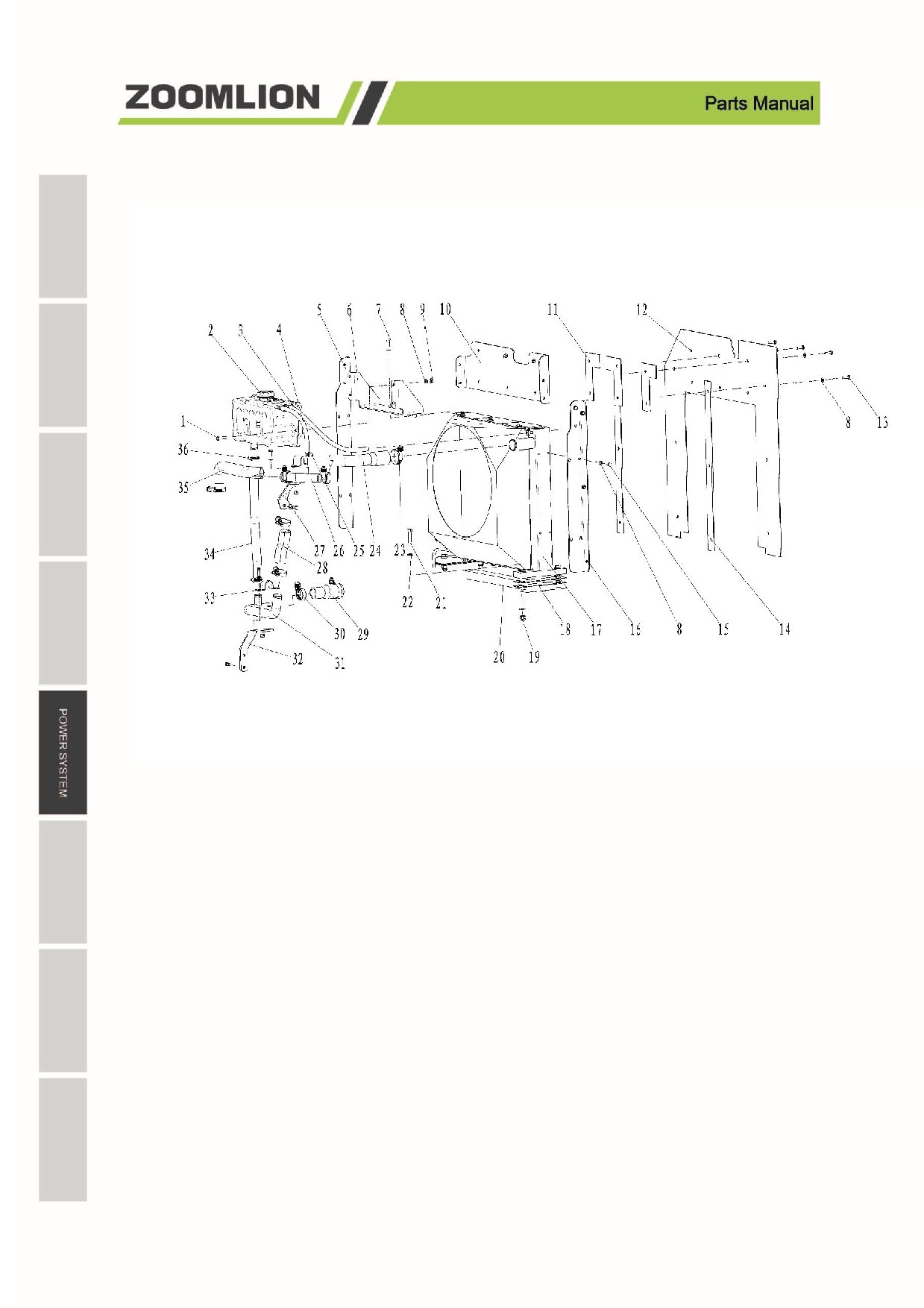

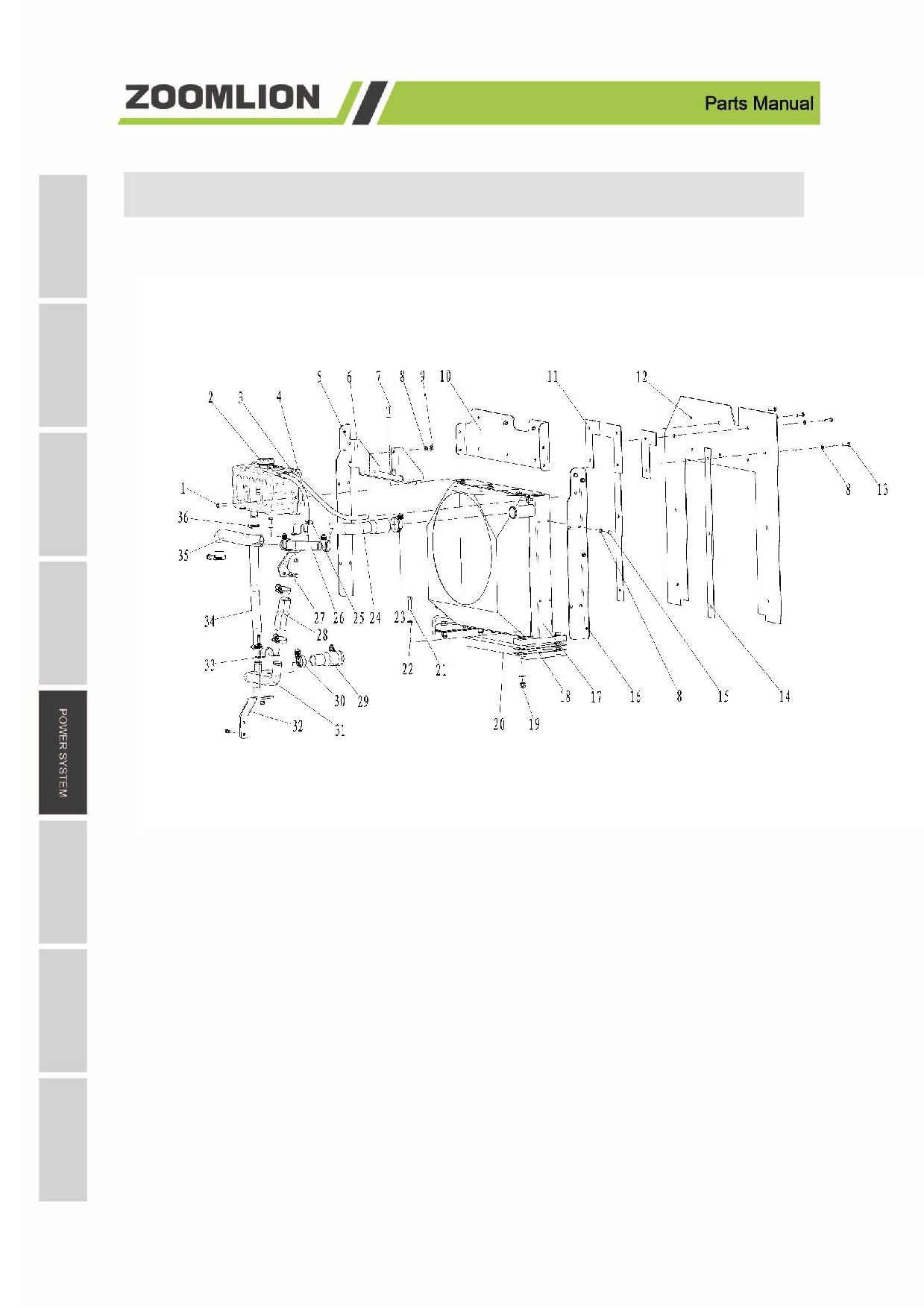

Cooling system 00771107120600000 (Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004619
Bolt M8×35-8.8
4
GB/T5783-2000
2
1000300735
Expansion tank
1
3
00771107120601120
Rubber steam hose Ⅰ
1
4
00771107120601130
Rubber steam hose Ⅱ
1
5
00771107120601150
Baffle bracket Ⅰ
1
6
00771107120601010
Water tank mounting plate
1
7
1040004518
Bolt M8×20-8.8
10
GB/T5783-2000
8
1040301515
Washer 8-200HV
38
GB/T97.1-2002
9
1040200503
Nut M8-8
24
GB/T889.1-2000
10
00771107120601020
Baffle bracket Ⅲ
1
11
00771107120601180
Pressing plate
3
12
00771107120601170
Wind shield
1
13
1040004519
Bolt M8×25-8.8
14
GB/T5783-2000
14
00771407100601150
Plate Ⅱ
2
15
1040004517
Bolt M8×16-8.8
10
GB/T5783-2000
16
00771107120601160
Baffle bracket Ⅱ
1
17
1000300776
Radiator assembly
1
18
00771407100601170
Base plate
6
19
1040200507
Nut M12-8
4
GB/T889.1-2000
20
00773407130601210
Sponge bar
1
21
1040002262
Bolt M12×55-10.9
4
GB/T5783-2000
22
1040300041
Washer 12-200HV
8
GB/T97.1-2002
23
1990202283
Washer turbo rod clamp
2
24
00771107120601080
Return water hoseⅠ
1
25
1990202279
Turbo rod clamp
4
26
00771107120601100
Return water pipe
1
27
00771107120601140
Return pipe support
1
28
00771107120601070
Inflow hose Ⅱ
1
29
00771107120601060
Inflow hose Ⅰ
1
30
1990202284
Washer Turbo rod clamp
6
31
00771107120601030
Inflow steel pipe
1
32
00771107120601040
Inflow pipe bracket
1
33
00771107120601110
Bilateral pipe clamp
2
34
00771107120601050
Water supply pipe
1
5-12
Cooling system 00771107120600000 (Perkins)
5-13
Cooling system 00771107120600000 (Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
35
00771107120601090
Return water hoseⅡ
1
36
1990202282
Turbo rod clamp
2
5-14

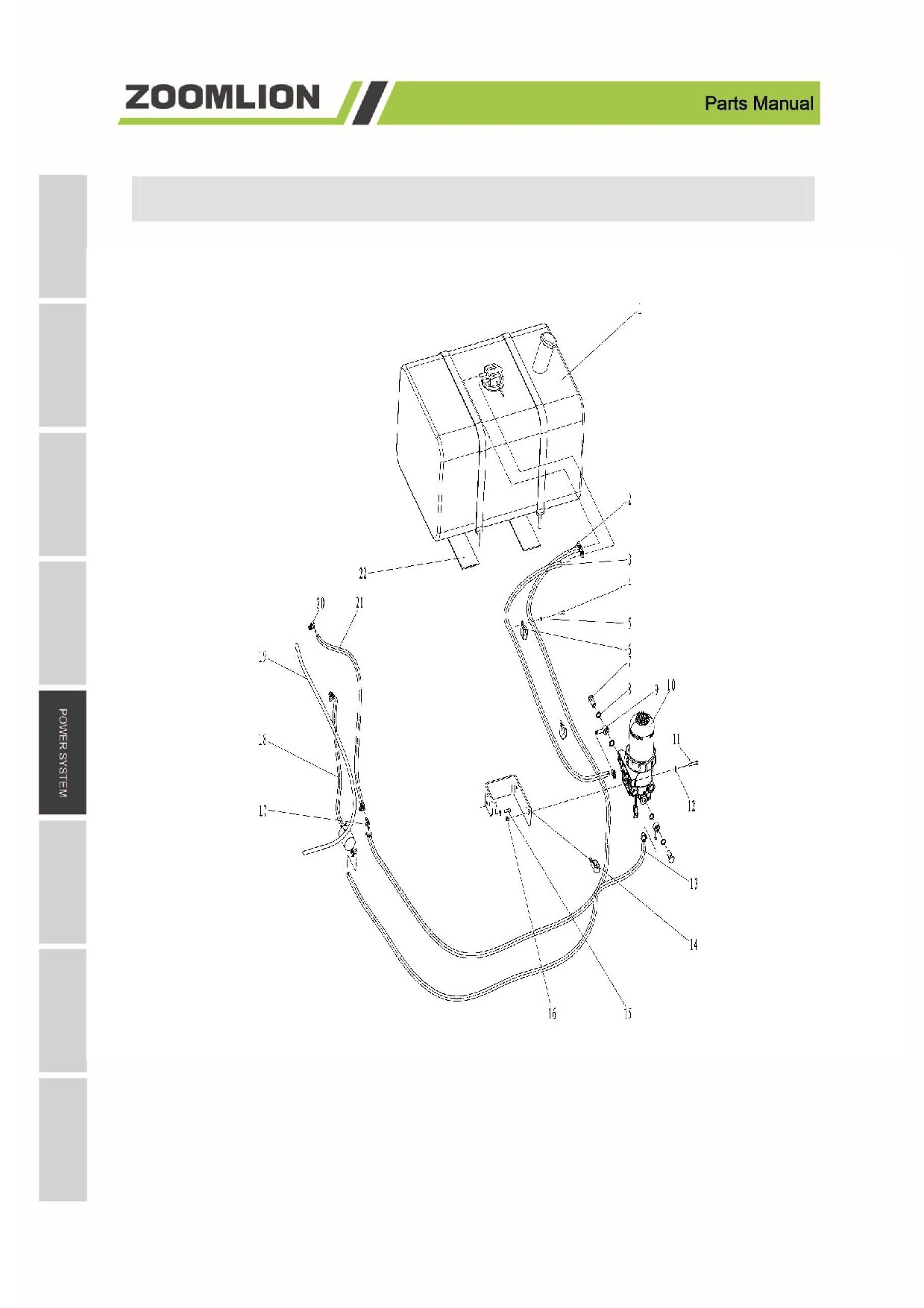

Fuel system 00771107110400000 (Deutz)
5-15
Fuel system 00771107110400000 (Deutz)
NO.
Material No.
Item and Spec
Unit
Remark
1
1000400491
Fuel tank assembly
1
2
1000400478
Oil-water separator
1
3
1040301515
Washer 8-200HV
4
GB/T97.1-2002
4
1040002458
Bolt M8×40-8.8
2
GB/T5783-2000
5
1081000673
Combined sealing washer
4
JB/T982-1977
6
00773407100401050
Connector II
2
7
00773407100401060
Hollow bolt
2
M16×1.5×35
8
00771407100401010
Bending plate Ⅰ
1
9
00771107110401020
Fuel pipe II
1
10
1040200503
Nut M8-8
2
GB/T889.1-2000
11
1040004518
Bolt M8×20-8.8
2
GB/T5783-2000
12
00771107110401030
Fuel pipe III
1
13
1990202279
Turbo rod clamp
6
14
1990200692
Plastic coating tape
3
15
1040300771
Washer 6-200HV
3
GB/T97.1-2002
16
1040005844
Bolt M6×10-A2-70
3
GB/T5783-2000
17
00771107110401010
Fuel pipe I
1
5-16

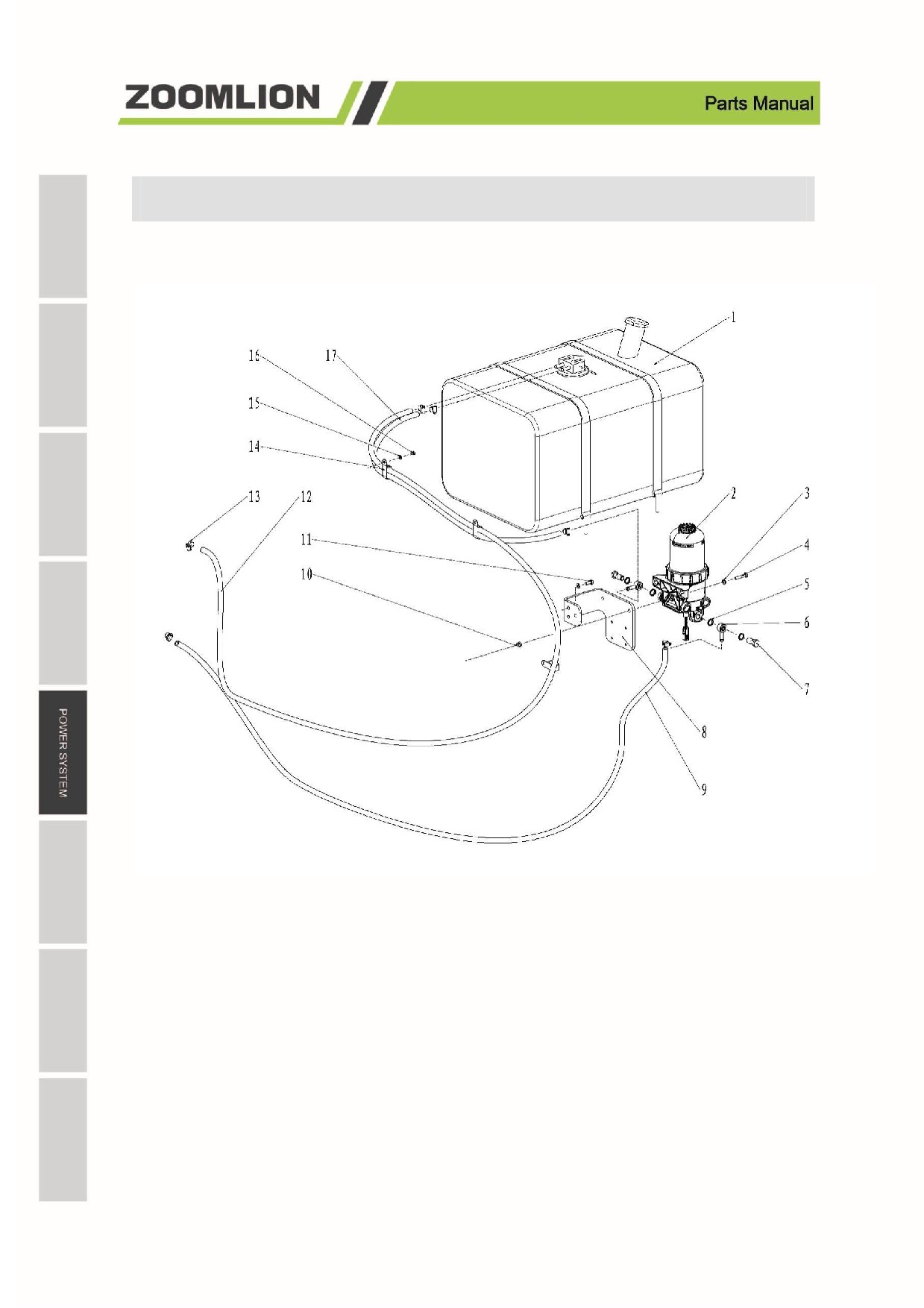

Fuel system 00771107120400000 (Perkins)
5-17
Fuel system 00771107120400000 (Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
1
1000400491
Fuel tank assembly
1
2
00771107120401030
Fuel pipe Ⅱ
1
3
00771107120401020
Fuel pipe Ⅰ
1
Hexagon socket head
4
1040102372
3
GB/T70.1-2000
screwM6×20-A2-70
5
1040300771
Washer 6-200HV
3
GB/T97.1-2002
6
1990200692
Plastic coating tape
3
7
00773407100401060
Hollow Bolt M16×1.5×35
2
8
1081000673
Combined sealing washer
4
JB/T982-1977 16
9
00773407100401050
Connector II
2
10
1000400478
Oil-water separator
1
11
1040004619
Bolt M8×35-8.8
2
GB/T5783-2000
12
1040301515
Washer 8-200HV
5
GB/T97.1-2002
13
00771107120401040
Fuel pipe Ⅲ
1
14
00771107120401010
Mounting plate
1
15
1040004518
Bolt M8×20-8.8
3
GB/T5783-2000
16
1040200503
Nut M8-8
2
GB/T889.1-2000
17
00773407130401040
Connector
1
18
00771107120401060
Fuel pipe Ⅴ
1
19
00773407130401060
Accelerator flexible axle
1
20
1990202279
Turbo rod clamp
10
21
00771107120401050
Fuel pipe Ⅳ
1
22
00771107100401080
Base plate
2
5-18

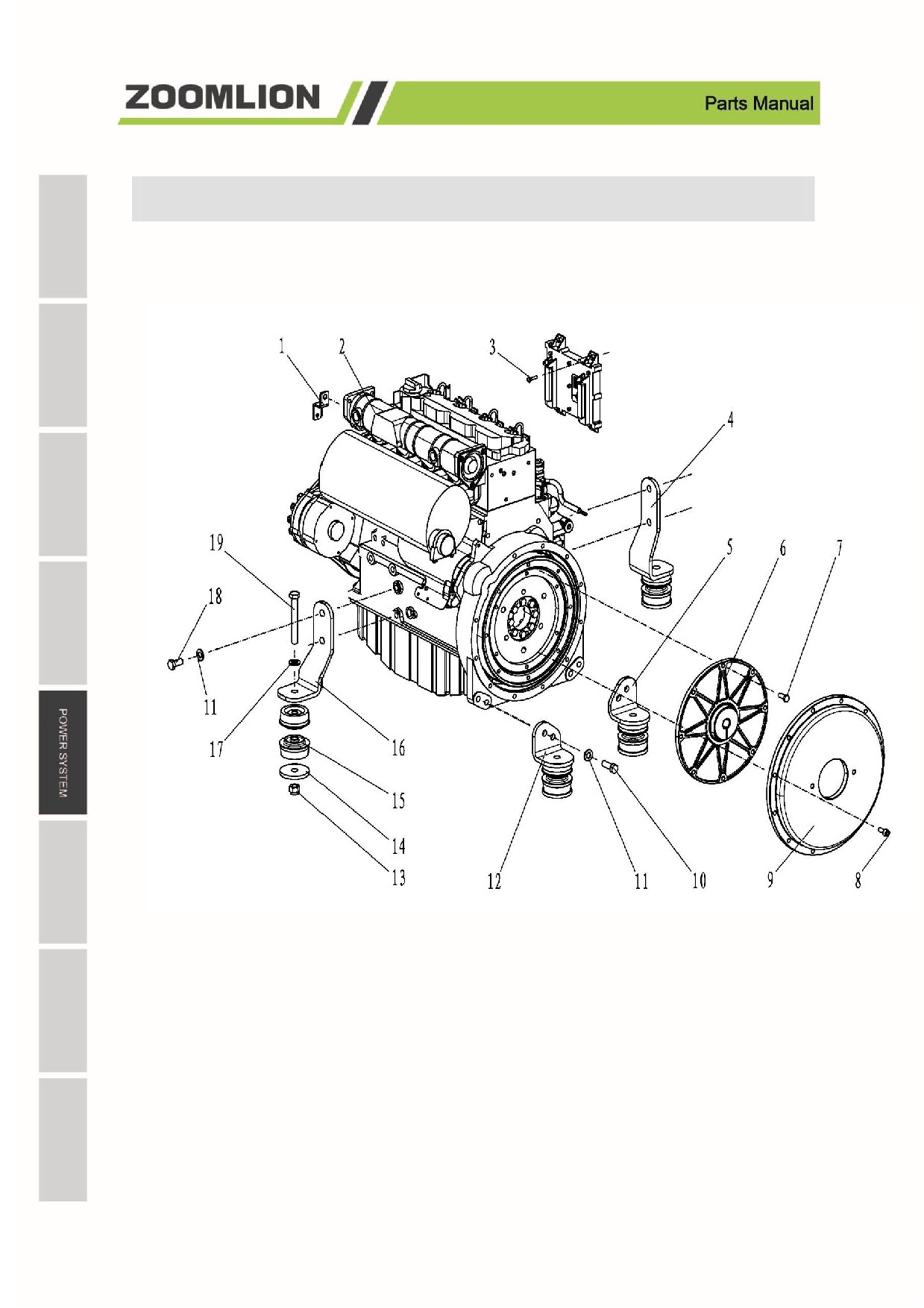

Engine 00771107110200000 (Deutz)
5-19
