Foreword
Zoomlion appreciates your choice of our machine for your application. The Parts Manual must be read
and understood in its entirety before operating the machine.
This manual introduces you the components and significant technical specs of telescopic boom lifts in
detail for working efficiency improving. Keep this manual properly at all times for looking up.
Do not attempt to maintain and repair the product without carefully reading and understanding the
contents of this manual. If you have any questions or concerns, please call your local service engineer
and we will provide you with timely and effective technical support. Zoomlion AWP Machinery
Company does not take the consequence of wrong operation.
This manual should be considered a permanent part of your machine and should remain with the
machine at all times.
The content is under intellectual property protection, permission is required for a copy or other
application.
There might be some tiny differences in details between your machine and the upgraded one due to the
continuous improving. For clarification, questions, or additional information regarding any portions of
this manual, contact Zoomlion AWP Machinery.
Our company reserves the right to modify this manual as technical improvement without notice.
Thank you for your trust and support for Zoomlion products!
Zoomlion Aerial Work Platform Machinery Company
I
Contents
Foreword
I
Content
II
SECTION 1 WORK PLATFORM
1-1
Work Platform 00771100100000000
1-1
Platform Assembly 00771600100200000
1-3
Tray Assembly 00771600100400000
1-5
SECTION 2 BOOM
2-1
Jib 00771100210000000
2-1
Boom Assembly 00771100310000000
2-5
Cable Chain System 00771400700000000
2-17
Cable Chain System 00771100720000000
2-19

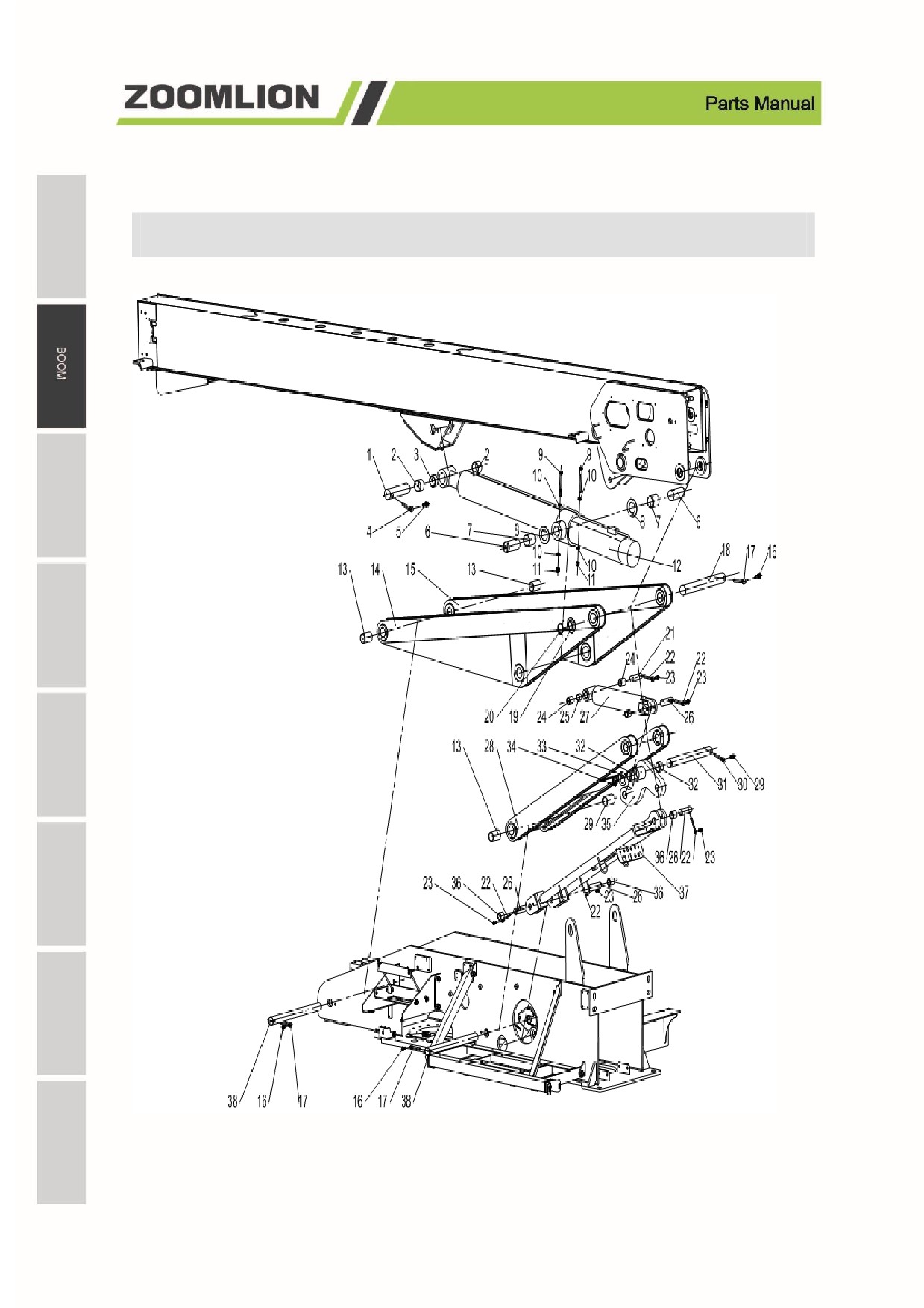

Linkage 00771100610000000
2-21
SECTION 3 TURNTABLE
3-1

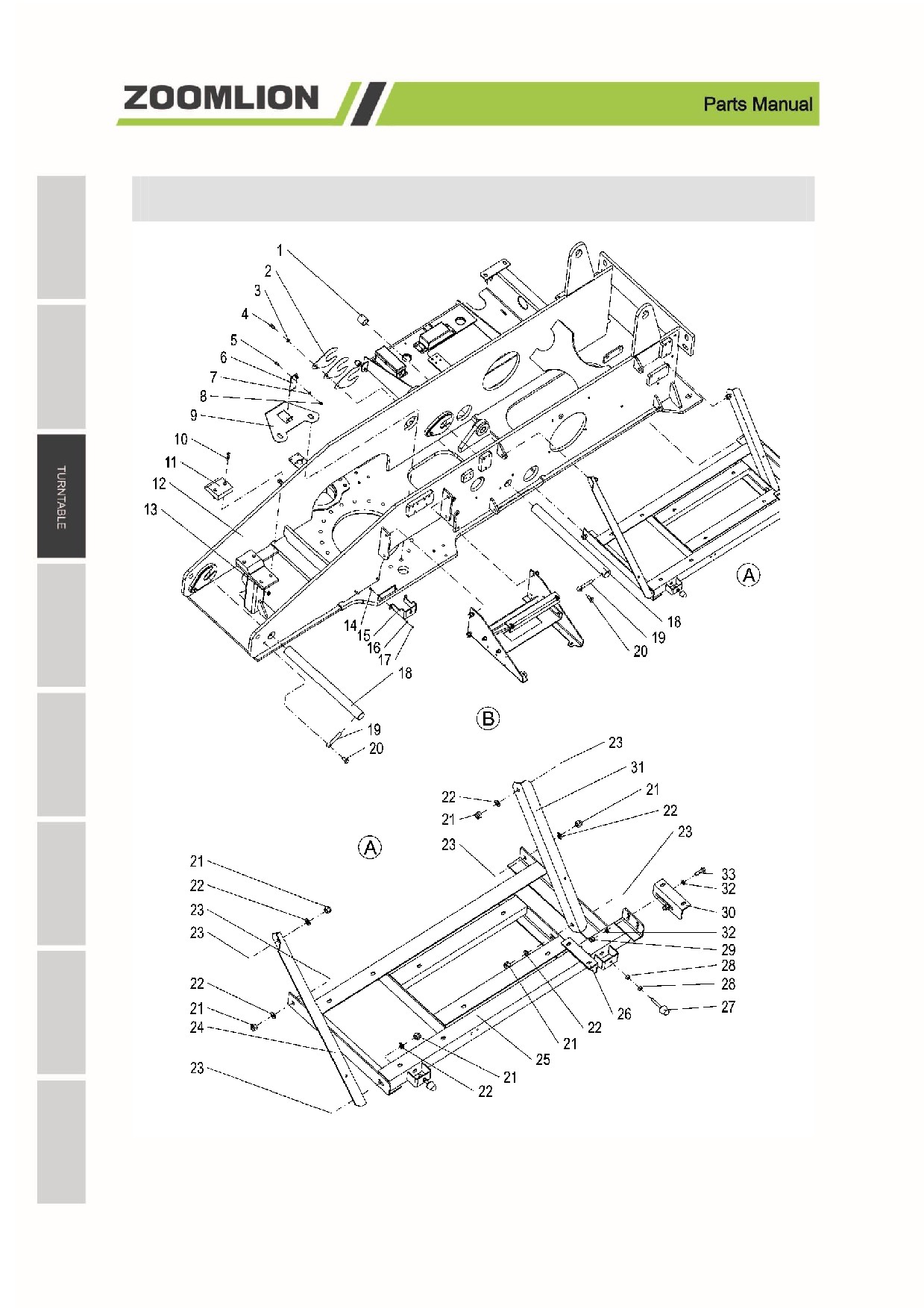

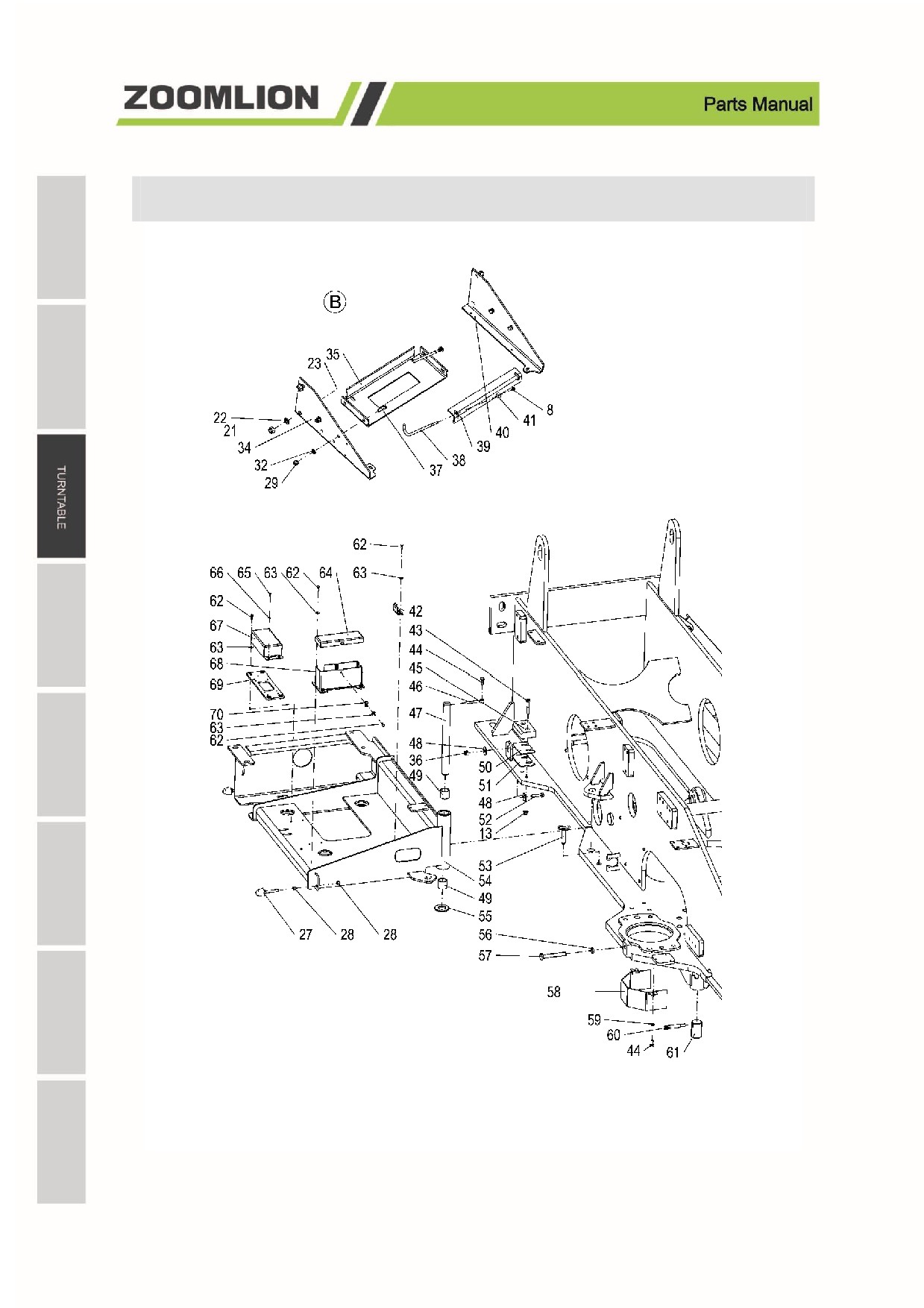

Turntable Assembly 00771100800000000（Perkins）
3-1

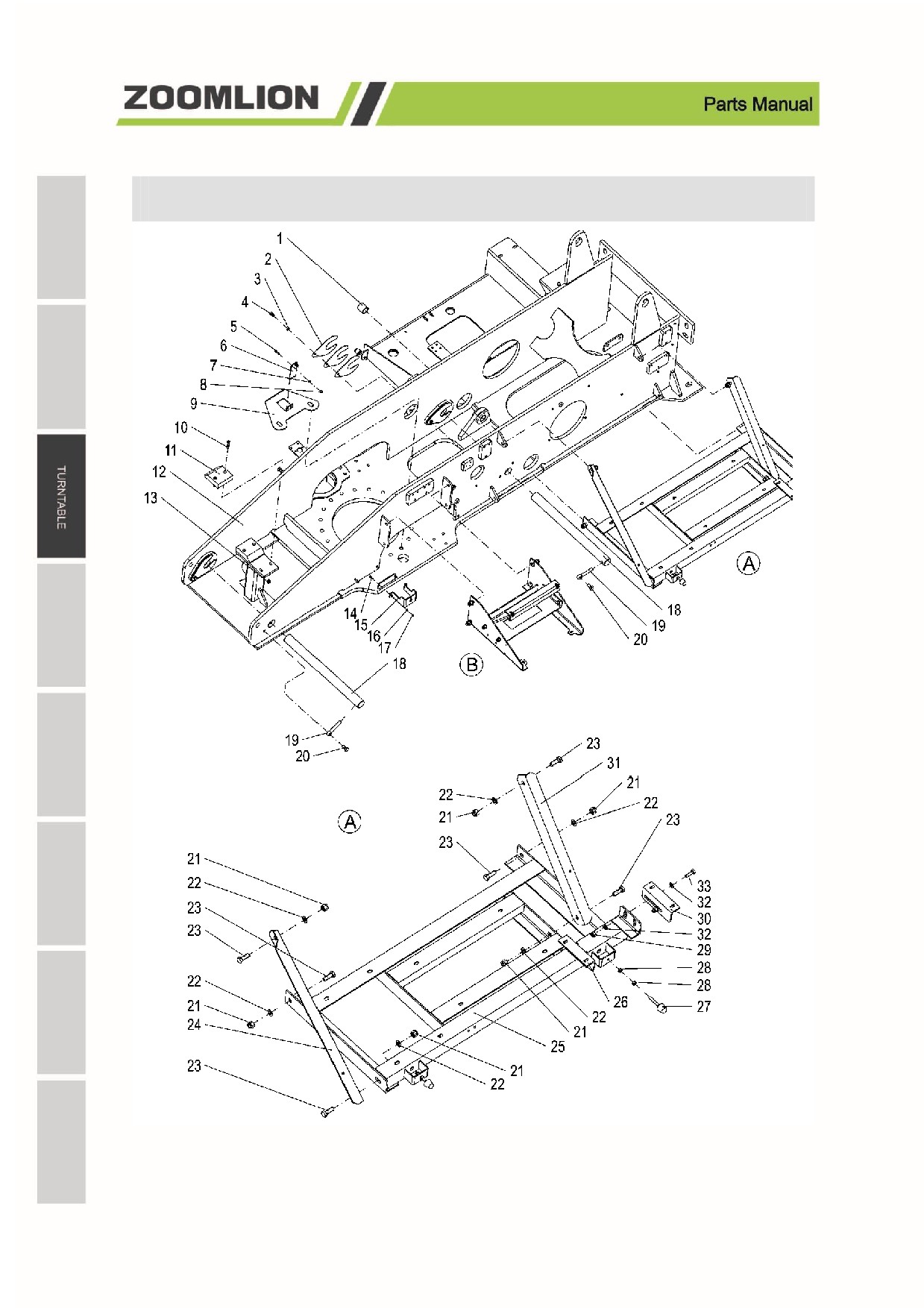

Turntable Assembly 00771100810000000（Deutz）
3-5
Slewing Mechanism 00771100900000000
3-9
Counterweight 00771101000000000
3-11
Hood 00771101100000000
3-13
SECTION 4 CHASSIS
4-1
Chassis assembly 00771102810000000
4-1
SECTION 5 POWER SYSTEM
5-1
Exhaust System 00771107111000000（Deutz）
5-1
Exhaust System 00771107121000000（Perkins）
5-3
Intake System00773407128000000（Deutz）
5-5
Intake System00771107128000000（Perkins）
5-7
Cooling System00771107110600000（Deutz）
5-9
Cooling System00771107120600000（Perkins）
5-11
Fuel System00771107110400000（Deutz）
5-15
Fuel System00771107120400000（Perkins）
5-17
II
Contents
Engine00771107110200000（Deutz）
5-19
Engine00771107120200000（Perkins）
5-21
SECTION 6 HYDRAULIC SYSTEM
6-1
Frame Hydraulic Components Mounting (front motor) 00771105200600000
6-1
Frame Hydraulic Components Mounting (rear motor) 00771105200600000
6-3
Frame Hydraulic Components Mounting (return oil block) 00771105200600000
6-5
Frame Hydraulic Components Mounting (travel diverter valve) 00771105200600000
6-7
Frame Hydraulic Components Mounting (steering cylinder) 00771105200600000
6-9
Frame Hydraulic Components Mounting (float cylinder) 00771105200600000
6-11
Frame Hydraulic Components Mounting (pump) 00771105200800000
6-13
Frame Hydraulic Components Mounting (oil supply filter) 00771105200800000
6-15
Frame Hydraulic Components Mounting (high pressure filter) 00771105200800000
6-17
Frame Hydraulic Components Mounting (auxiliary pump) 00771105200800000
6-19
Frame Hydraulic Components Mounting (main valve) 00771105200800000
6-21
Frame Hydraulic Components Mounting (travel control valve) 00771105200800000
6-23
Frame Hydraulic Components Mounting (jib valve) 00771105201000000
6-25
Frame Hydraulic Components Mounting (rotary actuator) 00771105201000000
6-27
Center Swivel Joint Installation 00771105201200000
6-29
Balance Valve Mounting (lifting balance valve) 00771105201400000
6-31
Balance Valve Mounting (telescopic balance valve) 00771105201400000
6-33
Balance Valve Mounting (Slewing balance) 00771105201400000
6-35
Balance Valve Mounting (jib balance) 00771105201400000
6-37
Balance Valve Mounting (leveling balance) 00771105201400000
6-39
Hydraulic Tank 00771105201600000
6-41
SECTION 7 ELECTRICAL SYSTEM
7-1
Turntable Cables 00771106210410000（Perkins）
7-1
Turntable Cables 00771106210410000（Deutz D435）
7-3
ECU Cables 00771106210420000（Perkins）
7-5
ECU Cables 00771106210420000（Deutz D435）
7-7
Boom Cables 00771106200430000
7-9
Platform Cables 00771106200440000/Cables Restructuring 00771106200610000
7-11
Power Line 00771106210450000（Perkins）
7-13
Power Line 00771106200450000（Deutz D435）
7-15
III
Contents
SECTION 8 LABEL ASSEMBLY
8-1
Label Assembly 00771107000000000
8-1
IV

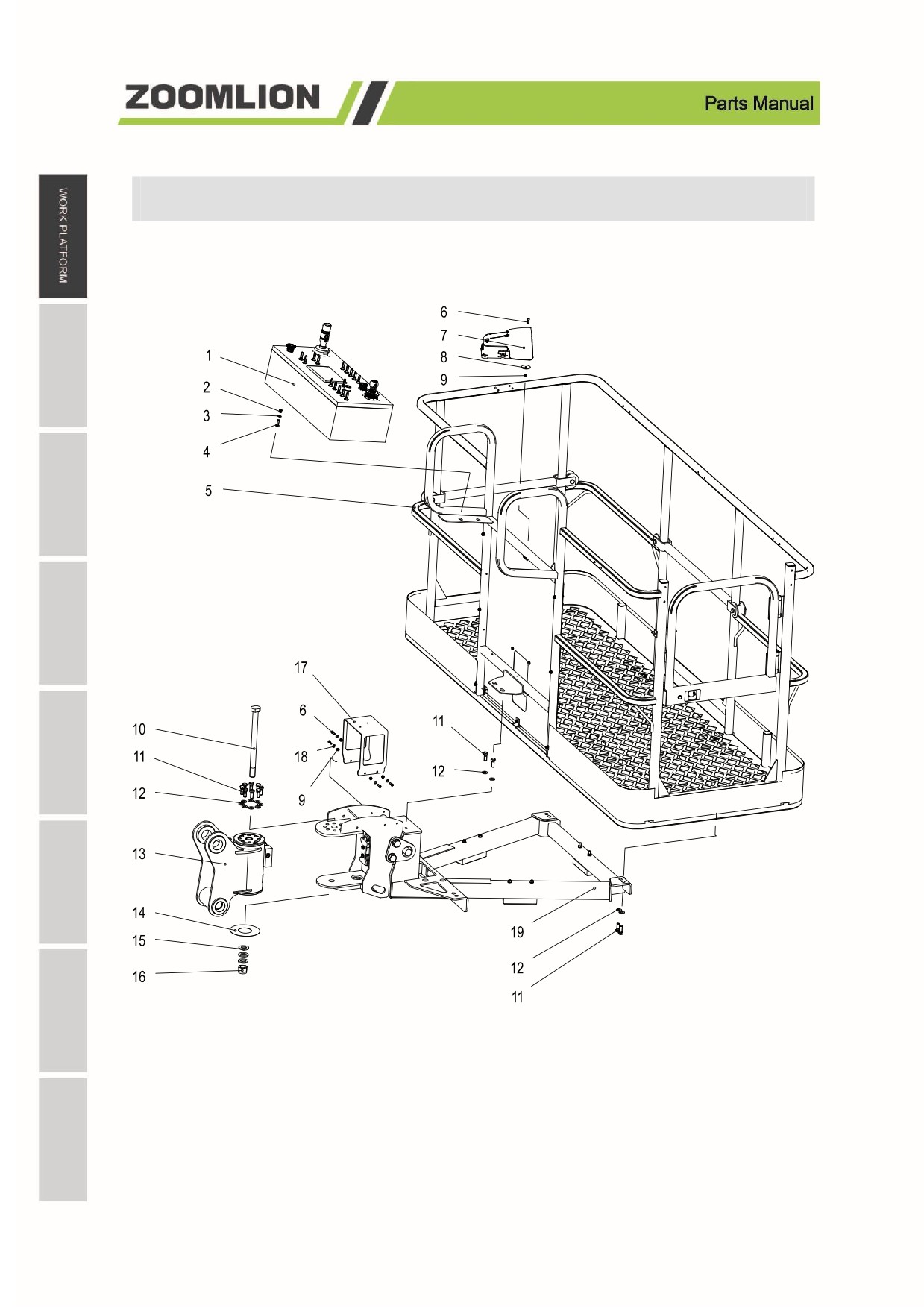

Work Platform 00771100100000000
1-1
Work Platform 00771100100000000
NO.
Material No.
Item and Spec
Units
Remark
Platform electrical cabinet
1
00773406200210000
1
assembly
Hexagon lock nut with
2
1040200503
4
GB/T 889.1-2000
non-metallic insert M8-8
Flat washer A class
3
1040301515
4
GB/T 97.1-2002
8-200HV
4
1040004519
Hexagon bolt M8×25-8.8
4
GB/T 5783-2000
5
00771600100200000
Platform assembly
1
Hexagon socket head cap
6
1040102372
8
GB/T 70.1-2000
screws M6×20-A2-70
7
1020521022
Foot switch
1
8
00771400100201020
Homemade washer
4
9
1040201865
Hexagon nut M6-A2-70
8
GB/T 6170-2000
10
00771400100401080
Homemade bolt
1
11
1040004653
Hexagon bolt M12×30-10.9
18
GB/T 5783-2000
Flat washer A class
12
1040302490
18
GB/T 97.1-2002
12-200HV
13
1010201535
Rotary actuator
1
14
00771600100001040
Rotary actuator spacer shim
1
Flat washer A class
15
1040301511
3
GB/T 97.1-2002
24-200HV
Hexagon lock nut with
16
1040201111
1
GB/T 889.1-2000
non-metallic insert M24-10
17
00771100100001010
Hydraulic valve support
1
18
1040300771
Flat washer A class 6-A2
4
GB/T 97.1-2002
19
00771600100400000
Tray assembly
1
1-2
Platform assembly 00771600100200000
1-3
Platform assembly 00771600100200000
NO.
Material No.
Item and Spec
Units
Remark
1
1040004522
Hexagon bolt M8×50-8.8
1
GB/T 5783-2000
Flat washer A class
2
1040301515
2
GB/T 97.1-2002
8-200HV
3
00773400100201020
Key cylinder
1
4
1040201880
Acorn nuts M8-6
1
GB/T 802-1988
5
00775600101801020
Spring
1
6
00773400100230000
Swing gate
1
7
1101000138
Reset hinge
2
Cross recessed countersunk
8
1040102599
16
GB/T 819.1-2000
head screw M5×12-A2-70
9
00771600100210000
Platform weldment
1
Sliding rod door locating
10
00771400100201040
4
pin
11
1040500475
Cotter 3×20
4
GB/T 91-2000
12
00771400100230000
Removable slide door I
1
13
00771600100201010
Nylon pulley
4
Flat washer A class
14
1040302489
8
GB/T 97.1-2002
10-200HV
15
1040300043
Circlips for shaft--Type 10
4
GB/T894.1-1986
16
00771100100201010
Baffle
1
Hexagon bolt
17
1040001631
4
GB/T 5783-2000
M6×20-A2-70
Flat washer A class
18
1040300771
20
GB/T 97.1-2002
6-200HV
19
1999904986
Document box
1
Hexagon bolt
20
1040002555
2
GB/T 5783-2000
M6×16-A2-70
21
1040201865
Hexagon nut M6-A2-70
8
GB/T 6170-2000
22
1040301610
Standard spring washer 6
8
GB/T 93-1987
Hexagon bolt
23
1040001715
6
GB/T 5783-2000
M6×45-A2-70
24
00771400100240000
Removable slide door II
1
1-4

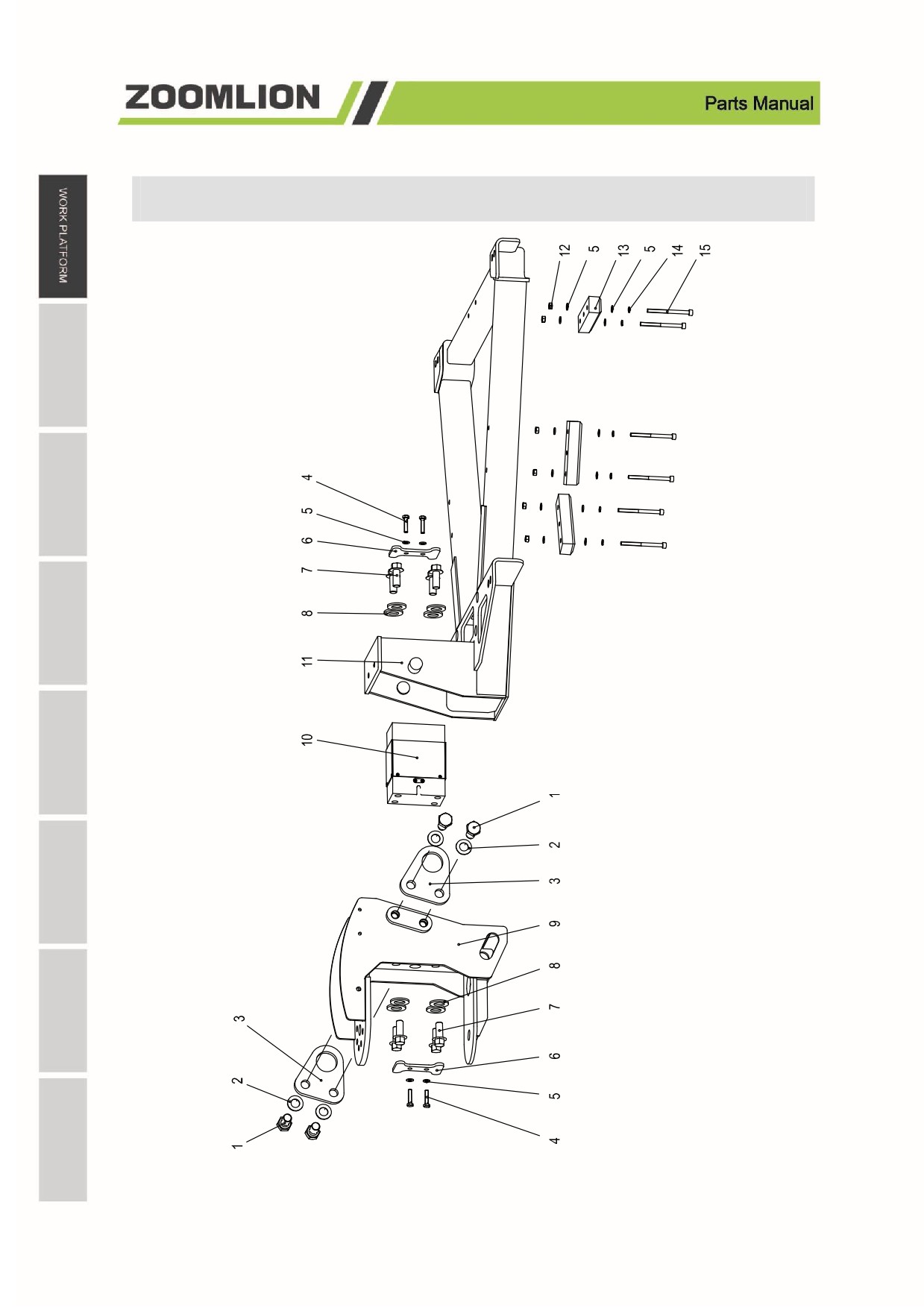

Tray assembly 00771600100400000
1-5
Tray assembly 00771600100400000
NO.
Material No.
Item and Spec
Units
Remark
Hexagon bolt
1
1040004498
4
GB/T 5783-2000
M20×40-8.8
2
1040302493
Flat washer 20-200HV
4
GB/T 97.1-2002
3
00771600100001030
Platform hook II
2
Hexagon bolt
4
1040004619
4
GB/T 5783-2000
M8×35-8.8
5
1040301515
Flat washer A class 8-200HV
16
GB/T 97.1-2002
6
00773400100401020
Pressing plate
2
Hexagon bolt with flange B
7
1040004654
8
GB/T 5787-1986
class M16×1.5×40
8
1040301511
Flat washer A class 24-200HV
8
GB/T 97.1-2002
9
00771600100420000
Transit seat
1
10
1021404016
Load cell
1
11
00771600100410000
Tray weldment
1
12
1040201089
Hexagon nut M8-8
6
GB/T 6170-2000
13
00773400100401040
Cushion block
3
14
1040301510
Standard spring washer 8
6
GB/T 93-1987
Hexagon socket head cap
15
1040103118
6
GB/T 70.1-2000
screws M8×100-8.8
1-6

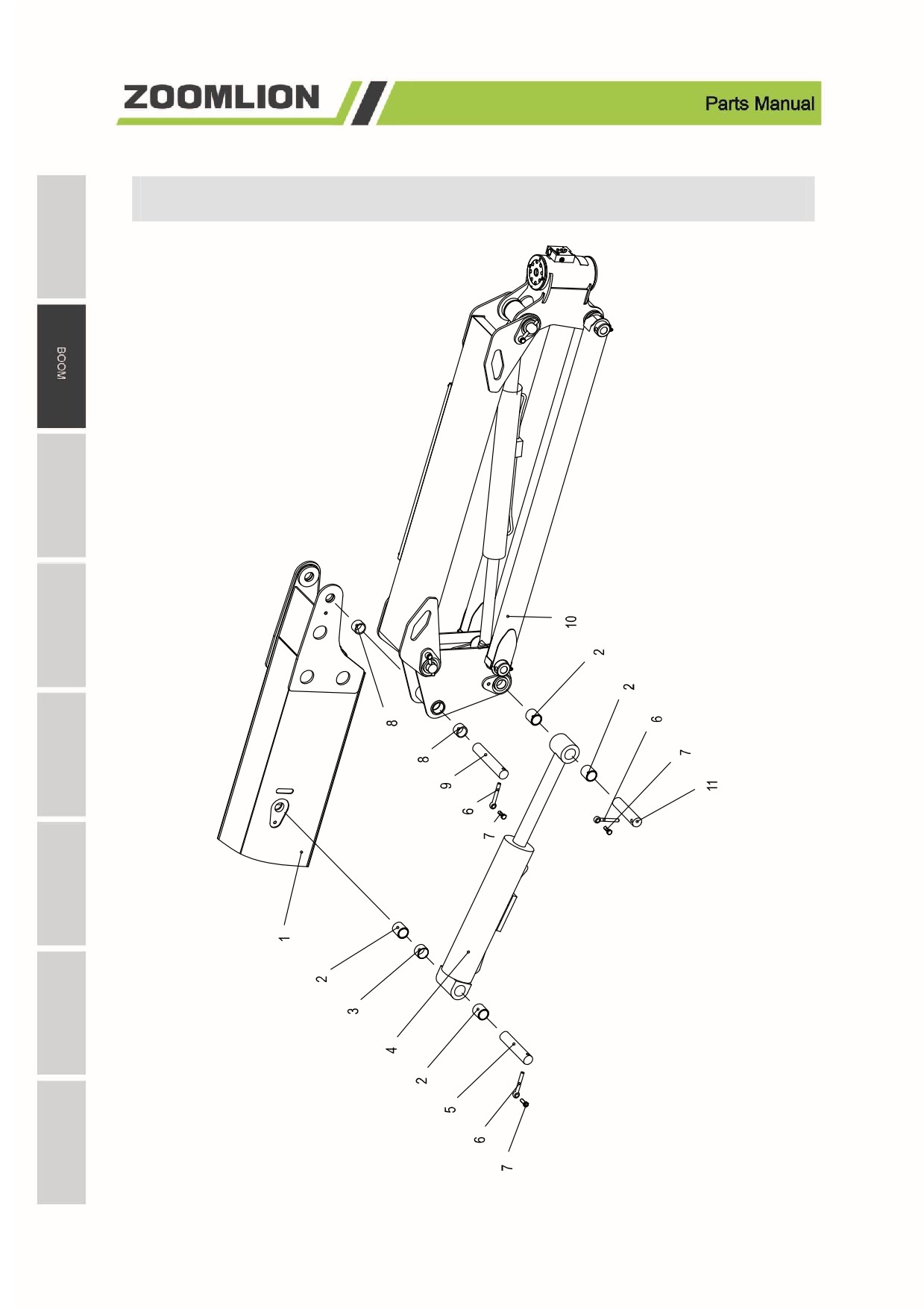

Jib 00771100210000000
2-1
Jib 00771100210000000
NO.
Material No.
Item and Spec
Unit
Remark
1
00771100310600000
Boom weldment
1
2
00771400301601020
Non-lubricated bearing
4
3
00771100300001050
Cylinder bushing
1
4
00771100301000000
Upper leveling cylinder
1
5
00771100300001040
Upper leveling cylinder pin
1
6
00773400200001070
Stop pin
3
7
1040002437
Hexagon bolt M12×35-8.8
3
GB/T 5783-2000
8
00771400200001130
Non-lubricated bearing
2
9
00771100210001010
Upper linkage pin
1
10
00771100210000000
Jib
1
11
00771100210001030
Main boom connecting pin
1
2-2

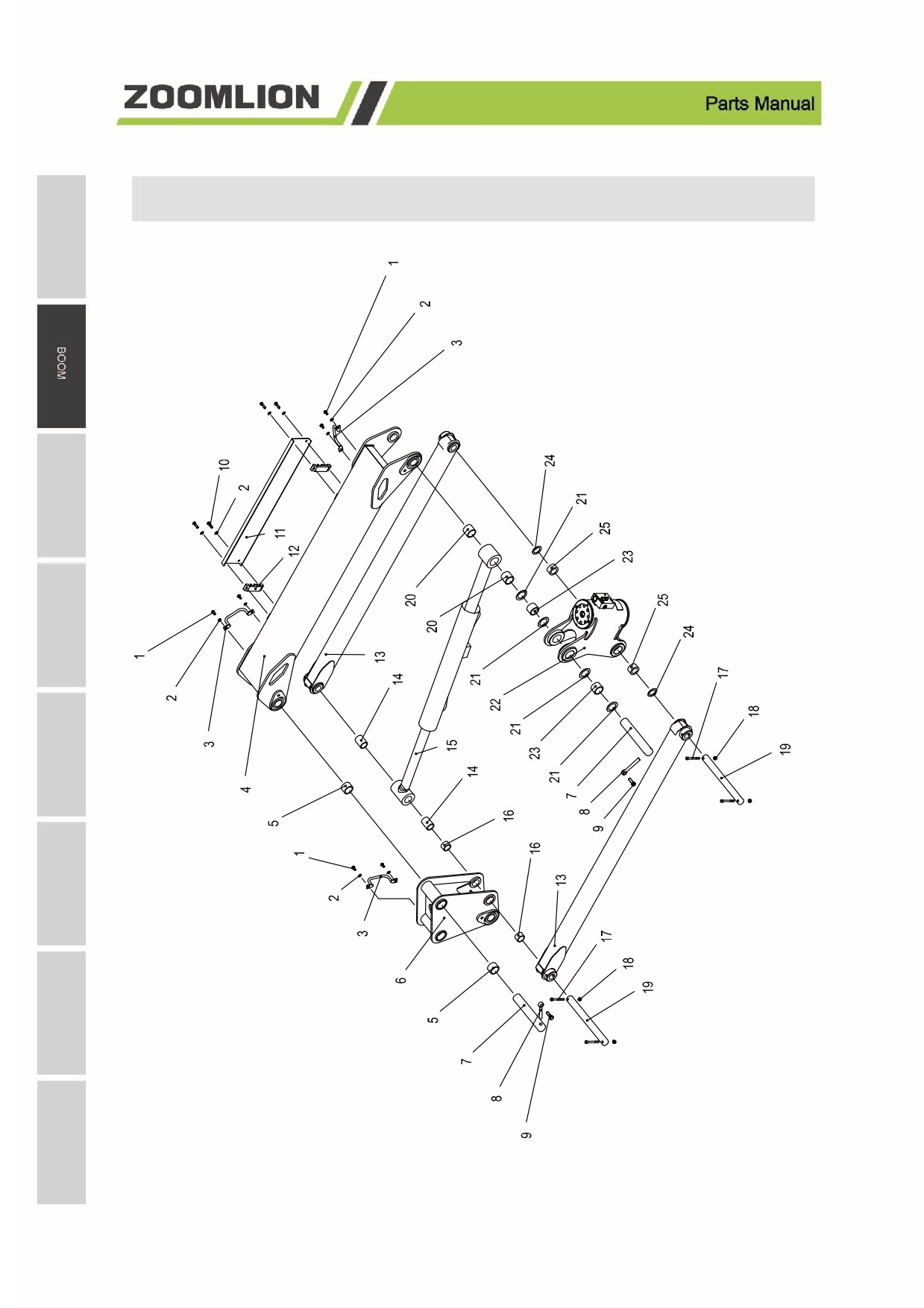

Jib 00771100210000000
2-3
Jib 00771100210000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004590
Hexagon bolt M8×14-8.8
6
GB/T 5783-2000
2
1040301515
Flat wacher A class 8-200HV
10
GB/T 97.1-2002
3
00771400211200000
Adjustable pipe clip
3
4
00771100210200000
Upper linkage
1
5
00771400200001130
Non-lubricated bearing
2
6
00771100200600000
Support
1
7
00771100210001010
Upper linkage pin
2
8
00773400200001070
Stop pin
2
9
1040002437
Hexagon bolt M12×35-8.8
2
GB/T 5783-2000
10
1040004520
Hexagon bolt M8×30-8.8
4
GB/T 5783-2000
11
00771100210001100
Pipeline guard board
1
12
00771100210001090
Pipe sleeve
2
13
00771100210400000
Lower linkage
2
14
00771100200001080
Non-lubricated bearing
2
15
00771100200600000
Jib lifting cylinder
1
16
00771100210001040
Non-lubricated bearing
2
Hexagon socket head cap screws
17
1040103116
4
GB/T 70.1-2000
M8×75-10.9
18
1040200503
Hexagon lock nutM24-10
4
GB/T 889.1-2000
19
00771100210001020
Lower linkage pin
2
20
00771100200001070
Non-lubricated bearing
2
21
00771100210001070
Spacer I
4
22
1010201535
Rotary actuator
1
23
00771100210001050
Non-lubricated bearing
2
24
00771100210001080
Spacer II
2
25
00771100210001060
Non-lubricated bearing
2
2-4

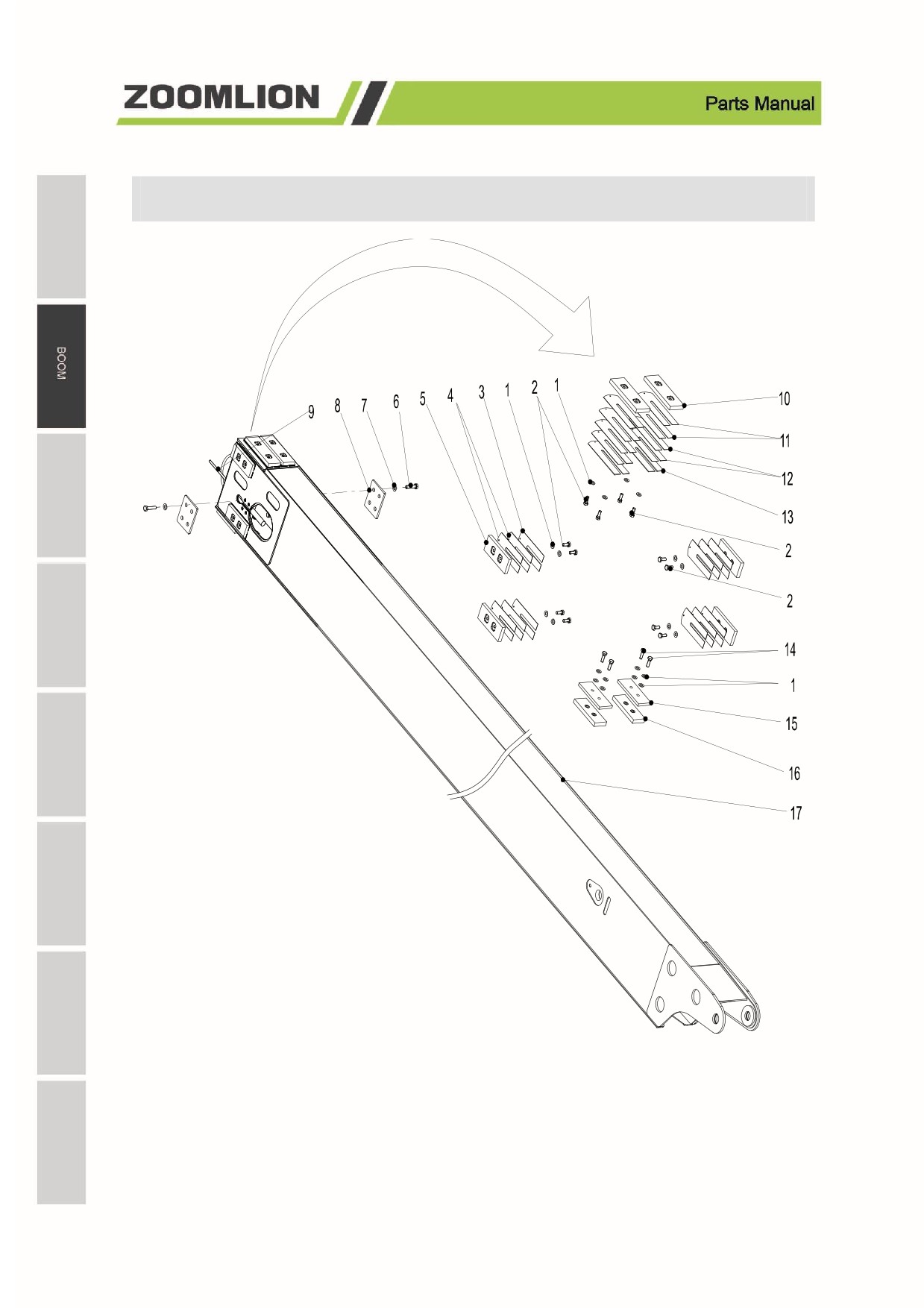

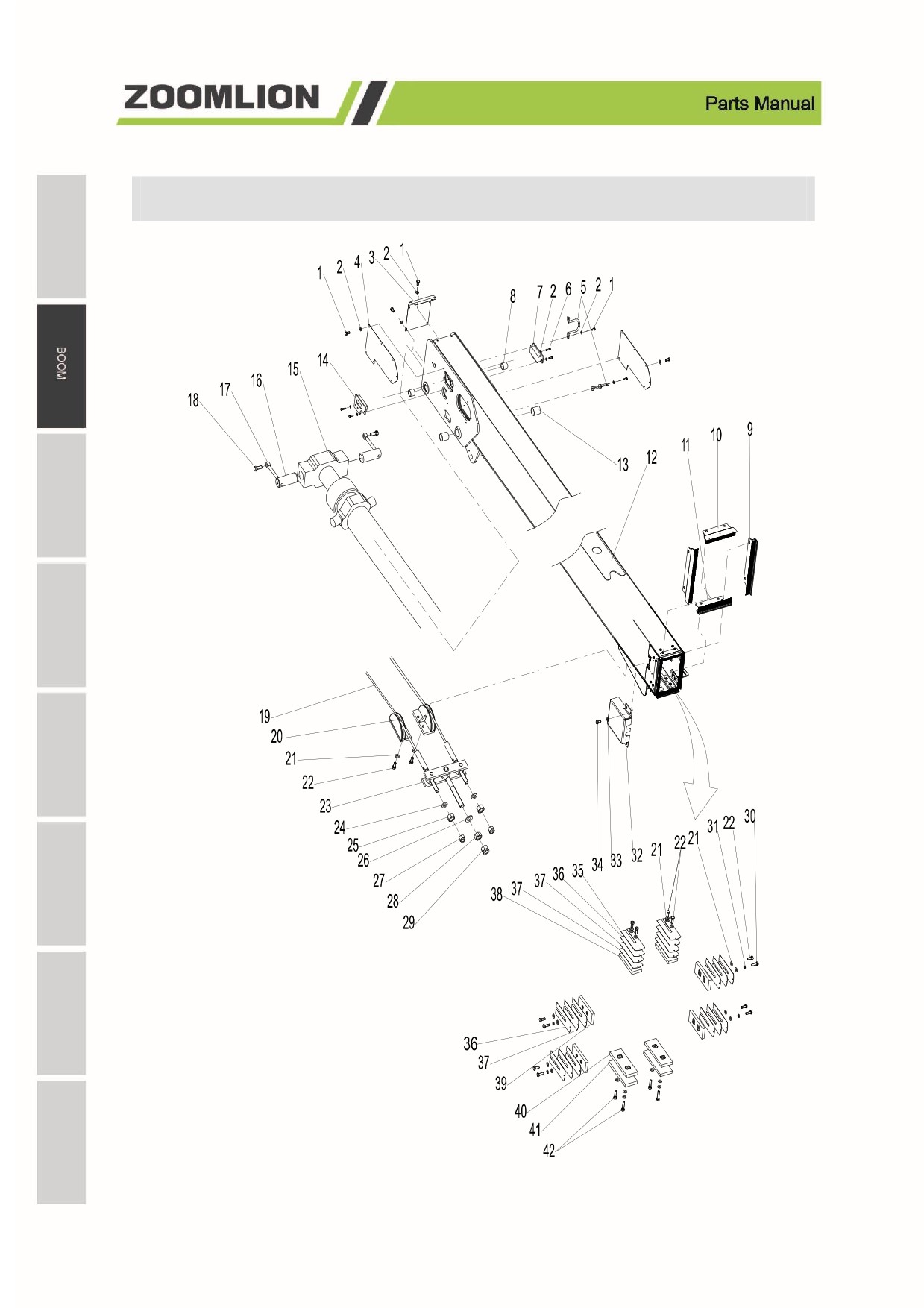

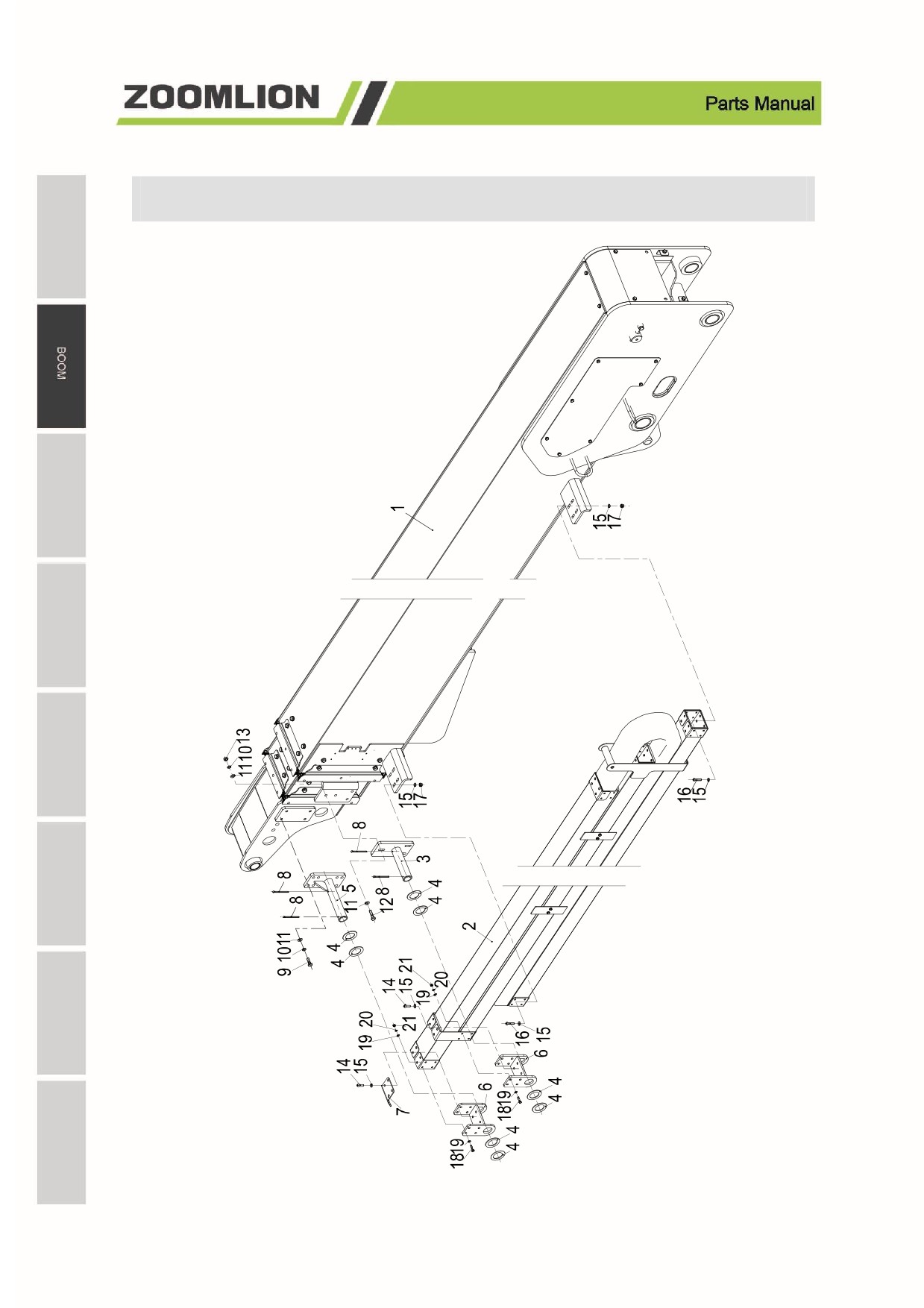

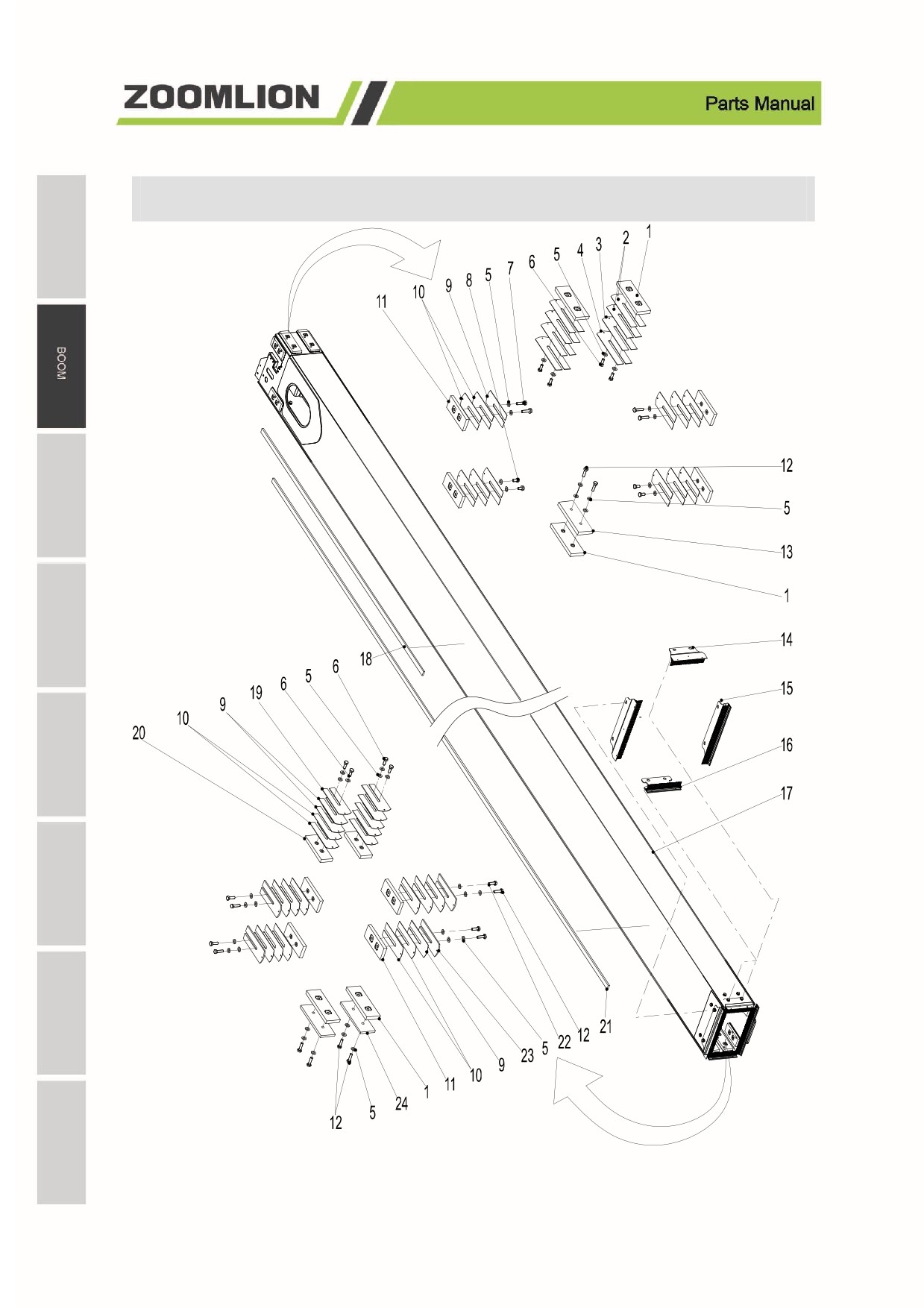

Boom assembly 00771100310000000
2-5
Boom assembly 00771100310000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040004517
Bolt M8×16-8.8
24
GB/T5783-2000
2
1040301515
Washer 8-200HV
24
GB/T97.1-2002
3
00771100301800000
Close plate weldment
1
4
00771100300001030
Lateral cover plate
2
5
00771400711800000
Adjustable pipe clip
2
6
1040004519
Bolt M8×25-8.8
6
GB/T5783-2000
7
00771100310890000
Cover plate weldment Right
1
8
00771100301201010
Non-lubricated bearing
2
9
00771100301220000
Side dustproof f brush
2
10
00771100301230000
Up dustproof f brush
1
11
00771100301210000
Down dustproof f brush
1
12
00771100310200000
Base boom
1
13
00771100301201020
Non-lubricated bearing
2
14
00771100310880000
Cover plate weldment Left
1
15
00771100300810000
Telescopic cylinder
1
16
00771100300801010
Telescopic cylinder pin
2
17
00773400400001250
Stop pin
2
18
1040004570
Bolt M16×30-8.8
2
GB/T5783-2000
19
00771100300801030
Boom retracting wire rope
2
20
00771400300830000
Fixed pulley
2
21
1040302489
Washer 10-200HV
24
GB/T97.1-2002
22
1040002434
Bolt M10×25-8.8
12
GB/T5783-2000
23
00771100300820000
Boom retract balance mechanism
1
24
1040302492
Washer 16-200HV
2
GB/T97.1-2002
25
1040201382
Nut M16-8
2
GB/T6170-2000
26
1040302493
Washer 20-200HV
1
GB/T97.1-2002
27
1040201096
Nut M16-9
2
GB/T6182-2000
28
1040201484
Nut M20-10
1
GB/T6170-2000
29
1040200741
Nut M20-10
1
GB/T889.1-2000
30
1040004565
Bolt M10×30-8.8
4
GB/T5783-2016
31
1040301502
Washer 10-200HV
4
GB/T93-1987
32
00771100300001070
Sensor cover plate
1
33
1040302410
Washer 4-200HV
4
GB/T97.1-2002
34
1040004591
Bolt M4×8-8.8
4
2-6
Boom assembly 00771100310000000
2-7
Boom assembly 00771100310000000
NO.
Material No.
Item and Spec
Unit
Remark
35
00773400300001130
Adjustable spacer IV
2
36
00773400300001140
Adjustable spacer V
6
37
00773400300001150
Adjustable spacer VI
12
38
00771400301250000
Slider
2
39
00771100301250000
Slider
4
40
00771400301240000
Slider
2
41
00771100301401040
Down slider cushion block
2
42
1040004507
Bolt M10×40-8.8
4
GB/T5783-2000
2-8
Boom assembly 00771100310000000
2-9
Boom assembly 00771100310000000
NO.
Material No.
Item and Spec
Unit
Remark

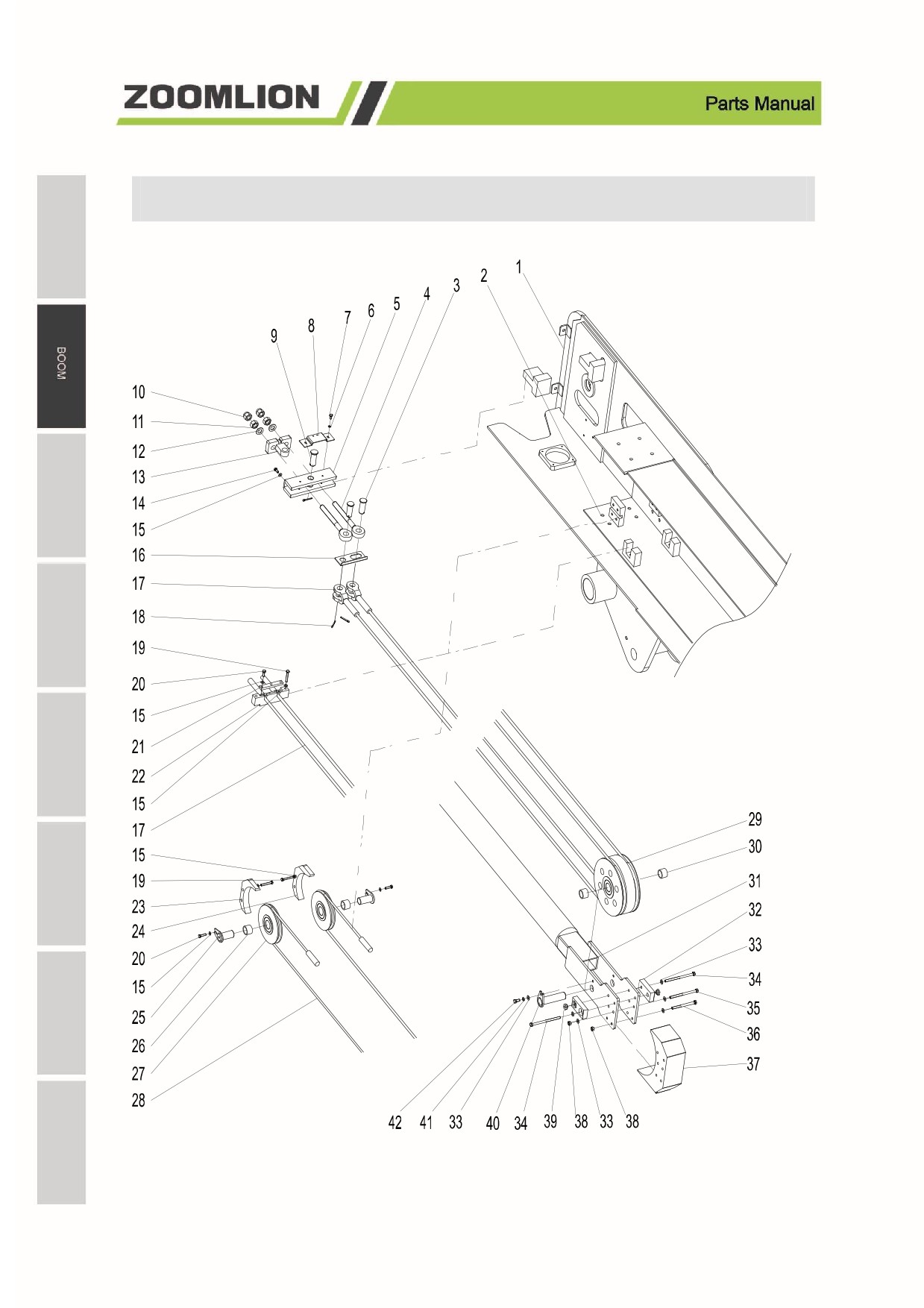

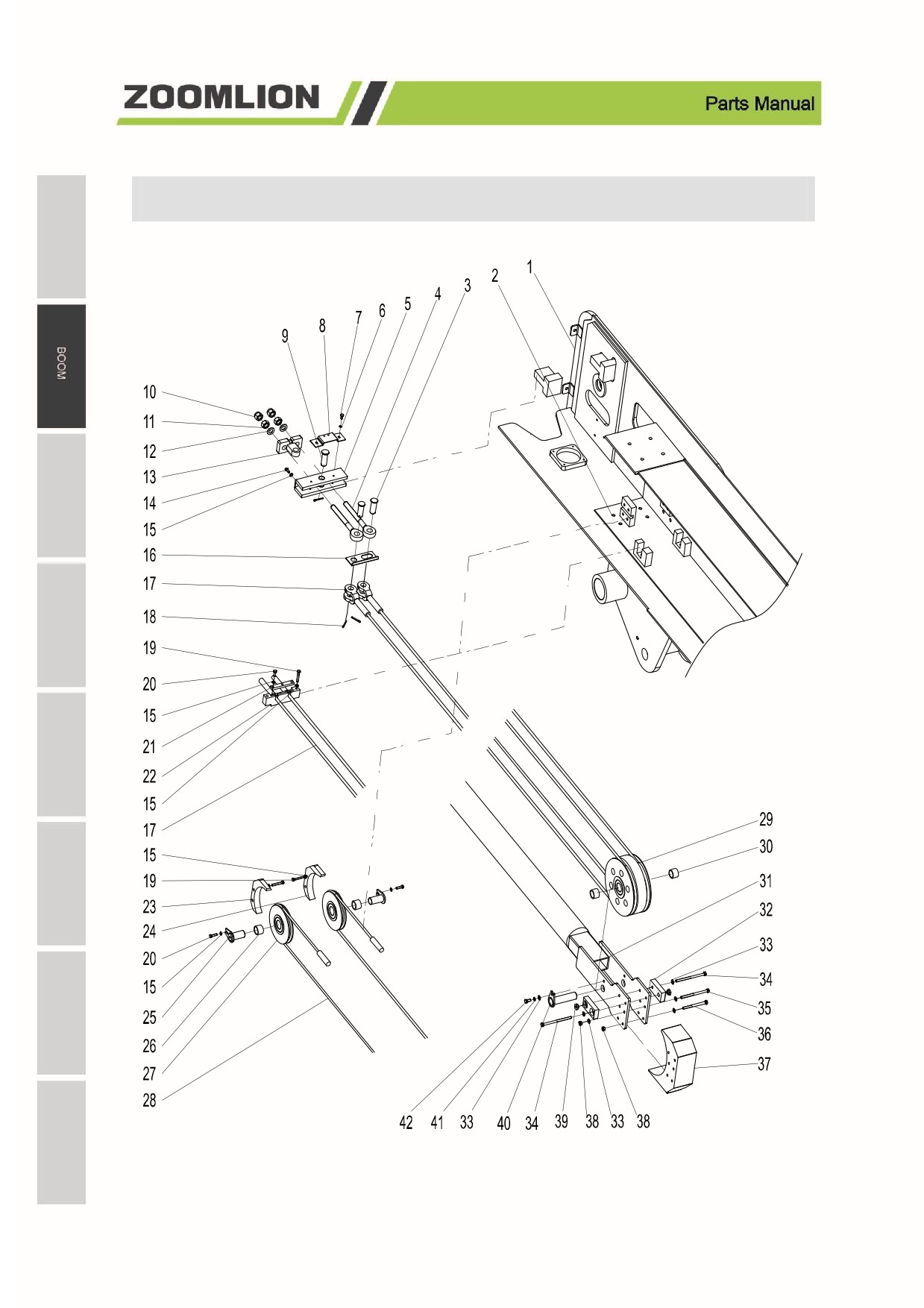

1
00771100310200000
Base boom weldment
1
2
00771100310600000
Boom weldment
1
3
00771100300801090
Pin I
2
4
00771100300801060
Rope head
2
5
00771100300850000
Baffle weldment
1
6
1040300771
Washer 6-200HV
2
GB/T97.1-2002
7
1040004517
Bolt M8×16-8.8
2
GB/T5783-2000
8
00771100300860000
Bracket weldment
1
9
00771100300801100
Pin II
1
10
1040200741
Nut M20-10
2
GB/T889.1-2000
11
1040201484
Nut M20-10
2
GB/T6170-2000
12
1040302493
Washer 20-200HV
2
GB/T97.1-2002
13
00771100300801080
Swing Support
1
14
1040004518
Bolt M8×20-8.8
2
GB/T5783-2000
15
1040301515
Washer 8-200HV
13
GB/T97.1-2002
16
00771100300801040
Turning preventing plate
1
17
00771100300801020
Boom extending wire rope
2
18
1040500394
Cotter 5×40
3
GB/T91-2000
19
1040000135
Bolt M8×55-8.8
6
GB/T5783-2000
20
1040004519
Bolt M8×25-8.8
5
GB/T5783-2000
21
00771100301601020
Pressing plate
1
22
00771100301601010
Fixed support
1
23
00771100300801050
Pulley cover Right
1
24
00771100300801070
Pulley cover Left
1
25
00771100300870000
Retracting pulley pin
2
26
00771400300801010
Non-lubricated bearing I
2
27
00771400300850000
Retracting pulley
2
28
00771100300801030
Boom retracting wire rope
2
29
00771100300840000
Extending boom pulley
1
30
00771100300801030
Non-lubricated bearing II
2
31
00771100300810000
Telescopic cylinder
1
32
00771100300801110
Pulley side slider
2
33
1040302489
Washer 10-200HV
9
GB/T97.1-2002
34
1040004620
Bolt M10×150-8.8
2
GB/T5782-2000
2-10
Boom assembly 00771100310000000
2-11
Boom assembly 00771100310000000
NO.
Material No.
Item and Spec
Unit
Remark
35
1040004594
Bolt M10×140-8.8
2
GB/T5782-2000
36
1040004554
Bolt M10×130-8.8
2
GB/T5782-2000
37
00771100310801120
Pulley slider
1
38
1040200113
Nut M10-8
4
GB/T6170-2000
39
00771400301241020
T Nut
2
40
00771100300830000
Extending boom pulley pin
1
41
1040301502
Washer 10
1
GB/T93-1987
42
1040002433
Bolt M10×20-8.8
1
GB/T5783-2000
2-12
Boom assembly 00771100310000000
2-13
Boom assembly 00771100310000000
NO.
Material No.
Item and Spec
Unit
Remark
1
00771400301240000
Slider
5
2
00771400301401030
Adjustable Spacer
4
3
00771400301401020
Adjustable Spacer
2
4
00771400301401010
Adjustable Spacer
2
5
1040302489
Washer 10-200HV
40
GB/T97.1-2002
6
1040002434
Bolt M10×25-8.8
8
GB/T5783-2000
7
1040004507
Bolt M10×40-8.8
4
GB/T5783-2000
8
1040002433
Bolt M10×20-8.8
4
GB/T5783-2000
9
00773400300001140
Adjustable Spacer V
12
10
00773400300001150
Adjustable Spacer VI
20
11
00771100301250000
Slider
8
12
1040002435
Bolt M10×35-8.8
10
GB/T5783-2000
13
00771100301401040
Cushion block
1
14
00771100301420000
Up dustproof f brush
1
15
00771100301430000
Side dustproof f brush
2
16
00771100301410000
Down dustproof f brush
1
17
00771100300400000
Boom weldment
1
18
00771100301401020
Trigger bar
1
19
00773400300001130
Adjustable Spacer IV
2
20
00771400301250000
Slider
2
21
00771100301401010
Trigger bar
1
22
1040004565
Bolt M10×30-8.8
4
GB/T5783-2016
23
00771400301401040
Adjustable Spacer
4
24
00771100301401030
cushion block
2
2-14
Boom assembly 00771100310000000
2-15
Boom assembly 00771100310000000
NO.
Material No.
Item and Spec
Unit
Remark
1
1040302489
Washer 10-200HV
20
GB/T97.1-2002
2
1040002434
Bolt M10×25-8.8
12
GB/T5783-2000
3
00773400300001140
Adjustable Spacer V
4
4
00773400300001150
Adjustable Spacer VI
8
5
00771100301250000
Slider
4
6
1040004619
Bolt M8×35-8.8
8
GB/T5783-2000
7
1040301515
Washer 8-200HV
8
GB/T97.1-2002
Retracting boom rope cover
8
00771100301601030
2
plate
9
00771100300801030
Boom retracting wire rope
2
10
00771400301240000
Slider
2
11
00771400301401030
Adjustable Spacer
4
12
00771400301401020
Adjustable Spacer
4
13
00771400301401010
Adjustable Spacer
2
14
1040004565
Bolt M10×30-8.8
4
GB/T5783-2016
15
00771400301250000
Slider
2
16
00771100301601040
cushion block
2
17
00771100310600000
Telescopic boom
1
2-16
Cable chain system 00771400700000000
2-17
Cable chain system 00771400700000000
NO.
Material No.
Item and Spec
Unit
Remark
1
00771100310000000
Boom
1
2
00771100700200000
Cable chain mechanism
1
3
00771100700600000
Middle bracket
1
4
00771400700001010
Washer
8
5
00771100700400000
Mounting bracket Ⅰ
1
6
00771400700600000
Swing bracket
2
7
00771100700001020
Guide plate
1
8
1040500047
Pin 5×70
4
GB/T 91-2000
9
1040004565
Bolt M10×30-8.8
4
GB/T5783-2000
10
1040301502
Washer 10-200HV
7
GB/T93-1987
11
1040302489
Washer 10-200HV
10
GB/T97.1-2002
12
1040004507
Bolt M10×40-8.8
3
GB/T5783-2000
13
1040200113
Nut M10-8
3
GB/T6170-2000
14
1040102648
Screw M8×25-A2-70
8
GB/T70.2-2000
15
1040301515
Washer 8-200HV
24
GB/T97.1-2002
16
1040103059
Screw M8×35
8
GB/T70.2-2000
17
1040200503
Nut M8-8
8
GB/T889.1-2000
18
1040001640
Bolt M6×25-A2-70
16
GB/T5783-2000
19
1040300771
Washer 6-200HV
32
GB/T97.1-2002
20
1040301610
Washer 6
16
GB/T93-1987
21
1040201865
Nut M6-8
16
GB/T6170-2000
2-18
Cable chain system 00771100720000000
2-19
Cable chain system 00771100720000000
NO.
Material No.
Item and Spec
Unit
Remark

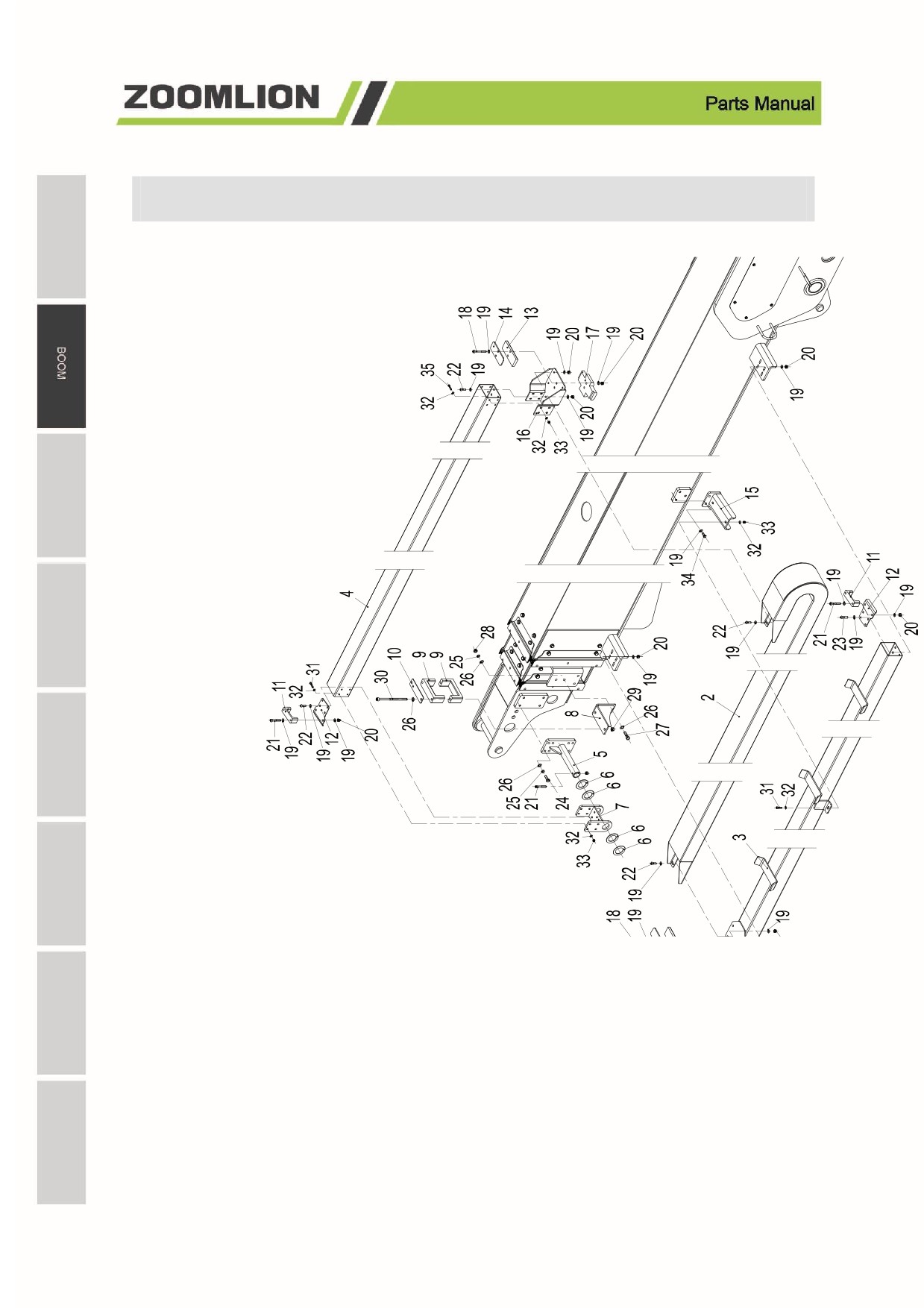

1
00771100310000000
Boom
1
2
00771100721200000
Steel chain
1
3
00771100720600000
Fixed aluminum pipe welds
1
4
00771100720001010
Adjustable aluminum pipe
1
5
00771100720800000
Front bracket
1
6
00771400700001010
Washer
4
7
00771400721400000
Swing bracket
1
8
00771100720400000
Middle support
1
9
00771100720001040
Slide rest
2
10
00771100720001060
Carriage board
1
11
00771100720001100
Clip
3
12
00771100720001090
Pipeline plate
3
13
00771100720001070
Pipeline pressure block
2
14
00771100720001080
Pipeline pressure plate
2
15
00771100721000000
Support frame
1
16
00771100720200000
Up adapter
1
17
00771100720001050
Slider
1
18
1040102037
Screw M8×70-8.8
4
GB/T70.1-2000
19
1040301515
Washer 8-200HV
67
GB/T97.1-2002
20
1040200503
Nut M8-8
31
GB/T889.1-2015
21
1040102738
Screw M8×55-8.8
7
GB/T70.1-2000
22
1040102648
Screw M8×25-A2-70
16
GB/T70.2-2000
23
1040103059
Screw M8×35-A2-70
8
GB/T70.2-2000
24
1040004565
Bolt M10×30-8.8
4
GB/T5783-2000
25
1040301502
Washer 10
6
GB/T93-1987
26
1040302489
Washer 10-200HV
10
GB/T97.1-2002
27
1040004507
Bolt M10×40-8.8
2
GB/T5783-2000
28
1040200113
Nut M10-8
2
GB/T6170-2000
29
1040200504
Nut M10-8
2
GB/T889.1-2000
30
1040103124
Screw M10×170-8.8
2
GB/T70.1-2000
31
1040100105
Screw M6×25-A2-70
10
GB/T70.1-2000
32
1040300771
Washer 6
36
GB/T97.1-2002
33
1040201896
Nut M6-8
18
GB/T889.1-2015
2-20

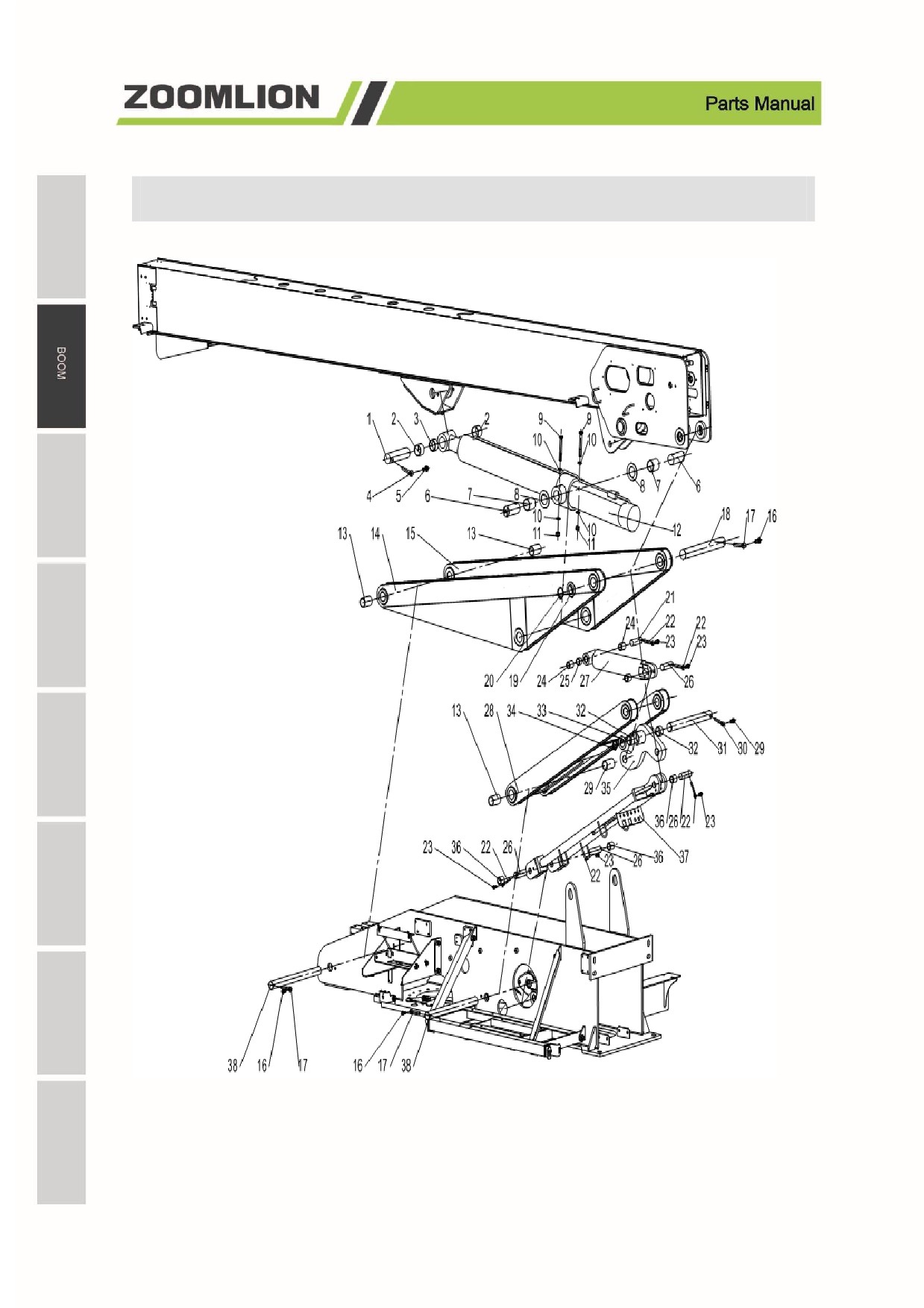

Linkage 00771100610000000
2-21
Linkage 00771100610000000
NO.
Material No.
Item and Spec
Unit
Remark
1
00771100300001010
Pin
1
2
00771100600001060
Non-lubricated bearing
2
3
00771100600001100
Spacer bush
1
4
00773400200001070
Stop pin
1
5
1040004499
Bolt M20×45-8.8
1
GB/T5783-2000
6
00771100610001050
Pin
2
7
00771100610001040
Non-lubricated bearing
2
8
00771100600001070
Spacer
2
9
1040004606
Bolt M20×160-10.9
2
GB/T5783-2000
10
1040301033
Washer 20-8-200HV
4
GB/T 97.1-2002
11
1040200741
Nut M20-10
2
GB/T 889.1-2000
12
00771100600800000
lifting cylinder
1
13
00771100610001030
Non-lubricated bearing
4
14
00771100611000000
Rear-right Linkage
1
15
00771100610200000
Rear-left Linkage
1
16
1040004499
Bolt M20×45-8.8
1
GB/T5783-2000
17
00773400400001170
Stop pin
1
18
00771100610001020
Pin
1
19
00771100600001090
Washer
1
20
1040300568
Ring 65
1
GB/T894.2-1986
21
00771100300001010
Pin
1
22
00773400200001070
Stop pin
5
23
1040004511
Bolt M12×30-8.8
5
GB/T5783-2000
24
00771400301601020
Non-lubricated bearing
2
25
00771100300001060
Piston rod spacer bush
1
26
00771100600601010
Pin
4
27
00771100600630000
Leveling cylinder
1
28
00771100610400000
Front linkage
1
29
1040004570
Bolt M16×30-8.8
1
GB/T5783-2000
30
00773400400001250
Stop pin
1
31
00771100610001010
Pin
1
32
00771100600601020
Non-lubricated bearing
2
33
00771100600001080
Washer
1
34
1040300321
Ring 55
1
GB/T894.2-1986
2-22
Linkage 00771100610000000
2-23
Linkage 00771100610000000
NO.
Material No.
Item and Spec
Unit
Remark
35
00771100600620000
Leveling swing boom
1
36
00771400301601020
Non-lubricated bearing
4
37
00771100600610000
Leveling rod
1
38
00771100800001050
Pin
2
2-24

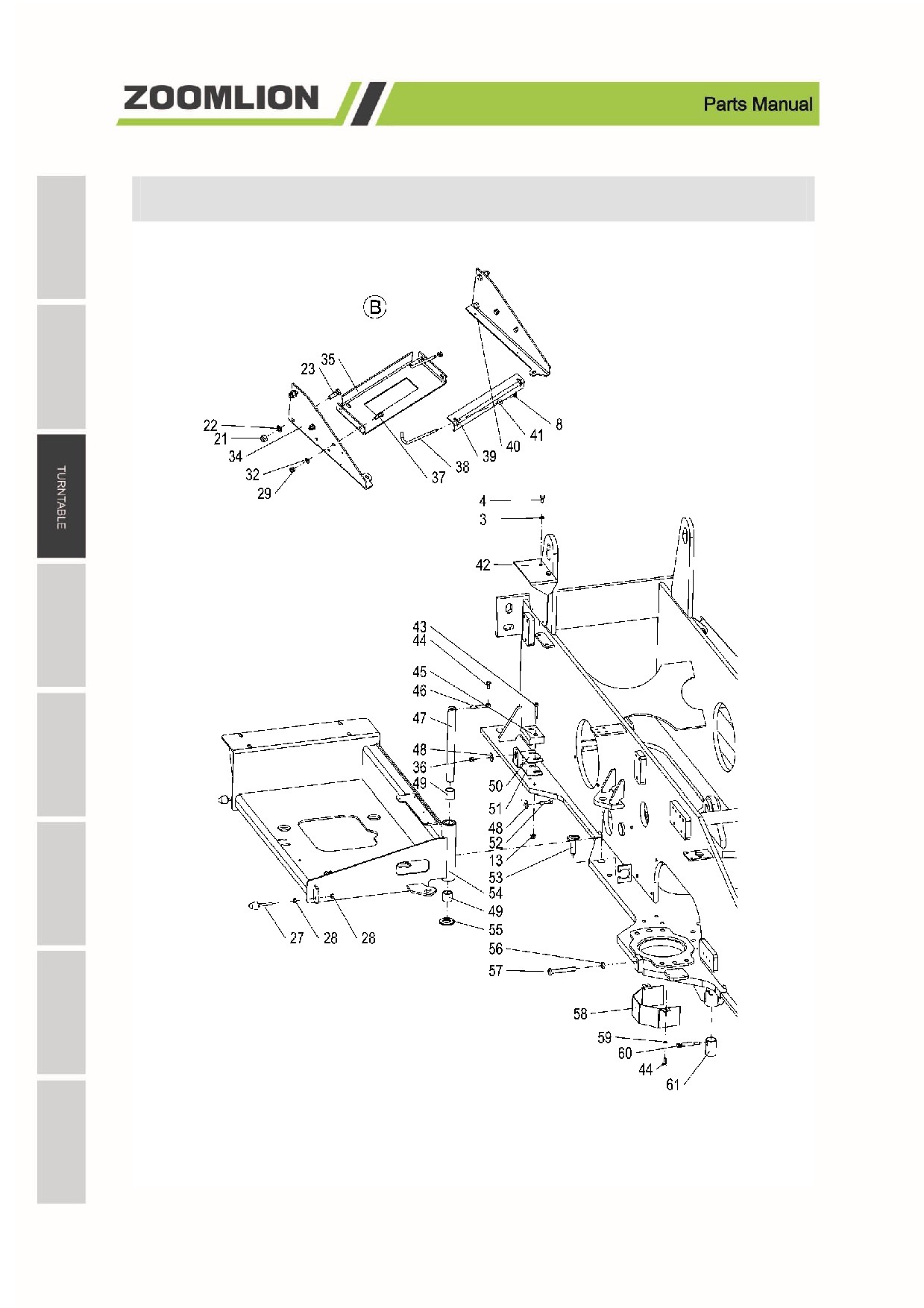

Turntable assembly 00771100800000000(Perkins)
3-1
Turntable assembly 00771100800000000(Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
1
00771400301601020
Non-lubricated bearing
2
Linkage clearance adjusting
2
00771100800001100
12
plate
3
1040301503
Washer12
2
GB/T93-1987
4
1040005846
Bolt M12×20-8.8
6
GB/T5783-2000
5
1040004519
Bolt M8×25-8.8
2
GB/T5783-2000
6
00771100800001090
Swinging angle switch support
1
7
1040301515
Washer8-200HV
2
GB/T97.1-2002
8
1040200503
Nut M8-8
4
GB/T889.1-2000
9
00771100801400000
Swivel joint bracket
1
10
1040101493
Screw M10×55-8.8
4
GB/T70.1-2000
11
00771100800001010
Boom bumper block
2
12
00771100800200000
Turntable welds
1
13
1040201523
Lock nut M10-10
6
GB/T 6183.1-2000
14
1040001640
Bolt M6×25-A2-70
2
GB/T5783-2000
15
00771400800001120
Electrical switch support
1
16
1040300771
Washer6-200HV
2
GB/T97.1-2002
17
1040201896
Nut M6-8
2
GB/T889.1-2015
18
00771100800001050
Pin
2
19
00773400400001250
Stop pin
2
20
1040004570
Bolt M16×30-8.8
2
GB/T5783-2000
21
1040200161
Nut M16-8
11
GB/T889-1986
22
1040302492
Washer16-200HV
13
GB/T97.1-2002
23
1040002447
Bolt M16×45-8.8
11
GB/T5783-2000
24
00771100800801010
Support I
1
25
00771100800810000
Right side support welds
1
26
00771100800801070
Electrical cabinet support II
1
27
1040004678
Door stop bolt M10×70
4
28
1040200113
Nut M10
8
GB/T6170-2000
29
1040200507
Nut M12-8
11
GB/T889.1-2000
30
00771100800801060
Electrical cabinet Support I
1
31
00771100800801030
Support II
1
32
1040302490
Washer12-200HV
4
GB/T97.1-2002
33
1040002439
Bolt M12×40-8.8
4
GB/T5783-2000
3-2
Turntable assembly 00771100800000000(Perkins)
3-3
Turntable assembly 00771100800000000(Perkins)
NO.
Material No.
Item and Spec
Unit
Remark
34
00771100800401020
Main valve support II
1
35
00771100800401040
Battery support II
1
37
1040002437
Bolt M12×35-8.8
4
GB/T5783-2000
38
00771100800401050
Battery mounting rod
2
39
00771100800401030
Battery support I
1
40
00771100800401010
Main valve support I
1
41
1040302480
Washer8-200HV
6
GB/T96.1-2002
42
00773400830201020
Baffle
1
43
1040103120
Screw M10×60-8.8
2
GB/T70.1-2000
44
1040002434
Bolt M10×25-8.8
3
GB/T5783-2000
45
00771100800001020
Tray bumper block
1
46
00773400300001200
Stop pinΦ10
1
47
00771100800001110
Tray axle Φ32
1
48
1040301031
Washer12-300HV
2
GB/T96.1-2002
49
00773400800001010
Bearing
2
50
00771100800001140
Tray washer II
1
51
00771100800001130
Tray washer I
1
52
1040004608
Bolt M12×45-8.8
1
GB/T5782-2000
53
00773400801400000
Tray plug pin
1
54
00771100801800000
Engine support
1
55
00773400800001150
Friction plate
1
56
1040201882
Nut M16
1
GB/T6172-2000
57
1040004615
Bolt M16×110-10.9
1
GB/T5783-2000
58
00771100800001030
Gear cover
1
59
1040301502
Washer10
2
GB/T93-1987
60
1040100714
Screw M12×130-8.8
1
GB/T70.1-2000
61
00771100800001080
Lock pin
1
62
1040002555
Bolt M6×60-A2-70
12
GB/T5783-2000
63
1040300735
Washer6-200HV
12
GB/T96.1-2002
64
00773400830201010
Cover
1
65
1040004591
Bolt M4×8-A2-70
11
GB/T5783-2000
66
1040302410
Washer4-200HV
11
GB/T97.1-2002
67
00773400830601020
Control box cover
1
68
00773400830210000
Base
1
69
00773400830601010
Connecting plate
1
70
1040201743
Nut M6
2
QC/T608-2011
3-4
Turntable assembly 00771100810000000(DeutzD447)
3-5
Turntable assembly 00771100810000000 (DeutzD447)
NO.
Material No.
Item and Spec
Unit
Remark
1
00771400301601020
Non-lubricated bearing
2
Linkage clearance
2
00771100800001100
12
adjusting plate
3
1040301503
Washer12
2
GB/T93-1987
4
1040005846
Bolt M12×20-8.8
6
GB/T5783-2000
5
1040004519
Bolt M8×25-8.8
2
GB/T5783-2000
Swinging angle switch
6
00771100800001090
1
support
7
1040301515
Washer8-200HV
2
GB/T97.1-2002
8
1040200503
Nut M8-8
4
GB/T889.1-2000
9
00771100801400000
Swivel joint bracket
1
10
1040101493
Screw M10×55-8.8
4
GB/T70.1-2000
11
00771100800001010
Boom bumper block
2
12
00771100800200000
Turntable welds
1
13
1040201523
Lock nut M10-10
6
GB/T 6183.1-2000
14
1040001640
Bolt M6×25-A2-70
2
GB/T5783-2000
15
00771400800001120
Electrical switch support
1
16
1040300771
Washer6-220HV
2
GB/T97.1-2002
17
1040201896
Nut M6-8-8.8
2
GB/T889.1-2015
18
00771100800001050
Pin
2
19
00773400400001250
Stop pin
2
20
1040004570
Bolt M16×30-8.8
2
GB/T5783-2000
21
1040200161
Nut M16-8
11
GB/T889-1986
22
1040302492
Washer16-200HV
13
GB/T97.1-2002
23
1040002447
Bolt M16×45-8.8
11
GB/T5783-2000
24
00771100800801010
Support I
1
25
00771100800810000
Right support welds
1
Electrical cabinet Support
26
00771100800801070
1
II
27
1040004678
Door knob bolt M10×70
4
28
1040200113
Nut M10
8
GB/T6170-2000
29
1040200507
Nut M12-8
11
GB/T889.1-2000
30
00771100800801060
Electrical cabinet Support I
1
31
00771100800801030
Support II
1
32
1040302490
Washer12-200HV
4
GB/T97.1-2002
33
1040002439
Bolt M12×40-8.8
4
GB/T5783-2000
3-6
Turntable assembly 00771100810000000 (DeutzD447)
3-7
Turntable assembly 00771100810000000 (DeutzD447)
NO.
Material No.
Item and Spec
Unit
Remark
34
00771100800401020
Main valve support II
1
35
00771100800401040
Battery support II
1
37
1040002437
Bolt M12×35-8.8
4
GB/T5783-2000
38
00771100800401050
Battery mounting rod
2
39
00771100800401030
Battery Support I
1
40
00771100800401010
Main valve support I
1
41
1040302480
Washer8-200HV
6
GB/T96.1-2002
42
00771100802000000
ECU water-proof cover
1
43
1040103120
Screw M10×60-8.8
2
GB/T70.1-2000
44
1040002434
Bolt M10×25-8.8
3
GB/T5783-2000
45
00771100800001020
Tray bumper block
1
46
00773400300001200
Stop pin
1
47
00771100800001110
Tray axle
1
48
1040301031
Washer12-300HV
2
GB/T96.1-2002
49
00773400800001010
Bearing
2
50
00771100800001140
Tray washer II
1
51
00771100800001130
Tray washer I
1
52
1040004608
Bolt M12×45-8.8
1
GB/T5782-2000
53
00773400801400000
Tray plug pin
1
54
00771100801600000
Engine support
1
55
00773400800001150
Friction plate
1
56
1040201882
Nut M16-10.9
1
GB/T6172-2000
57
1040004615
Bolt M16×110-10.9
1
GB/T5783-2000
58
00771100800001030
Gear cover
1
59
1040301502
Washer10
2
GB/T93-1987
60
1040100714
Screw M12×130-8.8
1
GB/T70.1-2000
61
00771100800001080
Lock pin
1
3-8
///////////////////////////////////////
