122

VII    Viscosity and Full Capacity of Operation Oil



7.1 Viscosity and Temperature Range of Operation Oil

Specification and No.

Type

The brand number added as the

product that has an export

destination to a non-low temperature

area

The brand number added as the

product that has an export

destination to a low temperature

area

Oil for torque converter

and transmission box

SAE 15W-40 Mobil Delvac Super

1300

  Mobil Delvac MX 15W-40

Axle lubricant

HD80W-90(Mobilube HD 80W-90)

Same as left column

Hydraulic oil

Hydraulic oil

(Mobil DTE 25)

Hydraulic oil

(Mobil DTE 15M)

Common axle

DOT 3 Mobil Super Heavy Brake

Fluid

Same as left column

Air-pushing

oil brake

Hydraulic oil (Mobil Delvac

Hydraulic 10W)

Same as left column

Br

ak

e

oil

W

et

axl

e

Hydraulic

brake

/ /

Engine oil

0# light diesel fuel

-20# light diesel fuel

Grease

NLGI 2 lithium-based (Mobilgrease

HP 222)

Same as left column

Engine oil

SAE 15W-40 Mobil Delvac Super

1300

  Mobil Delvac MX 15W-40

 Anti-icing fluid

Mobil Antifreeze

(Clear water 40%+antifreeze 60%)

Mobil Antifreeze

(Clear water 20%+antifreeze

80%)

7.2 Full Capacity of System

Full Capacity (approximation)

Oil box or system

Liter

Cooling system

33

Fuel box

240

Engine oil

13-15

Transmission fluid

45

Differential gear and final

transmission fluid (single unit)

40

Hydraulic  tank

110

-  -

123

VIII S.O.S

S.O.S method is adopted to examine the conditions of the machine and whether the

machine requires to be maintained. As each kind of oil is sampled, the lubricant shall be heated

and mixed evenly so as to ensure that the sample oil has representativeness.

8.1 Acquisition of Sample Oil for S.O.S

In order to realize the good preventive maintenance scheme, we suggest adopting the

S.O.S method to examine the conditions of the machine and whether the machine requires to be

maintained. As each kind of oil is sampled, the lubricant shall be heated and mixed evenly so as

to ensure that the sample oil has representativeness.

For acquisition of sample oil for S.O.S, several methods are available.

z

Insert sample oil doper into the oil groove.

z

Use sample oil valve.

z

Use discharged oil as the oil is replaced.

Note: We suggest adopting the first or second method. If two methods do not work, the

discharge oil may be used.

As the discharged oil is adopted as the sample oil, the oil cannot be sampled from the oil

discharged firstly or lastly because it is not mixed evenly and has no representativeness.

8.2 S.O.S (Regular Sample Oil) Analysis

The regular sample oil analysis is composed of three basic tests:

z

Wear element analysis.

z

Chemical and physical tests.

z

Oil status analysis.

The wear element analysis adopts spectrophotometric method to examine the wear degree

of components by measuring the concentration of the wear mental elements in the sample oil

(unit: number of particles per one million). If the test results deviate from the concentration

range of normal wear, we may confirm that the part will be disabled soon.

By the chemical and physical tests, the proportion of water, fuel, and antifreezing agent in

the lubricant may be examined.

The oil status analysis adopts infrared analysis method to determine whether the lubricant

-  -

124

has smoke and dust, sulfide, oxide and nitride and measure their amount. The infrared analysis

may help us work out the replacement cycle of the lubricant under special working conditions.

The infrared analysis method shall be conducted simultaneously with the wear element

analysis method and chemical and physical tests so as to ensure the correct evaluation.

S.O.S Cyclogram

Oil box

Engine oil

Hydraulic

oil

Differential

/Final drive oil

Transmiss

ion fluid

Time interval  250h

500h

500h

500h



































-  -

125

IX

Maintenance Interval

9.1 Upon Request

Prior to carrying out any operation and maintenance, the warnings and annotations in

this manual’s safety chapter shall be read and understood.

Please refer to the instructions for use and maintenance of the engine for cleaning of air

intake system.

Repairing of filtering element

Caution

In repairing of air filter, the engine shall be turned

off to avoid damage.

Please repair the air filter according to the instructions

for use and maintenance of fuel engine. The following

steps are for reference only.

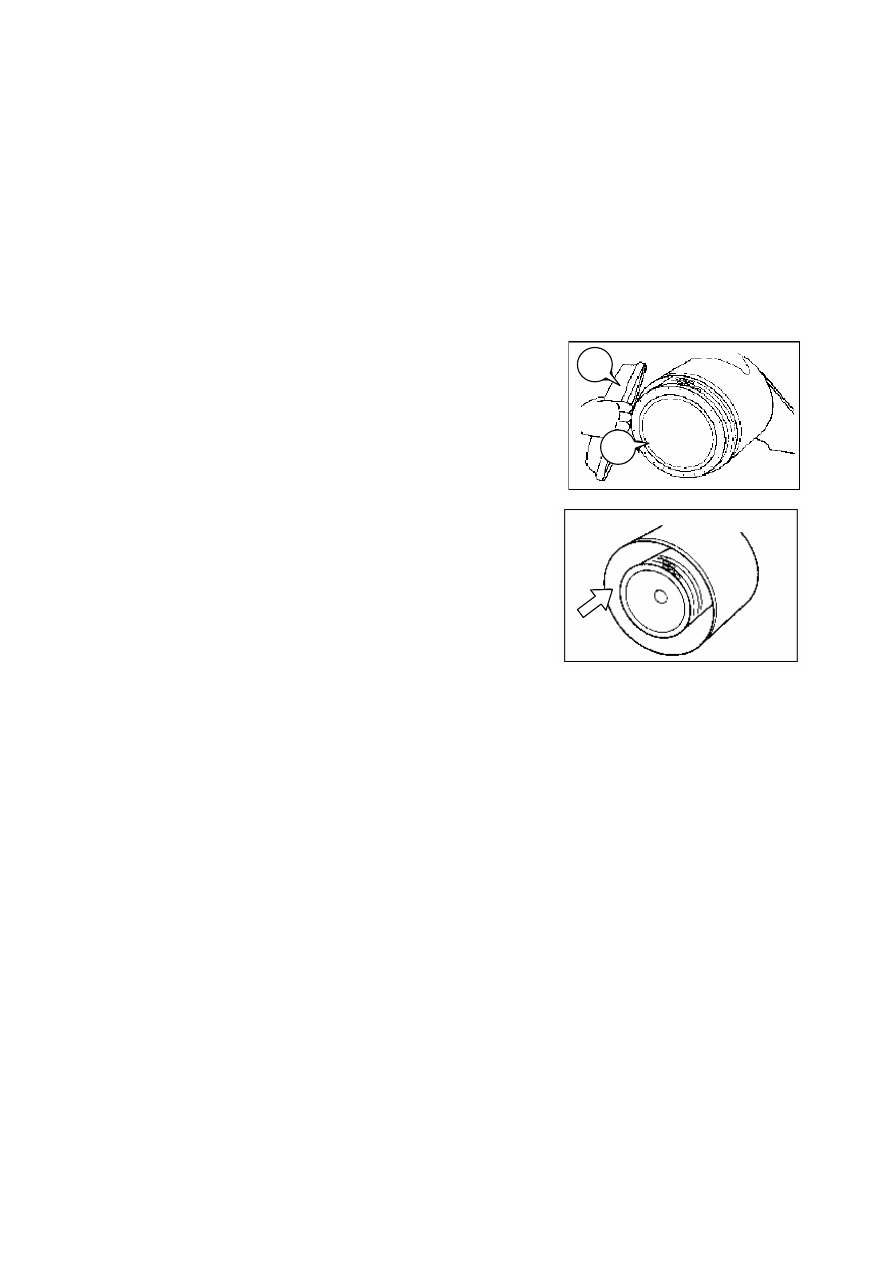

Replace/clean coarse filtering element

1.  Dismantle the cover of air filter (1);

2.  Dismantle coarse filtering element (2) from the shell of

the air filter;

3.  Clean the shell of the air filter;

4.  Clean and examine the coarse filtering element. Please see “Cleaning of Coarse Filtering

Element”;

5.  Installed the cleaned coarse filtering element in the shell of the air filter;

6.  Clean and install the cover, and fasten the bolts on the cover with hands not a tool.

After installing a cleanly coarse filter, if the engine discharges black smoke, new fine

filter shall be installed.

After being cleaned for 6 times, the coarse filtering element shall be replaced. Even if it is

not cleaned for 6 times, it shall be replaced one time every year.

Replace fine coarse filtering element

Caution

After each cleaning of fine filtering element, do not try to reuse it after cleaning.

After the coarse filtering element is repaired for three times, the fine one shall be

replaced.

1

2
