II Operation Technology

2.1 Common Technology

In operation, in order to widen the drivers’ vision and

stabilize loading, the bucket shall be lowered and kept about

40cm above the ground.



Use the wait time to level the working area.



Avoid more stress of the bucket to make the loader have

enough tractive force.

















Use cutting teeth to load the relatively hard materials.

In bucket reversion, the joy stick (1) shall     be

placed at the position of bucket reversion. And then turn

back it to the original position. Repeat the operation until

materials are unloaded.



In order avoid dust into the engine and keep visibility,

the bucket shall be reversed leeward.

Ensure the bucket is consistent with working

requirements. Overload will shorten the service life of the

loader.

1

-  -

103

Scraping

Note:  Scraping is not allowed as the bucket is at the forerake position so as to

prevent the bucket from damage.

In scraping, the bottom of the bucket shall be parallel to the ground.

Bucket Reversion

Use the bucket stopper for maximum reversion angle.

z  Unnecessary repeated collision with the stopper will accelerate its wear. The charge of

repairing linkage gear of the working device is very high.

2.2 Loading of Stockpile

1. Level the bucket and scrape the ground slightly. Hold advance I gear to make the bucket

directly insert into the stockpile.

2. Make the joy stick of the moving arm at the position of lifting, and operate the joy stick of

the bucket to make the bucket incline backward slowly for 2-3 times for full loading.

3. After the bucket is filled, the bucket stays at the backrake position, and the joy stick of the

bucket stays the central position.

4. Lift the bucket enough high to avoid the stockpile. Make the transmission control rod at the

reverse gear to drive the loader backwards.

5. As the loader reverses to the certain position, lay down the bucket to the transport position

about 40cm away from the ground. Push the transmission control rod to the required gear to

transport the materials.

6. As the loader reaches the reversion unloading area, make the joy stick of moving arm at the

position of lifting until the bucket unloads all materials.

-  -

104

2.3 Loading with A Truck

For the four loading methods above, the operation method with a short cycle time (for

one time of loading) may be chosen depending on the situation on site.

1.  Enough distance shall be available to make the bucket reach the lifting height prior to the

loader reduce the speed.

2.  Place the bucket at the middle of the truck to unload materials. In case the length of the

truck body is two times of the bucket, the materials shall be unloaded to the back from the

front of the body.

3.  Advance the joy stick of the bucket to reverse the bucket.

4.  Shake off the materials stuck on the bucket. Rapidly push and pull the joy stick of the

bucket to make rocking arm touch the stopper.

5.  Make the joy stick of the bucket at the position of taking-back bucket.

6.  Prior to laying down the bucket, please note whether the truck is outside the bucket.

7.  Lay down the bucket as another bucket will be installed on the loader.

z  Unnecessary repeated collision with the stopper will accelerate its wear. The charge of

repairing linkage gear of the working device is very high.

2.4 Loading of Hard Soil

z  The collapse of materials will cause personal injuries and death.

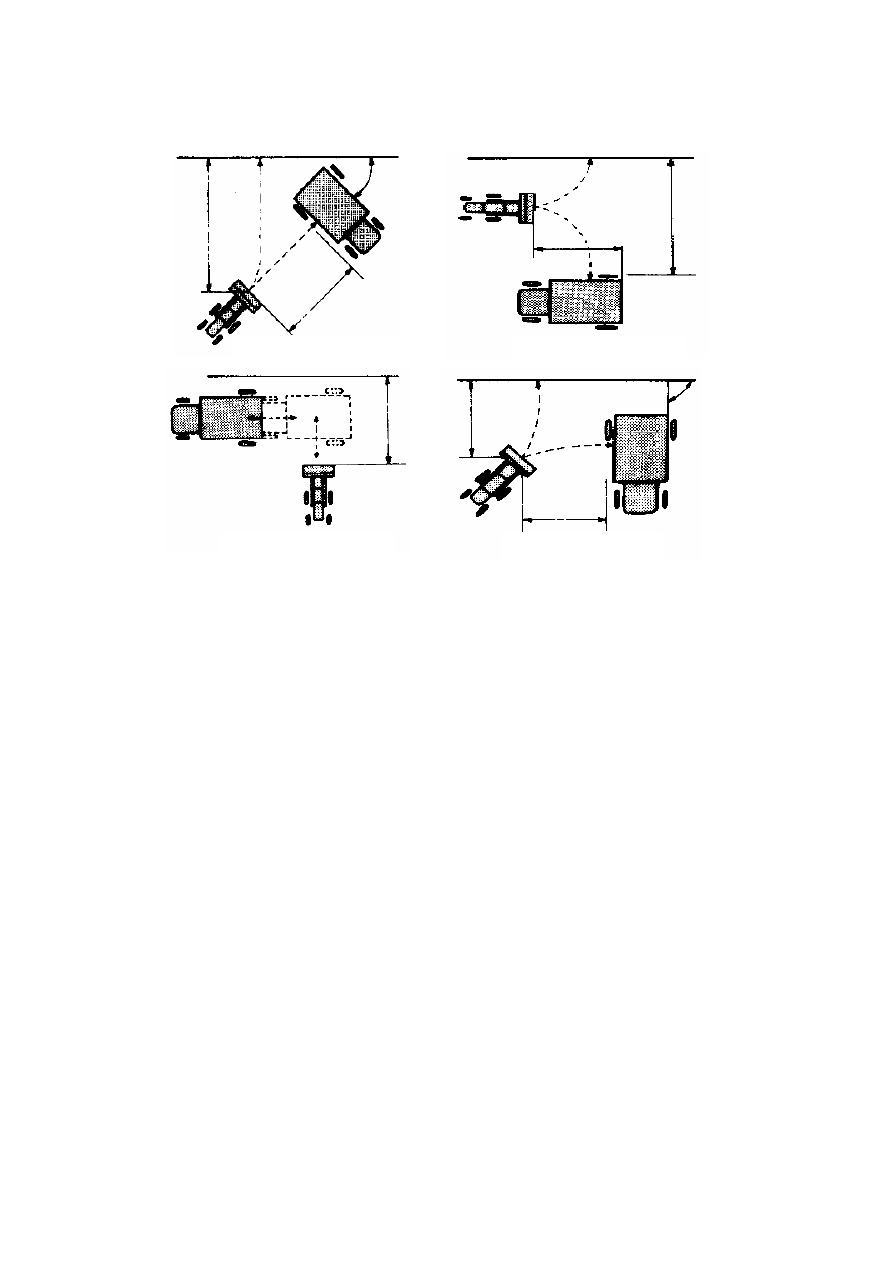

T-shaped cycle

V-shaped cycle

L-shaped

cycle

I-shaped

cycle

-  -

105

z  Remove suspender and note the materials slid.

1.  Load hard soil from the bottom to the upper surface

2.  Lift the bucket slightly and leave the soil stack.

2.5 Excavation

1. Lay the bucket on the ground and make it have a small excavation angle.

2. Prior to the loader advances, press the bucket downwards, and make the lifting joy stick of

the moving arm at the position of holding when the bucket reaches the enough depth.

3.  Keep the bucket leveled scraping and excavation by lifting and laying down the bucket.

4.  As the bucket is filled, take back the bucket to make it run against the stopper. Drive the

loader to the material unloading position when the bucket is away from the ground for

40cm.

2.6 Loading to Bucket

1.  Fill the bucket (See “Loading of Stockpile”).

When the bucket reaches the lifting limit position, materials may be loaded to the chopper

leeward if possible.53

2.7 Application of KD Key

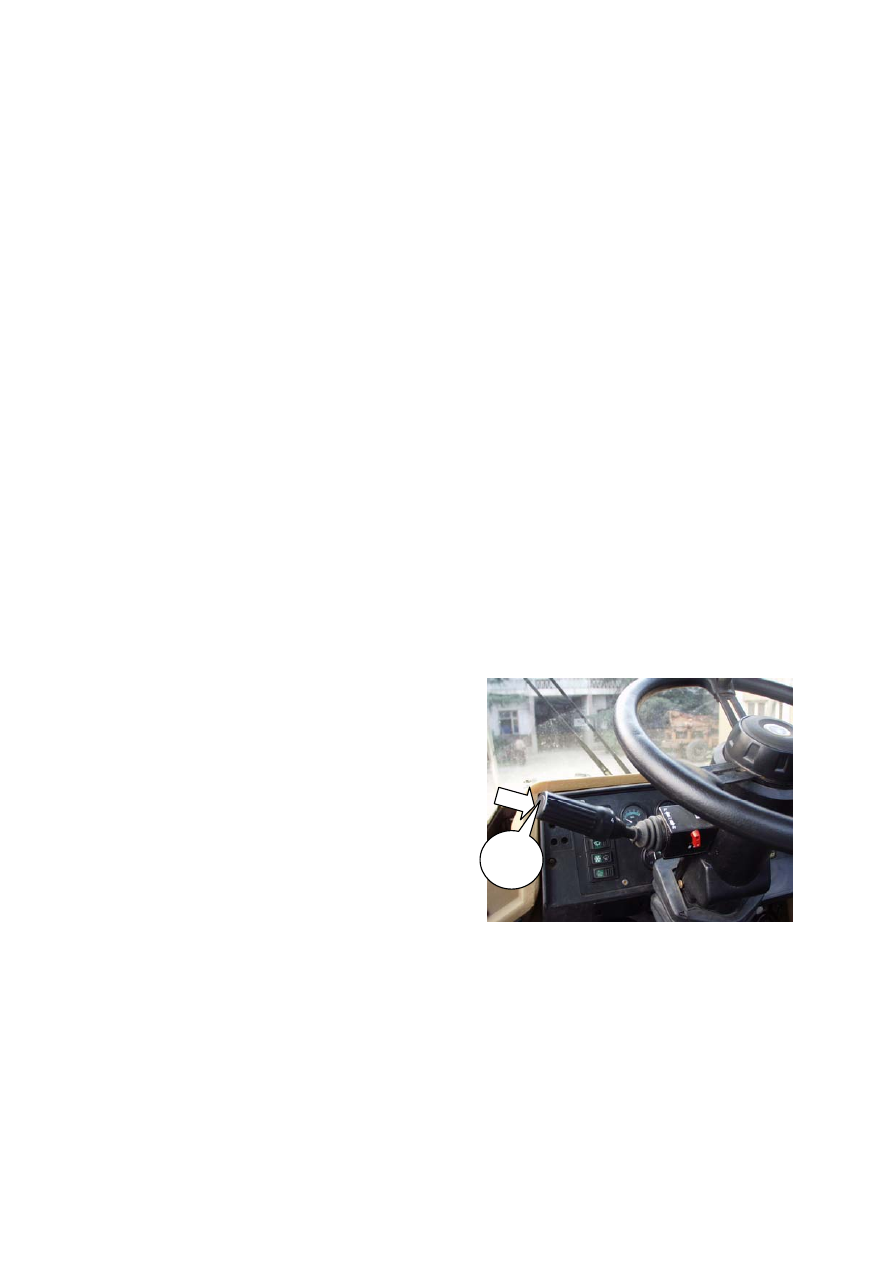

The KD key (1) is designed at the topside

of the speed operating rod with the purpose to

improve the operation efficiency. Its application

technology is given below:

1. As the loader advances to and near the stockpile

at the speed of II gear, press the KD key (1), and

whole machine will be at the speed of I gear from

the previous II for maximum tractive force.

2. As the shifting handle is turned to the reverse direction upon the completion of loading work,

the loader will back to II gear automatically (reverse and advance are II gear) for the relatively

high speed to finish the loading work;

3. Repeat steps 1~2 to use the KD key for a higher operation efficiency.
