CG958H Wheel Loader. Manual - part 2

10

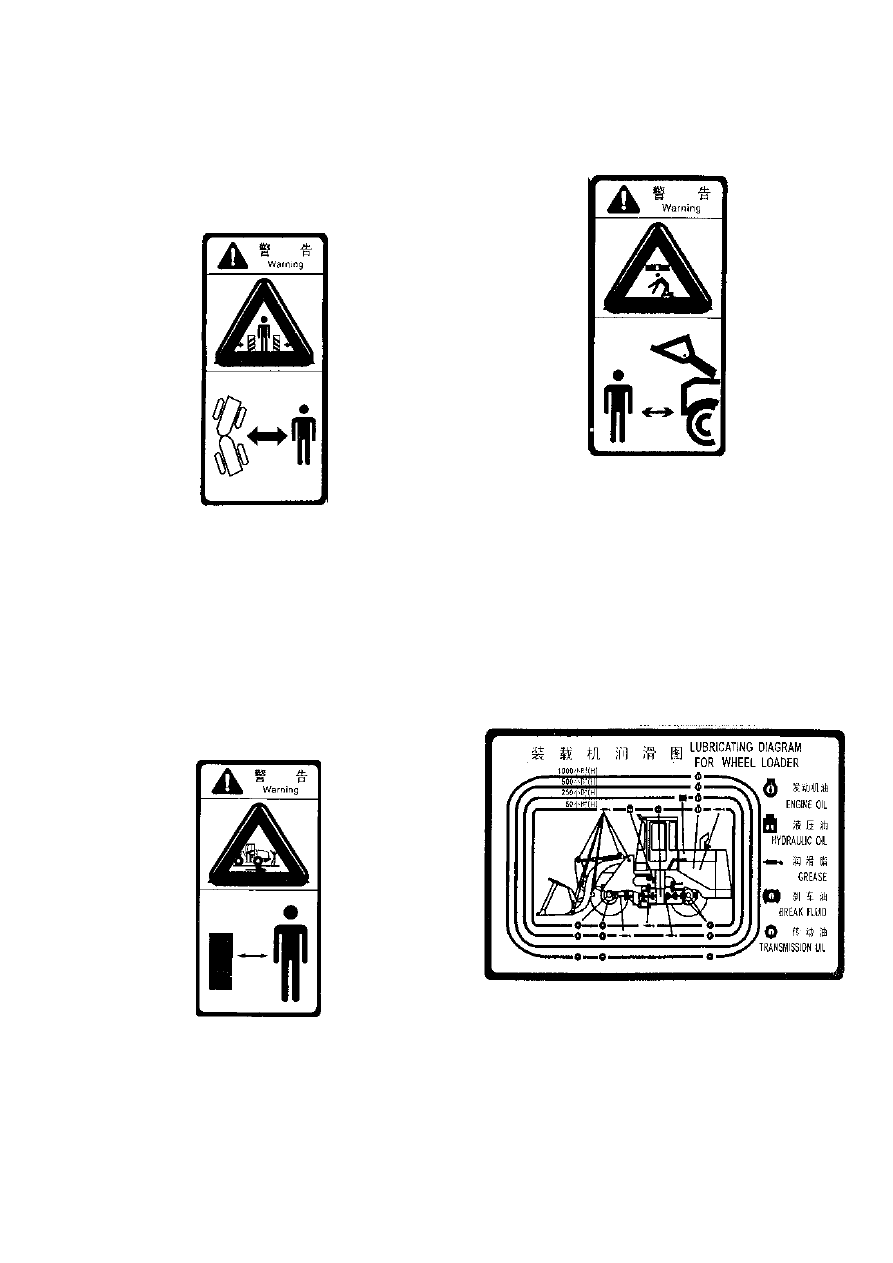

1.2 Implications of Safety Symbols

1．Keep distance (at the jointing of the

chassis frames)





















2. Keep distance from the machine loader

(At the counter weight of the loader)





















3. No staying under the working device

(underneath lift arm)























4. Lubricating diagram for wheel

























During the operation of the machine, it
is prohibited to approach the jointing
of the chassis to avoid accident or
casualty!

During the operation of the machine,
it is prohibited to approach the
machine or enter into the work area
to avoid accident or casualty!



During the operation of the machine, it is

prohibited to get underneath the Machine!

When the machine is stopped and the movable

arm is lifted, it is prohibited to get underneath the

machine! To avoid accident or casualty!

Please conduct lubrication maintenance for
the machine in compliance with the
requirements.





11

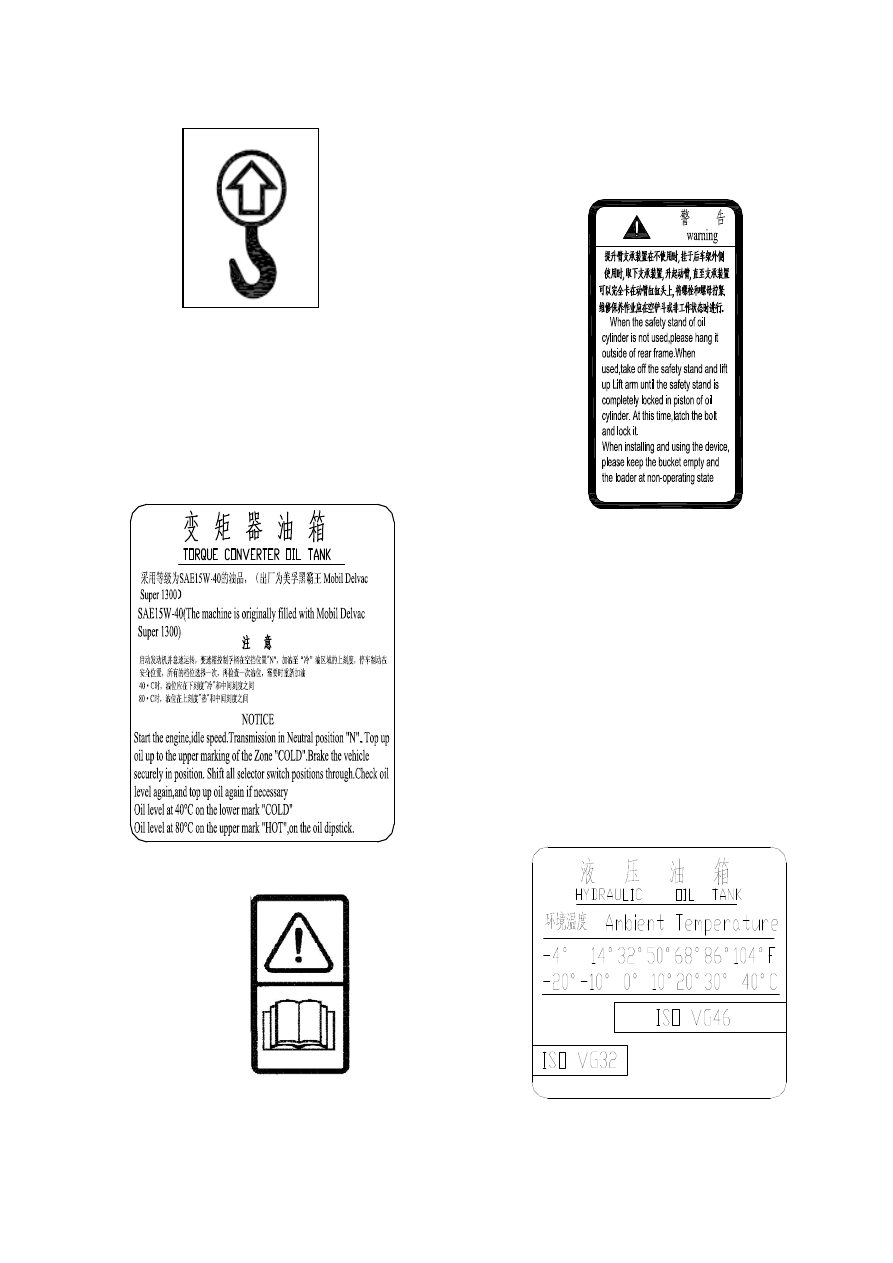

5. Symbol of crane hook

















6. Notice on oil-filling of torque



7. Sign for reading specification (at side

door of the cab)











8.

 Instruction on safety stand for oil

cylinder (on the machine body)





























9.

 Tank sign (on the machine body)







When the machine needs to be hoisted,
please hang the hook or rope at the location
where the hook symbol is affixed.



Prior to operation or maintenance, please
read and comprehend operation and
maintenance instruction and safety issues



The safety stand for oil cylinder is a safety
device and is hanged at the rear frame. Before
servicing, take it off and lock it in piston of oil
cylinder and installed at the surrounding of the
piston rod of the oil cylinder.
Notice: when installing and using the device,
please keep the bucket empty and the loader at
non-operating state.

12

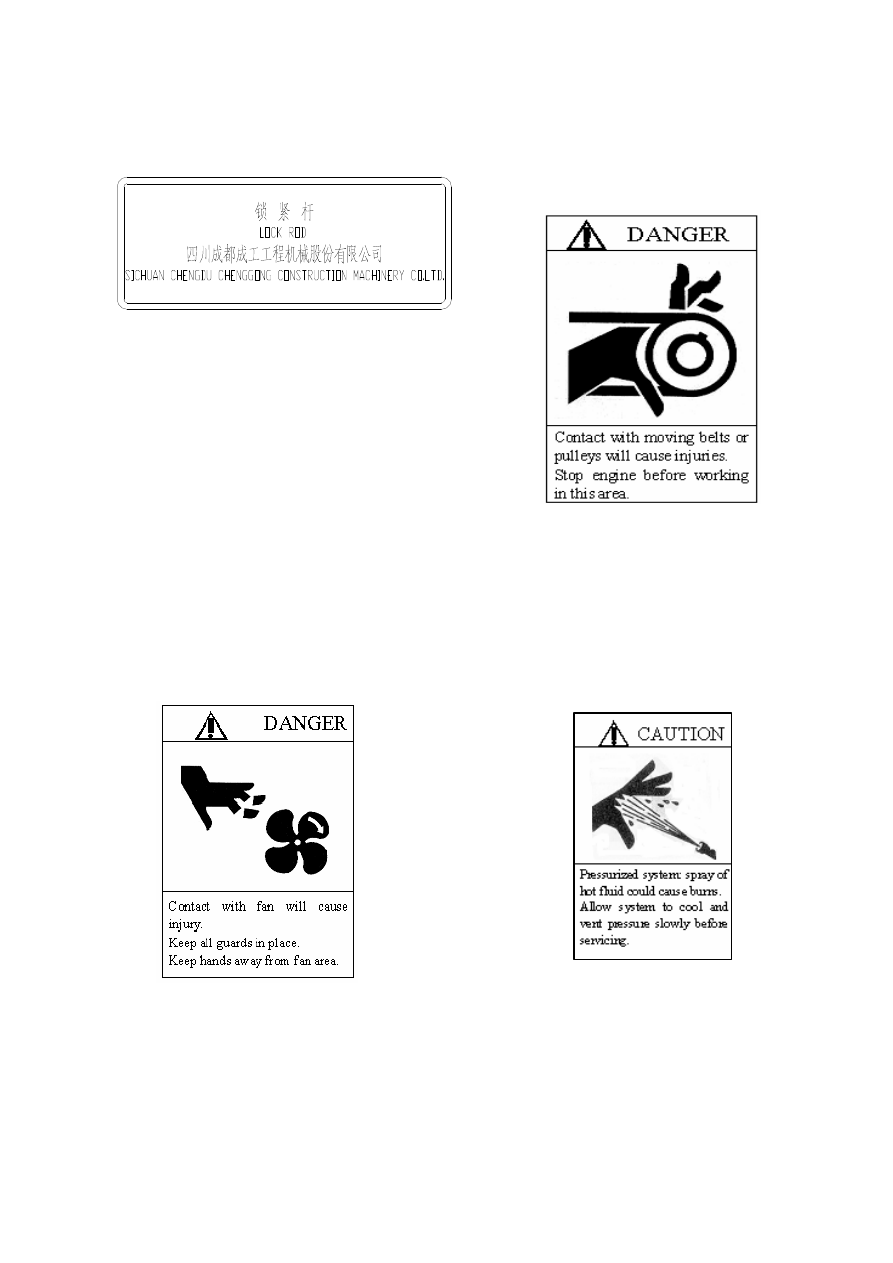

10. Symbol of lock rod (on the machine

body)





















11.

 Do not approach fan when engine is

working  (On the housing)





12. Keep away from moving belt (on the

machine body)







13. Caution: Spray of pressured liquid























When the machine is hoisted and loaded on
other machines, or when servicing at the
middle of the machine, the lock rod shall be
installed between the front and rear frames to
keep the machine in a straight position. When
the machine is hoisted and loaded on other
machines, or when servicing at the middle of
the machine, the lock rod shall be installed
between the front and rear frames to keep the
machine in a straight position.

Contact with fan will cause injury.
Keep hands away from fan area.



Contact with moving belts or pullies will
cause injuries. Keep hands away from the
belt Stop engine before working or
maintenance in this area.

Pressured liquid (diesel, engine oil,
coolant) may cause injuries. Allow system
to vent pressure slowly before servicing.



13

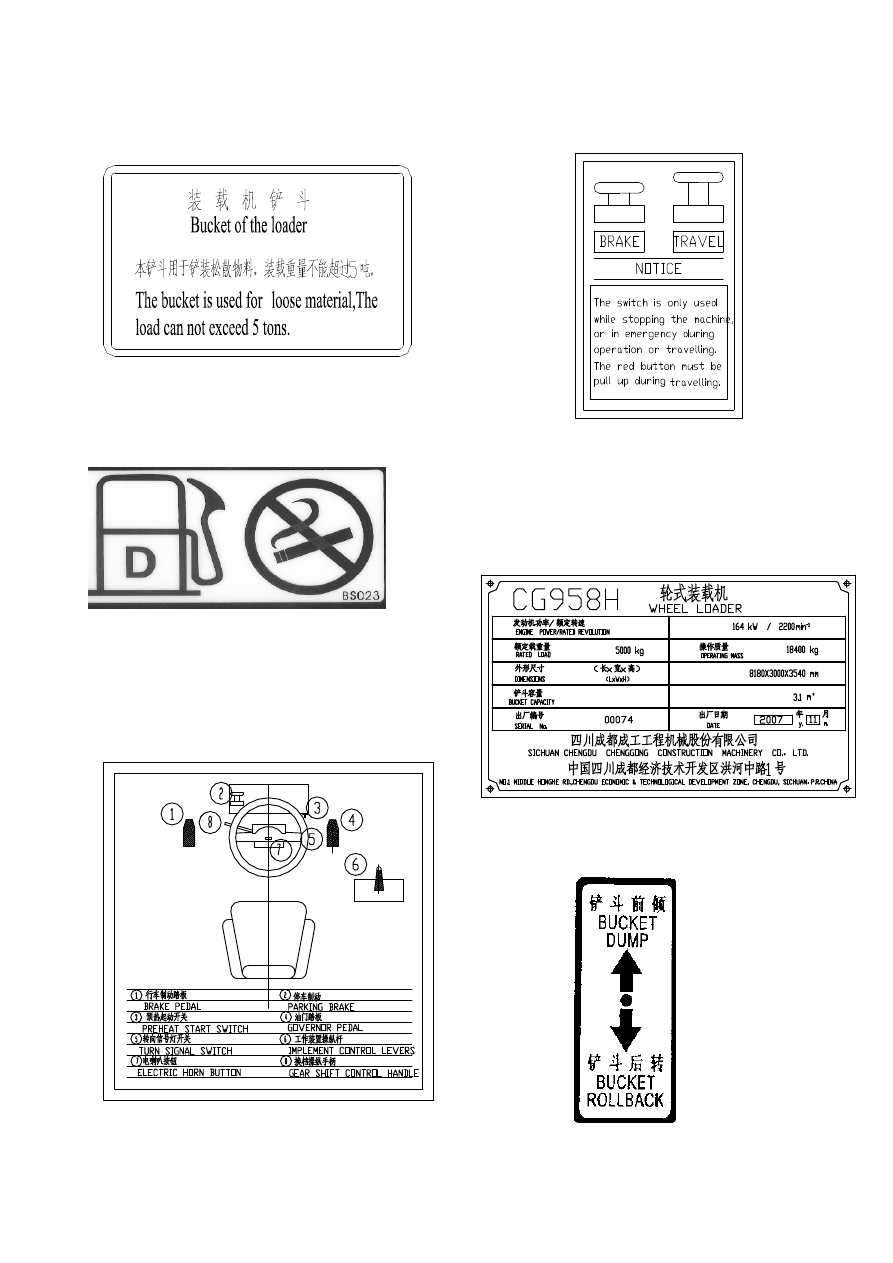

14. Plate on the bucket of the loader





15. Plate on fuel tank













16. Operation plate of cab







17.

 Stop notice plate

















18. Product nameplate (on left side of the

fore frame)





19. Bucket forerake and rollback
