- 104 -

Prior to Starting Engine

In-process Inspection

Dismantle the front and rear frame fixed links and fix them on the rear frame. Prior to the

dismantling of the frame fixed links, the loader cannot be started.

For your safety and maximal service life, the in-process inspection shall be conducted prior to

climbing up the loader and starting it.

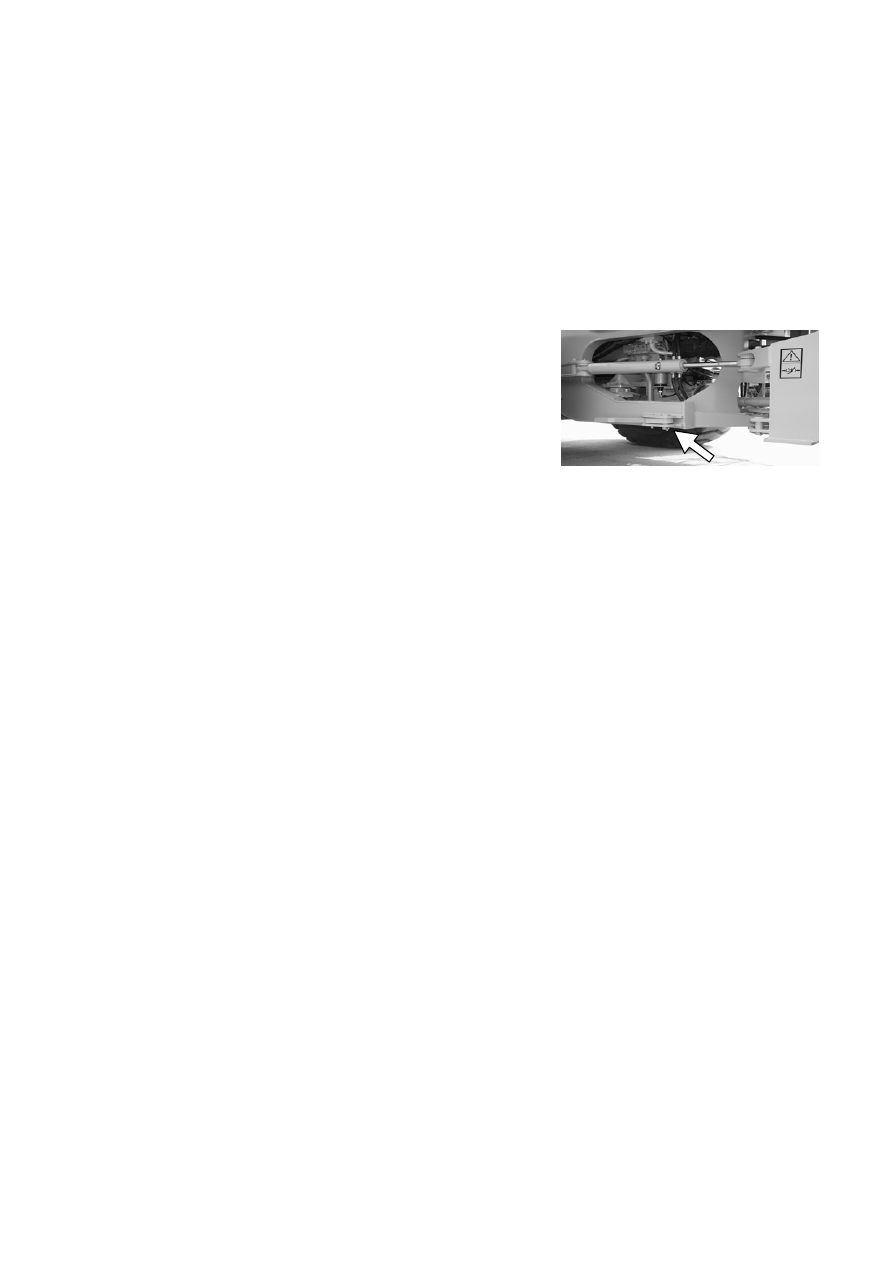

  Examine whether there exist screw loosening, garbage

accumulation, oil or refrigerant leakage, damage or wear of

parts at the surrounding or bottom of the loader. The working

device and hydraulic components shall be examined.

For the contents of daily in-process inspection, please

refer to the “Maintenance per Ten Hours or Every Day” described in the chapter of “Maintenance”



Examination Prior to Starting



Examine level of the hydraulic oil, engine oil, transmission fluid for torque converter, cooling

fluid, and fuel etc.

For the detailed maintenance contents, please refer to the “Maintenance per Ten Hours or

Every Day” described in the chapter of “Maintenance”.

Regulate the chair to facilitate the driver’s stepping on the pedal while leaning on the backrest.

















- 105 -

Starting of Engine

Normal starting: this loader is started under neutral gear protection, i.e. when the
transmission operating rod is not at the position of neutral gear, the engine cannot be started.

1.  Make the transmission control rod at the position of neutral gear;

2.  Make the parking brake at the position of closure.

3.  Make the control rod of working device at the position of keeping.

4.  Insert the key to turn on the power switch, and put through power, and then turn the key

switch to start the engine.

Caution

The starting time of the engine shall not exceed 5 seconds. Prior to restarting, the

starting motor shall be cooled for 2 minutes.



Starting of external power source



Warning

The accumulator can release the explosive flammable gas.

Any spark near the accumulator is not allowed. The volatile gas produced by the

accumulator will cause explosion. Mutual impingement of external power sources or of with

loader is not allowed.

No smoking as the level of electrolytic solution is examined.

The electrolytic solution is acidic and will harm skin and eyes.

While starting with the external power source, wear protective glasses.

Improper connection of the external power source will cause explosion and personal

injury and death.

The anode (+) and cathode (-) of the accumulator shall be connected with the one

respectively.

The voltage of the external power source shall be consistent with the one of the loader,

and the power source shall be the accumulator power source.

Caution

As another machine is used for starting, two machines shall not be contact each other so

as to prevent the damage of the engine and electrical circuit.

- 106 -

Use of external power

Make a primary diagnosis for the loader that fails to start.

1.  Turn the joy stick of the transmission box of the choke to neutral position. Put all working

devices down. All joy sticks are placed at the holding position.

2.  Turn the starting electric lock of the choke to the central position and turn off all

instruments and air conditioning etc.

3.  Help the started loader close the choke so as to facilitate wire connection. But two loaders

shall not contact each other.

4.  Help to turn off the engine of the started loader. If the auxiliary power source is used, the

charging system shall be turned off.

5.  Give attention to whether the wire connection of the accumulator is correct and tightened.

6.  Connect the anode (+) of the external power source to the anode (+) terminal of the

discharged accumulator or the accumulator of choke.

Note:  The accumulators connected in series are installed in the same accumulator box. Use the

terminal connected with the starting motor. The accumulator and starting motor are situated at the

same side of the loader.

Any metal shall not contact the anode wire clip.

7.  Connect another anode of the external power source (+) to the anode helping the starting of

the accumulator. Identify the correct connector lug with the method of Step 6.

8.  Connect cathode of the external power source (-) to the cathode helping the starting of the

accumulator.

9.  Lastly, connect another cathode of the cable to the frame (not the cathode column of the

accumulator). The connection position shall be kept away from the accumulator, fuel,

hydraulic pipe or moving elements.

10. Start the engine that helps starting of the loader or close the charging system assisting in

starting. Two minutes at least are required to shut down partial charging of the loader.

11. Try to start the choke. Please refer to “Starting of Engine”.

12. After starting the flameout engine, the external power source shall be shut down

immediately in the reverse order.

13.Summarize the causes for starting or charging failure of the choke. Now, the engine works

and the charging system works normall

- 107 -

After Starting the Engine

Caution

Keep the engine run at a low speed until the pressure of the engine oil pressure gauge is

normal. If there is no engine oil pressure within ten seconds, the engine shall be stopped for

the examination over causes, or not, the engine will be damaged.

1． Five-minute low-speed unload idling is required to heat the engine. Operate all joy sticks to

accelerate the preheating of the hydraulic components.

2． In operation, observe whether the instrument stays within the normal range.

In idling and preheating of the engine, the following items shall be noted:

 In case the temperature is 0℃ above, the pre-heating time lasts about 15 minutes.

 In case the temperature is 0℃ below, the pre-heating time lasts about 30 minutes.



In case the temperature is -18  below or fluidity of the hydraulic oil is poor, long preheating

℃

time is required.



Warning

After starting and preheating of the engine, if the low brake pressure alarm lamp lights

continuously, the engine shall be stopped immediately for examination. After the alarm lamp

lights off, the engine may be operated, or not, your driving safety would be endangered. In

case the brake pressure alarm lamp lights during the period of drive, it shall be stopped

immediately for examination.
