CG958G Wheel Loader. Manual - part 5

- 24 -

starting the machine, fasten loose wires and repair or replace worn wires.

 Check whether there is a leakage of fuel, engine oil or hydraulic oil. When there is, change

the damaged hose; complete the repair and cleaning before operation.

 Do not use flames when checking dark areas.

 Shall prepare a fire extinguisher and know how to use it. Inspect and maintain it according

to the instruction in the manual.

3.4 Fire Extinguisher

Take actions immediately should a fire arise:

 Must prepare a fire extinguisher for use; get familiar with operation of the fire extinguisher.

 Must prepare first-aid kit at the site. Check regularly and replenish medicines when

necessary.

 Sort out some emergency telephone numbers (such as first-aid center, hospital, fire alarm)

for contact in emergency. Post these numbers at specified places to ensure everyone is

informed.

Location of the fire extinguisher:

3.5 Ether (when coldstart device is equipped on the

machine)

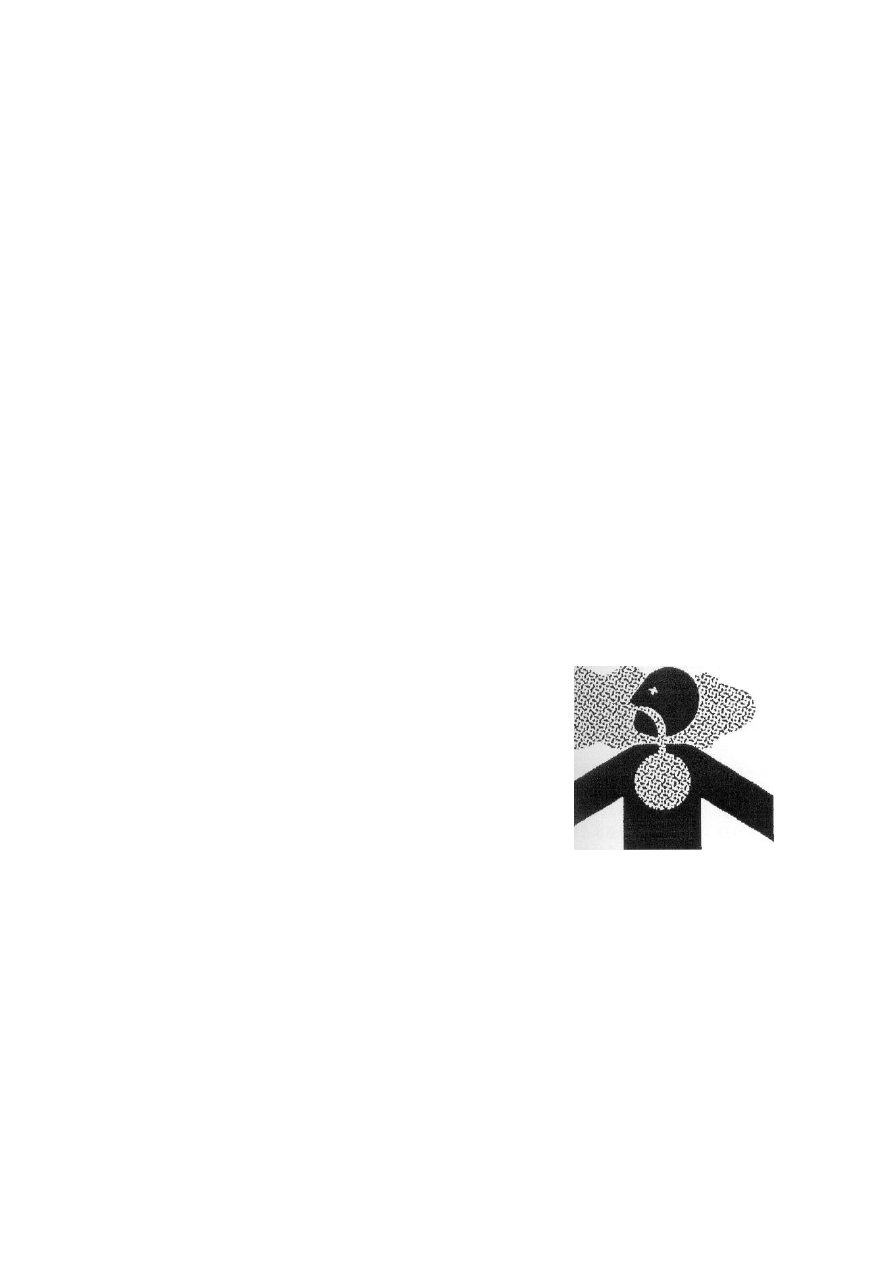

 Ether is a toxic and combustible object.

 Injury will be resulted from inhalation of ether vapor or

frequent skin contact with ether.

 The area shall be well-ventilated where ether is used.

 Do not smoke when changing ether container.

 Take care to prevent fire when using ether.

 Do not put replaced ether container at living area or in the cab.

 Do not put ether at places under direct sunshine or where the temperature is over 39℃

（

120°F）.

 Put discarded ether container at safe place. Do not perforate it or heat it.

 Keep ether container at place which is not accessible for non-staff.

3.6 Precautions for Burnings and Other Injuries

- 25 -

Coolant

 When the machine is working or has just finished working, the engine coolant is hot and is

pressured. All the tubes from radiator to engine contain hot water or steam; severe burnings

will be inflicted by contacting with them.

 When checking the coolant level, the engine shall be at the status of stopping and screw off

slowly the filler cap of cooling system to check the fluid level (screw off slowly to vent the

pressure).

 When it is needed to discharge the coolant, allow the coolant cool down completely before

the discharge.



Oil

 Hot oil or hot parts may cause injuries. Please take care not to touch hot oil or parts to

avoid skin burning.

 When the machine is working or has just finished working, the hydraulic oil’s temperature

is high and the oil is pressured.

 When opening the filler cap of hydraulic oil tank, the engine shall be stopped and screw off

slowly the filler cap (screw off slowly to vent the pressure).

 Before opening the hydraulic oil tank cover, any tube or joint or dissembling parts, please

vent their pressure firstly.

 Please do not knock or bend high-pressure tubes.

Accumulator

 Must inspect accumulator before filling nitrogen. It is prohibited to fill gas in if the

accumulator is not installed with plate, the contents on the plate is not complete or not able

to be recognized, or defects on the body which may affect safe use of it.

 The accumulator is only allowed to fill in nitrogen. It is prohibited to fill in oxygen,

compressed air or other combustible gas to avoid explosion.

 The accumulator is a high-pressure container and shall be maintained or changed by

professional manufacturers. Before dissembling the accumulator, pressure must be vented

and nitrogen inside the bladder be discharged with special tools. Then the parts can be

dissembled.

- 26 -

Storage battery

 Storage battery will release combustible smoke that may cause explosion.

 Do not smoke when checking the electrolyte of the storage battery.

 Electrolyte is an acid material that will cause injury when in contact with skin or eyes.

 Wear protective goggles when working on storage battery.

Pipeline, tubes and hoses

 Do not bend or hammer high-pressure pipelines; do not install damaged tubes or hoses on

the machine.

 When repairing any loose or damaged fuel or lubricant tube or hose, any leakage may cause

a fire. Please take care to ensure safety.

 Inspect the pipelines, tubes and hoses. Do not check for leakage with bare hand. Check for

leakage with a piece of board or cardboard. Fasten all joints with specified torque. When

any of the following troubles is discovered, shall make replacement.

1． Damage or leakage of joints.

2． Wear-out of or cut on out layer and bareness of reinforcing wire.

3． Local bump of outer layer.

4． Obvious twist or flatness of hoses.

5． Wire in reinforcing layer is embedded into outer layer.

6． Displacement of end joints.

Ensure correct installation of all pipe clamps and guard plates to avoid vibration and consequent

overheat by friction with other parts when the machine is working.

Tire

Explosion of tire full of gas results from heating and combustion of the gas inside the tire.

Heating is usually caused by welding or heating of wheel rim or flames. Or it may be caused

by gas combustion resulting from overuse of brakes.

Explosion of tyre is much powerful than deflation. Explosion may cause tyre and wheel rim to

fly away as far as 500 meters. Explosion and its fragments may result in injuries and property

damages.

- 27 -

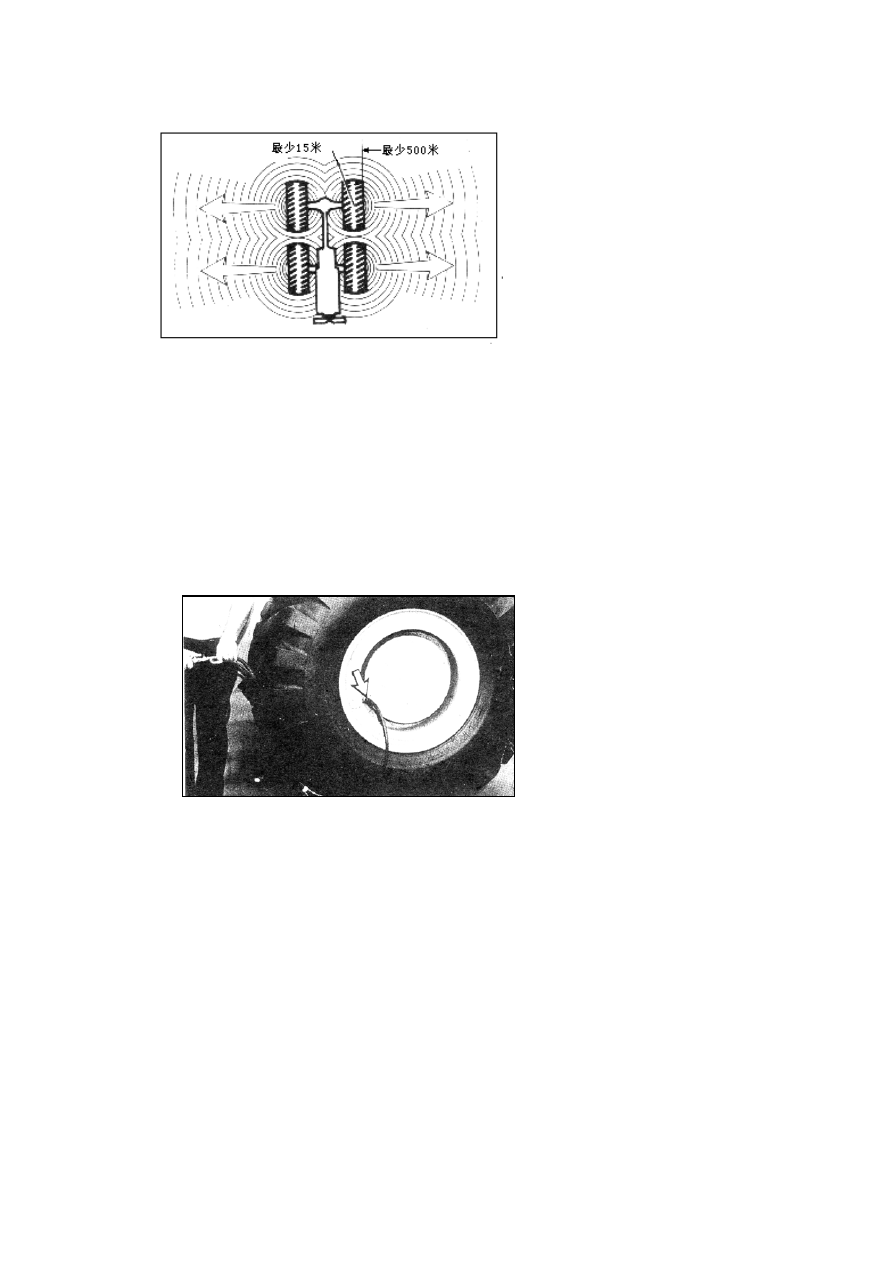

Donot stay in the range indicated in the

 following diagram.

Recommend inflate tyres with dry nitrogen (N2).If there is already air inflated in the tyres,

recommend use nitrogen to adjust pressure. Nitrogen can be blended with atmosphere air.

Tyres inflated with nitrogen are less probable to explode, because nitrogen is not combustible.

Besides, nitrogen helps prevent ageing of rubber and corrosion of wheel rim parts.

Proper equipment and training is desirable to avoid overinflation. Leakage or damage of wheel

rim are caused by improper inflating equipment or improper use of it.

When inflating, stand by the side of tyre and use selfhold nozzle.

It may be harzard to repair or change wheel rim. Only staff who have received training are

allowed to repair or change it. If the method to repair tyre and wheel rim is not correct, the

whole assembly may explode and cause severe injuries. Conduct repair in strict compliance

with the instructions provided by professionals or dealers of tyre and wheel rim.

Compressed air

 Compressed air may cause injuries. When clean with compressed air, wear mask, protective

clothing and shoes.

 The maximum pressure of compressed air used for cleaning shall be lower than 0.205Mpa.

Leakage of solution
