CG958G Wheel Loader. Manual - part 3

- 16 -

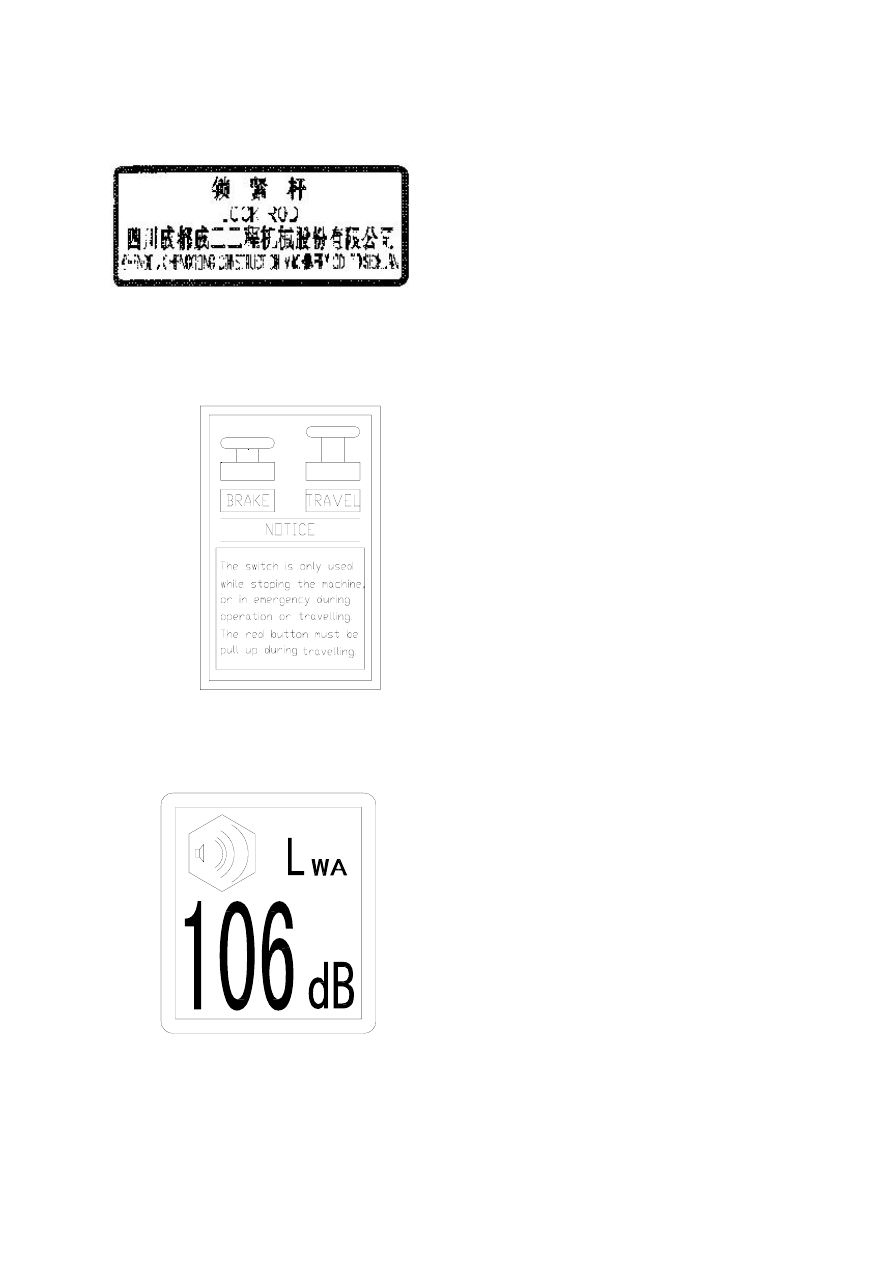

18. Stop notice plate























19. Noise symbol



When the machine is hoisted and
loaded on other machines, or when
servicing at the middle of the
machine, lock rod shall be installed
between the front and rear frames to
keep the machine in a straight
position. Before and during
operation, insure the front and rear
frame lock rod is released and is
pinned at the storage place.



- 17 -

Ⅱ Safety rules

2.1  EU Safety Requirements

1． Noise limit requirement

Complying with the 2000/14/EC directive, this machine meets the following requirements:

L

PA

：

≤85dB(A)

L

WA

：

≤106 dB(A)

2． The vibration value of the seat of cab of this machine meets the requirements of ISO

7096-2000.

3． Electromagnetic compatibility

The electromagnetic compatibility of this machine complies with the relevant requirements

of ISO13766 Standard. The machines can maintain its normal functions in centain

electromagnetic environments and the electromagnetism generated during the operation

does not cause damages to surrounding environment.

4．  The cab of this machine has ROPS – rollover protective structure and FOPS – falling

object protective structure.

2.2  Safety of Operator

Pay attention to location of all safety and warning symbols on the machine and comprehend

their meanings. The symbols and warnings that are obscure or damaged during use shall be

replaced by new ones.

When the operator is in one of the following status, he shall not operate the machine:

 When the operator is exhausted, he shall not operate

the machine.

 When the operator has taken medicines that may cause

sleepiness, he shall not operate the machine.

 The operator shall not operate the machine after

drinking alcohol.

 The operator shall wear work clothes, work cap and work gloves for the servicing of the

machine. The operator shall not wear clothes or ornamental articles that may either hook or

entangle the machine, or cause combustion or sparkles in contact with electrical devices.

- 18 -

 Personnel who is not approved or certificated (operation qualification certificate) is not

allowed to conduct operation, repair, or maintenance of the machine.

 Be familiar with the command signs and only follow the command signs of one person.

 Before starting the machine, be clear of:

Location of fire extinguisher

Location of toolkit

Fire alarm telephone number

Emergency telephone number

 Walk around the machine to ensure nobody is working around the machine and nobody is

working lying underneath the machine.

2.3 Safety Protective Appliances

 When servicing the machine, determine the needed

individual pretective appliances according to the

specific work environment.

 Do not wear clothes or ornamental articles that may

either hook or entangle the machine.

 Do not wear clothes or ornamental articles that may

cause combustion or sparkles in contact with electrical devices.

 All pretective appliances shall be checked prior to use for their usability.























- 19 -

 Operation of the machine

Ⅲ



Safety issues

In this section, relevant safety warnings and some accident threats are explained. Please assign

some time to get familiar with these safety issues before starting the machine.

Warning contents

Warning

Unless you have already read and comprehended the servicing instructions and safety

issues, do not work on this machine. Failure to follow the instructions or ignorance of

warnings may cause injuries. Be prudent is your responsibility.

Warning

This cab is integrated with the ROPS. Structural damages, rollover, modifications,

replacements or improper repair may detrimentally affect the protective performance of

ROPS and thus fail the standard that has been met previously. Please consult Sichuan

Chengdu Chenggong Construction Machinery Co., Ltd for the limit of failure of the

ROPS.

Warning

Improper external power supply may cause explosion and injuries. Tandem storage

battery shall be contained in a separate storage battery box. When using an external

power supply, the (+) pole of the wire shall be connected to the positive (+) pole of the

storage battery that connects the starter coil, and the negative (-) pole of the wire of

external power supply shall be connected to the negative pole of the starter. (If there is no

negative pole of starter, connect to the body of engine.)

Warning

During the operation of the machine, the space between the front and rear frames is not

allowed to be entered. When the machine is hoisted and loaded on other machines, or

when servicing at the middle of the machine, the lock rod shall be installed between the

front and rear frames to keep the machine in a straight position. When the machine is

hoisted and loaded on other machines, or when servicing at the middle of the machine,
