CG958G Wheel Loader. Manual - part 2

- 12 -

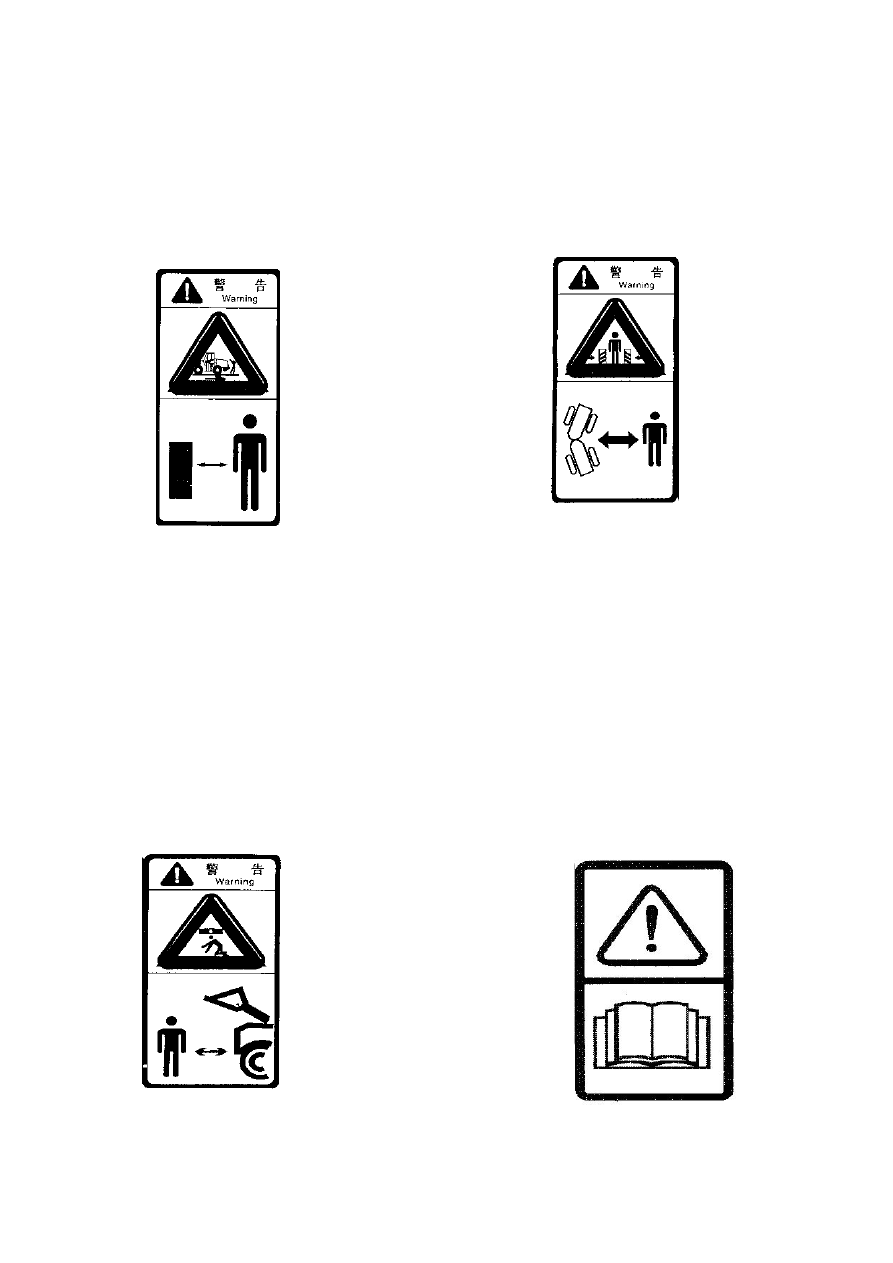

1.2 Implications of Safety Symbols

1.  Keep distance from the machine        2. Keep distance

(at the counter weight of the loader)                      (at  the  jointing  of  the  chassis)

frames)













3. Do not approach                                                4. Please read manual and operate

 (underneath the boom arm)                appropriately (at the side door of the cab)





5. FOPS and ROPS cautions                                6. Do not approach fan when

During the operation
of the machine, it is
prohibited to approach
the machine or enter
into the work area to
avoid accident or
casualty!



During the operation of the
machine, it is prohibited to
approach the jointing of the
chassis to avoid accident or
casualty!



- 13 -

 (at the side door of operator’s               engine is workingcabin) (at fan housing )

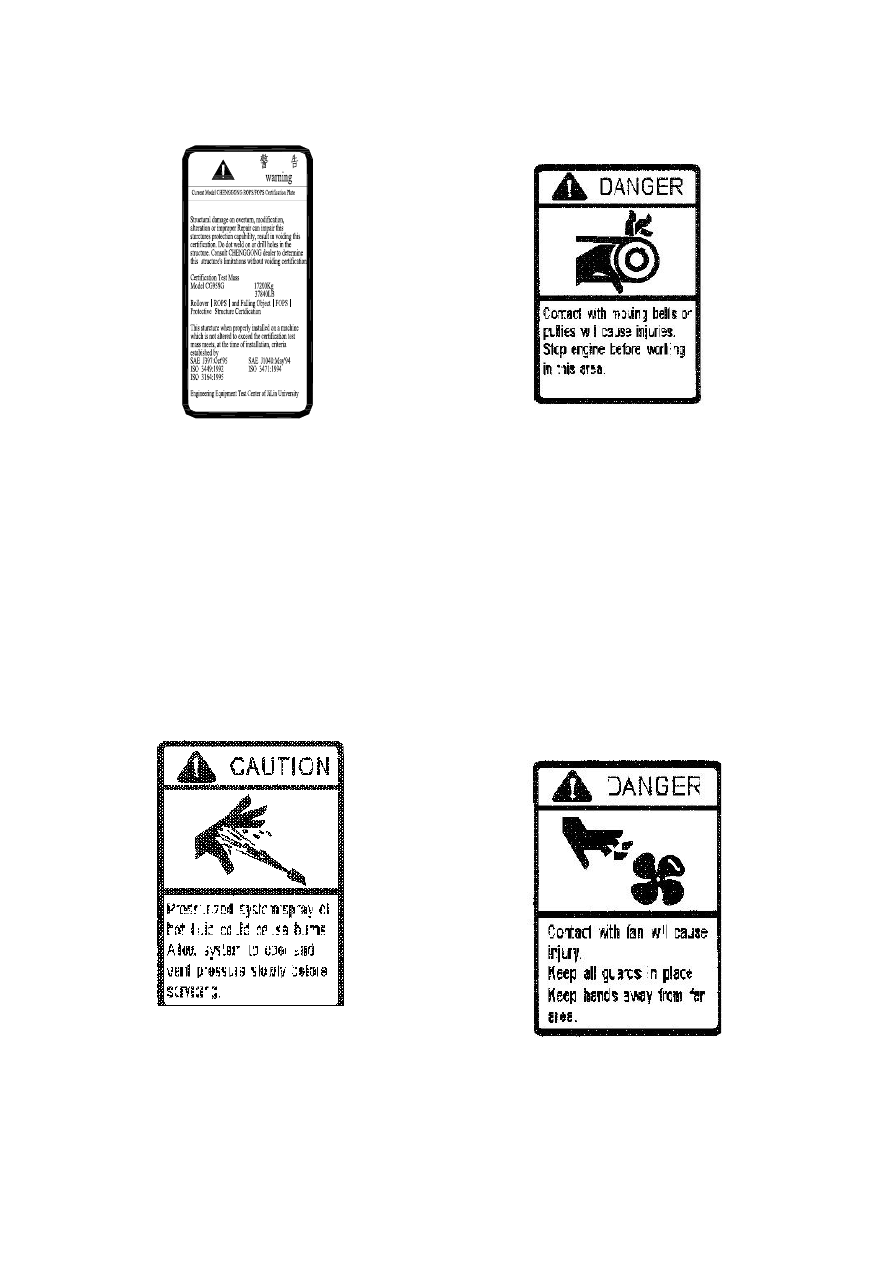

7. Caution: Spray of pressured liquid             8. Keep away from moving belt

      (on the machine body)                                            (on the machine body)

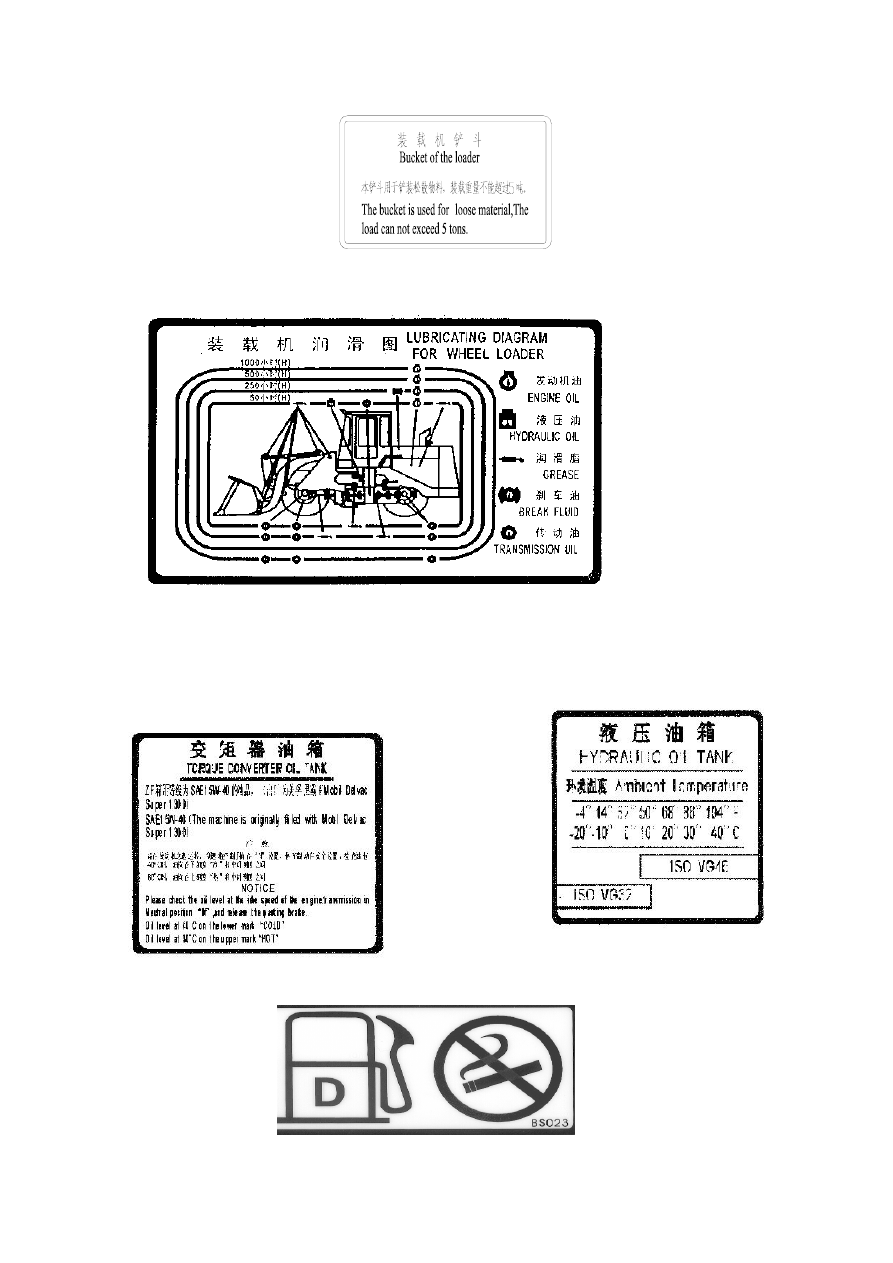

9．  Plate on the bucket of the loader

During the operation of the
machine,  it is prohibited to get
underneath the Machine!
When the machine is stopped and
the movable arm is lifted, it is
prohibited to get underneath the
machine! To avoid
accidentcasualty!



The cab has a rollover And falling
object pretective structure which
shall not be modified.



Contact with moving bells or pullies wil
cause injuries. Stop engine before
working in this area.

Prior to operation or maintenance,
please read and comprehend
operation and maintenance
instruction and safety issues



Contact with fan will cause injury.
Keep hands away from fan area.



Pressured liquid (diesel, engine oil
coolant) may cause injuries. Allow
system to vent pressure slowly
before servicing.



- 14 -











10．  Lubrication diagram for wheel loader (on machine body)



11. Notice on oil-filling of torque                 12. Notice on oil-filling of hydraulic

tank                                                              oil tank (on the machine body)

      (on the machine body)

13．Plate on fuel tank







14. Operation plate

of cab

Please conduct
lubrication
maintenance for
the machine in
compliance with
the requirements.



- 15 -

























15. Instruction on safety stand for             16. Symbol of crane hook

   oil cylinder  (on the machine body)            (on the machine body)

























17．  Symbol of lock rod (on the machine body)

The safety stand for oil cylinder is a
safety device and is hanged at the rear
frame. Before servicing, take it off and
lock it in piston of oil cylinder.
Notice: when installing and using the
device, please keep the bucket empty
and the loader at non-operating state.

When the machine needs to be
hoisted, please hang the hook or
rope at the location where the hook
symbol is affixed.
