CG938H Wheel Loader. Manual - part 2



10

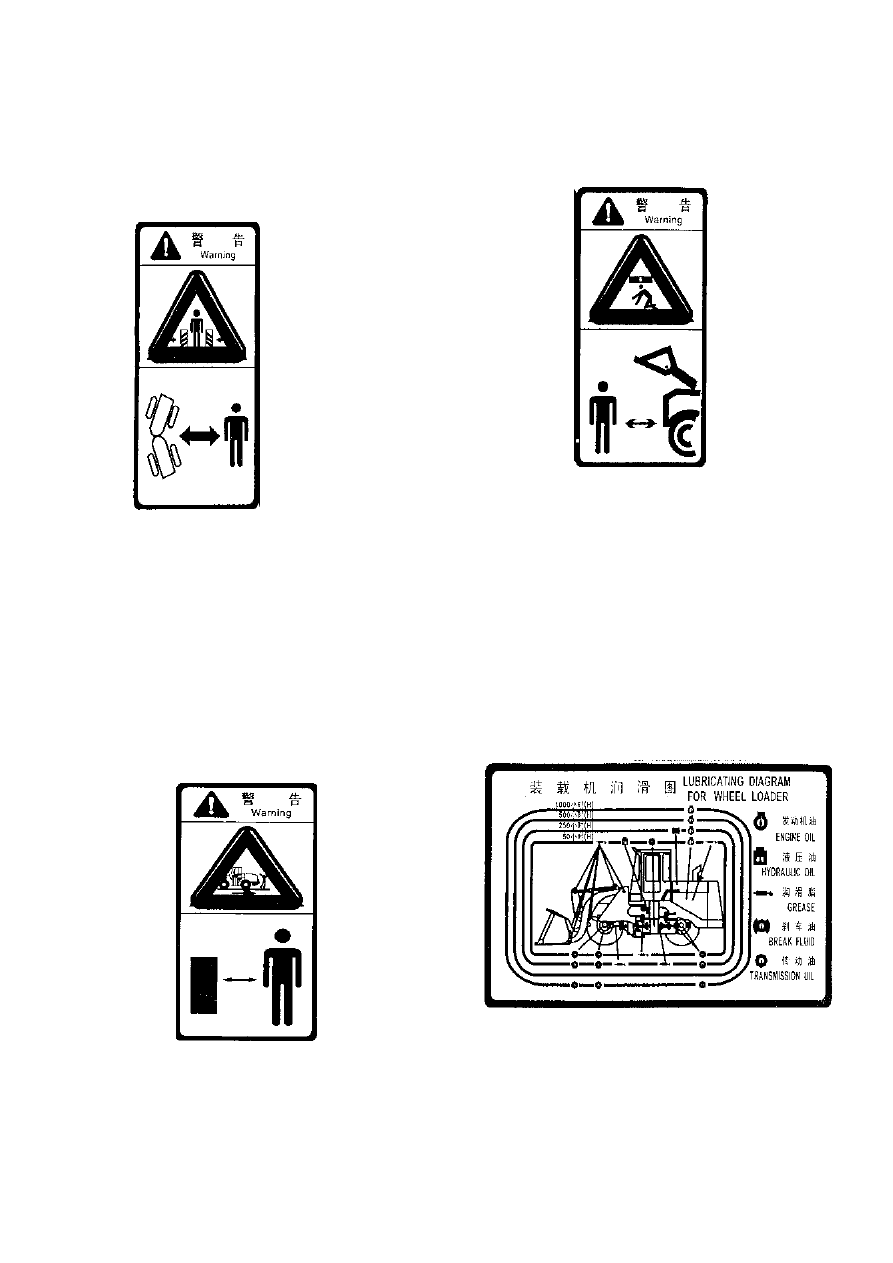

1.2 Implications of Safety Symbols



1．Keep distance (at the jointing of the

chassis frames)

3. No staying under the working device

(underneath lift arm)



























2. Keep distance from the machine                         4. Lubricating diagram for wheel

loader (At the counter weight of the loader)

















During the operation of the machine, it is
prohibited to approach the jointing of the
chassis to avoid accident or casualty!



Please conduct lubrication maintenance for the
machine in compliance with the requirements.



During the operation of the machine, it is
prohibited to approach the machine or
enter into the work area to avoid accident
or casualty!



During the operation of the machine, it is

prohibited to get underneath the Machine!

When the machine is stopped and the movable

arm is lifted, it is prohibited to get underneath

the machine! To avoid accident or casualty!



11

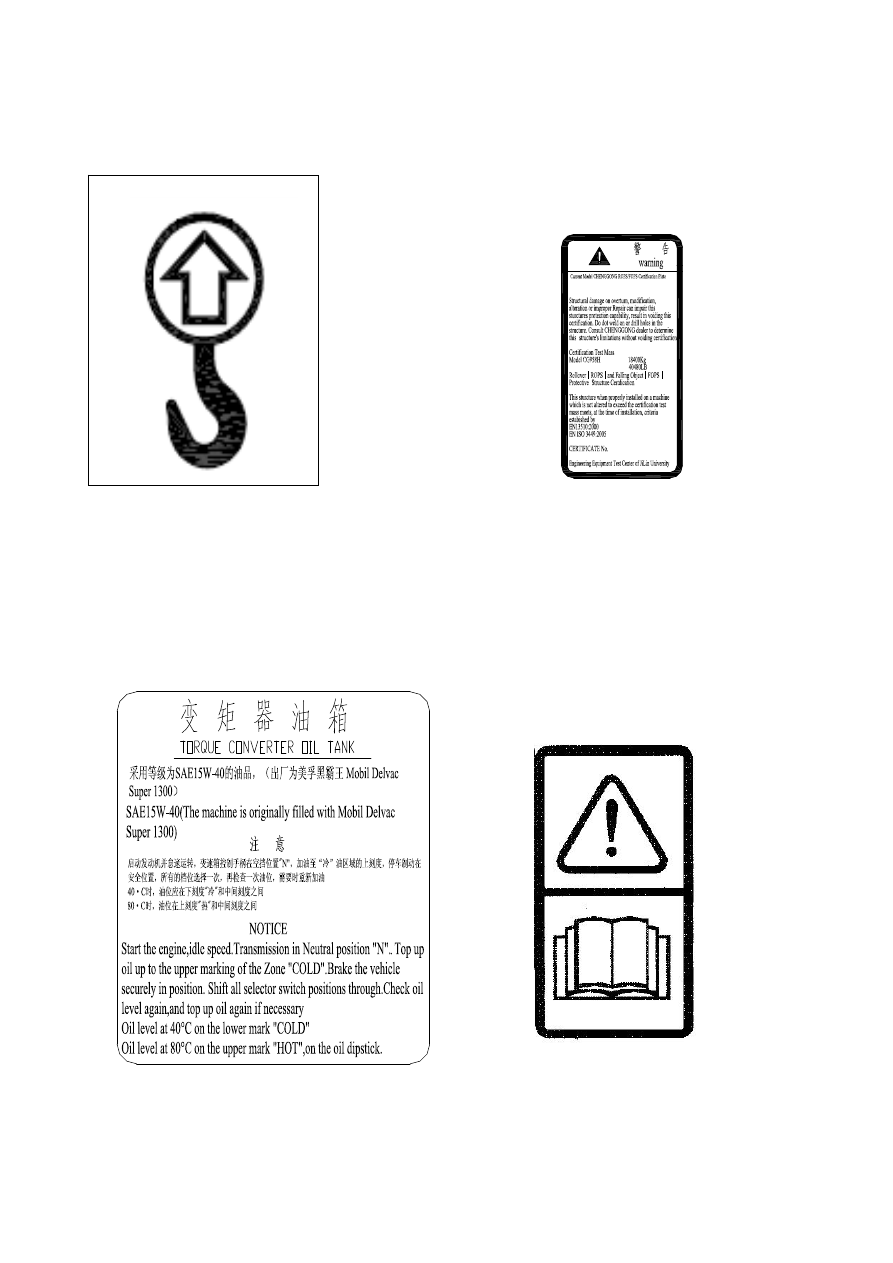

5. Symbol of crane hook





7.  FOPS and ROPS cautions

(at    side door of the cab)









6. Notice on oil-filling of torque



8. Sign for reading specification (at





side dor of the cab)





















When the machine needs to be hoisted, please hang
the hook or rope at the location where the hook
symbol is affixed.



Prior to operation or maintenance, please read
and comprehend operation and maintenance
instruction and safety issues



The cab has a rollover And falling object
pretective structure which shall not be
modified.





12

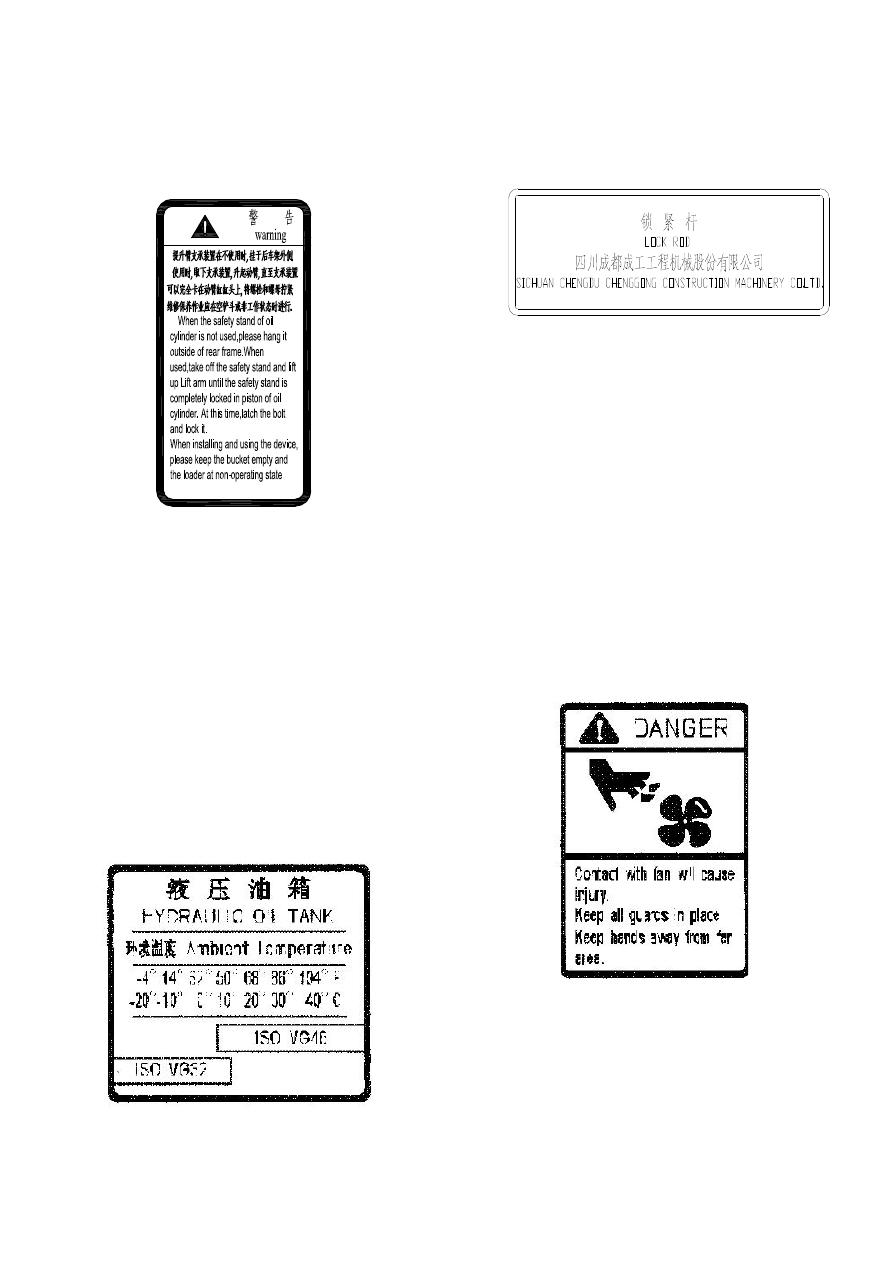

9.

 Instruction on safety stand for                        11. Symbol of lock rod (on the machine



oil cylinder (on the machine body)                          body)

















12.

 Do not approach fan when

engine is working    (On the housing)



(On the housing)







10.

 Tank sign (on the machine body)





Contact with fan will cause injury.
Keep hands away from fan area.



When the machine is hoisted and loaded on other
machines, or when servicing at the middle of the
machine, the lock rod shall be installed between the
front and rear frames to keep the machine in a straight
position. When the machine is hoisted and loaded on
other machines, or



when servicing at the middle of the

machine, the lock rod shall be installed between the
front and rear frames to keep the machine in a straight
position.

The safety stand for oil cylinder is a
safety device and is hanged at the rear
frame. Before servicing, take it off and
lock it in piston of oil cylinder and
installed at the surrounding of the
piston rod of the oil cylinder.
Notice: when installing and using the
device, please keep the bucket empty
and the loader at non-operating state.



13

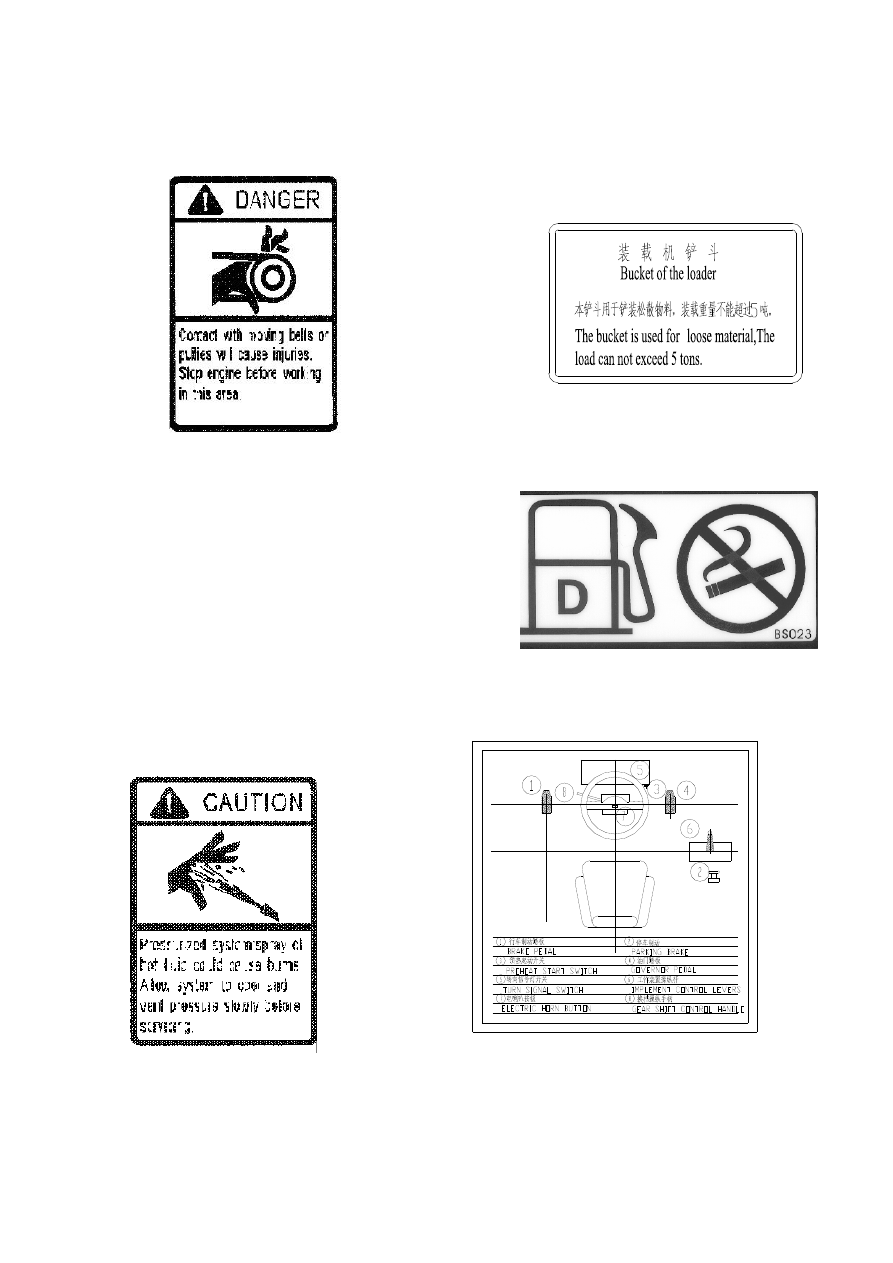

13. Keep away from moving belt (on the machine body)    15. Plate on the bucket of the

loader















                                                                            16. Plate on fuel tank







14. Caution: Spray of pressured liquid



17. Operation plate of cab

(on the machine body)

Pressured liquid (diesel, engine oil,
coolant) may cause injuries. Allow
system to vent pressure slowly
before servicing.

Contact with moving belts or pullies will
cause injuries. Keep hands away from the
belt Stop engine before working or
maintenance in this area.
