Diesel engine 12V 4000 G73, 16V 4000 G73. Manual - part 15





Fault code

No.

Designation

Meaning

Task

Related

parameter

No.

463

SD AUX 2

SD alarm configuration; An‐

alog input signal for Aux 2

faulty; Short circuit or wire

break.

Check signal sen‐

sor and cabling,

replace as neces‐

sary.
Error cleared after

restarting the en‐

gine.

1.8004.59

1

464

SD P-AUX 1

SD alarm configuration; An‐

alog input signal for Aux 1

pressure faulty; Short circuit

or wire break.

Check pressure

sensor and ca‐

bling.
Error cleared after

restarting the en‐

gine.

1.8004.58

9

465

SD P-AUX 2

SD alarm configuration; An‐

alog input signal for Aux 2

pressure faulty; Short circuit

or wire break.

Check pressure

transmitter and ca‐

bling, replace as

necessary. Error

cleared after re‐

starting the engine.

1.8004.58

8

466

SD T-AUX 2

SD alarm configuration; An‐

alog input signal for Aux 2

temperature faulty; Short

circuit or wire break.

Check temperature

sensor and ca‐

bling, replace as

necessary. Error

cleared after re‐

starting the engine.

1.8004.58

6

467

AL L2 T-Aux 1

Alarm configuration limit

value 2; Preliminary warn‐

ing: Temperature signal of

Aux 1 has exceeded / not

attained limit value 2, de‐

pending on configuration.

Determine and

rectify reason for

limit value viola‐

tion.

2.0130.92

2

468

SD T-AUX 1

SD alarm configuration; An‐

alog input for Aux 1 temper‐

ature faulty.

Replace engine

governor.

1.8004579

469

SD AUX 1

SD alarm configuration; An‐

alog input signal for Aux 1

faulty; Short circuit or wire

break.

Check signal sen‐

sor and cabling,

replace as neces‐

sary. Error cleared

after restarting the

engine.

1.8004.59

0

470

SD T-ECU

SD alarm configuration;

Temperature sensor for

ECU faulty; Short circuit or

wire break.

Check sensor and

cabling, replace as

necessary. Error

cleared after re‐

starting the engine.

1.8004.58

7

471

SD Coil Current

SD alarm configuration;

Control of HP fuel control

block faulty; Short circuit or

wire break.

Check sensor and

cabling, replace as

necessary. Error

cleared after re‐

starting the engine.

1.8004.59

2

Fault code

No.

Designation

Meaning

Task

Related

parameter

No.

472

AL Stop SD

Alarm configuration; Engine

stop, since all shutdown

channels have "sensor faul‐

ty".

1. Check cabling.
2. Contact Service.

2.8006.59

3

473

AL Wiring PWM_CM2

Alarm configuration; Cable

break or short circuit on

channel PWM_CM2.

1. Check cabling.
2. Contact Service.

1.8004.59

3

474

AL Wiring FO

Alarm configuration; Cable

break or short circuit on

channel FO.

1. Check cabling.
2. Contact Service.

2.8006.65

5

475

AL CR Trigger Engine

Stop

Alarm configuration; initiat‐

ed when crash recorder is

triggered due to engine

shutdown.

Determine and

rectify cause of

triggering / engine

shutdown.

1.8010.00

9

476

AL Crash Rec. Init. Er‐

ror

Alarm configuration; Crash

recorder initialization error.

Check setting with

DiaSys.

1.8010.00

7

478

AL Comb. Alarm Yel

(Plant)

Alarm configuration; YEL‐

LOW summary alarm from

plant.

Note further fault

messages.

2.8006.00

1

479

AL Comb. Alarm Red

(Plant)

Alarm configuration; RED

summary alarm from plant.

Note further fault

messages.

2.8006.00

2

480

AL Ext. Engine Protec‐

tion

Alarm configuration limit

value; Input signal has ex‐

ceeded/not attained limit

value, depending on config‐

uration.

Determine and

rectify reason for

limit value viola‐

tion.

2.0291.92

1

TIM-ID: 0000016865 - 001

7 Task Description

7.1 Engine

7.1.1 Engine – Barring manually

Preconditions

☑ Engine is stopped and starting disabled.

Special tools, Material, Spare parts

Designation / Use

Part No.

Qty.

Barring device

F6555766

1

Ratchet with extension

F30006212

1

DANGER

Unguarded rotating and moving engine components.

Risk of serious injury – Danger to life!

• Before barring the engine, ensure that nobody is in the danger zone.

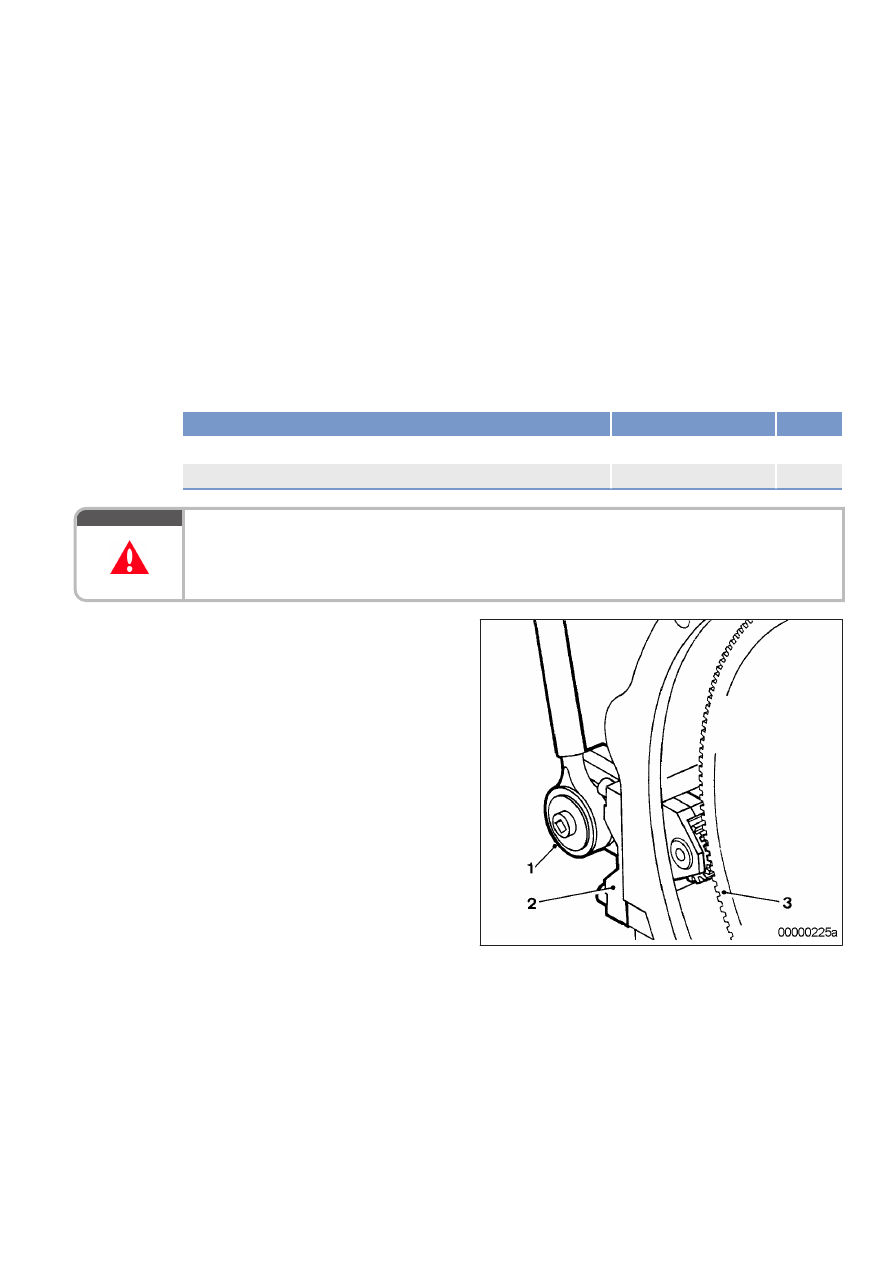

Engine – Barring manually

1.

Remove guard plate.

2.

Engage barring device (2) with ring gear (3)

and install on flywheel housing.

3.

Place ratchet (1) onto barring device (2).

4.

Rotate crankshaft in engine direction of ro‐

tation. Apart from the normal compression

resistance, there should be no further re‐

sistance.

5.

For barring device removal, follow reverse

sequence of working steps.

7.1.2 Engine – Barring with starting system

DANGER

Unguarded rotating and moving engine components.

Risk of serious injury – danger to life!

• before barring or starting the engine, ensure that nobody is in the danger zone.

• After working on the engine, check that all protective devices have been reinstalled and all tools

removed from the engine.

Engine – Barring with starting system

1.

Release latch of connector X4.

2.

Remove connector from engine governor.

3.

Bar engine in unloaded condition: Press START button.

4.

Let the crankshaft rotate until oil pressure is indicated.

5.

Engine start is automatically interrupted when specified starting period has passed. If necessary, re-start

the engine after approx. 20 seconds.

6.

Connect connector X4 to engine governor and latch in position.

TIM-ID: 0000000918 - 004
