Kawasaki Diesel MULE 4010 TRANS 4x4 (KAF950G9). Manual - part 118

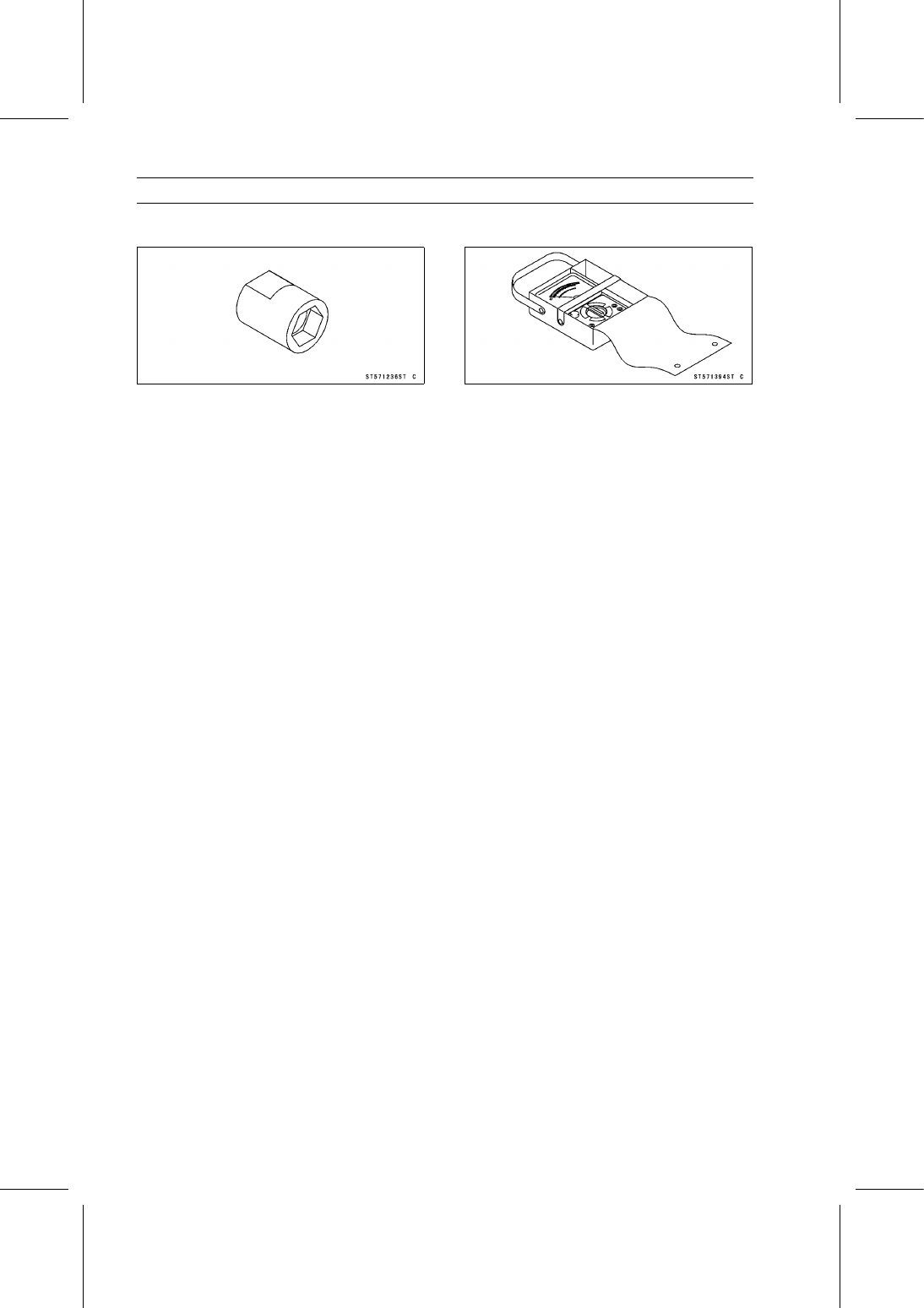

17-18 ELECTRICAL SYSTEM
Specifications
Item
Standard
Service Limit
Battery
Capacity
12 V 52 Ah
– – –
Voltage
12.6 V or more
– – –
Conventional Type:
Gross Weight
14.5 kg (32.0 lb)
– – –
Electrolyte Volume
3.8 L (232 cu in.)
– – –
Electrolyte Level
Between upper and lower level
– – –
Specific Gravity
1.265 at 20°C (68°F)
– – –
Sealed Type:
Gross Weight
13.4 kg (29.5 lb)
– – –
Electrolyte Volume
3.03 L (185 cu in.)
– – –
Alternator
Type
Three-phase (built-in regulator/rectifier)
– – –
Fan Belt Deflection
9.5
∼ 11.5 mm (0.37 ∼ 0.45 in.) at 98 N
(10 kgf, 22 lb)
– – –
Output Voltage
13.3
∼ 14.8 V at 25°C (77°F)
– – –
Output Amperage (no load)
10 A or less
– – –
Output Amperage (load)
20 A or more
– – –
Stator Coil Resistance
0.2 Ω or less
– – –
Rotor Coil Resistance
2.8
∼ 3.0 Ω
– – –
Slip Ring Diameter
14.4 mm (0.57 in.)
14.0 mm (0.55 in.)
Carbon Brush Length (Projected
Portion)
10.5 mm (0.41 in.)
8.4 mm (0.33 in.)
Electric Starter System
Starter Motor:
Carbon Brush Length
15.5 mm (0.61 in.)
11.0 mm (0.43 in.)
Commutator Diameter
30 mm (1.18 in.)
29 mm (1.14 in.)
Preheating System
Glow Plug Resistance
About 0.1
∼ 5.0 Ω
– – –

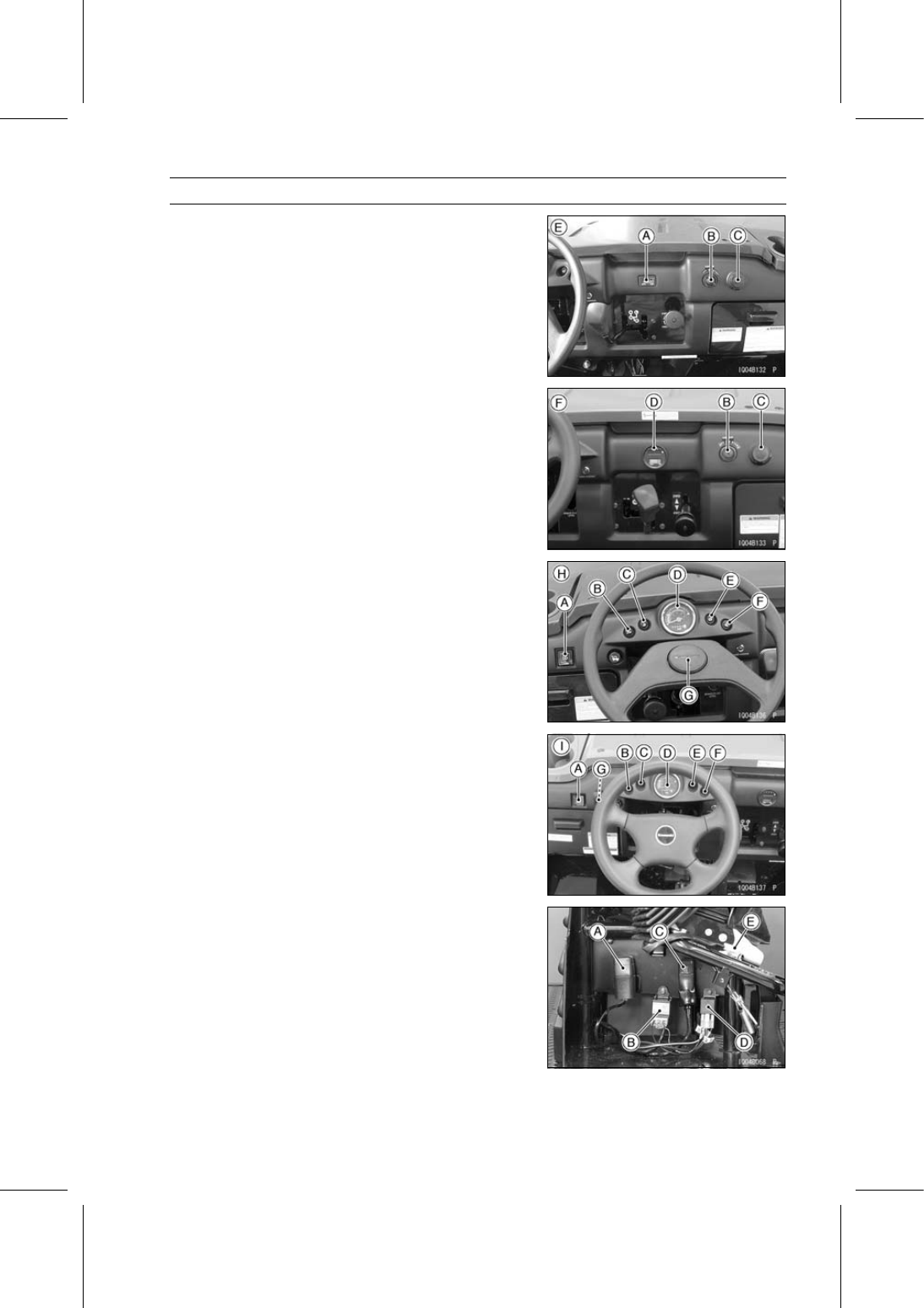

Meter, Gauge
Fuel Level Gauge Resistance:
Full Position
9
∼ 11 Ω
– – –
Empty Position
119
∼ 121 Ω
– – –
Switches and Sensors
Brake Light Switch Timing
ON after 10 mm (0.39 in.) of pedal travel
– – –
Radiator Fan Switch Resistance:
Rising Temperature
From OFF to ON at 86
∼ 90°C (187 ∼
194°F)
– – –
Falling Temperature
From ON to OFF at 81
∼ 85°C (178 ∼
185°F)
– – –
ON: Less than 0.5 Ω
OFF: More than 1 MΩ
