Scope of supply: Heater, universal installation kit and complete packages

* Only in complete package Airtronic D2

** Only for Airtronic D3, B4, D4, D4 Plus

*** Only for Airtronic D2

**** Only in complete package Airtronic D2, 24 volt

Product information

2

10

Using the “Plus” installation kits

Order No.

“Plus” installation kit

25 2069 81 00 00

• with outlet hood Ø 75 mm,

heater guide number 12, usable with:

– Airtronic D2, 12 V

25 2069 05 00 00

– Airtronic D2, 24 V

25 2070 05 00 00

“Plus” installation kit

25 2113 81 00 00

• with outlet hood Ø 90 mm,

heater guide number 10, usable with:

– Airtronic D3, 12 V

25 2317 05 00 00

– Airtronic B4, 12 V

20 1812 05 00 00

– Airtronic D4, 12 V

25 2113 05 00 00

– Airtronic D4, 24 V

25 2114 05 00 00

• with outlet hood Ø 90 mm,

heater guide number 15, usable with:

– Airtronic D4 Plus, 12 V

25 2484 05 00 00

– Airtronic D4 Plus, 24 V

25 2498 05 00 00

“Plus” installation kit

25 2484 81 00 00

• with outlet hood Ø 75 mm,

heater guide number 8, for recirculation mode
heater guide number 10, for fresh air mode
usable with:

– Airtronic D4 Plus, 12 V

25 2484 05 00 00

– Airtronic D4 Plus, 24 V

25 2498 05 00 00

• For controls, please refer to the price list or

accessories catalogue.

• Parts without a figure no. are small parts and packed

in a bag.

• Please consult the additional parts catalogue if any

other parts are required for installation.

• For notes on the units' guide numbers, please refer to

additional parts catalogue.

• The “Plus” installation kits are particularly suitable for

installations in camper vans and boats.

Scope of supply
Heater and “Plus” installation kit

Heater

Order No.

Airtronic D2, 12 V

25 2069 05 00 00

Airtronic D2, 24 V

25 2070 05 00 00

Airtronic D3, 12 V

25 2317 05 00 00

Airtronic B4, 12 V

20 1812 05 00 00

Airtronic D4, 12 V

25 2113 05 00 00

Airtronic D4, 24 V

25 2114 05 00 00

Airtronic D4 Plus, 12 V

25 2484 05 00 00

Airtronic D4 Plus, 24 V

25 2498 05 00 00

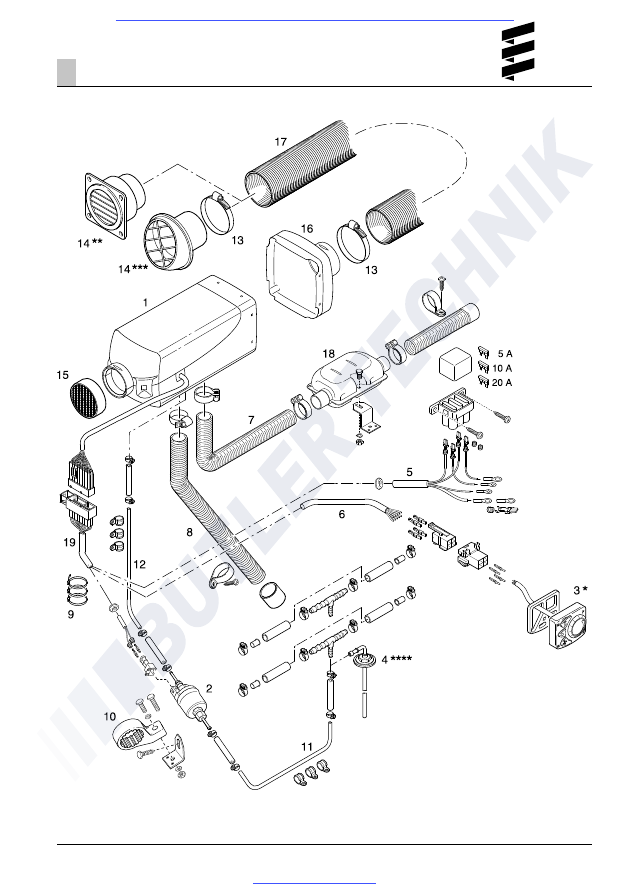

The scope of supply includes:
No. in
figure Name

1

Heater

2

Metering pump

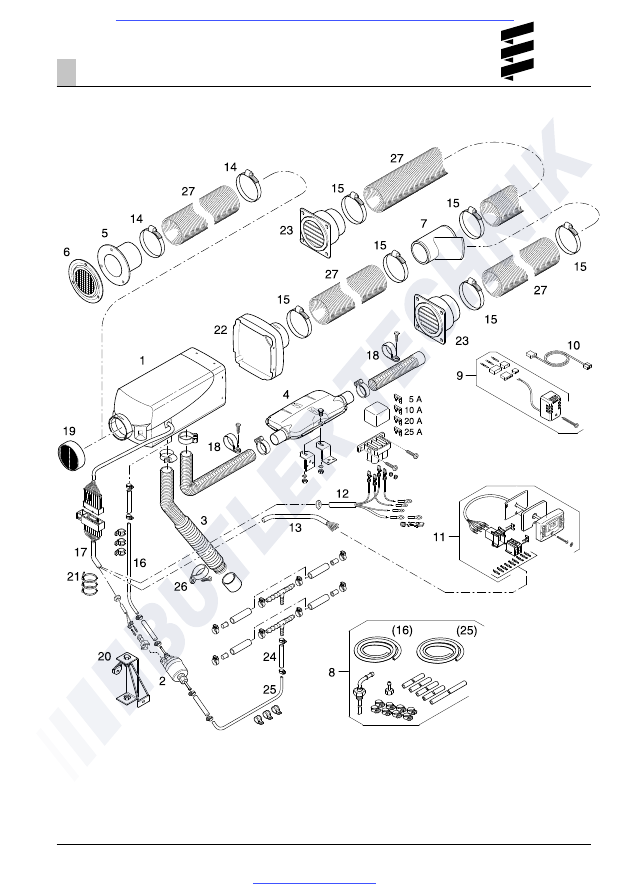

“Plus” installation kit (all versions)

The scope of supply includes:
No. in
figure Name

3

Combustion air intake silencer

4

Exhaust silencer

5

Hose connecting sockets

6

Grid

7

Y branch

8

Tank connection kit

9

Temperature control sensor

10

Cable loom for temperature control sensor

11

EasyStart T timer

12

Lead harness, plus / minus

13

Lead harness, operation

14

Hose clip (2x)

15

Hose clip (6x)

16

Pipe 4 x 1.25 (included in Item 8)

17

Cable harness, heater

18

Flexible exhaust pipe

19

Grid

20

Bracket metering pump

21

Cable tie (2 sets)

22

Hood

23

Outlet (2x)

24

Adapter Ø 6 / 4

25

Pipe 4 x 1 (included in Item 8)

26

Pipe clip, Ø 50 mm

27

Flexible pipe for hot air system

Product information

2

Please note!

11

Product information

2

Scope of supply: Heater and “Plus” installation kit

12

Airtronic

Airtronic D2

D2

Air

Stage

Power

Large

Medium

Small

Off

2200

1800

1200

850

–

105

90

60

40

13

0.28

0.23

0.15

0.10

–

34

22

12

8

5

ⱕ100

12 or 24 volt

approx. 10.5 volt resp. 21 volt

Undervoltage protection trigger time: 20 seconds

approx. 16 volt resp. 32 volt

Overvoltage protection trigger time: 20 seconds

Commercially available diesel fuel (DIN EN 590)

Operation

Not running

–40 °C to +70 °C

–40 °C to +85 °C

–40 °C to +50 °C

–40 °C to +125 °C

+40 °C

Interference suppression class 5 to DIN EN 55 025

approx. 2.7 kg

possible

Product information

2

Caution!

Safety instructions for technical data!
Failure to comply with the technical data
can result in malfunctions.

Technichal data

Heater type

Heater

Version

Heating medium

Control of the heat flow

Heat flow (watt)

Heater air flow rate

with hood Ø 60 mm

without counterpressure (kg/h)

Fuel consumption (l/h)

Elektr. power consumption (watt)

in operation (12 and 24 volt)

at start (12 and 24 volt)

Rated voltage

Operating range

Lower voltage limit:
An undervoltage protection in the controller
switches off the heater when the voltage
limit is reached.

Upper voltage limit:
An uppervoltage protection in the controller
switches off the heater when the voltage
limit is reached.

Fuel

“Fuel quality“ and “Fuel at low temperatures“
see page 28.

Tolarable ambient temperature

Heater

Dosing pump

Maximum air intake temperature

Interference suppression

Weight

Ventilation mode

Please note!

Provided no limit values are given, the technical data
listed is subject to the tolerances usually applicable
to heaters of ±10% for nominal voltage, ambient
temperature 20 °C and reference altitude Esslingen.
