DIESEL PARTICULATE FILTER HANDLING. Manual - part 12

ENGINE

DIESEL PARTICULATE FILTER HANDLING MANUAL, WSM

1-S37

Step2

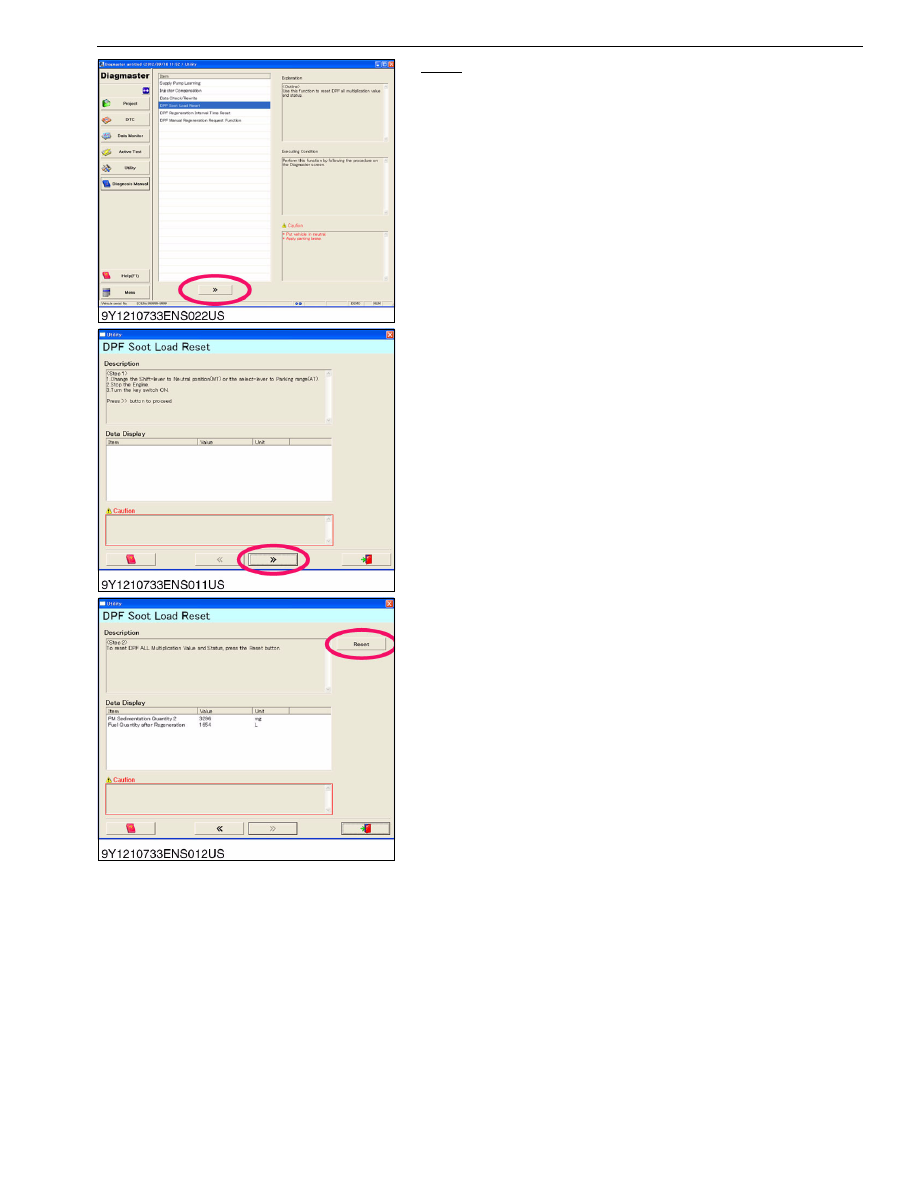

1. Reset the value by "DPF Soot Load Reset" in the utility functions

of the diagnosis tool.

ENGINE

DIESEL PARTICULATE FILTER HANDLING MANUAL, WSM

1-S38

Step3

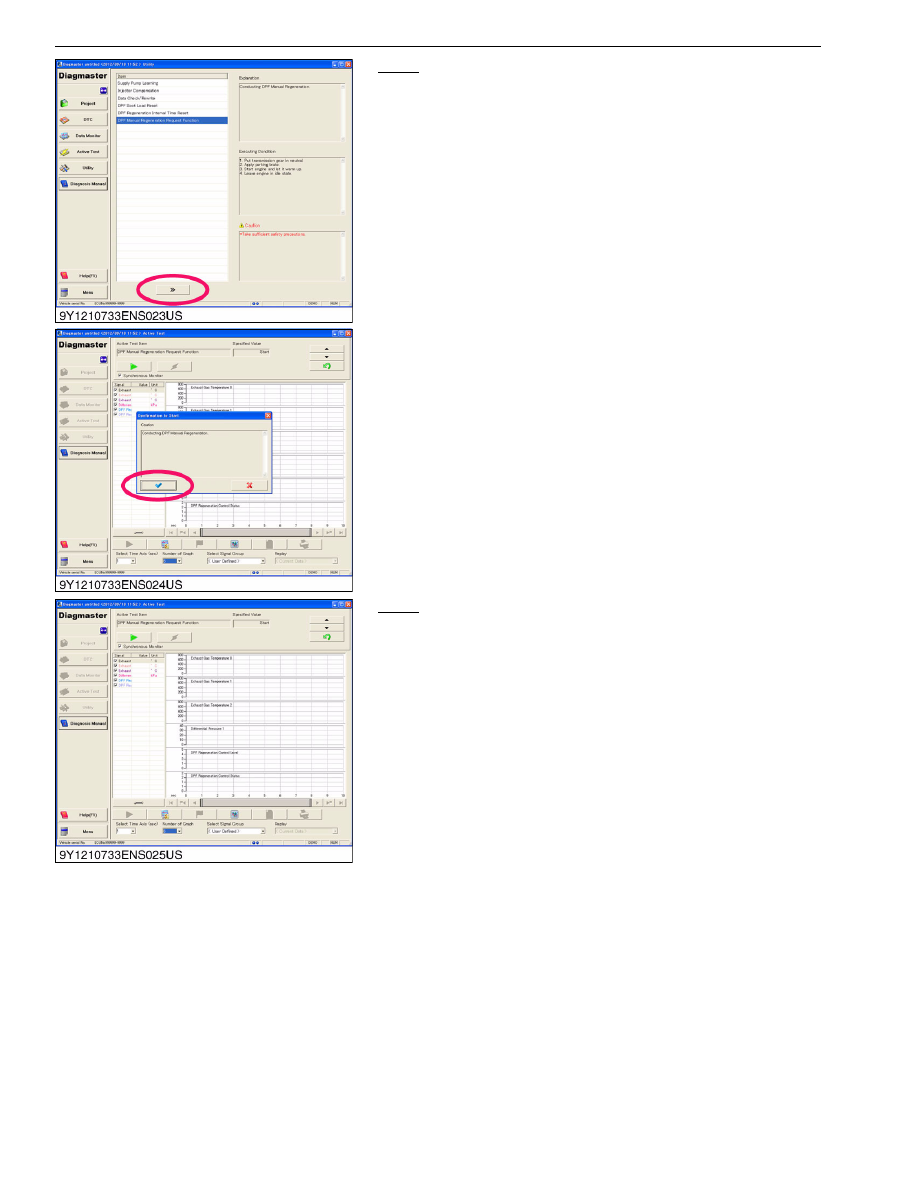

1. Execute the request by the "DPF Manual Regeneration

Request Function" in the utility functions of the diagnosis tool,
and give the command to execute on the application side.
(When the execution button is not on the application side, ECU
on the application side receives the request signal and gives
command to execute.)

Step4
1. Check if the "DPF Regeneration Control Level" and the "DPF

Regeneration Control Status" shows "Level 0" by the monitor
functions in the diagnosis tool.
If the level is 0, it means that manual regeneration has
completed.

[13] EXECUTION CONDITION FOR MANUAL REGENERATION

To execute manual regeneration, it is required to set the following conditions.

(1) Parking break on
(2) Transmission in neutral
(3) Implement down

ENGINE

DIESEL PARTICULATE FILTER HANDLING MANUAL, WSM

1-S39

[14] ATTACHED FORM

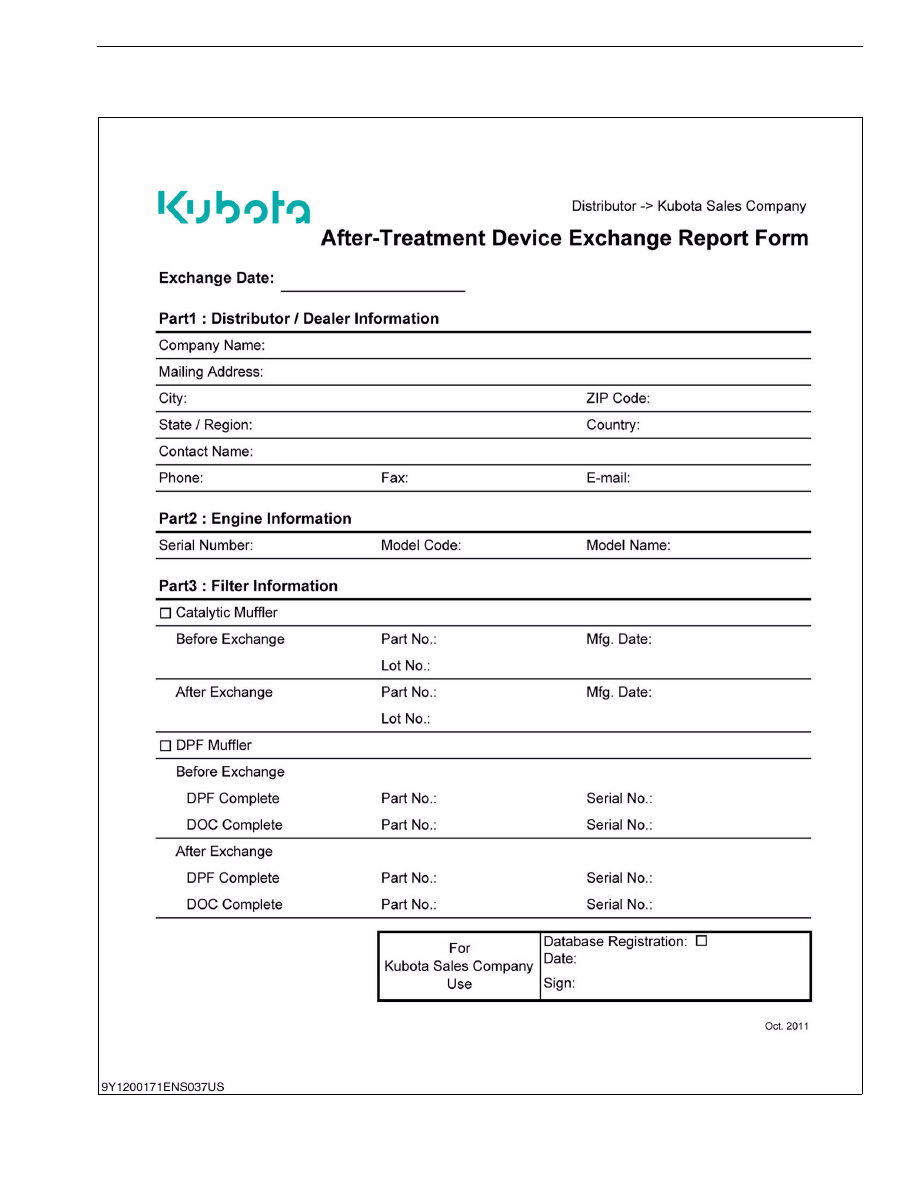

(1) After-Treatment Device Exchange Report Form

ENGINE

DIESEL PARTICULATE FILTER HANDLING MANUAL, WSM

1-S40

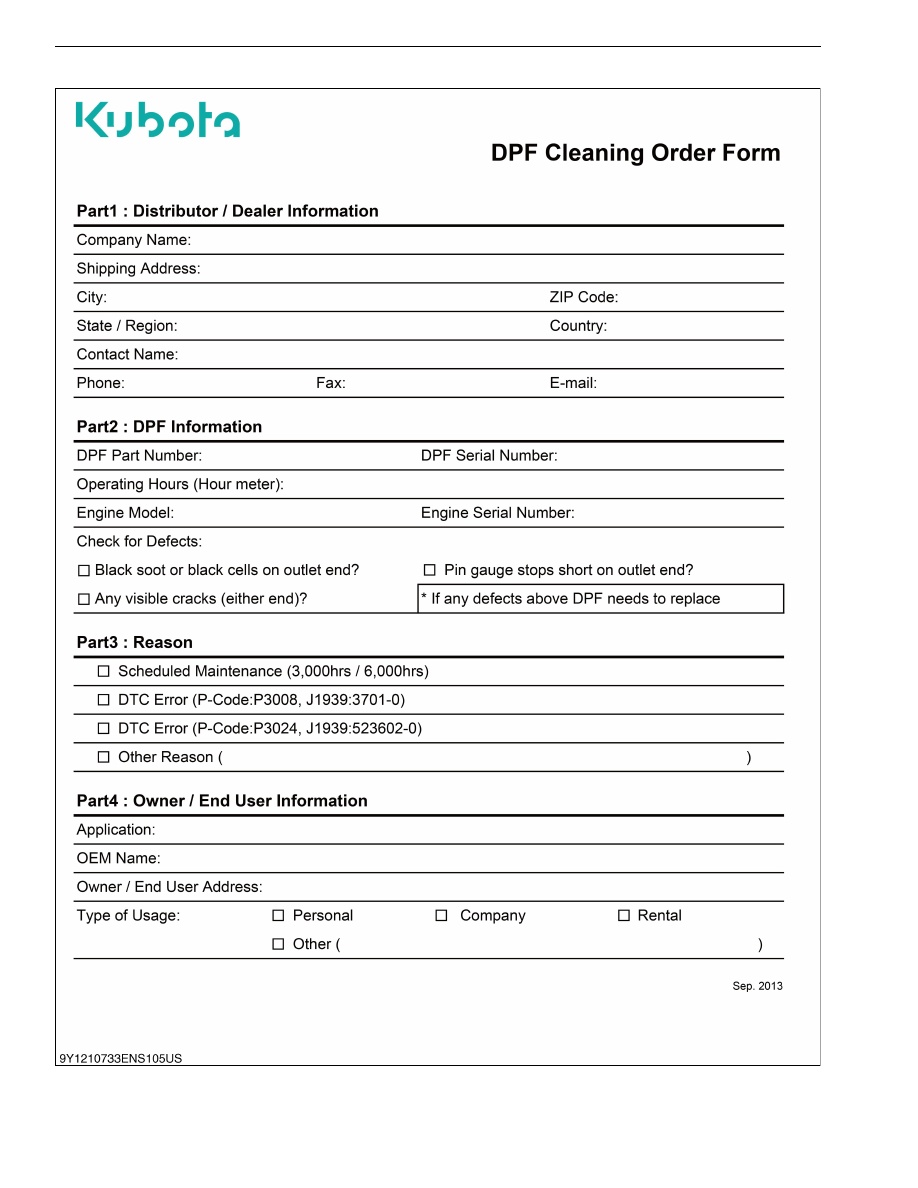

(2)  DPF Cleaning Order Form
