BBM OUTLAW WALK BEHIND MODEL ZERO-TURN MOWER. Manual - part 7

PAGE

25

3.4 Changing the spark plugs and checking the spark plug gap:

1)

Remove the wire on the spark plug and use a

13/16” socket to remove the spark plug.

2)

Check the gap on the spark plug to verify that it

is 0.03 in using a feeler gauge.

3)

If the spark plug is worn, overheated, wet or

carbon fouled replace the spark plug.

4)

Install the plug into cylinder head and torque to

16 ft.*lbs. Be careful not to overtighten the

spark plug.

PAGE

26

SECTION 5: FRAME

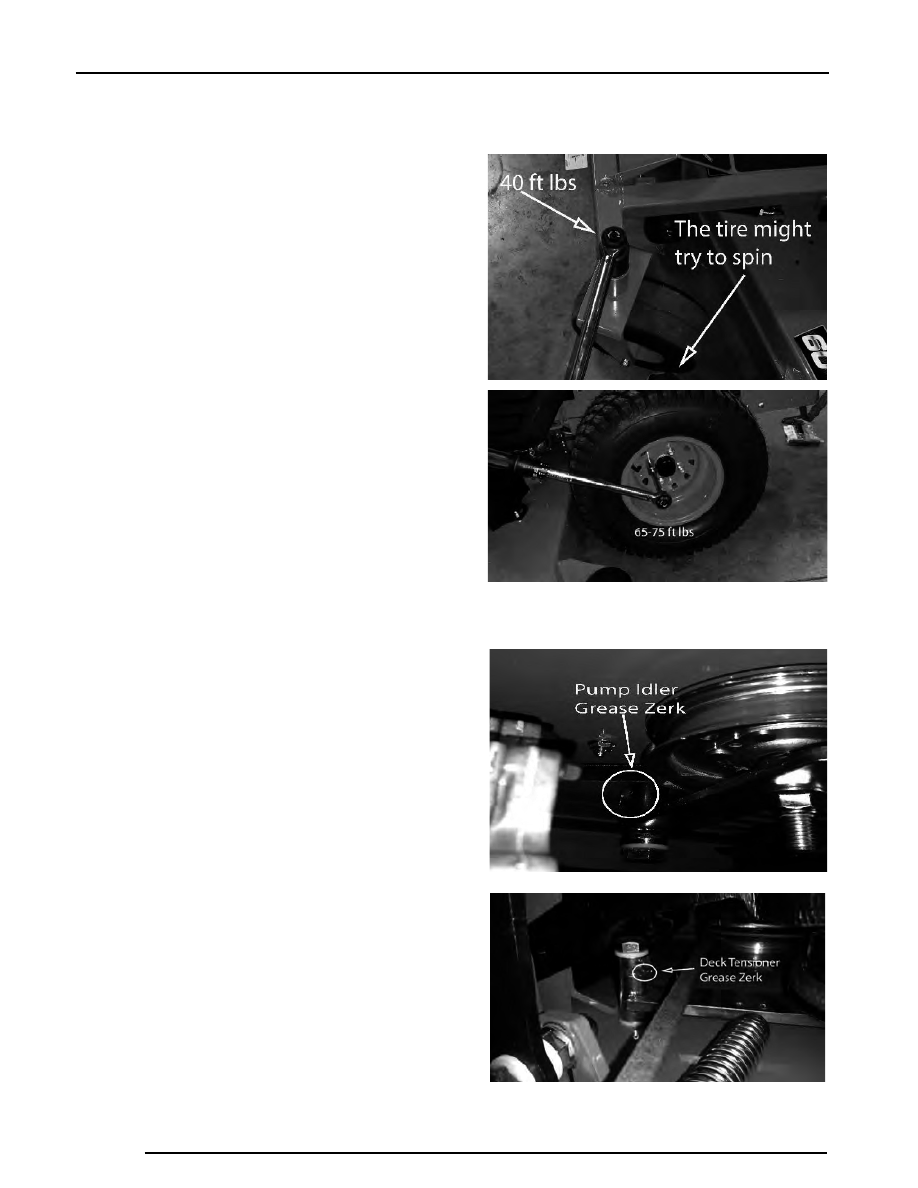

The front fork nuts require a torque of 40ft-lbs.

While applying this torque, turn the fork itself to

ensure no damage is done to the bearing. This

operation is only necessary if a repair requires it.

Torque rear wheel lugs to 65-75 ft. lbs. Re-torque

at every oil change and check at every mowing.

The front forks each have a grease zerk. The

actuator bar has two grease zerks and should be

greased  at every oil change.

The pump belt tensioner is located under the

engine and has a grease fitting at its pivot point.

Grease at every engine oil change.

The  deck  belt tensioner is located at the rear of the

deck and has a grease fitting on its pivot point.

Grease at every engine oil change.

PAGE

27

SECTION 6: CUTTING DECK

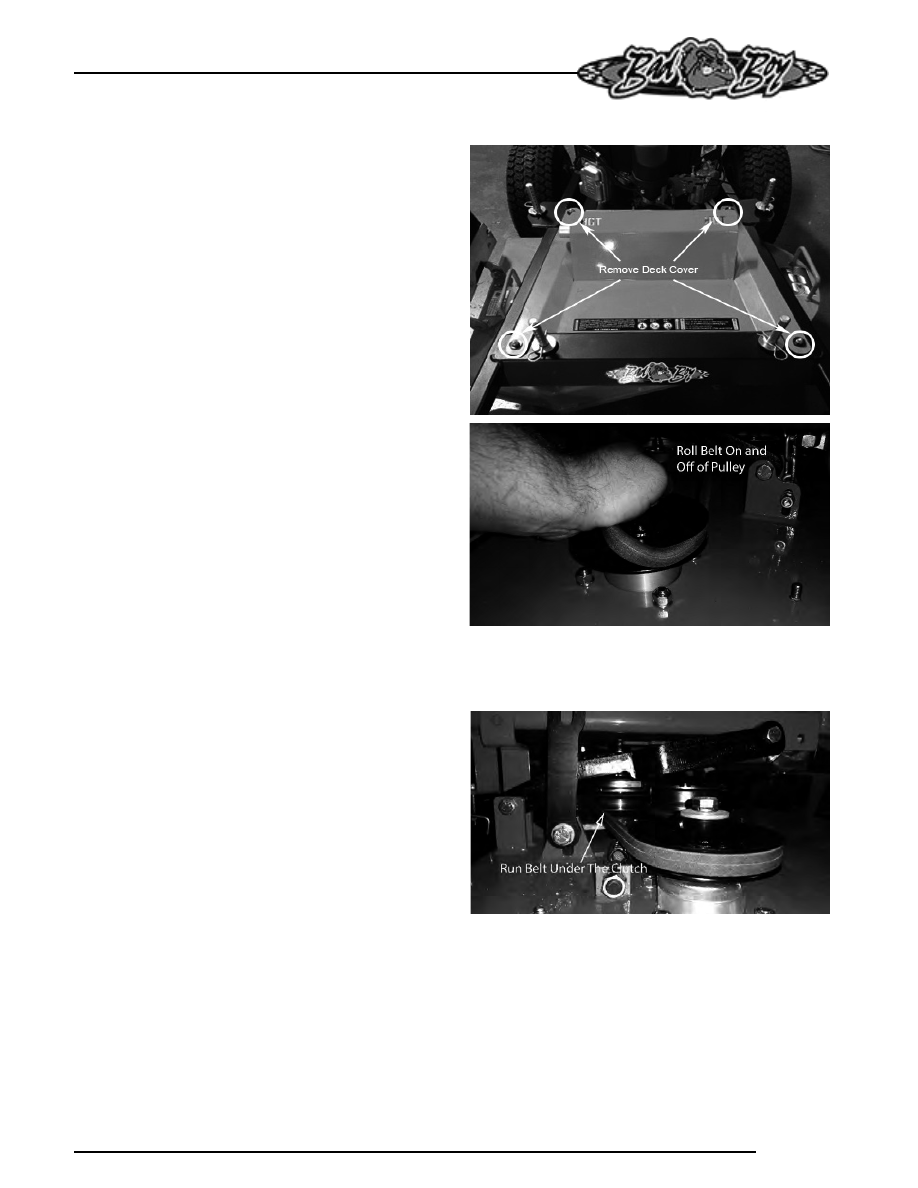

DECK BELT REMOVAL:

1. Remove ignition key.
2. Raise the deck to its highest position.
3. Remove the deck cover.
4. While lifting up on the belt (as shown in the

photograph), rotate the pulley until the belt is
free of the pulley. Exercise caution while
performing this step as fingers can easily
become caught between the belt and pulley.

DECK BELT INSTALLATION:

1)

Follow steps 1 and 2 from the deck removal
section.

2)

Take off deck covers and route the belt by
following the belt route sticker.

3)

The easiest way to finish running the
belt is routing the belt through the deck
pulleys and carefully slipping the belt
onto the clutch in the rear of the engine.

4)

Verify that the belt is routed properly as
improper routing can damage the spindles as
well as the engine.

PAGE

28

LEVELING THE DECK:

1)

Make sure that each tire is at 12PSI.

2)

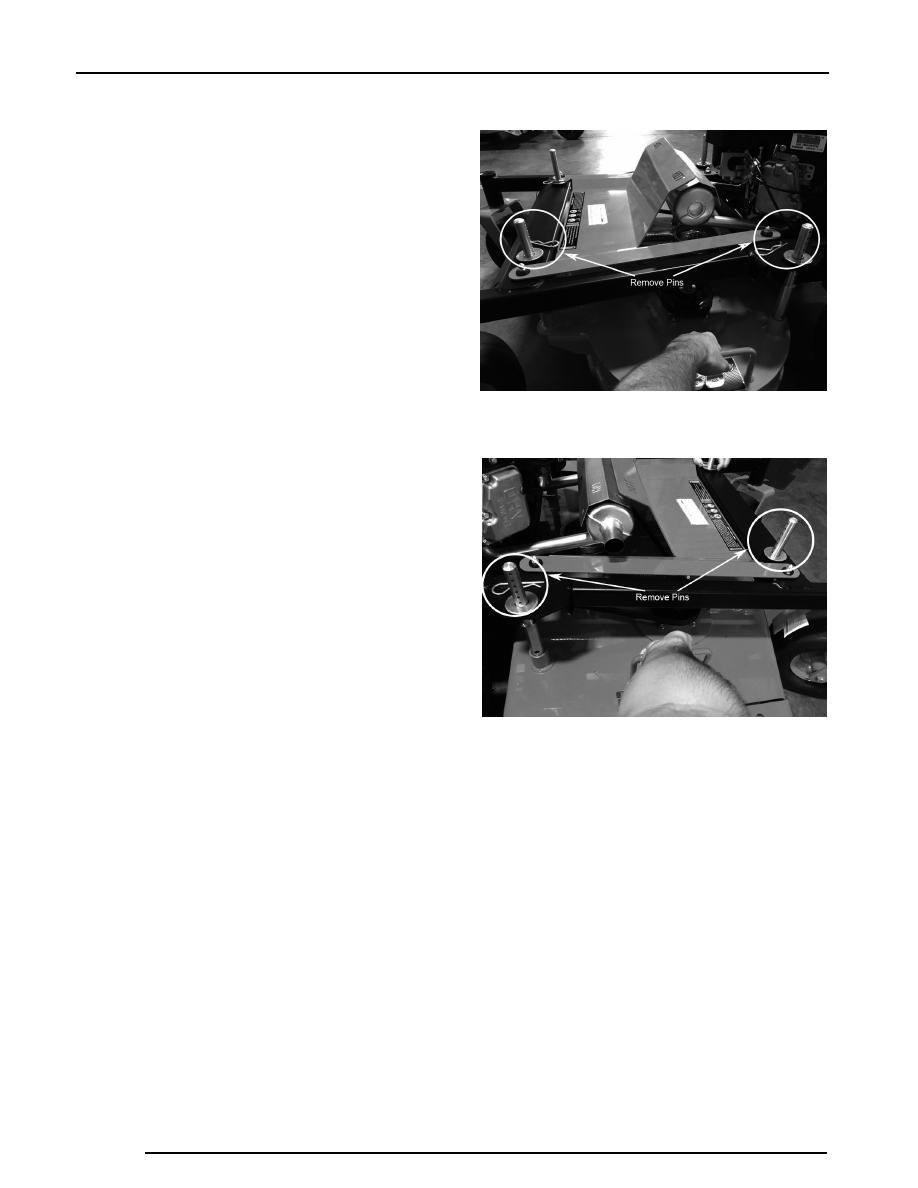

Remove pins from deck height adjustment rods
and raise or lower deck to desired height by
using the handles located on each side of the
deck.

3)

Once the desired deck height is achieved,
replace the pins back in the deck height
adjustment rods making sure that all four pins
have the same number of empty holes above
and below.

4)

Verify that the deck is level .  A 1/4" pitch is built
into the deck.
