BBM OUTLAW WALK BEHIND MODEL ZERO-TURN MOWER. Manual - part 6

PAGE



21

SECTION 2: DRIVE BELT

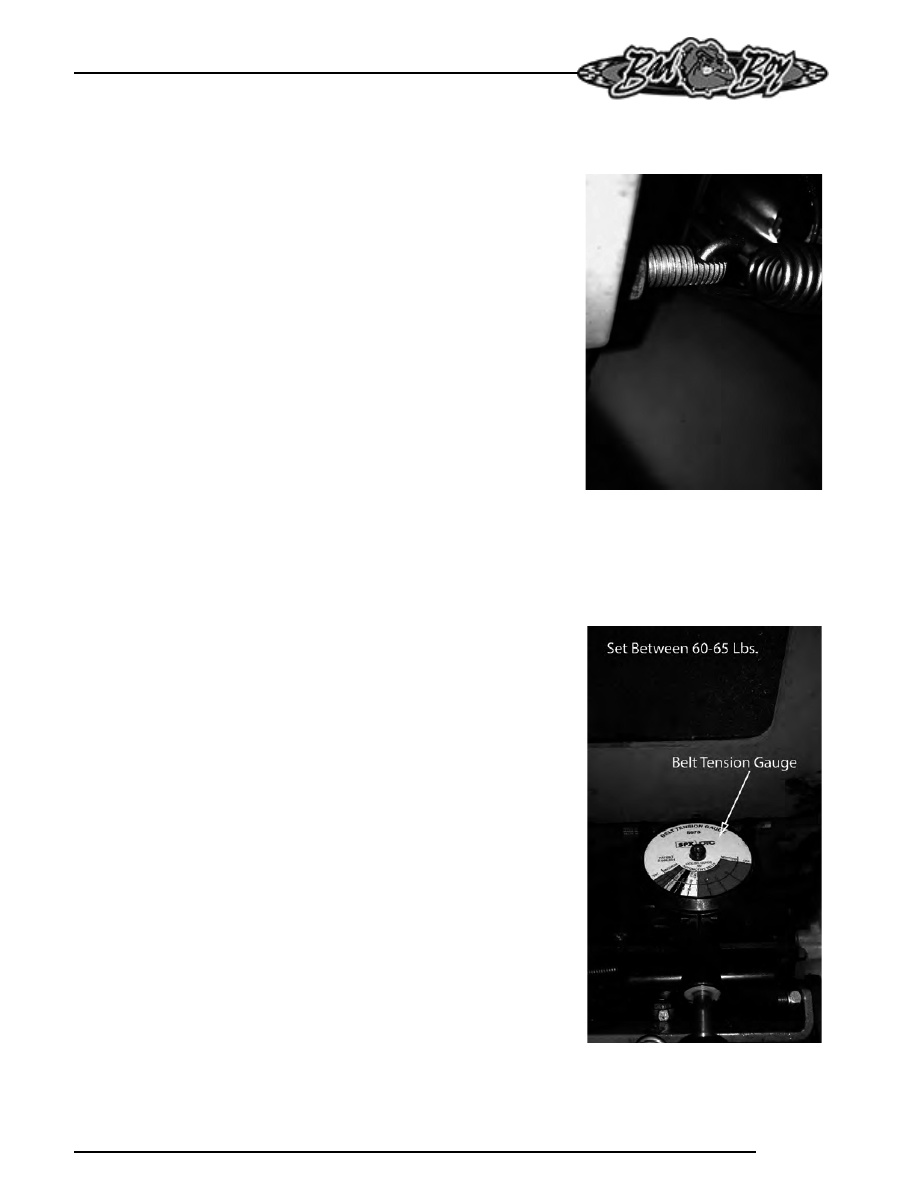

Shown on the right is a typical pump belt tensioner for
your model mower. This is how you can adjust the
pump belt tension on your mower. There are two jam
nuts on an all thread that need to be adjusted in
ordered to change the tension in the spring.

Use a ¾” wrench and a deep socket in order to loosen
the two nuts. Tighten the outside nut if more belt
tension is desired and loosen the outside nut if less belt
tension is desired.

The pump belt tension should be set between 60-65
lbs. This should be measured with a belt tension
gauge. Your dealer or service center will have a belt
tension gauge or you can buy one (Part Number
041-9999-00).

PAGE

22

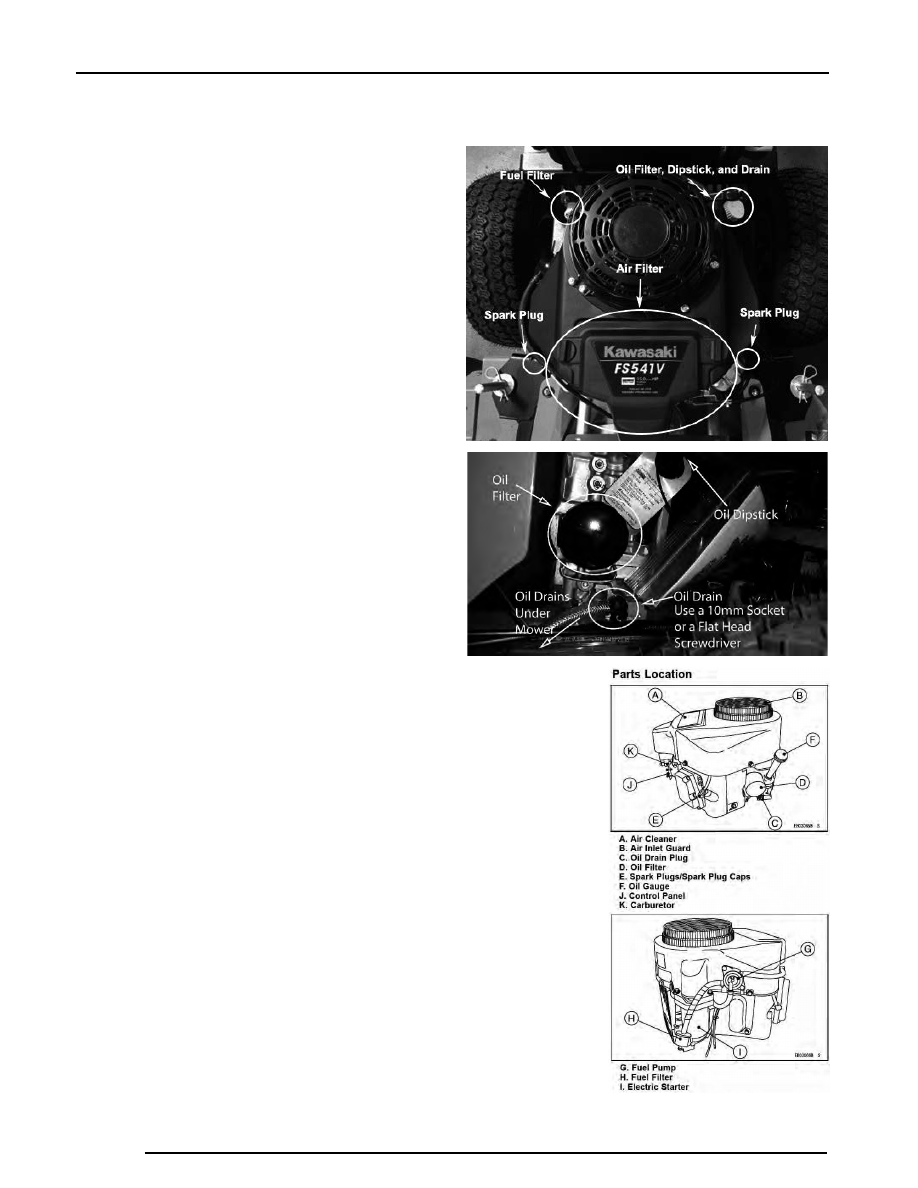

SECTION 3: ENGINE

Kawasaki FS541V

This machine has an oil drain hose installed on the
engine to allow for easier oil changes. Bad Boy
recommends that the oil and filter be changed after the
initial 8 hrs of use, and at intervals of 50 usage hours or
yearly, whichever occurs first after that. The oil capacity
is 2 quarts. Bad Boy 10W-30 synthetic blend engine oil is
recommended for maximum protection.
3.1 Changing your engine oil and oil  filter :

1) Remove oil dipstick and open oil drain using a

10mm socket or a flat head screwdriver until oil

begins flowing. Allow oil to completely drain.

(Make

sure to have an oil pan ready to capture old oil

and properly dispose old oil.)

2) The oil filter is located on the right side of the

engine. Clean area around oil filter. Place a

container under the oil filter to capture any oil

and remove

filter. Wipe off mounting surface and· reinstall

drain plug. Torque to 10 ft.*lb.

3) Place new filter in shallow pan with open end up.

Fill with new oil until oil· reaches the bottom of

the threads. Allow 2 minutes for oil to be

absorbed

by filter material.

4) Apply a thin film of clean oil to rubber gasket on

new filter.

5) Refer to instructions on oil filter for proper

installation.

6) Fill crankcase with approximately 2 quarts of

new oil. Level should be at top of indicator on

dipstick.

7) Reinstall oil fill/dipstick and tighten securely.

8) Start engine; check for oil leaks. Stop Engine;

correct oil leaks. Recheck oil level.

9) Dispose of used oil and filter in accordance with

local ordinances.·

PAGE 23

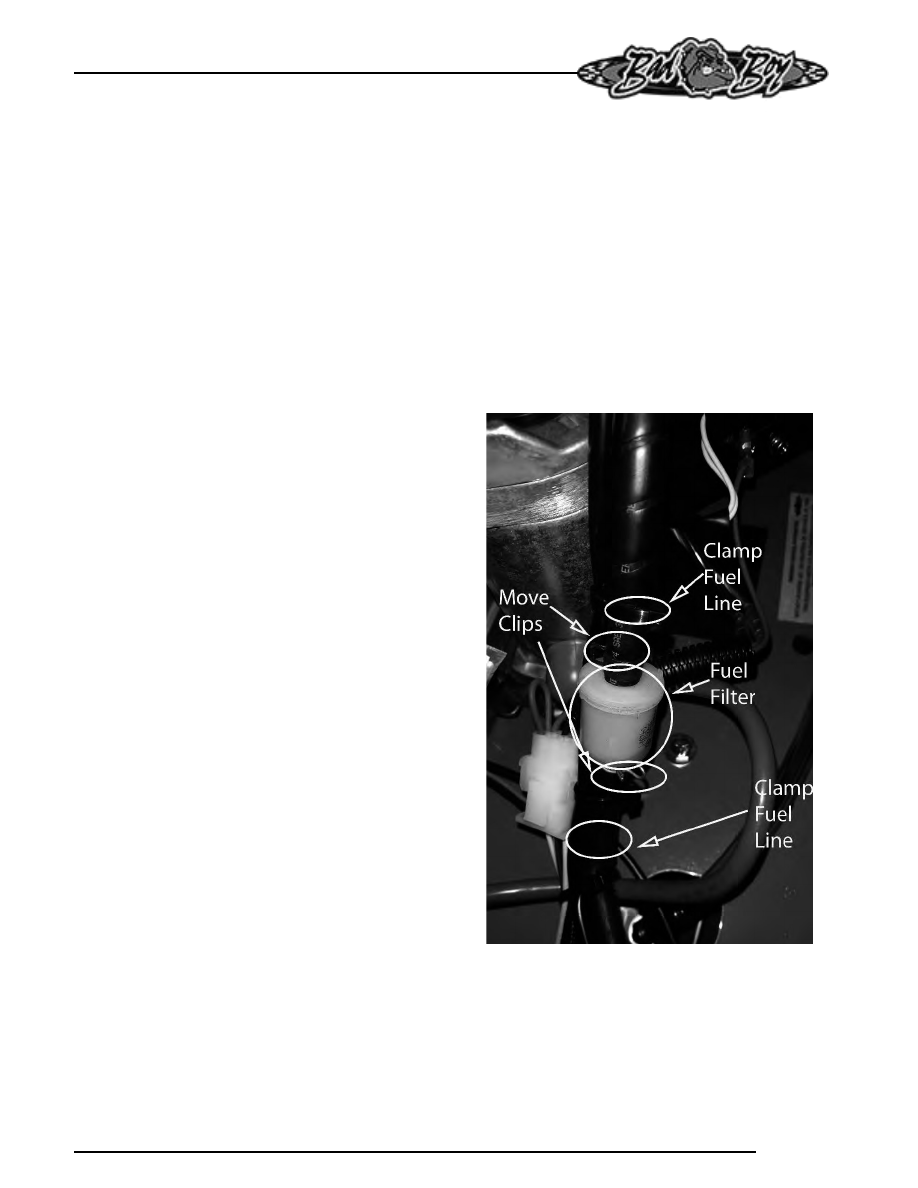

The fuel filter is located in the fuel line, on the left side of
the engine, by the starter motor. Replace the filter
yearly. Prior to the removal of the old filter, note the
direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage.  Always use new hose clamps and ensure
the security of the new filter by lightly pulling on each
hose. Always perform maintenance outdoors or in a well
ventilated area. Do not smoke or allow any open flames
in the vicinity of any maintenance activities.

3.2 Changing your fuel filter:

1) Locate your fuel filter and mark the direction it is

facing.

2) Clamp each side of the fuel filter to minimize and

gas spills.

3) Remove the clips from each side of the fuel filter

and remove the fuel filter.

4) Place the new fuel filter in the same direction as

the old and place clips back into place and
remove clamps.

PAGE

24

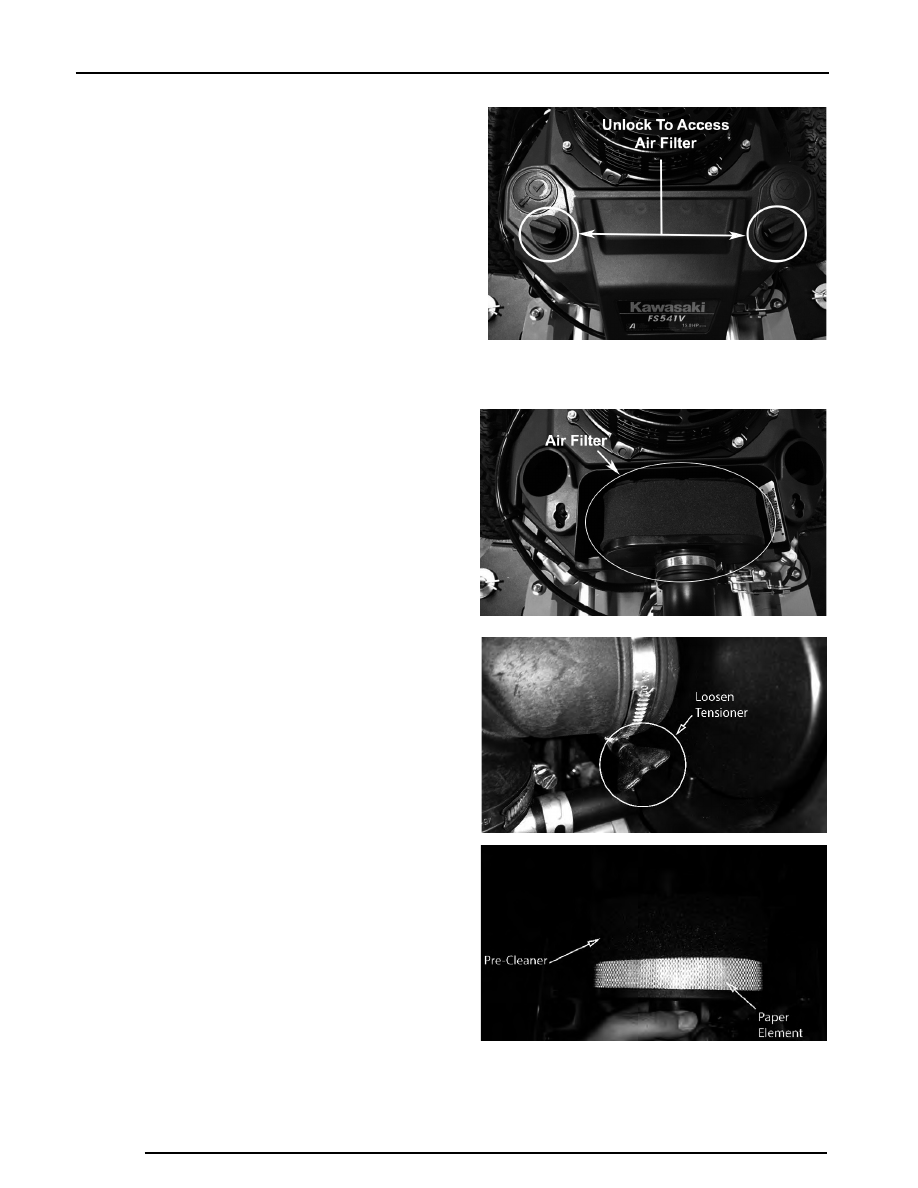

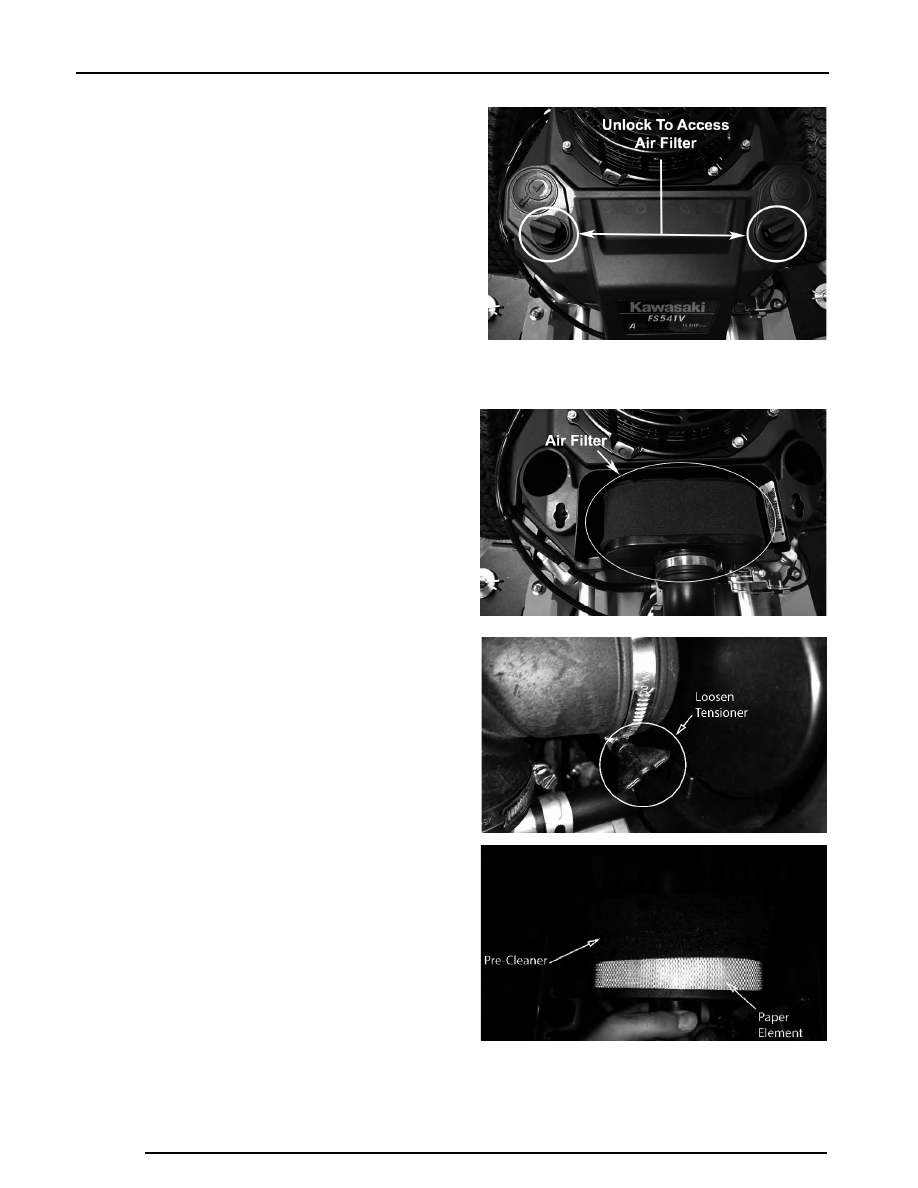

The air cleaner is the engine’s only defense against
damaging foreign particles. It is very important that the air
cleaner element is inspected prior to each use. Remove the
element and tap its sides in order to remove debris. Do not
blow the filter out using compressed air. Doing so will greatly
reduce the air cleaner’s effectiveness. Replace yearly,;
more often in dusty environments. Adhering to these
practices will help prevent loss of power and premature
engine failure.



3.3 Changing the air cleaner:

1)

Unlock the air cleaner cover and remove to

access the air cleaner.

2)

Remove the paper element and precleaner.

3)

Replace or wash precleaner in warm water

with detergent. Rinse and allow to air dry.

4)

Lightly oil precleaner with new engine oil;

squeeze out excess oil.

5)

Replace paper element and place precleaner

onto new paper element.

6)

Install onto base, replace cover,and lock into

place.
