BBM MAVERICK MODELS ZERO-TURN MOWER. Manual - part 10
PAGE
37

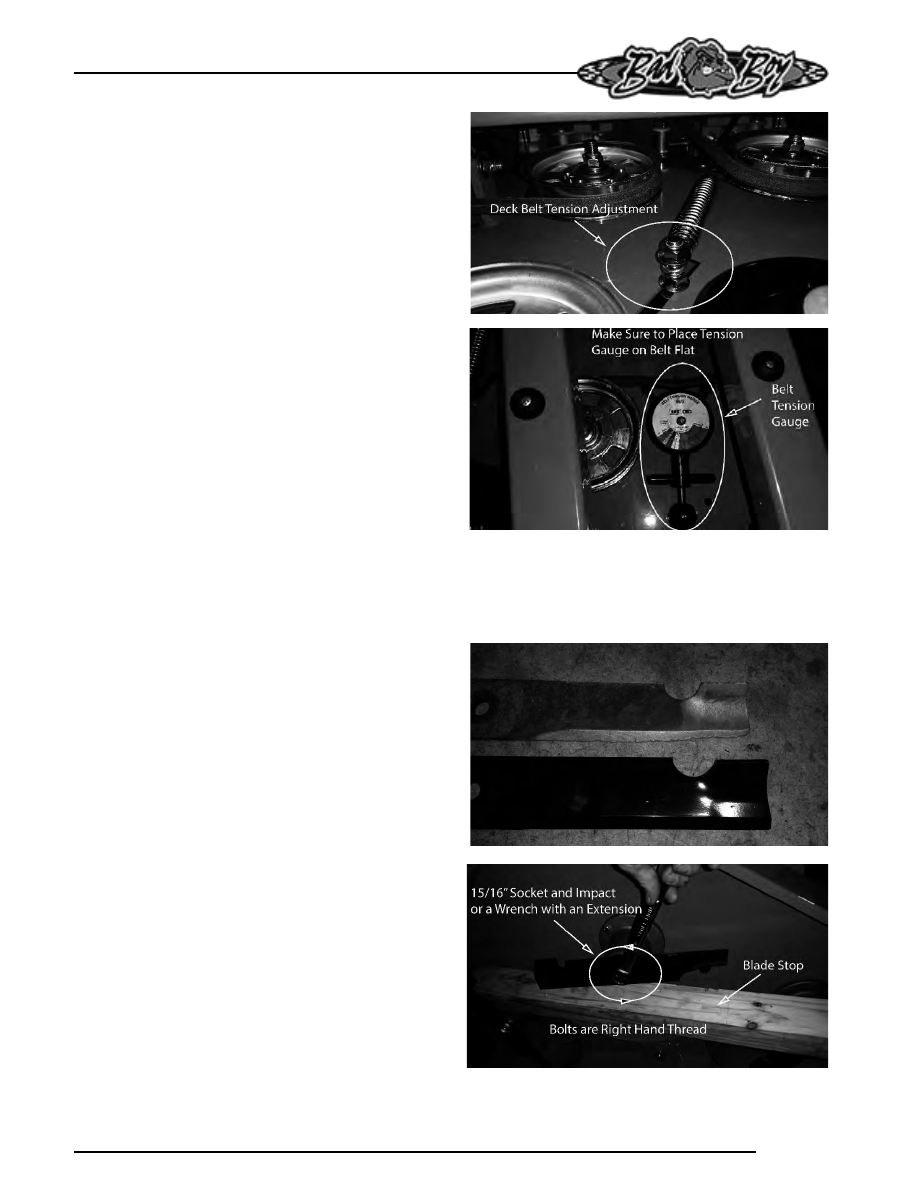

The deck spring tension is critical. If the tension is too
high, premature failure of the deck belt and blade
spindles can occur. If the tension is too low, the belt
can ‘jump off’ or slip on the pulleys. This results in
reduced cut quality and early belt failure
Spring tension adjustments can be made by sliding the
bolt shown above forward or backward in the slot of the
deck. Belt tension should be 60-65 lbs. for the 48” and
54” decks and 65-70 lbs. for the 60” deck, with the
deck at its lowest setting.
Use a belt tension gauge to ensure the proper tension.
Your dealer or service center will have a belt tension
gauge or you can buy one (Part Number 041-9999-00).
BLADE SHARPENING:
The blade in the foreground (see photo) was utilized
long after replacement was required. In addition to a
decline in cut quality, failure to replace a worn or
damaged blade creates a major safety hazard. Bad
Boy recommends that blade sharpening be performed
by a professional.
