BBM MAVERICK MODELS ZERO-TURN MOWER. Manual - part 8

PAGE

29

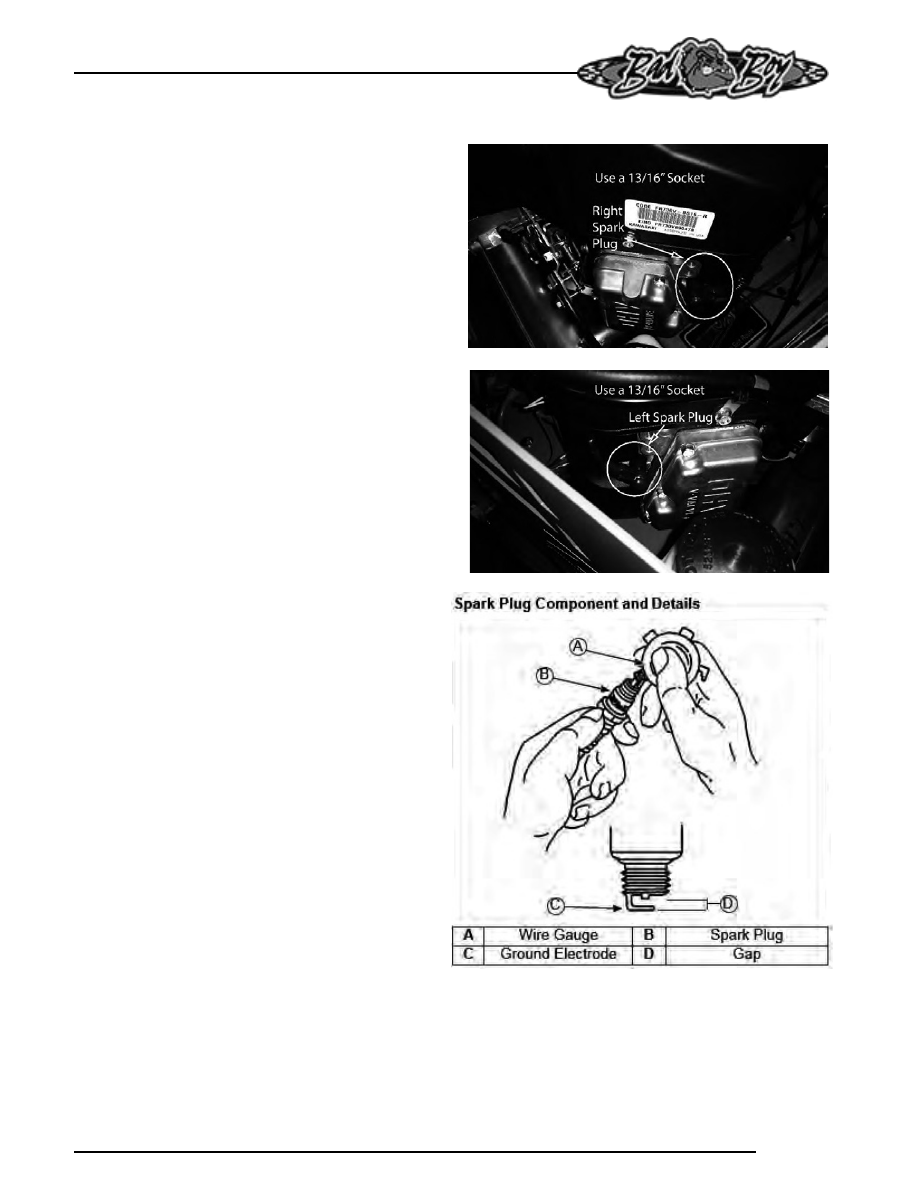

3.4 Changing the spark plugs and checking the spark plug gap:



1)

Remove the wire on the spark plug and use a

13/16” socket to remove the spark plug.

2)

Check the gap on the spark plug to verify that

it is 0.03 in using a feeler gauge.

3)

If the spark plug is worn, overheated, wet or

carbon fouled replace the spark plug.

4)

Install the plug into cylinder head and torque to

16 ft.-lbs. Be careful not to overtighten the

spark plug.

PAGE

30

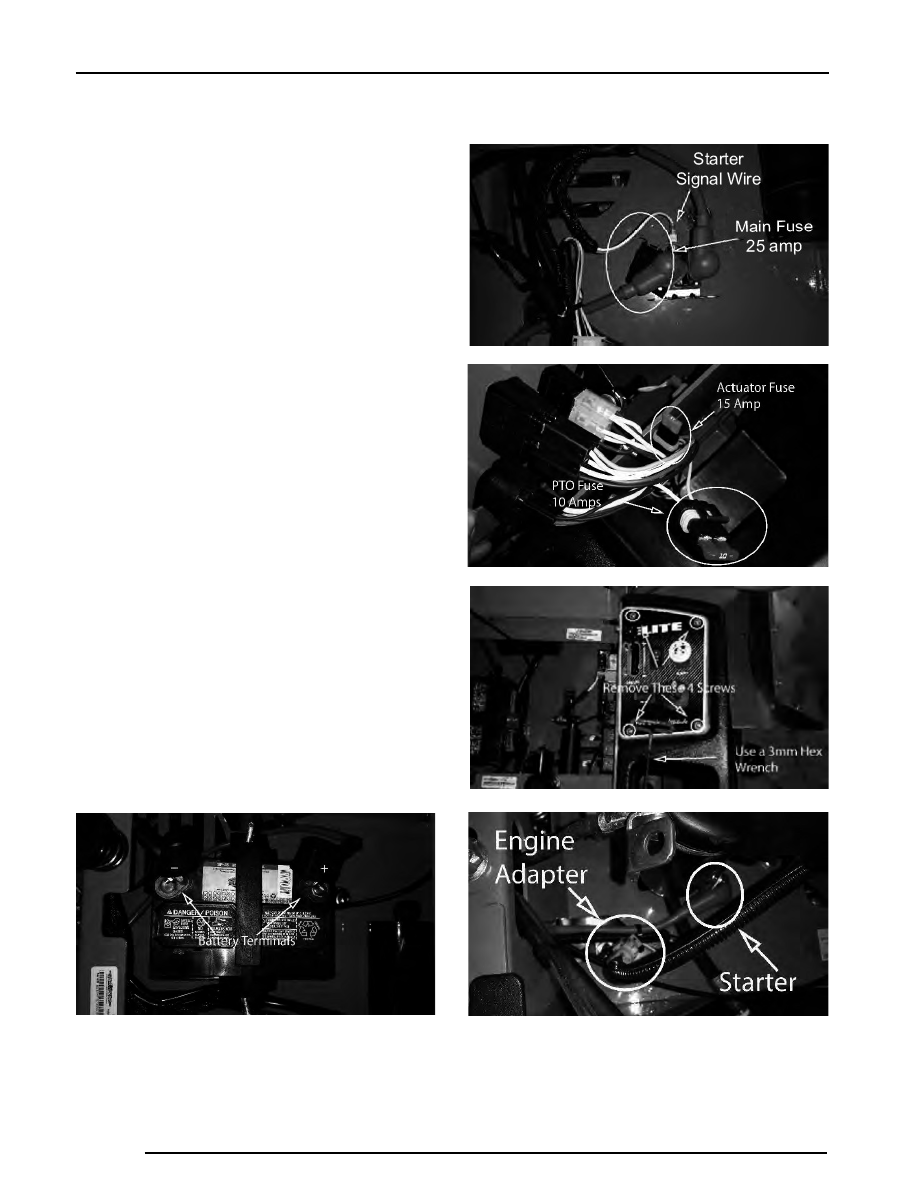

SECTION 4: ELECTRICAL SYSTEM

This mower is equipped with three protective fuses:

•

25 amp main fuse (pictured to the right).

•

15 amp linear actuator fuse (deck lift)

•

10 amp clutch fuse (blade engagement)

The 25 amp main fuse is located on the left side of the

unit, by the starter solenoid.  The 15 amp actuator and

10 amp clutch fuses are located just underneath the

control panel.  You will need to remove the four screws

that hold the control panel to the tank using a 3mm or

1/8" hex wrench.

A blown fuse usually indicates a problem within the

electrical system or an electrical component,  Ensure

the battery terminals are tightly fastened. Never

replace a fuse with one of a higher amperage rating or

"bypass" a fuse in anyway.  Doing so creates a

significant fire hazard and can cause severe damage

to the mower's electrical components.  If a fuse is

repeatedly blowing, contact your Bad Boy Dealer.

on most models, the red wire coming out of the engine

is the charging wire from the alternator. Check for

13.6-14-2 volts dc at this wire with engine at full

throttle.

If you are having issues starting your mower ensure

the signal wire is connected to your starter solenoid

PAGE

 31

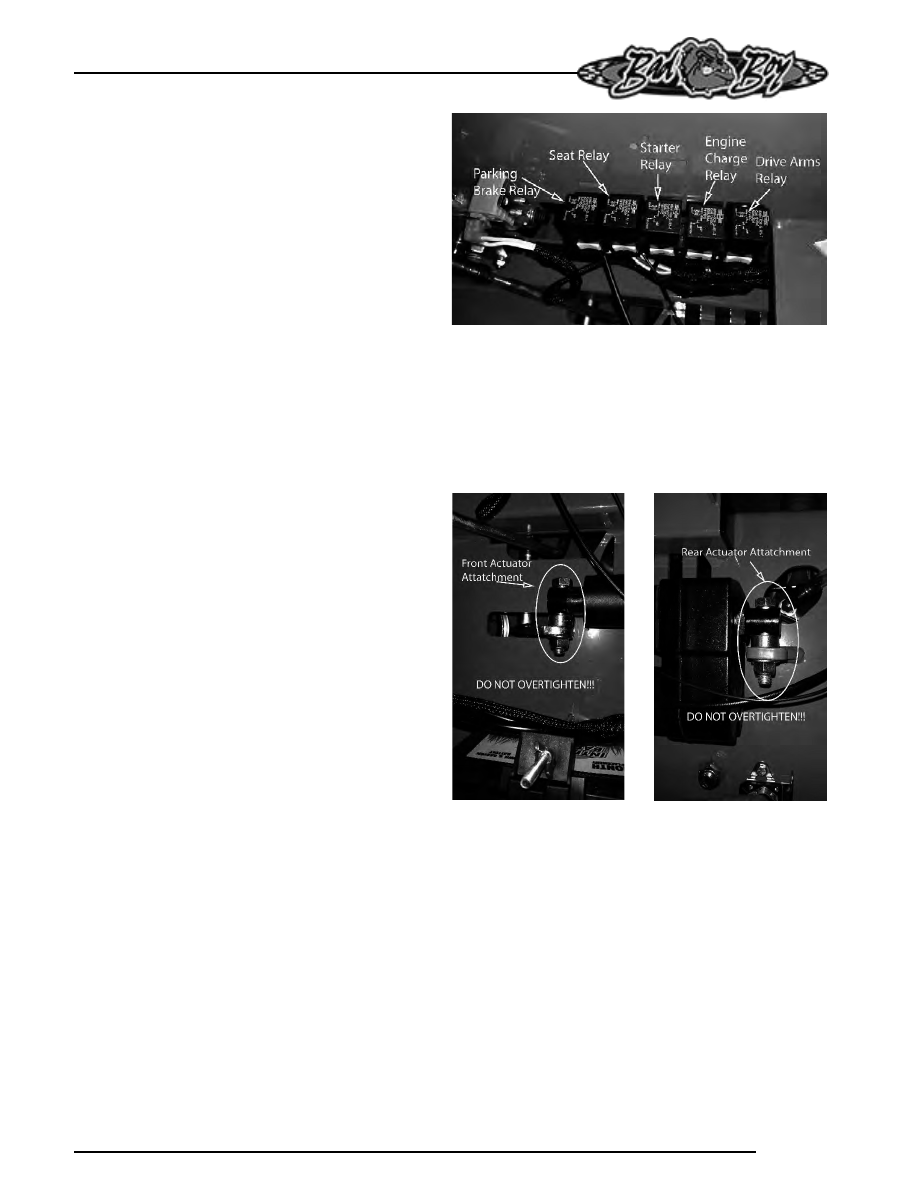

Check the condition and connection of the relays
located under the control panel. Ensure that they are
clean and connected. Make sure that wire terminal
ends have not been pushed out of the relay block.



The linear actuator is the mechanism that raises and
lowers the deck. If it ever starts to make noise when
raising and lowering the deck you might find it
necessary to tighten the nuts and bolts on the front and
rear of the actuator. Be careful not to overtighten these
as you can damage the actuator. Also if your actuator
ever stops working make sure to check the fuse under
the control panel as shown on the previous page.
