COMPACT OUTLAW MODEL ZERO-TURN MOWER. Manual - part 6

PAGE

21

SECTION 2: DRIVE BELT

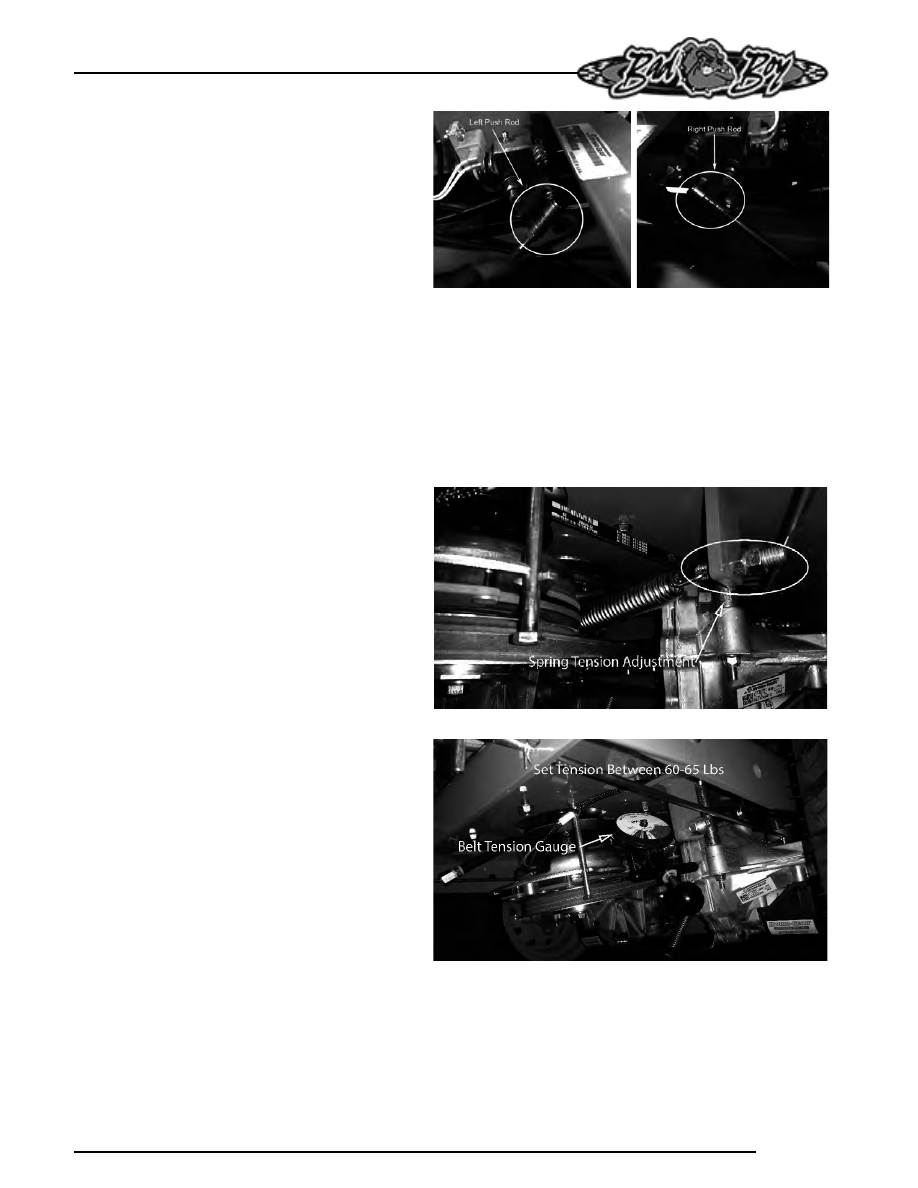

Shown on the right is the tensioner for your pump
belt. Adjusting this will either increase or decrease
tension on the belt. Use a ¾” wrench to loosen the
jam nuts and either tighten for more belt tension or
loosen for less belt tension.

The belt tension should be set between 60-65
lbs.

Use a belt tension gauge to ensure the proper
tension. Your dealer or service center will have a
belt tension gauge or you can buy one (Part Number
041-9999-00).

When adjusting the tracking on the mower, the

length of the pushrods can be changed by

screwing the swivel joint in or out on the ends of

the rods.  Shortening the overall length of the rod

slows the pump down.  Lengthening the rod will

increase the speed of the pump.

PAGE



22

SECTION 3: ENGINE

810cc Vanguard



This machine has an oil drain hose installed on the
engine to allow for easier oil changes. Bad Boy
recommends that the oil and filter be changed after
the initial 8 hrs of use, and at intervals of 50 usage
hours or yearly, whichever occurs first after that. The
oil capacity is 2 quarts. Bad Boy 10W-30 synthetic
blend engine oil is recommended for maximum
protection.

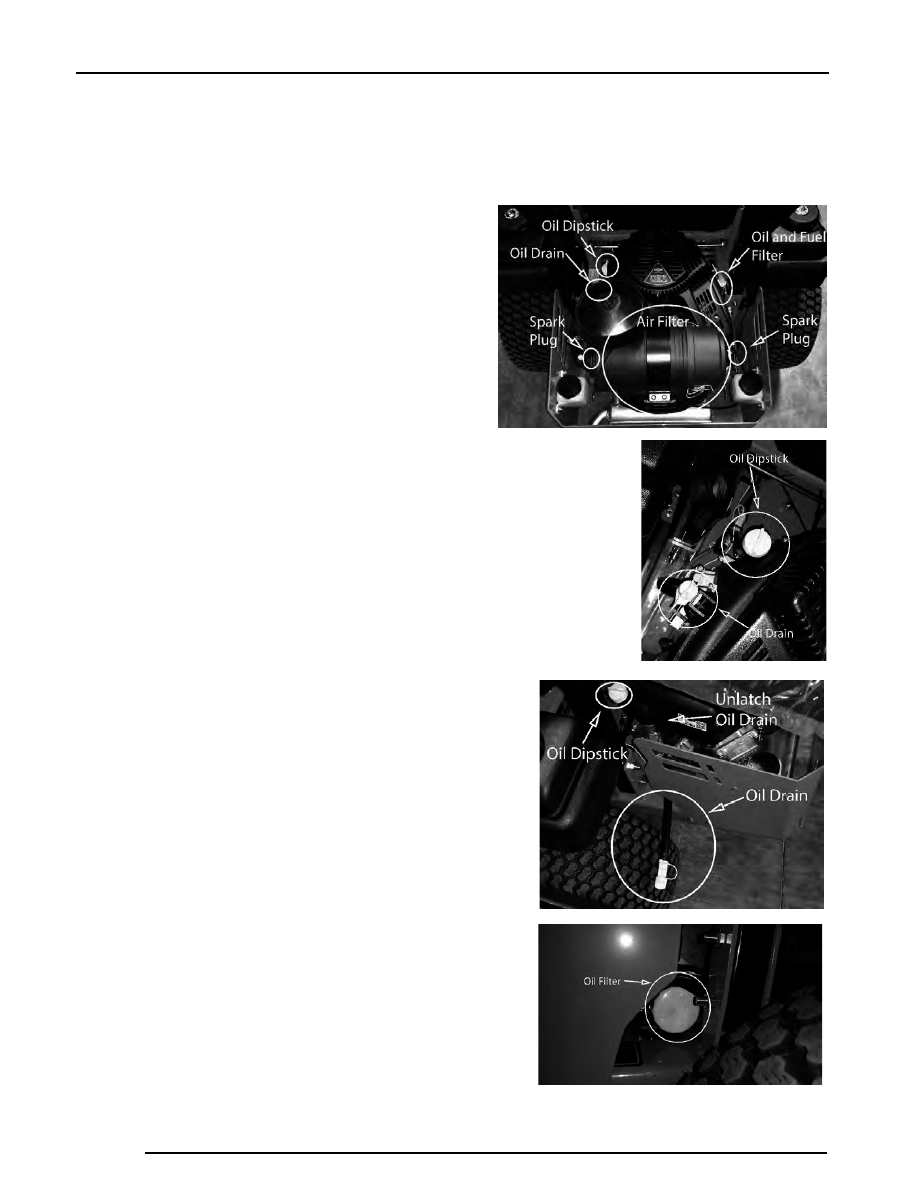

3.1 Changing your engine oil and oil filter :

1) Remove oil dipstick and open oil drain. Allow

oil to completely drain. (Make sure to have an
oil pan ready to capture old oil and properly dispose of old
oil.)

2) The oil filter is located on the right side of the engine. Clean

area around oil filter. Place a container under the oil filter to
capture any oil
and remove filter. Wipe off mounting surface
and reinstall drain plug. Torque to 10 ft-lb.

3) Place new filter in shallow pan with open end up. Fill with

new oil until oil reaches the bottom of the threads. Allow 2
minutes for oil to be absorbed by filter material.

4) Apply a thin film of clean oil to rubber gasket on new filter
5) Refer to instructions on oil filter for proper installation.
6) Fill crankcase with approximately 2 quarts of new oil. Level

should top of indicator on dipstick.

7) Reinstall oil fill/dipstick and tighten

securely.

8) Start engine; check for oil leaks. Stop Engine; correct oil

leaks. Recheck oil level

9) Dispose of used oil and filter in accordance with local

ordinances.

PAGE

23

The fuel filter is located in the fuel line about 12˝ from the
carburetor on the side of the engine. Replace the filter
yearly. Prior to the removal of the old filter, note the
direction of fuel flow as indicated on the filter. Have
towels readily available in order to quickly remove any
fuel leakage. Always use new hose clamps and ensure
the security of the new filter by lightly pulling on each
hose. Always perform maintenance outdoors or in a well



ventilated area. Do not smoke or allow any open flames
in the vicinity of any maintenance activities.

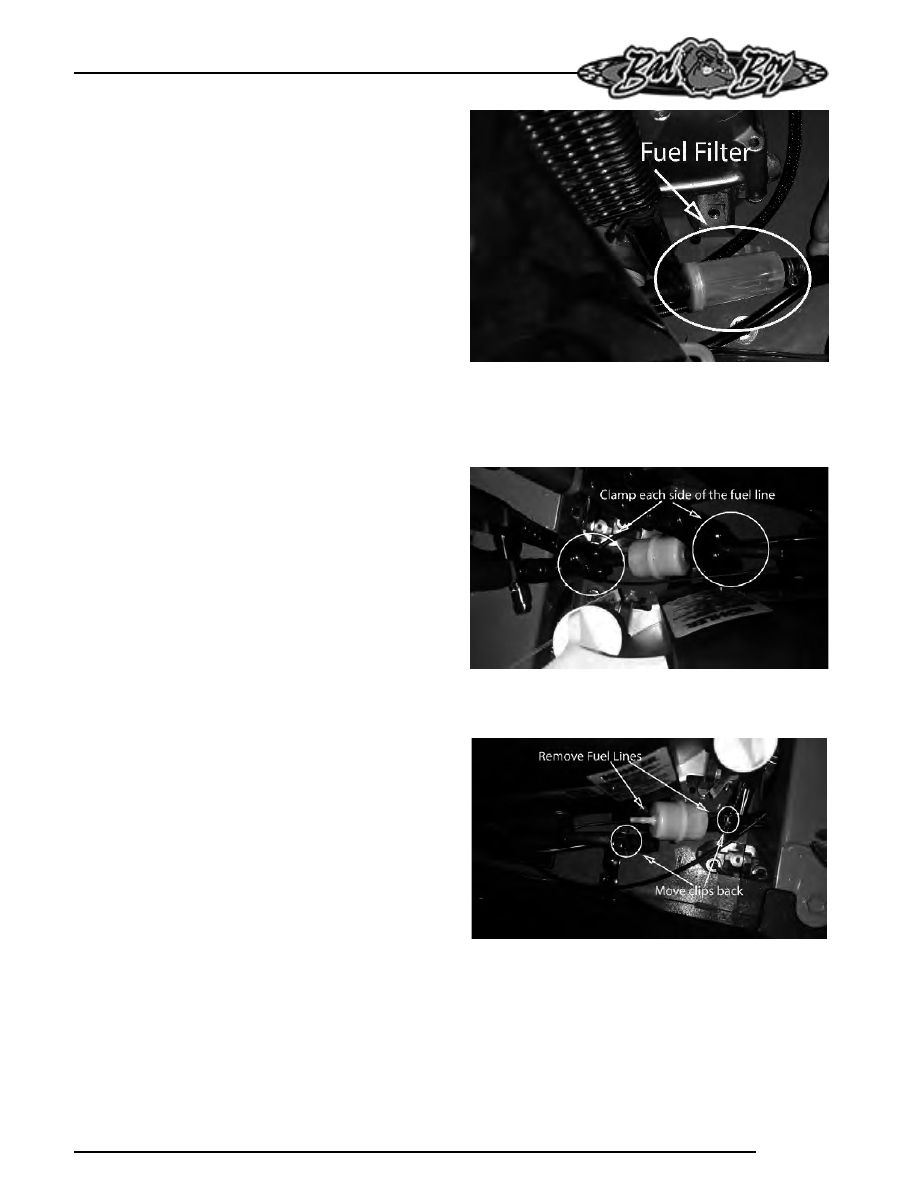

3.2 Changing your fuel filter :

1) Locate your fuel filter and mark the direction it is

facing.

2) Clamp each side of the fuel filter to minimize any

gas spills.

3) Remove the clips from each side of the fuel filter

and remove the fuel filter.

4) Place the new fuel filter in the same direction as

the old one and replace the clips back into

position and remove clamps.

PAGE



24

The air cleaner is the engine’s only defense against
damaging foreign particles. It is very important that the  air
cleaner element is inspected prior to each use. Remove
the element and tap its sides in order to remove debris. Do
not blow the filter out using compressed air. Doing so will
greatly reduce the air cleaner’s effectiveness. Replace
yearly; more often in dusty environments. Adhering to
these practices will help prevent loss of power and
premature engine failure.



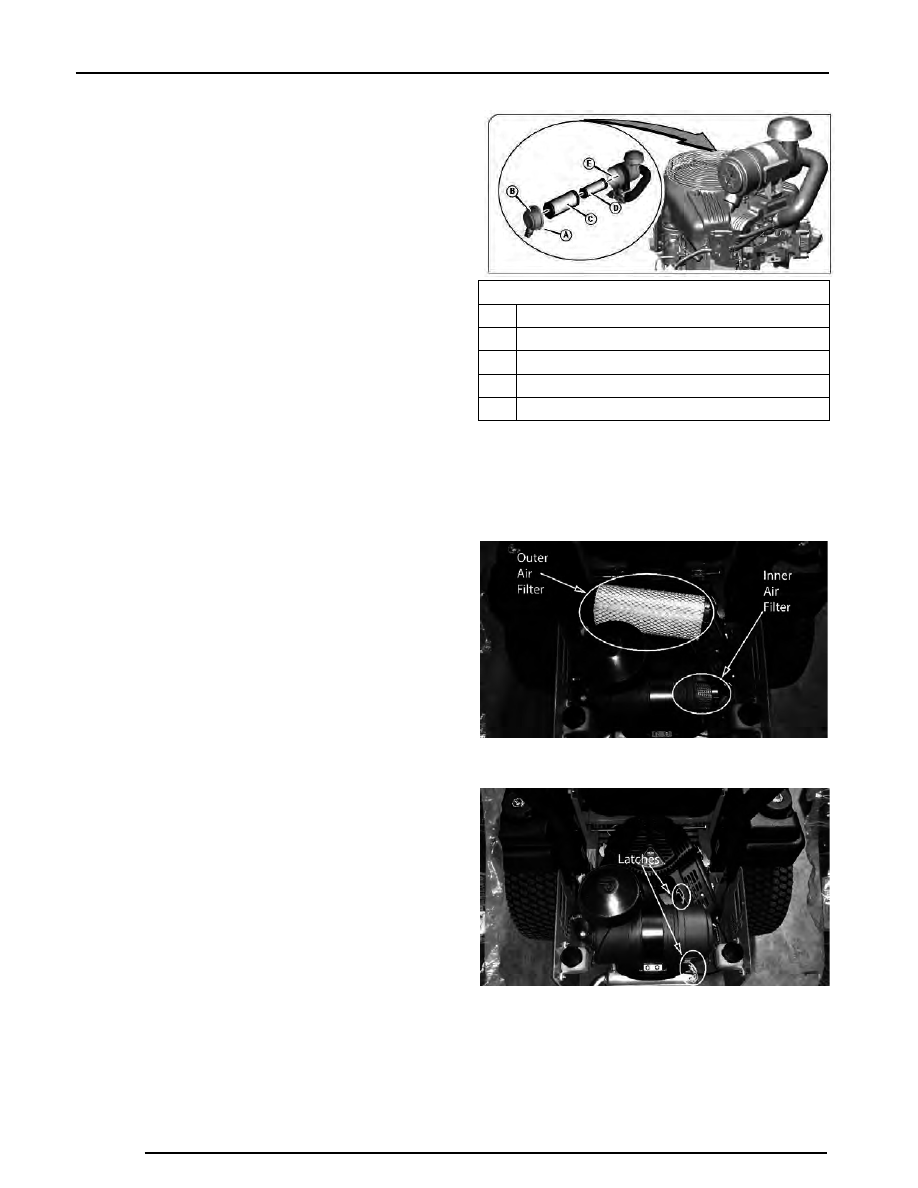

3.3 Changing the air cleaner :

810 Vanguard Air Cleaner Component List

A

Latches

B

Cap

C

Outer Air Filter

D

Inner Air Filter

E

Air Intake

1) Unlock the air cleaner cover and remove to

access the air cleaner.

2) Remove the outer and inner air filters.

3) Replace inner and outer filter then place he

inner filter into the air intake followed by

fitting the outer filter over the inner filter

4) Place cap back on and close the latches.
