1037973 ENGINE BREAKDOWN

6-12

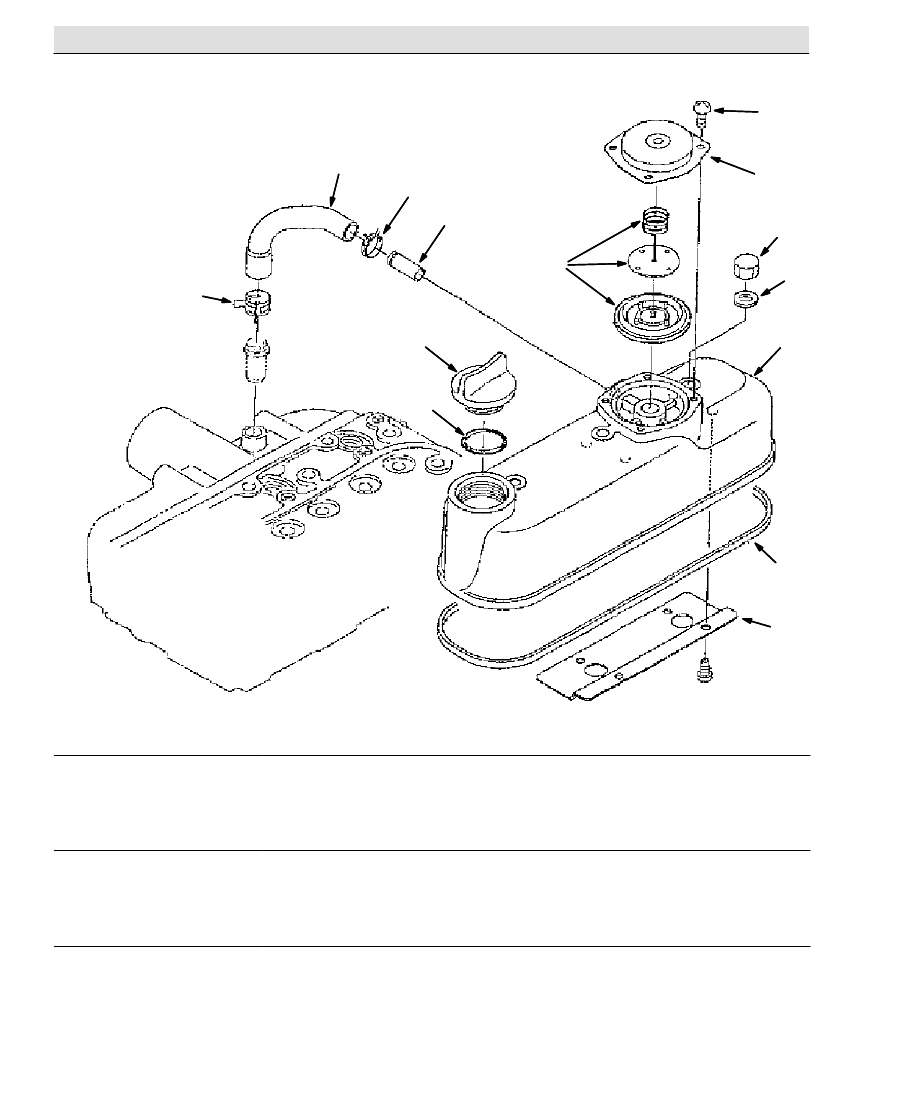

Fig. 7 -- Head Cover Group

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Ref. Part No.

Description

Qty.

o

1

372914

)

Cover Assy, Head, Cyl

1

Y

2

372912

Shield, Breather

1

Y

3

361411

Gasket, Cover, Valve

1

Y

4

372928

Valve, Breather, Complt

1

Y

5

384874

Cover, Breather

1

Y

6

372900

Screw, Pan

4

Y

7

30125

Pipe, Water

1

8

73483

Nut, Hex, Cap

3

9

73484

Gasket, F/Bolt

3

10 372913

Tube, Breather

1

11 372901

Clamp, Hose

1

12 372904

Clamp, Hose

1

13 361374

Cap, Filler, Oil [Ku]

1

14 70913

Seal, Org

1

1037973 ENGINE BREAKDOWN

6-13

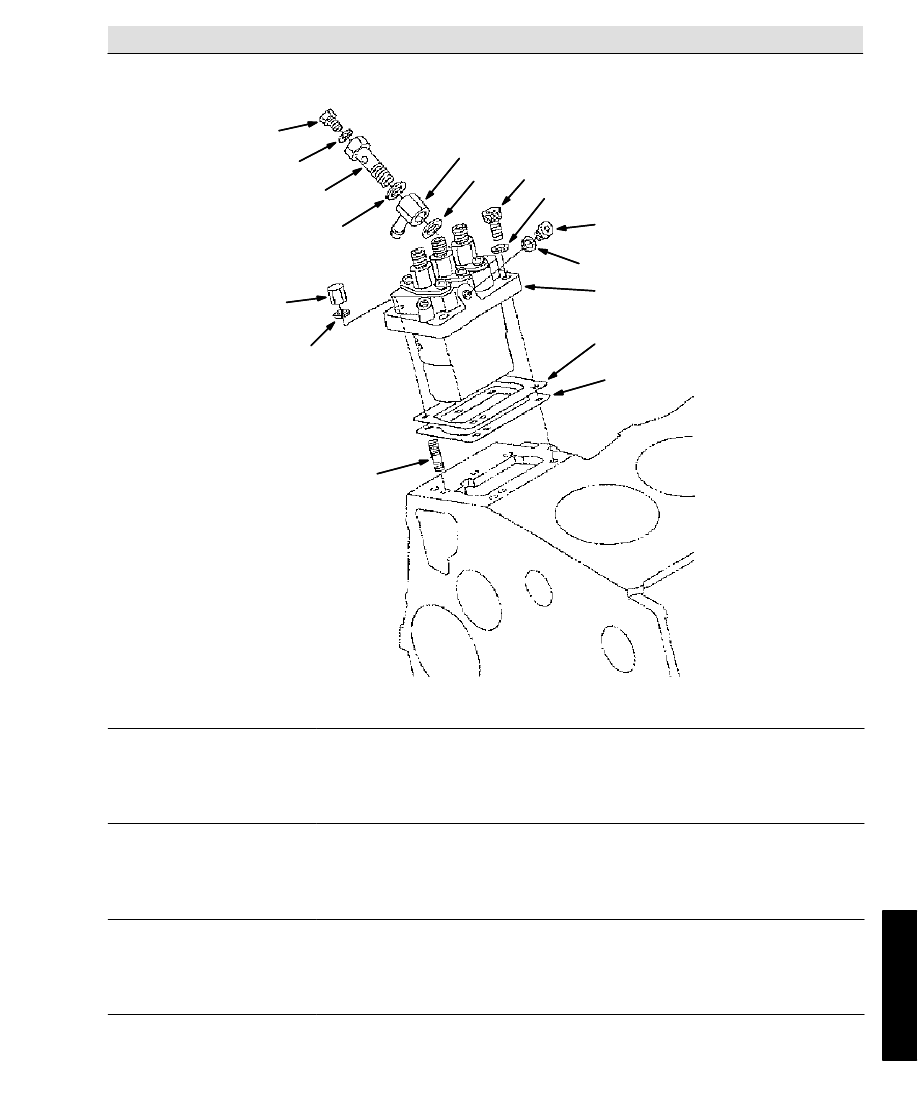

Fig. 8 -- Injection Pump Group

1

2

3

4

5

6

7

8

9

10

13

4

11

12

14

14

Ref. Part No.

Description

Qty.

1

70970

)

Joint, Eye

1

2

361378

Pump Assy, Inj, Fuel (See Injector Pump Breakdown)

1

3

84651

Follower, Screw, Pump, Inj [Ku]

1

4

73588

Gasket, Ftg, Banjo [Ku]

2

5

73589

Screw, Hex [Ku]

1

6

73590

Gasket, F/ Screw [Ku]

1

7

368068

Fitting, Plug, Pump, Inj [Ku]

1

8

368065

Gasket, F/ Screw [Ku]

1

9

9005021

Shim, Injection, 0.175mm [Ku]

1

9

368063

Shim, Injection, 0.20mm [Ku]

1

9

368064

Shim, Injection, 0.25mm [Ku]

1

10 9005022

Shim, Pump, Injection, .35 [Ku]

1

10 361438

Shim, Pump, Inj, .3 [Ku]

1

11 9005023

Bolt, Hex, Soc [Ku]

2

12 73562

Stud [Ku]

2

13 73563

Nut [Ku]

2

14 39065

Washer, Split Loc [Ku]

4

1037973 ENGINE BREAKDOWN

6-14

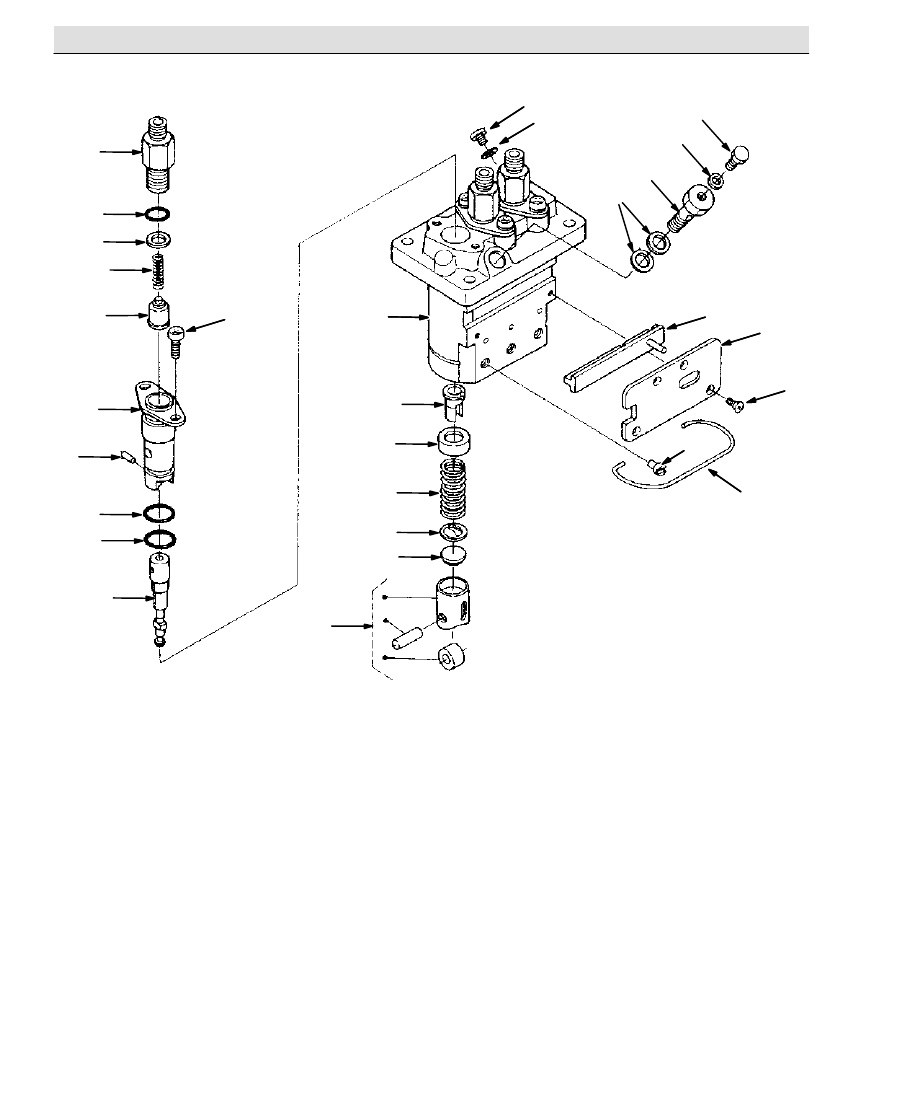

Fig. 9 -- Injection Pump Breakdown

1

3

4

5

6

7

8

9

10
10

2

22

16

15

17

18

12

19

20

21

14

13

24

23

26

25

27

28

11

1037973 ENGINE BREAKDOWN

6-15

Fig. 9 -- Injection Pump Breakdown

Ref. Part No.

Description

Qty.

o

1

361378

)

Assy pump, injection

1

Y

2

84648

Element, pump

1

Y

3

73567

Valve, delivery

1

Y

4

73568

Spring, deliv valve

2

Y

5

73569

Gasket, deliv valve

1

Y

6

73570

Holder, deliv valve

1

Y

7

73571

O ring

1

Y

8

73572

Flange, sleeve

2

Y

9

73573

Pin, joint

2

Y

10 73574

O ring

2

Y

11 73575

Screw

4

Y

12 73576

Assy tappet

1

Y

13 73577

Pin, tappet guide

1

Y

14 368067

Pin, clamp

1

Y

15 73579

Spring,plunger

2

Y

16 73580

Seat, spring upper

1

Y

17 73581

Seat, spring lower

1

Y

18 73582

Shim

1

Y

19 368069

Rack, control

2

Y

20 368066

Plate

2

Y

21 73585

Screw

2

Y

22 73586

Sleeve, control

4

Y

23 84651

Bolt, joint

1

Y

24 73588

Gasket

1

Y

25 73589

Screw

1

Y

26 73590

Gasket

2

Y

27 368068

Plug

1

Y

28 368065

Gasket

1
