All Aboard!





Tsunami2 Diesel User’s Guide



12

Some CVs use individual bits to control multiple features. This allows up to 8 distinct features to
be controlled by a single CV. As the bit variables can take on only one of two values (0 or 1),
they are usually used to control features that are either OFF or ON (i.e., disabled or enabled).

Tip: Think of bits as light switches to turn ON or OFF various features.

Each bit (0-

7) carries a “weight” within the structure of a CV. Beginning with a bit weight of 1 for

bit 0 (located farthest to the right, as CVs are interpreted from right to left) and doubling in value
for each successive bit (i.e., bit 0 = 1, bit 1 = 2, bit 2 = 4, bit 3 = 8, bit 4 = 16, bit 5 = 32, bit 6 =
64., and bit 7 = 128). The sum, or total, of these bit weights represents the value entered into
the CV for programming.

Note: An alternative method to using basic addition would be to compare the bit structure (1s
and 0s) to the table located in Appendix A. In this example we would locate the binary value
00100010 and use the decimal or hex value found next to it when programming the CV.




CV Programming Tool

To make the process of calculating CV values as easy as possible, we’ve included an
interactive CV programming tool with this manual. This tool will calculate the value to be
programmed into any CV based upon the individual bits that have been turned ON or OFF. We
recommend using this tool along with the bit configuration charts found in the Tsunami2 Diesel
Technical Reference
as a guide for programming.

If viewing this document digitally (i.e. computer, tablet or smart phone) you may simply enter a
“1” or “0” into any of the bit fields below. The CV value will automatically be calculated based on
which bits are turned on.

If referencing this manual in print form, write the 1s and 0s in the bit boxes and use the
associated bit weights as a way to manually calculate the value, similar to the example
referenced below.























BIT POSITION  Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

  CV VALUE























ON/OFF

______ ______ ______ ______ ______ ______ ______ ______



________

BIT WEIGHT

128

64

32

16











0

All Aboard!





Tsunami2 Diesel User’s Guide



13

Example

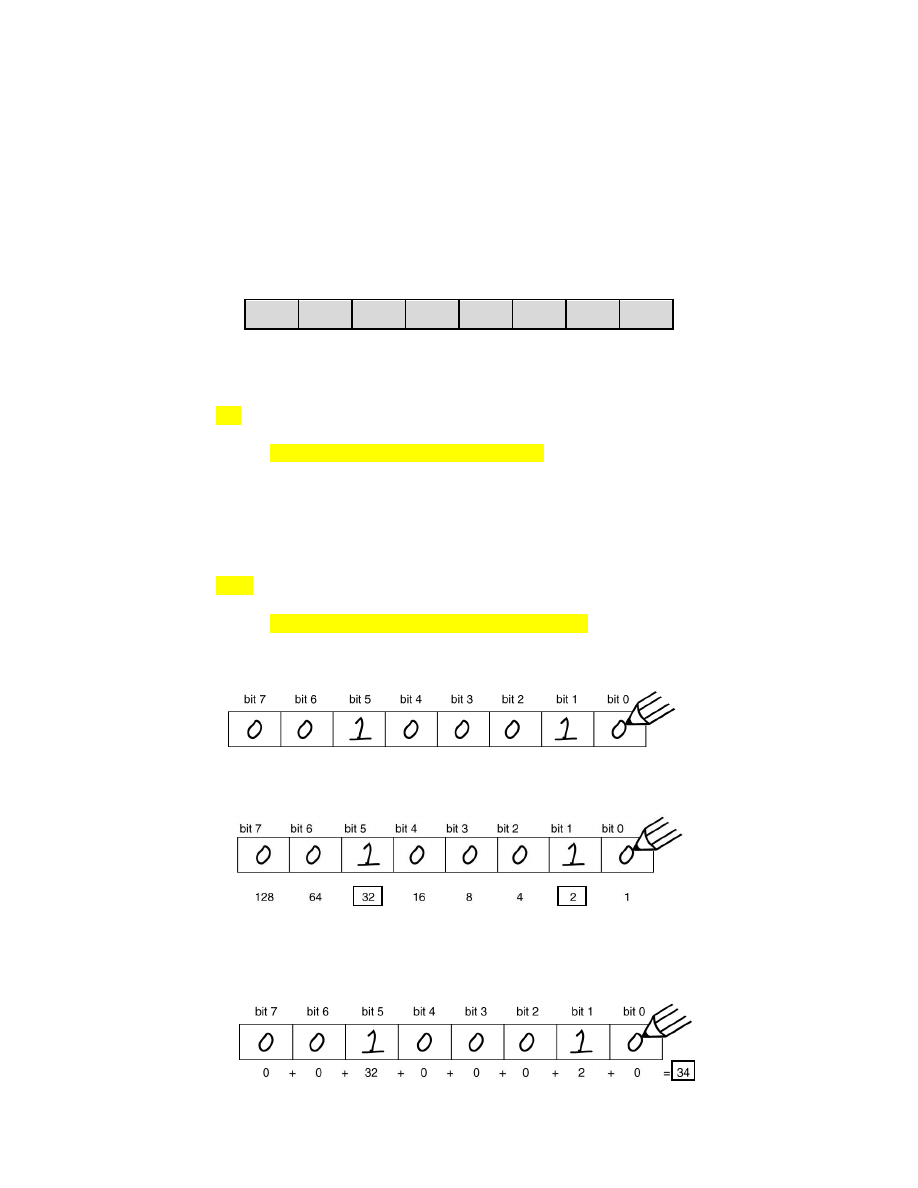

Let’s assume we would like to set CV 29 (Configuration Data 1) so that 28/128 speed-step
mode and extended (long) addressing are enabled. We would use the following steps to
calculate the value:


1.  To configure these features we see that bit 1 (F0) and bit 5 (EAM) should both be ON

(set to 1), with all other bits OFF (set to 0). The bits to be enabled are highlighted in the
description.


Bit 7













Bit 0





EAM  STE



APS

F0

DIR


DIR:
Direction

0 = Normal direction
1 = Inverted direction

F0: F0 Location

0 = 14 speed-step mode enabled
1 = 28/128 speed-step mode enabled

APS: Alternate Power Source Enable

0 = NMRA-digital only
1 = Alternate power source enabled (CV 12)

STE: Speed Table Enable

0 = 3-point speed table enabled (CVs 2, 5 & 6)
1 = Linear/28-point speed table (CV 25)

EAM: Extended Address Mode Enable

0 = Primary address enabled (CV 1)
1 = Extended address enabled (CVs 17-18)



2.  Write down the individual bit states (1 for ON and 0 for OFF) as shown below:



3.  Next, determine the weight for each enabled bit. For this example are weights are 2 and

32.





4.  Add all bit weights to obtain the value for the CV. Bit weights are only counted when the

bit is ON (set to 1). If the bit is OFF (set to 0), do not add that bit weight to the total. Add
32 and 2 together to obtain the value of 34 for CV 29.







5.  Using your command station enter a value of 34 into CV 29 for programming.

All Aboard!





Tsunami2 Diesel User’s Guide



14

Introduction to Programming


This section details CV programming modes, reading CVs,
accessing indexed CVs, resetting CVs to factory defaults,
and locking and unlocking CVs. Due to the varying CV
programming methods used by DCC systems, we cannot
provide comprehensive instructions that address every
command station and must assume you understand the
capabilities of your system on some level. Consult your
DCC system manual or contact the manufacturer if you
need more detailed programming instructions.


Programming Modes

Tsunami2 supports Operations Mode and Service Mode programming.


Operations Mode

Referred to as “Ops Mode” or “programming on the main,” Operations Mode allows you to
program CVs during operation even when other locomotives and rolling stock are present.
Being able to program during operation simplifies re-creating prototypical scenarios. For
example, you can increase the momentum of a locomotive after it couples to a train. However,
because data cannot be read back from the decoder, programming on the main will not allow
you to verify CV values.


Service Mode

Service Mode programming usually requires connecting the model to a dedicated programmer
or placing it on a separate programming track. Tsunami2 supports four types of Service Mode
instructions:

Address Mode: CV 1 may be modified
Register Mode: CVs 1, 2, 3, 4, 7, 8, and 29 may be modified
Paged Mode: A page register is used to modify any CV indirectly
Direct Mode: All CVs may be directly modified



Reading CVs

Some command stations permit you to read the value of a CV and verify its setting in Service
Mode programming. If you have trouble reading or verifying CVs, there may be a problem within
the command station’s design rather than with the decoder.

Try another programming mode if you experience difficulties programming or reading CVs.
Many of the newer DCC systems automatically select the appropriate programming mode and
only require you to enter the CV number and desired value. However, some DCC systems may
restrict the number of available CVs. If you’re having difficulty determining the programming
modes supported by your DCC system, refer to the manual or contact the manufacturer.

NoteTsunami2 does not require a programming track booster, such as the PTB-100.



Configuration Variable Control CVs
CV 8: Manufacturer ID
CV 15: CV Unlock Code
CV 16: CV Lock ID
CV 30: Error Information
CV 31: CV Index 1
CV 32: CV Index 2
CVs 1.257-1.512: Indexed CV Page 1
CVs 2.257-2.512: Indexed CV Page 2

All Aboard!





Tsunami2 Diesel User’s Guide



15

Indexed CVs

The term “indexed CVs” tends to cause confusion and consternation. Simply put, indexed CVs
are located on ‘pages’ to help manage the total number of CVs.  This is required by the NMRA
DCC Standard and works like this:

Indexed CVs are accessed with the use of two CVs: CV 31 enables indexing when set to a
value of 16 (the default value) and CV 32 selects the desired indexed page. You do not need to
type “1.” Into the command station when programming indexed CVs.

Because of the number of features and options contained within Tsunami2 decoders, three
pages of indexed CVs are provided:

To access CVs 1.257-1.512:

1.  Ensure CV 31 is set to a value of 16.

2.  Enter a value of 1 into CV 32 to select Indexed CV Page 1.

3.  Select CVs 257-512 from your command station.


To access CVs 2.257-2.512:

1.  Ensure CV 31 is set to a value of 16.

2.  Enter a value of 2 into CV 32 to select Indexed CV Page 2.

3.  Select CVs 257-512 from your command station.


To access CVs 3.257-3.512:

1.  Ensure CV 31 is set to a value of 16.

2.  Enter a value of 3 into CV 32 to select Indexed CV Page 3.

3.  Select CVs 257-512 from your command station.


To make things easier, Tsunami2 CVs are grouped by like function as follows:

CVs 1.257-1.512 are used for configuring Flex-Map function mapping CVs. CVs 1.257-1.384
are used for function mapping CVs and CVs 1.385-1.512 are used for automatic effect
configuration.

Refer to “Configuring Function Mapping” for more information.


CVs 2.257-2.512 are used for adjusting alternate mixer channel volume levels and configuring
Dynamic Digital Exhaust CVs. CVs 2.289-2.320 are for alternate mixer CVs and CVs 2.503-
2.512 for DDE control CVs. Refer to

“Configuring Throttle and Braking,” “Configuring Sound

Effects” and “Configuring Dynamic Digital Exhaust” for more information.

CVs 3.257-3.512 are used for adjusting the clickety-clack rate of the clickety-clack and rail joints
sound effects. Refer to “Configuring Sound Effects” for more information.
