NASWHIDBEYINST 3770.1E

12 Jul 10

5.2.4 Warning Area W-237D

1. Beginning at:

47º 00' 00"N 125º 28' 03"W to

46º 49' 59"N 125º 24' 05"W to

46º 53' 24"N 125º 06' 47"W to

46º 32' 00"N 125º 18' 00"W to

46º 06' 00"N 126º 15' 00"W to

47º 00' 00"N 126º 15' 00"W to

the point of beginning.

2. Altitudes: Surface to unlimited

5.2.5 Warning Area W-237E

1. Beginning at:

48º 29' 37"N 125º 09' 01"W to

48º 08' 59"N 125º 05' 00"W to

48º 08' 59"N 127º 54' 44"W to

48º 20' 00"N 128º 00' 00"W to

the point of beginning.

2. Altitudes: Surface to FL270.

5.2.6 Warning Area W-237F

1. Beginning at:

48º 08' 59"N 126º 15' 00"W to

47º 00' 00"N 126º 15' 00"W to

47º 00' 00"N 127º 22' 26"W to

48º 08' 59"N 127º 54' 44"W to

the point of beginning.

2. Altitudes: Surface to unlimited

5.2.7 Warning Area W-237G

1. Beginning at:

47º 00' 00"N 126º 15' 00"W to

46º 06' 00"N 126º 15' 00"W to

45º 48' 35"N 126º 50' 49"W to

47º 00' 00"N 127º 22' 26"W to

the point of beginning.

2. Altitudes: Surface to unlimited

5-3

NASWHIDBEYINST 3770.1E

12 Jul 10

5.2.8 Warning Area W-237H

1. Beginning at:

48º 20' 00"N 128º 00' 00"W to

47º 00' 00"N 127º 22' 26"W to

47º 00' 00"N 129º 00' 00"W to

48º 21' 02"N 130º 00' 00"W to

the point of beginning.

2. Altitudes: Surface to FL270

5.2.9 Warning Area W-237J

1. Beginning at:

47º 00' 00"N 127º 22' 26"W to

45º 48' 35"N 126º 50' 49"W to

45º 50' 00"N 128º 10' 00"W to

47º 00' 00"N 129º 00' 00"W to

the point of beginning.

2. Altitudes: Surface to FL270

CAUTION

VFR civil traffic is authorized in the Warning Areas.

Military aircrews must be alert for civil/uncontrolled

traffic.

5.3 OLYMPIC COAST NATIONAL MARINE SANCTUARY (OCNMS). The OCNMS

was established off the coast of Washington in 1994 as part of

the Marine Mammal Protection Act. The OCNMS underlies the

western portion of the OLYMPIC A&B MOA and the eastern parts of

W-237 A&B. Bombing is prohibited within the OCNMS boundaries.

Live firing of guns, missiles, torpedoes, and chaff and Anti-

submarine warfare operations are permitted (15CFR

§922.152(d)(1)(i)(B) and (D)). All Department of Defense

military activities shall be carried out in a manner that

avoids, to the maximum extent practicable, any adverse impacts

on Sanctuary resources and qualities (15CFR §922.152(d)(1)).

OCNMS Rules (15CFR §922 Subpart O) do not apply to non-U.S.

military activities in international waters and airspace (beyond

the 3 NM national boundary limit).

5-4

NASWHIDBEYINST 3770.1E

12 Jul 10

5.3.1 OCNMS Boundaries. The following coordinates define the

sanctuary:

1. Beginning at:

47º 07' 45"N 124º 11' 02"W to

47º 07' 45"N 124º 58' 12"W to

47º 35' 05"N 125º 05' 00"W to

47º 40' 05"N 125º 09' 44"W to

47º 50' 01"N 125º 09' 42"W to

47º 57' 13"N 125º 29' 13"W to

48º 07' 33"N 125º 38' 20"W to

48º 15' 00"N 125º 40' 54"W to

48º 18' 21"N 125º 30' 02"W to

48º 20' 15"N 125º 22' 52"W to

48º 29' 59"N 125º 04' 13"W to

48º 26' 46"N 125º 09' 16"W to

48º 27' 09"N 125º 08' 29"W to

48º 28' 08"N 125º 05' 52"W to

48º 29' 43"N 125º 00' 11"W to

48º 29' 56"N 125º 59' 19"W to

48º 30' 13"N 124º 54' 57"W to

48º 30' 21"N 124º 50' 26"W to

48º 30' 10"N 124º 47' 18"W to

48º 29' 36"N 124º 43' 38"W to

48º 28' 08"N 124º 38' 13"W to

48º 23' 17"N 124º 38' 13"W

5.3.2 OCNMS Authorized Activities. The following activities are

authorized within the listed boundaries of the OCNMS:

1. Live firing of guns, missiles, and chaff.

2. ASW operations, including inert torpedoes, ASW targets,

sonobuoys, markers, inert mines, and SUS.

3. Activities associated with the Quinault Range including in

water testing of non-explosive torpedoes.

4. Hull integrity tests and other deep-water tests.

5.3.3 OCNMS Restrictions

1. No live ordnance.

2. No bombing, live or inert.

3. No flying less than 2000 feet MSL within 1 NM of the

Flattery Rocks, Quillayute Needles, or Copalis National Wildlife

Refuge.

5-5

NASWHIDBEYINST 3770.1E

12 Jul 10

4. No flying less than 2000 feet MSL within 1 NM of the coastal

boundary (Shoreline to 1 NM seaward).

5.4 USE OF ORDNANCE

5.4.1 Authorized Ordnance

1. Conventional or inert ordnance flares, and photo flash

cartridges may be used except as noted under OCNMS, paragraphs

5.3.2 and 5.3.3.

2. Use of chaff requires compliance with applicable

instructions and coordination with Western Air Defense Sector.

5.4.2 Ordnance Scheduling Procedures

1. All exercises involving use of ordnance must be approved by

NAS Whidbey Island Range Schedules Division with concurrence

from COMSUBPAC, Pearl Harbor, HI (CTG 34.33), COMM (808) 473-

3794 CTG 34.33 plans water (surface) management 2 weeks prior

and issues area assignment the week prior to becoming effective.

Area requests should be transmitted with sufficient lead-time to

be factored into water management. CTG 34.33 prefers drops in

W-237A vice W-237B due to shipping and land restrictions.

2. Area requests, which involve use of ordnance, must be

submitted via message using the format in paragraph 2.5.1. Item

(J) remarks shall include the weight of each weapon and depth of

weapon detonation. Message addees should be as follows:

To:

NAS WHIDBEY ISLAND WA//N3/N331//

Info:

CTG 34.3.3

CCGD THIRTEEN SEATTLE WA//JJJ//

5.4.3 Notice to Mariners (NOTMARS)

1. Appropriate NOTMARS must be transmitted to warn of hazardous

activity or ordnance usage. User activities shall send a

message at least 1 week prior to the event:

To:

CCGD THIRTEEN SEATTLE WA//OLE/O/OAN//

Info:

COGARD AIRSTA ASTORIA OR//OPS//

COMSUBPAC PEARL HARBOR HI//JJJ//

COMSUBTRAGRU PACNORWEST BANGOR WA//N3//

NAS WHIDBEY ISLAND WA//N3/N331//

FAA SEATTLE ARTCC AUBURN SEATTLE WA/1MOS//

WESTERN AIR DEF SX MCCHORD AFB WA//DO/DOO/SD/ICS//

(any other addees(s) deemed appropriate by user

activity)

5-6

NASWHIDBEYINST 3770.1E

12 Jul 10

2. Example of message narrative as follows:

SUBJ: REQ ISSUANCE OF A NOTICE TO MARINERS TO WARN OF (i.e.

GUNNERY EXERCISE/ HAZARDOUS FLT ACTIVITY/ETC)

[Include applicable ref]

UNIT CONDUCTING EXERCISE (i.e. USCGC xxxx, USS xxxx)

AREA TO BE USED (i.e. W237-E)

TYPE OF ORDNANCE: M-240B (7.62MM), M16 (5.56MM)/SURFIREX.

PRIMARY DATES: COMEX AT 000000Z JAN 10 and FINEX AT 000000

JAN.

5. POC: LT/LTJG/ENS xxxxx OPS CELL (xxx) xxx-xxxx

COMM (xxx) xxx-xxxx

EMAIL: xxxxx

6. COMMUNICATIONS (as applicable):

(1) PRIMARY: 16A VHF-FM.

(2) SECONDAY:13A VHF-FM.

(3) TERTIARY: MCTS TOFINO CH-74 VHF-FM.

7. USCGC xxxx, USS xxxx WILL BE CONDUCTING A LIVE FIRE EXERCISE

IN APPROXIMATE POSITION xx-xx.xx N xx-xx.xx W. DANGER AREA WILL

BE PLUS OR MINUS 15 DEGREES OF THE FIRING BEARING OUT TO A RANGE

OF xxxx YARDS.

8. PRIOR TO COMMENCING EXERCISE UNIT WILL MAKE A SECURITY

BROADCAST VIA VHF-FM CH 16 AND NOTIFY TOFINO MCTS VIA VHF-FM CH-

74 OF EXERCISE LOCATION, FIRING BEARING AND DANGER RANGE (as

applicable).

9. UPON COMPLETION OF EXERCISE UNIT WILL NOTIFY TOFINO MCTS

THAT LIVE FIRE EXERCISE IS COMPLETE (as applicable).

10. FOR CCGD13 SEATTLE WA: REQ BROADCAST NOTICE TO MARINERS.

5.4.4 Preferential Drop Zones. Six drop zones have been

established to expedite and simplify drop coordination efforts.

These zones are located outside of the OCNMS and have been pre-

coordinated with COMSUBPAC as preferential areas.

(See

Illustration 5)

5.4.4.1 DZ 1. Beginning at:

47º 32' N, 125º 40' W to

47º 35' N, 125º 16' W to

47º 17' N, 125º 16' W to

47º 17' N, 125º 35' W to

beginning

5.4.4.2 DZ 2. Beginning at:

47º 49' N, 125º 40.9' W to

47º 49' N, 125º 22.5' W to

47º 35' N, 125º 16.0' W to

47º 32' N, 125º 42.0' W to

beginning

5-7

NASWHIDBEYINST 3770.1E

12 Jul 10

5.4.4.3 DZ 3. Beginning at:

47º 22-50 N, 126º 35' W to

47º 22'50 N, 126º 15' W to

47º 00'00 N, 126º 15' W to

47º 00'00 N, 126º 35' W to

beginning

5.4.4.4 DZ 4. Beginning at:

47º 22'50 N, 125º 55' W to

47º 22'50 N, 126º 15' W to

47º 00'00 N, 126º 15' W to

47º 00'00 N, 125º 55' W to

beginning

5.4.4.5 DZ 5. Beginning at:

47º 00'00 N, 126º 35' W to

47º 00'00 N, 126º 15' W to

46º 37'00 N, 126º 15' W to

46º 37'50 N, 126º 35' W to

beginning

5.4.4.6 DZ 6. Beginning at:

47º 00'00 N, 126º 15' W to

47º 00'00 N, 125º 55' W to

46º 37'50 N, 125º 55' W to

46º 37'50 N, 126º 15' W to

beginning

5.4.4.7 DZ Identification. These drop zones may be identified

as "DZ 1," "DZ 2," DZ 3," etc., in applicable message traffic.

DZ 3 through DZ 6 when scheduled together comprises a grid area

of approximately 25 NM by 35 NM.

NOTE

Using activities may request any drop area outside of

the OCNMS; however, use of preferential drop zones is

preferred.

5.4.5 Preferential Routings

1. From NUW to W-237A:

NUW 228020 ELMAA HQM HQM291019. Altitude FL190.

(BOAT5)

2. From NUW to W-237B:

NUW NUW228020 NUW227035 TOU TOU200020. Altitude FL190.

(BOAT3)

3. From W-237A or W-237G/J to NUW:

W-XXXX HQM291019 HQM HQM046017 NUW200030 NUW. Altitude FL200.

(BOAT6)

5-8

NASWHIDBEYINST 3770.1E

12 Jul 10

4. From W-237B to NUW:

W-237B TOU200020 TOU NUW200030 NUW. Altitude FL200.

(BOAT4)

5. From W-237 to:

a. NLC: W-XXXX HQM UBG LKV J5 TIOGA FRA NLC140040 NLC.

(Request NLC237)

b. NKX: W-XXXX HQM UBG LKV J5 LAX OCN (IAF) NKX.

(Request

NKX237)

c. NZY: W-XXXX HQM UBG LKV J5 LAX J1 MZB (IAF) NZY.

(Request NZY237)

6. From W-570 to:

a. NUW: W-570 HQM NUW200030 NUW.

(Request NUW570)

b. NLC: W-570 ONP OED RBL J65 EHF J5 TIOGA FRA NLC140040

NLC.

(Request NLC570)

c. NKX: W-570 ONP OED RBL J65 EHF J5 LAX OCN (IAF) NKX.

(Request NKX570)

d. NZY: W-570 ONP OED RBL J65 EHF J5 LAX J1 MZB (IAF) NZY.

(Request NZY570)

7. From W-93 to:

a. NUW: W-93 ONP HQM NUW200030 NUW.

(Request NUW93)

b. NLC: W-93 OTH RBL J65 EHF J5 TIOGA FRA NLC 140040 NLC.

(Request NLC93)

c. NKX: W-93 OTH RBL J65 EHF J5 LAX OCN (IAF) NKX.

(Request NKX93)

d. NZY: W-93 OTH RBL J65 EHF J5 LAX J1 MZB (IAF) NZY.

(Request NZY93)

NOTE

(IAF) is not applicable, route filed will be from

last fix direct destination airport.

CAUTION

PADRA

(Pass to Air Defense Radar) must appear in the

remarks section of the DD-175.

5-9

NASWHIDBEYINST 3770.1E

12 Jul 10

5.5 REAL-TIME COORDINATION. Seattle ARTCC releases SUA on a

real-time basis and requires a 30-minute notice prior to

entering any Warning Area so the area can be cleared of IFR

traffic. For coordination purposes, it is the responsibility of

the mission commander to ensure that Whidbey Clearance Delivery

or Seattle ARTCC is notified at least 30 minutes prior to

scheduled Warning Area entry time.

5.6 OPERATING PROCEDURES

1. MARSA is a condition that applies to those aircraft

operating within the Warning Areas. If more than one unit is

scheduled to operate within a Warning Area, each unit will be

briefed on the vertical and/or lateral assignments of the other

units by the Range Schedules Division.

2. All operations within W-237 are subject to a Letter of

Agreement between NAS Whidbey Island, Seattle ARTCC, and Oakland

ARTCC. Using and scheduling agency is NAS Whidbey Island. No

military operations are permitted within these warning areas

without prior approval.

3. Aircrews shall not expect to enter Warning Areas before

their scheduled entry time. Seattle ARTCC will not issue entry

clearance for early arrivals if the Warning Area is in use.

4. All aircraft shall have operable CNI equipment on all

flights. A malfunction of CNI equipment is cause to

cancel/abort missions.

5. Pilots cleared to operate within the Warning Areas are

responsible for remaining within the vertical and lateral

confines of the Warning Area as specified in the ATC clearance.

CAUTION

During

coordinated

surface-air

events,

movements

and/or location of surface units shall not cause air

units to "SPILLOUT" of assigned OPAREA(S).

NOTE

Seattle

ARTCC

equipped

with

error

detection

software

to ascertain when spillouts occur.

Pilot

deviation reports will be filed when spillouts are

detected.

6. Aircraft operating in Warning Areas and ATCAAs shall squawk

Modes II and IV, as directed by higher authority, and shall

5-10

NASWHIDBEYINST 3770.1E

12 Jul 10

squawk the Mode III discrete code as assigned by ATC. If

aircraft do not have Mode IV capability, advise Bigfoot prior to

launch of OPAREA scheduled time. Airborne Mode IV checks are

available from Bigfoot on 364.3 MHZ.

7. Carrier operations that involve aircraft flight operations

within W-237 must obtain Mode III discrete codes from NAS

Whidbey Island Air Traffic Control. Requests for a block of

Mode III discrete codes shall be made via message and formatted

per paragraph 2.5.1.

8. Gunnery or live ordnance exercises shall not be conducted

within 10 NM of the coastline.

9. Aircrews are responsible for ensuring that surface area of

impact zones is clear.

10. Aircraft operating within W-237 must file for ADIZ

penetration unless operating under positive control of Bigfoot

or Seattle ARTCC. Communications within the western segment of

W-237 with Bigfoot is marginal. HF communications are available

from McClellan Airways.

11. Unless safety of flight dictates, no aircraft shall depart

assigned Warning Areas until an ATC clearance is received from

Seattle ARTCC. Under normal circumstances, aircraft should

provide Seattle ARTCC at least 5 minutes advance notice of

intent to depart assigned warning areas. This provides needed

time for flight data processing and coordination when required.

12. Lost communications shall be as outlined in DOD FLIP.

13. UNICOM/SAFE HAVEN procedures are as follows:

a. All aircraft entering a W-237 area will contact Seattle

ARTCC on appropriate frequency (see Table 1 or 5.1.4) for entry

using call sign and appropriate event number. Event numbers

will be assigned by Range Schedules Division at (360) 257-2877.

If multiple aircraft are scheduled for the same event, or co-use

of the area is approved, upon entering W-237 aircraft will check

in via the appropriate UNICOM frequency with call sign and event

number. If no communications with other aircraft can be

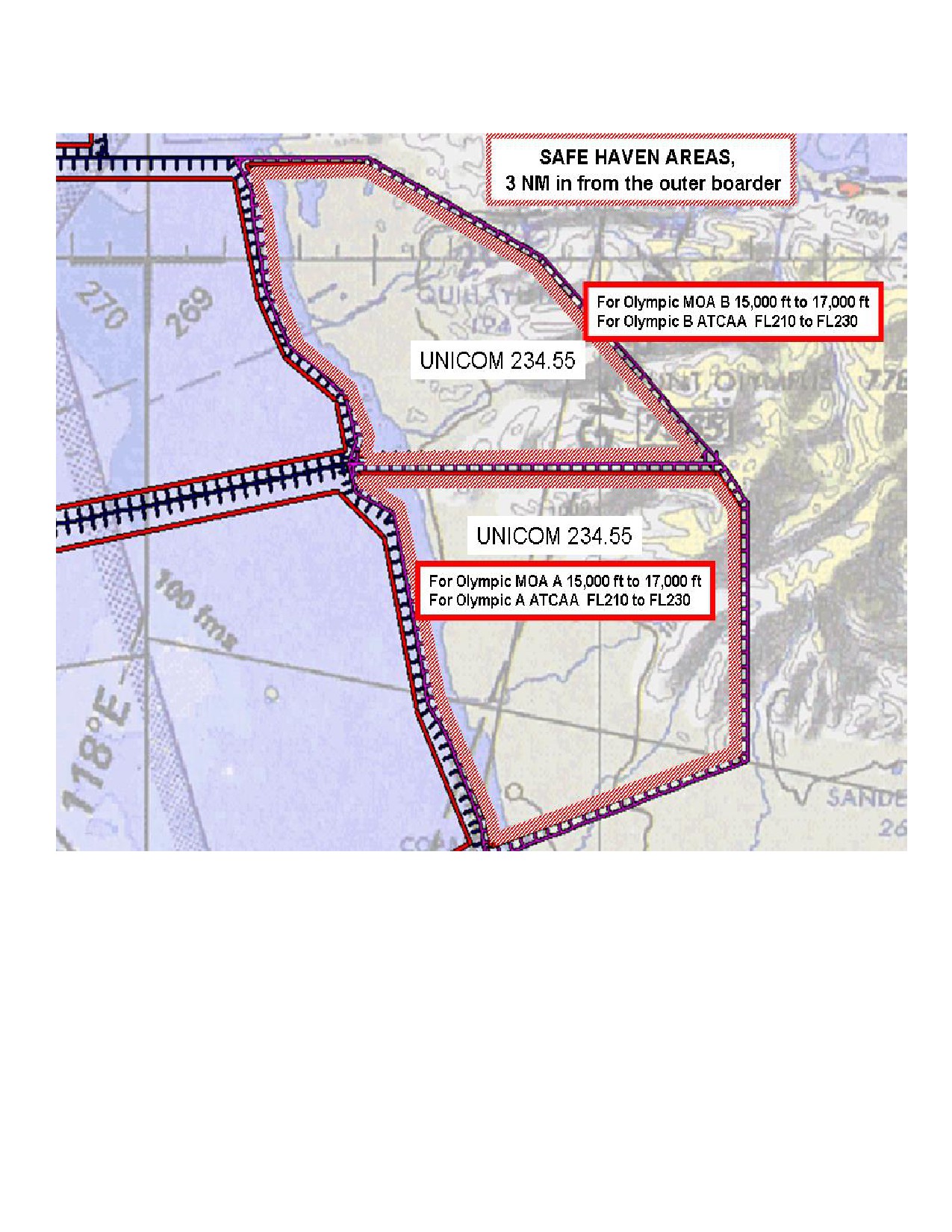

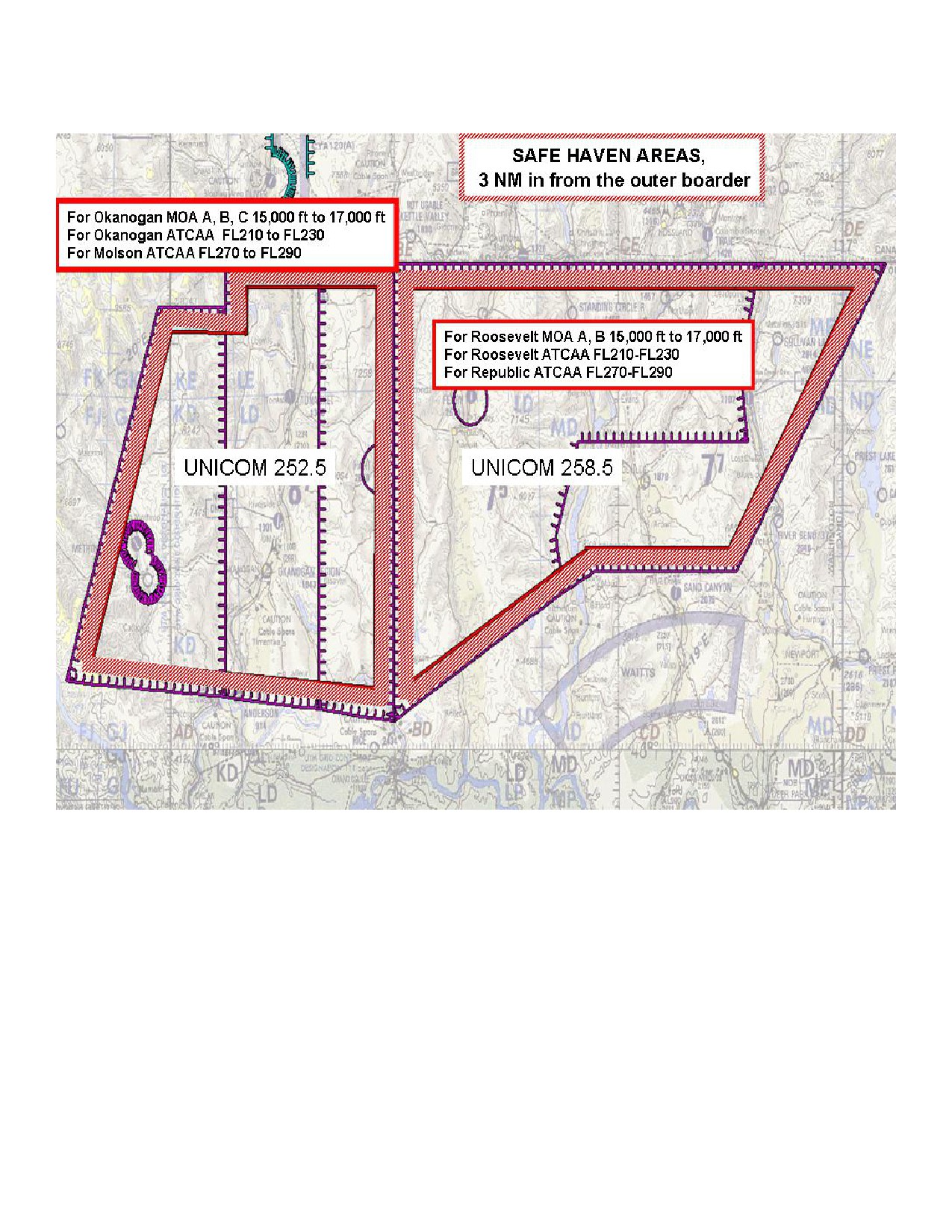

established aircraft will proceed to SAFE HAVEN described by a

lateral area extending from the border of the W-237 to 3 NM into

the Warning Area assigned (Illustration 9). Additionally

altitudes for each SAFE HAVEN area are described in Illustration

9. Once established in the SAFE HAVEN area aircraft will

continue to try and contact playmates or co-use aircraft if

still no communications can be established with other aircraft

then aircraft will coordinate exiting W-237 with Seattle ARTCC.

5-11

NASWHIDBEYINST 3770.1E

12 Jul 10

b. When ready to exit W-237 aircraft will coordinate with

Seattle ARTCC on appropriate frequency (see 5.1.4) prior to

leaving assigned area. If multiple aircraft for the same event

are in W-237 the last aircraft departing the Warning Area shall

advise Seattle ARTCC, i.e.

“SEATTLE CENTER PUGET52 EVENT 30001

LAST AIRCRAFT OUT.” Upon reporting last aircraft out, Seattle

ARTCC will close the event number and the airspace will be

deactivated.

5.7 ELECTRONIC COUNTERMEASURES (ECM)

1. The Continental United States ECM Area extends to the outer

boundaries of the coastal ADIZ or a perimeter 150 NM seaward

from the coastal states, whichever is farther out, except where

this infringes on territorial limits of other nations/states.

2. Procedures for conducting ECM, including method of request

and required limitations, are set forth in OPNAVINST 3430.9

(series), AFR 55-44, and applicable COMVAQWINGPAC instructions.

3. West-to-east (towards coastline) ECM runs should not be made

due to potential interference with FAA Radars/NAVAIDS.

4. In addition, use of chaff requires coordination with Western

Air Defense Sector DQM/AST; telephone DSN 382-4342; COMM (253)

982-4342.

5.8 CANADIAN MARITIME PACIFIC (MARPAC) COORDINATION

1. Coordination with Canadian MARPAC Headquarters at Esquimalt

Naval Base, Victoria, B.C., is recommended for any operations

within the Canadian ADIZ.

2. PLAD: MARPACHQ ESQUIMALT CAN

3. Telephone: DSN 319-255-2415/2715; COMM (250) 363-2425/2715.

5.9 HELICOPTER SERVICES. Helicopter services in the PACNORWEST

TRCM OPAREAS are limited. Units desiring services shall submit

requests to NAS WHIDBEY ISLAND WA//N3/N331//, info COMNAVAIRPAC

SAN DIEGO CA//N3/N7// and COMNAVREGNW SEATTLE WA//N3/N00P// for

validation and approval 14 days prior to desired services.

5.10 POST OVERHAUL REQUIREMENTS. Surface units completing an

availability/overhaul at Puget Sound Naval Shipyard (PSNS) shall

coordinate airspace requirements/aircraft services with the PSNS

Combat Systems Branch (Code 290) at DSN 439-7106, COMM (360)

476-7106 for aircraft tracking, CIWS tracking and Link 4/11

testing events.

5-12

NASWHIDBEYINST 3770.1E

12 Jul 10

5.11 SHIP - SHORE COMMUNICATIONS. Dedicated (continuously

guarded) HF assets are not available at NAS Whidbey Island. One

method of establishing communication is via the HF Global

system. This system provides HF radio communications for

passing command and control information. The system/individual

stations are not dedicated to any service, command or activity,

but support authorized users on a traffic precedence basis.

McClellan AFB, CA is the nearest Global station; frequencies are

listed in the DOD FLIP Flight Information Handbook (FIH). Call

sign is McClellan Airways. Facilities for providing phone patch

service are available through all Global stations. Phone patch

service is expedited if destination DSN or commercial phone

numbers are provided at the time of request. The NAS Whidbey

Island ODO can be reached at DSN 820-2681/2682 or COMM (360)

257-2681/2682.

5-13

NASWHIDBEYINST 3770.1E

12 Jul 10

CHAPTER 6

MILITARY TRAINING ROUTES (MTRs)

6.1 GENERAL

1. NAS Whidbey Island MTRs accommodate high speed, low level

tactical training in excess of 250 KIAS. Operations shall be

conducted at the minimum airspeed compatible with the intent of

the mission. Specific route information is contained in the

FLIP AP/1 B (Military Training Routes).

2. NAS Whidbey Island is the scheduling activity for the

following Military Training Routes.

Military Training Routes

VR-1350

IR-341

VR-1351

IR-342

VR-1352

IR-343

VR-1353

IR-344

VR-1354

IR-346

VR-1355

IR-348

Table 2

NOTE

AR-626 and AR-717A refueling routes are contained

within existing SUA.

Refer to FLIP AP-1 for

coordinates.

Routes are scheduled concurrently with

associated SUA.

NOTE

Units

may

schedule

IR-348

without

concurrently

scheduling the Okanogan and Roosevelt MOAs.

Altitude

restrictions apply and approval is required from NAS

Whidbey Island Range Schedules Division.

3. Routes shall not be used unless scheduled with NAS Whidbey

Island Range Schedules Division. VRs are scheduled at 10-minute

intervals (H + 00, H + 10, H + 20, H + 30, H + 40, H + 50); and

IRs are scheduled at 20-minute intervals (H + 00, H + 20, H + 40).

If alternate entry/exit points are desired, they must be

scheduled. Refer to Chapter 2 paragraph 2.4.2 for additional

scheduling procedures.

4. All routes are one way. Flight operations conducted along

these routes or segments of these routes shall conform to the

direction of traffic flow indicated in the route description.

6-1

NASWHIDBEYINST 3770.1E

12 Jul 10

5. FAIROPS Stereo Flight Plans have been developed for NAS

Whidbey Island-based units to incorporate IR/VR routes into the

local flight plan system. Refer to reference (e).

6.1.1 Preflight Planning. Low-level flying requires extensive

preflight planning to ensure flight safety and maximum training

from each sortie. Familiarity with FLIP AP/1 B and temporary

route advisories is essential.

6.1.2 Operating Procedures

1. Unless otherwise delineated in a route's special operating

procedures, avoid charted, uncontrolled airports by 3 NM or

below 1,500 feet AGL when practicable.

2. Avoid Class B, C, and D, airspace and Minimize disturbance

to persons and property on the ground.

3. All "IR" operations shall be conducted on IFR flight plans.

4. Flight Plan requirements for VR route use:

a. Pilots departing on IFR clearances to fly VRs are

required to file to the fix/radial/distance of their

entry/alternate entry point of the route.

b. Pilots transitioning to IFR upon exiting the VR are

required to have an IFR flight plan on file with the

appropriate fix/radial/distance of their exit point.

NOTE

FAIROPS

Stereo

type

flight

plans

provide

this

operational benefit for NAS Whidbey Island units.

5. Operations on VR routes shall be flown only when the ceiling

is at or above 3000 feet AGL and Flight visibility is 5 statute

miles or greater.

6. All route entries are authorized at published entry/

alternate entry points only. Specific entry times for MTRs are

required to provide safe separation from other Whidbey Island-

scheduled routes. MTR schedules are provided to general/

agriculture aviation interests and are predicated on adherence

to scheduled entry times. Aircraft shall not enter these routes

at any time other than those obtained from NAS Whidbey Island

Range Schedules Division. Entry times will be adhered to within

plus or minus 3 minutes for VRs and plus or minus 5 minutes for

IRs.

6-2

NASWHIDBEYINST 3770.1E

12 Jul 10

CHAPTER 7

CVN OPERATING PROCEDURES

7.1 GENERAL. To standardize procedures for PACNORWEST TRCM CVN

air and surface operations, this chapter outlines procedures

that shall be utilized when conducting flight operations within

the W-237 complex, CYA102, CYR109 and Strait of Juan De Fuca.

The following procedures have been coordinated with the FAA and

are designed to reduce the disruption of CVN training while

providing a safe flying environment for both military and civil

air traffic. CVN operations, which involve flights to shore

stations, are to be conducted per appropriate air traffic

control directives and procedures outlined herein to preclude

air traffic control problems with the FAA, military ATC

Facilities and the WADS. Adherence to these procedures will

alleviate many potential problem areas, enhance training, and

provide the following:

1. Standardization of flight information messages for relay of

flight plan information, ADIZ penetration coordination, Altitude

Reservation Airspace (ALTRV) usage, and ATCAA/warning area/

restricted area scheduling and usage.

2. Communications with shore facilities, surface/air platforms,

WADS and FAA Seattle ARTCC.

3. Adequate lead-times for altitude/airspace reservations.

4. Timely clearance for aircraft entering the National Airspace

System, Class B and C airspace, warning areas, ATCAA, or ALTRV.

7.2 COORDINATION

7.2.1 Planning Conference. Prior to any underway period

involving flight operations, a face-to-face meeting shall be

held at least 3 working days in advance to discuss operations.

Air Operations, Strike Operations, and air wing personnel will

meet with NAS Whidbey Island Operations Department to discuss

the following items of interest:

1. Planned PACNORWEST TRCM exercises and flight operations.

2. Coordinate OPAREA/airspace planning briefs.

3. Confirm OPAREA reservations, obtain ALTRV/MOAs/ATCAAs as

required.

4. Use of Canadian airspace.

7-1

NASWHIDBEYINST 3770.1E

12 Jul 10

5. IFF assignments.

6. Operations penetrating the National Airspace System/Flight

Planning.

7. Flight operations in the Strait of Juan De Fuca.

8. Communications/coordination.

9. Unusual hours of operation.

10. Other items of interest.

7.2.2 ATC briefs/liaison Shipriders. Upon request, NAS Whidbey

Island will furnish orientation teams capable of briefing

AIROPS/CATCC/AIRWING personnel on OPAREA procedures and

interfacing with the National Airspace System. In addition, ATC

personnel are available to serve as onboard liaison during at-

sea periods. Requests for orientation briefs/ship riders can be

arranged by contacting ATC (Code N33) at DSN 820-2132, COMM

(360) 257-2132.

7.3 PRE-SAIL COORDINATION MESSAGES

7.3.1 Summary of Operations. No less than 48 hours prior to

commencement of AIROPS, the carrier shall send a summary of

intended air operations by message to NAS Whidbey Island,

concerned FAA facilities, NORAD, Canadian military/ATC and other

appropriate facilities. Anticipated AIROPS for the entire

period shall be listed. This message does not rescind or

supersede airspace request procedures found in other sections of

this manual, or replace divert alert/Notice of Intent/IFF

messages as required by higher authority.

The following example is provided:

FM:

(CVN)

TO:

NAS WHIDBEY ISLAND WA/N3/N33/N331//

FAA SEATTLE ARTCC AUBURN SEATTLE WA/MOS//

WESTERN AIR DEF SX MCCHORD AFB WA/IS/SOCC/DOOS//

MOC ESQUIMALT//N36-1//

WOC COMOX//

INFO: (Other addees as required)

(UNCLAS/CONFIDENTIAL)//N03120//

SUBJ: SUMMARY OF INTENDED AIR OPERATION

MSGID: GENADMIN/(ORIGINATOR)//

7-2

NASWHIDBEYINST 3770.1E

12 Jul 10

RMKS: 1. Read in four (4) columns:

DATE

TIME

EVENT

OPAREA

21 FEB

1830-2100Z

CYCLIC OPS

W-237 A,B

22 FEB

2000-2200Z

SOJDF

24 FEB

1900-2100Z

HELO OPS

CYA-102

7.3.2 Divert Alerts. Divert Alert requests shall be submitted

per higher authority instructions. NAS Whidbey Island is a 24-

hour airfield; however, additional personnel are required to

support CVN divert/bingo operations. Accuracy of divert alert

periods is essential to ensure support of CVN contingencies.

7.3.3 OPAREA Requests. Users shall submit OPAREA requirements

to NAS Whidbey Island Range Schedules Division per chapter 2 of

this manual. Due to rapidly changing sea conditions, short fuse

requests or changes will be accepted by phone/e-mail or airborne

relay.

7.3.4 ALTRV Requests. CVNs shall submit ALTRV requirements for

domestic airspace to FAA CARF Washington DC, info FAA SEATTLE

ARTCC AUBURN WA/MOS// and WESTERN AIR DEF SX MCCHORD AFB

WA//IS/SOCC/DOOS//. Requests shall be made per Special Military

Operations FAA Handbook 7610.4, part 3 (OPNAVINST 3722.33) no

less than 6 days prior to COMEX of flight OPS to ensure approval

and NOTAM promulgation to users of Special Use Airspace.

7.3.5 IFF Requests. A request for IFF code assignment shall be

received NLT 3 days prior to at-sea period. In lieu of message,

IFF codes may be assigned at the pre-sail conference.

7.4 FLIGHT PLANNING

7.4.1 OPAREA Modifications. To ensure airspace availability,

users shall submit OPAREA modification requests no later than

1500L the day prior. Submit ALTRV/ATCAA modification requests

as soon as practicable to ensure ARTCC ability to coordinate

requested modification. Verification of receipt of critical

messages (i.e. short notice OPAREA modifications, change of

flight operations, incident, mishaps, etc.) by phone

communications, when practical, is recommended.

7.4.2 Daily Air Plan. To permit NAS Whidbey Island and other

appropriate agencies to prepare for upcoming flight operations,

the CVN shall include NAS Whidbey Island and other appropriate

agencies as an addee on the daily Air Plan.

7-3

NASWHIDBEYINST 3770.1E

12 Jul 10

7.4.3 Flight Information Messages. In order to recognize and

identify naval aircraft operating in the Pacific Coast ADIZ,

CADIZ, flight information (flight advisories, launch advisories,

flight plans) shall be passed to NORAD (WESTERN AIR DEF SX

MCCHORD AFB WA) include NAS Whidbey Island, FAA Seattle ARTCC

and cognizant area commanders as info addees.

7.4.4 Flight Plans. Navy and FAA facilities must be kept informed

of all aircraft that will enter the National Airspace System. To

ensure timely filing, flight plans should be sent to NAS Whidbey

Island listing all action addees above. Every effort should be

made to use Stereo Routes contained in Appendix 1.

1. A minimum lead-time of 2 hours is required if filing Stereo

Routes, and 4 hours for non-stereo routes. With ample

notification via phone relay or relay from airborne platform,

unscheduled flights will be handled on a case-by-case basis.

2. Once filed, flight plans are valid for 30 minutes prior to

and 2 hours after proposed launch time.

3. Aircraft may enter the National Airspace System as singles,

sections, or waves, but individual call signs/squawks (although

in standby) are required for each aircraft in the event of

emergencies, IMC, or separation of the flight. Filed call signs

will be retained throughout the flight. Use of other than filed

call signs for the mission can cause confusion with ATC agencies

and possibly result in a delay in obtaining clearance or

assistance, use of tactical call signs is permitted.

4. NAS Whidbey Island Base Operations will file all CVN flight

plans.

7.4.5 Overhead Messages. To ensure aircrews receive CVN

overhead times, include NAS WHIDBEY ISLAND WA/N3/N33/N331// as

an addee on all overhead messages. A copy will be retained at

the NAS Whidbey Island ODO desk for reference.

7.5 AT-SEA COORDINATION. Pre-sail coordination is the best

method to articulate user requirements. However, it is

understood that various events can and will effect planned

evolutions. At-sea, to ensure receipt of special requests,

airspace coordination, or flight plans, message traffic with

proper lead times is the preferred method of communication.

When time precludes use of message traffic, phone conversation

or airborne relay is an acceptable substitute. Use of e-mail

messages is encouraged; however, e-mail notification cannot be

considered complete unless response e-mail is received from NAS

Whidbey Island confirming the action or responding to a request.

Some examples of at-sea coordination:

7-4

NASWHIDBEYINST 3770.1E

12 Jul 10

1. Notification of secured flight operations (cold deck

notification required)

2. Short fused flight plans.

3. Warning area airspace changes.

4. Coordination to move to Strait of Juan De Fuca due to W-237

weather/sea states.

5. Extensions of divert alert periods.

7.6 COMMUNICATIONS

7.6.1 Landline Communications

1. When required for immediate coordination, NAS Whidbey Island

phone numbers listed in Table 3 shall be used:

NAS WHIDBEY POCs

Agency

Number

Operating Hours

ATC Facility

(360) 257-2887

24 Hours

Range Schedules

(360) 257-2877

0700-1600

Range Schedules

(360) 257-1283

FAX

OPS Duty Officer

(360) 257-2681

24 Hours

Flight Planning

(360) 257-1601

24 hours

NAS OPS

(360) 257-2120

0730-1600

Table 3

(Phone numbers are COMM and DSN prefix is 820)

2. Should a need arise to contact FAA Seattle ARTCC; the phone

numbers in Table 4 should be used.

FAA SEATTLE ARTCC POCs

Agency

Number

Operating Hours

Military Ops

(253) 351-3523

0700-2300

TRFC Mgmt

(253) 351-3520

24 hours

Area Sup

(253) 351-3505

24 hours

Table 4

7.6.2 Ship-to-Shore Communications. Ship-to-shore radio

communications are extremely limited and may only be effective

when the CVN is in local waters/Strait of Juan De Fuca and

within 15/20 miles of NAS Whidbey Island. There are no ship-to-

7-5

NASWHIDBEYINST 3770.1E

12 Jul 10

shore communications in the W-237 complex. Radio frequencies

are contained in Table 5.

NAS WHIDBEY ISLAND RADIO FREQUENCIES

AGENCY

FREQ (UHF/VHF)

Approach CTL (CVN Sector)

266.8 or L/L

Approach Control

285.65/118.2

Control Tower

340.2/127.9

Base OPS/ODO

350.0

Table 5

7.6.3 Air-to-Ground Communications. Aircraft operating within

100 miles of NAS Whidbey Island should experience good air-

ground communications with NAS Whidbey Island ATC on the

frequencies listed in Table 5. Aircraft operating in the W-237

complex should be able to maintain adequate communications with

FAA SEATTLE ARTCC (319.2/125.1), except at lower altitudes.

Flight leader or communications relay aircraft shall contact

SEATTLE ARTCC at least 5 minutes prior to obtain clearances and

to alleviate any enroute delays. This will also permit flight

participants to continue with their mission while the clearance

is being obtained. All aircraft operating within the W-237

complex are required to contact Seattle Center for entry/exit

approval. This may be accomplished by individual aircraft

commanders or through the designated communications aircraft.

7.7 BINGO/DIVERTS TO SHORE FACILITIES

7.7.1 Bingo. A bingo aircraft inbound to a shore facility is an

emergency and will be assimilated into the National Airspace

System as expeditiously as possible. However, FAA publications

do not define the term bingo as an emergency, nor is it

indicative to FAA personnel that an aircraft is experiencing

difficulties. To ensure priority handling, aircrew shall

declare an emergency, stating the nature of the emergency, i.e.,

"EMERGENCY LOW FUEL," "PORT ENGINE OUT," etc. Once an emergency

has been declared, if not already selected, IFF transponder will

be set to the appropriate emergency code. Remain on that code

until directed by ATC.

WARNING

Aircraft unable to contact ATC shall not enter

Positive Controlled Airspace unless squawking the

appropriate emergency code.

7-6

NASWHIDBEYINST 3770.1E

12 Jul 10

7.7.2 Diverts

1. An aircraft inbound to a shore facility without an emergency

is simply a divert. No special handling should be expected by

the divert aircraft. If fuel state becomes a concern, aircrew

shall state "Minimum Fuel" to the ATC facility when the aircraft

reaches minimum fuel state as defined by NATOPS.

2. When diverts involve multiple aircraft, advance announcement

of the divert to the controlling agency by the lead aircraft (or

airborne relay) will greatly assist ATC and reduce aircraft

delays. At a minimum, the number of aircraft inbound and

destination should be provided.

7.8 CONDUCT OF FLIGHT

7.8.1 W-237 Complex Operations. All flights operating within

the W-237 complex are required to remain in "due regard" status

per OPNAVINST 3770.4 (series) until radar contact is established

by FAA Center.

7.8.2 Strait of Juan de Fuca/Puget Sound Operations. The Strait

of Juan de Fuca and the Puget Sound are not SUA, and as such,

Federal Air Regulations and standard air traffic control

procedures are applicable. "Due Regard" is not authorized

within the Puget Sound/Strait of Juan de Fuca. All aircraft,

not on an IFR flight plan, shall follow standard VFR procedures.

Specific procedures for operating within this airspace are

contained in Paragraph 7.9.

7.9 STRAIT OF JUAN DE FUCA (SOJDF) CARRIER OPERATIONS

7.9.1 GENERAL SPECIAL USE AIRSPACE. Specifically a warning area

is designated as an operational area for potentially hazardous

military air and surface activity. The SOJDF, however, has not

been designated as SUA, and safety precautions normally

exercised in association for flight within warning areas are not

present. Therefore, to enhance safety with the SOJDF, local

procedures have been developed to permit CVNs to conduct limited

flight operations in close proximity to civilian users.

7.9.2 CVN use of SOJDF. CVNs are strongly encouraged to use W-

237 complex for flight operations. When missions or W-237

weather/sea conditions restrict use of the Warning Areas, the

SOJDF may be used for limited flight operations. Scheduling and

use of SOJDF is controlled and must be pre-coordinated at a pre-

sail conference. The following restrictions apply:

1. Day time, Case 1 only.

7-7

NASWHIDBEYINST 3770.1E

12 Jul 10

2. Limit six aircraft in CVN pattern.

3. All aircraft must monitor Whidbey Approach Control Frequency

in addition to CVN L/L.

4. All aircraft must be on discrete beacon codes.

5. Minimum of 2 1/2 hour lead-time is required for NOTAM

broadcast.

6. When able, a radio or phone communication link shall be

maintained between CVN CATCC and Whidbey Approach.

7. CVN is responsible for scheduling Canadian OPAREAS.

8. Participating aircrew shall attend brief on SOJDF

operations.

7.9.3 SOJDF Airspace for CVN Use

1. A portion of airspace within the SOJDF has been locally

designated for CVN flight operations (Illustration 6). This

airspace is of sufficient size for both aircraft operations and

surface navigation purposes and should be used by CVNs to the

maximum extent practical due to added safety benefits,

specifically, ship-to-shore/air-to-ground communications and ATC

RADAR coverage. In this designated area, all CVN aircraft will

be provided RADAR traffic advisories by NAS Whidbey Approach

Control on a discrete frequency or on the CVN land launch

button.

2. Aircraft operations in the Strait of Juan De Fuca involve

many different types of aircraft from seaplanes to air carriers.

A high mid-air collision potential exists. Additionally, many

of the air carrier aircraft that transit the SOJDF each day are

equipped with TCAS equipment. A TCAS incident can be avoided

when both military and civil aircraft are receiving traffic

advisories from a controlling agency. Use of the designated

OPAREA and compliance with local operating procedures are key to

deconflicting civil and military traffic that operate within the

SOJDF.

CAUTION

High

intensity

civil

non-participating

military

VFR/IFR traffic will be encountered in the Puget Sound

and Strait of Juan De Fuca. Military aircrew must be

alert for both controlled and uncontrolled aircraft.

7-8

NASWHIDBEYINST 3770.1E

12 Jul 10

CHAPTER 8

NAVAL WEAPONS SYSTEM TRAINING FACILITY BOARDMAN, OREGON

8.1 DESCRIPTION. Illustration (3). The Boardman Naval Weapons

System Training Facility (NWSTF) complex consists of R-5701,

R-5706, Boardman MOA, and ATCAA. This complex is used for basic

air maneuvering, electronic threat simulations, air-to-ground

weapons delivery, small arms, and various ground training

exercises. Services provided by NWSTF are very limited. There

are no Range Clearance personnel, moving targets, or any type of

scoring systems available.

8.1.1 Operating Hours. Monday through Friday, 0730 - 1600.

Air-to-ground or mobile emitter events will normally be

scheduled during these hours. Air-to-ground or emitter events

outside these times will be coordinated via the NAS Whidbey

Island Operations Officer at least 72 hours in advance. This

does NOT apply to normal operations in the airspace above the

Boardman range.

8.1.2 Boardman MOA and ATCAA Boundaries

Boundaries:

Beginning at:

45 52’59N/119 31’04W to

45 46’49N/119 31’04W to

45 47’44N/119 23’29W to

45 46’59N/119 22’29W to

45 45’09N/119 22’34W to

45 43’29N/119 23’54W to

45 42’14N/119 25’04W to

45 39’59N/119 27’14W to

45 36’09N/119 45’44W to

45 38’59N/120 09’04W to

45 45’29N/120 09’04W

proceed along the south shore of the Columbia river to

45 50’49N/119 48/44W to

45 50’49N/119 45’04W to

45 50’19N/119 45’04W to

45 50’19N/119 42/34W to

45 50’59N/119 42’34W then

along the south shore of the Columbia River to

45 51’09N/119 40’04W to

the point of beginning, excluding that airspace within a 5 NM

radius of a point located at 45 43’35N/119 41’07W; and excluding

that airspace within R5701 and R5706 when active.

8-1

NASWHIDBEYINST 3770.1E

12 Jul 10

MOA:

4,000 feet MSL to, but not including, FL180.

ATCAA: FL180 to, and including, FL200.

8.1.3 Boardman Restricted Area 5701 area (a).

BOARDMAN, OR to FL200

Cir rad 5 NM cntr on N45°43'35.00" W119°41'07.00

Description as per the AP/1B

8.1.4 Boardman Restricted Area 5701 area (b).

BOARDMAN, OR to 10000 feet MSL

N45°46'19.00" W119°35'09.00" to

N45°47'00.00" W119°31'30.00" to

N45°42'00.00" W119°30'45.00" to

N45°41'28.00" W119°34'39.00" then

CCW along the arc of a cir rad 5 NM cntr on N45°43'35.00"

W119°41'07.00" to beginning. Description as per the AP/1B

8.1.5 Boardman Restricted Area 5701 area (c).

BOARDMAN, OR to 6000 feet MSL

N45°47'00.00" W119°31'30.00" to

N45°47'30.00" W119°21'30.00" to

N45°45'45.00" W119°21'30.00" 1 NM W of and parl to Butter Creek

to N45°42'00.00" W119°30'45.00" to beginning. Description as

per the AP/1B

8.1.6 Boardman Restricted Area 5701 area (d).

BOARDMAN, OR to 10000 feet MSL

N45°46'47.00" W119°46'37.00" then

CCW along the arc of a cir rad 5 NM cntr on N45°43'35.00"

W119°41'07.00" to

N45°38'53.00" W119°43'34.00" to

N45°37'15.00" W119°46'45.00" to

N45°41'30.00" W119°51'00.00" to

N45°47'00.00" W119°51'00.00" to beginning. Description as per

the AP/1B

8.1.7 Boardman Restricted Area 5701 area (e).

BOARDMAN, OR to 6000 feet MSL

N45°47'00.00" W119°51'00.00" to

N45°41'30.00" W119°51'00.00" to

N45°37'15.00" W119°46'45.00" to

N45°36'15.00" W119°49'00.00" to

N45°36'30.00" W119°51'00.00" to

N45°40'15.00" W119°55'00.00" to

N45°41'00.00" W119°54'30.00" to

N45°41'00.00" W120°02'30.00" to

N45°47'00.00" W120°02'30.00" to beginning. Description as per

the AP/1B

8-2

NASWHIDBEYINST 3770.1E

12 Jul 10

8.1.8 Boardman Restricted Area 5706

BOARDMAN, OR 3500 feet MSL to 10000 feet MSL

N45°40'33.00" W120°02'32.00" to

N45°40'39.00" W120°09'04.00" to

N45°45'29.00" W120°09'04.00" thence E along the S shore of the

Columbia River to

N45°51'09.00" W119°40'04.00" to

N45°52'59.00" W119°31'04.00" to

N45°46'34.00" W119°31'04.00" to

N45°46'12.00" W119°35'02.00" then

CCW along the arc of a cir rad 5 NM cntr on N45°43'35.00"

W119°41'07.00" to

N45°46'35.00" W119°46'50.00" to

N45°46'33.00" W120°02'32.00" to beginning. Description as per

the AP/1B

Altitudes:

3,500 feet MSL to 10,000 feet MSL.

8.2 OPERATING PROCEDURES

8.2.1. General. NWSTF Boardman is currently an uncontrolled

range. The following standard operating procedures will be

adhered to unless other arrangements are made in writing with

the NAS Whidbey Island Operations Officer (i.e., providing your

own qualified range controllers, etc.)

8.2.2. Entering Boardman Range. All aircraft will broadcast in

the blind, intentions, commencing operations, and completing

operations. A reply from Boardman personnel is not required in

order to commence operations, as this is an uncontrolled range.

Visual inspection by the aircraft commander of the range is

required to ensure the range is clear.

Call Sign:

“BOARDMAN RANGE”

UHF:

305.8 MHZ OR Secondary 243.0 MHZ Guard

VHF:

134.1 MHZ OR Secondary 121.5 MHZ Guard

Aircraft shall make “INBOUND” or “IN TARGET HOT” and “OFF SAFE”

transmissions in the blind.

Telephone: COMM (541) 481-2565, FAX 2567

8.2.3. Departing Boardman Range. For IFR flight, aircraft will

obtain IFR clearance directly from Seattle ARTCC:

Call Sign: SEATTLE CENTER

8-3

NASWHIDBEYINST 3770.1E

12 Jul 10

UHF:

269.35 MHZ

VHF:

132.6 MHZ

Telephone: DSN 891-1241 or COMM: (206) 351-3593

For VR Routes, aircraft will enter at scheduled entry time/point

and contact Flight Service:

Call Sign: SEATTLE RADIO or MCMINNVILLE RADIO 255.4 MHZ

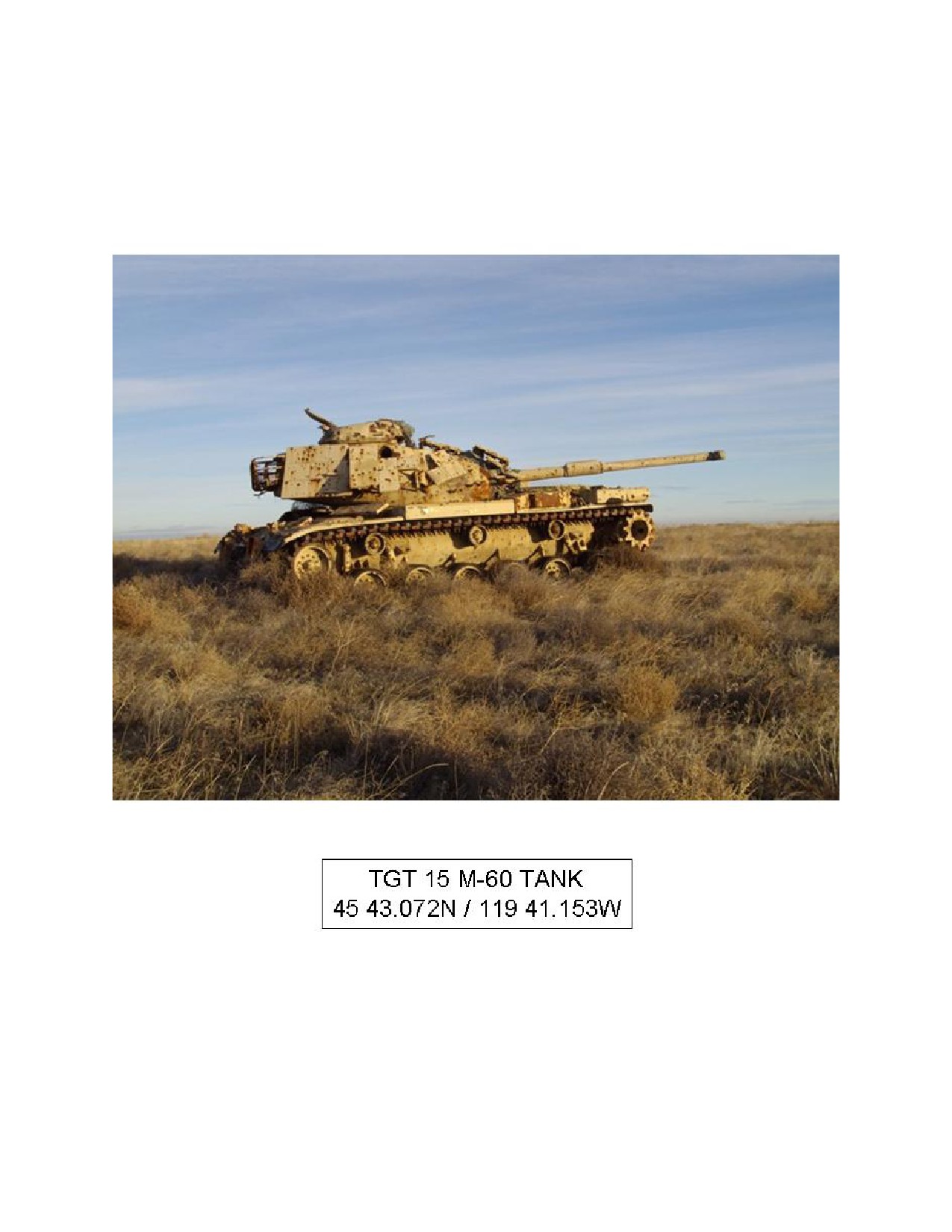

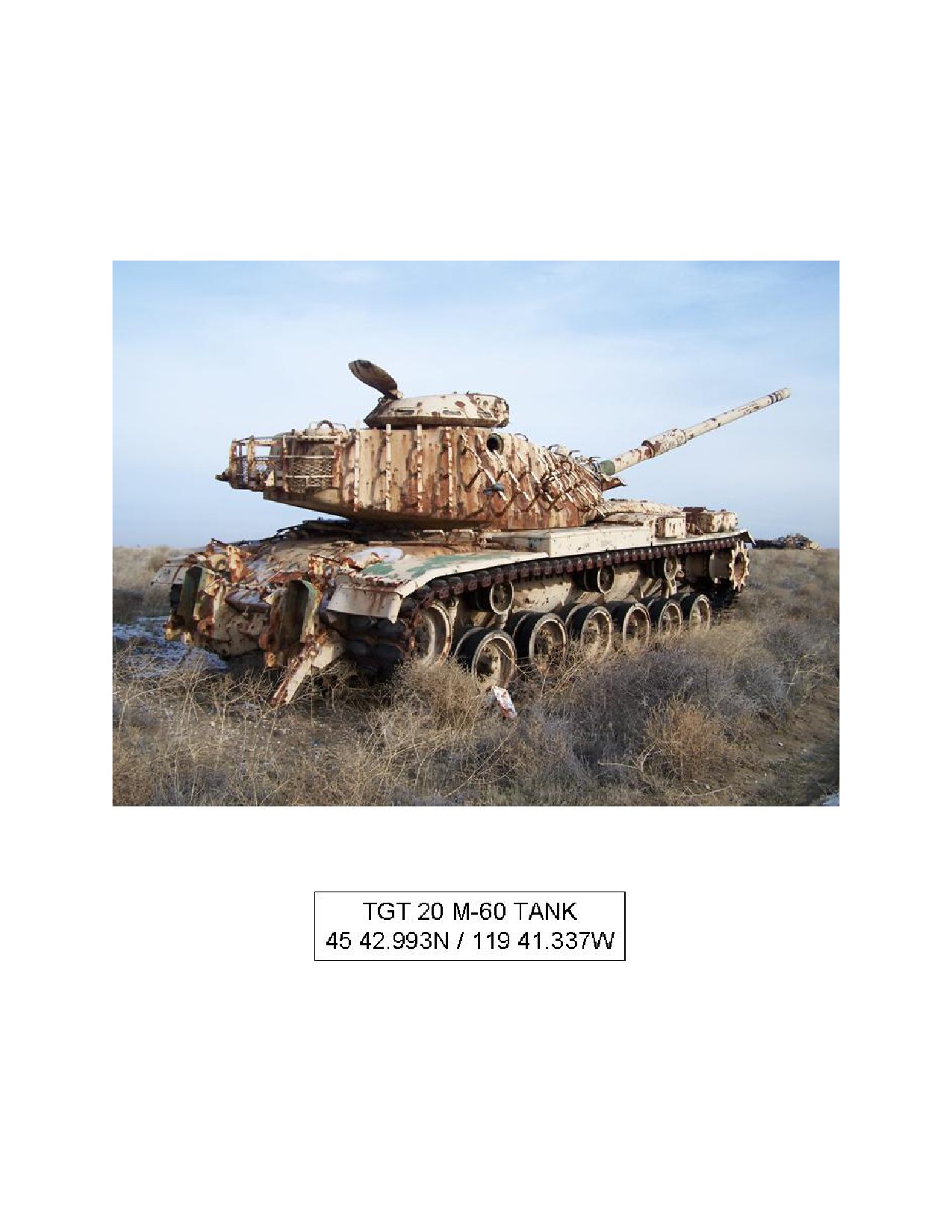

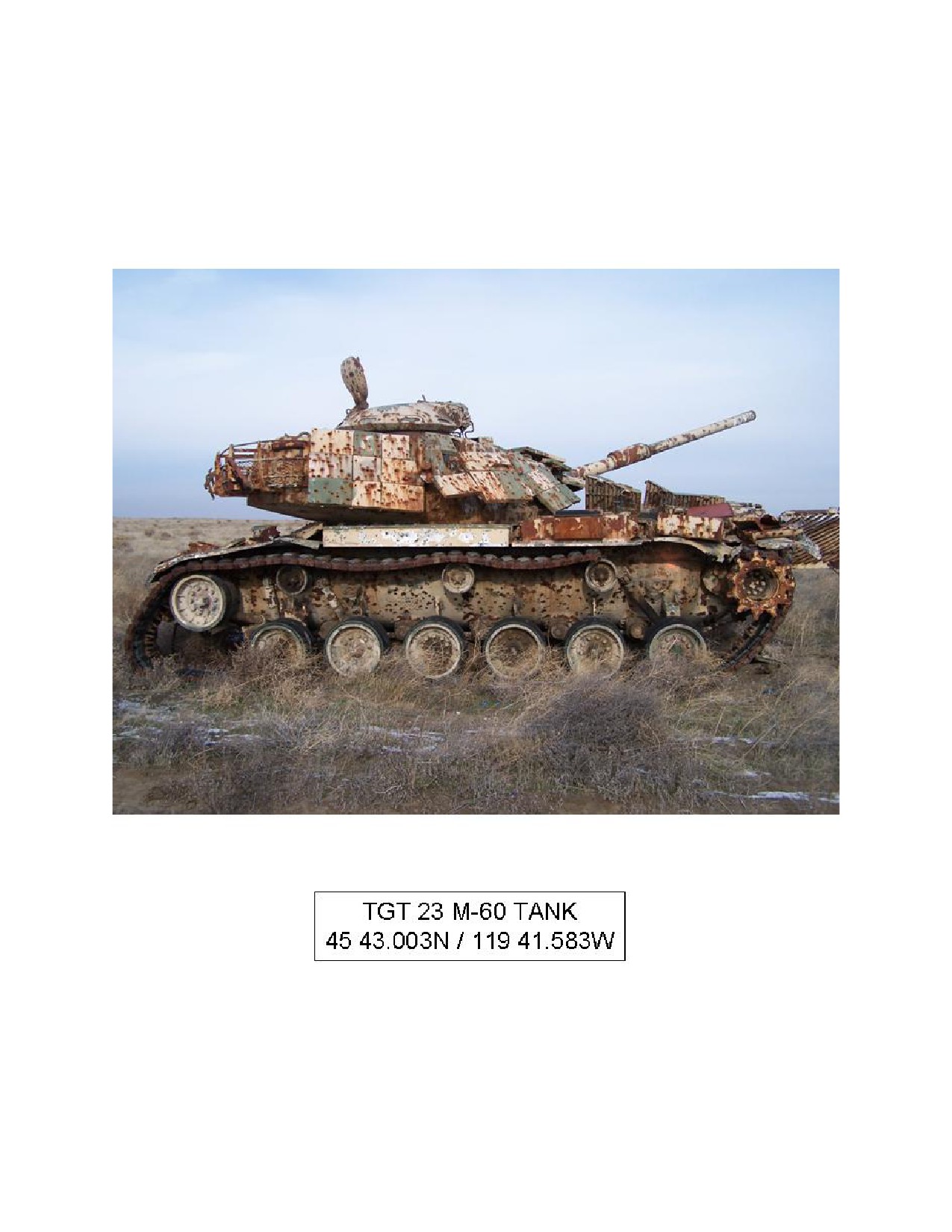

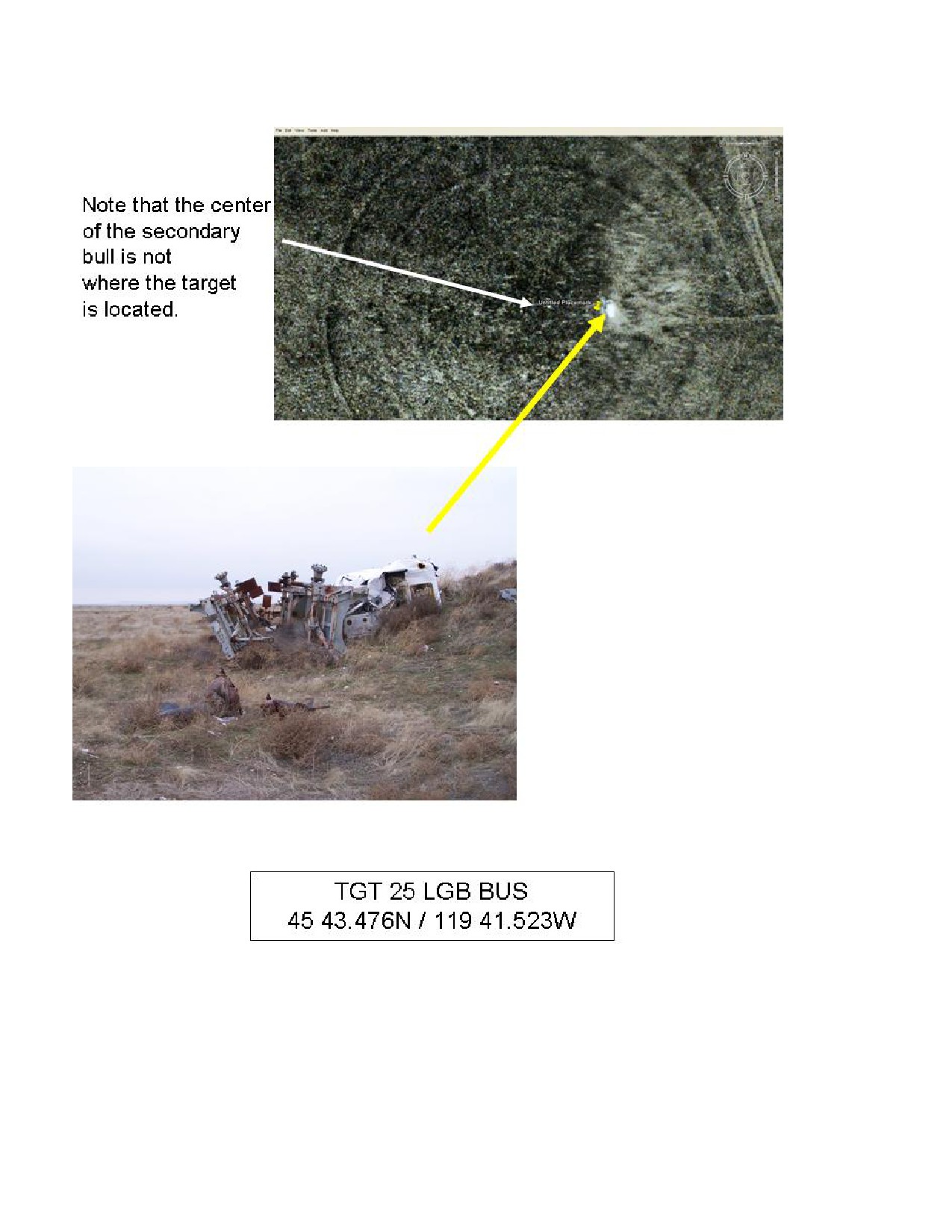

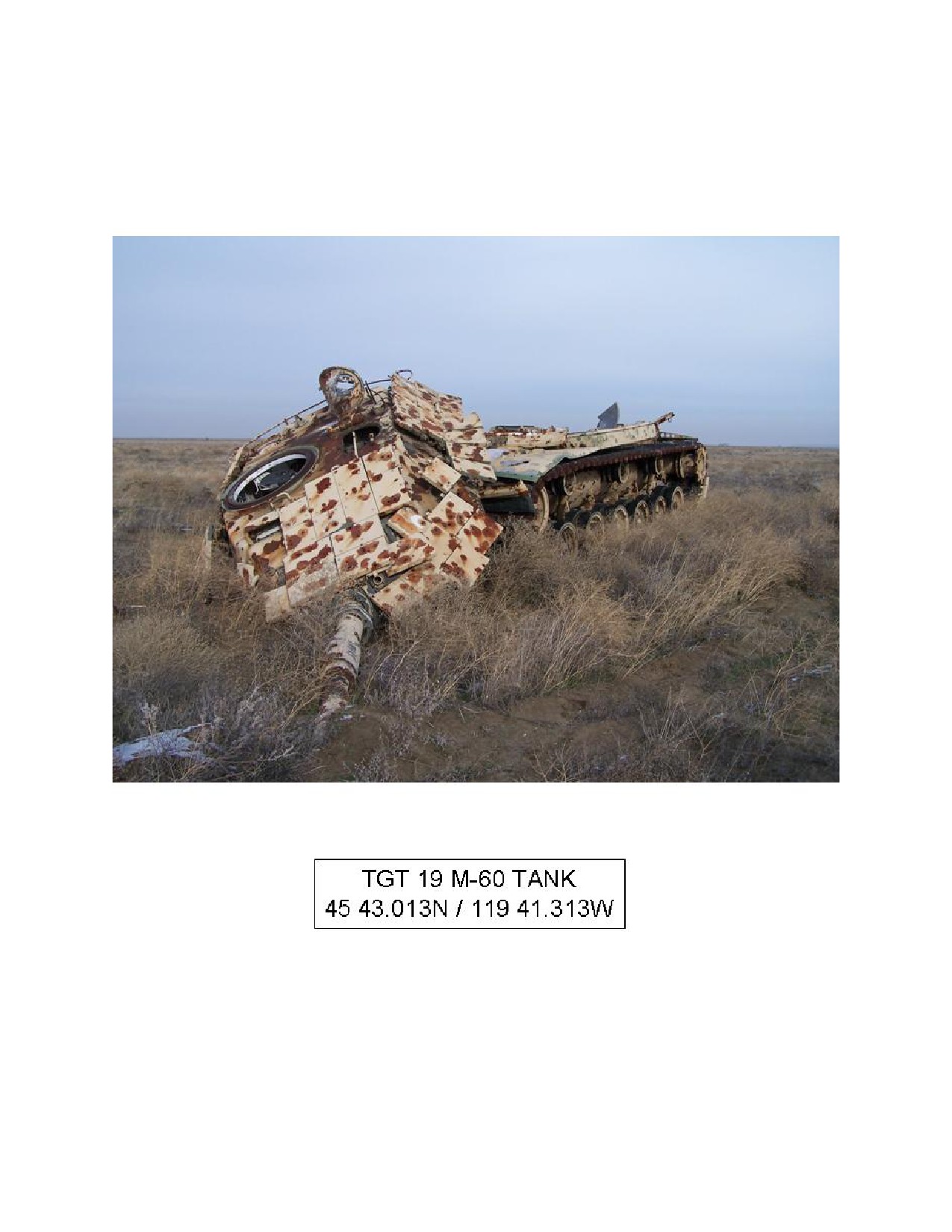

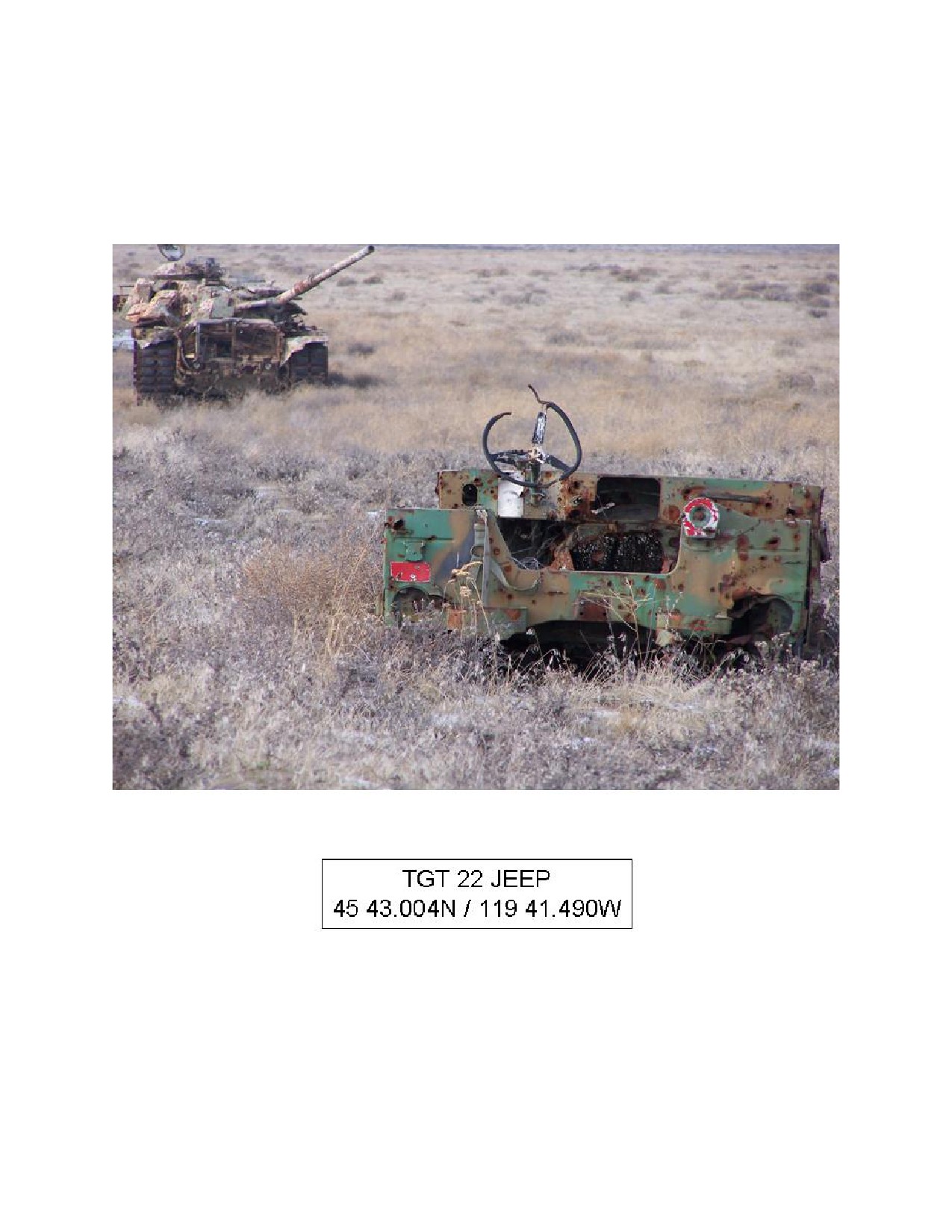

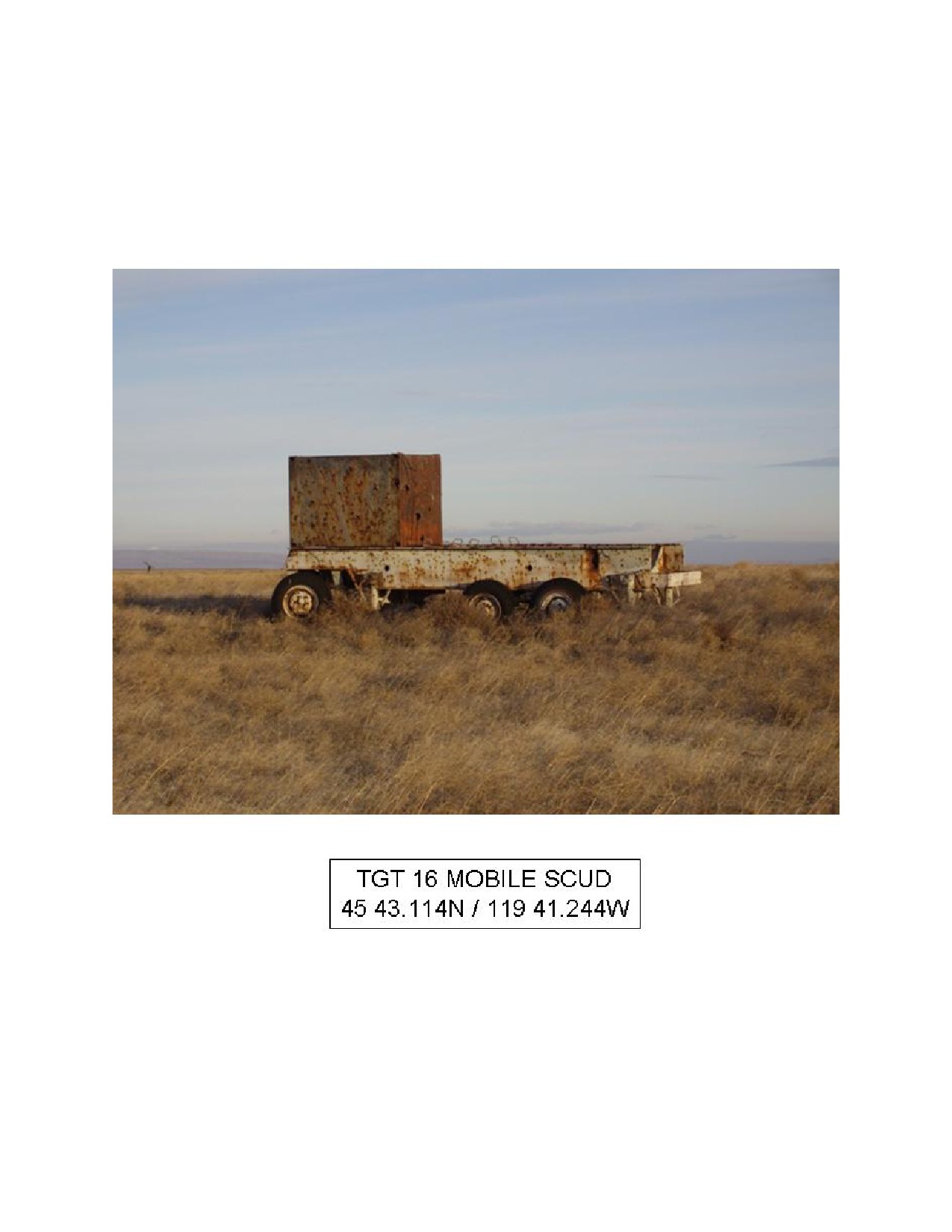

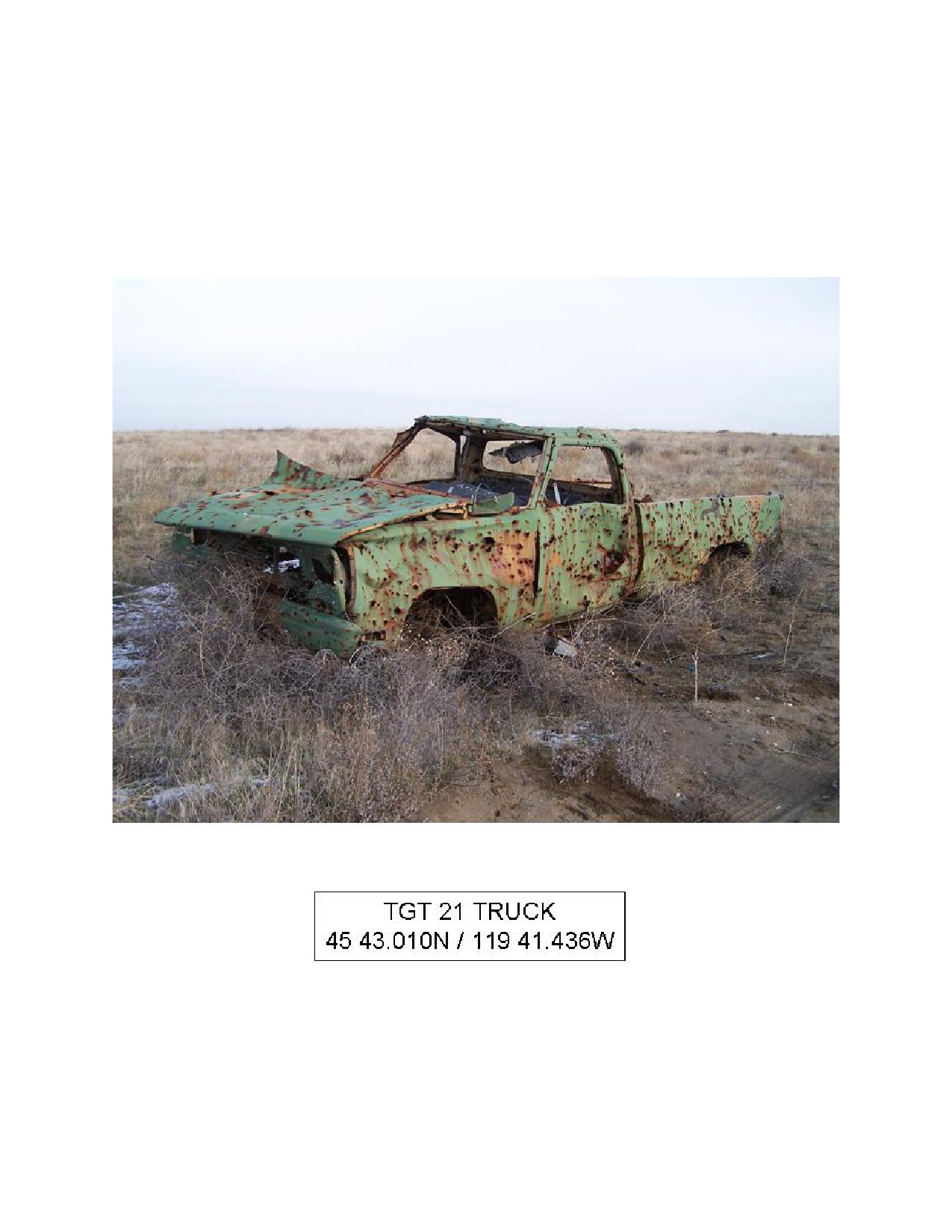

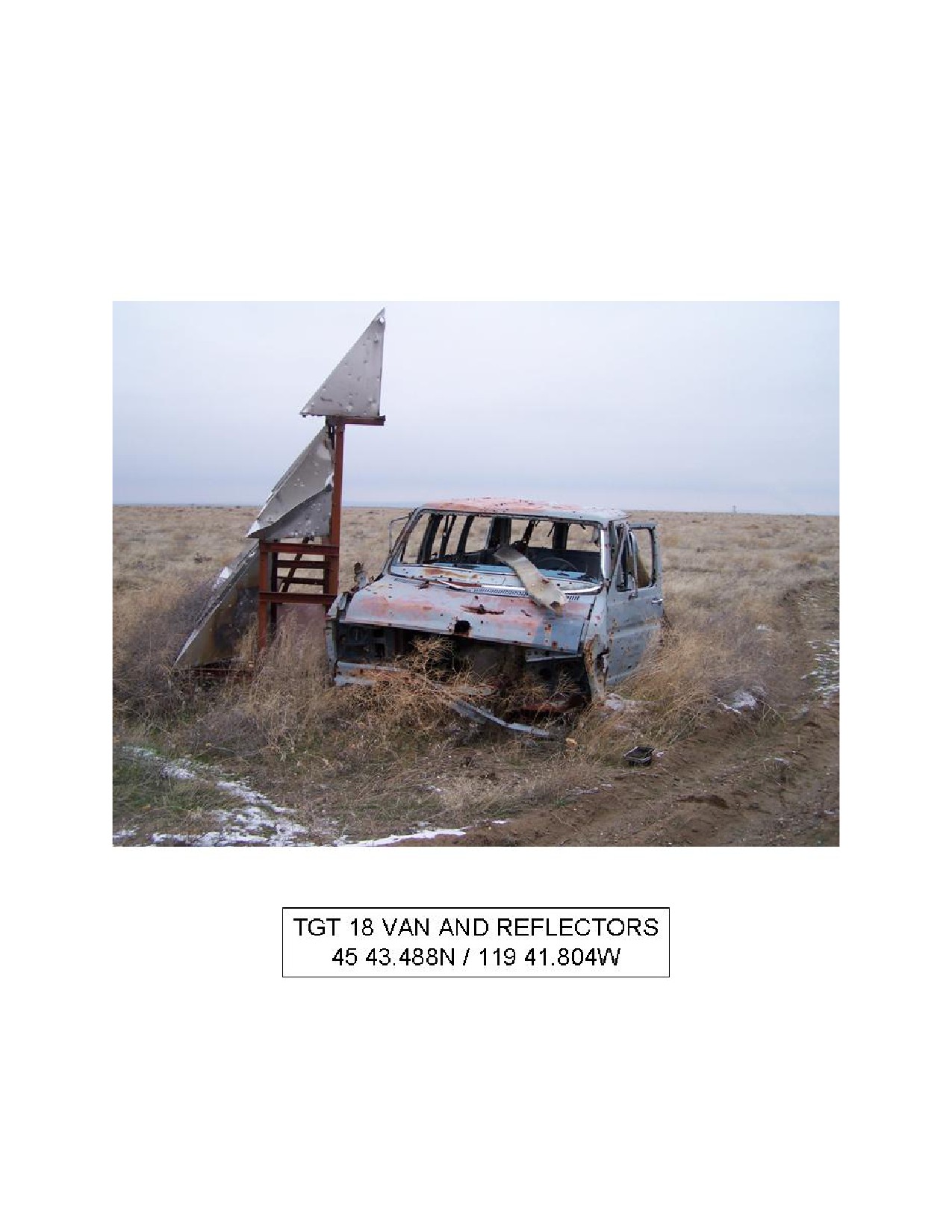

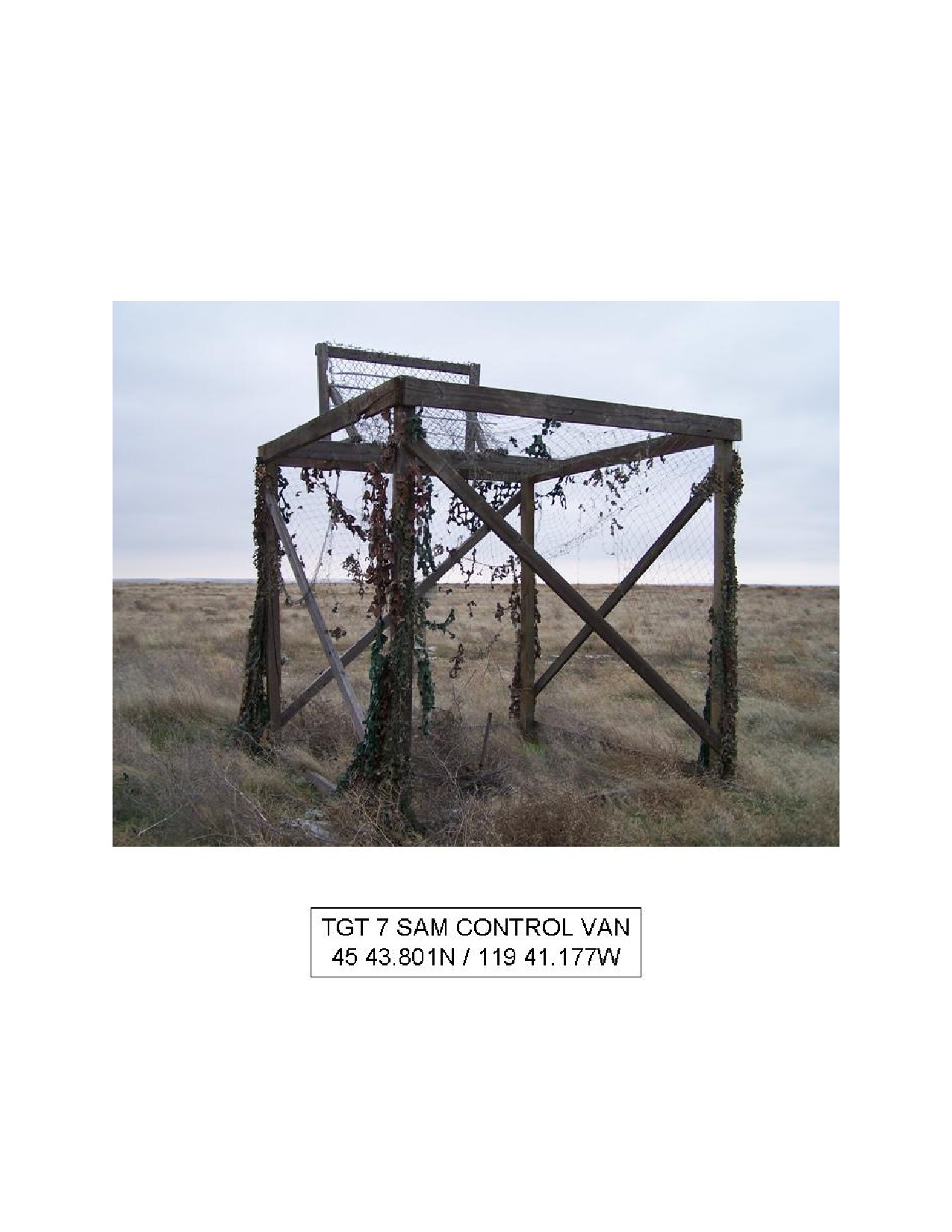

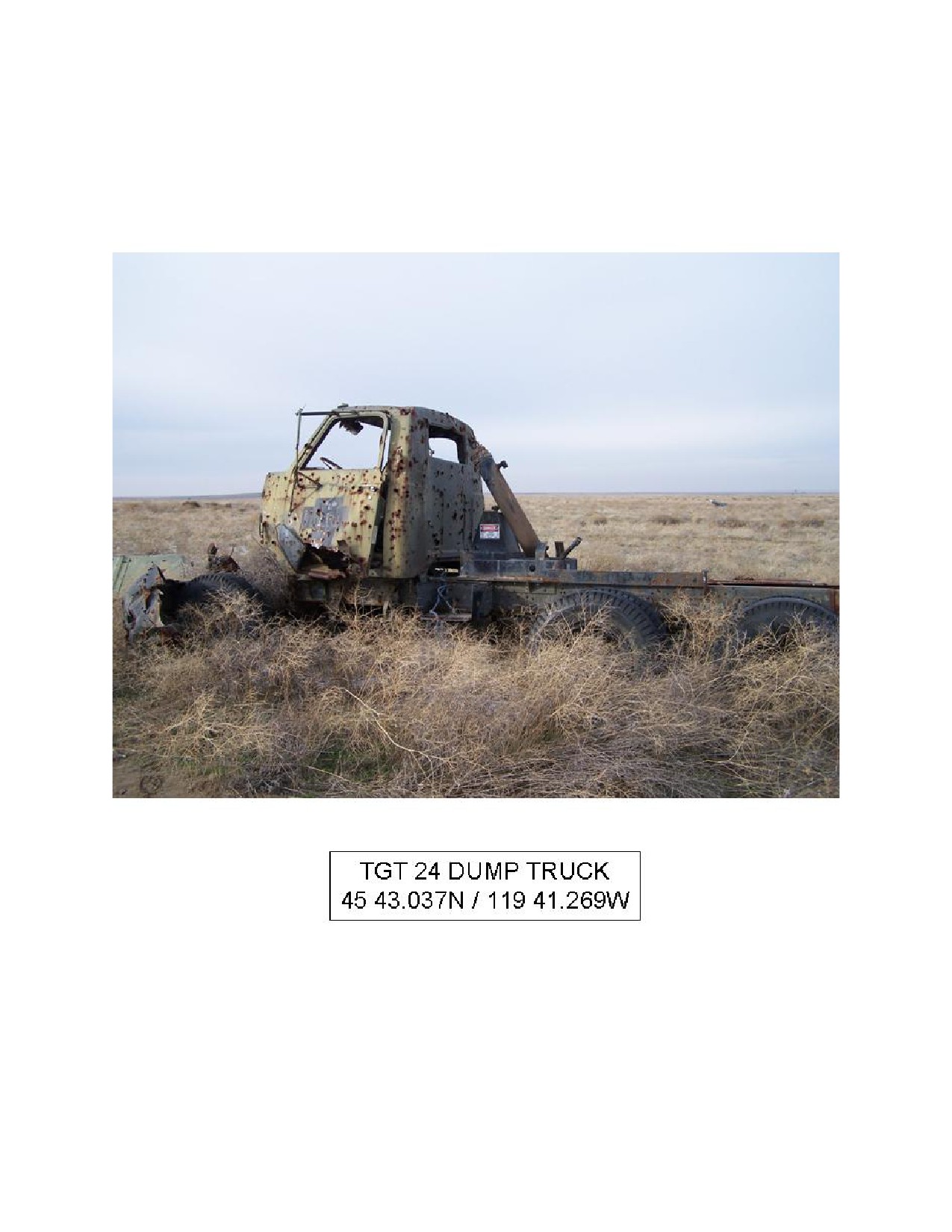

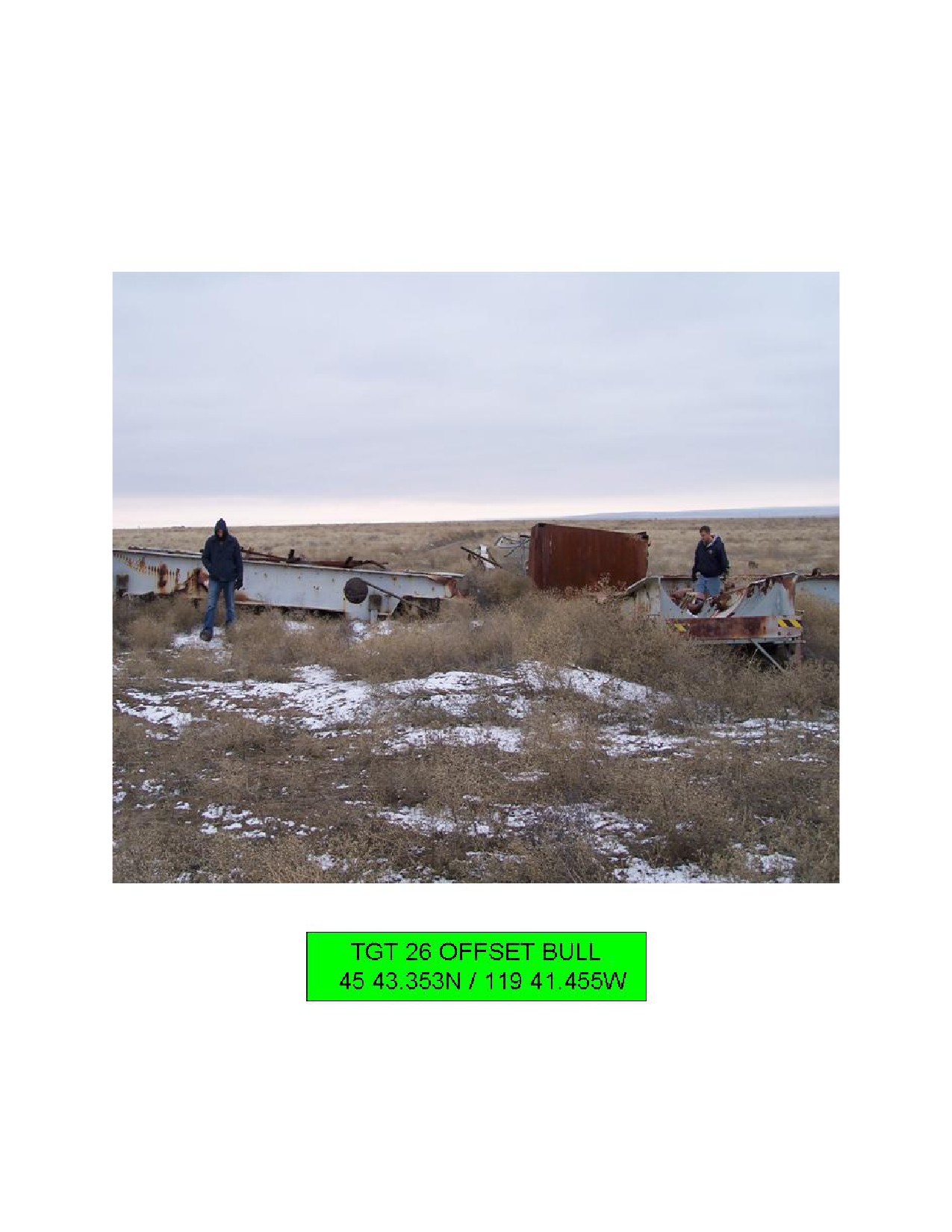

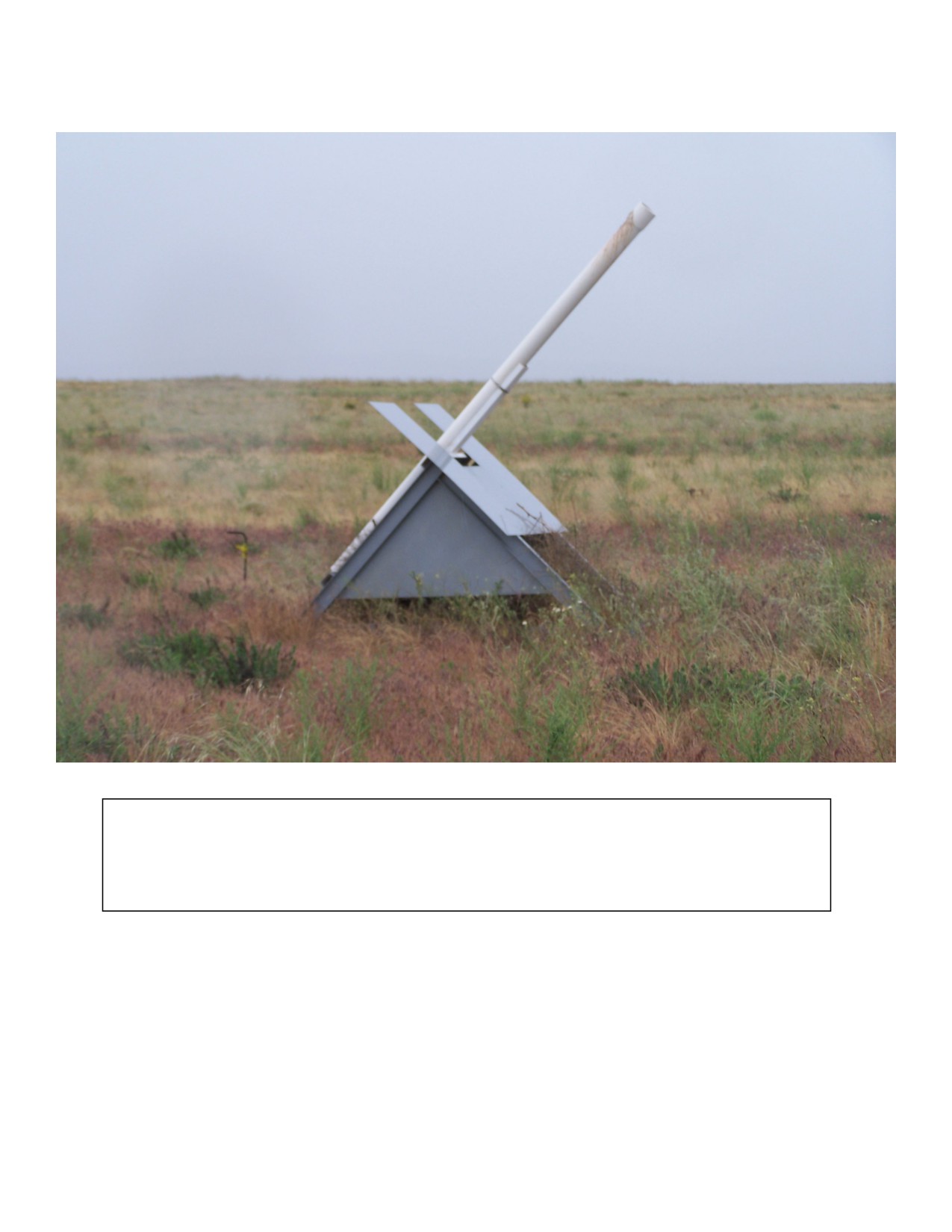

8.3 MAIN TARGET. Usable targets are listed in Table (1) with

associated photographs (taken December 2007) for reference.

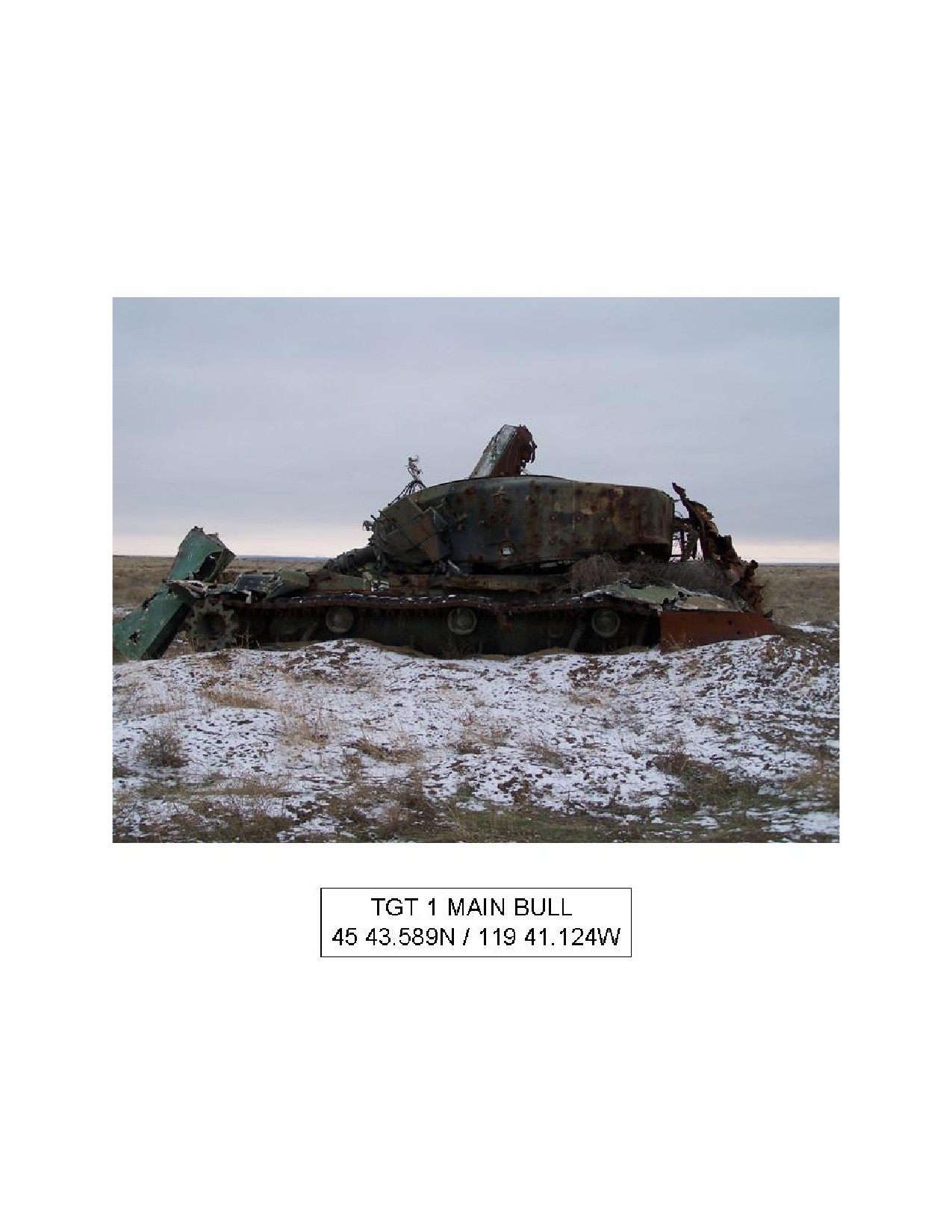

8.3.1 Target (1). General Description. The main target is a T-60

Tank. There are four concentric circles around the bull at 100,

500, 1000, and 1500 feet. There is a 6000-foot square centered on

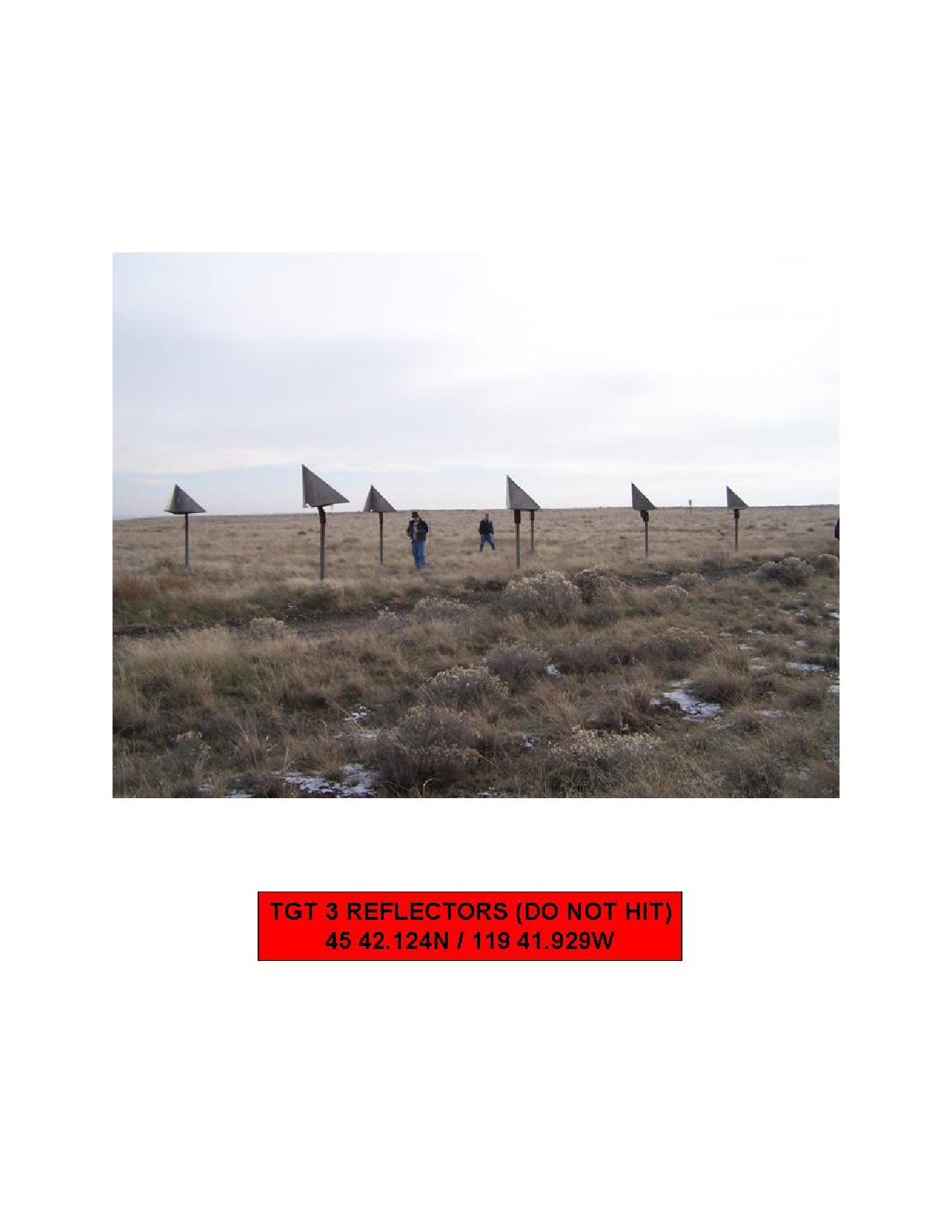

the bull. At 650 feet MSL there are two offset reflectors to

support the main bull, Target #2 and Target #3.

8.3.2 Navigation Check Point. Carty Coal Plant, 45 41.608N/119

48.430W, 1352 feet MSL (top of stacks).

8.4 STRAFING PIT. Located south-southwest of the Main Bull at

45 42.545N/119 41.939W. Strafing procedures are:

a. Upon entering Restricted Area R-5701 make a radio call in

the blind to “BOARDMAN RANGE” stating: aircraft call sign,

position relative to intended target (e.g., “entering R-5701, 8 NM

Southwest of Strafe Pit”),altitude (e.g. “Angels X”), number and

type weapons to be released (e.g. “900 Rounds PGU-27 TP & TP-t”)

and number of passes on target including initial clearing pass and

direction of turns for multiple runs (e.g. “5 passes, left

turns”).

b. High and low angle strafing is approved.

c. A “GUNS COLD” initial clearing pass over the strafe pit

will be accomplished to ensure a clear range before commencing

strafing runs.

d. A “BOARDMAN RANGE, [call sign], strafe pit, hot guns”

call will be made in the blind each pass.

e. The “Foul Line” is 2000 feet short of the strafe pit

target.

8-4

NASWHIDBEYINST 3770.1E

12 Jul 10

f. Tracer rounds are authorized between 1 October and 31

May or at other times upon written approval of the NAS Whidbey

Island Operations Officer (e.g. should unit scheduling provide

its own wildfire suppression personnel and equipment onsite

during strafe operations consideration will be made to permit

tracer rounds use outside the normal “low fire danger” season).

Notify “Boardman Range” of “possible wildfire” immediately if it

appears brush near the strafe pit has caught fire.

g. Cease firing any time “[Call Sign], BOARDMAN RANGE,

CEASE FIRE, CEASE FIRE, CEASE FIRE” is called over Boardman

Range frequency or on UHF Guard.

h. Runaway guns procedure is to fly strafe run-in heading

(028’ Magnetic) until ammunition is expended then notify

“BOARDMAN RANGE” with call sign and state “RUNAWAY GUNS.”

i. After the last pass on target call in the blind to

“BOARDMAN RANGE” stating “[call sign], off-target, GUNS COLD,

[number and type munitions expended].”

j. Runs will be made from South to North only (028

magnetic). Runs from the North are not authorized.

Any questions, please call the NAS Whidbey Island Operations

Officer at (360) 257-2120 or Navy Region Northwest Range Support

at (360) 257-3315.

8.5 RANGE PRIORITY. Priority for aircraft will be assigned as

follows:

a. PRI 1: Scheduled Condon IP aircraft for initial run.

b. PRI 2: Scheduled Arlington IP Aircraft for initial run.

c. PRI 3: Regularly scheduled aircraft already established

in the pattern.

d. PRI 4: High Pattern dive-bombing attacks.

e. PRI 5: Aircraft performing test flights.

f. PRI 6: Scheduled windows for other-than-Navy forces.

NOTE

Refer to chapter 2 for scheduling priority

8.6 TYPE EXERCISE/ORDNANCE. Air-to-ground high, intermediate and

low altitude bombing, loft bombing and rockets. MK-76, BDU-48,

8-5

NASWHIDBEYINST 3770.1E

12 Jul 10

LGTRs or other inert ordnance not to exceed 25 pounds may be used

on all targets (with exception of #2 and #3 radar reflectors).

Inert 2.75 FFAR Rockets are authorized on any metal tactical

target. Five-inch practice Zuni rockets or inert ordnance up to

1000 pounds may be expended on the LGB and offset bull. Flares or

other incendiary devices are specifically prohibited. Any items

brought to the Boardman Range must be taken off the range when the

unit departs. This includes, but is not limited to, any HAZMAT,

spent brass or anything else brought aboard the range.

8.7 PATTERNS. Flight profiles will normally adhere to a left

hand pattern or as directed by the flight lead. When more than

one flight is scheduled in the range at the same time, flight

leads must have completed a face-to-face brief to include,

altitude, patterns, and lost sight/abort procedures.

8.8 EXIT PROCEDURES. Unless safety of flight dictates, no

aircraft intending IFR flight shall depart the Boardman Complex

until an ATC clearance is received from Seattle ARTCC. Under

normal circumstances, aircraft should provide Seattle ARTCC at

least 5 minute advance notice of intent to depart. This

provides needed time for flight data processing and coordination

when required.

8.9 AN/UPQ-8 (V) THREAT EMITTER SIMULATORS. Two AN/UPQ-8 (V)

Threat Emitter Simulators are available in NWSTF Boardman. They

are designated Emitter Alpha and Emitter Bravo. These two

Emitters radiate in the I BAND frequency spectrum. They are for

basic level training; however, schedule and frequencies can be

modified for more advanced training needs. Operation of these

units is Tuesday through Thursday 0800 to 1600. Any other time

or special training needs will require a minimum of 48 hours,

prior to the training event, scheduling. Unless otherwise

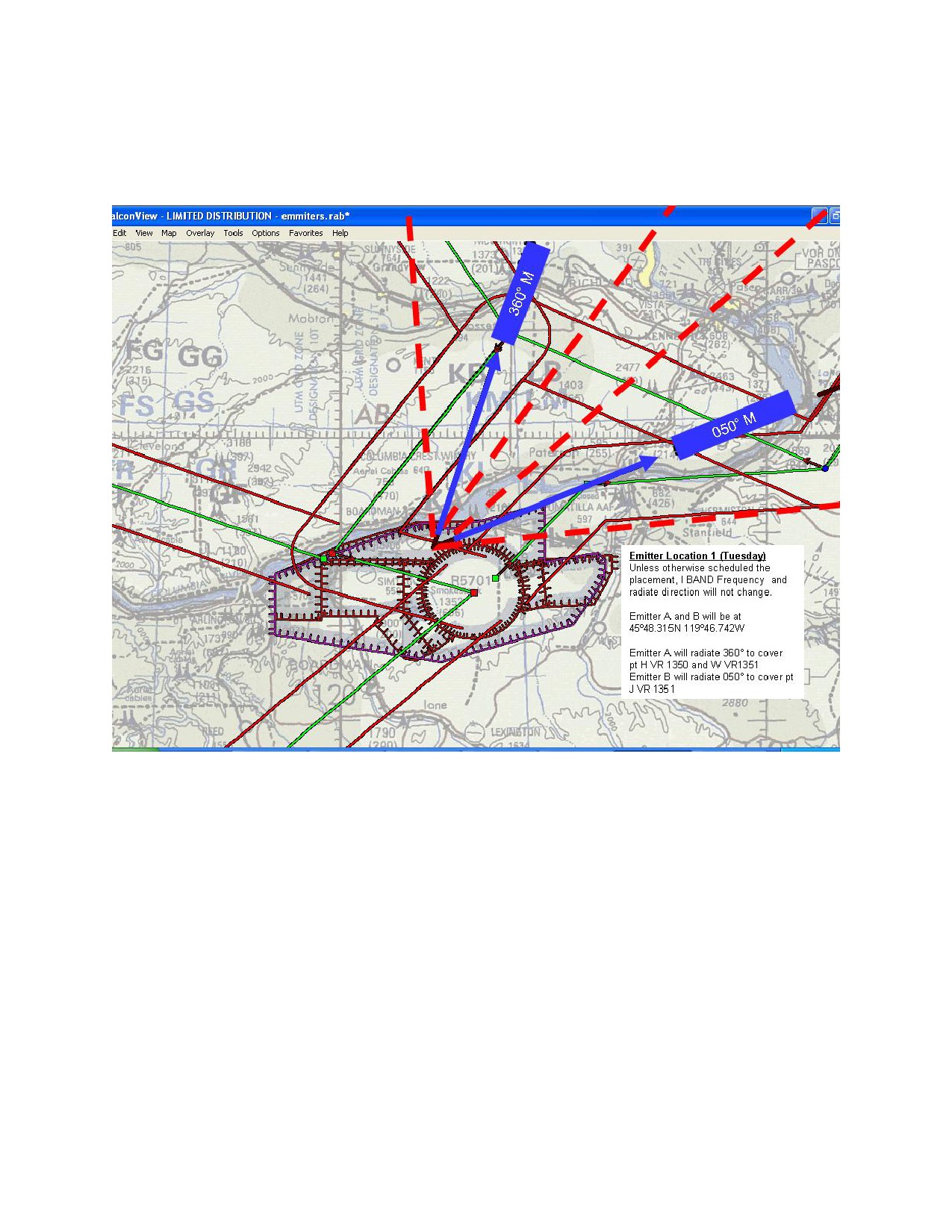

scheduled the Emitters will radiate from the following locations

in the following established directions:

8-6

NASWHIDBEYINST 3770.1E

12 Jul 10

B 003 AGL

NOT TO

INCLUDE

-090

A 090

-NOT TO

B 003 AGL -

INCLUDE

NOT INCLUDE

A 090

FL180

090

-NOT TO A

A 090-NOT TO

A 090-

INCLUDE

INCLUDE FL180

NOT TO

C 003

A/B

FL180

INCLUDE

AGL

FL180

NOT TO

INCLUDE

-090

A 090

-NOT TO

INCLUDE

FL180

OKANOGAN AND ROOSEVELT MOAs

ATCAAs FL180 to, but not including, FL240

MOLSON AND REPUBLIC

ATCAAs

FL240 to FL500

MOLSON SOUTH LOW

ATCAA

FL240 to, but not including, FL290

MOLSON SOUTH HIGH

ATCAA

FL290 to FL500

(5 DAYS ADVANCE COORDINATION REQUIRED)

FOR SCHEDULING MOLSON SOUTH HIGH)

ILLUSTRATION 1

NASWHIDBEYINST 3770.1E

12 Jul 10

OLYMPIC MOAS, W-237 AND OLYMPIC COAST

NATIONAL MARINE SANCTUARY

48°21’02”N

48°29’37”N

130°00’00”W

125°09’01

48°20’00”N

128°00’00”W

W-237E

48°08’59”N

SFC to

127°54’44”W

FL 270

48°08’59”N

125°05’00”W

48°08’59”N

125°56’05”W

48°08’59”N

125°56’05”W

124°48’05”W

W-237B

Olympic B 6000 to

Low SFC to but

but not including

not including FL230

FL180 excluding

below 1200 AGL.

High FL230 to but

N47°41'29.00"

not including FL500

ATCAA FL180-FL350

W124°33'05.00

W-237H

W-237F

SFC to

FL 270

UNLIMITED

N47°31'59.00"

W-237C

W125°41'05.00

Olympic A 6000 to

SFC to

but not including

UNLIMITED

FL180 excluding

W-237A

below 1200 AGL.

Low SFC to but

ATCAA FL180-FL350

not including FL230

High FL230 to but

not including FL500

47°00’00”N

N47°05'59.00"

129°00’00”W

47°00’00”N

W124°14'53.00

127°22’26”W

47°00’00”N

47°00’29”N

126°15’00”W

125°28’03”W

124°30’05”W

46°53’24”N

46°49’59”N

125°06’47”W

125°24’08”

OLYMPIC COAST

W-237G

SFC to

NATIONAL MARINE SANCTUARY

W-237D

W-237J

UNLIMITED

SFC to

UNLIMITED

FL 270

46°32’00”N

125°18’00”W

46°06’00”N

126°15’00”W

45°50’00”N

128°10’00”W

45°48’35”N

126°50’49”W

ILLUSTRATION 2

NASWHIDBEYINST 3770.1E

12 Jul 10

TARGET IDENTIFICATION

LOCATION

LAT/LONG

TGT

1 MAIN BULL

CENTER

43.589N/119 41.124W

TGT

2 REFLECTORS (DO NOT HIT)

CENTER

44.248N/119 41.125W

TGT

3 REFLECTORS (DO NOT HIT)

CENTER

42.124N/119 41.929W

TGT

4 AAA GUN

CENTER

43.931N/119 41.029W

TGT

5 AAA GUN

CENTER

43.873N/119 41.029W

TGT

6 AAA GUN

CENTER

43.826N/119 40.973W

TGT

7 SAM CONTROL VAN

CENTER

43.801N/119 41.177W

TGT

8 SAMS

CENTER

43.912N/119 41.497W

TGT

9 SAMS

CENTER

43.860N/119 41.561W

TGT

10 SAMS

CENTER

43.787N/119.41.617W

TGT

11 SAMS

CENTER

43.700N/119 41.640W

TGT

12 SAMS

CENTER

43.267N/119 41.328W

TGT

13 SAMS

CENTER

43.170N/119 41.366W

TGT

14 M-60 TANK

CENTER

42.931N/119 41.425W

TGT

15 M-60 TANK

CENTER

43.072N/119 41.153W

TGT

16 MOBILE SCUD

CENTER

43.114N/119 41.244W

TGT

17 MOBILE SCUD

CENTER

43.058N/119 41.241W

TGT

18 VAN/REFLECTORS

CENTER

43.488N/119 40.804W

TGT

19 M-60 TANK

CENTER

43.013N/119 41.313W

TGT

20 M-60 TANK

CENTER

42.993N/119 41.337W

TGT

21 TRUCK

CENTER

43.010N/119 41.436W

TGT

22 JEEP

CENTER

43.004N/119 41.490W

TGT

23 M-60 TANK

CENTER

43.003N/119 41.583W

TGT

24 DUMP TRUCK

CENTER

43.037N/119 41.269W

TGT

25 LGB (BUS)

OFFSET

43.476N/119 41.523W

TGT

26 OFFSET BULL

OFFSET

43.353N/119 41.455W

Table (1)

State of Nevada, Health Division

Pandemic Influenza Preparedness and Response Plan, Restricted Distribution

Pandemic Influenza Preparedness and Response Plan

Table of Contents

Purpose of the Plan

This Pandemic Influenza Preparedness and Response Plan is a guide on how to prepare,

detect, and respond to an influenza pandemic in the state of Nevada. This plan is written in

accordance with guidelines set forth by the Centers for Disease Control and Prevention

(CDC) and describes the emergency management concepts and structure under which the

Nevada State Health Division (NSHD) may operate. The plan outlines the roles and

strategies of NSHD in coordinating the public health response to a pandemic with local

health authorities, the healthcare community, the federal government, and other key

partners

Maintenance of the Plan

Introduction

Pandemic Influenza: A High Priority for Planning in Nevada

The Planning Process

Concept of Operations

Pandemic Phases

Health Information Portability and Accountability Act (HIPAA)

Privacy Decision Tool for Emergency Preparedness Planning

Purpose

Situation

Assumption

Figure 1

Influenza Pandemic Preparedness and Response Activities

Section A: Command, Control and Management Procedures

Statutory and Operational Authority

State and Local Operational Authority

Federal Operational Authority during an Influenza Pandemic

Planning for Command and Control of Pandemic-related Activities

Command, Control and Management Activities by WHO Pandemic Phase

Section B: Surveillance

Assumptions

Surveillance Activities by Pandemic Phase

Section C: Vaccine Delivery

Vaccine Delivery Activities by Pandemic Phase

Section D: Antivirals Preparedness and Response

Antiviral Activities by Pandemic Phase

Section E: Communications

The Nevada Health Alert Network (NVHAN)

Public Information

Communication Activities by Pandemic Phase

Section F: Emergency Response

Emergency Response Activities by Pandemic Phase

Appendix A: Acronyms

Appendix B: NSHD Pandemic Influenza Response Activity Matrix

Military reference books and manuals (2009-2023, Volume 5) - page 25
