Siemens SITRANS LR250 Radar Transmitters. Quick Start Manual (01/2012) - page 1

Radar Transmitters

Quick Start Manual 01/2012

SITRANS LR250 (Foundation Fieldbus)

SITRANS

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-1

Eng

lis
h

SITRANS LR250 (Foundation Fieldbus)
Quick Start Manual

This manual outlines the essential features and functions of the SITRANS LR250 (Foundation

Fieldbus). We strongly advise you to acquire the detailed version of the manual so you can use

your instrument to its fullest potential. The complete manual can be downloaded from the

product page of our web site at: www.siemens.com/LR250. The printed manual is available from

your local Siemens representative.
Questions about the contents of this manual can be directed to:

Siemens AG
Siemens Milltronics Process Instruments
1954 Technology Drive, P.O. Box 4225
Peterborough, Ontario, Canada, K9J 7B1
Email: techpubs.smpi@siemens.com

MILLTRONICS® is a registered trademark of Siemens Milltronics Process Instruments Inc.

Technical Support

Support is available 24 hours a day.
To find your local Siemens Automation Office address, phone number and fax number go to:

www.siemens.com/automation/partner:

• Click on the tab Contact, select Service, then click Service again to find your product

group (+Automation Technology > +Sensor Systems >+Process Instrumentation > +Level
Measurement > +Continuous). Select Radar.

• Select the country followed by the City/Region.
• Select Technical Support under Service.

For on-line technical support go to: www.siemens.com/automation/support-request

• Enter the instrument name (SITRANS LR250) or order number, then click on Search, and

select the appropriate product type. Click on Next.

• Enter a keyword describing your issue. Click on Next. Then either browse the relevant

documentation, or click on Next to E-mail a description of your issue to Siemens
Technical Support staff.

Siemens IA/DT Technical Support Center: phone +49 (0)911 895 7222

Copyright Siemens AG 2011.

Disclaimer of Liability

We encourage users to purchase autho-
rized bound manuals, or to view elec-
tronic versions as designed and
authored by Siemens Milltronics Process
Instruments Inc. Siemens Milltronics
Process Instruments Inc. will not be
responsible for the contents of partial or
whole reproductions of either bound or
electronic versions.

While we have verified the contents of this manual
for agreement with the instrumentation described,
variations remain possible. Thus we cannot guar-
antee full agreement. The contents of this manual
are regularly reviewed and corrections are
included in subsequent editions. We welcome all
suggestions for improvement.

Technical data subject to change.

Page EN-2

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

Safety Guidelines

Warning notices must be observed to ensure personal safety as well as that of others, and to

protect the product and the connected equipment. These warning notices are accompanied by

a clarification of the level of caution to be observed.

FCC Conformity

US Installations only: Federal Communications Commission (FCC) rules

SITRANS LR250

SITRANS LR250 is a 2-wire 25 GHz pulse radar level transmitter for continuous monitoring of

liquids and slurries in storage vessels including high pressure and high temperature, to a range

of 20 m (66 ft). It is ideal for small vessels and low dielectric media.
The instrument consists of an electronic component coupled to a horn antenna and either a

threaded or flange type process connection. A threaded PVDF antenna is also available.
SITRANS LR250 supports Foundation Fieldbus (FF) communication protocol. Signals are

processed using Process Intelligence which has been field-proven in over 1,000,000

applications worldwide (ultrasonic and radar). This instrument can be configured as an FF (H1)

Link Master.

WARNING: relates to a caution symbol on the product, and means that failure to
observe the necessary precautions can result in death, serious injury, and/or
considerable material damage.

WARNING

: means that failure to observe the necessary precautions can result

in death, serious injury, and/or considerable material damage.

Note:

means important information about the product or that part of the operating manual.

This symbol is used when there is no corresponding caution symbol on the product.

WARNING: Changes or modifications not expressly approved by Siemens
Milltronics could void the user’s authority to operate the equipment.

Notes:

• This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.

• This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference to radio communications, in which case the user will
be required to correct the interference at his own expense.

WARNING: SITRANS LR250 is to be used only in the manner outlined in this manual,
otherwise protection provided by the equipment may be impaired.

Note: This product is intended for use in industrial areas. Operation of this equipment in a

residential area may cause interference to several frequency based communications.

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-3

Eng

lis
h

Specifications

For a complete listing, see the SITRANS LR250 (FF) Operating Instructions manual. For

Approvals information, please refer to the process device tag.

Ambient/Operating Temperature

Power

• Bus powered 9-32 V DC, per IEC 61158-2 (Foundation Fieldbus)
• Current consumed: 20 mA

Approvals

• General

CSA

US/C

, CE, FM, NE 21, C-TICK, KC

• Radio

FCC, Industry Canada and Europe ETSI EN 302-372

Notes:

• The maximum temperature is dependent on the process connection, antenna materials,

and vessel pressure: see

Wiring Setups for hazardous area installations

on page 9. For

more detailed information see Process Pressure/Temperature derating curves in the full
manual.

• Process temperature and pressure capabilities are dependent upon information on the

process connection tag. The reference drawing listed on the tag is available on the
product page of our website at www.siemens.com/LR250, under More Info/Installation
drawings/Level Measurement/Installation Drawings/LR250. Additional information on
process connections is available on the Installation Drawings page under Process
Connection Diagrams.

• Signal amplitude increases with antenna diameter, so use the largest practical size.
• Optional extensions can be installed below the threads.
• See

Maximum Process Temperature Chart

on page 24, for more details.

General Purpose:
Intrinsically Safe:
Non-Sparking/Energy Limited:
Non-incendive:

9-32 V DC

Notes:

• The device nameplate lists the approvals that apply to your device.
• Use appropriate conduit seals to maintain IP or NEMA rating.

process temperature at process connection:

standard horn antenna:

- with FKM O-ring: –40

C to +200

C (–40

F to +392

- with FFKM O-ring: –20

C to +200

C (–4

F to +392

2" NPT / BSPT / G Threaded PVDF antenna:

−

40 to +80 °C (

−

40 to +176 °F)

ambient temperature

(surrounding enclosure)

–40 °C to 80 °C (–40 °F to 176 °F)

device

nameplate

process

connection

tag

Page EN-4

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

Approvals (continued)

• Hazardous

Intrinsically Safe

(Europe)

ATEX II 1G, Ex ia IIC T4 Ga

ATEX II 1D, Ex tD A20 IP67 T90 °C Da

(International)

IECEx SIR 09.0148X, Ex ia IIC T4 Ga

Ex tD A20 IP67 T90 °C Da

(US/Canada)

FM/CSA

Class I, Div. 1, Groups A, B, C, D

Class II, Div. 1, Groups E, F, G

Class III T4

(Brazil)

INMETRO TUV 11.0309 X, Ex ia IIC T4 Ga

Ex ia IIIC T90 ºC Da IP65/IP67

TUV #: OCP 0004

(China)

NEPSI Ex ia IIC T4/ DIP A20 T

T90

C IP6X

Non-sparking/Energy Limited

(Europe)

ATEX II 3G, Ex nA/nL IIC T4 Gc

(China)

NEPSI Ex nA II T4/ Ex nL IIC T4

Non-incendive

(US/Canada)

FM/CSA Class I, Div. 2, Groups A, B, C, D T5

• Marine

Lloyd’s Register of Shipping

ABS Type Approval

Bureau Veritas

Pressure Application

See

Intrinsically Safe wiring1.

on page 11

See

Non-Sparking/Energy Limited wiring2.

on page 12.

See

Non-incendive wiring (only for USA/Canada)3.

on page 13.

WARNINGS:

• Never attempt to loosen, remove, or disassemble process connection or

instrument housing while vessel contents are under pressure.

• The user is responsible for the selection of bolting and gasket materials which

will fall within the limits of the flange and its intended use and which are suitable
for the service conditions.

• Improper installation may result in loss of process pressure.

Notes:

• The process connection tag shall remain with the process pressure boundary assembly

In the event the instrument package is replaced, the process connection tag shall be
transferred to the replacement unit.

•

SITRANS LR250 units are hydrostatically tested, meeting or exceeding the requirements
of the ASME Boiler and Pressure Vessel Code and the European Pressure Equipment
Directive.

The process pressure boundary assembly comprises the components that act as a barrier against

pressure loss from the process vessel: that is, the combination of process connection body and

emitter, but normally excluding the electrical enclosure.

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-5

Eng

lis
h

Pressure Equipment Directive, PED, 97/23/EC

Siemens Level Transmitters with flanged, threaded, or sanitary clamp type process mounts

have no pressure-bearing housing of their own, and therefore do not come under the Pressure

Equipment Directive as pressure or safety accessories (see EU Commission Guideline 1/8 and

1/20).

Installation

Nozzle design

• The end of the antenna must protrude a minimum of 10 mm (0.4”) to avoid false echoes

being reflected from the nozzle.

• Minimum recommended nozzle diameter for the threaded PVDF antenna is 51 mm (2").
• An antenna extension (100 mm/ 3.93") is available for any version except the threaded

PVDF antenna.

WARNINGS:

• Installation shall be performed only by qualified personnel and in

accordance with local governing regulations.

• Handle the device using the enclosure, not the antenna or the process

connection tag, to avoid damage.

• Take special care when handling the threaded PVDF antenna. Any damage

to the antenna surface, particularly to the tip, could affect performance.

• Materials of construction are chosen based on their chemical compatibility

(or inertness) for general purposes. For exposure to specific environments,
check with chemical compatibility charts before installing.

Notes:

• For European Union and member countries, installation must be according to ETSI EN

302372.

• Refer to the device nameplate for approval information.
• The serial numbers stamped in each process connection body provide a unique

identification number indicating date of manufacture.
Example: MMDDYY – XXX (where MM = month, DD = day, YY = year, and XXX= sequential

unit produced)

• Further markings (space permitting) indicate flange configuration, size, pressure class,

material, and material heat code.

min. clearance:

10 mm (0.4")

Threaded PVDF Antenna

Stainless Steel Horn Antenna

Min. dia. 50 mm (2")

min. clearance:

10 mm (0.4")

Page EN-6

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

Nozzle location

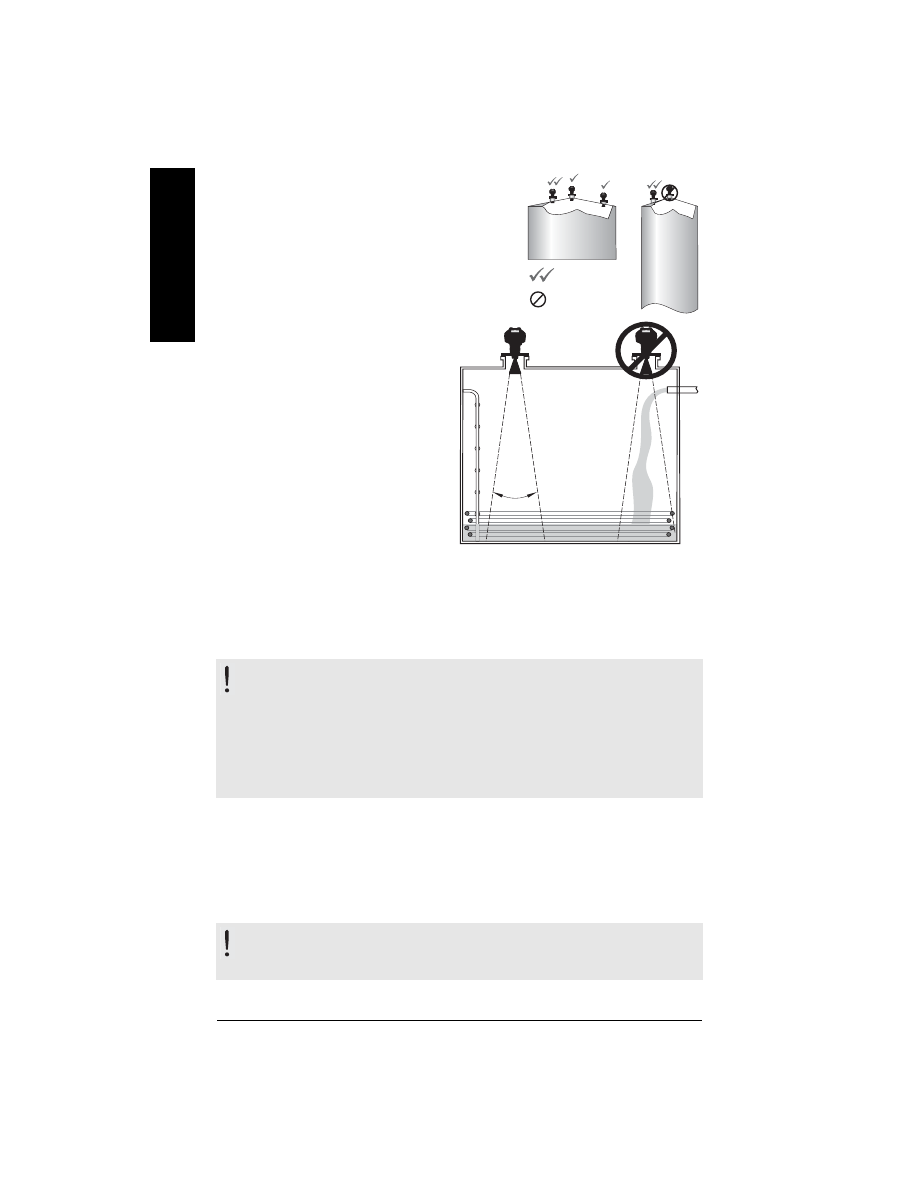

Avoid central locations on tall, narrow vessels.

Environment

• Provide an environment suitable to the housing

rating and materials of construction.

• Provide a sunshield if the device will be mounted

in direct sunlight.

Beam angle

• Beam angle is the width of the cone

where the energy density is half of the
peak energy density.

• Peak energy density is directly in front

of and in line with the antenna.

• Signal is transmitted outside the beam

angle; therefore false targets may be
detected.

Emission Cone

• Keep emission cone free of interference

from ladders, pipes, I-beams or filling
streams.

Access for programming

• Provide easy access for viewing the display and programming via the handheld

programmer

Mounting instructions

Threaded Versions

Before inserting the instrument into its mounting connection, check to ensure the threads
are matching to avoid damaging them.

2) Simply screw the instrument into the process connection, and hand tighten, or use a

wrench. For pressure applications see Warning note above.

Flanged Versions

WARNING: For pressure applications use PTFE tape or other appropriate thread
sealing compound and tighten the process connection beyond hand-tight. The
maximum recommended torque is 40 N-m (30 ft.lbs.)

Note:

• There is no limit to the number of times an instrument can be rotated without damage.
• When mounting, orient the front or back of the instrument towards the closest wall.
• Do not rotate the enclosure after programming and vessel calibration, otherwise an error

may occur, caused by a polarity shift of the transmit pulse.

WARNING: The user is responsible for the selection of bolting and gasket materials
which will fall within the limits of the flange and its intended use, and which are
suitable for the service conditions.

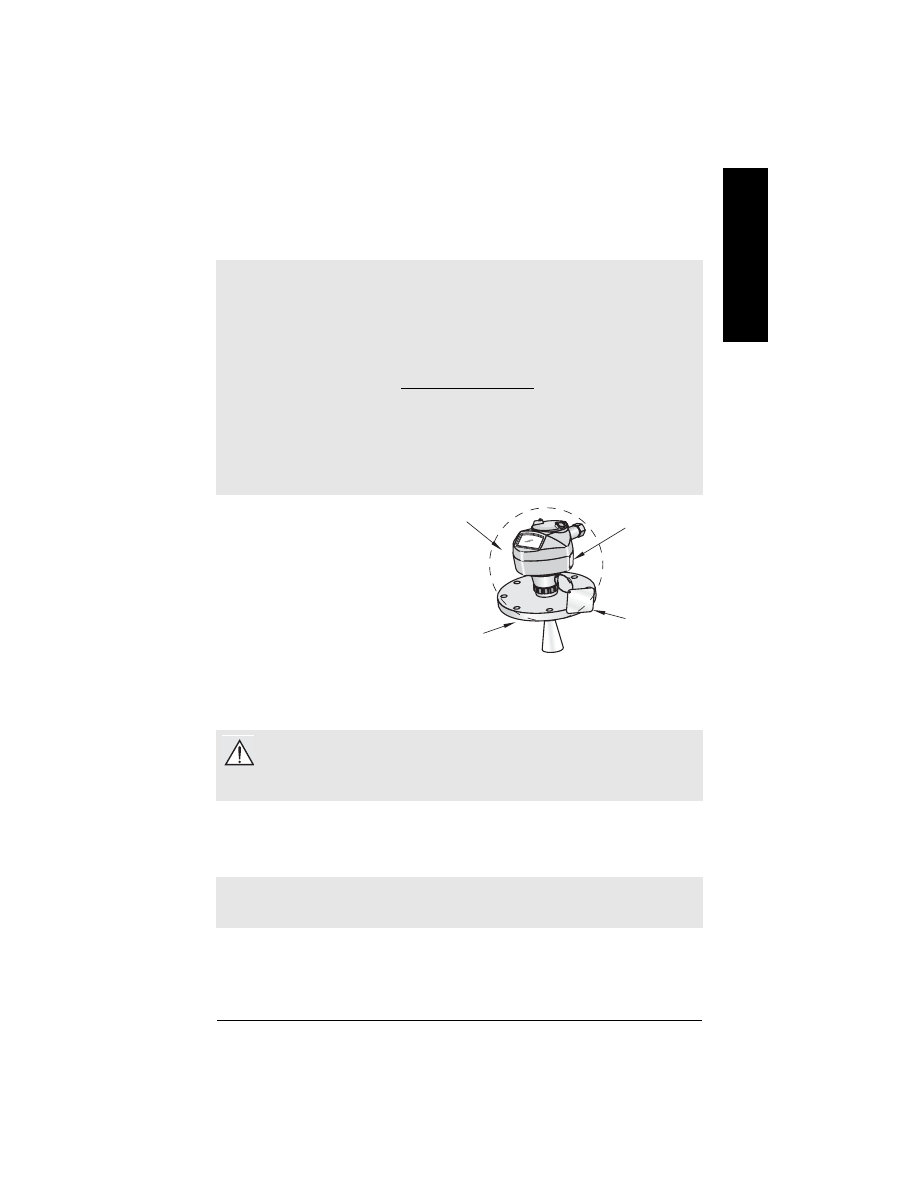

preferred

undesirable

beam angle:

threaded PVDF

antenna = 19°

1.5" horn = 19°

2" horn

= 15°

3" horn

= 10°

4" horn

= 8°

beam

angle

emission

cone

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-7

Eng

lis
h

Wiring

Power

Connecting

SITRANS LR250

Strip the cable jacket for approximately 70 mm (2.75") from the end of the Foundation
Fieldbus cable, and thread the wires through the gland

2) Connect the wires to the terminal as shown (SITRANS LR250 FF is not polarity sensitive).

3) Ground the instrument according to local regulations.

4) Tighten the gland to form a good seal.
5) Close the lid and secure the locking ring before programming and instrument

configuration.

(continued on next page)

WARNINGS:

The DC input terminals shall be supplied from a source providing electrical
isolation between the input and output, in order to meet the applicable safety
requirements of IEC 61010-1.

All field wiring must have insulation suitable for rated voltages.

WARNINGS:

• Check the device nameplate to verify the approval rating.
• Use appropriate conduit seals to maintain IP or NEMA rating.
• See

Wiring Setups for hazardous area installations

on page 9.

Note:

For detailed wiring instructions refer to the full LR250 FF Operating Instructions.

The device shield connection is internally connected to the external ground lug.

May be shipped with the instrument.

If cable is routed through conduit, use only approved suitable-size hubs for waterproof applications.

For optimum EMC protection, it is recommended that the FF H1 cable shield be connected to ground at

every node.

cable shield

device shield
connection

external

ground lug

plug (IP 68)

optional cable gland

(or NPT cable entry

)

Use a 2 mm Allen key to

loosen the lid-lock set

screw.

Page EN-8

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

Basic Configuration with Foundation Fieldbus (H1)

Notes:

• Foundation Fieldbus (H1) must be terminated at both extreme ends of the cable for it to

work properly.

• Please refer to the

Foundation Fieldbus System Engineering Guidelines (AG-181) Revision

2.0

, available from www.fieldbus.org, for information on installing FF (H1) devices.

controller

Rosemount

3420 HSE/H1

Gateway

configurator

software

LR250 FF

PC/laptop

FF (H1)

controller

HSE/H1

Linking Device

LR250 FF

PC/laptop

FF (H1)

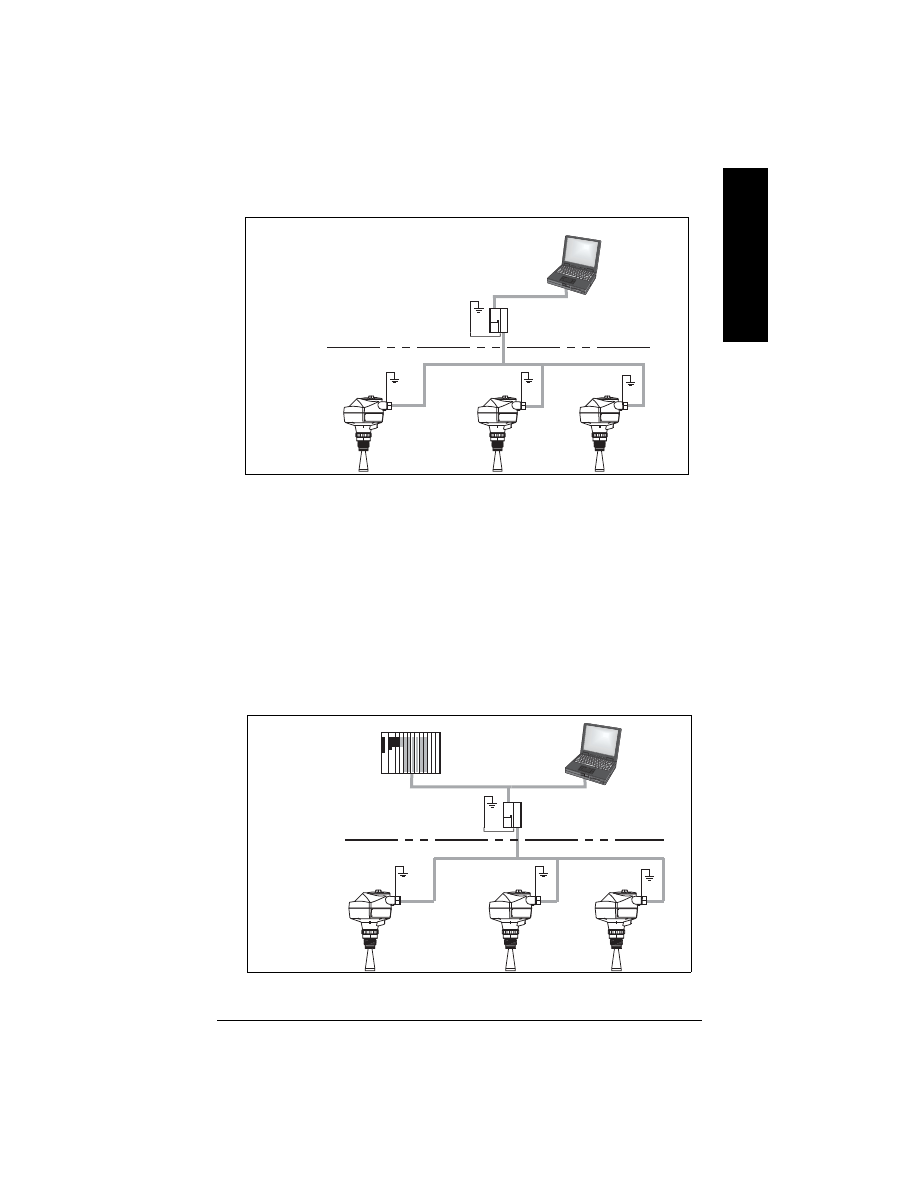

Configuration via
Gateway

Configuration via
Linking Device

FF (HSE)

Basic Configuration cont’d on next page.

configurator

software

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-9

Eng

lis
h

Wiring Setups for hazardous area installations

There are three wiring options for hazardous area installations:

•

Intrinsically Safe wiring

on page 11

•

Non-Sparking/Energy Limited wiring

on page 12

•

Non-incendive wiring (only for USA/Canada)

on page 13.

In all cases, check the device nameplate and process connection tag to verify the approval

rating.

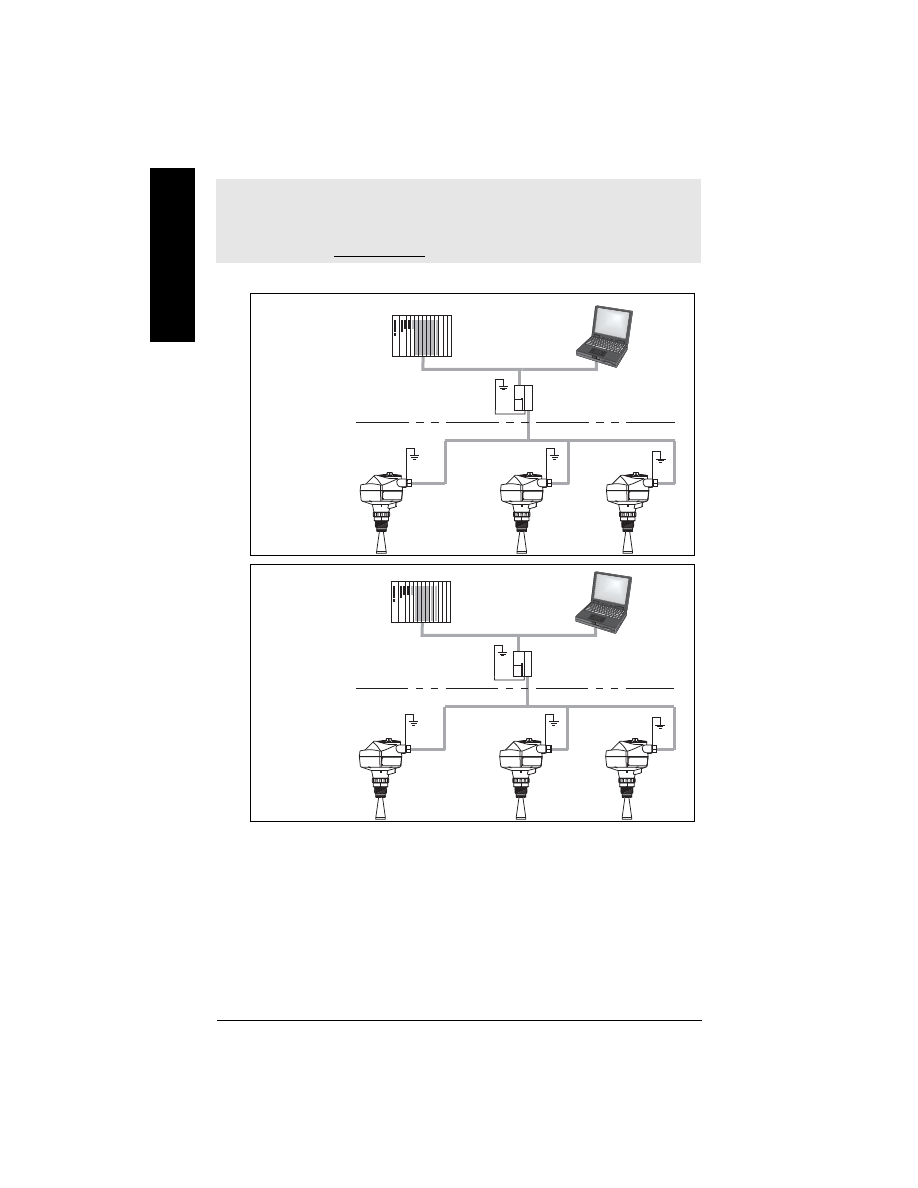

Configuration with Foundation Fieldbus for hazardous

areas

H1 Interface

LR250 FF

PC/laptop

FF (H1)

Configuration via
PCI/PCMCIA Card

PCI/PCMCIA bus

Basic Configuration cont’d.

configurator

software

Hazardous Area

Non-hazardous Area

controller

EEx ia type

HSE/H1

LR250 FF

PC/laptop

FF (H1)

Configuration via
Gateway

FF (HSE)

configurator

software

Page EN-10

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

Hazardous Area

Non-hazardous Area

controller

EEx ia type

HSE/H1

Linking Device

LR250 FF

PC/laptop

FF (H1)

Configuration via
Linking Device

Hazardous Area

Non-hazardous Area

EEx ia type

H1 Interface

LR250 FF

PC/laptop

FF (H1)

Configuration via
PCI/PCMCIA Card

FF (HSE)

PCI/PCMCIA bus

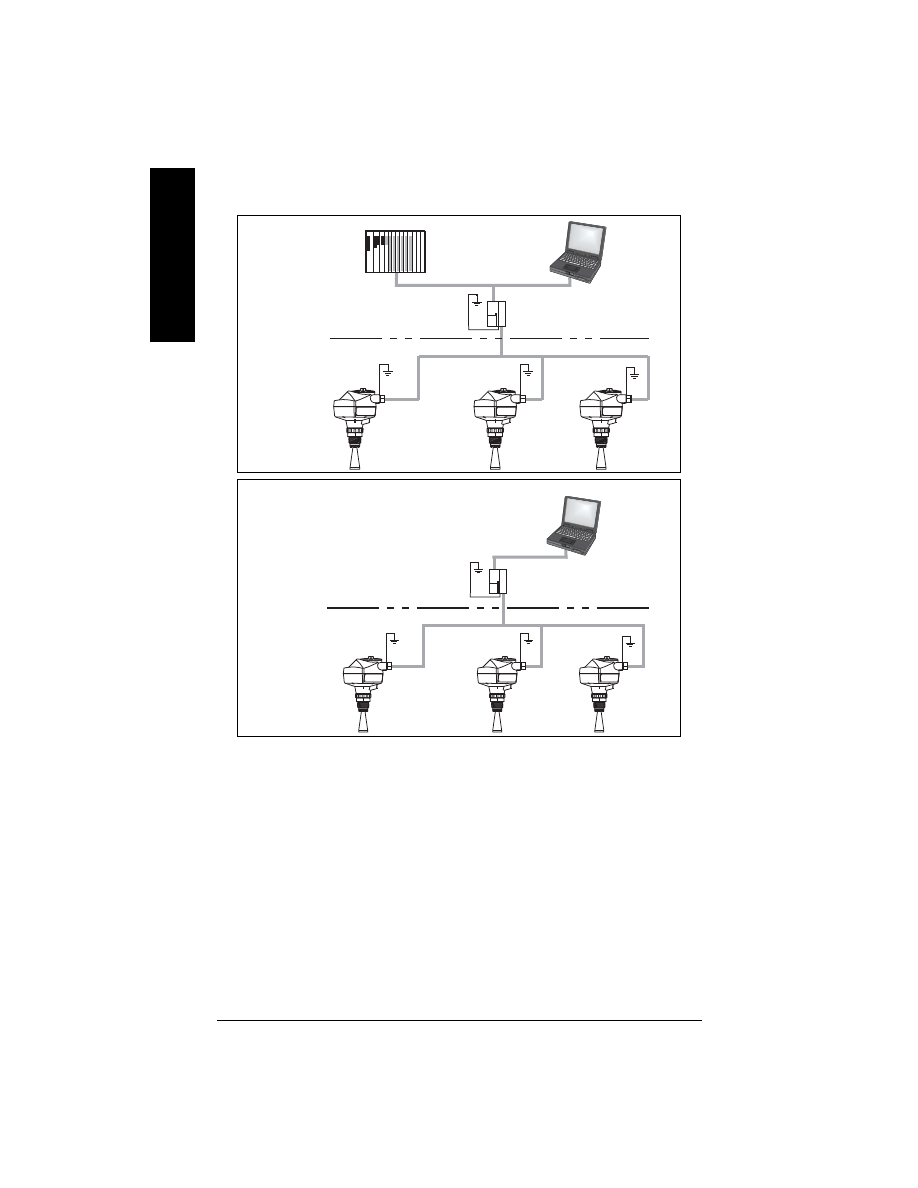

Configuration for hazardous areas continued

configurator

software

configurator

software

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-11

Eng

lis
h

1.Intrinsically Safe wiring

• For wiring requirements: follow local regulations.
• Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X /

type 4X / NEMA 6, IP67, IP68 locations.

• Refer to

Instructions specific to hazardous area installations

on page 13.

Under the entity evaluation concept, SITRANS LR250 has the following characteristics:

Entity Concept:

The Entity Concept allows interconnection of Intrinsically Safe apparatus to associated

apparatus not specifically examined in such combination. The criteria for interconnection is

that the voltage and current which Intrinsically Safe apparatus can receive and remain

Intrinsically Safe, considering faults, must be equal to or greater than the output voltage (Uo)

and output current (Io) levels which can be delivered by the associated apparatus, considering

faults and applicable factors. In addition, the maximum unprotected capacitance (Ci) and

Inductance (Li) of the Intrinsically Safe apparatus, including interconnecting wiring, must be

equal to or less than the capacitance and inductance which can be safely connected to

associated apparatus.

(input voltage) U

= 24 V

(input current) I

250

(input power) P

= 1.2 W

(internal capacitance) Ci

= 0

(internal inductance) Li

= 0

1 G D EEx ia IIC T4

Ex tD A20 IP67 T90 °C

SIRA 09ATEX2353X

Fisco:
Ui = 17.5 V
Ii = 380 mA
Pi = 5.32 W
Ci = 0 nF
Li = 0 mH

Entity:
Ui = 24 V
Ii = 250 mA
Pi = 1.2 W
Ci = 0 nF
Li = 0 mH

IECEx SIR 09.0148X
Ex ia IIC T4
Ex tD A20 IP67 T90 °C

0518

SITRANS LR250

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

7MLxxxx-xxxxx-xxxx

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 32 V

Max., 20 mA

Serial No: GYZ / A1034567

FOUNDATION FIELDBUS

The ATEX certificates listed on the nameplate
can be downloaded from the product page of our website at:
www.siemens.com/LR250. Go to More Info > Certificates.

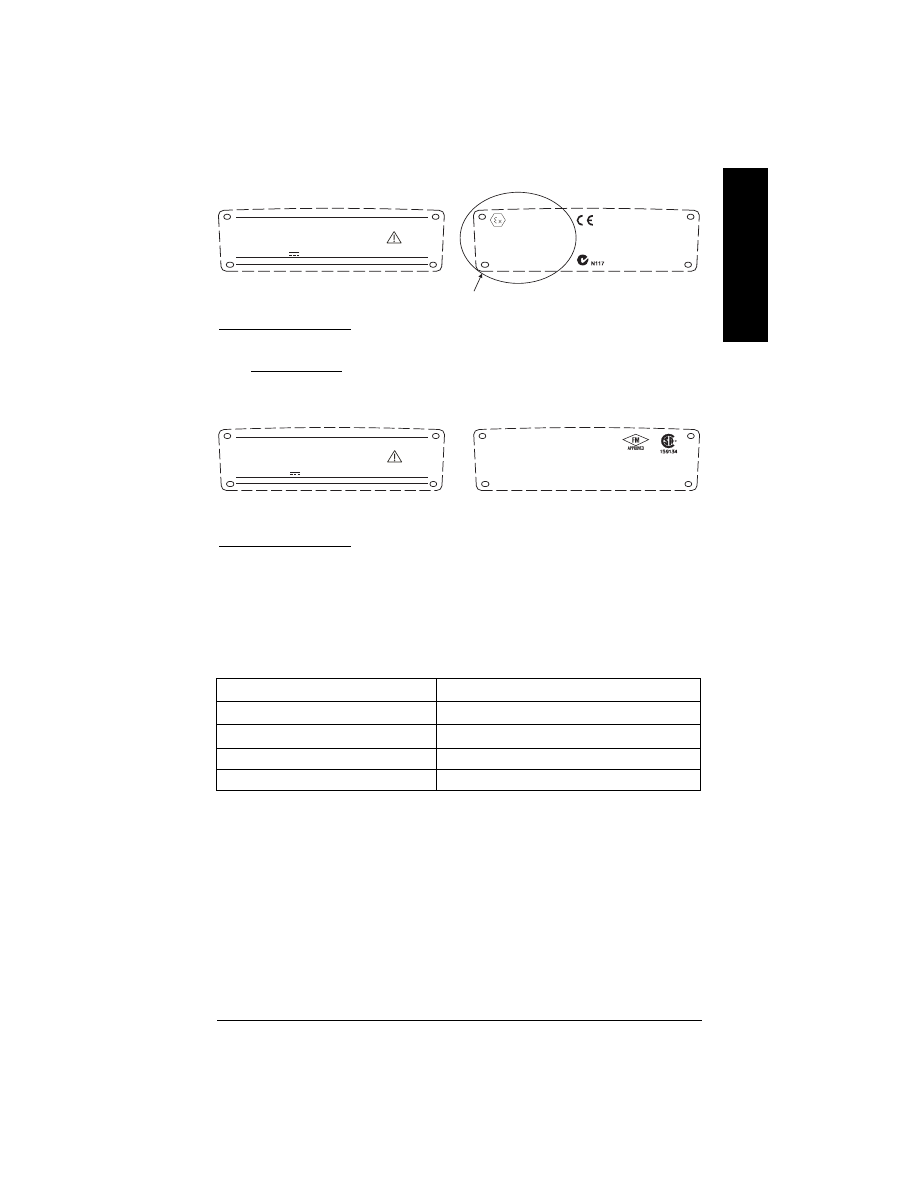

Device nameplate (ATEX/IECEx/C-TICK)

The IECEx certificate listed on the nameplate can be viewed on the IECEx website.
Go to: http://iecex.iec.ch > Ex Equipment Certificates of Conformity and enter the certificate
number IECEx SIR 09.0148X.

Exia per drawing: A5E02358161

Fisco:
Ui = 17.5 V
Ii = 380 mA
Pi = 5.32 W
Ci = 0 nF
Li = 0 mH

Entity:
Ui = 24 V
Ii = 250 mA
Pi = 1.2 W
Ci = 0 nF
Li = 0 mH

Class I, Div 1, Gr. A, B,C, D
Class II, Div 1, Gr. E, F, G
Class III T4

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions 1)This device may not cause harmful interference and 2)This device must accept
any interference received, including interference that may cause undesired operation

IC: 267P-LR250
FCC ID: NJA-LR250

SITRANS LR250

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

7MLxxxx-xxxxx-xxxx

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 32 V

Max., 20 mA

Serial No: GYZ / A1034567

FOUNDATION FIELDBUS

The FM/CSA Intrinsically Safe connection drawing
number A5E02358161 can be downloaded from the product page of our website at:
www.siemens.com/LR250.
Go to More Info > Installation Drawings > Level Measurement > SITRANS LR250.

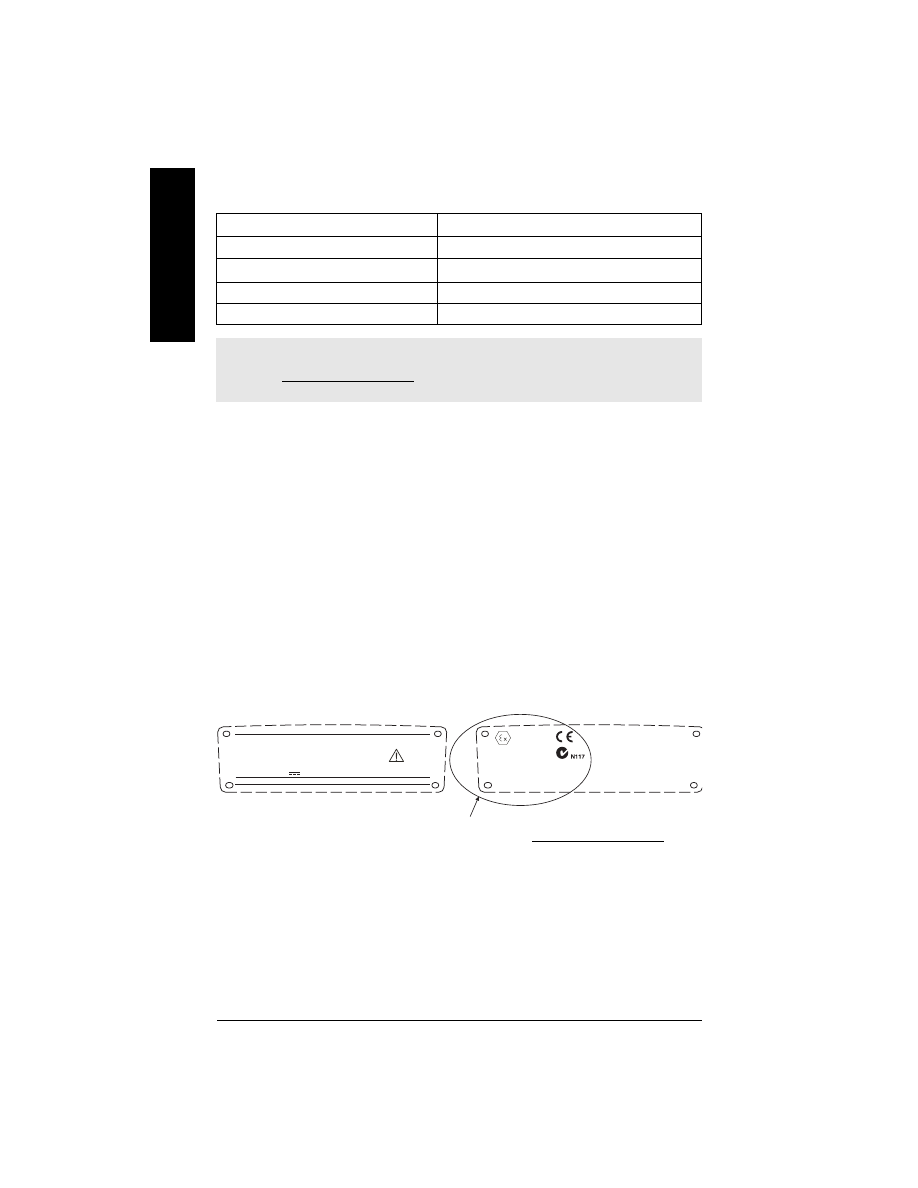

Device nameplate (FM/CSA)

Page EN-12

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

FISCO Concept

Under the FISCO evaluation concept, SITRANS LR250 has the following characteristics:

The FISCO Concept allows interconnection of Intrinsically Safe apparatus to associated

apparatus not specifically examined in such combination. The criteria for interconnection is

that the voltage (Ui or Vmax), the current (Ii, or Imax) and the power (Pi, or Pmax) which

Intrinsically Safe apparatus can receive and remain Intrinsically Safe, considering faults, must

be equal to or greater than the voltage (Uo or Voc or Vi), the current (lo or Isc or li), and the

power (Po or Pmax) levels which can be delivered by the associated apparatus, considering

faults and applicable factors. In addition, the maximum unprotected capacitance (Ci) and

inductance (Li) of each apparatus (other than the termination) connected to the fieldbus must

be less than or equal to 5 nF and 10

H respectively.

In each segment only one active device, normally the associated apparatus, is allowed to

provide the necessary energy for the fieldbus system. The allowed voltage Uo (or Voc or Vt) of

the associated apparatus is limited to the range of 14V dc to 24V dc. All other equipment

connected to the bus cable has to be passive, meaning that they are not allowed to provide

energy to the system, except for a leakage current of 50

A for each connected device.

Separately powered equipment needs a galvanic isolation to assure that the Intrinsically Safe

fieldbus circuit remains passive.

2.Non-Sparking/Energy Limited wiring

• For wiring requirements: follow local regulations.
• Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X /

type 4X / NEMA 6, IP67, IP68 locations.

(input voltage) U

= 17.5 V

(input current) I

= 380 mA

(input power) P

= 5.32 W

(internal capacitance) Ci

= 0

(internal inductance) Li

= 0

Note: For complete details and instructions regarding the FISCO Concept The FM/CSA

connection drawing number A5E02358161 can be downloaded from the product page of our

website at: www.siemens.com/LR250. Go to More Info > Installation Drawings > Level

Measurement > SITRANS LR250.

SITRANS LR250

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

7MLxxxx-xxxxx-xxxx

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 32 V

Max., 20 mA

Serial No: GYZ / A1034567

Warning:
Potential Electrostatic Charging Hazard Do Not Clean
Probe With A Dry Cloth.
Do Not Install Where Build-Up Of Charge Is Likely.
Use Cable Rated > 90°C

3 G

SIRA 09ATEX4354X

EEx nL IIC T4 Gc

FNICO:
Ui = 17.5 V
Ii = 570 mA
Pi = 7.98 W
Ci < 5 nF
Li < 20 µH

Entity:
Ui = 32 V
Ci < 5 nF
Li < 20 µH

EEx nA II T4 Gc
Un = 32 V

FOUNDATION FIELDBUS

The ATEX certificate listed on the nameplate
can be downloaded from the product page of our website at: www.siemens.com/LR250.
Go to More Info > Installation Drawings > Level Measurement > SITRANS LR250.

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-13

Eng

lis
h

3.Non-incendive wiring (only for USA/Canada)

• For wiring requirements: follow local regulations.
• Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X /

type 4X / NEMA 6, IP67, IP68 locations.

• Refer to

Instructions specific to hazardous area installations

below.

Instructions specific to hazardous area installations

(Reference European ATEX Directive 94/9/EC,

Annex II, 1/0/6)

The following instructions apply to equipment covered by certificate number SIRA

09ATEX2353X and 09ATEX4354X:
1)

For use and assembly, refer to the main instructions.

2) The equipment is certified for use as Category 1GD equipment per SIRA 09ATEX2353X

certificate and as Category 3G per SIRA 09ATEX4354X certificate.

3) The equipment may be used with flammable gases and vapors with apparatus group IIC,

IIB and IIA and temperature classes T1, T2, T3 andT4.

4) The equipment has a degree of ingress protection of IP67 and a temperature class of

T90

C and may be used with flammable dusts.

5) The equipment is certified for use in an ambient temperature range of –40

C to +80

6) The equipment has not been assessed as a safety related device (as referred to by

Directive 94/9/EC Annex II, clause 1.5).

7) Installation and inspection of this equipment shall be carried out by suitably trained

personnel in accordance with the applicable code of practice (EN 60079-14 and EN 60079-
17 in Europe).

8) The equipment is non-repairable.
9) The certificate numbers have an ’X’ suffix, which indicates that special conditions for safe

use apply. Those installing or inspecting this equipment must have access to the
certificates.

Class I, Div. 2,
Gr. A, B, C, D;
Temp. Code: T5

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions
1)This device may not cause harmful interference and
2)This device must accept any interference received,
including interference that may cause undesired operation

IC: 267P-LR250
FCC ID: NJA-LR250

159134

SITRANS LR250

Made in Canada

Siemens Milltronics Process Instruments Inc., Peterborough

7MLxxxx-xxxxx-xxxx

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40 °C to 80 °C

Power Rating: 32 V

Max., 20 mA

Serial No: GYZ / A1034567

FOUNDATION FIELDBUS

FM/CSA Class 1, Div 2 connection drawing number 23650673
can be downloaded from the product page of our website at: www.siemens.com/LR250.
Go to More Info > Installation Drawings > Level Measurement > SITRANS LR250.

Page EN-14

SITRANS LR250 (FF) – QUICK START MANUAL

7ML19985XN82

glis

10) If the equipment is likely to come into contact with aggressive substances, then it is the

responsibility of the user to take suitable precautions that prevent it from being adversely
affected, thus ensuring that the type of protection is not compromised.

11) Aggressive substances:e.g. acidic liquids or gases that may attack metals, or solvents

that may affect polymeric materials.
•

Suitable precautions:e.g. establishing from the material’s data sheet that it is

resistant to specific chemicals.

Programming SITRANS LR250

A Quick Start Wizard provides an easy step-by-step guide to help you configure the instrument

for a simple application.

• See

Quick Start Wizard via the handheld programmer

on page 19.

• See

Quick Start Wizard via AMS Device Manager

on page 23.

Settings can be modified locally via the Local User Interface (see

Accessing parameters via

the handheld programmer

on page 16) or remotely via AMS Device Manager. The Local User

Interface (LUI) consists of an LCD display and a handheld programmer.

Activating SITRANS LR250

Out of the box, SITRANS LR250 will not begin measurements, and all blocks will be Out of

Service until the instrument has been configured via the local user interface (LUI), or a remote

configuration tool.
Follow these steps to configure the instrument via the LUI:

• Power up the instrument
• The LCD at startup will show LANGUAGE. Edit or cancel this selection. When complete,

the instrument will show QUICK START.

• Complete the Quick Start Wizard (see

Quick Start Wizard via the handheld programmer

on page 19). Completing the Quick Start Wizard or writing any parameter via the LUI
causes the instrument to begin measuring.

• The Resource Block (RES) and Level Transducer Block (LTB) will move to Automatic

mode.

• AIFB 1 and AIFB 2 will remain Out of Service (as displayed on the LCD). These blocks can

only be configured and scheduled using a network configuration tool. For more details,
see System Integration in manual

Foundation Fieldbus for Level Instruments

(7ML19985MP01).

7ML19985XN82

SITRANS LR250 (FF) – QUICK START MANUAL

Page EN-15

Eng

lis
h

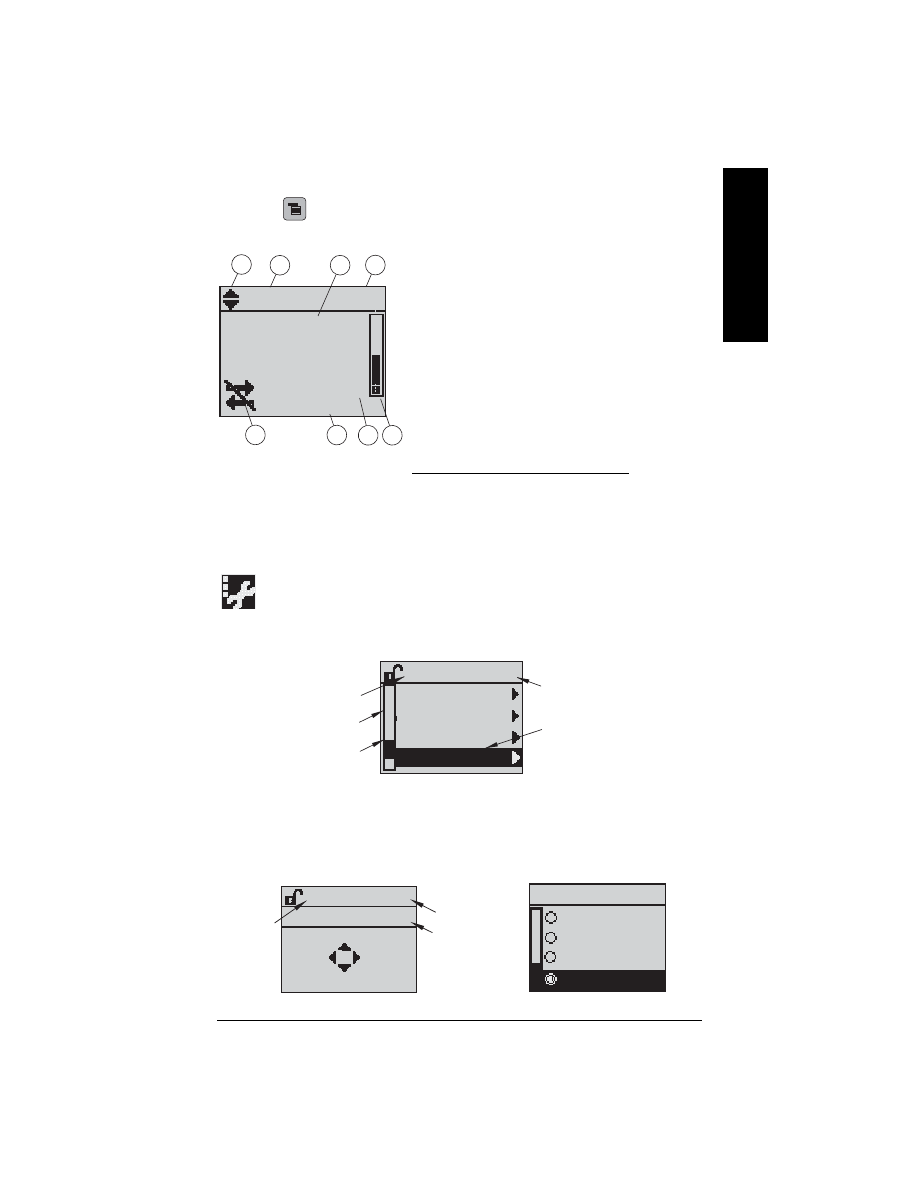

The LCD Display

Press Mode

to toggle between Measurement and Program Mode.

Measurement mode (normal operation)

Fault present

PROGRAM mode display

• A visible menu bar indicates the menu list is too long to display all items.
• The depth and relative position of the item band on the menu bar indicates the length of

the menu list, and approximate position of the current item in the list.

[ ]

FB 1

21.40 °C

NO DATA EXCH.

18.91

1 – toggle indicator

to switch between AIFB 1/AIFB 2

(displayed as FB 1/FB 2)

2 – identifies which block is source of displayed value
3 – measured value (level, space, distance, or volume)
4 – units
5 – bar graph indicates level
6 – secondary region indicates on request

electronics

temperature, echo confidence, or distance

7 – text area displays status messages
8 – device status indicator

Press UP or DOWN arrow to switch.

In response to a key press request. For details, see

Quick Start Wizard via the handheld programmer

on page 19

S: 0 LOE

7 – text area displays a fault code and an error message
8 – service required icon appears

current item

number

current item

current menu

menu bar

Navigation view

item band

SIGNAL PRO..

TVT SETUP

SAMPLING

ECHO QUALITY

2.5.10

ECHO SELECT

parameter

value/

selection

parameter
number

parameter

name

Edit view

Parameter view

LEVEL UNIT

EDIT

BACK

2.3.2

LEVEL UNIT

2.3.2

Content .. 1 2 ..

//////////////////////////
