Maintenance
✽ NOTICE
Inner panel fuse replacement
CAUTION
• When replacing fuse, turn the
•
When replacing a blown fuse
ignition
“OFF” and turn off
or relay, make sure the new
switches of all electrical devices
fuse or relay fits tightly into
then remove battery (-) terminal.
the clips. Failure to tightly
• The actual fuse/relay panel label
install the fuse or relay may
may differ from equipped items.
cause damage to the wiring
and electric systems.
WARNING - Electrical Fire
•
Do not remove fuses, relays
and terminals fastened with
Always ensure replacements
fuses and relays are securely
bolts or nuts. The fuses, relays
and terminals may not be fas-
fastened when installed. Failure
ODEP071017L
to do so can result in a vehicle
tened correctly which may
1. Turn the engine start/stop button
cause vehicle damage.
fire.
to the OFF position and all other
switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF”
position, a caution indicator will be
displayed in the cluster.
7
60
Maintenance
If you do not have a spare, use a
CAUTION
fuse of the same rating from a circuit
•
Do not input any other objects
you may not need for operating the
except fuses or relays into
vehicle, such as the power outlet
fuse/relay terminals, such as a
fuse.
driver or wiring. It may cause
If the head lamp, turn signal lamp,
contact failure and system
stop signal lamp, fog lamp, DRL, tail
malfunction.
lamp, HMSL do not work and the
•
Do not plug in screwdrivers or
fuses are OK, check the fuse panel
aftermarket wiring into the ter-
in the engine compartment. If a fuse
minal originally designed for
is blown, it must be replaced.
fuse and relays only. The elec-
ODEP079020
trical system and wiring of the
3. Pull the suspected fuse straight
✽ NOTICE
vehicle interior may be dam-
out. Use the removal tool provided
If the headlamp, fog lamp, turn sig-
aged or burned due to contact
on the engine compartment fuse
nal lamp, or tail lamp malfunction
failure.
panel cover.
even without any problem to the
•
If you directly connect the
4. Check the removed fuse; replace it
lamps, have the vehicle checked by
wire on the taillight or replace
if it is blown.
an authorized Kia dealer for assis-
the bulb which is over the reg-
tance.
Spare fuses are provided in the
ulated capacity to install trail-
engine compartment fuse panel.
ers, etc., the inner junction
block can get burned.
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips.
If it fits loosely, consult an authorized
Kia dealer.
7
61
Maintenance
Fuse switch
Engine compartment fuse
CAUTION -
Fuse Panel
replacement
Covers
•
Set all switches to ON before
driving.
•
If the vehicle is going to be
unused for over 1 month, set
all switches to OFF to prevent
the batteries from draining.
•
The contact points of the
switches may wear out with
excessive use. Please refrain
from excessive use of the
ODEP071018L
switches (except for long-term
Always set the fuse switch to the ON
ODEP079021
parking for over 1 month).
position before using the vehicle.
1. Turn the engine start/stop button
If you move the switch to the OFF
to the OFF position and all other
position, some items such as audio
switches off.
and digital clock must be reset and
2. Remove the fuse panel cover by
transmitter (or smart key) may not
pressing the tab and pulling the
work properly. When the switch is
cover up. When the blade type
Off, the caution indicator will be dis-
fuse is disconnected, remove it by
played on the instrument cluster.
using the clip designed for chang-
Always place the fuse switch in the
ing fuses located in the engine
ON position while driving the vehicle.
compartment fuse box. Upon
removal, securely insert reserve
If the switch is located in the “OFF”
fuse of the same rating.
position, a caution indicator will be
displayed in the cluster.
7 62
Maintenance
3. Check the removed fuse; replace it
Multi fuse
✽ NOTICE
if it is blown. To remove or insert
Do not disassemble nor assemble the
the fuse, use the fuse puller in the
multi fuse when it is secured with
engine compartment fuse panel.
nuts and bolts. Incorrect or partial
4. Push in a new fuse of the same
assembly torque may cause a fire.
rating, and make sure it fits tightly
Have the vehicle checked by an
in the clips. If it fits loosely, consult
authorized Kia dealer.
an authorized Kia dealer.
CAUTION
After checking the fuse panel in
the engine compartment,
ODEP079022
securely install the fuse panel
cover to protect against any
If the multi fuse is blown, it must be
electrical failure which may
removed as follows:
occur from water contact. Listen
1. Turn off the engine.
for the audible clicking sound to
2. Disconnect the negative battery
ensure the fuse panel cover is
cable.
securely fastened.
3. Remove the nuts shown in the pic-
ture above.
4. Replace the fuse with a new one
of the same rating.
5. Reverse these steps to reinstall
the multi fuse.
7
63
Maintenance

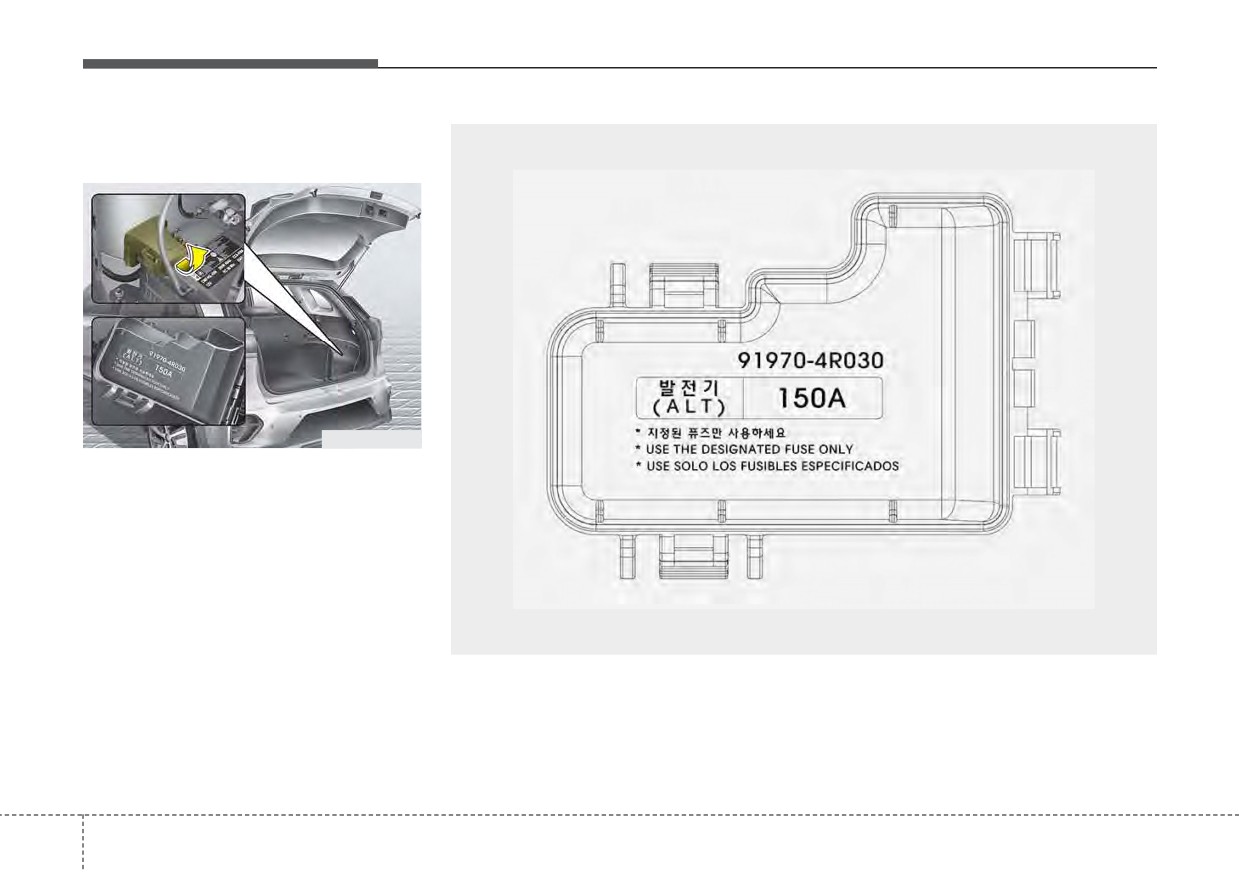

Main fuse (Plug-in Hybrid)
✽ NOTICE
WARNING - Random
The electronic system may not func-
wiring prohibited when
tion correctly even when the engine
retrofitting equipment
compartment and internal fuse
box’s individual fuses are not dis-
Use of random wiring in the
connected. In such case the cause of
vehicle might cause danger due
the problem may be disconnection
to failure and damage of the
of the main fuse (BFT type), which is
vehicle’s performance.
located inside the positive battery
Using random wires especially
terminal (+) cap.
when retrofitting AVN or theft
Since the main fuse is designed more
alarm system, remote engine
intricately than other parts, have the
control, car phone or radio
vehicle checked by an authorized
might damage the vehicle or
ODEP071023N
Kia dealer.
cause fire.
If the multi fuse is blown, it must be
removed as follows:
CAUTION
1. Turn off the engine.
✽ NOTICE - Remodeling
Visually inspect the battery cap
2. Disconnect the negative battery
Prohibited
to ensure it is securely closed.
cable.
If the battery cap is not securely
Do not rewire your vehicle in any
3. Remove the nuts shown in the pic-
closed, moisture may enter the
way as doing so may affect the per-
ture above.
system and damage the electri-
formance of several safety features
4. Replace the fuse with a new one
cal components.
in your vehicle. Rewiring your vehi-
cle may also void your warranty and
of the same rating.
cause you to be responsible for any
5. Reverse these steps to reinstall
subsequent vehicle damage which
the multi fuse.
may result.
7
64
Maintenance

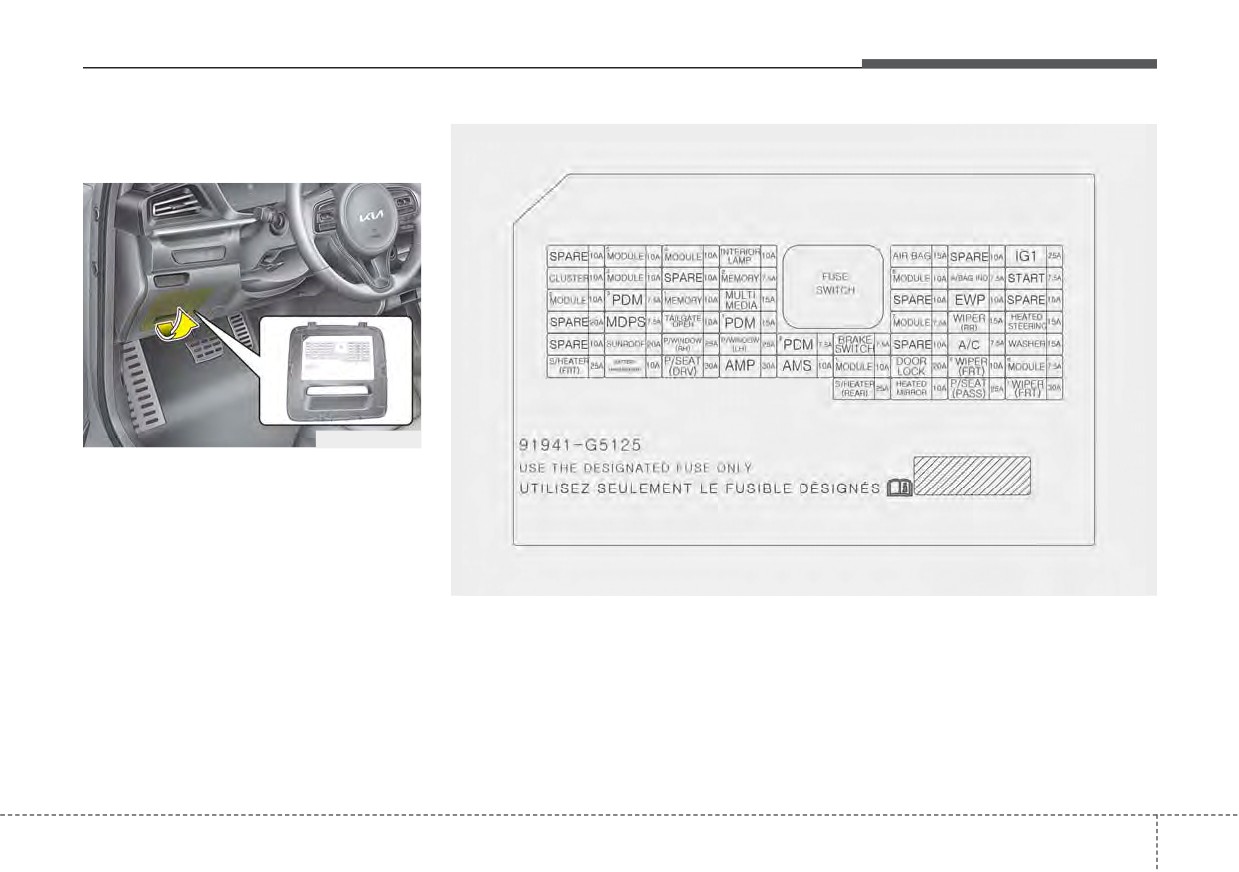

Fuse/relay panel description

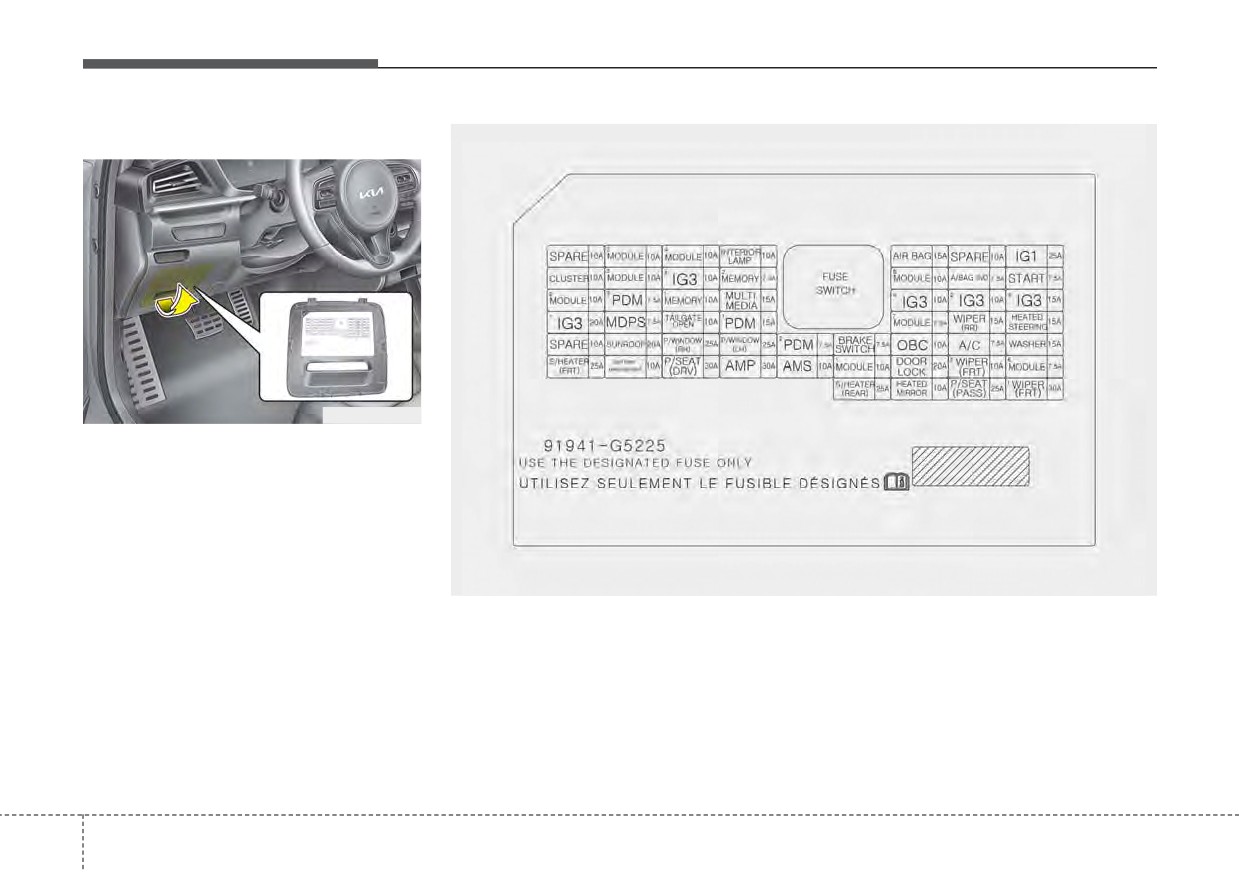

■ Driver’s side fuse panel (Hybrid)
Driver’s side fuse panel
ODEP071024L
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
ODEP071117N
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
7
65
Maintenance
Driver’s side fuse panel
■ Driver’s side fuse panel (Plug-in Hybrid)
ODEP071024L
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ NOTICE
ODEP071118N
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
7
66
Maintenance
Instrument panel (Driver’s side fuse panel) (Hybrid)
Fuse Name
Fuse rating
Circuit Protected
Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Audio, Shift Lever Indicator, Air Conditioner
Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Front Seat
MODULE 5
10A
Warmer Control Module, Head Lamp Leveling Device Actuator LH/RH, Crash Pad Switch, AMP (Amplifier),
Keyboard, OBD
MODULE 4
10A
Front View Camera, Crash Pad Switch, Rear Corner Radar LH/RH, EPB, VESS
INTERIOR
Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Luggage Lamp, Mood Lamp, Wireless
10A
LAMP
Charger, Rain sensor, Driver warning switch
A/BAG
15A
Passenger Occupant Detection Sensor, ACU
IG 1
25A
Engine Room Junction Block (Fuse - DCT4, HPCU2, ACTIVE HYDRAULIC BOOSTER3, ECU3)
CLUSTER
10A
Instrument Cluster
BCM (Body Control Module), DCT (Dual Clutch Transmission) Shift Lever, Stop Lamp Switch, Driver Door
MODULE 3
10A
Module, Passenger Door Module
MEMORY 2
7.5A
Active Air Flap Unit, VESS
Active Air Flap Unit, Electric Water Pump (Engine), Engine Room Junction Block (Battery C/Fan Relay),
MODULE 8
10A
BMS (Battery Management System) Control Module
A/BAG IND
7.5A
Air Conditioner Control Module, Instrument Cluster
START
7.5A
[With Smart Key/With Immobilizer] Inhibitor Switch
7
67
Maintenance
Fuse Name
Fuse rating
Circuit Protected
Engine Room Junction Block (Power Outlet Relay), Wireless Charger, BCM (Body Control Module), USB
MODULE 2
10A
Charger, Smart Key Control Module, Audio, BMS (Battery Management System) Control Module,
Audio/Video & Navigation Head Unit, Driver Power Outside Mirror Switch, AMP (Amplifier), Keyboard
[Without Smart Key] Immobilizer Module
PDM 3
7.5A
[With Smart Key] Smart Key Control Module
Instrument Cluster, Driver IMS (Integrated memory system) Module, BCM (Body Control Module), Air
MEMORY 1
10A
Conditioner Control Module, Auto Light & Photo Sensor, Driver Door Module, Passenger Door Module,
ECM (Electric Chromic Mirror)
MULTI MEDIA
15A
Audio, Audio/Video & Navigation Head Unit, Keyboard
EWP
10A
Electric Water Pump (HEV)
MDPS
7.5A
MDPS (Motor Driven Power Steering) Unit
TAIL GATE
10A
Tail Gate Relay, ICM Relay Box (Fuel Filler Door Relay)
PDM 1
15A
Smart Key Control Module
Front Seat Warmer Control Module, AC Inverter (110V), Front Air Ventilation Seat Control Module, Rear
MODULE 7
7.5A
Seat Warmer Module
WIPER (RR)
15A
Engine Room Junction Block (Wiper RR Relay), Rear Wiper Motor
HEATED
15A
BCM (Body Control Module)
STEERING
SUNROOF
20A
Sunroof Motor
7
68
Maintenance
Fuse Name
Fuse rating
Circuit Protected
P/SEAT (PASS)
25A
Passenger Seat Module
P/WINDOW RH
25A
Power Window (RH) Relay, Passenger Safety Power Window Module
P/WINDOW LH
25A
Power Window (LH) Relay, Driver Safety Power Window Module
[Without Smart Key] Immobilizer Module
PDM 2
7.5A
[With Smart Key] Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH
7.5A
Stop Lamp Switch, Smart Key Control Module
Air Conditioner Control Module, Electronic Air Conditioner Compressor, Engine Room Junction Block
A/CON
7.5A
(Blower Relay, PTC Heater1 Relay, PTC Heater2 Relay)
WASHER
15A
Multifunction Switch
S/HEATER (FRT)
25A
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
BATTERY
10A
BMS (Battery Management System) Control Module
MANAGEMENT
[Without IMS] Driver Seat Manual Switch
P/SEAT (DRV)
30A
[With IMS] Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
AMP
30A
AMP (Amplifier)
AMS
10A
Not Used
Data Link Connector, Front Radar, Hazard Switch, Driver/Passenger Smart Key Outside Handle, Key
MODULE 1
10A
Interlock, Natural Vacuum Leak Detection, Outside Mirror Folding/Unfolding Relay, Mood Lamp, Outside
Mirror Switch
7
69
Maintenance
Fuse Name
Fuse rating
Circuit Protected
DOOR LOCK
20A
Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay), ECM (Engine Control Module),
WIPER 2 (FRT)
10A
BCM (Body Control Module)
MODULE 6
7.5A
BCM (Body Control Module), Smart Key Control Module
S/HEATER
25A
Rear Seat Warmer Control Module
(REAR)
HEATED
10A
Driver Power Outside Mirror, Passenger Power Outside Mirror, Air Conditioner Control Module
MIRROR
WIPER1 (FRT)
30A
Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay)
7
70
Maintenance
Instrument panel (Driver’s side fuse panel) (Plug-in Hybrid)
Fuse Name
Fuse rating
Circuit Protected
Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Audio, VESS (Virtual Engine Sound System)
Unit, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control
MODULE 5
10A
Module, Front Seat Warmer Control Module, Head Lamp Leveling Device Actuator LH/RH, Crash Pad
Switch, AMP (Amplifier), Keyboard, OBD
MODULE 4
10A
Front View Camera, Crash Pad Switch, Rear Corner Radar LH/RH, EPB, VESS
INTERIOR
Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Door Warning Switch, Luggage Lamp,
10A
LAMP
Wireless Charger, Mood Lamp, Rain sensor, Driver warning switch
A/BAG
15A
Passenger Occupant Detection Sensor, ACU
IG 1
25A
Engine Room Junction Block (Fuse - DCT4, HPCU2, ACTIVE HYDRAULIC BOOSTER3)
CLUSTER
10A
Instrument Cluster
BCM (Body Control Module), DCT (Dual Clutch Transmission) Shift Lever, Stop Lamp Switch, Driver Door
MODULE 3
10A
Module, Passenger Door Module
Fuel Filler Door & Battery Charger Switch, Instument Cluster, Audio, Charger Indicator, Integrated Gateway
IG3 2
10A
Power control Module, Audio/Video & Navigation Head Unit
MEMORY 2
7.5A
Active Air Flap Unit, VESS
MODULE 8
10A
Active Air Flap Unit, Electric Water Pump (Engine)
A/BAG IND
7.5A
Air Conditioner Control Module, Instrument Cluster
7
71
Maintenance
Fuse Name
Fuse rating
Circuit Protected
START
7.5A
INHIBITOR SW
Engine Room Junction Block (Power Outlet Relay), Wireless Charger, BCM (Body Control Module), USB
MODULE 2
10A
Charger, Smart Key Control Module, Audio, Audio / Video & Navigation Head Unit, Power Outside Mirror
Switch, AMP (Amplifier), Keyboard
PDM3
7.5A
Immobilizer Module, Smart Key Control Module
Instrument Cluster, Driver IMS (Integrated memory system) Module, BCM (Body Control Module), Air
MEMORY 1
10A
Conditioner Control Module, Auto Light & Photo Sensor, Driver Door Module, Passenger Door Module,
ECM (Electric Chromic Mirror)
MULTI MEDIA
15A
Audio, Audio / Video & Navigation Head Unit, Keyboard
OBC (On-Board Charger) Unit, TCM (Transmission Control Module), ECM (Engine Control Module), HPCU
IG3 4
10A
(Hybrid Power Control Unit)
IG3 3
10A
Electric Water Pump (PHEV)
Transmission Range Switch, BMS (Battery Management System) Control Module, Engine Room Junction
IG3 5
15A
Block (Battery C/Fan Relay)
IG3 1
20A
ICM Relay Box (IG3 #1, IG3 #2, IG3 #3 Relay)
MDPS
7.5A
MDPS (Motor Driven Power Steering) Unit
TAIL GATE
Tail Gate Relay, ICM Relay Box (Fuel Filler Door Relay, Charger Connector Lock/Unlock Relay), Fuel Filler
10A
OPEN
& Battery Charger Switch, Charge Connector Lamp
PDM 1
15A
Smart Key Control Module
7
72
Maintenance
Fuse Name
Fuse rating
Circuit Protected
Front Seat Warmer Control Module, AC Inverter (110V), Front Air Ventilation Seat Control Module, Rear
MODULE 7
7.5A
Seat Warmer Module
WIPER (RR)
15A
Engine Room Junction Block (Wiper RR Relay), Rear Wiper Motor
HEATED
15A
BCM (Body Control Module)
STEERING
SUNROOF
20A
Sunroof Motor
Power Window (RH) Relay, Power Window Main Switch, Passenger Power Window Switch, Rear Power
P/WINDOW RH
25A
Window Switch RH, Passenger Safety Power Window Module
Power Window (LH) Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety
P/WINDOW LH
25A
Power Window Module
PDM 2
7.5A
Immobilizer Module, Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH
7.5A
Stop Lamp Switch, Smart Key Control Module
OBC
10A
OBC (On-Board Charger) Unit
Air Conditioner Control Module, Electronic Air Conditioner Compressor, Engine Room Junction Block
A/CON
7.5A
(Blower Relay, PTC Heater1 Relay, PTC Heater2 Relay)
WASHER
15A
Multifunction Switch
S/HEATER (FRT)
25A
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
7
73
Maintenance
Fuse Name
Fuse rating
Circuit Protected
BATTERY
10A
BMS (Battery Management System) Control Module
MANAGEMENT
P/SEAT (DRV)
30A
Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
AMP
30A
AMP (Amplifier)
AMS
10A
Battery Sensor
Data Link Connector, Front View Camera, Hazard Switch, Driver/Passenger Door Module, Driver/Passenger
MODULE 1
10A
Smart Key Outside Handle, Outside Mirror Folding/Unfolding Relay, Mood Lamp, Outside Mirror Switch,
Key inter lock
DOOR LOCK
20A
Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay), ECM (Engine Control Module), BCM
WIPER2 (FRT)
10A
(Body Control Module)
MODULE 6
7.5A
BCM (Body Control Module), Smart Key Control Module
S/HEATER
25A
Rear Seat Warmer Control Module
(REAR)
HEATED
10A
Driver Power Outside Mirror, Passenger Power Outside Mirror, Air Conditioner Control Module
MIRROR
WIPER 1 (FRT)
30A
Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay)
P/SEAT (PASS)
25A
Passenger Seat Module
7
74
Maintenance

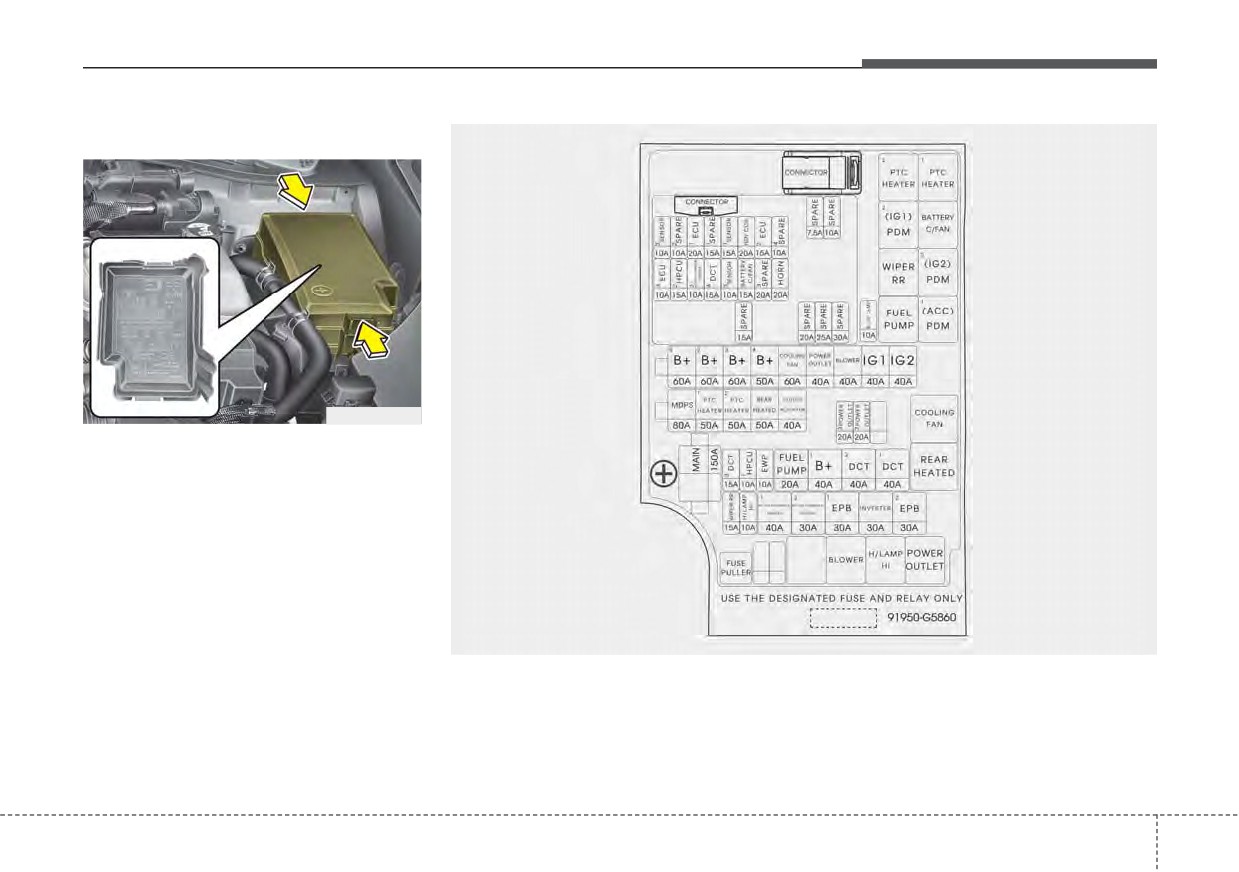

Engine compartment fuse panel
ODE076027N
ODEP079119N
7
75
Maintenance
Engine room compartment fuse panel (Hybrid)
Fuse Name
Fuse rating
Circuit Protected
B+ 5
60A
Fuse - BATTERY C/FAN, HORN, ECU2, Engine Control Relay
B+ 2
60A
Instrument Panel Junction Block (Fuse - S/HEATER (REAR))
B+ 3
60A
Instrument Panel Junction Block
Instrument Panel Junction Block (Fuse - BATTERY MANAGEMENT, P/WINDOW (LH), P/WIN-
B+ 4
50A
DOW (RH), TAIL GATE OPEN, SUNROOF, AMP, S/HEATER (FRT), P/SEAT (DRV))
COOLING FAN
60A
Cooling Fan Relay
REAR HEATED
50A
Rear Heated Relay
BLOWER
40A
Blower Relay
IG 1
40A
[Without Smart Key] Ignition Switch, [With Smart Key] PDM1 (ACC) Relay, PDM2 (IG1) Relay
MULTI FUSE
IG 2
40A
[Without Smart Key] Ignition Switch, [With Smart Key] PDM3 (IG2) Relay
MDPS
80A
MDPS (Motor Driven Power Steering) Unit
PTC
50A
PTC Heater 1 Relay
HEATER 1
PTC
50A
PTC Heater 2 Relay
HEATER 2
CLUTCH
40A
Clutch Actuator (HEV)
ACTUATOR
Fuse - H/LAMP HI, INVERTER, ACTIVE HYDRAULIC BOOSTER1, ACTIVE HYDRAULIC
MAIN
150A
BOOSTER2, WIPER RR, EPB1, EPB2
P/OUTLET 1
40A
Power outlet Relay
7
76
Maintenance
Fuse Name
Fuse rating
Circuit Protected
POWER
20A
Power Outlet #2
OUTLET 3
POWER
20A
Power Outlet #1
OUTLET 2
DCT 3
15A
TCM (Transmission Control Module)
HPCU 1
10A
HPCU (Hybrid Power Control Unit)
EWP
10A
Electric Water Pump (Engine)
FUEL PUMP
20A
Fuel Pump Relay
Instrument Panel Junction Block (Fuse - BRAKE SWITCH, PDM1, PDM2, MODULE1, DOOR
B + 1
40A
LOCK, Leak Current Autocut Device)
FUSE
DCT 2
40A
TCM (Transmission Control Module)
DCT 1
40A
TCM (Transmission Control Module)
WIPER RR
15A
Wiper RR Relay
H/LAMP HI
10A
H/Lamp HI Relay
ACTIVE
HYDRAULIC
40A
Integrated Brake Actuation Unit
BOOTER 1
ACTIVE
HYDRAULIC
30A
Integrated Brake Actuation Unit
BOOTER 2
7
77
Maintenance
Fuse Name
Fuse rating
Circuit Protected
INVERTER
30A
AC Inverter Module
EPB 2
30A
EPB Unit
EPB 1
30A
EPB Unit
B/UP LAMP
10A
Electro Chromic Mirror, Back-Up Lamp LH/RH, INHIBITOR SW
ECU 3
10A
ECM (Engine Control Module)
HPCU 2
15A
HPCU (Hybrid Power Control Unit), Clutch Actuator (HEV)
ACTIVE
HYDRAULIC
10A
Integrated Brake Actuation Unit
FUSE
BOOTER 3
DCT (Dual clutch transmission) Shift Lever, TCM (Transmission Control Module), Inhibitor
DCT 4
15A
Switch
Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2
SENSOR 3
10A
(Intake/Exhaust)
BATTERY C/FAN
15A
Battery C/Fan Relay
HORN
20A
Horn Relay
SENSOR 2
10A
Purge Control Solenoid Valve, Cooling Fan Relay, Canister Close Valve, Mass Air Flow Sensor
ECU 1
20A
ECM (Engine Control Module)
7
78
Maintenance
Fuse Name
Fuse rating
Circuit Protected
SENSOR 1
15A
Oxygen Sensor (Up), Oxygen Sensor (Down)
FUSE
IGN COIL
20A
Ignition Coil #1/#2/#3/#4
ECU 2
15A
ECM (Engine Control Module)
7
79
Maintenance
Engine room compartment fuse panel (Plug-in Hybrid)
Fuse Name
Fuse rating
Circuit Protected
B+ 5
60A
Fuse - BATTERY C/FAN, HORN, ECU2, Engine Control Relay
B+ 2
60A
Instrument Panel Junction Block (Fuse - S/HEATER (REAR))
B+ 3
60A
Instrument Panel Junction Block
Instrument Panel Junction Block (Fuse - BATTERY MANAGEMENT, P/WINDOW (LH), P/WIN-
B+ 4
50A
DOW (RH), TAIL GATE OPEN, SUNROOF, AMP, S/HEATER (FRT), P/SEAT (DRV), IG3 1,
OBC, AMS)
COOLING FAN
60A
Cooling Fan Relay
REAR HEATED
50A
Rear Heated Relay
BLOWER
40A
Blower Relay
MULTI
IG 1
40A
[Without Smart Key] Ignition Switch, [With Smart Key] PDM1 (ACC) Relay, PDM2 (IG1) Relay
FUSE
IG 2
40A
[Without Smart Key] Ignition Switch, [With Smart Key] PDM3 (IG2) Relay
MDPS
80A
MDPS (Motor Driven Power Steering) Unit
PTC
50A
PTC Heater 1 Relay
HEATER 1
PTC
50A
PTC Heater 2 Relay
HEATER 2
CLUTCH
40A
Clutch Actuator (PHEV)
ACTUATOR
Fuse - H/LAMP HI, INVERTER, ACTIVE HYDRAULIC BOOSTER1, ACTIVE HYDRAULIC
MAIN
150A
BOOSTER2, WIPER RR, EPB1, EPB2
P/OUTLET 1
40A
Power outlet Relay
7
80
Maintenance
Fuse Name
Fuse rating
Circuit Protected
POWER
20A
Power Outlet #2
OUTLET 3
POWER
20A
Power Outlet #1
OUTLET 2
DCT 3
15A
TCM (Transmission Control Module)
HPCU 1
10A
HPCU (Hybrid Power Control Unit)
EWP
10A
Electric Water Pump (Engine)
FUEL PUMP
20A
Fuel Pump Relay
FUSE
Instrument Panel Junction Block (Fuse - BRAKE SWITCH, PDM1, PDM2, MODULE1, DOOR
B + 1
40A
LOCK, Leak Current Autocut Device)
DCT 2
40A
TCM (Transmission Control Module)
DCT 1
40A
TCM (Transmission Control Module)
WIPER RR
15A
Wiper RR Relay
H/LAMP HI
10A
H/Lamp HI Relay
ACTIVE
HYDRAULIC
40A
Integrated Brake Actuation Unit
BOOTER 1
7
81
Maintenance
Fuse Name
Fuse rating
Circuit Protected
ACTIVE
HYDRAULIC
30A
Integrated Brake Actuation Unit
BOOTER 2
INVERTER
30A
AC Inverter Module
EPB 2
30A
EPB Unit
EPB 1
30A
EPB Unit
B/UP LAMP
10A
Electro Chromic Mirror, Back-Up Lamp LH/RH, INHIBITOR SW
ECU 3
10A
Not Used
FUSE
HPCU 2
15A
HPCU (Hybrid Power Control Unit), Clutch Actuator (PHEV)
ACTIVE
HYDRAULIC
10A
Integrated Brake Actuation Unit
BOOTER 3
DCT(Dual clutch transmission) Shift Lever, TCM (Transmission Control Module), Inhibitor
DCT 4
15A
Switch
Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2
SENSOR 3
10A
(Intake/Exhaust)
BATTERY C/FAN
15A
Battery C/Fan Relay
HORN
20A
Horn Relay
SENSOR 2
10A
Purge Control Solenoid Valve, Cooling Fan Relay, Mass Air Flow Sensor, ELCM
7
82
Maintenance
Fuse Name
Fuse rating
Circuit Protected
ECU 1
20A
ECM (Engine Control Module)
SENSOR 1
15A
Oxygen Sensor (Up), Oxygen Sensor (Down)
FUSE
IGN COIL
20A
Ignition Coil #1/#2/#3/#4
ECU 2
15A
ECM (Engine Control Module)
7
83
Maintenance
Relay (Hybrid)
Relay Name
Type
PTC Heater #2 Relay
MICRO
PTC Heater #1 Relay
MICRO
PDM2 (IG1) Relay
MICRO
Battery C/FAN Relay
MICRO
Rear Wiper Relay
MICRO
PDM3 (IG2) Relay
MICRO
Fuel Pump Relay
MICRO
PDM1 (ACC) Relay
MICRO
Cooling Fan Relay
MINI
Rear Heated Relay
MINI
Blower Relay
MICRO
H/LAMP HI RELAY
MICRO
Power Outlet Relay
MICRO
7
84
Maintenance
Relay (Plug-in Hybrid)
Relay Name
Type
PTC Heater #2 Relay
MICRO
PTC Heater #1 Relay
MICRO
PDM2 (IG1) Relay
MICRO
Battery C/FAN Relay
MICRO
Rear Wiper Relay
MICRO
PDM3 (IG2) Relay
MICRO
Fuel Pump Relay
MICRO
PDM1 (ACC) Relay
MICRO
Cooling Fan Relay
MINI
Rear Heated Relay
MINI
Blower Relay
MICRO
H/LAMP HI RELAY
MICRO
Power Outlet Relay
MICRO
7
85
Maintenance
Battery terminal cover
(Plug-in Hybrid)
ODEP079028
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OJFH075171
7
86
Maintenance
LIGHT BULBS
Bulb replacement precaution
Use only bulbs of the specified
✽ NOTICE
wattage.
Please keep extra bulbs on hand
•
If the light bulb or lamp connector
with appropriate wattage ratings in
is removed while the lamp is still
case of emergencies.
CAUTION - Light replace-
on, the fuse box's electronic sys-
ment
tem may log it as a malfunction.
Refer to “Bulb Wattage” in chapter 8.
Therefore, a lamp malfunction
When changing lamps, first turn off
Be sure to replace the burned-
incident may be recorded as a
the engine at a safe place, firmly
out bulb with one of the same
Diagnostic Trouble Code (DTC) in
apply the parking brake and detach
wattage rating. Otherwise, it
the fuse box.
the battery’s negative (-) terminal.
may cause damage to the fuse
•
It is normal for an operating lamp
or electric wiring system.
to flicker momentarily. This is due
to a stabilization function of the
WARNING - Working on
vehicle’s electronic control device.
the lights
CAUTION - Headlamp
If the lamp lights up normally
Prior to working on the light,
Lens
after momentarily blinking, then
firmly apply the parking brake,
it is functioning as normal.
To prevent damage, do not
ensure that the engine
clean the headlamp lens with
However, if the lamp continues to
start/stop button is in OFF posi-
flicker several times or turns off
chemical solvents or strong
tion and turn off the lights to
detergents.
completely, there may be an error
avoid sudden movement of the
in the vehicle’s electronic control
vehicle and burning your fingers
device. Please have the vehicle
or receiving an electric shock.
checked by an authorized Kia
dealer immediately.
✽ NOTICE
We recommend that the headlight
aiming be adjusted by an authorized
Kia dealer after an accident or after
the headlight assembly is reinstalled.
7
87
Maintenance
✽ NOTICE
If you don’t have the necessary tools,

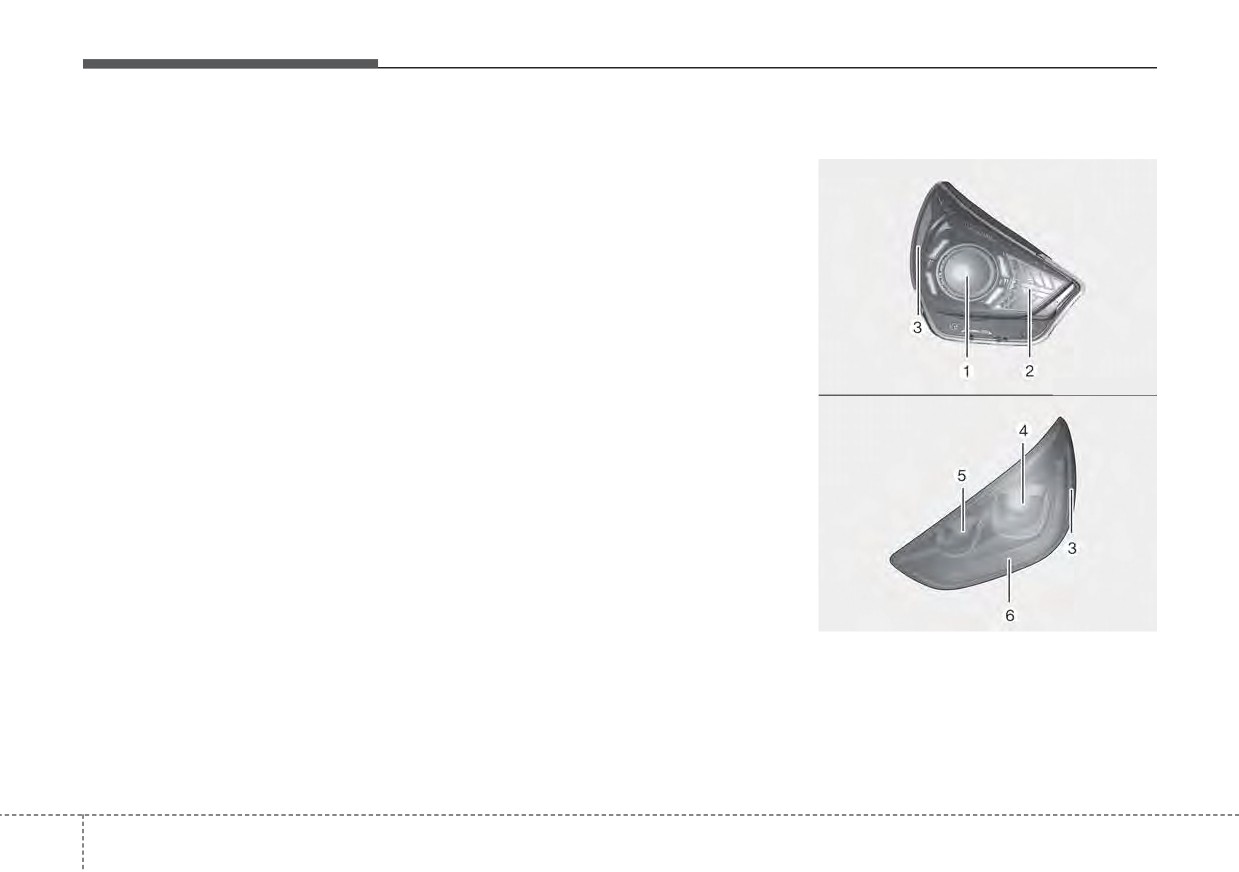

Light bulb position (Front)
the correct bulbs and the expertise,
You can find moisture inside the lens
■ Head lamp - Type A
consult an authorized Kia dealer. In
of lamps after a car wash or driving
many cases, it is difficult to replace
in the rain. It is a natural event
vehicle light bulbs because other
caused by the temperature differ-
parts of the vehicle must be removed
ence between the inside and the out-
before you can get to the bulb. This is
side of the lamp and does not mean a
especially true if you have to remove
problem with its functions. The
the headlamp assembly to get to the
moisture inside the lamp would dis-
bulb(s).
appear if you drive the vehicle with
the headlamp turned on, however,
Removing/installing the headlamp
the level at which the moisture is
assembly can result in damage to
ODEP079099N
removed may differ depending on
the vehicle.
■ Head lamp - Type B
the size/location/condition of the
If non-genuine parts or substandard
lamp. If the moisture continues to
bulbs are used, it may lead to blow-
stay inside the lamp, we recommend
ing a fuse or other wiring damages.
that you have the vehicle checked by
Do not install extra lamps or LEDs to
an authorized Kia dealer.
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.
ODEP079029N
(1) Headlamp (Low/High) (Bulb type)
(2) Front turn signal lamp (Bulb type)
(3) Front side marker (Bulb type)
(4) Headlamp (Low/High) (LED type)
7
88
Maintenance
(5) Headlamp (Low) (LED type)
■ Daytime running lamp & Position lamp

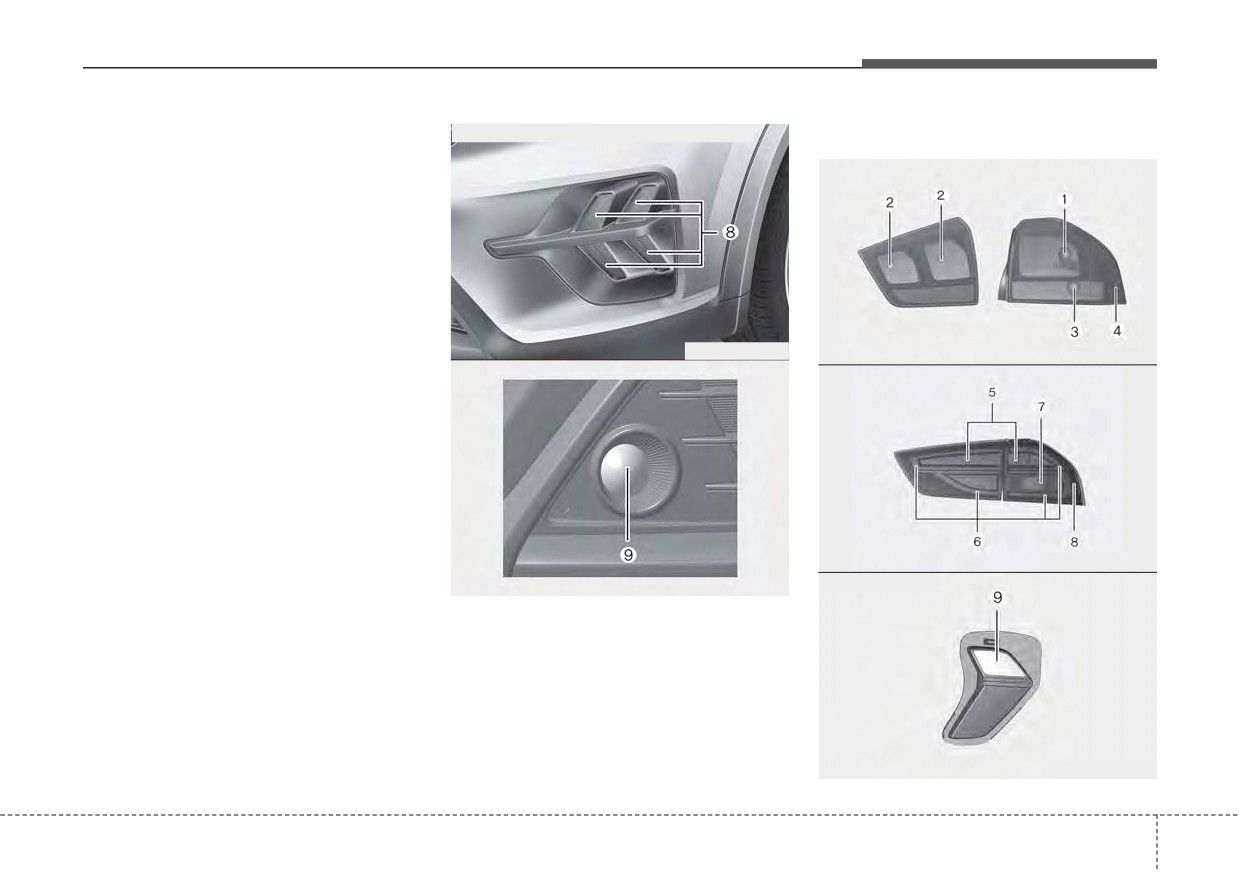

Light bulb position (Rear)
(6) Front turn signal lamp (LED type)
■ Rear combination lamp - Type A
(7) Front side marker (LED type)
ODEP071107N
ODE076031N
■ Fog lamp
■ Rear combination lamp - Type B
ODEP079102N
■ Back-up lamp
ODEP079100N
(8) Daytime running lamp/Position
lamp (LED type)
(9) Front fog lamp (Bulb/LED type)
ODEP079104N
7
89
Maintenance

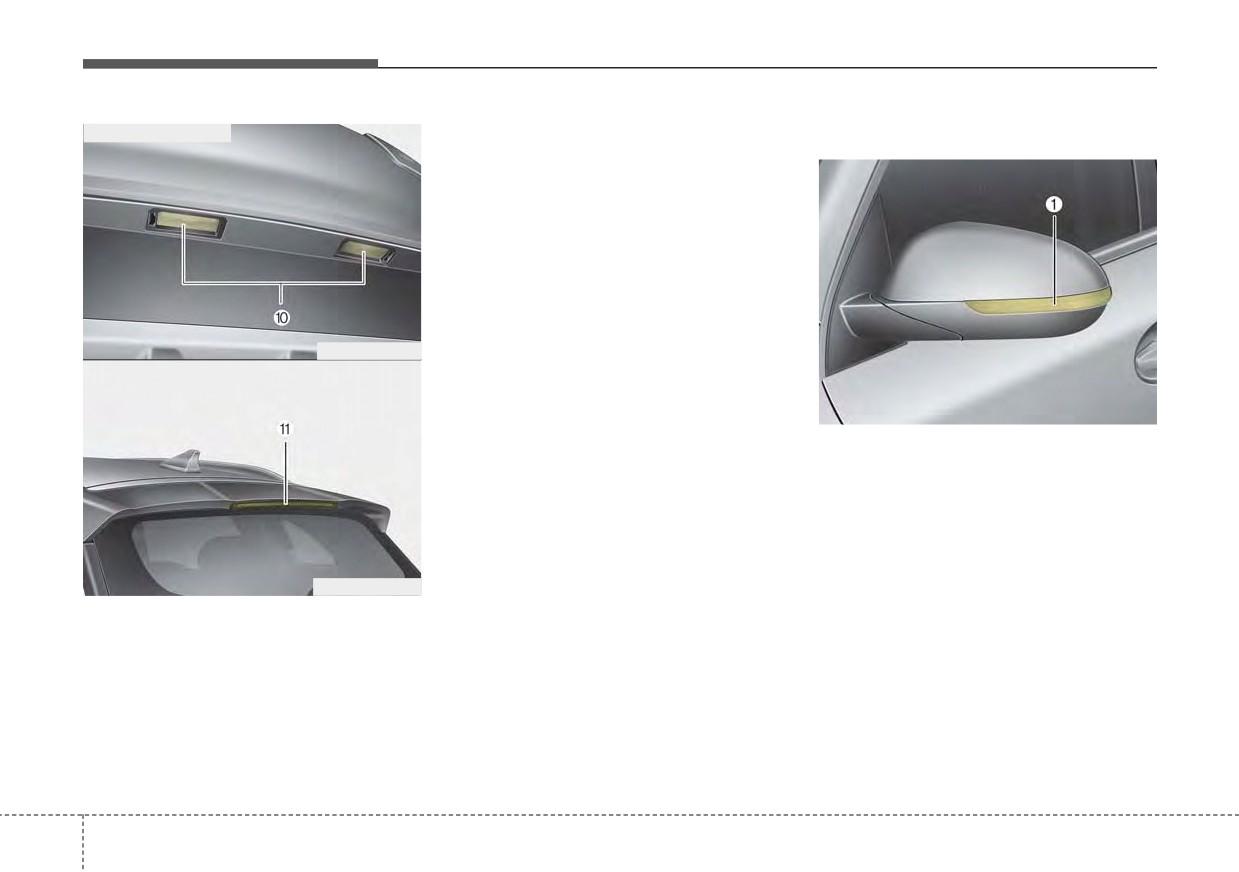

■ License plate lamp
(6) Stop/tail lamp (LED type)
Light bulb position (Side)
(7) Rear turn signal lamp (Bulb type)
(8) Rear side marker (LED type)
(9) Back-up lamp (Bulb type)
(10) License plate lamp (Bulb type)
(11) High mounted stop lamp (LED
type)
ODEP079056N
■ High mounted stop lamp
ODE076034
(1) Side repeater lamp (LED type)
ODEP079055N
(1) Stop/tail lamp (Bulb type)
(2) Tail lamp (Bulb type)
(3) Rear turn signal lamp (Bulb type)
(4) Rear side marker (Bulb type)
(5) Stop lamp (LED type)
7
90
Maintenance

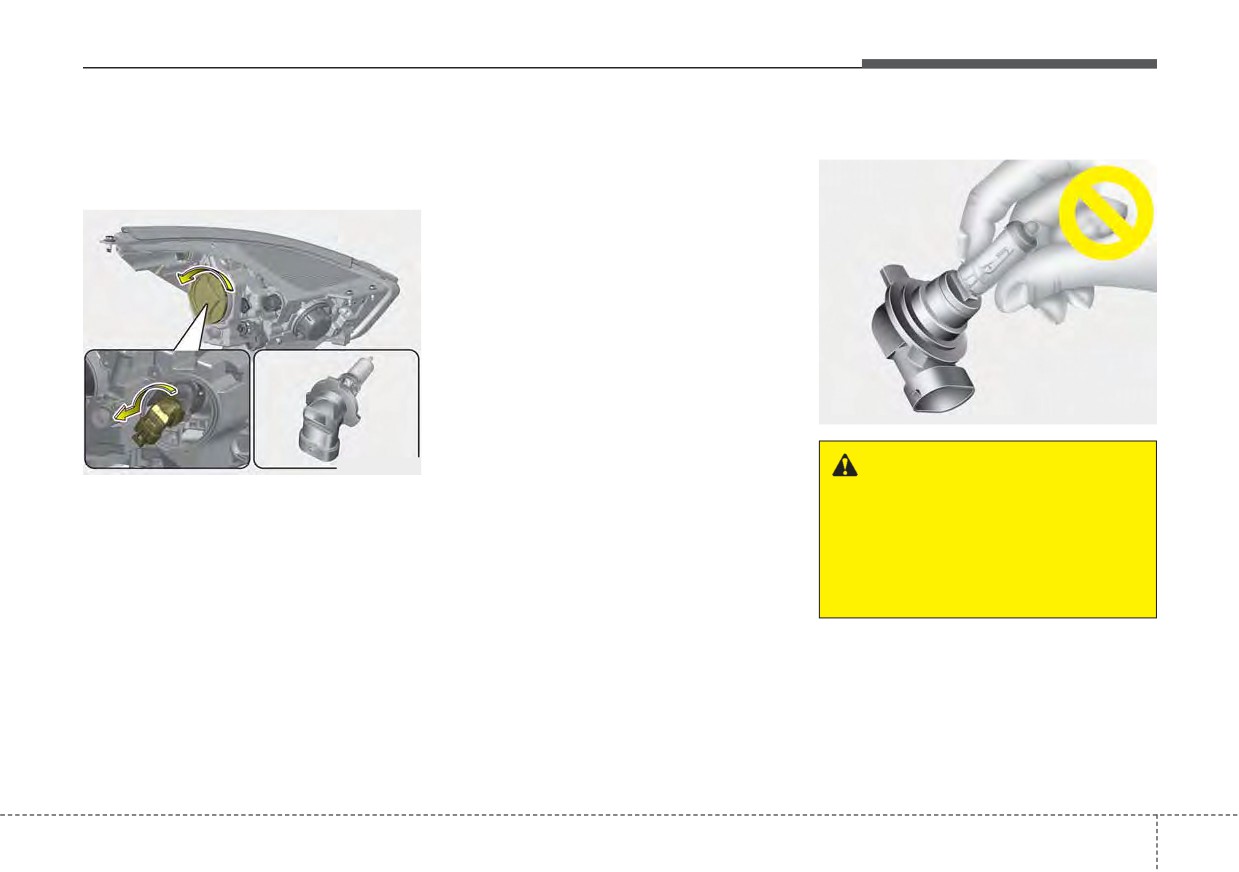

Headlamp (High/Low beam)
5. Install a new bulb-socket assem-
Headlamp bulb
(Bulb type) bulb replacement
bly in the headlamp assembly by
(Headlamp type A)
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by
turning it clockwise.
OQL075058
ODE076035
WARNING - Halogen
1. Open the hood.
bulbs
2. Remove the headlamp bulb cover
• Halogen bulbs contain pres-
by turning it counterclockwise.
surized gas that will produce
flying pieces of glass if broken.
3. Disconnect the headlamp bulb
socket-connector.
(Continued)
4. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
7
91
