PowerWorld Simulator version 11. Manual

GetFieldList Function

Sample Code

The GetFieldList function is used to find all fields contained within a given object type.

Function Prototype

GetFieldList(ObjectType)

Parameter Definitions

ObjectType : String

The type of object for which the fields are requested.

Output

GetFieldList returns two elements of the Output array. The first element, as with the other functions, returns

any errors that might have occurred. The second element of the Output array contains an n x 4 array of

fields. The layout of this array is virtually identical to the output obtained by going to Help -> Export

Object Fields. The first column, corresponding to the (n,0) column in the field array, specifies which fields

are key fields for the object. The second column, (n,1), contains the internal name of the field. The third

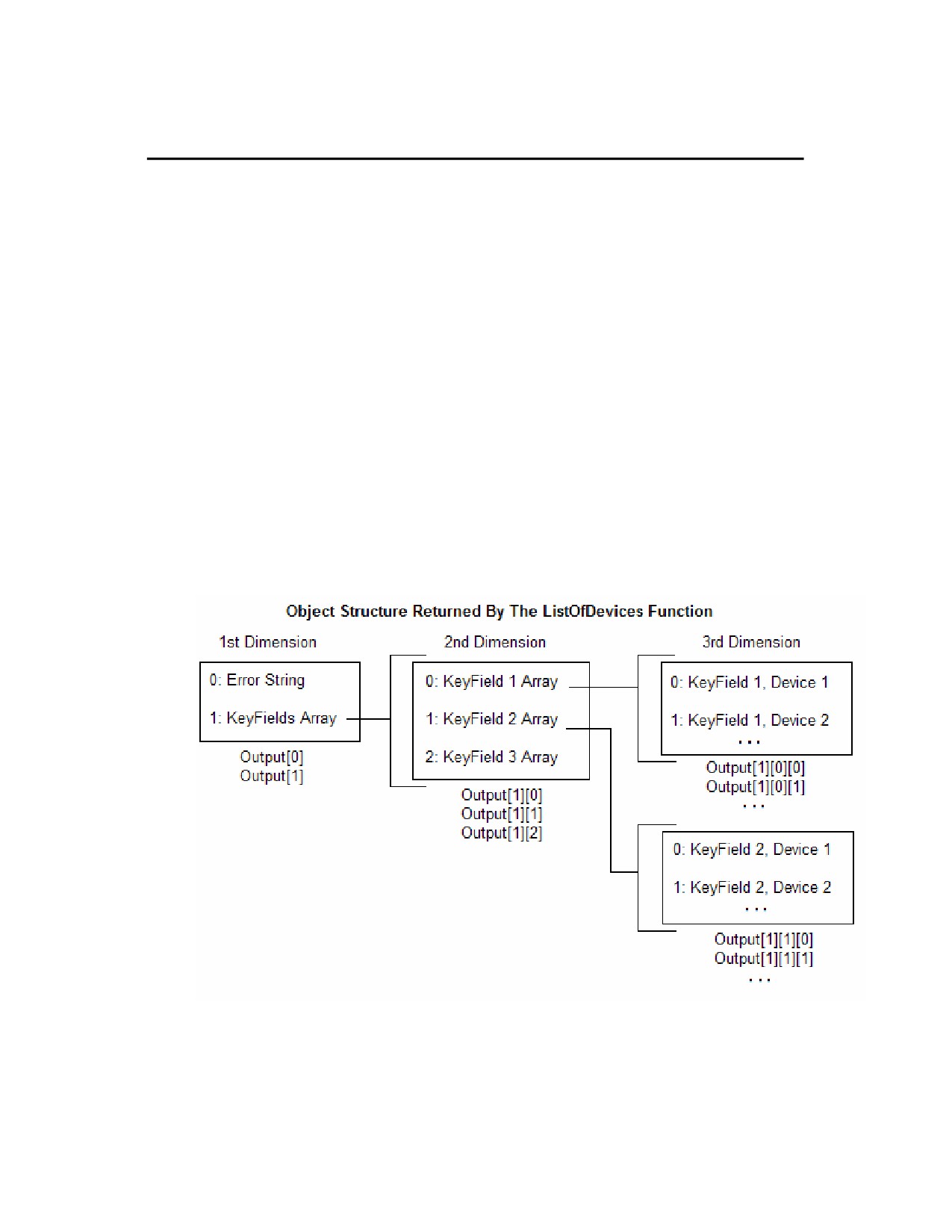

column, (n,2), contains the type of data stored in the string (e.g. String, Integer, Real). The fourth column,

(n,3), contains the display-friendly name of the field.

762

GetParametersSingleElement Function

The GetParametersSingleElement function is used to request the values of specified fields for a particular object in the

load flow case. For returning field values for multiple objects, you can use a loop to make repeated calls to the

GetParametersSingleElement function, and pass the object and desired field information for each object. This function

is identical in setup to the ChangeParameters function, with the exception that the Values array will be updated with

the values for the field variables defined in ParamList.

Function Prototype

GetParametersSingleElement(ObjectType, ParamList, Values)

Parameter Definitions

ObjectType : String

The type of object you are changing parameters for.

ParamList : Variant

A variant array storing strings. This array stores a list of PowerWorld‚ object

field variables, as defined in the section on PowerWorld Object Fields. The

ParamList must contain the key field variables for the specific device, or the

device cannot be identified. The remaining field variables in the array define

which values to retrieve from Simulator.

Values : Variant

A variant array storing variants. This array can store any type of information

(integer, string, etc.) in each array position. Values must be passed for the key

field variables in ParamList, in the same array position. The remaining field

positions in the Values array should be set to zero.

Output

GetParametersSingleElement returns both the first element in Output—containing any errors occurring during

execution of the function—and a second element in Output. The second element returned in the Output

structure is a one dimensional array containing the values corresponding to the fields specified in ParamList.

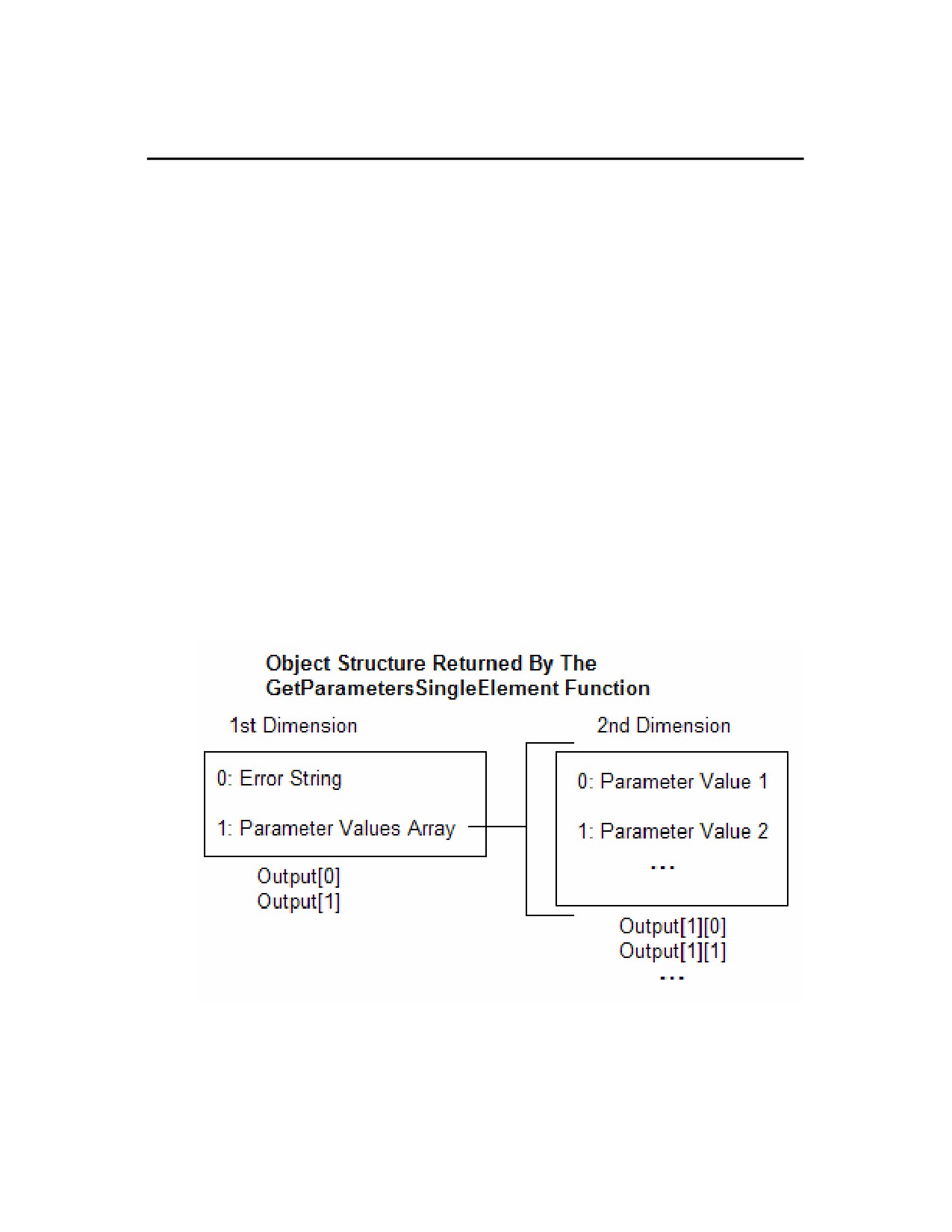

The Output structure of GetParametersSingleElement is shown in the following figure.

764

PowerWorld Simulator Add-on Tools

GetParametersSingleElement Function: Sample Code Borland® Delphi

// This example retrieves some parameters for bus 2 of the loaded

// case, using the GetParametersSingleElement function, as well as

// the old GetParameters function

procedure TMainForm.RunGPSEClick(Sender: TObject);

var

Output : OLEVariant;

FieldBusArray, ValueBusArray : OLEVariant;

i : Integer;

begin

// Declares fields array to be sent to Excel

FieldBusArray := VarArrayCreate([1,5], varOleStr);

FieldBusArray[1] := 'pwBusNum';

FieldBusArray[2] := 'pwBusname';

FieldBusArray[3] := 'pwBusKVVolt';

FieldBusArray[4] := 'pwBusPUVolt';

FieldBusArray[5] := 'pwBusAngle';

ValueBusArray := varArrayCreate([1,5],varOleStr);

ValueBusArray[1] := 2; // To get parameters for bus 2

ValueBusArray[2] := 0;

ValueBusArray[3] := 0;

ValueBusArray[4] := 0;

ValueBusArray[5] := 0;

// Gets parameters with GetParametersSingleElement function

Output := SimAuto.GetParametersSingleElement('bus', FieldBusArray, ValueBusArray);

if (string(Output[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(Output[0])

else

begin

StatusBar1.Panels[1].Text := 'Parameters got.';

Memo1.Lines.Add('== GetParametersSingleElement ==');

Memo1.Lines.Add('Value : Output[1][i]');

for i := VarArrayLowBound(Output[1],1) to VarArrayHighBound(Output[1],1) do begin

Memo1.Lines.Add(FieldBusArray[i] + ' : ' + string(Output[1][i]));

end;

Memo1.Lines.Add('');

end;

// Gets parameters with old function GetParameters

Output := SimAuto.GetParameters('bus', FieldBusArray, ValueBusArray);

if (string(Output[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(Output[0])

else

begin

StatusBar1.Panels[1].Text := 'Parameters got.';

Memo1.Lines.Add('== GetParameters ==');

765

PowerWorld Simulator Add-on Tools

GetParametersSingleElement Function: Sample Code Matlab®

% This example loads all buses in the case, and then gets

% some parameters of the last bus in the list

% validcase is a global variable - check case is open

if validcase

% Gets all buses in the case

output = simauto.ListOfDevices('bus','');

if ~(strcmp(output{1},''))

disp(output{1})

validbusarray = false;

else

% Puts the buses in row vector busarray

for i=size(output{2}{1},1):size(output{2}{1},2)

busarray(i,1) = output{2}{1}(i);

end

disp('Succesful ListOfDevices')

disp(busarray)

validbusarray = true;

end

% validbusarray is a global variable - check buses are loaded

if validcase & validbusarray

% Gets parameters for last bus of busarray

fieldarray = {'pw busnum' 'pwbusname' 'pwbusvolt' 'pwbusangle'};

valuearray = [busarray(size(busarray,1)) '0' '0' '0'];

valuelist = num2cell(valuearray);

output = simauto.GetParametersSingleElement('bus',fieldarray,valuelist);

if ~(strcmp(output{1},''))

disp(output{1})

else

% Puts the buses in row vector busparam

paramlist = transpose(output{2});

for i=size(paramlist,1):size(paramlist,2)

busparam(i,1) = paramlist(i);

end

disp('Succesful GetParameters for Bus')

disp(fieldarray)

disp(busparam)

end

767

GetParametersSingleElement Function: Sample Code Microsoft® Visual Basic for Excel

Private Sub btnGetParametersSingleElement_Click()

Dim objtype, filter As String

Dim xlWB As Excel.Workbook

Set xlApp = Excel.Application

' Checks connection and open case

' SimAuto and caseopen are global variables

If Not SimAuto Is Nothing And caseopen Then

objtype = "bus"

Dim fieldArray As Variant

fieldArray = Array("pwBusNum", "pwBusName", "pwBusKVVolt", _

"pwBusPUVolt", "pwBusAngle")

Dim ValueArray As Variant

ValueArray = Array(1, 0, 0, 0, 0)

output = SimAuto.GetParameters(objtype, fieldArray, ValueArray)

If output(0) <> "" Then

DisplayErrorMessage output(0)

Else

DisplayMessage "Succesful GetParametersSingleElement"

' Prepares additional worksheet

Set xlWB = xlApp.Workbooks.Add

' Copies list of devices in worksheet

With xlWB

Sheets("sheet2").Activate

Sheets("sheet2").Name = "GetParametersSingleElement"

With Sheets("GetParametersSingleElement")

Dim i As Integer

Range(Cells(1, 5), Cells(200, 7)).Clear

Cells(1, 1) = "List of Devices for " + objtype + ":"

' Setup fields as subheader

For i = LBound(fieldArray) To UBound(fieldArray)

Cells(2, i + 1) = fieldArray(i)

Next i

' Determine number of fields retrieved

Dim lowfld, highfld As Integer

lowfld = LBound(output(1), 1)

highfld = UBound(output(1), 1)

DisplayMessage "Number of Fields: " + Str(lowfld) + Str(highfld)

For i = lowfld To highfld

Cells(j + 3, i + 1) = output(1)(i)

Next i

End With

End If

End Sub

768

PowerWorld Simulator Add-on Tools

GetParametersMultipleElement Function

The GetParametersMultipleElement function is used to request the values of specified fields for a set of objects in the

load flow case. The function can return values for all devices of a particular type, or can return values for only a list of

devices of a particular type based on an advanced filter defined for the loaded case.

Function Prototype

GetParametersMultipleElement(ObjectType, ParamList, FilterName)

Parameter Definitions

ObjectType : String

The type of object you are changing parameters for.

ParamList : Variant

A variant array storing strings. This array stores a list of PowerWorld‚ object

field variables, as defined in the section on PowerWorld Object Fields. The

ParamList must contain the key field variables for the specific device, or the

device cannot be identified. The remaining field variables in the array define

which values to retrieve from Simulator.

FilterName : String

The name of an advanced filter defined in the load flow case open in the

Simulator Automation Server. If no filter is desired, then simply pass an empty

string. If a filter name is passed but the filter cannot be found in the loaded

case, the server will default to returning all objects in the case of type ObjType.

Output

GetParametersMultipleElement returns a set of nested arrays containing the parameter values for the device

type requested. The number of arrays of values returned depends on the number of fields in ParamList.

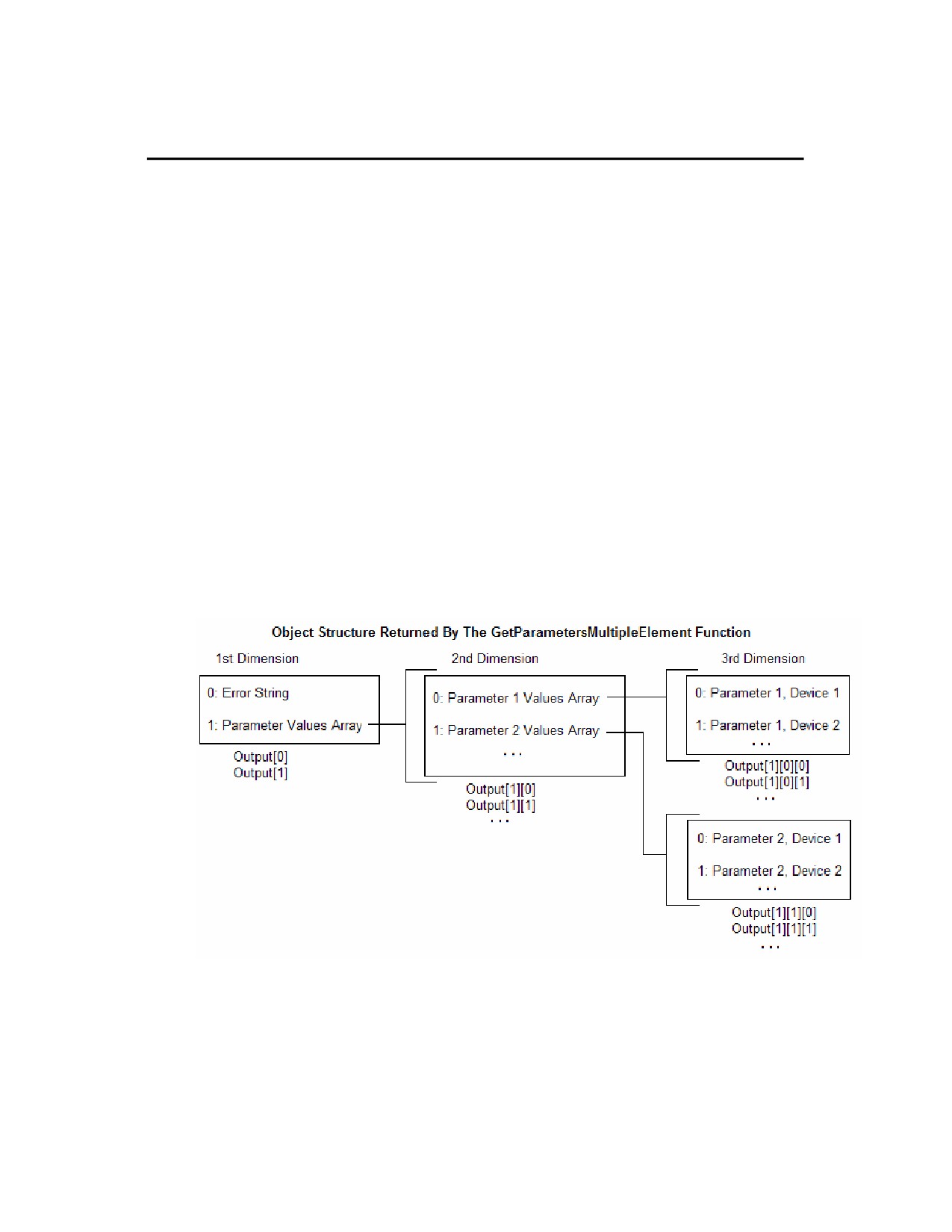

The Output structure of GetParametersMultipleElement is shown in the following figure.

As you can see, to access the first parameter value for the first device, Output[1][0][0] would be the correct

array index. For example, the bus number for the first bus would be stored at Output[1][0][0] after calling

Output = GetParametersMultipleElement('Bus',fieldarray, ''), and assuming that we have

fieldarray = Array(pwBusnum, pwBusName).

769

GetParametersMultipleElement Sample Code Borland® Delphi

// This example retrieves some parameters for all buses of the

// loaded case, using the GetParametersMultipleElement function

procedure TMainForm.RunGPMEClick(Sender: TObject);

var

FieldBusArray : OLEVariant;

i,j : Integer;

begin

// Declares fields array to be sent to Excel

FieldBusArray := VarArrayCreate([1,5], varOleStr);

FieldBusArray[1] := 'pwBusNum';

FieldBusArray[2] := 'pwBusname';

FieldBusArray[3] := 'pwBusKVVolt';

FieldBusArray[4] := 'pwBusPUVolt';

FieldBusArray[5] := 'pwBusAngle';

// Gets parameters with Multiple Element function

Output := SimAuto.GetParametersMultipleElement('bus', FieldBusArray, '');

if (string(Output[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(Output[0])

else

begin

StatusBar1.Panels[1].Text := 'Parameters got.';

Memo1.Lines.Add('== GetParametersMultipleElement ==');

Memo1.Lines.Add('Value : Output[1][i][j]');

for i := VarArrayLowBound(Output[1],1) to VarArrayHighBound(Output[1],1) do begin

for j := VarArrayLowBound(Output[1][i],1) to VarArrayHighBound(Output[1][i],1)

do begin

Memo1.Lines.Add(FieldBusArray[i] + '(' + IntToStr(j) + ') : ' +

string(Output[1][i][j]));

end;

Memo1.Lines.Add('');

end;

770

PowerWorld Simulator Add-on Tools

GetParametersMultipleElement Function: Sample Code Matlab®

% This example loads all buses in the case, and then gets

% some parameters of such buses

% validcase is a global variable - check case is open

if validcase

% Gets all buses in the case

output = simauto.ListOfDevices('bus', '');

if ~(strcmp(output{1},''))

disp(output{1})

validbusarray = false;

else

% Puts the buses in row vector busarray

for i=size(output{2}{1},1):size(output{2}{1},2)

busarray(i,1) = output{2}{1}(i);

end

disp('Succesful ListOfDevices')

disp(busarray)

validbusarray = true;

end

% validbusarray is a global variable - check buses are loaded

if validcase & validbusarray

% Gets parameters for all buses

fieldarray = {'pwbusnum' 'pwbusname' 'pwbusvolt' 'pwbusangle'};

output = simauto.GetParametersMultipleElement('bus', fieldarray,' ');

if ~(strcmp(output{1},''))

disp(output{1})

else

% Puts the buses in matrix busesparam

paramlist = transpose(output{2});

for i=size(paramlist,1):size(paramlist,2)

for j=size(paramlist{i},2):size(paramlist{i},1)

busesparam(j,i) = paramlist{i}(j);

end

disp('Succesful GetParametersMultipleElement')

disp(fieldarray)

disp(busesparam)

end

771

GetParametersMultipleElement Function: Sample Code Microsoft® Visual Basic for Excel

Private Sub btnGetParametersMultiple_Click()

Dim objtype, filter As String

Dim xlWB As Excel.Workbook

Set xlApp = Excel.Application

' Checks connection and open case

' SimAuto and caseopen are global variables

If Not SimAuto Is Nothing And caseopen Then

objtype = "bus"

filter = ""

Dim fieldArray As Variant

fieldArray = Array("pwBusNum", "pwBusName", "pwBusKVVolt", _

"pwBusPUVolt", "pwBusAngle")

output = SimAuto.GetParametersMultipleElement(objtype, fieldArray, filter)

If output(0) <> "" Then

DisplayErrorMessage output(0)

Else

DisplayMessage "Succesful GetParametersSingleElement"

' Prepares additional worksheet

Set xlWB = xlApp.Workbooks.Add

' Copies list of devices in worksheet

With xlWB

Sheets("sheet2").Activate

Sheets("sheet2").Name = "GetParametersSingleElement"

With Sheets("GetParametersSingleElement")

Dim i, j As Integer

Range(Cells(1, 5), Cells(200, 7)).Clear

Cells(1, 1) = "List of Devices for " + objtype + ":"

' Setup fields as subheader

For i = LBound(fieldArray) To UBound(fieldArray)

Cells(2, i + 1) = fieldArray(i)

Next i

' Determine number of fields retrieved

Dim lowfld, highfld As Integer

lowfld = LBound(output(1), 1)

highfld = UBound(output(1), 1)

' Determine number of objects retrieved

Dim lowobj, highobj As Integer

lowobj = LBound(output(1)(lowkeyf), 1)

highobj = UBound(output(1)(lowkeyf), 1)

DisplayMessage "Number of Fields: " + Str(lowfld) + Str(highfld)

DisplayMessage "Number of objects: " + Str(lowobj) + Str(highobj)

For i = lowfld To highfld

For j = lowobj To highobj

Cells(j + 3, i + 1) = output(1)(i)(j)

772

PowerWorld Simulator Add-on Tools

ListOfDevices Function

The ListOfDevices function is used to request a list of objects and their key fields from the Simulator Automation

Server. The function can return all devices of a particular type, or can return only a list of devices of a particular type

based on an advanced filter defined for the loaded case. This function is best used in conjunction with a looping

procedure and the ChangeParameters or GetParametersSingleElement functions to process a group of devices.

Function Prototype

ListOfDevices(ObjType, filterName)

Parameter Definitions

ObjType : String

The type of object for which you are acquiring the list of devices.

FilterName : String

The name of an advanced filter defined in the load flow case open in the

Simulator Automation Server. If no filter is desired, then simply pass an empty

string. If the filter cannot be found, the server will default to returning all objects

in the case of type ObjType.

Output

ListOfDevices returns a set of nested arrays containing the key field values for the device type requested.

The number of arrays of values returned depends on the object type selected. For instance, buses have only

one key field (the bus number) so calling ListOfDevices for buses will return only one array of values —the bus

numbers. On the other hand, calling ListOfDevices for branches will return three arrays of values—the "From"

bus, "To" bus, and ID—for each branch in the case meeting the specified filter.

The arrays containing the key field values for each device are arranged as shown in the following figure.

As you can see, to access the first key field value for the first device, Output[1][0][0] would be the correct

array index. For example, the bus number (which is the bus key field) for the first bus would be stored at

Output[1][0][0] after calling Output

= ListOfDevices('Bus', '').

One unique limitation of the ListOfDevices function from other SimAuto functions is that this is the only

function that returns the output as strongly typed variables. The bus numbers are always returned as Long

775

Integers, and the Circuit ID values are returned as strings . This was actually an oversight during the design of

SimAuto. In all other SimAuto functions, the values are returned as Variant types, with each value within the

variant being a string. This was the intended operation for this function as well. Since the Automation Server

interface was released with the errant inclusion of the ListOfDevices function, it could not be modified.

Therefore, another function, ListOfDevicesAsVariantStrings, has been created. This function returns all

values in variant variables, with each as a string within the variant type.

776

PowerWorld Simulator Add-on Tools

ListOfDevices Function: Sample Code for Borland® Delphi

Sample Code

// Runs Available Transfer Capability Routine

// Executes ATC Calculations among all areas

// and sends results to Excel

procedure TMainForm.RunATCClick(Sender: TObject);

var

i, j, LowB, HighB : Integer;

ValuesAreaArray : OLEVariant;

begin

// Obtain all the areas

Output := SimAuto.ListOfDevices('area', '');

if (string(Output[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(Output[0])

else

begin

ValuesAreaArray := Output[1][0];

LowB := VarArrayLowBound(ValuesAreaArray, 1);

HighB := VarArrayHighBound(ValuesAreaArray, 1);

// Executes loop

for i := LowB to HighB do

for j := LowB to HighB do begin

if (i <> j) then begin

// Runs ATC calculations

OutputATC := SimAuto.RunScriptCommand('entermode(atc); ' +

'atcdetermine([Area ' + IntToStr(ValuesAreaArray[i]) +

'], [Area ' + IntToStr(ValuesAreaArray[j]) + '])');

if (string(OutputATC[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(OutputATC[0])

else begin

// Sends ATC results to Excel

Output := SimAuto.SendToExcel('transferlimiter', '', 'all');

if (string(Output[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(Output[0])

else

StatusBar1.Panels[1].Text := 'ATC calculations done.';

end;

777

ListOfDevices Function: Sample Code for Matlab®

Sample Code

%A list of branches is desired, without using any filter

DeviceType = 'Branch';

FilterName = '';

%Execute the ListOfDevices command

Output = SimAuto.ListOfDevices(DeviceType,FilterName);

%If the first cell in SimAutoOutput ~= '', then that means an error

%occurred.

if ~(strcmp(SimAutoOutput{1},''))

disp(SimAutoOutput{1})

else

%Otherwise, no errors. Display the branch information.

disp('ListOfDevices successful')

%Devicelist1 contains the From: bus number

%Devicelist2 contains the To: bus number

%Devicelist3 contains the Bus identifier

devicelist1 = double(transpose(SimAutoOutput{2}{1}));

devicelist2 = double(transpose(SimAutoOutput{2}{2}));

devicelist3 = SimAutoOutput{2}{3};

%If the device list is greater than 25, don't bother attempting to

%display it on the screen.

if (size(devicelist1,1) > 25)

disp('Device list exceeds 25; use ''devicelist'' to manage list of devices')

else

%Otherw ise, display the branches' information.

disp(DeviceType)

disp('From/To/Identifier')

for counter = 1:size(devicelist1,1)

%num2str converts the numbers within devicelist1 and

%devicelist2 to strings for output with disp(). the char()

%function is called on devicelist3's members because the

%SimAuto object returns a character array (as opposed to a

%properly Matlab-format string) and this array must be

%converted to a Matlab-format string.

disp([num2str(devicelist1(counter)) ' ' ...

num2str(devicelist2(counter)) ' ' ...

char(devicelist3(counter))])

end

778

PowerWorld Simulator Add-on Tools

ListOfDevices Function: Sample Code for Microsoft® Visual Basic for Excel

Sample Code

Private Sub DisplayMessage(ByVal SentText As String)

TextBox.Text = TextBox.Text + SentText + vbCrLf + vbCrLf

End Sub

Private Sub btnListOfDevices_Click()

Dim objtype, filter As String

Dim xlWB As Excel.Workbook

Set xlApp = Excel.Application

' Checks connection and open case

' SimAuto and caseopen are global variables

If Not SimAuto Is Nothing And caseopen Then

objtype = "branch"

filter = ""

output = SimAuto.ListOfDevices(objtype, filter)

If output(0) <> "" Then

DisplayMessage output(0)

Else

DisplayMessage "Succesful List Of Devices"

' Prepares additional worksheet

Set xlWB = xlApp.Workbooks.Add

' Copies list of devices in worksheet

With xlWB

Sheets("sheet1").Activate

Sheets("sheet1").Name = "ListOfDevices"

With Sheets("ListOfDevices")

Dim i, j As Integer

Range(Cells(1, 5), Cells(200, 7)).Clear

Cells(1, 1) = "List of Devices for " + objtype + ":"

Cells(2, 1) = "From Bus Num"

Cells(2, 2) = "To Bus Num"

Cells(2, 3) = "ID"

' Determine number of key fields retrieved

Dim lowkeyf, highkeyf As Integer

lowkeyf = LBound(output(1), 1)

highkeyf = UBound(output(1), 1)

DisplayMessage "Number of Key Fields: " + Str(lowkeyf) + Str(highkeyf)

' Determine number of objects retrieved

Dim lowobj, highobj As Integer

lowobj = LBound(output(1)(lowkeyf), 1)

highobj = UBound(output(1)(lowkeyf), 1)

DisplayMessage "Number of objects: " + Str(lowobj) + Str(highobj)

For i = lowkeyf To highkeyf

For j = lowobj To highobj

Cells(j + 3, i + 1) = output(1)(i)(j)

Next j

779

PowerWorld Simulator Add-on Tools

ListOfDevicesAsVariantStrings Function

This function operates the same as the ListOfDevices function, only with one notable difference. The values returned

as the output of the function are returned as Variants of type String. The ListOfDevices function was errantly released

returning the values strongly typed as Integers and Strings directly, whereas all other SimAuto functions returned data

as Variants of type String. This function was added to also return the data in the same manner. This solved some

compatibility issues with some software languages.

781

ListOfDevicesFlatOutput Function

This function operates the same as the ListOfDevices function, only with one notable difference. The values returned

as the output of the function are returned in a single-dimensional vector array, instead of the multi-dimensional array

as described in the ListOfDevices topic. The function returns the key field values for the device, typically in the order

of bus number 1, bus number 2 (where applicable), and circuit identifier (where applicable). These are the most

common key fields, but some object types do have other key fields as well.

The format of the output array is the following:

[errorString, NumberOfObjectsReturned, NumberOfFieldsPerObject, Ob1Fld1, Ob1Fld2, …, Ob(n)Fld(m-1),

Ob(n)Fld(m)]

The data is thus returned in a single dimension array, where the parameters NumberOfObjectsReturned and

NumberOfFieldsPerObject tell you how the rest of the array is populated. Following the NumberOfObjectsReturned

parameter is the start of the data. The data is listed as all fields for object 1, then all fields for object 2, and so on.

You can parse the array using the NumberOf… parameters for objects and fields.

782

PowerWorld Simulator Add-on Tools

LoadState Function

LoadState is used to load the system state previously saved with the SaveState function. Note that LoadState will not

properly function if the system topology has changed due to the addition or removal of the system elements.

Function Prototype

LoadState()

Parameter Definitions

No parameters are passed.

Output

LoadState returns only one element in Output—any errors which may have occurred when attempting to

execute the function.

783

PowerWorld Simulator Add-on Tools

OpenCase Function

The OpenCase function will load a PowerWorld‚ Simulator load flow file into the Simulator Automation Server. This is

equivalent to opening a file using the File

-> Open menu in Simulator.

Function Prototype

OpenCase(FileName)

Parameter Definitions

FileName : String

The name of the PowerWorld‚ Simulator case file to be loaded into the

Simulator Automation Server. This string includes the directory location and full

file name.

Output

OpenCase returns only one element in Output—if the file cannot be found or an error occurs while reading the

file.

785

OpenCase Function: Sample Code

Borland® Delphi

Output := SimAuto.OpenCase('c:\simauto\examples\b7opf.pwb');

if (string(Output[0]) <> '') then

StatusBar1.Panels[1].Text := 'Error: ' + string(Output[0]);

else

begin

StatusBar1.Panels[1].Text := 'Open Case successful.';

// Perform activities with opened case

end;

Microsoft® Visual Basic for Applications

Output = SimAuto.OpenCase("c:\simauto\examples\b7opf.pwb")

If output(0) <> "" Then

MsgBox(output(0))

Else

' Perform activities with the opened case

End If

Matlab®

Output = SimAuto.OpenCase('c:\simauto\examples\b7opf.pwb')

%If the first cell in Output ~= '', then that means an error

%occurred.

if ~(strcmp(Output{1},''))

disp(Output{1})

else

%Otherwise, no errors. Perform activities.

disp('Open Case successful')

end

786

PowerWorld Simulator Add-on Tools

ProcessAuxFile Function

The ProcessAuxFile function will load a PowerWorld‚ Auxiliary file into the Simulator Automation Server. This allows

you to create a text file (conforming to the PowerWorld‚ Auxiliary file format) that can list a set of data changes and

other information for making batch changes in Simulator

Function Prototype

ProcessAuxFile(FileName)

Parameter Definitions

FileName : String

The name of the PowerWorld‚ Auxiliary file to be loaded into the Simulator

Automation Server. This string includes the directory location and full file

name.

Output

ProcessAuxFile returns only one element in Output—any errors which may have occurred when attempting to

load the file.

787

PowerWorld Simulator Add-on Tools

RunScriptCommand Function

The RunScriptCommand function is used to execute a list of script statements. The script actions are those included

in the script sections of the Auxiliary Files. If an error occurs trying to run a script command, an error will be returned

through EString.

Function Prototype

RunScriptCommand(Statements)

Parameter Definitions

Statements : String

The block of script actions to be executed. Each script statement must end in a

semicolon. The block of script actions should not be enclosed in curly braces.

Output

RunScriptCommand returns only one element in Output—any errors which may have occurred when

attempting to load or run the auxiliary file.

789

RunScriptCommand Function: Sample Code

Microsoft® Visual Basic for Applications

Dim scriptcommand As String

' Set script command to cause Simulator to enter Run Mode

scriptcommand = "EnterMode(RUN)"

' Make the RunScriptCommand call

Output = SimAuto.RunSCriptCommand(scriptcommand);

' Set script command to cause Simulator to perform a single,

' standard solution

scriptcommand = "SolvePowerFlow(RECTNEWT)"

' Make the RunScriptCommand call

Output = SimAuto.RunSCriptCommand(scriptcommand);

Matlab®

% Set script command to cause Simulator to enter Run Mode

scriptcommand = 'EnterMode(RUN)';

% Make the RunScriptCommand call

Output = SimAuto.RunSCriptCommand(scriptcommand);

% Set script command to cause Simulator to perform a single,

% standard solution

scriptcommand = 'SolvePowerFlow(RECTNEWT)';

% Make the RunScriptCommand call

Output = SimAuto.RunSCriptCommand(scriptcommand);

790

PowerWorld Simulator Add-on Tools

SaveCase Function

The SaveCase function is used to save a case previously loaded in the Simulator Automation Server using the

OpenCase function. The function allows you to specify a file name and a format for the save file.

Function Prototype

SaveCase(FileName, EString, FileType, Overwrite)

Parameter Definitions

FileName : String

The name of the file you wish to save as, including file path.

FileType : String

A string indicating the format of the written case file. An empty string will return

an error. The following list is the currently supported list of string identifiers and

the file types they represent.

"PTI23"

PTI version 23 (raw)

"PTI24"

PTI version 24 (raw)

"PTI25"

PTI version 25 (raw)

"PTI26"

PTI version 26 (raw)

"PTI27"

PTI version 27/28 (raw)

"PTI29"

PTI version 29 (raw)

"GE"

GE PSLF (epc)

"IEEE"

IEEE common format (cf)

"PWB70"

PowerWorld Binary version 7.0 (pwb)

"PWB"

PowerWorld Binary (most recent) (pwb)

Overwrite : Boolean

A Boolean value which indicates whether to overwrite a file if FileName already

exists. If Overwrite is set to false and the file specified by FileName already

exists, SaveCase will return an error message and do nothing to the file.

Output

SaveCase returns only one element in Output—any errors which may have occurred when attempting to save

the case.

791

SaveCase Function: Sample Code

Microsoft® Visual Basic for Applications

' Save the case as a PWB file

Output = SimAuto.SaveCase("c:\b7opfcopy.pwb", "PWB", true)

' Save the case as a PTI file

Output = SimAuto.SaveCase("c:\b7opfcopy.raw", "PTI", true)

Matlab®

% Setup name of PWB file to write

filenamepwb = 'c:\b7opfcopy.pwb';

% Setup name of PTI file to write

filenamepti = 'c:\b7opfcopy.raw';

% Make the SaveCase call for the PWB file

Output = SimAuto.SaveCase(filenamepwb, ‘PWB’, true);

% Make the SaveCase call for the PTI file

Output = SimAuto.SaveCase(filenamepti, ‘PWB’, true);

792

PowerWorld Simulator Add-on Tools

SaveState Function

SaveState is used to save the current state of the power system. This can be useful if you are interested in comparing

various cases, much as the Difference Flows feature works in the Simulator application.

Function Prototype

SaveState()

Parameter Definitions

No parameters are passed.

Output

SaveState returns only one element in Output—any errors which may have occurred when attempting to

execute the function.

793

PowerWorld Simulator Add-on Tools

SendToExcel Function

The SendToExcel function can be called to send data from the Simulator Automation Server to an Excel spreadsheet.

The function is flexible in that you can specify the type of object data you want to export, an advanced filter name for a

filter you want to use, and as many or as few field types as desired that are supported by the type of object. The first

time this function is called, a new instance of Excel will be started, and the data requested will be pasted to a new

sheet. For each subsequent call of this function, the requested data will be pasted to a new sheet within the same

workbook, until the workbook is closed.

Function Prototype

SendToExcel(ObjectType , FilterName, FieldList)

Parameter Definitions

ObjectType : String

A string describing the type of object for which your are requesting data.

FilterName : String

The name of an advanced filter which was previously defined in the case

before being loaded in the Simulator Automation Server. If no filter is desired,

then simply pass an empty string. If a filter name is passed but the filter cannot

be found in the loaded case, no filter is used.

FieldList : Variant

This parameter must either be an array of f ields for the given object or the

string "all". As an array, FieldList contains an array of strings, where each string

represents an object field variable, as defined in the section on PowerWorld

Object Variables. If, instead of an array of strings, the single string "all" is

passed, the Simulator Automation Server will use predefined default fields

when exporting the data.

Output

SendToExcel returns only one element in Output—any errors which may have occurred when attempting to

execute the function.

795

SendToExcel Function: Sample Code

Microsoft® Visual Basic for Applications

Dim FieldList As Variant

' Setup fieldlist to send the bus number, gen id and gen agc to Excel

FieldList = Array("pwBusNum", "pwGenID", "pwGenAGCAble")

' Make the SendToExcel call

' By specifying the parameter FieldList, only the three fields

' for each generator will be returned

Output = SimAuto.SendToExcel("gen", "", "FieldList")

' Sending the string "all" instead of a fieldlist array

' writes all predefined fields to the Excel spreadsheet

Output = SimAuto.SendToExcel("gen", "", "all")

Note: This function call will send the values of the fields in FieldList to an Excel workbook for all the generators in

the load flow case. If a filter name had been passed instead of an empty string, Simulator would have located and

used a pre-defined advanced filter and applied it to the information if it was found.

Matlab®

% Setup fieldlist to send the bus number, gen id and gen agc to Excel

fieldlist = {'pwBusNum' 'pwGenID' 'pwGenAGCAble' };

% Make the SendToExcel call

Output = SimAuto.SendToExcel('gen', '' , FieldList);

% Sending the string 'all' instead of a fieldlist array

% writes all predefined fields to the Excel spreadsheet

Output = SimAuto.SendToExcel('gen', '', 'all');

Note: This function call will send the values of the fields in FieldList to an Excel workbook for all the generators in

the load flow case. If a filter name had been passed instead of an empty string, Simulator would have located and

used a pre-defined advanced filter and applied it to the information if it was found.

796

PowerWorld Simulator Add-on Tools

WriteAuxFile Function

The WriteAuxFile function can be used to write data from the case in the Simulator Automation Server to a

PowerWorld‚ Auxiliary file. The function is flexible in that you can specify the type of object data you want to export,

an advanced filter name for a filter you want to use, and as many or as few field types as desired that are supported by

the type of object. In addition, you can specify a new file name for each call to WriteAuxFile, or you can specify the

same file name and append the data to the file.

Function Prototype

WriteAuxFile(FileName, FilterName, ObjectType, EString, ToAppend, FieldList)

Parameter Definitions

FileName : String

The name of the PowerWorld‚ Auxiliary file you wish to save.

FilterName : String

The name of an advanced filter which was previously defined in the case

before being loaded in the Simulator Automation Server. If no filter is desired,

then simply pass an empty string. If a filter name is passed but the filter cannot

be found in the loaded case, no filter is used.

ObjectType : String

A string describing the type of object for which your are requesting data.

ToAppend : Boolean

If you have given a file name of an auxiliary file that already exists, then the file

will either be appended to or overwritten according to the setting of this

parameter. If ToAppend is False and the file already exists, WriteAuxFile will

return an error message and do nothing to the file.

FieldList : Variant

This parameter must either be an array of fields for the given object or the

string "all". As an array, FieldList contains an array of strings, where each string

represents an object field variable, as defined in the section on PowerWorld

Object Variables. If, instead of an array of strings, the single string "all" is

passed, the Simulator Automation Server will use predefined default fields

when exporting the data.

Output

WriteAuxFile returns only one element in Output—any errors which may have occurred when attempting to

execute the function.

797

WriteAuxFile Function: Sample Code

Microsoft® Visual Basic for Applications

Dim FieldList As Variant

Dim auxfilename As String

' Setup FieldList to send the bus number, gen id and gen agc

FieldList = Array("pwBusNum", "pwGenID", "pwGenAGCAble")

' Aux file to write to

auxfilename = "c:\businfo.aux"

' Make the WriteAuxFile call

' By specifying the parameter FieldList, only the three fields

' for each generator will be returned

Output = SimAuto.WriteAuxFile(auxfilename, "", "gen", true, FieldList)

' Sending the string "all" instead of the FieldList array

' writes all predefined fields to the Excel spreadsheet

Output = SimAuto.SendToExcel(auxfilename, "", "gen", true, "all")

Note: This function call will send the values of the fields in FieldList to an auxiliary file for all the generators in the

load flow case. If a filter name had been passed instead of an empty string, Simulator would have located and used a

pre-defined advanced filter and applied it to the information if it was found.

Matlab®

% Setup FieldList to send the bus number, gen id and gen agc

fieldlist = {'pwBusNum' 'pwGenID' 'pwGenAGCAble' };

% Aux file to write to

auxfilename = 'c:\businfo.aux';

% Make the WriteAuxFile call

Output = SimAuto.WriteAuxFile(auxfilename, '', 'gen', true, FieldList);

% Sending the string 'all' instead of the FieldList array

% writes all predefined fields to the .aux file

Output = SimAuto.WriteAuxFile(auxfilename, '', 'gen', true, 'all');

Note: This function call will send the values of the fields in FieldList to an auxiliary file for all the generators in the

load flow case. If a filter name had been passed instead of an empty string, Simulator would have located and used a

pre-defined advanced filter and applied it to the information if it was found.

798

PowerWorld Simulator version 11. Manual - page 20
