WHEELS AND TIRES

}}

499

6. Be sure the air release valve on the com-

pressor's hose is completely closed. Remove
the valve cap from the tire’s inflation valve
and screw the tire sealing system’s hose
connector onto the valve as tightly as possi-
ble by hand.

7. Connect the electrical wire to the nearest

12-volt socket in the vehicle.

NOTE

Be sure that none of the other 12-volt sock-
ets is being used while the compressor is in
operation.

8. Start the tire sealing system’s compressor by

pressing the on/off switch to position I.

WARNING

•

Never stand next to the tire being inflated
when the compressor is in operation.

•

If cracks, bubbles, etc. form on the tire,
switch off the compressor immediately.

•

If there is visible damage to the sidewall or
the rim, the tire cannot be repaired. The
vehicle should not be driven if this occurs.
Contact a towing service or Volvo On Call
Roadside Assistance if applicable.

NOTE

The air pressure gauge will temporarily show
an increase in pressure to approximately
88 psi (6 bar) while the sealing compound is
being pumped into the tire. The pressure
should return to a normal level after approxi-
mately 30 seconds.

9. Pump the tire for 7 minutes.

CAUTION

The compressor should not be used for more
than 10 minutes at a time to avoid overheat-
ing.

10. Switch off the compressor and check the

inflation pressure on the air pressure gauge.
Inflation pressure should be between
22—51 psi (1.8—3.5 bar). Use the air
release valve to release some air from the
tire if necessary.

WARNING

If the pressure remains below 22 psi (1.8 bar)
after approximately seven minutes, turn off
the compressor. In this case, the hole is too
large to be sealed and the vehicle should not
be driven.

11. Switch off the compressor and disconnect

the electrical wire from the 12-volt socket.

12. Unscrew the hose from the tire's inflation

valve and put the cover on the hose back into
place to help prevent seepage of residual
sealing compound from the hose.

13. Reinstall the valve cap.

CAUTION

•

After inflating the tires, always reinstall the
valve cap to help avoid damage to the
valve from dirt, gravel, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

WHEELS AND TIRES

500

14. Immediately drive the vehicle for approxi-

mately 2 miles (3 km) at a maximum speed
of 50 mph (80 km/h) to distribute the seal-
ing compound in the tire. During the tire's
first revolution, some sealing compound may
spray out of the puncture hole.

WARNING

No one should stand closer to the vehicle
than approx. 7 ft (2 m) when it drives away to
help avoid being sprayed with sealing com-
pound.

CAUTION

If your vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS), the use of
the sealing compound may lead to incorrect
tire pressure readings or in rare cases, dam-
age to the tire pressure sensor. Use the tire
sealing system to check and adjust the dam-
aged tire's inflation pressure.

NOTE

•

Safely stow the tire sealing system in a
convenient place as it will soon be used
again to check the tire’s inflation pressure.

•

The empty bottle of sealing compound
cannot be removed from the bottle holder.
Consult a trained and qualified Volvo serv-

ice technician to have the bottle removed
and properly disposed of.

WARNING

If heavy vibrations, unsteady steering behavior,
or noises should occur while driving, reduce
speed and park the vehicle in a safe place.
Recheck the tire for bumps, cracks, or other
visible damage, and recheck its inflation pres-
sure. If the pressure is below 19 psi (1.3 bar),
do not continue driving. Have the vehicle
towed to a trained and qualified Volvo service
technician.

15. Rechecking the pressure

Reconnect the tire sealing system's hose to
the tire's inflation valve.

16. Without starting the compressor, check the

inflation pressure on the air pressure gauge.

•

If the pressure is under 19 psi (1.3 bar),
the puncture has not been sealed suffi-
ciently and the vehicle should not be
driven. Have the vehicle towed to a trained
and qualified Volvo service technician.

•

If the pressure is more than 19 psi
(1.3 bar), connect the electrical wire to a
12-volt socket, start the compressor and
inflate the tire to the correct pressure
(see the tire pressure decal on the on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear
of the driver's door opening). Use the air
release valve to release some air from the
tire if necessary.

17. Switch off the compressor and disconnect

the electrical wire from the 12-volt socket.
Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.

Do not attempt to remove the sealing com-
pound bottle from the tire sealing system. It
cannot be turned counterclockwise.

18. Fold the hose into the sealing system box

and return the components to the cargo
compartment.

WHEELS AND TIRES

}}

501

CAUTION

•

After inflating the tires, always reinstall
the valve cap to help avoid damage to the
valve from dirt, gravel, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

NOTE

•

After use, the sealing compound bottle,
the hose, and certain other system com-
ponents must be replaced. Please con-
sult your Volvo retailer for replacement
parts.

•

If the sealing compound bottle’s expira-
tion date has passed, please take it to a
Volvo retailer or a recycling station that
can properly dispose of harmful sub-
stances.

WARNING

Always check tire inflation pressure regularly.

Volvo recommends driving to an authorized Volvo
workshop to have the damaged tire repaired/
replaced. Inform the workshop that the tire con-
tains sealing compound.

WARNING

•

After using the tire sealing system, the
vehicle should not be driven farther than
approximately 120 miles (200 km).

•

Have the tire inspected by a trained and
qualified Volvo service technician as soon
as possible to determine if it can be per-
manently repaired or must be replaced.

•

The vehicle should not be driven faster
than 50 mph (80 km/h) while using a tire
that has been temporarily repaired with
the tire sealing system.

•

After using the tire sealing system, drive
carefully and avoid abrupt steering
maneuvers and sudden stops.

Related information

•

Tire sealing system (p. 496)

•

Checking tire inflation pressure (p. 486)

Inflating a tire with the tire sealing

system compressor

The compressor can be used to inflate a tire.

1. The compressor should be switched off.

Ensure that the on/off switch is in position 0.
Take out the electrical wire and hose.

2. Be sure the air release valve on the com-

pressor's hose is completely closed. Remove
the valve cap from the tire’s inflation valve
and screw the hose connector onto the valve
as tightly as possible by hand.

3. Connect the electrical wire to the nearest

12-volt socket in the vehicle and start the
engine.

WARNING

•

The vehicle’s engine should be running
when the tire sealing system is used to
avoid battery drain. Therefore, be sure the
vehicle is parked in a well ventilated place,
or outdoors, before using the system. The
parking brake should be securely applied
and the gear selector should be in the P
(park) position.

•

Children should never be left unattended
in the vehicle when the engine is running.

4. Start the compressor by pressing the on/off

switch to position I.

WHEELS AND TIRES

502

CAUTION

The compressor should not be used for more
than 10 minutes at a time to avoid overheat-
ing.

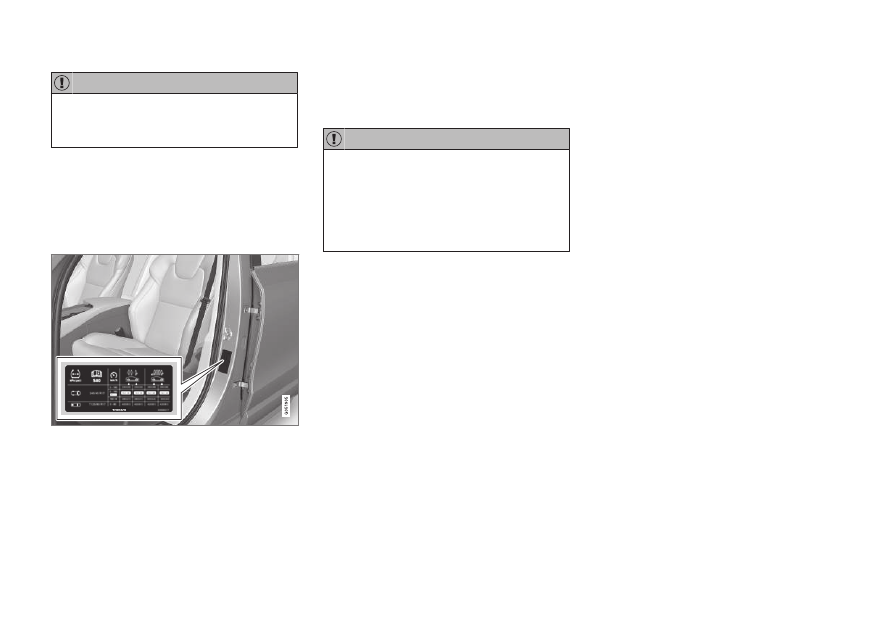

5. Inflate the tire to the correct pressure (see

the tire pressure decal on the on the driver's
side B-pillar (the structural member at the
side of the vehicle, at the rear of the driver's
door opening). Use the air release valve to
release some air from the tire if necessary.

6. Turn off the compressor (press the on/off

switch to position 0) when the correct infla-
tion pressure has been reached.

CAUTION

•

After inflating the tires, always reinstall the
valve cap to help avoid damage to the
valve from dirt, gravel, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

7. Disconnect the electrical wire from the 12-

volt socket.

Related information

•

Checking tire inflation pressure (p. 486)

•

Tire sealing system (p. 496)

MAINTENANCE AND SERVICING

504

Volvo's service program

Periodic maintenance and service performed at
the intervals specified in your Warranty and
Service Records Information booklet will help
keep your vehicle running well.

Introduction

The maintenance services contain several checks
that require special instruments and tools and
therefore must be performed by a qualified tech-
nician. To keep your Volvo in top condition, spec-
ify time-tested and proven Genuine Volvo Parts
and Accessories.

The Federal Clean Air Act – U.S.

The Federal Clean Air Act requires vehicle manu-
facturers to furnish written instructions to the ulti-
mate purchaser to assure the proper servicing
and function of the components that control
emissions. These services, which are listed in the
"Warranty and Service Records Information"
booklet, are not covered by the warranty. You will
be required to pay for labor and material used.

Maintenance

Your Volvo passed several major inspections
before it was delivered to you, in accordance with
Volvo specifications. The maintenance proce-
dures outlined in the Warranty and Service
Records Information booklet, many of which will
positively affect your vehicle's emissions, should
be performed as indicated. It is recommended
that receipts for vehicle emission maintenance be
retained in case questions arise concerning

maintenance. Inspection and maintenance should
also be performed anytime a malfunction is
observed or suspected.

Applicable warranties – U.S./Canada

In accordance with applicable U.S. and Canadian
regulations, the following list of warranties is pro-
vided.

•

New Vehicle Limited Warranty

•

Parts and Accessories Limited Warranty

•

Corrosion Protection Limited Warranty

•

Seat Belt and Supplemental Restraint Sys-
tems Limited Warranty

•

Emission Design and Defect Warranty

•

Emission Performance Warranty

These are the federal warranties; other warran-
ties are provided as required by state/provincial
law. Refer to your separate Warranty and Service
Records Information booklet for detailed informa-
tion concerning each of the warranties.

Periodic maintenance helps minimize
emissions

NOTE

•

Refer to your Warranty and Service
Records Information booklet for a com-
prehensive service and maintenance
schedule up to 150,000 miles (240,000
km). This program contains inspections
and services necessary for the proper
function of your vehicle and includes
components that affect vehicle emis-
sions.

•

The Warranty and Service Records Infor-
mation booklet also contains detailed
information concerning the warranties
that apply to your vehicle.

On-board Diagnostic System

OBD II is part of your vehicle's computerized
engine management system. It stores diagnostic
information about your vehicle's emission con-
trols. It can light the Check Engine light (MIL) if it
detects an emission control "fault." A "fault" is a
component or system that is not performing
within an expected range. A fault may be perma-
nent or temporary. OBD II will store a message
about any fault.

MAINTENANCE AND SERVICING

}}

505

Emission inspection readiness

How do states use OBD II for emission
inspections?

Many states connect a computer directly to a
vehicle's OBD II system. The inspector can then
read "faults." In some states, this type of inspec-
tion has replaced the tailpipe emission test.

How can my vehicle fail OBD II emission
inspection?

Your vehicle can fail OBD II emission inspection
for any of the following reasons.

•

If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.

•

If your vehicle's Check Engine light was lit,
but went out without any action on your part,
OBD II will still have a recorded fault. Your
vehicle may pass or fail, depending on the
inspection practices in your area.

•

If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.

How can I prepare for my next OBD II
emission inspection?

•

If your Check Engine (MIL) light is lit – or was
lit but went out without service, have your

vehicle diagnosed and, if necessary, serviced
by a qualified Volvo technician.

•

If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a period
of driving is necessary to bring the OBD II
system to "ready" for inspection. Two half-
hour trips of mixed stop-and-go/highway
driving are typically needed to allow OBD II to
reach readiness. Your Volvo retailer can pro-
vide you with more information on planning a
trip.

•

Maintain your vehicle in accordance with your
vehicle's maintenance schedule.

Owner maintenance

Periodic maintenance requirements and intervals
are described in your vehicle's Warranty and
Service Records Information booklet.

The following points can be carried out between
the normally scheduled maintenance services.

Each time the car is refueled:

•

Check the engine oil level.

•

Clean the windshield, windshield wipers,
headlights, and taillights.

Monthly:

•

Check cold tire pressure in all tires. Inspect
the tires for wear.

•

Check that engine coolant and other fluid
levels are between the indicated "min" and
"max" markings.

•

Clean interior glass surfaces with a glass
cleaner and soft paper towels.

•

Wipe driver information displays with a soft
cloth.

•

Visually inspect battery terminals for corro-
sion. Corrosion may indicate a loose terminal
connector, or a battery near the end of its
useful service life. Consult your Volvo retailer
for additional information.

As needed:

Wash the car, including the undercarriage, to
reduce wear that can be caused by a buildup of
dirt, and corrosion that can be caused by salt res-
idues.

Clean leaves and twigs from air intake vents at
the base of the windshield, and from other places
where they may collect.

NOTE

Complete service information for qualified
technicians is available online for purchase or
subscription at www.volvotechinfo.com.

MAINTENANCE AND SERVICING

506

Related information

•

Climate system service (p. 511)

System updates

Updates are available for infotainment-related
services and Internet connections. If system soft-
ware updates are available, they can be to be
downloaded all at once or separately.

System (software) updates are
handled through the

Download Center

app in the

center display's App view. Tap
once to start a download app in
Home view's lower sub-view. If
no search for updates has

been performed since the last time the infotain-
ment system was started, a search will be initi-
ated.

No search will begin if a software download is
underway.

An icon in the

System updates

button indicates

the number of updates that are currently availa-
ble. Tap the button to display a list of updates
that can be installed in the vehicle.

For additional information and answers to com-
monly asked questions pertaining to the function
and downloading system updates, go to sup-
port.volvocars.com.

Background searches for software updates
is activated by default when the vehicle is
delivered from the factory.

NOTE

Downloading data may affect other system
features that share the Internet connection. A
download can be cancelled at any time or the
other features can be temporarily turned off
while the software download is underway.

NOTE

An update may be interrupted when the igni-
tion is switched off.

However, an update does not have to be
completed when the ignition is switched off; it
will resume automatically when the ignition is
switched on again.

Updating all system software

–

Select

Install all

at the bottom of the list.

To avoid displaying a list, select

Install all

by the

System updates

button.

Updating individual programs

–

Select

Install

to choose the software to be

downloaded.

Cancelling a download

–

Tap the activity indicator that replaced the

Install

button on the screen when the down-

load began.

MAINTENANCE AND SERVICING

507

Keep in mind that a download can be cancelled
but an installation that has already begun cannot
be interrupted.

Allowing background searches or
software updates

This function can be deactivated from the center
display:

1. Go to the Settings in the center display's Top

view and select

Download Center

2. Tap

System

Download Center

3. Tap to deselect

Auto Software Update

If an update is available,

New software updates

available

will appear in the center display's sta-

tus bar. Tap the message to start a download app
in Home view's lower sub-view. As soon as the
download app has started, an icon in the

System

updates

button will indicate the number of

downloads available.

Related information

•

Center display overview (p. 33)

•

Navigating in the center display's views
(p. 43)

Remote updates

With the vehicle connected to the Internet,
updates for a number of the vehicle's systems
can be downloaded from the center display.

The

Download Center

app is

started from the center dis-
play's App view and makes it
possible to:

•

search for and update system software

•

update the Sensus Navigation maps

•

download, update and uninstall apps

Related information

•

Downloading, updating and uninstalling apps
(p. 468)

•

System updates (p. 506)

Vehicle status

The vehicle's general status can be displayed in
the center display along with the possibility to
book service

The

Car status

app is started

in the center display's App view
and has three tabs:

•

Messages

: stored messages

•

Status

: tire pressure and engine oil level

•

Appointments

: booking service or repairs

Related information

•

Using the center display (p. 50)

•

Booking service and repairs (p. 508)

•

Checking tire inflation pressure (p. 493)

•

Checking and refilling engine oil (p. 542)

Certain markets only.

MAINTENANCE AND SERVICING

508

Booking service and repairs

Connected Service Booking (CSB) makes it
possible to use the vehicle's Internet connection
to set up a time for service, maintenance and/or
repairs.

The information is handled through the

Car

status

app, which can be opened from the cen-

ter display's App view.

Information about your vehicle is sent to your
retailer and you can book your workshop appoint-
ment directly in your retailer's workshop planning
system using the Volvo On-Line Service Schedu-
ler with your smart phone. The system will also
send a reminder as the appointment approaches
and the Sensus Navigation system will provide
directions to the workshop if necessary.

This feature makes it convenient to book a work-
shop appointment directly from your vehicle.
Vehicle-related information is sent to your
retailer, who prepares your visit to the workshop.
After you have requested a workshop appoint-
ment, your retailer will send you an email includ-
ing a link enabling you to connect directly to your
retailer's booking system, where you can book
the appointment at a convenient time. Information
about your retailer is also available in the vehicle
so that you can contact the retailer/workshop at
any time using the

Call my retailer

menu option.

NOTE

My Volvo can be found by going to www.vol-
vocars.com and selecting the United States or
Canada.

Before the service can be used

Volvo ID

•

The owner (primary driver) must create or
have a Volvo ID (see the article "Volvo ID").

•

You must enter your Volvo ID (your email
address) in the vehicle as explained in the
article "Volvo ID". If you have already regis-
tered a Volvo ID, use the same email address
that you used to create the Volvo ID.

Changing a Volvo ID email address

If you would like to register a different email
address, open the Volvo ID app in the center dis-
play's App view and tap

Change Volvo ID

. Fol-

low the instructions provided. See also the article
"Volvo ID" for additional information.

Selecting a Volvo retailer on the My Volvo
website

By default, the retailer where you purchased your
vehicle will be your preferred retailer/Volvo
authorized workshop who will perform service
and repairs on your vehicle. To change the pre-
ferred retailer, go to your personalized My Volvo
website.

Prerequisites for booking service from the
vehicle

In order to request an appointment from the vehi-
cle:

•

The engine must be running

•

The vehicle must be connected to the Inter-
net (see the article "Internet connected vehi-
cle")

Using the service

When it is time for service or in certain cases if
repairs are necessary, a message will appear in
the instrument panel and in the center display.
This message is triggered by:

•

the amount of time that has elapsed since
the last service

•

the number of hours the engine has run
since the last service

•

mileage since the last service.

•

Specific alerts or fault codes in the vehicle

Booking service or repairs

Submit a booking request whenever you need a
workshop appointment or when a message
regarding the need for service or repairs has
been displayed in the instrument panel and in the
center display. This can be done directly from the
vehicle as follows or alternatively by using the My
Volvo personal website booking tab.

MAINTENANCE AND SERVICING

}}

509

Sending an appointment request

1. Open the

Car status

app in the center dis-

play's App view.

2. Tap

Appointments

3. Under

Appointments

, tap

Request

appoint.

4. Check that your

Volvo ID

is correct.

5. Check that the correct preferred retailer is

listed. If you prefer, simply tap the button to
initiate a call to the retailer.

6. Tap

Send appointment request

. Your

request and vehicle data will be sent to your
retailer through the vehicle's Internet con-
nection.
> Volvo will send a booking invitation to your

email address with a link to your preferred
workshop's On-Line Service Scheduler.

7. Open the email and click the link to book

your workshop appointment at a convenient
time with your preferred service advisor. Add
any additional preferences and free text to
your booking.

8. When you have submitted your workshop

booking, your appointment will be confirmed
online directly by email. The booking informa-
tion will also appear in the

Car status

app in

the center display after a period of time as
well as in your My Volvo personal website,
where you can make changes to your
appointment at any time.

9. Several days prior to your appointment, you

will receive a reminder via email from your
retailer. A notification will also appear on the
center display one day prior to the appoint-
ment. You can set the interval for other
reminders (e.g., two days, three days) at your
My Volvo personal website.

10. On the day of your appointment, a reminder

will appear again on the center display and
the retailer's address can be set in your navi-
gation system if you require directions to the
workshop.

Sending vehicle-related information

Information about the vehicle can be sent at any
time using its Internet connection.

Using this function does not send a workshop
appointment request to your retailer; only
vehicle data will be transmitted to Volvo. This
vehicle data can be accessed by any retailer if
you call the retailer and provide your Vehicle
Identification Number (VIN).

1. Open the

Car status

app in the center dis-

play's App view.

2. Tap

Appointments

3. Under

Appointments

, tap

Send vehicle

data

> A message confirming that vehicle infor-

mation has been sent via the Internet
connection will appear on the center dis-
play. Transmission of the vehicle informa-
tion can be cancelled at any time by tap-
ping the X in the activity indicator.

MAINTENANCE AND SERVICING

510

Viewing workshop information

1. Open the

Car status

app in the center dis-

play's App view.

2. Tap

Appointments

3. Under

Appointments

, tap

Workshop

information

> A window with retailer information will

appear.

4. If you prefer, call the retailer, or select an

address or GPS coordinates to activate the
navigation system.

Appointments and vehicle information

When you make an appointment or send vehicle
information from your vehicle, this information will
be sent using the Internet connection

. Informa-

tion about the vehicle includes:

•

service requirements

•

time since service was last performed

•

function status

•

fluid levels

•

mileage (odometer reading)

•

VIN (Vehicle Identification Number)

•

The vehicle's software version

•

Diagnostic information

Related information

•

Internet connected vehicle (p. 466)

•

Volvo ID (p. 32)

Wi-Fi connection to a workshop

The time a vehicle is in a workshop for service or
repairs can be reduced by transmitting trouble-
shooting information as soon as the car reaches
the workshop.

This is done most conveniently by selecting

Automatically connect when I arrive

in the

center display's Settings menu.

Each time the vehicle slows down to a sufficiently
low speed, it begins searching for a Wi-Fi net-
work. If an authorized Volvo network (at a retailer
or workshop) is found, a message will be dis-
played or a pop-up window will open in the cen-
ter display (this applies to manual connections,
see the section "Manually connecting to a work-
shop" below).

There will be a slight charge for sending this information via the vehicle's Internet connection, depending on your service plan.

MAINTENANCE AND SERVICING

511

Automatically connecting to a
workshop

Without driver confirmation

This is the most convenient way to transmit trou-
ble-shooting data. The driver does not need to
confirm that the vehicle will establish a connec-
tion.

If the vehicle stops at a workshop and the engine
is switched off using the start knob, a message
will appear above the status bar in the center dis-
play. The vehicle will be automatically connected
when the driver's door is opened if the driver
does not tap the

Cancel

button in the message.

To help prevent the driver from being disturbed
by unwanted requests to connect (e.g., if the
vehicle is often parked near a workshop with an
authorized Volvo network), the vehicle will switch
to manual connection if the driver cancels a con-
nection request twice within 5 days.

With driver confirmation

With this alternative, the driver must confirm a
connection.

If the vehicle stops at a workshop and the engine
is switched off using the start knob, a pop-up
window will open in the center display. The vehi-
cle will be automatically connected when the driv-
er's door is opened if the driver taps

Connect

the pop-up window. If the driver does nothing or
taps the pop-up window's

Abort

button, no

attempt will be made to establish a connection.

NOTE

To help prevent the driver from being distur-
bed by unwanted requests to connect (e.g., if
the vehicle is often parked near a workshop
with an authorized Volvo network), the vehicle
will switch to manual connection if the driver
cancels a connection request twice within
5 days.

Manually connecting to a workshop

Manual connections are handled by the service
technician.

Changing the way a connection is made

The type of connection (manual or automatic)
can be changed in the center display's Settings
menu.

1. Pull down the center display's Top view and

tap

Settings

2. Tap

Communication

Volvo Service

Networks

3. Select

Automatically connect when I

arrive

Ask before connecting

Never

connect and never ask

(manual connec-

tions).

Related information

•

Internet connected vehicle (p. 466)

•

Settings view (p. 115)

Climate system service

Service and repairs on the air conditioning sys-
tem should only be done by a trained and quali-
fied Volvo service technician.

Troubleshooting and repairs

The air conditioning system contains a floures-
cent tracer substance. Ultraviolet light is used to
search for leaks in the system.

Refrigerant R134a

WARNING

The air conditioning system contains the
refrigerant R134a under pressure. Service
and repairs on the system should only be
done by a trained and qualified Volvo service
technician.

Related information

•

Climate control system (p. 188)

MAINTENANCE AND SERVICING

512

Start battery

The vehicle's electrical system is single pole and
uses the body and engine block as conductors.

The start (main) battery is used to power electri-
cal components and systems. However, the
hybrid battery is used to start the gasoline
engine.

The start battery should only be replaced by a
trained and qualified Volvo service technician.

The start battery is an Absorbed Glass Mat
(AGM) 12-volt battery that is dimensioned for
use in vehicles to support electrical systems and
functions.

The service life of a battery is affected by factors
such as driving conditions/style, the number of
starts, climate, etc. Extreme cold may also further
decrease the battery’s starting capacity.

•

Never disconnect the start battery while the
engine is running.

•

Check that the start battery is correctly con-
nected and that the clamps on its terminals
are properly tightened.

WARNING

•

Never expose the battery to open flame
or electric spark.

•

Do not smoke near the battery.

•

Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces. If contact
occurs, flush the affected area immedi-
ately with water. Obtain medical help
immediately if eyes are affected.

WARNING

PROPOSITION 65 WARNING!

Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.

It is not possible to charge another vehicle's bat-
tery using the connection points in the engine
compartment. If the connection points are used
to charge another vehicle's battery it may cause a
fuse to blow, which means that the connection
points will not function.

If an external auxiliary battery is used to start the
vehicle, use the connection points in the engine
compartment. The start battery's terminals should
never be used. See the following illustration.

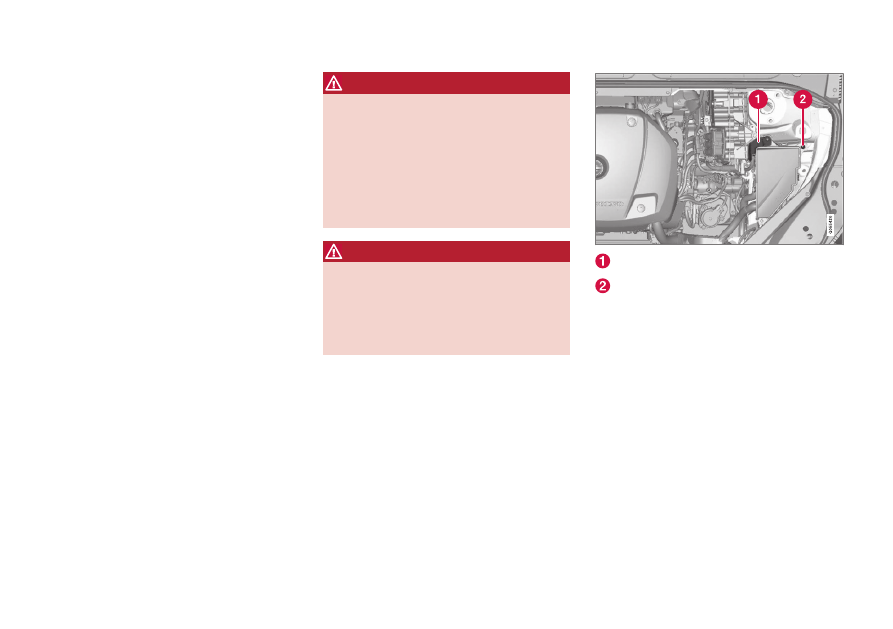

Positive connection point

Negative connection point

Only modern battery chargers should be used to
charge the start battery. Quick charge functions
should not be used and could damage the bat-
tery.

If both the start and hybrid batteries are fully dis-
charged, both will have to be charged. Only
charging the hybrid battery in this situation is not
possible. Before the hybrid battery can be
charged, the start battery must be charged to a
certain level.

MAINTENANCE AND SERVICING

}}

513

CAUTION

•

The infotainment system's energy-saving
feature may not function correctly or at
all, and/or a message may be displayed if
a battery charger or jumper cables are
not connected properly.

•

The negative terminal on the battery must
never be used to connect a jumper cable
or a battery charger. Only the ground
point on the chassis may be used.

NOTE

•

The service life of the start battery is
shortened if it becomes discharged
repeatedly.

•

The service life of the start battery is
affected by factors such as driving condi-
tions and climate. Extreme cold may also
further decrease the battery's start
capacity.

•

Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven
for an extended period of time or if the
vehicle is usually only driven short dis-
tances.

•

Driving for at least 15 minutes a week or
connecting the battery to a charger with
automatic maintenance charging will help
keep it in good operating condition.

•

Keeping the start battery fully charged
will help maximize its service life.

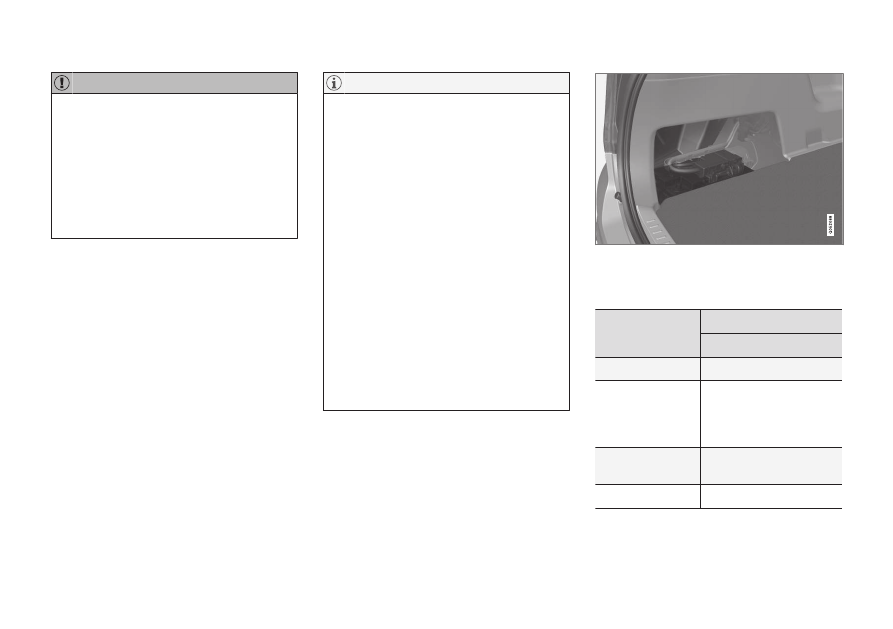

The start battery is located in the cargo compartment

The following table provides start battery specifi-
cations.

Battery

H8 AGM

Current (V)

Cold start capacity
(Cold Cranking
Amperes - CCA)
(A)

850

Dimensions,
L×W×H in. (mm)

13.9×6.9×7.5

(353×175×190)

Capacity (Ah)

The H8 AGM is held in place by a strap. Ensure
that this strap is pulled taut.

MAINTENANCE AND SERVICING

514

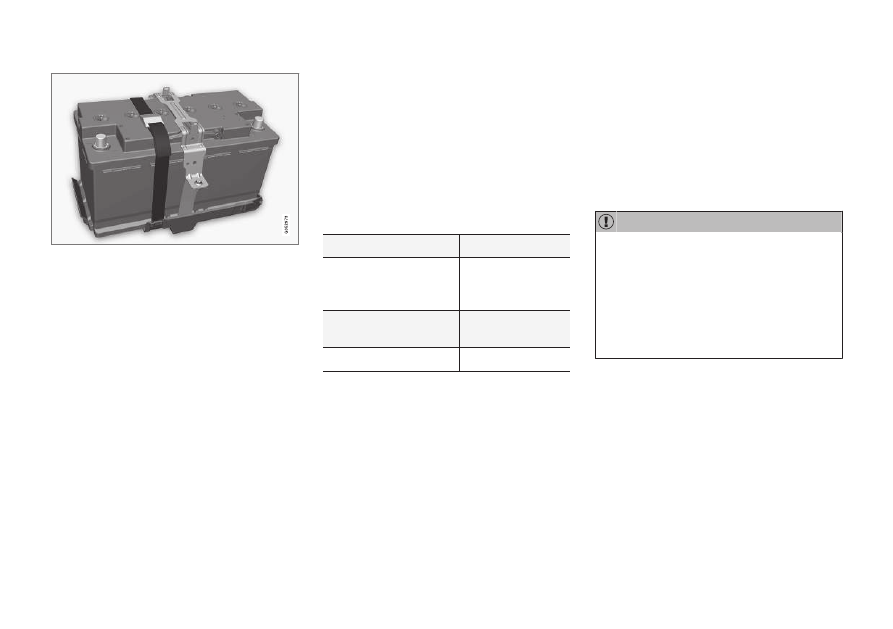

H8 AGM battery with strap

•

When replacing the start battery an
Absorbed Glass Mat (AGM) must be used.

•

When replacing the start battery, a new bat-
tery with the same specifications and dimen-
sions must be used. The battery should only
be replaced by a trained and qualified Volvo
service technician.

Related information

•

Jump starting (p. 395)

•

Battery symbols (p. 516)

Support battery

Vehicles equipped with Start/Stop are equipped
with two 12-volt batteries.

In addition to a heavy-duty start battery, models
with Start/Stop also have a support battery that
provides extra current during the Start/Stop
function's start sequence.

The following table shows the specifications for
the support battery:

Current (V)

Cold start capacity (Cold
Cranking Amperes -
CCA) (A)

170

Dimensions, L×W×H in.
(mm)

5.9×3.5×5.1

(150×90×130)

Capacity (Ah)

•

When replacing the start battery or support
battery in a vehicle with Start/Stop, an
Absorbed Glass Mat (AGM) must be used.

•

The greater the current consumption in the
vehicle, the more the generator has to oper-
ate and the battery is charged. This increases
fuel consumption.

•

When the start battery's charge is below the
minimum permitted level, the Start/Stop
function will be disabled.

When the Start/Stop function is temporarily disa-
bled due to high current consumption:

•

The engine will auto-start, even if the brake
pedal is depressed.

The support battery does not normally required
more service than the start battery. If questions
arise, consult a Volvo retailer or trained and quali-
fied Volvo service technician.

CAUTION

When connecting an external start battery or
a battery charger, the Start/Stop function may
be temporarily disabled if the negative termi-
nal on the vehicle's start battery is used to
connect an external start battery or a battery
charger. Only the negative connection point
in the engine compartment may be used as a
ground point.

MAINTENANCE AND SERVICING

515

NOTE

If the start battery is completely discharged
and the vehicle has no normal electrical func-
tions, and the engine is then started using an
auxiliary battery or battery charger, the
Start/Stop function will be activated. The
engine can then be auto-stopped but may not
auto-start again due to an insufficient charge
level in the start battery.

To help ensure auto-start, the start battery
should be charged first. At a temperature of
approx. 60 °F (15 °C), the battery should be
charged for at least 1 hour, preferably using
an external battery charger. At lower tempera-
tures, the battery should be charged for
3–4 hours.

If a charger is not available, it is advisable to
disable the Start/Stop function until the bat-
tery is sufficiently recharged.

Related information

•

Start battery (p. 512)

Hybrid battery

The vehicle's electric motor is powered by a
rechargeable, maintenance-free, lithium-ion
hybrid battery.

The vehicle cannot be started if the hybrid
battery is completely discharged.

WARNING

The vehicle's hybrid battery may only be serv-
iced or replaced by a trained and qualified
Volvo service technician.

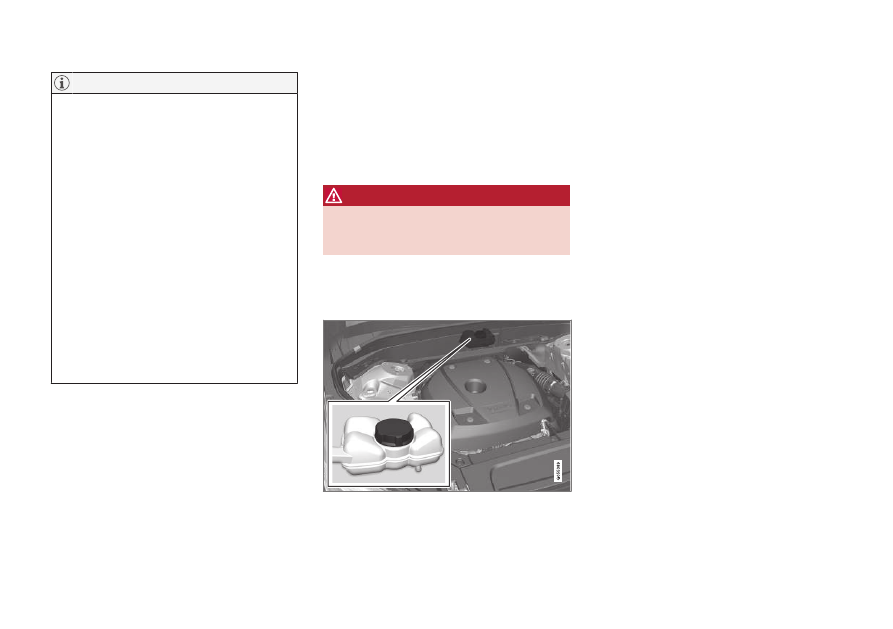

Battery coolant

The hybrid battery's cooling system has its own
expansion tank.

Filling the hybrid battery's cooling system should
only be done by a trained and qualified Volvo
service technician.

Related information

•

Charging the hybrid battery (p. 413)

Volvo XC90 T8 Twin Engine Plug-in Hybrid (2017 year). Manual - part 30
