2. Remove the cover over the bulbs (see

Bulbs – cover (p. 336)).

3. Remove the bulb by turning it counter-

clockwise and pulling it straight out.

4. Remove the connector from the bulb.
5. Press the new bulb into the socket and

turn it clockwise to put it in place. It can

only be secured in one position.

6. Reinsert the bulb holder into the headlight

housing.

7. Put the cover back into position and rein-

stall the headlight housing.

Related information

•

Bulbs – extra high beam

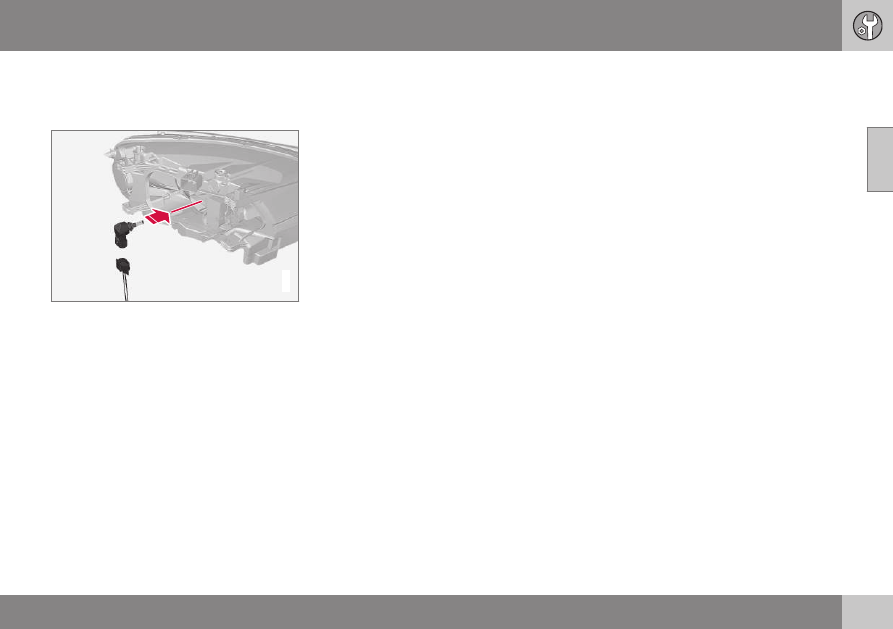

The extra high beam bulb is concealed by the

larger cover.

10 Maintenance and servicing

338

Extra high beam

G021748

1. Remove the headlight housing from the

2. Remove the cover over the bulbs (see

Bulbs – cover (p. 336)).

3. Remove the bulb by pressing the holder

downward.

4. Remove the connector from the bulb.
5. Insert a new bulb in the connector until it

snaps in place. It can only be inserted in

one way.

6. Return the bulb holder into position in the

headlight housing.

7. Put the cover back into position and rein-

stall the headlight housing.

Related information

•

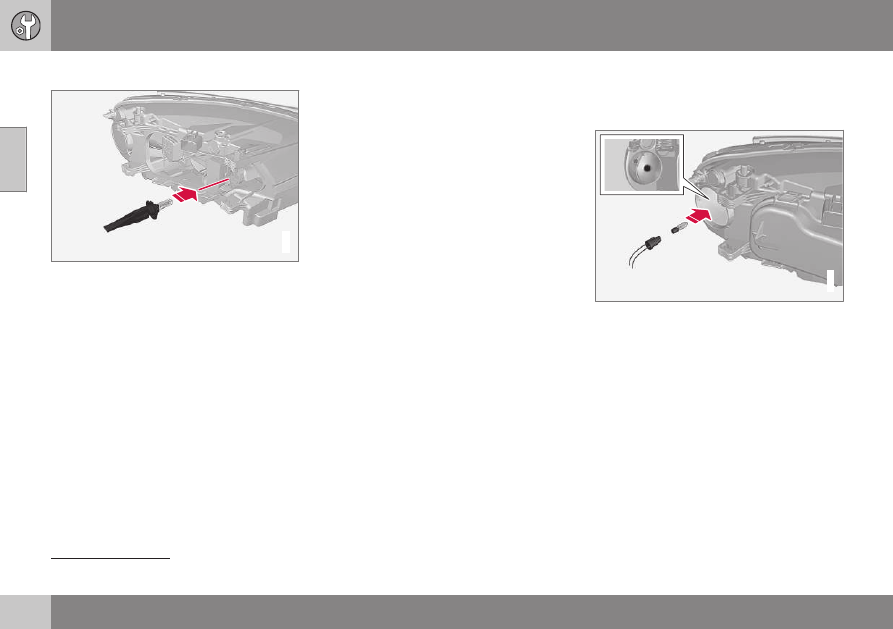

Bulbs – front turn signals

The turn signal bulb is concealed behind the

smaller cover.

G021750

1. Remove the headlight housing from the

2. Remove the round cover by pulling the

tab until the cover comes off.

3. Pull out the holder to access the bulb.
4. Pull out the burned out bulb and press a

new bulb into the socket. It can only be

secured in one position.

5. Press the bulb holder into the socket and

press until it clicks into place.

6. Press the cover in place until it clicks into

position.

Models with optional Active Bending Lights only.

10 Maintenance and servicing

339

7. Reinstall the headlight housing.

Related information

•

Bulbs – front side marker lights

The side marker bulb is concealed behind the

smaller cover.

G021751

1. Remove the headlight housing from the

2. Remove the small round cover over the

bulbs.

3. Pull the wire to withdraw the bulb holder.
4. Pull out the burned out bulb and press a

new bulb into the socket. It can only be

secured in one position.

5. Press the bulb holder into the socket and

press until it clicks into place.

6. Press the cover in place until it clicks into

position.

Related information

•

Bulbs – introduction (p. 334)

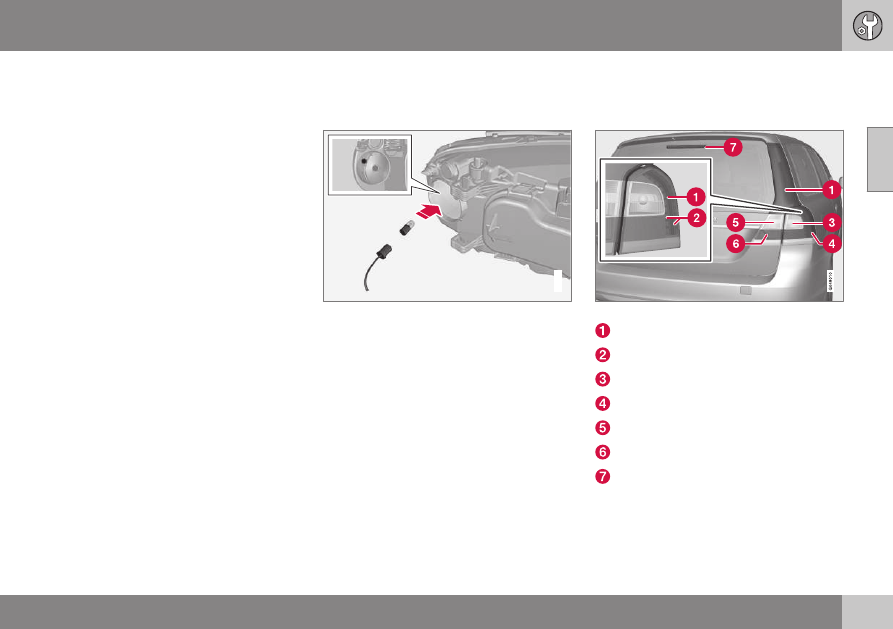

Bulbs – location of taillight bulbs

The following illustrations show the location of

the bulbs in the taillight cluster.

Taillight lens, right side

Parking light (LEDs)

Brake light (LEDs)

Turn signal

Side maker light (LEDs)

Backup light

Rear fog light

Brake light (LEDs)

Related information

•

•

10 Maintenance and servicing

340

Bulbs – brake lights and taillights

The turn signal bulb in the taillight cluster is

replaced from inside the cargo area.

Taillight housing, turn signal

G017456

1. Open the panel.
2. Remove the insulation by pulling it

straight out.

3. Remove the entire bulb unit by turning its

handle counterclockwise.

4. Remove the bulb by pulling it straight out.
Replace the bulb in the reverse order.

Related information

•

Bulbs – location of taillight bulbs (p. 339)

•

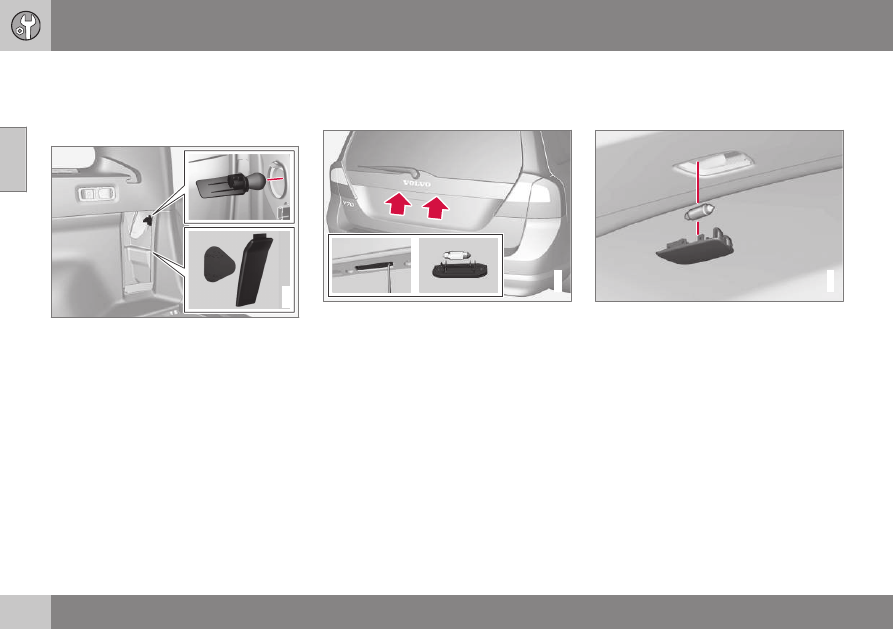

Bulbs – license plate lighting

The license plate lighting is located next to

the tailgate handle.

G017458

1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing

and pull it out.

3. Replace the bulb.
4. Reinsert the entire bulb housing and

tighten the screws.

Related information

•

Bulbs – cargo area lighting

The cargo area light is located in the ceiling

liner.

G031942

1. Insert a screwdriver and gently turn so

that the bulb housing comes loose.

2. Replace the bulb.
3. Check that the bulb illuminates and press

it back into the bulb housing.

Related information

•

10 Maintenance and servicing

Option/accessory, for more information, see Introduction.

341

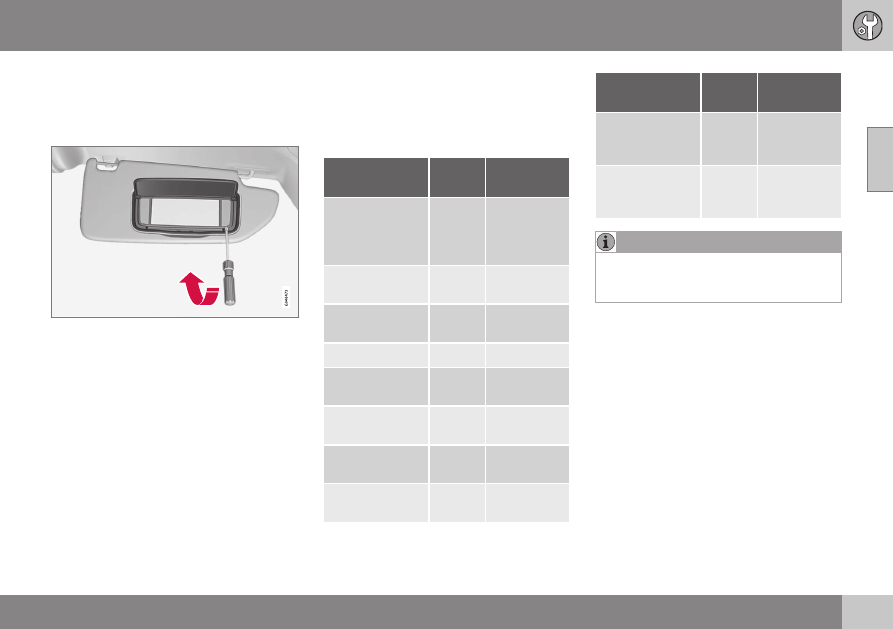

Bulbs – vanity mirror lighting

The vanity mirror bulbs are located behind the

lens.

Removing the lens

1. Insert a flat screwdriver under the lens

and carefully exert upward pressure to

release the retaining lugs.

2. Snap out the lens.
3. Use needle nose pliers to pull the bulb

straight to the side. Replace the bulb. Do

not exert too much pressure on the bulb

with the pliers to help avoid damaging it.

Reinstalling the lens
1. Put the lens back into position.
2. Press it into place.

Related information

•

Bulbs – specifications

The following bulbs can be replaced by the

vehicles owner. All other bulbs should only be

replaced by a trained and qualified Volvo

service technician.

Lighting func-

tion

Wat-

tage

Bulb

Extra high beam

(models with

Active Bending

Lights*)

H7 LL

Low beam (halo-

gen)

H11 LL

High beam (hal-

ogen)

Rear turn signals

PY21W SV

Front turn sig-

nals

H21W LL

License plate

lighting

C5W LL

Vanity mirror

W2x4.6d

type T5

Front side

marker lights

W5W LL

Lighting func-

tion

Wat-

tage

Bulb

Glove compart-

ment lighting

SV8.5

(length

43mm)

Cargo area light-

ing

SV8.5

(length

43mm)

Bulbs – introduction (p. 334)

Please consult a Volvo retailer’s Parts

department for the most up-to-date bulb

specifications.

Related information

•

10 Maintenance and servicing

342

Wiper blades – service position

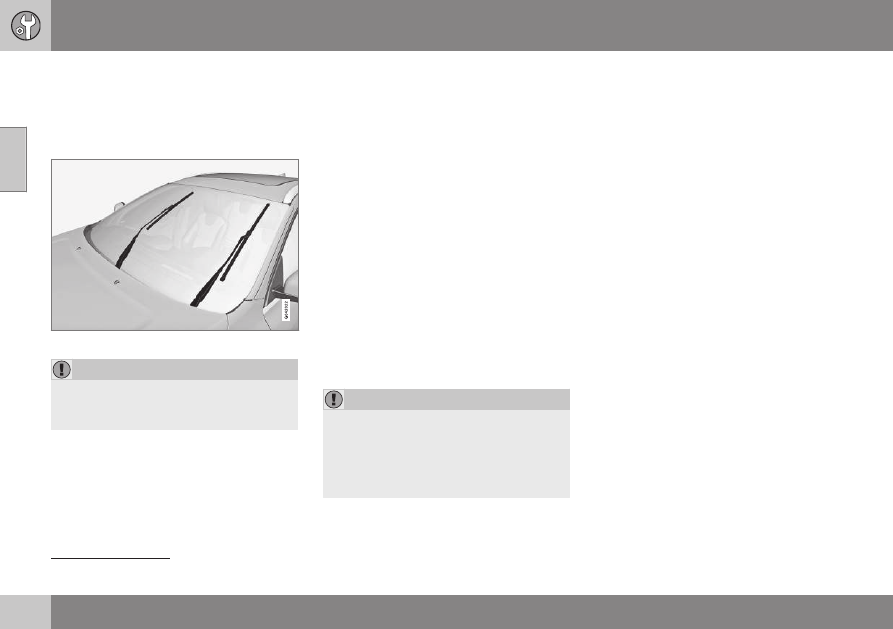

The windshield wiper blades must be in the

vertical (service) position for replacement,

washing or to lift them away from the wind-

shield when e.g., removing ice or snow.

Wiper blades in service position

Be sure the wiper blades are not frozen in

position before attempting to move them

to the service position.

To put the windshiield wipers in the service

position:
1. Insert the remote key into the ignition

slot

and press the START/STOP

ENGINE button briefly to put the ignition

in mode I (see Ignition modes (p. 79) for

detailed information about the ignition

modes).

2. Press the START/STOP ENGINE button

again briefly to switch the ignition off.

3. Within 3 seconds, move the right steering

wheel lever up and hold it for at least

1 second.
> The wipers will then move to the verti-

cal (service) position on the windshield.

The wipers can be returned to the normal

position by pressing the START/STOP

ENGINE button briefly to put the ignition in

mode I (or by starting the engine).

Engine compartment – washer fluid

If the wiper arms have been folded out

from the windshield while in the service

position, fold them back against the wind-

shield before returning the wipers to the

normal position to help avoid scratching

the paint on the hood.

Related information

•

(p. 344)

Not necessary on vehicles with the optional keyless drive.

10 Maintenance and servicing

343

Wiper blades – windshield

The wiper blades should be replaced regularly

for best effect.
The windshield wiper blades must be in the

vertical (service) position for replacement,

washing or to lift them away from the wind-

shield when e.g., removing ice or snow.

Replacing the windshield wiper blades

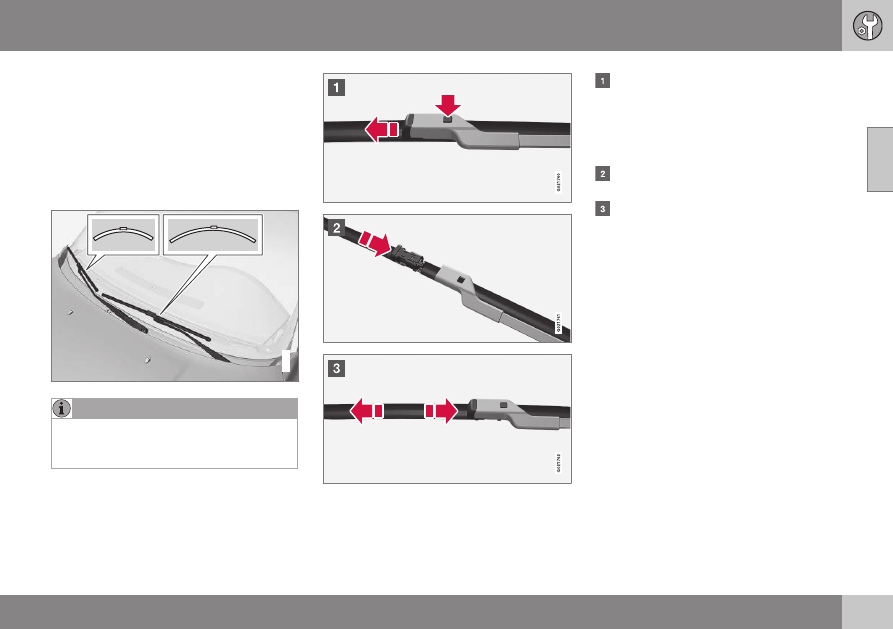

G021763

Engine compartment – washer fluid

The windshield wiper blades are different

lengths. The blade on the driver’s side is

longer than the one on the passenger side.

With the wipers in the service position,

fold out the wiper arm from the wind-

shield. Press the button on the wiper

blade attachment and pull the wiper

blade straight out, parallel with the wiper

arm.
Slide in the new wiper blade until it clicks

into place.
Check that the blade is securely in place.

4. Press the wipers back against the wind-

shield.

To return the wipers from the service position

to the normal position, fold the wipers back

against the windshield and press the START/

STOP ENGINE button briefly to put the igni-

tion in mode I (or start the engine).

Cleaning
Keeping the windshield and wiper blades

clean helps improve visibility and prolongs

the service life of the wiper blades. Clean the

wiper blades with a stiff-bristle brush and

lukewarm soap solution or car washing deter-

gent.

Related information

•

(p. 344)

•

Wiper blades – service position (p. 342)

10 Maintenance and servicing

344

Wiper blades – tailgate

The wiper blades should be replaced regularly

for best effect.

Replacing the tailgate wiper blade

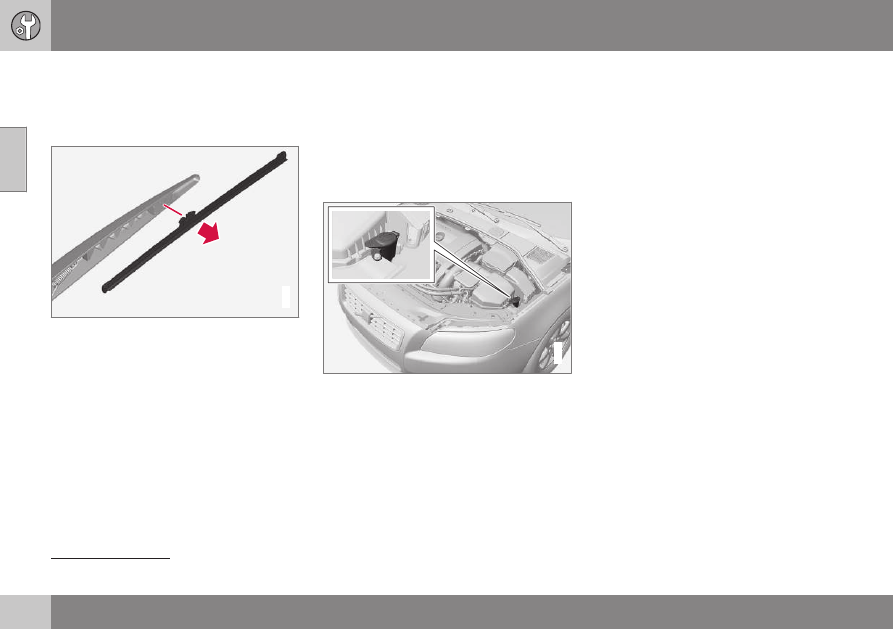

G032770

1. Fold the wiper arm outward.
2. Grasp the inner section of wiper blade (at

the arrow).

3. Pull out the blade to release it from the

wiper arm.

4. Press the new wiper blade into place and

check that it seats securely.

5. Fold the wiper arm back toward the tail-

gate window.

Related information

•

Engine compartment – washer fluid

(p. 344)

Engine compartment – washer fluid

Washer fluid helps keep the windshield and

headlights clean. During cold weather, the

reservoir should be filled with windshield

washer solvent containing antifreeze. Use

Volvo Original Washer Fluid or the equivalent

with a recommended pH value between 6 and

G021764

Location of the washer fluid reservoir

The windshield and headlight washers share

a common reservoir.
The washer fluid reservoir is located on the

driver's side of the engine compartment. For

capacities, see the printed Owner's Manual.
Specification:Use a washer antifreeze rec-

ommended by Volvo, mixed with water.
Volume:

•

6.8 US qts (6.5 liters)

•

4.7 US qts (4.5 liters

)

Related information

•

Wiper blades – service position (p. 342)

Models without headlight washers

10 Maintenance and servicing

}}

345

Battery – symbols

There are information and warning symbols

on the battery.

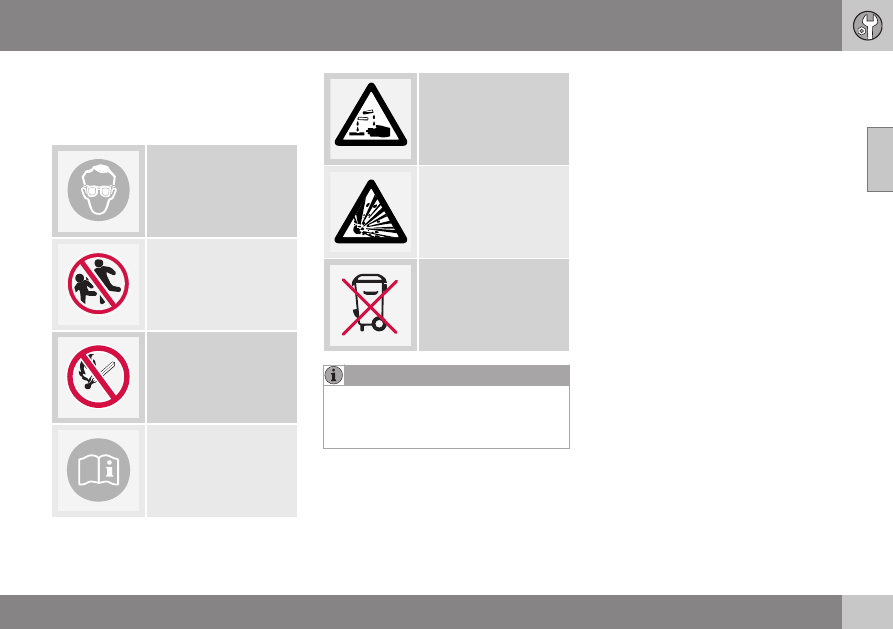

Symbols on the battery

Wear protective goggles.

Keep away from children.

Avoid smoking, open

flames, and/or sparks.

See the owner's manual.

Contains corrosive acid.

Risk of explosion

Recycle properly

Battery – changing (p. 347)

A used battery should be disposed of in an

environmentally responsible manner. Con-

sult your Volvo retailer or take the battery

to a recycling station.

Related information

•

•

Battery – handling (p. 345)

•

Battery – maintenance (p. 346)

Battery – handling

The battery's service life is affected by the

number of starts, if it has been discharged,

driving style, driving conditions, weather con-

ditions ,etc.

Handling

•

Check that the battery cables are cor-

rectly connected and tightened.

•

Never disconnect the battery when the

engine is running (for example, when

replacing the battery).

•

If the battery is fully discharged a number

of times, this may shorten its service life.

•

The service life of a battery is affected by

factors such as the number of starts, driv-

ing conditions and climate. Extreme cold

may also further decrease the battery’s

starting capacity.

•

Because the battery’s starting capacity

decreases with time, it may be necessary

to recharge it if the vehicle is not driven

for an extended period of time or if the

vehicle is usually only driven short dis-

tances.

•

Never use a quick charger to charge the

battery. Only traditional types of battery

chargers should be used.

10 Maintenance and servicing

346

See Jump starting (p. 250) for an illustra-

The infotainment system's energy-saving

feature may not function correctly or at all,

and/or a message may be displayed if a

battery charger or jumper cables are not

connected properly.

•

The negative terminal on the battery

must never be used to connect a

jumper cable or a battery charger.

Only the ground point on the chassis

may be used.

tion and additional information.

WARNING

•

Never expose the battery to open

flame or electric spark.

•

Do not smoke near the battery.

•

Battery fluid contains sulfuric acid. Do

not allow battery fluid to contact eyes,

skin, fabrics or painted surfaces. If

contact occurs, flush the affected area

immediately with water. Obtain medi-

cal help immediately if eyes are affec-

ted.

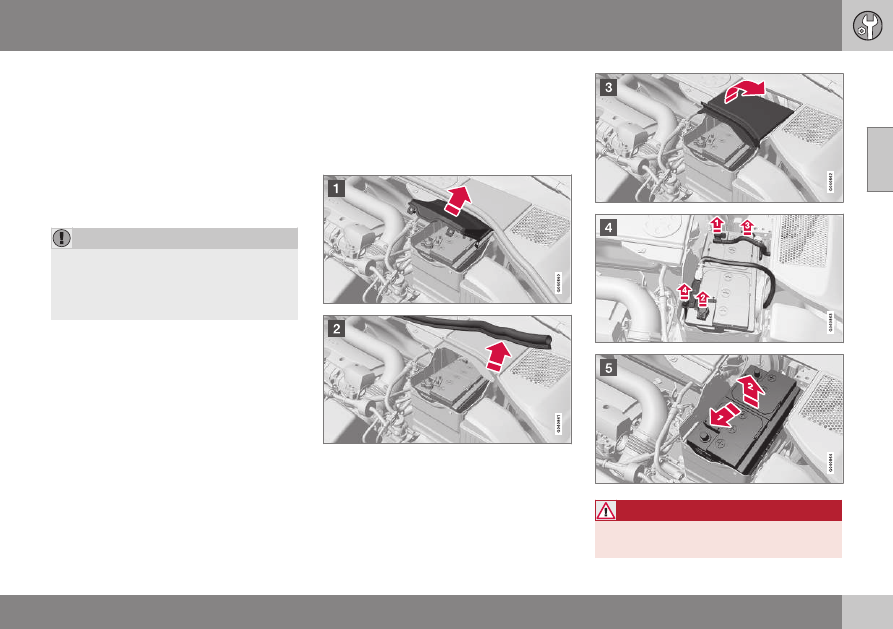

Battery – changing (p. 347)

The life of the battery is shortened if it

becomes discharged repeatedly.

Related information

•

•

Battery – maintenance (p. 346)

•

Battery – symbols (p. 345)

Battery – maintenance

Proper battery maintenance can help prolong

its service life.

Maintenance

•

Use a screw driver to open the caps or

cover and a flashlight to inspect the level.

•

If necessary, add distilled water. The level

should never be above the indicator.

•

The fluid level should be checked if the

battery has been recharged.

•

After inspection, be sure the cap over

each battery cell or the cover is securely

in place.

•

Check that the battery cables are cor-

rectly connected and properly tightened.

•

Never disconnect the battery when the

engine is running, or when the key is in

the ignition. This could damage the vehi-

cle's electrical system.

•

The battery should be disconnected from

the vehicle when a battery charger is

used directly on the battery.

•

To help keep the battery in good condi-

tion, the vehicle should be driven for at

least 15 minutes a week or connected to

a charger with an automatic charging

function.

•

If the battery is fully discharged a number

of times, this may shorten its service life.

Keeping the battery fully charged helps

prolong its service life.

10 Maintenance and servicing

}}

347

•

The service life of a battery is affected by

factors such as driving conditions and cli-

mate. Extreme cold may also further

decrease the battery’s starting capacity.

•

Because the battery’s starting capacity

decreases with time, it may be necessary

to recharge it if the vehicle is not driven

for an extended period of time or if the

vehicle is usually only driven short dis-

tances.
