DISPLAYS AND VOICE CONTROL

}}

Trip computer

The vehicle's trip computer registers and calcu-
lates data while driving such as mileage, fuel
consumption and average speed.

To help promote fuel-efficient driving, data is
recorded on both current and average fuel con-
sumption. Data from the trip computer can be
displayed in the instrument panel.

Example of trip computer information in the
instrument panel.

The trip computer includes the following gauges:

•

Trip odometer

•

Odometer

•

Current fuel consumption

•

Distance to empty tank

•

Tourist - alternative speedometer

Unit standards for distance, speed, etc. can be
changed via system settings in the center display.

Trip odometer

There are two trip odometers: TM and TA.

TM can be reset manually and TA is reset auto-
matically if the vehicle is not used for four hours.

During a drive, the trip odometer registers data
on:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The readings since the trip odometer's last reset
are displayed.

Odometer

The odometer records the vehicle's total mileage.
This reading cannot be reset.

Current fuel consumption

This gauge shows the vehicle's fuel consumption
at that moment. The reading is updated about
once a second.

Distance to empty tank

The trip computer calculates the distance that
can be driven on the fuel remaining in the tank.

This calculation is based on average fuel con-
sumption during the last 30 km (20 miles) and
the amount of fuel remaining in the tank.

When the gauge displays "----", there is not
enough fuel remaining to calculate the remaining
mileage. Refuel as soon as possible.

NOTE

This may vary if your driving style changes.

An economical driving style will generally
increase how far you can drive on a certain
amount of fuel.

Tourist - alternative speedometer

The alternative digital speedometer makes it eas-
ier to drive in countries where speed limit signs
are shown in a different measurement unit than
the one shown in the vehicle's gauges.

When used, the digital speed is displayed in the
opposite unit to that shown in the analog speed-
ometer. If mph is used in the analog speedome-
ter, the equivalent speed in km/h will be shown
in the digital speedometer.

Related information

•

Displaying trip data in the instrument panel
(p. 84)

•

Resetting the trip odometer (p. 85)

The illustration is generic - details may vary according to vehicle model.

DISPLAYS AND VOICE CONTROL

•

Displaying trip statistics in the center display
(p. 85)

•

Instrument panel (p. 80)

Displaying trip data in the

instrument panel

Data recorded and calculated by the trip com-
puter can be displayed on the instrument panel.

This data is stored in a trip computer app. You
can choose which information the instrument
panel will display in the app menu.

Open and navigate in the app menu using the right-
hand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the instrument panel

by pressing (1).

(The App menu cannot be opened while
there is an unacknowledged message in the
instrument panel. The message must be con-
firmed before the App menu can be opened.)

2. Navigate to the trip computer app by moving

left or right using (2).
> The top four menu rows show measured

values for trip odometer TM. The next four
menu rows show measured values for trip
odometer TA. Scroll up or down in the list
using (3).

3. Scroll down to the option buttons to choose

which information to show in the instrument
panel:

•

Distance to empty tank

•

Odometer

•

Mileage for trip odometer TM, TA or no
display of mileage

•

Current fuel consumption, average fuel
consumption for TM or TA, or no display
of fuel consumption

•

Tourist (alternative speedometer).

Select or clear a selection using the O but-
ton (4). The change will apply immediately.

Related information

•

Trip computer (p. 83)

•

Resetting the trip odometer (p. 85)

DISPLAYS AND VOICE CONTROL

Resetting the trip odometer

Resetting the trip odometer using the left-side
steering wheel lever.

–

Reset all information in trip odometer TM (i.e.
mileage, average fuel consumption, average
speed and driving time) by pressing and
holding the RESET button on the left-hand
steering wheel lever.

Tapping the RESET button only resets the
distance driven.

The TA trip odometer can not be manually reset.
It resets automatically if the vehicle is not used
for four hours or more.

Related information

•

Trip computer (p. 83)

Displaying trip statistics in the

center display

Trip computer statistics can be displayed graphi-
cally in the center display, providing an overview
that facilitates more fuel-efficient driving.

Open the

Driver performance

app in the App view to display
trip statistics.

Each bar in the graph repre-
sents a driving distance of 1
kilometers, 10 kilometers or

100 kilometers (or miles). The bars are added
from the right as you drive. The bar at the far right
shows the data for the current trip.

Average fuel consumption and total driving time
are calculated from the most recent reset of the
trip statistics.

Trip computer statistics

Related information

•

Trip statistics settings (p. 86)

•

Trip computer (p. 83)

The illustration is generic - details may vary according to vehicle model.

DISPLAYS AND VOICE CONTROL

Trip statistics settings

Trip statistics settings can be reset or adjusted.

1. Open the

Driver performance

app in the

App view to display trip statistics.

2. Tap

Preferences

•

change the graph scale. Select 1, 10 or
100 km/miles for the bar.

•

reset data after each trip. Performed when
the vehicle remains stationary for more
than 4 hours.

•

reset data for current trip.

Trip statistics, calculated average consump-
tion, and total driving time are always reset
simultaneously.

Unit standards for distance, speed, etc. can be
changed via system settings in the center display.

Related information

•

Displaying trip statistics in the center display
(p. 85)

•

Trip computer (p. 83)

•

Resetting the trip odometer (p. 85)

Date and time

The clock is displayed in both the instrument
panel and the center display.

Location of clock

Location of clock in instrument panel.

In the center display, the clock is located at the
top right of the status bar.

Certain messages and other information may
obscure the clock in the instrument panel.

Time and date settings

–

Select

Settings

System

Date and

Time

in the center display's Top view to

change settings for time and date format.

Adjust the time and date by tapping the up or
down arrows on the touchscreen.

Automatic time for vehicles with GPS

When the vehicle is equipped with a navigation
system,

Auto Time

is also available. The time

zone will then be automatically set to the vehi-
cle's location. In some navigation systems, the
current location must also be set to determine
the correct time zone. If

Auto Time

is not

selected, the time and date can be adjusted
using the up and down arrows on the
touchscreen.

Daylight savings time

In some countries, an automatic change to day-
light savings time can be selected by activating

Auto

. For other countries, daylight savings time

can be changed by selecting

Off

Related information

•

Instrument panel (p. 80)

•

Changing settings in the center display
(p. 126)

DISPLAYS AND VOICE CONTROL

}}

Ambient temperature sensor

The ambient temperature is shown in the instru-
ment panel.

The sensor detects the temperature outside the
vehicle.

If the vehicle has been stationary, the sensor
reading may be higher than the actual tempera-
ture.

When the ambient temperature is between -5 °C
and +2 °C (23 and 36

°F), a snowflake symbol

will be displayed in the instrument panel as a
warning for possible slippery conditions.

To change the measurement standard for the
temperature sensor and other readings, go to
system settings in the center display's Top view.

Related information

•

Instrument panel (p. 80)

•

Changing system units of measurement
(p. 124)

Indicator symbols in the instrument

panel

The indicator symbols alert the driver that a func-
tion has been activated, that a system is running,
or that a fault or error may have occurred.

Symbol

Meaning

Information, see the message in
the display

The information symbol illuminates
and a message is displayed in the
instrument panel if one of the vehi-
cle's systems requires the driver's
attention. The information symbol
may also illuminate in combination
with other symbols.

Fault in brake system

This symbol illuminates if there is a
problem with the parking brake.

DISPLAYS AND VOICE CONTROL

Symbol

Meaning

Fault in ABS system

If this symbol is illuminated, the
ABS system is malfunctioning. The
vehicle's regular brakes will still
work, but without the ABS function.

Auto-brake on

This symbol illuminates when the
function is activated and the brakes
or parking brakes are being used.
The brakes hold the vehicle at a
standstill after it has stopped.

Symbol

Meaning

Tire pressure system

This symbol illuminates to indicate
low tire pressure. If there is a fault
in the tire pressure system, the
symbol will first flash for approxi-
mately 1 minute and then glow
steadily. This may occur if the sys-
tem cannot detect or alert the
driver of low tire pressure as
intended.

Emission control system

If this symbol illuminates after star-
ting the engine, it could indicate a
fault in the vehicle's emission con-
trol system. Have the vehicle
checked by a workshop. Volvo rec-
ommends contacting an authorized
Volvo workshop.

Left/right turn signals

These symbols flash when the turn
signals are used.

Symbol

Meaning

Parking lights

This symbol illuminates when the
parking lights are on.

Fault in headlight system

This symbol illuminates if a fault
has been detected in the ABL
(Active Bending Lights) function or
another fault in the headlight sys-
tem.

Active high beams on

This symbol lights up in blue when
the active high beams are on.

Active high beams off

This symbol lights up in white when
the active high beams are off.

High beams on

This symbol illuminates when the
high beams are on or flashed.

Active high beams on

This symbol lights up in blue when
the active high beams are on. Park-
ing lights are on.

DISPLAYS AND VOICE CONTROL

Symbol

Meaning

Active high beams off

This symbol lights up in white when
the active high beams are off.
Parking lights are on.

High beams on

This symbol illuminates when the
high beams and parking lights are
on.

Front fog lights on

This symbol illuminates when the
front fog lights are on.

Rear fog light on

This symbol illuminates when the
rear fog light is on.

Rain sensor on

This symbol illuminates when the
rain sensor is on.

Preconditioning on

This symbol illuminates when the
engine block/passenger compart-
ment heater or air conditioning are
preconditioning the vehicle.

Symbol

Meaning

Stability system

This symbol flashes when the sta-
bility system is actively working to
stabilize the vehicle. If the symbol
glows steadily, there is a fault in
the system.

Stability system, Sport mode

This symbol illuminates when Sport
mode is activated. Sport mode
offers a more active driving experi-
ence. If the system detects that
accelerator pedal, steering wheel
and cornering movements are
more active than in normal driving,
it allows a certain level of con-
trolled lateral movement of the rear
wheels before intervening and sta-
bilizing the vehicle.

Lane Keeping Aid

White symbol: Lane Keeping Aid is
on and lane marker lines are
detected.

Gray symbol: Lane Keeping Aid is
on but no lane marker lines are
detected.

Amber symbol: Lane Keeping Aid
is alerting/intervening.

Symbol

Meaning

Lane Keeping Aid and rain sen-
sor

White symbol: Lane Keeping Aid is
on and lane marker lines are
detected. The rain sensor is on.

Gray symbol: Lane Keeping Aid is
on but no lane marker lines are
detected. The rain sensor is on.

Canadian models.

US models.

Related information

•

Instrument panel (p. 80)

•

Warning symbols in the instrument panel
(p. 90)

DISPLAYS AND VOICE CONTROL

Warning symbols in the instrument

panel

The warning symbols alert the driver that an
important function is activated or that a serious
fault or error has occurred.

Symbol

Meaning

WARNING

The red warning symbol illuminates
to indicate that a fault has been
detected that could affect safety
and/or driveability. An explanatory
message will be simultaneously
displayed in the instrument panel.
The warning symbol may also illu-
minate in combination with other
symbols.

Seat belt reminder

This symbol will glow steadily or
flash if the driver or front seat pas-
senger has not fastened their seat
belt or if anyone in the rear seat
has removed their seat belt.

Symbol

Meaning

Airbags

If this symbol remains illuminated
or comes on while driving, a fault
has been detected in one of the
vehicle's safety systems. Read the
message in the instrument panel.
Volvo recommends contacting an
authorized Volvo workshop.

Fault in brake system

If this symbol illuminates, the brake
fluid level may be too low. Contact
your nearest authorized workshop
to have the brake fluid level
checked and adjusted.

Parking brake on

This symbol glows steadily when
the parking brake is applied.

A flashing symbol indicates that a
fault has occurred. Read the mes-
sage in the instrument panel.

Symbol

Meaning

Low oil pressure

If this symbol illuminates while driv-
ing, the engine oil level is too low.
Stop the engine immediately and
check the engine oil level. Add oil if
necessary. If the symbol illuminates
and the oil level is normal, contact
a workshop. Volvo recommends
contacting an authorized Volvo
workshop.

Generator not charging

This symbol illuminates during driv-
ing if a fault is detected in the elec-
trical system. Contact a workshop.
Volvo recommends contacting an
authorized Volvo workshop.

Collision risk

City Safety warns the driver if there
is a risk of a collision with another
vehicle, pedestrian, cyclist or large
animal.

Canadian models.

US models.

Related information

•

Indicator symbols in the instrument panel
(p. 87)

•

Instrument panel (p. 80)

DISPLAYS AND VOICE CONTROL

}}

Instrument panel licenses

A license is an agreement on the right to con-
duct a certain activity or the right to use some-
one else's right according to terms and condi-
tions specified in the agreement. The following
text is Volvo's agreement with the manufacturer
or developer.

Freetype Project License

3rd Party Software Disclaimers and License
Agreements Confidential ID 06-00004-004 39 /
75 Revision 06.00A, 2015-06-09 2006-Jan-27
Copyright 1996-2002, 2006 by David Turner,
Robert Wilhelm, and Werner Lemberg.

Introduction

The FreeType Project is distributed in several
archive packages; some of them may contain, in
addition to the FreeType font engine, various
tools and contributions which rely on, or relate to,
the FreeType Project. This license applies to all
files found in such packages, and which do not
fall under their own explicit license. The license
affects thus the FreeType font engine, the test
programs, documentation and makefiles, at the
very least. This license was inspired by the BSD,
Artistic, and IJG (Independent JPEG Group)
licenses, which all encourage inclusion and use
of free software in commercial and freeware
products alike. As a consequence, its main points
are that: o We don't promise that this software
works. However, we will be interested in any kind
of bug reports. (`as is' distribution) o You can use

this software for whatever you want, in parts or
full form, without having to pay us. (`royalty-free'
usage) o You may not pretend that you wrote this
software. If you use it, or only parts of it, in a
program, you must acknowledge somewhere in
your documentation that you have used the
FreeType code. (`credits') We specifically permit
and encourage the inclusion of this software, with
or without modifications, in commercial products.
We disclaim all warranties covering The FreeType
Project and assume no liability related to The
FreeType Project. Finally, many people asked us
for a preferred form for a credit/disclaimer to use
in compliance with this license. We thus
encourage you to use the following text:

"Portions of this software are copyright

The FreeType Project (www.freetype.org). All
rights reserved."

Please replace <year> with the value from the
FreeType version you actually use.

Legal Terms

0. Definitions – Throughout this license, the
terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David Turner,
Robert Wilhelm, and Werner Lemberg) as the
`FreeType Project', be they named as alpha, beta
or final release. `You' refers to the licensee, or
person using the project, where `using' is a
generic term including compiling the project's
source code as well as linking it to form a

`program' or `executable'. This program is
referred to as `a program using the FreeType
engine'. This license applies to all files distributed
in the original FreeType Project, including all
source code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the original
archive. If you are unsure whether or not a
particular file is covered by this license, you must
contact us to verify this. The FreeType Project is
copyright (C) 1996-2000 by David Turner,
Robert Wilhelm, and Werner Lemberg. All rights
reserved except as specified below.

1. No Warranty – THE FREETYPE PROJECT IS
PROVIDED `AS IS' WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT WILL ANY OF THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY
DAMAGES CAUSED BY THE USE OR THE
INABILITY TO USE, OF THE FREETYPE
PROJECT. '

2. Redistribution – This license grants a
worldwide, royalty-free, perpetual and irrevocable
right and license to use, execute, perform,
compile, display, copy, create derivative works of,
distribute and sublicense the FreeType Project
(in both source and object code forms) and
derivative works thereof for any purpose; and to
authorize others to exercise some or all of the

DISPLAYS AND VOICE CONTROL

rights granted herein, subject to the following
conditions: o Redistribution of source code must
retain this license file (`FTL.TXT') unaltered; any
additions, deletions or changes to the original
files must be clearly indicated in accompanying
documentation. The copyright notices of the
unaltered, original files must be preserved in all
copies of source files. o Redistribution in binary
form must provide a disclaimer that states that
the software is based in part of the work of the
FreeType Team, in the distribution
documentation. We also encourage you to put an
URL to the FreeType web page in your
documentation, though this isn't mandatory.
These conditions apply to any software derived
from or based on the FreeType Project, not just
the unmodified files. If you use our work, you
must acknowledge us. However, no fee need be
paid to us.

3. Advertising – Neither the FreeType authors
and contributors nor you shall use the name of
the other for commercial, advertising, or
promotional purposes without specific prior
written permission. We suggest, but do not
require, that you use one or more of the following
phrases to refer to this software in your
documentation or advertising materials:
`FreeType Project', `FreeType Engine', `FreeType
library', or `FreeType Distribution'. As you have
not signed this license, you are not required to
accept it. However, as the FreeType Project is
copyrighted material, only this license, or another

one contracted with the authors, grants you the
right to use, distribute, and modify it. Therefore,
by using, distributing, or modifying the FreeType
Project, you indicate that you understand and
accept all the terms of this license.

4. Contacts – There are two mailing lists related
to FreeType: o freetype@nongnu.org. Discusses
general use and applications of FreeType, as well
as future and wanted additions to the library and
distribution. If you are looking for support, start in
this list if you haven't found anything to help you
in the documentation. o freetype-
devel@nongnu.org. Discusses bugs, as well as
engine internals, design issues, specific licenses,
porting, etc. Our home page can be found at
http://www.freetype.org

HarfBuzz / UCDN License

•

and/or its subsidiary(-ies)

•

International

•

Red Hat, Inc.

•

Werner Lemberg

For full copyright notices consult the individual
files in the package. Permission is hereby
granted, without written agreement and without
license or royalty fees, to use, copy, modify, and
distribute this software and its documentation for
any purpose, provided that the above copyright
notice and the following two paragraphs appear
in all copies of this software. IN NO EVENT
SHALL THE COPYRIGHT HOLDER BE LIABLE
TO ANY PARTY FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS
SOFTWARE AND ITS DOCUMENTATION, EVEN
IF THE COPYRIGHT HOLDER HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. THE COPYRIGHT HOLDER
SPECIFICALLY DISCLAIMS ANY WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
THE SOFTWARE PROVIDED HEREUNDER IS
ON AN "AS IS" BASIS, AND THE COPYRIGHT
HOLDER HAS NO OBLIGATION TO PROVIDE
MAINTENANCE, SUPPORT, UPDATES,
ENHANCEMENTS, OR MODIFICATIONS.

DISPLAYS AND VOICE CONTROL

}}

Libunibreak License

This library is released under an open-source
licence, the zlib/libpng licence. Please check the
file LICENCE for details. Apart from using the
algorithm, part of the code is derived from the
data provided under http://www.unicode.org/
Public. And the Unicode Terms of Use may apply:
URL:http://www.unicode.org/copyright.html

LICENSE:

•

This software is provided 'as-is', without any
express or implied warranty. In no event will the
author be held liable for any damages arising
from the use of this software. Permission is
granted to anyone to use this software for any
purpose, including commercial applications, and
to alter it and redistribute it freely, subject to the
following restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that you
wrote the original software. If you use this
software in a product, an acknowledgement
in the product documentation would be
appreciated but is not required.

2. Altered source versions must be plainly

marked as such, and must not be

misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

Unicode Inc. License Agreement

EXHIBIT 1 UNICODE, INC. LICENSE
AGREEMENT - DATA FILES AND SOFTWARE
Unicode Data Files include all data files under
the directories http://www.unicode.org/Public/,
http://www.unicode.org/reports/, and http://
www.unicode.org/cldr/data/ . Unicode Software
includes any source code published in the
Unicode Standard or under the directories http://
www.unicode.org/Public/, http://
www.unicode.org/reports/, and http://
www.unicode.org/cldr/data/. NOTICE TO USER:
Carefully read the following legal agreement. BY
DOWNLOADING, INSTALLING, COPYING OR
OTHERWISE USING UNICODE INC.'S DATA
FILES ("DATA FILES"), AND/OR SOFTWARE
("SOFTWARE"), YOU UNEQUIVOCALLY
ACCEPT, AND AGREE TO BE BOUND BY, ALL
OF THE TERMS AND CONDITIONS OF THIS
AGREEMENT. IF YOU DO NOT AGREE, DO NOT
DOWNLOAD, INSTALL, COPY, DISTRIBUTE OR
USE THE DATA FILES OR SOFTWARE.
COPYRIGHT AND PERMISSION NOTICE
Copyright

reserved. Distributed under the Terms of Use in
http://www.unicode.org/copyright.html.
Permission is hereby granted, free of charge, to
any person obtaining a copy of the Unicode data

files and any associated documentation (the
"Data Files") or Unicode software and any
associated documentation (the "Software") to
deal in the Data Files or Software without
restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute,
and/or sell copies of the Data Files or Software,
and to permit persons to whom the Data Files or
Software are furnished to do so, provided that (a)
the above copyright notice(s) and this permission
notice appear with all copies of the Data Files or
Software, (b) both the above copyright notice(s)
and this permission notice appear in associated
documentation, and (c) there is clear notice in
each modified Data File or in the Software as
well as in the documentation associated with the
Data File(s) or Software that the data or software
has been modified. THE DATA FILES AND
SOFTWARE ARE PROVIDED "AS IS", WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY
RIGHTS. IN NO EVENT SHALL THE
COPYRIGHT HOLDER OR HOLDERS
INCLUDED IN THIS NOTICE BE LIABLE FOR
ANY CLAIM, OR ANY SPECIAL INDIRECT OR
CONSEQUENTIAL DAMAGES, OR ANY
DAMAGES WHATSOEVER RESULTING FROM
LOSS OF USE, DATA OR PROFITS, WHETHER
IN AN ACTION OF CONTRACT, NEGLIGENCE
OR OTHER TORTIOUS ACTION, ARISING OUT

DISPLAYS AND VOICE CONTROL

OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THE DATA FILES OR
SOFTWARE. Except as contained in this notice,
the name of a copyright holder shall not be used
in advertising or otherwise to promote the sale,
use or other dealings in these Data Files or
Software without prior written authorization of the
copyright holder.

ZLIB Data Compression Library License
Agreement

(C) 1995-2010 Jean-loup Gailly and Mark Adler
This software is provided 'as-is', without any
express or implied warranty. In no event will the
authors be held liable for any damages arising
from the use of this software. Permission is
granted to anyone to use this software for any
purpose, including commercial applications, and
to alter it and redistribute it freely, subject to the
following restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that you
wrote the original software. If you use this
software in a product, an acknowledgment in
the product documentation would be
appreciated but is not required.

2. Altered source versions must be plainly

marked as such, and must not be
misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

Jean-loup Gailly Mark Adler jloup@gzip.org
madler@alumni.caltech.edu If you use the zlib
library in a product, we would appreciate

*not*

receiving lengthy legal documents to sign. The
sources are provided for free but without
warranty of any kind. The library has been entirely
written by Jean-loup Gailly and Mark Adler; it
does not include third-party code. If you
redistribute modified sources, we would
appreciate that you include in the file ChangeLog
history information documenting your changes.
Please read the FAQ for more information on the
distribution of modified source versions.

GLEW License (Modified BSD License)

The OpenGL Extension Wrangler Library

•

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:
Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.

* Redistributions in

binary form must reproduce the above copyright
notice, this list of conditions and the following
disclaimer in the documentation and/or other
materials provided with the distribution.

* The

name of the author may be used to endorse or
promote products derived from this software
without specific prior written permission. THIS
SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT OWNER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

Related information

•

Instrument panel (p. 80)

DISPLAYS AND VOICE CONTROL

}}

App menu in instrument panel

The application menu (App menu) in the instru-
ment panel provides quick access to commonly
used functions for certain apps.

The App menu in the instrument panel can be used
instead of the center display. The illustration is generic –
layout may vary.

The App menu is displayed in the instrument
panel and is controlled using the right-side steer-
ing wheel keypad. The app menu makes it easier
to switch between different apps or functions
within the apps without having to let go of the
steering wheel.

App menu functions

Different apps provide access to different types
of functions. The following apps and their func-
tions can be controlled from the App menu:

App

Functions

Trip com-
puter

Select a trip odometer, change
instrument panel display set-
tings, etc.

Media player

Select active source for media
player.

Phone

Call a contact from the call list.

Navigation

Guide to destination, etc.

Related information

•

Instrument panel (p. 80)

•

Center display overview (p. 101)

•

Handling the App menu in the instrument
panel (p. 95)

Handling the App menu in the

instrument panel

The App (application) menu in the instrument
panel is controlled using the right-side steering
wheel keypad.

App menu and right-side steering wheel keypad.

Open/close

Left/right

Up/down

Confirm

DISPLAYS AND VOICE CONTROL

Opening and closing the app menu

–

Tap open/close (1).

(The App menu cannot be opened while
there is an unacknowledged message in the
instrument panel. The message must be con-
firmed before the App menu can be opened.)
> The App men opens/closes.

The App menu turns off automatically after a
period of inactivity or after certain selections are
made.

Navigating and making selections in the
App menu

1. Navigate among the apps available by press-

ing the left/right arrow keys (2).
> Functions for the previous/next app will

be shown in the App menu.

2. Scroll through the functions for the selected

app using the up or down arrows (3).

3. Confirm or make a selection for the function

by pressing confirm (4).
> The function will be activated and, for

some selections, the App menu will then
close.

The next time the App menu is opened, the func-
tions for the most recently selected app will be
displayed automatically.

Related information

•

App menu in instrument panel (p. 95)

•

Messages in the instrument panel (p. 96)

Messages in the instrument panel

The instrument panel shows messages in certain
circumstances to inform or assist the driver.

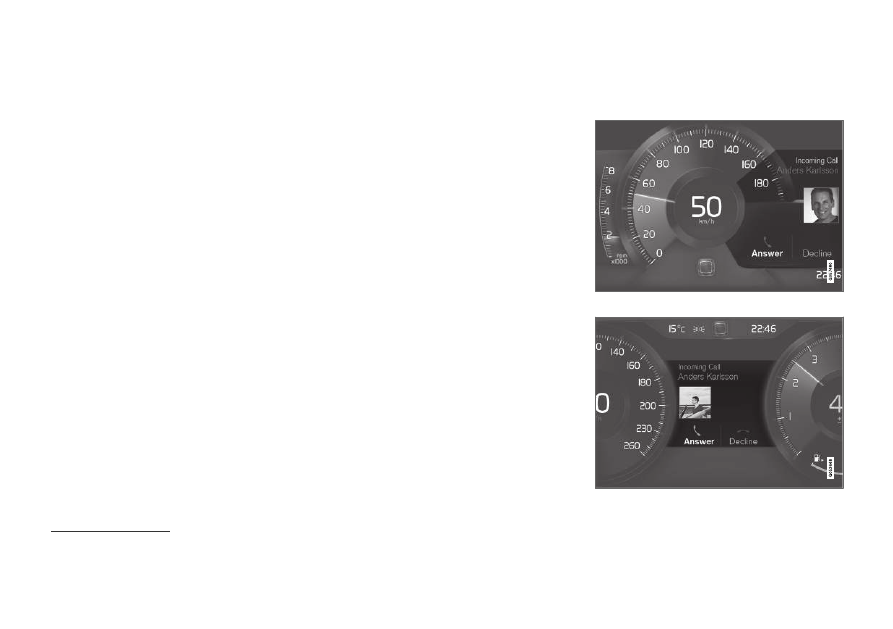

Message in the instrument panel

With 8" instrument panel.

With 12" instrument panel.

DISPLAYS AND VOICE CONTROL

High-priority messages for the driver are dis-
played in the instrument panel.

The messages may appear in different parts of
the instrument panel depending on what other
information is currently being displayed. The mes-
sage will disappear from the instrument panel
after a short period of time or after it has been
acknowledged or any required action has been
taken. Messages that need to be saved are
stored in the

Car status

app, which can be

opened from the App view in the center display.

The message may be shown along with graphics,
symbols or buttons to e.g. acknowledge the mes-
sage or accept a request.

Service messages

The following table lists a selection of important
service messages and what they mean.

Message

Meaning

Stop safely

Stop and switch off the
engine. Serious risk of
damage - contact a work-
shop

Turn off
engine

Stop and switch off the
engine. Serious risk of
damage - contact a work-
shop

Message

Meaning

Service urgent
Drive to work-
shop

Contact a workshop

have the vehicle inspected
immediately.

Service
required

Contact a workshop

have the vehicle inspected
as soon as possible.

Regular main-
tenance

Book time for
maintenance

Time for service - contact
a workshop

. Shown

before the next service
date.

Regular main-
tenance

Time for main-
tenance

Time for service - contact
a workshop

. Shown on

the next service date.

Regular main-
tenance

Maintenance
overdue

Time for service - contact
a workshop

. Shown when

the date for service has
passed.

Temporarily
off

A function has been tem-
porarily deactivated and
will be reactivated auto-
matically while driving or
after the engine is restar-
ted.

Part of message, shown along with information on the location

of the problem.

An authorized Volvo workshop is recommended.

Related information

•

Handling messages in the instrument panel
(p. 98)

•

Handling messages saved from the instru-
ment panel (p. 99)

•

Messages in the center display (p. 132)

DISPLAYS AND VOICE CONTROL

Handling messages in the

instrument panel

Messages in the instrument panel are controlled
using the right-side steering wheel keypad.

Messages in the instrument panel

and the right-side

steering wheel keypad.

Messages in the instrument panel

and the right-side

steering wheel keypad.

Left/right

Confirm

Some messages in the instrument panel contain
one or more buttons for e.g. confirming the mes-
sage or accepting a request.

Handling new messages

For messages with buttons:

1. Navigate among the buttons available by

pressing the left/right arrow keys (1).

2. Confirm your selection by pressing confirm

(2).
> The message will disappear from the

instrument panel.

For messages without buttons:

–

Close the message by pressing confirm (2)
or let the message automatically time-out
after a short period.
> The message will disappear from the

instrument panel.

Messages that need to be saved are stored in
the

Car status

app, which can be opened from

the App view in the center display. The message

Car message stored in Car Status
application

will simultaneously appear in the

center display.

Related information

•

Messages in the instrument panel (p. 96)

•

Handling messages saved from the instru-
ment panel (p. 99)

•

Messages in the center display (p. 132)

With 8" instrument panel.

With 12" instrument panel.

Content .. 2 3 4 5 ..
