Remote key – functions (p. 155)

General towing precautions:

•

Please check with state and local author-
ities before attempting this type of tow-
ing, as vehicles being towed are subject
to regulations regarding maximum towing
speed, length and type of towing device,
lighting, etc.

•

If the vehicle's battery is dead, see Jump
starting (p. 262) to provide current for
releasing the electric parking brake and
to move the gear selector from the P
position to N. If this is not possible, see
Transmission – shiftlock override (p. 267)
for information about manually overriding
the shiftlock system to move the gear
selector from P to N.

•

Maximum speed: 50 mph (80 km/h). Do
not exceed the maximum allowable tow-
ing speed.

•

Maximum distance with front wheels on
ground: 50 miles (80 km).

•

The vehicle should only be towed in the
forward direction.

Related information

•

Towing eyelet (p. 295)

•

Towing eyelet

When used, the towing eyelet should always be
securing attached.

Removing the front/rear covers

Not necessary in vehicles with the optional keyless drive.

For vehicles with the optional keyless drive, the remote key must be in the vehicle.

STARTING AND DRIVING

296

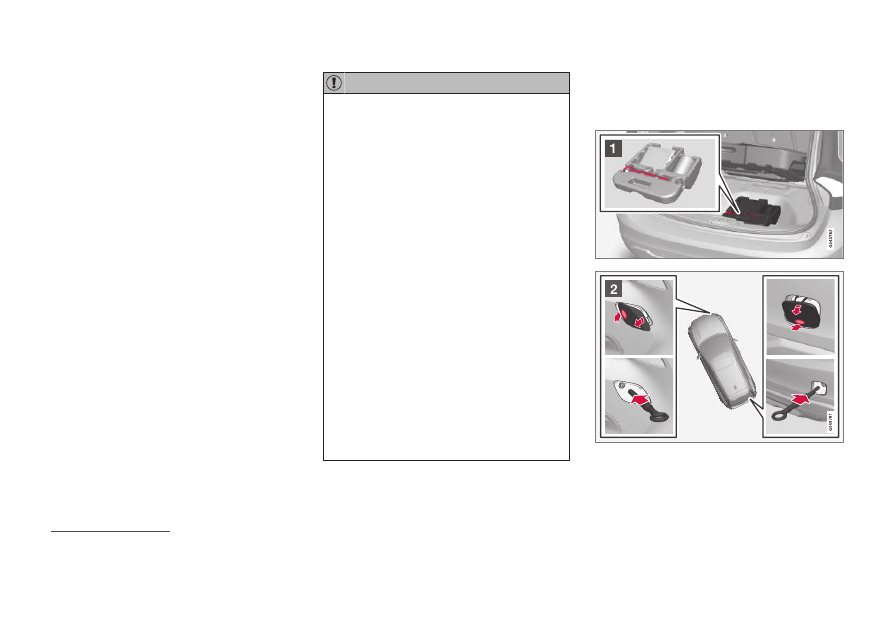

Attaching the towing eyelet

The towing eyelet is located under the floor
of the cargo area, with the spare tire. This
eyelet must be screwed into the positions
provided on the right sides of either the front
or rear bumper (see illustration).

There are two different types of covers over
the openings for the towing eyelet and they
have to be opened differently.

•

If the cover has a notch, insert a coin, etc.,
into the notch and pry open the edge of
the cover. Open the cover completely and
remove it.

•

If the cover has a mark along one edge or
in a corner, press the mark while prying
out the opposite side/corner using a coin,
etc. Open the cover and remove it.

Screw the towing eyelet in place, first by hand
and then using the tire iron until it is securely in
place.

After the vehicle has been towed, the eyelet
should be removed and returned to its storage
location.

Press the cover for the attachment point back
into position.

WARNING

•

When the vehicle is being towed, the igni-
tion should be in mode II (in mode I, all of
the vehicle's airbags are deactivated). For
more information, see Ignition modes
(p. 82)

•

Never remove the remote key from the
ignition slot when the vehicle is being
towed. For vehicles with keyless drive, the
remote key must remain inside the vehi-
cle.

•

The power brakes and power steering will
not function when the engine is not run-
ning. Approximately 5 times more pres-
sure will be required on the brake pedal
and the steering wheel will be considera-
bly harder to turn.

•

The towing eyelets must not be used for
pulling the vehicle out of a ditch or for
any similar purpose involving severe
strain.

Related information

•

Towing the vehicle (p. 295)

•

Towing by tow truck (p. 296)

Towing by tow truck

When necessary, call for professional help from
an authorized towing company. Volvo recom-
mends the use of flat bed equipment.

In certain conditions, the towing eyelet
may be used to pull the vehicle onto a
flatbed tow truck.

•

The vehicle's position and ground clear-
ance determine if it can be pulled up onto
a flatbed tow truck using the towing eye-
let.

•

If the angle of the tow truck’s ramp is too
steep or the ground clearance under the
vehicle is insufficient, damage could
occur by attempting to pull the vehicle
using the towing eyelet.

•

If necessary, lift the vehicle using the tow
truck’s lifting device.

WARNING

No person or object should be behind the tow
truck while the vehicle is being pulled up onto
the flatbed.

WHEELS AND TIRES

300

Tires – general information

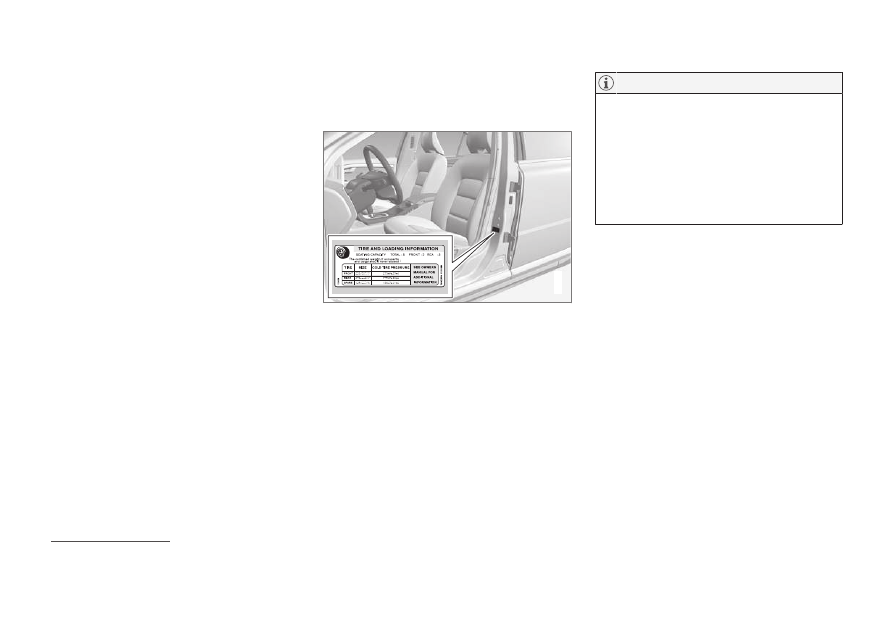

Your vehicle is equipped with tires according to
the vehicle's tire information placard on the B-
pillar (the structural member at the side of the
vehicle, at the rear of the driver's door opening).

Introduction

Some Volvo models are equipped with an
Ultra High Performance tire and wheel com-
bination designed to provide maximum dry
pavement performance with consideration for
hydroplaning resistance. They may be more
susceptible to road hazard damage and,
depending on driving conditions, may achieve
a tread life of less than 20,000 miles (30,000
km). Even if this vehicle is equipped with Vol-
vo’s advanced AWD or stability system, these
tires are not designed for winter driving, and
should be replaced with winter tires when
weather conditions dictate.

The tires have good road holding characteristics
and offer good handling on dry and wet surfaces.
It should be noted however that the tires have
been developed to give these features on snow/
ice-free surfaces.

Most models are equipped with "all-season" tires,
which provide a somewhat higher degree of road
holding on slippery surfaces than tires without

the "all-season" rating. However, for optimum
road holding on icy or snow-covered roads, we
recommend suitable winter tires on all four
wheels.

When replacing tires, be sure that the new tires
are the same size designation, type (radial) and
preferably from the same manufacturer, on all
four wheels. Otherwise there is a risk of altering
the car's roadholding and handling characteris-
tics.

Tire rotation

Your vehicle has no required tire rotation. Tire
wear is affected by a number of factors such as
tire inflation, ambient temperature, driving style,
etc.

•

If the tires are rotated, they should only
be moved from front to rear or vice versa.
They should never be rotated left to
right/right to left.

•

Ideally, tire rotation should be done the
first time after approximately 3,000 miles
(5,000 km) and thereafter at 6,000-mile
(10,000-km) intervals. Some customers
find that tire rotation may help to get
extra mileage from tire life.

•

Tire rotation should only be performed if
front/rear tire wear is fairly even and
tread height is above 1/16" (1.6 mm).

Related information

•

Changing a wheel – direction of rotation
(p. 303)

•

•

WHEELS AND TIRES

301

Tires – storage and age

When storing complete wheels (tires mounted
on rims), they should be suspended off the floor
or placed on their sides on the floor.

New Tires

Remember that tires are perishable goods. As of
2000, the manufacturing week and year (Depart-
ment of Transportation (DOT) stamp) will be indi-
cated with 4 digits (e.g., 1513 means that the tire
illustrated was manufactured during week 15 of
2013).

Tire age

Tires degrade over time, even when they are not
being used. It is recommended that tires gener-
ally be replaced after 6 years of normal service.
Heat caused by hot climates, frequent high load-
ing conditions or Ultra Violet (U.V.) exposure can

accelerate the aging process. The temporary
spare

should also be replaced at 6-year inter-

vals, even if it has never been used.

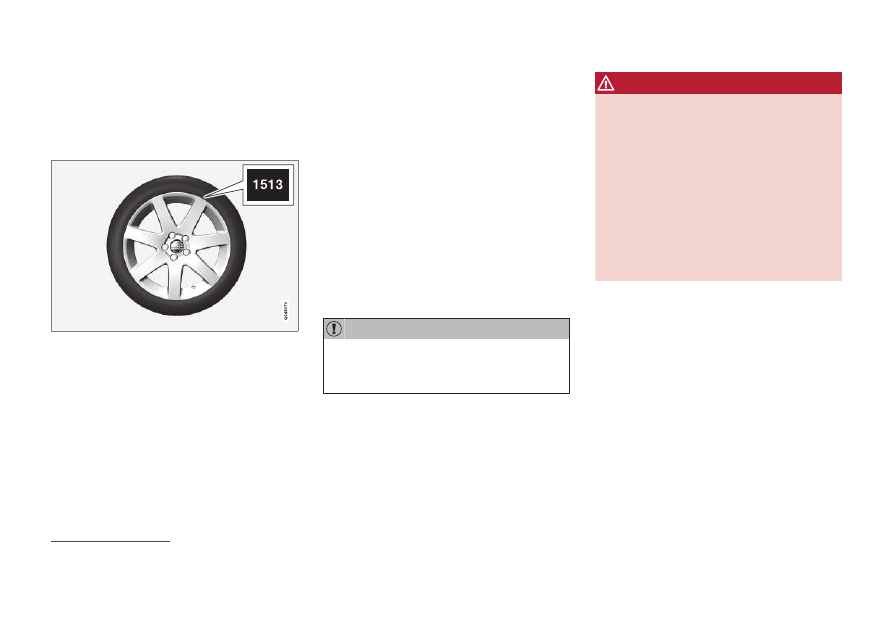

A tire's age can be determined by the DOT stamp
on the sidewall (see the illustration).

A tire with e.g., visible cracks or discoloration
should be replaced immediately.

Storing wheels and tires

When storing completes wheels (tires mounted
on rims), they should be suspended off the floor
or placed on their sides on the floor.

Tires not mounted on rims should be stored on
their sides or standing upright, but should not be
suspended.

Tires should preferably be stored in a cool,
dry, dark place, and should never be stored in
close proximity to solvents, gasoline, oils, etc.

WARNING

•

The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unapproved
wheel/tire size combinations can nega-
tively affect your vehicle's stability and
handling.

•

Any damage caused by installation of
unapproved wheel/tire size combinations
will not be covered by your new vehicle
warranty. Volvo assumes no responsibility
for death, injury, or expenses that may
result from such installations.

Related information

•

•

Changing a wheel – direction of rotation
(p. 303)

•

•

Option or accessory on some models

WHEELS AND TIRES

302

Tires – tread wear indicator

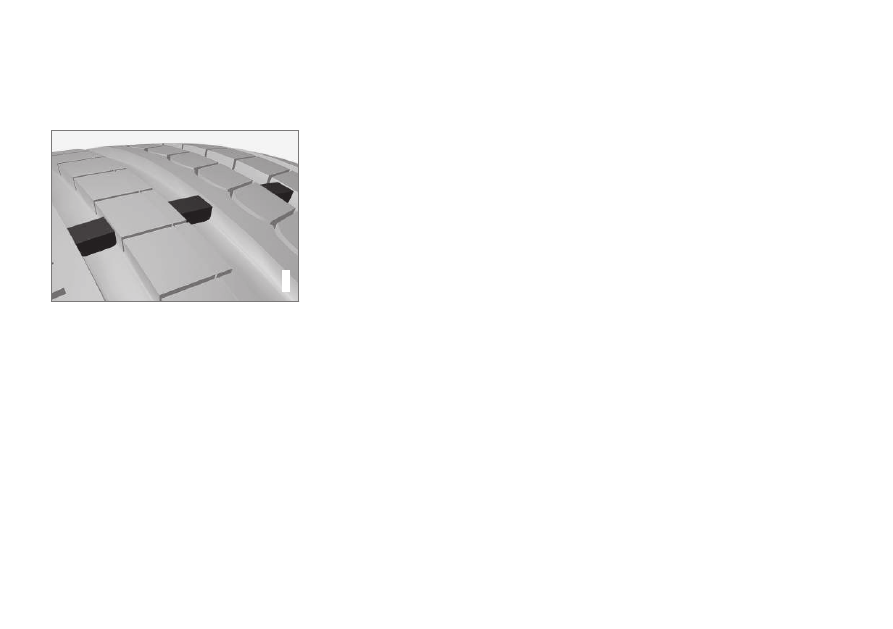

The tires have wear indicator strips running
across or parallel to the tread.

G021829

The letters TWI are printed on the side of the tire.
When approximately 1/16" (1.6 mm) is left on
the tread, these strips become visible and indi-
cate that the tire should be replaced. Tires with
less than 1/16" (1.6 mm) tread offer very poor
traction.

When replacing worn tires, it is recommended
that the tire be identical in type (radial) and size
as the one being replaced. Using a tire of the
same make (manufacturer) will prevent alteration
of the driving characteristics of the vehicle.

Related information

•

Changing a wheel – direction of rotation
(p. 303)

•

•

Tires – tire economy

A smooth driving style and correct inflation pres-
sure can help prolong the tires' service life.

•

Maintain correct tire pressure. The tire infla-
tion table, see the tire inflation decal on the
driver's door opening.

•

Avoid fast starts, hard braking and tire
screeching.

•

Tire wear increases with speed.

•

Correct front wheel alignment is very impor-
tant.

•

Unbalanced wheels impair tire economy and
driving comfort.

•

Tires must maintain the same direction of
rotation throughout their lifetime.

•

When replacing tires, the tires with the most
tread should be mounted on the rear wheels
to reduce the chance of oversteer during
hard braking.

•

Hitting curbs or potholes can damage the
tires and/or wheels permanently.

WHEELS AND TIRES

}}

* Option/accessory.

303

Changing a wheel – direction of

rotation

Incorrectly mounted tires impair the car's braking
properties and ability to force aside rain, snow
and slush.

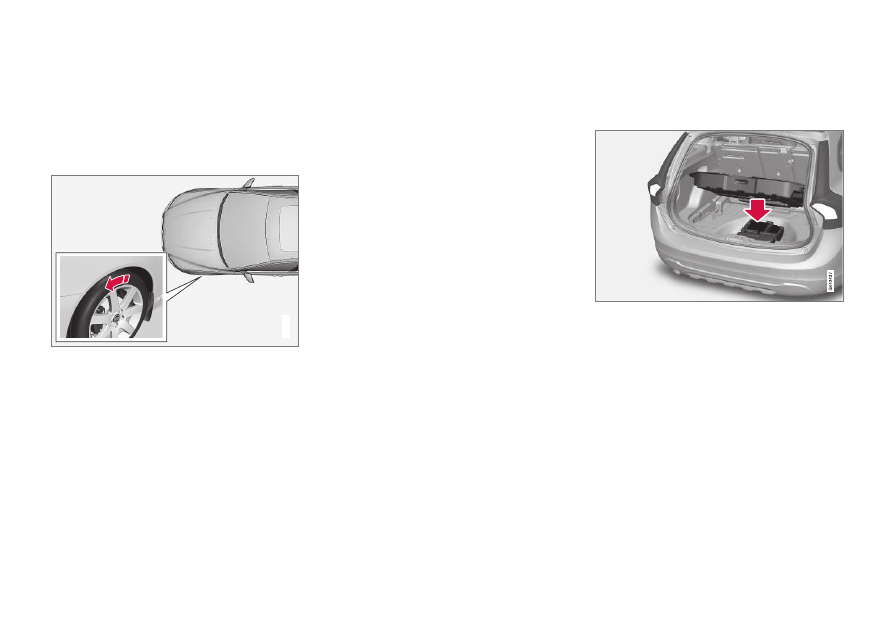

Summer and winter tires

G021778

The arrows shows the direction of rotation of the tire

•

The tires with the most tread should always
be on the rear axle (to help reduce the risk of
skidding).

•

When switching between summer and winter
tires, mark the tires to indicate where they
were mounted on the car, e.g., LF = left front,
RR = right rear

•

Tires with tread designed to roll in only one
direction are marked with an arrow on the
sidewall.

•

Contact a Volvo workshop if you are unsure
about the tread depth.

Related information

•

•

•

Changing a wheel – removing wheel

Wheel changes should always be carried out
correctly.

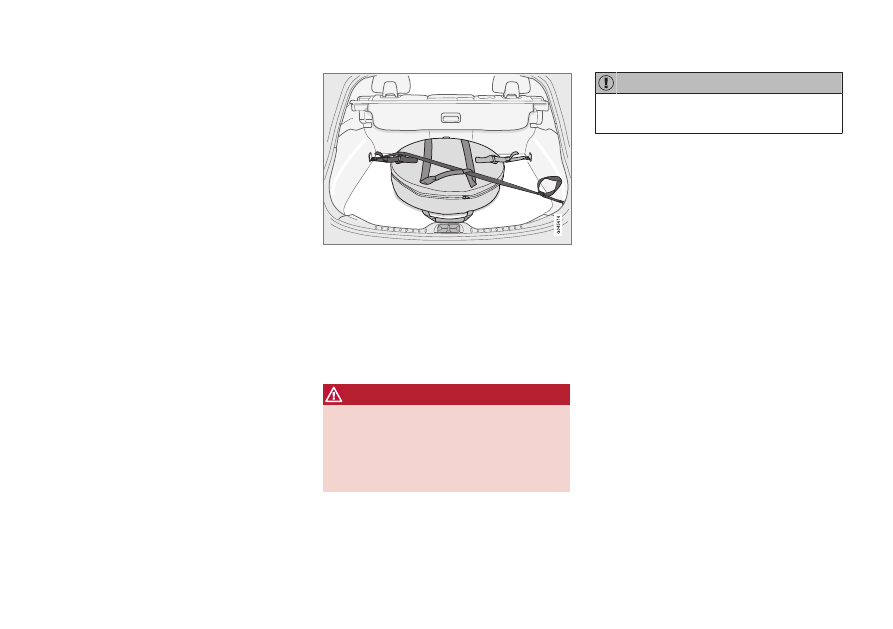

The jack

*, towing eyelet and tools* are stowed

under the floor of the cargo area.

Changing a wheel

1. Apply the parking brake and put the gear

selector in P.

2. Take out the jack

*, lug wrench*, the tool for

removing the plastic covers on the wheel
nuts, the towing eyelet and the wheel cover
removal tool (certain models only) stowed
under the floor of the cargo area.

WHEELS AND TIRES

304

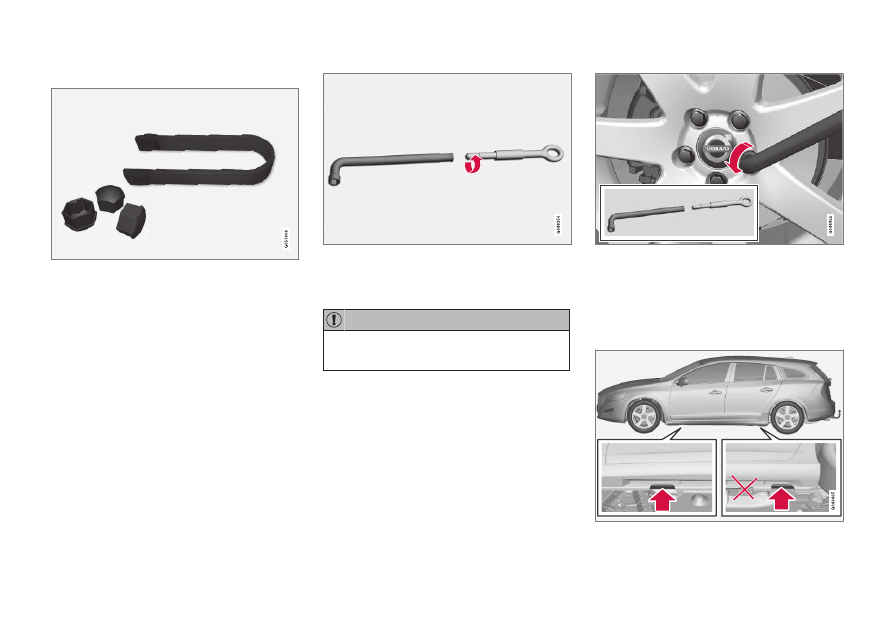

Tool for removing the plastic covers on the wheel nuts

Remove the wheel cover (where applicable)
using the removal tool or remove the wheel
cover by hand.

4. Block the wheels that are on the ground with

wooden blocks or large stones.

Lug wrench and towing eyelet

5. Screw the towing eyelet into the lug wrench

as shown in the illustration.

The towing eyelet must be screwed into the
lug wrench as far as possible.

6. With the vehicle still on the ground, remove

the plastic covers on the wheel nuts with the
tool provided and use the lug wrench/towing
eyelet to loosen the wheel nuts ½ – 1 turn by
exerting downward (counterclockwise) pres-
sure.

Jack attachment points

WHEELS AND TIRES

305

7. There are two jack attachment points on

each side of the vehicle. Position the jack
under the attachment point to be used on a
level, firm, non-slippery surface and crank it
up until it is correctly aligned and seated in
the attachment point. Before raising the vehi-
cle, check that the jack is still correctly posi-
tioned in the attachment.

8. Raise the vehicle until the wheel to be

changed is lifted off the ground.

9. Unscrew the wheel nuts completely and

remove the wheel.

WARNING

•

The jack must correctly engage the jack
attachment.

•

Be sure the jack is on a firm, level, non-
slippery surface.

•

Never allow any part of your body to be
extended under a vehicle supported by a
jack.

•

Use the jack intended for the vehicle
when changing a tire. For any other job,
use stands to support the vehicle.

•

Apply the parking brake and put the gear
selector in the Park (P) position.

•

Block the wheels standing on the ground,
use rigid wooden blocks or large stones.

•

The jack should be kept well-greased and
clean, and should not be damaged.

•

No objects should be placed between the
base of jack and the ground, or between
the jack and the attachment bar on the
vehicle.

Changing a wheel – installing a wheel
(p. 307)

The jack provided with your vehicle is
intended to be used only in temporary situa-
tions such as changing wheels in the event of
a flat tire. Only the jack that came with your
particular model should be used to lift the
vehicle. If the vehicle needs to be lifted more
frequently or for a prolonged period, using a
garage jack or hoist is recommended. Always
follow this device’s instructions for use.

Related information

•

WHEELS AND TIRES

* Option/accessory.

306

Changing a wheel – spare wheel

Wheel changes should always be carried out
correctly.

Spare tire

A spare tire can be purchased for your vehicle as
an accessory. Follow the instructions included
with the spare tire regarding use and stowing in
the vehicle. See also Changing a wheel – remov-
ing wheel (p. 303) for additional information.

Spare wheel

The following instructions only apply if you have
purchased a temporary spare wheel

* for your

vehicle.

If there is no temporary spare wheel in your vehi-
cle, please see Tire sealing system

* – general

information (p. 324) for instructions on using the
tire sealing system.

The accessory temporary spare wheel is provided
in a bag that must be securely strapped in place
in the cargo area while the vehicle is being
driven.

The spare wheel is only intended for temporary
use. Replace it with a normal wheel as soon as
possible. The vehicle's handling may be altered
by the use of the spare wheel. The correct tire
pressure is stated in the tire pressure table, see
the tire inflation decal on the driver's door open-
ing.

Turn the handle on the spare wheel bag out
toward you. Secure the stitched strap hooks in
the front loading eyelets. Secure the long strap in
one of the front loading eyelets, wrap the strap
diagonally over the spare wheel and through the
upper handle. Secure the short strap on the long
strap. Secure in the rear loading eyelet and
tighten.

WARNING

Current legislation prohibits the use of the
“Temporary Spare” tire other than as a tempo-
rary replacement for a punctured tire. It must
be replaced as soon as possible by a stand-
ard tire. Road holding and handling may be
affected with the “Temporary Spare” in use.

Changing a wheel – installing a wheel
(p. 307)

The vehicle must never be driven with more
than one temporary spare wheel.

Related information

•

•

Changing a wheel – removing wheel (p. 303)

WHEELS AND TIRES

}}

* Option/accessory.

307

Changing a wheel – accessing the

spare wheel

The following procedure explains how to access
the spare wheel (where applicable).

1. Release the bag's retaining straps.

2. Lift the bag out of the vehicle and remove

the spare wheel from the bag.

3. Fold up the floor hatch in the cargo area.

4. Remove the jack

* and tools* from the foam

block and change the wheels (see the
instructions in the following section "Chang-
ing a wheel").

5. After changing wheels, return the jack and

tools to the foam block and close the floor
hatch.

6. If possible, place the wheel with the punc-

tured tire in the bag.

7. If there is a wheel in the bag, strap the bag

securely in place in the cargo area.

WARNING

•

If there is a wheel in the bag, the bag must
be securely restrained using its straps and
the load anchoring eyelets in the cargo
area. See (p. 306) and carefully follow the
instructions.

•

If the wheel with the punctured tire is too
big to fit in the bag, it should be securely
restrained in the cargo area using suitable
straps, a net for anchoring cargo, etc.

Changing a wheel – installing a

wheel

It is important to re-install wheels properly.

Re-installing the wheel

1. Clean the contact surfaces on the wheel and

hub.

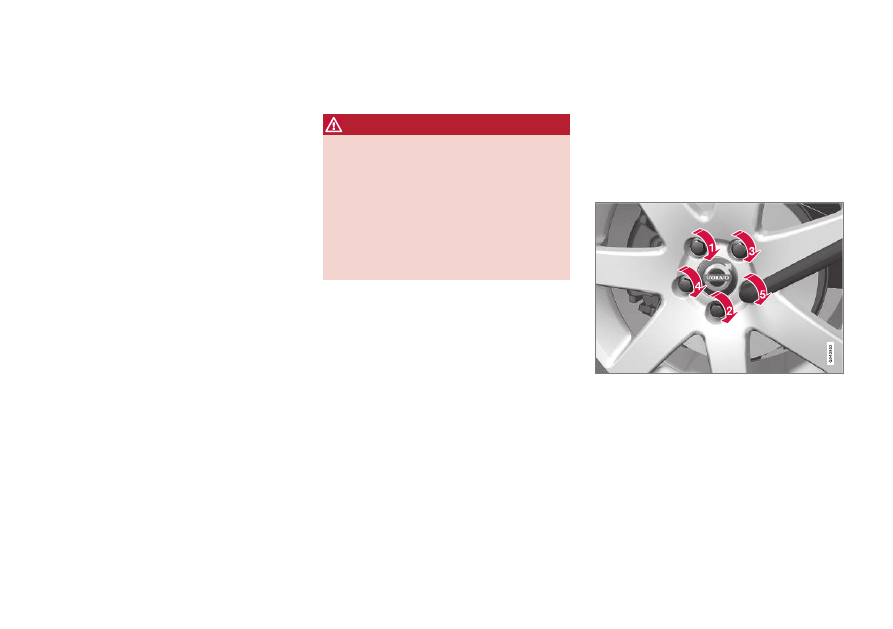

2. Lift the wheel and place it on the hub.

Tighten the wheel nuts

3. Install the wheel nuts and tighten hand-tight.

Using the lug wrench, tighten crosswise until
all nuts are snug.

4. Lower the vehicle to the ground and alter-

nately tighten the bolts crosswise to
103 ft. lbs. (140 Nm).

WHEELS AND TIRES

308

5. Press the plastic covers onto the wheel nuts

and Install the wheel cover (where applica-
ble). The opening in the wheel cover for the
tire's inflation valve must be positioned over
the valve.

Related information

•

Changing a wheel – spare wheel (p. 306)

•

Changing a wheel – removing wheel (p. 303)

Tire inflation – general information

Check tire inflation pressure regularly.

Inflation placard

G032521

Tire inflation placard

Tire inflation

See the tire inflation decal on the driver's door
opening. This decal indicates the designation of
the factory-mounted tires on your vehicle, as well
as load limits and inflation pressure.

•

The placards shown indicate inflation
pressure for the tires installed on the
vehicle at the factory only.

•

A certain amount of air seepage from the
tires occurs naturally and tire pressure
fluctuates with seasonal changes in tem-
perature. Always check tire pressure reg-
ularly.

•

Use a tire gauge to check the tire inflation
pressure, including the spare

, at least once

a month and before long trips. You are
strongly urged to buy a reliable tire pressure
gauge, as automatic service station gauges
may be inaccurate.

•

Use the recommended cold inflation pres-
sure for optimum tire performance and wear.

•

Under-inflation or over-inflation may cause
uneven treadwear patterns.

Available as an accessory

WHEELS AND TIRES

}}

309

WARNING

•

Under-inflation is the most common
cause of tire failure and may result in
severe tire cracking, tread separation, or
"blow-out," with unexpected loss of vehi-
cle control and increased risk of injury.

•

Under-inflated tires reduce the load car-
rying capacity of your vehicle.

When weather temperature changes occur, tire
inflation pressures also change. A 10-degree
temperature drop causes a corresponding drop
of 1 psi (7 kPa) in inflation pressure. Check your
tire pressures frequently and adjust them to the
proper pressure, which can be found on the vehi-
cle's tire information placard or certification label.

Related information

•

•

•

Tire inflation – checking pressure

Inflation pressure should be checked when the
tires are cold.

Cold tires

The tires are considered to be cold when
they have the same temperature as the sur-
rounding (ambient) air.

This temperature is normally reached after the
vehicle has been parked for at least 3 hours.

After driving a distance of approximately 1 mile
(1.6 km), the tires are considered to be hot. If you
have to drive farther than this distance to pump
your tire(s), check and record the tire pressure
first and add the appropriate air pressure when
you get to the pump.

If checking tire pressure when the tire is hot,
never "bleed" or reduce air pressure. The tires
are hot from driving and it is normal for pressures
to increase above recommended cold pressures.
A hot tire at or below recommended cold inflation
pressure could be significantly under-inflated.

To check inflation pressure:

1. Remove the cap from the valve on one tire,

then firmly press the tire gauge onto the
valve.

2. Add air to reach the recommended air pres-

sure.

3. Replace the valve cap.

•

After inflating the tires, always reinstall the
valve cap to help avoid damage to the
valve from dirt, gravel, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

4. Visually inspect the tires to make sure there

are no nails or other objects embedded that
could puncture the tire and cause an air leak.

5. Check the sidewalls to make sure there are

no gouges, cuts, bulges or other irregulari-
ties.

6. Repeat this procedure for each tire, including

the spare

•

If you overfill the tire, release air by push-
ing on the metal stem in the center of the
valve. Then recheck the pressure with
your tire gauge.

•

Some spare tires (available as an acces-
sory) require higher inflation pressure
than the other tires. Consult the tire infla-

Available as an accessory

WHEELS AND TIRES

310

tion pressure table or see the inflation
pressure placard.

Related information

•

•

•

Tire specifications

The following information can be found on a
tire's sidewall.

Tire ratings

Speed ratings

The speed ratings in the table translate as follow:

Speed ratings

81 mph (130 km/h)

100 mph (160 km/h)

118 mph (190 km/h)

130 mph (210 km/h)

149 mph (240 km/h)

168 mph (270 km/h)

186 mph (300 km/h)

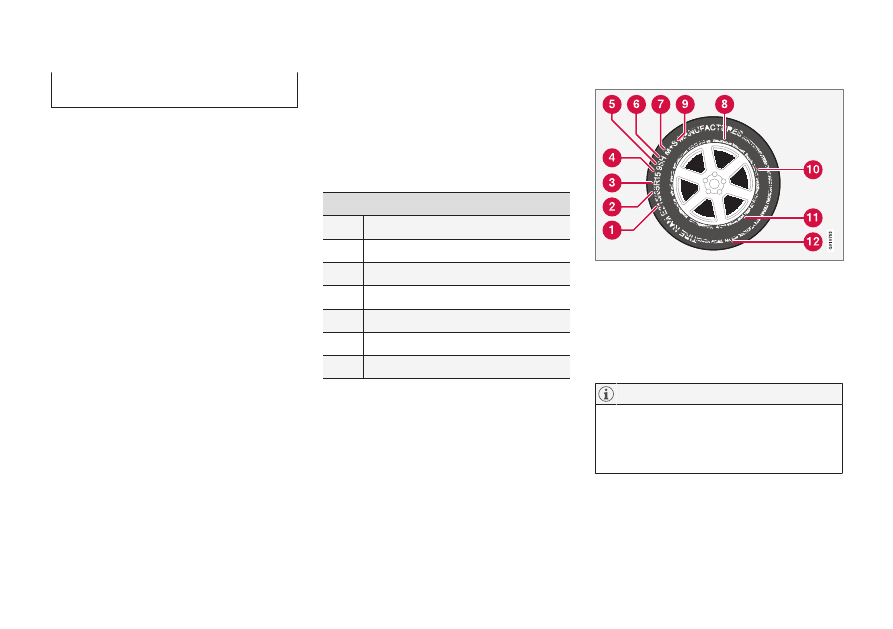

Information on the sidewall

Federal law mandates that tire manufacturers
place standardized information on the sidewall of
all tires (see the illustration).

The following information is listed on the tire
sidewall:

The tire designation:

Please be aware that the following tire desig-
nation is an example only and that this par-
ticular tire may not be available on your vehi-
cle.

WHEELS AND TIRES

311

215: the width of the tire (in millimeters)
from sidewall edge to sidewall edge. The
larger the number, the wider the tire.

65: The ratio of the tire's height to its width
in percent.

R: Radial tire (the designation RF and the

symbol indicate that the vehicle is

equipped with optional self-supporting run
flat tires

15: The diameter of the wheel rim (in
inches).

95: The tire's load index. In this example, a
load index of 95 equals a maximum load of
1521 lbs (690 kg).

H: The tire's speed rating, or the maximum
speed at which the tire is designed to be
driven for extended periods of time, carrying
a permissible load for the vehicle, and with
correct inflation pressure. For example, H
indicates a speed rating of 130 mph
(210 km/h).

The tire's load index and speed rating may
not appear on the sidewall because they are
not required by law.

M+S or M/S = Mud and Snow, AT = All Ter-
rain, AS = All Season

U.S. DOT Tire Identification Number
(TIN): This begins with the letters "DOT" and
indicates that the tire meets all federal
standards. The next two numbers or letters
are the plant code where it was manufac-
tured, the next two are the tire size code and
the last four numbers represent the week
and year the tire was built. For example,
1510 means that the tire was manufactured
during week 15 of 2010. The numbers in
between are marketing codes used at the
manufacturer's discretion. This information
helps a tire manufacturer identify a tire for
safety recall purposes.

Tire Ply Composition and Material Used:
Indicates the number of plies indicates or the
number of layers of rubber-coated fabric in
the tire tread and sidewall. Tire manufactur-
ers also must indicate the ply materials in the
tire and the sidewall, which include steel,
nylon, polyester, and others.

10.

Maximum Load: Indicates the maximum
load in pounds and kilograms that can be
carried by the tire. Refer to the vehicle's tire
information placard located on the B-Pillar
for the correct tire pressure for your vehicle.

11. Treadwear, Traction, and Temperature

grades: see Tire specifications – Uniform

Tire Quality Grading (p. 314) for more infor-
mation.

12.

Maximum permissible inflation pressure:
the greatest amount of air pressure that
should ever be put in the tire. This limit is set
by the tire manufacturer.

Self-supporting run flat tires may not be available on all models

WHEELS AND TIRES

312

Loading specifications

Properly loading your vehicle will provide maxi-
mum return of vehicle design performance.

Before loading your vehicle, familiarize yourself
with the following terms for determining your
vehicle's weight ratings, with or without a trailer,
from the vehicle's Federal/Canadian Motor Vehi-
cle Safety Standards (FMVSS/CMVSS) label, and
the vehicle's tire information placard:

Curb weight

The weight of the vehicle including a full tank of
fuel and all standard equipment. It does not
include passengers, cargo, or optional equipment.

Capacity weight

All weight added to the curb weight, including
cargo and optional equipment. When towing,
trailer hitch tongue load is also part of cargo
weight.

Permissible axle weight

The maximum allowable weight that can be car-
ried by a single axle (front or rear). These num-
bers are shown on the Federal/Canadian Motor
Vehicle Safety Standards (FMVSS/CMVSS) label.
The total load on each axle must never exceed its
maximum permissible weight.

Gross vehicle weight (GVW)

The vehicle's curb weight + cargo + passengers.
