SPECIFICATIONS

}}

627

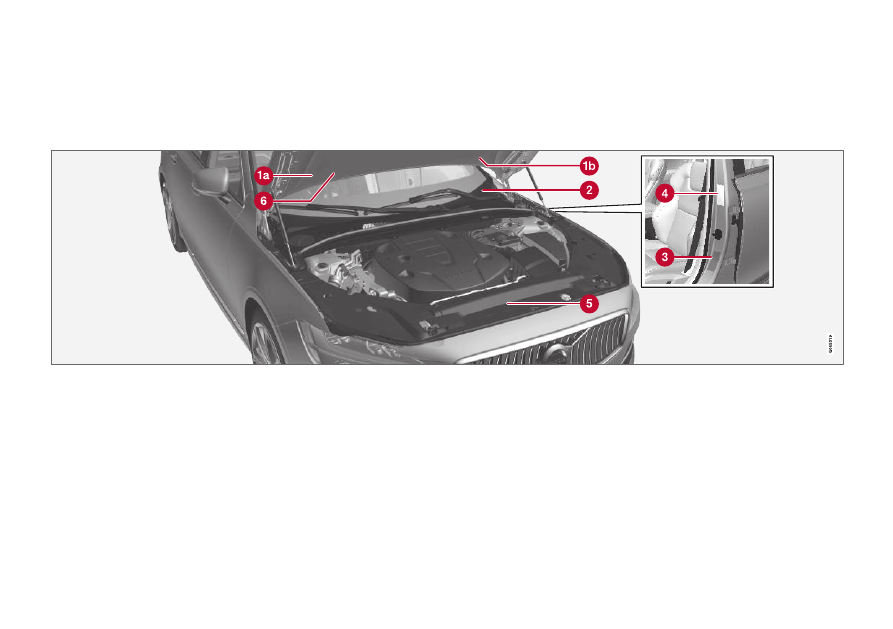

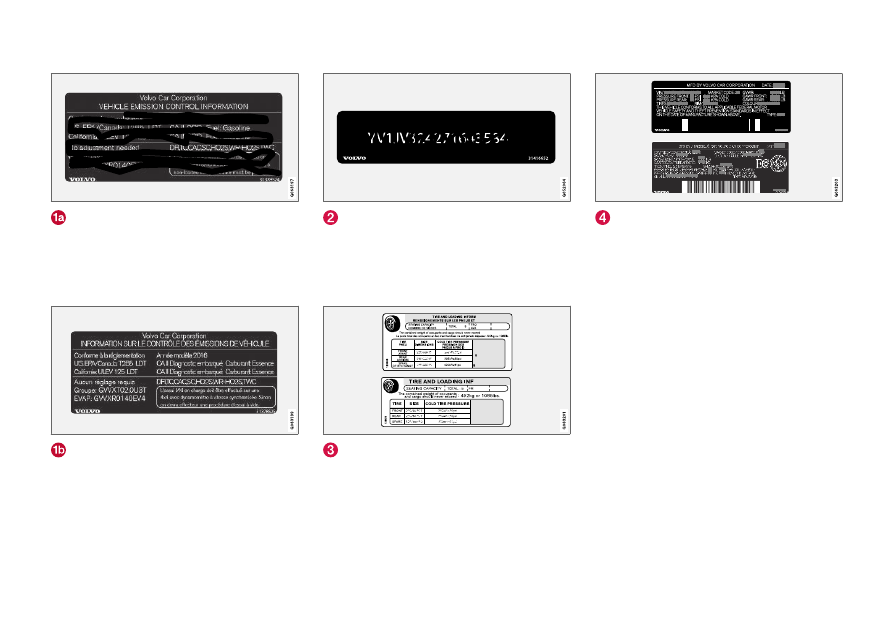

Vehicle Emission Control Information. US

models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the
certification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.

Vehicle Emission Control Information.

Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi-
denced by the certification label on the underside
of the hood. For further information regarding
these regulations, please consult your Volvo
retailer.

Vehicle Identification Number (VIN). The

VIN plate is located on the top left surface of the
dashboard. The Vehicle Identification Number
(VIN) should always be quoted in all correspond-
ence concerning your vehicle with the retailer and
when ordering parts.

Tire inflation pressures. This label indicates

the correct inflation pressures for the tires that
were on the vehicle when it left the factory.

Federal Motor Vehicle Safety Standards

(FMVSS) specifications (USA) and Ministry of
Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safety
standards, as evidenced by the certification label
on the driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of the
driver's door opening). This label also includes
codes for paint color, etc. For further information
regarding these regulations, please consult your
Volvo retailer. U.S. models have the upper decal;
Canadian models have the lower one.

SPECIFICATIONS

628

Engine oil. This label contains the recom-

mended engine oil specifications.

Decal A/C. Refrigerant R134a.

NOTE

The decals shown in the Owner's Manual do
not claim to be exact reproductions of those
found in the vehicle. The purpose is to show
approximately how they look and about where
they are located on the vehicle. The informa-
tion that applies for your vehicle in particular
is found on the decal on the vehicle.

Related information

•

Air conditioning specifications (p. 636)

SPECIFICATIONS

}}

629

Dimensions

The vehicle's length, height, etc. are shown in
the table.

Dimensions

inches

Ground clearance

141

5.6

Wheelbase

3061

120.5

Length

5083

200.1

Load length, floor,
folded backrest

2098

82.6

Load length, floor

1149

45.2

Height

1450

57.1

Dimensions

inches

Load height

435

17.1

H Wheel track, front

1628

1618

1617

64.1

63.7

Wheel track, rear

1629

1619

1618

64.1

63.7

Dimensions

inches

Load width, floor

1014

39.9

Width

1879

1890

74.0

74.4

SPECIFICATIONS

630

Dimensions

inches

Width incl. rearview
mirrors

2019

79.5

M Width incl. folded rear-

view mirrors

1895

74.6

At curb weight + 2 people. (Varies slightly depending on tire

dimensions, chassis, etc.)

Including roof antenna, at curb weight.

Vehicles with 17/18-inch wheels.

Vehicles with 19-inch wheels.

Vehicles with 20-inch wheels.

Chassis width.

At door moldings.

Related information

•

Weights (p. 631)

SPECIFICATIONS

631

Weights

The following table lists important weight data
for your vehicle.

Category

USA

(lbs)

Canada

(kg)

Max. trailer weights

Without brakes:

1650

750

With brakes:

2000

900

Max. tongue weight

200

CAUTION

•

The maximum trailer weights listed are
only applicable for altitudes up to 3280 ft
(1,000 m) above sea level. With increas-
ing altitude the engine power and there-
fore the car's climbing ability are impaired
because of the reduced air density, so
the maximum trailer weight has to be
reduced accordingly. The weight of the
car and trailer must be reduced by 10%
for every further 3280 ft (1,000 m) (or
part thereof).

Related information

•

Type designations (p. 626)

•

Weights (p. 631)

SPECIFICATIONS

633

Engine specifications

Engine specifications (output, etc.) for each
engine variant are shown in the table below. The

specifications for Special Edition vehicles may
vary.

NOTE

Not all engines are available on all markets.

Engine

Engine code

Output

(kW/rps)

Output

(hp/rpm)

Torque

(Nm/rps)

Torque

(ft. lbs./rpm)

Number of cylinders

T5 / T5 AWD

B4204T23

187/92

250/5500

350/25–80

258/1500-4800

T6 AWD

B4204T27

235/95

316/5700

400/37–90

295/2200–5400

The engine code, component and manufacturer serial numbers can be found on the engine.

Related information

•

Type designations (p. 626)

•

Engine oil specifications (p. 634)

•

Coolant specifications (p. 635)

SPECIFICATIONS

634

Engine oil specifications

Fully synthetic engine oil of at least
ACEA A5/B5 must be used. Lower oil grades
may not offer the same fuel economy, engine
performance or engine protection.

Volvo recommends:

General

See the Service and warranty booklet for infor-
mation about oil change intervals.

NOTE

This vehicle is delivered from the factory with
synthetic oil.

Do not use oil additives.

Oil viscosity

The wrong oil viscosity can shorten engine serv-
ice life during normal use. SAE 5W-30 provides
good fuel economy and engine protection. See
the viscosity chart.

Viscosity chart

Extreme driving conditions

Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-
mended for extreme conditions.

Oil volume

The oil volume for the engine is:

Liter (approx)

5.6

US qts (approx)

5.9

Related information

•

Type designations (p. 626)

•

Checking and filling engine oil (p. 577)

•

Engine oil (p. 576)

SPECIFICATIONS

635

Coolant specifications

Recommended grade: Volvo-approved pre-
mixed coolant. If concentrated coolant is used,
mix with 50% water. Consult a Volvo retailer if
you have any questions.

To avoid deterioration of the cooling system,
engine trouble, etc., only approved Volvo coolant
should be used.

WARNING

Do not ingest. May cause damage to organs

(kidneys). The product contains ethylene gly-

col, inhibitor, emetic, water, etc.

Related information

•

Refilling coolant (p. 579)

Transmission fluid specifications

Under normal driving conditions, the transmis-
sion fluid will not need to be changed during its
service life. However, it may need to be changed
if the vehicle is driven frequently in adverse driv-
ing conditions.

Automatic transmission

Prescribed transmission fluid:

AW1

Related information

•

Type designations (p. 626)

Brake fluid specifications

The medium in the hydraulic brake system is
called brake fluid and is used to transfer braking
force from e.g. pressure on the brake pedal via a
master brake cylinder to one or more slave cylin-
ders, which in turn act on a mechanical brake.

Recommended grade: Volvo Original or similar
fluid that meets a combination of Dot 4, 5.1 and
ISO 4925 class 6.

NOTE

Changing or filling brake fluid should be
entrusted to an authorized Volvo workshop.

Related information

•

Engine compartment overview (p. 576)

SPECIFICATIONS

636

Fuel tank volume

The fuel tank's refillable volume is shown in the
table below.

AWD

Other models

Liter (approx)

US gallons (approx)

15.9

14.5

Related information

•

Refueling (p. 440)

•

Octane rating (p. 442)

Air conditioning specifications

The climate system in the vehicle uses a freon-
free R134a refrigerant. For information regarding
the refrigerant, refer to the decal located on the
inside of the hood.

The prescribed grades and volumes for fluids and
lubricants in the air conditioning system are
shown in the tables below.

A/C Decal

Decal for R134a

Refrigerant

Vehicles with R134a refrigerant

Weight

Prescribed grade

650 g (1.43 lbs)

R134a

WARNING

The air conditioning system contains the

refrigerant R134a under pressure. Service

and repairs to the system should only be done

by an authorized workshop.

Compressor oil

Volume

Prescribed grade

60 ml (2.03 fl. oz.)

PAG SP-A2

Evaporator

CAUTION

The A/C system evaporator must never be
repaired or replaced with a previously used
evaporator. The new evaporator must be certi-
fied and labeled in accordance with SAE
J2842.

Related information

•

Climate control system service (p. 575)
