Volvo S60 Cross Country (2018 year). Manual - part 9

* - remote control key range

(p. 166)

•

Remote control key - range (p. 159)

Detachable key blade

A remote control key contains a detachable key
blade of metal with which some functions can
be activated and some operations carried out.

The key blade's unique code is provided by
authorised Volvo workshops, which are recom-
mended when ordering new key blades.

Key blade functions

Using the remote control key's detachable key
blade:

•

the left-hand front door is unlocked manually
if central locking cannot be activated with the
remote control key, see Detachable key
blade - unlocking doors (p. 162).

•

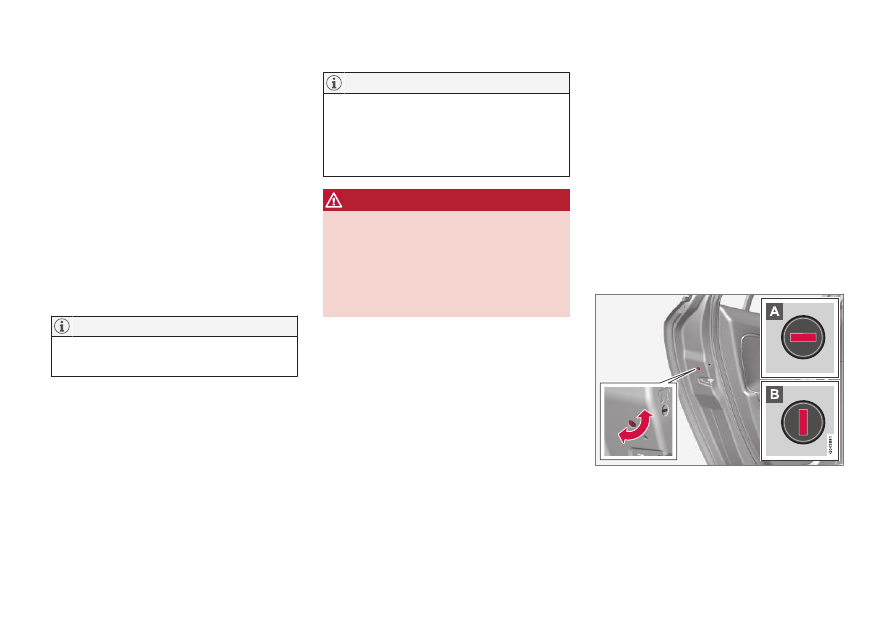

the rear doors' mechanical child safety locks
can be activated/deactivated (p. 176).

•

the right-hand front door and the rear doors
can be locked manually (p. 170), e.g. in the
event of power failure.

•

access to the glovebox and cargo area (pri-
vacy locking

* (p. 163)) can be blocked.

•

the airbag for front passenger seat
(PACOS

*) can be activated/deactivated

(p. 36).

Related information

•

Remote control key - functions (p. 158)

•

Detaching/attaching the detachable key blade
(p. 161) is carried out as follows:

Detachable key blade - detaching/

attaching

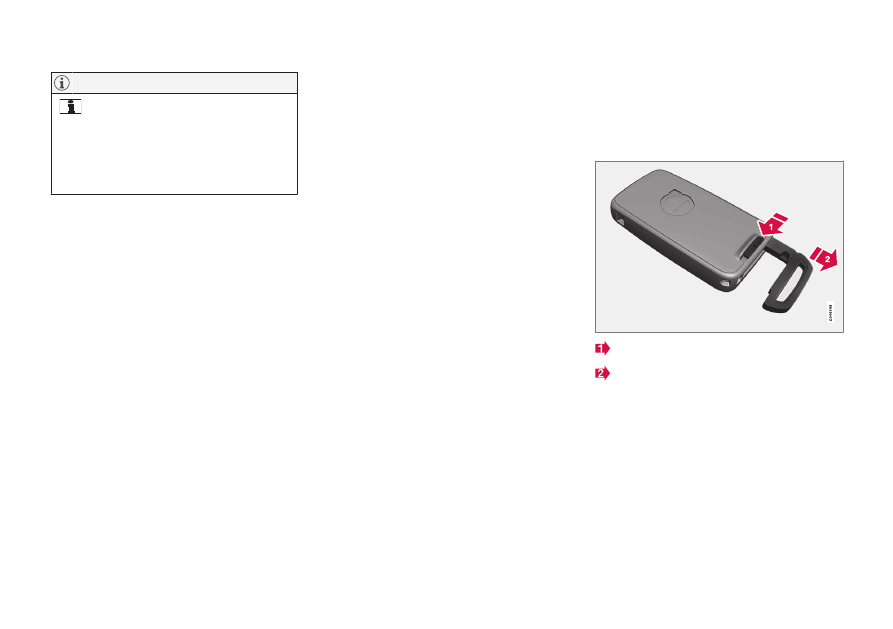

Removing the key blade

Slide the spring-loaded catch to the side.

At the same time pull the key blade straight
out backwards.

Attaching the key blade

Carefully refit the key blade into its location in the
remote control key (p. 154).

1. Hold the remote control key with the slot

pointed up and lower the key blade into its
slot.

2. Lightly press the key blade. You should hear

a "click" when the key blade is locked in.

LOCKS AND ALARM

* Option/accessory.

162

Related information

•

Detachable key blade - unlocking doors
(p. 162)

•

Child safety locks - manual activation
(p. 176)

•

Passenger airbag - activating/deactivating

(p. 36)

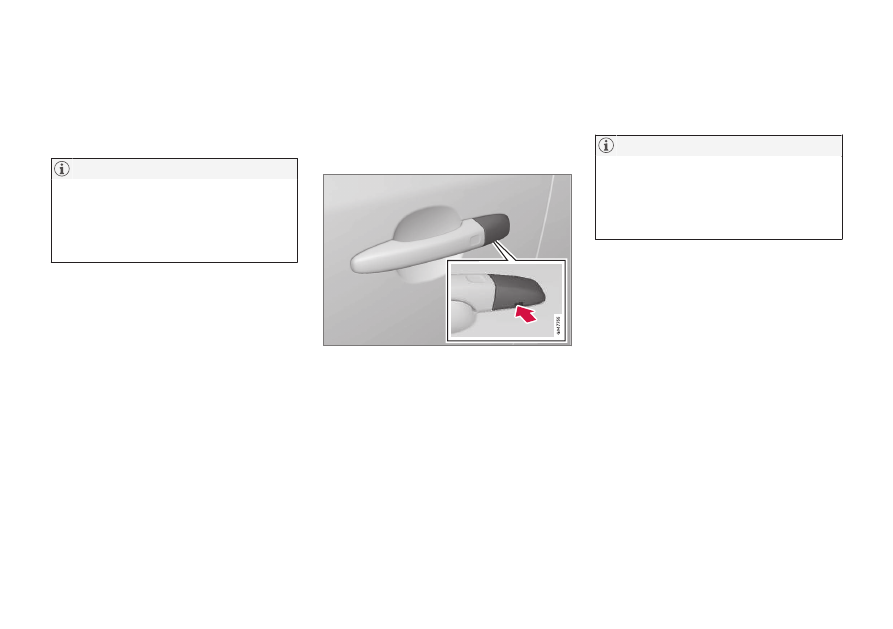

Detachable key blade - unlocking

doors

The detachable key blade (p. 161) can be used
if central locking cannot be activated with the
remote control key (p. 154), e.g. if the key's bat-
tery has run out.

If central locking cannot be activated with the
remote control key - e.g. if the batteries are dis-
charged - then the left-hand front door is
unlocked as follows:

1. Unlock the left-hand front door with the key

blade in the door handle's lock cylinder. For
illustration and more information, see Keyless
Drive

* - unlocking with the key blade

(p. 168).

* - unlocking with the key blade

When the door has been unlocked using the
key blade and is opened, the alarm is trig-
gered.

2. Deactivate the alarm by inserting the remote

control key in the ignition switch.

For cars with keyless start and lock system, see
Keyless Drive

(p. 168).

Related information

•

Remote control key - replacing the battery
(p. 164)

•

LOCKS AND ALARM

}}

* Option/accessory.

163

Privacy locking*

Privacy locking is intended for when the car is
left for service, with a hotel parking valet or simi-
lar. The glovebox is then locked and the boot lid
lock is disconnected from the central locking -
the boot lid cannot be opened with either the
central locking button in the front doors or the
remote control key (p. 154).

Active locks for remote control key with key blade.

G021084

Active locks for remote control key, without key blade

and privacy locking activated.

This means that the remote control key without
key blade can only be used to activate/deactivate
the alarm (p. 177), to unlock the doors and to
start the car.

The remote control key without key blade can
then be handed over to the service or hotel staff -
the loose key blade is retained by the car owner.

Activate/deactivate

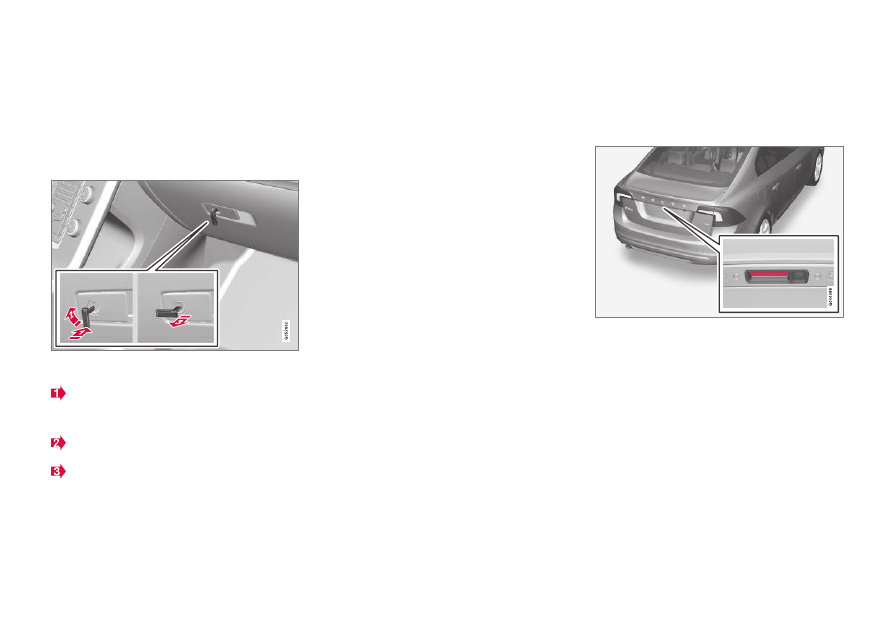

Activating privacy locking.

To activate privacy locking:

Insert the key blade in the glovebox lock cyl-
inder.

Turn the key blade 180 degrees clockwise.

Pull out the key blade. The combined instru-
ment panel's information display shows a
message at the same time.

The glovebox is then locked and the boot lid can
no longer be unlocked with the remote control
key or the central locking button.

LOCKS AND ALARM

164

Do not reinsert the key blade into the remote
control key, but keep it in a safe place
instead.

•

Deactivation takes place in reverse order.

For information on locking the glovebox only, see
Locking/unlocking - glovebox (p. 173).

Remote control key - replacing the

battery

The battery

for the remote control key may need

to be replaced.

The battery for the remote control key should be
replaced if:

•

the information symbol in the combined
instrument panel illuminates and the display
shows

Car key battery low See manual

and/or

•

the locks repeatedly do not react to signals
from the remote control key within 20 metres
from the car.

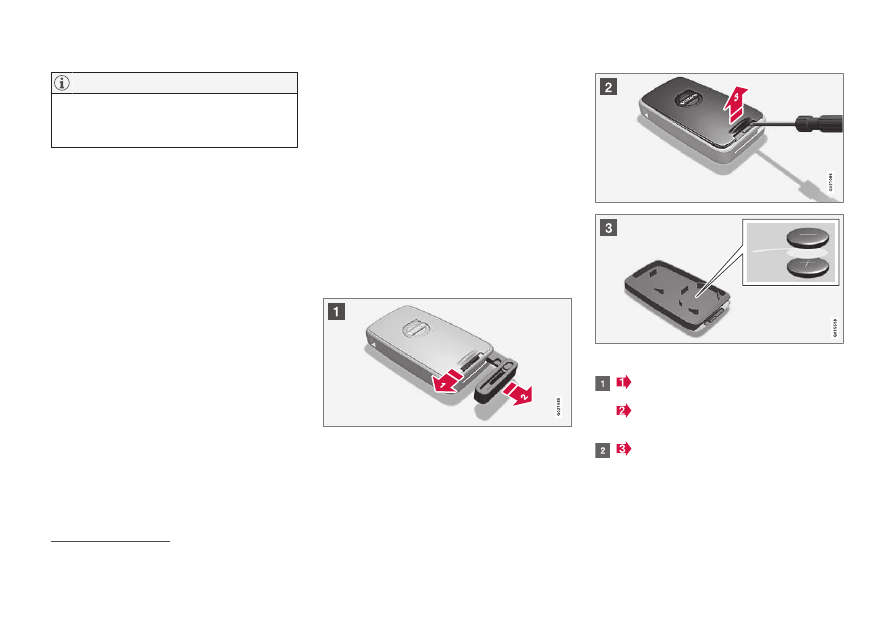

Opening

Slide the spring-loaded catch to the side.

At the same time pull the key blade

straight out backwards.

Insert a 3 mm slot screwdriver in the hole

behind the spring-loaded catch and gently
prize the remote control key up.

Remote control key with PCC has two batteries.

LOCKS AND ALARM

* Option/accessory.

165

Turn the remote control key over with the but-
tons facing up, this is to avoid the batteries
falling out when it is opened.

Avoid touching new batteries and their con-
tact surfaces with your fingers as this may
impair their function.

Battery replacement

Closely study how the battery/batteries are
secured on the inside of the cover, with
regard to their (+) and (–) sides.

Remote control key (one battery)

1. Carefully prize out the battery.
2. Install a new one with the (+) side down.

Remote control key with PCC

* (two

batteries)

1. Carefully prize out the batteries.
2. First install one new one with the (+) side up.
3. Position the white plastic tab in between and

finally install a second new battery with the
(+) side down.

Battery type

Use batteries with the designation CR2430, 3V -
one in the remote control key, two in the remote
control key with PCC.

Volvo recommends that the batteries to be
used in the remote control key/PCC fulfil UN
Manual of Test and Criteria, Part III, sub-
section 38.3. Batteries fitted in the factory or
replaced by an authorised Volvo workshop
fulfil the above criteria.

Assembly

1. Press the remote control key together.

2. Hold the remote control key with the slot

pointed up and lower the key blade into its
slot.

3. Lightly press the key blade. You should hear

a "click" when the key blade is locked in.

Make sure that exhausted batteries are dis-
posed of in a manner which is kind to the
environment.

Related information

•

Remote control key - functions (p. 158)

•

Keyless drive*

Cars equipped with Keyless Drive have a star-
ting and locking system that can be operated
keylessly.

With the keyless start and lock system the car
can be started, locked and unlocked without the
remote control key (p. 154)

inserted in the igni-

tion switch. It is enough to have the remote con-
trol key with you in a pocket. The system makes it
easier and more convenient to e.g. open the car
when your hands are full.

Both of the remote control keys included with the
car have keyless functionality. It is possible to
order more remote control keys.

The car's electrical system can be set to three
different levels - key position 0, I and II (p. 77) -
with the remote control key.

Related information

•

* - remote control key range

(p. 166)

•

* - secure handling of the

remote control key (p. 166)

•

* - interference to remote con-

trol key function (p. 167)

LOCKS AND ALARM

* Option/accessory.

166

Keyless Drive* - remote control key

range

In order to unlock the doors or boot lid automati-
cally without pressing a button on the remote
control key

, a remote control key must be within

approx. 1.5 metres from the car's door handle or
boot lid.

The person who wishes to lock or unlock a door
must have the remote control key with him or her.
It is not possible to lock or unlock a door if the
remote control key is on the opposite side of the
car.

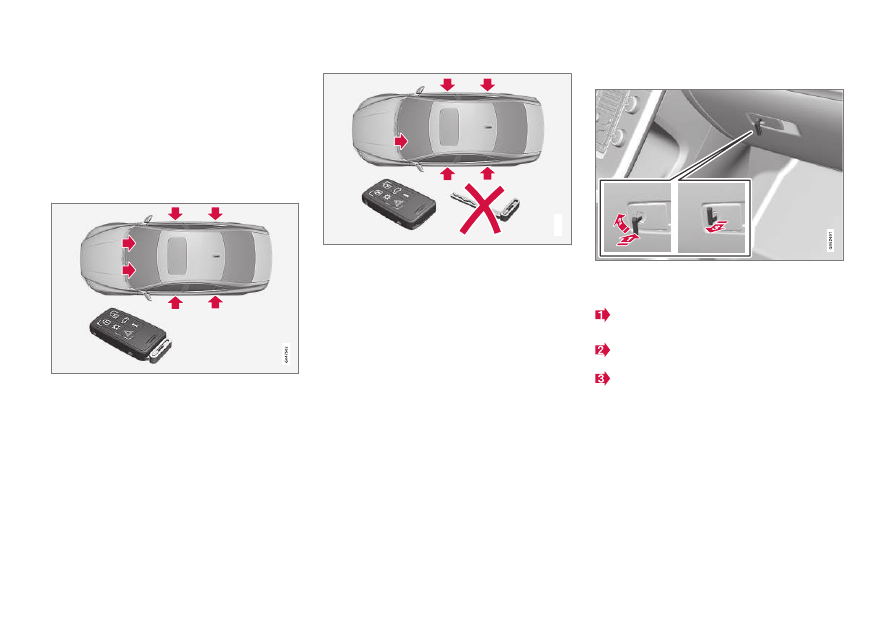

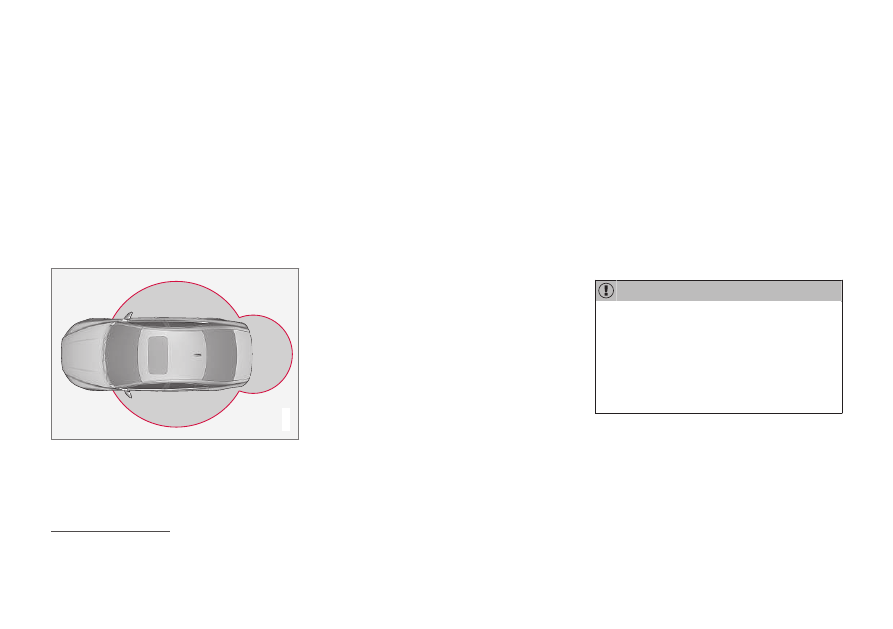

G020577

The red rings in the above figure indicate the
range covered by the system's antennas.

If all remote control keys are removed from the
car when the engine is running or key position I

or II (p. 77) is active, and if all doors are closed,
then a warning message is shown in the informa-
tion display in the combined instrument panel
and an audio reminder signal sounds at the same
time.

When the remote control key has been returned
to the car, the warning message goes off and the
audible reminder ceases once either/or:

•

a door has been opened and closed

•

the remote control key has been inserted in
the ignition switch

•

The OK button has been pressed.

Related information

•

•

* - antenna location (p. 169)

Keyless drive* - secure handling of

the remote control key

It is important to handle the car's remote control
keys with great care.

If one of the remote control keys

has been left

in the car then the keyless functions are deacti-
vated in case the car is e.g. locked with the other
remote control key that belongs to the car. This
prevents unauthorised entry.

The next time the car is unlocked with the other
remote control key the forgotten remote control
key is reactivated again.

Avoid leaving the remote control key with
PCC behind in the car. If someone breaks into
your car and takes the remote control key, it
will e.g. be possible to start the car by press-
ing the remote control key in the ignition
switch and then pressing the START/STOP
ENGINE button.

Related information

•

Only applies to Remote Control Key with PCC.

Applies to remote control key with PCC (Personal Car Communicator).

LOCKS AND ALARM

* Option/accessory.

167

Keyless Drive* - interference to

remote control key function

Electromagnetic fields and screening can inter-
fere with the remote control key's keyless func-
tions (p. 165).

Remote control key - replacing the battery
(p. 164)

Do not place/store the PCC near a mobile
phone or metal object - no closer than 10-15
cm.

If interference is experienced nonetheless, use
the remote control key and the key blade like a
remote control key in basic version, see Remote
control key - functions (p. 158).

Related information

•

•

* - secure handling of the

remote control key (p. 166)

•

* - remote control key range

(p. 166)

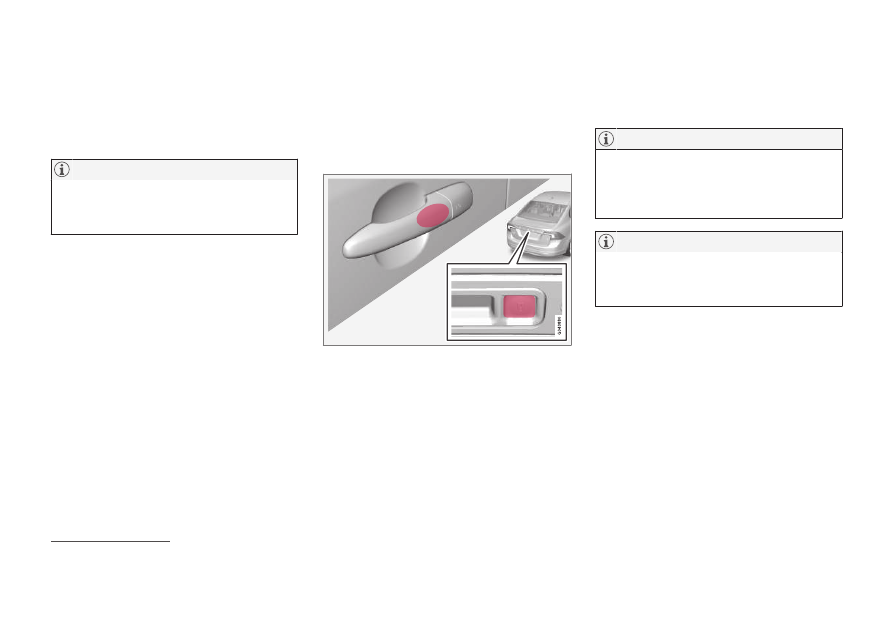

Keyless Drive* - locking

Cars equipped with keyless start and lock sys-
tem have a touch-sensitive area on the outside
handle of the doors and a rubberised button
next to the boot lid's rubberised pressure plate
for locking/unlocking.

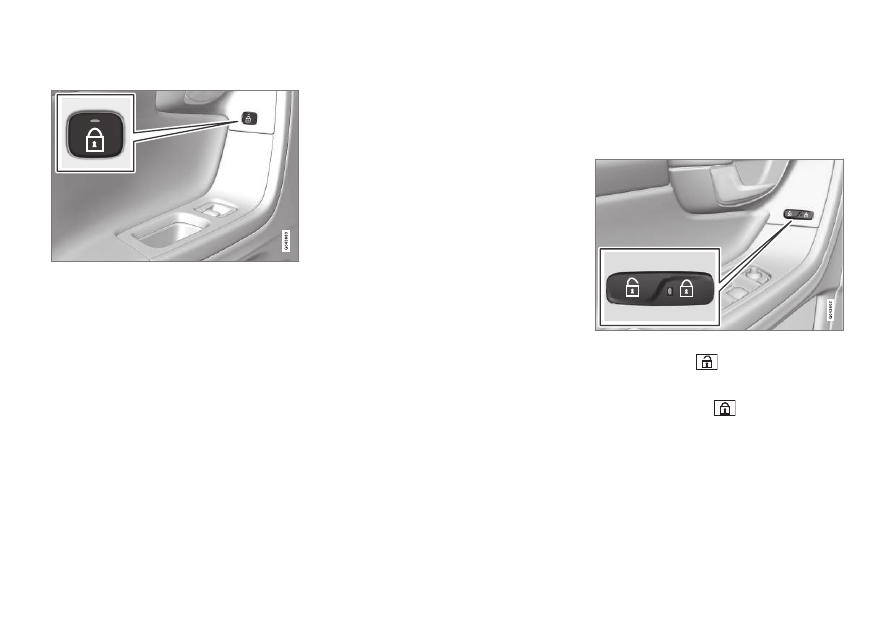

The touch-sensitive area on the outer door handles and

a rubberised button next to the boot lid's rubberised

pressure plate.

Lock the doors and the boot lid with one long
press on any of the door handles' touch-sensitive
areas or press the smaller of the boot lid's two
rubberised buttons - the lock indicator (p. 156) in
the windscreen confirms that locking has been
completed by starting to flash.

All doors and the boot lid must be closed before
the car can be locked - otherwise the car is not
locked.

In cars with automatic gearbox selectors, the
gear selector must be set to the P position;
otherwise the car can be neither locked nor
alarmed.

Be aware that the system may be activated in
connection with car washing if the remote
control key is in range.

Related information

•

•

Applies to remote control key with PCC (Personal Car Communicator).

LOCKS AND ALARM

* Option/accessory.

168

Keyless drive* - unlocking

Unlocking takes place when a hand grasps a
door handle or the boot lid's rubberised pres-
sure plate is actuated - open the door or boot lid
as normal.

The door handles normally register a hand
that takes hold of the handle, but with thick
gloves on or after a very quick hand move-
ment a second attempt may be required, or
with the glove taken off.

Related information

•

•

Keyless Drive* - unlocking with the

key blade

If central locking cannot be unlocked with the
remote control key, e.g. if the batteries are dis-
charged, then the left-hand front door can be
opened using the detachable key blade.

Hole for key blade - to loosen the cover.

To access the lock cylinder, the door handle's
plastic cover must be removed - this is also done
with the key blade:

1. Press the key blade approx. 1 cm straight up

into the hole on the underside of the door
handle/cover - do not prize.
> The plastic cover loosens automatically by

means of the torque when the blade is
pushed straight up and into the opening.

2. Then insert the key blade in the lock cylinder

and unlock the door.

3. Refit the plastic cover after unlocking.

control key not working (p. 179).

When the driver's door is unlocked using the
key blade and is opened, the alarm is trig-
gered. It is switched off by inserting the PCC
in the ignition switch, see Alarm

* - remote

Related information

•

Detachable key blade - detaching/attaching
(p. 161)

•

•

Alarm

* (p. 177)

LOCKS AND ALARM

* Option/accessory.

169

Keyless Drive* - lock settings

Lock settings for cars equipped with keyless
start and lock system can be adapted by indicat-
ing in the menu system MY CAR which doors
are to be unlocked.

For a description of the menu system, see MY
CAR (p. 109).

Related information

•

Keyless Drive* - antenna location

Cars equipped with keyless start and lock sys-
tem have a number of built-in antennas posi-
tioned at different locations in the car.

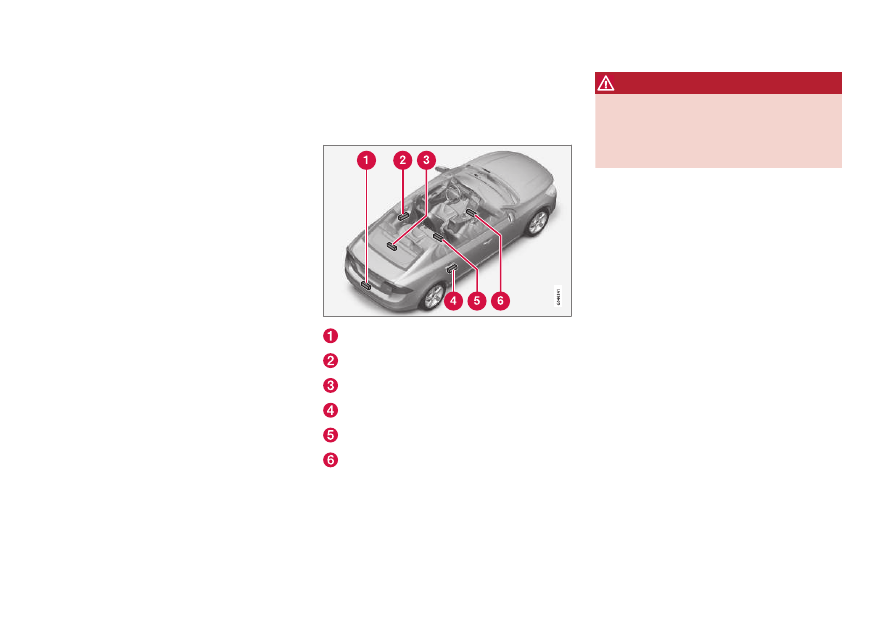

Rear bumper, centre

Door handle, left rear

Parcel shelf, centre, underside

Door handle, right rear

Centre console, under the rear section

Centre console, under the front section.

WARNING

People with pacemaker operations should not

come closer than 22 cm to the keyless sys-

tem's antennae with their pacemaker. This is

to prevent interference between the pace-

maker and the keyless system.

Related information

•

LOCKS AND ALARM

* Option/accessory.

170

Locking/unlocking - from the

outside

Locking/unlocking from the outside is carried
out using the remote control key (p. 154). The
remote control key can lock/unlock all doors and
the boot lid simultaneously. Different sequences
for unlocking can be selected, see Remote con-
trol key - functions (p. 158).

In order that the lock sequence can be activated,
the driver's door must be closed - if any of the
other doors or the boot lid is open, then it/they
is/are locked and the alarm is activated only
when it/they are closed. For cars equipped with
keyless locking system

* all doors and the boot lid

must be closed.

Be aware of the risk of locking the remote
control key in the car.

If it is not possible to lock/unlock with the remote
control key, the battery may be discharged - lock
or unlock the left-hand front door with the
detachable key blade, see Detachable key blade -
detaching/attaching (p. 161).

Locking/unlocking - from the inside (p. 171)

Remember that the alarm is triggered when
the door is opened after being unlocked with
the key blade - the alarm is switched off when
the remote control key is inserted into the
ignition switch.

WARNING

Be aware of the risk of being locked in the

car when it is locked from the outside using

the remote control key - it is then not possible

to open any of the doors from the inside with

the door controls.
For more information, see Deadlocks

(p. 175).

Automatic relocking

If none of the doors or the boot lid is opened
within two minutes of unlocking, all are locked
again automatically. This function reduces the
risk that the car is left unlocked unintentionally.
(For cars with alarm, see Alarm

* (p. 177).)

Related information

•

•

unlocking with the key blade (p. 168).

Manual locking of the door

In certain situations the car must be lockable
manually, e.g. in the event of power failure.

The left-hand front door can be locked with its
lock cylinder and the remote control key's
detachable key blade, see Keyless Drive

* -

Other doors do not have lock cylinders and
instead have lock knobs on each door's end face
which must be re-turned - then they are mechan-
ically locked/blocked against opening from the
outside. The doors can still be opened from the
inside.

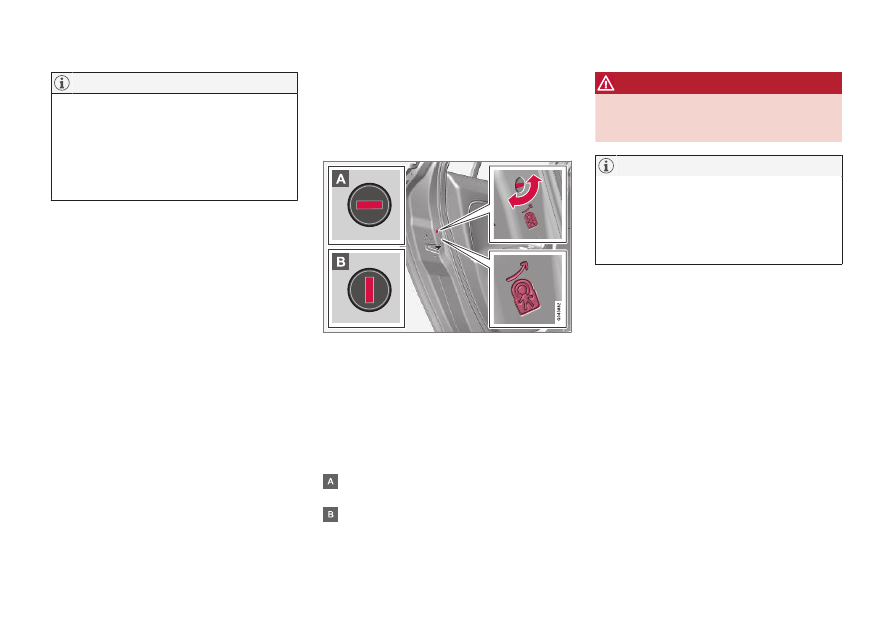

Manual locking of the door. Not to be mixed up with

child safety locks (p. 176).

–

Use the remote control key's detachable key
blade to turn the knob, see Detachable key
blade - detaching/attaching (p. 161).

LOCKS AND ALARM

}}

* Option/accessory.

171

The door is blocked against opening from
the outside.
The door can be opened from both the out-
side and the inside.

Remote control key - replacing the battery
(p. 164)

•

A door's knob control only locks that par-
ticular door - not all doors simultaneously.

•

A manually locked rear door with an acti-
vated manual child safety lock cannot be
opened from either the outside or the
inside, see Child safety locks - manual
activation (p. 176). A rear door that is
locked in this way can only be unlocked
with the remote control key or central
locking button.

Related information

•

Locking/unlocking - from the inside

All of the doors and the boot lid can be locked
or unlocked simultaneously using the central
locking button on the driver's door and passen-
ger door

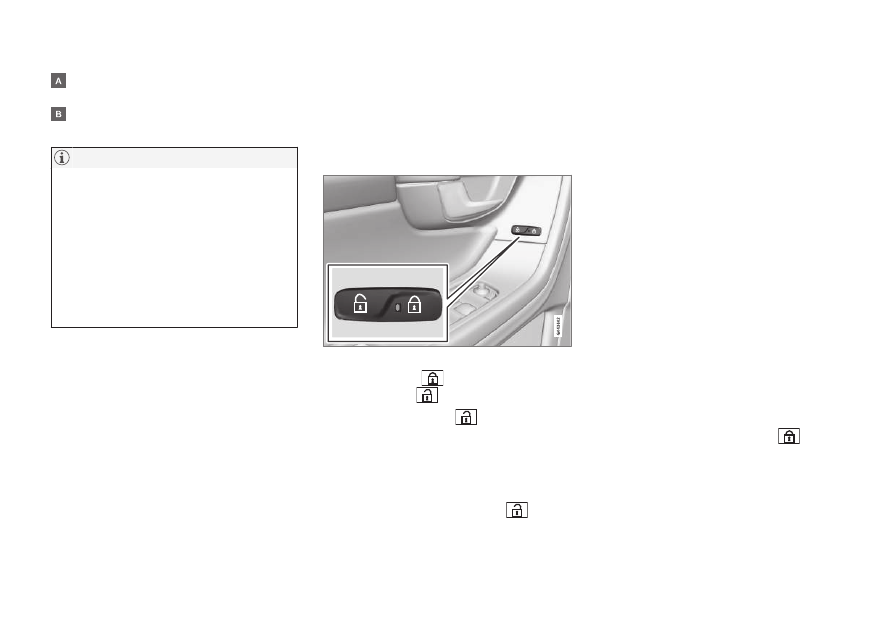

Central locking

Central locking.

•

Press one side

of the button to lock -

the other side

to unlock.

Press and hold the button

to also open all

side windows simultaneously

Unlocking

A door can be unlocked from the inside in two
different ways:

•

Press the central locking button

A long press also opens all the side windows

simultaneously (see also Global opening
(p. 172)).

•

Pull the door handle and open the door - the
door is unlocked and opened in one opera-
tion.

Lamp in lock button

Central locking is available in two variants - the
lamp in the central locking button for the driver's
door has different meanings dependent on the
variant.

With central locking button only in the driver's
door, other doors have no button:

•

Illuminated lamp means that all doors are
locked.

With central locking button on both front doors
and electric lock button in each rear door:

•

Illuminated lamp means that only that partic-
ular door is locked. When all buttons are illu-
minated all doors are locked.

Locking

•

Press the central locking button

- all

closed doors are locked.

A long press also closes all side windows and
sunroof simultaneously (see also Global opening
(p. 172)).

LOCKS AND ALARM

* Option/accessory.

172

Lock button

* rear doors

The button's lamp illuminates when the door is locked.

The rear door lock buttons only lock their respec-
tive rear door.

To unlock the door:

•

Pull the door handle - the door is unlocked
and opened.

Automatic locking

The doors and boot lid are locked automatically
when the car starts to move.

The function can be activated/deactivated in the
menu system MY CAR. For a description of the
menu system, see MY CAR (p. 109).

Related information

•

Locking/unlocking - from the outside
(p. 170)

•

Alarm

* (p. 177)

•

Remote control key - functions (p. 158)

Global opening

The global opening function opens or closes all
side windows simultaneously and can be used
for example to quickly air the car during hot
weather.

Central locking button

A long press on the

symbol in the central

locking button or on the remote control key
opens all side windows simultaneously. The
same procedure on the

symbol closes all

side windows simultaneously.

Related information

•

Locking/unlocking - from the inside (p. 171)

•

Power windows (p. 98)

LOCKS AND ALARM

}}

* Option/accessory.

173

Locking/unlocking - glovebox

The glovebox (p. 146) can only be locked/
unlocked using the remote control key's detach-
able key blade.

For information on the key blade, see Detachable
key blade - detaching/attaching (p. 161).

Locking the glovebox:

Insert the key blade in the glovebox lock cyl-
inder in accordance with the illustration
above.

Turn the key blade 90 degrees clockwise.

Pull out the key blade.

•

Unlock by carrying this out in reverse order.

For information on privacy locking, see Privacy
locking

* (p. 163).

Related information

•

Locking/unlocking - boot lid

The boot lid can be opened, locked and
unlocked in several ways.

Manual opening

Rubber plate with electrical contact.

The boot lid is held closed by an electrical lock.

To open:

1. Push down gently on the wide rubberised

pressure plate under the outer handle - the
lock is released.

2. Lift the outside handle in order to fully open

the tailgate.

LOCKS AND ALARM

* Option/accessory.

174

•

Minimal force is required to release the
boot lid's lock - just gently press the rub-
berised panel.

•

Do not place the lift force on the rubber
panel when opening the boot lid - lift the
handle. Using too much force may dam-
age the electrical contacts on the rubber
panel.

Unlocking with the remote control key

The alarm for the boot lid can be disarmed
and the boot lid unlocked on its own by using the

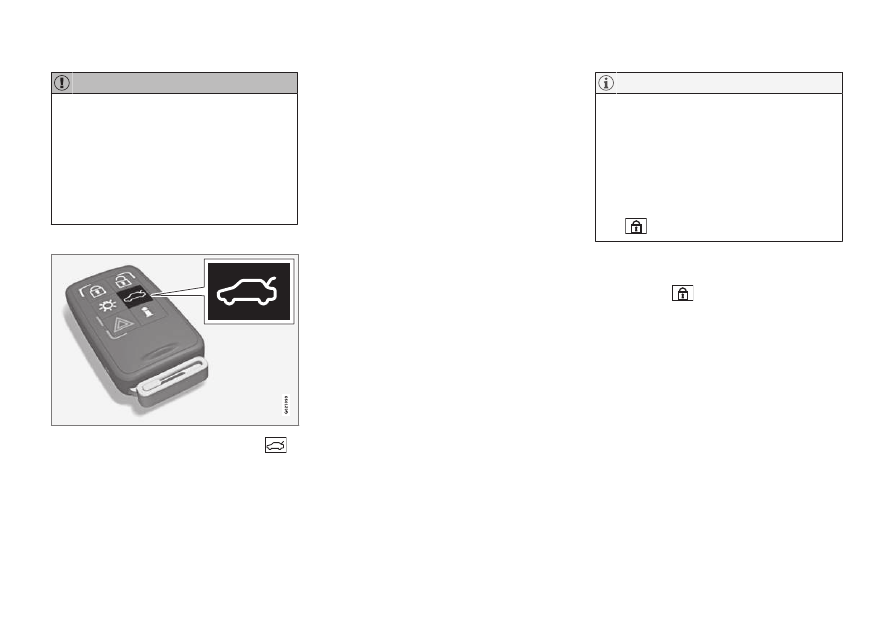

remote control key's

* button.

The lock indicator on the instrument panel stops
flashing which indicates that not all of the car is
locked and the alarm's

* level and movement sen-

sors and the sensors for opening the boot lid are
disconnected.

The doors remain locked and armed.

•

The boot lid is unlocked, but remains closed
- press lightly on the rubberised pressure
plate under the outer handle and lift the boot
lid.

If the boot lid is not opened within two minutes
then it is relocked and the alarm is re-armed.

The boot lid can be opened in two
different ways

One press - The boot lid is unlocked, but
remains closed - press lightly on the rubberised
pressure plate under the outer handle and lift the
boot lid.

If the boot lid is not opened within two minutes
then it is relocked and the alarm is re-armed.

Two presses - The boot lid is unlocked and the
lock is disengaged at which the boot lid opens
about a centimetre - lift the outer handle to open.
Rain, cold, frost or snow could however prevent
the tailgate from disengaging from the lock.

Locking/unlocking - from the inside (p. 171)

•

When the boot lid/tailgate is unlocked
with 2 presses, automatic relocking does
not take place because the boot lid/tail-
gate is open - it must be closed manually.

•

After the boot lid/tailgate has been
closed it is unlocked and the alarm is not
armed - relock it and re-arm the alarm
with the remote control key's lock button

Locking with the remote control key

•

Press the remote control key (p. 158) button
for locking

The lock indicator on the instrument panel starts
flashing, which means that the car is locked and
the alarm

* has been activated.

LOCKS AND ALARM

}}

* Option/accessory.

175

Unlocking the car from inside

To unlock the boot lid:

–

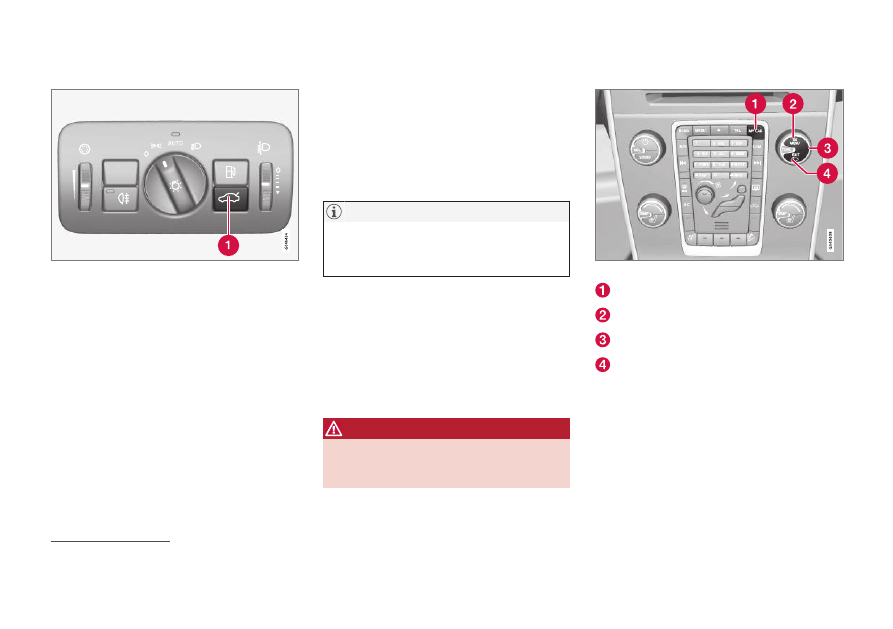

Press the button (1) on the headlamp control
panel.
> The lock releases and the tailgate opens

by a few centimetres.

Related information

•

•

Locking/unlocking - from the outside
(p. 170)

Deadlocks*

Deadlocks

means that all door handles are

mechanically disengaged, which prevents doors
being opened from both inside and outside.

The deadlocks are activated with the remote con-
trol key (p. 154) and are set after an approx. ten
seconds delay after the doors have been locked.
