09 Maintenance and service

Replacing bulbs

Option/accessory, for more information, see Introduction.

231

Withdraw the bulb holder and change the
bulb.

Refit the bulb holder. It can only be refitted
in one position.

Refit the cover, located above the lamp
housing, by turning it clockwise.

Refit the lamp housing, see page 229.

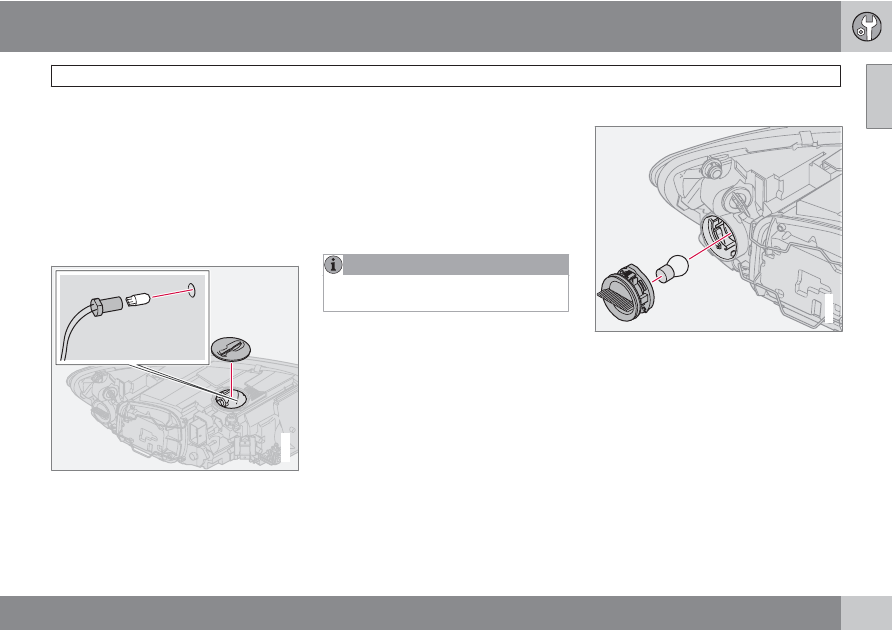

Position/parking lamps

G019145

Undo the lamp housing, see page 229.

Undo the cover, located above the lamp
housing, by turning it anticlockwise.

Withdraw the bulb holder and change the
bulb.

Press the bulb holder back on. A "click" is
heard when the bulb holder is fitted cor-
rectly.

Refit the cover, located above the lamp
housing, by turning it clockwise.

Refit the lamp housing, see page 229.

NOTE

ABL headlamps* have a position lamp (LED)
that cannot be replaced.

Direction indicators

G019150

Undo the lamp housing, see page 229.

Twist the bulb holder anticlockwise and
remove it.

To remove the bulb from the bulb holder,
press the bulb in and turn it anticlockwise.

Fit a new bulb and refit the bulb holder into
the lamp housing.

Refit the lamp housing, see page 229.

09 Maintenance and service

Replacing bulbs

232

Side marker lamps

G018050

Undo the lamp housing, see page 229.

Twist the bulb holder anticlockwise and
withdraw it. Replace the bulb.

Refit the bulb holder. It can only fit in one
position.

Refit the lamp housing, see page 229.

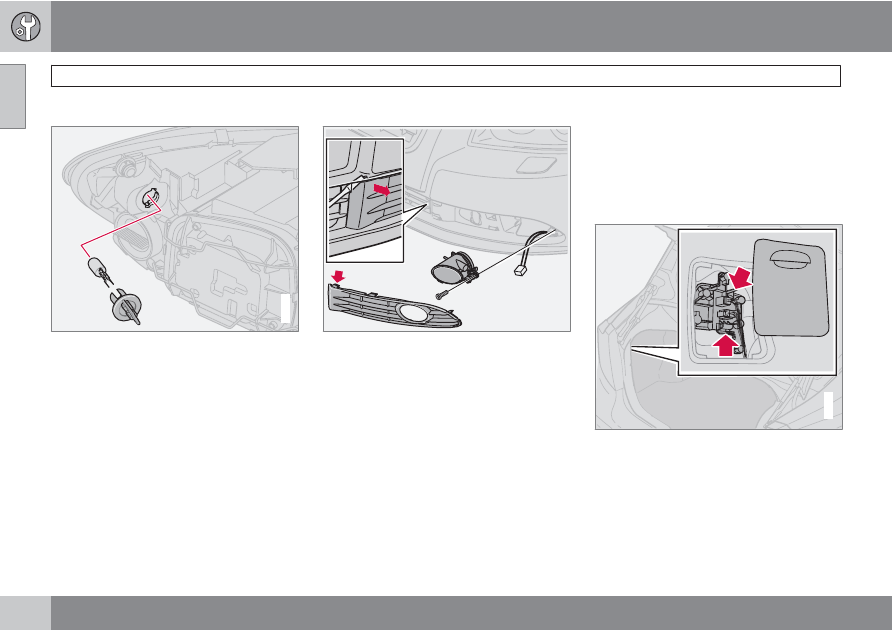

Front fog lamps

G017609

Switch off all lights and turn the remote
control key to position 0.

Undo the cover by inserting a screwdriver
as illustrated (vertically) and continue to
press vertically in order to undo the clip
inside the cover.

Grip the edge of the cover and pull straight
out.

Unscrew the lamp housing screw and pull
it out.

Turn the bulb anticlockwise and remove it.

Fit a new bulb by turning clockwise. (The
profile of the bulb holder corresponds to
the profile of the foot of the bulb.)

Refit the bulb holder. The TOP mark on the
bulb holder must always be upward.

Removing the bulb holder

G020916

All bulbs in the rear lamp cluster are replaced
from inside the cargo area.

Switch off all lights and turn the remote
control key to position 0.

Remove the cover in the panel to access
the bulbs. They are fitted in a separate bulb
holder.

09 Maintenance and service

Replacing bulbs

233

Unplug both connectors from the bulb
holder.

Press the catches together and at the
same time pull out the bulb holder.

Replace the bulb and plug in both connec-
tors.

Press the bulb holder into place and refit
the cover.

NOTE

If an error message remains after the broken
bulb has been replaced then we recom-
mend that you visit an authorised Volvo
workshop.

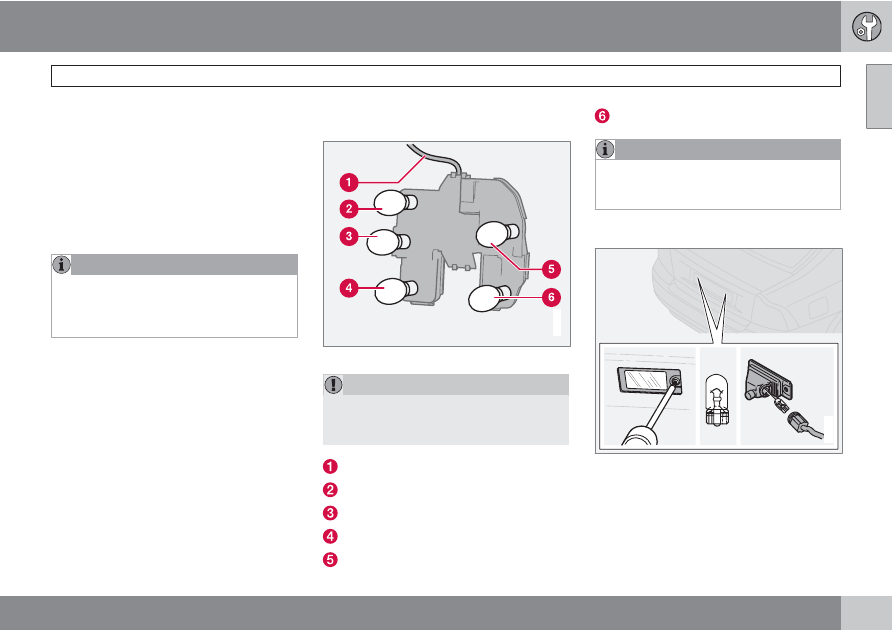

Location of bulbs in the rear bulb
holder

G018055

Bulb holder.

IMPORTANT

The cable to the brake light's LED lamps is
fastened with clips in the bulb holder. It shall
not be removed.

Brake light (LED)

Position lamp

Position/parking lamps

Rear fog lamp (one side)

Direction indicators

Reversing lamp

NOTE

The rear fog lamp only illuminates in the left
rear light cluster on a left-hand drive car and
in the right on a right-hand drive.

Number plate lighting

G014843

Switch off all lights and turn the remote
control key to position 0.

Remove the screws with a screwdriver.

Carefully detach the entire lamp housing
and withdraw it. Turn the connector anti-
clockwise and pull out the bulb.

09 Maintenance and service

Replacing bulbs

234

Option/accessory, for more information, see Introduction.

Replace the bulb.

Insert the connector and turn clockwise.

Refit the entire lamp housing and screw it
into place.

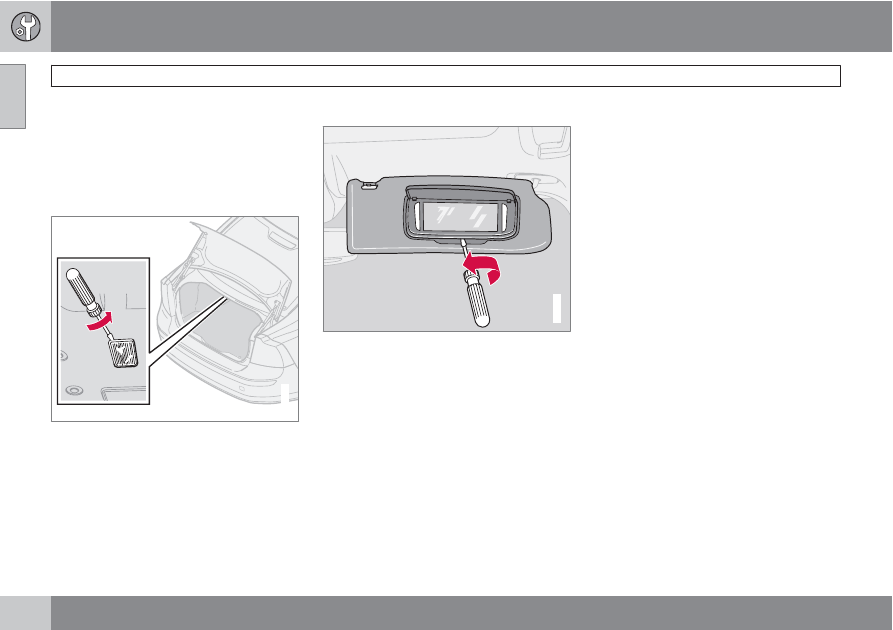

Cargo area

G020915

Insert a screwdriver and gently turn so that
the lamp housing comes loose.

Remove the blown bulb.

Fit a new bulb.

Vanity mirror lighting*

G020253

Removing the mirror glass

Insert a screwdriver underneath the lower
edge, in the centre. Carefully prize up the
lug on the edge.

Insert the screwdriver underneath the edge
on the left and right-hand sides (by the
black rubber sections), and prize carefully
so that the glass comes loose in the lower
edge.

Carefully detach and lift aside the entire
mirror glass and cover.

Remove the blown bulb and replace it with
a new one.

Fitting the mirror glass

First, press the three lugs at top edge of
mirror glass back into position.

Then press the three lower lugs back into
position.

09 Maintenance and service

Fuses

235

General

All electrical functions and components are
fused to protect the car's electrical system
from damage by short circuiting and overload-
ing.

The fuses are in two different locations in the
car:

•

Relay/Fuse box in the engine compart-
ment.

•

Relay/Fuse box in the passenger compart-
ment.

Changing

If an electrical component or function does not
work, it may be because the component's fuse
was temporarily overloaded and blew.

Look in the fuse diagram to locate the fuse.

Pull out the fuse and check from the side
to see whether the curved wire has blown.

If this is the case, replace it with a new fuse
of the same colour and amperage.

Each fuse box has space for several spare
fuses. If the same fuse fails repeatedly then
there is a fault in the component. In which case,
Volvo recommends that you visit an authorised
Volvo workshop for this to be checked.

WARNING

Never use a foreign object, or a fuse with an
amperage higher than that specified when
replacing a fuse. This could cause signifi-
cant damage to the electrical system and
possibly lead to fire.

09 Maintenance and service

Fuses

236

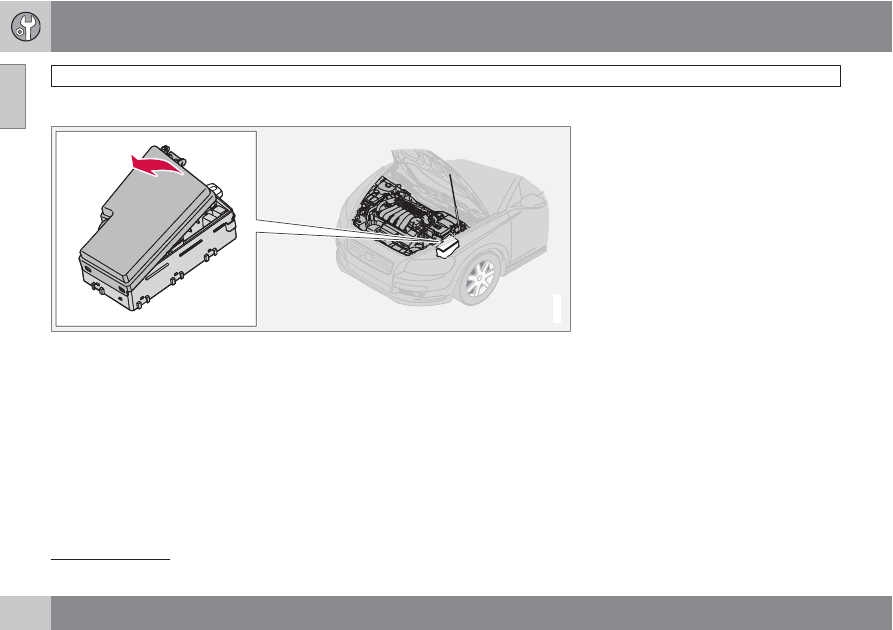

Relay/fuse box in the engine compartment

G007446

The fuse box has 36 fuse positions. Be sure to
replace a blown fuse with a new fuse of the
same colour and amperage.

•

Fuses 19-36 are of the "Mini Fuse" type.

•

Fuses 7-18 are of the "JCASE" type and
should be replaced by a workshop.

•

Fuses 1-6 are of the "Midi Fuse" type and
must only be replaced by a workshop.

On the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

An authorised Volvo workshop is recommended.

09 Maintenance and service

Fuses

Option/accessory, for more information, see Introduction.

237

G020250

Cooling fan

50 A

Power steering

80 A

Supply to passenger compart-
ment fuse box

60 A

Supply to passenger compart-
ment fuse box

60 A

PTC element, air preheater*

80 A

Glow plugs (DRIVe)

60 A

Glow plugs (5-cyl. diesel)

70 A

ABS pump

40 A

ABS valves

20 A

Engine functions

30 A

10.

Ventilation fan

40 A

11.

Headlamp washers

20 A

12.

Heated rear window

30 A

13.

Actuator solenoid, starter
motor

30 A

14.

Trailer wiring*

40 A

15.

Reserve

–

16.

Infotainment system

30 A

17.

Windscreen wipers

30 A

18.

Supply to passenger compart-
ment fuse box

40 A

19.

Reserve

–

20.

Horn

15 A

21.

Fuel-driven additional heater,
passenger compartment
heater*

20 A

22.

Reserve

–

09 Maintenance and service

Fuses

238

Option/accessory, for more information, see Introduction.

23.

Engine control module (5-cyl.
petrol), Transmission control
module (5-cyl.)

10 A

Transmission control module
(4-cyl.)

15 A

24.

Heated fuel filter (5-cyl. diesel),
PTC element, oil trap (5-cyl.
diesel)

20 A

25.

Central electronic module
(CEM) (Start/Stop)

10 A

26.

Ignition switch

15 A

27.

A/C compressor

10 A

28.

Reserve

–

29.

Front fog lamps

Daytime running lights (DRL)*

15 A

30.

Coolant pump (Start/Stop)

10 A

31.

Voltage regulator, alternator
(4-cyl. petrol)

10 A

32.

Injectors (5-cyl. petrol), Turbo
control valve (5-cyl. diesel), Oil
level sensor (5-cyl. diesel)

Control valve, fuel flow
(DRIVe), Mass air flow sensor
(DRIVe), Control motor turbo
(DRIVe)

10 A

33.

Vacuum pump (5-cyl. petrol),
Relay coil, relay, vacuum
pump (5-cyl. petrol), Engine
control module (5-cyl. diesel),
Heated fuel filter (DRIVe)

20 A

34.

Ignition coils (petrol), Pressure
switch, climate control system
(5-cyl.), Control module, glow
plugs (5-cyl. diesel), EGR
emission control (5-cyl. diesel),
Fuel pump (DRIVe), Lambda-
sond (DRIVe), Engine control
module (Start/Stop), Relay
coils, relays Start/Stop

10 A

35.

Relay coil, relay, climate con-
trol system, PTC element, oil
trap (5-cyl. petrol), Mass air
flow sensor (5-cyl. petrol),
Turbo control valve (5-cyl. pet-
rol), Solenoids, variable valve
timing (5-cyl. petrol), Injectors
(2.0 l petrol), EVAP valve (2.0 l
petrol), Valve, air/fuel mixture
(2.0 l petrol), Control valve, fuel
pressure (5-cyl. diesel), Engine
control module (5-cyl. diesel),
Engine EGR (DRIVe)

15 A

36.

Engine control module (petrol,
DRIVe), Accelerator pedal
position sensor (5-cyl. diesel),
Lambda-sond (5-cyl. diesel)

10 A

09 Maintenance and service

Fuses

Option/accessory, for more information, see Introduction.

239

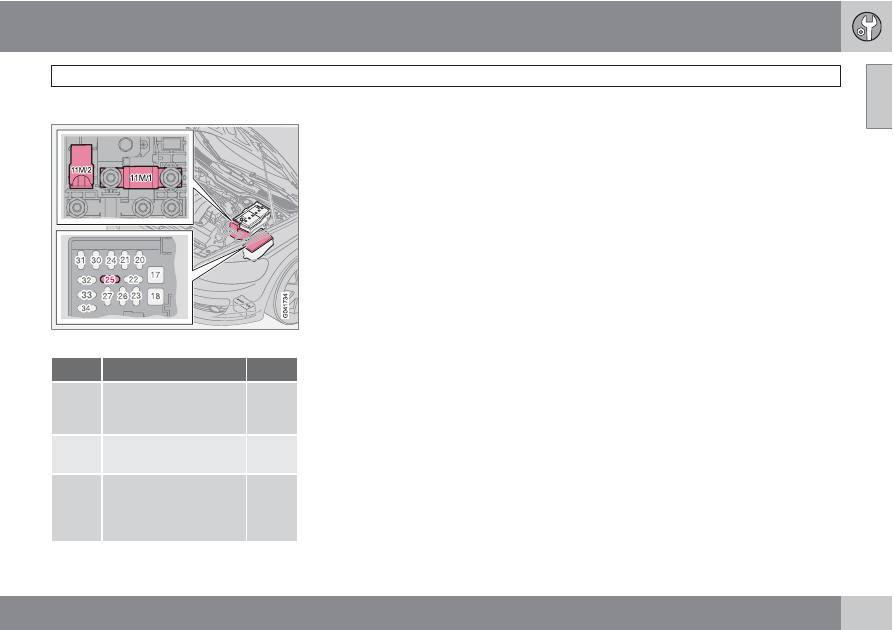

DRIVe Start/Stop*

Location of fuses for the Start/Stop function.

No.

Component

11M/1

Engine compartment,
electrical distribution
unit

125

11M/2

Sensor, battery monitor-
ing

Central electronic mod-
ule (CEM) (Reference
voltage standby bat-
tery), diesel engine

For more information on DRIVe Start/Stop -
see page 161.

09 Maintenance and service

Fuses

240

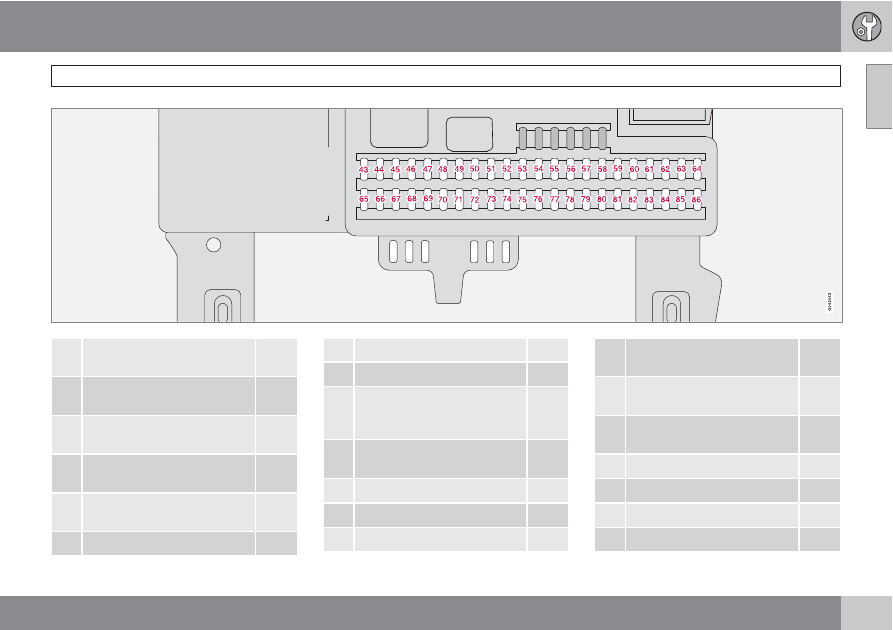

Relay/Fuse box in the passenger compartment

G020601

The fuse box has 50 fuse positions. The fuses
are located under the glovebox. The box also
provides space for several spare fuses. Tools
for fuse replacement are located in the relay/
fuse box in the engine compartment, see
page 236.

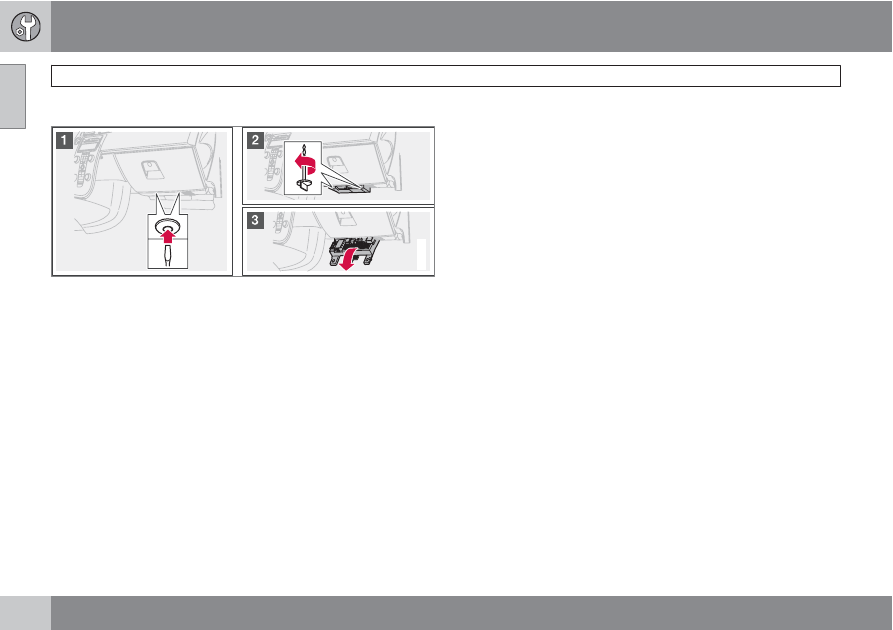

Replacing fuses

Remove the trim concealing the fuse box
by pressing in the pin in the centre of the
clips (1) about one cm and then withdraw-
ing the clips.

Turn the two wing screws (that secure the
fuse box) (2) anticlockwise and remove
them.

Lower the fuse box (3) half way. Pull it
towards the seat until it stops. Lower it

completely. The fuse box can be fully
unhooked.

Close the fuse box in the reverse order.

Remove the pins from the centre of the
clips. Fit the trim and the clips. Reinsert the
pins into the clips. This expands the clips
and secures the trim.

09 Maintenance and service

Fuses

Option/accessory, for more information, see Introduction.

241

43.

Telematics*, Audio system,
RTI*, Bluetooth*

15 A

44.

SRS system, Engine control
module (5-cyl, DRIVe)

10 A

45.

Electrical socket, passenger
compartment

15 A

46.

Passenger compartment, glo-
vebox and courtesy lighting

5 A

47.

Interior lighting, Remote con-
trolled garage door opener*

5 A

48.

Washer

15 A

49.

SRS system

10 A

50.

Reserve

–

51.

PTC element, air preheater*,
Relay coil, relay, heated fuel
filter (5-cyl. diesel), AWD

10 A

52.

Transmission control module,
ABS system

5 A

53.

Power steering

10 A

54.

Parking assistance*, Xenon*

10 A

55.

Control module Keyless*

20 A

56.

Remote control receiver,
Siren*

10 A

57.

Data link connector (DLC),
brake light switch

15 A

58.

Main beam, right, Relay coil,
relay, auxiliary lamps*

7.5 A

59.

Main beam, left

7.5 A

60.

Seat heating (driver's side)

15 A

61.

Seat heating (passenger side)

15 A

62.

Sunroof*

20 A

09 Maintenance and service

Fuses

242

Option/accessory, for more information, see Introduction.

63.

Supply to rear right door

20 A

64.

Reserve

–

65.

Audio, Infotainment

5 A

66.

Audio, Infotainment, Climate
control system

10 A

67.

Reserve

–

68.

Cruise control

5 A

69.

Climate control system, Rain
sensor, Buttons for BLIS*,
parking assistance*, DRIVe

5 A

70.

Reserve

–

71.

Reserve

–

72.

Reserve

–

73.

Sunroof*, Overhead console
for interior lighting, Seatbelt
reminder, rear, Dimming, inte-
rior rearview mirror*

5 A

74.

Fuel pump

15 A

75.

Reserve

–

76.

Reserve

–

77.

Electrical socket cargo area,
Control module, accessories*

15 A

78.

Reserve

–

79.

Reversing lamp, Dimming,
interior rearview mirror (signal)

5 A

80.

Reserve

81.

Supply to rear left door

20 A

82.

Supply to front right door

25 A

83.

Supply to front left door

25 A

84.

Power seat, passenger

25 A

85.

Power seat, driver

25 A

86.

Interior lighting, cargo area
lighting, power seats, fuel
level display (2.0F)

5 A

10 Infotainment system

General

246

Option/accessory, for more information, see Introduction.

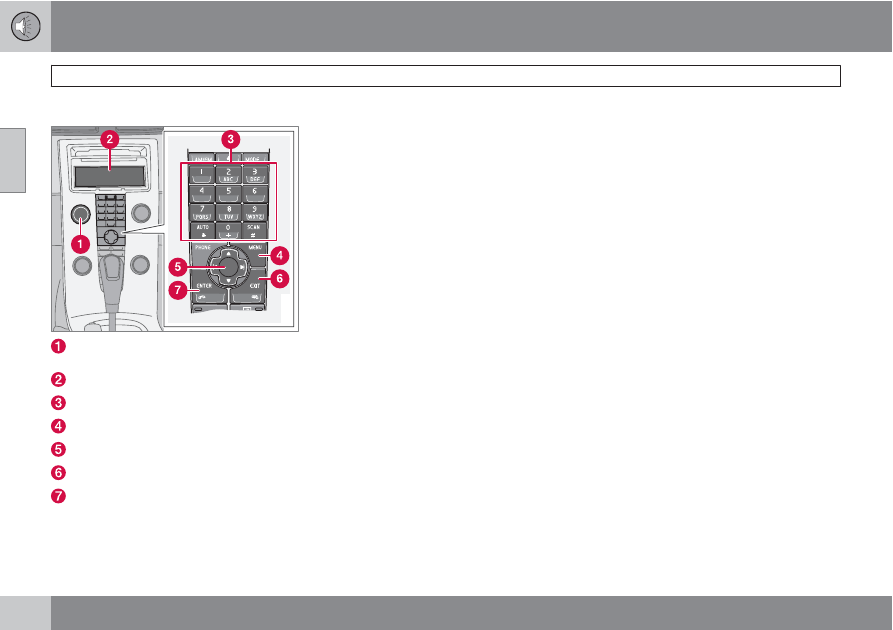

Infotainment system

G020245

POWER - Pushbutton, audio system on/
off

Display

Keypad

MENU - Goes to the menu system

Navigation buttons

EXIT - Exits the menu system

ENTER - Selects/activates/deactivates

Infotainment is a system that integrates the
audio system and phone*. The infotainment

system can be easily operated using the con-
trol panel or the steering wheel keypad*, see
page 71. The display (2) shows messages and
information on the current function.

Audio system

On/Off

POWER (1) starts/switches off the audio sys-
tem. If the audio system is active when the
remote control key is turned to position 0 then
it continues to be active until the remote control
key is removed from the ignition switch. The
audio system is started automatically the next
time the remote control key is turned to posi-
tion I.

Menus

Some infotainment system functions are con-
trolled via a menu system. The current menu
level is shown at the top right of the display.
Menu options are shown in the middle of the
display.

•

MENU (4) leads to the menu system.

•

Up/down with the navigation button (5)
moves between menu options.

•

ENTER (7) selects/activates/deactivates
one of the menu options.

•

EXIT (6) leads back one step in the menu
structure. A long press on EXIT will exit the
menu system.

Shortcuts

Menu options are numbered and can also be
selected directly with the keypad (3). So first
press MENU and then the figure/figures for the
desired menu option.

Equipment

The audio system can be equipped with differ-
ent options and different versions. There are
three audio system versions:

•

Performance,

•

High Performance* or

•

Premuim Sound*

However, FM radio with RDS, AM radio and CD
player are included in all audio systems.

10 Infotainment system

General

247

Dolby Surround Pro Logic II

Dolby Surround Pro Logic II

distributes the

two stereo audio channels to left, centre, right
and rear speakers. This provides a more real-
istic sound quality than that provided by stand-
ard two-channel stereo.

Dolby Surround Pro Logic II

and the Dolby

icon

are trademarks of Dolby Laboratories

Licensing Corporation.

Dolby Surround Pro Logic II System

is manu-

factured under license from Dolby Laboratories
Licensing Corporation.

Premium Sound.

10 Infotainment system

Audio functions

248

Option/accessory, for more information, see Introduction.

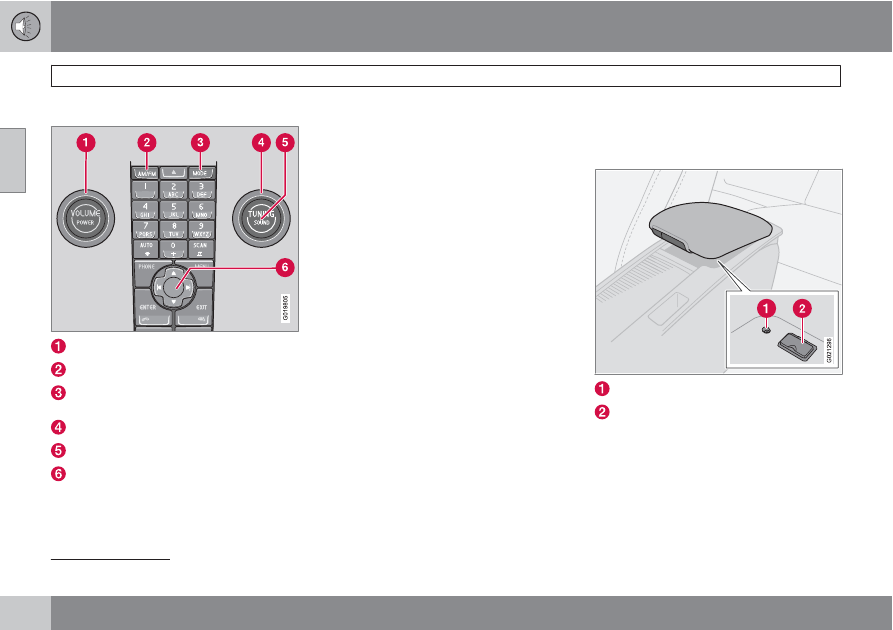

Audio controls

VOLUME - Knob

AM/FM – Audio source selection

MODE - Audio source selection, CD, AUX,
USB (e.g. iPod

)

and BT*

TUNING - Knob

SOUND - Button

Navigation button - Menus

Volume

Use VOLUME (1) or the steering wheel keypad
to regulate the volume, see page 71. Audio vol-

ume adjusts automatically depending on vehi-
cle speed, see page 251.

Audio source selection

Repeatedly pressing AM/FM switches
between FM1, FM2 and AM.

Repeatedly pressing MODE changes between
CD, USB, AUX and BT.

External audio sources

AUX, USB*

General

AUX input

USB input*

The AUX and USB inputs enable the connec-
tion of an external audio source, e.g. an
iPod

or MP3 player.

If you choose to connect an iPod

, MP3 player

or a USB memory stick to the USB connection
then you can control the media via the car's
audio controls.

USB only applies for High Performance and Premium Sound. The iPod trademark belongs to Apple Computer Inc.

10 Infotainment system

Audio functions

249

Use the MODE button to select the external
audio source you wish to use.

USB

is selected then

Connect device

shown in the display.

Connect your iPod

, MP3 player or USB

memory stick to the USB connection in the
centre console's storage compartment
(see preceding illustration).

> The text

Loading

appears on the dis-

play when the system loads the file
structure on the storage media. This
takes a while.

When the loading is finished the track informa-
tion is shown on the display and it is possible
to select the track required.

Track selection can take place in the following
three ways:

•

Select TUNING (4) clockwise or anticlock-
wise.

•

Use the right or left-hand button (6) of the
navigation control to scroll to the desired
track.

•

With the steering wheel keypad.

In USB or iPod

mode the infotainment system

operates in an equivalent way to the
CD player for playing back music files. For
more information, see page 258.

NOTE

The system supports the playback of music
files in the MP3, WMA and WAV file formats.
However, there are variants of these file for-
mats that are not supported by the system.
The system also supports most iPod

mod-

els produced in 2005 or later. iPod

Shuffle

is not supported.

USB memory

To facilitate the use of USB memory avoid stor-
ing any files other than music files in the mem-
ory. It takes considerably longer for the system
to load storage media that contains items other
than playable music files.

NOTE

The system supports removable media
which is compatible with USB 2.0 and the
FAT32 file system, and can handle a maxi-
mum of 500 folders and 64 000 files. The
memory must have a capacity of at least 256
Mb.

MP3 player

Many MP3 players have their own file systems
that are not supported by the audio system. For
use in the system, an MP3 player must be set
in

USB Removable device/Mass Storage

Device

mode.

iPod

An iPod

is charged and supplied with power

by the USB connection via the player's con-
nection cable. However, if the player's battery
is completely discharged then it must be
charged before the player is connected.

NOTE

When an iPod

is used as audio source, the

car's infotainment system has a menu
structure that is similar to the iPod

player's

own menu structure.

AUX

Sometimes the AUX external audio source can
be heard at a different volume to the internal
audio sources, e.g. the CD player. If the audio
volume of the external audio source is too high
then the sound quality can be impaired. Pre-
vent this by adjusting the input volume of the
AUX input.

NOTE

The sound quality may be impaired if the
player is charged while the audio system is
in AUX mode, so avoid charging the player.

Content .. 11 12 13 14 ..
