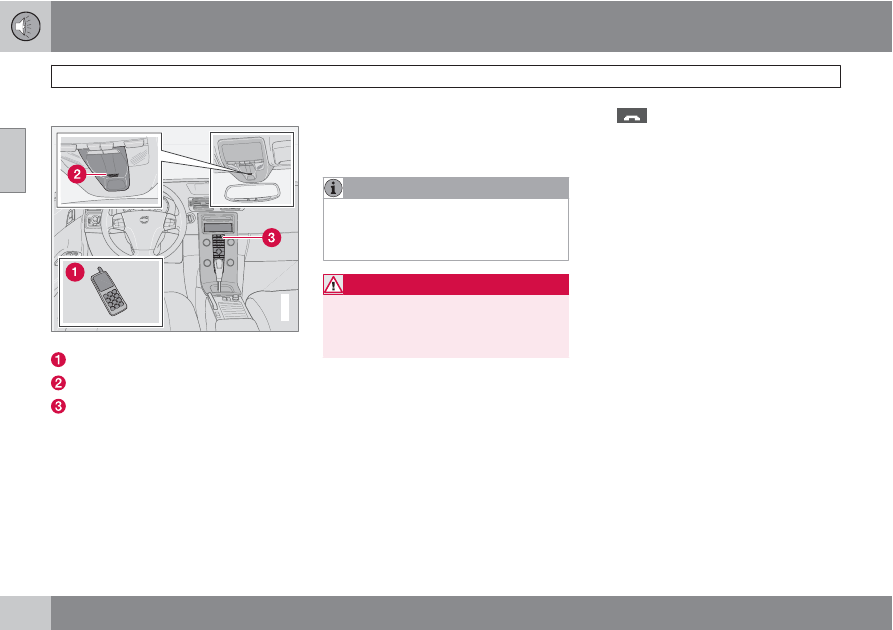

Introduction

G029503

System overview

Cell phone

Location of the microphone

Center console control panel and display

Bluetooth

hands-free

This feature makes it possible to set up a wire-
less connection between a Bluetooth

-ena-

bled cell phone and the vehicle’s audio system.
This enables the audio system to function as a
hands-free connection and allows you to
remote-control a number of the phone’s func-
tions. The microphone used by this system is
located in the ceiling console (2). The buttons

and other controls on the cell phone can
always be used regardless of whether or not
the phone is connected to the hands-free sys-
tem.

NOTE

Not all cell phones are fully compatible with
the hands-free system. A list of compatible
phones is available at your Volvo retailer or
at www.volvocars.us

WARNING

Never use the hands-free feature or any
other device in your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident.

Getting started

Use the controls in the center console (3) to
access, navigate and make selections in the
hands-free system’s menus (see page 260).

Activating/deactivating

A short press on the PHONE button in the cen-
ter console activates the hands-free system.
The text

TELEPHONE

will appear at the top of

the display to indicate that the audio system is
in telephone mode.

The

symbol indicates that the hands-free

system is active.

A long press on the PHONE button deactivates
the hands-free system and disconnects the
cell phone.

Connecting cell phones

The procedure for connecting a cell phone var-
ies, depending on the phone itself, and on
whether or not the phone has been previously
connected.

If this is the first time the phone is to be con-
nected to the hands-free system, proceed as
follows:

Alternative 1–using the vehicle's menus

Activate the cell phone’s Bluetooth

func-

tion (refer to the phone’s owner’s manual if
necessary) or go to www.volvocars.com

Activate the vehicle’s Bluetooth

hands-

free system by briefly pressing the
PHONE button.

Add phone

will be displayed. If one or

more cell phones are already registered
in the system, they will also be dis-
played.

Select

Add phone

10 Audio

Bluetooth

hands-free connection

257

> The audio system will search for cell

phones that are in range. This search
takes approximately 30 seconds. Any
phones detected will be displayed with
their Bluetooth

names. The hands-free

system’s Bluetooth

name will appear

in the cell phone’s display as

My Car

Select one of the cell phones shown in the
audio system’s (center console) display.

Using the cell phone’s keypad, enter the
digits shown in the audio system’s display.

Alternative 2–using the cell phone’s menus

Activate the hands-free system by briefly
pressing the PHONE button in the center
console. If there is a cell phone connected,
disconnect it from the hands-free system
(by pressing PHONE in the center console
for several seconds).

Perform a search using the cell phone’s
Bluetooth

function (consult the cell

phone’s owner’s manual if necessary).

Select

My Car

in the list of devices shown

in the cell phone’s display.

When prompted, enter the PIN code 1234
in the cell phone.

Connect to

My Car

from the cell phone.

The cell phone will be registered and will be
connected automatically to the audio system
while the text

Synchronising

is displayed. For

more information on synchronizing a cell
phone, see page 259.

When a connection has been established, the

symbol and the cell phone’s Bluetooth

name will be displayed. The cell phone can
now be controlled from the audio system.

Making a call

Ensure that

TELEPHONE

is shown at the

top of the center console display and that
the

symbol is visible (by pressing briefly

on PHONE on the center console).

Dial the desired phone number or use the
phone book (see page 259).

Press ENTER.

End the call by pressing EXIT.

Disconnecting the cell phone

The cell phone is automatically disconnected
from the audio system if it is moved out of
range. For more information about connec-
tions, see page 256.

The cell phone can be manually disconnected
from the hands-free system by pressing
PHONE. The hands-free system is also deac-
tivated when the ignition is switched off (or if

the driver’s door is opened on vehicles equip-
ped with the optional keyless drive).

When the cell phone is disconnected from the
hands-free system, a call in progress can be
continued using the cell phone’s own speaker
and microphone.

NOTE

Certain cell phones may require confirma-
tion from the phone’s keypad when a call is
transferred from hands-free to the cell
phone.

Handling calls

Incoming calls

Press ENTER to answer a call, even if the
audio system is currently in e.g., CD or FM
mode.

Press EXIT to defer a call.

Automatic answer

This function means that incoming calls will be
answered automatically. Activate or deactivate
the function in the menu system under

Phone

settings

Call options

Automatic

answer

10 Audio

Bluetooth

hands-free connection

258

Call settings

While a call is in progress, press MENU or
ENTER on the center console to access the
following functions:

•

Microphone off

–mute the audio system’s

microphone.

•

Transfer call to mobile

–transfer the call

from hands-free to the cell phone.

•

Phone book

–this feature enables you to

search for a stored telephone number.

NOTE

•

On certain cell phones, the connection
is broken when the mute function is
used, which is normal. If this happens,
the hands-free system will prompt you
to reconnect.

•

A new call cannot be initiated while
another call is in progress.

Sound settings

Call volume

Call volume can be adjusted when the hands-
free system is activated. Use the buttons in the
steering wheel keypad or the audio system’s
volume control.

Audio system volume

While a phone call is in progress, volume for
the audio system can be adjusted in the normal
way with the audio system's volume control. In
order to adjust volume during a phone call, the
audio system must be switched to one of the
other modes (FM, CD, etc).

Audio system sound can be automatically
muted when a phone call is received in

Phone

settings

Sounds and volume

Mute

radio

and adjust the volume with the

keys on the center console.

Ringing volume

Go to

Phone settings

Sounds and volume

Ring volume

and adjust the volume with

the

keys on the center console.

Ringing tones

The hands-free system’s integrated ringing
tones can be selected in

Phone settings

Sounds and volume

Ring signal

Ring

signal 1,2,3....

NOTE

The connected cell phone’s ring tone is not
switched off when one of the hands-free
system's ringing tones is used.

If you prefer to use the connected cell phone’s
ring tone

, go to

Phone settings

Sounds

and volume

Ring signal

Use mobile

phone signal

More information about registering
and connecting cell phones

A maximum of 5 cell phones can be registered
in the hands-free system. Registration only
needs to be done once for each phone. After
registration, the cell phone no longer needs to
be in sight or searchable. Only one cell phone
can be connected to hands-free at a time.
Phones can be unregistered in

Bluetooth

Remove telephone

Automatic connection

When the hands-free system is active and the
most recently connected cell phone is within
range, it is detected automatically. When the

Not supported by all cell phones.

10 Audio

Bluetooth

hands-free connection

259

audio system searches for the most recently
connected phone, this phone’s name appears
in the display. To manually connect a different
cell phone, press EXIT.

Manual connection

To connect a phone other than the one that
was most recently connected or to switch
between cell phones that are already regis-
tered in the hands-free system:

Put the audio system in telephone mode.

Press PHONE in the center console and
select one of the phones on the list.

A connection can also be established in the
menu system under

Bluetooth

Connect

phone

Change phone

Phone book

In order to use the hands-free system’s phone
book (list of contacts),

TELEPHONE

must be

displayed at the top of the center console dis-
play and the

symbol must be visible.

The audio system stores a copy of the phone
book of each registered cell phone. The phone
book is automatically copied each time a
phone is connected. This function can be acti-
vated in

Phone settings

Synchronise

phone book

. Searches for contacts are only

made in the phone book of the currently con-
nected cell phone.

NOTE

If a particular cell phone does not support
copying of the phone book,

List is empty

will be displayed when copying has been
completed.

If the phone book contains information about
someone who is trying to call you, this infor-
mation will be shown in the display.

Searching for contacts

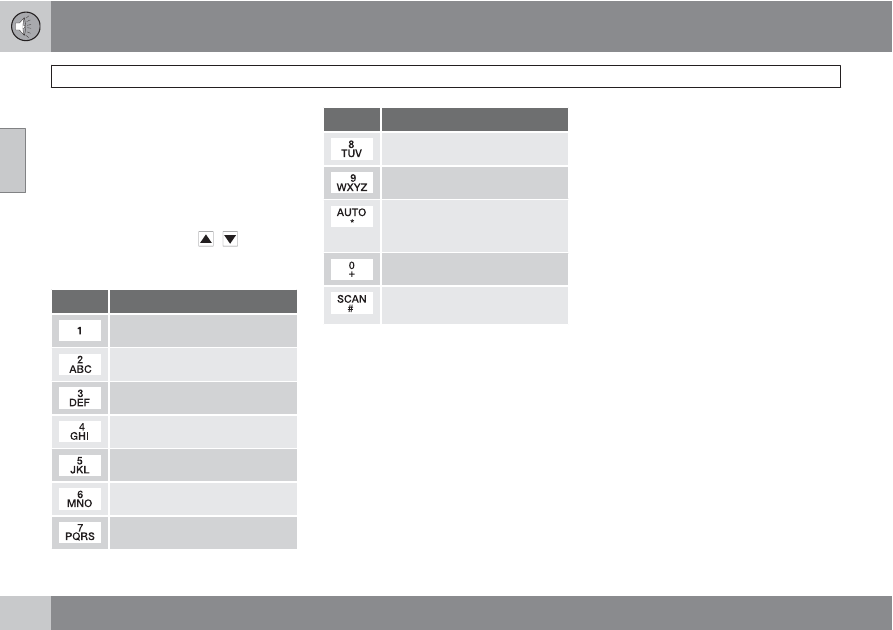

The easiest way to search for a contact in the
phone book is to press and hold any of the
buttons 2–9 (see the illustration on page 256).
This starts a search based on the first letter on
the button that has been pressed.

The phone book can also be accessed by
pressing the navigation buttons

on the

center console or by pressing

on the

steering wheel keypad. A search can also be
made in the phone book’s search menu in

Phone book

Search

Enter the first letter of the contact’s name
and press ENTER or simply press ENTER.

Select the desired contact and press
ENTER to make a call to that person.

Voice control

If the cell phone that is currently connected
allows calls to be made via voice commands,
this function can be used by pressing and hold-
ing ENTER.

Voice mail number

The phone number to your voice mail can be
changed in the menu

Phone settings

Call

options

Voice mail number

. If no number

has been stored, this menu can be accessed
by a prolonged press on button 1. Once a
phone number has been stored, press and
hold 1 to dial this number.

Call lists

Lists of calls in a particular cell phone are cop-
ied to the hands-free system each time that
phone is connected. These lists are then upda-
ted while the phone is connected. Press
ENTER to show the most recently dialed num-
bers. Other call lists can be found under

Call

register

NOTE

Certain cell phones display the list of the
most recently dialed numbers in reverse
order.

10 Audio

Bluetooth

hands-free connection

260

Entering text

Text is entered by using the number buttons in
the center console. Press a button once to
enter the first letter on the button, twice to enter
the second letter, etc. Continue to press the
button to display other characters.

Press EXIT briefly to erase a character. Press
and hold EXIT to erase all of the characters that
have been entered. Use the

buttons on

the center console to navigate among the char-
acters.

Button

Function

Space

.1-? ! , : " ' ( )

A B C 2 Ä Å À Æ Ç

D E F 3 È É

G H I 4 Ì

J K L 5

M N O 6 Ñ Ö Ò Ø

P Q R S 7 ß

Button

Function

T U V 8 Ü Ù

W X Y Z 9

Press briefly if two characters are
to be entered in succession from
the same button.

+ 0 @ * # & $ £ / %

Shift between uppercase and
lowercase letters

Bluetooth

menus

Missed calls

Received calls

Dialed calls

Phone book

4.1.

4.2.

Copy fr. mobile phone

Bluetooth...

5.1.

Change phone

5.2.

Connect phone

5.3.

Disconnect phone

5.4.

Connect fr. mobile phone

Phone settings

6.1.

Call options

6.1.2.

Automatic answer

6.1.3.

Voice mail number

6.2.

Sounds and volume

6.3.

IDIS

6.4.

Synchronize phone book

11 Specifications

Label information

264

11 Specifications

Label information

265

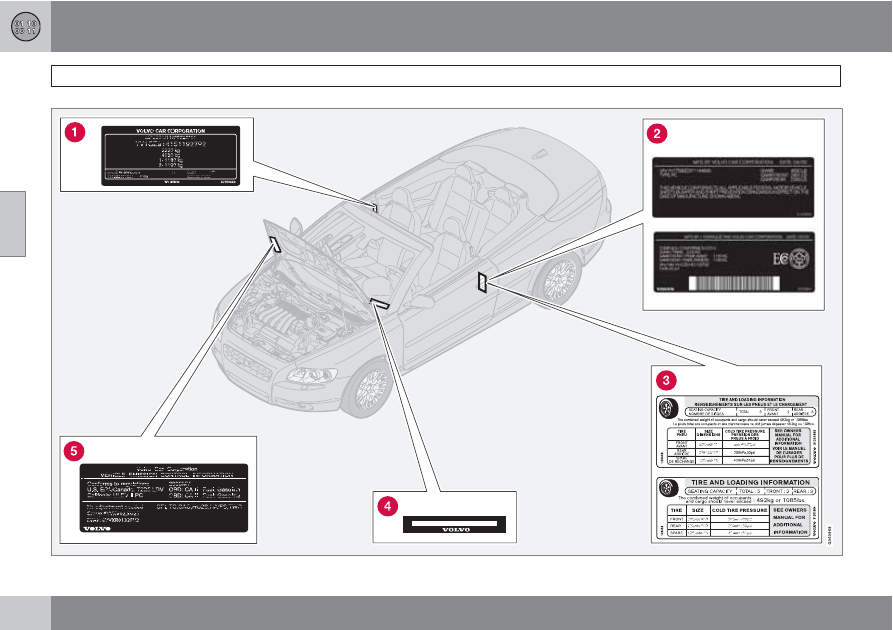

Model plate

Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.

Federal Motor Vehicle Safety

Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)

Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.

Loads and Tire Pressures

The appearance of the decal will vary, depend-
ing on the market for which the vehicle is
intended.

Canadian models have the upper decal.

U.S. models have the lower decal.

Vehicle Identification Number (VIN)

The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.

Vehicle Emission Control Information

Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.

The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 Specifications

Dimensions and weights

266

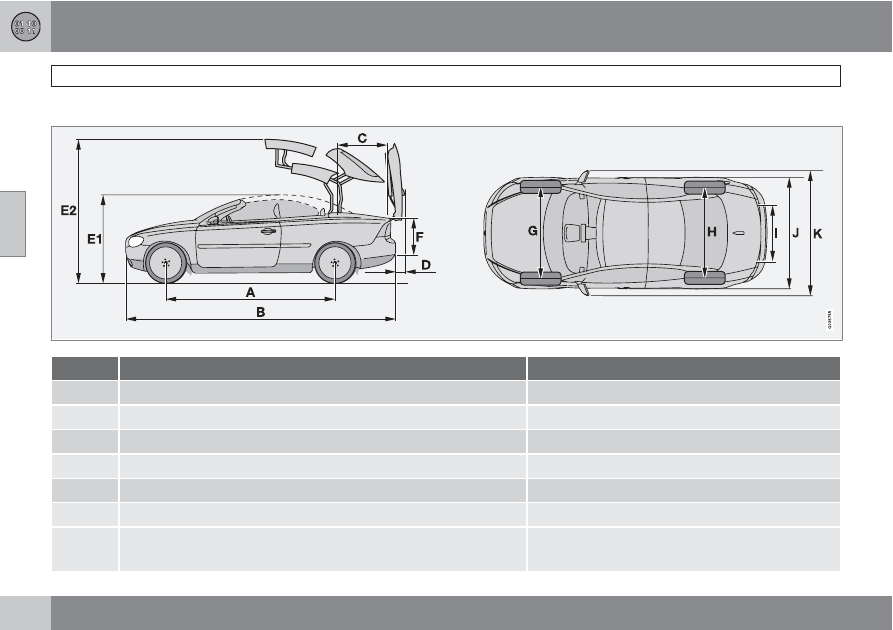

Dimensions

Position

Dimension

Wheelbase

103.9 in. (264 cm)

Length

175.9 in. (447 cm)

Load length, floor

33.5 in. (85 cm)

Trunk lid up

7.9 in. (20 cm)

Height

57.2 in. (145 cm)

Height

78.7 in. (200 cm)

Load height, roof up

Load height, roof down

20.4 in. (52 cm)

10.2 in. (26 cm)

11 Specifications

Dimensions and weights

267

Position

Dimension

Track, front

60.1 in. (155 cm)

Track, rear

61.4 in. (156 cm)

Load width, floor

28 in. (71 cm)

Width

72.3 in. (184 cm)

Width encl. door mirrors

79.6 in. (202 cm)

Weights

Category

USA

Canada

Gross vehicle weight

Manual: 4540 lbs

Automatic: 4560 lbs

2060 kg

2070 kg

Capacity weight

All models: 640 lbs

290 kg

Permissible axle weight, front

All models: 2440 lbs

1110 kg

Permissible axle weight, rear

All models: 2370 lbs

1075 kg

Curb weight

All models: 3770–3800 lbs

1710–1725 kg

Max. trailer weight (w/o brakes)

All models: 1540 lbs

All models: 700 kg

Max. trailer weight (with brakes)

All models: 2000 lbs

All models: 900 kg

Max. tongue weight

All models: 165 lbs

All models: 75 kg

11 Specifications

Dimensions and weights

268

CAUTION

The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.

WARNING

When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications

Fuel, oils, and fluids

269

Specifications and capacities

Category

Specification

Capacity

Fuel tank

Octane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.

15.9 US gallons (60 liters)

Engine oil (with filter replacement)

See page 271 for information on engine oil
specifications.

6.1 US quarts (5.8 liters)

Automatic transmission oil

JWS 3309

8.14 US quarts (7.7 liters)

Manual transmission oil

BOT 350 M3

6-speed: 2.0 US quarts (1.9 liters) – turbo models

Coolant

Volvo original coolant/antifreeze (50/50 mix-
ture of water and anti-freeze)

10.5 US quarts (10 liters) – models with automatic
transmission

10 US quarts (9.5 liters) – models with manual trans-
mission

Brake fluid

DOT 4+ boiling point >536 °F (280 °C), P/N
9437433

0.63 US quarts (0.6 liters)

Power steering fluid

WSS M2C204-A or equivalent

1.3 US quarts (1.2 liters) – system and reservoir com-
bined

Washer fluid reservoir

Use washer fluid solvent in cold weather con-
ditions.

6.8 US quarts (6.5 liters)

Air conditioning system

Refrigerant – R134a

1.2 lbs. (530 grams)

11 Specifications

Fuel, oils, and fluids

270

NOTE

The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).

11 Specifications

Engine oil

271

Oil specifications

Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.

Volume: 6.1 US qts (5.8 liters).

Volume between the MIN and Max marks on
the dipstick: approximately 1.4 US qts (1.3 lit-
ers).

Volvo recommends Castrol.

Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer or a trained and qualified Volvo service
technician for recommendations on premium
or synthetic oils.

Oil additives must not be used.

NOTE

Synthetic oil is not used when the oil is
changed at the normal service intervals.
This oil is only used at customer request, at
additional charge. Please consult a trained
and qualified Volvo service technician.

Oil viscosity

Incorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide

good fuel economy and engine protection. See
the viscosity chart.

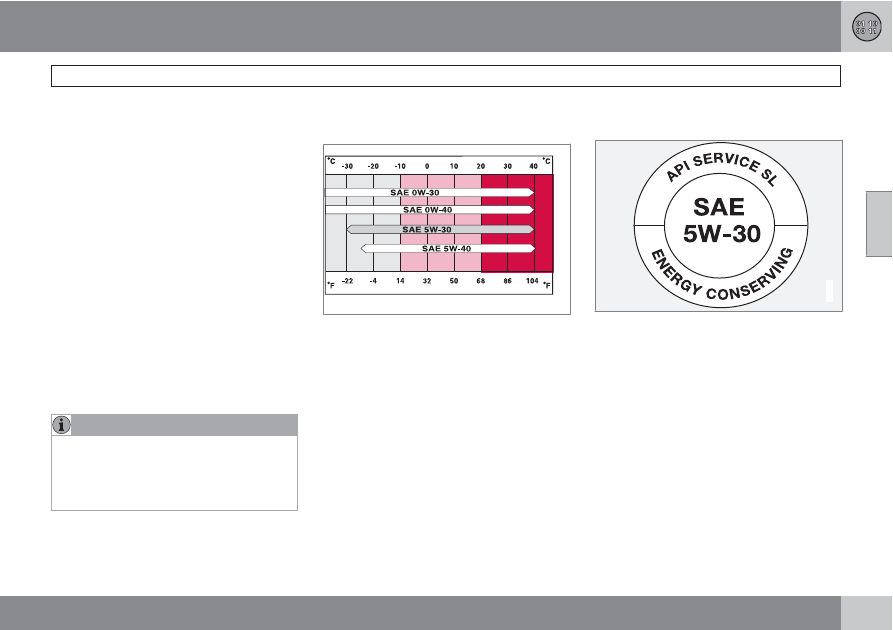

G023491

Viscosity chart

Extreme engine operation

Synthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.

American Petroleum Institute (API)
symbol

G022917

The API Service Symbol "donut" is divided into
three parts:

•

The upper section describes the oil's per-
formance level.

•

The center identifies the oil's viscosity.

•

The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

11 Specifications

Engine specifications

272

Engine designation

B5254T7

Output

kW/rps

hp/rpm

169/83

227/5000

Torque

Nm/rps

ft. lbs./rpm

320/25-80

236/1500-4800

No. of cylinders

Displacement (liters/cubic inches)

2.52/153.8

Bore (mm/in.)

83/3.27

Stroke (mm/in.)

93.2/3.67

Compression ratio

9.0:1

Spark plugs

type

gap inches/mm

tightening torque ft. lbs./Nm

Volvo kit no. 30650379

0.027 in./0.7mm

22.5 ft. lbs./30 Nm

The engine specifications for output and torque listed in this table are based on the use of premium fuel.

Charge air cooler (Intercooler)

Turbocharged engines employ a turbo-com-
pressor to force air into the engine inlet mani-
fold and a charge air cooler to cool the com-

pressed inlet air. The resulting increase in air
flow raises pressure in the intake manifold and
increases engine power over that developed by
the normally-aspirated engine. The charge air

cooler (which resembles a radiator) is located
between the turbo-compressor and inlet mani-
fold.

11 Specifications

Engine specifications

273

Fuel system

The engine is equipped with a multiport fuel
injection system.

Content .. 13 14 15 16 ..
