Volvo 50-42LE transmission. Service manual - part 22
AUTOMATIC TRANSMISSION SERVICE GROUP
Technical Service Information
87
1. LOWER VALVE BODY
2. C2 ACCUMULATOR PISTON
3. C2 ACCUMULATOR SPRING (INNER)
4. C2 ACCUMULATOR SPRING (OUTER)
5. C2 ACCUMULATOR VALVE
6. C2 ACCUMULATOR VALVE SPRING
7. B2 ACCUMULATOR PISTON
8. B2 ACCUMULATOR SPRING (INBOARD)
9. B2 ACCUMULATOR SPRING (OUTBOARD)
10. B2 ACCUMULATOR VALVE
11. B2 ACCUMULATOR SPRING
12. ACCUMULATOR CONTROL VALVE
13. ACCUMULATOR CONTROL VALVE SPRING
14. SECONDARY REGULATOR VALVE
15. SECONDARY REGULATOR VALVE SPRING
16. SECONDARY REGULATOR VALVE BORE PLUG
17. SECONDARY REGULATOR VALVE RETAINER
18. COVER PLATE GASKET
19. COVER PLATE
20. COVER PLATE BOLTS (7)

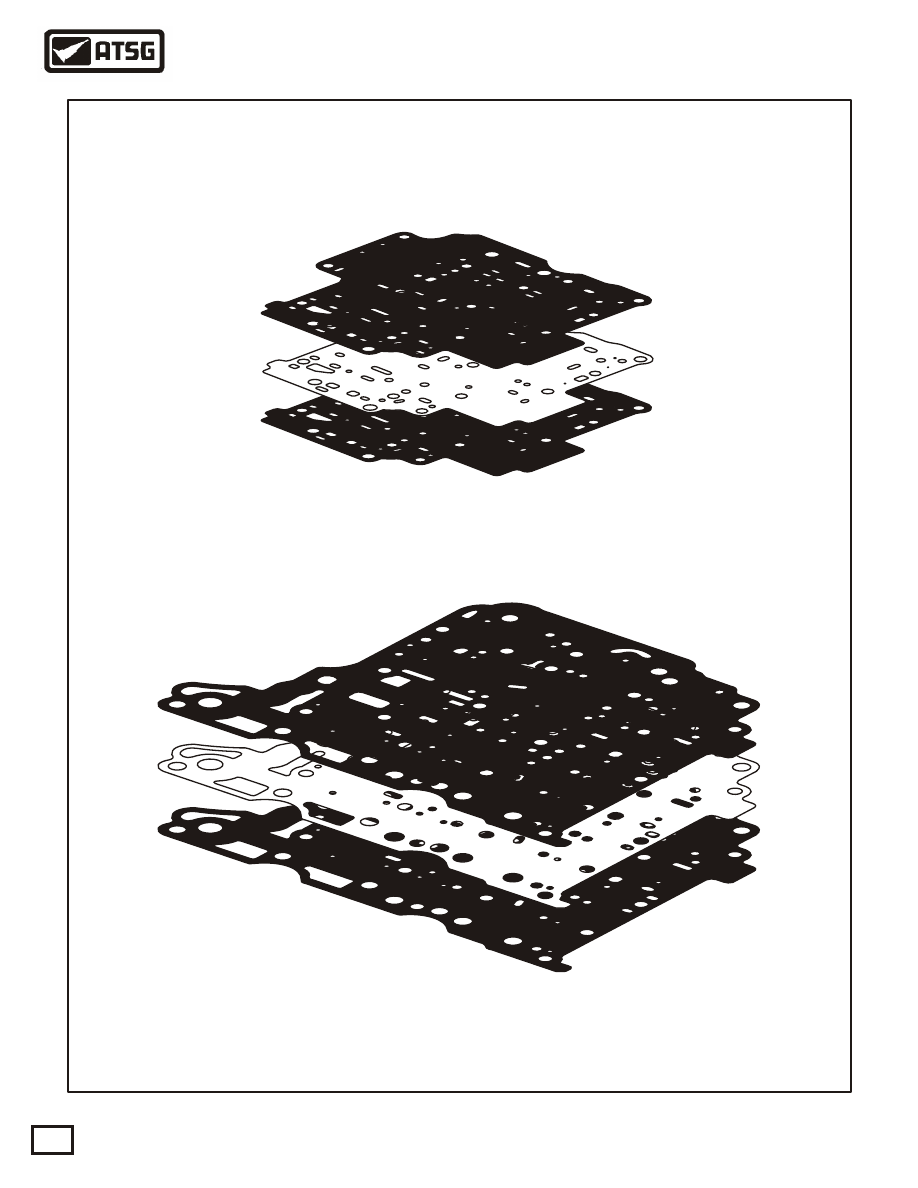

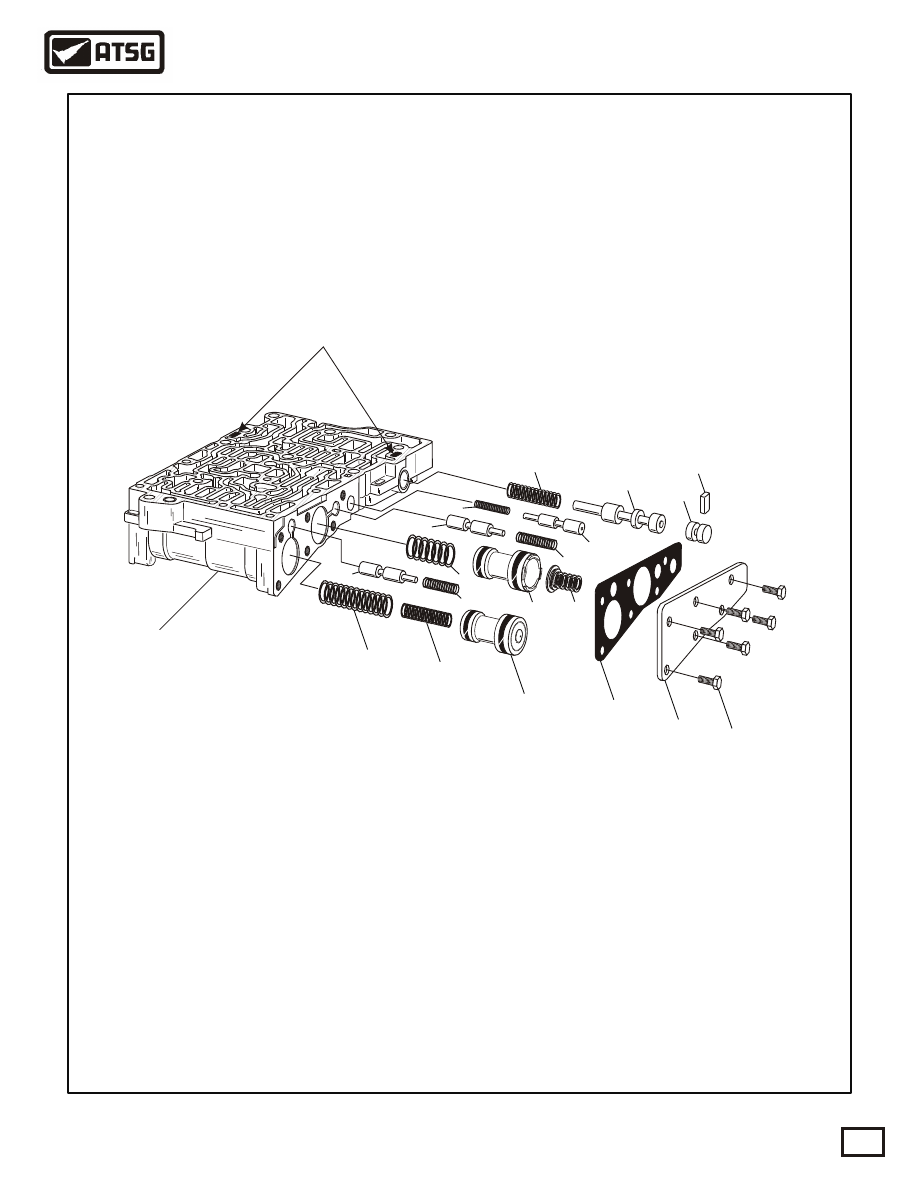

Figure 226
LOWER VALVE BODY "REAR" SIDE
VALVE IDENTIFICATION AND LOCATIONS
1
4
3
2
18
19
20
6
5
9
7
8
10
11
12
13
17
16
14
15
Retainer
Locations
