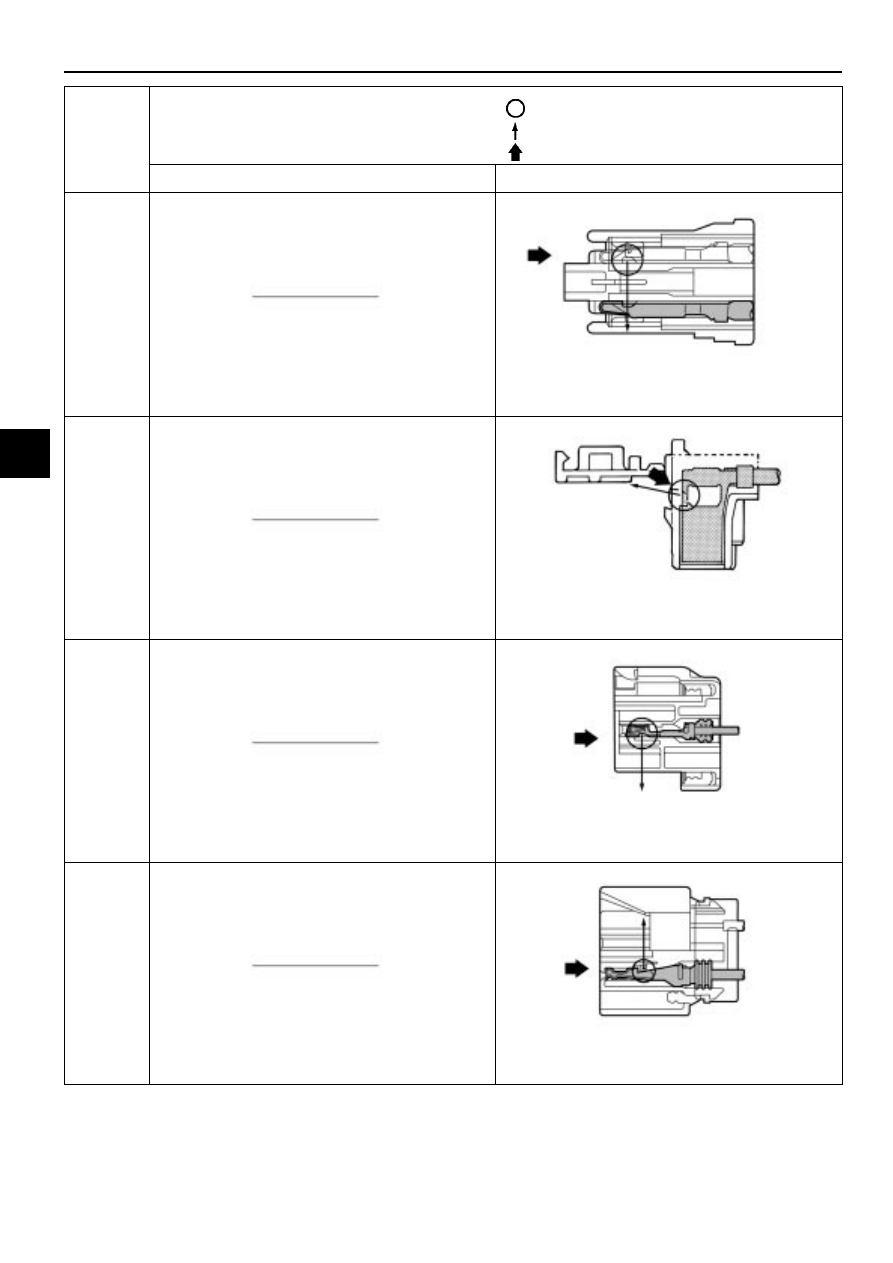

TABLE OF HOUSING CROSS SECTION

C–9

72

Wire Harness Repair Manual (RM1022E)

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

FOG–
LP

90980–10481

[Housing Lance]

(Double Lock Type)

FTC

[Housing Lance]

(Double Lock Type)

HEAD
LAMP

Waterproof
Type

90980–10579

[Housing Lance]

HB3
HB4

90980–11095

[Housing Lance]

C

C–10

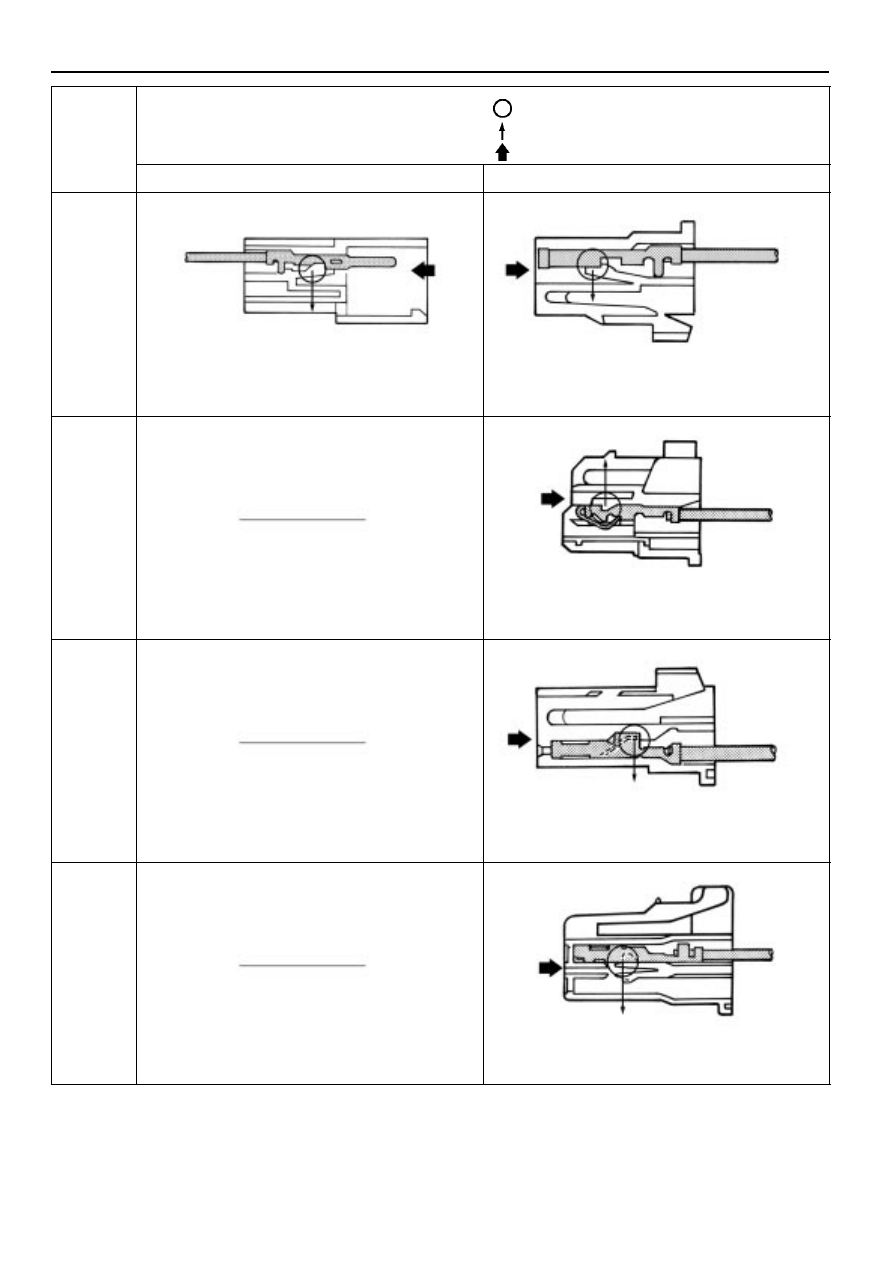

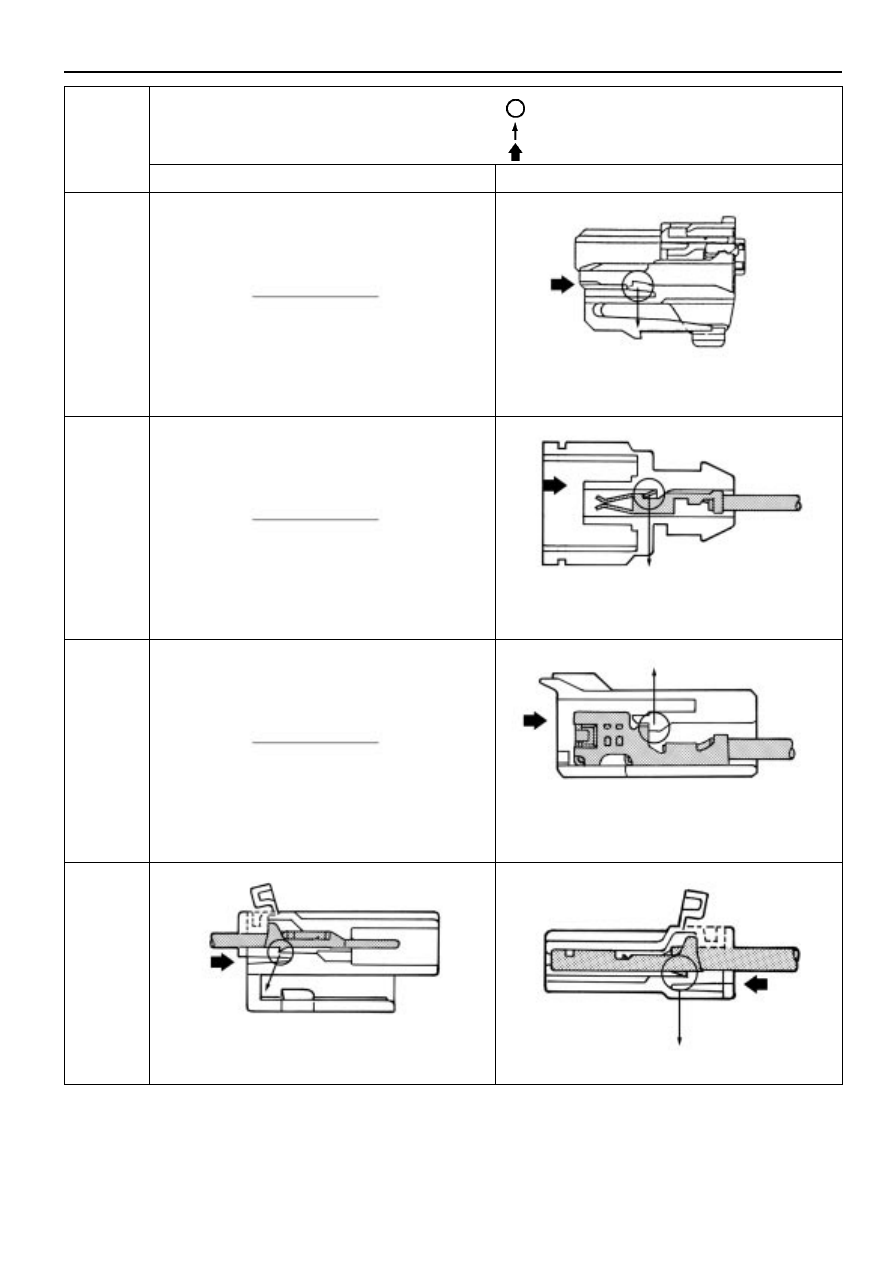

TABLE OF HOUSING CROSS SECTION

Wire Harness Repair Manual (RM1022E)

73

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

LAC

[Housing Lance]

[Housing Lance]

MFPC

[Housing Lance]

MIC

[Terminal Lance]

PULSE
LOCK

[Housing Lance]

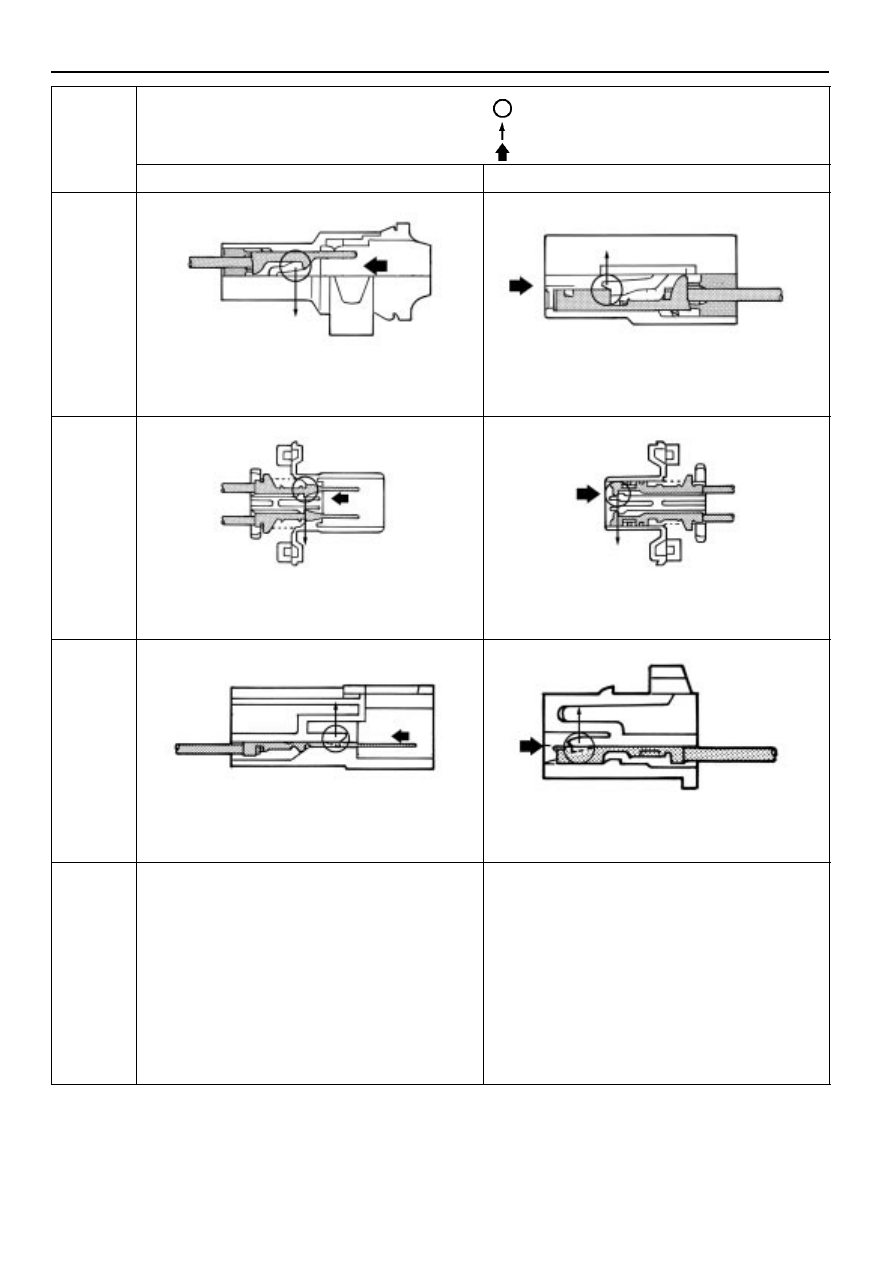

TABLE OF HOUSING CROSS SECTION

C–11

74

Wire Harness Repair Manual (RM1022E)

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

SFPC

[Housing Lance]

SL

[Terminal Lance]

SP

[Housing Lance]

TLC

Non–
waterproof
Type

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

C–12

TABLE OF HOUSING CROSS SECTION

Wire Harness Repair Manual (RM1022E)

75

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

TLC

Waterproof
Type

[Housing Lance]

[Housing Lance]

TNS

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

TODC

[Housing Lance]

(Double Lock Type)

[Housing Lance]

TABLE OF HOUSING SHAPE

D–1

76

Wire Harness Repair Manual (RM1022E)

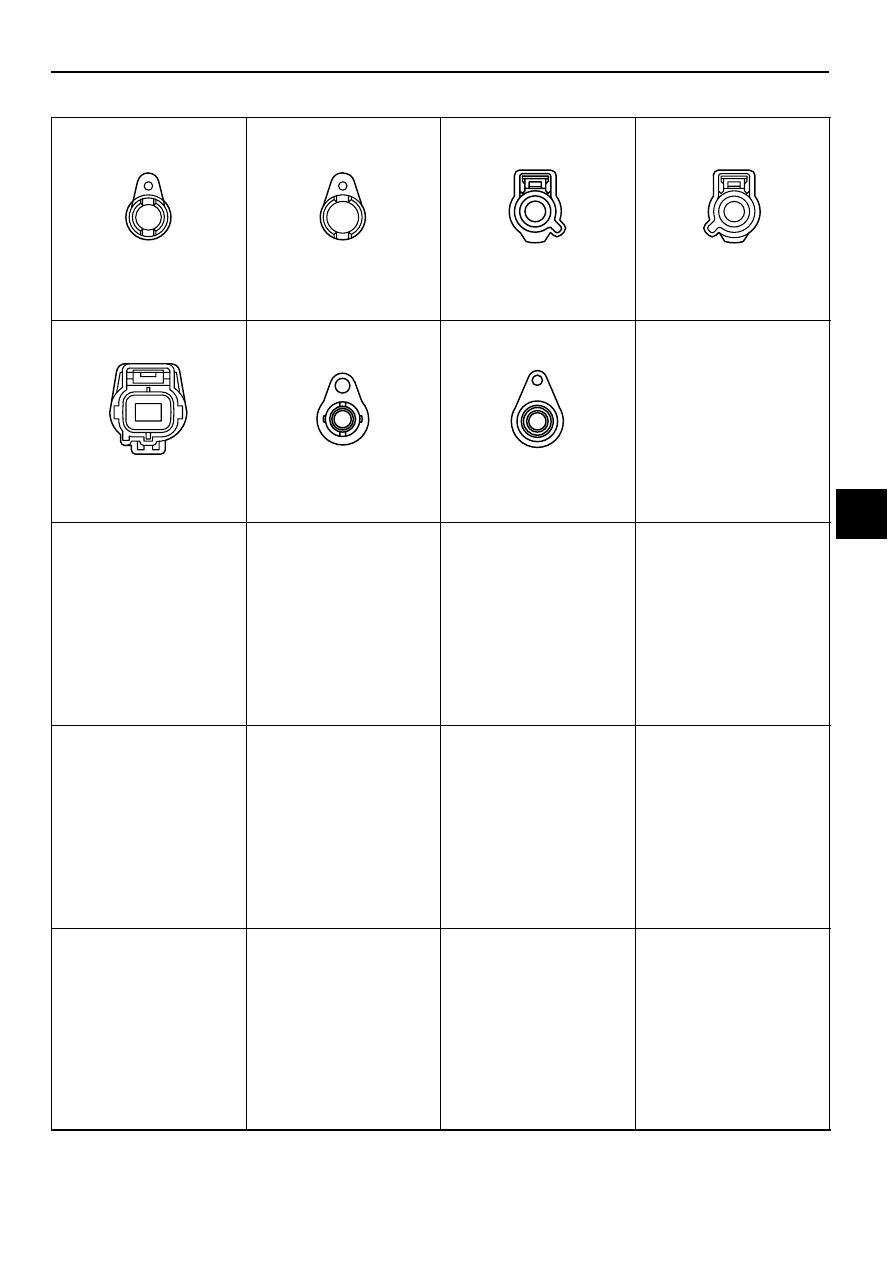

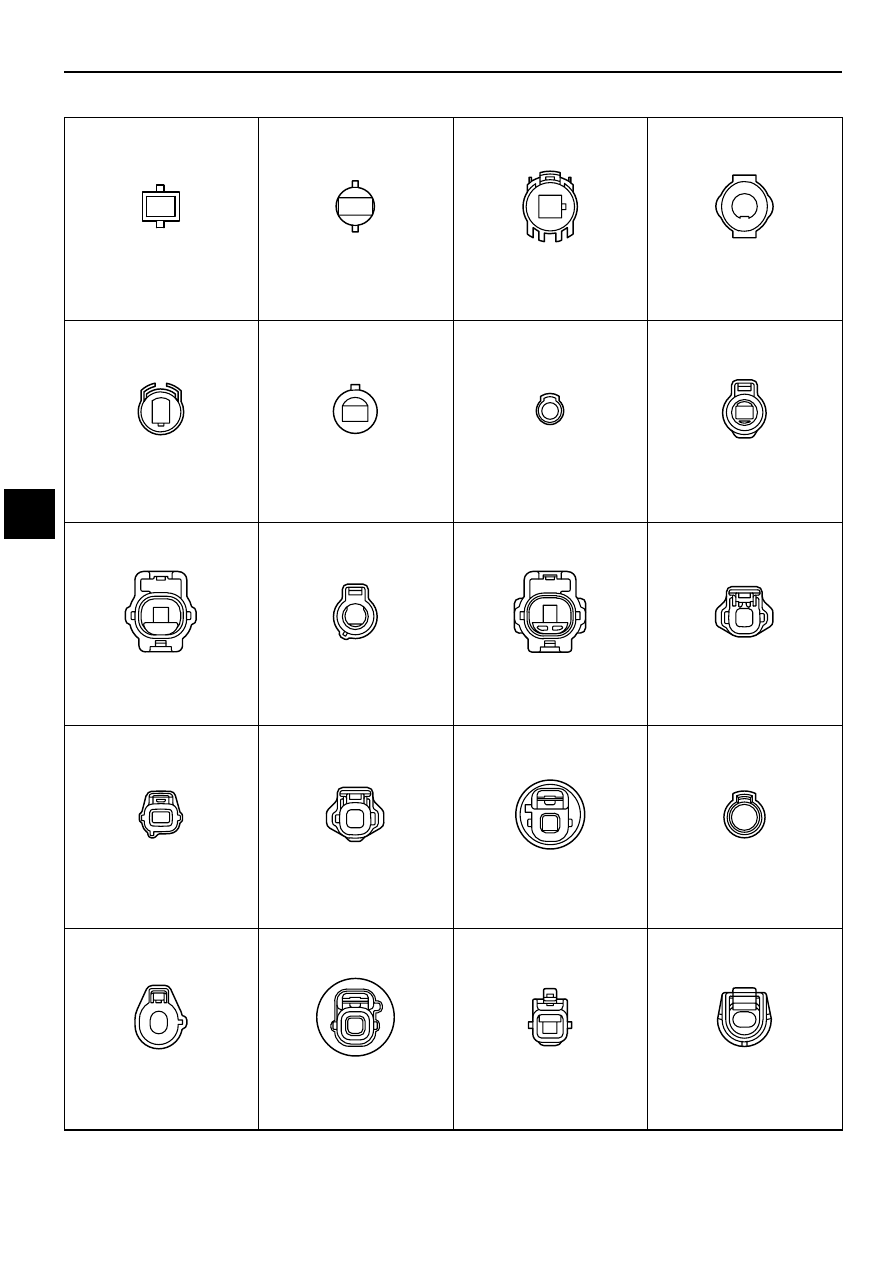

<FEMALE> 1P Waterproof Type

1

1

1

1

90980–10090

90980–10115

90980–10197

90980–10201

1

90980–10247

1

1

1

90980–10241

90980–10705

90980–10439

90980–10837

1

1

1

1

90980–10893

90980–10983

90980–11007

90980–11166

1

1

1

1

90980–11184

90980–11243

90980–11252

90980–11271

1

1

1

1

90980–11282

90980–11363

90980–11400

90980–11428

D

D–2

TABLE OF HOUSING SHAPE

Wire Harness Repair Manual (RM1022E)

77

<FEMALE> 1P Waterproof Type

1

1

1

1

90980–11941

90980–11942

90980–11943

90980–11944

1

1

1

90980–12129

90980–11963

90980–12125

90980–12136

D

TABLE OF HOUSING SHAPE

D–3

78

Wire Harness Repair Manual (RM1022E)

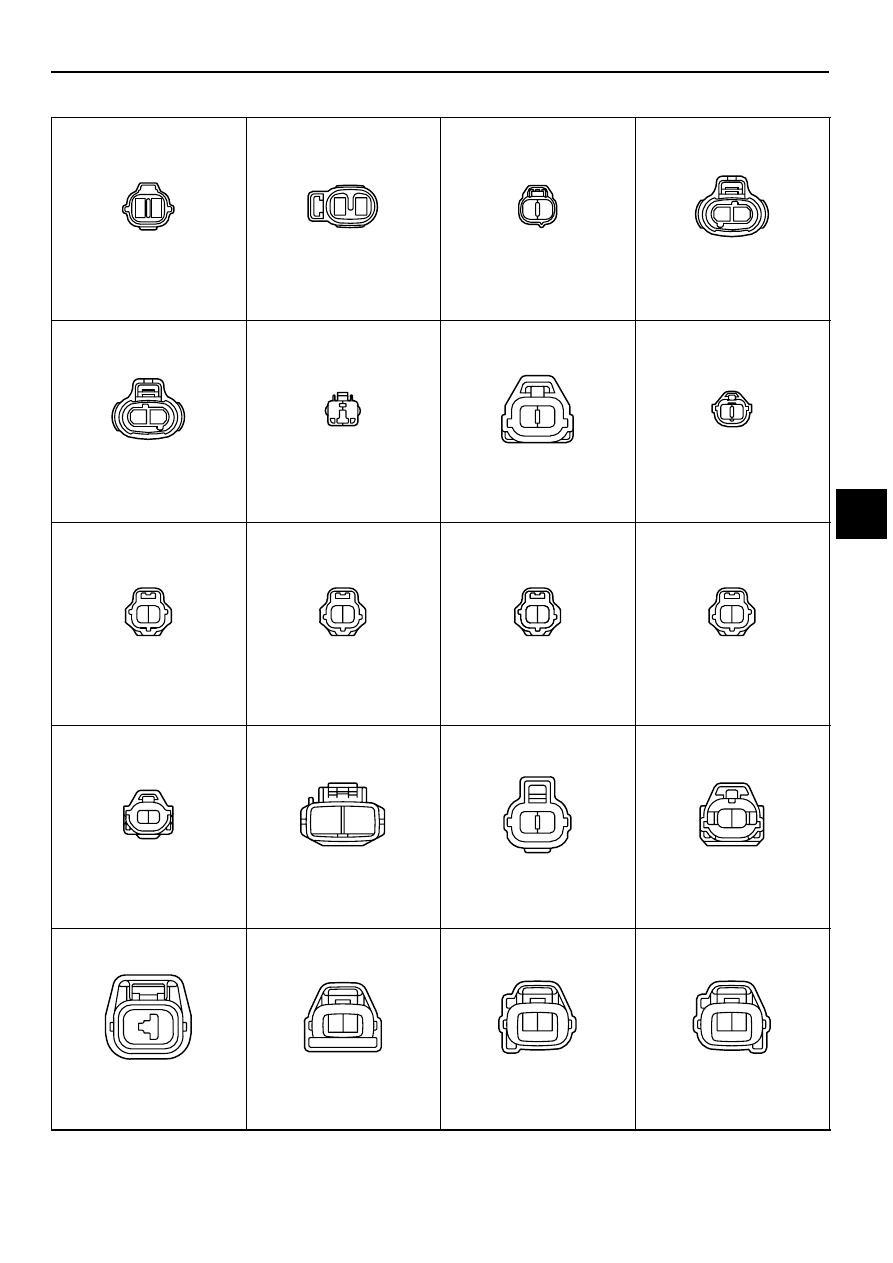

<FEMALE> 2P Waterproof Type

1

2

1

2

1

2

1
2

90980–10092

90980–10123

90980–10157

90980–10184

1 2

1

2

1

2

1 2

90980–10193

90980–10243

90980–10474

90980–10496

1 2

90980–10498

1 2

1

2

1 2

90980–10706

90980–10532

90980–10534

90980–10556

1

2

1 2

1

2

1 2

90980–10567

90980–10572

90980–10576

90980–10578

1

2

1

2

1 2

1

2

90980–10581

90980–10583

90980–10593

90980–10595

D

D–4

TABLE OF HOUSING SHAPE

Wire Harness Repair Manual (RM1022E)

79

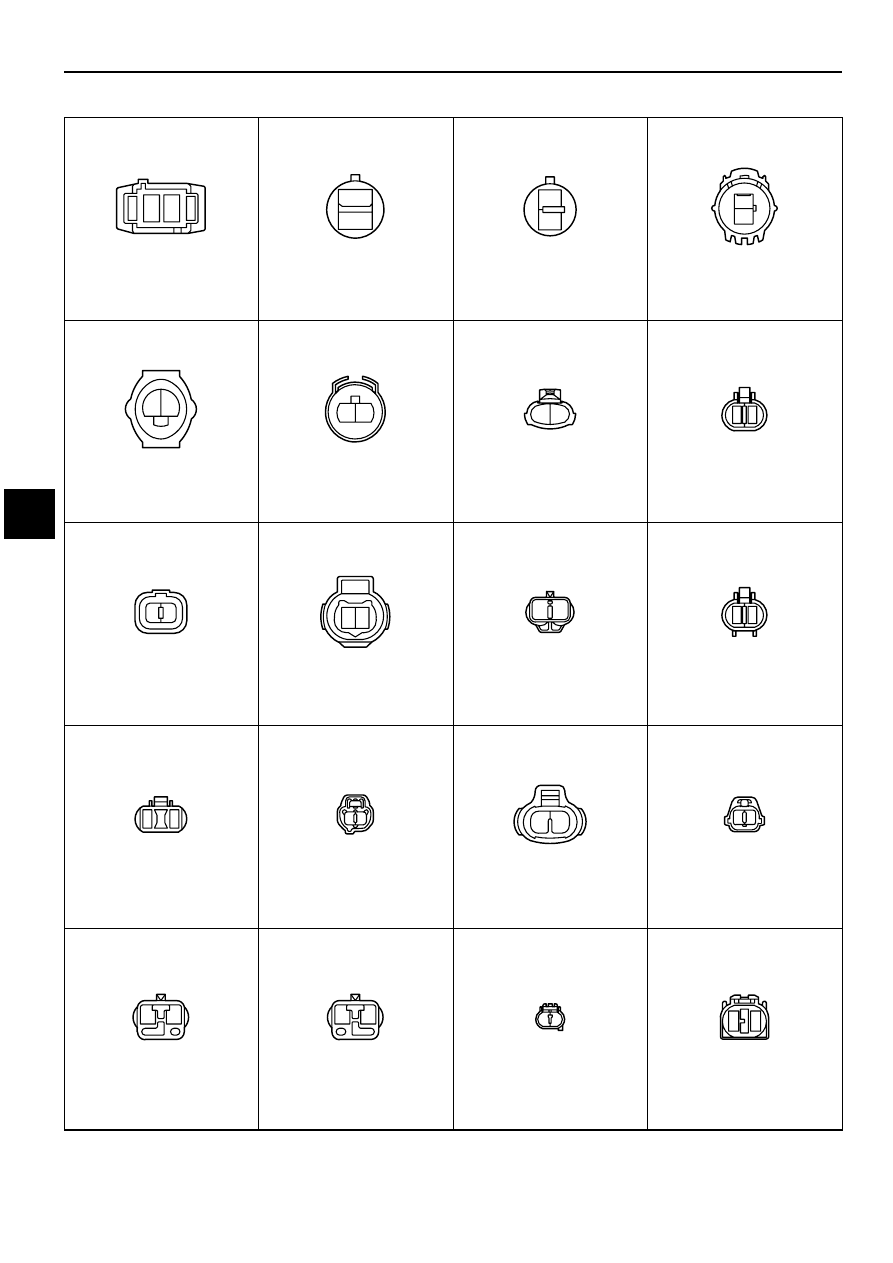

<FEMALE> 2P Waterproof Type

1 2

1

2

1 2

1 2

90980–10598

90980–10609

90980–10617

90980–10622

1 2

1

2

1

2

1 2

90980–10623

90980–10626

90980–10702

90980–10720

2

1

2

1

2

1 2

1

2

1

90980–10734

90980–10735

90980–10736

90980–10737

1 2

90980–10748

1

2

1 2

1 2

90980–10846

90980–10839

90980–10843

90980–10847

1

2

1 2

1 2

1 2

90980–10853

90980–10887

90980–10899

90980–10901

D
